Parameter Permutation Sweeps with RasPermutation

Generate Cartesian products of parameter ranges, automatically partition into batch folders (respecting the 99-plan HEC-RAS limit), execute in parallel, and collect results into audit-friendly CSV logs.

Python
from pathlib import Path
import sys

repo_root = Path.cwd()
if (
    not (repo_root / "ras_commander").exists()
    and (repo_root.parent / "ras_commander").exists()
):
    repo_root = repo_root.parent
if str(repo_root) not in sys.path:
    sys.path.insert(0, str(repo_root))

import ras_commander as ras_commander_pkg
from ras_commander import *
from ras_commander import RasPermutation, setup_logging
from ras_commander.hdf import HdfResultsXsec

import logging
import shutil
import time

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from IPython.display import display

setup_logging(log_level=logging.WARNING)
logging.getLogger().setLevel(logging.WARNING)
logging.getLogger("ras_commander").setLevel(logging.WARNING)

plt.style.use("default")
pd.set_option("display.max_columns", 40)
pd.set_option("display.width", 140)

Setup & Project Extraction

Start with the reproducible Muncie example project, remove any old permutation demo folders from prior runs, and inspect the existing plans in ras.plan_df.

Python
project_name = "Muncie"
working_root = repo_root / "working" / "114_parameter_permutation"
working_root.mkdir(parents=True, exist_ok=True)

suffix = "parameter_permutation_demo"
template_plan = "01"

try:
    project_path = RasExamples.extract_project(
        project_name,
        output_path=working_root,
    )
except RuntimeError as exc:
    fallback_path = working_root / project_name
    if (
        "failed to delete existing folder" in str(exc).lower()
        and fallback_path.exists()
    ):
        project_path = fallback_path
        print(
            "Using the existing extracted project because "
            "the working copy could not be deleted cleanly."
        )
    else:
        raise

ras = init_ras_project(project_path, get_ras_exe("6.6"))

master_log_path = project_path.parent / (
    f"{project_path.name}_{suffix}_master_log.csv"
)

for batch_folder in RasPermutation.discover_batch_folders(
    project_path,
    suffix=suffix,
):
    shutil.rmtree(batch_folder, ignore_errors=True)

master_log_path.unlink(missing_ok=True)

available_slots = 99 - len(ras.plan_df)
template_plan_mask = (
    ras.plan_df["plan_number"].astype(str).str.zfill(2)
    == template_plan
)
plan_overview = (
    ras.plan_df[["plan_number", "Plan Title", "Short Identifier"]]
    .sort_values("plan_number")
    .reset_index(drop=True)
)

template_plan_row = ras.plan_df.loc[template_plan_mask].iloc[0]
template_geom_number = str(
    template_plan_row["geometry_number"]
).zfill(2)
template_unsteady_number = str(
    template_plan_row["unsteady_number"]
).zfill(2)
template_geom_path = Path(template_plan_row["Geom Path"])
template_unsteady_path = Path(template_plan_row["Flow Path"])

cross_sections_df = GeomCrossSection.get_cross_sections(
    template_geom_path,
    river="White",
    reach="Muncie",
)

valid_rs = []
base_mannings_by_rs = {}
for rs in cross_sections_df["RS"].astype(str):
    try:
        base_mannings_by_rs[rs] = GeomCrossSection.get_mannings_n(
            template_geom_path,
            "White",
            "Muncie",
            rs,
        )
        valid_rs.append(rs)
    except ValueError:
        continue

monitor_stations = {
    "upstream_boundary": "15696.24",
    "mid_reach": "14535.60",
    "downstream_control": "237.6455",
}
base_channel_n = float(
    base_mannings_by_rs[monitor_stations["mid_reach"]]
    .loc[
        lambda df: df["Subsection"] == "Channel",
        "n_value",
    ]
    .iloc[0]
)

assert project_path.exists(), "Example project extraction failed"
assert template_plan_mask.any(), "Template plan 01 must exist"
assert available_slots >= 15, "Need room for all 15 permutations"
assert len(valid_rs) == 61, "Expected 61 XS with Manning data"
assert all(
    station in valid_rs for station in monitor_stations.values()
)

print(f"Project folder: {project_path}")
print(f"Working root: {working_root}")
print(
    "Using ras_commander from: "
    f"{Path(ras_commander_pkg.__file__).resolve()}"
)
print(f"Existing plans: {len(ras.plan_df)}")
print(
    "Available new-plan slots before the 99-plan ceiling: "
    f"{available_slots}"
)
print(f"Template geometry: g{template_geom_number}")
print(f"Template unsteady flow: u{template_unsteady_number}")
print(f"Valid XS with Manning data: {len(valid_rs)}")
print(f"Base main-channel n in the template plan: {base_channel_n:.2f}")
print(
    "Monitoring stations: "
    + ", ".join(
        f"{name}={station}"
        for name, station in monitor_stations.items()
    )
)
display(plan_overview)
display(
    cross_sections_df[
        ["River", "Reach", "RS", "Length_Channel"]
    ].head()
)
Text Only
Project folder: C:\GH\ras-commander\working\114_parameter_permutation\Muncie
Working root: C:\GH\ras-commander\working\114_parameter_permutation
Using ras_commander from: C:\GH\ras-commander\ras_commander\__init__.py
Existing plans: 3
Available new-plan slots before the 99-plan ceiling: 96
Template geometry: g01
Template unsteady flow: u01
Valid XS with Manning data: 61
Base main-channel n in the template plan: 0.04
Monitoring stations: upstream_boundary=15696.24, mid_reach=14535.60, downstream_control=237.6455
plan_number Plan Title Short Identifier
0 01 Unsteady Multi  9-SA run 9-SAs
1 03 Unsteady Run with 2D 50ft Grid 2D 50ft Grid
2 04 Unsteady Run with 2D 50ft User n Value R 50ft User n Regions
River Reach RS Length_Channel
0 White Muncie 15696.24 210.73
1 White Muncie 15485.51 115.09
2 White Muncie 15370.43 165.14
3 White Muncie 15205.29 192.09
4 White Muncie 15013.20 95.84

Define Parameters

RasPermutation.define_parameters() accepts plain value lists and RangeSpec objects. Here the sweep uses three Manning's n values and five width values, which yields a 15-row Cartesian product with a stable absolute_perm_id.

Python
parameter_spec = {
    "channel_n": [0.03, 0.04, 0.05],
    "inflow_multiplier": [0.8, 0.9, 1.0, 1.1, 1.2],
}

expected_channel_n_values = [0.03, 0.04, 0.05]
expected_multiplier_values = [0.8, 0.9, 1.0, 1.1, 1.2]
parameters_df = RasPermutation.define_parameters(parameter_spec)
baseline_mask = (
    np.isclose(parameters_df["channel_n"], base_channel_n)
    & np.isclose(parameters_df["inflow_multiplier"], 1.0)
)

assert sorted(parameters_df["channel_n"].unique().tolist()) == (
    expected_channel_n_values
)
assert sorted(
    parameters_df["inflow_multiplier"].unique().tolist()
) == expected_multiplier_values
assert len(parameters_df) == 15
assert parameters_df["absolute_perm_id"].tolist() == list(
    range(1, len(parameters_df) + 1)
)
assert not parameters_df[
    ["channel_n", "inflow_multiplier"]
].duplicated().any()
assert baseline_mask.sum() == 1

print(
    f"{parameters_df['channel_n'].nunique()} channel roughness values x "
    f"{parameters_df['inflow_multiplier'].nunique()} inflow multipliers = "
    f"{len(parameters_df)} permutations"
)
print("Baseline case is channel_n=0.04 and inflow_multiplier=1.00")
display(parameters_df)
Text Only
3 channel roughness values x 5 inflow multipliers = 15 permutations
Baseline case is channel_n=0.04 and inflow_multiplier=1.00
absolute_perm_id channel_n inflow_multiplier
0 1 0.03 0.8
1 2 0.03 0.9
2 3 0.03 1.0
3 4 0.03 1.1
4 5 0.03 1.2
5 6 0.04 0.8
6 7 0.04 0.9
7 8 0.04 1.0
8 9 0.04 1.1
9 10 0.04 1.2
10 11 0.05 0.8
11 12 0.05 0.9
12 13 0.05 1.0
13 14 0.05 1.1
14 15 0.05 1.2

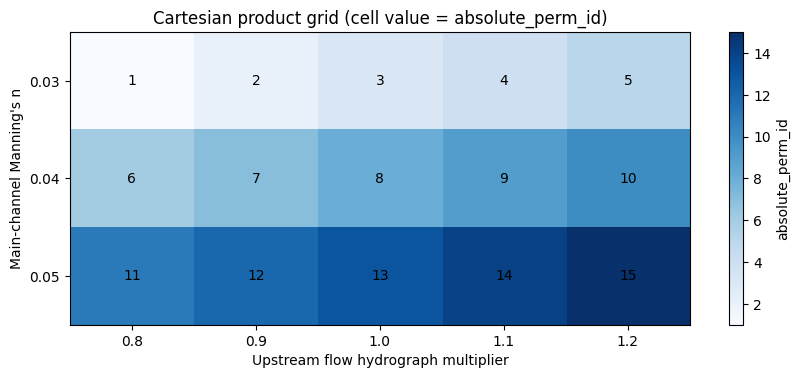

Cartesian Product Visualization

A compact way to see the sweep is to pivot the permutation table by parameter values. Each heatmap cell corresponds to one row in the permutation DataFrame, labeled by absolute_perm_id.

Python
grid = parameters_df.pivot(
    index="channel_n",
    columns="inflow_multiplier",
    values="absolute_perm_id",
)
display(grid)

fig, ax = plt.subplots(figsize=(10, 3.8))
image = ax.imshow(grid.values, cmap="Blues", aspect="auto")

ax.set_xticks(range(len(grid.columns)))
ax.set_xticklabels([f"{value:.1f}" for value in grid.columns])
ax.set_yticks(range(len(grid.index)))
ax.set_yticklabels([f"{value:.2f}" for value in grid.index])
ax.set_xlabel("Upstream flow hydrograph multiplier")
ax.set_ylabel("Main-channel Manning's n")
ax.set_title(
    "Cartesian product grid (cell value = absolute_perm_id)"
)

for row_index in range(grid.shape[0]):
    for col_index in range(grid.shape[1]):
        ax.text(
            col_index,
            row_index,
            int(grid.iloc[row_index, col_index]),
            ha="center",
            va="center",
            color="black",
            fontsize=10,
        )

plt.colorbar(image, ax=ax, label="absolute_perm_id")
plt.show()
inflow_multiplier 0.8 0.9 1.0 1.1 1.2
channel_n
0.03 1 2 3 4 5
0.04 6 7 8 9 10
0.05 11 12 13 14 15

png

Generate Plans

RasPermutation.generate_plans() clones the template plan, applies a custom apply_fn, and writes both a master CSV and a per-batch CSV. This notebook deliberately stops at plan generation and CSV tracking: execute_and_summarize() is intentionally omitted because actual HEC-RAS execution is slow.

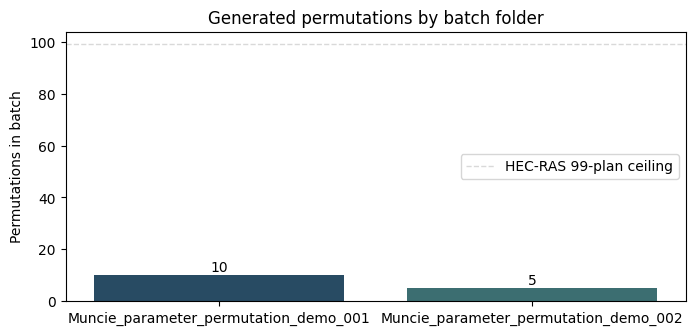

HEC-RAS allows at most 99 plans per project. Muncie starts with 3 plans, so up to 96 new plans could fit in one cloned project. To make the batch behavior visible in a small example, the demo sets max_plans_per_batch=10, which forces 15 permutations into two batch folders.

Python
def project_stem(folder):
    return next(folder.glob("*.prj")).stem


def component_path_from_df(df, number_column, number_value):
    normalized_value = str(number_value).zfill(2)
    mask = (
        df[number_column].astype(str).str.zfill(2)
        == normalized_value
    )
    row = df.loc[mask].iloc[0]

    for column in ["full_path", "Geom Path", "Flow Path"]:
        if column in row.index and pd.notna(row[column]):
            return Path(row[column])

    raise KeyError(
        f"No path column found for {number_column}={normalized_value}"
    )


def read_plan_reference(plan_path, key):
    prefix = f"{key}="
    for line in plan_path.read_text(
        encoding="utf-8",
        errors="ignore",
    ).splitlines():
        if line.startswith(prefix):
            return line.split("=", 1)[1].strip()

    raise KeyError(f"{key} not found in {plan_path.name}")


def apply_permutation(plan_path, param_row, batch_ras):
    plan_number = plan_path.suffix[-2:]

    new_geom_number = RasPlan.clone_geom(
        template_geom_number,
        ras_object=batch_ras,
    )
    new_unsteady_number = RasPlan.clone_unsteady(
        template_unsteady_number,
        ras_object=batch_ras,
    )
    RasPlan.set_geom(
        plan_number,
        new_geom_number,
        ras_object=batch_ras,
    )
    RasPlan.set_unsteady(
        plan_number,
        new_unsteady_number,
        ras_object=batch_ras,
    )

    geom_path = component_path_from_df(
        batch_ras.geom_df,
        "geom_number",
        new_geom_number,
    )
    unsteady_path = component_path_from_df(
        batch_ras.unsteady_df,
        "unsteady_number",
        new_unsteady_number,
    )

    for rs in valid_rs:
        mann_df = base_mannings_by_rs[rs].copy()
        mann_df.loc[
            mann_df["Subsection"] == "Channel",
            "n_value",
        ] = float(param_row["channel_n"])
        GeomCrossSection.set_mannings_n(
            geom_path,
            "White",
            "Muncie",
            rs,
            mann_df[["Station", "n_value"]],
        )

    updated = RasUnsteady.update_flow_multiplier_by_station(
        unsteady_path,
        river_station=monitor_stations["upstream_boundary"],
        new_multiplier=float(param_row["inflow_multiplier"]),
    )
    assert updated, "Expected upstream hydrograph multiplier update"

    description = "\n".join(
        [
            "Executed parameter permutation demo",
            f"absolute_perm_id={int(param_row['absolute_perm_id'])}",
            f"channel_n={float(param_row['channel_n']):.3f}",
            (
                "inflow_multiplier="
                f"{float(param_row['inflow_multiplier']):.2f}"
            ),
            f"updated_cross_sections={len(valid_rs)}",
            (
                "boundary_station="
                f"{monitor_stations['upstream_boundary']}"
            ),
        ]
    )
    RasPlan.update_plan_description(
        plan_number,
        description,
        ras_object=batch_ras,
    )


def permutation_plan_path(batch_folder, plan_number):
    return batch_folder / (
        f"{project_stem(batch_folder)}.p{int(plan_number):02d}"
    )


plan_matrix = RasPermutation.generate_plans(
    template_plan=template_plan,
    parameters_df=parameters_df,
    apply_fn=apply_permutation,
    suffix=suffix,
    max_plans_per_batch=10,
)

master_log_df = pd.read_csv(plan_matrix["master_log"])
first_batch_folder = plan_matrix["batch_folders"][0]
first_batch_log_path = first_batch_folder / "permutations_log.csv"
first_batch_log_df = pd.read_csv(first_batch_log_path)
batch_folder_lookup = {
    folder.name: folder for folder in plan_matrix["batch_folders"]
}

expected_master_columns = [
    "absolute_perm_id",
    "batch_folder",
    "batch_index",
    "plan_number",
    "short_id",
    "plan_title",
    "channel_n",
    "inflow_multiplier",
]
generated_plan_paths = [
    permutation_plan_path(
        batch_folder_lookup[row.batch_folder],
        row.plan_number,
    )
    for row in master_log_df.itertuples(index=False)
]
first_batch_rows = master_log_df.loc[
    master_log_df["batch_folder"] == first_batch_folder.name
].reset_index(drop=True)

assert plan_matrix["total_permutations"] == len(parameters_df)
assert plan_matrix["master_log"] == master_log_path
assert plan_matrix["master_log"].exists()
assert len(plan_matrix["batch_folders"]) == plan_matrix["batches"]
assert master_log_df.columns.tolist() == expected_master_columns
assert len(master_log_df) == len(parameters_df)
assert master_log_df["absolute_perm_id"].tolist() == (
    parameters_df["absolute_perm_id"].tolist()
)
assert master_log_df["absolute_perm_id"].is_unique
assert master_log_df["plan_number"].between(1, 99).all()
assert first_batch_log_path.exists()
assert len(first_batch_log_df) == len(first_batch_rows)
assert first_batch_log_df["absolute_perm_id"].tolist() == (
    first_batch_rows["absolute_perm_id"].tolist()
)
for batch_folder in plan_matrix["batch_folders"]:
    assert batch_folder.exists()
    assert (batch_folder / f"{project_stem(batch_folder)}.prj").exists()
    assert (batch_folder / "permutations_log.csv").exists()
assert all(path.exists() for path in generated_plan_paths)

first_generated_row = master_log_df.iloc[0]
first_generated_plan_path = generated_plan_paths[0]
first_generated_plan_text = first_generated_plan_path.read_text(
    encoding="utf-8",
    errors="ignore",
)
for expected_line in [
    "Executed parameter permutation demo",
    (
        "absolute_perm_id="
        f"{int(first_generated_row['absolute_perm_id'])}"
    ),
    f"channel_n={first_generated_row['channel_n']:.3f}",
    (
        "inflow_multiplier="
        f"{first_generated_row['inflow_multiplier']:.2f}"
    ),
    f"updated_cross_sections={len(valid_rs)}",
]:
    assert expected_line in first_generated_plan_text

first_geom_ref = read_plan_reference(
    first_generated_plan_path,
    "Geom File",
)
first_flow_ref = read_plan_reference(
    first_generated_plan_path,
    "Flow File",
)
assert first_geom_ref != f"g{template_geom_number}"
assert first_flow_ref != f"u{template_unsteady_number}"

first_geom_path = first_batch_folder / (
    f"{project_stem(first_batch_folder)}.{first_geom_ref}"
)
first_unsteady_path = first_batch_folder / (
    f"{project_stem(first_batch_folder)}.{first_flow_ref}"
)
assert first_geom_path.exists()
assert first_unsteady_path.exists()

first_geom_mann_df = GeomCrossSection.get_mannings_n(
    first_geom_path,
    "White",
    "Muncie",
    monitor_stations["downstream_control"],
)
first_channel_n = float(
    first_geom_mann_df.loc[
        first_geom_mann_df["Subsection"] == "Channel",
        "n_value",
    ].iloc[0]
)
assert np.isclose(first_channel_n, first_generated_row["channel_n"])

first_unsteady_text = first_unsteady_path.read_text(
    encoding="utf-8",
    errors="ignore",
)
expected_qmult = (
    "Flow Hydrograph QMult= "
    f"{float(first_generated_row['inflow_multiplier'])}"
)
assert expected_qmult in first_unsteady_text

print(f"Master log: {plan_matrix['master_log'].name}")
print(
    "Batch folders: "
    f"{[folder.name for folder in plan_matrix['batch_folders']]}"
)
print(f"Total permutations: {plan_matrix['total_permutations']}")
print(f"Batch count: {plan_matrix['batches']}")
print(f"First generated plan: {first_generated_plan_path.name}")
print(
    f"First generated geometry clone: {first_geom_path.name} "
    f"(channel_n={first_channel_n:.3f})"
)
print(
    "First generated unsteady clone: "
    f"{first_unsteady_path.name} ({expected_qmult})"
)
print()
print("Master log preview")
display(master_log_df.head())
print("First batch log preview")
display(first_batch_log_df.head())
Text Only
Master log: Muncie_parameter_permutation_demo_master_log.csv
Batch folders: ['Muncie_parameter_permutation_demo_001', 'Muncie_parameter_permutation_demo_002']
Total permutations: 15
Batch count: 2
First generated plan: Muncie.p02
First generated geometry clone: Muncie.g03 (channel_n=0.030)
First generated unsteady clone: Muncie.u02 (Flow Hydrograph QMult= 0.8)

Master log preview
absolute_perm_id batch_folder batch_index plan_number short_id plan_title channel_n inflow_multiplier
0 1 Muncie_parameter_permutation_demo_001 1 2 9-SASP00001 Unsteady Multi  9-SA run Perm 00001 0.03 0.8
1 2 Muncie_parameter_permutation_demo_001 1 5 9-SASP00002 Unsteady Multi  9-SA run Perm 00002 0.03 0.9
2 3 Muncie_parameter_permutation_demo_001 1 6 9-SASP00003 Unsteady Multi  9-SA run Perm 00003 0.03 1.0
3 4 Muncie_parameter_permutation_demo_001 1 7 9-SASP00004 Unsteady Multi  9-SA run Perm 00004 0.03 1.1
4 5 Muncie_parameter_permutation_demo_001 1 8 9-SASP00005 Unsteady Multi  9-SA run Perm 00005 0.03 1.2
Text Only
First batch log preview
absolute_perm_id plan_number plan_title channel_n inflow_multiplier
0 1 2 Unsteady Multi  9-SA run Perm 00001 0.03 0.8
1 2 5 Unsteady Multi  9-SA run Perm 00002 0.03 0.9
2 3 6 Unsteady Multi  9-SA run Perm 00003 0.03 1.0
3 4 7 Unsteady Multi  9-SA run Perm 00004 0.03 1.1
4 5 8 Unsteady Multi  9-SA run Perm 00005 0.03 1.2

Batch Folder Organization

The master log tracks every permutation across all batch folders, while each batch folder keeps its own local permutations_log.csv. The tree preview below makes the folder layout explicit.

Python
effective_batch_size = min(99, 10, available_slots)
expected_batches = -(-len(parameters_df) // effective_batch_size)
full_batches, remainder = divmod(
    len(parameters_df),
    effective_batch_size,
)
expected_batch_sizes = [effective_batch_size] * full_batches
if remainder:
    expected_batch_sizes.append(remainder)

print(
    "Effective batch size = min(99 plan ceiling, "
    f"10 requested, {available_slots} available slots) = "
    f"{effective_batch_size}"
)
print()

master_preview = "\n".join(
    plan_matrix["master_log"].read_text(
        encoding="utf-8"
    ).splitlines()[:6]
)
batch_preview = "\n".join(
    first_batch_log_path.read_text(
        encoding="utf-8"
    ).splitlines()[:6]
)

print("Master CSV preview")
print(master_preview)
print()
print("Per-batch CSV preview")
print(batch_preview)


def render_batch_tree(batch_folder):
    lines = [f"{batch_folder.name}/"]
    for path in sorted(batch_folder.iterdir()):
        suffix = path.suffix.lower()
        is_plan_file = (
            len(suffix) == 4
            and suffix.startswith(".p")
            and suffix[2:].isdigit()
        )
        is_geom_file = (
            len(suffix) == 4
            and suffix.startswith(".g")
            and suffix[2:].isdigit()
        )
        is_unsteady_file = (
            len(suffix) == 4
            and suffix.startswith(".u")
            and suffix[2:].isdigit()
        )
        if path.is_dir() and path.name == "GIS_Data":
            lines.append(f"  {path.name}/")
        elif (
            path.name == "permutations_log.csv"
            or suffix == ".prj"
            or is_plan_file
            or is_geom_file
            or is_unsteady_file
        ):
            lines.append(f"  {path.name}")
    return "\n".join(lines)


for batch_folder in plan_matrix["batch_folders"]:
    print()
    print(render_batch_tree(batch_folder))

batch_counts = (
    master_log_df.groupby("batch_folder").size().sort_index()
)
assert plan_matrix["batches"] == expected_batches
assert batch_counts.tolist() == expected_batch_sizes
assert batch_counts.sum() == len(parameters_df)
assert batch_counts.max() <= effective_batch_size

fig, ax = plt.subplots(figsize=(8, 3.5))
bars = ax.bar(
    batch_counts.index,
    batch_counts.values,
    color=["#284b63", "#3c6e71"],
)
ax.axhline(
    99,
    color="#d9d9d9",
    linestyle="--",
    linewidth=1,
    label="HEC-RAS 99-plan ceiling",
)
ax.set_ylabel("Permutations in batch")
ax.set_title("Generated permutations by batch folder")
ax.legend()

for bar, count in zip(bars, batch_counts.values):
    ax.text(
        bar.get_x() + bar.get_width() / 2,
        bar.get_height() + 0.2,
        str(int(count)),
        ha="center",
        va="bottom",
    )

plt.xticks(rotation=0)
plt.show()
Text Only
Effective batch size = min(99 plan ceiling, 10 requested, 96 available slots) = 10

Master CSV preview
absolute_perm_id,batch_folder,batch_index,plan_number,short_id,plan_title,channel_n,inflow_multiplier
1,Muncie_parameter_permutation_demo_001,1,02,9-SASP00001,Unsteady Multi  9-SA run Perm 00001,0.03,0.8
2,Muncie_parameter_permutation_demo_001,1,05,9-SASP00002,Unsteady Multi  9-SA run Perm 00002,0.03,0.9
3,Muncie_parameter_permutation_demo_001,1,06,9-SASP00003,Unsteady Multi  9-SA run Perm 00003,0.03,1.0
4,Muncie_parameter_permutation_demo_001,1,07,9-SASP00004,Unsteady Multi  9-SA run Perm 00004,0.03,1.1
5,Muncie_parameter_permutation_demo_001,1,08,9-SASP00005,Unsteady Multi  9-SA run Perm 00005,0.03,1.2

Per-batch CSV preview
absolute_perm_id,plan_number,plan_title,channel_n,inflow_multiplier
1,02,Unsteady Multi  9-SA run Perm 00001,0.03,0.8
2,05,Unsteady Multi  9-SA run Perm 00002,0.03,0.9
3,06,Unsteady Multi  9-SA run Perm 00003,0.03,1.0
4,07,Unsteady Multi  9-SA run Perm 00004,0.03,1.1
5,08,Unsteady Multi  9-SA run Perm 00005,0.03,1.2

Muncie_parameter_permutation_demo_001/
  GIS_Data/
  Muncie.g01
  Muncie.g02
  Muncie.g03
  Muncie.g04
  Muncie.g05
  Muncie.g06
  Muncie.g07
  Muncie.g08
  Muncie.g09
  Muncie.g10
  Muncie.g11
  Muncie.g12
  Muncie.g13
  Muncie.p01
  Muncie.p02
  Muncie.p03
  Muncie.p04
  Muncie.p05
  Muncie.p06
  Muncie.p07
  Muncie.p08
  Muncie.p09
  Muncie.p10
  Muncie.p11
  Muncie.p12
  Muncie.p13
  Muncie.prj
  Muncie.u01
  Muncie.u02
  Muncie.u03
  Muncie.u04
  Muncie.u05
  Muncie.u06
  Muncie.u07
  Muncie.u08
  Muncie.u09
  Muncie.u10
  Muncie.u11
  permutations_log.csv

Muncie_parameter_permutation_demo_002/
  GIS_Data/
  Muncie.g01
  Muncie.g02
  Muncie.g03
  Muncie.g04
  Muncie.g05
  Muncie.g06
  Muncie.g07
  Muncie.g08
  Muncie.p01
  Muncie.p02
  Muncie.p03
  Muncie.p04
  Muncie.p05
  Muncie.p06
  Muncie.p07
  Muncie.p08
  Muncie.prj
  Muncie.u01
  Muncie.u02
  Muncie.u03
  Muncie.u04
  Muncie.u05
  Muncie.u06
  permutations_log.csv

png

Discover Batch Folders

RasPermutation.discover_batch_folders() is useful when you want to resume work from an existing sweep folder without regenerating plans. It finds folders that follow the {project}_{suffix}_{NNN} naming convention and returns them in numeric order.

Python
discovered_batches = RasPermutation.discover_batch_folders(
    project_path,
    suffix=suffix,
)

print("Discovered batch folders:")
for folder in discovered_batches:
    print(f"- {folder}")

batch_summary = (
    master_log_df.groupby("batch_folder")["absolute_perm_id"]
    .agg(["min", "max", "count"])
)
expected_summary_rows = []
next_perm_id = 1
for batch_folder_name, count in batch_counts.items():
    expected_summary_rows.append(
        {
            "batch_folder": batch_folder_name,
            "min": next_perm_id,
            "max": next_perm_id + count - 1,
            "count": count,
        }
    )
    next_perm_id += count
expected_batch_summary = pd.DataFrame(
    expected_summary_rows
).set_index("batch_folder")

display(batch_summary)

assert discovered_batches == plan_matrix["batch_folders"]
assert batch_summary.equals(expected_batch_summary)
assert batch_summary["count"].sum() == len(parameters_df)
Text Only
Discovered batch folders:
- C:\GH\ras-commander\working\114_parameter_permutation\Muncie_parameter_permutation_demo_001
- C:\GH\ras-commander\working\114_parameter_permutation\Muncie_parameter_permutation_demo_002
min max count
batch_folder
Muncie_parameter_permutation_demo_001 1 10 10
Muncie_parameter_permutation_demo_002 11 15 5

Execute All Permutations

Python
execution_max_workers = 4
execution_num_cores = 2

start_time = time.perf_counter()
executed_df = RasPermutation.execute_and_summarize(
    plan_matrix,
    max_workers=execution_max_workers,
    num_cores=execution_num_cores,
    ras_object=ras,
)
wall_clock_seconds = time.perf_counter() - start_time

assert len(executed_df) == len(parameters_df)
assert set(executed_df["status"]) == {"completed"}
assert executed_df["runtime_seconds"].notna().all()
assert executed_df["max_wse"].notna().all()
assert executed_df["hdf_path"].notna().all()
assert executed_df["hdf_path"].map(
    lambda value: Path(value).exists()
).all()

total_worker_runtime_seconds = executed_df["runtime_seconds"].sum()

print(
    f"Executed {len(executed_df)} permutations with "
    f"{execution_max_workers} workers x "
    f"{execution_num_cores} cores per worker."
)
print(f"Wall-clock runtime: {wall_clock_seconds:.1f} seconds")
print(
    "Summed per-plan runtime from HEC-RAS metadata: "
    f"{total_worker_runtime_seconds:.1f} seconds"
)
display(
    executed_df[
        [
            "absolute_perm_id",
            "plan_number",
            "channel_n",
            "inflow_multiplier",
            "status",
            "max_wse",
            "runtime_seconds",
        ]
    ]
)
Text Only
Executed 15 permutations with 4 workers x 2 cores per worker.
Wall-clock runtime: 113.7 seconds
Summed per-plan runtime from HEC-RAS metadata: 243.6 seconds
absolute_perm_id plan_number channel_n inflow_multiplier status max_wse runtime_seconds
0 1 2 0.03 0.8 completed 953.876709 16.703
1 2 5 0.03 0.9 completed 956.004578 16.844
2 3 6 0.03 1.0 completed 957.117798 17.155
3 4 7 0.03 1.1 completed 958.757568 17.078
4 5 8 0.03 1.2 completed 960.415710 16.156
5 6 9 0.04 0.8 completed 953.988770 15.468
6 7 10 0.04 0.9 completed 954.720398 17.047
7 8 11 0.04 1.0 completed 955.419312 17.344
8 9 12 0.04 1.1 completed 956.090271 13.641
9 10 13 0.04 1.2 completed 956.736267 14.001
10 11 2 0.05 0.8 completed 954.659485 16.969
11 12 5 0.05 0.9 completed 955.410828 17.141
12 13 6 0.05 1.0 completed 956.125427 16.859
13 14 7 0.05 1.1 completed 956.809326 17.641
14 15 8 0.05 1.2 completed 957.466064 13.595

Compile Results and Autonomous Analysis

Python
analysis_rows = []
for row in executed_df.itertuples(index=False):
    hdf_path = Path(row.hdf_path)
    xsec_ds = HdfResultsXsec.get_xsec_timeseries(hdf_path)
    station_lookup = {
        str(station): index
        for index, station in enumerate(
            xsec_ds["Station"].values.tolist()
        )
    }

    analysis_row = {
        "absolute_perm_id": row.absolute_perm_id,
    }
    for label, station in monitor_stations.items():
        station_index = station_lookup[station]
        analysis_row[f"{label}_max_wse"] = float(
            xsec_ds["Maximum_Water_Surface"].values[station_index]
        )
        analysis_row[f"{label}_max_flow"] = float(
            xsec_ds["Maximum_Flow"].values[station_index]
        )
    analysis_rows.append(analysis_row)

compiled_metrics_df = pd.DataFrame(analysis_rows)
compiled_results_df = (
    executed_df.merge(
        compiled_metrics_df,
        on="absolute_perm_id",
        how="left",
    )
    .sort_values(["channel_n", "inflow_multiplier"])
    .reset_index(drop=True)
)

baseline_mask = (
    np.isclose(compiled_results_df["channel_n"], base_channel_n)
    & np.isclose(compiled_results_df["inflow_multiplier"], 1.0)
)
assert baseline_mask.sum() == 1

baseline_row = compiled_results_df.loc[baseline_mask].iloc[0]
baseline_upstream_peak_cfs = float(
    baseline_row["upstream_boundary_max_flow"]
)
compiled_results_df["expected_upstream_peak_flow"] = (
    baseline_upstream_peak_cfs
    * compiled_results_df["inflow_multiplier"]
)
compiled_results_df["upstream_peak_flow_error_cfs"] = (
    compiled_results_df["upstream_boundary_max_flow"]
    - compiled_results_df["expected_upstream_peak_flow"]
)

assert (
    compiled_results_df["upstream_peak_flow_error_cfs"].abs().max()
    < 5.0
)

for column in [
    "max_wse",
    "mid_reach_max_wse",
    "downstream_control_max_wse",
    "runtime_seconds",
]:
    compiled_results_df[f"delta_{column}"] = (
        compiled_results_df[column] - float(baseline_row[column])
    )

compiled_results_path = plan_matrix["master_log"].with_name(
    plan_matrix["master_log"].stem + "_compiled_results.csv"
)
compiled_results_df.to_csv(compiled_results_path, index=False)

print(f"Compiled results saved to: {compiled_results_path}")
display(
    compiled_results_df[
        [
            "absolute_perm_id",
            "channel_n",
            "inflow_multiplier",
            "max_wse",
            "mid_reach_max_wse",
            "downstream_control_max_wse",
            "upstream_boundary_max_flow",
            "runtime_seconds",
        ]
    ]
)

global_pivot = compiled_results_df.pivot(
    index="channel_n",
    columns="inflow_multiplier",
    values="max_wse",
)
downstream_pivot = compiled_results_df.pivot(
    index="channel_n",
    columns="inflow_multiplier",
    values="downstream_control_max_wse",
)
runtime_pivot = compiled_results_df.pivot(
    index="channel_n",
    columns="inflow_multiplier",
    values="runtime_seconds",
)


def plot_heatmap(pivot_df, title, colorbar_label, cmap):
    fig, ax = plt.subplots(figsize=(10, 3.8))
    image = ax.imshow(pivot_df.values, cmap=cmap, aspect="auto")
    ax.set_xticks(range(len(pivot_df.columns)))
    ax.set_xticklabels(
        [f"{value:.1f}" for value in pivot_df.columns]
    )
    ax.set_yticks(range(len(pivot_df.index)))
    ax.set_yticklabels(
        [f"{value:.2f}" for value in pivot_df.index]
    )
    ax.set_xlabel("Upstream flow hydrograph multiplier")
    ax.set_ylabel("Main-channel Manning's n")
    ax.set_title(title)

    for row_index in range(pivot_df.shape[0]):
        for col_index in range(pivot_df.shape[1]):
            ax.text(
                col_index,
                row_index,
                f"{pivot_df.iloc[row_index, col_index]:.2f}",
                ha="center",
                va="center",
                color="black",
                fontsize=9,
            )

    plt.colorbar(image, ax=ax, label=colorbar_label)
    plt.show()

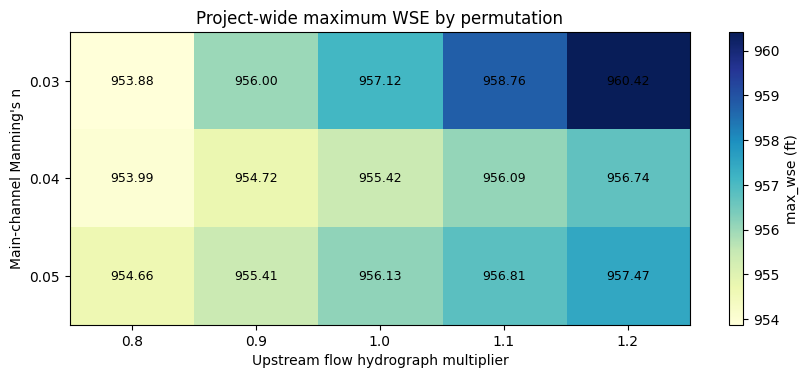

plot_heatmap(
    global_pivot,
    "Project-wide maximum WSE by permutation",
    "max_wse (ft)",
    "YlGnBu",
)

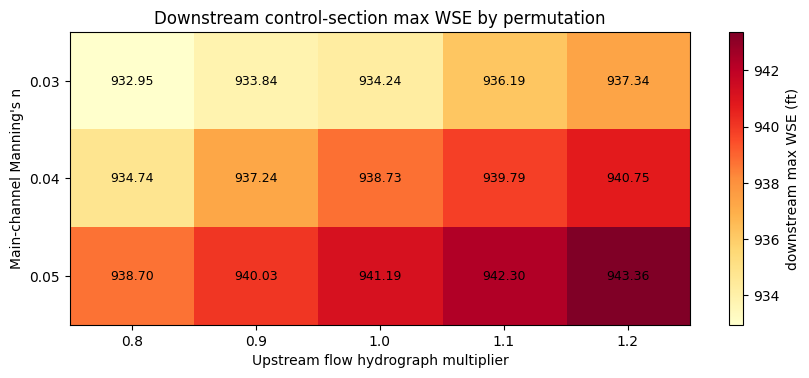

plot_heatmap(
    downstream_pivot,
    "Downstream control-section max WSE by permutation",
    "downstream max WSE (ft)",
    "YlOrRd",
)

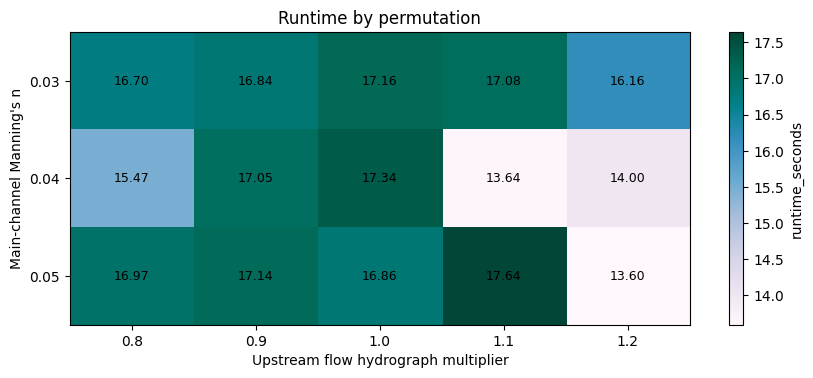

plot_heatmap(
    runtime_pivot,
    "Runtime by permutation",
    "runtime_seconds",
    "PuBuGn",
)

ranked_df = compiled_results_df.sort_values(
    ["downstream_control_max_wse", "runtime_seconds"],
    ascending=[False, True],
).reset_index(drop=True)

downstream_monotonic_by_multiplier = (
    compiled_results_df.sort_values("inflow_multiplier")
    .groupby("channel_n")["downstream_control_max_wse"]
    .apply(lambda series: series.is_monotonic_increasing)
    .all()
)
downstream_monotonic_by_roughness = (
    compiled_results_df.sort_values("channel_n")
    .groupby("inflow_multiplier")["downstream_control_max_wse"]
    .apply(lambda series: series.is_monotonic_increasing)
    .all()
)
global_monotonic_by_roughness = (
    compiled_results_df.sort_values("channel_n")
    .groupby("inflow_multiplier")["max_wse"]
    .apply(lambda series: series.is_monotonic_increasing)
    .all()
)
mean_runtime_by_channel_n = (
    compiled_results_df.groupby("channel_n")["runtime_seconds"]
    .mean()
    .sort_index()
)

highest_global = compiled_results_df.loc[
    compiled_results_df["max_wse"].idxmax()
]
highest_downstream = compiled_results_df.loc[
    compiled_results_df["downstream_control_max_wse"].idxmax()
]
fastest_case = compiled_results_df.loc[
    compiled_results_df["runtime_seconds"].idxmin()
]

print("Autonomous interpretation")
print(
    f"- All {len(compiled_results_df)} permutations completed successfully."
)
print(
    "- Increasing the inflow multiplier increased the downstream "
    "control-section WSE in every roughness slice: "
    f"{downstream_monotonic_by_multiplier}."
)
print(
    "- Increasing channel roughness increased the downstream "
    "control-section WSE in every inflow slice: "
    f"{downstream_monotonic_by_roughness}."
)
runtime_summary = ", ".join(
    f"{channel_n:.2f} -> {runtime_value:.1f}s"
    for channel_n, runtime_value in mean_runtime_by_channel_n.items()
)
runtime_spread = (
    compiled_results_df["runtime_seconds"].max()
    - compiled_results_df["runtime_seconds"].min()
)
print(
    "- Runtime was sensitive but not strictly monotonic with "
    f"roughness in this small sweep ({runtime_summary}; spread "
    f"{runtime_spread:.1f}s). That suggests worker scheduling and "
    "pre/post-processing overhead are still visible at this model "
    "size."
)
print(
    "- The project-wide max WSE was not strictly monotonic with "
    "roughness across all inflow multipliers: "
    f"{global_monotonic_by_roughness}. "
    "That suggests the controlling global maximum shifts location, "
    "so the downstream control section is the clearer sensitivity "
    "metric for this sweep."
)
print(
    "- Highest project-wide max WSE: "
    f"n={highest_global['channel_n']:.2f}, "
    f"multiplier={highest_global['inflow_multiplier']:.1f}, "
    f"max_wse={highest_global['max_wse']:.2f} ft."
)
print(
    "- Highest downstream control-section WSE: "
    f"n={highest_downstream['channel_n']:.2f}, "
    f"multiplier={highest_downstream['inflow_multiplier']:.1f}, "
    f"downstream_max_wse="
    f"{highest_downstream['downstream_control_max_wse']:.2f} ft."
)
print(
    "- Fastest run: "
    f"n={fastest_case['channel_n']:.2f}, "
    f"multiplier={fastest_case['inflow_multiplier']:.1f}, "
    f"runtime={fastest_case['runtime_seconds']:.1f} seconds."
)

display(
    ranked_df[
        [
            "absolute_perm_id",
            "channel_n",
            "inflow_multiplier",
            "max_wse",
            "downstream_control_max_wse",
            "runtime_seconds",
            "delta_downstream_control_max_wse",
        ]
    ].head(10)
)
Text Only
Compiled results saved to: C:\GH\ras-commander\working\114_parameter_permutation\Muncie_parameter_permutation_demo_master_log_compiled_results.csv
absolute_perm_id channel_n inflow_multiplier max_wse mid_reach_max_wse downstream_control_max_wse upstream_boundary_max_flow runtime_seconds
0 1 0.03 0.8 953.876709 952.606812 932.948853 16800.0 16.703
1 2 0.03 0.9 956.004578 955.113892 933.841370 18900.0 16.844
2 3 0.03 1.0 957.117798 956.246826 934.244141 21000.0 17.155
3 4 0.03 1.1 958.757568 957.991699 936.185120 23100.0 17.078
4 5 0.03 1.2 960.415710 959.721680 937.337830 25200.0 16.156
5 6 0.04 0.8 953.988770 951.992126 934.744751 16800.0 15.468
6 7 0.04 0.9 954.720398 952.627441 937.240723 18900.0 17.047
7 8 0.04 1.0 955.419312 953.233215 938.728638 21000.0 17.344
8 9 0.04 1.1 956.090271 953.815247 939.794800 23100.0 13.641
9 10 0.04 1.2 956.736267 954.374695 940.754395 25200.0 14.001
10 11 0.05 0.8 954.659485 952.478271 938.702454 16800.0 16.969
11 12 0.05 0.9 955.410828 953.119446 940.031006 18900.0 17.141
12 13 0.05 1.0 956.125427 953.728638 941.193970 21000.0 16.859
13 14 0.05 1.1 956.809326 954.310242 942.302856 23100.0 17.641
14 15 0.05 1.2 957.466064 954.867249 943.364502 25200.0 13.595

png

png

png

Text Only
Autonomous interpretation
- All 15 permutations completed successfully.
- Increasing the inflow multiplier increased the downstream control-section WSE in every roughness slice: True.
- Increasing channel roughness increased the downstream control-section WSE in every inflow slice: True.
- Runtime was sensitive but not strictly monotonic with roughness in this small sweep (0.03 -> 16.8s, 0.04 -> 15.5s, 0.05 -> 16.4s; spread 4.0s). That suggests worker scheduling and pre/post-processing overhead are still visible at this model size.
- The project-wide max WSE was not strictly monotonic with roughness across all inflow multipliers: False. That suggests the controlling global maximum shifts location, so the downstream control section is the clearer sensitivity metric for this sweep.
- Highest project-wide max WSE: n=0.03, multiplier=1.2, max_wse=960.42 ft.
- Highest downstream control-section WSE: n=0.05, multiplier=1.2, downstream_max_wse=943.36 ft.
- Fastest run: n=0.05, multiplier=1.2, runtime=13.6 seconds.
absolute_perm_id channel_n inflow_multiplier max_wse downstream_control_max_wse runtime_seconds delta_downstream_control_max_wse
0 15 0.05 1.2 957.466064 943.364502 13.595 4.635864
1 14 0.05 1.1 956.809326 942.302856 17.641 3.574219
2 13 0.05 1.0 956.125427 941.193970 16.859 2.465332
3 10 0.04 1.2 956.736267 940.754395 14.001 2.025757
4 12 0.05 0.9 955.410828 940.031006 17.141 1.302368
5 9 0.04 1.1 956.090271 939.794800 13.641 1.066162
6 8 0.04 1.0 955.419312 938.728638 17.344 0.000000
7 11 0.05 0.8 954.659485 938.702454 16.969 -0.026184
8 5 0.03 1.2 960.415710 937.337830 16.156 -1.390808
9 7 0.04 0.9 954.720398 937.240723 17.047 -1.487915

Key Takeaways

  • RasPermutation.define_parameters() turns a small parameter spec into a reproducible Cartesian product table with stable absolute_perm_id values.
  • apply_fn can do real work, not just metadata edits. In this notebook each permutation gets its own cloned geometry and cloned unsteady flow file before execution.
  • RasPermutation.execute_and_summarize() can drive the whole sweep with real HEC-RAS runs. Here it executes 15 permutations using 4 workers and 2 cores per worker.
  • Compiling HDF outputs back into a single DataFrame makes the workflow reviewable and automation-friendly: the notebook saves a compiled CSV, ranks scenarios, and interprets the parameter response.
  • Looking at both a project-wide max WSE and a monitoring station WSE is important. The global maximum can move around, while the downstream control section gives a clearer sensitivity signal for this 1D sweep.
CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms seeking to modernize H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
