HECRASController Profiles

Python
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False  # <-- TOGGLE THIS

import sys
from pathlib import Path

if USE_LOCAL_SOURCE:
    local_path = str(Path.cwd().parent)
    if local_path not in sys.path:
        sys.path.insert(0, local_path)
    print(f"LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
    print("PIP PACKAGE MODE: Loading installed ras-commander")

# Import ras-commander
from ras_commander import RasCmdr, RasControl, RasExamples, RasPlan, init_ras_project, ras

# Additional imports for this notebook
import os
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.dates as mdates
import numpy as np
from IPython import display

# Verify which version loaded
import ras_commander
print(f"Loaded: {ras_commander.__file__}")
Text Only
PIP PACKAGE MODE: Loading installed ras-commander
Loaded: c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\__init__.py

Prerequisites

Before running this notebook, ensure you have:

  1. ras-commander installed: pip install ras-commander
  2. Python 3.10+: Check with python --version
  3. HEC-RAS 5.x or earlier: COM interface requires legacy versions
  4. pywin32: pip install pywin32

What You'll Learn

This notebook demonstrates legacy COM-based automation using RasControl:

  • HECRASController: COM interface for HEC-RAS 3.x-5.x
  • Steady Flow Results: Extract profiles from steady flow runs

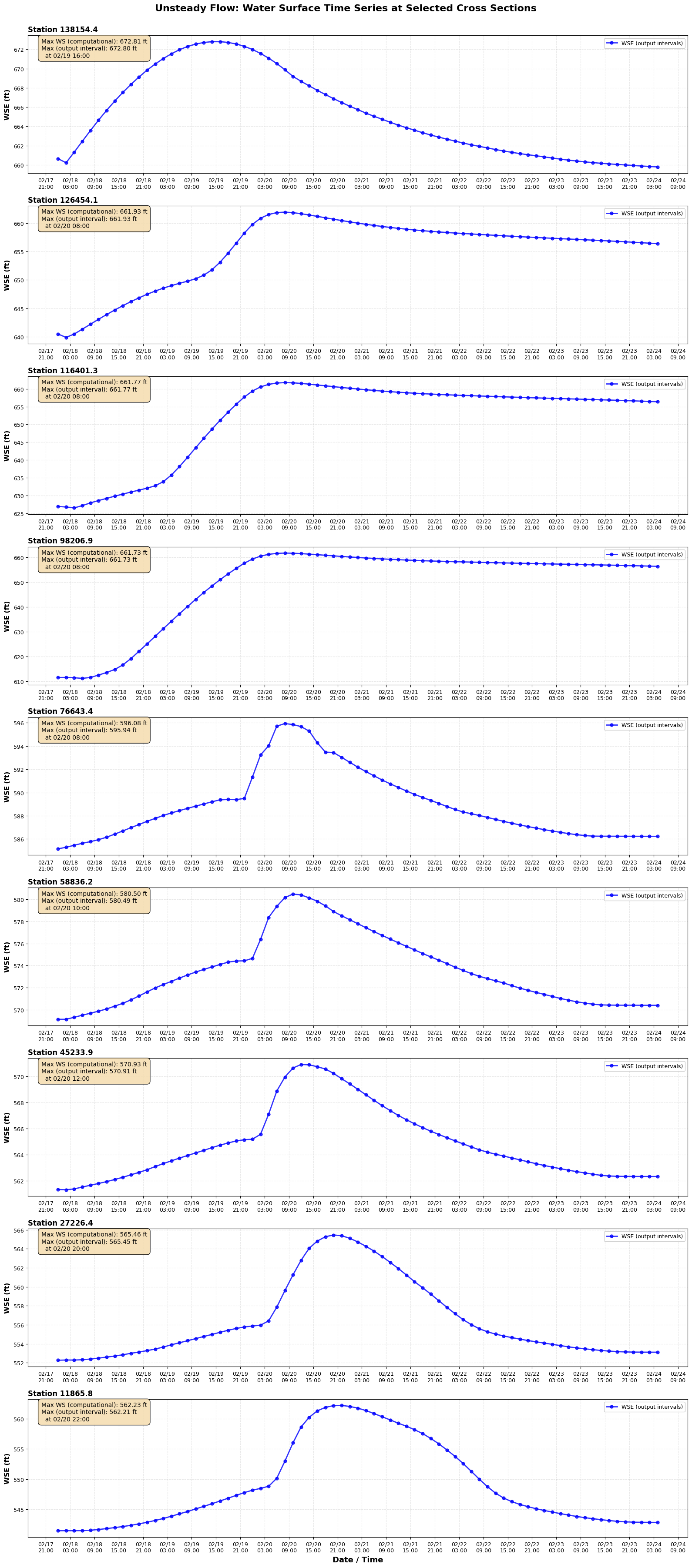

  • Unsteady Flow Results: Time series data from unsteady runs

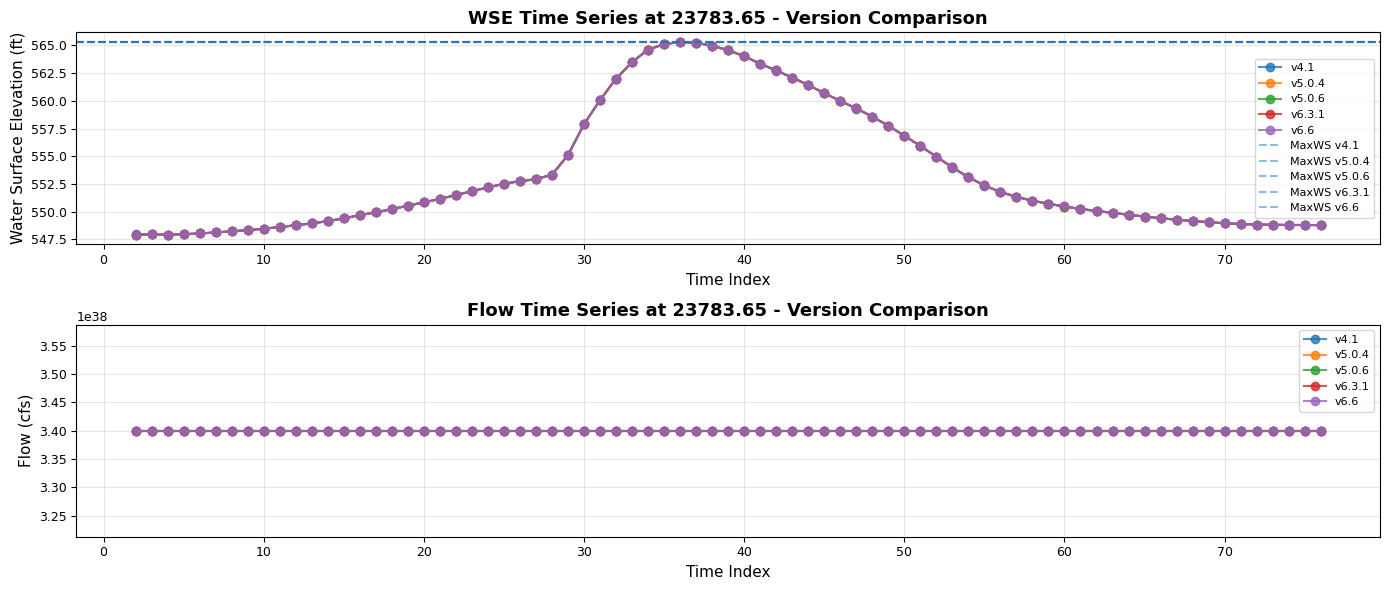

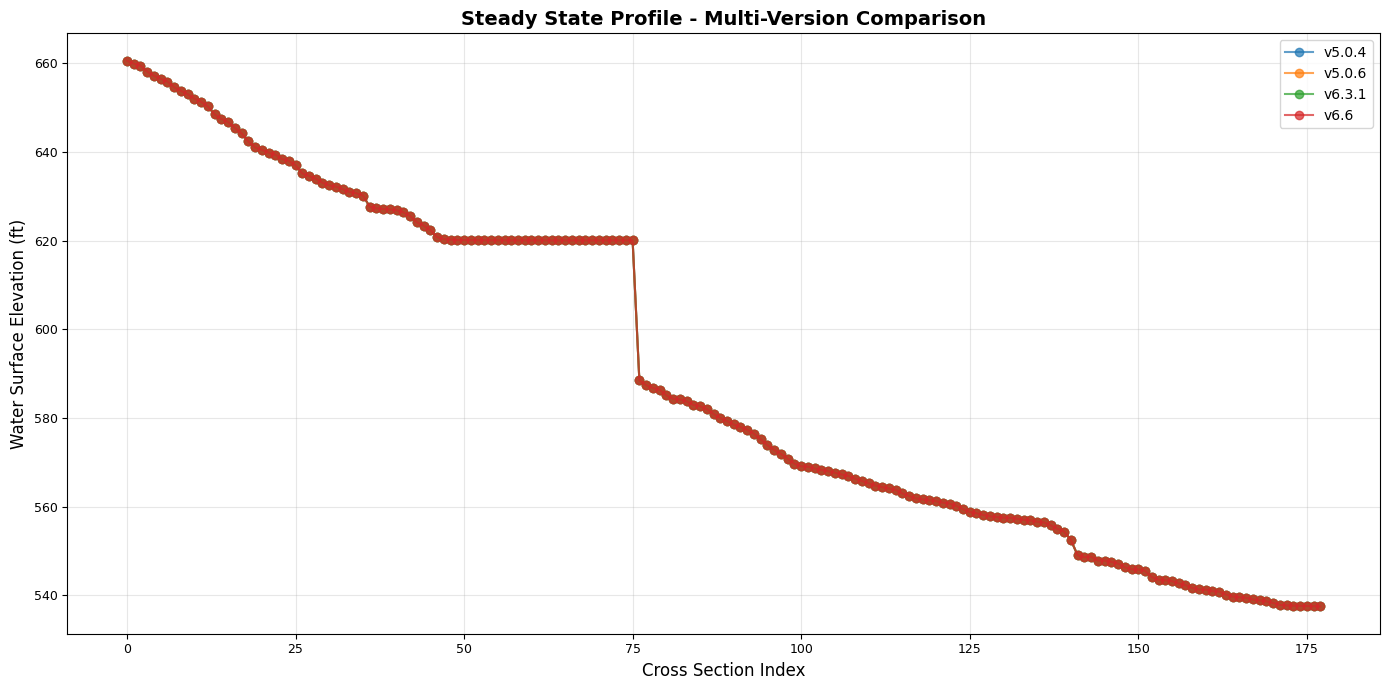

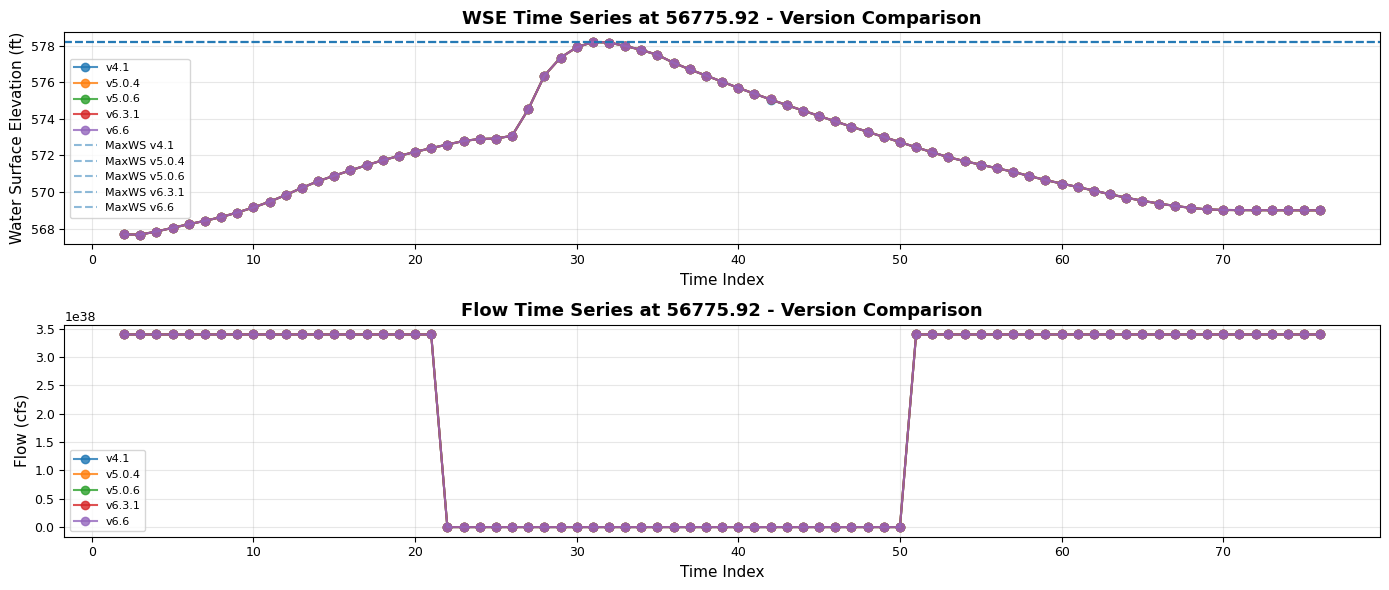

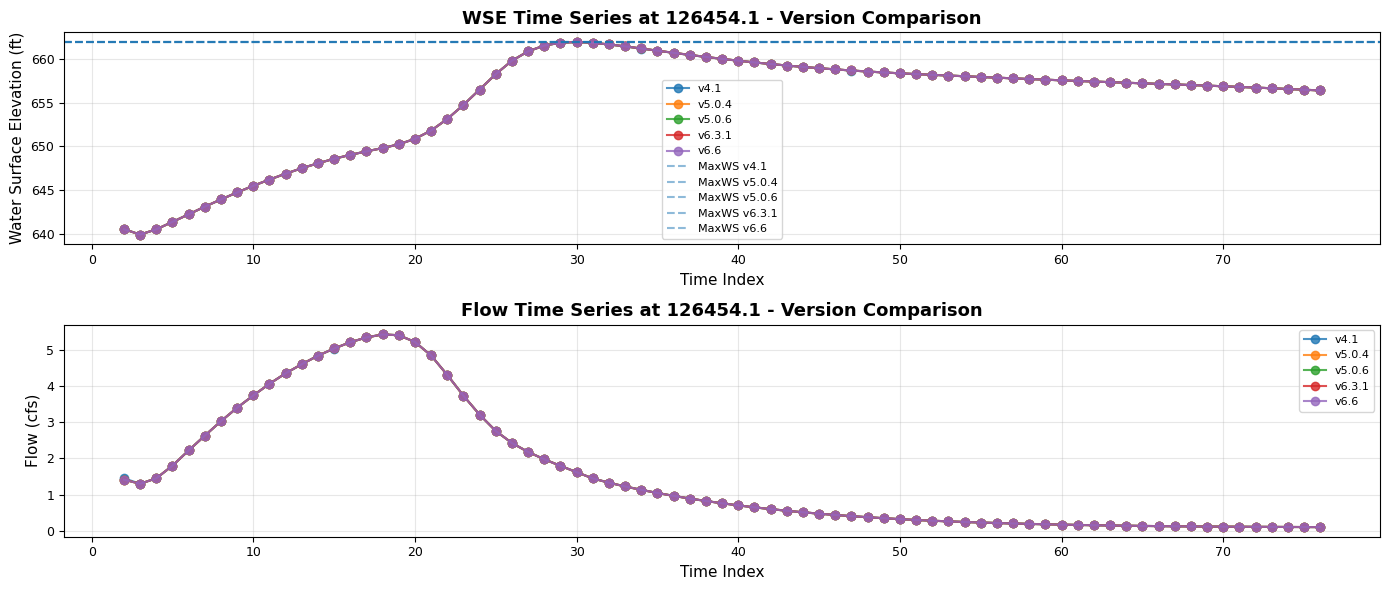

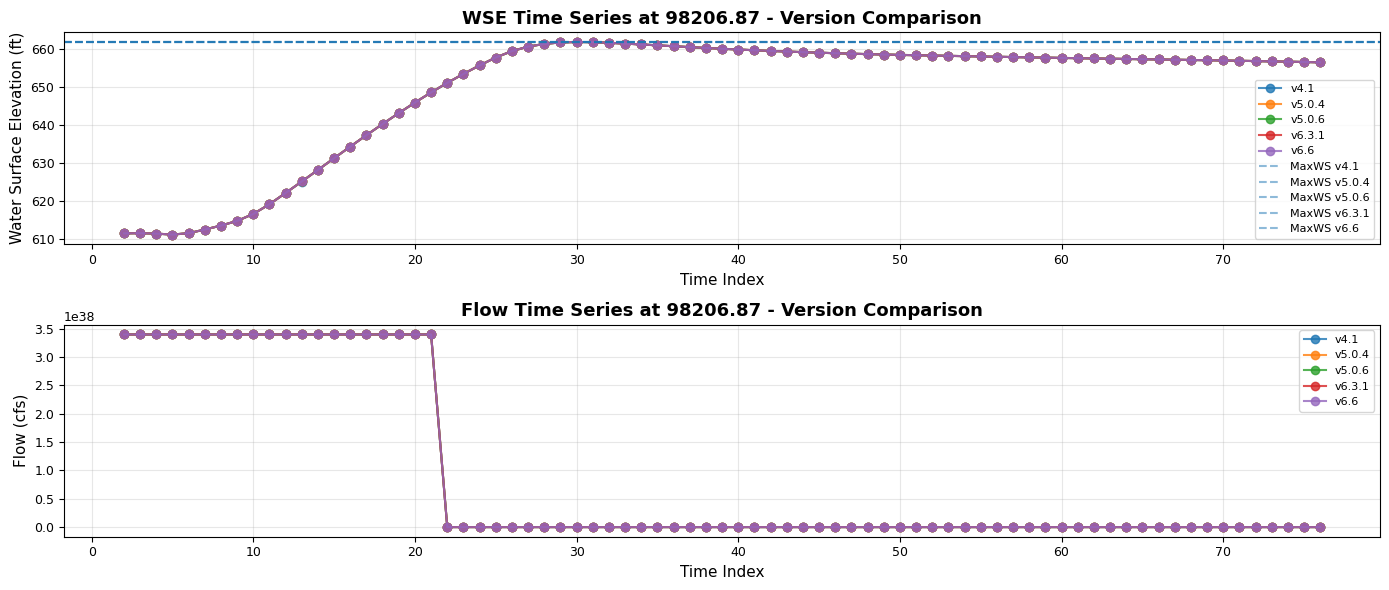

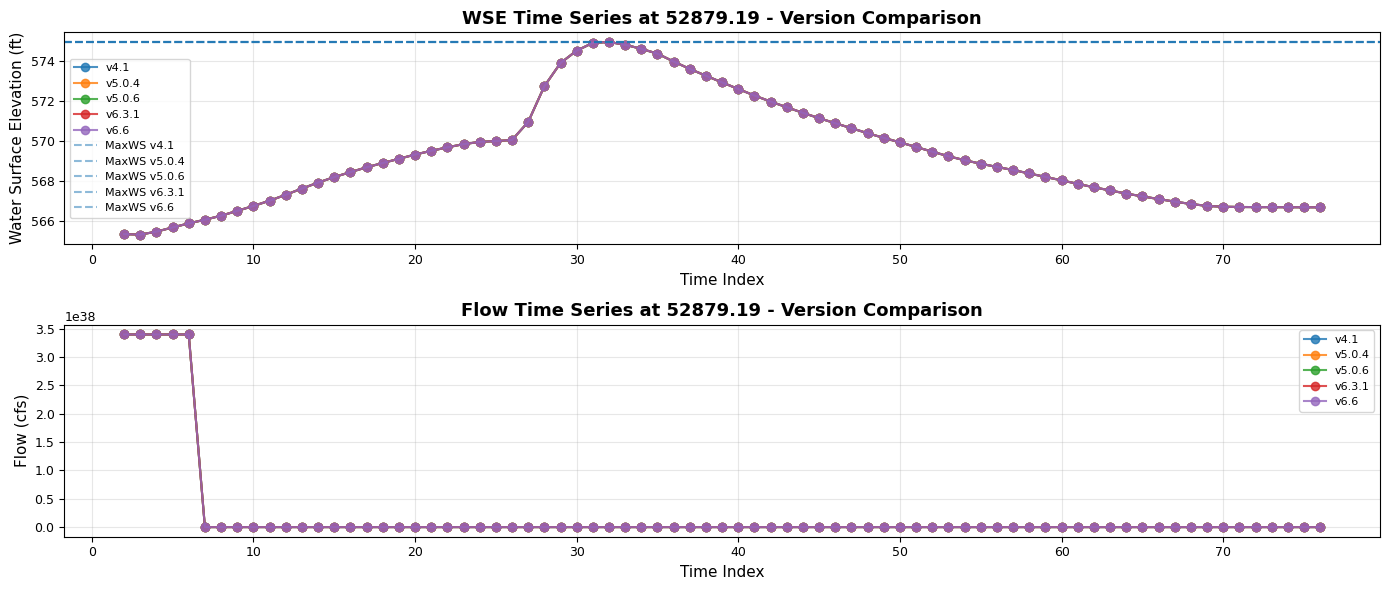

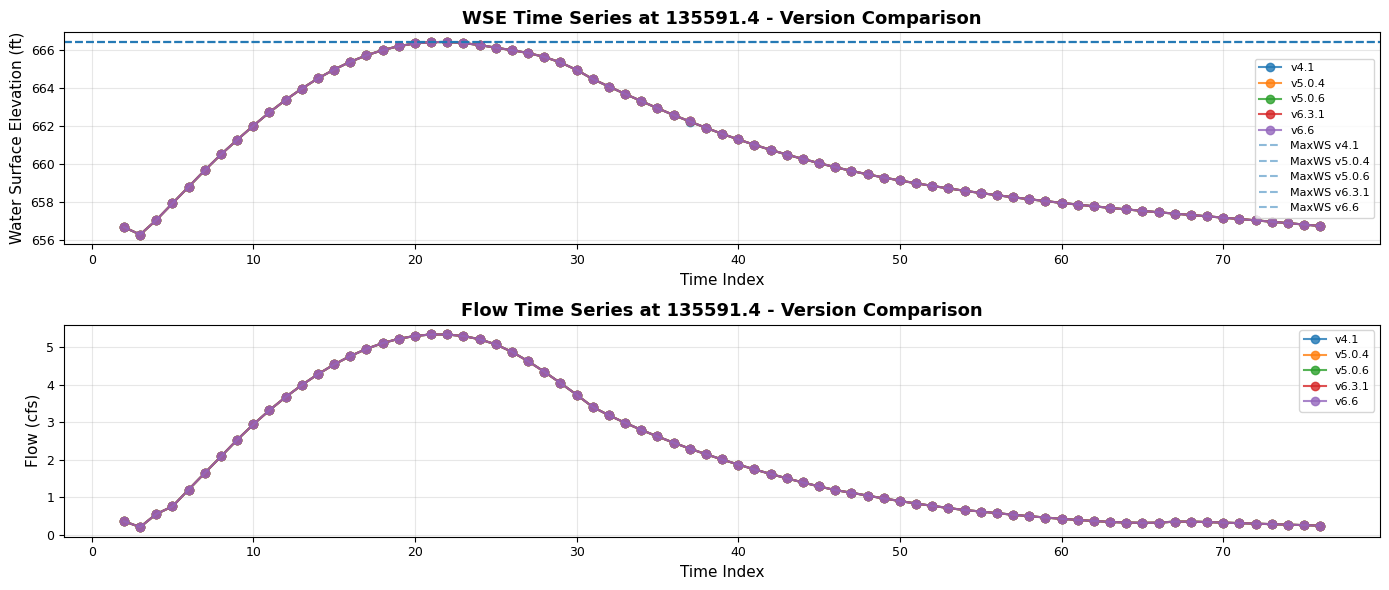

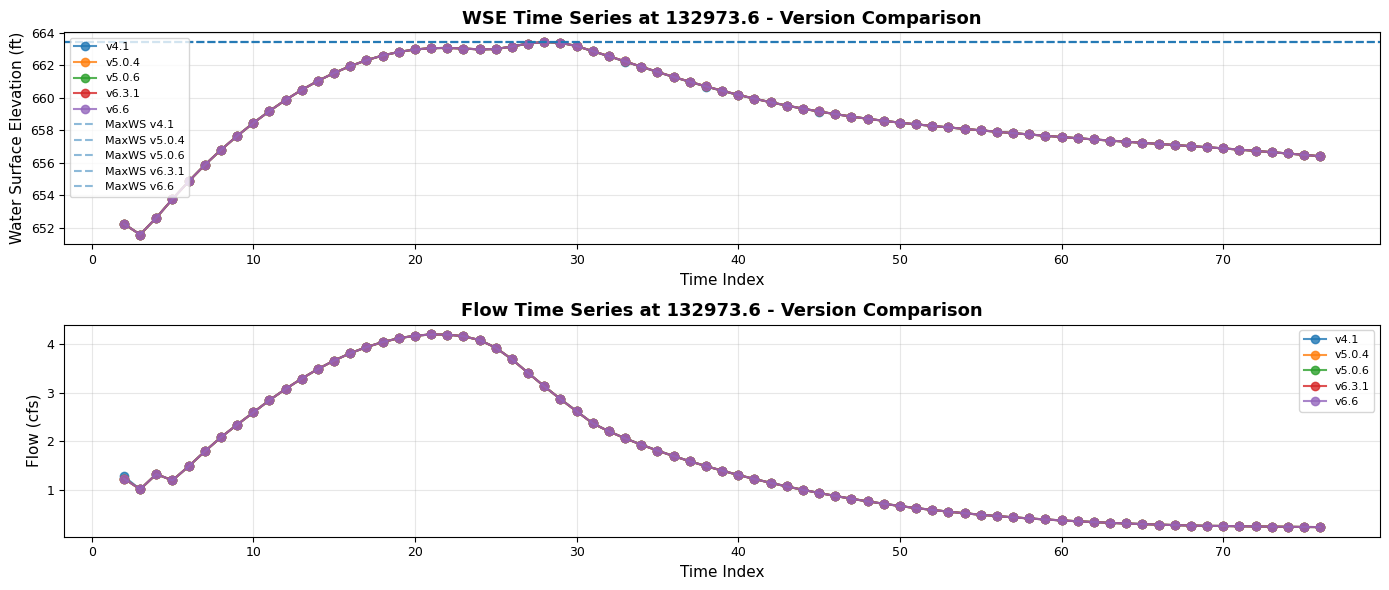

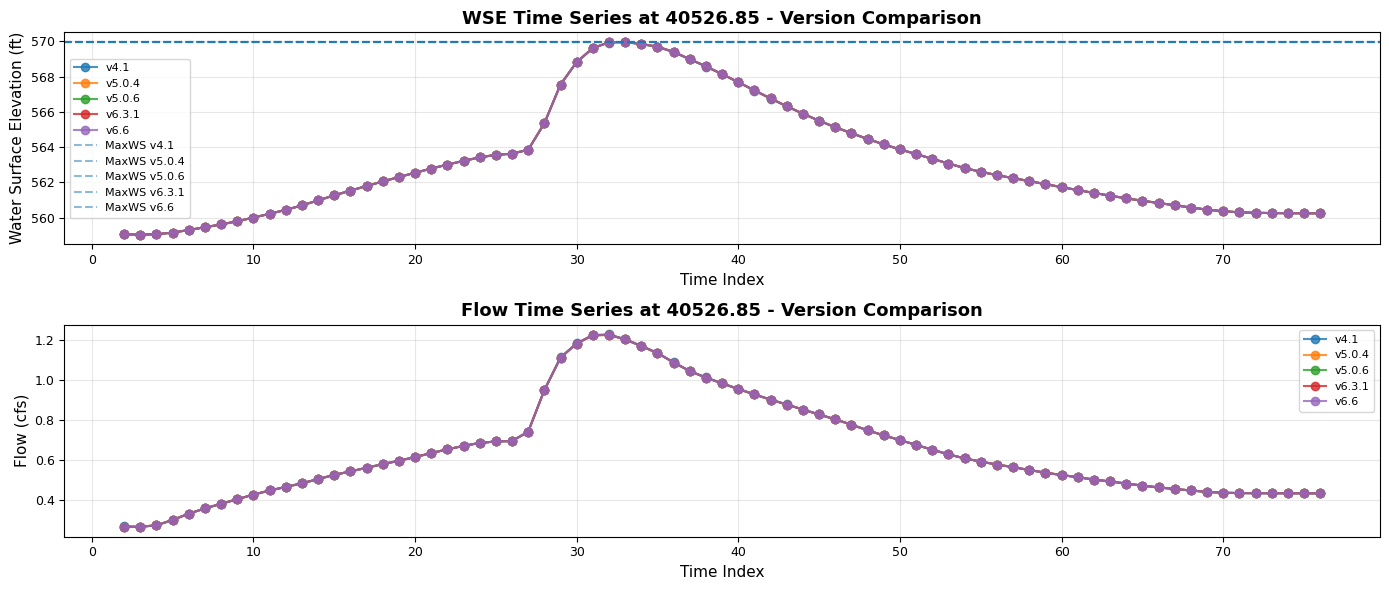

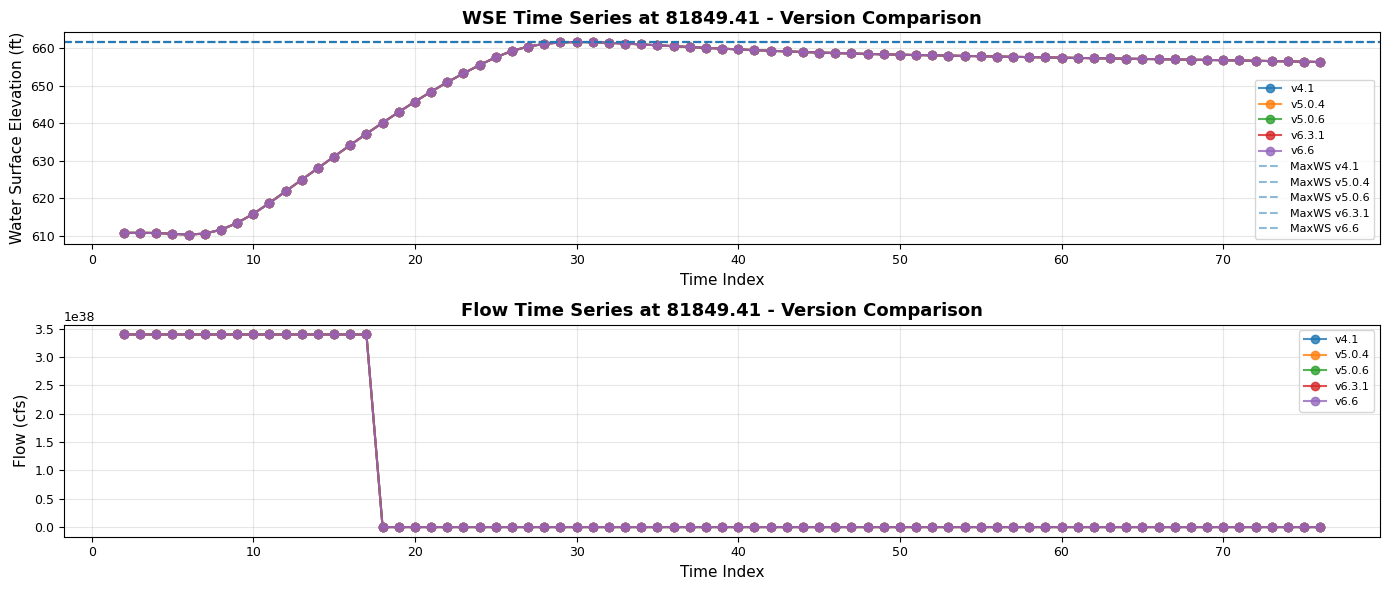

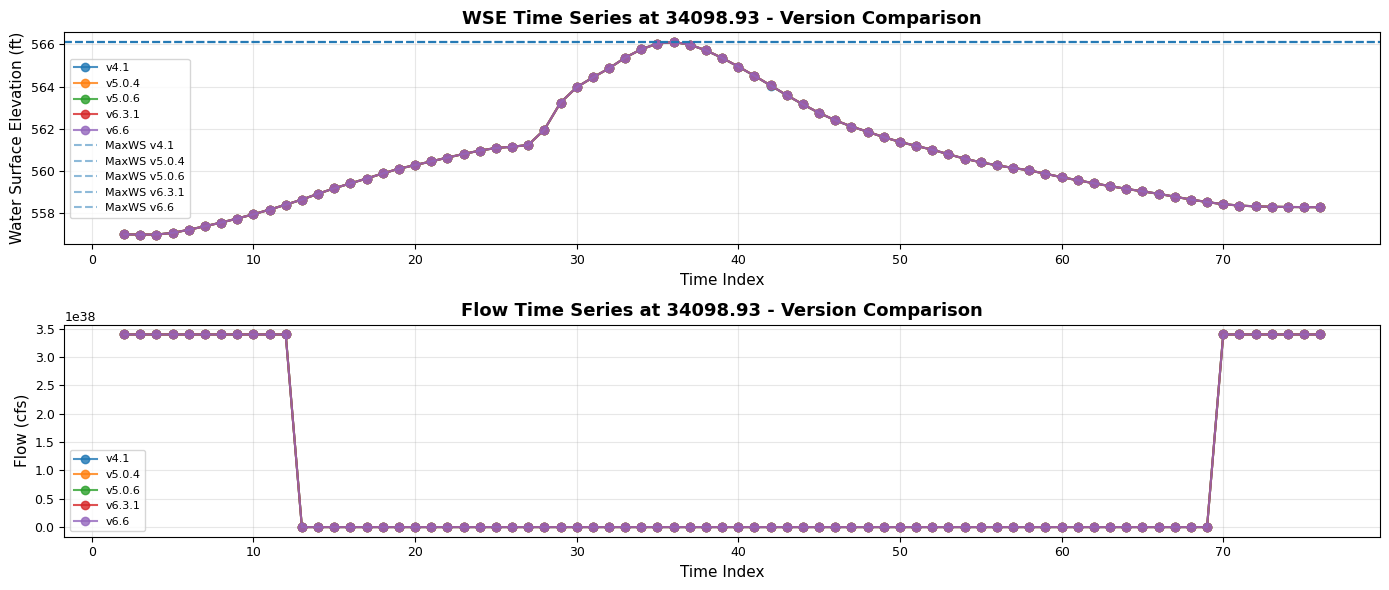

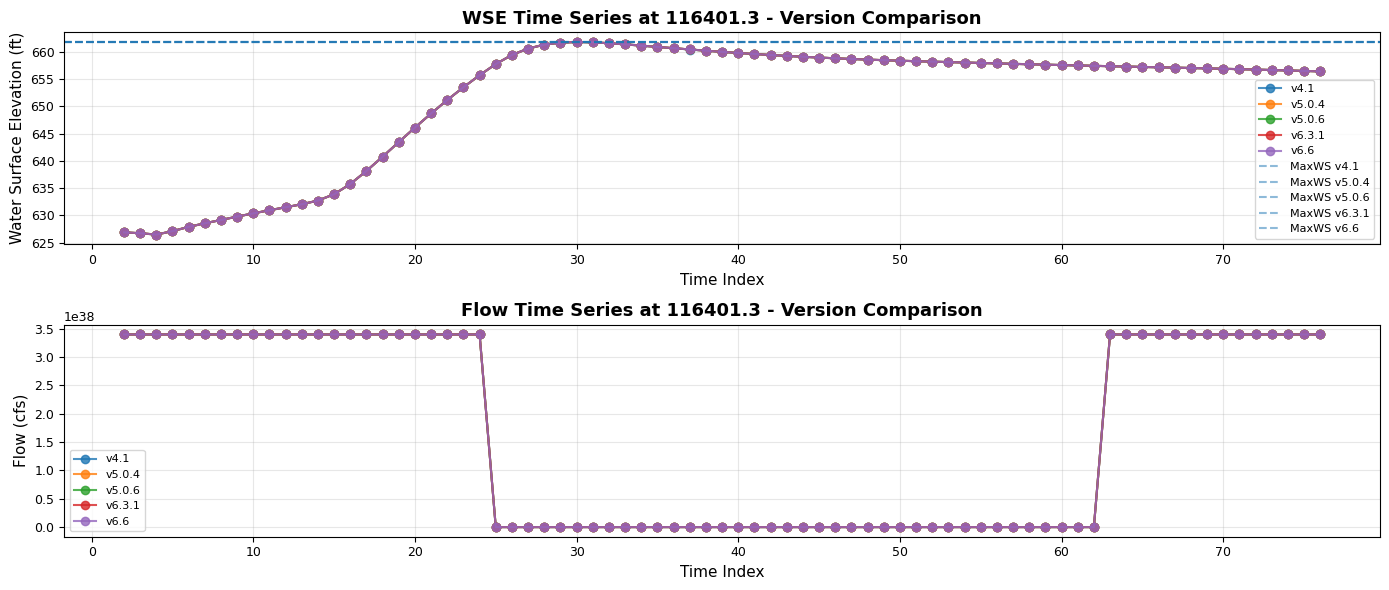

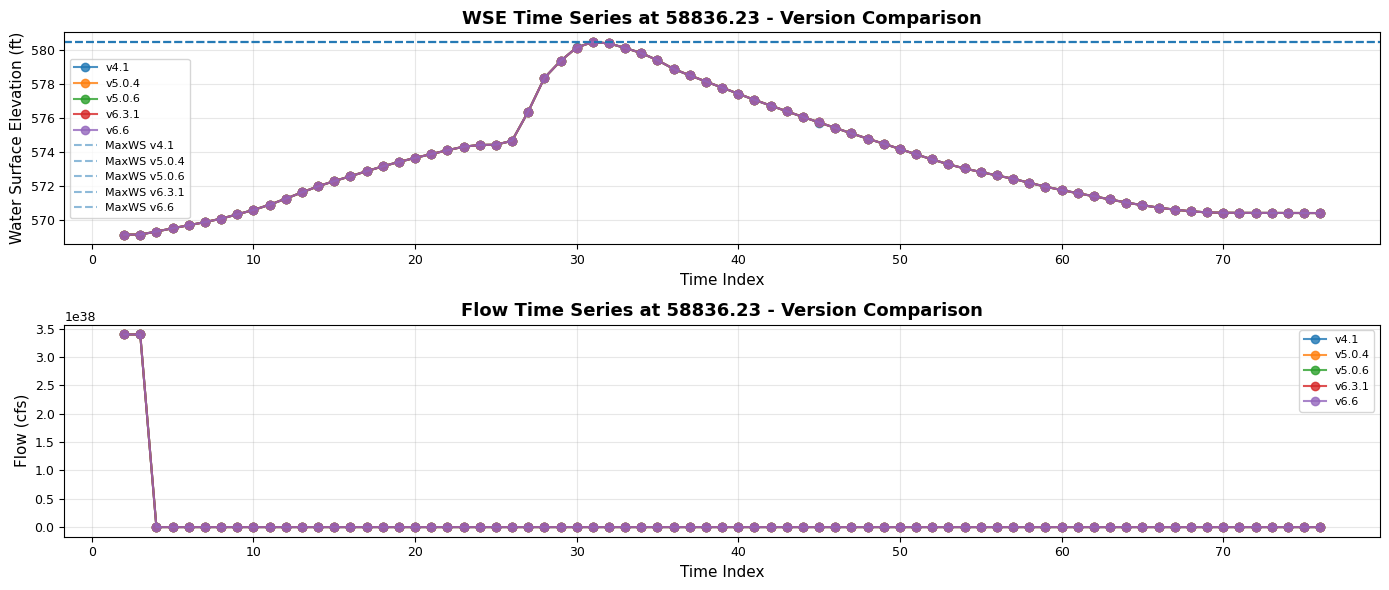

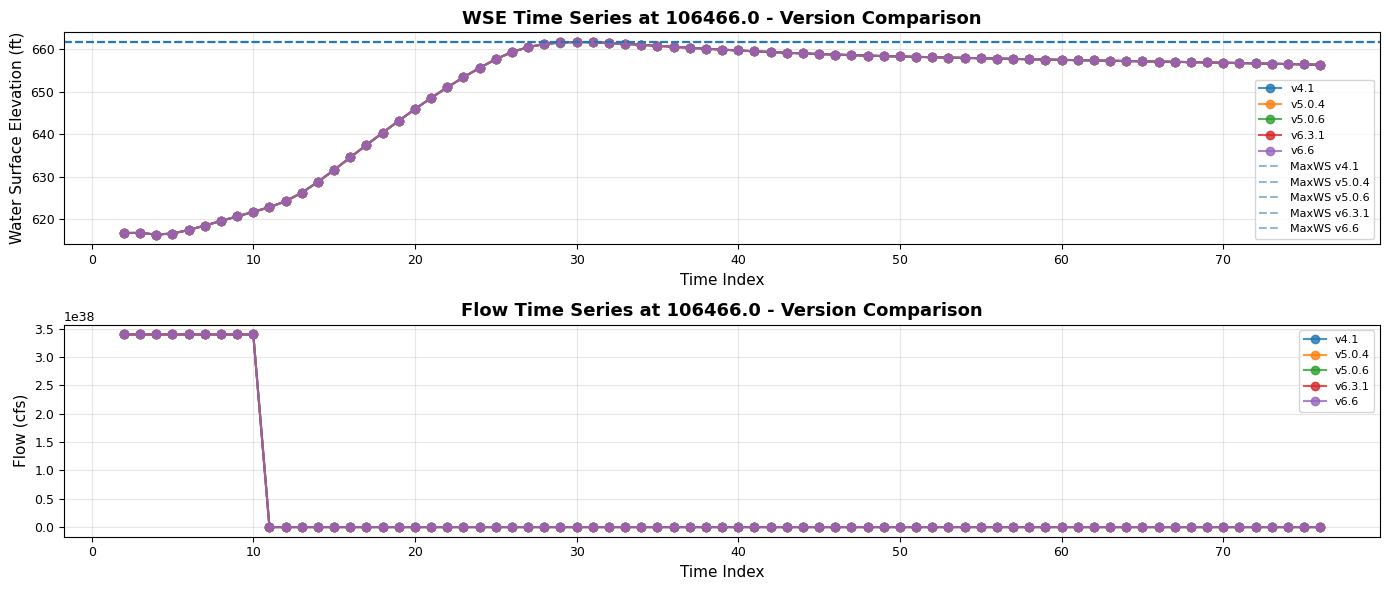

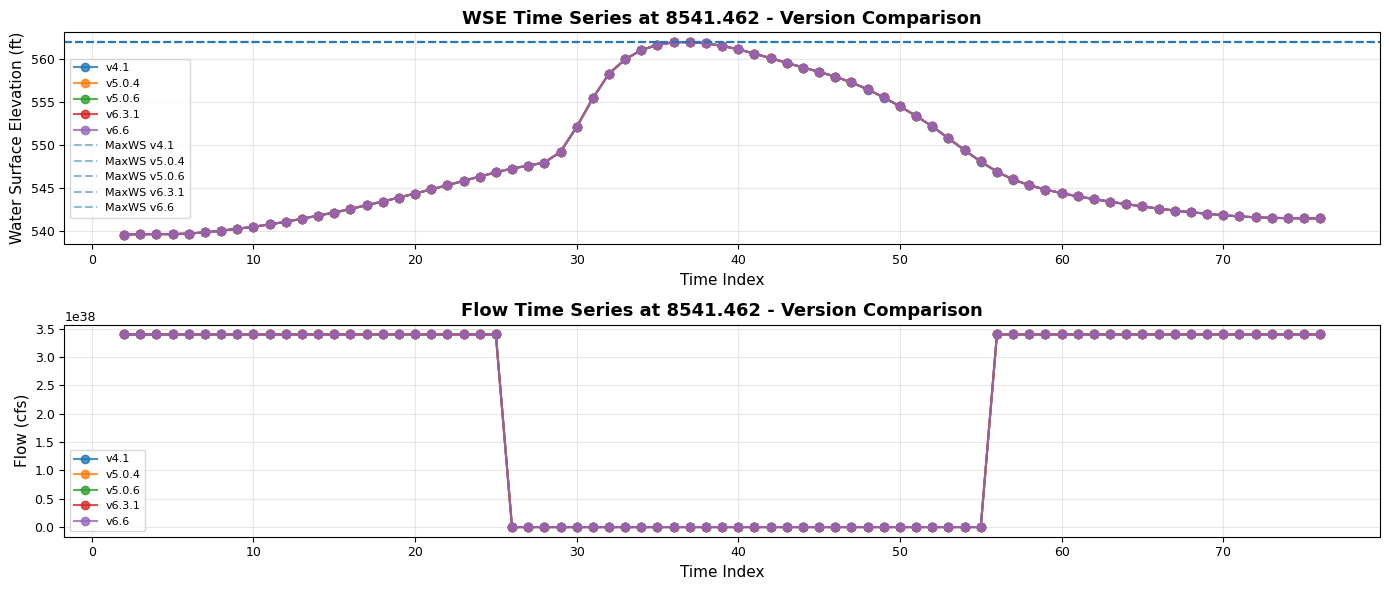

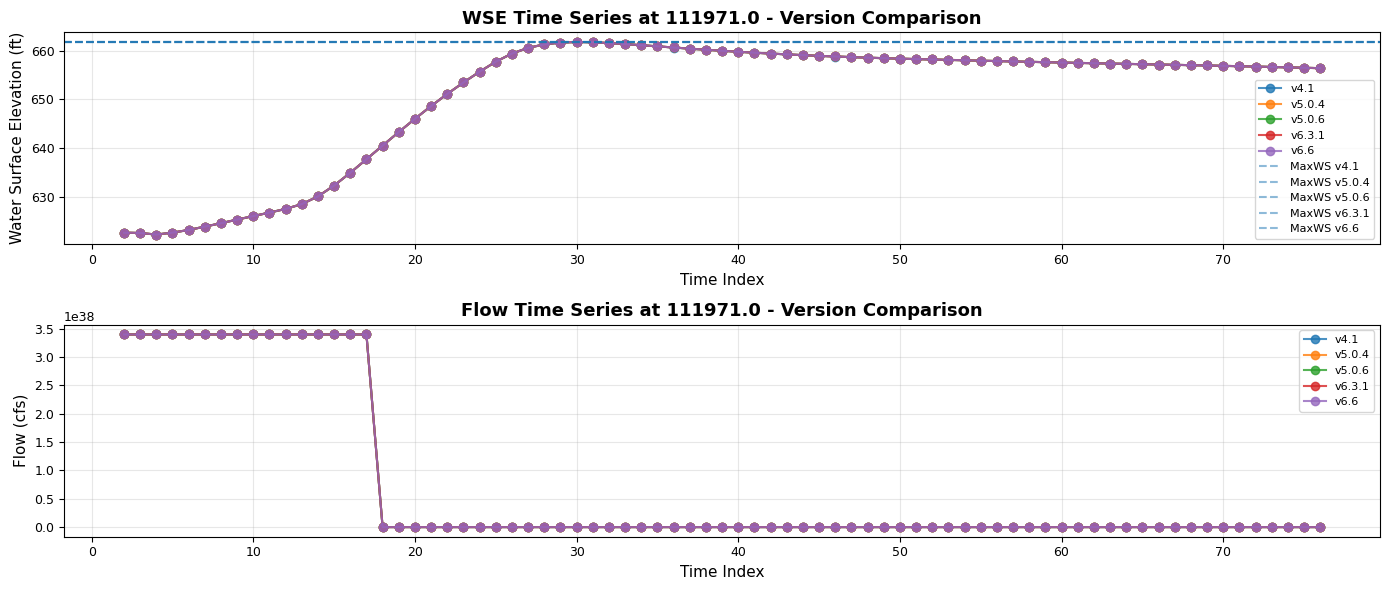

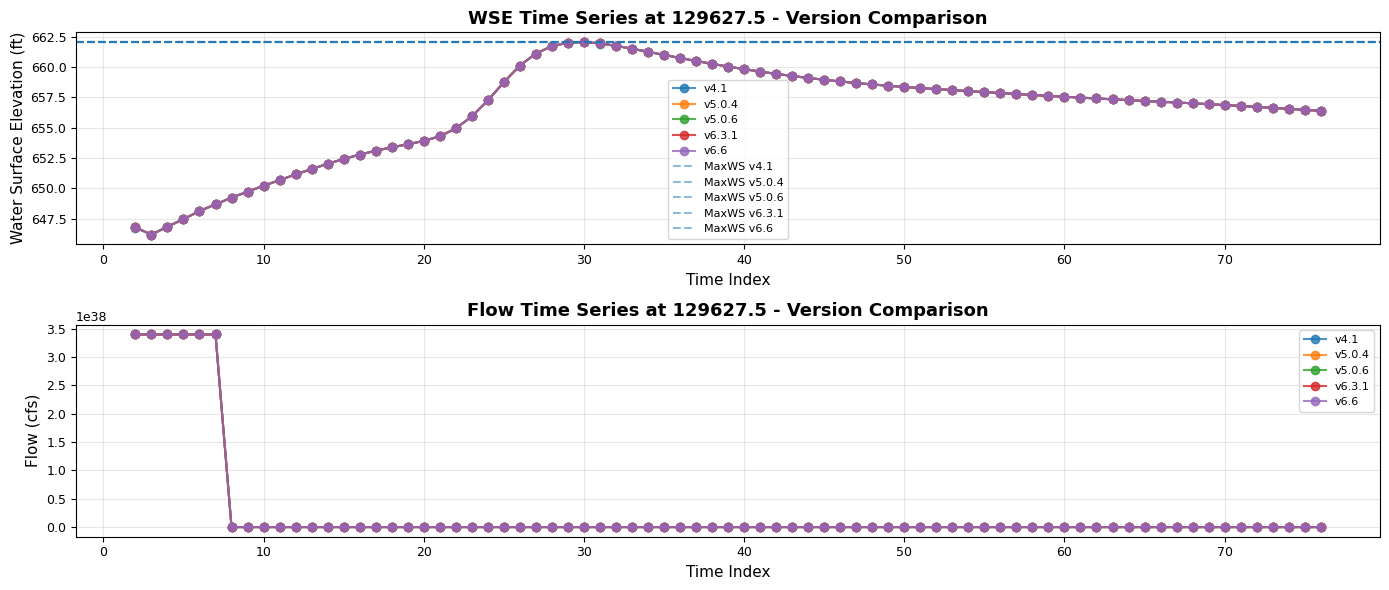

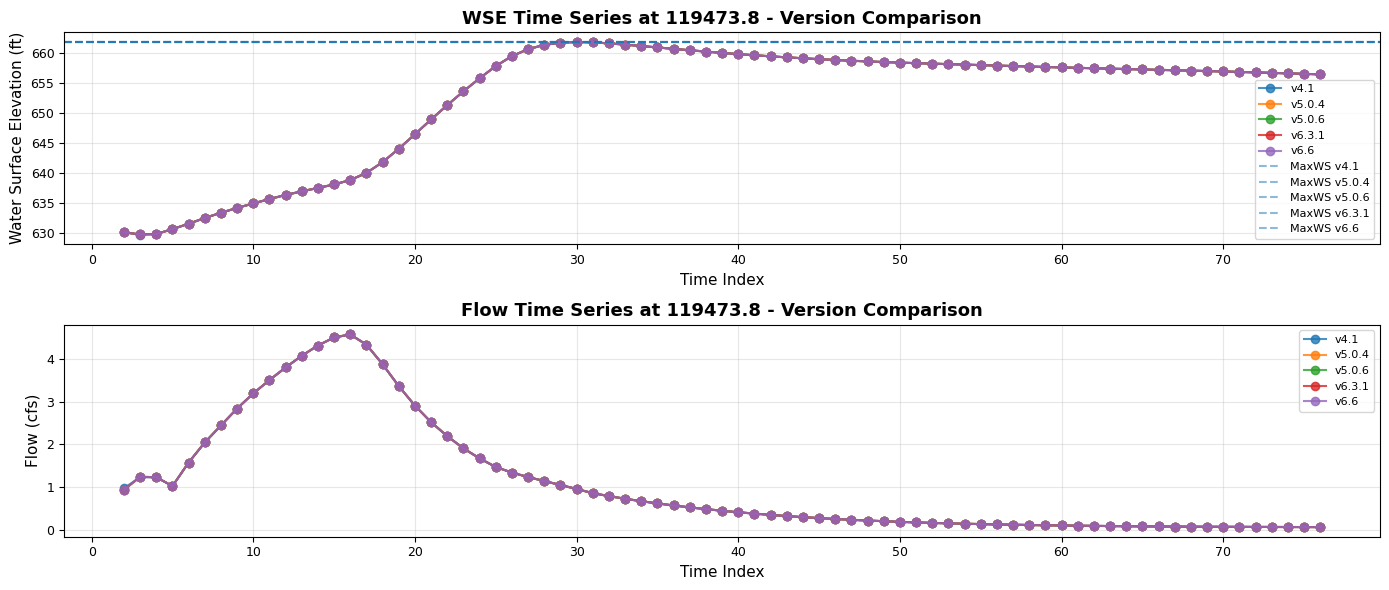

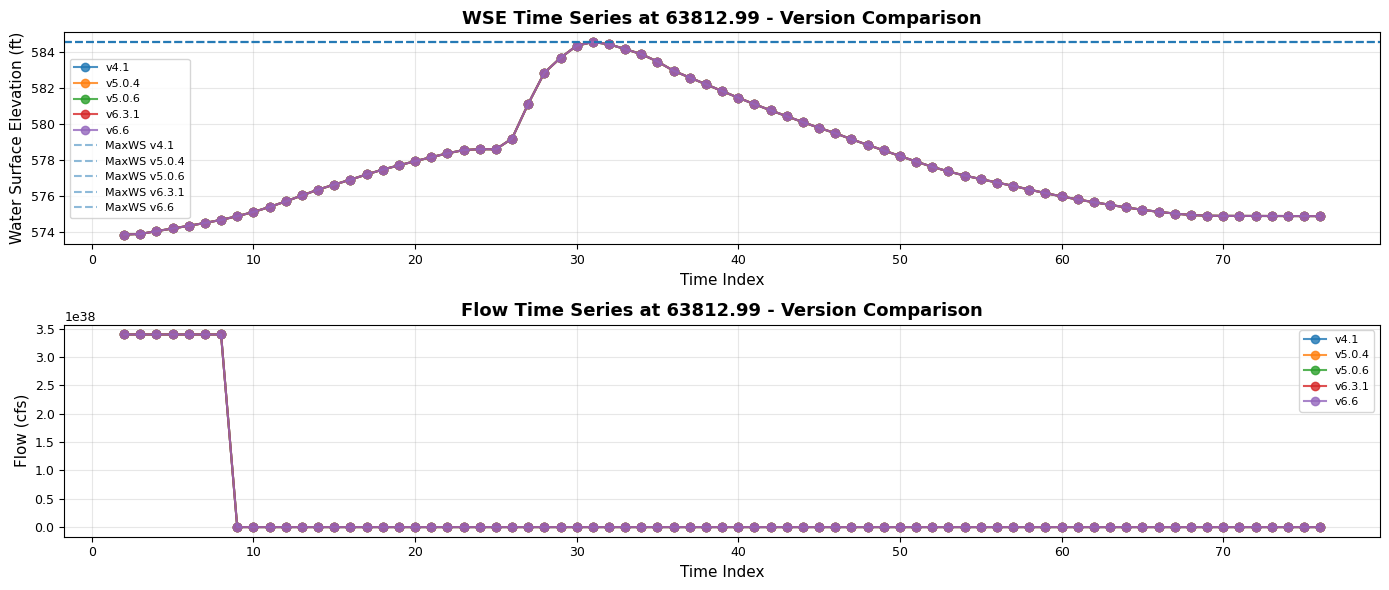

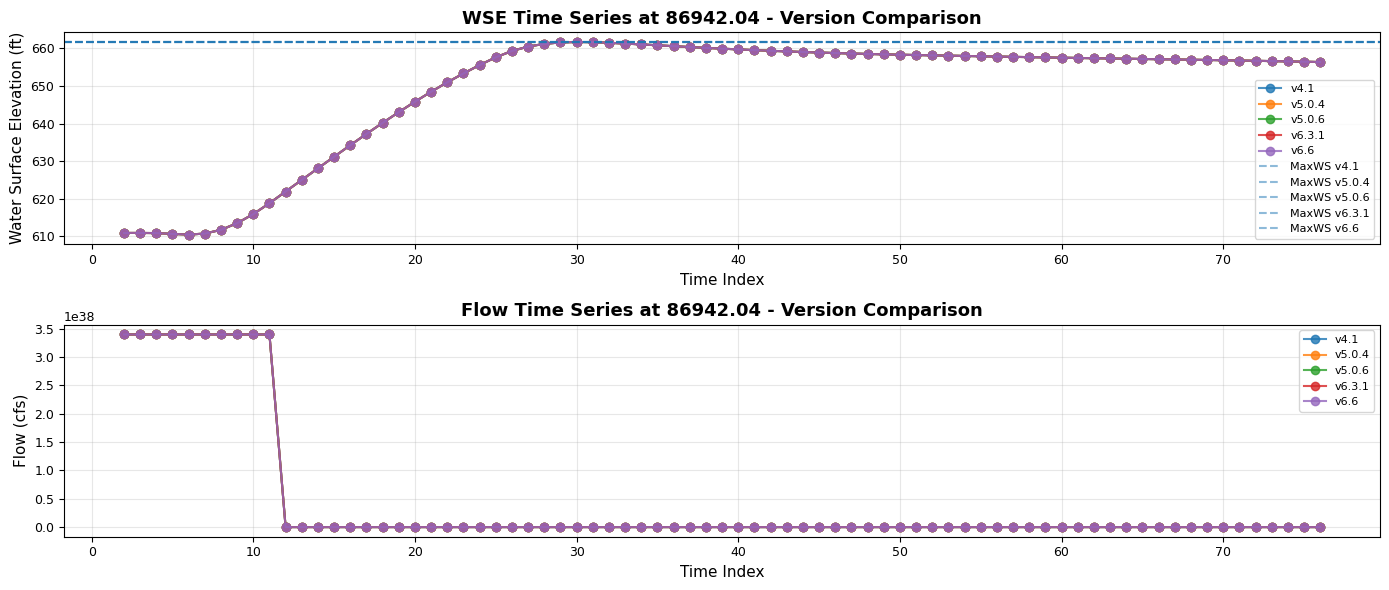

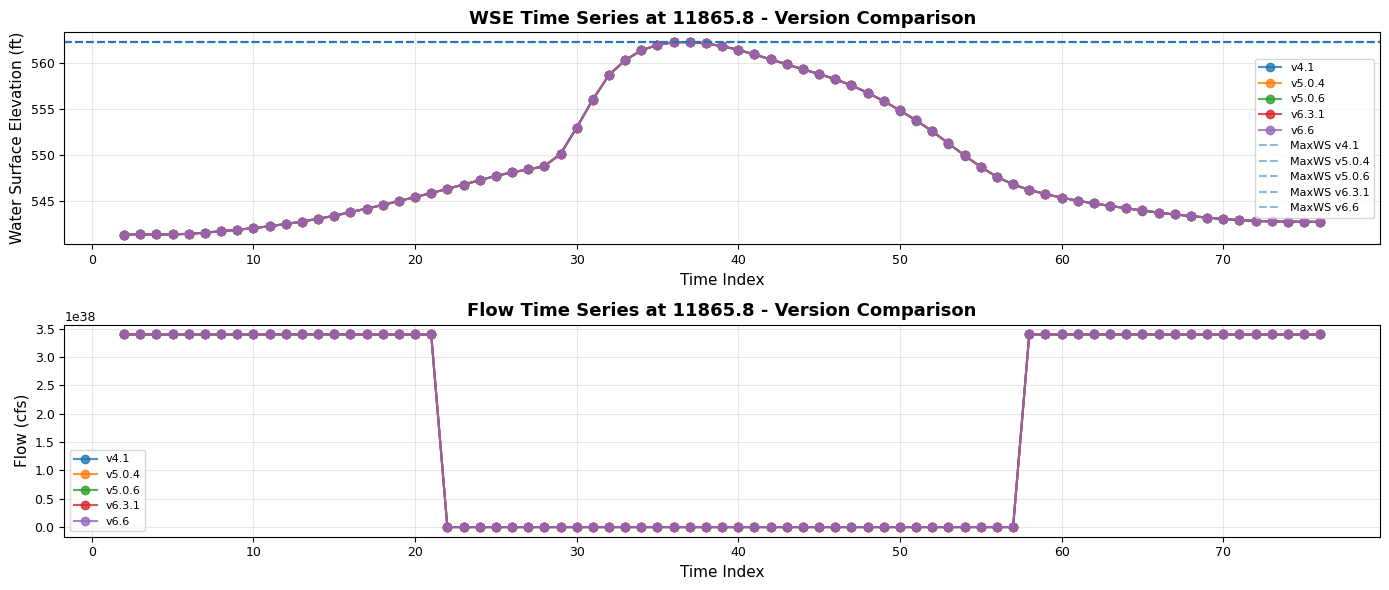

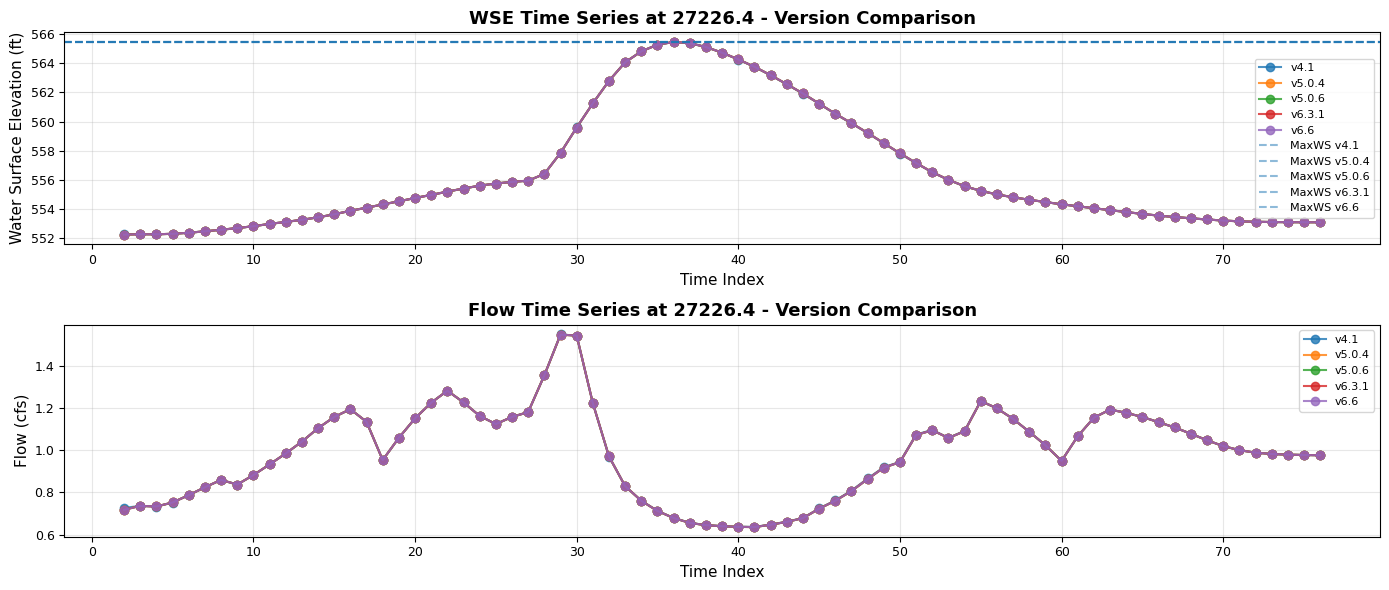

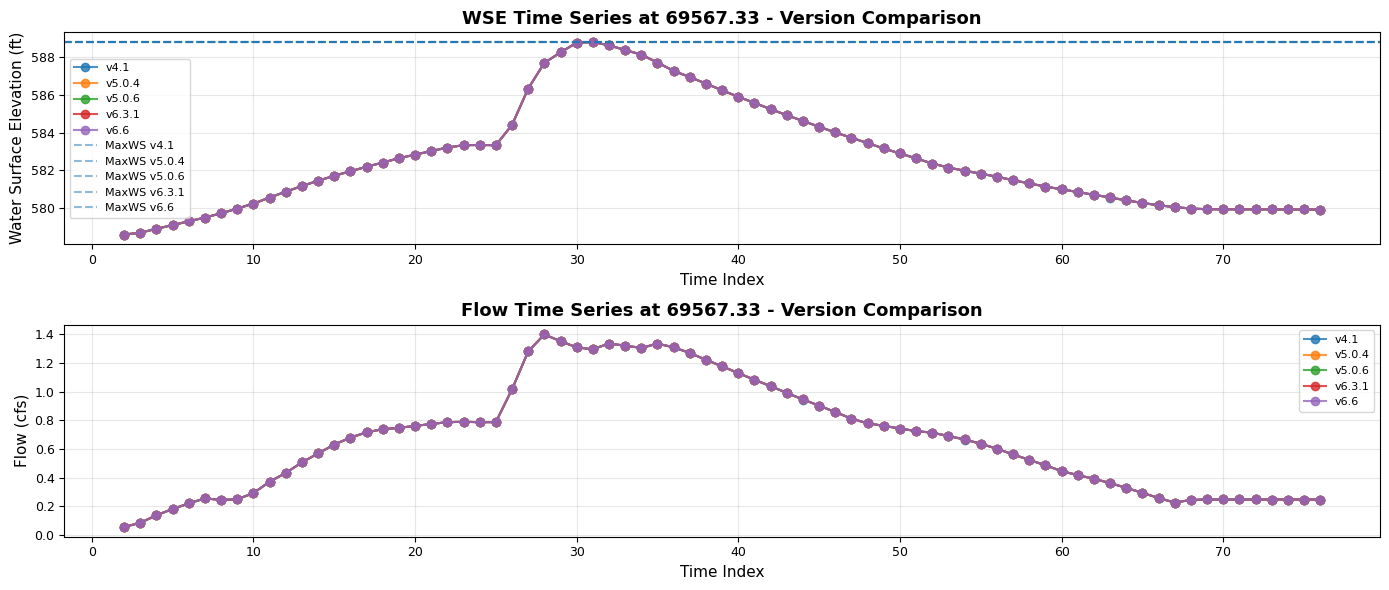

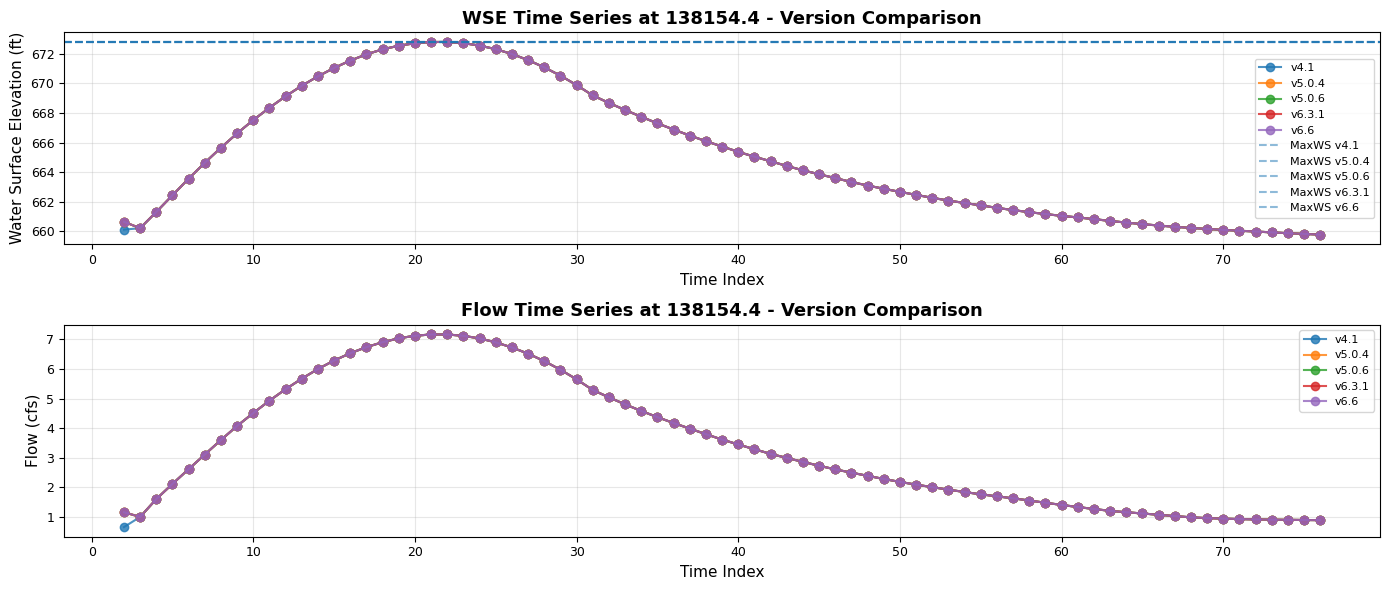

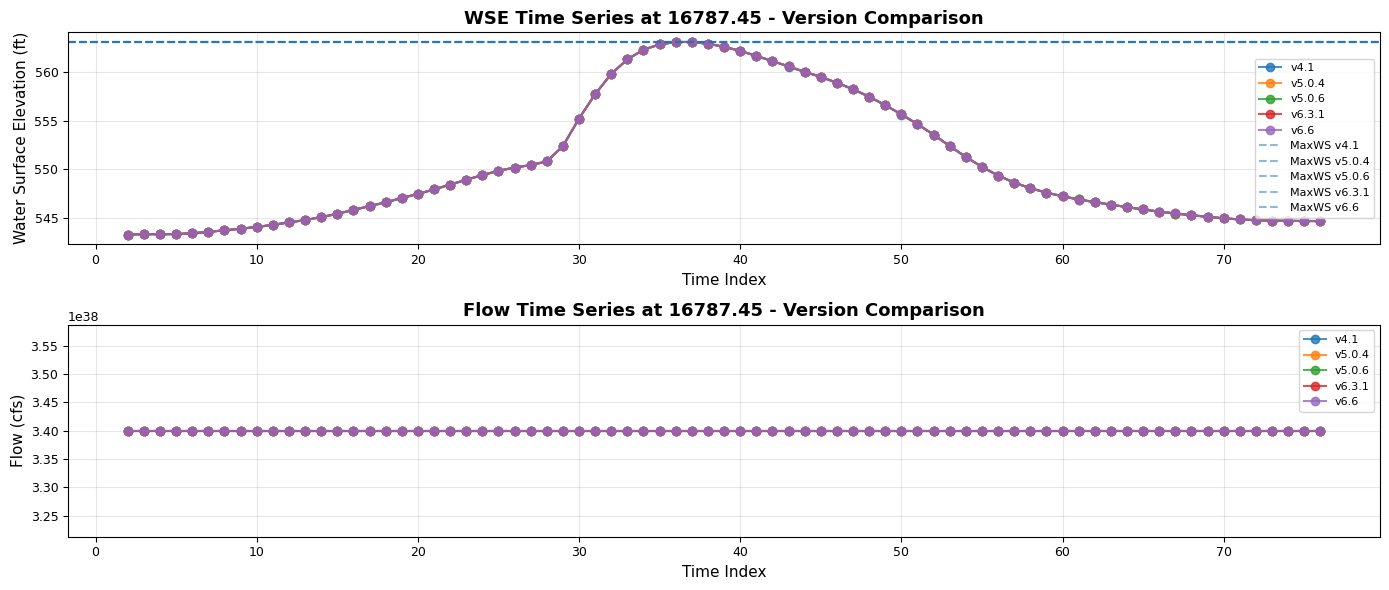

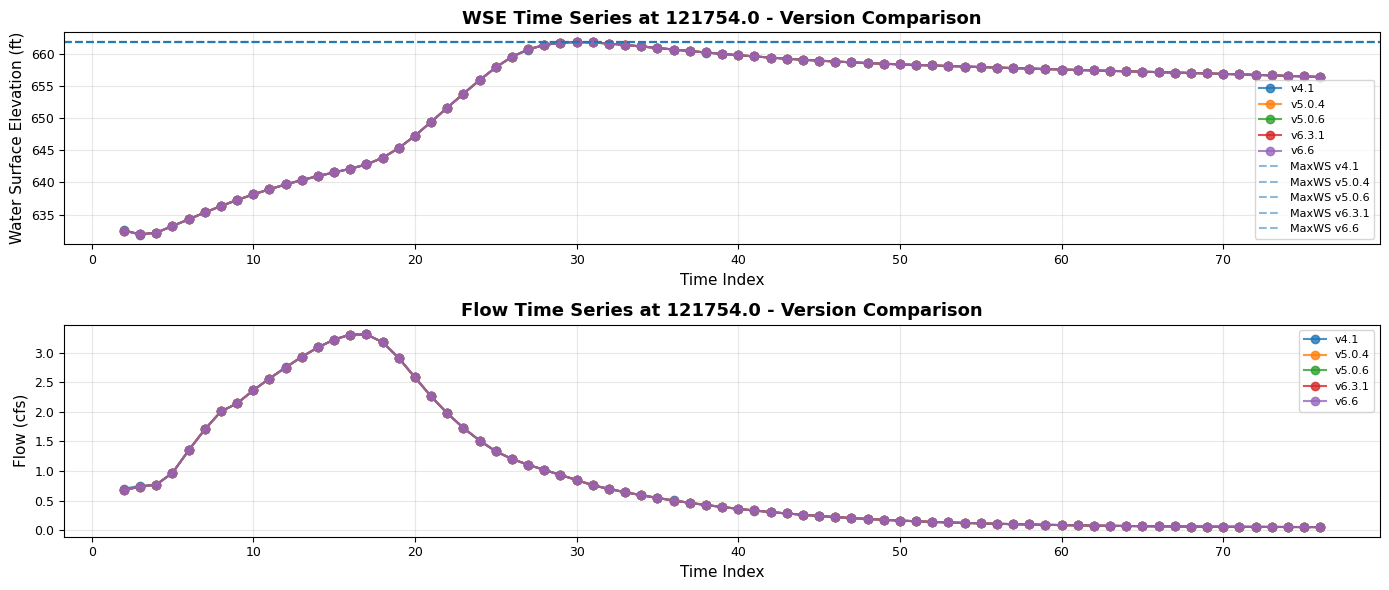

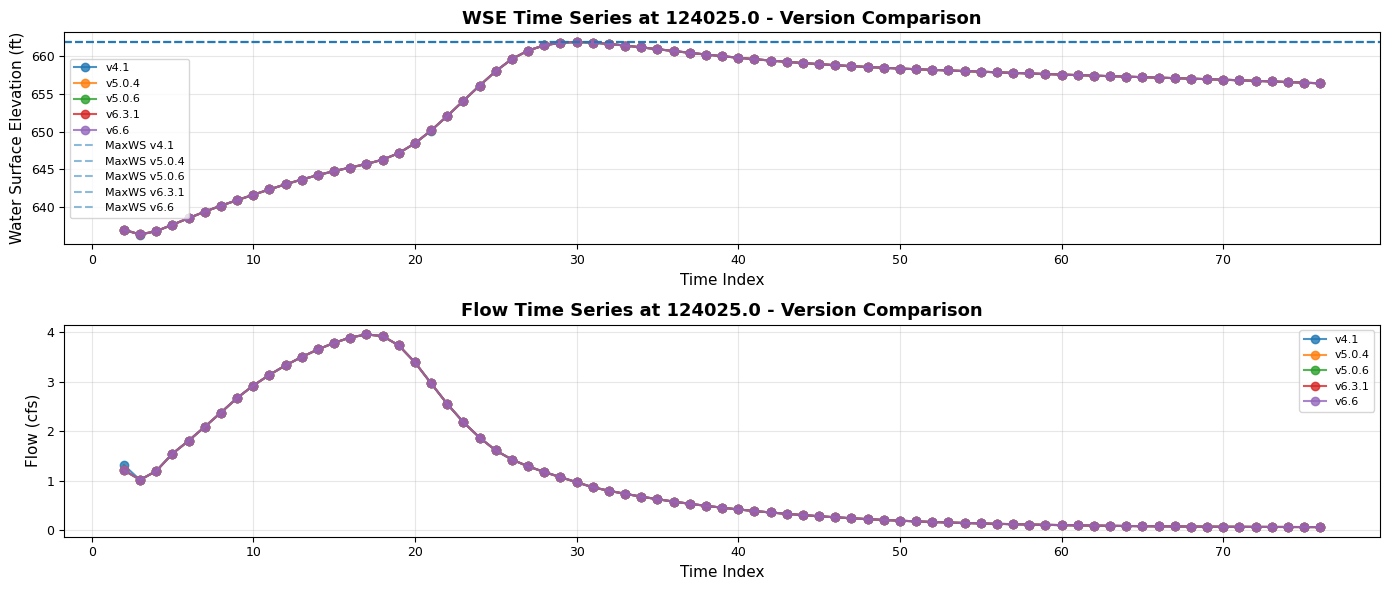

  • Comparison Across Versions: Run same project in multiple HEC-RAS versions
  • 110_single_plan_execution.ipynb - Modern API-based execution (HEC-RAS 6.x+)
  • 120_automating_ras_with_win32com.ipynb - GUI automation

Critical Information: HEC-RAS Version Compatibility

RasControl (COM interface): - Supported: HEC-RAS 3.x, 4.x, 5.x - NOT Supported: HEC-RAS 6.x+ (no COM interface)

Modern API (RasCmdr, HdfResultsPlan): - Supported: HEC-RAS 6.x+ - Limited: HEC-RAS 5.x (some features) - NOT Supported: HEC-RAS 3.x-4.x (use RasControl)

When to Use RasControl

Use RasControl when: 1. Working with HEC-RAS 5.x projects 2. Need to compare results across HEC-RAS versions 3. Legacy systems require COM interface 4. Accessing features not yet in modern API

Use modern API when: 1. HEC-RAS 6.x or later 2. New projects (start with latest HEC-RAS) 3. Production workflows (faster, more reliable) 4. HDF-based results preferred

Migration Path: Legacy → Modern

Step 1: Upgrade project to HEC-RAS 6.x

Python
# Open in HEC-RAS 6.x GUI
# File → Save As (converts to 6.x format)

Step 2: Replace RasControl with RasCmdr

Python
# ❌ Legacy (RasControl - HEC-RAS 5.x)
RasControl.compute_plan("01")
df = RasControl.get_steady_results("01")

# ✅ Modern (RasCmdr - HEC-RAS 6.x)
RasCmdr.compute_plan("01")
hdf = HdfResultsPlan(ras.plan_df.loc[0, 'hdf_path'])
df = hdf.get_wse_dataframe()

Verification: COM-Based Execution

Success Criteria: - HEC-RAS opens automatically (COM instantiation) - Project loads in HEC-RAS window - Plan computes without errors - Results extracted to DataFrame

Visual Inspection: 1. HEC-RAS GUI window should appear 2. Project name visible in title bar 3. Computation messages shown in HEC-RAS window 4. Results available in HEC-RAS viewer

Troubleshooting COM Errors:

Error 1: "COM object not found"

Python
# Verify HEC-RAS is registered
import win32com.client

try:
    ras_ctrl = win32com.client.Dispatch("RAS66.HECRASController")
    print("[OK] HEC-RAS COM registered")
except Exception as e:
    print(f"[ERROR] COM registration issue: {e}")
    print("Solution: Reinstall HEC-RAS or run as Administrator")

Error 2: "Project won't open"

Python
# Check project file path
from pathlib import Path

prj_file = Path(project_folder) / "project.prj"
assert prj_file.exists(), f"Project file not found: {prj_file}"
print(f"[OK] Project file exists: {prj_file}")

Error 3: "Results not extracting"

Python
# Verify plan computed successfully
# Check HEC-RAS GUI for computation messages
# Look for "Run completed successfully"

Understanding COM Output Structure

RasControl returns results in different formats than modern API:

Steady Flow (RasControl.get_steady_results):

Python
# Returns DataFrame with columns:
# - river_id
# - reach_id
# - node_id
# - profile (profile number/name)
# - wse (water surface elevation)
# - velocity
# - etc.

Unsteady Flow (RasControl.get_unsteady_results):

Python
# Returns DataFrame with columns:
# - river_id
# - reach_id
# - node_id
# - datetime (parsed from computation)
# - wse
# - velocity
# - etc.

Parameters

Configure these values to customize the notebook for your project.

Python
# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================
from pathlib import Path

# Project Configuration
PROJECT_NAME = "Muncie"           # Example project to extract
RAS_VERSION = "7.0"               # HEC-RAS version (6.3, 6.5, 6.6, etc.)

print(f"Project: {PROJECT_NAME}")
print(f"HEC-RAS Version: {RAS_VERSION}")
Text Only
Project: Muncie
HEC-RAS Version: 6.6

Working with Legacy HEC-RAS Using RasControl

This notebook demonstrates RasControl, which provides a ras-commander style API for legacy HEC-RAS versions (3.x-4.x) using the HECRASController COM interface.

What is RasControl?

RasControl wraps the HECRASController COM API with ras-commander conventions:

  • ✅ Use plan numbers - RasControl.run_plan("02") not file paths
  • ✅ Integrated with ras object - Works with init_ras_project()
  • ✅ Steady AND unsteady - Extract profiles and time series
  • ✅ Auto-sets current plan - Just pass the plan number!
  • ✅ No COM complexity - Clean public API

When to Use RasControl

Use RasControl Use HDF Methods
HEC-RAS 3.1, 4.1 HEC-RAS 6.0+
No HDF support Modern versions
Legacy models 2D mesh data
Version migration Better performance

Supported Versions

3.0, 3.1, 4.0, 4.1, 5.0-5.0.7, 6.0-6.7 Beta

Accepts: "4.1", "41", "5.0.6", "506", "6.6", "66", etc.

Setup

Python
# ============================================================================
# PLOTTING CONFIGURATION
# ============================================================================

# Set better default plotting parameters
plt.rcParams['figure.dpi'] = 100
plt.rcParams['savefig.dpi'] = 300
plt.rcParams['font.size'] = 10
plt.rcParams['axes.labelsize'] = 11
plt.rcParams['axes.titlesize'] = 12
plt.rcParams['legend.fontsize'] = 9
plt.rcParams['xtick.labelsize'] = 9
plt.rcParams['ytick.labelsize'] = 9

import numpy as np  # Add if not already imported

print("✓ Plotting configuration loaded")
Text Only
✓ Plotting configuration loaded

Extract and Initialize Project

Python
# Extract example project
project_path = RasExamples.extract_project("Balde Eagle Creek", suffix="17")

# Initialize project with HEC-RAS 6.6
init_ras_project(project_path, RAS_VERSION)

print(f"✓ Project initialized: {project_path}")
Text Only
2026-01-14 10:36:12 - ras_commander.RasExamples - INFO - ----- RasExamples Extracting Project -----
2026-01-14 10:36:12 - ras_commander.RasExamples - INFO - Extracting project 'Balde Eagle Creek' as 'Balde Eagle Creek_17'
2026-01-14 10:36:12 - ras_commander.RasExamples - INFO - Folder 'Balde Eagle Creek_17' already exists. Deleting existing folder...
2026-01-14 10:36:12 - ras_commander.RasExamples - INFO - Existing folder 'Balde Eagle Creek_17' has been deleted.
2026-01-14 10:36:12 - ras_commander.RasExamples - INFO - Successfully extracted project 'Balde Eagle Creek' to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17
2026-01-14 10:36:12 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:36:12 - ras_commander.RasPrj - INFO - Updated results_df with 2 plan(s)


✓ Project initialized: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17
Python
ras.plan_df
plan_number unsteady_number geometry_number Plan Title Program Version Short Identifier Simulation Date Computation Interval Mapping Interval Run HTab ... PS Cores DSS File Friction Slope Method HDF_Results_Path Geom File Geom Path Flow File Flow Path full_path flow_type
0 01 02 01 Unsteady with Bridges and Dam 5.00 UnsteadyFlow 18FEB1999,0000,24FEB1999,0500 2MIN 1HOUR 1 ... None dss 2 None 01 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... 02 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... Unsteady
1 02 None 01 Steady Flow Run NaN SteadyRun 02/18/1999,0000,02/24/1999,0500 2MIN NaN 1 ... None dss 1 None 01 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... 02 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... Steady

2 rows × 27 columns

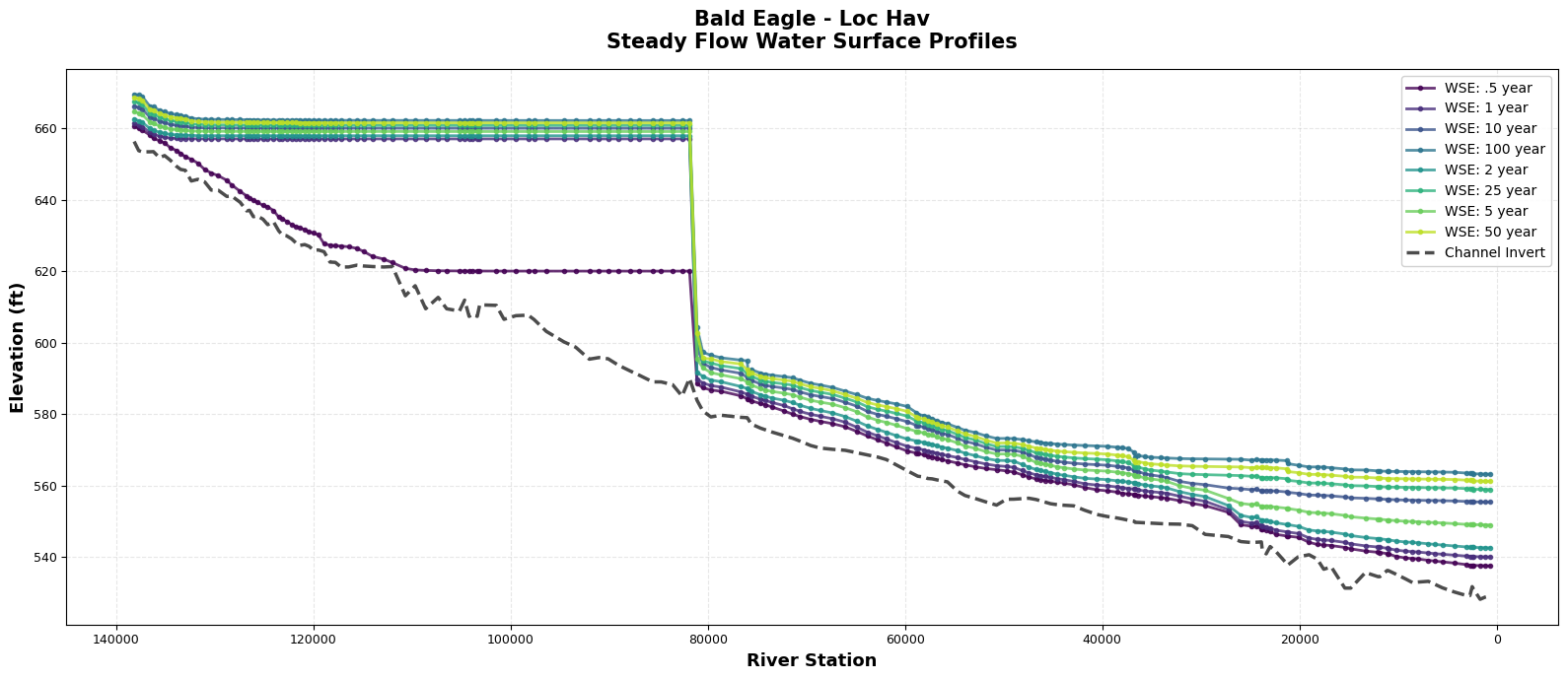

Part 1: Steady State (Plan 02)

Extract steady profiles. Note: run_plan() automatically sets Plan 02 as current!

Python
# =============================================================================
# Run Plan 02 (Steady Flow)
# =============================================================================
# Must run the plan before extracting results
print("Running Plan 02 (Steady Flow)...")
RasCmdr.compute_plan("02", num_cores=2)
print("✓ Plan 02 completed")
Text Only
2026-01-14 10:36:12 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17
2026-01-14 10:36:12 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02
2026-01-14 10:36:12 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02
2026-01-14 10:36:12 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02
2026-01-14 10:36:12 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2026-01-14 10:36:12 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02"


Running Plan 02 (Steady Flow)...


2026-01-14 10:36:17 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02
2026-01-14 10:36:17 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 4.87 seconds
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:36:17 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\RasPrj.py:1514: FutureWarning: The behavior of DataFrame concatenation with empty or all-NA entries is deprecated. In a future version, this will no longer exclude empty or all-NA columns when determining the result dtypes. To retain the old behavior, exclude the relevant entries before the concat operation.
  self.results_df = pd.concat([self.results_df, new_results], ignore_index=True)
2026-01-14 10:36:17 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


✓ Plan 02 completed

Extracting Computation Messages (Steady Flow)

After running the plan, we can extract detailed computation messages using RasControl.get_comp_msgs(). This method: - Reads from .comp_msgs.txt or .computeMsgs.txt files (version-dependent) - Falls back to HDF extraction if .txt files not available - Returns detailed information about the computation process

Python
# Extract computation messages for steady flow Plan 02
print("="*80)
print("COMPUTATION MESSAGES - Plan 02 (Steady Flow)")
print("="*80)

msgs_steady = RasControl.get_comp_msgs("02")

if msgs_steady:
    print(f"\nExtracted {len(msgs_steady)} characters of computation messages\n")

    # Display first 800 characters
    print("Computation messages (first 800 characters):")
    print("-" * 80)
    print(msgs_steady[:800])

    if len(msgs_steady) > 800:
        print("\n... (truncated) ...")
else:
    print("No computation messages available for Plan 02")

print("\n" + "="*80)
Text Only
2026-01-14 10:36:17 - ras_commander.RasControl - WARNING - Computation messages .txt file not found (tried .comp_msgs.txt and .computeMsgs.txt), falling back to HDF extraction


================================================================================
COMPUTATION MESSAGES - Plan 02 (Steady Flow)
================================================================================
No computation messages available for Plan 02

================================================================================
Python
# Extract steady results (auto-sets Plan 02 as current)
df_steady = RasControl.get_steady_results("02")

print(f"Rows: {len(df_steady)}")
print(f"Profiles: {df_steady['profile'].nunique()}")
print(f"XS: {df_steady['node_id'].nunique()}")
df_steady.head(10)
Text Only
2026-01-14 10:36:17 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS66.HECRASController (version: 6.6)
2026-01-14 10:36:17 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:36:18 - ras_commander.RasControl - INFO - Detected ras.exe PID 204396 (confidence: 100/100)
2026-01-14 10:36:18 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:36:18 - ras_commander.RasControl - INFO - Setting current plan to: Steady Flow Run
2026-01-14 10:36:18 - ras_commander.RasControl - INFO - Found 8 profiles
2026-01-14 10:36:18 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:36:21 - ras_commander.RasControl - INFO - Extracted 1424 result rows
2026-01-14 10:36:21 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:36:21 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:36:21 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:36:21 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 204396


Rows: 1424
Profiles: 8
XS: 178
river reach node_id profile wsel min_ch_el velocity flow froude energy max_depth
0 Bald Eagle Loc Hav 138154.4 .5 year 660.588928 656.299988 3.657029 1.177402 0.363896 660.775635 4.288940
1 Bald Eagle Loc Hav 138154.4 1 year 661.432068 656.299988 3.888445 1.654405 0.358103 661.629578 5.132080
2 Bald Eagle Loc Hav 138154.4 2 year 662.602600 656.299988 4.519829 2.233629 0.365692 662.858398 6.302612
3 Bald Eagle Loc Hav 138154.4 5 year 664.673218 656.299988 5.791487 3.227041 0.396946 665.082153 8.373230
4 Bald Eagle Loc Hav 138154.4 10 year 666.190918 656.299988 6.828511 3.987156 0.426974 666.755981 9.890930
5 Bald Eagle Loc Hav 138154.4 25 year 667.459351 656.299988 7.730279 4.592227 0.449943 668.181274 11.159363
6 Bald Eagle Loc Hav 138154.4 50 year 668.543640 656.299988 8.564765 5.127679 0.471433 669.427612 12.243652
7 Bald Eagle Loc Hav 138154.4 100 year 669.521484 656.299988 9.320695 5.608300 0.490210 670.566101 13.221497
8 Bald Eagle Loc Hav 137690.8 .5 year 659.914612 653.729980 3.339625 0.703524 0.282183 660.072205 6.184631
9 Bald Eagle Loc Hav 137690.8 1 year 660.849548 653.729980 3.501968 1.028502 0.274149 661.000366 7.119568
Python
# ============================================================================
# STEADY FLOW: Longitudinal Profiles by River/Reach
# ============================================================================

# Convert node_id to float for proper sorting
df_steady['node_id'] = df_steady['node_id'].astype(float)

# Group by River/Reach and create separate plots
for (river, reach), group_df in df_steady.groupby(['river', 'reach']):

    # Sort by station (descending - upstream to downstream per HEC-RAS convention)
    group_df_sorted = group_df.sort_values('node_id', ascending=False)

    fig, ax = plt.subplots(figsize=(16, 7))

    # Get unique profiles and plot each one
    profiles = sorted(group_df['profile'].unique())
    colors = plt.cm.viridis(np.linspace(0, 0.9, len(profiles)))

    for idx, profile in enumerate(profiles):
        prof_data = group_df_sorted[group_df_sorted['profile'] == profile]
        ax.plot(prof_data['node_id'], prof_data['wsel'],
                marker='o', markersize=3, linewidth=2,
                color=colors[idx], label=f'WSE: {profile}', alpha=0.8)

    # Add channel invert (plot once, not for each profile)
    invert = group_df_sorted.drop_duplicates('node_id')[['node_id', 'min_ch_el']].sort_values('node_id', ascending=False)
    ax.plot(invert['node_id'], invert['min_ch_el'],
            'k--', linewidth=2.5, alpha=0.7, label='Channel Invert')

    # Formatting
    ax.set_xlabel('River Station', fontsize=13, fontweight='bold')
    ax.set_ylabel('Elevation (ft)', fontsize=13, fontweight='bold')
    ax.set_title(f'{river} - {reach}\nSteady Flow Water Surface Profiles',
                 fontsize=15, fontweight='bold', pad=15)
    ax.legend(loc='best', fontsize=10, framealpha=0.9)
    ax.grid(True, alpha=0.3, linestyle='--')
    ax.invert_xaxis()  # Upstream (larger stations) on left

    plt.tight_layout()
    plt.show()

    print(f"✓ Plotted {len(profiles)} profiles for {river} - {reach}")
    print(f"  Station range: {group_df['node_id'].min():.1f} to {group_df['node_id'].max():.1f}\n")

png

Text Only
✓ Plotted 8 profiles for Bald Eagle - Loc Hav
  Station range: 659.9 to 138154.4
Python
# Export
Path("working").mkdir(exist_ok=True)
df_steady.to_csv("working/steady_plan02.csv", index=False)
print(f"Exported {len(df_steady)} rows to working/steady_plan02.csv")
Text Only
Exported 1424 rows to working/steady_plan02.csv

Part 2: Unsteady Time Series (Plan 01)

Extract unsteady results. Note: Methods automatically set Plan 01 as current!

Python
# Run Plan 01 (auto-sets as current, waits for completion)
# This may take 5-10 minutes!
print("Running Plan 01 (Unsteady)...")
# NOTE: Using RasCmdr.compute_plan() instead of RasControl.run_plan()
# because RasControl.run_plan() always sets cores to max
RasCmdr.compute_plan("01", clear_geompre=True, num_cores=2)
print("✓ Plan 01 completed")
Text Only
2026-01-14 10:36:21 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17
2026-01-14 10:36:21 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01
2026-01-14 10:36:21 - ras_commander.geom.GeomPreprocessor - WARNING - No geometry preprocessor file found for: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01
2026-01-14 10:36:21 - ras_commander.geom.GeomPreprocessor - INFO - Geometry dataframe updated successfully.
2026-01-14 10:36:21 - ras_commander.RasCmdr - INFO - Cleared geometry preprocessor files for plan: 01
2026-01-14 10:36:21 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01
2026-01-14 10:36:21 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01
2026-01-14 10:36:21 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 01
2026-01-14 10:36:21 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2026-01-14 10:36:21 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01"


Running Plan 01 (Unsteady)...


2026-01-14 10:37:55 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 01
2026-01-14 10:37:55 - ras_commander.RasCmdr - INFO - Total run time for plan 01: 93.53 seconds
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:37:55 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\RasPrj.py:1514: FutureWarning: The behavior of DataFrame concatenation with empty or all-NA entries is deprecated. In a future version, this will no longer exclude empty or all-NA columns when determining the result dtypes. To retain the old behavior, exclude the relevant entries before the concat operation.
  self.results_df = pd.concat([self.results_df, new_results], ignore_index=True)
2026-01-14 10:37:55 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


✓ Plan 01 completed
Python
# Get output times (auto-sets Plan 01 as current)
times = RasControl.get_output_times("01")
print(f"Found {len(times)} timesteps")
print(f"First: {times[0]}")
print(f"Last: {times[-1]}")
Text Only
2026-01-14 10:37:55 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS66.HECRASController (version: 6.6)
2026-01-14 10:37:55 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Detected ras.exe PID 312952 (confidence: 100/100)
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady with Bridges and Dam
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Found 76 output times
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 312952


Found 76 timesteps
First: Max WS
Last: 24FEB1999 0400

Extracting Computation Messages (Unsteady Flow)

Similarly, we can extract computation messages for the unsteady flow plan to review: - Simulation timing and performance - Convergence information - Any warnings or errors encountered during computation

Python
# Extract computation messages for unsteady flow Plan 01
print("="*80)
print("COMPUTATION MESSAGES - Plan 01 (Unsteady Flow)")
print("="*80)

msgs_unsteady = RasControl.get_comp_msgs("01")

if msgs_unsteady:
    print(f"\nExtracted {len(msgs_unsteady)} characters of computation messages\n")

    # Display first 800 characters
    print("Computation messages (first 800 characters):")
    print("-" * 80)
    print(msgs_unsteady[:800])

    if len(msgs_unsteady) > 800:
        print("\n... (truncated) ...")

    # Check for errors/warnings
    print("\n" + "="*80)
    print("Checking for warnings/errors...")
    print("="*80)

    lines = msgs_unsteady.split('\n')
    issues = [l for l in lines if 'error' in l.lower() or 'warning' in l.lower()]

    if issues:
        print(f"Found {len(issues)} warning/error lines:")
        for issue in issues[:5]:  # Show first 5
            print(f"  - {issue.strip()}")
    else:
        print("✓ No warnings or errors found")
else:
    print("No computation messages available for Plan 01")

print("\n" + "="*80)
Text Only
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Reading computation messages from: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.comp_msgs.txt
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Read 1175 characters from comp_msgs file


================================================================================
COMPUTATION MESSAGES - Plan 01 (Unsteady Flow)
================================================================================

Extracted 1175 characters of computation messages

Computation messages (first 800 characters):
--------------------------------------------------------------------------------
User selected to use previously computed internal boundary data
but the geometry preprocessor file was for the previous version.
All internal boundary data will be recomputed.

Simulation started at: 14Nov2012 01:29 PM

Writing geometry to output file
Completed writing geometry to output file


Writing plan information to output file
Completed writing plan information to output file


Geometric Preprocessor Version 4.2.0 Jan 2010 XXX XXXX

Finished Processing Geometry
GeomPreprocessor complete - Accepting the preprocessor files.

Performing Unsteady Flow Simulation  Version 4.2.0 Jan 2010 XXX XXXX

Maximum iterations of 20 at:        RS  WSEL    ERROR
20FEB1999 12:44:00  Bald Eagle          Loc Hav             75917.82      592.36       0.012


Finished Unsteady Flow Simulation

Writing Results to DSS
Finishe

... (truncated) ...

================================================================================
Checking for warnings/errors...
================================================================================
Found 1 warning/error lines:
  - Maximum iterations of 20 at:        RS  WSEL    ERROR

================================================================================
Python
# Extract unsteady (limit to 10 timesteps for demo)
df_unsteady = RasControl.get_unsteady_results("01")

print(f"Rows: {len(df_unsteady)}")
print(f"Timesteps: {df_unsteady['time_index'].nunique()}")
print(f"XS: {df_unsteady['node_id'].nunique()}")
df_unsteady.head(10)
Text Only
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS66.HECRASController (version: 6.6)
2026-01-14 10:37:56 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:37:57 - ras_commander.RasControl - INFO - Detected ras.exe PID 401528 (confidence: 100/100)
2026-01-14 10:37:57 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:37:57 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady with Bridges and Dam
2026-01-14 10:37:57 - ras_commander.RasControl - INFO - Extracting 76 time steps
2026-01-14 10:37:57 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:38:25 - ras_commander.RasControl - INFO - Extracted 13528 result rows
2026-01-14 10:38:25 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:38:25 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:38:25 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:38:25 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 401528


Rows: 13528
Timesteps: 76
XS: 178
river reach node_id time_index time_string datetime wsel min_ch_el velocity flow froude energy max_depth
0 Bald Eagle Loc Hav 138154.4 1 Max WS NaT 672.808289 656.299988 11.812529 7.167449 0.546461 674.472717 16.508301
1 Bald Eagle Loc Hav 138154.4 2 18FEB1999 0000 1999-02-18 00:00:00 660.651123 656.299988 3.564320 1.161268 0.352355 660.827637 4.351135
2 Bald Eagle Loc Hav 138154.4 3 18FEB1999 0200 1999-02-18 02:00:00 660.218872 656.299988 3.614365 1.002599 0.376157 660.407654 3.918884
3 Bald Eagle Loc Hav 138154.4 4 18FEB1999 0400 1999-02-18 04:00:00 661.313293 656.299988 3.882611 1.605426 0.361649 661.511597 5.013306
4 Bald Eagle Loc Hav 138154.4 5 18FEB1999 0600 1999-02-18 06:00:00 662.443420 656.299988 4.350002 2.118352 0.357496 662.681335 6.143433
5 Bald Eagle Loc Hav 138154.4 6 18FEB1999 0800 1999-02-18 08:00:00 663.560730 656.299988 4.943125 2.614835 0.367609 663.861633 7.260742
6 Bald Eagle Loc Hav 138154.4 7 18FEB1999 1000 1999-02-18 10:00:00 664.638428 656.299988 5.587611 3.109273 0.383870 665.019165 8.338440
7 Bald Eagle Loc Hav 138154.4 8 18FEB1999 1200 1999-02-18 12:00:00 665.657776 656.299988 6.254566 3.600435 0.403054 666.132507 9.357788
8 Bald Eagle Loc Hav 138154.4 9 18FEB1999 1400 1999-02-18 14:00:00 666.623291 656.299988 6.915609 4.074730 0.422223 667.202332 10.323303
9 Bald Eagle Loc Hav 138154.4 10 18FEB1999 1600 1999-02-18 16:00:00 667.523621 656.299988 7.587838 4.510049 0.440113 668.219055 11.223633

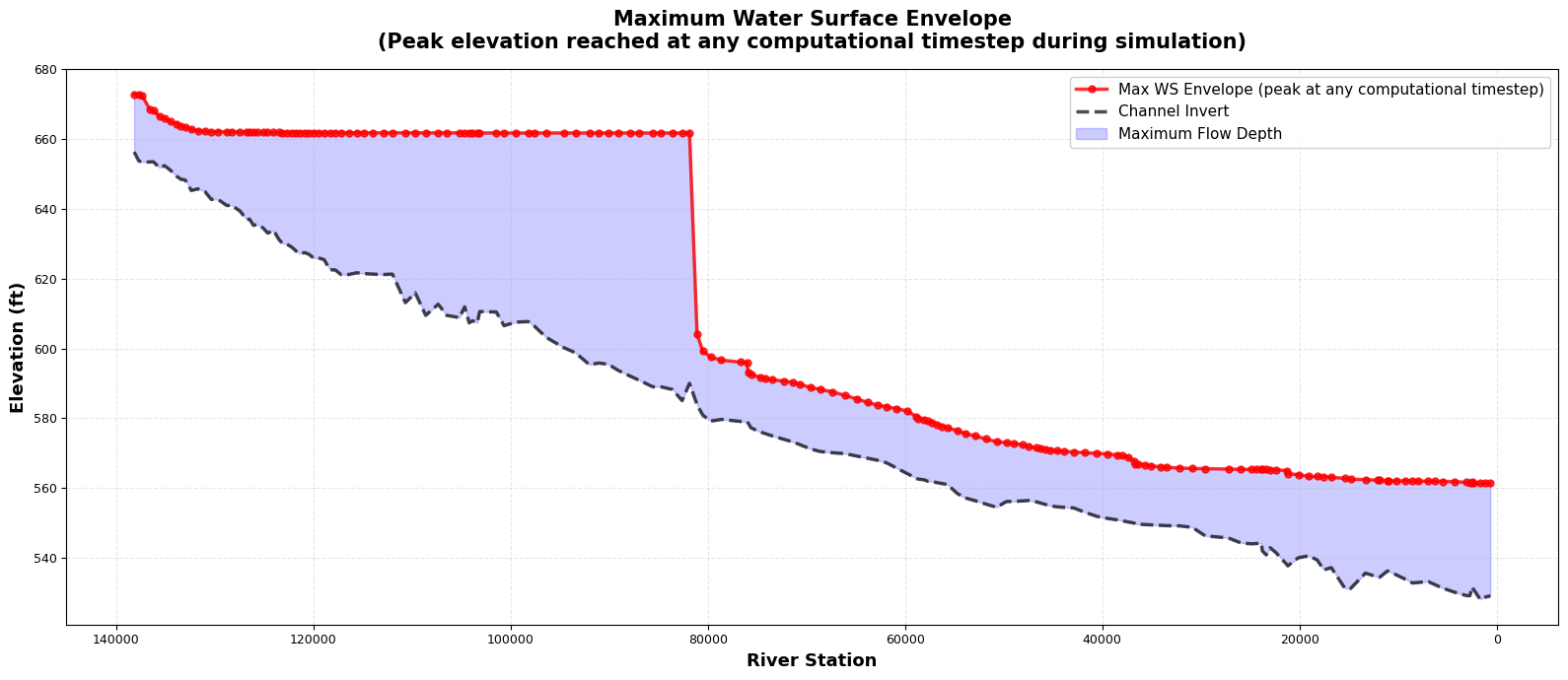

Understanding "Max WS" in Unsteady Output

Important: HEC-RAS unsteady results include a special row with time_string="Max WS" (time_index=1). This contains the maximum values that occurred at ANY computational timestep during the entire simulation, not just at output intervals.

Why this matters: - Output intervals (e.g., every 1 hour) may miss the peak flow/WSE - Computational timesteps (e.g., every 30 seconds) capture the true maximum - "Max WS" shows the absolute peak, even if it wasn't saved to an output interval

How to use it: - Include in DataFrame for reference (critical data!) - Filter out when plotting time series (it's not a timestep) - Show as horizontal reference line on plots to indicate peak

The next cell demonstrates this pattern.

Python
# ============================================================================

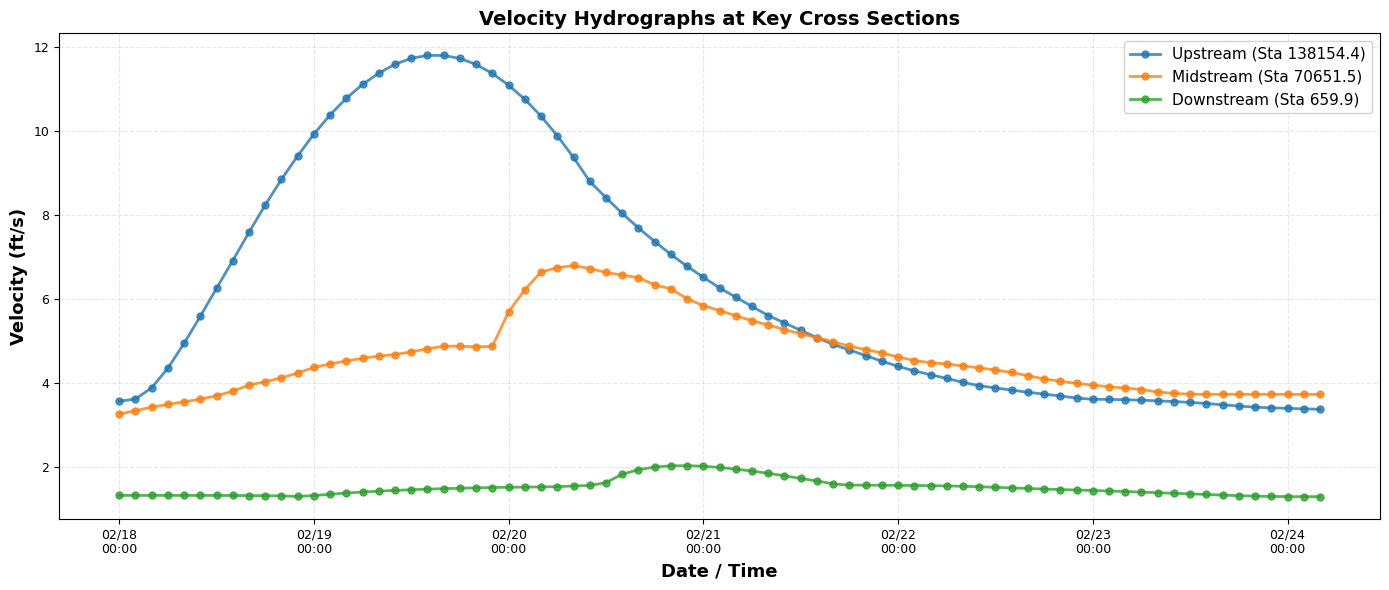

# UNSTEADY FLOW: Time Series at Multiple Cross Sections
# ============================================================================
# NOTE: This cell shows LEGACY manual datetime parsing for reference.
# For v0.81.0+, see the cell below for automatic datetime usage!
# ============================================================================

import matplotlib.dates as mdates
import numpy as np

# Convert node_id to float
df_unsteady['node_id'] = df_unsteady['node_id'].astype(float)

# Separate Max WS from timeseries data
df_maxws = df_unsteady[df_unsteady['time_string'] == 'Max WS'].copy()
df_timeseries = df_unsteady[df_unsteady['time_string'] != 'Max WS'].copy()

# LEGACY: Parse datetime for timeseries (NOT NEEDED in v0.81.0+ - datetime column auto-included!)
df_timeseries['datetime'] = pd.to_datetime(df_timeseries['time_string'],
                                           format='%d%b%Y %H%M', errors='coerce')

# Select cross sections to plot (every 20th station for manageable plot count)
all_xs = sorted(df_timeseries['node_id'].unique(), reverse=True)  # Upstream to downstream
selected_xs = all_xs[::20]  # Adjust step size as needed (20, 30, etc.)

if len(selected_xs) == 0:
    selected_xs = [all_xs[0]]  # At least plot one

print(f"Creating time series plots for {len(selected_xs)} cross sections:")
print(f"  Stations: {[f'{xs:.1f}' for xs in selected_xs]}\n")

# Create subplots - one per cross section
n_xs = len(selected_xs)
fig, axes = plt.subplots(n_xs, 1, figsize=(16, 4*n_xs))
if n_xs == 1:
    axes = [axes]

for idx, xs in enumerate(selected_xs):
    ax = axes[idx]

    # Get data for this cross section
    xs_data = df_timeseries[df_timeseries['node_id'] == xs].sort_values('datetime')
    maxws_data = df_maxws[df_maxws['node_id'] == xs]

    if len(xs_data) == 0:
        ax.text(0.5, 0.5, f'No data for station {xs:.1f}',
                ha='center', va='center', transform=ax.transAxes)
        continue

    # Plot WSE time series
    ax.plot(xs_data['datetime'], xs_data['wsel'],
            'b-o', linewidth=2, markersize=5, label='WSE (output intervals)',
            alpha=0.8)

    # Get max values
    max_ws_value = maxws_data['wsel'].iloc[0] if len(maxws_data) > 0 else None
    max_output_value = xs_data['wsel'].max()
    max_output_time = xs_data.loc[xs_data['wsel'].idxmax(), 'datetime']

    # Add horizontal line for computational Max WS
    #if max_ws_value:
    #    ax.axhline(max_ws_value, color='r', linestyle='--',
    #               linewidth=2, alpha=0.7, label='Max WS (computational)')

    # Create annotation text box
    annotation_lines = [
        f"Max WS (computational): {max_ws_value:.2f} ft" if max_ws_value else "Max WS: N/A",
        f"Max (output interval): {max_output_value:.2f} ft",
        f"  at {max_output_time.strftime('%m/%d %H:%M')}" if pd.notna(max_output_time) else ""
    ]
    annotation_text = '\n'.join(annotation_lines)

    ax.text(0.02, 0.98, annotation_text,
            transform=ax.transAxes, fontsize=10,
            verticalalignment='top', horizontalalignment='left',
            bbox=dict(boxstyle='round', facecolor='wheat', alpha=0.9, pad=0.5))

    # Formatting
    ax.set_ylabel('WSE (ft)', fontsize=11, fontweight='bold')
    ax.set_title(f'Station {xs:.1f}', fontsize=12, fontweight='bold', loc='left')
    ax.legend(loc='upper right', fontsize=9, framealpha=0.9)
    ax.grid(True, alpha=0.3, linestyle='--')

    # Format x-axis for dates
    ax.xaxis.set_major_formatter(mdates.DateFormatter('%m/%d\n%H:%M'))
    ax.xaxis.set_major_locator(mdates.HourLocator(interval=6))  # Adjust interval as needed
    plt.setp(ax.xaxis.get_majorticklabels(), rotation=0, ha='center', fontsize=9)

# Add common x-label to bottom subplot
axes[-1].set_xlabel('Date / Time', fontsize=13, fontweight='bold')

plt.suptitle('Unsteady Flow: Water Surface Time Series at Selected Cross Sections',
             fontsize=16, fontweight='bold', y=1.0)
plt.tight_layout()
plt.show()

print(f"\n✓ Created time series plots for {len(selected_xs)} stations")
Text Only
Creating time series plots for 9 cross sections:
  Stations: ['138154.4', '126454.1', '116401.3', '98206.9', '76643.4', '58836.2', '45233.9', '27226.4', '11865.8']

png

Text Only
✓ Created time series plots for 9 stations

NEW in v0.81.0: Automatic Datetime Parsing

Starting in version 0.81.0, get_unsteady_results() automatically includes a datetime column with proper datetime64[ns] objects. Manual parsing is no longer needed!

Key Improvements: - ✅ datetime column added automatically - ✅ Already in datetime64[ns] format (not strings) - ✅ "Max WS" rows have pd.NaT for clean filtering - ✅ Immediate compatibility with pandas datetime operations - ✅ Backward compatible - time_string still included

The cell above shows the old manual parsing method (kept for reference). The next cell demonstrates the modern approach using the automatic datetime column.

Python
# ============================================================================
# MODERN APPROACH: Using Automatic datetime Column (v0.81.0+)
# ============================================================================

# Check that datetime column exists and is already parsed
print("DataFrame columns:")
print(df_unsteady.columns.tolist())
print(f"\ndatetime column type: {df_unsteady['datetime'].dtype}")
print(f"Sample datetime values:")
print(df_unsteady[['time_string', 'datetime']].head(10))

# Separate using datetime column (NaT for Max WS rows)
df_maxws_modern = df_unsteady[df_unsteady['datetime'].isna()].copy()
df_timeseries_modern = df_unsteady[df_unsteady['datetime'].notna()].copy()

print(f"\nMax WS rows: {len(df_maxws_modern)}")
print(f"Timeseries rows: {len(df_timeseries_modern)}")

# Use pandas datetime accessors directly - no manual parsing needed!
print("\nDatetime operations (no parsing required!):")
print(f"  Simulation start: {df_timeseries_modern['datetime'].min()}")
print(f"  Simulation end: {df_timeseries_modern['datetime'].max()}")
print(f"  Duration: {df_timeseries_modern['datetime'].max() - df_timeseries_modern['datetime'].min()}")
print(f"  Unique hours: {df_timeseries_modern['datetime'].dt.hour.unique()[:10]}")

# Time-based filtering (modern approach)
# Example: Get data for a specific date
specific_date = pd.Timestamp('1999-02-19')
feb_19_data = df_timeseries_modern[df_timeseries_modern['datetime'].dt.date == specific_date.date()]
print(f"\nData points on {specific_date.date()}: {len(feb_19_data)}")

# Example: Get data for specific time range
start_time = pd.Timestamp('1999-02-18 12:00:00')
end_time = pd.Timestamp('1999-02-20 12:00:00')
time_range_data = df_timeseries_modern[
    (df_timeseries_modern['datetime'] >= start_time) &
    (df_timeseries_modern['datetime'] <= end_time)
]
print(f"Data points between {start_time} and {end_time}: {len(time_range_data)}")

print("\n✓ Modern datetime functionality demonstrated")
Text Only
DataFrame columns:
['river', 'reach', 'node_id', 'time_index', 'time_string', 'datetime', 'wsel', 'min_ch_el', 'velocity', 'flow', 'froude', 'energy', 'max_depth']

datetime column type: datetime64[ns]
Sample datetime values:
      time_string            datetime
0          Max WS                 NaT
1  18FEB1999 0000 1999-02-18 00:00:00
2  18FEB1999 0200 1999-02-18 02:00:00
3  18FEB1999 0400 1999-02-18 04:00:00
4  18FEB1999 0600 1999-02-18 06:00:00
5  18FEB1999 0800 1999-02-18 08:00:00
6  18FEB1999 1000 1999-02-18 10:00:00
7  18FEB1999 1200 1999-02-18 12:00:00
8  18FEB1999 1400 1999-02-18 14:00:00
9  18FEB1999 1600 1999-02-18 16:00:00

Max WS rows: 178
Timeseries rows: 13350

Datetime operations (no parsing required!):
  Simulation start: 1999-02-18 00:00:00
  Simulation end: 1999-02-24 04:00:00
  Duration: 6 days 04:00:00
  Unique hours: [ 0  2  4  6  8 10 12 14 16 18]

Data points on 1999-02-19: 2136
Data points between 1999-02-18 12:00:00 and 1999-02-20 12:00:00: 4450

✓ Modern datetime functionality demonstrated
Python
# ============================================================================
# UNSTEADY FLOW: Maximum Water Surface Envelope
# ============================================================================

# Sort by station for profile view
max_wse_sorted = df_maxws.sort_values('node_id', ascending=False)

fig, ax = plt.subplots(figsize=(16, 7))

# Plot maximum WSE envelope
ax.plot(max_wse_sorted['node_id'], max_wse_sorted['wsel'],
        'r-o', linewidth=2.5, markersize=5,
        label='Max WS Envelope (peak at any computational timestep)',
        alpha=0.8)

# Add channel invert
invert = max_wse_sorted[['node_id', 'min_ch_el']].drop_duplicates('node_id').sort_values('node_id', ascending=False)
ax.plot(invert['node_id'], invert['min_ch_el'],
        'k--', linewidth=2.5, alpha=0.7, label='Channel Invert')

# Fill between for visual clarity
ax.fill_between(max_wse_sorted['node_id'],
                max_wse_sorted['min_ch_el'],
                max_wse_sorted['wsel'],
                alpha=0.2, color='blue', label='Maximum Flow Depth')

# Formatting
ax.set_xlabel('River Station', fontsize=13, fontweight='bold')
ax.set_ylabel('Elevation (ft)', fontsize=13, fontweight='bold')
ax.set_title('Maximum Water Surface Envelope\n(Peak elevation reached at any computational timestep during simulation)',
             fontsize=15, fontweight='bold', pad=15)
ax.legend(fontsize=11, loc='best', framealpha=0.9)
ax.grid(True, alpha=0.3, linestyle='--')
ax.invert_xaxis()  # Upstream on left

plt.tight_layout()
plt.show()

# Print summary statistics
max_depth = (max_wse_sorted['wsel'] - max_wse_sorted['min_ch_el']).max()
max_depth_station = max_wse_sorted.loc[(max_wse_sorted['wsel'] - max_wse_sorted['min_ch_el']).idxmax(), 'node_id']

print(f"\n✓ Maximum Water Surface Envelope")
print(f"  Max depth: {max_depth:.2f} ft at station {max_depth_station:.1f}")
print(f"  Highest WSE: {max_wse_sorted['wsel'].max():.2f} ft at station {max_wse_sorted.loc[max_wse_sorted['wsel'].idxmax(), 'node_id']:.1f}")

png

Text Only
✓ Maximum Water Surface Envelope
  Max depth: 76.66 ft at station 82607.9
  Highest WSE: 672.81 ft at station 138154.4
Python
# ============================================================================
# UNSTEADY FLOW: Velocity Hydrographs at Key Locations
# ============================================================================

# Select critical stations (upstream, middle, downstream)
all_stations = sorted(df_timeseries['node_id'].unique(), reverse=True)
n_stations = len(all_stations)

if n_stations >= 3:
    critical_xs = [
        all_stations[0],                    # Upstream
        all_stations[n_stations // 2],      # Middle
        all_stations[-1]                    # Downstream
    ]
    labels = ['Upstream', 'Midstream', 'Downstream']
else:
    critical_xs = all_stations
    labels = [f'Station {i+1}' for i in range(len(critical_xs))]

fig, ax = plt.subplots(figsize=(14, 6))

colors = ['#1f77b4', '#ff7f0e', '#2ca02c']

# Plot velocity hydrographs
for idx, (xs, label) in enumerate(zip(critical_xs, labels)):
    xs_data = df_timeseries[df_timeseries['node_id'] == xs].sort_values('datetime')
    ax.plot(xs_data['datetime'], xs_data['velocity'],
            marker='o', linewidth=2, markersize=5,
            color=colors[idx % len(colors)],
            label=f'{label} (Sta {xs:.1f})', alpha=0.8)

ax.set_xlabel('Date / Time', fontsize=13, fontweight='bold')
ax.set_ylabel('Velocity (ft/s)', fontsize=13, fontweight='bold')
ax.set_title('Velocity Hydrographs at Key Cross Sections',
              fontsize=14, fontweight='bold')
ax.legend(fontsize=11, loc='best', framealpha=0.9)
ax.grid(True, alpha=0.3, linestyle='--')
ax.xaxis.set_major_formatter(mdates.DateFormatter('%m/%d\n%H:%M'))

plt.tight_layout()
plt.show()

print(f"\n✓ Created velocity hydrographs for {len(critical_xs)} key locations")

png

Text Only
✓ Created velocity hydrographs for 3 key locations

Summary

Complete RasControl API

Python
# Initialize with version (flexible formats)
init_ras_project(path, "4.1")  # or "41", "66", "5.0.6", "506", etc.

# Run plans (auto-sets as current, waits for completion)
# NOTE: run_plan() now checks if plan is current before running
# If results are up-to-date, it skips computation (faster workflow)
success, msgs = RasControl.run_plan("02")

# To force recomputation regardless of current status:
success, msgs = RasControl.run_plan("02", force_recompute=True)

# Extract steady (auto-sets as current)
df_steady = RasControl.get_steady_results("02")

# Extract unsteady (auto-sets as current, includes Max WS)
df_unsteady = RasControl.get_unsteady_results("01")

# Filter for time series plotting
df_timeseries = df_unsteady[df_unsteady['time_string'] != 'Max WS']
max_wse = df_unsteady[df_unsteady['time_string'] == 'Max WS']['wsel'].iloc[0]

Key Features

  • ✅ Plan numbers (not file paths)
  • ✅ Auto-sets current plan
  • ✅ Blocks until completion
  • ✅ Steady AND unsteady
  • ✅ All versions 3.0-6.7
  • ✅ Flexible version formats
  • ✅ Includes Max WS data
  • ✅ Multi-version comparison (optional)

What Was Demonstrated

  1. Steady workflow - Plan 02 extraction and plotting
  2. Unsteady workflow - Plan 01 time series with Max WS reference
  3. Max WS handling - Understanding and visualizing peak values
  4. Multi-version comparison - Optional cells for version validation

Next Steps

  • Apply to your legacy HEC-RAS models
  • Run multi-version comparison for migration validation
  • For HEC-RAS 6.0+: Use HDF methods for better performance
  • 19_steady_flow_analysis.ipynb
  • 10_1d_hdf_data_extraction.ipynb

What This Creates

Running the multi-version comparison cells will:

New Plans in Project: - 02_41, 02_506, 02_63, 02_66 (steady) - 01_41, 01_506, 01_63, 01_66 (unsteady)

CSV Files in working/: - steady_v41.csv, steady_v506.csv, steady_v63.csv, steady_v66.csv - unsteady_v41.csv, unsteady_v506.csv, unsteady_v63.csv, unsteady_v66.csv

Results: - All plans remain in project for further analysis - CSV files for external comparison - Plots showing version differences

Python
# =============================================================================

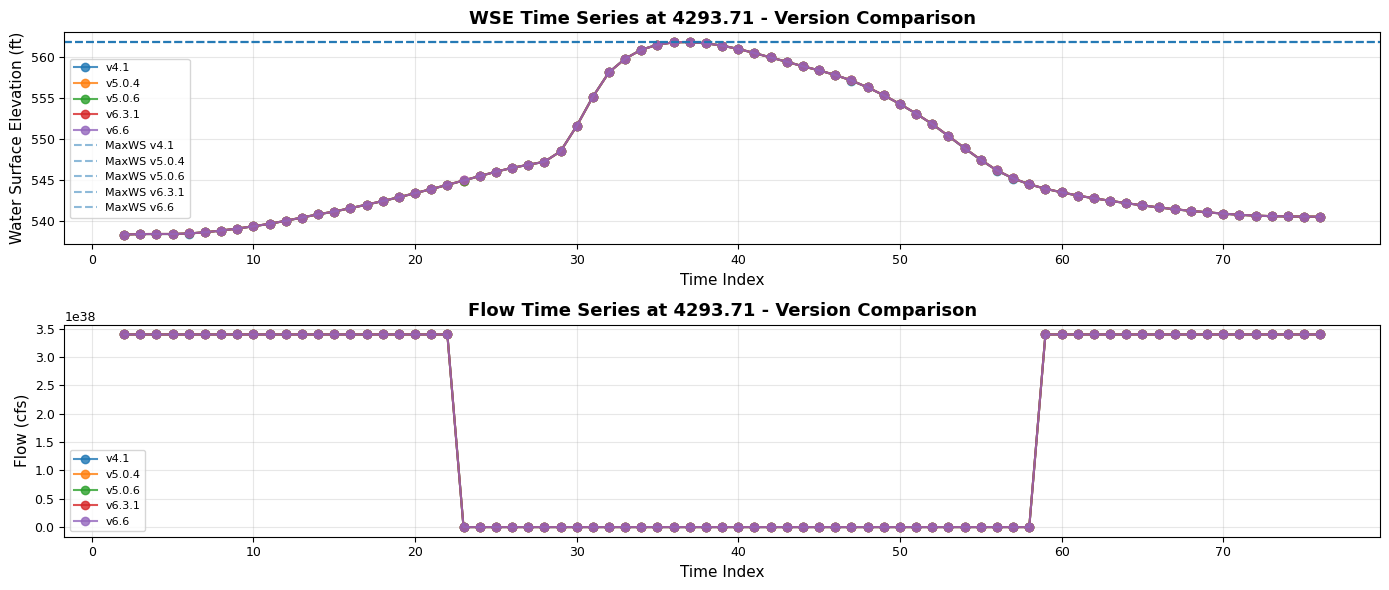

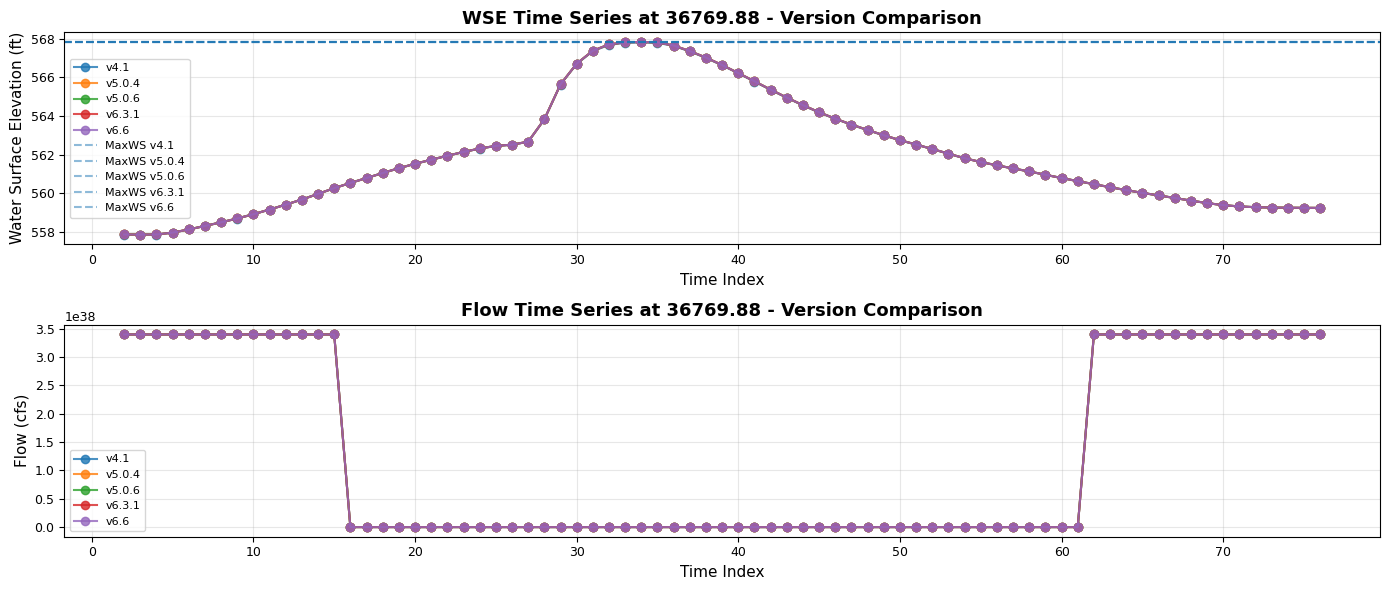

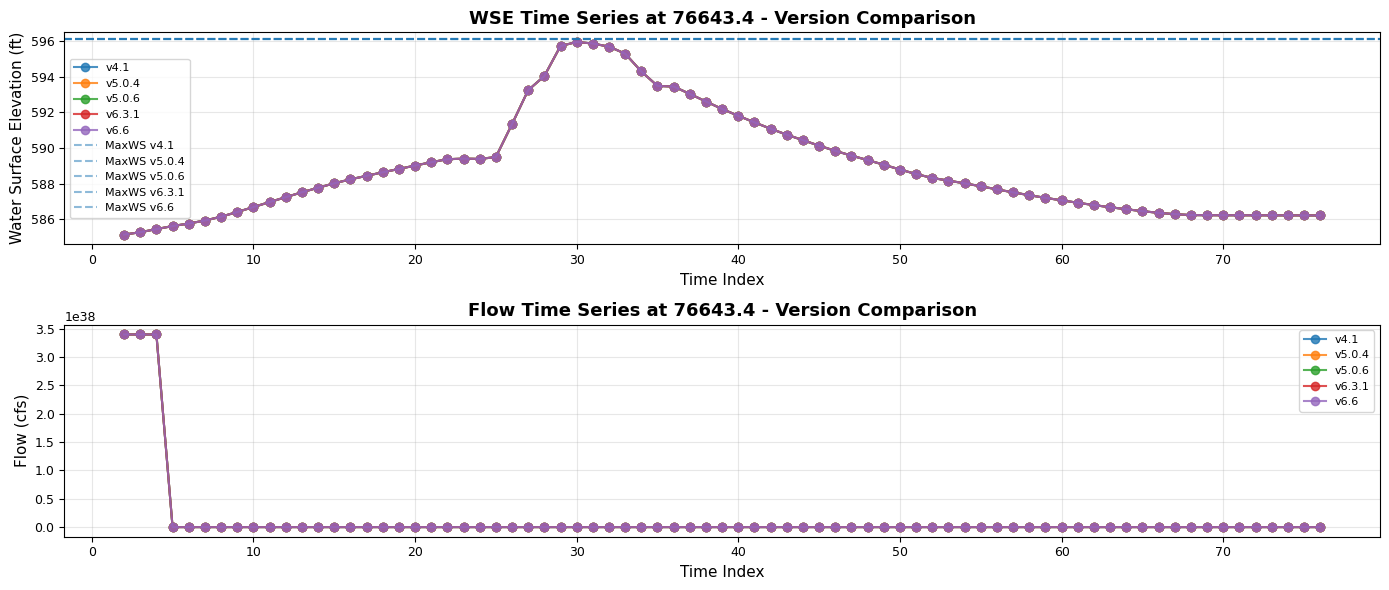

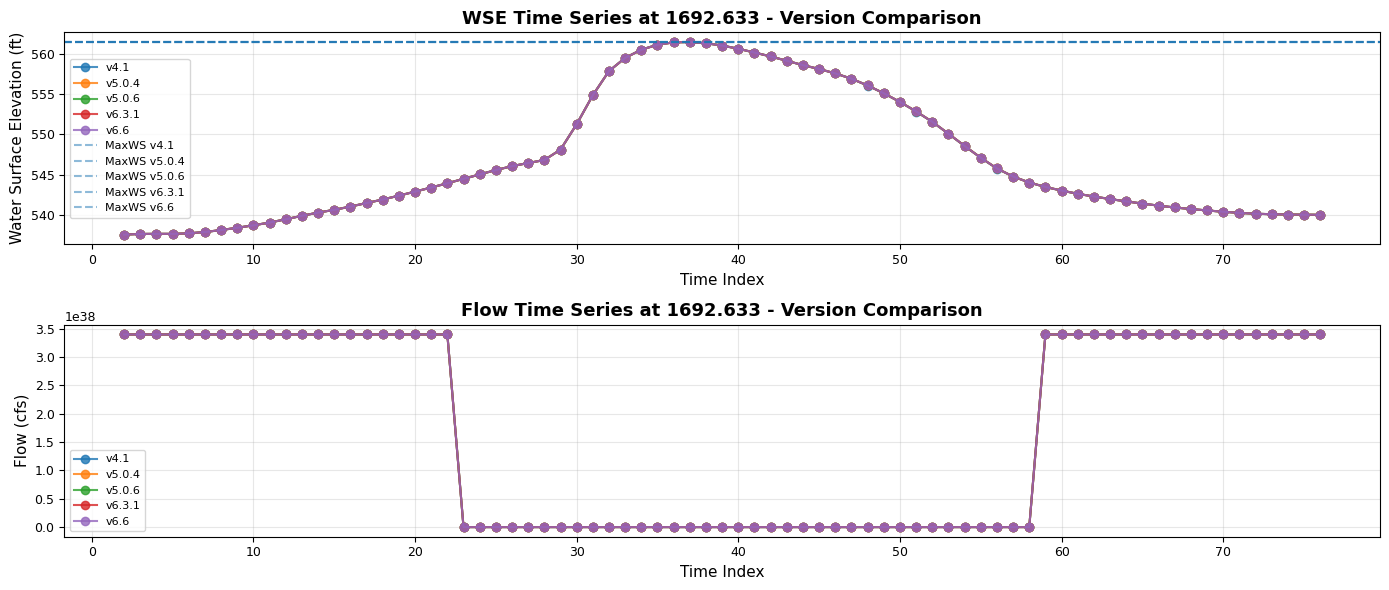

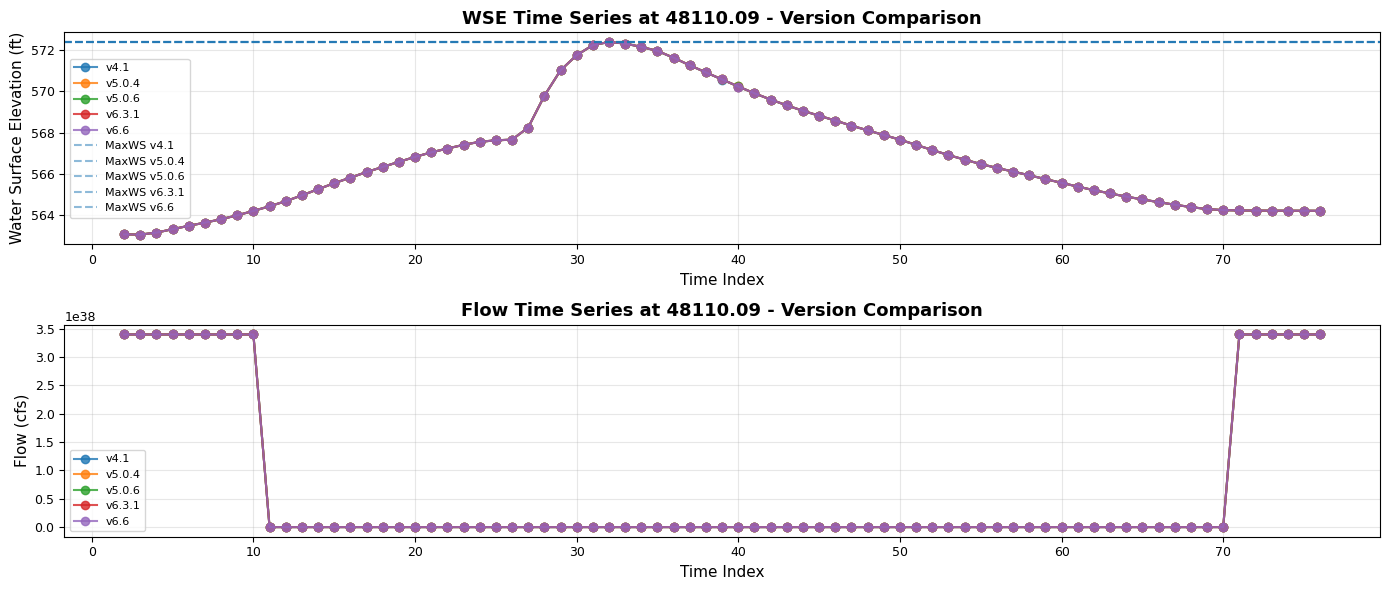

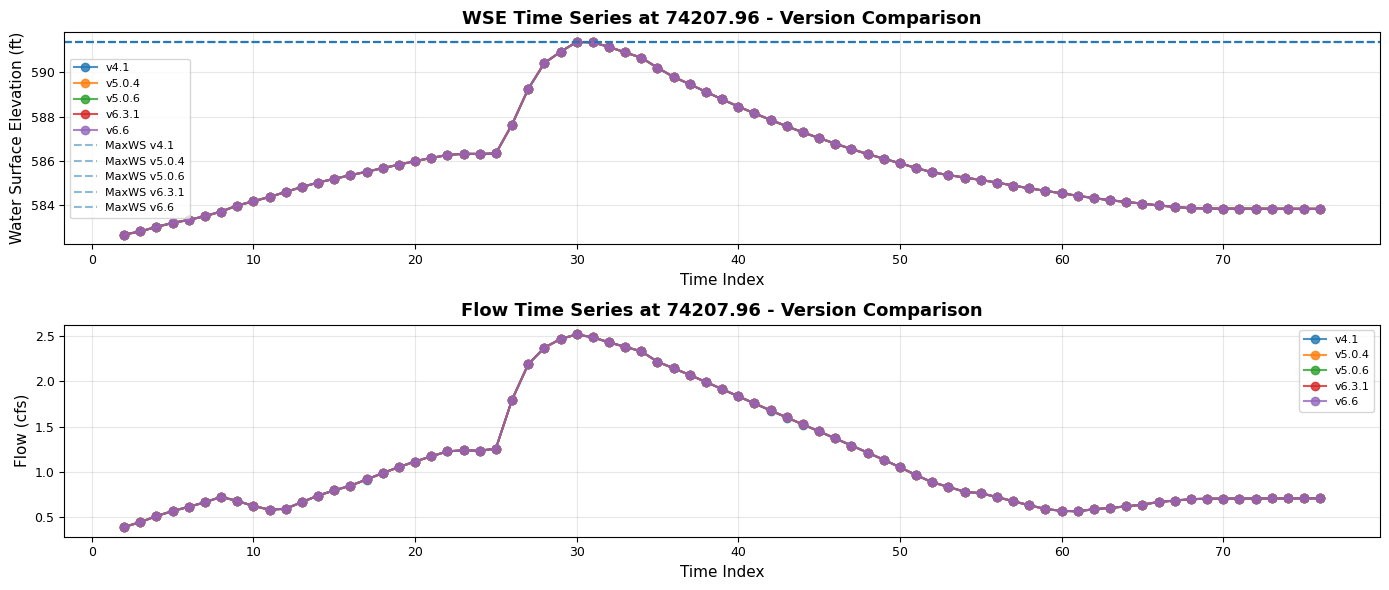

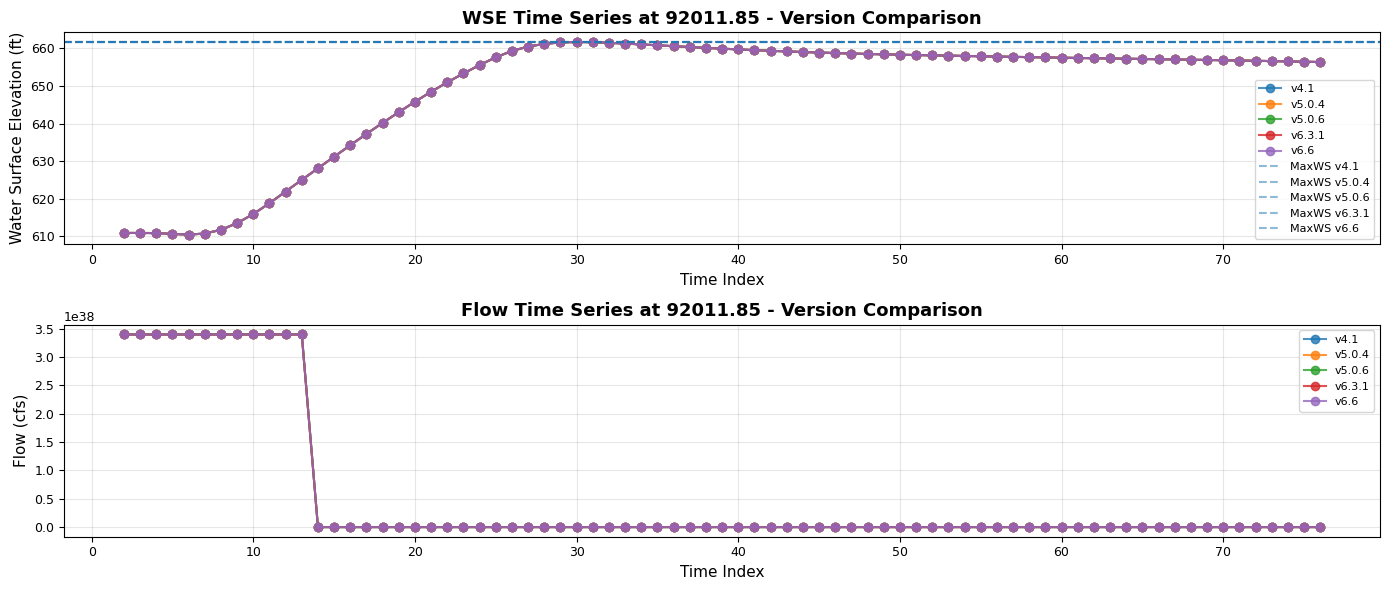

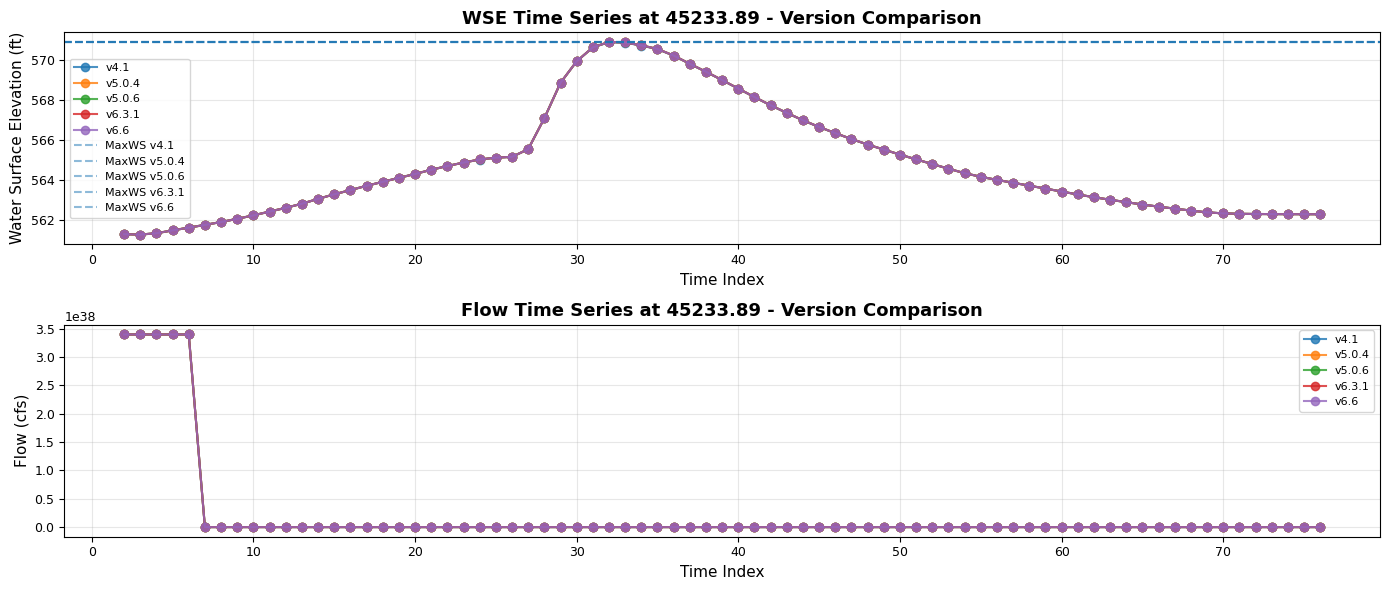

# OPTIONAL: Multi-version unsteady comparison (SKIP for automated testing)
# =============================================================================
# This cell runs multiple HEC-RAS versions and takes 1-2 hours.
# Set SKIP_MULTIVERSION = True to run the comparison.
# =============================================================================

SKIP_MULTIVERSION = True  # Set to False to run optional multi-version comparisons

if SKIP_MULTIVERSION:
    print("Skipping multi-version unsteady comparison (SKIP_MULTIVERSION=True)")
    print("Set SKIP_MULTIVERSION = True in the cell above to run this analysis")
    unsteady_results = {}
    max_ws_data = {}
else:
    from ras_commander import RasPlan

    # Step 1: Update Plan 01 output intervals for more detail
    print("Step 1: Updating Plan 01 intervals...")
    init_ras_project(project_path, RAS_VERSION)  # Use latest for modification

    # Update intervals: Output=15MIN, Mapping=15MIN
    RasPlan.update_plan_intervals("01",
                                  output_interval="10MIN",
                                  mapping_interval="10MIN")
    print("  Output Interval: 1HOUR -> 6MIN")
    print("  Mapping Interval: 1HOUR -> 6MIN\n")

    # Step 2: Run across versions
    # All versions with actual COM interfaces
    test_versions = [
        ("4.1", "41"),       # HEC-RAS 4.1     -> RAS41.HECRASController
    #    ("5.0.1", "501"),    # HEC-RAS 5.0.1   -> RAS501.HECRASController  >> FREEZES, SKIP, LIKELY ISSUE WITH HECRASCONTROLLER
    #    ("5.0.3", "503"),    # HEC-RAS 5.0.3   -> RAS503.HECRASController
        ("5.0.4", "504"),    # HEC-RAS 5.0.4   -> RAS504.HECRASController
        ("5.0.6", "506"),    # HEC-RAS 5.0.6   -> RAS506.HECRASController
        ("6.3.1", "631"),    # HEC-RAS 6.3.1   -> RAS631.HECRASController
        ("6.6", "66"),       # HEC-RAS 6.6     -> RAS66.HECRASController
    ]

    unsteady_results = {}
    max_ws_data = {}  # Store Max WS separately

    print("=== MULTI-VERSION UNSTEADY COMPARISON ===\n")

    for version_name, version_code in test_versions:
        print(f"Processing HEC-RAS {version_name}...")

        # Clone Plan 01 for this version
        new_plan = RasPlan.clone_plan("01",
                          new_shortid=f"Unsteady_{version_code}",
                          new_title=f"Unsteady - v{version_name}")
        print(f"  Cloned to Plan {new_plan}")

        # Re-initialize with this version
        init_ras_project(project_path, version_name)

        # Run the plan (this will take several minutes!)
        print(f"  Running Plan {new_plan} (may take 5-10 min)...")
        # NOTE: Using force_recompute=True for fresh cloned plans to ensure computation
        # (Default behavior now checks if plan is current and skips if already computed)
        #success, msgs = RasControl.run_plan(new_plan, force_recompute=True)
        success, msgs = RasControl.run_plan(new_plan, force_recompute=True)
        print(success, msgs)
        if success:
            # Extract results (limit to 20 timesteps for comparison)
            df = RasControl.get_unsteady_results(new_plan)

            # Separate Max WS from timeseries
            max_ws_data[version_name] = df[df['time_string'] == 'Max WS'].copy()
            unsteady_results[version_name] = df[df['time_string'] != 'Max WS'].copy()

            # Save CSV
            csv_path = Path(f"working/unsteady_v{version_code}.csv")
            df.to_csv(csv_path, index=False)
            print(f"  Extracted {len(df)} rows -> {csv_path}")
        else:
            print(f"  Failed")

        print()
Text Only
2026-01-14 10:38:27 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf


Step 1: Updating Plan 01 intervals...


2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:38:27 - ras_commander.RasPrj - INFO - Updated results_df with 2 plan(s)
2026-01-14 10:38:27 - ras_commander.RasPlan - INFO - Successfully updated intervals in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01
2026-01-14 10:38:27 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p03
2026-01-14 10:38:27 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p03
2026-01-14 10:38:27 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 03
2026-01-14 10:38:27 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:38:27 - ras_commander.RasPrj - INFO - Updated results_df with 3 plan(s)
2026-01-14 10:38:27 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:38:27 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:38:27 - ras_commander.RasPrj - INFO - Updated results_df with 3 plan(s)


  Output Interval: 1HOUR -> 6MIN
  Mapping Interval: 1HOUR -> 6MIN

=== MULTI-VERSION UNSTEADY COMPARISON ===

Processing HEC-RAS 4.1...
  Cloned to Plan 03
  Running Plan 03 (may take 5-10 min)...


2026-01-14 10:38:27 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS41.HECRASController (version: 4.1)
2026-01-14 10:38:37 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:38:38 - ras_commander.RasControl - INFO - Detected ras.exe PID 222760 (confidence: 70/100)
2026-01-14 10:38:38 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:38:38 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v4.1
2026-01-14 10:38:38 - ras_commander.RasControl - INFO - Starting computation...
2026-01-14 10:40:24 - ras_commander.RasControl - INFO - Spawned watchdog process PID 174680 (monitoring PID 222760)
2026-01-14 10:40:24 - ras_commander.RasControl - INFO - Waiting for computation to complete...
2026-01-14 10:40:24 - ras_commander.RasControl - ERROR - Error checking completion status: RAS41.HECRASController.Compute_Complete
2026-01-14 10:40:24 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:40:24 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:40:24 - ras_commander.RasControl - WARNING - QuitRas() failed: RAS41.HECRASController.QuitRas
2026-01-14 10:40:24 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 222760
2026-01-14 10:40:24 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS41.HECRASController (version: 4.1)


True ['Starting Unsteady Computations', 'Computing', 'Computations Completed']


2026-01-14 10:40:25 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:40:25 - ras_commander.RasControl - INFO - Detected ras.exe PID 118136 (confidence: 100/100)
2026-01-14 10:40:25 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:40:25 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v4.1
2026-01-14 10:40:25 - ras_commander.RasControl - INFO - Extracting 76 time steps
2026-01-14 10:40:25 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:40:53 - ras_commander.RasControl - INFO - Extracted 13528 result rows
2026-01-14 10:40:53 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:40:53 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:40:53 - ras_commander.RasControl - WARNING - QuitRas() failed: RAS41.HECRASController.QuitRas
2026-01-14 10:40:53 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 118136
2026-01-14 10:40:53 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04
2026-01-14 10:40:53 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04
2026-01-14 10:40:53 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 04
2026-01-14 10:40:53 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:40:53 - ras_commander.RasPrj - INFO - Updated results_df with 4 plan(s)
2026-01-14 10:40:53 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:40:53 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:40:53 - ras_commander.RasPrj - INFO - Updated results_df with 4 plan(s)
2026-01-14 10:40:53 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS504.HECRASController (version: 5.0.4)


  Extracted 13528 rows -> working\unsteady_v41.csv

Processing HEC-RAS 5.0.4...
  Cloned to Plan 04
  Running Plan 04 (may take 5-10 min)...


2026-01-14 10:40:54 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:40:55 - ras_commander.RasControl - INFO - Detected ras.exe PID 185304 (confidence: 100/100)
2026-01-14 10:40:55 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:40:55 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v5.0.4
2026-01-14 10:40:55 - ras_commander.RasControl - INFO - Starting computation...
2026-01-14 10:42:30 - ras_commander.RasControl - INFO - Spawned watchdog process PID 353112 (monitoring PID 185304)
2026-01-14 10:42:30 - ras_commander.RasControl - INFO - Waiting for computation to complete...
2026-01-14 10:42:30 - ras_commander.RasControl - INFO - Computation completed (polled 0 times)
2026-01-14 10:42:30 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:42:30 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:42:30 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:42:30 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 185304


True ['Starting Unsteady Computations', 'Computing', 'Computations Completed']


2026-01-14 10:42:30 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS504.HECRASController (version: 5.0.4)
2026-01-14 10:42:30 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:42:31 - ras_commander.RasControl - INFO - Detected ras.exe PID 243972 (confidence: 100/100)
2026-01-14 10:42:31 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:42:31 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v5.0.4
2026-01-14 10:42:31 - ras_commander.RasControl - INFO - Extracting 76 time steps
2026-01-14 10:42:31 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:43:00 - ras_commander.RasControl - INFO - Extracted 13528 result rows
2026-01-14 10:43:00 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:43:00 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:43:00 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:43:00 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 243972
2026-01-14 10:43:00 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05
2026-01-14 10:43:00 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05
2026-01-14 10:43:00 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 05
2026-01-14 10:43:00 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.RasPrj - INFO - Updated results_df with 5 plan(s)
2026-01-14 10:43:00 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:00 - ras_commander.RasPrj - INFO - Updated results_df with 5 plan(s)
2026-01-14 10:43:00 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS506.HECRASController (version: 5.0.6)


  Extracted 13528 rows -> working\unsteady_v504.csv

Processing HEC-RAS 5.0.6...
  Cloned to Plan 05
  Running Plan 05 (may take 5-10 min)...


2026-01-14 10:43:01 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:43:02 - ras_commander.RasControl - INFO - Detected ras.exe PID 282092 (confidence: 100/100)
2026-01-14 10:43:02 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:43:02 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v5.0.6
2026-01-14 10:43:02 - ras_commander.RasControl - INFO - Starting computation...
2026-01-14 10:43:16 - ras_commander.RasControl - INFO - Spawned watchdog process PID 218652 (monitoring PID 282092)
2026-01-14 10:43:16 - ras_commander.RasControl - INFO - Waiting for computation to complete...
2026-01-14 10:43:16 - ras_commander.RasControl - INFO - Computation completed (polled 0 times)
2026-01-14 10:43:16 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:43:16 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:43:16 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:43:16 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 282092
2026-01-14 10:43:16 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS506.HECRASController (version: 5.0.6)
2026-01-14 10:43:16 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj


True ['Starting Unsteady Computations', 'Computing', 'Computations Completed']


2026-01-14 10:43:17 - ras_commander.RasControl - INFO - Detected ras.exe PID 77376 (confidence: 100/100)
2026-01-14 10:43:17 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:43:17 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v5.0.6
2026-01-14 10:43:17 - ras_commander.RasControl - INFO - Extracting 76 time steps
2026-01-14 10:43:17 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:43:46 - ras_commander.RasControl - INFO - Extracted 13528 result rows
2026-01-14 10:43:46 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:43:46 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:43:46 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:43:46 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 77376
2026-01-14 10:43:46 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06
2026-01-14 10:43:46 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06
2026-01-14 10:43:46 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 06
2026-01-14 10:43:46 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.RasPrj - INFO - Updated results_df with 6 plan(s)
2026-01-14 10:43:46 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:43:46 - ras_commander.RasPrj - INFO - Updated results_df with 6 plan(s)
2026-01-14 10:43:46 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS631.HECRASController (version: 6.3.1)


  Extracted 13528 rows -> working\unsteady_v506.csv

Processing HEC-RAS 6.3.1...
  Cloned to Plan 06
  Running Plan 06 (may take 5-10 min)...


2026-01-14 10:43:47 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:43:47 - ras_commander.RasControl - INFO - Detected ras.exe PID 399952 (confidence: 100/100)
2026-01-14 10:43:47 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:43:47 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v6.3.1
2026-01-14 10:43:47 - ras_commander.RasControl - INFO - Starting computation...
2026-01-14 10:45:19 - ras_commander.RasControl - INFO - Spawned watchdog process PID 218292 (monitoring PID 399952)
2026-01-14 10:45:19 - ras_commander.RasControl - INFO - Waiting for computation to complete...
2026-01-14 10:45:19 - ras_commander.RasControl - INFO - Computation completed (polled 0 times)
2026-01-14 10:45:19 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:45:19 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:45:20 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:45:20 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 399952
2026-01-14 10:45:20 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS631.HECRASController (version: 6.3.1)


True ['Starting Unsteady Computations', 'Computing', 'Computations Completed']


2026-01-14 10:45:20 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:45:20 - ras_commander.RasControl - INFO - Detected ras.exe PID 379840 (confidence: 100/100)
2026-01-14 10:45:20 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:45:20 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v6.3.1
2026-01-14 10:45:20 - ras_commander.RasControl - INFO - Extracting 76 time steps
2026-01-14 10:45:20 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:45:51 - ras_commander.RasControl - INFO - Extracted 13528 result rows
2026-01-14 10:45:51 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:45:51 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:45:51 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:45:51 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 379840
2026-01-14 10:45:51 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07
2026-01-14 10:45:51 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07
2026-01-14 10:45:51 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 07
2026-01-14 10:45:51 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.RasPrj - INFO - Updated results_df with 7 plan(s)


  Extracted 13528 rows -> working\unsteady_v631.csv

Processing HEC-RAS 6.6...


2026-01-14 10:45:51 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:45:51 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf


  Cloned to Plan 07


2026-01-14 10:45:51 - ras_commander.RasPrj - INFO - Updated results_df with 7 plan(s)
2026-01-14 10:45:51 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS66.HECRASController (version: 6.6)


  Running Plan 07 (may take 5-10 min)...


2026-01-14 10:45:52 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:45:52 - ras_commander.RasControl - INFO - Detected ras.exe PID 152188 (confidence: 100/100)
2026-01-14 10:45:52 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:45:52 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v6.6
2026-01-14 10:45:52 - ras_commander.RasControl - INFO - Starting computation...
2026-01-14 10:47:26 - ras_commander.RasControl - INFO - Spawned watchdog process PID 178548 (monitoring PID 152188)
2026-01-14 10:47:26 - ras_commander.RasControl - INFO - Waiting for computation to complete...
2026-01-14 10:47:26 - ras_commander.RasControl - INFO - Computation completed (polled 0 times)
2026-01-14 10:47:26 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:47:26 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:47:26 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:47:26 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 152188
2026-01-14 10:47:27 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS66.HECRASController (version: 6.6)


True ['Starting Unsteady Computations', 'Computing', 'Computations Completed']


2026-01-14 10:47:27 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:47:27 - ras_commander.RasControl - INFO - Detected ras.exe PID 335212 (confidence: 100/100)
2026-01-14 10:47:27 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:47:27 - ras_commander.RasControl - INFO - Setting current plan to: Unsteady - v6.6
2026-01-14 10:47:27 - ras_commander.RasControl - INFO - Extracting 76 time steps
2026-01-14 10:47:27 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:47:56 - ras_commander.RasControl - INFO - Extracted 13528 result rows
2026-01-14 10:47:56 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:47:56 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:47:56 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:47:56 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 335212


  Extracted 13528 rows -> working\unsteady_v66.csv
Python
# =============================================================================
# Plot multi-version unsteady comparison (if data available)
# =============================================================================

if unsteady_results:
    # Gather all station IDs across versions
    xs_set = set()
    for df in unsteady_results.values():
        try:
            xs_set.update(df['node_id'].astype(float).unique().tolist())
        except Exception:
            xs_set.update(df['node_id'].unique().tolist())

    all_xs = sorted(xs_set, reverse=True)  # upstream -> downstream
    if not all_xs:
        print("No cross section data found in unsteady_results")
    else:
        # Select every 5th cross section for plotting (adjust step as needed)
        step = 5
        selected_xs = all_xs[::step] if len(all_xs) > step else all_xs
        print(f"Plotting {len(selected_xs)} stations (every {step}th of {len(all_xs)} total)")

        for xs_id in selected_xs:
            fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(14, 6))

            # Plot WSE time series for each version at this station
            for version, df in unsteady_results.items():
                # FIX: Convert node_id to float for comparison
                df_float = df.copy()
                df_float['node_id'] = df_float['node_id'].astype(float)
                xs_data = df_float[df_float['node_id'] == xs_id].sort_values('time_index')
                if len(xs_data):
                    ax1.plot(xs_data['time_index'], xs_data['wsel'],
                             marker='o', label=f'v{version}', alpha=0.8)

            # Add Max WS reference lines (if available) for this station
            for version, df in max_ws_data.items():
                try:
                    df_float = df.copy()
                    df_float['node_id'] = df_float['node_id'].astype(float)
                    max_row = df_float[df_float['node_id'] == xs_id]
                    if len(max_row):
                        max_wse = float(max_row['wsel'].iloc[0])
                        ax1.axhline(max_wse, linestyle='--', alpha=0.5, label=f'MaxWS v{version}')
                except Exception:
                    continue

            ax1.set_xlabel('Time Index', fontsize=11)
            ax1.set_ylabel('Water Surface Elevation (ft)', fontsize=11)
            ax1.set_title(f'WSE Time Series at {xs_id} - Version Comparison',
                          fontsize=13, fontweight='bold')
            ax1.legend(fontsize=8)
            ax1.grid(True, alpha=0.3)

            # Plot Flow time series for each version at this station
            for version, df in unsteady_results.items():
                # FIX: Convert node_id to float for comparison
                df_float = df.copy()
                df_float['node_id'] = df_float['node_id'].astype(float)
                xs_data = df_float[df_float['node_id'] == xs_id].sort_values('time_index')
                if len(xs_data):
                    ax2.plot(xs_data['time_index'], xs_data['flow'],
                             marker='o', label=f'v{version}', alpha=0.8)

            ax2.set_xlabel('Time Index', fontsize=11)
            ax2.set_ylabel('Flow (cfs)', fontsize=11)
            ax2.set_title(f'Flow Time Series at {xs_id} - Version Comparison',
                          fontsize=13, fontweight='bold')
            ax2.legend(fontsize=8)
            ax2.grid(True, alpha=0.3)

            plt.tight_layout()
            plt.show()

            # Basic per-station stats
            print(f"\nStation {xs_id}:")
            for version, df in unsteady_results.items():
                df_float = df.copy()
                df_float['node_id'] = df_float['node_id'].astype(float)
                xs_data = df_float[df_float['node_id'] == xs_id]
                if len(xs_data):
                    print(f"  v{version}: timesteps={len(xs_data)}, max_wse={xs_data['wsel'].max():.2f} ft")
                else:
                    print(f"  v{version}: no data")

        # Summary of Max WS across versions for the first selected station (if any)
        if selected_xs:
            summary_xs = selected_xs[0]
            print(f"\nMax WSE by version at station {summary_xs}:")
            for version, df in max_ws_data.items():
                try:
                    df_float = df.copy()
                    df_float['node_id'] = df_float['node_id'].astype(float)
                    max_row = df_float[df_float['node_id'] == summary_xs]
                    if len(max_row):
                        max_wse = float(max_row['wsel'].iloc[0])
                        print(f"  v{version}: {max_wse:.2f} ft")
                    else:
                        print(f"  v{version}: N/A")
                except Exception:
                    print(f"  v{version}: N/A")

else:
    print("Skipping multi-version unsteady comparison plots (no data)")
    print("Set SKIP_MULTIVERSION = True in cell above to run the analysis")
Text Only
Plotting 36 stations (every 5th of 178 total)

png

Text Only
Station 138154.4:
  v4.1: timesteps=75, max_wse=672.80 ft
  v5.0.4: timesteps=75, max_wse=672.80 ft
  v5.0.6: timesteps=75, max_wse=672.80 ft
  v6.3.1: timesteps=75, max_wse=672.80 ft
  v6.6: timesteps=75, max_wse=672.80 ft

png

Text Only
Station 135591.4:
  v4.1: timesteps=75, max_wse=666.43 ft
  v5.0.4: timesteps=75, max_wse=666.43 ft
  v5.0.6: timesteps=75, max_wse=666.43 ft
  v6.3.1: timesteps=75, max_wse=666.43 ft
  v6.6: timesteps=75, max_wse=666.43 ft

png

Text Only
Station 132973.6:
  v4.1: timesteps=75, max_wse=663.44 ft
  v5.0.4: timesteps=75, max_wse=663.44 ft
  v5.0.6: timesteps=75, max_wse=663.44 ft
  v6.3.1: timesteps=75, max_wse=663.44 ft
  v6.6: timesteps=75, max_wse=663.44 ft

png

Text Only
Station 129627.5:
  v4.1: timesteps=75, max_wse=662.05 ft
  v5.0.4: timesteps=75, max_wse=662.05 ft
  v5.0.6: timesteps=75, max_wse=662.05 ft
  v6.3.1: timesteps=75, max_wse=662.05 ft
  v6.6: timesteps=75, max_wse=662.05 ft

png

Text Only
Station 126454.1:
  v4.1: timesteps=75, max_wse=661.92 ft
  v5.0.4: timesteps=75, max_wse=661.93 ft
  v5.0.6: timesteps=75, max_wse=661.93 ft
  v6.3.1: timesteps=75, max_wse=661.93 ft
  v6.6: timesteps=75, max_wse=661.93 ft

png

Text Only
Station 124025.0:
  v4.1: timesteps=75, max_wse=661.85 ft
  v5.0.4: timesteps=75, max_wse=661.86 ft
  v5.0.6: timesteps=75, max_wse=661.86 ft
  v6.3.1: timesteps=75, max_wse=661.86 ft
  v6.6: timesteps=75, max_wse=661.86 ft

png

Text Only
Station 121754.0:
  v4.1: timesteps=75, max_wse=661.81 ft
  v5.0.4: timesteps=75, max_wse=661.82 ft
  v5.0.6: timesteps=75, max_wse=661.82 ft
  v6.3.1: timesteps=75, max_wse=661.82 ft
  v6.6: timesteps=75, max_wse=661.82 ft

png

Text Only
Station 119473.8:
  v4.1: timesteps=75, max_wse=661.77 ft
  v5.0.4: timesteps=75, max_wse=661.78 ft
  v5.0.6: timesteps=75, max_wse=661.78 ft
  v6.3.1: timesteps=75, max_wse=661.78 ft
  v6.6: timesteps=75, max_wse=661.78 ft

png

Text Only
Station 116401.3:
  v4.1: timesteps=75, max_wse=661.76 ft
  v5.0.4: timesteps=75, max_wse=661.77 ft
  v5.0.6: timesteps=75, max_wse=661.77 ft
  v6.3.1: timesteps=75, max_wse=661.77 ft
  v6.6: timesteps=75, max_wse=661.77 ft

png

Text Only
Station 111971.0:
  v4.1: timesteps=75, max_wse=661.76 ft
  v5.0.4: timesteps=75, max_wse=661.76 ft
  v5.0.6: timesteps=75, max_wse=661.76 ft
  v6.3.1: timesteps=75, max_wse=661.76 ft
  v6.6: timesteps=75, max_wse=661.76 ft

png

Text Only
Station 106466.0:
  v4.1: timesteps=75, max_wse=661.75 ft
  v5.0.4: timesteps=75, max_wse=661.76 ft
  v5.0.6: timesteps=75, max_wse=661.76 ft
  v6.3.1: timesteps=75, max_wse=661.76 ft
  v6.6: timesteps=75, max_wse=661.76 ft

png

Text Only
Station 103369.7:
  v4.1: timesteps=75, max_wse=661.75 ft
  v5.0.4: timesteps=75, max_wse=661.75 ft
  v5.0.6: timesteps=75, max_wse=661.75 ft
  v6.3.1: timesteps=75, max_wse=661.75 ft
  v6.6: timesteps=75, max_wse=661.75 ft

png

Text Only
Station 98206.87:
  v4.1: timesteps=75, max_wse=661.73 ft
  v5.0.4: timesteps=75, max_wse=661.73 ft
  v5.0.6: timesteps=75, max_wse=661.73 ft
  v6.3.1: timesteps=75, max_wse=661.73 ft
  v6.6: timesteps=75, max_wse=661.73 ft

png

Text Only
Station 92011.85:
  v4.1: timesteps=75, max_wse=661.72 ft
  v5.0.4: timesteps=75, max_wse=661.72 ft
  v5.0.6: timesteps=75, max_wse=661.72 ft
  v6.3.1: timesteps=75, max_wse=661.72 ft
  v6.6: timesteps=75, max_wse=661.72 ft

png

Text Only
Station 86942.04:
  v4.1: timesteps=75, max_wse=661.72 ft
  v5.0.4: timesteps=75, max_wse=661.72 ft
  v5.0.6: timesteps=75, max_wse=661.72 ft
  v6.3.1: timesteps=75, max_wse=661.72 ft
  v6.6: timesteps=75, max_wse=661.72 ft

png

Text Only
Station 81849.41:
  v4.1: timesteps=75, max_wse=661.72 ft
  v5.0.4: timesteps=75, max_wse=661.72 ft
  v5.0.6: timesteps=75, max_wse=661.72 ft
  v6.3.1: timesteps=75, max_wse=661.72 ft
  v6.6: timesteps=75, max_wse=661.72 ft

png

Text Only
Station 76643.4:
  v4.1: timesteps=75, max_wse=595.93 ft
  v5.0.4: timesteps=75, max_wse=595.93 ft
  v5.0.6: timesteps=75, max_wse=595.93 ft
  v6.3.1: timesteps=75, max_wse=595.94 ft
  v6.6: timesteps=75, max_wse=595.94 ft

png

Text Only
Station 74207.96:
  v4.1: timesteps=75, max_wse=591.37 ft
  v5.0.4: timesteps=75, max_wse=591.37 ft
  v5.0.6: timesteps=75, max_wse=591.37 ft
  v6.3.1: timesteps=75, max_wse=591.37 ft
  v6.6: timesteps=75, max_wse=591.37 ft

png

Text Only
Station 69567.33:
  v4.1: timesteps=75, max_wse=588.82 ft
  v5.0.4: timesteps=75, max_wse=588.82 ft
  v5.0.6: timesteps=75, max_wse=588.82 ft
  v6.3.1: timesteps=75, max_wse=588.82 ft
  v6.6: timesteps=75, max_wse=588.82 ft

png

Text Only
Station 63812.99:
  v4.1: timesteps=75, max_wse=584.55 ft
  v5.0.4: timesteps=75, max_wse=584.55 ft
  v5.0.6: timesteps=75, max_wse=584.55 ft
  v6.3.1: timesteps=75, max_wse=584.55 ft
  v6.6: timesteps=75, max_wse=584.55 ft

png

Text Only
Station 58836.23:
  v4.1: timesteps=75, max_wse=580.49 ft
  v5.0.4: timesteps=75, max_wse=580.49 ft
  v5.0.6: timesteps=75, max_wse=580.49 ft
  v6.3.1: timesteps=75, max_wse=580.49 ft
  v6.6: timesteps=75, max_wse=580.49 ft

png

Text Only
Station 56775.92:
  v4.1: timesteps=75, max_wse=578.21 ft
  v5.0.4: timesteps=75, max_wse=578.21 ft
  v5.0.6: timesteps=75, max_wse=578.21 ft
  v6.3.1: timesteps=75, max_wse=578.21 ft
  v6.6: timesteps=75, max_wse=578.21 ft

png

Text Only
Station 52879.19:
  v4.1: timesteps=75, max_wse=574.95 ft
  v5.0.4: timesteps=75, max_wse=574.95 ft
  v5.0.6: timesteps=75, max_wse=574.95 ft
  v6.3.1: timesteps=75, max_wse=574.95 ft
  v6.6: timesteps=75, max_wse=574.95 ft

png

Text Only
Station 48110.09:
  v4.1: timesteps=75, max_wse=572.39 ft
  v5.0.4: timesteps=75, max_wse=572.40 ft
  v5.0.6: timesteps=75, max_wse=572.40 ft
  v6.3.1: timesteps=75, max_wse=572.40 ft
  v6.6: timesteps=75, max_wse=572.40 ft

png

Text Only
Station 45233.89:
  v4.1: timesteps=75, max_wse=570.90 ft
  v5.0.4: timesteps=75, max_wse=570.91 ft
  v5.0.6: timesteps=75, max_wse=570.91 ft
  v6.3.1: timesteps=75, max_wse=570.91 ft
  v6.6: timesteps=75, max_wse=570.91 ft

png

Text Only
Station 40526.85:
  v4.1: timesteps=75, max_wse=569.95 ft
  v5.0.4: timesteps=75, max_wse=569.97 ft
  v5.0.6: timesteps=75, max_wse=569.97 ft
  v6.3.1: timesteps=75, max_wse=569.97 ft
  v6.6: timesteps=75, max_wse=569.97 ft

png

Text Only
Station 36769.88:
  v4.1: timesteps=75, max_wse=567.81 ft
  v5.0.4: timesteps=75, max_wse=567.83 ft
  v5.0.6: timesteps=75, max_wse=567.83 ft
  v6.3.1: timesteps=75, max_wse=567.83 ft
  v6.6: timesteps=75, max_wse=567.83 ft

png

Text Only
Station 34098.93:
  v4.1: timesteps=75, max_wse=566.11 ft
  v5.0.4: timesteps=75, max_wse=566.11 ft
  v5.0.6: timesteps=75, max_wse=566.11 ft
  v6.3.1: timesteps=75, max_wse=566.11 ft
  v6.6: timesteps=75, max_wse=566.11 ft

png

Text Only
Station 27226.4:
  v4.1: timesteps=75, max_wse=565.45 ft
  v5.0.4: timesteps=75, max_wse=565.45 ft
  v5.0.6: timesteps=75, max_wse=565.45 ft
  v6.3.1: timesteps=75, max_wse=565.45 ft
  v6.6: timesteps=75, max_wse=565.45 ft

png

Text Only
Station 23783.65:
  v4.1: timesteps=75, max_wse=565.32 ft
  v5.0.4: timesteps=75, max_wse=565.32 ft
  v5.0.6: timesteps=75, max_wse=565.32 ft
  v6.3.1: timesteps=75, max_wse=565.32 ft
  v6.6: timesteps=75, max_wse=565.32 ft

png

Text Only
Station 21199.93:
  v4.1: timesteps=75, max_wse=564.16 ft
  v5.0.4: timesteps=75, max_wse=564.16 ft
  v5.0.6: timesteps=75, max_wse=564.16 ft
  v6.3.1: timesteps=75, max_wse=564.16 ft
  v6.6: timesteps=75, max_wse=564.16 ft

png

Text Only
Station 16787.45:
  v4.1: timesteps=75, max_wse=563.08 ft
  v5.0.4: timesteps=75, max_wse=563.09 ft
  v5.0.6: timesteps=75, max_wse=563.09 ft
  v6.3.1: timesteps=75, max_wse=563.09 ft
  v6.6: timesteps=75, max_wse=563.09 ft

png

Text Only
Station 11865.8:
  v4.1: timesteps=75, max_wse=562.22 ft
  v5.0.4: timesteps=75, max_wse=562.21 ft
  v5.0.6: timesteps=75, max_wse=562.21 ft
  v6.3.1: timesteps=75, max_wse=562.21 ft
  v6.6: timesteps=75, max_wse=562.21 ft

png

Text Only
Station 8541.462:
  v4.1: timesteps=75, max_wse=562.01 ft
  v5.0.4: timesteps=75, max_wse=562.01 ft
  v5.0.6: timesteps=75, max_wse=562.01 ft
  v6.3.1: timesteps=75, max_wse=562.01 ft
  v6.6: timesteps=75, max_wse=562.01 ft

png

Text Only
Station 4293.71:
  v4.1: timesteps=75, max_wse=561.86 ft
  v5.0.4: timesteps=75, max_wse=561.85 ft
  v5.0.6: timesteps=75, max_wse=561.85 ft
  v6.3.1: timesteps=75, max_wse=561.85 ft
  v6.6: timesteps=75, max_wse=561.85 ft

png

Text Only
Station 1692.633:
  v4.1: timesteps=75, max_wse=561.44 ft
  v5.0.4: timesteps=75, max_wse=561.44 ft
  v5.0.6: timesteps=75, max_wse=561.44 ft
  v6.3.1: timesteps=75, max_wse=561.44 ft
  v6.6: timesteps=75, max_wse=561.44 ft

Max WSE by version at station 138154.4:
  v4.1: 672.81 ft
  v5.0.4: 672.81 ft
  v5.0.6: 672.81 ft
  v6.3.1: 672.81 ft
  v6.6: 672.81 ft

Legacy HEC-RAS Automation Reference

HEC Documentation

  • HEC-RAS 5.0 User's Manual: Includes COM interface documentation https://www.hec.usace.army.mil/software/hec-ras/documentation.aspx
  • Controller Interface Guide: Documentation for HECRASController COM object

COM Interface Limitations

Performance: - Slower than direct file access - Opens GUI (requires active desktop) - Single-threaded (no parallel execution)

Stability: - Depends on HEC-RAS installation - Version-specific (COM interface changes between versions) - Can leave HEC-RAS processes orphaned

Functionality: - Limited to operations HEC-RAS exposes via COM - Cannot access some file-level details - No access to HDF structure (HEC-RAS 5.x)

Modern Alternatives

Task Legacy (RasControl) Modern (HEC-RAS 6.x+)
Execute plan RasControl.compute_plan() RasCmdr.compute_plan()
Extract WSE RasControl.get_steady_results() HdfResultsPlan.get_wse()
Extract velocity RasControl.get_unsteady_results() HdfResultsPlan.get_velocity()
Modify geometry COM methods RasGeometry file parsing
Modify plans COM methods RasPlan file editing

Version Comparison Workflow

This notebook demonstrates running same project in multiple HEC-RAS versions for validation:

Python
# Run in HEC-RAS 5.0.7
ras507_results = run_with_version("5.0.7", project_path, "01")

# Run in HEC-RAS 6.3
ras63_results = run_with_version("6.3", project_path, "01")

# Compare results
comparison = compare_wse_profiles(ras507_results, ras63_results)

# Document differences
comparison.to_csv('version_comparison.csv')

Use cases: - Model validation: Confirm results consistent across versions - Migration testing: Verify HEC-RAS upgrade doesn't change results - Regression testing: Detect unexpected changes from HEC-RAS updates

LLM Forward: Multi-Version Documentation

Document version comparison for peer review:

Python
def document_version_comparison(versions_tested, results_dict, output_file):
    import pandas as pd
    import json

    comparison_report = {
        'versions_tested': versions_tested,
        'comparison_date': datetime.now().isoformat(),
        'summary_statistics': {}
    }

    for version, results_df in results_dict.items():
        comparison_report['summary_statistics'][version] = {
            'num_nodes': len(results_df),
            'mean_wse': float(results_df['wse'].mean()),
            'max_wse': float(results_df['wse'].max()),
            'min_wse': float(results_df['wse'].min())
        }

    # Export comparison
    with open(output_file, 'w') as f:
        json.dump(comparison_report, f, indent=2)

    # Also export detailed CSV
    csv_file = output_file.with_suffix('.csv')
    combined_df = pd.concat([
        results_df.assign(version=version)
        for version, results_df in results_dict.items()
    ])
    combined_df.to_csv(csv_file, index=False)

    print(f"Version comparison documented: {output_file}")

# Usage - save to project folder
document_version_comparison(
    versions_tested=["5.0.7", "6.3"],
    results_dict={'5.0.7': ras507_df, '6.3': ras63_df},
    output_file=project_path / 'version_comparison.json'
)

This enables: - Validation documentation: Proof that upgrade doesn't change results - Peer review: Non-programmers can review statistics - Audit trail: Record which versions were compared when

Python
# =============================================================================
# OPTIONAL: Multi-version steady state comparison (SKIP for automated testing)
# =============================================================================
# This cell runs multiple HEC-RAS versions and can take 30+ minutes.
# Set SKIP_MULTIVERSION = True in cell 29 to run this comparison.
# =============================================================================

if SKIP_MULTIVERSION:
    print("Skipping multi-version steady comparison (SKIP_MULTIVERSION=True)")
    print("Set SKIP_MULTIVERSION = True in cell above to run this analysis")
    steady_results = {}
else:
    from ras_commander import RasPlan

    # Versions to test - all versions with actual COM interfaces
    test_versions = [
      #  ("4.1", "41"),       # HEC-RAS 4.1     -> RAS41.HECRASController
      #  ("5.0.1", "501"),    # HEC-RAS 5.0.1   -> RAS501.HECRASController
      #  ("5.0.3", "503"),    # HEC-RAS 5.0.3   -> RAS503.HECRASController
        ("5.0.4", "504"),    # HEC-RAS 5.0.4   -> RAS504.HECRASController
        ("5.0.6", "506"),    # HEC-RAS 5.0.6   -> RAS506.HECRASController
        ("6.3.1", "631"),    # HEC-RAS 6.3.1   -> RAS631.HECRASController
        ("6.6", "66"),       # HEC-RAS 6.6     -> RAS66.HECRASController
    ]

    steady_results = {}

    print("=== MULTI-VERSION STEADY STATE COMPARISON ===\n")

    for version_name, version_code in test_versions:
        print(f"Processing HEC-RAS {version_name}...")

        # Clone Plan 02 for this version
        new_plan = RasPlan.clone_plan("02",
                          new_shortid=f"Steady_{version_code}",
                          new_title=f"Steady - v{version_name}")
        print(f"  Cloned to Plan {new_plan}")

        # Re-initialize with this version
        init_ras_project(project_path, version_name)

        # Run the plan using ras-commander's compute_plan() instead of RasControl.run_plan
        print(f"  Running Plan {new_plan} with 2 cores...")
        try:
            # Use direct command line execution, preferred over RasControl.run_plan
            #RasCmdr.compute_plan(new_plan, clear_geompre=True, num_cores=2)
            success, msgs = RasControl.run_plan(new_plan, force_recompute=True)
            print(success, msgs)
            # Extract results
            df = RasControl.get_steady_results(new_plan)
            steady_results[version_name] = df

            # Save CSV
            csv_path = Path(f"working/steady_v{version_code}.csv")
            df.to_csv(csv_path, index=False)
            print(f"  Extracted {len(df)} rows -> {csv_path}")
        except Exception as e:
            print(f"  Failed: {e}")

        print()

    # Plot comparison - first profile from each version
    if steady_results:
        fig, ax = plt.subplots(figsize=(14, 7))

        for version, df in steady_results.items():
            first_prof = df[df['profile'] == df['profile'].iloc[0]]
            ax.plot(range(len(first_prof)), first_prof['wsel'],
                    marker='o', label=f'v{version}', alpha=0.7)

        ax.set_xlabel('Cross Section Index', fontsize=12)
        ax.set_ylabel('Water Surface Elevation (ft)', fontsize=12)
        ax.set_title('Steady State Profile - Multi-Version Comparison', fontsize=14, fontweight='bold')
        ax.legend(fontsize=10)
        ax.grid(True, alpha=0.3)
        plt.tight_layout()
        plt.show()

        print(f"\nCompared {len(steady_results)} versions")

    else:
        print("No steady results to plot")
Text Only
2026-01-14 10:48:07 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08
2026-01-14 10:48:07 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08
2026-01-14 10:48:07 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 08
2026-01-14 10:48:07 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p07.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1680 characters from HDF
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p07.hdf
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.6
2026-01-14 10:48:07 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:08 - ras_commander.RasPrj - INFO - Updated results_df with 8 plan(s)
2026-01-14 10:48:08 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p07.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1680 characters from HDF
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf


=== MULTI-VERSION STEADY STATE COMPARISON ===

Processing HEC-RAS 5.0.4...
  Cloned to Plan 08


2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p07.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.6
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:08 - ras_commander.RasPrj - INFO - Updated results_df with 8 plan(s)


  Running Plan 08 with 2 cores...


2026-01-14 10:48:08 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS504.HECRASController (version: 5.0.4)
2026-01-14 10:48:08 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:48:08 - ras_commander.RasControl - INFO - Detected ras.exe PID 327496 (confidence: 100/100)
2026-01-14 10:48:08 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:48:08 - ras_commander.RasControl - INFO - Setting current plan to: Steady - v5.0.4
2026-01-14 10:48:08 - ras_commander.RasControl - INFO - Starting computation...
2026-01-14 10:48:11 - ras_commander.RasControl - INFO - Spawned watchdog process PID 305392 (monitoring PID 327496)
2026-01-14 10:48:11 - ras_commander.RasControl - INFO - Waiting for computation to complete...
2026-01-14 10:48:11 - ras_commander.RasControl - INFO - Computation completed (polled 0 times)
2026-01-14 10:48:11 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:48:11 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:48:11 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:48:11 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 327496
2026-01-14 10:48:11 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS504.HECRASController (version: 5.0.4)
2026-01-14 10:48:11 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj


True ['Starting Steady Computations', 'Computing', 'Computations Completed']


2026-01-14 10:48:12 - ras_commander.RasControl - INFO - Detected ras.exe PID 387068 (confidence: 100/100)
2026-01-14 10:48:12 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:48:12 - ras_commander.RasControl - INFO - Setting current plan to: Steady - v5.0.4
2026-01-14 10:48:12 - ras_commander.RasControl - INFO - Found 8 profiles
2026-01-14 10:48:12 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:48:15 - ras_commander.RasControl - INFO - Extracted 1424 result rows
2026-01-14 10:48:15 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:48:15 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:48:15 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:48:15 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 387068
2026-01-14 10:48:15 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09
2026-01-14 10:48:15 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09
2026-01-14 10:48:15 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 09
2026-01-14 10:48:15 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1680 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.6
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 719 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:15 - ras_commander.RasPrj - INFO - Updated results_df with 9 plan(s)
2026-01-14 10:48:15 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf


  Extracted 1424 rows -> working\steady_v504.csv

Processing HEC-RAS 5.0.6...
  Cloned to Plan 09


2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1680 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.6
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 719 characters from HDF
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p08.hdf
2026-01-14 10:48:15 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:15 - ras_commander.RasPrj - INFO - Updated results_df with 9 plan(s)
2026-01-14 10:48:15 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS506.HECRASController (version: 5.0.6)
2026-01-14 10:48:15 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj


  Running Plan 09 with 2 cores...


2026-01-14 10:48:16 - ras_commander.RasControl - INFO - Detected ras.exe PID 339312 (confidence: 100/100)
2026-01-14 10:48:16 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:48:16 - ras_commander.RasControl - INFO - Setting current plan to: Steady - v5.0.6
2026-01-14 10:48:16 - ras_commander.RasControl - INFO - Starting computation...
2026-01-14 10:48:18 - ras_commander.RasControl - INFO - Spawned watchdog process PID 385792 (monitoring PID 339312)
2026-01-14 10:48:18 - ras_commander.RasControl - INFO - Waiting for computation to complete...
2026-01-14 10:48:18 - ras_commander.RasControl - INFO - Computation completed (polled 0 times)
2026-01-14 10:48:18 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:48:18 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:48:18 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:48:18 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 339312
2026-01-14 10:48:18 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS506.HECRASController (version: 5.0.6)
2026-01-14 10:48:18 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj


True ['Starting Steady Computations', 'Computing', 'Computations Completed']


2026-01-14 10:48:19 - ras_commander.RasControl - INFO - Detected ras.exe PID 185832 (confidence: 100/100)
2026-01-14 10:48:19 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:48:19 - ras_commander.RasControl - INFO - Setting current plan to: Steady - v5.0.6
2026-01-14 10:48:19 - ras_commander.RasControl - INFO - Found 8 profiles
2026-01-14 10:48:19 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:48:22 - ras_commander.RasControl - INFO - Extracted 1424 result rows
2026-01-14 10:48:22 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:48:22 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:48:22 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:48:22 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 185832
2026-01-14 10:48:22 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10
2026-01-14 10:48:22 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10
2026-01-14 10:48:22 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 10
2026-01-14 10:48:22 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1680 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.6
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 719 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 530 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:22 - ras_commander.RasPrj - INFO - Updated results_df with 10 plan(s)
2026-01-14 10:48:22 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1680 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.6
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 719 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p08.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 530 characters from HDF
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p09.hdf
2026-01-14 10:48:22 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'


  Extracted 1424 rows -> working\steady_v506.csv

Processing HEC-RAS 6.3.1...
  Cloned to Plan 10


2026-01-14 10:48:22 - ras_commander.RasPrj - INFO - Updated results_df with 10 plan(s)
2026-01-14 10:48:22 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS631.HECRASController (version: 6.3.1)
2026-01-14 10:48:22 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj


  Running Plan 10 with 2 cores...


2026-01-14 10:48:23 - ras_commander.RasControl - INFO - Detected ras.exe PID 357116 (confidence: 100/100)
2026-01-14 10:48:23 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:48:23 - ras_commander.RasControl - INFO - Setting current plan to: Steady - v6.3.1
2026-01-14 10:48:23 - ras_commander.RasControl - INFO - Starting computation...
2026-01-14 10:48:26 - ras_commander.RasControl - INFO - Spawned watchdog process PID 348436 (monitoring PID 357116)
2026-01-14 10:48:26 - ras_commander.RasControl - INFO - Waiting for computation to complete...
2026-01-14 10:48:26 - ras_commander.RasControl - INFO - Computation completed (polled 0 times)
2026-01-14 10:48:26 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:48:26 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:48:26 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:48:26 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 357116
2026-01-14 10:48:27 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS631.HECRASController (version: 6.3.1)


True ['Starting Steady Computations', 'Computing', 'Computations Completed']


2026-01-14 10:48:27 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:48:27 - ras_commander.RasControl - INFO - Detected ras.exe PID 118592 (confidence: 100/100)
2026-01-14 10:48:27 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:48:27 - ras_commander.RasControl - INFO - Setting current plan to: Steady - v6.3.1
2026-01-14 10:48:27 - ras_commander.RasControl - INFO - Found 8 profiles
2026-01-14 10:48:27 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:48:30 - ras_commander.RasControl - INFO - Extracted 1424 result rows
2026-01-14 10:48:30 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:48:30 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:48:30 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:48:30 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 118592
2026-01-14 10:48:30 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p11
2026-01-14 10:48:30 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p11
2026-01-14 10:48:30 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 11
2026-01-14 10:48:30 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p07.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1680 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p07.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.6
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p08.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 719 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p08.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p09.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 530 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p09.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p10.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 678 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p10.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Steady - v6.3.1
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:30 - ras_commander.RasPrj - INFO - Updated results_df with 11 plan(s)


  Extracted 1424 rows -> working\steady_v631.csv

Processing HEC-RAS 6.6...
  Cloned to Plan 11


2026-01-14 10:48:30 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.rasmap
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1504 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady with Bridges and Dam
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p01.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1244 characters from HDF
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p04.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p05.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 870 characters from HDF
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p05.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p05.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p06.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1642 characters from HDF
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p06.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.3.1
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p06.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p07.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1680 characters from HDF
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p07.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Unsteady - v6.6
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p07.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p08.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 719 characters from HDF
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p08.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p08.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p09.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 530 characters from HDF
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p09.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p09.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p10.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 678 characters from HDF
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.p10.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p10.hdf
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Steady - v6.3.1
2026-01-14 10:48:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 149.0
2026-01-14 10:48:31 - ras_commander.RasPrj - INFO - Updated results_df with 11 plan(s)
2026-01-14 10:48:31 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS66.HECRASController (version: 6.6)


  Running Plan 11 with 2 cores...


2026-01-14 10:48:31 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj
2026-01-14 10:48:32 - ras_commander.RasControl - INFO - Detected ras.exe PID 332136 (confidence: 100/100)
2026-01-14 10:48:32 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:48:32 - ras_commander.RasControl - INFO - Setting current plan to: Steady - v6.6
2026-01-14 10:48:32 - ras_commander.RasControl - INFO - Starting computation...
2026-01-14 10:48:35 - ras_commander.RasControl - INFO - Spawned watchdog process PID 376396 (monitoring PID 332136)
2026-01-14 10:48:35 - ras_commander.RasControl - INFO - Waiting for computation to complete...
2026-01-14 10:48:35 - ras_commander.RasControl - INFO - Computation completed (polled 0 times)
2026-01-14 10:48:35 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:48:35 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:48:35 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:48:35 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 332136
2026-01-14 10:48:35 - ras_commander.RasControl - INFO - Opening HEC-RAS: RAS66.HECRASController (version: 6.6)
2026-01-14 10:48:35 - ras_commander.RasControl - INFO - Opening project: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_17\BaldEagle.prj


True ['Starting Steady Computations', 'Computing', 'Computations Completed']


2026-01-14 10:48:36 - ras_commander.RasControl - INFO - Detected ras.exe PID 29640 (confidence: 100/100)
2026-01-14 10:48:36 - ras_commander.RasControl - INFO - Executing operation...
2026-01-14 10:48:36 - ras_commander.RasControl - INFO - Setting current plan to: Steady - v6.6
2026-01-14 10:48:36 - ras_commander.RasControl - INFO - Found 8 profiles
2026-01-14 10:48:36 - ras_commander.RasControl - INFO - Found 1 rivers
2026-01-14 10:48:39 - ras_commander.RasControl - INFO - Extracted 1424 result rows
2026-01-14 10:48:39 - ras_commander.RasControl - INFO - Operation completed successfully
2026-01-14 10:48:39 - ras_commander.RasControl - INFO - Closing HEC-RAS...
2026-01-14 10:48:39 - ras_commander.RasControl - INFO - HEC-RAS closed via QuitRas()
2026-01-14 10:48:39 - ras_commander.RasControl - INFO - Terminating tracked ras.exe PID 29640


  Extracted 1424 rows -> working\steady_v66.csv

png

Text Only
Compared 4 versions
CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms seeking to modernize H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
