Culvert GIS Reconstruction and Hydraulic-Validity Checks (1D)¶
Development Mode¶
Set USE_LOCAL_SOURCE = True when running from a local ras-commander checkout.
The committed default uses the installed package; repository test execution can
still use local source through PYTHONPATH.
Python
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False
if USE_LOCAL_SOURCE:
import sys
from pathlib import Path
cwd = Path.cwd()
local_path = cwd if (cwd / "ras_commander").exists() else cwd.parent
if str(local_path) not in sys.path:
sys.path.insert(0, str(local_path))
print(f"LOCAL SOURCE MODE: loading from {local_path / 'ras_commander'}")
else:
print("PIP PACKAGE MODE: loading installed ras-commander")
import logging
import os
import time
import warnings
from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from IPython.display import display
from matplotlib.patches import Rectangle
from ras_commander import HdfResultsPlan, RasCmdr, RasPrj, init_ras_project
from ras_commander.geom import GeomCrossSection, GeomCulvert, GeomCulvertGIS
from ras_commander.sources.federal.usgs_sciencebase import UsgsScienceBase
warnings.filterwarnings("ignore", category=FutureWarning)
logging.getLogger("ras_commander").setLevel(logging.CRITICAL)
pd.set_option("display.max_columns", None)
pd.set_option("display.width", 200)
import ras_commander
print(f"Loaded: {ras_commander.__file__}")
Text Only
PIP PACKAGE MODE: loading installed ras-commander
c:\Users\bill\anaconda3\envs\rascommander\Lib\site-packages\tqdm\auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
from .autonotebook import tqdm as notebook_tqdm
Loaded: G:\GH\ras-commander-wt-culverts\ras_commander\__init__.py
Culvert GIS Reconstruction and Hydraulic-Validity Checks¶
HEC-RAS does not store a GIS polyline for a 1D culvert barrel -- the barrel's
planimetric line is derived from data that does live in the plain-text
geometry: the bounding cross-section GIS cut lines, the culvert's upstream and
downstream cross-section stations, the structure's US Distance, and the reach
lengths of the upstream bounding cross section.
This notebook uses GeomCulvertGIS to:
- Reconstruct each culvert barrel's planimetric line for plan-view display.
- Validate a culvert's placement against hydraulic-validity rules:
- culvert inverts not buried below the bounding cross-section thalweg,
- entrance/exit loss coefficients in line with HDS-5 / HEC-RAS guidance,
- a reconstructed-vs-entered barrel-length consistency indicator.
- Compare culvert designs hydraulically -- here a real-world pipe -> box retrofit at a stream crossing, computed with HEC-RAS.
The data are the USGS Squannacook stream-crossing models (Massachusetts): georeferenced 1D steady HEC-RAS models built to compare culvert shapes (pipe, arch, box) at 16 crossings.
Download the model and pick a crossing¶
The model comes from USGS ScienceBase. Each crossing carries design alternatives
in separate geometries (pipe / arch / box). We focus on the Meadow Road
crossing (river 40273_Unnamed Tr), comparing the existing pipe culvert
(geometry g06, plan 02) against a box retrofit (geometry g16, plan
06).
Python
RAS_EXE = Path(os.environ.get(
"HECRAS_EXE", r"C:/Program Files (x86)/HEC/HEC-RAS/7.0/Ras.exe"))
cwd = Path.cwd()
REPO_ROOT = cwd if (cwd / "ras_commander").exists() else cwd.parent
WORK_ROOT = Path(os.environ.get(
"RAS_COMMANDER_WORKDIR", REPO_ROOT / "working" / "culvert_gis"))
WORK_ROOT.mkdir(parents=True, exist_ok=True)
# Download the Squannacook stream-crossing models (~9 MB) from USGS ScienceBase.
model_dir = UsgsScienceBase.download_model("squannacook", WORK_ROOT, required_only=True)
project_path = UsgsScienceBase.get_project_path("squannacook", WORK_ROOT)
print(f"Project: {project_path}")
if not RAS_EXE.exists():
raise FileNotFoundError(f"HEC-RAS executable not found: {RAS_EXE}")
ras = RasPrj()
init_ras_project(project_path, str(RAS_EXE), ras_object=ras, load_results_summary=False)
# Crossing + design alternatives
RIVER = "40273_Unnamed Tr"
GEOM_PIPE = project_path.parent / "Squannacook.g06" # existing pipe
GEOM_BOX = project_path.parent / "Squannacook.g16" # box retrofit
PLAN_PIPE = "02"
PLAN_BOX = "06"
display(ras.plan_df[ras.plan_df["plan_number"].astype(str).str.zfill(2).isin([PLAN_PIPE, PLAN_BOX])][
["plan_number", "Plan Title", "Geom File", "Flow File", "flow_type"]])
Text Only
Project: G:\GH\ras-commander-wt-culverts\working\culvert_gis\squannacook\Squannacook.prj
| plan_number | Plan Title | Geom File | Flow File | flow_type | |
|---|---|---|---|---|---|
| 1 | 02 | SCSPipe_surveyXS | 06 | 01 | Steady |
| 5 | 06 | SCSBoxHm_survey | 16 | 01 | Steady |
Inventory the culverts in the existing (pipe) geometry¶
Python
all_culverts = GeomCulvert.get_all(GEOM_PIPE)
print(f"{len(all_culverts)} culvert structures in {GEOM_PIPE.name}")
display(all_culverts[["River", "Reach", "RS", "CulvertName", "ShapeName",
"Span", "Rise", "Length"]].head(20))
# Our crossing of interest
struct = all_culverts[all_culverts["River"].astype(str).str.contains("40273")].iloc[0]
REACH = struct["Reach"]
RS = str(struct["RS"])
print(f"\nCrossing: {RIVER} / {REACH} / RS {RS}")
Text Only
16 culvert structures in Squannacook.g06
| River | Reach | RS | CulvertName | ShapeName | Span | Rise | Length | |
|---|---|---|---|---|---|---|---|---|
| 0 | 40273_Unnamed Tr | Meadow Road | 73 | Culvert #1 | Circular | 6.00 | 6.00 | 40.0 |
| 1 | 40382_Unnamed Tr | Dudley Road | 96 | Culvert #1 | Circular | 6.75 | 6.75 | 62.0 |
| 2 | 40480_Unnamed Tr | Barker Hill Road | 55 | Culvert #1 | Circular | 5.50 | 5.50 | 35.5 |
| 3 | 40791_Trout Broo | Shirley Road | 72 | Culvert #1 | Circular | 7.25 | 7.25 | 62.0 |
| 4 | 41427_Unnamed Tr | Worcester Road | 72 | Culvert #1 | Circular | 5.00 | 5.00 | 26.5 |
| 5 | 55501_Witch Broo | Ash Street | 111 | Culvert #1 | Circular | 13.50 | 13.50 | 66.0 |
| 6 | 55502_Squannacoo | River Road | 77 | Culvert #1 | Circular | 11.50 | 11.50 | 47.0 |
| 7 | 55504_Unnamed Tr | Turnpike Road | 102 | Culvert #1 | Circular | 20.00 | 20.00 | 83.0 |
| 8 | 55571_Unnamed Tr | New Fitchburg | 105 | Culvert #1 | Circular | 19.00 | 19.00 | 85.0 |
| 9 | 55591_Unnamed Tr | Old Battery Road | 53 | Culvert #1 | Circular | 4.50 | 4.50 | 31.0 |
| 10 | 58069_Unnamed Tr | Davis Road | 69 | Culvert #1 | Circular | 6.00 | 6.00 | 31.0 |
| 11 | 58083_Trapfall B | NewIpswich Road | 77 | Culvert #1 | Circular | 7.50 | 7.50 | 43.0 |
| 12 | 58444_Unnamed Tr | Pearl Hill Road | 55 | Culvert #1 | Circular | 4.50 | 4.50 | 32.0 |
| 13 | 58453 | Mill_Creek | 99 | Culvert #1 | Circular | 10.25 | 10.25 | 69.0 |
| 14 | 58556_Unnamed Tr | Luke Road | 53 | Culvert #1 | Circular | 5.75 | 5.75 | 25.0 |
| 15 | 73671_Unnamed Tr | Harris Road | 81 | Culvert #1 | Circular | 6.00 | 6.00 | 25.0 |
Text Only
Crossing: 40273_Unnamed Tr / Meadow Road / RS 73

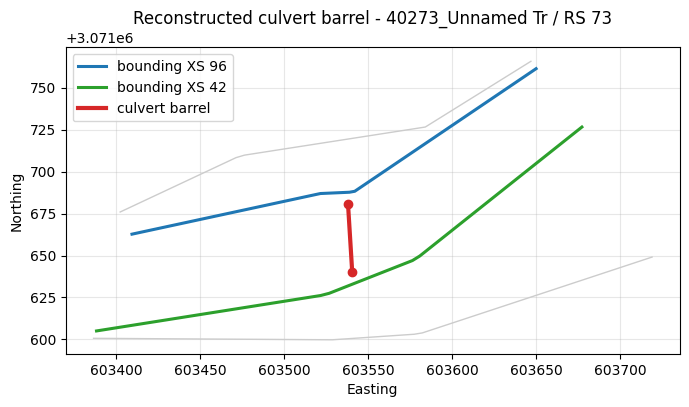

Reconstruct the barrel GIS line (plan view)¶
GeomCulvertGIS.reconstruct_barrels() derives each barrel's planimetric line
from the bounding cross-section cut lines and the culvert stations. The
reconstruction is approximate -- across the 16 Squannacook crossings the
reconstructed length differs from the entered barrel Length by mean ~2.6%
(median 1.3%, max ~11%) -- suitable for plan-view context and for flagging gross
placement issues, not a survey-precise copy of HEC-RAS's internal centerline.
Python
barrels = GeomCulvertGIS.reconstruct_barrels(GEOM_PIPE, RIVER, REACH, RS)
display(barrels[["CulvertName", "Barrel", "planimetric_length",
"entered_length", "length_error_pct"]])
adj = GeomCulvert.get_adjacent_cross_sections(GEOM_PIPE, RIVER, REACH, RS)
us_rs, ds_rs = str(adj["upstream"]["RS"]), str(adj["downstream"]["RS"])
xyz = GeomCrossSection.get_xs_coords(GEOM_PIPE, river=RIVER, reach=REACH)
fig, ax = plt.subplots(figsize=(7, 7))
for xs_rs, grp in xyz.groupby("RS"):
g = grp.sort_values("station")
ax.plot(g["x"], g["y"], color="0.8", lw=1.0)
for rs_lab, color in [(us_rs, "C0"), (ds_rs, "C2")]:
g = xyz[xyz["RS"].astype(str) == rs_lab].sort_values("station")
ax.plot(g["x"], g["y"], color=color, lw=2.2, label=f"bounding XS {rs_lab}")
for _, b in barrels.iterrows():
ax.plot([b["us_x"], b["ds_x"]], [b["us_y"], b["ds_y"]], color="C3", lw=3,
label="culvert barrel" if b["Barrel"] == 1 else None)
ax.scatter([b["us_x"], b["ds_x"]], [b["us_y"], b["ds_y"]], color="C3", zorder=5)
ax.set_aspect("equal", adjustable="box")
ax.set_title(f"Reconstructed culvert barrel - {RIVER} / RS {RS}")
ax.set_xlabel("Easting"); ax.set_ylabel("Northing")
ax.legend(); ax.grid(True, alpha=0.3)
plt.tight_layout(); plt.show()
| CulvertName | Barrel | planimetric_length | entered_length | length_error_pct | |
|---|---|---|---|---|---|
| 0 | Culvert #1 | 1 | 40.542414 | 40.0 | 1.356034 |

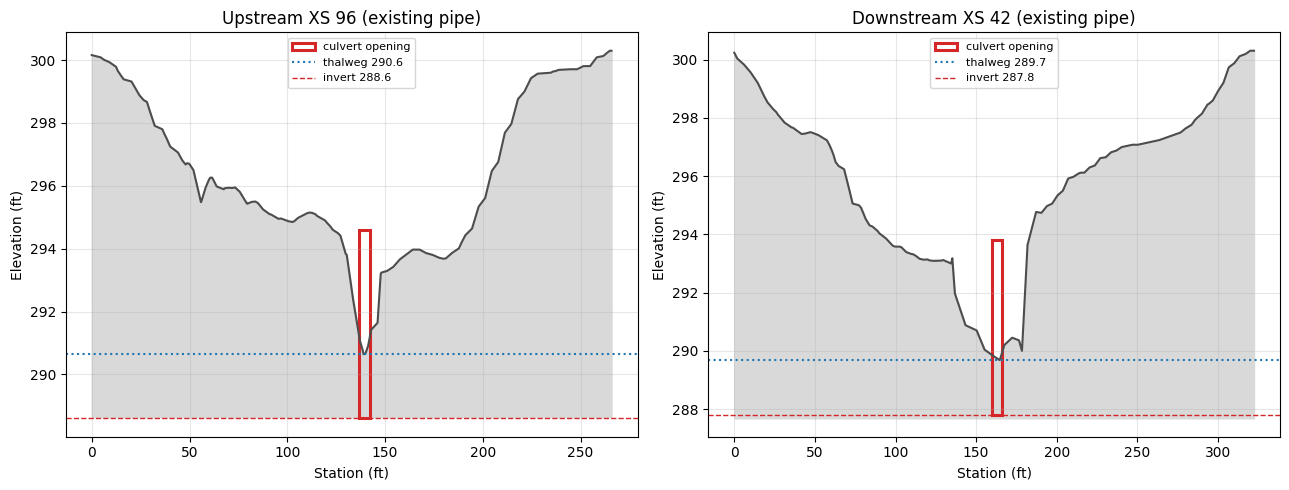

Cross-section view with the culvert opening¶
Plotting the upstream and downstream bounding cross sections with the culvert opening overlaid makes the invert-vs-thalweg check visible: if the opening's invert sits below the channel low point, the culvert is buried.
Python
def plot_xs_with_culvert(ax, geom, river, reach, xs_rs, station, invert, rise, span,
title, opening_color="C3"):
se = GeomCrossSection.get_station_elevation(geom, river, reach, xs_rs)
se = se.sort_values("Station")
zmin = float(se["Elevation"].min())
ax.fill_between(se["Station"], se["Elevation"], zmin - 2, color="0.85")
ax.plot(se["Station"], se["Elevation"], color="0.3", lw=1.5)
ax.add_patch(Rectangle((station - span / 2, invert), span, rise, fill=False,
edgecolor=opening_color, lw=2.2, label="culvert opening"))
ax.axhline(zmin, color="C0", ls=":", lw=1.5, label=f"thalweg {zmin:.1f}")
ax.axhline(invert, color=opening_color, ls="--", lw=1.0, label=f"invert {invert:.1f}")
ax.set_title(title); ax.set_xlabel("Station (ft)"); ax.set_ylabel("Elevation (ft)")
ax.legend(fontsize=8); ax.grid(True, alpha=0.3)
c = GeomCulvert.get_culverts(GEOM_PIPE, RIVER, REACH, RS).iloc[0]
us_sta, ds_sta = c["BarrelStations"][0]
fig, axes = plt.subplots(1, 2, figsize=(13, 5))
plot_xs_with_culvert(axes[0], GEOM_PIPE, RIVER, REACH, us_rs, float(us_sta),
float(c["UpstreamInvert"]), float(c["Rise"] if pd.notna(c["Rise"]) else c["Span"]),
float(c["Span"]), f"Upstream XS {us_rs} (existing pipe)")
plot_xs_with_culvert(axes[1], GEOM_PIPE, RIVER, REACH, ds_rs, float(ds_sta),
float(c["DownstreamInvert"]), float(c["Rise"] if pd.notna(c["Rise"]) else c["Span"]),
float(c["Span"]), f"Downstream XS {ds_rs} (existing pipe)")
plt.tight_layout(); plt.show()
Validate the existing pipe culvert¶
validate_placement() runs the hydraulic-validity checks. For the existing pipe
the inverts are set well below the channel thalweg -- the check flags them.
Python
report_pipe = GeomCulvertGIS.validate_placement(GEOM_PIPE, RIVER, REACH, RS)
display(report_pipe)
| CulvertName | check | status | value | reference | detail | |
|---|---|---|---|---|---|---|
| 0 | Culvert #1 | length | REVIEW | 1.36 | <= 1.0% of entered Length (approx.) | reconstructed GIS length vs entered barrel Length |
| 1 | Culvert #1 | us_invert | FAIL | 288.60 | >= local bed 290.64 (XS 96) | upstream invert vs local bed under opening (gl... |
| 2 | Culvert #1 | ds_invert | FAIL | 287.80 | >= local bed 289.68 (XS 42) | downstream invert vs local bed under opening (... |
| 3 | Culvert #1 | entrance_loss | PASS | 0.50 | HDS-5 ~0.5 (Square edge with headwall) | entrance loss Ke vs HDS-5 guidance for inlet |
| 4 | Culvert #1 | exit_loss | PASS | 1.00 | ~1.0 typical | exit loss coefficient vs typical full-expansio... |
Screen the whole model: pipe vs box invert depth¶
The check scales to every crossing. Comparing the two designs basin-wide shows a
systematic difference: the SCS pipe design sets culvert inverts well below the
streambed (embedded), while the box retrofit sits at grade. "Burial" here is
local_bed - invert where local_bed is the lowest ground under the opening
(within span/2 of the barrel station) -- not a far-off cross-section low point
(positive = invert below the local streambed).
Python
def local_bed(geom, river, reach, xs_rs, station, span):
"""Lowest ground within span/2 of the culvert station (the bed under the
opening, not a far-off XS low point)."""
se = GeomCrossSection.get_station_elevation(geom, river, reach, xs_rs)
sta = se["Station"].astype(float)
near = se[(sta >= station - span / 2) & (sta <= station + span / 2)]
if len(near):
return float(near["Elevation"].min())
return float(np.interp(station, se["Station"].astype(float), se["Elevation"]))
def burial_table(geom):
rows = []
for _, s in GeomCulvert.get_all(geom).iterrows():
river, reach, rs = s["River"], s["Reach"], str(s["RS"])
cc = GeomCulvert.get_culverts(geom, river, reach, rs).iloc[0]
adj = GeomCulvert.get_adjacent_cross_sections(geom, river, reach, rs)
us_sta, ds_sta = cc["BarrelStations"][0]
span = float(cc["Span"])
us_bed = local_bed(geom, river, reach, str(adj["upstream"]["RS"]), float(us_sta), span)
ds_bed = local_bed(geom, river, reach, str(adj["downstream"]["RS"]), float(ds_sta), span)
rows.append({"River": river, "RS": rs,
"us_burial": round(us_bed - float(cc["UpstreamInvert"]), 2),
"ds_burial": round(ds_bed - float(cc["DownstreamInvert"]), 2)})
return pd.DataFrame(rows)
pipe_b = burial_table(GEOM_PIPE)
box_b = burial_table(GEOM_BOX)
tol = GeomCulvertGIS.INVERT_TOLERANCE
n_pipe = int(((pipe_b["us_burial"] > tol) | (pipe_b["ds_burial"] > tol)).sum())
n_box = int(((box_b["us_burial"] > tol) | (box_b["ds_burial"] > tol)).sum())
print(f"crossings: {len(pipe_b)}")
print(f" PIPE: {n_pipe} with invert below thalweg | median US burial "
f"{pipe_b['us_burial'].median():.2f} ft, max {pipe_b['us_burial'].max():.2f} ft")
print(f" BOX : {n_box} with invert below thalweg | median US burial "
f"{box_b['us_burial'].median():.2f} ft, max {box_b['us_burial'].max():.2f} ft")
contrast = pipe_b[["River", "RS", "us_burial"]].rename(columns={"us_burial": "pipe_US_burial"})
contrast = contrast.merge(
box_b[["River", "RS", "us_burial"]].rename(columns={"us_burial": "box_US_burial"}),
on=["River", "RS"])
display(contrast.sort_values("pipe_US_burial", ascending=False).head(12))
Text Only
crossings: 16
PIPE: 16 with invert below thalweg | median US burial 2.16 ft, max 5.10 ft
BOX : 7 with invert below thalweg | median US burial 0.04 ft, max 2.26 ft
| River | RS | pipe_US_burial | box_US_burial | |
|---|---|---|---|---|
| 7 | 55504_Unnamed Tr | 102 | 5.10 | -0.00 |
| 5 | 55501_Witch Broo | 111 | 4.94 | 1.54 |
| 13 | 58453 | 99 | 4.86 | 2.26 |
| 8 | 55571_Unnamed Tr | 105 | 4.65 | -0.15 |
| 6 | 55502_Squannacoo | 77 | 2.86 | -0.04 |
| 1 | 40382_Unnamed Tr | 96 | 2.25 | 0.25 |
| 10 | 58069_Unnamed Tr | 69 | 2.20 | 0.20 |
| 12 | 58444_Unnamed Tr | 55 | 2.17 | 0.17 |
| 15 | 73671_Unnamed Tr | 81 | 2.14 | 0.14 |
| 0 | 40273_Unnamed Tr | 73 | 2.04 | 0.04 |
| 14 | 58556_Unnamed Tr | 53 | 2.03 | 0.05 |
| 9 | 55591_Unnamed Tr | 53 | 2.01 | 0.01 |
Real-world improvement: pipe -> box retrofit¶
The box-retrofit geometry sets the culvert at grade. Validating it, the invert
checks now pass. (The box is the study's design value -- a tall opening with a
much larger flow area than the 6 ft pipe, which is what lowers the headwater; its
span/rise are read straight from the geometry per the HEC-RAS field order.)
Python
cb = GeomCulvert.get_culverts(GEOM_BOX, RIVER, REACH, RS).iloc[0]
print(f"Existing pipe : {c['ShapeName']} span={c['Span']} rise={c['Rise']} "
f"US inv={c['UpstreamInvert']} DS inv={c['DownstreamInvert']}")
print(f"Box retrofit : {cb['ShapeName']} span={cb['Span']} rise={cb['Rise']} "
f"US inv={cb['UpstreamInvert']} DS inv={cb['DownstreamInvert']}")
report_box = GeomCulvertGIS.validate_placement(GEOM_BOX, RIVER, REACH, RS)
display(report_box)
Text Only
Existing pipe : Circular span=6.0 rise=6.0 US inv=288.6 DS inv=287.8
Box retrofit : Box span=4.0 rise=20.0 US inv=290.6 DS inv=289.8
| CulvertName | check | status | value | reference | detail | |
|---|---|---|---|---|---|---|
| 0 | Culvert #1 | length | REVIEW | 1.36 | <= 1.0% of entered Length (approx.) | reconstructed GIS length vs entered barrel Length |
| 1 | Culvert #1 | us_invert | PASS | 290.60 | >= local bed 290.64 (XS 96) | upstream invert vs local bed under opening (gl... |
| 2 | Culvert #1 | ds_invert | PASS | 289.80 | >= local bed 289.68 (XS 42) | downstream invert vs local bed under opening (... |
| 3 | Culvert #1 | entrance_loss | WARN | 0.50 | HDS-5 ~0.2 (Side tapered; More favorable edges) | entrance loss Ke vs HDS-5 guidance for inlet |
| 4 | Culvert #1 | exit_loss | PASS | 1.00 | ~1.0 typical | exit loss coefficient vs typical full-expansio... |
Hydraulic comparison: compute pre (pipe) and post (box)¶
Both are steady runs (~5 s each). We compare the water-surface profile on the crossing's reach -- the headwater upstream of the culvert.
Python
def run_and_wse(plan):
ok = RasCmdr.compute_plan(plan, ras_object=ras, force_geompre=True,
force_rerun=True, num_cores=1, verify=True)
if not ok:
raise RuntimeError(f"compute failed for plan {plan}")
return HdfResultsPlan.get_steady_wse(plan, ras_object=ras)
t0 = time.perf_counter()
wse_pipe = run_and_wse(PLAN_PIPE)
wse_box = run_and_wse(PLAN_BOX)
print(f"both plans computed in {time.perf_counter() - t0:.1f} s")
import re
def aep_pct(name):
m = re.search(r"([\d.]+)\s*-?\s*percent", str(name).lower())
return float(m.group(1)) if m else float("inf")
# largest event = smallest annual-exceedance-probability percent
prof = min(wse_pipe["Profile"].unique(), key=aep_pct)
def reach_wse(wse):
w = wse[(wse["River"] == RIVER) & (wse["Profile"] == prof)].copy()
w["sta"] = w["Station"].astype(str).str.replace("*", "", regex=False).astype(float)
return w.sort_values("sta")
w_pipe, w_box = reach_wse(wse_pipe), reach_wse(wse_box)
headwater_pipe = w_pipe["WSE"].max()
headwater_box = w_box["WSE"].max()
print(f"profile: {prof}")
print(f"max headwater pipe={headwater_pipe:.2f} ft box={headwater_box:.2f} ft "
f"reduction={headwater_pipe - headwater_box:.2f} ft")
Text Only
both plans computed in 7.1 s
profile: 0.2-percent AEP
max headwater pipe=297.13 ft box=295.62 ft reduction=1.51 ft

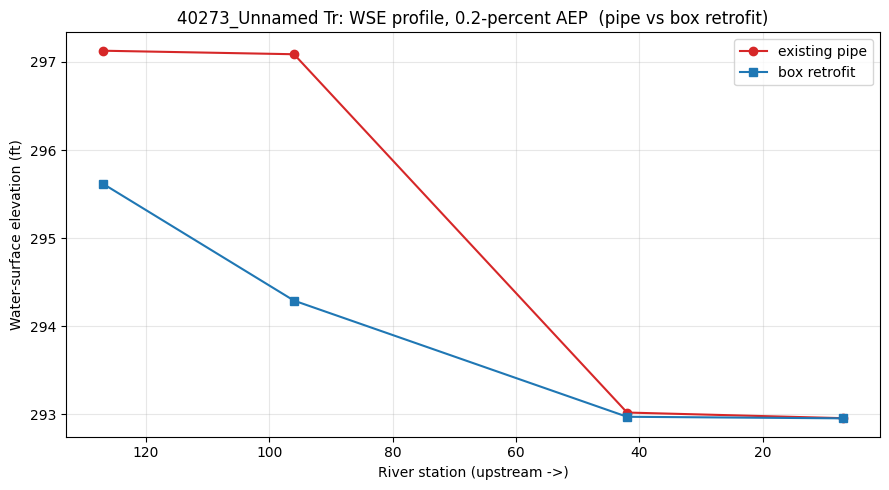

Python
fig, ax = plt.subplots(figsize=(9, 5))
ax.plot(w_pipe["sta"], w_pipe["WSE"], marker="o", color="C3", label="existing pipe")
ax.plot(w_box["sta"], w_box["WSE"], marker="s", color="C0", label="box retrofit")
ax.invert_xaxis() # upstream to the left
ax.set_xlabel("River station (upstream ->)")
ax.set_ylabel("Water-surface elevation (ft)")
ax.set_title(f"{RIVER}: WSE profile, {prof} (pipe vs box retrofit)")
ax.legend(); ax.grid(True, alpha=0.3)
plt.tight_layout(); plt.show()

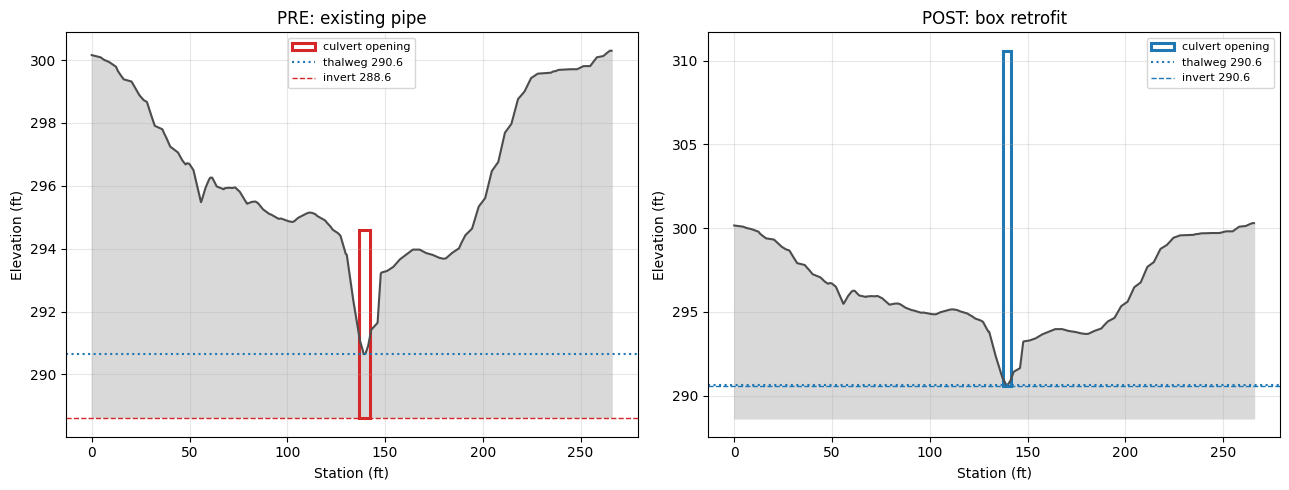

Pre/post cross-section view¶
The upstream cross section with the existing pipe opening (pre) and the box opening (post). The box sits at grade and passes more flow at a lower headwater.
Python
fig, axes = plt.subplots(1, 2, figsize=(13, 5))
us_sta_p, _ = c["BarrelStations"][0]
us_sta_b, _ = cb["BarrelStations"][0]
plot_xs_with_culvert(axes[0], GEOM_PIPE, RIVER, REACH, us_rs, float(us_sta_p),
float(c["UpstreamInvert"]),
float(c["Rise"] if pd.notna(c["Rise"]) else c["Span"]),
float(c["Span"]), "PRE: existing pipe", opening_color="C3")
plot_xs_with_culvert(axes[1], GEOM_BOX, RIVER, REACH, us_rs, float(us_sta_b),
float(cb["UpstreamInvert"]),
float(cb["Rise"] if pd.notna(cb["Rise"]) else cb["Span"]),
float(cb["Span"]), "POST: box retrofit", opening_color="C0")
plt.tight_layout(); plt.show()
Summary¶
Python
def status_of(rep, check):
r = rep[rep["check"] == check]
return r.iloc[0]["status"] if not r.empty else "N/A"
summary = pd.DataFrame([
{"Design": "Existing pipe", "Shape": c["ShapeName"], "Span": c["Span"],
"US invert": c["UpstreamInvert"], "max headwater (ft)": round(headwater_pipe, 2),
"US invert check": status_of(report_pipe, "us_invert"),
"Ke check": status_of(report_pipe, "entrance_loss")},
{"Design": "Box retrofit", "Shape": cb["ShapeName"], "Span": cb["Span"],
"US invert": cb["UpstreamInvert"], "max headwater (ft)": round(headwater_box, 2),
"US invert check": status_of(report_box, "us_invert"),
"Ke check": status_of(report_box, "entrance_loss")},
])
display(summary)
print(f"Box retrofit lowers peak headwater by {headwater_pipe - headwater_box:.2f} ft "
f"and places the invert at grade (invert check passes).")
print("Culvert GIS reconstruction + hydraulic-validity workflow complete.")
| Design | Shape | Span | US invert | max headwater (ft) | US invert check | Ke check | |
|---|---|---|---|---|---|---|---|
| 0 | Existing pipe | Circular | 6.0 | 288.6 | 297.13 | FAIL | PASS |
| 1 | Box retrofit | Box | 4.0 | 290.6 | 295.62 | PASS | WARN |
Text Only
Box retrofit lowers peak headwater by 1.51 ft and places the invert at grade (invert check passes).
Culvert GIS reconstruction + hydraulic-validity workflow complete.
