Bridge Method Comparison¶
Compare bridge hydraulic method selections with a real HEC-RAS bridge example and show the effect on computed WSE.
Development Mode¶
Set USE_LOCAL_SOURCE = True when running from a local ras-commander checkout. The committed default uses the installed package; repository test execution can still use local source through PYTHONPATH.
Python
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False
if USE_LOCAL_SOURCE:
import sys
from pathlib import Path
cwd = Path.cwd()
local_path = cwd if (cwd / "ras_commander").exists() else cwd.parent
if str(local_path) not in sys.path:
sys.path.insert(0, str(local_path))
print(f"LOCAL SOURCE MODE: loading from {local_path / 'ras_commander'}")
else:
print("PIP PACKAGE MODE: loading installed ras-commander")
from pathlib import Path
import os
import shutil
import time
import warnings
import logging
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from ras_commander import RasCmdr, RasExamples, init_ras_project
from ras_commander.geom import GeomBridge
from ras_commander.hdf import HdfResultsXsec
warnings.filterwarnings("ignore", category=FutureWarning)
logging.getLogger("ras_commander").setLevel(logging.ERROR)
pd.set_option("display.max_rows", 20)
pd.set_option("display.max_columns", None)
print("Imports complete")
Text Only
PIP PACKAGE MODE: loading installed ras-commander
Imports complete
Parameters¶
The workflow uses the Bridge Hydraulics example project because it includes one bridge with existing low-flow and pressure/weir method records. HEC-RAS 7.0 is used for execution so plan HDF results are available for extraction.
Python
PROJECT_NAME = "Bridge Hydraulics"
RAS_EXE = Path(os.environ.get(
"HECRAS_EXE",
r"C:/Program Files (x86)/HEC/HEC-RAS/7.0/Ras.exe",
))
cwd = Path.cwd()
REPO_ROOT = cwd if (cwd / "ras_commander").exists() else cwd.parent
WORK_ROOT = Path(os.environ.get(
"RAS_COMMANDER_WORKDIR",
REPO_ROOT / "working" / "bridge_method_comparison",
))
BRIDGE_STATION = 5.4
PROFILE_HALF_WINDOW = 10
PLAN_NUMBER = "03"
NUM_CORES = 1
LOW_FLOW_SCENARIOS = [
{"label": "Baseline", "low_flow_method": None},
{"label": "Energy", "low_flow_method": "energy"},
{"label": "Momentum", "low_flow_method": "momentum", "momentum_cd": 2.0},
{"label": "Yarnell", "low_flow_method": "yarnell", "yarnell_k": 1.25},
]
WEIR_COEFFICIENTS = [2.6, 2.9, 3.1, 3.5, 4.0]
PRESSURE_FLOW_CDS = {
"pressure_flow_submerged_inlet_cd": 0.4,
"pressure_flow_submerged_inlet_outlet_cd": 0.8,
}
if not RAS_EXE.exists():
raise FileNotFoundError(f"HEC-RAS executable not found: {RAS_EXE}")
WORK_ROOT.mkdir(parents=True, exist_ok=True)
print(f"HEC-RAS executable: {RAS_EXE}")
print(f"Working folder: {WORK_ROOT}")
Text Only
HEC-RAS executable: C:\Program Files (x86)\HEC\HEC-RAS\7.0\Ras.exe
Working folder: C:\GH\symphony-workspaces\ras-commander\CLB-304\working\bridge_method_comparison
Helpers¶
Python
def _safe_suffix(value):
return str(value).lower().replace(" ", "_").replace(".", "_").replace("-", "_")
def extract_clean_project(suffix):
target = WORK_ROOT / f"{PROJECT_NAME}_{suffix}"
if target.exists():
shutil.rmtree(target)
return RasExamples.extract_project(PROJECT_NAME, output_path=WORK_ROOT, suffix=suffix)
def initialize_bridge_project(project_path):
ras_obj = init_ras_project(project_path, str(RAS_EXE), load_results_summary=False)
plan = str(ras_obj.plan_df.iloc[0]["plan_number"])
geom_file = Path(ras_obj.plan_df.iloc[0]["Geom Path"])
bridge = GeomBridge.get_bridges(geom_file).iloc[0]
return ras_obj, plan, geom_file, bridge
def extract_wse_dataset(plan, ras_obj):
ds = HdfResultsXsec.get_xsec_timeseries(plan, ras_object=ras_obj)
stations = np.array([float(str(value).replace("*", "")) for value in ds["Station"].values])
return ds, stations
def profile_window_indices(stations, bridge_station=BRIDGE_STATION, half_window=PROFILE_HALF_WINDOW):
nearest_idx = int(np.argmin(np.abs(stations - bridge_station)))
start = max(0, nearest_idx - half_window)
stop = min(len(stations), nearest_idx + half_window + 1)
return np.arange(start, stop)
def run_scenario(label, *, suffix, low_flow_method=None, high_flow_method=None,
momentum_cd=None, yarnell_k=None, weir_coefficient=None,
pressure_flow_submerged_inlet_cd=None,
pressure_flow_submerged_inlet_outlet_cd=None):
project_path = extract_clean_project(suffix)
ras_obj, plan, geom_file, bridge = initialize_bridge_project(project_path)
before = GeomBridge.get_hydraulic_methods(
geom_file,
bridge["River"],
bridge["Reach"],
str(bridge["RS"]),
)
should_edit = any(value is not None for value in [
low_flow_method,
high_flow_method,
momentum_cd,
yarnell_k,
weir_coefficient,
pressure_flow_submerged_inlet_cd,
pressure_flow_submerged_inlet_outlet_cd,
])
edit_result = None
if should_edit:
edit_result = GeomBridge.set_hydraulic_methods(
geom_file,
bridge["River"],
bridge["Reach"],
str(bridge["RS"]),
low_flow_method=low_flow_method,
high_flow_method=high_flow_method,
momentum_cd=momentum_cd,
yarnell_k=yarnell_k,
pressure_flow_submerged_inlet_cd=pressure_flow_submerged_inlet_cd,
pressure_flow_submerged_inlet_outlet_cd=pressure_flow_submerged_inlet_outlet_cd,
weir_coefficient=weir_coefficient,
create_backup=False,
)
started = time.perf_counter()
compute_result = RasCmdr.compute_plan(
plan,
ras_object=ras_obj,
force_geompre=True,
force_rerun=True,
num_cores=NUM_CORES,
verify=False,
)
runtime_sec = time.perf_counter() - started
if not compute_result:
raise RuntimeError(f"HEC-RAS compute failed for scenario {label}")
ds, stations = extract_wse_dataset(plan, ras_obj)
after = GeomBridge.get_hydraulic_methods(
geom_file,
bridge["River"],
bridge["Reach"],
str(bridge["RS"]),
)
return {
"label": label,
"suffix": suffix,
"project_path": project_path,
"plan": plan,
"geom_file": geom_file,
"bridge": bridge,
"before": before,
"after": after,
"edit_result": edit_result,
"compute_result": compute_result,
"runtime_sec": runtime_sec,
"dataset": ds,
"stations": stations,
}
def dataset_profile_frame(result, time_index, window_indices):
ds = result["dataset"]
wse = ds["Water_Surface"].isel(time=time_index, cross_section=window_indices).values
return pd.DataFrame({
"Scenario": result["label"],
"Station": [str(value) for value in ds["Station"].values[window_indices]],
"StationNum": result["stations"][window_indices],
"WSE": wse.astype(float),
})
print("Helper functions ready")
Text Only
Helper functions ready
Baseline And Low-Flow Method Runs¶
The baseline preserves the example project's existing method settings. The comparison runs set the same bridge to Energy, Momentum, and Yarnell low-flow methods while keeping pressure/weir high-flow handling enabled.
Python
method_results = []
for config in LOW_FLOW_SCENARIOS:
label = config["label"]
suffix = f"method_{_safe_suffix(label)}"
kwargs = {key: value for key, value in config.items() if key != "label"}
if label != "Baseline":
kwargs["high_flow_method"] = "pressure_weir"
result = run_scenario(label, suffix=suffix, **kwargs)
method_results.append(result)
print(
f"{label:8s} | low={result['after']['low_flow_method']:<8s} "
f"high={result['after']['high_flow_method']:<13s} "
f"runtime={result['runtime_sec']:.1f}s"
)
baseline = method_results[0]
bridge = baseline["bridge"]
print("\nBridge:")
display(pd.DataFrame([{
"River": bridge["River"],
"Reach": bridge["Reach"],
"RS": bridge["RS"],
"Baseline Low Flow": baseline["before"]["low_flow_method"],
"Baseline High Flow": baseline["before"]["high_flow_method"],
"Deck/Weir Coefficient": baseline["before"]["coefficients"]["weir_coefficient"],
}]))
Text Only
Baseline | low=momentum high=pressure_weir runtime=11.1s
Energy | low=energy high=pressure_weir runtime=11.2s
Momentum | low=momentum high=pressure_weir runtime=11.9s
Yarnell | low=yarnell high=pressure_weir runtime=11.3s
Bridge:
| River | Reach | RS | Baseline Low Flow | Baseline High Flow | Deck/Weir Coefficient | |
|---|---|---|---|---|---|---|
| 0 | Beaver Creek | Kentwood | 5.4 | momentum | pressure_weir | 2.6 |

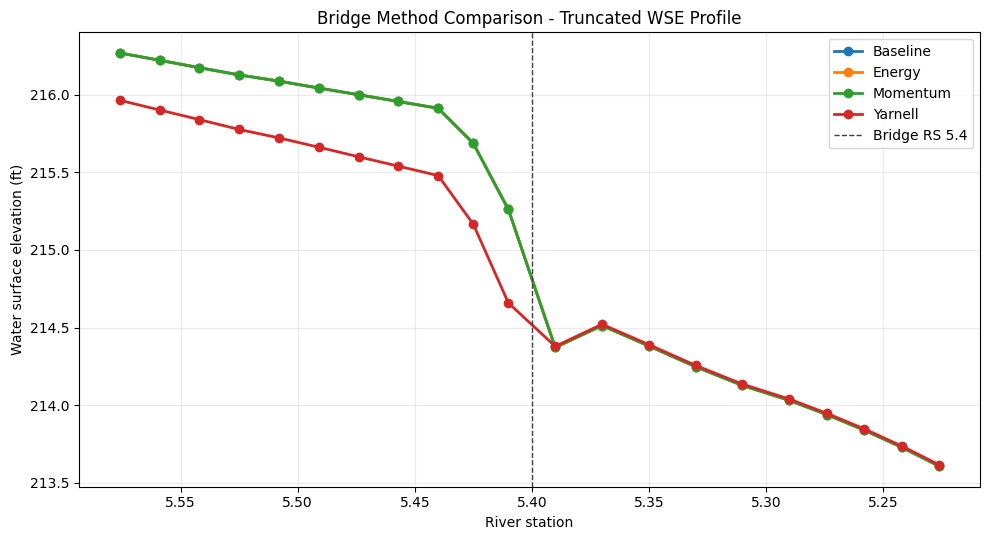

Truncated WSE Profile Near The Bridge¶
The plotted time step is selected from the computed results: it is the time where Energy, Momentum, and Yarnell produce the largest WSE spread within the bridge-centered profile window.
Python
stations = baseline["stations"]
window_indices = profile_window_indices(stations)
comparison_labels = ["Energy", "Momentum", "Yarnell"]
comparison_results = [result for result in method_results if result["label"] in comparison_labels]
stack = np.stack([
result["dataset"]["Water_Surface"].isel(cross_section=window_indices).values
for result in comparison_results
])
spread = np.nanmax(stack, axis=0) - np.nanmin(stack, axis=0)
time_index, local_xs_index = np.unravel_index(np.nanargmax(spread), spread.shape)
profile_time = pd.Timestamp(str(baseline["dataset"]["time"].values[time_index]))
max_spread = float(spread[time_index, local_xs_index])
profile_df = pd.concat([
dataset_profile_frame(result, time_index, window_indices)
for result in method_results
], ignore_index=True)
print(f"Selected profile time: {profile_time}")
print(f"Maximum method WSE spread in plotted window: {max_spread:.3f} ft")
pivot = profile_df.pivot_table(
index=["Station", "StationNum"],
columns="Scenario",
values="WSE",
).reset_index()
display(pivot.round(3))
Text Only
Selected profile time: 1990-02-10 19:00:00
Maximum method WSE spread in plotted window: 0.602 ft
| Scenario | Station | StationNum | Baseline | Energy | Momentum | Yarnell |
|---|---|---|---|---|---|---|
| 0 | 5.226 | 5.226 | 213.609 | 213.609 | 213.609 | 213.617 |
| 1 | 5.242 | 5.242 | 213.730 | 213.730 | 213.730 | 213.738 |
| 2 | 5.258 | 5.258 | 213.840 | 213.840 | 213.840 | 213.848 |
| 3 | 5.274 | 5.274 | 213.940 | 213.940 | 213.940 | 213.948 |
| 4 | 5.29 | 5.290 | 214.032 | 214.032 | 214.032 | 214.040 |
| ... | ... | ... | ... | ... | ... | ... |
| 16 | 5.508 | 5.508 | 216.086 | 216.086 | 216.086 | 215.721 |
| 17 | 5.525 | 5.525 | 216.126 | 216.126 | 216.126 | 215.775 |
| 18 | 5.542 | 5.542 | 216.173 | 216.173 | 216.173 | 215.838 |
| 19 | 5.559 | 5.559 | 216.220 | 216.220 | 216.220 | 215.900 |
| 20 | 5.576 | 5.576 | 216.267 | 216.267 | 216.267 | 215.963 |
21 rows × 6 columns
Python
fig, ax = plt.subplots(figsize=(10, 5.5))
for label, group in profile_df.groupby("Scenario", sort=False):
ax.plot(group["StationNum"], group["WSE"], marker="o", linewidth=2, label=label)
ax.axvline(BRIDGE_STATION, color="0.25", linestyle="--", linewidth=1, label="Bridge RS 5.4")
ax.invert_xaxis()
ax.set_xlabel("River station")
ax.set_ylabel("Water surface elevation (ft)")
ax.set_title("Bridge Method Comparison - Truncated WSE Profile")
ax.grid(True, alpha=0.25)
ax.legend(loc="best")
fig.tight_layout()
plt.show()

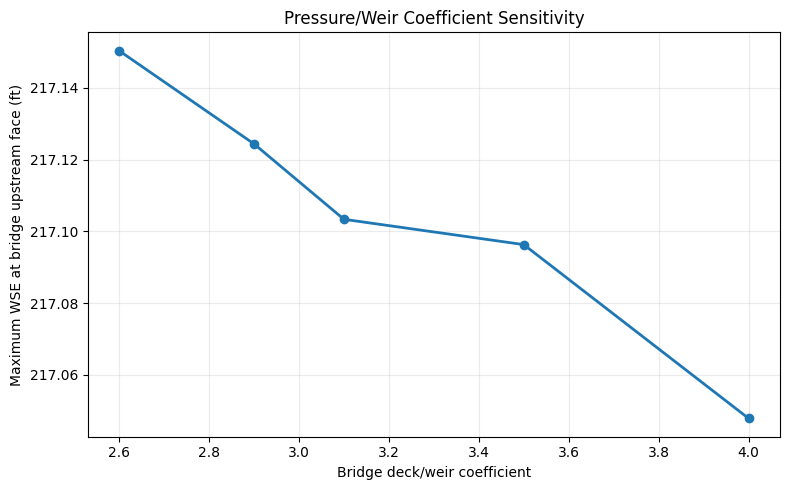

Pressure/Weir Coefficient Sensitivity¶
The pressure/weir run keeps the low-flow method fixed at Energy, sets pressure-flow coefficients, and varies the bridge deck/weir coefficient over broad-crested through ogee-style values. The response metric is maximum WSE at the bridge upstream face cross section nearest RS 5.41.
Python
weir_results = []
weir_rows = []
for coeff in WEIR_COEFFICIENTS:
label = f"Cd {coeff:g}"
result = run_scenario(
label,
suffix=f"weir_{_safe_suffix(coeff)}",
low_flow_method="energy",
high_flow_method="pressure_weir",
weir_coefficient=coeff,
**PRESSURE_FLOW_CDS,
)
weir_results.append(result)
ds = result["dataset"]
stations = result["stations"]
bridge_face_idx = int(np.argmin(np.abs(stations - 5.41)))
max_wse_at_bridge = float(ds["Water_Surface"].isel(cross_section=bridge_face_idx).max().values)
peak_time_idx = int(ds["Water_Surface"].isel(cross_section=bridge_face_idx).argmax().values)
peak_time = pd.Timestamp(str(ds["time"].values[peak_time_idx]))
weir_rows.append({
"Weir Coefficient": coeff,
"Nearest Station": str(ds["Station"].values[bridge_face_idx]),
"Peak Time": peak_time,
"Max WSE At Bridge (ft)": max_wse_at_bridge,
"Deck Line After": result["edit_result"]["deck_line_after"],
})
print(
f"Cd={coeff:g} | WSE={max_wse_at_bridge:.3f} ft | "
f"runtime={result['runtime_sec']:.1f}s"
)
weir_df = pd.DataFrame(weir_rows)
display(weir_df[["Weir Coefficient", "Nearest Station", "Peak Time", "Max WSE At Bridge (ft)"]].round(3))
Text Only
Cd=2.6 | WSE=217.150 ft | runtime=11.1s
Cd=2.9 | WSE=217.124 ft | runtime=11.3s
Cd=3.1 | WSE=217.103 ft | runtime=11.1s
Cd=3.5 | WSE=217.096 ft | runtime=11.0s
Cd=4 | WSE=217.048 ft | runtime=10.8s
| Weir Coefficient | Nearest Station | Peak Time | Max WSE At Bridge (ft) | |
|---|---|---|---|---|
| 0 | 2.6 | 5.41 | 1990-02-11 05:00:00 | 217.150 |
| 1 | 2.9 | 5.41 | 1990-02-11 05:00:00 | 217.124 |
| 2 | 3.1 | 5.41 | 1990-02-11 05:00:00 | 217.103 |
| 3 | 3.5 | 5.41 | 1990-02-11 05:00:00 | 217.096 |
| 4 | 4.0 | 5.41 | 1990-02-11 05:00:00 | 217.048 |
Python
fig, ax = plt.subplots(figsize=(8, 5))
ax.plot(
weir_df["Weir Coefficient"],
weir_df["Max WSE At Bridge (ft)"],
marker="o",
linewidth=2,
color="tab:blue",
)
ax.set_xlabel("Bridge deck/weir coefficient")
ax.set_ylabel("Maximum WSE at bridge upstream face (ft)")
ax.set_title("Pressure/Weir Coefficient Sensitivity")
ax.grid(True, alpha=0.25)
fig.tight_layout()
plt.show()
Summary¶
Python
method_summary = []
base_profile = profile_df[profile_df["Scenario"] == "Baseline"][["StationNum", "WSE"]].rename(columns={"WSE": "Baseline WSE"})
for label in ["Energy", "Momentum", "Yarnell"]:
scenario = profile_df[profile_df["Scenario"] == label][["StationNum", "WSE"]]
joined = scenario.merge(base_profile, on="StationNum")
diff = joined["WSE"] - joined["Baseline WSE"]
method_summary.append({
"Scenario": label,
"Min Delta vs Baseline (ft)": float(diff.min()),
"Max Delta vs Baseline (ft)": float(diff.max()),
"Max Abs Delta (ft)": float(diff.abs().max()),
})
summary_df = pd.DataFrame(method_summary)
weir_delta = float(
weir_df["Max WSE At Bridge (ft)"].max() - weir_df["Max WSE At Bridge (ft)"].min()
)
print("Low-flow method WSE differences in plotted bridge window:")
display(summary_df.round(3))
print(f"Weir coefficient sweep WSE range at bridge: {weir_delta:.3f} ft")
Text Only
Low-flow method WSE differences in plotted bridge window:
| Scenario | Min Delta vs Baseline (ft) | Max Delta vs Baseline (ft) | Max Abs Delta (ft) | |
|---|---|---|---|---|
| 0 | Energy | 0.000 | 0.000 | 0.000 |
| 1 | Momentum | 0.000 | 0.000 | 0.000 |
| 2 | Yarnell | -0.602 | 0.009 | 0.602 |
Text Only
Weir coefficient sweep WSE range at bridge: 0.102 ft
