Cross-Section Interpolation Settings

Python
from pathlib import Path
import logging

import matplotlib.pyplot as plt
import pandas as pd
from IPython.display import display

import ras_commander
from ras_commander import RasCmdr, RasExamples, init_ras_project, ras
from ras_commander.geom.GeomCrossSection import GeomCrossSection

logging.getLogger("ras_commander").setLevel(logging.WARNING)

print(f"ras-commander {ras_commander.__version__}")
print(ras_commander.__file__)
Text Only
ras-commander 0.96.1
C:\GH\symphony-workspaces\ras-commander\CLB-306\ras_commander\__init__.py

Local Development

For local-source validation, execute this notebook from the repository with PYTHONPATH set to the active checkout and the symphony-dev environment selected. Generated HEC-RAS projects and compute outputs are written outside the repository under H:/Symphony/ras-commander/CLB-306 when that drive is available.

Cross-Section Interpolation Settings

This notebook validates the CLB-306 cross-section APIs on a real HEC-RAS example project:

  • read neighboring 1D cross sections from a plain-text geometry file
  • create reviewable interpolated station/elevation data under the HEC-RAS point limit
  • enforce explicit bank stations as exact station/elevation points
  • round-trip per-cross-section expansion/contraction coefficients
  • run HEC-RAS through RasCmdr.compute_plan() to validate the edited geometry
Python
preferred_root = Path("H:/Symphony/ras-commander/CLB-306/xs_interpolation_settings")
if Path("H:/").exists():
    work_dir = preferred_root
else:
    cwd = Path.cwd()
    repo_root = cwd if (cwd / "ras_commander").exists() else cwd.parent
    work_dir = repo_root / "working" / "CLB-306-xs-interpolation-settings"

work_dir.mkdir(parents=True, exist_ok=True)

project_name = "Muncie"
project_suffix = "clb306_xs_settings"
ras_version = "6.6"
plan_number = "01"

project_path = RasExamples.extract_project(project_name, output_path=work_dir, suffix=project_suffix)
init_ras_project(project_path, ras_version)

plan_row = ras.plan_df.loc[ras.plan_df["plan_number"].eq(plan_number)].iloc[0]
geom_file = Path(plan_row["Geom Path"])

print(f"Project: {project_path}")
print(f"Geometry: {geom_file.name}")
print(f"HEC-RAS: {ras.ras_exe_path}")
display(ras.plan_df[["plan_number", "Plan Title", "Geom File", "Flow File", "flow_type"]])
Text Only
Project: H:\Symphony\ras-commander\CLB-306\xs_interpolation_settings\Muncie_clb306_xs_settings
Geometry: Muncie.g01
HEC-RAS: C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe
plan_number Plan Title Geom File Flow File flow_type
0 01 Unsteady Multi  9-SA run 01 01 Unsteady
1 03 Unsteady Run with 2D 50ft Grid 02 01 Unsteady
2 04 Unsteady Run with 2D 50ft User n Value R 04 01 Unsteady
Python
river = "White"
reach = "Muncie"
upstream_rs = "15696.24"
target_rs = "15485.51"
downstream_rs = "15370.43"

ratio = (float(upstream_rs) - float(target_rs)) / (float(upstream_rs) - float(downstream_rs))

xs_df = GeomCrossSection.get_cross_sections(geom_file, river=river, reach=reach)
before_profile = GeomCrossSection.get_station_elevation(geom_file, river, reach, target_rs)
before_banks = GeomCrossSection.get_bank_stations(geom_file, river, reach, target_rs)
before_exp_cntr = GeomCrossSection.get_expansion_contraction(geom_file, river, reach, target_rs)

print(f"Interpolation ratio for RS {target_rs}: {ratio:.3f}")
print(f"Target profile points before edit: {len(before_profile)}")
print(f"Target bank stations before edit: {before_banks}")
print(f"Target Exp/Cntr before edit: {before_exp_cntr}")
display(xs_df.head(6))
Text Only
Interpolation ratio for RS 15485.51: 0.647
Target profile points before edit: 93
Target bank stations before edit: (253.16, 387.82)
Target Exp/Cntr before edit: (0.3, 0.1)
River Reach RS Type Length_Left Length_Channel Length_Right NodeName
0 White Muncie 15696.24 1 228.66 210.73 167.84
1 White Muncie 15485.51 1 121.23 115.09 103.79
2 White Muncie 15370.43 1 174.81 165.14 117.82
3 White Muncie 15205.29 1 216.56 192.09 159.11
4 White Muncie 15013.20 1 98.06 95.84 84.00
5 White Muncie 14917.36 1 60.31 61.12 51.13
Python
auto_interpolated = GeomCrossSection.interpolate_cross_section(
    geom_file,
    river,
    reach,
    upstream_rs,
    downstream_rs,
    ratio=ratio,
    max_points=GeomCrossSection.MAX_XS_POINTS,
    interpolated_rs=target_rs,
)

interpolated = GeomCrossSection.interpolate_cross_section(
    geom_file,
    river,
    reach,
    upstream_rs,
    downstream_rs,
    ratio=ratio,
    bank_left=before_banks[0],
    bank_right=before_banks[1],
    max_points=GeomCrossSection.MAX_XS_POINTS,
    interpolated_rs=target_rs,
)

review_cols = [
    "Station",
    "Elevation",
    "UpstreamStation",
    "DownstreamStation",
    "Source",
    "IsBankPoint",
    "BankLeft",
    "BankRight",
]

print(f"Auto-interpolated bank stations: {auto_interpolated['BankLeft'].iloc[0]:.2f}, {auto_interpolated['BankRight'].iloc[0]:.2f}")
print(f"Validation write keeps existing bank stations: {before_banks[0]:.2f}, {before_banks[1]:.2f}")
print(f"Interpolated profile point count: {len(interpolated)} / {GeomCrossSection.MAX_XS_POINTS}")
assert len(interpolated) <= GeomCrossSection.MAX_XS_POINTS
assert set(interpolated.loc[interpolated["IsBankPoint"], "Station"].round(2)) == {round(before_banks[0], 2), round(before_banks[1], 2)}

display(interpolated[review_cols].head(12))
display(interpolated.loc[interpolated["IsBankPoint"], review_cols])
Text Only
Auto-interpolated bank stations: 207.31, 352.21
Validation write keeps existing bank stations: 253.16, 387.82
Interpolated profile point count: 222 / 500
Station Elevation UpstreamStation DownstreamStation Source IsBankPoint BankLeft BankRight
0 0.000000 958.363723 0.000000 0.000000 both False 253.16 387.82
1 22.775259 959.004043 26.172538 20.920000 downstream False 253.16 387.82
2 23.669353 959.028993 27.200000 21.741262 upstream False 253.16 387.82
3 28.403224 959.154027 32.640000 26.089514 upstream False 253.16 387.82
4 33.137095 959.226080 38.080000 30.437766 upstream False 253.16 387.82
5 37.870966 959.308730 43.520000 34.786019 upstream False 253.16 387.82
6 47.338707 959.572928 54.400000 43.482523 upstream False 253.16 387.82
7 52.072578 959.669705 59.840000 47.830776 upstream False 253.16 387.82
8 53.138643 959.688318 61.065086 48.810000 downstream False 253.16 387.82
9 56.806448 959.653126 65.280000 52.179028 upstream False 253.16 387.82
10 60.737654 959.586075 69.797605 55.790000 downstream False 253.16 387.82
11 61.540319 959.593595 70.720000 56.527280 upstream False 253.16 387.82
Station Elevation UpstreamStation DownstreamStation Source IsBankPoint BankLeft BankRight
70 253.16 939.235354 290.922691 232.537732 bank True 253.16 387.82
114 387.82 947.543765 445.669292 356.228407 bank True 253.16 387.82
Python
upstream_profile = GeomCrossSection.get_station_elevation(geom_file, river, reach, upstream_rs)
downstream_profile = GeomCrossSection.get_station_elevation(geom_file, river, reach, downstream_rs)

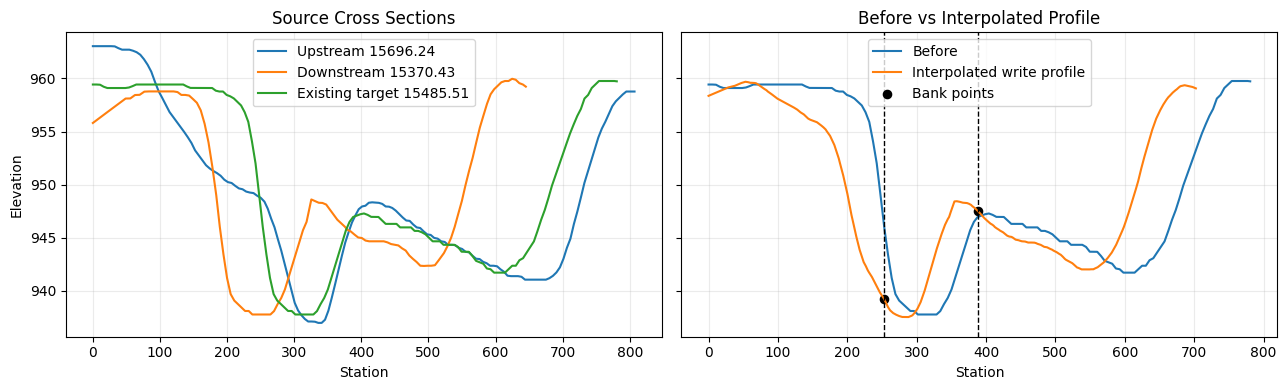

fig, axes = plt.subplots(1, 2, figsize=(13, 4), sharey=True)

axes[0].plot(upstream_profile["Station"], upstream_profile["Elevation"], label=f"Upstream {upstream_rs}", linewidth=1.5)
axes[0].plot(downstream_profile["Station"], downstream_profile["Elevation"], label=f"Downstream {downstream_rs}", linewidth=1.5)
axes[0].plot(before_profile["Station"], before_profile["Elevation"], label=f"Existing target {target_rs}", linewidth=1.5)
axes[0].set_title("Source Cross Sections")
axes[0].set_xlabel("Station")
axes[0].set_ylabel("Elevation")
axes[0].legend()
axes[0].grid(True, alpha=0.25)

axes[1].plot(before_profile["Station"], before_profile["Elevation"], label="Before", linewidth=1.5)
axes[1].plot(interpolated["Station"], interpolated["Elevation"], label="Interpolated write profile", linewidth=1.5)
for bank in before_banks:
    axes[1].axvline(bank, color="black", linestyle="--", linewidth=1)
axes[1].scatter(
    interpolated.loc[interpolated["IsBankPoint"], "Station"],
    interpolated.loc[interpolated["IsBankPoint"], "Elevation"],
    color="black",
    s=35,
    label="Bank points",
)
axes[1].set_title("Before vs Interpolated Profile")
axes[1].set_xlabel("Station")
axes[1].legend()
axes[1].grid(True, alpha=0.25)

fig.tight_layout()

png

Python
profile_backup = GeomCrossSection.set_station_elevation(
    geom_file,
    river,
    reach,
    target_rs,
    interpolated[["Station", "Elevation"]],
    bank_left=before_banks[0],
    bank_right=before_banks[1],
    create_backup=True,
)

bank_backup = GeomCrossSection.set_bank_stations(
    geom_file,
    river,
    reach,
    target_rs,
    before_banks[0],
    before_banks[1],
    create_backup=True,
)

coeff_backup = GeomCrossSection.set_expansion_contraction(
    geom_file,
    river,
    reach,
    target_rs,
    expansion=0.45,
    contraction=0.15,
    create_backup=True,
)

after_profile = GeomCrossSection.get_station_elevation(geom_file, river, reach, target_rs)
after_banks = GeomCrossSection.get_bank_stations(geom_file, river, reach, target_rs)
after_exp_cntr = GeomCrossSection.get_expansion_contraction(geom_file, river, reach, target_rs)

for bank in after_banks:
    assert after_profile["Station"].sub(bank).abs().min() <= 0.005
assert after_banks == before_banks
assert after_exp_cntr == (0.45, 0.15)
assert len(after_profile) <= GeomCrossSection.MAX_XS_POINTS

summary = pd.DataFrame([
    {"Metric": "Profile points", "Before": len(before_profile), "After": len(after_profile)},
    {"Metric": "Bank stations", "Before": before_banks, "After": after_banks},
    {"Metric": "Exp/Cntr", "Before": before_exp_cntr, "After": after_exp_cntr},
    {"Metric": "Profile backup", "Before": "", "After": Path(profile_backup).name},
    {"Metric": "Bank backup", "Before": "", "After": Path(bank_backup).name},
    {"Metric": "Coefficient backup", "Before": "", "After": Path(coeff_backup).name},
])

display(summary)
Metric Before After
0 Profile points 93 222
1 Bank stations (253.16, 387.82) (253.16, 387.82)
2 Exp/Cntr (0.3, 0.1) (0.45, 0.15)
3 Profile backup Muncie.g01.bak
4 Bank backup Muncie.g01.bak1
5 Coefficient backup Muncie.g01.bak2
Python

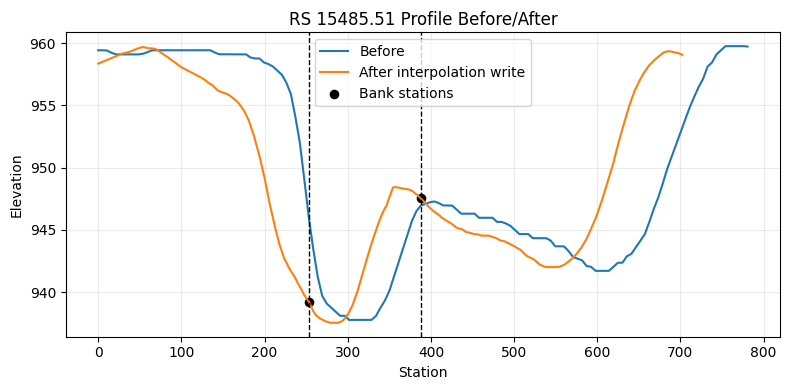

fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(before_profile["Station"], before_profile["Elevation"], label="Before", linewidth=1.5)
ax.plot(after_profile["Station"], after_profile["Elevation"], label="After interpolation write", linewidth=1.5)
for bank in after_banks:
    ax.axvline(bank, color="black", linestyle="--", linewidth=1)
ax.scatter(
    after_profile.loc[after_profile["Station"].isin(after_banks), "Station"],
    after_profile.loc[after_profile["Station"].isin(after_banks), "Elevation"],
    color="black",
    s=35,
    label="Bank stations",
)
ax.set_title(f"RS {target_rs} Profile Before/After")
ax.set_xlabel("Station")
ax.set_ylabel("Elevation")
ax.legend()
ax.grid(True, alpha=0.25)
fig.tight_layout()

png

Python
compute_folder = work_dir / "Muncie_clb306_xs_settings_compute"
compute_result = RasCmdr.compute_plan(
    plan_number,
    dest_folder=compute_folder,
    overwrite_dest=True,
    clear_geompre=True,
    force_rerun=True,
    num_cores=1,
    verify=True,
)

print(f"HEC-RAS validation success: {compute_result.success}")
assert compute_result.success

init_ras_project(compute_folder, ras_version)
validation_row = ras.results_df.loc[ras.results_df["plan_number"].eq(plan_number)]
display(validation_row[["plan_number", "completed", "has_errors", "has_warnings", "runtime_complete_process_hours", "hdf_exists", "hdf_path"]])
Text Only
HEC-RAS validation success: True
plan_number completed has_errors has_warnings runtime_complete_process_hours hdf_exists hdf_path
0 01 True False False 0.003533 True H:\Symphony\ras-commander\CLB-306\xs_interpola...
