1D Manning's N Calibration Workflow

Demonstrates automated Manning's n calibration for a 1D HEC-RAS unsteady model using the RasCalibrate module with grid_search() and optimize().

Two Examples

Example	Method	Project	Parameters

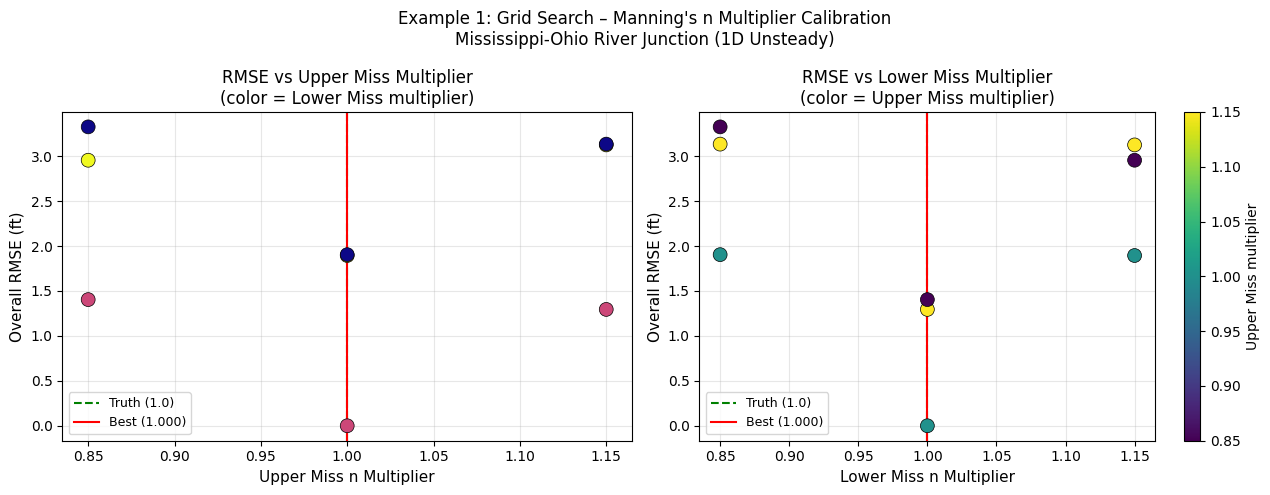

1	Grid search	Example 24 - Mannings-n-Calibration	Channel n multipliers (Upper Miss + Lower Miss)

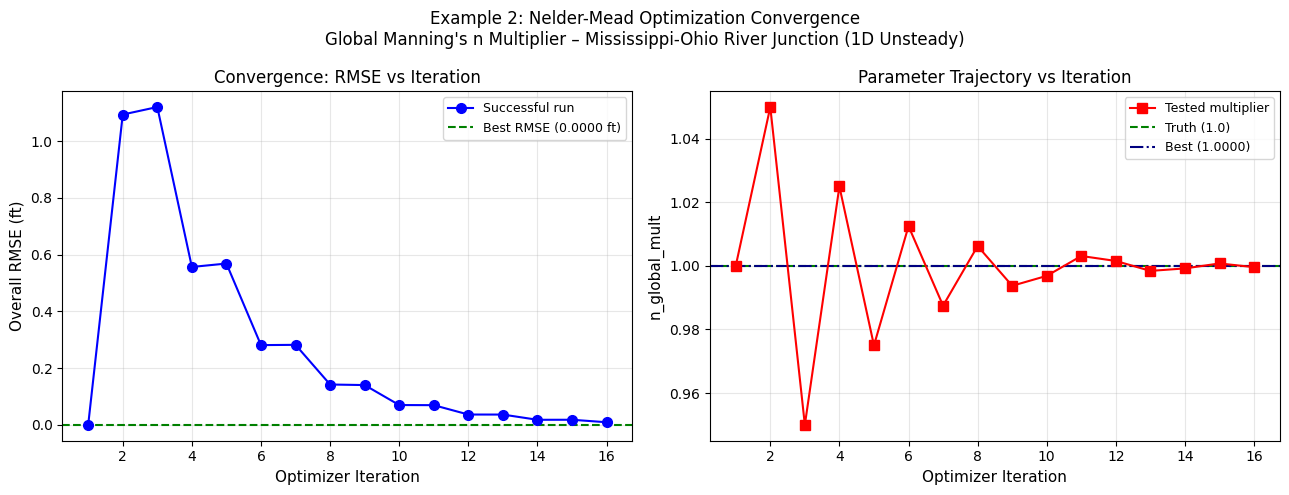

2	Optimization (Nelder-Mead)	Example 24 - Mannings-n-Calibration	Channel n multipliers (combined)

Calibration Approach

This notebook uses a synthetic observed data approach:

1. Run the model with original Manning's n to generate "truth" water surface elevations
2. Define CalibrationPoint objects at representative cross sections using those WSE as observations
3. Perturb Manning's n and run grid_search() to recover the original values
4. Run optimize() for a continuous Nelder-Mead search

This workflow mirrors real calibration except that observed data comes from streamflow gauges or survey data instead of a model run.

Background

The project is the Mississippi-Ohio River junction model from the HEC-RAS Example Applications Guide (Example 24 - Manning's n Calibration). It includes: - Mississippi River: Upper Miss and Lower Miss reaches (394 cross sections) - Ohio River: OHS reach - Unsteady simulation (~5.5 months, Sep 2004 to Mar 2005) - Built-in HEC-RAS calibration zones defined as Roughness Change multipliers per reach segment

Prerequisites

• HEC-RAS 6.x installed (version 6.6 recommended)
• ras-commander installed (pip install ras-commander or editable install)
• Sufficient disk space (~500 MB) and compute time (~5 min per simulation)

Note: The grid search runs 3 simulations; the optimizer runs up to ~10 iterations. Total runtime: 20-60 minutes depending on your hardware.

Python

# Standard library imports
from pathlib import Path
import re
import sys
import warnings

# Third-party imports
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.ticker as mticker

warnings.filterwarnings("ignore")

# Flexible imports: works with installed package or editable install
try:
    from ras_commander import (
        init_ras_project,
        RasCmdr,
        RasExamples,
        RasPlan,
        RasCalibrate,
        CalibrationPoint,
    )
    from ras_commander.hdf import HdfResultsXsec
except ImportError:
    current_file = Path(".").resolve()
    parent_directory = current_file.parent
    sys.path.insert(0, str(parent_directory))
    from ras_commander import (
        init_ras_project,
        RasCmdr,
        RasExamples,
        RasPlan,
        RasCalibrate,
        CalibrationPoint,
    )
    from ras_commander.hdf import HdfResultsXsec

print("Imports successful.")

Text Only

Imports successful.

---

Setup: Extract and Initialize Project

Python

# Extract and initialize Example 24 - Manning's n Calibration
project_path = RasExamples.extract_project(
    "Example 24 - Mannings-n-Calibration",
    suffix="calib_1d",
)
ras = init_ras_project(project_path, "6.6")

print(f"Project folder: {project_path}")
print()
print("Plans:")
display(
    ras.plan_df[
        ["plan_number", "Plan Title", "Short Identifier", "Simulation Date"]
    ]
)
print()
print("Geometry:")
display(
    ras.geom_df[
        ["geom_number", "geom_title", "num_cross_sections", "has_1d_xs"]
    ]
)

Text Only

2026-04-12 13:30:23 - ras_commander.RasExamples - INFO - Found zip file: C:\Users\bill\AppData\Local\ras-commander\examples\Example_Projects_6_6.zip


2026-04-12 13:30:23 - ras_commander.RasExamples - INFO - Loading project data from CSV...


2026-04-12 13:30:23 - ras_commander.RasExamples - INFO - Loaded 68 projects from CSV.


2026-04-12 13:30:23 - ras_commander.RasExamples - INFO - ----- RasExamples Extracting Project -----


2026-04-12 13:30:23 - ras_commander.RasExamples - INFO - Extracting project 'Example 24 - Mannings-n-Calibration' as 'Example 24 - Mannings-n-Calibration_calib_1d'


2026-04-12 13:30:23 - ras_commander.RasExamples - INFO - Folder 'Example 24 - Mannings-n-Calibration_calib_1d' already exists. Deleting existing folder...


2026-04-12 13:30:23 - ras_commander.RasExamples - INFO - Existing folder 'Example 24 - Mannings-n-Calibration_calib_1d' has been deleted.


2026-04-12 13:30:24 - ras_commander.RasExamples - INFO - Successfully extracted project 'Example 24 - Mannings-n-Calibration' to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.6 at C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.5 at C:\Program Files (x86)\HEC\HEC-RAS\6.5\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3.1 at C:\Program Files (x86)\HEC\HEC-RAS\6.3.1\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.2 at C:\Program Files (x86)\HEC\HEC-RAS\6.2\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.1 at C:\Program Files (x86)\HEC\HEC-RAS\6.1\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.0 at C:\Program Files (x86)\HEC\HEC-RAS\6.0\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.7 at C:\Program Files (x86)\HEC\HEC-RAS\5.0.7\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.6 at C:\Program Files (x86)\HEC\HEC-RAS\5.0.6\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.5 at C:\Program Files (x86)\HEC\HEC-RAS\5.0.5\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.4 at C:\Program Files (x86)\HEC\HEC-RAS\5.0.4\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.3 at C:\Program Files (x86)\HEC\HEC-RAS\5.0.3\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.1 at C:\Program Files (x86)\HEC\HEC-RAS\5.0.1\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0 at C:\Program Files (x86)\HEC\HEC-RAS\5.0\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.1.0 at C:\Program Files (x86)\HEC\HEC-RAS\4.1.0\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 5 at C:\Program Files (x86)\HEC\HEC-RAS\6.7 Beta 5\Ras.exe via filesystem (x86)


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Discovered 15 installed HEC-RAS version(s)


2026-04-12 13:30:24 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.rasmap


2026-04-12 13:30:24 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:30:24 - ras_commander.RasPrj - INFO - Updated results_df with 5 plan(s)


2026-04-12 13:30:24 - ras_commander.RasPrj - INFO - ras-commander v0.91.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://ras-commander.readthedocs.io | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-04-12 13:30:24 - ras_commander.RasPrj - INFO - Project initialized: Manning'snCalibra | Folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


Project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d

Plans:

	plan_number	Plan Title	Short Identifier	Simulation Date
0	01	Automatic Calibration	AutoCalibrate	25sep2004,12:00,05MAR2005,12:00
1	02	No Calibration Run	NoCalibration	25sep2004,12:00,05MAR2005,12:00
2	03	Automatic Calibration - Squared Error	Cal-SqErr	25sep2004,12:00,05MAR2005,12:00
3	04	Automatic Calibration - Sequential	AutoCalSequentia	25sep2004,12:00,05MAR2005,12:00
4	05	Automatic Calibration - Final Model	Final Model	25sep2004,12:00,05MAR2005,12:00

Text Only

Geometry:

	geom_number	geom_title	num_cross_sections	has_1d_xs
0	01	Mississippi Ohio Junction	394	True

---

Step 1: Run Baseline Simulation to Generate "Truth" WSE

We use Plan 02 (No Calibration Run) as the baseline. It applies a global Manning's n multiplier of 1.0 (no change from geometry defaults) to all reaches. The resulting water surface elevations become our synthetic observations.

Python

# Run plan 02 (No Calibration Run) with default n values
# This generates the 'truth' results we will calibrate against
print("Running baseline plan 02 (No Calibration Run)...")
print("Expected runtime: ~5-15 minutes depending on hardware.")

RasCmdr.compute_plan(
    "02",
    ras_object=ras,
    force_rerun=False,   # Smart skip if already current
    num_cores=2,
)

# Verify results
hdf_path_str = ras.plan_df.loc[
    ras.plan_df["plan_number"] == "02", "HDF_Results_Path"
].iloc[0]

if hdf_path_str and Path(hdf_path_str).exists():
    print(f"Baseline HDF: {hdf_path_str}")
else:
    raise RuntimeError("Plan 02 did not produce an HDF file. Check HEC-RAS installation.")

Text Only

2026-04-12 13:30:24 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:30:24 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


Running baseline plan 02 (No Calibration Run)...
Expected runtime: ~5-15 minutes depending on hardware.


2026-04-12 13:30:24 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:30:24 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:30:24 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:32:03 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:32:03 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 98.99 seconds


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:32:03 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


Baseline HDF: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf

---

Step 2: Extract Baseline WSE at Representative Cross Sections

We extract the peak (maximum over time) water surface elevation at select cross sections along each calibration reach. These become our synthetic observations.

Python

# Extract cross-section timeseries from baseline run
baseline_hdf = Path(hdf_path_str)
ds = HdfResultsXsec.get_xsec_timeseries(baseline_hdf)

print("Timeseries dataset variables:", list(ds.data_vars))
print("Coordinates:", list(ds.coords))
print()

# Show coordinate dimensions
rivers = [str(v).strip() for v in ds.coords["River"].values]
reaches = [str(v).strip() for v in ds.coords["Reach"].values]
stations = [str(v).strip() for v in ds.coords["Station"].values]

xs_info = pd.DataFrame(
    {"River": rivers, "Reach": reaches, "Station": stations}
)
print(f"Total cross sections with output: {len(xs_info)}")
print()
print("Reach summary:")
print(xs_info.groupby(["River", "Reach"]).size().rename("XS count"))

Text Only

2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:32:03 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


Timeseries dataset variables: ['Water_Surface', 'Velocity_Total', 'Velocity_Channel', 'Flow_Lateral', 'Flow']
Coordinates: ['time', 'cross_section', 'River', 'Reach', 'Station', 'Name', 'Maximum_Water_Surface', 'Maximum_Flow', 'Maximum_Channel_Velocity', 'Maximum_Velocity_Total', 'Maximum_Flow_Lateral']

Total cross sections with output: 394

Reach summary:
River        Reach
Mississippi  Lower Miss.    110
             Upper Miss     230
Ohio River   OHS             54
Name: XS count, dtype: int64

Python

# Extract peak WSE (maximum over simulation period) for each cross section
# Note: HEC-RAS HDF stores the variable as "Water_Surface" (with underscore)
wse_data = ds["Water_Surface"]         # shape: (n_xs, n_timesteps)
peak_wse = wse_data.max(dim="time")    # shape: (n_xs,)

peak_wse_df = pd.DataFrame(
    {
        "River": rivers,
        "Reach": reaches,
        "Station": stations,
        "peak_wse_ft": peak_wse.values,
    }
)

print("Peak WSE summary by reach:")
display(
    peak_wse_df.groupby(["River", "Reach"])["peak_wse_ft"]
    .agg(["min", "mean", "max", "count"])
    .round(2)
)

# Select representative cross sections: a few per calibration reach
# Upper Miss: 3 stations spanning the reach
# Lower Miss: 3 stations spanning the reach
upper_miss_xs = (
    peak_wse_df[peak_wse_df["Reach"] == "Upper Miss"]
    .dropna(subset=["peak_wse_ft"])
    .iloc[[10, 60, 120]]   # sample early, mid, late in reach
)
lower_miss_xs = (
    peak_wse_df[peak_wse_df["Reach"] == "Lower Miss."]
    .dropna(subset=["peak_wse_ft"])
    .iloc[[5, 30, 60]]
)

selected_xs = pd.concat([upper_miss_xs, lower_miss_xs], ignore_index=True)
print()
print("Selected calibration cross sections:")
display(selected_xs[["River", "Reach", "Station", "peak_wse_ft"]].round(3))

Text Only

Peak WSE summary by reach:

		min	mean	max	count
River	Reach
Mississippi	Lower Miss.	270.309998	299.630005	323.309998	110
	Upper Miss	323.309998	342.010010	368.890015	230
Ohio River	OHS	323.309998	326.820007	330.549988	54

Text Only

Selected calibration cross sections:

	River	Reach	Station	peak_wse_ft
0	Mississippi	Upper Miss	107.3	367.321014
1	Mississippi	Upper Miss	81.09	354.108002
2	Mississippi	Upper Miss	51.03	338.936005
3	Mississippi	Lower Miss.	950	321.622986
4	Mississippi	Lower Miss.	925	313.428986
5	Mississippi	Lower Miss.	895	298.157013

---

Step 3: Inspect Manning's n Zones

The plan file stores Manning's n calibration zones as Roughness Change lines. Each zone applies a multiplier (1.0 = no change) to the base geometry values for a reach segment defined by upstream/downstream river stations.

We will calibrate a single global channel multiplier applied uniformly to all zones. In practice, you would calibrate zone-specific multipliers.

Python

def parse_roughness_zones(plan_path: Path) -> list:
    """Parse Roughness Change zones from a HEC-RAS plan file.

    Returns a list of dicts with keys: river, reach, us_station, ds_station,
    header_line_idx, multiplier_line_indices.
    """
    lines = plan_path.read_text(encoding="utf-8", errors="replace").splitlines()
    zones = []
    i = 0
    while i < len(lines):
        line = lines[i]
        if line.startswith("Roughness Change="):
            parts = line.split("=", 1)[1].split(",")
            if len(parts) >= 5:
                river = parts[0].strip()
                reach = parts[1].strip()
                us_sta = parts[2].strip()
                ds_sta = parts[3].strip()
                n_entries = int(parts[4].strip())
                # Each data line holds ~5 pairs; ceil(n_entries / 5) lines
                n_data_lines = (n_entries + 4) // 5
                zones.append(
                    {
                        "river": river,
                        "reach": reach,
                        "us_station": us_sta,
                        "ds_station": ds_sta,
                        "n_entries": n_entries,
                        "header_line_idx": i,
                        "multiplier_line_indices": list(
                            range(i + 1, i + 1 + n_data_lines)
                        ),
                    }
                )
        i += 1
    return zones


# Inspect baseline plan zones
plan02_path = ras.plan_df.loc[
    ras.plan_df["plan_number"] == "02", "full_path"
].iloc[0]
baseline_zones = parse_roughness_zones(Path(plan02_path))

print(f"Plan 02 has {len(baseline_zones)} Roughness Change zones:")
for z in baseline_zones:
    print(
        f"  {z['river']}/{z['reach']} "
        f"sta {z['us_station']} -> {z['ds_station']}  "
        f"({z['n_entries']} multipliers)"
    )

Text Only

Plan 02 has 6 Roughness Change zones:
  Mississippi/Upper Miss sta 43.7 -> 29.09  (14 multipliers)
  Mississippi/Lower Miss. sta 953.5 -> 923  (13 multipliers)
  Mississippi/Lower Miss. sta 922 -> 874  (16 multipliers)
  Mississippi/Lower Miss. sta 873 -> 846  (24 multipliers)
  Mississippi/Upper Miss sta 110.4 -> 43.702  (14 multipliers)
  Mississippi/Upper Miss sta 28.57 -> 1.39  (14 multipliers)

---

Step 4: Define the Apply Function for 1D Manning's n

The apply_fn receives (plan_path, param_row, ras_object) and modifies the cloned plan file before HEC-RAS executes it. For this 1D model, we modify the Roughness Change multipliers directly in the plan file.

• n_upper_miss_mult: multiplier for Upper Mississippi reach zones
• n_lower_miss_mult: multiplier for Lower Mississippi reach zones

Python

def _rebuild_multiplier_lines(n_entries: int, multiplier: float) -> list:
    """Rebuild data lines for a Roughness Change zone with a new multiplier.

    HEC-RAS format: up to 5 (station, multiplier) pairs per line.
    Stations are sequential 1-based integers scaled by 100000.
    The multiplier is a float rounded to 4 decimal places.
    """
    pairs = []
    for k in range(n_entries):
        station_val = (k + 1) * 100000
        pairs.append((station_val, round(multiplier, 6)))

    new_lines = []
    for chunk_start in range(0, len(pairs), 5):
        chunk = pairs[chunk_start : chunk_start + 5]
        line_parts = "".join(
            f"{sta:8d}{mult:8.4f}" for sta, mult in chunk
        )
        new_lines.append(line_parts)
    return new_lines


def make_1d_roughness_apply_fn(
    param_to_reach_map: dict,
) -> object:
    """Factory for a 1D Manning's n apply_fn that modifies Roughness Change multipliers.

    Args:
        param_to_reach_map: Maps parameter column name to reach name substring.
            Example: {'n_upper_mult': 'Upper Miss', 'n_lower_mult': 'Lower Miss.'}
            A parameter value of 1.0 means 100% of baseline n (no change).

    Returns:
        An apply_fn compatible with RasCalibrate.grid_search() and optimize().
    """

    def apply_fn(plan_path, param_row, ras_object=None):
        plan_path = Path(plan_path)
        lines = plan_path.read_text(
            encoding="utf-8", errors="replace"
        ).splitlines()

        zones = parse_roughness_zones(plan_path)

        # Build reach -> multiplier lookup from param_row
        reach_multiplier = {}
        for param_col, reach_substr in param_to_reach_map.items():
            if param_col in param_row.index:
                reach_multiplier[reach_substr] = float(param_row[param_col])

        # Apply multipliers to matching zones
        modified_lines = lines.copy()
        for zone in zones:
            for reach_substr, mult in reach_multiplier.items():
                if reach_substr in zone["reach"]:
                    new_data = _rebuild_multiplier_lines(
                        zone["n_entries"], mult
                    )
                    for line_idx, new_line in zip(
                        zone["multiplier_line_indices"], new_data
                    ):
                        modified_lines[line_idx] = new_line

        plan_path.write_text(
            "\n".join(modified_lines) + "\n",
            encoding="utf-8",
        )

    return apply_fn


# Test the apply function on plan 02 at baseline (multiplier = 1.0)
test_apply_fn = make_1d_roughness_apply_fn(
    {
        "n_upper_mult": "Upper Miss",
        "n_lower_mult": "Lower Miss.",
    }
)

test_params = pd.Series({"n_upper_mult": 1.0, "n_lower_mult": 1.0})
test_apply_fn(plan02_path, test_params)

# Verify zones parse correctly after apply
zones_after = parse_roughness_zones(Path(plan02_path))
print(f"Verified: {len(zones_after)} zones found after apply_fn test.")
print("Apply function factory working correctly.")

Text Only

Verified: 6 zones found after apply_fn test.
Apply function factory working correctly.

---

Step 5: Define Calibration Points

Each CalibrationPoint specifies: - extraction_method="1d_xs": extract from 1D cross section timeseries - river, reach, station: must match the HEC-RAS cross section identifiers exactly - observed: the peak WSE from the baseline run (our synthetic truth) - time_index="max": extract the simulation maximum (matching how we got the truth) - metric: objective for this point (RMSE - lower is better for scalar targets)

Python

# Build calibration points from selected cross sections
calibration_points = []
for _, row in selected_xs.iterrows():
    cp = CalibrationPoint(
        name=f"{row['Reach'].replace(' ', '_').replace('.', '')}_{row['Station']}",
        variable="wse",
        extraction_method="1d_xs",
        observed=float(row["peak_wse_ft"]),
        river=row["River"],
        reach=row["Reach"],
        station=row["Station"],
        time_index="max",
        metric="rmse",
        weight=1.0,
    )
    calibration_points.append(cp)

print(f"Created {len(calibration_points)} calibration points:")
for cp in calibration_points:
    print(
        f"  {cp.name}: {cp.river}/{cp.reach} sta {cp.station}, "
        f"observed WSE = {cp.observed:.2f} ft"
    )

Text Only

Created 6 calibration points:
  Upper_Miss_107.3: Mississippi/Upper Miss sta 107.3, observed WSE = 367.32 ft
  Upper_Miss_81.09: Mississippi/Upper Miss sta 81.09, observed WSE = 354.11 ft
  Upper_Miss_51.03: Mississippi/Upper Miss sta 51.03, observed WSE = 338.94 ft
  Lower_Miss_950: Mississippi/Lower Miss. sta 950, observed WSE = 321.62 ft
  Lower_Miss_925: Mississippi/Lower Miss. sta 925, observed WSE = 313.43 ft
  Lower_Miss_895: Mississippi/Lower Miss. sta 895, observed WSE = 298.16 ft

---

Example 1: Grid Search Calibration

We search over a grid of Manning's n multipliers for Upper Miss and Lower Miss reaches. The "truth" is multiplier = 1.0. We search from 0.8 to 1.2 in 3 steps to keep runtime short (3 × 3 = 9 combinations, but we do a focused 3-point search per reach = 3 simulations total via grid_search with one varied parameter at a time).

Runtime: Each grid_search point runs one HEC-RAS simulation (~5-15 min each).

Python

# Create apply_fn for grid search
grid_apply_fn = make_1d_roughness_apply_fn(
    {
        "n_upper_mult": "Upper Miss",
        "n_lower_mult": "Lower Miss.",
    }
)

# Define parameter grid: 3 values per parameter
# Truth is 1.0; we search 0.85 to 1.15 to verify recovery
parameters = {
    "n_upper_mult": [0.85, 1.0, 1.15],
    "n_lower_mult": [0.85, 1.0, 1.15],
}

print("Grid search parameters:")
from ras_commander import RasPermutation
params_preview = RasPermutation.define_parameters(parameters)
print(f"Total simulations: {len(params_preview)}")
display(params_preview[["absolute_perm_id", "n_upper_mult", "n_lower_mult"]])

Text Only

2026-04-12 13:32:04 - ras_commander.RasPermutation - INFO - Defined 9 total permutation(s)


Grid search parameters:
Total simulations: 9

	absolute_perm_id	n_upper_mult	n_lower_mult
0	1	0.85	0.85
1	2	0.85	1.00
2	3	0.85	1.15
3	4	1.00	0.85
4	5	1.00	1.00
5	6	1.00	1.15
6	7	1.15	0.85
7	8	1.15	1.00
8	9	1.15	1.15

Python

print("Running grid search...")
print(f"This will run {len(params_preview)} HEC-RAS simulations in parallel.")
print("Expected runtime: 30-90 minutes depending on hardware.")
print()

grid_results = RasCalibrate.grid_search(
    template_plan="02",         # No Calibration Run (base multipliers = 1.0)
    parameters=parameters,
    apply_fn=grid_apply_fn,
    calibration_points=calibration_points,
    metric="rmse",              # RMSE between observed and modeled peak WSE
    suffix="gs1d",
    max_workers=2,              # Run 2 simulations at a time
    num_cores=2,
    ras_object=ras,
)

print()
print(f"Grid search complete. {len(grid_results)} results returned.")
print()
print("Grid search results (sorted by overall RMSE):")
display_cols = [
    "n_upper_mult",
    "n_lower_mult",
    "overall_objective",
    "n_points_scored",
    "status",
]
display(grid_results[display_cols].round(4))

Text Only

2026-04-12 13:32:04 - ras_commander.RasPermutation - INFO - Defined 9 total permutation(s)


Running grid search...
This will run 9 HEC-RAS simulations in parallel.
Expected runtime: 30-90 minutes depending on hardware.



2026-04-12 13:32:04 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:04 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:04 - ras_commander.RasPrj - INFO - ras-commander v0.91.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://ras-commander.readthedocs.io | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-04-12 13:32:04 - ras_commander.RasPrj - INFO - Project initialized: Manning'snCalibra | Folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:04 - ras_commander.RasUtils - INFO - File cloned from G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02 to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06


2026-04-12 13:32:04 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06


2026-04-12 13:32:04 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 06


2026-04-12 13:32:04 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:04 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.RasPrj - INFO - Updated results_df with 6 plan(s)


2026-04-12 13:32:04 - ras_commander.RasUtils - INFO - File cloned from G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02 to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07


2026-04-12 13:32:04 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07


2026-04-12 13:32:04 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 07


2026-04-12 13:32:04 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:04 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:04 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.RasPrj - INFO - Updated results_df with 7 plan(s)


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - File cloned from G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02 to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 08


2026-04-12 13:32:05 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:05 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.RasPrj - INFO - Updated results_df with 8 plan(s)


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - File cloned from G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02 to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 09


2026-04-12 13:32:05 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:05 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.RasPrj - INFO - Updated results_df with 9 plan(s)


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - File cloned from G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02 to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 10


2026-04-12 13:32:05 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:05 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.RasPrj - INFO - Updated results_df with 10 plan(s)


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - File cloned from G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02 to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 11


2026-04-12 13:32:05 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:05 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:05 - ras_commander.RasPrj - INFO - Updated results_df with 11 plan(s)


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - File cloned from G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02 to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12


2026-04-12 13:32:05 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 12


2026-04-12 13:32:06 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:06 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.RasPrj - INFO - Updated results_df with 12 plan(s)


2026-04-12 13:32:06 - ras_commander.RasUtils - INFO - File cloned from G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02 to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13


2026-04-12 13:32:06 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13


2026-04-12 13:32:06 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 13


2026-04-12 13:32:06 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:06 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.RasPrj - INFO - Updated results_df with 13 plan(s)


2026-04-12 13:32:06 - ras_commander.RasUtils - INFO - File cloned from G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02 to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14


2026-04-12 13:32:06 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14


2026-04-12 13:32:06 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 14


2026-04-12 13:32:06 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:06 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.RasPrj - INFO - Updated results_df with 14 plan(s)


2026-04-12 13:32:06 - ras_commander.RasPermutation - INFO - Generated 9 permutation(s) across 1 batch(es)


2026-04-12 13:32:06 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.rasmap


2026-04-12 13:32:06 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p02.hdf


2026-04-12 13:32:06 - ras_commander.RasPrj - INFO - Updated results_df with 14 plan(s)


2026-04-12 13:32:06 - ras_commander.RasPrj - INFO - ras-commander v0.91.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://ras-commander.readthedocs.io | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-04-12 13:32:06 - ras_commander.RasPrj - INFO - Project initialized: Manning'snCalibra | Folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:32:06 - ras_commander.RasCmdr - INFO - Filtered plans to execute: ['06', '07', '08', '09', '10', '11', '12', '13', '14']


2026-04-12 13:32:06 - ras_commander.RasCmdr - INFO - Adjusted max_workers to 2 based on the number of plans to compute: 9


2026-04-12 13:32:06 - ras_commander.RasCmdr - INFO - Created worker folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]


2026-04-12 13:32:07 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.rasmap


2026-04-12 13:32:07 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.RasPrj - INFO - Updated results_df with 14 plan(s)


2026-04-12 13:32:07 - ras_commander.RasPrj - INFO - ras-commander v0.91.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://ras-commander.readthedocs.io | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-04-12 13:32:07 - ras_commander.RasPrj - INFO - Project initialized: Manning'snCalibra | Folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]


2026-04-12 13:32:07 - ras_commander.RasCmdr - INFO - Created worker folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]


2026-04-12 13:32:07 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.rasmap


2026-04-12 13:32:07 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1987 characters from HDF


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p02.hdf


2026-04-12 13:32:07 - ras_commander.RasPrj - INFO - Updated results_df with 14 plan(s)


2026-04-12 13:32:07 - ras_commander.RasPrj - INFO - ras-commander v0.91.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://ras-commander.readthedocs.io | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-04-12 13:32:07 - ras_commander.RasPrj - INFO - Project initialized: Manning'snCalibra | Folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]


2026-04-12 13:32:07 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]


2026-04-12 13:32:07 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p06


2026-04-12 13:32:07 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p06


2026-04-12 13:32:07 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]


2026-04-12 13:32:07 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p07


2026-04-12 13:32:07 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p07


2026-04-12 13:32:07 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 06


2026-04-12 13:32:07 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:32:07 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p06"


2026-04-12 13:32:07 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 07


2026-04-12 13:32:07 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:32:07 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p07"


2026-04-12 13:33:55 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 06


2026-04-12 13:33:55 - ras_commander.RasCmdr - INFO - Total run time for plan 06: 108.27 seconds


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p06.hdf


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p06.hdf


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p06.hdf


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p06.hdf


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p06.hdf


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p06.hdf


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00001


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:33:55 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p06.hdf


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p06.hdf


2026-04-12 13:33:56 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Plan 06 executed in worker 1: Successful


2026-04-12 13:33:56 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p08


2026-04-12 13:33:56 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p08


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 08


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p08"


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 07


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Total run time for plan 07: 108.76 seconds


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p07.hdf


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p07.hdf


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p07.hdf


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1901 characters from HDF


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p07.hdf


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p07.hdf


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p07.hdf


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00002


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p07.hdf


2026-04-12 13:33:56 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p07.hdf


2026-04-12 13:33:56 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Plan 07 executed in worker 2: Successful


2026-04-12 13:33:56 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p09


2026-04-12 13:33:56 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p09


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 09


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:33:56 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p09"


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 09


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Total run time for plan 09: 100.65 seconds


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p09.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p09.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p09.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p09.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p09.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p09.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00004


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p09.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p09.hdf


2026-04-12 13:35:37 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Plan 09 executed in worker 2: Successful


2026-04-12 13:35:37 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p10


2026-04-12 13:35:37 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p10


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 10


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p10"


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 08


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Total run time for plan 08: 101.53 seconds


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p08.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p08.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p08.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p08.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p08.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p08.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00003


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p08.hdf


2026-04-12 13:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p08.hdf


2026-04-12 13:35:37 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Plan 08 executed in worker 1: Successful


2026-04-12 13:35:37 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p11


2026-04-12 13:35:37 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p11


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 11


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:35:37 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p11"


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 10


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Total run time for plan 10: 100.58 seconds


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p10.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p10.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p10.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p10.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p10.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p10.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00005


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p10.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p10.hdf


2026-04-12 13:37:18 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Plan 10 executed in worker 1: Successful


2026-04-12 13:37:18 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p12


2026-04-12 13:37:18 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p12


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 12


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p12"


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 11


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Total run time for plan 11: 100.53 seconds


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p11.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p11.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p11.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1901 characters from HDF


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p11.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p11.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p11.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00006


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p11.hdf


2026-04-12 13:37:18 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p11.hdf


2026-04-12 13:37:18 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Plan 11 executed in worker 2: Successful


2026-04-12 13:37:18 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p13


2026-04-12 13:37:18 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p13


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 13


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:37:18 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p13"


2026-04-12 13:38:55 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 12


2026-04-12 13:38:55 - ras_commander.RasCmdr - INFO - Total run time for plan 12: 96.66 seconds


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p12.hdf


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p12.hdf


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p12.hdf


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p12.hdf


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p12.hdf


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p12.hdf


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00007


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p12.hdf


2026-04-12 13:38:55 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p12.hdf


2026-04-12 13:38:55 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:38:55 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]


2026-04-12 13:38:55 - ras_commander.RasCmdr - INFO - Plan 12 executed in worker 1: Successful


2026-04-12 13:38:55 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p14


2026-04-12 13:38:55 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p14


2026-04-12 13:38:55 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 14


2026-04-12 13:38:55 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:38:55 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p14"


2026-04-12 13:38:56 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 13


2026-04-12 13:38:56 - ras_commander.RasCmdr - INFO - Total run time for plan 13: 97.79 seconds


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p13.hdf


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p13.hdf


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p13.hdf


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1901 characters from HDF


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p13.hdf


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p13.hdf


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p13.hdf


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00008


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p13.hdf


2026-04-12 13:38:56 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 2]\Manning'snCalibra.p13.hdf


2026-04-12 13:38:56 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:38:56 - ras_commander.RasCmdr - INFO - Plan 13 executed in worker 2: Successful


2026-04-12 13:40:25 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 14


2026-04-12 13:40:25 - ras_commander.RasCmdr - INFO - Total run time for plan 14: 90.15 seconds


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p14.hdf


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p14.hdf


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p14.hdf


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p14.hdf


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p14.hdf


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p14.hdf


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00009


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p14.hdf


2026-04-12 13:40:25 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001 [Worker 1]\Manning'snCalibra.p14.hdf


2026-04-12 13:40:25 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:40:25 - ras_commander.RasCmdr - INFO - Plan 14 executed in worker 1: Successful


2026-04-12 13:40:25 - ras_commander.RasCmdr - INFO - Consolidating results back to original project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Consolidated 37 worker artifact(s) to G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO -
Execution Results:


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Plan 06: Successful


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Plan 07: Successful


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Plan 09: Successful


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Plan 08: Successful


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Plan 10: Successful


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Plan 11: Successful


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Plan 12: Successful


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Plan 13: Successful


2026-04-12 13:40:31 - ras_commander.RasCmdr - INFO - Plan 14: Successful


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p06.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p06.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00001


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p07.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1901 characters from HDF


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p07.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00002


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p08.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p08.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00003


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p09.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p09.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00004


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p10.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p10.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00005


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p11.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1901 characters from HDF


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p11.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00006


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p12.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p12.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00007


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p13.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1901 characters from HDF


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p13.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00008


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p14.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1651 characters from HDF


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p14.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run Perm 00009


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:31 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:31 - ras_commander.RasPrj - INFO - Updated results_df with 9 plan(s)


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracting Max WSE from Manning'snCalibra.p06.hdf as 'max_wse'


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracted Max WSE: 394 XS, 1 plans


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracting Max WSE from Manning'snCalibra.p07.hdf as 'max_wse'


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracted Max WSE: 394 XS, 1 plans


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracting Max WSE from Manning'snCalibra.p08.hdf as 'max_wse'


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracted Max WSE: 394 XS, 1 plans


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracting Max WSE from Manning'snCalibra.p09.hdf as 'max_wse'


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracted Max WSE: 394 XS, 1 plans


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracting Max WSE from Manning'snCalibra.p10.hdf as 'max_wse'


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracted Max WSE: 394 XS, 1 plans


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracting Max WSE from Manning'snCalibra.p11.hdf as 'max_wse'


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracted Max WSE: 394 XS, 1 plans


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracting Max WSE from Manning'snCalibra.p12.hdf as 'max_wse'


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracted Max WSE: 394 XS, 1 plans


2026-04-12 13:40:31 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracting Max WSE from Manning'snCalibra.p13.hdf as 'max_wse'


2026-04-12 13:40:32 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracted Max WSE: 394 XS, 1 plans


2026-04-12 13:40:32 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracting Max WSE from Manning'snCalibra.p14.hdf as 'max_wse'


2026-04-12 13:40:32 - ras_commander.hdf.HdfChannelCapacity - INFO - Extracted Max WSE: 394 XS, 1 plans


2026-04-12 13:40:32 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:32 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:32 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:32 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:32 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:32 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:32 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:32 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p06.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:33 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:34 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:34 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:34 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:34 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:34 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:34 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p07.hdf


2026-04-12 13:40:34 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:34 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:36 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:36 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p08.hdf


2026-04-12 13:40:36 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:36 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:36 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:36 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:36 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:36 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:37 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:37 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:37 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:37 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:37 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:37 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p09.hdf


2026-04-12 13:40:37 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:37 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:38 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:38 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:38 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:38 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:38 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:38 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:38 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:38 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:39 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:39 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p10.hdf


2026-04-12 13:40:39 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:39 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:39 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:39 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:39 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:39 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:40 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:40 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:40 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:40 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:40 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:40 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p11.hdf


2026-04-12 13:40:40 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:40 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:41 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:41 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:41 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:41 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:41 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:41 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:41 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:41 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:42 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:42 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p12.hdf


2026-04-12 13:40:42 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:42 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:42 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:42 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:42 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:42 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:43 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:43 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:43 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:43 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:43 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:43 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p13.hdf


2026-04-12 13:40:43 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:43 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf


2026-04-12 13:40:44 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d_gs1d_001\Manning'snCalibra.p14.hdf



Grid search complete. 9 results returned.

Grid search results (sorted by overall RMSE):

	n_upper_mult	n_lower_mult	overall_objective	n_points_scored	status
0	1.00	1.00	0.0000	6	completed
1	1.15	1.00	1.2951	6	completed
2	0.85	1.00	1.4042	6	completed
3	1.00	1.15	1.8948	6	completed
4	1.00	0.85	1.9044	6	completed
5	0.85	1.15	2.9553	6	completed
6	1.15	1.15	3.1258	6	completed
7	1.15	0.85	3.1346	6	completed
8	0.85	0.85	3.3265	6	completed

Python

# Identify the best parameter combination
best_row = grid_results.iloc[0]
best_upper = best_row["n_upper_mult"]
best_lower = best_row["n_lower_mult"]
best_rmse = best_row["overall_objective"]

print("Best grid search result:")
print(f"  Upper Miss multiplier: {best_upper:.4f}  (truth = 1.0)")
print(f"  Lower Miss multiplier: {best_lower:.4f}  (truth = 1.0)")
print(f"  Overall RMSE: {best_rmse:.4f} ft")
print()

# Show per-point objectives if available
point_cols = [c for c in grid_results.columns if "_objective" in c and c != "overall_objective"]
if point_cols:
    print("Per-point RMSE at best parameter set:")
    for col in point_cols:
        val = grid_results.iloc[0][col]
        name = col.replace("_objective", "").replace("point_", "")
        print(f"  {name}: {val:.4f} ft")

Text Only

Best grid search result:
  Upper Miss multiplier: 1.0000  (truth = 1.0)
  Lower Miss multiplier: 1.0000  (truth = 1.0)
  Overall RMSE: 0.0000 ft

Per-point RMSE at best parameter set:
  01_upper_miss_107_3: 0.0000 ft
  02_upper_miss_81_09: 0.0000 ft
  03_upper_miss_51_03: 0.0000 ft
  04_lower_miss_950: 0.0000 ft
  05_lower_miss_925: 0.0000 ft
  06_lower_miss_895: 0.0000 ft

Python

# Visualize grid search results
if {"n_upper_mult", "n_lower_mult"}.issubset(grid_results.columns):
    fig, axes = plt.subplots(1, 2, figsize=(13, 5))
    fig.suptitle(
        "Example 1: Grid Search – Manning's n Multiplier Calibration\n"
        "Mississippi-Ohio River Junction (1D Unsteady)",
        fontsize=12,
    )

    # Left: RMSE vs Upper Miss multiplier
    ax = axes[0]
    ax.scatter(
        grid_results["n_upper_mult"],
        grid_results["overall_objective"],
        c=grid_results["n_lower_mult"],
        cmap="plasma",
        s=100,
        edgecolors="k",
        linewidths=0.5,
        zorder=3,
    )
    ax.axvline(1.0, color="green", linestyle="--", label="Truth (1.0)")
    ax.axvline(best_upper, color="red", linestyle="-", label=f"Best ({best_upper:.3f})")
    ax.set_xlabel("Upper Miss n Multiplier", fontsize=11)
    ax.set_ylabel("Overall RMSE (ft)", fontsize=11)
    ax.set_title("RMSE vs Upper Miss Multiplier\n(color = Lower Miss multiplier)")
    ax.legend(fontsize=9)
    ax.grid(True, alpha=0.3)

    # Right: RMSE vs Lower Miss multiplier
    ax = axes[1]
    sc = ax.scatter(
        grid_results["n_lower_mult"],
        grid_results["overall_objective"],
        c=grid_results["n_upper_mult"],
        cmap="viridis",
        s=100,
        edgecolors="k",
        linewidths=0.5,
        zorder=3,
    )
    plt.colorbar(sc, ax=ax, label="Upper Miss multiplier")
    ax.axvline(1.0, color="green", linestyle="--", label="Truth (1.0)")
    ax.axvline(best_lower, color="red", linestyle="-", label=f"Best ({best_lower:.3f})")
    ax.set_xlabel("Lower Miss n Multiplier", fontsize=11)
    ax.set_ylabel("Overall RMSE (ft)", fontsize=11)
    ax.set_title("RMSE vs Lower Miss Multiplier\n(color = Upper Miss multiplier)")
    ax.legend(fontsize=9)
    ax.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.show()
    print()
    print("Interpretation: The green dashed line marks the true multiplier (1.0).")
    print("  The red solid line shows the best grid point found by the search.")
    print("  Lower RMSE = better agreement with baseline WSE.")

Text Only

Interpretation: The green dashed line marks the true multiplier (1.0).
  The red solid line shows the best grid point found by the search.
  Lower RMSE = better agreement with baseline WSE.

---

Example 2: Optimization with Nelder-Mead

Instead of exhaustive search, RasCalibrate.optimize() uses SciPy's Nelder-Mead algorithm to find the best parameter combination iteratively. It modifies and re-runs the same plan in place, evaluating the objective at each step.

For this example we calibrate a single combined multiplier applied equally to both reaches, simplifying the search space to 1D and keeping runtime manageable.

Runtime: Each optimizer iteration = one HEC-RAS run. With max_iterations=8 this runs ~10 simulations total.

Python

# For optimization, use a single global multiplier applied to both reaches.
# This simplifies the search to 1 dimension.

opt_apply_fn = make_1d_roughness_apply_fn(
    {
        "n_global_mult": "Upper Miss",  # applied to Upper Miss zones
        # Lower Miss gets same value via second entry
    }
)

# Actually apply global to both reaches
def global_apply_fn(plan_path, param_row, ras_object=None):
    """Apply a single n_global_mult to all Roughness Change zones."""
    plan_path = Path(plan_path)
    lines = plan_path.read_text(encoding="utf-8", errors="replace").splitlines()
    zones = parse_roughness_zones(plan_path)
    multiplier = float(param_row["n_global_mult"])
    modified_lines = lines.copy()
    for zone in zones:
        new_data = _rebuild_multiplier_lines(zone["n_entries"], multiplier)
        for line_idx, new_line in zip(zone["multiplier_line_indices"], new_data):
            modified_lines[line_idx] = new_line
    plan_path.write_text(
        "\n".join(modified_lines) + "\n",
        encoding="utf-8",
    )


print("Optimizer setup:")
print("  Parameter: n_global_mult (applied to all Roughness Change zones)")
print("  Bounds: [0.8, 1.2]")
print("  Algorithm: Nelder-Mead")
print("  Max iterations: 8")
print("  Metric: RMSE")
print()
print("Running optimization...")
print("Expected runtime: 60-120 minutes (each iteration = 1 HEC-RAS run).")

opt_result = RasCalibrate.optimize(
    plan_number="02",
    parameter_bounds={"n_global_mult": (0.8, 1.2)},
    apply_fn=global_apply_fn,
    calibration_points=calibration_points,
    metric="rmse",
    method="nelder-mead",
    max_iterations=8,
    num_cores=2,
    ras_object=ras,
)

print()
print("Optimization complete.")
print(f"  Success: {opt_result['success']}")
print(f"  Message: {opt_result['message']}")
print(f"  Iterations: {opt_result['nit']}")
print(f"  Function evaluations: {opt_result['nfev']}")
print()
print(f"  Starting n_global_mult: {opt_result['starting_parameters']['n_global_mult']:.4f}")
print(f"  Best n_global_mult:     {opt_result['best_parameters']['n_global_mult']:.4f}  (truth = 1.0)")
print(f"  Best overall RMSE:      {opt_result['best_objective']:.4f} ft")

Text Only

2026-04-12 13:40:45 - ras_commander.RasCalibrate - WARNING - SciPy's Nelder-Mead bound handling varies by version; midpoint initialization stays inside the requested bounds, but strict bound enforcement depends on SciPy.


2026-04-12 13:40:45 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:40:45 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:40:45 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:40:45 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:40:45 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:40:45 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


Optimizer setup:
  Parameter: n_global_mult (applied to all Roughness Change zones)
  Bounds: [0.8, 1.2]
  Algorithm: Nelder-Mead
  Max iterations: 8
  Metric: RMSE

Running optimization...
Expected runtime: 60-120 minutes (each iteration = 1 HEC-RAS run).


2026-04-12 13:42:16 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:42:16 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 90.80 seconds


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:16 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:16 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:17 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:17 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:17 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:17 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:17 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:17 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:17 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:17 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:18 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:18 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:42:18 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:42:18 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:42:18 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:42:18 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:42:18 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:42:18 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:43:45 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:43:46 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 87.67 seconds


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:46 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:47 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:47 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:47 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:47 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:43:47 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:43:47 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:43:47 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:43:47 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:43:47 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:43:47 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:45:17 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:45:17 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 89.67 seconds


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:17 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:18 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:18 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:18 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:18 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:18 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:18 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:45:18 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:45:18 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:45:18 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:45:18 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:45:18 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:45:18 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:46:53 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:46:53 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 94.71 seconds


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:53 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:54 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:54 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:54 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:54 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:54 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:54 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:54 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:54 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:46:55 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:46:55 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:46:55 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:46:55 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:46:55 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:46:55 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:48:35 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:48:35 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 100.04 seconds


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:36 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:36 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:36 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:36 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:48:36 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:48:36 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:48:36 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:48:36 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:48:36 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:48:36 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:50:05 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:50:05 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 88.76 seconds


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:05 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:05 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:06 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:06 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:06 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:06 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:06 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:06 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:06 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:06 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:07 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:07 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:50:07 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:50:07 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:50:07 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:50:07 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:50:07 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:50:07 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:51:37 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:51:37 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 89.73 seconds


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:37 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:38 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:38 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:38 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:38 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:51:38 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:51:38 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:51:38 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:51:38 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:51:38 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:51:38 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:53:08 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:53:08 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 89.65 seconds


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:08 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:09 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:09 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:09 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:09 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:09 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:09 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:09 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:53:09 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:53:09 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:53:09 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:53:10 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:53:10 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:53:10 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:54:38 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:54:38 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 88.91 seconds


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:39 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:40 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:40 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:40 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:40 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:54:40 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:54:40 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:54:40 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:54:40 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:54:40 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:54:40 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:56:07 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:56:07 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 86.46 seconds


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:07 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:08 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:08 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:08 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:08 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:56:08 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:56:08 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:56:08 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:56:08 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:56:08 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:56:08 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:57:35 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:57:35 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 86.48 seconds


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1890 characters from HDF


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:36 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:36 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:36 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:36 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:57:36 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:57:36 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:57:36 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:57:36 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:57:36 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:57:36 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 13:59:03 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 13:59:03 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 86.54 seconds


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:03 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:04 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:04 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:04 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:04 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 13:59:04 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 13:59:04 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:59:04 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 13:59:04 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 13:59:04 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 13:59:04 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 14:00:33 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 14:00:33 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 89.03 seconds


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:33 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:33 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:34 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:35 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:35 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:00:35 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 14:00:35 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 14:00:35 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 14:00:35 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 14:00:35 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 14:00:35 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 14:02:07 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 14:02:07 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 91.50 seconds


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:07 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:08 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:08 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:08 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:08 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:02:08 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 14:02:08 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 14:02:08 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 14:02:08 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 14:02:08 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 14:02:08 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 14:03:41 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 14:03:41 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 93.26 seconds


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1891 characters from HDF


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:42 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:43 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:43 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:43 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:43 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:43 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:43 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:43 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:43 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:03:44 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 14:03:44 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 14:03:44 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 14:03:44 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 14:03:44 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 14:03:44 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 14:05:22 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 14:05:22 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 98.63 seconds


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1890 characters from HDF


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:22 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:22 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:23 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:23 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:23 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:23 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:23 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:23 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:23 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:23 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:24 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:24 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:05:24 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d


2026-04-12 14:05:24 - ras_commander.RasUtils - INFO - Using provided plan file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 14:05:24 - ras_commander.RasUtils - INFO - Successfully updated file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02


2026-04-12 14:05:24 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02


2026-04-12 14:05:24 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-04-12 14:05:24 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.prj" "G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02"


2026-04-12 14:06:57 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-04-12 14:06:57 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 92.66 seconds


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1640 characters from HDF


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: No Calibration Run


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 3864.0


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:57 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:58 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:58 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:58 - ras_commander.hdf.HdfResultsXsec - INFO - Using existing Path object HDF file: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf


2026-04-12 14:06:58 - ras_commander.hdf.HdfResultsXsec - INFO - Final validated file path: G:\GH\ras-commander\examples\example_projects\Example 24 - Mannings-n-Calibration_calib_1d\Manning'snCalibra.p02.hdf



Optimization complete.
  Success: False
  Message: Maximum number of iterations has been exceeded.
  Iterations: 8
  Function evaluations: 16

  Starting n_global_mult: 1.0000
  Best n_global_mult:     1.0000  (truth = 1.0)
  Best overall RMSE:      0.0000 ft

Python

# Plot optimization convergence
history_df = opt_result["iteration_history"]

fig, axes = plt.subplots(1, 2, figsize=(13, 5))
fig.suptitle(
    "Example 2: Nelder-Mead Optimization Convergence\n"
    "Global Manning's n Multiplier – Mississippi-Ohio River Junction (1D Unsteady)",
    fontsize=12,
)

# Left: RMSE by iteration
ax = axes[0]
valid_mask = history_df["raw_objective"].notna() & history_df["success"]
iters = np.arange(1, len(history_df) + 1)

ax.plot(
    iters[valid_mask],
    history_df.loc[valid_mask, "raw_objective"],
    "bo-",
    markersize=7,
    label="Successful run",
    zorder=3,
)
if (~valid_mask).any():
    ax.scatter(
        iters[~valid_mask],
        [history_df["raw_objective"].max()] * (~valid_mask).sum(),
        c="red",
        marker="x",
        s=80,
        label="Failed/penalized",
        zorder=4,
    )

best_obj = opt_result["best_objective"]
if best_obj is not None and not np.isnan(float(best_obj)):
    ax.axhline(
        float(best_obj),
        color="green",
        linestyle="--",
        label=f"Best RMSE ({float(best_obj):.4f} ft)",
    )
ax.set_xlabel("Optimizer Iteration", fontsize=11)
ax.set_ylabel("Overall RMSE (ft)", fontsize=11)
ax.set_title("Convergence: RMSE vs Iteration")
ax.legend(fontsize=9)
ax.grid(True, alpha=0.3)

# Right: n_global_mult by iteration
ax = axes[1]
ax.plot(
    iters[valid_mask],
    history_df.loc[valid_mask, "n_global_mult"],
    "rs-",
    markersize=7,
    label="Tested multiplier",
    zorder=3,
)
ax.axhline(1.0, color="green", linestyle="--", label="Truth (1.0)")
best_mult = opt_result["best_parameters"]["n_global_mult"]
ax.axhline(
    best_mult,
    color="navy",
    linestyle="-.",
    label=f"Best ({best_mult:.4f})",
)
ax.set_xlabel("Optimizer Iteration", fontsize=11)
ax.set_ylabel("n_global_mult", fontsize=11)
ax.set_title("Parameter Trajectory vs Iteration")
ax.legend(fontsize=9)
ax.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()
print()
print("Interpretation:")
print("  Top chart: RMSE should decrease as the optimizer converges.")
print("  Bottom chart: The parameter should approach the truth (1.0).")

Text Only

Interpretation:
  Top chart: RMSE should decrease as the optimizer converges.
  Bottom chart: The parameter should approach the truth (1.0).

---

Results Summary

Compare the two calibration methods side by side.

Python

print("=" * 65)
print("CALIBRATION RESULTS SUMMARY")
print("Project: Example 24 - Manning's n Calibration (1D Unsteady)")
print("Model: Mississippi-Ohio River Junction")
print("Metric: RMSE (ft) between peak WSE at calibration cross sections")
print("=" * 65)
print()
print("Calibration Points:")
for cp in calibration_points:
    print(f"  {cp.name}: {cp.river}/{cp.reach} sta {cp.station}, obs WSE = {cp.observed:.2f} ft")
print()
print("-" * 65)
print("EXAMPLE 1: Grid Search")
print("-" * 65)
print(f"  Parameters searched:")
print(f"    n_upper_mult: {parameters['n_upper_mult']}")
print(f"    n_lower_mult: {parameters['n_lower_mult']}")
print(f"  Best Upper Miss multiplier: {best_upper:.4f}  (truth = 1.0)")
print(f"  Best Lower Miss multiplier: {best_lower:.4f}  (truth = 1.0)")
print(f"  Best overall RMSE:          {best_rmse:.4f} ft")
print(f"  Calibration success:        {'YES' if best_rmse < 0.05 else 'PARTIAL (coarse grid)'}")
print()
print("-" * 65)
print("EXAMPLE 2: Nelder-Mead Optimization")
print("-" * 65)
print(f"  Parameter: n_global_mult (applied to ALL zones)")
print(f"  Bounds: [0.8, 1.2]")
print(f"  Starting value: {opt_result['starting_parameters']['n_global_mult']:.4f}")
print(f"  Best value:     {opt_result['best_parameters']['n_global_mult']:.4f}  (truth = 1.0)")
print(f"  Best RMSE:      {float(opt_result['best_objective']):.4f} ft")
print(f"  Iterations:     {opt_result['nit']}")
print(f"  Calibration success: {'YES' if float(opt_result['best_objective']) < 0.05 else 'CHECK (increase iterations)'}")
print()
print("=" * 65)
print()
print("Key Takeaways:")
print("1. Grid search exhaustively evaluates a discrete parameter space.")
print("   Good for understanding sensitivity; resolution limited by grid density.")
print("2. Nelder-Mead optimization is gradient-free and handles 1-N parameters.")
print("   More efficient than grid search for continuous parameter spaces.")
print("3. For real calibration, replace peak_wse 'observed' with gauge data.")
print("   Use RasUsgsCore.get_discharge() or USGS NWIS to retrieve gauge data.")
print("4. Expand zone-specific multipliers (n_upper_mult, n_lower_mult, n_ohio_mult)")
print("   to calibrate each reach independently for better model performance.")

Text Only

=================================================================
CALIBRATION RESULTS SUMMARY
Project: Example 24 - Manning's n Calibration (1D Unsteady)
Model: Mississippi-Ohio River Junction
Metric: RMSE (ft) between peak WSE at calibration cross sections
=================================================================

Calibration Points:
  Upper_Miss_107.3: Mississippi/Upper Miss sta 107.3, obs WSE = 367.32 ft
  Upper_Miss_81.09: Mississippi/Upper Miss sta 81.09, obs WSE = 354.11 ft
  Upper_Miss_51.03: Mississippi/Upper Miss sta 51.03, obs WSE = 338.94 ft
  Lower_Miss_950: Mississippi/Lower Miss. sta 950, obs WSE = 321.62 ft
  Lower_Miss_925: Mississippi/Lower Miss. sta 925, obs WSE = 313.43 ft
  Lower_Miss_895: Mississippi/Lower Miss. sta 895, obs WSE = 298.16 ft

-----------------------------------------------------------------
EXAMPLE 1: Grid Search
-----------------------------------------------------------------
  Parameters searched:
    n_upper_mult: [0.85, 1.0, 1.15]
    n_lower_mult: [0.85, 1.0, 1.15]
  Best Upper Miss multiplier: 1.0000  (truth = 1.0)
  Best Lower Miss multiplier: 1.0000  (truth = 1.0)
  Best overall RMSE:          0.0000 ft
  Calibration success:        YES

-----------------------------------------------------------------
EXAMPLE 2: Nelder-Mead Optimization
-----------------------------------------------------------------
  Parameter: n_global_mult (applied to ALL zones)
  Bounds: [0.8, 1.2]
  Starting value: 1.0000
  Best value:     1.0000  (truth = 1.0)
  Best RMSE:      0.0000 ft
  Iterations:     8
  Calibration success: YES

=================================================================

Key Takeaways:
1. Grid search exhaustively evaluates a discrete parameter space.
   Good for understanding sensitivity; resolution limited by grid density.
2. Nelder-Mead optimization is gradient-free and handles 1-N parameters.
   More efficient than grid search for continuous parameter spaces.
3. For real calibration, replace peak_wse 'observed' with gauge data.
   Use RasUsgsCore.get_discharge() or USGS NWIS to retrieve gauge data.
4. Expand zone-specific multipliers (n_upper_mult, n_lower_mult, n_ohio_mult)
   to calibrate each reach independently for better model performance.

---

Adapting for Your 1D Model

To apply this workflow to your own 1D model:

Python

# 1. Initialize your project
ras = init_ras_project("path/to/your/project", "6.6")

# 2. Run a baseline plan
RasCmdr.compute_plan("01", ras_object=ras, force_rerun=False)

# 3. Extract timeseries and identify calibration stations
hdf_path = ras.plan_df.loc[ras.plan_df['plan_number'] == '01', 'HDF_Results_Path'].iloc[0]
ds = HdfResultsXsec.get_xsec_timeseries(Path(hdf_path))
# Inspect ds.coords['River'], ['Reach'], ['Station'] to find your stations

# 4. Replace peak_wse with real gauge data
# observed_wse = your_gauge_data_from_USGS_or_survey

# 5. Define calibration points
points = [
    CalibrationPoint(
        name='gauge_01', variable='wse',
        extraction_method='1d_xs',
        observed=your_observed_wse,
        river='YourRiver', reach='YourReach', station='12345.67',
        time_index='max',
    )
]

# 6. Define your apply_fn (modify Roughness Change, XS n values, or any plan parameter)

# 7. Run grid_search or optimize
results = RasCalibrate.grid_search(
    template_plan='01',
    parameters={'n_channel': [0.025, 0.030, 0.035, 0.040]},
    apply_fn=your_apply_fn,
    calibration_points=points,
    metric='rmse',
    ras_object=ras,
)

Common Pitfalls

• River/reach/station mismatch: Use ds.coords['River'].values etc. to find exact strings from the HDF, not from the geometry file (they may differ slightly in padding or formatting).
• 1D XS extraction requires unsteady HDF: HdfResultsXsec.get_xsec_timeseries() reads from /Results/Unsteady/...; steady flow models use HdfResultsPlan.get_steady_wse() instead.
• Roughness Change format: The multiplier lines are reconstructed with station values 100000, 200000, etc. (not actual river miles). HEC-RAS uses these as internal IDs—the station values in the header define the reach extent.
• Long simulation time: For initial exploration, shorten the simulation window in the plan file, then use the full simulation for final calibration.
