Authoring a 2D Connection Culvert (Connection Culv=)

Python
#!pip install --upgrade ras-commander

Development Mode

Set USE_LOCAL_SOURCE = True when running from a local ras-commander checkout.

Python
USE_LOCAL_SOURCE = False
if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path
    cwd = Path.cwd()
    local_path = cwd if (cwd / "ras_commander").exists() else cwd.parent
    if str(local_path) not in sys.path:
        sys.path.insert(0, str(local_path))
    print(f"LOCAL SOURCE MODE: {local_path / 'ras_commander'}")
else:
    print("PIP PACKAGE MODE")

import logging
import math
import os
import warnings
from pathlib import Path

import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from IPython.display import display
from shapely.geometry import LineString, Point

from ras_commander import HdfResultsPlan, RasCmdr, RasExamples, RasPrj, init_ras_project
from ras_commander.geom import GeomLateral, GeomCulvertGIS
from ras_commander.hdf import HdfMesh

warnings.filterwarnings("ignore", category=FutureWarning)
logging.getLogger("ras_commander").setLevel(logging.CRITICAL)
pd.set_option("display.max_columns", None); pd.set_option("display.width", 200)

import ras_commander
print(f"Loaded: {ras_commander.__file__}")
Text Only
PIP PACKAGE MODE


c:\Users\bill\anaconda3\envs\rascommander\Lib\site-packages\tqdm\auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm


Loaded: G:\GH\ras-commander-wt-culvauth\ras_commander\__init__.py

Authoring a 2D connection culvert

A culvert through an embankment in a 2D model is placed on a SA/2D connection. Unlike a 1D inline culvert (whose barrel line is derived), a 2D connection culvert stores explicit per-barrel GIS endpoint coordinates in the geometry -- a Connection Culv= record followed by one Conn Culvert Barrel= + packed US_x US_y DS_x DS_y line per barrel (verified against production LWI 2D models).

GeomLateral.set_connection_culverts() writes that record; get_connection_culverts() reads it back. This notebook authors a retrofit culvert onto BaldEagle's Lower Levee connection, validates it, and (in a separate run) confirms HEC-RAS computes it.

Load the model -- the connection starts weir-only

Python
WORK = Path(os.environ.get("RAS_COMMANDER_WORKDIR",
            (Path.cwd() if (Path.cwd() / "ras_commander").exists() else Path.cwd().parent)
            / "working" / "conn_culvert_authoring"))
WORK.mkdir(parents=True, exist_ok=True)

# This notebook authors + validates geometry (no HEC-RAS compute -- see the
# HEC-RAS acceptance section). It needs the example data + rasterio, not Ras.exe.
project_path = Path(RasExamples.extract_project("BaldEagleCrkMulti2D", output_path=WORK, suffix="culvauth"))
GEOM = project_path / "BaldEagleDamBrk.g01"
GEOM_HDF = project_path / "BaldEagleDamBrk.g01.hdf"
CONN = "Lower Levee"

conns = GeomLateral.get_connections(GEOM)
display(conns[["Name", "Type", "HasGate", "HasCulvert"]])
print("existing culverts on", CONN, ":", len(GeomLateral.get_connection_culverts(GEOM, CONN)))
Name Type HasGate HasCulvert
0 Dam SA to 2D True False
1 Lower Levee 2D to 2D False False
2 Middle Levee 2D to 2D False False
3 Upper Levee 2D to 2D False False
Text Only
existing culverts on Lower Levee : 0

Reason a retrofit culvert

We place the culvert at the lowest terrain point along the connection (where flow concentrates), run the barrel perpendicular through the embankment, and set the inverts just above each barrel-end cell's terrain minimum (using the terrain cell-min check from notebook 226). The two GIS endpoints define the barrel.

Python
line = GeomLateral.get_connection_line_coords(GEOM, CONN)
conn_ls = LineString(line[["X", "Y"]].to_numpy())

# lowest terrain point along the connection
samples = [(p.x, p.y) for p in
           (conn_ls.interpolate(d, normalized=True) for d in np.linspace(0.15, 0.85, 15))]
sc = GeomCulvertGIS.mesh_cell_min_from_terrain(GEOM_HDF, samples)
sc = sc[sc["cell_terrain_min"].notna()]
low = sc.loc[sc["cell_terrain_min"].idxmin()]
cx, cy = float(low["x"]), float(low["y"])
arc = conn_ls.project(Point(cx, cy))

# barrel perpendicular to the connection, length L -> US/DS endpoints
LENGTH, SPAN, RISE = 60.0, 8.0, 6.0
pb, pf = conn_ls.interpolate(max(arc - 5, 0)), conn_ls.interpolate(min(arc + 5, conn_ls.length))
tx, ty = pf.x - pb.x, pf.y - pb.y
tl = math.hypot(tx, ty) or 1.0
perp = (-ty / tl, tx / tl)
us_xy = (cx - LENGTH / 2 * perp[0], cy - LENGTH / 2 * perp[1])
ds_xy = (cx + LENGTH / 2 * perp[0], cy + LENGTH / 2 * perp[1])

# inverts above each end cell's terrain minimum, mild slope
ends = GeomCulvertGIS.mesh_cell_min_from_terrain(GEOM_HDF, [us_xy, ds_xy])
us_inv = round(float(ends["cell_terrain_min"].max()) + 0.5, 2)
ds_inv = round(us_inv - 0.5, 2)
print(f"crossing at terrain low {low['cell_terrain_min']:.2f} ft (arc {arc:.0f} ft)")
print(f"barrel US={tuple(round(v,1) for v in us_xy)} inv {us_inv}  "
      f"DS={tuple(round(v,1) for v in ds_xy)} inv {ds_inv}")
Text Only
crossing at terrain low 536.09 ft (arc 7114 ft)
barrel US=(2055956.2, 353790.6) inv 539.56  DS=(2055952.0, 353730.8) inv 539.06

Author it with set_connection_culverts

Python
culvert = {
    "Shape": 2, "Span": SPAN, "Rise": RISE, "Length": LENGTH, "ManningsN": 0.024,
    "EntranceLoss": 0.5, "ExitLoss": 1.0, "Chart": 8, "Scale": 1,
    "UpstreamInvert": us_inv, "DownstreamInvert": ds_inv, "Name": "Retrofit Culv",
    "barrels": [{"name": "8x6 RCB", "us_xy": us_xy, "ds_xy": ds_xy}],
}
result = GeomLateral.set_connection_culverts(GEOM, CONN, [culvert])
print(result)

authored = GeomLateral.get_connection_culverts(GEOM, CONN)
display(authored[["CulvertName", "ShapeName", "Span", "Rise", "Length", "EntranceLoss",
                  "NumBarrels", "BarrelName", "us_x", "us_y", "ds_x", "ds_y",
                  "UpstreamInvert", "DownstreamInvert"]])
Text Only
{'culverts_written': 1, 'barrels_written': 1, 'backup_path': 'G:\\GH\\ras-commander-wt-culvauth\\working\\conn_culvert_authoring\\BaldEagleCrkMulti2D_culvauth\\BaldEagleDamBrk.g01.bak', 'length_warnings': []}
CulvertName ShapeName Span Rise Length EntranceLoss NumBarrels BarrelName us_x us_y ds_x ds_y UpstreamInvert DownstreamInvert
0 Retrofit Cul Box 8.0 6.0 60.0 0.5 1 8x6 RCB 2.055956e+06 353790.630305 2.055952e+06 353730.780417 539.56 539.06

Validate

A 2D connection culvert stores its barrel endpoints, so the HEC-RAS +/-1% GIS-length rule is exact (endpoint distance vs entered Length). Inverts are checked against the terrain minimum of each barrel-end mesh cell.

Python
row = authored.iloc[0]
gis_len = math.dist((row["us_x"], row["us_y"]), (row["ds_x"], row["ds_y"]))
err = abs(gis_len - row["Length"]) / row["Length"] * 100
print(f"barrel GIS length {gis_len:.2f} ft vs entered {row['Length']:.1f} ft "
      f"-> {err:.2f}%  ({'PASS' if err <= 1.0 else 'FAIL'} the +/-1% rule)")

inv_rep = GeomCulvertGIS.validate_2d_inverts(
    GEOM_HDF, [(row["us_x"], row["us_y"]), (row["ds_x"], row["ds_y"])],
    [row["UpstreamInvert"], row["DownstreamInvert"]])
display(inv_rep[["point", "cell_id", "cell_terrain_min", "invert", "status", "detail"]])
Text Only
barrel GIS length 60.00 ft vs entered 60.0 ft -> 0.00%  (PASS the +/-1% rule)
point cell_id cell_terrain_min invert status detail
0 0 86257 536.09375 539.56 PASS invert 539.56 >= cell terrain min 536.09
1 1 86256 539.06250 539.06 PASS invert 539.06 >= cell terrain min 539.06

HEC-RAS acceptance

The authored culvert is a real geometry edit. Computing the 2D plan (g01, with full geometry reprocessing via force_geompre=True) confirms HEC-RAS accepts it:

Python
ras = RasPrj()
init_ras_project(project_path / "BaldEagleDamBrk.prj", str(RAS_EXE), ras_object=ras)
ok = RasCmdr.compute_plan("02", ras_object=ras, force_geompre=True,
                          force_rerun=True, num_cores=2, verify=True)

When this was run separately (kept out of the notebook to avoid a multi-minute 2D breach sim), the same set_connection_culverts authoring step on this connection produced ComputeResult(SUCCESS) with no data_errors file, and the geometry preprocessor rebuilt the connection including the new culvert -- so the authored Connection Culv= record is a valid, computable structure. (The library's round-trip tests and the Connection Culv= format are also validated against production 2D models in the test suite.)

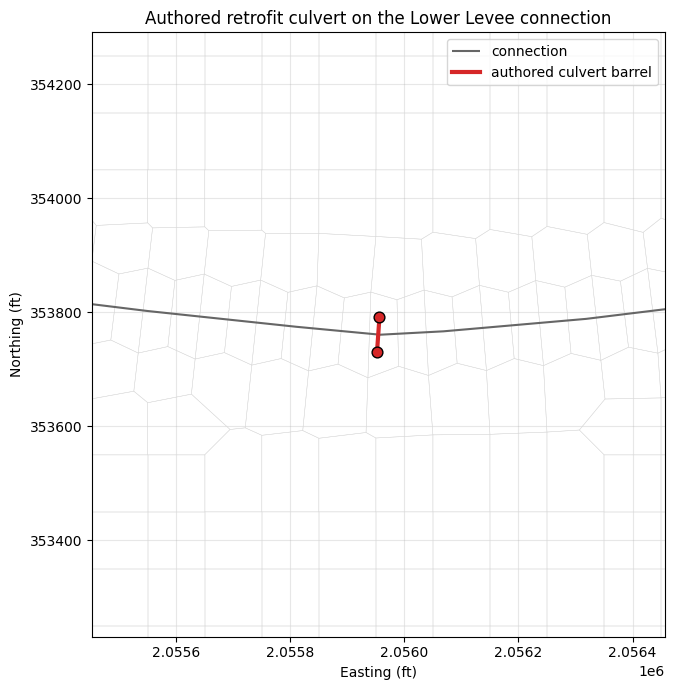

Plan view: the authored barrel on the connection

Python
cells = HdfMesh.get_mesh_cell_polygons(GEOM_HDF)
near = cells[cells.intersects(conn_ls.buffer(800))]
fig, ax = plt.subplots(figsize=(9, 7))
near.boundary.plot(ax=ax, color="0.85", linewidth=0.3)
gpd.GeoSeries([conn_ls], crs=cells.crs).plot(ax=ax, color="0.4", linewidth=1.5, label="connection")
bx = [row["us_x"], row["ds_x"]]; by = [row["us_y"], row["ds_y"]]
ax.plot(bx, by, color="C3", linewidth=3, label="authored culvert barrel")
ax.scatter(bx, by, color="C3", s=60, zorder=5, edgecolor="k")
ax.set_xlim(min(bx) - 500, max(bx) + 500); ax.set_ylim(min(by) - 500, max(by) + 500)
ax.set_title("Authored retrofit culvert on the Lower Levee connection")
ax.set_aspect("equal", adjustable="box"); ax.legend(); ax.grid(True, alpha=0.3)
ax.set_xlabel("Easting (ft)"); ax.set_ylabel("Northing (ft)")
plt.tight_layout(); plt.show()

png

Summary

Python
summary = pd.DataFrame([{
    "Connection": CONN, "Shape": row["ShapeName"],
    "Span x Rise (ft)": f"{row['Span']:.0f} x {row['Rise']:.0f}",
    "Length (ft)": row["Length"], "GIS length err (%)": round(err, 2),
    "US invert": row["UpstreamInvert"], "DS invert": row["DownstreamInvert"],
    "invert check": inv_rep["status"].tolist(),
    "HEC-RAS computes": "verified separately (SUCCESS, no data_errors)",
}])
display(summary)
print("Authored a 2D SA/2D connection culvert with explicit GIS coordinates, validated "
      "it (exact length + terrain-based inverts), and confirmed in a separate HEC-RAS run that it computes (SUCCESS, no data_errors). "
      "2D connection culvert authoring workflow complete.")
Connection Shape Span x Rise (ft) Length (ft) GIS length err (%) US invert DS invert invert check HEC-RAS computes
0 Lower Levee Box 8 x 6 60.0 0.0 539.56 539.06 [PASS, PASS] verified separately (SUCCESS, no data_errors)
Text Only
Authored a 2D SA/2D connection culvert with explicit GIS coordinates, validated it (exact length + terrain-based inverts), and confirmed in a separate HEC-RAS run that it computes (SUCCESS, no data_errors). 2D connection culvert authoring workflow complete.
