2D Floodway Encroachment

Python
# !pip install --upgrade ras-commander
from pathlib import Path
import logging
import shutil
import urllib.request
import zipfile

import geopandas as gpd
import h5py
import matplotlib.pyplot as plt
import pandas as pd
from shapely.geometry import MultiPolygon, Polygon, box

from ras_commander import RasCmdr, RasEncroachments, RasMap, RasPrj, init_ras_project
from ras_commander.hdf import HdfMesh, HdfResultsMesh

logging.getLogger().setLevel(logging.WARNING)
logging.getLogger("ras_commander").setLevel(logging.WARNING)

print("ras-commander 2D floodway encroachment workflow imports loaded")
Text Only
ras-commander 2D floodway encroachment workflow imports loaded

Local Source Development

The committed import cell above is pip-mode. For local ras-commander development, execute this notebook from the repository root with PYTHONPATH set to the active checkout, for example:

PowerShell
$env:PYTHONPATH=(Get-Location).Path
conda run --no-capture-output -n symphony-dev python -m jupyter nbconvert --to notebook --execute examples/311_2d_floodway_encroachment.ipynb --inplace

Generated HEC-RAS projects and maps are written under working/311_2d_floodway_encroachment/, which is ignored by git.

2D Floodway Encroachment Authoring

This notebook follows the HEC zones tutorial pattern using ras-commander APIs: copy the official 2D floodway example, clone the Base plan, author zones and encroachment regions from structured polygon inputs, register RASMapper layers, run the base and encroached plans, and plot maximum WSE difference.

Python
OFFICIAL_TUTORIAL_URL = "https://www.hec.usace.army.mil/confluence/rasdocs/hgt/latest/tutorials/2d-unsteady-flow/floodway-encroachment-analysis-using-zones"
OFFICIAL_ZIP_URL = "https://www.hec.usace.army.mil/confluence/rasdocs/hgt/files/latest/308220916/308220921/1/1753461426299/Example_2DFloodways.zip"

RAS_VERSION = "6.6"
BASE_PLAN = "02"
TARGET_RISE_FT = 1.0
FILL_SLOPE = 0.001
ADDITIONAL_FILL_FT = 0.0
NUM_CORES = 2
FORCE_RERUN = True

cwd = Path.cwd()
repo_root = None
for candidate in [cwd, *cwd.parents]:
    if (candidate / ".git").exists() and (candidate / "ras_commander").exists():
        repo_root = candidate
        break
if repo_root is None:
    repo_root = cwd

working_root = repo_root / "working" / "311_2d_floodway_encroachment"
project_folder = working_root / "Example_2DFloodways"

print(f"Official tutorial: {OFFICIAL_TUTORIAL_URL}")
print(f"Working folder: {working_root}")
Text Only
Official tutorial: https://www.hec.usace.army.mil/confluence/rasdocs/hgt/latest/tutorials/2d-unsteady-flow/floodway-encroachment-analysis-using-zones
Working folder: C:\GH\symphony-workspaces\ras-commander\CLB-317\working\311_2d_floodway_encroachment
Python
def find_official_project() -> Path:
    candidates = [
        Path(r"H:/Symphony/ras-commander/CLB-317/Example_2DFloodways"),
        Path(r"H:/Symphony/ras-commander/CLB-317/official_hec_examples/Example_2DFloodways/Example_2DFloodways"),
    ]
    for candidate in candidates:
        if (candidate / "Example2DFloodway.prj").exists():
            return candidate

    working_root.mkdir(parents=True, exist_ok=True)
    zip_path = working_root / "Example_2DFloodways.zip"
    if not zip_path.exists():
        print(f"Downloading official HEC tutorial data to {zip_path}")
        urllib.request.urlretrieve(OFFICIAL_ZIP_URL, zip_path)

    extract_root = working_root / "official_source"
    if not extract_root.exists():
        with zipfile.ZipFile(zip_path) as zf:
            zf.extractall(extract_root)

    matches = list(extract_root.rglob("Example2DFloodway.prj"))
    if not matches:
        raise FileNotFoundError("Could not locate Example2DFloodway.prj in official tutorial data")
    return matches[0].parent

source_project = find_official_project()
print(f"Source project: {source_project}")

working_root.mkdir(parents=True, exist_ok=True)
resolved_working = working_root.resolve()
if project_folder.exists():
    resolved_project = project_folder.resolve()
    if not resolved_project.is_relative_to(resolved_working):
        raise RuntimeError(f"Refusing to delete outside working folder: {resolved_project}")
    shutil.rmtree(project_folder)

shutil.copytree(source_project, project_folder, ignore=shutil.ignore_patterns("*.GIS.hdf", "Calculated Layers"))
print(f"Copied project to: {project_folder}")
Text Only
Source project: H:\Symphony\ras-commander\CLB-317\Example_2DFloodways
Copied project to: C:\GH\symphony-workspaces\ras-commander\CLB-317\working\311_2d_floodway_encroachment\Example_2DFloodways
Python
project = RasPrj()
init_ras_project(project_folder, RAS_VERSION, ras_object=project, load_results_summary=False)

plan_summary = project.plan_df[["plan_number", "Plan Title", "Short Identifier", "Geom File", "Flow File", "HDF_Results_Path"]]
plan_summary
plan_number Plan Title Short Identifier Geom File Flow File HDF_Results_Path
0 01 Initial Initial 01 01 C:\GH\symphony-workspaces\ras-commander\CLB-31...
1 02 Base Base 01 01 C:\GH\symphony-workspaces\ras-commander\CLB-31...
Python
geom_hdf = project_folder / "Example2DFloodway.g01.hdf"
mesh_areas = HdfMesh.get_mesh_areas(geom_hdf)
mesh_cells = HdfMesh.get_mesh_cell_polygons(geom_hdf)
mesh_area = mesh_areas.iloc[0].geometry
minx, miny, maxx, maxy = mesh_area.bounds
width = maxx - minx
height = maxy - miny

print(f"Mesh areas: {len(mesh_areas)}")
print(f"Mesh cells: {len(mesh_cells):,}")
print(f"CRS: {mesh_areas.crs}")
print(f"Bounds: {minx:.1f}, {miny:.1f}, {maxx:.1f}, {maxy:.1f}")
Text Only
Mesh areas: 1
Mesh cells: 12,277
CRS: EPSG:2276
Bounds: 2262450.3, 6934657.3, 2297190.8, 6953351.7
Python
def _parts_from_geometry(geometry):
    if geometry.is_empty:
        return []
    if isinstance(geometry, Polygon):
        return [[[float(x), float(y)] for x, y in geometry.exterior.coords]]
    if isinstance(geometry, MultiPolygon):
        parts = []
        for poly in geometry.geoms:
            parts.extend(_parts_from_geometry(poly))
        return parts
    raise TypeError(f"Unsupported polygon geometry: {geometry.geom_type}")

pad_x = width * 0.03
pad_y = height * 0.08

zone_geoms = [
    box(minx + pad_x, miny + pad_y, minx + width / 3, maxy - pad_y).intersection(mesh_area),
    box(minx + width / 3, miny + pad_y, minx + 2 * width / 3, maxy - pad_y).intersection(mesh_area),
    box(minx + 2 * width / 3, miny + pad_y, maxx - pad_x, maxy - pad_y).intersection(mesh_area),
]
region_geoms = [
    box(minx + pad_x, miny + pad_y * 1.3, maxx - pad_x, miny + height * 0.36).intersection(mesh_area),
    box(minx + pad_x, maxy - height * 0.36, maxx - pad_x, maxy - pad_y * 1.3).intersection(mesh_area),
]

zones = [
    {"name": "Upstream Zone", "parts": _parts_from_geometry(zone_geoms[0]), "value": 2.4},
    {"name": "Middle Zone", "parts": _parts_from_geometry(zone_geoms[1]), "value": 2.0},
    {"name": "Downstream Zone", "parts": _parts_from_geometry(zone_geoms[2]), "value": 1.6},
]
regions = [
    {"name": "Left Floodplain Fill", "parts": _parts_from_geometry(region_geoms[0])},
    {"name": "Right Floodplain Fill", "parts": _parts_from_geometry(region_geoms[1])},
]

pd.DataFrame(
    {
        "feature": [r["name"] for r in regions] + [z["name"] for z in zones],
        "type": ["region"] * len(regions) + ["zone"] * len(zones),
        "parts": [len(r["parts"]) for r in regions] + [len(z["parts"]) for z in zones],
        "zone_value": [None] * len(regions) + [z["value"] for z in zones],
    }
)
feature type parts zone_value
0 Left Floodplain Fill region 1 NaN
1 Right Floodplain Fill region 1 NaN
2 Upstream Zone zone 1 2.4
3 Middle Zone zone 1 2.0
4 Downstream Zone zone 1 1.6
Python
setup = RasEncroachments.setup_2d_floodway_encroachment_plan(
    BASE_PLAN,
    base_plan=BASE_PLAN,
    new_plan_shortid="Encroached",
    new_title="Encroached",
    target_rise=TARGET_RISE_FT,
    default_fill_slope=FILL_SLOPE,
    default_additional_fill=ADDITIONAL_FILL_FT,
    regions=regions,
    zones=zones,
    add_depth_velocity_map=True,
    depth_velocity_plan_name="Base",
    terrain_name="USGSTerrain",
    ras_object=project,
)

ENCROACHED_PLAN = setup["plan_number"]
print(f"Encroached plan number: {ENCROACHED_PLAN}")
print(f"Plan file: {setup['plan_path']}")
print(f"Editable GIS HDF: {setup['gis_hdf_path']}")
print(setup["settings"])

readback_regions = RasEncroachments.list_2d_encroachment_regions(ENCROACHED_PLAN, ras_object=project)
readback_zones = RasEncroachments.list_2d_encroachment_zones(ENCROACHED_PLAN, ras_object=project)

readback_regions[["name", "fill_slope", "additional_fill_rise", "part_count", "point_count"]]
Text Only
Encroached plan number: 03
Plan file: C:\GH\symphony-workspaces\ras-commander\CLB-317\working\311_2d_floodway_encroachment\Example_2DFloodways\Example2DFloodway.p03
Editable GIS HDF: C:\GH\symphony-workspaces\ras-commander\CLB-317\working\311_2d_floodway_encroachment\Example_2DFloodways\Example2DFloodway.p03.GIS.hdf
{'base_plan_filename': '.\\Example2DFloodway.p02', 'maximum_target_rise': 1.0, 'fill_slope': 0.0010000000474974513, 'additional_fill': 0.0, 'source_hdf': 'C:\\GH\\symphony-workspaces\\ras-commander\\CLB-317\\working\\311_2d_floodway_encroachment\\Example_2DFloodways\\Example2DFloodway.p03.GIS.hdf'}
name fill_slope additional_fill_rise part_count point_count
0 Left Floodplain Fill 0.001 0.0 1 61
1 Right Floodplain Fill 0.001 0.0 1 71
Python
readback_zones[["name", "value", "part_count", "point_count"]]
name value part_count point_count
0 Upstream Zone 2.4 1 92
1 Middle Zone 2.0 1 111
2 Downstream Zone 1.6 1 68
Python
def _geometry_from_parts(parts):
    polygons = [Polygon(part) for part in parts if len(part) >= 4]
    if len(polygons) == 1:
        return polygons[0]
    return MultiPolygon(polygons)

regions_gdf = gpd.GeoDataFrame(
    readback_regions[["name", "fill_slope", "additional_fill_rise"]].copy(),
    geometry=[_geometry_from_parts(parts) for parts in readback_regions["parts"]],
    crs=mesh_areas.crs,
)
zones_gdf = gpd.GeoDataFrame(
    readback_zones[["name", "value"]].copy(),
    geometry=[_geometry_from_parts(parts) for parts in readback_zones["parts"]],
    crs=mesh_areas.crs,
)

cell_step = max(len(mesh_cells) // 3000, 1)

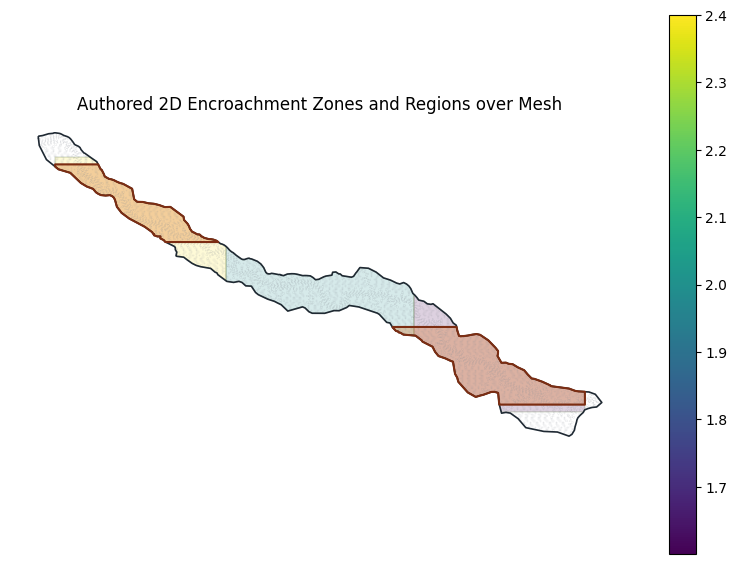

fig, ax = plt.subplots(figsize=(10, 7))
mesh_cells.iloc[::cell_step].boundary.plot(ax=ax, color="#8a8f98", linewidth=0.15, alpha=0.45)
mesh_areas.boundary.plot(ax=ax, color="#1f2933", linewidth=1.2)
zones_gdf.plot(ax=ax, column="value", cmap="viridis", alpha=0.18, edgecolor="#365314", linewidth=1.0, legend=True)
regions_gdf.plot(ax=ax, facecolor="#d95f02", edgecolor="#7c2d12", alpha=0.28, linewidth=1.2)
regions_gdf.boundary.plot(ax=ax, color="#7c2d12", linewidth=1.5)
ax.set_title("Authored 2D Encroachment Zones and Regions over Mesh")
ax.set_aspect("equal")
ax.set_axis_off()
plt.show()

png

Python
run_rows = []
for plan in [BASE_PLAN, ENCROACHED_PLAN]:
    result = RasCmdr.compute_plan(
        plan,
        ras_object=project,
        force_rerun=FORCE_RERUN,
        verify=True,
        num_cores=NUM_CORES,
    )
    run_rows.append({"plan": plan, "success": bool(result)})

run_df = pd.DataFrame(run_rows)
run_df
plan success
0 02 True
1 03 True
Python
base_result_layer = RasMap.ensure_results_plan_layer(BASE_PLAN, name="Base", ras_object=project)
enc_result_layer = RasMap.ensure_results_plan_layer(ENCROACHED_PLAN, name="Encroached", ras_object=project)
comparison_layers = RasMap.add_wse_comparison_layers(
    plan_pairs=[{"exist_plan": "Base", "prop_plan": "Encroached", "tag": "Encroached"}],
    exist_terrain="USGSTerrain",
    prop_terrain="USGSTerrain",
    layer_name_template="WSE_Rise_{tag}",
    host_plan="proposed",
    ras_object=project,
)

pd.DataFrame(
    [
        {"layer_type": "result", **base_result_layer},
        {"layer_type": "result", **enc_result_layer},
        {"layer_type": "calculated", "name": comparison_layers[0], "filename": "Calculated Layers/WSE_Rise_Encroached.rasscript"},
    ]
)
layer_type name filename checked expanded rasmap_path
0 result Base .\Example2DFloodway.p02.hdf True True C:\GH\symphony-workspaces\ras-commander\CLB-31...
1 result Encroached .\Example2DFloodway.p03.hdf True True C:\GH\symphony-workspaces\ras-commander\CLB-31...
2 calculated WSE_Rise_Encroached Calculated Layers/WSE_Rise_Encroached.rasscript NaN NaN NaN
Python
base_hdf = project_folder / "Example2DFloodway.p02.hdf"
enc_hdf = project_folder / f"Example2DFloodway.p{ENCROACHED_PLAN}.hdf"

base_ws = HdfResultsMesh.get_mesh_max_ws(base_hdf)
enc_ws = HdfResultsMesh.get_mesh_max_ws(enc_hdf)
cols = ["mesh_name", "cell_id", "maximum_water_surface"]
wse_delta = enc_ws[["mesh_name", "cell_id", "maximum_water_surface", "geometry"]].merge(
    base_ws[cols],
    on=["mesh_name", "cell_id"],
    suffixes=("_encroached", "_base"),
)
wse_delta["wse_rise_ft"] = wse_delta["maximum_water_surface_encroached"] - wse_delta["maximum_water_surface_base"]
wse_delta = gpd.GeoDataFrame(wse_delta, geometry="geometry", crs=enc_ws.crs)

with h5py.File(enc_hdf, "r") as hdf:
    has_native_unsteady_encroachment_results = "Results/Unsteady/Unsteady Encroachment/Results" in hdf

print(f"Native unsteady encroachment result arrays present: {has_native_unsteady_encroachment_results}")
print(wse_delta["wse_rise_ft"].describe().to_string())
Text Only
Native unsteady encroachment result arrays present: False
count    13093.0
mean         0.0
std          0.0
min          0.0
25%          0.0
50%          0.0
75%          0.0
max          0.0
Python

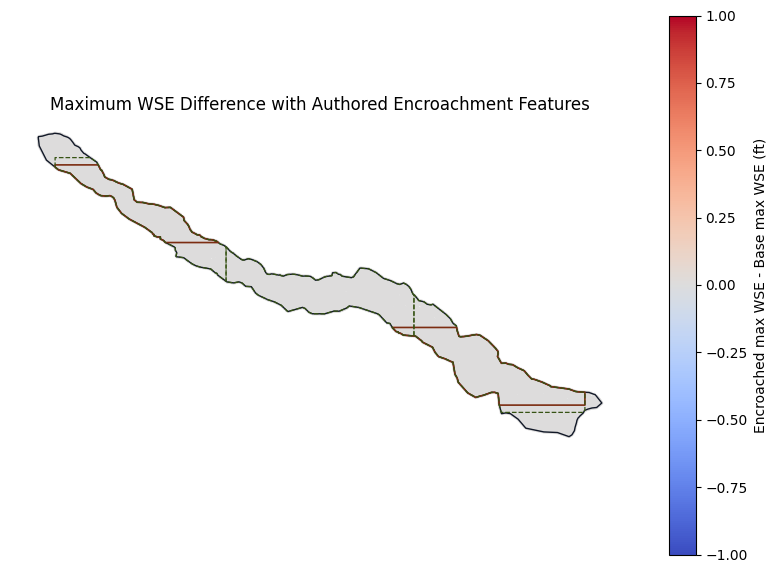

fig, ax = plt.subplots(figsize=(10, 7))
wse_delta.plot(
    ax=ax,
    column="wse_rise_ft",
    cmap="coolwarm",
    markersize=2,
    vmin=-1.0,
    vmax=1.0,
    legend=True,
    legend_kwds={"label": "Encroached max WSE - Base max WSE (ft)"},
)
mesh_areas.boundary.plot(ax=ax, color="#111827", linewidth=1.0)
regions_gdf.boundary.plot(ax=ax, color="#7c2d12", linewidth=1.2)
zones_gdf.boundary.plot(ax=ax, color="#365314", linewidth=0.9, linestyle="--")
ax.set_title("Maximum WSE Difference with Authored Encroachment Features")
ax.set_aspect("equal")
ax.set_axis_off()
plt.show()

png

Notes

The workflow above covers the core setup required by the 2D floodway tutorials without GUI-only authoring steps: the model is copied, the Base plan is cloned, regions and zones round-trip through RasEncroachments, editable RASMapper plan layers are registered, the Depth * Velocity result map is added, both plans are computed through RasCmdr, and a WSE comparison layer plus direct HDF difference plot are created.

The executed run records whether HEC-RAS wrote native Results/Unsteady/Unsteady Encroachment arrays. On this workstation's command-line run, HEC-RAS 6.6 completed the plan but did not materialize those native arrays, so the direct max-WSE delta is the auditable comparison output from the computed HDFs.

CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms seeking to modernize H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
