2D Computation Options

Python
from pathlib import Path
from time import perf_counter
import logging
import re

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from IPython.display import display

import ras_commander
from ras_commander import (
    HdfMesh,
    HdfPlan,
    HdfResultsMesh,
    HdfResultsPlan,
    RasCmdr,
    RasExamples,
    RasPlan,
    RasUnsteady,
    init_ras_project,
)

logging.disable(logging.CRITICAL)
pd.set_option("display.max_columns", 80)
pd.set_option("display.width", 160)

print(f"ras-commander {ras_commander.__version__}")
Text Only
ras-commander 0.96.1

Development Mode

When running this notebook from a source checkout instead of an installed package, start Jupyter from the repository root or add the repository root to PYTHONPATH before launching Jupyter. Generated HEC-RAS projects and result HDFs are written under working/ and are not intended for commit.

2D Unsteady Computation Options

This notebook demonstrates the typed 2D unsteady computation options API on a real HEC-RAS 2D example project. It reads the current plan settings, clones a plan into two equation-set scenarios, writes typed 2D settings for equation set, tolerances, initial-condition ramp-up time, and time-step stability controls, runs both plans, and compares computed max water surface elevations.

Python
def find_repo_root(start: Path) -> Path:
    for candidate in [start, *start.parents]:
        if (candidate / "pyproject.toml").exists() and (candidate / "ras_commander").exists():
            return candidate
    return start


REPO_ROOT = find_repo_root(Path.cwd())
WORK_ROOT = REPO_ROOT / "working" / "2d_computation_options"
PROJECT_NAME = "BaldEagleCrkMulti2D"
PROJECT_SUFFIX = "315_2d_opts"
TEMPLATE_PLAN = "19"
NUM_CORES = 4

RAS_EXE = Path(r"C:\Program Files (x86)\HEC\HEC-RAS\7.0\Ras.exe")
ras_exe_arg = str(RAS_EXE) if RAS_EXE.exists() else "7.0"

WORK_ROOT.mkdir(parents=True, exist_ok=True)
project_path = RasExamples.extract_project(
    PROJECT_NAME,
    output_path=WORK_ROOT,
    suffix=PROJECT_SUFFIX,
)
ras_project = init_ras_project(project_path, ras_exe_arg, load_results_summary=False)

plan_overview_cols = [
    "plan_number",
    "Plan Title",
    "Short Identifier",
    "Program Version",
    "geometry_number",
    "unsteady_number",
    "Computation Interval",
]
plan_overview_cols = [col for col in plan_overview_cols if col in ras_project.plan_df.columns]
display(ras_project.plan_df[plan_overview_cols].sort_values("plan_number").reset_index(drop=True))
print(f"Project folder: {project_path}")
print(f"Template plan: p{TEMPLATE_PLAN}")
plan_number Plan Title Short Identifier Program Version geometry_number unsteady_number Computation Interval
0 01 SA to Detailed 2D Breach FEQ SA-2D Det FEQ 5.03 01 01 5SEC
1 02 SA to Detailed 2D Breach SA-2D Det Brch 5.10 01 01 10SEC
2 03 Single 2D Area - Internal Dam Structure Single 2D 5.04 09 13 30SEC
3 04 SA to 2D Area Conn - 2D Levee Structure 2D Levee Struc 5.00 13 01 20SEC
4 05 Single 2D area with Bridges FEQ Single 2D Bridges FEQ 5.10 03 02 5SEC
5 06 Gridded Precip - Infiltration Grid Precip Infiltration 6.00 09 03 20SEC
6 13 PMF with Multi 2D Areas PMF Multi 2D 5.10 06 07 30SEC
7 15 1d-2D Dambreak Refined Grid 1D-2D Refined Grid 5.10 08 12 20SEC
8 17 2D to 1D No Dam 2D to 1D No Dam 5.00 10 09 1MIN
9 18 2D to 2D Run 2D to 2D Run 5.00 11 10 20SEC
10 19 SA to 2D Dam Break Run SA to 2D Dam Break 5.00 12 11 20SEC
Text Only
Project folder: C:\GH\symphony-workspaces\ras-commander\CLB-323\working\2d_computation_options\BaldEagleCrkMulti2D_315_2d_opts
Template plan: p19

Read Current 2D Settings

RasPlan.get_2d_flow_options() reads the plain-text plan settings before any compute. The template plan also points to an unsteady flow file with an explicit storage-area initial condition, which is read through the public RasUnsteady wrapper.

Python
template_options = RasPlan.get_2d_flow_options(TEMPLATE_PLAN, ras_object=ras_project)
template_area_rows = pd.DataFrame(template_options["areas"])
template_plan_rows = pd.DataFrame([template_options["plan"]])

template_plan_record = ras_project.plan_df[
    ras_project.plan_df["plan_number"].astype(str).str.zfill(2) == TEMPLATE_PLAN
].iloc[0]
template_unsteady = str(template_plan_record["unsteady_number"]).zfill(2)
template_unsteady_path = project_path / f"{ras_project.project_name}.u{template_unsteady}"
template_ic = RasUnsteady.get_initial_conditions(template_unsteady_path)

display(template_plan_rows)
display(
    template_area_rows[
        [
            "name",
            "equation_set",
            "initial_conditions_time_hours",
            "water_surface_tolerance",
            "volume_tolerance",
            "max_iterations",
            "time_slices",
        ]
    ]
)
display(template_ic)
computation_interval
0 20SEC
name equation_set initial_conditions_time_hours water_surface_tolerance volume_tolerance max_iterations time_slices
0 BaldEagleCr DWE 2.0 0.01 0.01 20 1
type river reach station value area_name
0 storage None None None 630.0 Reservoir Pool

Clone Plans and Apply Typed Options

The two scenario plans use the same geometry and unsteady flow inputs. The only changes are made through the typed 2D computation-options API.

Python
SCENARIOS = [
    {
        "label": "DWE fixed timestep",
        "shortid": "CLB323_DWE",
        "title": "CLB323 DWE options",
        "options": {
            "equation_set": "DWE",
            "computation_interval": "20SEC",
            "initial_conditions_time_hours": 2.0,
            "water_surface_tolerance": 0.01,
            "volume_tolerance": 0.01,
            "max_iterations": 20,
            "time_step_use_courant": False,
            "time_step_use_time_series": False,
            "time_step_max_courant": None,
            "time_step_min_courant": None,
            "time_step_count_to_double": 0,
            "time_step_max_doubling": 0,
            "time_step_max_halving": 0,
            "time_step_residence_courant": False,
        },
    },
    {
        "label": "SWE-ELM adaptive timestep",
        "shortid": "CLB323_SWE",
        "title": "CLB323 SWE options",
        "options": {
            "equation_set": "SWE-ELM",
            "computation_interval": "20SEC",
            "initial_conditions_time_hours": 2.0,
            "water_surface_tolerance": 0.005,
            "volume_tolerance": 0.005,
            "max_iterations": 30,
            "time_step_use_courant": True,
            "time_step_use_time_series": False,
            "time_step_max_courant": 0.8,
            "time_step_min_courant": 0.35,
            "time_step_count_to_double": 6,
            "time_step_max_doubling": 1,
            "time_step_max_halving": 1,
            "time_step_residence_courant": False,
        },
    },
]


def extract_option_row(plan_number: str, label: str) -> dict:
    opts = RasPlan.get_2d_flow_options(plan_number, ras_object=ras_project)
    area = opts["areas"][0]
    row = {
        "label": label,
        "plan_number": plan_number,
        "program_version": opts["program_version"],
    }
    for key in [
        "computation_interval",
        "time_step_use_courant",
        "time_step_max_courant",
        "time_step_min_courant",
        "time_step_count_to_double",
        "time_step_max_doubling",
        "time_step_max_halving",
    ]:
        row[key] = opts["plan"].get(key)
    for key in [
        "name",
        "equation_set",
        "initial_conditions_time_hours",
        "water_surface_tolerance",
        "volume_tolerance",
        "max_iterations",
    ]:
        row[key] = area.get(key)
    return row


scenario_records = []
for scenario in SCENARIOS:
    plan_number = RasPlan.clone_plan(
        TEMPLATE_PLAN,
        new_plan_shortid=scenario["shortid"],
        new_title=scenario["title"],
        num_cores=NUM_CORES,
        ras_object=ras_project,
    )
    RasPlan.set_2d_flow_options(
        plan_number,
        options=scenario["options"],
        include_default=True,
        ras_object=ras_project,
    )
    scenario_records.append(
        {
            **scenario,
            "plan_number": str(plan_number).zfill(2),
            "hdf_path": project_path / f"{ras_project.project_name}.p{str(plan_number).zfill(2)}.hdf",
        }
    )

plain_text_options = pd.DataFrame(
    [
        extract_option_row(record["plan_number"], record["label"])
        for record in scenario_records
    ]
)
display(plain_text_options)
label plan_number program_version computation_interval time_step_use_courant time_step_max_courant time_step_min_courant time_step_count_to_double time_step_max_doubling time_step_max_halving name equation_set initial_conditions_time_hours water_surface_tolerance volume_tolerance max_iterations
0 DWE fixed timestep 07 5.00 20SEC False NaN NaN 0 0 0 BaldEagleCr DWE 2.0 0.010 0.010 20
1 SWE-ELM adaptive timestep 08 5.00 20SEC True 0.8 0.35 6 1 1 BaldEagleCr SWE-ELM 2.0 0.005 0.005 30

Compute Scenario Plans

The plans are run through RasCmdr.compute_plan(). No direct Ras.exe calls are used.

Python
compute_rows = []
for record in scenario_records:
    start = perf_counter()
    result = RasCmdr.compute_plan(
        record["plan_number"],
        ras_object=ras_project,
        num_cores=NUM_CORES,
        verify=True,
        force_rerun=True,
    )
    elapsed_sec = perf_counter() - start
    success = bool(result)
    hdf_path = record["hdf_path"]
    compute_rows.append(
        {
            "label": record["label"],
            "plan_number": record["plan_number"],
            "success": success,
            "elapsed_sec": elapsed_sec,
            "hdf_exists": hdf_path.exists(),
            "hdf_size_mb": hdf_path.stat().st_size / 1024**2 if hdf_path.exists() else np.nan,
            "hdf_path": hdf_path,
        }
    )
    print(f"{record['label']} p{record['plan_number']}: success={success}, elapsed={elapsed_sec:.1f} sec")
    assert success, f"HEC-RAS compute failed for plan {record['plan_number']}"
    assert hdf_path.exists(), hdf_path

compute_df = pd.DataFrame(compute_rows)
display(compute_df)
Text Only
DWE fixed timestep p07: success=True, elapsed=42.9 sec


SWE-ELM adaptive timestep p08: success=True, elapsed=95.1 sec
label plan_number success elapsed_sec hdf_exists hdf_size_mb hdf_path
0 DWE fixed timestep 07 True 42.932393 True 11.096975 C:\GH\symphony-workspaces\ras-commander\CLB-32...
1 SWE-ELM adaptive timestep 08 True 95.116473 True 13.014308 C:\GH\symphony-workspaces\ras-commander\CLB-32...

Round-Trip HDF Options and Stability Messages

After compute, HdfPlan.get_2d_flow_options() confirms the settings that HEC-RAS wrote into each plan HDF. The compute-message summary gives a compact stability/timing comparison using completion flags, warning/error flags, and counts of message lines mentioning Courant, iteration, timestep, or stability terms.

Python
ras_project = init_ras_project(project_path, ras_exe_arg, load_results_summary=True)
results_df = ras_project.results_df.copy()


def message_summary(hdf_path: Path) -> dict:
    text = HdfResultsPlan.get_compute_messages(hdf_path)
    lines = text.splitlines()
    term_pattern = re.compile(r"(courant|iteration|timestep|time step|stability)", re.IGNORECASE)
    warning_pattern = re.compile(r"warning", re.IGNORECASE)
    error_pattern = re.compile(r"error", re.IGNORECASE)
    return {
        "message_chars": len(text),
        "stability_line_count": sum(1 for line in lines if term_pattern.search(line)),
        "warning_line_count": sum(1 for line in lines if warning_pattern.search(line)),
        "error_line_count": sum(1 for line in lines if error_pattern.search(line)),
    }


summary_rows = []
for record in scenario_records:
    hdf_path = record["hdf_path"]
    hdf_opts = HdfPlan.get_2d_flow_options(hdf_path)
    area = hdf_opts["areas"][0]
    plan_result = results_df[
        results_df["plan_number"].astype(str).str.zfill(2) == record["plan_number"]
    ].iloc[0]
    row = {
        "label": record["label"],
        "plan_number": record["plan_number"],
        "hdf_equation_set": area.get("equation_set"),
        "hdf_ic_time_hr": area.get("initial_conditions_time_hours"),
        "hdf_ws_tol": area.get("water_surface_tolerance"),
        "hdf_volume_tol": area.get("volume_tolerance"),
        "hdf_max_iterations": area.get("max_iterations"),
        "completed": bool(plan_result.get("completed")),
        "has_warnings": bool(plan_result.get("has_warnings")),
        "has_errors": bool(plan_result.get("has_errors")),
        "runtime_complete_process_hours": plan_result.get("runtime_complete_process_hours"),
    }
    row.update(message_summary(hdf_path))
    summary_rows.append(row)

summary_df = pd.DataFrame(summary_rows).merge(
    compute_df[["plan_number", "elapsed_sec", "hdf_size_mb"]],
    on="plan_number",
    how="left",
)
display(summary_df)

for record in scenario_records:
    text = HdfResultsPlan.get_compute_messages(record["hdf_path"])
    stability_lines = [
        line.strip()
        for line in text.splitlines()
        if re.search(r"(courant|iteration|timestep|time step|stability)", line, re.IGNORECASE)
    ]
    print(f"\n{record['label']} stability-related message sample:")
    for line in stability_lines[:8]:
        print(f"  {line[:180]}")
    if not stability_lines:
        print("  No stability keyword lines found in compute messages.")
label plan_number hdf_equation_set hdf_ic_time_hr hdf_ws_tol hdf_volume_tol hdf_max_iterations completed has_warnings has_errors runtime_complete_process_hours message_chars stability_line_count warning_line_count error_line_count elapsed_sec hdf_size_mb
0 DWE fixed timestep 07 DWE 2.0 0.010 0.010 20 True False False 0.010239 1809 1 0 2 42.932393 11.096975
1 SWE-ELM adaptive timestep 08 SWE-ELM 2.0 0.005 0.005 30 True False False 0.025378 14977 15 0 4 95.116473 13.014308
Text Only
DWE fixed timestep stability-related message sample:
  Number of warm up time steps:   20

SWE-ELM adaptive timestep stability-related message sample:
  Number of warm up time steps:   20
  Maximum adaptive timestep = 40.0    Minimum adaptive timestep = 10.0
  Initial adaptive timestep = 20.0
  01JAN1999 12:02:00       timestep =            40             (sec)
  Maximum iteration location    Cell     WSEL   ERROR   ITERATIONS
  01JAN1999 19:18:40       timestep =            20             (sec)
  01JAN1999 22:02:40       timestep =            40             (sec)
  02JAN1999 16:08:00       timestep =            20             (sec)

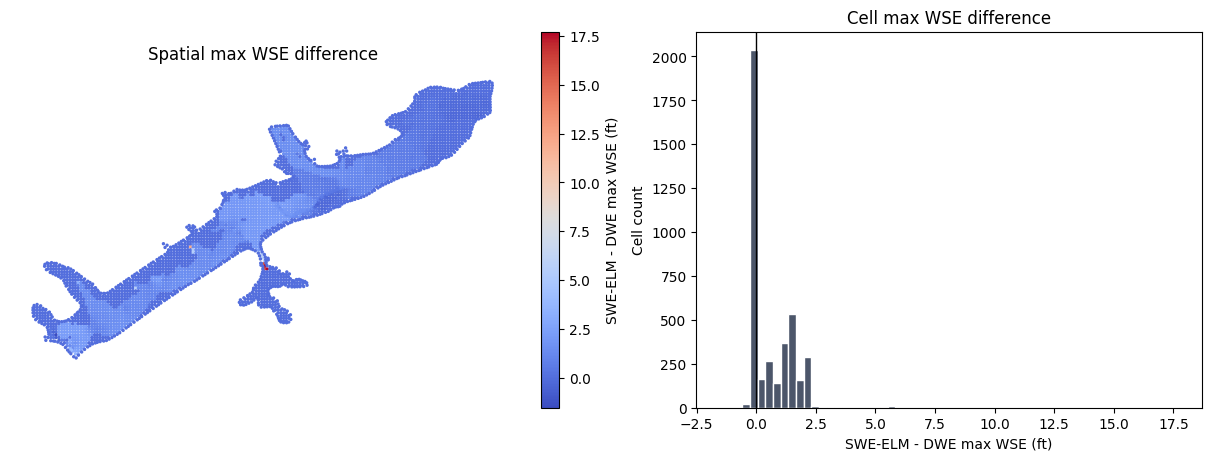

Max WSE Comparison

Both scenarios use the same mesh, so max water surface elevations can be joined by mesh name and cell id. The map and histogram show the SWE-ELM max WSE minus the DWE max WSE in feet.

Python
dwe_record = next(record for record in scenario_records if record["label"].startswith("DWE"))
swe_record = next(record for record in scenario_records if record["label"].startswith("SWE"))

dwe_wse = HdfResultsMesh.get_mesh_max_ws(dwe_record["hdf_path"])[
    ["mesh_name", "cell_id", "maximum_water_surface", "geometry"]
].rename(columns={"maximum_water_surface": "dwe_max_wse"})
swe_wse = HdfResultsMesh.get_mesh_max_ws(swe_record["hdf_path"])[
    ["mesh_name", "cell_id", "maximum_water_surface"]
].rename(columns={"maximum_water_surface": "swe_max_wse"})

delta_gdf = dwe_wse.merge(swe_wse, on=["mesh_name", "cell_id"], how="inner")
delta_gdf["delta_wse_ft"] = delta_gdf["swe_max_wse"] - delta_gdf["dwe_max_wse"]
delta_values = delta_gdf["delta_wse_ft"].replace([np.inf, -np.inf], np.nan).dropna()

stats = delta_values.describe(percentiles=[0.05, 0.5, 0.95]).to_frame("SWE_minus_DWE_ft")
display(stats)

fig, axes = plt.subplots(1, 2, figsize=(12, 4.5), constrained_layout=True)
delta_gdf.plot(
    column="delta_wse_ft",
    ax=axes[0],
    cmap="coolwarm",
    markersize=2,
    legend=True,
    legend_kwds={"label": "SWE-ELM - DWE max WSE (ft)"},
)
axes[0].set_title("Spatial max WSE difference")
axes[0].set_axis_off()

axes[1].hist(delta_values, bins=60, color="#4c566a", edgecolor="white")
axes[1].axvline(0, color="black", linewidth=1)
axes[1].set_title("Cell max WSE difference")
axes[1].set_xlabel("SWE-ELM - DWE max WSE (ft)")
axes[1].set_ylabel("Cell count")

plt.show()
SWE_minus_DWE_ft
count 4026.000000
mean 0.653483
std 1.011515
min -1.545166
5% -0.080307
50% 0.000000
95% 2.065674
max 17.719543

png

CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms seeking to modernize H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
