Steady Flow Analysis

Overview

This notebook demonstrates extracting and analyzing steady flow results from HEC-RAS HDF5 files. Steady flow analysis is fundamentally different from unsteady flow:

Steady Flow: - Single time point (equilibrium conditions) - Multiple flow profiles (e.g., 10-yr, 100-yr, 500-yr) - Results organized by profile, not time - Typical use: Floodplain mapping, bridge design, permitting

Unsteady Flow (see 400-series notebooks): - Time-varying conditions - Single or multiple events - Results organized by time step - Typical use: Dam breach, detention basin routing, real-time forecasting

HDF5 Structure for Steady Flow Results

Text Only
/Results/Steady/
├── Output/
│   ├── Geometry/               # Geometry data
│   │   └── Cross Sections/     # XS coordinates, stations
│   └── Profiles/
│       ├── Max/                # Maximum values across all profiles
│       ├── 100yr/              # 100-year flood profile
│       ├── 500yr/              # 500-year flood profile
│       └── ...                 # Other flow profiles

Key Differences from Unsteady: - No time dimension - profiles are independent scenarios - Profile names are user-defined (not timestamps) - Typically used for regulatory floodplain mapping (FEMA)

Reference Documentation

Python
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False  # <-- TOGGLE THIS

if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path
    local_path = str(Path.cwd().parent)
    if local_path not in sys.path:
        sys.path.insert(0, local_path)
    print(f"📁 LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
    print("📦 PIP PACKAGE MODE: Loading installed ras-commander")

# Import ras-commander
from ras_commander import HdfResultsPlan, RasCmdr, RasExamples, init_ras_project, ras

# Additional imports
import h5py
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

# Set pandas display options
pd.set_option('display.max_rows', 10)
pd.set_option('display.max_columns', None)

# Set to False to disable plot generation for llm-friendly outputs
generate_plots = True

# Verify which version loaded
import ras_commander
print(f"✓ Loaded: {ras_commander.__file__}")
Text Only
📦 PIP PACKAGE MODE: Loading installed ras-commander
✓ Loaded: c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\__init__.py

Parameters

Configure these values to customize the notebook for your project.

Python
# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================
from pathlib import Path

# Project Configuration
PROJECT_NAME = "Balde Eagle Creek"           # Example project to extract
RAS_VERSION = "7.0"               # HEC-RAS version (6.3, 6.5, 6.6, etc.)

# HDF Analysis Settings
PLAN = "02"                       # Plan number (for HDF file path)
TIME_INDEX = -1                   # Time step index (-1 = last)
PROFILE = "Max"                   # Profile name for steady analysis

HEC-RAS Steady State Flow Analysis

This notebook demonstrates how to extract and analyze steady state flow results from HEC-RAS using the ras-commander library. It showcases the new steady state functionality in HdfResultsPlan.

New Steady State Methods

The library now includes full support for steady state analysis: - is_steady_plan() - Check if HDF contains steady state results - get_steady_profile_names() - Extract steady state profile names - get_steady_wse() - Extract water surface elevations for profiles - get_steady_info() - Extract steady flow metadata and attributes

Extracting Steady Flow Computation Messages

For steady flow analyses, computation messages provide valuable information about: - Hydraulic computations and convergence - Warning messages for critical flow or other conditions - Computation timing and performance

We can extract these using HdfResultsPlan.get_compute_messages():

Python
# Extract the Bald Eagle Creek project using suffix parameter (consistent with other notebooks)
bald_eagle_path = RasExamples.extract_project(PROJECT_NAME, suffix="19")
print(f"Extracted project to: {bald_eagle_path}")
Text Only
2026-01-12 00:32:44 - ras_commander.RasExamples - INFO - Found zip file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\Example_Projects_6_6.zip
2026-01-12 00:32:44 - ras_commander.RasExamples - INFO - Loading project data from CSV...
2026-01-12 00:32:44 - ras_commander.RasExamples - INFO - Loaded 68 projects from CSV.
2026-01-12 00:32:44 - ras_commander.RasExamples - INFO - ----- RasExamples Extracting Project -----
2026-01-12 00:32:44 - ras_commander.RasExamples - INFO - Extracting project 'Balde Eagle Creek' as 'Balde Eagle Creek_19'
2026-01-12 00:32:44 - ras_commander.RasExamples - INFO - Folder 'Balde Eagle Creek_19' already exists. Deleting existing folder...
2026-01-12 00:32:44 - ras_commander.RasExamples - INFO - Existing folder 'Balde Eagle Creek_19' has been deleted.
2026-01-12 00:32:44 - ras_commander.RasExamples - INFO - Successfully extracted project 'Balde Eagle Creek' to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19


Extracted project to: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19
Python
plan_number = "02"
Python
init_ras_project(bald_eagle_path, RAS_VERSION)
Text Only
2026-01-12 00:32:44 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.rasmap
2026-01-12 00:32:44 - ras_commander.RasPrj - INFO - Updated results_df with 2 plan(s)





<ras_commander.RasPrj.RasPrj at 0x1b4449dc980>
Python
ras.plan_df
plan_number unsteady_number geometry_number Plan Title Program Version Short Identifier Simulation Date Computation Interval Mapping Interval Run HTab Run UNet Run Sediment Run PostProcess Run WQNet UNET Use Existing IB Tables UNET D1 Cores UNET D2 Cores PS Cores DSS File Friction Slope Method HDF_Results_Path Geom File Geom Path Flow File Flow Path full_path flow_type
0 01 02 01 Unsteady with Bridges and Dam 5.00 UnsteadyFlow 18FEB1999,0000,24FEB1999,0500 2MIN 1HOUR 1 1 0 1 0 -1 0.0 0.0 None dss 2 None 01 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... 02 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... Unsteady
1 02 None 01 Steady Flow Run NaN SteadyRun 02/18/1999,0000,02/24/1999,0500 2MIN NaN 1 1 NaN 1 NaN NaN NaN NaN None dss 1 None 01 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... 02 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... Steady
Python
RasCmdr.compute_plan(plan_number)
Text Only
2026-01-12 00:32:44 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19
2026-01-12 00:32:44 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2026-01-12 00:32:44 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02"
2026-01-12 00:32:49 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02
2026-01-12 00:32:49 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 4.29 seconds
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\RasPrj.py:1514: FutureWarning: The behavior of DataFrame concatenation with empty or all-NA entries is deprecated. In a future version, this will no longer exclude empty or all-NA columns when determining the result dtypes. To retain the old behavior, exclude the relevant entries before the concat operation.
  self.results_df = pd.concat([self.results_df, new_results], ignore_index=True)
2026-01-12 00:32:49 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)





True

Extracting Steady Flow Computation Messages

For steady flow analyses, computation messages provide valuable information about: - Hydraulic computations and convergence - Warning messages for critical flow or other conditions - Computation timing and performance

We can extract these using HdfResultsPlan.get_compute_messages():

Python
ras.plan_df
plan_number unsteady_number geometry_number Plan Title Program Version Short Identifier Simulation Date Computation Interval Mapping Interval Run HTab Run UNet Run Sediment Run PostProcess Run WQNet UNET Use Existing IB Tables UNET D1 Cores UNET D2 Cores PS Cores DSS File Friction Slope Method HDF_Results_Path Geom File Geom Path Flow File Flow Path full_path
0 01 02 01 Unsteady with Bridges and Dam 5.00 UnsteadyFlow 18FEB1999,0000,24FEB1999,0500 2MIN 1HOUR 1 1 0 1 0 -1 0.0 0.0 None dss 2 None 01 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... 02 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
1 02 None 01 Steady Flow Run NaN SteadyRun 02/18/1999,0000,02/24/1999,0500 2MIN NaN 1 1 NaN 1 NaN NaN NaN NaN None dss 1 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... 01 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... 02 C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt... C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
Python
RasCmdr.compute_plan(plan_number, "6.6")
Text Only
2026-01-12 00:32:49 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19
2026-01-12 00:32:49 - ras_commander.RasCmdr - ERROR - Destination folder 'C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\6.6' exists and is not empty. Use overwrite_dest=True to overwrite.
2026-01-12 00:32:49 - ras_commander.RasCmdr - CRITICAL - Error in compute_plan: Destination folder 'C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\6.6' exists and is not empty. Use overwrite_dest=True to overwrite.





False
Python
# Extract computation messages for steady flow analysis
from ras_commander import HdfResultsPlan

print("="*80)
print("STEADY FLOW COMPUTATION MESSAGES")
print("="*80)

# Extract messages (works with plan number or HDF path)
steady_msgs = HdfResultsPlan.get_compute_messages(plan_number)

if steady_msgs:
    print(f"\nExtracted {len(steady_msgs)} characters\n")

    # Display messages
    print("Computation messages:")
    print("-" * 80)
    print(steady_msgs[:1000])  # First 1000 characters

    if len(steady_msgs) > 1000:
        print("\n... (truncated for display) ...")

    # Look for critical information
    print("\n" + "="*80)
    print("Checking for critical flow or warnings...")
    print("="*80)

    lines = steady_msgs.split('\n')
    critical = [l for l in lines if 'critical' in l.lower() or 'warning' in l.lower()]

    if critical:
        print(f"Found {len(critical)} lines with critical flow or warnings:")
        for line in critical[:10]:
            print(f"  - {line.strip()}")
    else:
        print("✓ No critical flow or warning messages found")
else:
    print("No computation messages available")

print("\n" + "="*80)
Text Only
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF


================================================================================
STEADY FLOW COMPUTATION MESSAGES
================================================================================

Extracted 718 characters

Computation messages:
--------------------------------------------------------------------------------
Plan: 'Steady Flow Run' (BaldEagle.p02)
Simulation started at: 12Jan2026 12:32:45 AM

Writing Plan GIS Data...
Completed Writing Plan GIS Data
Writing Geometry...
Computing Bank Lines
Bank lines generated in 106 ms
Computing Edge Lines
Edge Lines generated in 40 ms
Computing XS Interpolation Surface
XS Interpolation Surface generated in 106 ms
Completed Writing Geometry
Writing Event Conditions ...
Completed Writing Event Condition Data


Steady Flow Simulation HEC-RAS 6.6 September 2024


Finished Steady Flow Simulation


Computations Summary

Computation Task    Time(hh:mm:ss)
Completing Geometry, Flow and Plan         1
Steady Flow Computations           1
Complete Process           2


================================================================================
Checking for critical flow or warnings...
================================================================================
✓ No critical flow or warning messages found

================================================================================

Package Installation and Environment Setup

Python
# Install ras-commander from pip (uncomment to install if needed)
# !pip install --upgrade ras-commander

# Set to False to disable plot generation for llm-friendly outputs
generate_plots = True
Python
# Import required modules
from ras_commander import HdfResultsPlan, RasCmdr, RasExamples, init_ras_project, ras

import h5py
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from pathlib import Path

# Set pandas display options
pd.set_option('display.max_rows', 10)
pd.set_option('display.max_columns', None)
Python
# The Bald Eagle Creek project was already extracted and initialized in cells 4-6 above
# bald_eagle_path is already defined and ras object is already initialized
# This cell just confirms the setup for the steady state analysis section

print(f"Project path: {bald_eagle_path}")
print(f"Project initialized: {ras.project_name}")
Text Only
Project path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19
Project initialized: BaldEagle

Run Steady State Plan (Plan 02)

Execute the steady state plan if results don't already exist.

Python
# Define plan number
plan_number = PLAN

# Execute the steady state plan with skip_existing=True
# This will skip execution if HDF results already exist with "Complete Process"
print(f"Running Plan {plan_number} (Steady State)...")
success = RasCmdr.compute_plan(plan_number, skip_existing=True)
if success:
    print(f"Plan {plan_number} executed successfully (or skipped - results exist)")
else:
    print(f"Plan {plan_number} execution failed")
Text Only
2026-01-12 00:32:49 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-12 00:32:49 - ras_commander.RasCmdr - INFO - Skipping plan 02: HDF results already exist with 'Complete Process'
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


Running Plan 02 (Steady State)...
Plan 02 executed successfully (or skipped - results exist)

1. Check if Plan Contains Steady State Results

Use is_steady_plan() to verify the HDF contains steady state results.

Python
# Check if this is a steady state plan
is_steady = HdfResultsPlan.is_steady_plan(plan_number)
print(f"Is Plan {plan_number} a steady state plan? {is_steady}")
Text Only
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf


Is Plan 02 a steady state plan? True

2. Extract Steady State Profile Names

Get the list of all steady state profiles (e.g., different return periods).

Python
# Get profile names
profiles = HdfResultsPlan.get_steady_profile_names(plan_number)

print(f"Found {len(profiles)} steady state profiles:")
for i, profile in enumerate(profiles, 1):
    print(f"  {i}. {profile}")
Text Only
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Found 8 steady state profiles: ['.5 year', '1 year', '2 year', '5 year', '10 year', '25 year', '50 year', '100 year']


Found 8 steady state profiles:
  1. .5 year
  2. 1 year
  3. 2 year
  4. 5 year
  5. 10 year
  6. 25 year
  7. 50 year
  8. 100 year

3. Extract Water Surface Elevations (WSE)

Extract WSE data for specific profiles or all profiles at once.

3a. Extract Single Profile by Name

Python
# Extract WSE for 100-year profile
wse_100yr = HdfResultsPlan.get_steady_wse(plan_number, profile_name='100 year')

print(f"WSE Data for 100-year profile:")
print(f"Shape: {wse_100yr.shape}")
print(f"Columns: {list(wse_100yr.columns)}")
print("\nFirst 5 cross sections:")
wse_100yr.head()
Text Only
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Extracted WSE data for 1 profile(s), 178 cross sections


WSE Data for 100-year profile:
Shape: (178, 4)
Columns: ['River', 'Reach', 'Station', 'WSE']

First 5 cross sections:
River Reach Station WSE
0 Bald Eagle Loc Hav 138154.4 669.521484
1 Bald Eagle Loc Hav 137690.8 669.346863
2 Bald Eagle Loc Hav 137327.0 668.883057
3 Bald Eagle Loc Hav 136564.9 666.177979
4 Bald Eagle Loc Hav 136202.3 666.057739

3b. Extract Single Profile by Index

Python
# Extract WSE for first profile (0.5-year) using index
wse_05yr = HdfResultsPlan.get_steady_wse(plan_number, profile_index=0)

print(f"WSE Data for {profiles[0]} profile:")
print(f"Shape: {wse_05yr.shape}")
print("\nSummary statistics:")
wse_05yr['WSE'].describe()
Text Only
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Extracted WSE data for 1 profile(s), 178 cross sections


WSE Data for .5 year profile:
Shape: (178, 4)

Summary statistics:





count    178.000000
mean     590.215864
std       39.202902
min      537.500000
25%      557.109406
50%      579.655151
75%      623.142242
max      660.588928
Name: WSE, dtype: float64

3c. Extract All Profiles

Python
# Extract WSE for all profiles
wse_all = HdfResultsPlan.get_steady_wse(plan_number)

print(f"WSE Data for all {len(profiles)} profiles:")
print(f"Shape: {wse_all.shape}")
print(f"Columns: {list(wse_all.columns)}")
print(f"\nProfiles included: {wse_all['Profile'].unique().tolist()}")
print("\nSample data:")
wse_all.head(10)
Text Only
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Extracted WSE data for 8 profile(s), 178 cross sections


WSE Data for all 8 profiles:
Shape: (1424, 5)
Columns: ['River', 'Reach', 'Station', 'Profile', 'WSE']

Profiles included: ['.5 year', '1 year', '2 year', '5 year', '10 year', '25 year', '50 year', '100 year']

Sample data:
River Reach Station Profile WSE
0 Bald Eagle Loc Hav 138154.4 .5 year 660.588928
1 Bald Eagle Loc Hav 137690.8 .5 year 659.914612
2 Bald Eagle Loc Hav 137327.0 .5 year 659.465759
3 Bald Eagle Loc Hav 136564.9 .5 year 658.126160
4 Bald Eagle Loc Hav 136202.3 .5 year 657.173157
5 Bald Eagle Loc Hav 135591.4 .5 year 656.520264
6 Bald Eagle Loc Hav 135068.7 .5 year 655.880676
7 Bald Eagle Loc Hav 134487.2 .5 year 654.593140
8 Bald Eagle Loc Hav 133881.0 .5 year 653.786621
9 Bald Eagle Loc Hav 133446.1 .5 year 653.006958

4. Extract Steady Flow Metadata

Get plan information, program version, solution status, and flow file details.

Python
# Get steady flow information
steady_info = HdfResultsPlan.get_steady_info(plan_number)

print(f"Steady Flow Information ({len(steady_info.columns)} attributes):")
print("\nKey attributes:")
for col in ['Program Version', 'Solution', 'Flow Title', 'Flow Filename']:
    if col in steady_info.columns:
        print(f"  {col}: {steady_info[col].values[0]}")

print("\nAll attributes:")
steady_info.T
Text Only
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Extracted 8 steady state attributes


Steady Flow Information (8 attributes):

Key attributes:
  Program Version: HEC-RAS 6.6 September 2024
  Solution: Steady Finished Successfully
  Flow Title: Steady Flow Data
  Flow Filename: BaldEagle.f02

All attributes:
0
Program Name HEC-RAS - River Analysis System
Program Version HEC-RAS 6.6 September 2024
Project File Name C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
Type of Run Steady Flow Analysis
Run Time Window 12JAN2026 00:32:47 to 12JAN2026 00:32:48
Solution Steady Finished Successfully
Flow Filename BaldEagle.f02
Flow Title Steady Flow Data

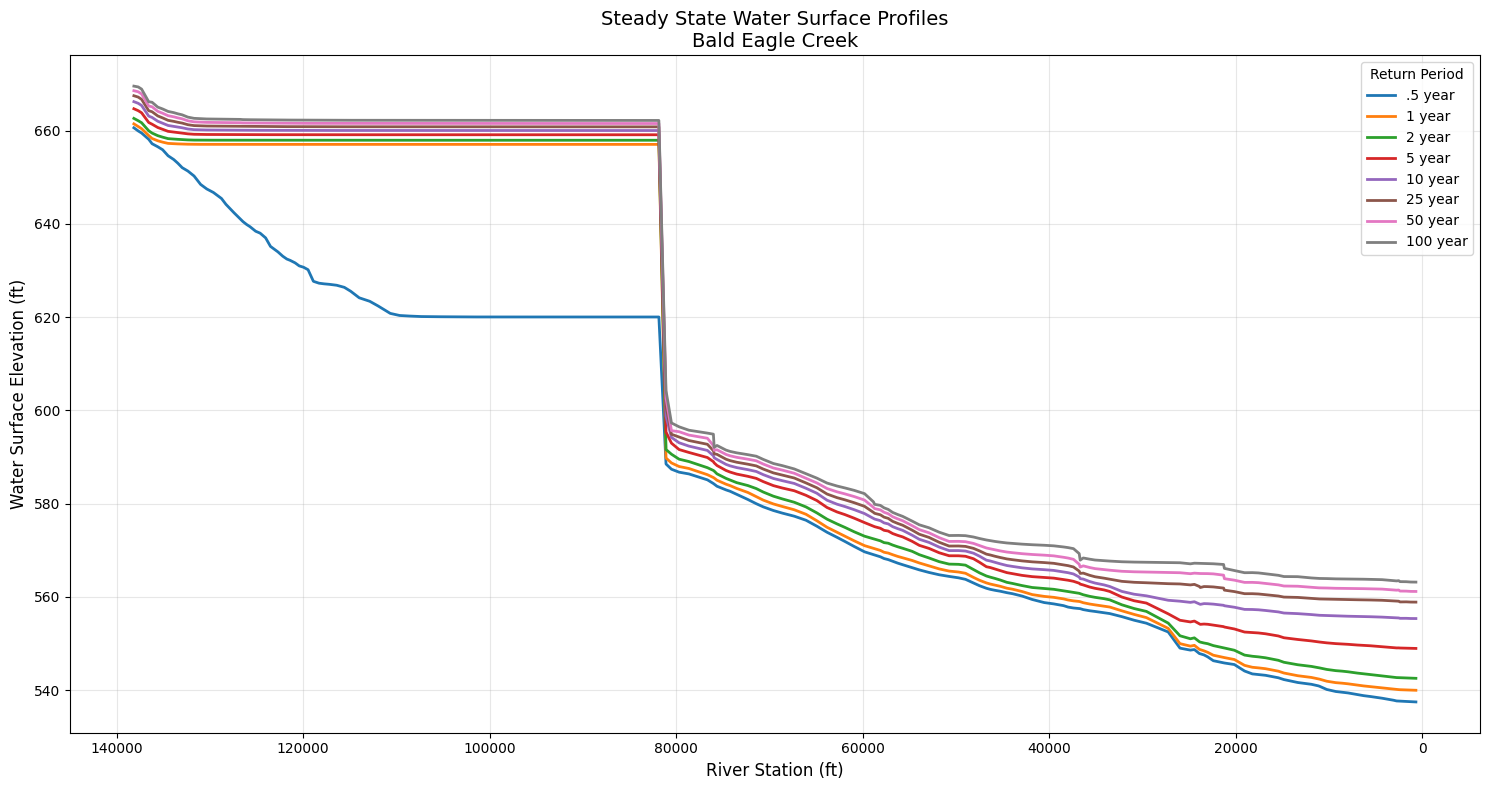

5. Visualize Water Surface Profiles

Plot WSE vs. station for different return periods.

Python
if generate_plots:
    # Create a plot comparing all profiles
    fig, ax = plt.subplots(figsize=(15, 8))

    # Plot each profile
    for profile in profiles:
        profile_data = wse_all[wse_all['Profile'] == profile]
        # Convert station to numeric for plotting
        stations = pd.to_numeric(profile_data['Station'], errors='coerce')
        ax.plot(stations, profile_data['WSE'], label=profile, linewidth=2)

    ax.set_xlabel('River Station (ft)', fontsize=12)
    ax.set_ylabel('Water Surface Elevation (ft)', fontsize=12)
    ax.set_title('Steady State Water Surface Profiles\nBald Eagle Creek', fontsize=14)
    ax.legend(title='Return Period', loc='best', fontsize=10)
    ax.grid(True, alpha=0.3)

    # Invert X axis so upstream (higher stations) is on the left
    ax.invert_xaxis()

    plt.tight_layout()
    plt.show()

    # Print profile comparison stats
    print("\nProfile Comparison (Maximum WSE):")
    for profile in profiles:
        max_wse = wse_all[wse_all['Profile'] == profile]['WSE'].max()
        print(f"  {profile:10s}: {max_wse:.2f} ft")

png

Text Only
Profile Comparison (Maximum WSE):
  .5 year   : 660.59 ft
  1 year    : 661.43 ft
  2 year    : 662.60 ft
  5 year    : 664.67 ft
  10 year   : 666.19 ft
  25 year   : 667.46 ft
  50 year   : 668.54 ft
  100 year  : 669.52 ft

6. Analyze WSE Differences Between Profiles

Compare water surface elevations between different return periods.

Python
# Create a pivot table for easy comparison
wse_pivot = wse_all.pivot_table(
    index=['River', 'Reach', 'Station'],
    columns='Profile',
    values='WSE'
)

print("Water Surface Elevations by Profile and Station:")
print("\nFirst 10 stations:")
wse_pivot.head(10)
Text Only
Water Surface Elevations by Profile and Station:

First 10 stations:
Profile .5 year 1 year 10 year 100 year 2 year 25 year 5 year 50 year
River Reach Station
Bald Eagle Loc Hav 100657.3 620.031982 657.029053 660.006348 662.170227 657.916138 660.793945 659.094055 661.508545
101440.3 620.033875 657.029053 660.006470 662.170593 657.916138 660.794067 659.094116 661.508850
10221.14 540.174683 541.939697 556.019287 563.945190 544.468933 559.538452 550.165833 561.924500
103122.3 620.044861 657.029053 660.006836 662.171753 657.916138 660.794678 659.094299 661.509705
103369.7 620.055420 657.029480 660.012878 662.186707 657.917175 660.803711 659.097473 661.521729
103854.0 620.059082 657.029480 660.012939 662.187012 657.917175 660.803894 659.097534 661.521973
104195.0 620.059875 657.029480 660.012878 662.186829 657.917175 660.803772 659.097473 661.521790
104647.2 620.066528 657.029480 660.013000 662.187378 657.917175 660.804077 659.097595 661.522217
105178.6 620.075806 657.029480 660.013367 662.188599 657.917175 660.804688 659.097717 661.523071
106466.0 620.093262 657.029419 660.013428 662.188782 657.917236 660.804871 659.097778 661.523315
Python
# Calculate differences between profiles
if '100 year' in wse_pivot.columns and '.5 year' in wse_pivot.columns:
    wse_pivot['Diff_100yr_vs_05yr'] = wse_pivot['100 year'] - wse_pivot['.5 year']

    print("\nDifference between 100-year and 0.5-year profiles:")
    print(f"  Maximum difference: {wse_pivot['Diff_100yr_vs_05yr'].max():.2f} ft")
    print(f"  Minimum difference: {wse_pivot['Diff_100yr_vs_05yr'].min():.2f} ft")
    print(f"  Average difference: {wse_pivot['Diff_100yr_vs_05yr'].mean():.2f} ft")

    print("\nStations with largest differences:")
    top_diff = wse_pivot.nlargest(5, 'Diff_100yr_vs_05yr')[['100 year', '.5 year', 'Diff_100yr_vs_05yr']]
    print(top_diff)
Text Only
Difference between 100-year and 0.5-year profiles:
  Maximum difference: 42.14 ft
  Minimum difference: 7.90 ft
  Average difference: 21.62 ft

Stations with largest differences:
Profile                        100 year     .5 year  Diff_100yr_vs_05yr
River      Reach   Station
Bald Eagle Loc Hav 96370.43  662.169006  620.027832           42.141174
                   94560.01  662.168457  620.027466           42.140991
                   93391.71  662.167664  620.027283           42.140381
                   97607.35  662.168640  620.028320           42.140320
                   98206.87  662.169983  620.029846           42.140137

7. Discover Available Steady State Variables

Use list_steady_variables() to explore what data is available in steady state results before extraction. This is essential for understanding the full scope of available outputs.

Summary

This notebook demonstrated the new steady state functionality in ras-commander:

  1. Checked if a plan contains steady state results
  2. Extracted profile names for different return periods
  3. Retrieved WSE data for individual and all profiles
  4. Accessed steady flow metadata and attributes
  5. Visualized water surface profiles
  6. Analyzed differences between profiles
  7. Discovered available steady state variables using list_steady_variables()

These tools enable comprehensive steady state flow analysis and comparison of hydraulic conditions across different design storms or flow scenarios.

Common Steady Flow Analysis Patterns

Pattern 1: Compare Profiles at Single Location

Python
# Extract WSE for all profiles at critical cross section
critical_xs = "10500"
profile_comparison = wse_df.loc[critical_xs, :]

# Plot profile comparison
profile_comparison.plot(kind='bar', title=f'WSE at XS {critical_xs}')

Pattern 2: Identify Critical Cross Sections

Python
# Find XS with highest WSE increase between 100yr and 500yr
wse_increase = wse_df['500yr'] - wse_df['100yr']
critical_locations = wse_increase.nlargest(10)

# These locations may need additional mitigation

Pattern 3: Energy Grade Line Analysis

Python
# Extract energy grade line (WSE + velocity head)
egl = wse + (velocity**2) / (2 * 32.2)  # g = 32.2 ft/s²

# Verify positive slope downstream
egl_slope = egl.diff()  # Should be positive

Pattern 4: Floodplain Delineation

Python
# Identify cross sections where 100yr WSE exceeds bank elevation
overbank_xs = wse_df[wse_df['100yr'] > bank_elevation]

# Export for GIS mapping
overbank_xs.to_csv('overbank_locations_100yr.csv')

Cross-References

  • Unsteady 1D: See 400_1d_hdf_data_extraction.ipynb for time-varying 1D results
  • 2D Steady: See 410_2d_hdf_data_extraction.ipynb (can also handle steady 2D)
  • Hydraulic Tables: HEC-RAS can export hydraulic property tables for each XS
Python
# Discover all available steady state variables in the HDF results
steady_vars = HdfResultsPlan.list_steady_variables(plan_number)

print("="*80)
print("STEADY STATE VARIABLE DISCOVERY")
print("="*80)

print(f"\n📊 Cross Section Variables ({len(steady_vars['cross_sections'])}):")
for var in sorted(steady_vars['cross_sections']):
    print(f"   • {var}")

print(f"\n📈 Additional Variables ({len(steady_vars['additional'])}):")
for var in sorted(steady_vars['additional']):
    print(f"   • {var}")

if steady_vars['structures']:
    print(f"\n🌉 Structure Variables ({len(steady_vars['structures'])}):")
    for var in sorted(steady_vars['structures']):
        print(f"   • {var}")
else:
    print("\n🌉 Structure Variables: None found (no inline structures)")

print("\n" + "="*80)
print("Use these variable names when querying specific hydraulic outputs.")
print("="*80)
Text Only
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_19\BaldEagle.p02.hdf
2026-01-12 00:32:49 - ras_commander.hdf.HdfResultsPlan - INFO - Found 3 XS vars, 53 additional vars, 0 structure vars


================================================================================
STEADY STATE VARIABLE DISCOVERY
================================================================================

📊 Cross Section Variables (3):
   • Energy Grade
   • Flow
   • Water Surface

📈 Additional Variables (53):
   • Alpha
   • Area Flow Channel
   • Area Flow Left OB
   • Area Flow Right OB
   • Area Flow Total
   • Area including Ineffective Channel
   • Area including Ineffective Left OB
   • Area including Ineffective Right OB
   • Area including Ineffective Total
   • Beta
   • Conveyance Channel
   • Conveyance Left OB
   • Conveyance Right OB
   • Conveyance Total
   • Critical Energy Grade
   • Critical Water Surface
   • EG Slope
   • Flow Channel
   • Flow Left OB
   • Flow Right OB
   • Flow Total
   • Friction Slope
   • Hydraulic Depth Channel
   • Hydraulic Depth Left OB
   • Hydraulic Depth Right OB
   • Hydraulic Depth Total
   • Hydraulic Radius Channel
   • Hydraulic Radius Left OB
   • Hydraulic Radius Right OB
   • Hydraulic Radius Total
   • Manning n Channel
   • Manning n Left OB
   • Manning n Right OB
   • Manning n Total
   • Maximum Depth Total
   • Shear
   • Top Width Channel
   • Top Width Channel including Ineffective
   • Top Width Left OB
   • Top Width Left OB including Ineffective
   • Top Width Right OB
   • Top Width Right OB including Ineffective
   • Top Width Total
   • Top Width Total including Ineffective
   • Velocity Channel
   • Velocity Left OB
   • Velocity Right OB
   • Velocity Total
   • Water Surface Total
   • Wetted Perimeter Channel
   • Wetted Perimeter Left OB
   • Wetted Perimeter Right OB
   • Wetted Perimeter Total

🌉 Structure Variables: None found (no inline structures)

================================================================================
Use these variable names when querying specific hydraulic outputs.
================================================================================
CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms seeking to modernize H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
