2D HDF Data Extraction

Overview

This notebook demonstrates extracting and analyzing 2D mesh results from HEC-RAS HDF5 files. 2D modeling represents overland flow using a computational mesh rather than 1D cross sections.

2D vs 1D Modeling: - 1D: Flow confined to channel, cross sections perpendicular to flow - 2D: Flow in two horizontal dimensions, mesh cells represent floodplain - Combined 1D/2D: Hybrid approach (channel in 1D, floodplain in 2D)

HDF5 Structure for 2D Results

Text Only
/Results/Unsteady/Output/
├── Output Blocks/
│   └── Base Output/
│       ├── Unsteady Time Series/
│       │   ├── 2D Flow Areas/
│       │   │   ├── {Area Name}/
│       │   │   │   ├── Depth/           # Water depth at cell centers
│       │   │   │   ├── Water Surface/   # WSE at cell centers
│       │   │   │   ├── Velocity/        # Velocity magnitude

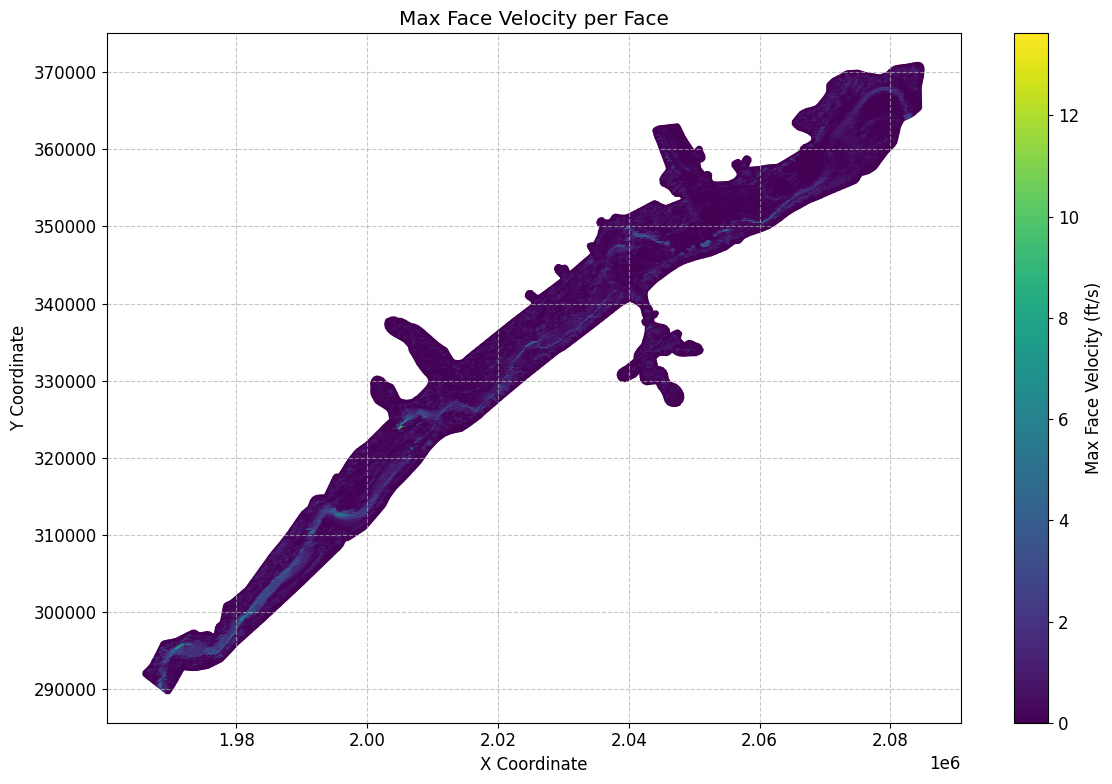

│       │   │   │   ├── Face Velocity/   # Velocity at cell faces

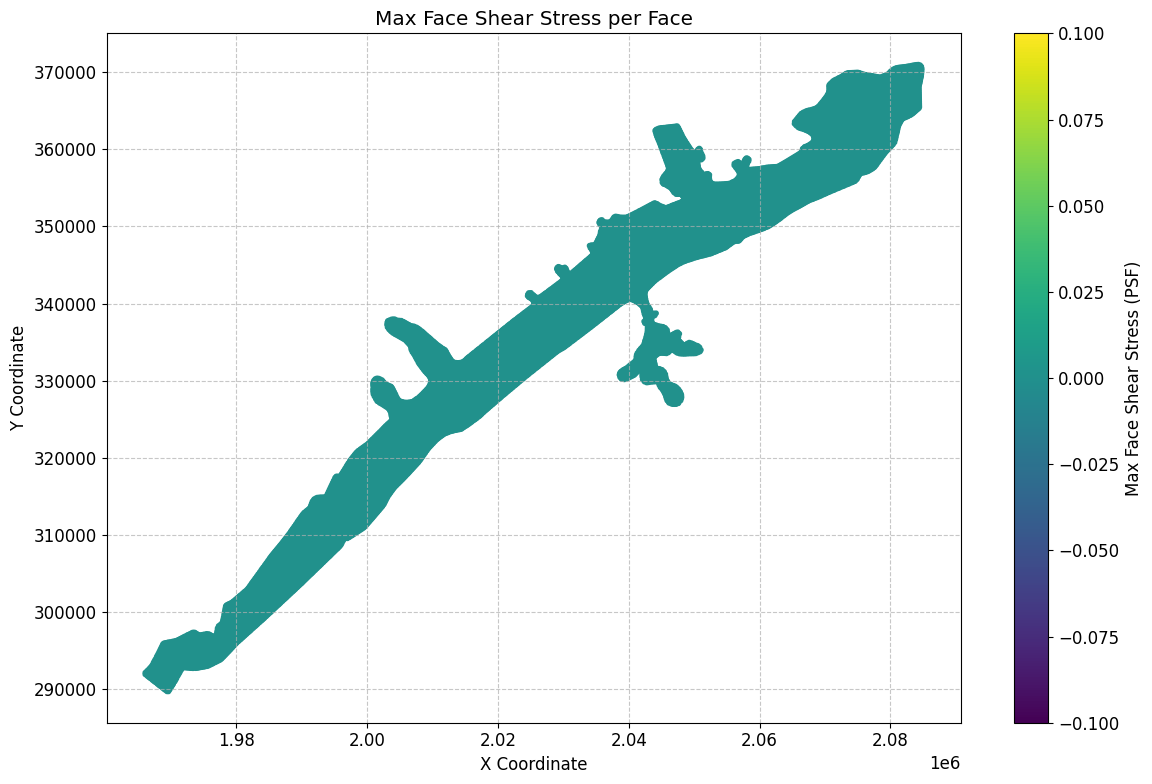

│       │   │   │   └── Shear Stress/    # Bed shear stress
│       └── Summary Output/
│           └── 2D Flow Areas/
│               └── {Area Name}/
│                   ├── Maximum/         # Maximum values over simulation
│                   └── Minimum/

Key 2D Datasets: - Mesh Geometry: /Geometry/2D Flow Areas/{Area}/Cells Center Coordinate - Cell Depth: Water depth at each mesh cell (ft or m) - Cell WSE: Water surface elevation (ft or m above datum) - Velocity: Velocity magnitude and direction at cell centers - Face Data: Velocity and flow at cell faces (see 412 notebook)

Reference Documentation

LLM Forward Engineering: 2D Model Verification

2D model results require additional verification due to mesh-based computation:

  1. Mass Balance: Verify inflow = outflow + storage change
  2. Mesh Resolution: Ensure cell size adequate for features of interest

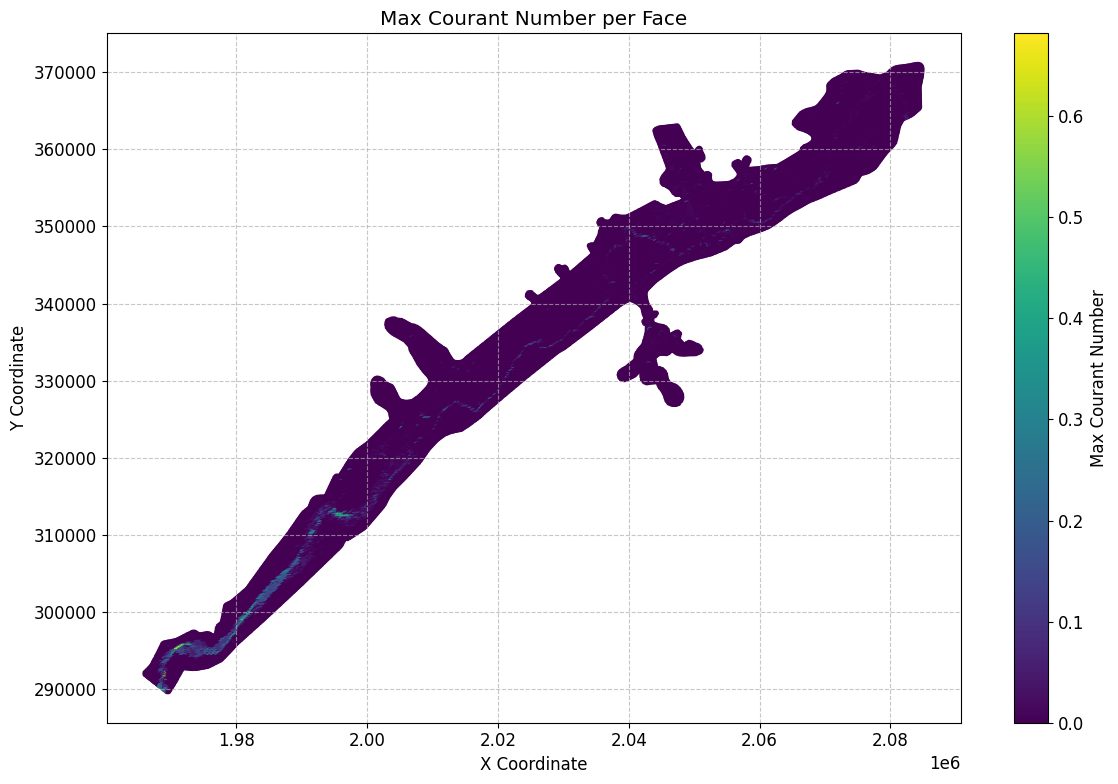

  3. Courant Number: Check for numerical stability (Courant < 1 typically)
  4. Wet/Dry Tracking: Verify wetting/drying front behaves physically
Python
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = True  # <-- TOGGLE THIS

if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path
    local_path = str(Path.cwd().parent)
    if local_path not in sys.path:
        sys.path.insert(0, local_path)
    print(f"📁 LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
    print("📦 PIP PACKAGE MODE: Loading installed ras-commander")

# Import ras-commander
from ras_commander import HdfBase, HdfBndry, HdfMesh, HdfPlan, HdfResultsMesh, HdfResultsPlan, HdfStruc, HdfUtils, RasCmdr, RasExamples, init_ras_project, ras

# Additional imports for this notebook
import h5py
import numpy as np
import pandas as pd
import requests
from tqdm import tqdm
import scipy
import xarray as xr
import geopandas as gpd
import matplotlib.pyplot as plt
from IPython import display
import psutil  # For getting system CPU info
from concurrent.futures import ThreadPoolExecutor, as_completed
import time
import subprocess
import os
import shutil
from datetime import datetime, timedelta
from pathlib import Path  # Ensure pathlib is imported for file operations
import rasterio
from rasterio.plot import show
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
import matplotlib.patches as patches
from matplotlib.patches import ConnectionPatch
import logging

# Verify which version loaded
import ras_commander
print(f"✓ Loaded: {ras_commander.__file__}")
Text Only
📁 LOCAL SOURCE MODE: Loading from c:\GH\ras-commander/ras_commander
✓ Loaded: c:\GH\ras-commander\ras_commander\__init__.py

Parameters

Configure these values to customize the notebook for your project.

Python
# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================
from pathlib import Path

# Project Configuration
PROJECT_NAME = "BaldEagleCrkMulti2D"           # Example project to extract
RAS_VERSION = "7.0"               # HEC-RAS version (6.3, 6.5, 6.6, etc.)

# HDF Analysis Settings
PLAN = "06"                       # Plan number (for HDF file path)
TIME_INDEX = -1                   # Time step index (-1 = last)
PROFILE = "Max"                   # Profile name for steady analysis

HEC-RAS 2D HDF Data Analysis Notebook

This notebook demonstrates how to manipulate and analyze HEC-RAS 2D HDF data using the ras-commander library. It leverages the HdfBase, HdfUtils, HdfStruc, HdfMesh, HdfXsec, HdfBndry, HdfPlan, HdfResultsPlan, HdfResultsMesh, and HdfResultsXsec classes to streamline data extraction, processing, and visualization.

Python
# Install ras-commander from pip (uncomment to install if needed)
#!pip install ras-commander
# This installs ras-commander and all dependencies

# Use this setting to disable plot generation within the notebook
generate_plots = True
# Use this setting to disable map generation within the notebook
generate_maps = True
# Set both to false for llm-friendly outputs

Use Example Project or Load Your Own Project

Python
# Extract or reuse the BaldEagleCrkMulti2D example project.
try:
    from _notebook_prereqs import ensure_plan_result_hdf, get_or_extract_example_project
except ModuleNotFoundError:
    import sys

    examples_dir = Path.cwd() if Path.cwd().name == "examples" else Path.cwd() / "examples"
    if examples_dir.exists() and str(examples_dir) not in sys.path:
        sys.path.insert(0, str(examples_dir))
    from _notebook_prereqs import ensure_plan_result_hdf, get_or_extract_example_project

the_path = get_or_extract_example_project(PROJECT_NAME, suffix="11")
print(f"Extracted project path: {the_path}")

# Verify the path exists
print(f"BaldEagleCrkMulti2D project exists: {the_path.exists()}")

# Initialize the RAS project using the default global ras object
import logging
init_ras_project(the_path, RAS_VERSION)
logging.info(f"Balde Eagle Mult 2D project initialized with folder: {ras.project_folder}")

# Ensure the required results HDF is present before analysis cells run.
plan_number = PLAN
plan_hdf = ensure_plan_result_hdf(
    plan_number,
    ras_object=ras,
    num_cores=2,
    clear_geompre=False,
)

print(f"Plan number set to: {plan_number}")
print(f"Plan HDF: {plan_hdf}")
Text Only
2026-01-12 00:35:46 - ras_commander.RasExamples - INFO - Found zip file: C:\GH\ras-commander\examples\Example_Projects_6_6.zip
2026-01-12 00:35:46 - ras_commander.RasExamples - INFO - Loading project data from CSV...
2026-01-12 00:35:46 - ras_commander.RasExamples - INFO - Loaded 68 projects from CSV.
2026-01-12 00:35:46 - ras_commander.RasExamples - INFO - ----- RasExamples Extracting Project -----
2026-01-12 00:35:46 - ras_commander.RasExamples - INFO - Extracting project 'BaldEagleCrkMulti2D' as 'BaldEagleCrkMulti2D_11'
2026-01-12 00:35:48 - ras_commander.RasExamples - INFO - Successfully extracted project 'BaldEagleCrkMulti2D' to C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11
2026-01-12 00:35:48 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.rasmap
2026-01-12 00:35:48 - ras_commander.RasPrj - INFO - Updated results_df with 11 plan(s)
2026-01-12 00:35:48 - root - INFO - Balde Eagle Mult 2D project initialized with folder: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11
2026-01-12 00:35:48 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11
2026-01-12 00:35:48 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06
2026-01-12 00:35:48 - ras_commander.RasUtils - INFO - Successfully updated file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06
2026-01-12 00:35:48 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 06
2026-01-12 00:35:48 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2026-01-12 00:35:48 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.prj" "C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06"


Extracted project to: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11
BaldEagleCrkMulti2D project exists: True


2026-01-12 00:39:22 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 06
2026-01-12 00:39:22 - ras_commander.RasCmdr - INFO - Total run time for plan 06: 213.96 seconds
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1695 characters from HDF
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Gridded Precip - Infiltration
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 120.0
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
c:\GH\ras-commander\ras_commander\RasPrj.py:1514: FutureWarning: The behavior of DataFrame concatenation with empty or all-NA entries is deprecated. In a future version, this will no longer exclude empty or all-NA columns when determining the result dtypes. To retain the old behavior, exclude the relevant entries before the concat operation.
  self.results_df = pd.concat([self.results_df, new_results], ignore_index=True)
2026-01-12 00:39:22 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


Plan number set to: 06
Python
# Display results summary from results_df
# This shows execution status, timing, and any errors/warnings for each plan
ras.results_df[['plan_number', 'plan_title', 'completed', 'has_errors', 'has_warnings', 'runtime_complete_process_hours']]
plan_number plan_title completed has_errors has_warnings runtime_complete_process_hours
0 13 PMF with Multi 2D Areas False False False NaN
1 15 1d-2D Dambreak Refined Grid False False False NaN
2 17 2D to 1D No Dam False False False NaN
3 18 2D to 2D Run False False False NaN
4 19 SA to 2D Dam Break Run False False False NaN
5 03 Single 2D Area - Internal Dam Structure False False False NaN
6 04 SA to 2D Area Conn - 2D Levee Structure False False False NaN
7 02 SA to Detailed 2D Breach False False False NaN
8 01 SA to Detailed 2D Breach FEQ False False False NaN
9 05 Single 2D area with Bridges FEQ False False False NaN
10 06 Gridded Precip - Infiltration True False False 0.058694

Extracting 2D Computation Messages

For 2D models, computation messages are especially important for understanding: - 2D mesh stability and timestep information - Wet/dry cell transitions - Volume accounting and mass balance - Performance metrics for large 2D meshes

Python
# Extract computation messages for 2D analysis
from ras_commander import HdfResultsPlan

print("="*80)
print("2D MODEL COMPUTATION MESSAGES")
print("="*80)

msgs_2d = HdfResultsPlan.get_compute_messages(plan_number)

if msgs_2d:
    print(f"\nExtracted {len(msgs_2d)} characters of computation messages\n")

    # Display first portion
    print("Computation messages (first 1000 characters):")
    print("-" * 80)
    print(msgs_2d[:1000])

    if len(msgs_2d) > 1000:
        print("\n... (truncated for display) ...")

    # Check for 2D-specific information
    print("\n" + "="*80)
    print("Looking for 2D-specific information...")
    print("="*80)

    lines = msgs_2d.split('\n')
    keywords = ['2d', 'mesh', 'timestep', 'volume', 'courant']
    relevant = [l for l in lines if any(kw in l.lower() for kw in keywords)]

    if relevant:
        print(f"Found {len(relevant)} lines with 2D-related information:")
        for line in relevant[:10]:
            print(f"  - {line.strip()}")
    else:
        print("No specific 2D keywords found in messages")
else:
    print("No computation messages available for this 2D plan")

print("\n" + "="*80)
Text Only
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1695 characters from HDF


================================================================================
2D MODEL COMPUTATION MESSAGES
================================================================================

Extracted 1695 characters of computation messages

Computation messages (first 1000 characters):
--------------------------------------------------------------------------------
Plan: 'Gridded Precip - Infiltration' (BaldEagleDamBrk.p06)
Simulation started at: 12Jan2026 12:35:50 AM

Writing Plan GIS Data...
Completed Writing Plan GIS Data
Writing Geometry...
Computing 2D Flow Area 'BaldEagleCr' tables: Property tables do not exist.
2D Flow Area 'BaldEagleCr' tables complete 7.55 sec
Completed Writing Geometry
Writing Event Conditions ...

Processing Precipitation data...
   (assumes geometry data is geo-referenced)
Finished Processing Precipitation data (1.555s)
Completed Writing Event Condition Data


Geometric Preprocessor HEC-RAS 6.6 September 2024


Finished Processing Geometry


Performing Unsteady Flow Simulation  HEC-RAS 6.6 September 2024


Unsteady Input Summary:
     2D Unsteady Diffusion Wave Equation Set (fastest)
     2D number of Solver Cores:    2

Maximum adaptive timestep = 40.0    Minimum adaptive timestep = 20.0
Initial adaptive timestep = 20.0

09SEP2018 00:01:20       timestep =            40

... (truncated for display) ...

================================================================================
Looking for 2D-specific information...
================================================================================
Found 12 lines with 2D-related information:
  - Computing 2D Flow Area 'BaldEagleCr' tables: Property tables do not exist.
  - 2D Flow Area 'BaldEagleCr' tables complete 7.55 sec
  - 2D Unsteady Diffusion Wave Equation Set (fastest)
  - 2D number of Solver Cores:    2
  - Maximum adaptive timestep = 40.0    Minimum adaptive timestep = 20.0
  - Initial adaptive timestep = 20.0
  - 09SEP2018 00:01:20       timestep =            40             (sec)
  - 12SEP2018 21:12:00       timestep =            20             (sec)
  - Overall Volume Accounting Error in Acre Feet:            0.4689
  - Overall Volume Accounting Error as percentage:          0.000331

================================================================================

OPTIONAL: Use your own project instead

your_project_path = Path(r"D:\yourprojectpath")

init_ras_project(your_project_path, "6.6") plan_number = "01" # Plan number to use for this notebook

If you use this code cell, don't run the previous cell or change to markdown

NOTE: Ensure the HDF Results file was generated by HEC-RAS Version 6.x or above

Explore Project Dataframes using 'ras' Object

Python
# Show ras object info
ras.plan_df
plan_number unsteady_number geometry_number Plan Title Program Version Short Identifier Simulation Date Computation Interval Mapping Interval Run HTab ... DSS File Friction Slope Method UNET D2 SolverType UNET D2 Name HDF_Results_Path Geom File Geom Path Flow File Flow Path full_path
0 13 07 06 PMF with Multi 2D Areas 5.10 PMF Multi 2D 01JAN1999,1200,04JAN1999,1200 30SEC 30MIN 1 ... dss 1 Pardiso (Direct) 193 None 06 C:\GH\ras-commander\examples\example_projects\... 07 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
1 15 12 08 1d-2D Dambreak Refined Grid 5.10 1D-2D Refined Grid 01JAN1999,1200,04JAN1999,1200 20SEC 5MIN 1 ... dss 1 NaN BaldEagleCr None 08 C:\GH\ras-commander\examples\example_projects\... 12 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
2 17 09 10 2D to 1D No Dam 5.00 2D to 1D No Dam 01JAN1999,1200,06JAN1999,1200 1MIN 5MIN 1 ... dss 1 NaN Upstream2D None 10 C:\GH\ras-commander\examples\example_projects\... 09 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
3 18 10 11 2D to 2D Run 5.00 2D to 2D Run 01JAN1999,1200,04JAN1999,1200 20SEC 5MIN 1 ... dss 1 NaN BaldEagleCr None 11 C:\GH\ras-commander\examples\example_projects\... 10 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
4 19 11 12 SA to 2D Dam Break Run 5.00 SA to 2D Dam Break 01JAN1999,1200,04JAN1999,1200 20SEC 10MIN 1 ... dss 1 NaN BaldEagleCr None 12 C:\GH\ras-commander\examples\example_projects\... 11 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
5 03 13 09 Single 2D Area - Internal Dam Structure 5.04 Single 2D 01JAN1999,1200,04JAN1999,1200 30SEC 10MIN 1 ... dss 1 NaN BaldEagleCr None 09 C:\GH\ras-commander\examples\example_projects\... 13 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
6 04 01 13 SA to 2D Area Conn - 2D Levee Structure 5.00 2D Levee Struc 01JAN1999,1200,04JAN1999,1200 20SEC 5MIN 1 ... dss 1 NaN BaldEagleCr None 13 C:\GH\ras-commander\examples\example_projects\... 01 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
7 02 01 01 SA to Detailed 2D Breach 5.10 SA-2D Det Brch 01JAN1999,1200,04JAN1999,1200 10SEC 5MIN 1 ... dss 1 Pardiso (Direct) BaldEagleCr None 01 C:\GH\ras-commander\examples\example_projects\... 01 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
8 01 01 01 SA to Detailed 2D Breach FEQ 5.03 SA-2D Det FEQ 01JAN1999,1200,04JAN1999,1200 5SEC 5MIN 1 ... dss 1 NaN BaldEagleCr None 01 C:\GH\ras-commander\examples\example_projects\... 01 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
9 05 02 03 Single 2D area with Bridges FEQ 5.10 Single 2D Bridges FEQ 01JAN1999,1200,04JAN1999,1200 5SEC 10MIN -1 ... dss 1 PARDISO (Direct) BaldEagleCr None 03 C:\GH\ras-commander\examples\example_projects\... 02 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...
10 06 03 09 Gridded Precip - Infiltration 6.00 Grid Precip Infiltration 09SEP2018,0000,14SEP2018,0000 20SEC 10MIN -1 ... dss 1 Pardiso (Direct) BaldEagleCr C:\GH\ras-commander\examples\example_projects\... 09 C:\GH\ras-commander\examples\example_projects\... 03 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...

11 rows × 29 columns

Python
ras.unsteady_df
unsteady_number full_path Flow Title Program Version Use Restart Precipitation Mode Wind Mode Met BC=Precipitation|Mode Met BC=Evapotranspiration|Mode Met BC=Precipitation|Expanded View Met BC=Precipitation|Constant Units Met BC=Precipitation|Gridded Source
0 07 C:\GH\ras-commander\examples\example_projects\... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
1 08 C:\GH\ras-commander\examples\example_projects\... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
2 09 C:\GH\ras-commander\examples\example_projects\... Upstream 2D 5.00 0 NaN NaN NaN NaN NaN NaN NaN
3 10 C:\GH\ras-commander\examples\example_projects\... 1972 Flood Event - 2D to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
4 11 C:\GH\ras-commander\examples\example_projects\... 1972 Flood Event - SA to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
5 12 C:\GH\ras-commander\examples\example_projects\... PMF for 1D - 2D 5.00 0 NaN NaN NaN NaN NaN NaN NaN
6 13 C:\GH\ras-commander\examples\example_projects\... Single 2D Area 5.00 0 NaN NaN NaN NaN NaN NaN NaN
7 01 C:\GH\ras-commander\examples\example_projects\... 1972 Flood Event - 2D Leve Structure 5.10 0 NaN NaN NaN NaN NaN NaN NaN
8 02 C:\GH\ras-commander\examples\example_projects\... Single 2D Area with Bridges 5.10 0 NaN NaN NaN NaN NaN NaN NaN
9 03 C:\GH\ras-commander\examples\example_projects\... Gridded Precipitation 6.00 0 Enable No Wind Forces Gridded None -1 mm/hr DSS
Python
ras.boundaries_df
unsteady_number boundary_condition_number river_reach_name river_station storage_area_name pump_station_name bc_type hydrograph_type Interval DSS File ... Flow Title Program Version Use Restart Precipitation Mode Wind Mode Met BC=Precipitation|Mode Met BC=Evapotranspiration|Mode Met BC=Precipitation|Expanded View Met BC=Precipitation|Constant Units Met BC=Precipitation|Gridded Source
0 07 1 Bald Eagle Cr. Lock Haven 137520 Flow Hydrograph Flow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
1 07 2 Bald Eagle Cr. Lock Haven 81454 Gate Opening None NaN NaN ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
2 07 3 Bald Eagle Cr. Lock Haven 28519 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
3 07 4 Bald Eagle Cr. Lock Haven 1 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR NaN ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
4 07 5 Bald Eagle Cr. Lock Haven 136948 82303 Uniform Lateral Inflow Hydrograph Uniform Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
5 07 6 Bald Eagle Cr. Lock Haven 80720 67130 Uniform Lateral Inflow Hydrograph Uniform Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
6 07 7 Bald Eagle Cr. Lock Haven 76865 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
7 07 8 Bald Eagle Cr. Lock Haven 67130 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
8 07 9 Bald Eagle Cr. Lock Haven 66041 1 Uniform Lateral Inflow Hydrograph Uniform Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
9 07 10 Bald Eagle Cr. Lock Haven -1867 Normal Depth None NaN NaN ... PMF with Multi 2D Areas 5.00 0 NaN NaN NaN NaN NaN NaN NaN
10 08 1 Bald Eagle Cr. Lock Haven 28519 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
11 08 2 Bald Eagle Cr. Lock Haven 1 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR NaN ... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
12 08 3 Bald Eagle Cr. Lock Haven 80720 67130 Uniform Lateral Inflow Hydrograph Uniform Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
13 08 4 Bald Eagle Cr. Lock Haven 76865 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
14 08 5 Bald Eagle Cr. Lock Haven 67130 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
15 08 6 Bald Eagle Cr. Lock Haven 66041 1 Uniform Lateral Inflow Hydrograph Uniform Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
16 08 7 Bald Eagle Cr. Lock Haven -1867 Normal Depth None NaN NaN ... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
17 08 8 Flow Hydrograph Flow Hydrograph 1HOUR NaN ... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
18 08 9 Bald Eagle Cr. Lock Haven 81454 Gate Opening None NaN NaN ... PMF for Upstream 2D 4.20 0 NaN NaN NaN NaN NaN NaN NaN
19 09 1 Bald Eagle Cr. Lock Haven 28519 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR Bald_Eagle_Creek.dss ... Upstream 2D 5.00 0 NaN NaN NaN NaN NaN NaN NaN
20 09 2 Bald Eagle Cr. Lock Haven -1867 Normal Depth None NaN NaN ... Upstream 2D 5.00 0 NaN NaN NaN NaN NaN NaN NaN
21 09 3 Flow Hydrograph Flow Hydrograph 1HOUR NaN ... Upstream 2D 5.00 0 NaN NaN NaN NaN NaN NaN NaN
22 10 1 Normal Depth None NaN NaN ... 1972 Flood Event - 2D to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
23 10 2 Normal Depth None NaN NaN ... 1972 Flood Event - 2D to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
24 10 3 Gate Opening None NaN NaN ... 1972 Flood Event - 2D to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
25 10 4 Flow Hydrograph Flow Hydrograph 1HOUR NaN ... 1972 Flood Event - 2D to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
26 11 1 Gate Opening None NaN NaN ... 1972 Flood Event - SA to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
27 11 2 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR NaN ... 1972 Flood Event - SA to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
28 11 3 Normal Depth None NaN NaN ... 1972 Flood Event - SA to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
29 11 4 Normal Depth None NaN NaN ... 1972 Flood Event - SA to 2D Run 5.00 0 NaN NaN NaN NaN NaN NaN NaN
30 12 1 Bald Eagle Cr. Lock Haven 137520 Flow Hydrograph Flow Hydrograph 15MIN Bald_Eagle_Creek.dss ... PMF for 1D - 2D 5.00 0 NaN NaN NaN NaN NaN NaN NaN
31 12 2 Bald Eagle Cr. Lock Haven 81454 Gate Opening None NaN NaN ... PMF for 1D - 2D 5.00 0 NaN NaN NaN NaN NaN NaN NaN
32 12 3 Normal Depth None NaN NaN ... PMF for 1D - 2D 5.00 0 NaN NaN NaN NaN NaN NaN NaN
33 12 4 Normal Depth None NaN NaN ... PMF for 1D - 2D 5.00 0 NaN NaN NaN NaN NaN NaN NaN
34 13 1 Normal Depth None NaN NaN ... Single 2D Area 5.00 0 NaN NaN NaN NaN NaN NaN NaN
35 13 2 Normal Depth None NaN NaN ... Single 2D Area 5.00 0 NaN NaN NaN NaN NaN NaN NaN
36 13 3 Flow Hydrograph Flow Hydrograph 1HOUR NaN ... Single 2D Area 5.00 0 NaN NaN NaN NaN NaN NaN NaN
37 13 4 Gate Opening None NaN NaN ... Single 2D Area 5.00 0 NaN NaN NaN NaN NaN NaN NaN
38 01 1 Gate Opening None NaN NaN ... 1972 Flood Event - 2D Leve Structure 5.10 0 NaN NaN NaN NaN NaN NaN NaN
39 01 2 Lateral Inflow Hydrograph Lateral Inflow Hydrograph 1HOUR NaN ... 1972 Flood Event - 2D Leve Structure 5.10 0 NaN NaN NaN NaN NaN NaN NaN
40 01 3 Normal Depth None NaN NaN ... 1972 Flood Event - 2D Leve Structure 5.10 0 NaN NaN NaN NaN NaN NaN NaN
41 01 4 Normal Depth None NaN NaN ... 1972 Flood Event - 2D Leve Structure 5.10 0 NaN NaN NaN NaN NaN NaN NaN
42 02 1 Normal Depth None NaN NaN ... Single 2D Area with Bridges 5.10 0 NaN NaN NaN NaN NaN NaN NaN
43 02 2 Normal Depth None NaN NaN ... Single 2D Area with Bridges 5.10 0 NaN NaN NaN NaN NaN NaN NaN
44 02 3 Flow Hydrograph Flow Hydrograph 1HOUR NaN ... Single 2D Area with Bridges 5.10 0 NaN NaN NaN NaN NaN NaN NaN
45 02 4 Gate Opening None NaN NaN ... Single 2D Area with Bridges 5.10 0 NaN NaN NaN NaN NaN NaN NaN
46 02 5 Normal Depth None NaN NaN ... Single 2D Area with Bridges 5.10 0 NaN NaN NaN NaN NaN NaN NaN
47 03 1 Normal Depth None NaN NaN ... Gridded Precipitation 6.00 0 Enable No Wind Forces Gridded None -1 mm/hr DSS
48 03 2 Flow Hydrograph Flow Hydrograph 1HOUR NaN ... Gridded Precipitation 6.00 0 Enable No Wind Forces Gridded None -1 mm/hr DSS
49 03 3 Normal Depth None NaN NaN ... Gridded Precipitation 6.00 0 Enable No Wind Forces Gridded None -1 mm/hr DSS
50 03 4 Gate Opening None NaN NaN ... Gridded Precipitation 6.00 0 Enable No Wind Forces Gridded None -1 mm/hr DSS

51 rows × 29 columns

Python
ras.get_hdf_entries()
plan_number unsteady_number geometry_number Plan Title Program Version Short Identifier Simulation Date Computation Interval Mapping Interval Run HTab ... DSS File Friction Slope Method UNET D2 SolverType UNET D2 Name HDF_Results_Path Geom File Geom Path Flow File Flow Path full_path
10 06 03 09 Gridded Precip - Infiltration 6.00 Grid Precip Infiltration 09SEP2018,0000,14SEP2018,0000 20SEC 10MIN -1 ... dss 1 Pardiso (Direct) BaldEagleCr C:\GH\ras-commander\examples\example_projects\... 09 C:\GH\ras-commander\examples\example_projects\... 03 C:\GH\ras-commander\examples\example_projects\... C:\GH\ras-commander\examples\example_projects\...

1 rows × 29 columns

Find Paths for Results and Geometry HDF's

Python
# Get the plan HDF path for the plan_number defined above
plan_hdf_path = ras.plan_df.loc[ras.plan_df['plan_number'] == plan_number, 'HDF_Results_Path'].values[0]
Python
plan_hdf_path
Text Only
'C:\\GH\\ras-commander\\examples\\example_projects\\BaldEagleCrkMulti2D_11\\BaldEagleDamBrk.p06.hdf'
Python
# Alternate: Get the geometry HDF path if you are extracting geometry elements from the geometry HDF
geom_hdf_path = ras.plan_df.loc[ras.plan_df['plan_number'] == plan_number, 'Geom Path'].values[0] + '.hdf'
Python
geom_hdf_path
Text Only
'C:\\GH\\ras-commander\\examples\\example_projects\\BaldEagleCrkMulti2D_11\\BaldEagleDamBrk.g09.hdf'

RAS-Commander's Decorators Allow for Flexible Function Calling

You can call most of the functions in the HDF* Classes using any of the following: 1. Plan/Geometry Number (with or without leading zeros): - "01", "1" - Plan/geometry number as string - 1 - Plan/geometry number as integer - "p01", "p1" - Plan number with 'p' prefix 2. Direct File Paths: - pathlib.Path object pointing to HDF file - String path to HDF file

  1. h5py.File Objects:
  2. Already opened HDF file object

The @standardize_input decorator handles all these input types consistently: - Validates the input exists and is accessible - Converts to proper pathlib.Path object - Handles RAS object references - Provides logging and error handling

This flexibility makes it easier to work with HDF files in different contexts while maintaining consistent behavior across the codebase, and helps prevent strict typing from introducing unnecessary friction for LLM Coding.

2D HDF Data Extraction Examples

Python
# Extract runtime and compute time data as dataframe
print("\nExtracting runtime and compute time data")
runtime_df = HdfResultsPlan.get_runtime_data(hdf_path=plan_number)
Text Only
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Gridded Precip - Infiltration
2026-01-12 00:39:22 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 120.0



Extracting runtime and compute time data
Python
runtime_df
Plan Name File Name Simulation Start Time Simulation End Time Simulation Duration (s) Simulation Time (hr) Completing Geometry (hr) Preprocessing Geometry (hr) Completing Event Conditions (hr) Unsteady Flow Computations (hr) Complete Process (hr) Unsteady Flow Speed (hr/hr) Complete Process Speed (hr/hr)
0 Gridded Precip - Infiltration BaldEagleDamBrk.p06.hdf 2018-09-09 2018-09-14 432000.0 120.0 N/A 0.000031 N/A 0.055529 0.058694 2161.015677 2044.505864
Python
# For all of the RasGeomHdf Class Functions, we will use geom_hdf_path
print(geom_hdf_path)

# For the example project, plan 06 is associated with geometry 09
# If you want to call the geometry by number, call RasHdfGeom functions with a number
# Otherwise, if you want to look up geometry hdf path by plan number, follow the logic in the previous code cells
Text Only
C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
Python
# Use HdfUtils for extracting projection
print("\nExtracting Projection from HDF")
projection = HdfBase.get_projection(hdf_path=geom_hdf_path)
Text Only
2026-01-12 00:39:22 - ras_commander.hdf.HdfBase - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf



Extracting Projection from HDF


2026-01-12 00:39:22 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf
Python
projection
Text Only
'EPSG:2271'
Python
# Use HdfPlan for geometry-related operations
print("\nExtracting Geometry Information")
geom_attrs = HdfPlan.get_geometry_information(geom_hdf_path)
Text Only
Extracting Geometry Information


2026-01-12 00:39:22 - ras_commander.hdf.HdfPlan - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfPlan - INFO - Getting geometry attributes from C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfPlan - INFO - Checking for Geometry group in C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfPlan - INFO - Getting root level geometry attributes
2026-01-12 00:39:22 - ras_commander.hdf.HdfPlan - INFO - Successfully extracted 21 root level geometry attributes
Python
geom_attrs
Value
Complete Geometry True
Extents [1960041.35636708, 2092643.59732271, 285497.89...
Geometry Time 2026-01-12 00:35:46
Infiltration Date Last Modified 2022-03-11 13:52:44
Infiltration File Date 2020-11-24 13:24:58
Infiltration Filename .\Soils Data\Infiltration.hdf
Infiltration Layername Infiltration
Land Cover Date Last Modified 2022-03-11 13:45:08
Land Cover File Date 2022-03-11 13:45:08
Land Cover Filename .\Land Classification\LandCover.hdf
Land Cover Layername LandCover
Percent Impervious Date Last Modified 2022-03-11 13:45:08
Percent Impervious File Date 2022-03-11 13:45:08
Percent Impervious Filename .\Land Classification\LandCover.hdf
Percent Impervious Layername LandCover
SI Units False
Terrain File Date 2015-02-09 08:26:58
Terrain Filename .\Terrain\Terrain50.hdf
Terrain Layername Terrain50
Title Single 2D Area - Internal Dam Structure
Version 1.0.20 (20Sep2024)
Python
# Use HdfMesh for geometry-related operations
print("\nListing 2D Flow Area Names")
flow_area_names = HdfMesh.get_mesh_area_names(geom_hdf_path)
Text Only
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf



Listing 2D Flow Area Names
Python
print("2D Flow Area Name (returned as list):")
flow_area_names
# Note: this is returned as a list because it is used internally by other functions.
Text Only
2D Flow Area Name (returned as list):





['BaldEagleCr']
Python
# Get 2D Flow Area Attributes (get_mesh_area_attributes)
print("\nExtracting 2D Flow Area Attributes")
flow_area_attributes = HdfMesh.get_mesh_area_attributes(geom_hdf_path)
Text Only
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf



Extracting 2D Flow Area Attributes
Python
flow_area_attributes
Value
Name b'BaldEagleCr'
Locked 0
Mann 0.04
Multiple Face Mann n 0
Composite LC 0
Cell Vol Tol 0.01
Cell Min Area Fraction 0.01
Face Profile Tol 0.01
Face Area Tol 0.01
Face Conv Ratio 0.02
Laminar Depth 0.2
Min Face Length Ratio 0.05
Spacing dx 250.0
Spacing dy 250.0
Shift dx NaN
Shift dy NaN
Cell Count 18066
Python
# Get 2D Flow Area Perimeter Polygons (get_mesh_areas)
print("\nExtracting 2D Flow Area Perimeter Polygons")
mesh_areas = HdfMesh.get_mesh_areas(geom_hdf_path)
Text Only
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf



Extracting 2D Flow Area Perimeter Polygons
Python
mesh_areas
mesh_name geometry
0 BaldEagleCr POLYGON ((2009315.708 321138.385, 2009371.858 ...
Python

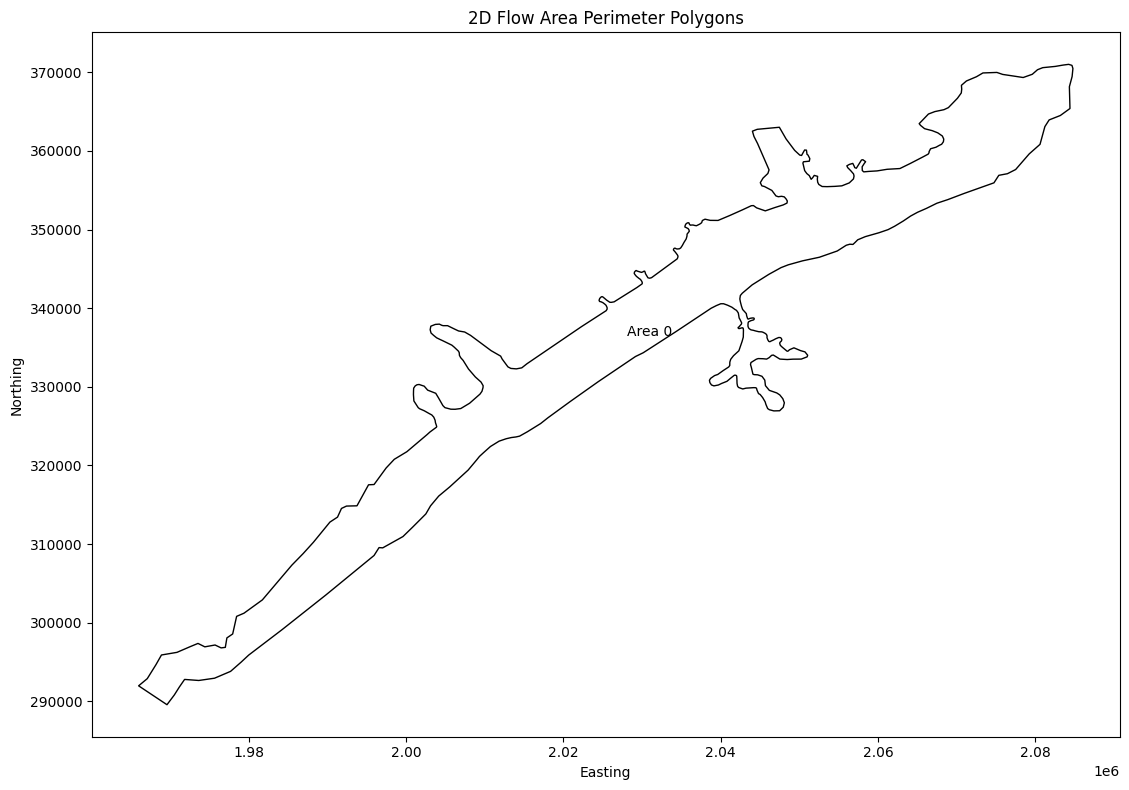

# Generate Map of Mesh Areas
if generate_plots:
    # Plot the 2D Flow Area Perimeter Polygons
    import matplotlib.pyplot as plt

    fig, ax = plt.subplots(figsize=(12, 8))
    mesh_areas.plot(ax=ax, edgecolor='black', facecolor='none')

    # Add labels for each polygon
    for idx, row in mesh_areas.iterrows():
        centroid = row.geometry.centroid
        # Check if 'Name' column exists, otherwise use a default label
        label = row.get('Name', f'Area {idx}')
        ax.annotate(label, (centroid.x, centroid.y), ha='center', va='center')

    plt.title('2D Flow Area Perimeter Polygons')
    plt.xlabel('Easting')
    plt.ylabel('Northing')
    plt.tight_layout()
    plt.show()

png

Python
# Get mesh cell faces as geodatframe
mesh_cell_faces_gdf = HdfMesh.get_mesh_cell_faces(geom_hdf_path)
Text Only
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:22 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:23 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:23 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:23 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:23 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf
Python
mesh_cell_faces_gdf
mesh_name face_id geometry
0 BaldEagleCr 0 LINESTRING (2042125 351625, 2042375 351625)
1 BaldEagleCr 1 LINESTRING (2042375 351625, 2042375 351875)
2 BaldEagleCr 2 LINESTRING (2042375 351875, 2042125 351875)
3 BaldEagleCr 3 LINESTRING (2042125 351875, 2042125 351625)
4 BaldEagleCr 4 LINESTRING (2042375 351375, 2042375 351625)
... ... ... ...
37589 BaldEagleCr 37589 LINESTRING (1978444.054 300812.794, 1978402.01...
37590 BaldEagleCr 37590 LINESTRING (1973531.76 297370.846, 1973246.989...
37591 BaldEagleCr 37591 LINESTRING (1968886.801 295900.5, 1968782.778 ...
37592 BaldEagleCr 37592 LINESTRING (1965981.775 291978.68, 1966280.11 ...
37593 BaldEagleCr 37593 LINESTRING (1969588.438 289578.114, 1969731.65...

37594 rows × 3 columns

Python
from matplotlib.collections import LineCollection
import numpy as np

# Calculate and display statistics
print("\nMesh Cell Faces Statistics:")
print(f"Total number of cell faces: {len(mesh_cell_faces_gdf)}")
print(f"Number of unique meshes: {mesh_cell_faces_gdf['mesh_name'].nunique()}")

if generate_maps:

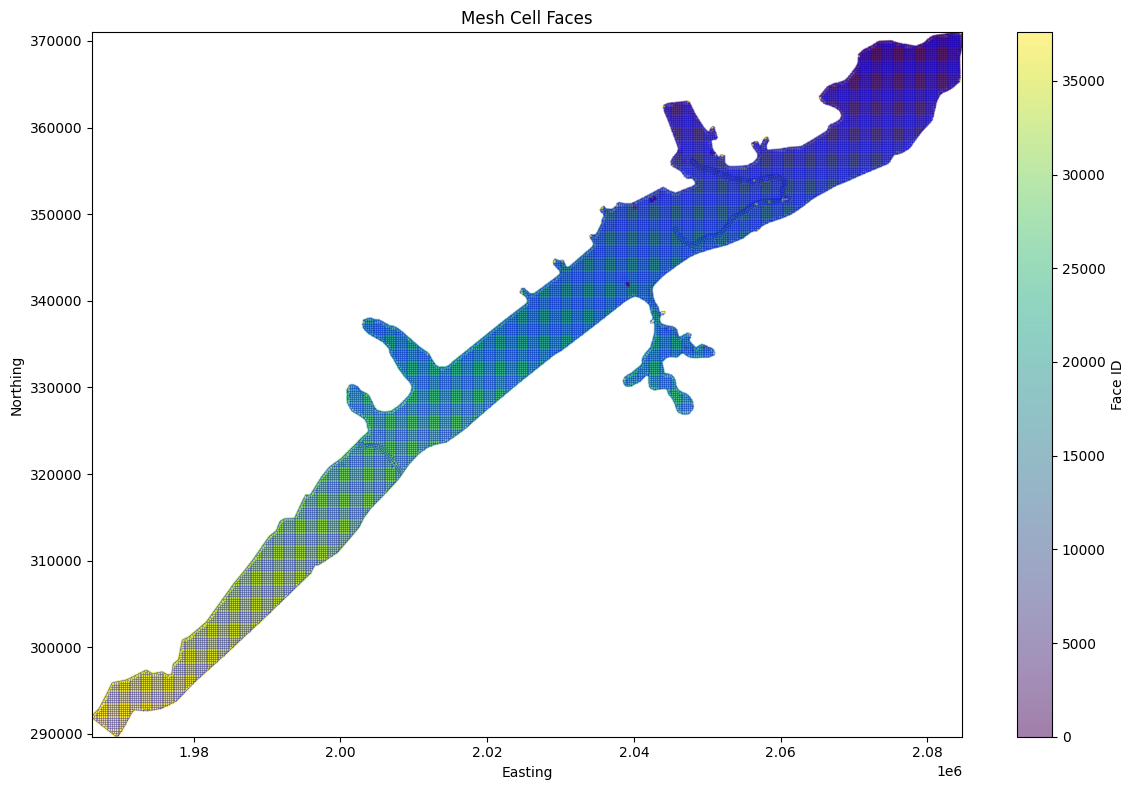

    # Plot the mesh cell faces more efficiently
    fig, ax = plt.subplots(figsize=(12, 8))

    # Convert all geometries to numpy arrays at once for faster plotting
    lines = [list(zip(*line.xy)) for line in mesh_cell_faces_gdf.geometry]
    lines_collection = LineCollection(lines, colors='blue', linewidth=0.5, alpha=0.5)
    ax.add_collection(lines_collection)

    # Set plot title and labels
    plt.title('Mesh Cell Faces')
    plt.xlabel('Easting')
    plt.ylabel('Northing')

    # Calculate centroids once and store as numpy arrays
    centroids = np.array([[geom.centroid.x, geom.centroid.y] for geom in mesh_cell_faces_gdf.geometry])

    # Create scatter plot with numpy arrays
    scatter = ax.scatter(
        centroids[:, 0],
        centroids[:, 1],
        c=mesh_cell_faces_gdf['face_id'],
        cmap='viridis',
        s=1,
        alpha=0.5
    )
    plt.colorbar(scatter, label='Face ID')

    # Set axis limits based on data bounds
    ax.set_xlim(centroids[:, 0].min(), centroids[:, 0].max())
    ax.set_ylim(centroids[:, 1].min(), centroids[:, 1].max())

    plt.tight_layout()
    plt.show()
else:
    print("generate_maps is False")
Text Only
Mesh Cell Faces Statistics:
Total number of cell faces: 37594
Number of unique meshes: 1

png

Python

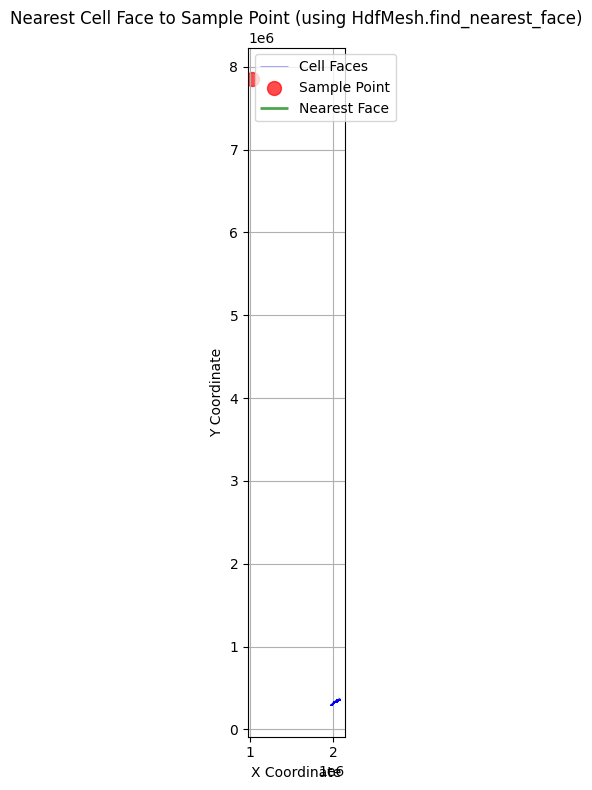

# Example: Find the nearest cell face to a given point using library API
# The HdfMesh.find_nearest_face() function replaces the notebook's custom helper

print("\nExample: Finding the nearest cell face to a given point")

from shapely.geometry import Point
import geopandas as gpd

# Ensure mesh_cell_faces_gdf exists from previous cell
if 'mesh_cell_faces_gdf' in dir() and not mesh_cell_faces_gdf.empty:
    # Create a deterministic sample point inside the project extent.
    representative_face = mesh_cell_faces_gdf.geometry.iloc[len(mesh_cell_faces_gdf) // 2]
    representative_centroid = representative_face.centroid
    sample_coords = (representative_centroid.x + 50.0, representative_centroid.y + 50.0)

    # Use library API to find nearest face
    # HdfMesh.find_nearest_face(point, cell_faces_gdf, mesh_name=None) -> (face_id, distance)
    nearest_face_id, distance = HdfMesh.find_nearest_face(sample_coords, mesh_cell_faces_gdf)

    print(f"Nearest cell face to point {sample_coords}:")
    print(f"Face ID: {nearest_face_id}")
    print(f"Distance: {distance:.2f} units")

    # Visualize the result
    if nearest_face_id is not None:
        fig, ax = plt.subplots(figsize=(12, 8))

        # Plot the sample point
        sample_point_gdf = gpd.GeoDataFrame(
            {'geometry': [Point(sample_coords)]},
            crs=mesh_cell_faces_gdf.crs
        )
        # Plot the nearest cell face
        nearest_face = mesh_cell_faces_gdf[mesh_cell_faces_gdf['face_id'] == nearest_face_id]
        nearest_geom = nearest_face.geometry.iloc[0]
        xmin, ymin, xmax, ymax = nearest_geom.union(sample_point_gdf.geometry.iloc[0]).bounds
        plot_margin = max(distance * 2.0, nearest_geom.length * 2.0, 250.0)
        local_window = mesh_cell_faces_gdf.cx[
            xmin - plot_margin:xmax + plot_margin,
            ymin - plot_margin:ymax + plot_margin,
        ]

        # Plot nearby cell faces so the nearest-face relationship is readable.
        local_window.plot(ax=ax, color='lightgray', linewidth=0.8, alpha=0.8, label='Nearby Cell Faces')
        nearest_face.plot(ax=ax, color='green', linewidth=3, alpha=0.9, label='Nearest Face')
        sample_point_gdf.plot(ax=ax, color='red', markersize=100, alpha=0.8, label='Sample Point')

        # Set labels and title
        ax.set_xlim(xmin - plot_margin, xmax + plot_margin)
        ax.set_ylim(ymin - plot_margin, ymax + plot_margin)
        ax.set_aspect('equal', adjustable='box')
        ax.set_xlabel('Project X Coordinate (ft)')
        ax.set_ylabel('Project Y Coordinate (ft)')
        ax.set_title(f'Nearest Cell Face to Sample Point (distance = {distance:.1f} ft)')

        # Add legend and grid
        ax.legend()
        ax.grid(True)

        plt.tight_layout()
        plt.show()
else:
    print("Note: mesh_cell_faces_gdf not available - run mesh cell faces extraction cell first")
Text Only
Example: Finding the nearest cell face to a given point
Nearest cell face to point (1025677, 7853731):
Face ID: 77
Distance: 7556793.63 units

png

Python
# Extract Cell Polygons
print("\nExample 6: Extracting Cell Polygons")
cell_polygons_df = HdfMesh.get_mesh_cell_polygons(geom_hdf_path)
Text Only
2026-01-12 00:39:26 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf



Example 6: Extracting Cell Polygons


2026-01-12 00:39:26 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:26 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:27 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:27 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:27 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:27 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf
Python
cell_polygons_df
mesh_name cell_id geometry
0 BaldEagleCr 0 POLYGON ((2082875 370625, 2082723.922 370776.0...
1 BaldEagleCr 1 POLYGON ((2083125 370625, 2083125 370844.185, ...
2 BaldEagleCr 2 POLYGON ((2083375 370625, 2083375 370886.638, ...
3 BaldEagleCr 3 POLYGON ((2083625 370625, 2083625 370925.693, ...
4 BaldEagleCr 4 POLYGON ((2083875 370625, 2083875 370958.588, ...
... ... ... ...
18061 BaldEagleCr 18061 POLYGON ((2060605.501 351955.442, 2060652.06 3...
18062 BaldEagleCr 18062 POLYGON ((2060652.06 351777.237, 2060849.045 3...
18063 BaldEagleCr 18063 POLYGON ((2060875 351951.343, 2060929.66 35193...
18064 BaldEagleCr 18064 POLYGON ((2060991.954 351624.893, 2060964.72 3...
18065 BaldEagleCr 18065 POLYGON ((2061172.274 351856.061, 2061298.822 ...

18066 rows × 3 columns

Python

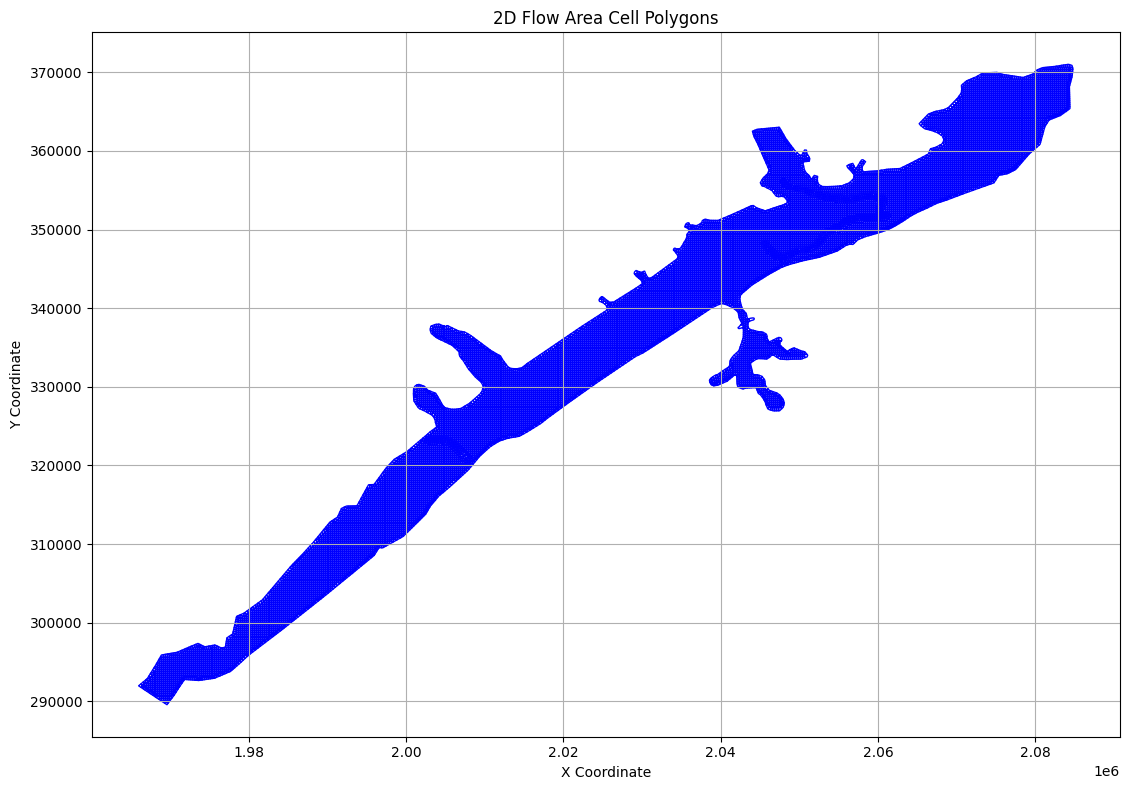

# Plot cell polygons

if generate_maps:
    fig, ax = plt.subplots(figsize=(12, 8))

    # Plot cell polygons
    cell_polygons_df.plot(ax=ax, edgecolor='blue', facecolor='none')

    # Set labels and title
    ax.set_xlabel('X Coordinate')
    ax.set_ylabel('Y Coordinate')
    ax.set_title('2D Flow Area Cell Polygons')

    # Add grid
    ax.grid(True)

    # Adjust layout and display
    plt.tight_layout()
    plt.show()
else:
    print("generate_maps is set to False")

png

Python
# Extract Cell Info
print("\nExample 5: Extracting Cell Info")
cell_info_df = HdfMesh.get_mesh_cell_points(geom_hdf_path)
Text Only
2026-01-12 00:39:29 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf



Example 5: Extracting Cell Info
Python
cell_info_df
mesh_name cell_id geometry
0 BaldEagleCr 0 POINT (2083000 370750)
1 BaldEagleCr 1 POINT (2083250 370750)
2 BaldEagleCr 2 POINT (2083500 370750)
3 BaldEagleCr 3 POINT (2083750 370750)
4 BaldEagleCr 4 POINT (2084000 370750)
... ... ... ...
19592 BaldEagleCr 19592 POINT (1978423.032 300718.897)
19593 BaldEagleCr 19593 POINT (1973389.375 297311.928)
19594 BaldEagleCr 19594 POINT (1968834.79 295808.861)
19595 BaldEagleCr 19595 POINT (1966130.942 291879.395)
19596 BaldEagleCr 19596 POINT (1969660.046 289673.23)

19597 rows × 3 columns

Python

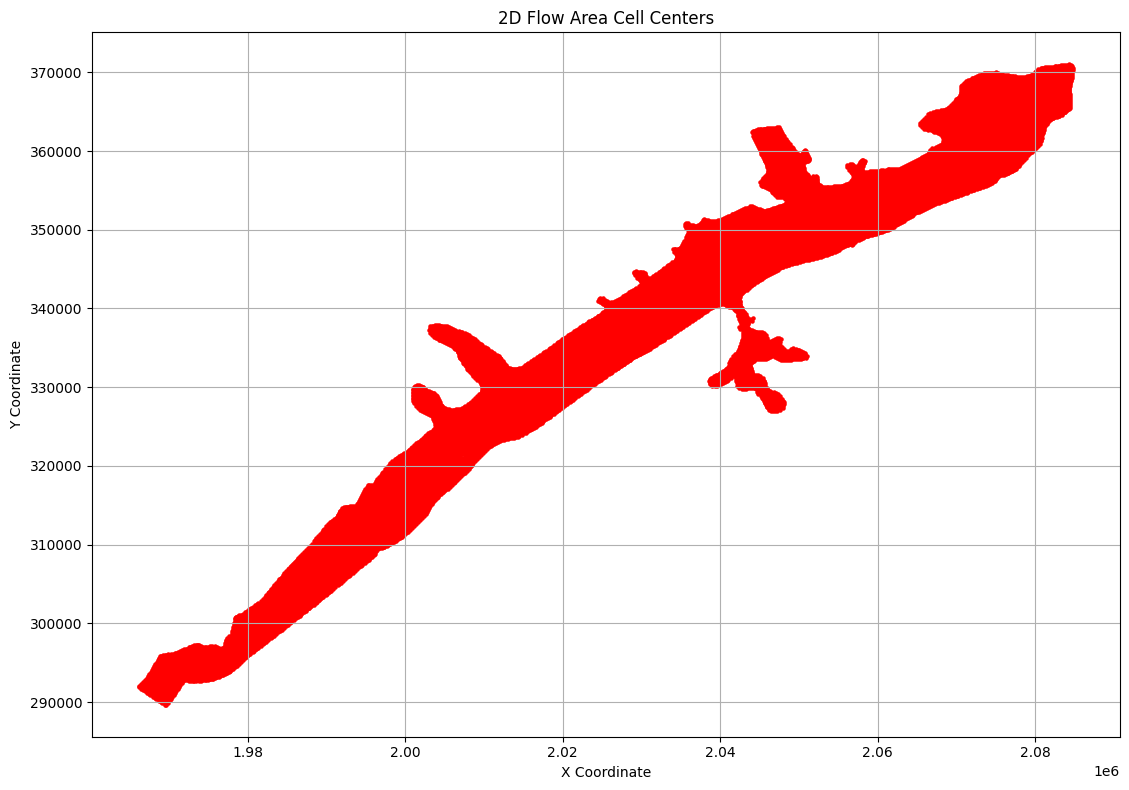

# Plot cell centers

if generate_maps:
    fig, ax = plt.subplots(figsize=(12, 8))

    # Plot cell centers
    cell_info_df.plot(ax=ax, color='red', markersize=5)

    # Set labels and title
    ax.set_xlabel('X Coordinate')
    ax.set_ylabel('Y Coordinate')
    ax.set_title('2D Flow Area Cell Centers')

    # Add grid
    ax.grid(True)

    # Adjust layout and display
    plt.tight_layout()
    plt.show()
else:
    print("generate_maps is set to False")

png

Python
# Get geometry structures attributes
print("\nGetting geometry structures attributes as Dataframe")
geom_structures_attrs = HdfStruc.get_geom_structures_attrs(geom_hdf_path)
Text Only
2026-01-12 00:39:29 - ras_commander.hdf.HdfStruc - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfStruc - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf



Getting geometry structures attributes as Dataframe
Python
geom_structures_attrs
Bridge/Culvert Count Connection Count Has Bridge Opening (2D) Inline Structure Count Lateral Structure Count
0 0 1 0 0 0
Python
# TODO: Paths and Functions for each type of structure:

# Getting geometry structures attributes
# Geometry structures attributes:
# Bridge/Culvert Count: 0
# Connection Count: 4
# Has Bridge Opening (2D): 0
# Inline Structure Count: 0
# Lateral Structure Count: 0
Python
# Get boundary condition lines
print("\nExtracting Boundary Condition Lines as Geodataframe")
bc_lines_df = HdfBndry.get_bc_lines(geom_hdf_path)
Text Only
2026-01-12 00:39:29 - ras_commander.hdf.HdfBndry - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBndry - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf



Extracting Boundary Condition Lines as Geodataframe
Python
bc_lines_df
Name SA-2D Type Length geometry bc_line_id
0 DSNormalDepth BaldEagleCr External 1801.303345 LINESTRING (2082004.235 364024.82, 2083193.546... 0
1 DS2NormalD BaldEagleCr External 2633.932617 LINESTRING (2084425.804 365392.892, 2084354.64... 1
2 Upstream Inflow BaldEagleCr External 2533.638672 LINESTRING (1967473.737 290973.629, 1969582.89... 2
Python

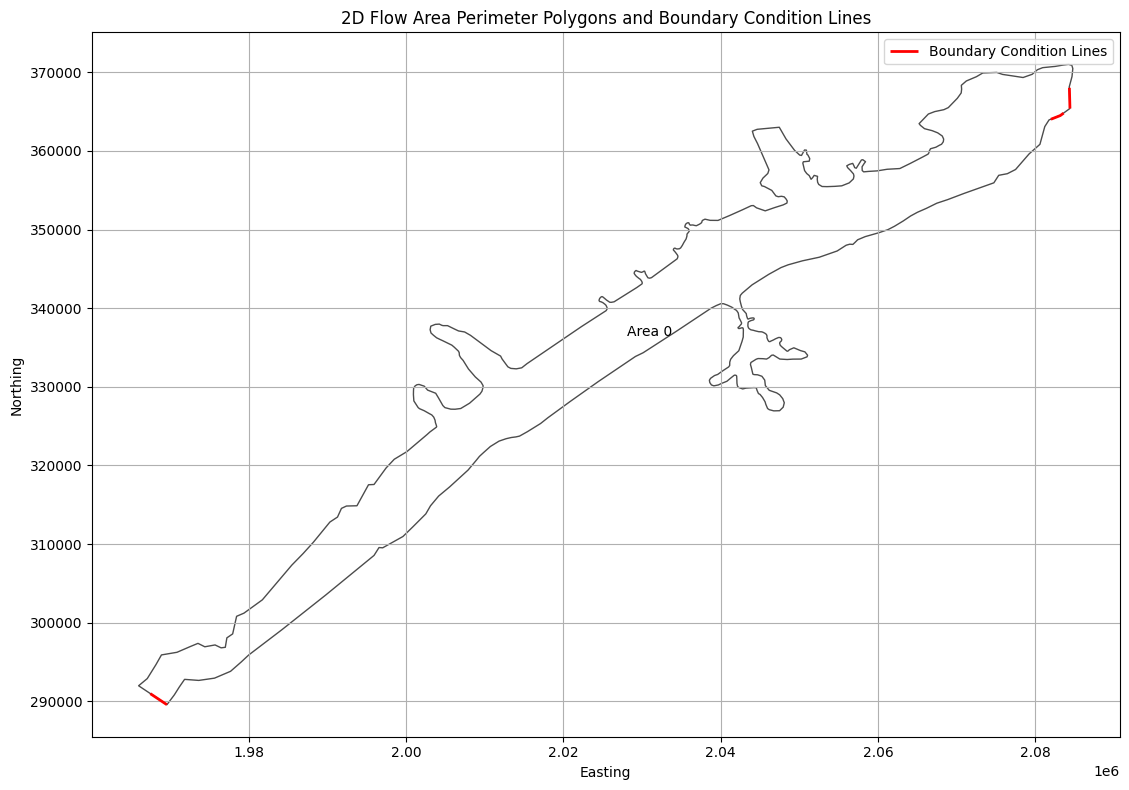

# Plot Boundary Condition Lines with Perimeter

if generate_maps:
    fig, ax = plt.subplots(figsize=(12, 8))

    if not mesh_areas.empty:
        mesh_areas.plot(ax=ax, edgecolor='black', facecolor='none', alpha=0.7, label='2D Flow Area')

        # Add labels for each polygon
        for idx, row in mesh_areas.iterrows():
            centroid = row.geometry.centroid
            label = row.get('Name', f'Area {idx}')
            ax.annotate(label, (centroid.x, centroid.y), ha='center', va='center')

    # Plot boundary condition lines
    if not bc_lines_df.empty:
        bc_lines_df.plot(ax=ax, color='red', linewidth=2, label='Boundary Condition Lines')

    # Set labels and title
    ax.set_xlabel('Easting')
    ax.set_ylabel('Northing')
    ax.set_title('2D Flow Area Perimeter Polygons and Boundary Condition Lines')

    # Add grid and legend
    ax.grid(True)
    ax.legend()

    # Adjust layout and display
    plt.tight_layout()
    plt.show()

else:
    print("generate_maps is set to False")
# Plot 2D Flow Area Perimeter Polygons
Text Only
C:\Users\billk_clb\AppData\Local\Temp\ipykernel_274292\268397963.py:26: UserWarning: Legend does not support handles for PatchCollection instances.
See: https://matplotlib.org/stable/tutorials/intermediate/legend_guide.html#implementing-a-custom-legend-handler
  ax.legend()

png

Python
# Extract Breaklines as Geodataframe
print("\nExtracting Breaklines")
breaklines_gdf = HdfBndry.get_breaklines(geom_hdf_path)
Text Only
2026-01-12 00:39:29 - ras_commander.hdf.HdfBndry - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBndry - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:29 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf



Extracting Breaklines
Python
breaklines_gdf
bl_id Name geometry
0 0 SayersDam LINESTRING (2002361.246 323707.927, 2002741.35...
1 1 Lower LINESTRING (2060356.422 351786.819, 2060316.47...
2 2 Middle LINESTRING (2052757.788 348470.547, 2052785.84...
3 3 Upper LINESTRING (2045597.199 348412.994, 2045638.91...
Python

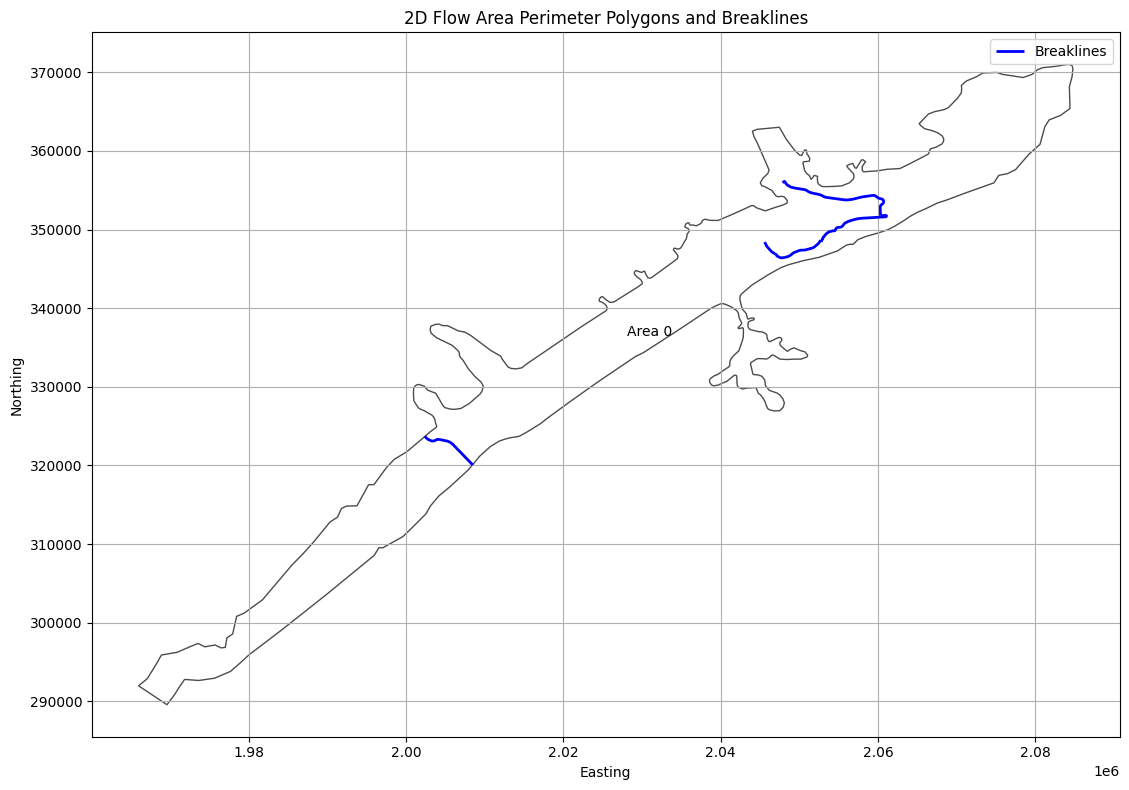

# Plot breaklines and 2D Flow Area Perimeter Polygons

if generate_plots:
    fig, ax = plt.subplots(figsize=(12, 8))

    # Plot 2D Flow Area Perimeter Polygons
    if not mesh_areas.empty:
        mesh_areas.plot(ax=ax, edgecolor='black', facecolor='none', alpha=0.7, label='2D Flow Area')

        # Add labels for each polygon
        for idx, row in mesh_areas.iterrows():
            centroid = row.geometry.centroid
            label = row.get('Name', f'Area {idx}')
            ax.annotate(label, (centroid.x, centroid.y), ha='center', va='center')

    # Plot breaklines
    if not breaklines_gdf.empty:
        breaklines_gdf.plot(ax=ax, color='blue', linewidth=2, label='Breaklines')

    # Set labels and title
    ax.set_xlabel('Easting')
    ax.set_ylabel('Northing')
    ax.set_title('2D Flow Area Perimeter Polygons and Breaklines')

    # Add grid and legend
    ax.grid(True)
    ax.legend()

    # Adjust layout and display
    plt.tight_layout()
    plt.show()
Text Only
C:\Users\billk_clb\AppData\Local\Temp\ipykernel_274292\3295158439.py:27: UserWarning: Legend does not support handles for PatchCollection instances.
See: https://matplotlib.org/stable/tutorials/intermediate/legend_guide.html#implementing-a-custom-legend-handler
  ax.legend()

png

Python
# Get structures as GeoDatframe
structures_gdf = HdfStruc.get_structures(geom_hdf_path)
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfStruc - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfStruc - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfStruc - INFO - Successfully extracted structures GeoDataFrame.
2026-01-12 00:39:30 - ras_commander.hdf.HdfStruc - INFO - Successfully extracted structures GeoDataFrame with attributes.
Python
structures_gdf
Type Mode River Reach RS Connection Groupname US Type US River US Reach ... US XS Mann (Count) US BR Mann (Index) US BR Mann (Count) DS XS Mann (Index) DS XS Mann (Count) DS BR Mann (Index) DS BR Mann (Count) RC (Index) RC (Count) Profile_Data
0 Connection Weir/Gate/Culverts Sayers Dam BaldEagleCr, Sayers Dam 2D ... 0 0 0 0 0 0 0 0 0 [{'Station': 0.0, 'Elevation': 683.0}, {'Stati...

1 rows × 162 columns

Python
# Get boundary condition lines as GeoDatframe
bc_lines_gdf = HdfBndry.get_bc_lines(geom_hdf_path)
print("\nBoundary Condition Lines:")
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfBndry - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBndry - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf



Boundary Condition Lines:
Python
bc_lines_gdf
Name SA-2D Type Length geometry bc_line_id
0 DSNormalDepth BaldEagleCr External 1801.303345 LINESTRING (2082004.235 364024.82, 2083193.546... 0
1 DS2NormalD BaldEagleCr External 2633.932617 LINESTRING (2084425.804 365392.892, 2084354.64... 1
2 Upstream Inflow BaldEagleCr External 2533.638672 LINESTRING (1967473.737 290973.629, 1969582.89... 2

Dev Note: Need to add function for Reference Lines

Python
# Get reference points as Geodataframe
ref_points_gdf = HdfBndry.get_reference_points(geom_hdf_path)
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfBndry - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBndry - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
Python
print("\nReference Points:")
ref_points_gdf
# There are no reference points in this example project (for demonstration only)
Text Only
Reference Points:
Python
# Extract Refinement Regions
refinement_regions_df = HdfBndry.get_refinement_regions(geom_hdf_path)
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfBndry - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBndry - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
Python
refinement_regions_df
Python
# Plot Refinement Regions

if not refinement_regions_df.empty:
    print("Refinement Regions DataFrame:")
    display(refinement_regions_df.head())

    # Plot refinement regions
    fig, ax = plt.subplots(figsize=(12, 8))
    refinement_regions_df.plot(ax=ax, column='CellSize', legend=True,
                               legend_kwds={'label': 'Cell Size', 'orientation': 'horizontal'},
                               cmap='viridis')
    ax.set_title('2D Mesh Area Refinement Regions')
    ax.set_xlabel('Easting')
    ax.set_ylabel('Northing')
    plt.tight_layout()
    plt.show()
else:
    print("No refinement regions found in the geometry file.")

# Analyze Refinement Regions
if not refinement_regions_df.empty:
    print("\nRefinement Regions Analysis:")
    print(f"Total number of refinement regions: {len(refinement_regions_df)}")
    print("\nCell Size Statistics:")
    print(refinement_regions_df['CellSize'].describe())

    # Group by Shape Type
    shape_type_counts = refinement_regions_df['ShapeType'].value_counts()
    print("\nRefinement Region Shape Types:")
    print(shape_type_counts)

    # Plot Shape Type distribution
    plt.figure(figsize=(10, 6))
    shape_type_counts.plot(kind='bar')
    plt.title('Distribution of Refinement Region Shape Types')
    plt.xlabel('Shape Type')
    plt.ylabel('Count')
    plt.xticks(rotation=45)
    plt.tight_layout()
    plt.show()
Text Only
No refinement regions found in the geometry file.
Python
# Extract Plan Parameters
plan_parameters_df = HdfPlan.get_plan_parameters(plan_hdf_path)
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfPlan - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
Python
plan_parameters_df
Plan Parameter Value
0 06 1D Cores 2
1 06 1D Flow Tolerance NaN
2 06 1D Maximum Iterations 20
3 06 1D Maximum Iterations Without Improvement 0
4 06 1D Maximum Water Surface Error To Abort 100.0
5 06 1D Methodology Finite Difference
6 06 1D Storage Area Elevation Tolerance 0.02
7 06 1D Theta 1.0
8 06 1D Theta Warmup 1.0
9 06 1D Water Surface Elevation Tolerance 0.02
10 06 1D-2D Flow Tolerance 1.0
11 06 1D-2D Gate Flow Submergence Decay Exponent 1.0
12 06 1D-2D IS Stablity Factor 1.0
13 06 1D-2D LS Stablity Factor 2.0
14 06 1D-2D Maximum Iterations 0
15 06 1D-2D Maximum Number of Time Slices 20
16 06 1D-2D Minimum Flow Tolerance NaN
17 06 1D-2D Minimum Time Step for Slicing(hours) 0.0
18 06 1D-2D Number of Warmup Steps 0
19 06 1D-2D Warmup Time Step (hours) 0.0
20 06 1D-2D Water Surface Tolerance 0.02
21 06 1D-2D Weir Flow Submergence Decay Exponent 1.0
22 06 2D Advanced Convergence 0
23 06 2D Boundary Condition Ramp Up Fraction 0.5
24 06 2D Boundary Condition Volume Check False
25 06 2D Cores (per mesh) 2
26 06 2D Coriolis False
27 06 2D Equation Set Diffusion Wave
28 06 2D Initial Conditions Ramp Up Time (hrs) 0.0
29 06 2D Latitude for Coriolis 340282346638528859811704183484516925440.0
30 06 2D Longitudinal Mixing Coefficient 0.0
31 06 2D Matrix Solver Pardiso
32 06 2D Maximum Iterations 20
33 06 2D Names BaldEagleCr
34 06 2D Number of Time Slices 1
35 06 2D Only True
36 06 2D Smagorinsky Mixing Coefficient 0.0
37 06 2D Theta 1.0
38 06 2D Theta Warmup 1.0
39 06 2D Transverse Mixing Coefficient 0.0
40 06 2D Turbulence Formulation None
41 06 2D Volume Tolerance 0.01
42 06 2D WS Max Tolerance 0.0
43 06 2D WS RMS Tolerance 0.0
44 06 2D WS Stalling Tolerance 0.0
45 06 2D Water Surface Tolerance 0.01
46 06 Friction Slope Average Method (BR) Average Conveyance
47 06 Friction Slope Average Method (XS) Average Friction Slope
48 06 Gravity 32.174
49 06 HDF Additional Output Variables [Cell Velocity, Face Eddy Viscosity, Face Flow...
50 06 HDF Chunk Size 1.0
51 06 HDF Compression 1
52 06 HDF Fixed Rows 1
53 06 HDF Flush Buffer False
54 06 HDF Spatial Parts 1
55 06 HDF Use Max Rows 0
56 06 HDF Write Time Slices False
57 06 HDF Write Warmup False
58 06 Pardiso Solver False
Python
# Extract volume accounting data
volume_accounting_df = HdfResultsPlan.get_volume_accounting(plan_hdf_path)
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfResultsPlan - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
Python
volume_accounting_df
Error Error Percent Precipitation Excess (acre feet) Precipitation Excess (inches) Total Boundary Flux of Water In Total Boundary Flux of Water Out Vol Accounting in Volume Ending Volume Starting
0 0.468872 0.000331 3756.872803 1.707615 141685.0 17240.263672 Acre Feet 124445.203125 0.0

RasPlanHdf Class Functions

Python
# Get plan start time as datetime object
start_time = HdfPlan.get_plan_start_time(plan_hdf_path)
print(f"Simulation start time: {start_time}")
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfPlan - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf


Simulation start time: 2018-09-09 00:00:00

Simulation start time: 2018-09-09 00:00:00

Python
# Get plan end time as datetime object
end_time = HdfPlan.get_plan_end_time(plan_hdf_path)
print(f"Simulation end time: {end_time}")
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfPlan - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf


Simulation end time: 2018-09-14 00:00:00

Simulation end time: 2018-09-14 00:00:00

Python
# Get maximum iteration count for mesh cells
max_iter_gdf = HdfResultsMesh.get_mesh_max_iter(plan_hdf_path)
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Cell Last Iteration
2026-01-12 00:39:30 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
Python
max_iter_gdf
mesh_name cell_id cell_last_iteration geometry
0 BaldEagleCr 0 0 POINT (2083000 370750)
1 BaldEagleCr 1 0 POINT (2083250 370750)
2 BaldEagleCr 2 0 POINT (2083500 370750)
3 BaldEagleCr 3 2 POINT (2083750 370750)
4 BaldEagleCr 4 0 POINT (2084000 370750)
... ... ... ... ...
19592 BaldEagleCr 19592 0 POINT (1978423.032 300718.897)
19593 BaldEagleCr 19593 0 POINT (1973389.375 297311.928)
19594 BaldEagleCr 19594 0 POINT (1968834.79 295808.861)
19595 BaldEagleCr 19595 0 POINT (1966130.942 291879.395)
19596 BaldEagleCr 19596 0 POINT (1969660.046 289673.23)

19597 rows × 4 columns

Python
# Get cell coordinates
cell_coords = HdfMesh.get_mesh_cell_points(plan_hdf_path)
Text Only
2026-01-12 00:39:30 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:30 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
Python
# Plot Mesh Max Iterations

if generate_maps:
    # Extract x and y coordinates from the geometry column
    max_iter_gdf['x'] = max_iter_gdf['geometry'].apply(lambda geom: geom.x if geom is not None else None)
    max_iter_gdf['y'] = max_iter_gdf['geometry'].apply(lambda geom: geom.y if geom is not None else None)

    # Remove rows with None coordinates
    max_iter_gdf = max_iter_gdf.dropna(subset=['x', 'y'])

    # Create the plot
    fig, ax = plt.subplots(figsize=(12, 8))
    scatter = ax.scatter(max_iter_gdf['x'], max_iter_gdf['y'],
                         c=max_iter_gdf['cell_last_iteration'],
                         cmap='viridis',
                         s=1)

    # Customize the plot
    ax.set_title('Max Iterations per Cell')
    ax.set_xlabel('X Coordinate')
    ax.set_ylabel('Y Coordinate')
    plt.colorbar(scatter, label='Max Iterations')

    # Show the plot
    plt.show()
else:
    print("generate_maps is set to False")

# Print the first few rows of the dataframe for verification
print("\nFirst few rows of the dataframe:")
max_iter_gdf[['mesh_name', 'cell_id', 'geometry']]

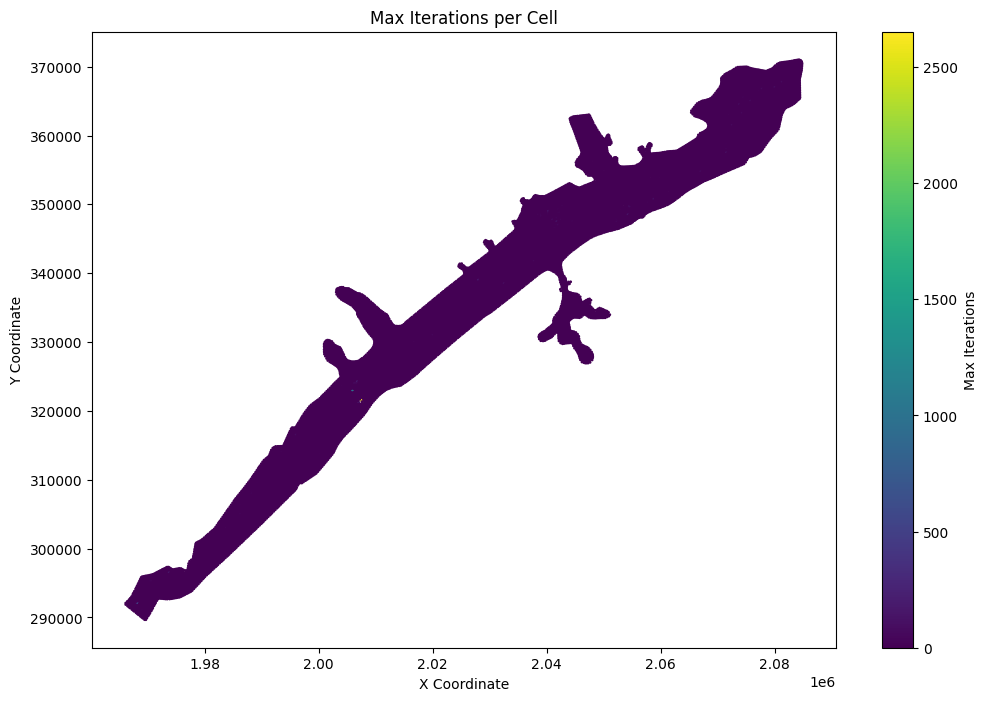

png

Text Only
First few rows of the dataframe:
mesh_name cell_id geometry
0 BaldEagleCr 0 POINT (2083000 370750)
1 BaldEagleCr 1 POINT (2083250 370750)
2 BaldEagleCr 2 POINT (2083500 370750)
3 BaldEagleCr 3 POINT (2083750 370750)
4 BaldEagleCr 4 POINT (2084000 370750)
... ... ... ...
19592 BaldEagleCr 19592 POINT (1978423.032 300718.897)
19593 BaldEagleCr 19593 POINT (1973389.375 297311.928)
19594 BaldEagleCr 19594 POINT (1968834.79 295808.861)
19595 BaldEagleCr 19595 POINT (1966130.942 291879.395)
19596 BaldEagleCr 19596 POINT (1969660.046 289673.23)

19597 rows × 3 columns

Python
# List top 10 points for Max Iteration per Cell
# Sort the dataframe by cell_last_iteration in descending order
top_iterations = max_iter_gdf.sort_values(by='cell_last_iteration', ascending=False).head(10)

# Create a more informative display with coordinates
print("\nTop 10 Cells with Highest Iteration Counts:")
top_iterations_display = top_iterations.copy()
top_iterations_display['x_coord'] = top_iterations_display['geometry'].apply(lambda geom: round(geom.x, 2))
top_iterations_display['y_coord'] = top_iterations_display['geometry'].apply(lambda geom: round(geom.y, 2))

# Display the results in a formatted table
print(top_iterations_display[['mesh_name', 'cell_id', 'cell_last_iteration', 'x_coord', 'y_coord']])
Text Only
Top 10 Cells with Highest Iteration Counts:
         mesh_name  cell_id  cell_last_iteration     x_coord    y_coord
17721  BaldEagleCr    17721                 2652  2007386.39  321546.77
17752  BaldEagleCr    17752                  986  2005903.93  322873.01
17621  BaldEagleCr    17621                  509  1968250.00  292000.00
13520  BaldEagleCr    13520                  308  2007000.00  321250.00
13039  BaldEagleCr    13039                  194  2006750.00  324250.00
8749   BaldEagleCr     8749                  180  2028000.00  339000.00
16970  BaldEagleCr    16970                  148  1973750.00  296500.00
6415   BaldEagleCr     6415                  134  2054250.00  348500.00
6188   BaldEagleCr     6188                  133  2040250.00  349000.00
6692   BaldEagleCr     6692                  128  2041750.00  347500.00
Python
# Get mesh maximum water surface elevation as Geodataframe
max_ws_gdf = HdfResultsMesh.get_mesh_max_ws(plan_hdf_path)
Text Only
2026-01-12 00:39:31 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Water Surface
2026-01-12 00:39:31 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:31 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
Python
# Check Dataframe Attributes (the HDF Attributes are also imported as Geoataframe Attributes)
max_ws_gdf.attrs
Text Only
{'mesh_name': 'BaldEagleCr',
 'Max Time': np.float32(5.0),
 'Max Value': np.float32(848.2054),
 'Min Time': np.float32(0.99953705),
 'Min Value': np.float32(535.585),
 'Rows Variables': ['WSEL', 'Time'],
 'Units': ['ft', 'days']}
Python
max_ws_gdf
mesh_name cell_id maximum_water_surface maximum_water_surface_time geometry
0 BaldEagleCr 0 704.054443 2018-09-10 18:00:00 POINT (2083000 370750)
1 BaldEagleCr 1 692.377991 2018-09-10 18:04:00 POINT (2083250 370750)
2 BaldEagleCr 2 671.183472 2018-09-10 18:13:20 POINT (2083500 370750)
3 BaldEagleCr 3 660.605469 2018-09-10 18:54:40 POINT (2083750 370750)
4 BaldEagleCr 4 660.586243 2018-09-10 18:55:20 POINT (2084000 370750)
... ... ... ... ... ...
19592 BaldEagleCr 19592 0.000000 2018-09-09 00:00:00 POINT (1978423.032 300718.897)
19593 BaldEagleCr 19593 0.000000 2018-09-09 00:00:00 POINT (1973389.375 297311.928)
19594 BaldEagleCr 19594 0.000000 2018-09-09 00:00:00 POINT (1968834.79 295808.861)
19595 BaldEagleCr 19595 0.000000 2018-09-09 00:00:00 POINT (1966130.942 291879.395)
19596 BaldEagleCr 19596 0.000000 2018-09-09 00:00:00 POINT (1969660.046 289673.23)

19597 rows × 5 columns

Python
# Plot the max water surface as a map
if generate_maps:
    # Extract x and y coordinates from the geometry column
    max_ws_gdf['x'] = max_ws_gdf['geometry'].apply(lambda geom: geom.x if geom is not None else None)
    max_ws_gdf['y'] = max_ws_gdf['geometry'].apply(lambda geom: geom.y if geom is not None else None)

    # Remove rows with None coordinates
    max_ws_gdf = max_ws_gdf.dropna(subset=['x', 'y'])

    # Create the plot
    fig, ax = plt.subplots(figsize=(12, 8))
    scatter = ax.scatter(max_ws_gdf['x'], max_ws_gdf['y'],
                         c=max_ws_gdf['maximum_water_surface'],
                         cmap='viridis',
                         s=10)

    # Customize the plot
    ax.set_title('Max Water Surface per Cell')
    ax.set_xlabel('X Coordinate')
    ax.set_ylabel('Y Coordinate')
    plt.colorbar(scatter, label='Max Water Surface (ft)')

    # Add grid lines
    ax.grid(True, linestyle='--', alpha=0.7)

    # Increase font size for better readability
    plt.rcParams.update({'font.size': 12})

    # Adjust layout to prevent cutting off labels
    plt.tight_layout()

    # Show the plot
    plt.show()
else:
    print("generate_maps is set to False")

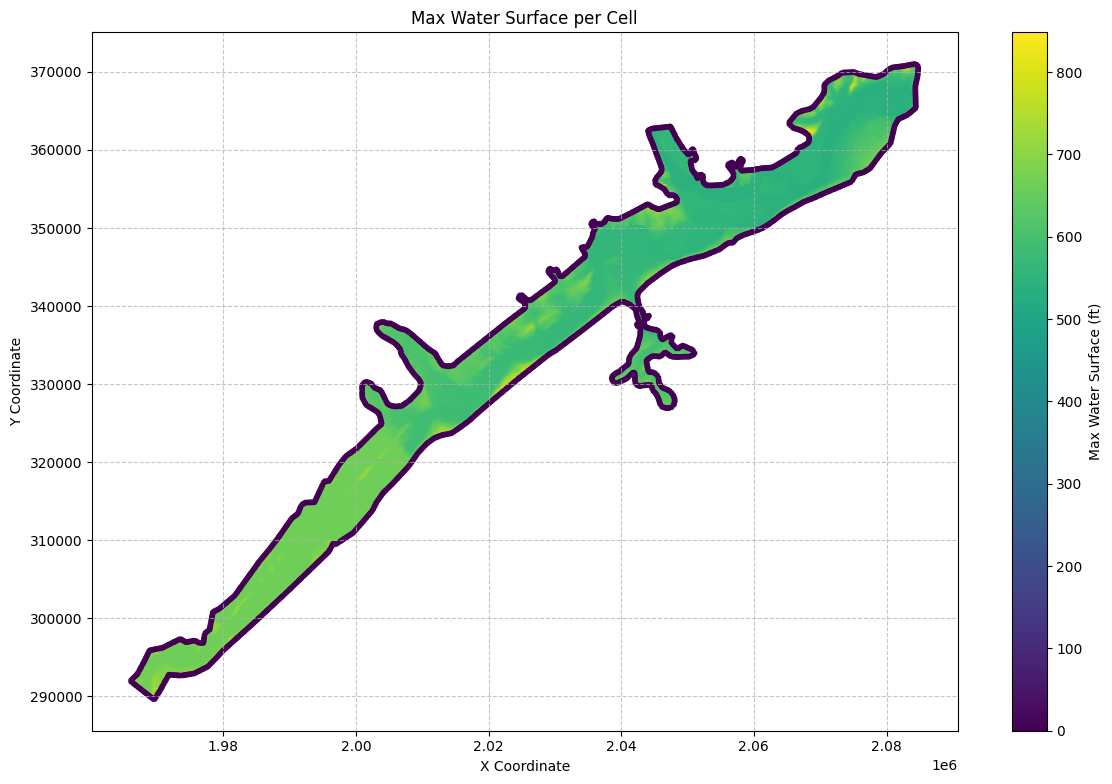

png

Python
# Plot the time of the max water surface elevation (WSEL)
if generate_maps:
    import matplotlib.dates as mdates
    from datetime import datetime

    # Convert the 'maximum_water_surface_time' to datetime objects
    max_ws_gdf['max_wsel_time'] = pd.to_datetime(max_ws_gdf['maximum_water_surface_time'])

    # Create the plot
    fig, ax = plt.subplots(figsize=(12, 8))

    # Convert datetime to hours since the start for colormap
    min_time = max_ws_gdf['max_wsel_time'].min()
    color_values = (max_ws_gdf['max_wsel_time'] - min_time).dt.total_seconds() / 3600  # Convert to hours

    scatter = ax.scatter(max_ws_gdf['x'], max_ws_gdf['y'],
                        c=color_values,
                        cmap='viridis',
                        s=10)

    # Customize the plot
    ax.set_title('Time of Maximum Water Surface Elevation per Cell')
    ax.set_xlabel('X Coordinate')
    ax.set_ylabel('Y Coordinate')

    # Set up the colorbar
    cbar = plt.colorbar(scatter)
    cbar.set_label('Hours since simulation start')

    # Format the colorbar ticks to show hours
    cbar.set_ticks(range(0, int(color_values.max()) + 1, 6))  # Set ticks every 6 hours
    cbar.set_ticklabels([f'{h}h' for h in range(0, int(color_values.max()) + 1, 6)])

    # Add grid lines
    ax.grid(True, linestyle='--', alpha=0.7)

    # Increase font size for better readability
    plt.rcParams.update({'font.size': 12})

    # Adjust layout to prevent cutting off labels
    plt.tight_layout()

    # Show the plot
    plt.show()

    # Find the overall maximum WSEL and its time
    max_wsel_row = max_ws_gdf.loc[max_ws_gdf['maximum_water_surface'].idxmax()]
    hours_since_start = (max_wsel_row['max_wsel_time'] - min_time).total_seconds() / 3600
    print(f"\nOverall Maximum WSEL: {max_wsel_row['maximum_water_surface']:.2f} ft")
    print(f"Time of Overall Maximum WSEL: {max_wsel_row['max_wsel_time']}")
    print(f"Hours since simulation start: {hours_since_start:.2f} hours")
    print(f"Location of Overall Maximum WSEL: X={max_wsel_row['x']}, Y={max_wsel_row['y']}")

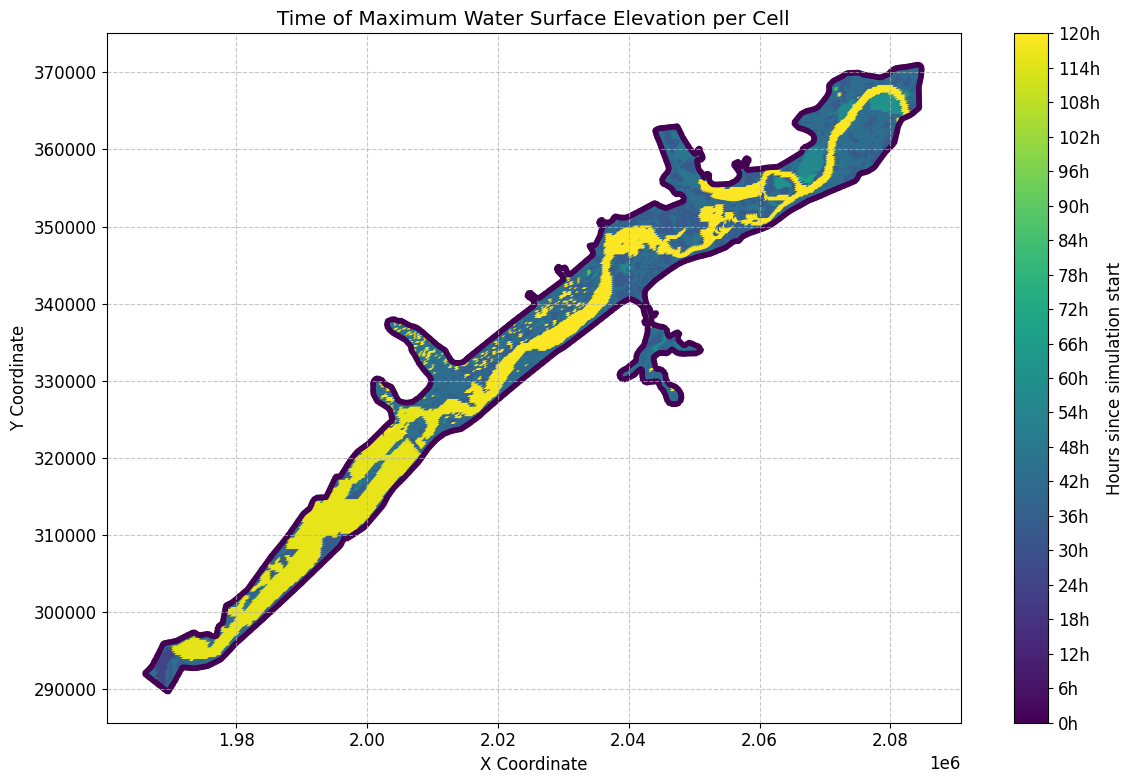

png

Text Only
Overall Maximum WSEL: 848.21 ft
Time of Overall Maximum WSEL: 2018-09-10 17:00:00
Hours since simulation start: 41.00 hours
Location of Overall Maximum WSEL: X=1968500.0, Y=295000.0
Python
# Get mesh minimum water surface elevation as geodataframe
min_ws_gdf = HdfResultsMesh.get_mesh_min_ws(plan_hdf_path)
Text Only
2026-01-12 00:39:32 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Minimum Water Surface
2026-01-12 00:39:32 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
Python
min_ws_gdf
mesh_name cell_id minimum_water_surface minimum_water_surface_time geometry
0 BaldEagleCr 0 701.151245 2018-09-09 00:00:20 POINT (2083000 370750)
1 BaldEagleCr 1 689.052246 2018-09-09 00:00:20 POINT (2083250 370750)
2 BaldEagleCr 2 669.774719 2018-09-09 00:00:20 POINT (2083500 370750)
3 BaldEagleCr 3 658.986938 2018-09-09 00:00:20 POINT (2083750 370750)
4 BaldEagleCr 4 658.720581 2018-09-09 00:00:20 POINT (2084000 370750)
... ... ... ... ... ...
19592 BaldEagleCr 19592 0.000000 2018-09-09 00:00:00 POINT (1978423.032 300718.897)
19593 BaldEagleCr 19593 0.000000 2018-09-09 00:00:00 POINT (1973389.375 297311.928)
19594 BaldEagleCr 19594 0.000000 2018-09-09 00:00:00 POINT (1968834.79 295808.861)
19595 BaldEagleCr 19595 0.000000 2018-09-09 00:00:00 POINT (1966130.942 291879.395)
19596 BaldEagleCr 19596 0.000000 2018-09-09 00:00:00 POINT (1969660.046 289673.23)

19597 rows × 5 columns

Python
# Get mesh maximum face velocity as geodataframe
max_face_v_gdf = HdfResultsMesh.get_mesh_max_face_v(plan_hdf_path)
print("\nMesh Max Face Velocity:")
Text Only
2026-01-12 00:39:32 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Face Velocity
2026-01-12 00:39:32 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:32 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 37594 rows of summary output data



Mesh Max Face Velocity:
Python
max_face_v_gdf
mesh_name face_id maximum_face_velocity maximum_face_velocity_time geometry
0 BaldEagleCr 0 0.451430 2018-09-10 18:00:00 LINESTRING (2042125 351625, 2042375 351625)
1 BaldEagleCr 1 -0.887190 2018-09-10 18:00:40 LINESTRING (2042375 351625, 2042375 351875)
2 BaldEagleCr 2 -0.498561 2018-09-10 18:00:40 LINESTRING (2042375 351875, 2042125 351875)
3 BaldEagleCr 3 -0.304673 2018-09-10 18:00:40 LINESTRING (2042125 351875, 2042125 351625)
4 BaldEagleCr 4 -0.762405 2018-09-10 10:00:40 LINESTRING (2042375 351375, 2042375 351625)
... ... ... ... ... ...
37589 BaldEagleCr 37589 0.000000 2018-09-09 00:00:00 LINESTRING (1978444.054 300812.794, 1978402.01...
37590 BaldEagleCr 37590 0.000000 2018-09-09 00:00:00 LINESTRING (1973531.76 297370.846, 1973246.989...
37591 BaldEagleCr 37591 0.000000 2018-09-09 00:00:00 LINESTRING (1968886.801 295900.5, 1968782.778 ...
37592 BaldEagleCr 37592 0.000000 2018-09-09 00:00:00 LINESTRING (1965981.775 291978.68, 1966280.11 ...
37593 BaldEagleCr 37593 0.000000 2018-09-09 00:00:00 LINESTRING (1969588.438 289578.114, 1969731.65...

37594 rows × 5 columns

Python
# Extract midpoint coordinates from the LineString geometries
max_face_v_gdf['x'] = max_face_v_gdf['geometry'].apply(lambda geom: geom.centroid.x)
max_face_v_gdf['y'] = max_face_v_gdf['geometry'].apply(lambda geom: geom.centroid.y)

# Create the plot
fig, ax = plt.subplots(figsize=(12, 8))
scatter = ax.scatter(max_face_v_gdf['x'], max_face_v_gdf['y'],
                    c=max_face_v_gdf['maximum_face_velocity'].abs(),
                    cmap='viridis',
                    s=10)

# Customize the plot
ax.set_title('Max Face Velocity per Face')
ax.set_xlabel('X Coordinate')
ax.set_ylabel('Y Coordinate')
plt.colorbar(scatter, label='Max Face Velocity (ft/s)')

# Add grid lines
ax.grid(True, linestyle='--', alpha=0.7)

# Increase font size for better readability
plt.rcParams.update({'font.size': 12})

# Adjust layout to prevent cutting off labels
plt.tight_layout()

# Show the plot
plt.show()

png

Python
# Get mesh minimum face velocity as geodataframe
min_face_v_gdf = HdfResultsMesh.get_mesh_min_face_v(plan_hdf_path)
Text Only
2026-01-12 00:39:33 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:33 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:33 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Minimum Face Velocity
2026-01-12 00:39:33 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:33 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:33 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:33 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 37594 rows of summary output data
Python
print("\nMesh Min Face Velocity:")
min_face_v_gdf
Text Only
Mesh Min Face Velocity:
mesh_name face_id minimum_face_velocity minimum_face_velocity_time geometry
0 BaldEagleCr 0 0.0 2018-09-09 00:00:20 LINESTRING (2042125 351625, 2042375 351625)
1 BaldEagleCr 1 0.0 2018-09-09 00:00:20 LINESTRING (2042375 351625, 2042375 351875)
2 BaldEagleCr 2 0.0 2018-09-09 00:00:20 LINESTRING (2042375 351875, 2042125 351875)
3 BaldEagleCr 3 0.0 2018-09-09 00:00:20 LINESTRING (2042125 351875, 2042125 351625)
4 BaldEagleCr 4 0.0 2018-09-09 00:00:20 LINESTRING (2042375 351375, 2042375 351625)
... ... ... ... ... ...
37589 BaldEagleCr 37589 0.0 2018-09-09 00:00:20 LINESTRING (1978444.054 300812.794, 1978402.01...
37590 BaldEagleCr 37590 0.0 2018-09-09 00:00:20 LINESTRING (1973531.76 297370.846, 1973246.989...
37591 BaldEagleCr 37591 0.0 2018-09-09 00:00:20 LINESTRING (1968886.801 295900.5, 1968782.778 ...
37592 BaldEagleCr 37592 0.0 2018-09-09 00:00:20 LINESTRING (1965981.775 291978.68, 1966280.11 ...
37593 BaldEagleCr 37593 0.0 2018-09-09 00:00:20 LINESTRING (1969588.438 289578.114, 1969731.65...

37594 rows × 5 columns

Python

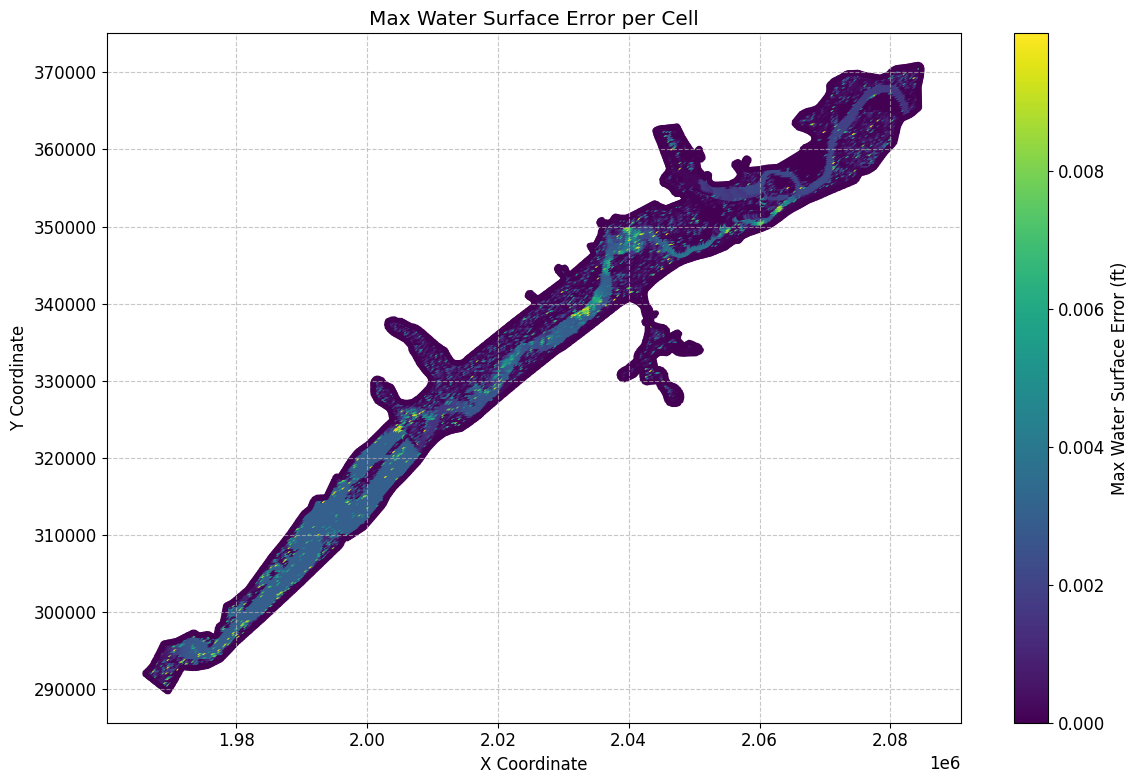

# Get mesh max water surface error as geodataframe

max_ws_err_gdf = HdfResultsMesh.get_mesh_max_ws_err(plan_hdf_path)
Text Only
2026-01-12 00:39:34 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Cell Maximum Water Surface Error
2026-01-12 00:39:34 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
Python
print("\nMesh Max Water Surface Error:")
max_ws_err_gdf
Text Only
Mesh Max Water Surface Error:
mesh_name cell_id cell_maximum_water_surface_error cell_maximum_water_surface_error_time geometry
0 BaldEagleCr 0 0.000206 2018-09-11 20:50:00 POINT (2083000 370750)
1 BaldEagleCr 1 0.001100 2018-09-10 21:38:00 POINT (2083250 370750)
2 BaldEagleCr 2 0.000795 2018-09-10 09:58:40 POINT (2083500 370750)
3 BaldEagleCr 3 0.000314 2018-09-10 17:00:40 POINT (2083750 370750)
4 BaldEagleCr 4 0.001795 2018-09-10 09:28:00 POINT (2084000 370750)
... ... ... ... ... ...
19592 BaldEagleCr 19592 0.000000 2018-09-09 00:00:00 POINT (1978423.032 300718.897)
19593 BaldEagleCr 19593 0.000000 2018-09-09 00:00:00 POINT (1973389.375 297311.928)
19594 BaldEagleCr 19594 0.000000 2018-09-09 00:00:00 POINT (1968834.79 295808.861)
19595 BaldEagleCr 19595 0.000000 2018-09-09 00:00:00 POINT (1966130.942 291879.395)
19596 BaldEagleCr 19596 0.000000 2018-09-09 00:00:00 POINT (1969660.046 289673.23)

19597 rows × 5 columns

Python
# Plot max water surface error

if generate_maps:
# Extract x and y coordinates from the geometry points, handling None values
    max_ws_err_gdf['x'] = max_ws_err_gdf['geometry'].apply(lambda geom: geom.x if geom is not None else None)
    max_ws_err_gdf['y'] = max_ws_err_gdf['geometry'].apply(lambda geom: geom.y if geom is not None else None)

    # Remove any rows with None coordinates
    max_ws_err_gdf = max_ws_err_gdf.dropna(subset=['x', 'y'])

    # Create the plot
    fig, ax = plt.subplots(figsize=(12, 8))
    scatter = ax.scatter(max_ws_err_gdf['x'], max_ws_err_gdf['y'],
                        c=max_ws_err_gdf['cell_maximum_water_surface_error'],
                        cmap='viridis',
                        s=10)

    # Customize the plot
    ax.set_title('Max Water Surface Error per Cell')
    ax.set_xlabel('X Coordinate')
    ax.set_ylabel('Y Coordinate')
    plt.colorbar(scatter, label='Max Water Surface Error (ft)')

    # Add grid lines
    ax.grid(True, linestyle='--', alpha=0.7)

    # Increase font size for better readability
    plt.rcParams.update({'font.size': 12})

    # Adjust layout to prevent cutting off labels
    plt.tight_layout()

    # Show the plot
    plt.show()

png

Python
# Sort Dataframe to show top 10 maximum water surface errors:
max_ws_err_gdf_sorted = max_ws_err_gdf.sort_values(by='cell_maximum_water_surface_error', ascending=False)
Python
print("\nTop 10 maximum water surface errors:")
max_ws_err_gdf_sorted
Text Only
Top 10 maximum water surface errors:
mesh_name cell_id cell_maximum_water_surface_error cell_maximum_water_surface_error_time geometry x y
1709 BaldEagleCr 1709 0.009991 2018-09-10 09:06:40 POINT (2077250 362750) 2.077250e+06 362750.000000
12789 BaldEagleCr 12789 0.009980 2018-09-12 07:43:20 POINT (2008250 325500) 2.008250e+06 325500.000000
5967 BaldEagleCr 5967 0.009940 2018-09-12 21:01:20 POINT (2055000 349750) 2.055000e+06 349750.000000
13627 BaldEagleCr 13627 0.009938 2018-09-11 23:23:20 POINT (2004250 320500) 2.004250e+06 320500.000000
1882 BaldEagleCr 1882 0.009926 2018-09-10 10:25:20 POINT (2070000 362000) 2.070000e+06 362000.000000
... ... ... ... ... ... ... ...
18573 BaldEagleCr 18573 0.000000 2018-09-09 00:00:00 POINT (2045559.904 336846.872) 2.045560e+06 336846.871973
18572 BaldEagleCr 18572 0.000000 2018-09-09 00:00:00 POINT (2045252.254 336981.256) 2.045252e+06 336981.256300
18571 BaldEagleCr 18571 0.000000 2018-09-09 00:00:00 POINT (2044574.538 337072.402) 2.044575e+06 337072.401793
18570 BaldEagleCr 18570 0.000000 2018-09-09 00:00:00 POINT (2054562.947 347183.363) 2.054563e+06 347183.362936
19596 BaldEagleCr 19596 0.000000 2018-09-09 00:00:00 POINT (1969660.046 289673.23) 1.969660e+06 289673.230118

19597 rows × 7 columns

Python
# Get mesh summary output for other Datasets (here we retrieve Maximum Face Courant) as geodataframe
max_courant_gdf = HdfResultsMesh.get_mesh_summary(plan_hdf_path, var="Maximum Face Courant")
Text Only
2026-01-12 00:39:34 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Face Courant
2026-01-12 00:39:34 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:34 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 37594 rows of summary output data
Python
print("\nMesh Summary Output (Maximum Courant):")
max_courant_gdf.attrs
Text Only
Mesh Summary Output (Maximum Courant):





{'mesh_name': 'BaldEagleCr',
 'Can Interpolate': 'False',
 'Can Plot': 'True',
 'Coverage': 'Average',
 'Location': 'Faces',
 'Maximum Value of Data Set': np.float32(0.6819884),
 'Minimum Value of Data Set': np.float32(0.0),
 'Name': 'Face Courant Maximum',
 'Orientation': 'Scalar',
 'Row': np.int32(0),
 'Rows Variables': ['Courant Face', 'Time'],
 'Units': 'vel*dt/length',
 'Units per row': ['vel*dt/length', 'days']}
Python
max_courant_gdf
mesh_name face_id maximum_face_courant maximum_face_courant_time geometry
0 BaldEagleCr 0 0.000020 2018-09-09 11:03:20 LINESTRING (2042125 351625, 2042375 351625)
1 BaldEagleCr 1 0.000062 2018-09-09 11:32:40 LINESTRING (2042375 351625, 2042375 351875)
2 BaldEagleCr 2 0.000048 2018-09-10 07:02:40 LINESTRING (2042375 351875, 2042125 351875)
3 BaldEagleCr 3 0.000016 2018-09-09 11:03:20 LINESTRING (2042125 351875, 2042125 351625)
4 BaldEagleCr 4 0.000062 2018-09-09 11:05:20 LINESTRING (2042375 351375, 2042375 351625)
... ... ... ... ... ...
37589 BaldEagleCr 37589 0.000000 2018-09-09 00:00:00 LINESTRING (1978444.054 300812.794, 1978402.01...
37590 BaldEagleCr 37590 0.000000 2018-09-09 00:00:00 LINESTRING (1973531.76 297370.846, 1973246.989...
37591 BaldEagleCr 37591 0.000000 2018-09-09 00:00:00 LINESTRING (1968886.801 295900.5, 1968782.778 ...
37592 BaldEagleCr 37592 0.000000 2018-09-09 00:00:00 LINESTRING (1965981.775 291978.68, 1966280.11 ...
37593 BaldEagleCr 37593 0.000000 2018-09-09 00:00:00 LINESTRING (1969588.438 289578.114, 1969731.65...

37594 rows × 5 columns

Python
# Plot max Courant number

# Convert to GeoDataFrame if not empty
if not max_courant_gdf.empty:
    if generate_maps:
        # Get centroids of line geometries for plotting
        max_courant_gdf['centroid'] = max_courant_gdf.geometry.centroid
        max_courant_gdf['x'] = max_courant_gdf.centroid.x
        max_courant_gdf['y'] = max_courant_gdf.centroid.y

        # Create the plot
        fig, ax = plt.subplots(figsize=(12, 8))
        scatter = ax.scatter(max_courant_gdf['x'], max_courant_gdf['y'],
                        c=max_courant_gdf['maximum_face_courant'],
                        cmap='viridis',
                        s=10)

        # Customize the plot
        ax.set_title('Max Courant Number per Face')
        ax.set_xlabel('X Coordinate')
        ax.set_ylabel('Y Coordinate')
        plt.colorbar(scatter, label='Max Courant Number')

        # Add grid lines
        ax.grid(True, linestyle='--', alpha=0.7)

        # Increase font size for better readability
        plt.rcParams.update({'font.size': 12})

        # Adjust layout to prevent cutting off labels
        plt.tight_layout()

        # Show the plot
        plt.show()

# Print the first few rows of the dataframe for verification
print("\nFirst few rows of the Courant number dataframe:")
max_courant_gdf

png

Text Only
First few rows of the Courant number dataframe:
mesh_name face_id maximum_face_courant maximum_face_courant_time geometry centroid x y
0 BaldEagleCr 0 0.000020 2018-09-09 11:03:20 LINESTRING (2042125 351625, 2042375 351625) POINT (2042250 351625) 2.042250e+06 351625.000000
1 BaldEagleCr 1 0.000062 2018-09-09 11:32:40 LINESTRING (2042375 351625, 2042375 351875) POINT (2042375 351750) 2.042375e+06 351750.000000
2 BaldEagleCr 2 0.000048 2018-09-10 07:02:40 LINESTRING (2042375 351875, 2042125 351875) POINT (2042250 351875) 2.042250e+06 351875.000000
3 BaldEagleCr 3 0.000016 2018-09-09 11:03:20 LINESTRING (2042125 351875, 2042125 351625) POINT (2042125 351750) 2.042125e+06 351750.000000
4 BaldEagleCr 4 0.000062 2018-09-09 11:05:20 LINESTRING (2042375 351375, 2042375 351625) POINT (2042375 351500) 2.042375e+06 351500.000000
... ... ... ... ... ... ... ... ...
37589 BaldEagleCr 37589 0.000000 2018-09-09 00:00:00 LINESTRING (1978444.054 300812.794, 1978402.01... POINT (1978423.032 300718.897) 1.978423e+06 300718.897016
37590 BaldEagleCr 37590 0.000000 2018-09-09 00:00:00 LINESTRING (1973531.76 297370.846, 1973246.989... POINT (1973389.375 297311.928) 1.973389e+06 297311.928472
37591 BaldEagleCr 37591 0.000000 2018-09-09 00:00:00 LINESTRING (1968886.801 295900.5, 1968782.778 ... POINT (1968834.79 295808.861) 1.968835e+06 295808.860743
37592 BaldEagleCr 37592 0.000000 2018-09-09 00:00:00 LINESTRING (1965981.775 291978.68, 1966280.11 ... POINT (1966130.942 291879.395) 1.966131e+06 291879.394946
37593 BaldEagleCr 37593 0.000000 2018-09-09 00:00:00 LINESTRING (1969588.438 289578.114, 1969731.65... POINT (1969660.046 289673.23) 1.969660e+06 289673.230118

37594 rows × 8 columns

Python
# Get mesh summary output for other Datasets (here we retrieve Maximum Face Courant)

max_face_shear_gdf = HdfResultsMesh.get_mesh_summary(plan_hdf_path, var="Maximum Face Shear Stress")
Text Only
2026-01-12 00:39:35 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Face Shear Stress
2026-01-12 00:39:35 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:35 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:36 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:36 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:36 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:36 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:36 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:36 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:36 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:36 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:36 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 37594 rows of summary output data
Python
print("\nMesh Summary Output (Maximum Face Shear Stress:")
print(max_face_shear_gdf.attrs)
Text Only
Mesh Summary Output (Maximum Face Shear Stress:
{'mesh_name': 'BaldEagleCr', 'Max Time': np.float32(0.0), 'Max Value': np.float32(0.0), 'Min Time': np.float32(0.0), 'Min Value': np.float32(0.0), 'Rows Variables': ['Shear Stress', 'Time'], 'Units': ['PSF', 'days']}
Python
max_face_shear_gdf
mesh_name face_id maximum_face_shear_stress maximum_face_shear_stress_time geometry
0 BaldEagleCr 0 0.0 2018-09-09 LINESTRING (2042125 351625, 2042375 351625)
1 BaldEagleCr 1 0.0 2018-09-09 LINESTRING (2042375 351625, 2042375 351875)
2 BaldEagleCr 2 0.0 2018-09-09 LINESTRING (2042375 351875, 2042125 351875)
3 BaldEagleCr 3 0.0 2018-09-09 LINESTRING (2042125 351875, 2042125 351625)
4 BaldEagleCr 4 0.0 2018-09-09 LINESTRING (2042375 351375, 2042375 351625)
... ... ... ... ... ...
37589 BaldEagleCr 37589 0.0 2018-09-09 LINESTRING (1978444.054 300812.794, 1978402.01...
37590 BaldEagleCr 37590 0.0 2018-09-09 LINESTRING (1973531.76 297370.846, 1973246.989...
37591 BaldEagleCr 37591 0.0 2018-09-09 LINESTRING (1968886.801 295900.5, 1968782.778 ...
37592 BaldEagleCr 37592 0.0 2018-09-09 LINESTRING (1965981.775 291978.68, 1966280.11 ...
37593 BaldEagleCr 37593 0.0 2018-09-09 LINESTRING (1969588.438 289578.114, 1969731.65...

37594 rows × 5 columns

Python
# Plot max face shear stress

if generate_maps and not max_face_shear_gdf.empty:
    # Calculate centroids of the line geometries and extract coordinates
    max_face_shear_gdf['centroid'] = max_face_shear_gdf['geometry'].apply(lambda line: line.centroid)
    max_face_shear_gdf['x'] = max_face_shear_gdf['centroid'].apply(lambda point: point.x)
    max_face_shear_gdf['y'] = max_face_shear_gdf['centroid'].apply(lambda point: point.y)

    # Create the plot
    fig, ax = plt.subplots(figsize=(12, 8))
    scatter = ax.scatter(max_face_shear_gdf['x'], max_face_shear_gdf['y'],
                        c=max_face_shear_gdf['maximum_face_shear_stress'],
                        cmap='viridis',
                        s=10)

    # Customize the plot
    ax.set_title('Max Face Shear Stress per Face')
    ax.set_xlabel('X Coordinate')
    ax.set_ylabel('Y Coordinate')
    plt.colorbar(scatter, label='Max Face Shear Stress (PSF)')

    # Add grid lines
    ax.grid(True, linestyle='--', alpha=0.7)

    # Increase font size for better readability
    plt.rcParams.update({'font.size': 12})

    # Adjust layout to prevent cutting off labels
    plt.tight_layout()

    # Show the plot
    plt.show()

png

Python
# Get mesh summary output for Minimum Water Surface as geodataframe
summary_gdf_min_ws = HdfResultsMesh.get_mesh_summary(plan_hdf_path, var="Minimum Water Surface")
Text Only
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Minimum Water Surface
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
Python
print("\nMesh Summary Output (Minimum Water Surface):")
summary_gdf_min_ws
Text Only
Mesh Summary Output (Minimum Water Surface):
mesh_name cell_id minimum_water_surface minimum_water_surface_time geometry
0 BaldEagleCr 0 701.151245 2018-09-09 00:00:20 POINT (2083000 370750)
1 BaldEagleCr 1 689.052246 2018-09-09 00:00:20 POINT (2083250 370750)
2 BaldEagleCr 2 669.774719 2018-09-09 00:00:20 POINT (2083500 370750)
3 BaldEagleCr 3 658.986938 2018-09-09 00:00:20 POINT (2083750 370750)
4 BaldEagleCr 4 658.720581 2018-09-09 00:00:20 POINT (2084000 370750)
... ... ... ... ... ...
19592 BaldEagleCr 19592 0.000000 2018-09-09 00:00:00 POINT (1978423.032 300718.897)
19593 BaldEagleCr 19593 0.000000 2018-09-09 00:00:00 POINT (1973389.375 297311.928)
19594 BaldEagleCr 19594 0.000000 2018-09-09 00:00:00 POINT (1968834.79 295808.861)
19595 BaldEagleCr 19595 0.000000 2018-09-09 00:00:00 POINT (1966130.942 291879.395)
19596 BaldEagleCr 19596 0.000000 2018-09-09 00:00:00 POINT (1969660.046 289673.23)

19597 rows × 5 columns

Python
# Get mesh summary output for Minimum Face Velocity as geodataframe
summary_gdf_min_fv = HdfResultsMesh.get_mesh_summary(plan_hdf_path, var="Minimum Face Velocity")
Text Only
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Minimum Face Velocity
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 37594 rows of summary output data
Python
print("\nMesh Summary Output (Minimum Face Velocity):")
summary_gdf_min_fv
Text Only
Mesh Summary Output (Minimum Face Velocity):
mesh_name face_id minimum_face_velocity minimum_face_velocity_time geometry
0 BaldEagleCr 0 0.0 2018-09-09 00:00:20 LINESTRING (2042125 351625, 2042375 351625)
1 BaldEagleCr 1 0.0 2018-09-09 00:00:20 LINESTRING (2042375 351625, 2042375 351875)
2 BaldEagleCr 2 0.0 2018-09-09 00:00:20 LINESTRING (2042375 351875, 2042125 351875)
3 BaldEagleCr 3 0.0 2018-09-09 00:00:20 LINESTRING (2042125 351875, 2042125 351625)
4 BaldEagleCr 4 0.0 2018-09-09 00:00:20 LINESTRING (2042375 351375, 2042375 351625)
... ... ... ... ... ...
37589 BaldEagleCr 37589 0.0 2018-09-09 00:00:20 LINESTRING (1978444.054 300812.794, 1978402.01...
37590 BaldEagleCr 37590 0.0 2018-09-09 00:00:20 LINESTRING (1973531.76 297370.846, 1973246.989...
37591 BaldEagleCr 37591 0.0 2018-09-09 00:00:20 LINESTRING (1968886.801 295900.5, 1968782.778 ...
37592 BaldEagleCr 37592 0.0 2018-09-09 00:00:20 LINESTRING (1965981.775 291978.68, 1966280.11 ...
37593 BaldEagleCr 37593 0.0 2018-09-09 00:00:20 LINESTRING (1969588.438 289578.114, 1969731.65...

37594 rows × 5 columns

Python
# Get mesh summary output for Cell Cumulative Iteration as geodataframe
summary_gdf_cum_iter = HdfResultsMesh.get_mesh_summary(plan_hdf_path, var="Cell Cumulative Iteration")
Text Only
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Cell Cumulative Iteration
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:37 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
Python
print("\nMesh Summary Output (Cell Cumulative Iteration):")
summary_gdf_cum_iter
Text Only
Mesh Summary Output (Cell Cumulative Iteration):
mesh_name cell_id cell_cumulative_iteration geometry
0 BaldEagleCr 0 0.0 POINT (2083000 370750)
1 BaldEagleCr 1 0.0 POINT (2083250 370750)
2 BaldEagleCr 2 0.0 POINT (2083500 370750)
3 BaldEagleCr 3 0.0 POINT (2083750 370750)
4 BaldEagleCr 4 0.0 POINT (2084000 370750)
... ... ... ... ...
19592 BaldEagleCr 19592 0.0 POINT (1978423.032 300718.897)
19593 BaldEagleCr 19593 0.0 POINT (1973389.375 297311.928)
19594 BaldEagleCr 19594 0.0 POINT (1968834.79 295808.861)
19595 BaldEagleCr 19595 0.0 POINT (1966130.942 291879.395)
19596 BaldEagleCr 19596 0.0 POINT (1969660.046 289673.23)

19597 rows × 4 columns

Python
# Get mesh timeseries output as xarray
# The mesh name is part of the timeseries HDF path, so you must pass the mesh_name to retrieve it

# Get mesh areas from previous code cell
mesh_areas = HdfMesh.get_mesh_area_names(geom_hdf_path)
Text Only
2026-01-12 00:39:38 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.g09.hdf
Python
mesh_areas
Text Only
['BaldEagleCr']
Python
# Use the first mesh area name to extract mesh timeseries output as xarray
timeseries_xr = HdfResultsMesh.get_mesh_timeseries(plan_hdf_path, mesh_areas[0], "Water Surface") # Use the first 2D flow area name for mesh_name
Text Only
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
Python
timeseries_xr

<xarray.DataArray (time: 721, cell_id: 19597)> Size: 57MB
array([[701.15125, 689.05225, 669.7747 , ..., 696.1488 , 773.81085,
        782.3656 ],
       [701.15125, 689.05225, 669.7747 , ..., 696.1488 , 773.81085,
        782.3656 ],
       [701.15125, 689.05225, 669.7747 , ..., 696.1488 , 773.81085,
        782.3656 ],
       ...,
       [701.75244, 689.78314, 670.0496 , ..., 696.1488 , 773.81085,
        782.3656 ],
       [701.75183, 689.7824 , 670.0493 , ..., 696.1488 , 773.81085,
        782.3656 ],
       [701.7513 , 689.78174, 670.0491 , ..., 696.1488 , 773.81085,
        782.3656 ]], shape=(721, 19597), dtype=float32)
Coordinates:
  * time     (time) datetime64[ns] 6kB 2018-09-09 ... 2018-09-14
  * cell_id  (cell_id) int64 157kB 0 1 2 3 4 5 ... 19592 19593 19594 19595 19596
Attributes:
    units:      ft
    mesh_name:  BaldEagleCr
    variable:   Water Surface
Python
# Time Series Output Variables for Cells
#
# Variable Name: Description
# Water Surface: Water surface elevation
# Depth: Water depth
# Velocity: Magnitude of velocity
# Velocity X: X-component of velocity
# Velocity Y: Y-component of velocity
# Froude Number: Froude number
# Courant Number: Courant number
# Shear Stress: Shear stress on the bed
# Bed Elevation: Elevation of the bed
# Precipitation Rate: Rate of precipitation
# Infiltration Rate: Rate of infiltration
# Evaporation Rate: Rate of evaporation
# Percolation Rate: Rate of percolation
# Groundwater Elevation: Elevation of groundwater
# Groundwater Depth: Depth to groundwater
# Groundwater Flow: Groundwater flow rate
# Groundwater Velocity: Magnitude of groundwater velocity
# Groundwater Velocity X: X-component of groundwater velocity
# Groundwater Velocity Y: Y-component of groundwater velocity
#
# These variables are available for time series output at the cell level in 2D flow areas.
Python
# Get mesh cells water-surface timeseries output as xarray
cells_timeseries_xr = HdfResultsMesh.get_mesh_cells_timeseries(
    plan_hdf_path,
    mesh_areas[0],
    var="Water Surface",
)
Text Only
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Depth' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Velocity' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Velocity X' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Velocity Y' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Froude Number' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Courant Number' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Shear Stress' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Bed Elevation' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Precipitation Rate' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Infiltration Rate' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Evaporation Rate' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Percolation Rate' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Groundwater Elevation' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Groundwater Depth' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Groundwater Flow' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Groundwater Velocity' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Groundwater Velocity X' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:38 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Groundwater Velocity Y' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:39 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Face Courant' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:39 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Face Cumulative Volume' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:40 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Face Flow Period Average' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:40 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Face Friction Term' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:40 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Face Pressure Gradient Term' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
2026-01-12 00:39:40 - ras_commander.hdf.HdfResultsMesh - WARNING - Variable 'Face Tangential Velocity' not found in the HDF file for mesh 'BaldEagleCr'. Skipping.
Python
cells_timeseries_xr
Text Only
{'BaldEagleCr': <xarray.Dataset> Size: 599MB
 Dimensions:              (time: 721, cell_id: 19597, face_id: 37594)
 Coordinates:
   * time                 (time) datetime64[ns] 6kB 2018-09-09 ... 2018-09-14
   * cell_id              (cell_id) int64 157kB 0 1 2 3 ... 19594 19595 19596
   * face_id              (face_id) int64 301kB 0 1 2 3 ... 37591 37592 37593
 Data variables:
     Water Surface        (time, cell_id) float32 57MB 701.2 689.1 ... 782.4
     Face Velocity        (time, face_id) float32 108MB 0.0 0.0 0.0 ... 0.0 0.0
     Face Flow            (time, face_id) float32 108MB 0.0 0.0 0.0 ... 0.0 0.0
     Face Water Surface   (time, face_id) float32 108MB 620.1 630.9 ... 782.4
     Face Eddy Viscosity  (time, face_id) float32 108MB 0.0 0.0 0.0 ... 0.0 0.0
     Face Shear Stress    (time, face_id) float32 108MB 0.0 0.0 0.0 ... 0.0 0.0
 Attributes:
     mesh_name:   BaldEagleCr
     start_time:  2018-09-09 00:00:00}
Python
# Plot WSE Time Series Data (Random Cell ID)
import matplotlib.pyplot as plt

if generate_plots:
    import numpy as np
    import random

    # Extract Water Surface data
    water_surface = cells_timeseries_xr[mesh_areas[0]]['Water Surface']

    # Get the time values
    time_values = water_surface.coords['time'].values

    # Pick a random cell_id
    random_cell_id = random.choice(water_surface.coords['cell_id'].values)

    # Extract the water surface elevation time series for the random cell
    wsel_timeseries = water_surface.sel(cell_id=random_cell_id)

    # Find the peak value and its index
    peak_value = wsel_timeseries.max().item()
    peak_index = wsel_timeseries.argmax().item()

    # Create the plot
    plt.figure(figsize=(12, 6))
    plt.plot(time_values, wsel_timeseries, label=f'Cell ID: {random_cell_id}')
    plt.scatter(time_values[peak_index], peak_value, color='red', s=100, zorder=5)
    plt.annotate(f'Peak: {peak_value:.2f} ft',
                (time_values[peak_index], peak_value),
                xytext=(10, 10), textcoords='offset points',
                ha='left', va='bottom',
                bbox=dict(boxstyle='round,pad=0.5', fc='yellow', alpha=0.5),
                arrowprops=dict(arrowstyle='->', connectionstyle='arc3,rad=0'))

    plt.title(f'Water Surface Elevation Time Series for Random Cell (ID: {random_cell_id})')
    plt.xlabel('Time')
    plt.ylabel('Water Surface Elevation (ft)')
    plt.legend()
    plt.grid(True)
    plt.tight_layout()

    # Log the plotting action
    logging.info(f"Plotted water surface elevation time series for random cell ID: {random_cell_id}")

    # Display the plot
    plt.show()

    # Print some statistics
    print(f"Statistics for Cell ID {random_cell_id}:")
    print(f"Minimum WSEL: {wsel_timeseries.min().item():.2f} ft")
    print(f"Maximum WSEL: {peak_value:.2f} ft")
    print(f"Mean WSEL: {wsel_timeseries.mean().item():.2f} ft")
    print(f"Time of peak: {time_values[peak_index]}")
Text Only
2026-01-12 00:39:40 - root - INFO - Plotted water surface elevation time series for random cell ID: 3340

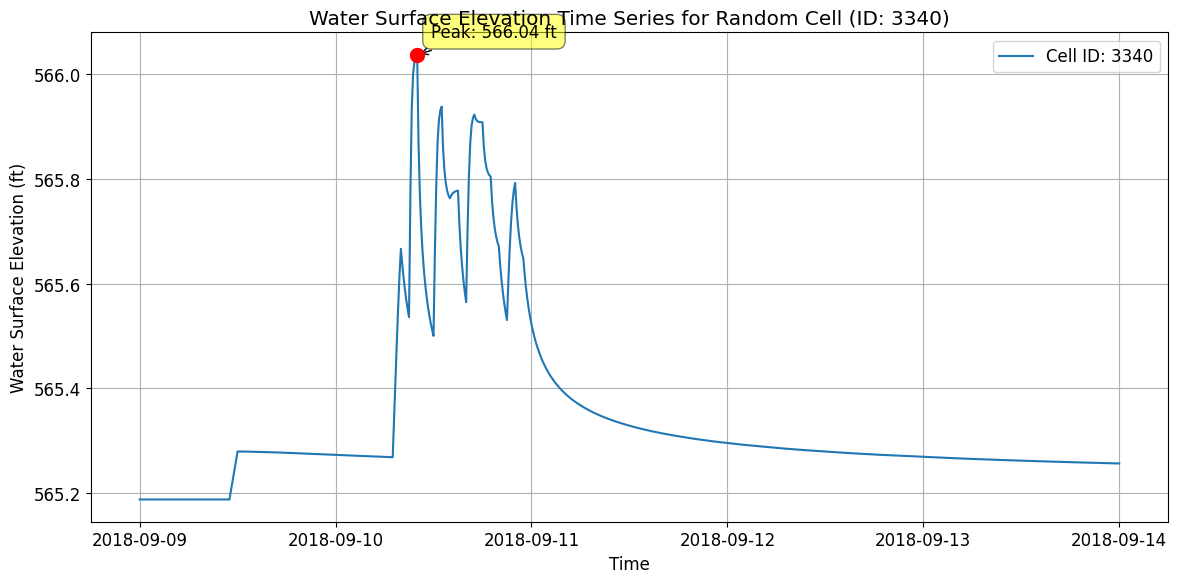

png

Text Only
Statistics for Cell ID 3340:
Minimum WSEL: 565.19 ft
Maximum WSEL: 566.04 ft
Mean WSEL: 565.34 ft
Time of peak: 2018-09-10T10:00:00.000000000
Python
# Get mesh faces timeseries output as xarray
faces_timeseries_xr = HdfResultsMesh.get_mesh_faces_timeseries(plan_hdf_path, mesh_areas[0])
Text Only
2026-01-12 00:39:40 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:40 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:40 - ras_commander.hdf.HdfResultsMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:40 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:41 - ras_commander.hdf.HdfResultsMesh - INFO - Using existing Path object HDF file: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:41 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
Python
faces_timeseries_xr

<xarray.Dataset> Size: 217MB
Dimensions:        (time: 720, face_id: 37594)
Coordinates:
  * time           (time) datetime64[ns] 6kB 2018-09-09T00:10:00 ... 2018-09-14
  * face_id        (face_id) int64 301kB 0 1 2 3 4 ... 37590 37591 37592 37593
Data variables:
    face_velocity  (time, face_id) float32 108MB 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0
    face_flow      (time, face_id) float32 108MB 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0
Attributes:
    units:      ft/s
    mesh_name:  BaldEagleCr
    variable:   Face Velocity
Python
# Plot Random Face Results and Label Peak, Plus Map View

if generate_maps:

    # Select a random valid face ID number
    random_face = np.random.randint(0, faces_timeseries_xr.sizes['face_id'])

    # Extract time series data for the selected face
    variable = 'face_velocity'  # We could also use 'face_flow'
    face_data = faces_timeseries_xr[variable].sel(face_id=random_face)

    # Find peak value and its corresponding time
    peak_value = face_data.max().item()
    peak_time = face_data.idxmax().values

    # Plot time series
    plt.figure(figsize=(12, 8))
    plt.plot(faces_timeseries_xr.time, face_data)
    plt.title(f'{variable.capitalize()} Time Series for Face {random_face}')
    plt.xlabel('Time')
    plt.ylabel(f'{variable.capitalize()} ({faces_timeseries_xr.attrs["units"]})')
    plt.grid(True)

    # Annotate the peak point
    plt.annotate(f'Peak: ({peak_time}, {peak_value:.2f})',
                (peak_time, peak_value),
                xytext=(10, 10), textcoords='offset points',
                arrowprops=dict(arrowstyle="->"))

    # Check for negative values and label the minimum if present
    min_value = face_data.min().item()
    if min_value < 0:
        min_time = face_data.idxmin().values
        plt.annotate(f'Min: ({min_time}, {min_value:.2f})',
                    (min_time, min_value),
                    xytext=(10, -10), textcoords='offset points',
                    arrowprops=dict(arrowstyle="->"))

    plt.tight_layout()
    plt.show()

    # Create map view plot
    fig, ax = plt.subplots(figsize=(12, 8))


    # Calculate mesh faces extents with 10% buffer
    faces_bounds = mesh_cell_faces_gdf.total_bounds
    x_min, y_min, x_max, y_max = faces_bounds
    buffer_x = (x_max - x_min) * 0.1
    buffer_y = (y_max - y_min) * 0.1
    plot_xlim = [x_min - buffer_x, x_max + buffer_x]
    plot_ylim = [y_min - buffer_y, y_max + buffer_y]

    # Set plot limits before adding terrain
    ax.set_xlim(plot_xlim)
    ax.set_ylim(plot_ylim)

    # Add the terrain TIFF to the map if available
    tiff_path = Path.cwd() / 'example_projects' / 'BaldEagleCrkMulti2D' / 'Terrain' / 'Terrain50.baldeagledem.tif'
    if tiff_path.exists():
        with rasterio.open(tiff_path) as src:
            show(src, ax=ax, cmap='terrain', alpha=0.5)
    else:
        logging.info(f'Terrain TIFF not found at {tiff_path}, skipping terrain overlay')

    # Reset the limits after terrain plot
    ax.set_xlim(plot_xlim)
    ax.set_ylim(plot_ylim)

    # Plot all faces in gray
    mesh_cell_faces_gdf.plot(ax=ax, color='lightgray', alpha=0.5, zorder=2)

    # Get the selected face geometry
    selected_face = mesh_cell_faces_gdf[mesh_cell_faces_gdf['face_id'] == random_face]

    # Highlight the selected face in red
    selected_face.plot(
        ax=ax,
        color='red',
        linewidth=2,
        label=f'Selected Face (ID: {random_face})',
        zorder=3
    )

    # Get bounds of selected face for zoomed inset
    bounds = selected_face.geometry.bounds.iloc[0]
    x_center = (bounds.iloc[0] + bounds.iloc[2]) / 2
    y_center = (bounds.iloc[1] + bounds.iloc[3]) / 2
    buffer = max(bounds.iloc[2] - bounds.iloc[0], bounds.iloc[3] - bounds.iloc[1]) * 2

    # Create zoomed inset with a larger size, inside the map frame
    axins = inset_axes(ax, width="70%", height="70%", loc='lower right',
                    bbox_to_anchor=(0.65, 0.05, 0.35, 0.35),
                    bbox_transform=ax.transAxes)

    # Plot terrain and faces in inset (if available)
    if tiff_path.exists():
        with rasterio.open(tiff_path) as src:
            show(src, ax=axins, cmap='terrain', alpha=0.5)

    # Plot zoomed view in inset
    mesh_cell_faces_gdf.plot(ax=axins, color='lightgray', alpha=0.5, zorder=2)
    selected_face.plot(ax=axins, color='red', linewidth=2, zorder=3)

    # Set inset limits with slightly more context
    axins.set_xlim(x_center - buffer/1.5, x_center + buffer/1.5)
    axins.set_ylim(y_center - buffer/1.5, y_center + buffer/1.5)

    # Remove inset ticks for cleaner look
    axins.set_xticks([])
    axins.set_yticks([])

    # Add a border to the inset
    for spine in axins.spines.values():
        spine.set_edgecolor('black')
        spine.set_linewidth(1.5)

    # Create connection lines between main plot and inset
    # Get the selected face centroid for connection point
    centroid = selected_face.geometry.centroid.iloc[0]
    con1 = ConnectionPatch(
        xyA=(centroid.x, centroid.y), coordsA=ax.transData,
        xyB=(0.02, 0.98), coordsB=axins.transAxes,
        arrowstyle="-", linestyle="--", color="gray", alpha=0.6
    )
    con2 = ConnectionPatch(
        xyA=(centroid.x, centroid.y), coordsA=ax.transData,
        xyB=(0.98, 0.02), coordsB=axins.transAxes,
        arrowstyle="-", linestyle="--", color="gray", alpha=0.6
    )

    ax.add_artist(con1)
    ax.add_artist(con2)

    # Add title and legend to main plot
    ax.set_title('Mesh Face Map View with Terrain')
    ax.legend()

    # Ensure equal aspect ratio while maintaining our desired extents
    ax.set_aspect('equal', adjustable='box')

    plt.tight_layout()
    plt.show()

    # Print summary information
    print(f"Random Face: {random_face}")
    print(f"Peak Value: {peak_value:.2f} {faces_timeseries_xr.attrs['units']} at {peak_time}")
    if min_value < 0:
        print(f"Minimum Value: {min_value:.2f} {faces_timeseries_xr.attrs['units']} at {min_time}")

    # Log the plotting action
    logging.info(f"Plotted mesh face time series and map view for random face ID: {random_face} with terrain")

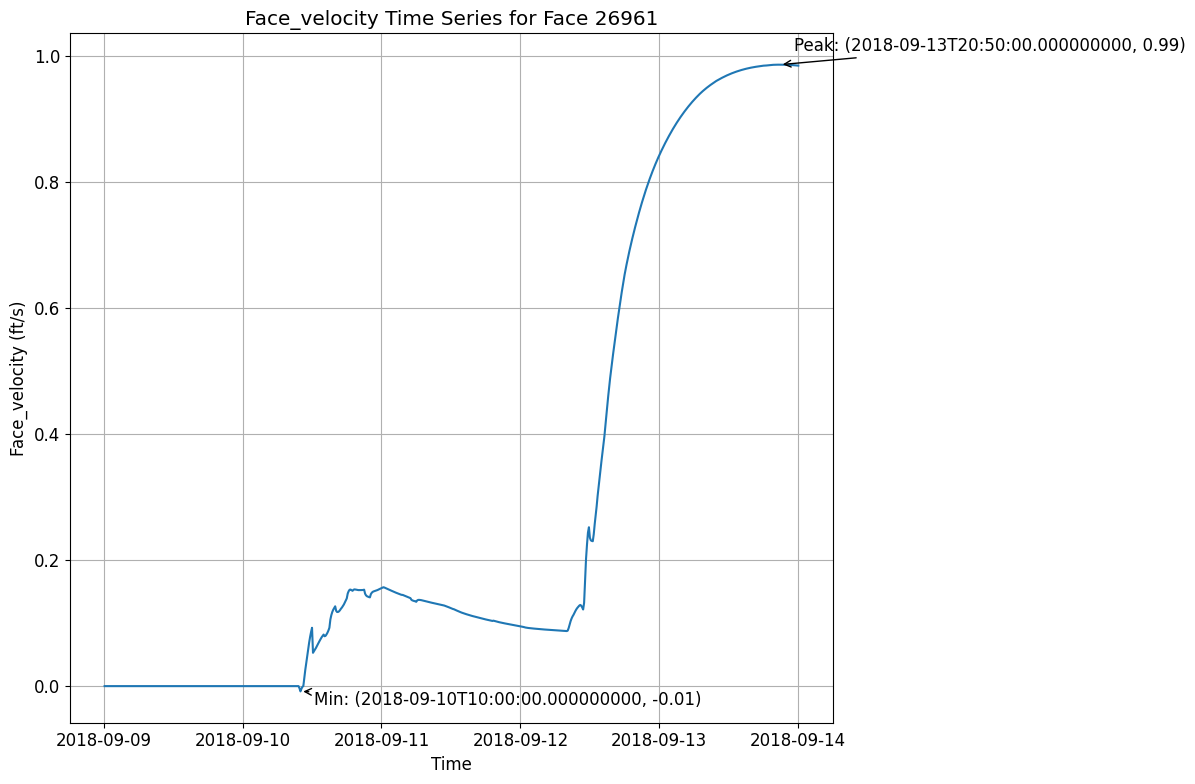

png

Text Only
2026-01-12 00:39:42 - root - INFO - Terrain TIFF not found at c:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D\Terrain\Terrain50.baldeagledem.tif, skipping terrain overlay
C:\Users\billk_clb\AppData\Local\Temp\ipykernel_274292\423459082.py:142: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()

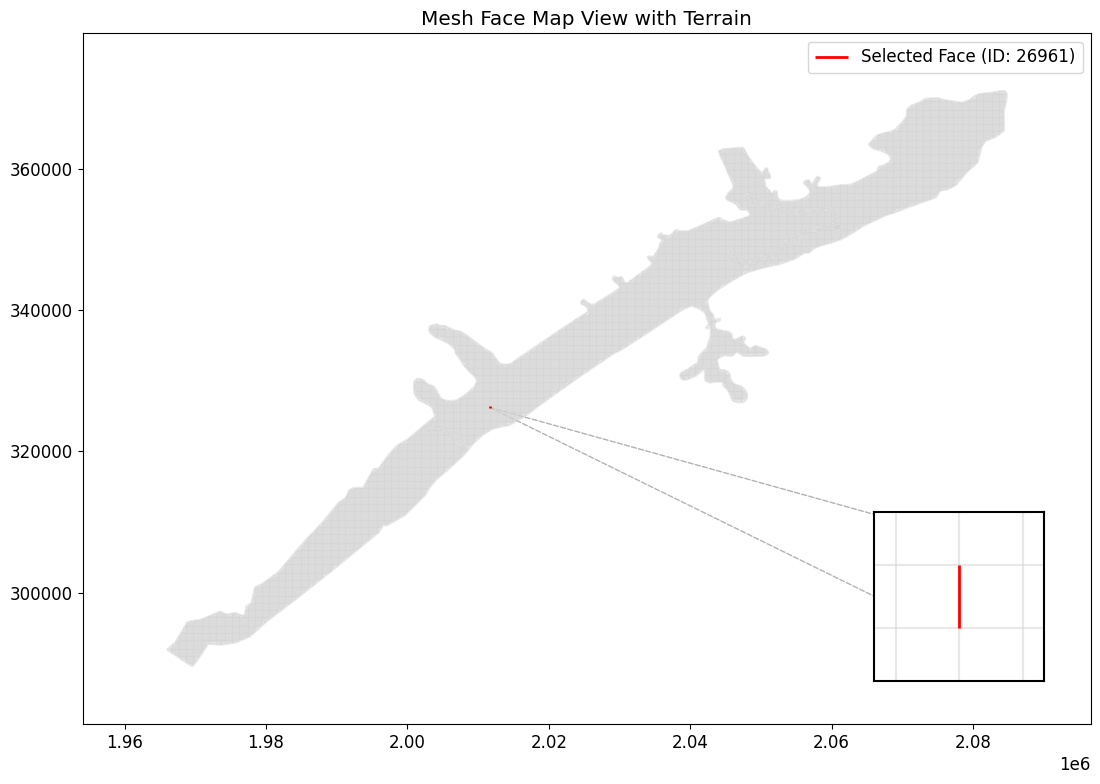

png

Text Only
2026-01-12 00:39:44 - root - INFO - Plotted mesh face time series and map view for random face ID: 26961 with terrain


Random Face: 26961
Peak Value: 0.99 ft/s at 2018-09-13T20:50:00.000000000
Minimum Value: -0.01 ft/s at 2018-09-10T10:00:00.000000000
Python
# Get meteorology precipitation attributes
meteo_precip_attrs = HdfPlan.get_plan_met_precip(plan_hdf_path)
Text Only
2026-01-12 00:39:44 - ras_commander.hdf.HdfPlan - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:44 - ras_commander.hdf.HdfPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
Python
meteo_precip_attrs
Text Only
{'DSS Filename': '.\\Precipitation\\precip.2018.09.dss',
 'DSS Pathname': '/SHG/MARFC/PRECIP/01SEP2018:0200/01SEP2018:0300/NEXRAD/',
 'Data Type': 'per-cum',
 'Interpolation Method': '',
 'Mode': 'Gridded',
 'Projection': 'PROJCS["USA_Contiguous_Albers_Equal_Area_Conic_USGS_version",GEOGCS["NAD83",DATUM["North_American_Datum_1983",SPHEROID["GRS 1980",6378137,298.257222101,AUTHORITY["EPSG","7019"]],AUTHORITY["EPSG","6269"]],PRIMEM["Greenwich",0],UNIT["Degree",0.0174532925199433]],PROJECTION["Albers_Conic_Equal_Area"],PARAMETER["latitude_of_center",23],PARAMETER["longitude_of_center",-96],PARAMETER["standard_parallel_1",29.5],PARAMETER["standard_parallel_2",45.5],PARAMETER["false_easting",0],PARAMETER["false_northing",0],UNIT["metre",1,AUTHORITY["EPSG","9001"]],AXIS["Easting",EAST],AXIS["Northing",NORTH]]',
 'Raster Cellsize': np.float64(2000.0),
 'Raster Cols': np.int32(515),
 'Raster Left': np.float64(1096000.0),
 'Raster Rows': np.int32(522),
 'Raster Top': np.float64(2560000.0),
 'Source': 'DSS',
 'Units': 'in'}
Python
# Get results unsteady attributes
results_unsteady_attrs = HdfResultsPlan.get_unsteady_info(plan_hdf_path)
Text Only
2026-01-12 00:39:44 - ras_commander.hdf.HdfResultsPlan - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:44 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
Python
results_unsteady_attrs
Plan Title Program Name Program Version Project File Name Project Title Short ID Simulation Time Window Type of Run
0 Gridded Precip - Infiltration HEC-RAS - River Analysis System HEC-RAS 6.6 September 2024 C:\GH\ras-commander\examples\example_projects\... Bald Eagle Creek Example Dam Break Study Grid Precip Infiltration 08Sep2018 2400 to 13Sep2018 2400 Unsteady Flow Analysis
Python
# Get results unsteady summary attributes
results_unsteady_summary_attrs = HdfResultsPlan.get_unsteady_summary(plan_hdf_path)
Text Only
2026-01-12 00:39:44 - ras_commander.hdf.HdfResultsPlan - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:44 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
Python
results_unsteady_summary_attrs
Computation Time DSS Computation Time Total Maximum WSEL Error Maximum number of cores Run Time Window Solution Time Solution Went Unstable Time Stamp Solution Went Unstable
0 00:00:00 00:03:19 0.0 2 12JAN2026 00:36:02 to 12JAN2026 00:39:21 Unsteady Finished Successfully NaN Not Applicable
Python
# Get results volume accounting attributes
volume_accounting_attrs = HdfResultsPlan.get_volume_accounting(plan_hdf_path)
Text Only
2026-01-12 00:39:44 - ras_commander.hdf.HdfResultsPlan - INFO - Using HDF file from direct string path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
2026-01-12 00:39:44 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\GH\ras-commander\examples\example_projects\BaldEagleCrkMulti2D_11\BaldEagleDamBrk.p06.hdf
Python
volume_accounting_attrs
Error Error Percent Precipitation Excess (acre feet) Precipitation Excess (inches) Total Boundary Flux of Water In Total Boundary Flux of Water Out Vol Accounting in Volume Ending Volume Starting
0 0.468872 0.000331 3756.872803 1.707615 141685.0 17240.263672 Acre Feet 124445.203125 0.0
Python
Python
# Extract Compute Messages as String
print("Extracting Compute Messages")

import h5py
import numpy as np



def extract_string_from_hdf(results_hdf_filename: str, hdf_path: str) -> str:
    """
    Extract string from HDF object at a given path

    Parameters
    ----------
    results_hdf_filename : str
        Name of the HDF file
    hdf_path : str
        Path of the object in the HDF file

    Returns
    -------
    str
        Extracted string from the specified HDF object
    """
    with h5py.File(results_hdf_filename, 'r') as hdf_file:
        try:
            hdf_object = hdf_file[hdf_path]
            if isinstance(hdf_object, h5py.Group):
                return f"Group: {hdf_path}\nContents: {list(hdf_object.keys())}"
            elif isinstance(hdf_object, h5py.Dataset):
                data = hdf_object[()]
                if isinstance(data, bytes):
                    return data.decode('utf-8')
                elif isinstance(data, np.ndarray) and data.dtype.kind == 'S':
                    return [v.decode('utf-8') for v in data]
                else:
                    return str(data)
            else:
                return f"Unsupported object type: {type(hdf_object)}"
        except KeyError:
            return f"Path not found: {hdf_path}"



try:
    results_summary_string = extract_string_from_hdf(plan_hdf_path, '/Results/Summary/Compute Messages (text)')
    print("Compute Messages:")

    # Parse and print the compute messages in a more visually friendly way
    messages = results_summary_string[0].split('\r\n')

    for message in messages:
        if message.strip():  # Skip empty lines
            if ':' in message:
                key, value = message.split(':', 1)
                print(f"{key.strip():40} : {value.strip()}")
            else:
                print(f"\n{message.strip()}")

    # Print computation summary in a table format
    print("\nComputation Summary:")
    print("-" * 50)
    print(f"{'Computation Task':<30} {'Time':<20}")
    print("-" * 50)
    for line in messages:
        if 'Computation Task' in line:
            task, time = line.split('\t')
            print(f"{task:<30} {time:<20}")

    print("\nComputation Speed:")
    print("-" * 50)
    print(f"{'Task':<30} {'Simulation/Runtime':<20}")
    print("-" * 50)
    for line in messages:
        if 'Computation Speed' in line:
            task, speed = line.split('\t')
            print(f"{task:<30} {speed:<20}")

except Exception as e:
    print(f"Error extracting compute messages: {str(e)}")
    print("\nNote: If 'Results/Summary Output' is not in the file structure, it might indicate that the simulation didn't complete successfully or the results weren't saved properly.")
Text Only
Extracting Compute Messages
Compute Messages:
Plan                                     : 'Gridded Precip - Infiltration' (BaldEagleDamBrk.p06)
Simulation started at                    : 12Jan2026 12:35:50 AM

Writing Plan GIS Data...

Completed Writing Plan GIS Data

Writing Geometry...
Computing 2D Flow Area 'BaldEagleCr' tables : Property tables do not exist.

2D Flow Area 'BaldEagleCr' tables complete 7.55 sec

Completed Writing Geometry

Writing Event Conditions ...

Processing Precipitation data...

(assumes geometry data is geo-referenced)

Finished Processing Precipitation data (1.555s)

Completed Writing Event Condition Data

Geometric Preprocessor HEC-RAS 6.6 September 2024

Finished Processing Geometry

Performing Unsteady Flow Simulation  HEC-RAS 6.6 September 2024
Unsteady Input Summary                   :

2D Unsteady Diffusion Wave Equation Set (fastest)
2D number of Solver Cores                : 2

Maximum adaptive timestep = 40.0    Minimum adaptive timestep = 20.0

Initial adaptive timestep = 20.0
09SEP2018 00                             : 01:20       timestep =            40             (sec)
12SEP2018 21                             : 12:00       timestep =            20             (sec)
Overall Volume Accounting Error in Acre Feet : 0.4689
Overall Volume Accounting Error as percentage : 0.000331

Please review "Computational Log File" output for volume accounting details

Writing Results to DSS

Finished Unsteady Flow Simulation

1D Post Process Skipped (simulation is all 2D)

Computations Summary
Computation Task    Time(hh                 : mm:ss)

Completing Geometry, Flow and Plan        11

Preprocessing Geometry  <1
Unsteady Flow Computations      3         : 19
Complete Process        3                   : 31

Computation Speed   Simulation/Runtime

Unsteady Flow Computations  2161x

Complete Process    2044x

Computation Summary:
--------------------------------------------------
Computation Task               Time
--------------------------------------------------
Computation Task               Time(hh:mm:ss)

Computation Speed:
--------------------------------------------------
Task                           Simulation/Runtime
--------------------------------------------------
Computation Speed              Simulation/Runtime

Exploring HDF Datasets with HdfBase.get_dataset_info

This allows users to find HDF information that is not included in the ras-commander library. Find the path in HDFView and set the group_path below to explore the HDF datasets and attributes. Then, use the output to write your own function to extract the data.

Get HDF Paths with Properties (For Exploring HDF Files)

HdfBase.get_dataset_info(plan_number, group_path="/")

Common 2D Mesh Extraction Patterns

Pattern 1: Extract Maximum Inundation

Python
# Get maximum depth at each cell over entire simulation
max_depth = HdfResultsMesh.get_max_depth(plan_number, flow_area_name, ras_object=ras)

# Typical use: Flood mapping, regulatory analysis

Pattern 2: Time Series at Point of Interest

Python
# Find cell nearest to point of interest
poi = (x_coord, y_coord)  # Coordinates of interest
nearest_cell_idx = find_nearest_cell(mesh_geometry, poi)

# Extract full time series at that cell
depth_ts = depth_2d[:, nearest_cell_idx]  # All time steps, single cell

# Plot time series
plt.plot(time_stamps, depth_ts)
plt.title('Depth Hydrograph at POI')

Pattern 3: Animate Inundation Progression

Python
# Create animation of depth over time
from matplotlib.animation import FuncAnimation

fig, ax = plt.subplots()
for time_idx in range(num_time_steps):
    depth_snapshot = depth_2d[time_idx, :]
    # Plot depth on mesh
    # Update animation frame

Pattern 4: Identify High-Velocity Areas

Python
# Find cells with velocity > threshold (erosion concern)
erosion_threshold = 6.0  # ft/s
high_velocity_cells = velocity_2d > erosion_threshold

# Export for mitigation planning
high_vel_locations = mesh_geometry[high_velocity_cells]

Pattern 5: Volume Calculation

Python
# Calculate inundated volume at each time step
cell_areas = mesh_geometry['cell_area']
volume = np.sum(depth_2d * cell_areas, axis=1)  # Sum over cells for each time

# Plot volume vs time
plt.plot(time_stamps, volume)
plt.ylabel('Inundated Volume (cu ft)')

Cross-References

  • 1D Results: See 400_1d_hdf_data_extraction.ipynb for cross section data
  • Face Data: See 412_2d_detail_face_data_extraction.ipynb for cell face velocities/flow
  • Pipes/Pumps: See 411_2d_hdf_pipes_and_pumps.ipynb for hydraulic structures in 2D areas
  • Breach: See 420_breach_results_extraction.ipynb for dam breach progression

For HDF datasets that are not supported by the RAS-Commadner library, provide the dataset path to HdfBase.get_dataset_info and provide the output to an LLM along with a relevent HDF* class(es) to generate new functions that extend the library's coverage.

CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms seeking to modernize H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
