Fluvial-Pluvial Delineation¶

Validation and Verification¶

Delineation Quality Checks:

Hydraulic Connectivity
Verify fluvial flooding is connected to river/stream
Check pluvial areas are isolated from channel
Validate flow path analysis

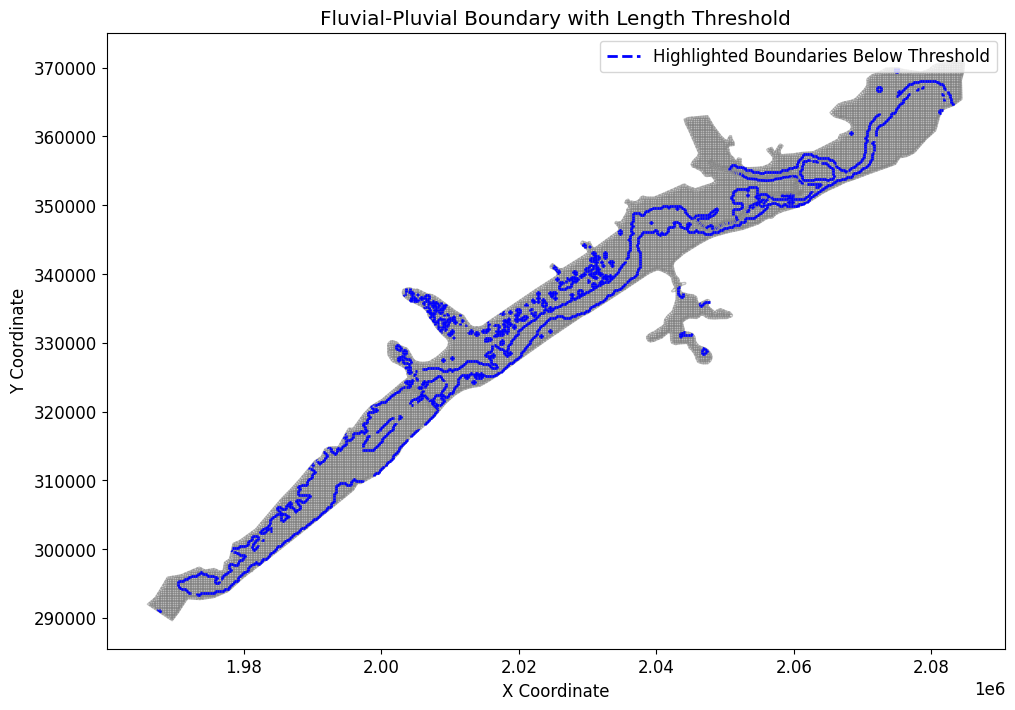

Threshold Sensitivity
Test multiple distance thresholds
Document threshold selection rationale
Check for reasonable transitions between classes
Physical Plausibility
Low areas far from channels should be pluvial
Areas adjacent to channels should be fluvial
Check for unrealistic classifications
Comparison with Field Observations
Known flooding sources (if available)
Historical flood extents
Local knowledge validation

Output Verification:

Python

# Check classification statistics
fluvial_area = (classified_raster == 1).sum() * pixel_area
pluvial_area = (classified_raster == 2).sum() * pixel_area
print(f"Fluvial: {fluvial_area / 1e6:.2f} km²")
print(f"Pluvial: {pluvial_area / 1e6:.2f} km²")
print(f"Ratio: {fluvial_area / pluvial_area:.2f}")

Professional Review Requirements¶

[ ] Methodology peer reviewed
[ ] Threshold selection documented and justified
[ ] Results compared with historical flooding patterns
[ ] Uncertainty quantified and communicated
[ ] Limitations clearly stated in deliverables
[ ] Licensed professional certification (if regulatory use)

Fluvial vs Pluvial Flooding¶

Definitions: - Fluvial: River/stream overflow flooding (channel-driven) - Pluvial: Surface water flooding from direct rainfall (not channel-driven)

Why Delineation Matters: - Different mitigation strategies - Different regulatory frameworks - Different risk assessment methods - Compound flooding may occur (both types simultaneously)

This Notebook Demonstrates: - Spatial delineation using HEC-RAS 2D results - Attribution based on flow paths and connectivity - Visualization of flood source areas

Reference¶

FEMA Flood Insurance Study Guidelines
Urban Drainage and Flood Control District Guidelines
HEC-RAS 2D Modeling User's Manual (compound flooding chapter)

Professional Context¶

Fluvial/pluvial delineation is critical for: - Flood risk communication to stakeholders - Insurance rating and premiums - Infrastructure design (different protection levels) - Regulatory compliance (separate standards may apply)

Important: This is a demonstration workflow. Professional delineation requires: - Review by licensed professional engineer - Validation against field observations - Consideration of site-specific hydraulics - Peer review of methodology

Python

# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False  # <-- TOGGLE THIS

if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path
    local_path = str(Path.cwd().parent)
    if local_path not in sys.path:
        sys.path.insert(0, local_path)
    print(f"📁 LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
    print("📦 PIP PACKAGE MODE: Loading installed ras-commander")

# Import ras-commander
from ras_commander import HdfBase, HdfFluvialPluvial, HdfMesh, HdfResultsMesh, HdfResultsPlot, HdfUtils, RasCmdr, RasExamples, RasPlan, init_ras_project, ras

# Verify which version loaded
import ras_commander
print(f"✓ Loaded: {ras_commander.__file__}")

Text Only

📦 PIP PACKAGE MODE: Loading installed ras-commander
✓ Loaded: c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\__init__.py

Parameters¶

Configure these values to customize the notebook for your project.

Python

# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================
from pathlib import Path

# Project Configuration
PROJECT_NAME = "BaldEagleCrkMulti2D"           # Example project to extract
RAS_VERSION = "7.0"               # HEC-RAS version (6.3, 6.5, 6.6, etc.)

# HDF Analysis Settings
PLAN = "06"                       # Plan number (for HDF file path)
TIME_INDEX = -1                   # Time step index (-1 = last)
PROFILE = "Max"                   # Profile name for steady analysis

Delineate Fluvial and Pluvial Areas using RAS-Commander¶

We will leverage the HEC RAS Summary Outputs to delineate the Fluvial and Pluvial Areas

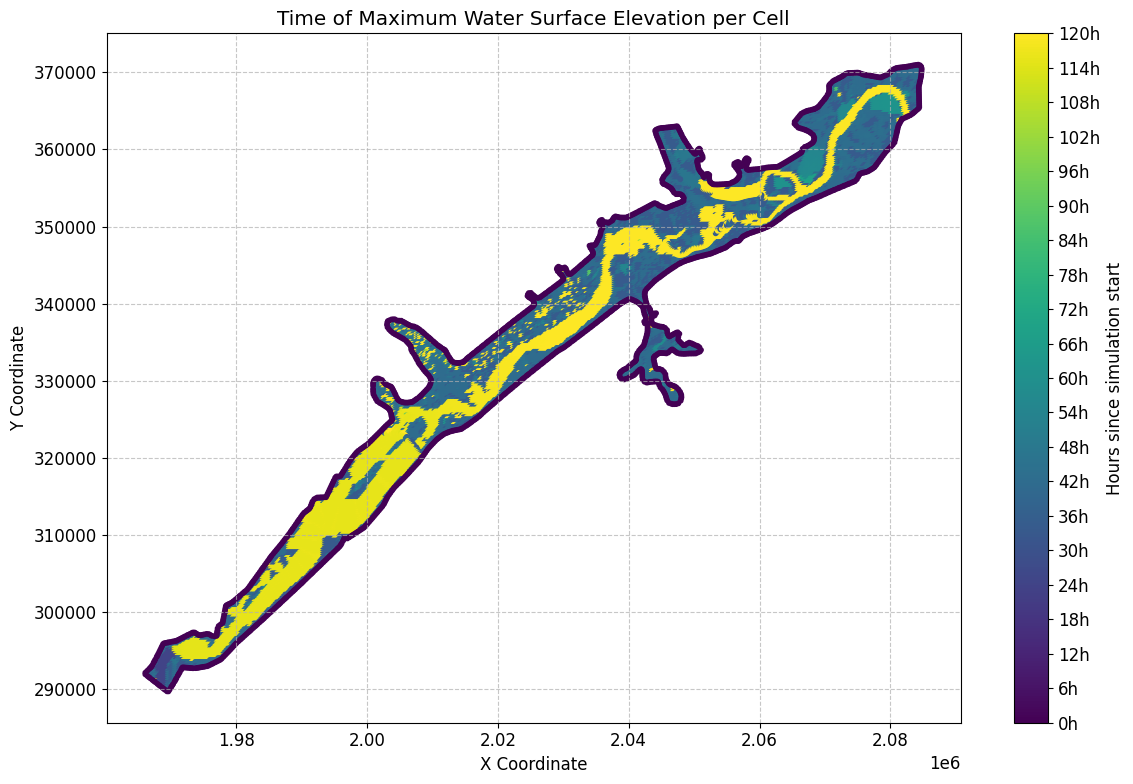

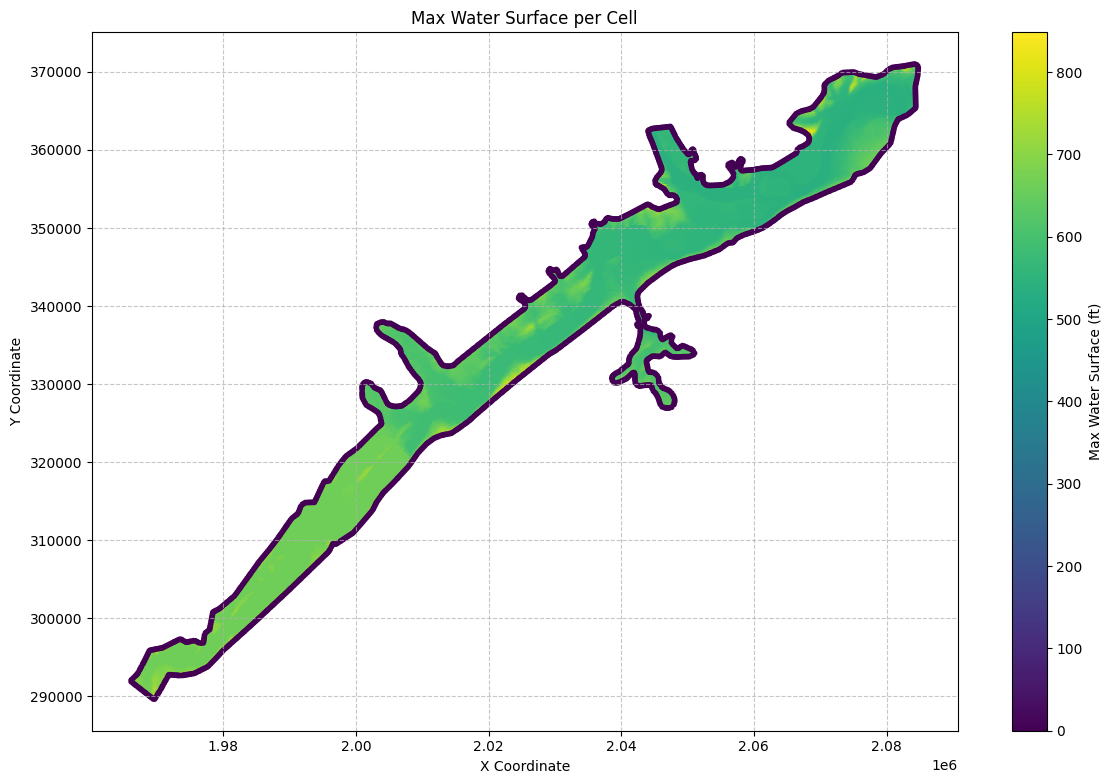

Maximum Water Surface Elevation (WSEL) for each cell is recorded, along with the timestamps of when the maximum WSEL occurs.

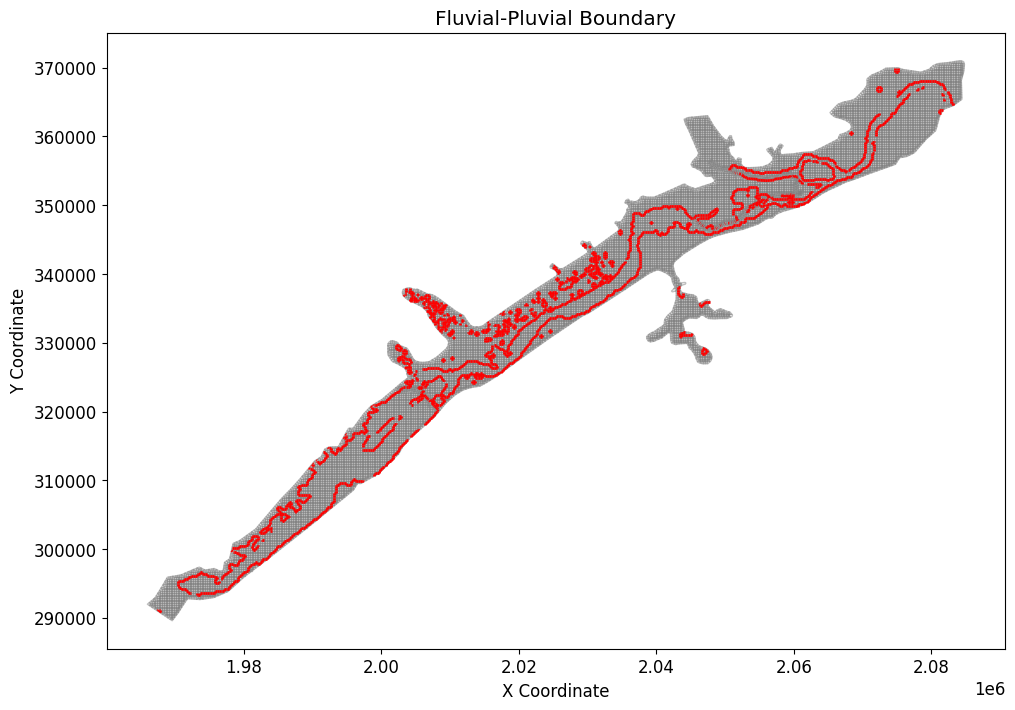

By locating adjacent cells with dissimilar timestamps, we can delineate the Fluvial and Pluvial Areas.

A note about datframe types:

Information from the HEC-RAS plan files are generally dataframes. The text file interface is for the 32-bit side of HEC-RAS and all spatial data is most easily accessed in the HDF files. This includes plan_df, geom_df, hdf_paths_df

Geometry elements (Mesh Faces and Nodes) are provided as Geodataframes (cell_polygons_gdf, boundary_gdf)

Package Installation and Environment Setup¶

Uncomment and run package installation commands if needed

Python

# Install ras-commander from pip (uncomment to install if needed)
#!pip install ras-commander
# This installs ras-commander and all dependencies

Python

# Import all required modules
#from ras_commander import HdfBase, HdfMesh, HdfResultsMesh, HdfResultsPlot, HdfUtils, RasCmdr, RasExamples, RasPlan, init_ras_project, ras  # Import all ras-commander modules

# Import the required libraries for this notebook
import h5py
import numpy as np
import requests
import pandas as pd
import geopandas as gpd
import matplotlib.pyplot as plt
import pyproj
from shapely.geometry import Point, LineString, Polygon
import xarray as xr
from pathlib import Path

Python

# Download the BaldEagleCrkMulti2D project from HEC and run plan 06

# Define the path to the BaldEagleCrkMulti2D project
import logging

# Extract project using suffix parameter (returns correct path)
bald_eagle_path = RasExamples.extract_project(PROJECT_NAME, suffix="14")

# Initialize the RAS project using the default global ras object
init_ras_project(bald_eagle_path, RAS_VERSION)
logging.info(f"Bald Eagle project initialized with folder: {ras.project_folder}")

# Use the plan number from parameters
plan_number = PLAN

# Update the run flags in the plan file
RasPlan.update_run_flags(
    plan_number,
    geometry_preprocessor=True,  # Run HTab
    unsteady_flow_simulation=True,  # Run UNet
    post_processor=True,  # Run PostProcess
    floodplain_mapping=False,  # Run RASMapper
)

# Execute Plan 06 using RasCmdr with skip_existing=True
# This will skip execution if HDF results already exist with "Complete Process"
print(f"Executing Plan {plan_number} for the Bald Eagle Creek project...")
success_bald_eagle = RasCmdr.compute_plan(plan_number, skip_existing=True)
if success_bald_eagle:
    print(f"Plan {plan_number} executed successfully (or skipped - results exist).")
else:
    print(f"Plan {plan_number} execution failed for Bald Eagle.")

Text Only

2026-01-12 23:58:26 - ras_commander.RasExamples - INFO - Found zip file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\Example_Projects_6_6.zip
2026-01-12 23:58:26 - ras_commander.RasExamples - INFO - Loading project data from CSV...
2026-01-12 23:58:26 - ras_commander.RasExamples - INFO - Loaded 68 projects from CSV.
2026-01-12 23:58:26 - ras_commander.RasExamples - INFO - ----- RasExamples Extracting Project -----
2026-01-12 23:58:26 - ras_commander.RasExamples - INFO - Extracting project 'BaldEagleCrkMulti2D' as 'BaldEagleCrkMulti2D_14'
2026-01-12 23:58:29 - ras_commander.RasExamples - INFO - Successfully extracted project 'BaldEagleCrkMulti2D' to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14
2026-01-12 23:58:31 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.rasmap
2026-01-12 23:58:31 - ras_commander.RasPrj - INFO - Updated results_df with 11 plan(s)
2026-01-12 23:58:31 - root - INFO - Bald Eagle project initialized with folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14
2026-01-12 23:58:31 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06 (flags modified: 4)
2026-01-12 23:58:31 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14
2026-01-12 23:58:31 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2026-01-12 23:58:31 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06"


Executing Plan 06 for the Bald Eagle Creek project...


2026-01-13 00:44:04 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 06
2026-01-13 00:44:04 - ras_commander.RasCmdr - INFO - Total run time for plan 06: 2732.82 seconds
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 1694 characters from HDF
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Plan Name: Gridded Precip - Infiltration
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Simulation Duration (hours): 120.0
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:04 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\RasPrj.py:1514: FutureWarning: The behavior of DataFrame concatenation with empty or all-NA entries is deprecated. In a future version, this will no longer exclude empty or all-NA columns when determining the result dtypes. To retain the old behavior, exclude the relevant entries before the concat operation.
  self.results_df = pd.concat([self.results_df, new_results], ignore_index=True)
2026-01-13 00:44:04 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)


Plan 06 executed successfully (or skipped - results exist).

Python

# Display results summary from results_df
desired_cols = ['plan_number', 'plan_title', 'completed', 'has_errors', 'has_warnings', 'runtime_complete_process_hours']
available_cols = [c for c in desired_cols if c in ras.results_df.columns]
ras.results_df[available_cols]

	plan_number	plan_title	completed	has_errors	has_warnings	runtime_complete_process_hours
0	13	PMF with Multi 2D Areas	False	False	False	NaN
1	15	1d-2D Dambreak Refined Grid	False	False	False	NaN
2	17	2D to 1D No Dam	False	False	False	NaN
3	18	2D to 2D Run	False	False	False	NaN
4	19	SA to 2D Dam Break Run	False	False	False	NaN
5	03	Single 2D Area - Internal Dam Structure	False	False	False	NaN
6	04	SA to 2D Area Conn - 2D Levee Structure	False	False	False	NaN
7	02	SA to Detailed 2D Breach	False	False	False	NaN
8	01	SA to Detailed 2D Breach FEQ	False	False	False	NaN
9	05	Single 2D area with Bridges FEQ	False	False	False	NaN
10	06	Gridded Precip - Infiltration	True	False	False	0.757331

OPTIONAL: Use your own project instead¶

your_project_path = Path(r"D:\yourprojectpath")

init_ras_project(your_project_path, "6.6") plan_number = "01" # Plan number to use for this notebook

If you use this code cell, don't run the previous cell or change to markdown¶

NOTE: Ensure the HDF Results file was generated by HEC-RAS Version 6.x or above¶

Explore Project Dataframes using 'ras' Object¶

Python

# Load Plan and Geometry Dataframes and find Plan and Geometry HDF Paths

# Display plan_df for bald_eagle project
print("Plan DataFrame for bald_eagle project:")
ras.plan_df

Text Only

Plan DataFrame for bald_eagle project:

	plan_number	unsteady_number	geometry_number	Plan Title	Program Version	Short Identifier	Simulation Date	Computation Interval	Mapping Interval	Run HTab	...	DSS File	Friction Slope Method	UNET D2 SolverType	UNET D2 Name	HDF_Results_Path	Geom File	Geom Path	Flow File	Flow Path	full_path
0	13	07	06	PMF with Multi 2D Areas	5.10	PMF Multi 2D	01JAN1999,1200,04JAN1999,1200	30SEC	30MIN	1	...	dss	1	Pardiso (Direct)	193	None	06	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	07	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
1	15	12	08	1d-2D Dambreak Refined Grid	5.10	1D-2D Refined Grid	01JAN1999,1200,04JAN1999,1200	20SEC	5MIN	1	...	dss	1	NaN	BaldEagleCr	None	08	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	12	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
2	17	09	10	2D to 1D No Dam	5.00	2D to 1D No Dam	01JAN1999,1200,06JAN1999,1200	1MIN	5MIN	1	...	dss	1	NaN	Upstream2D	None	10	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	09	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
3	18	10	11	2D to 2D Run	5.00	2D to 2D Run	01JAN1999,1200,04JAN1999,1200	20SEC	5MIN	1	...	dss	1	NaN	BaldEagleCr	None	11	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	10	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
4	19	11	12	SA to 2D Dam Break Run	5.00	SA to 2D Dam Break	01JAN1999,1200,04JAN1999,1200	20SEC	10MIN	1	...	dss	1	NaN	BaldEagleCr	None	12	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	11	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
5	03	13	09	Single 2D Area - Internal Dam Structure	5.04	Single 2D	01JAN1999,1200,04JAN1999,1200	30SEC	10MIN	1	...	dss	1	NaN	BaldEagleCr	None	09	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	13	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
6	04	01	13	SA to 2D Area Conn - 2D Levee Structure	5.00	2D Levee Struc	01JAN1999,1200,04JAN1999,1200	20SEC	5MIN	1	...	dss	1	NaN	BaldEagleCr	None	13	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	01	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
7	02	01	01	SA to Detailed 2D Breach	5.10	SA-2D Det Brch	01JAN1999,1200,04JAN1999,1200	10SEC	5MIN	1	...	dss	1	Pardiso (Direct)	BaldEagleCr	None	01	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	01	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
8	01	01	01	SA to Detailed 2D Breach FEQ	5.03	SA-2D Det FEQ	01JAN1999,1200,04JAN1999,1200	5SEC	5MIN	1	...	dss	1	NaN	BaldEagleCr	None	01	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	01	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
9	05	02	03	Single 2D area with Bridges FEQ	5.10	Single 2D Bridges FEQ	01JAN1999,1200,04JAN1999,1200	5SEC	10MIN	-1	...	dss	1	PARDISO (Direct)	BaldEagleCr	None	03	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	02	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
10	06	03	09	Gridded Precip - Infiltration	6.00	Grid Precip Infiltration	09SEP2018,0000,14SEP2018,0000	20SEC	10MIN	-1	...	dss	1	Pardiso (Direct)	BaldEagleCr	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	09	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	03	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...

11 rows × 29 columns

Python

print("\nGeometry DataFrame for the project:")
ras.geom_df

Text Only

Geometry DataFrame for the project:

	geom_file	geom_number	full_path	hdf_path
0	g06	06	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
1	g08	08	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
2	g10	10	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
3	g11	11	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
4	g12	12	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
5	g09	09	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
6	g13	13	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
7	g01	01	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
8	g03	03	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...
9	g02	02	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...

Python

print("\nUnsteady DataFrame for the project:")
ras.unsteady_df

Text Only

Unsteady DataFrame for the project:

	unsteady_number	full_path	Flow Title	Program Version	Precipitation Mode	Wind Mode	Met BC=Precipitation\|Mode	Met BC=Evapotranspiration\|Mode	Met BC=Precipitation\|Expanded View	Met BC=Precipitation\|Constant Units	Met BC=Precipitation\|Gridded Source
0	07	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
1	08	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2	09	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	Upstream 2D	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
3	10	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	1972 Flood Event - 2D to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
4	11	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	1972 Flood Event - SA to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
5	12	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	PMF for 1D - 2D	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
6	13	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	Single 2D Area	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
7	01	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	1972 Flood Event - 2D Leve Structure	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
8	02	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	Single 2D Area with Bridges	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
9	03	C:\Users\billk_clb\anaconda3\envs\rascmdr_pipt...	Gridded Precipitation	6.00	Enable	No Wind Forces	Gridded	None	-1	mm/hr	DSS

Python

print("\nBoundary Conditions DataFrame for the project:")
ras.boundaries_df

Text Only

Boundary Conditions DataFrame for the project:

	unsteady_number	boundary_condition_number	river_reach_name	river_station	storage_area_name	pump_station_name	bc_type	hydrograph_type	Interval	DSS File	...	Flow Title	Program Version	Precipitation Mode	Wind Mode	Met BC=Precipitation\|Mode	Met BC=Evapotranspiration\|Mode	Met BC=Precipitation\|Expanded View	Met BC=Precipitation\|Constant Units	Met BC=Precipitation\|Gridded Source
0	07	1	Bald Eagle Cr.	Lock Haven	137520		Flow Hydrograph	Flow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
1	07	2	Bald Eagle Cr.	Lock Haven	81454		Gate Opening	None	NaN	NaN	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2	07	3	Bald Eagle Cr.	Lock Haven	28519		Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
3	07	4	Bald Eagle Cr.	Lock Haven	1		Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	NaN	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
4	07	5	Bald Eagle Cr.	Lock Haven	136948	82303	Uniform Lateral Inflow Hydrograph	Uniform Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
5	07	6	Bald Eagle Cr.	Lock Haven	80720	67130	Uniform Lateral Inflow Hydrograph	Uniform Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
6	07	7	Bald Eagle Cr.	Lock Haven	76865		Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
7	07	8	Bald Eagle Cr.	Lock Haven	67130		Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
8	07	9	Bald Eagle Cr.	Lock Haven	66041	1	Uniform Lateral Inflow Hydrograph	Uniform Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
9	07	10	Bald Eagle Cr.	Lock Haven	-1867		Normal Depth	None	NaN	NaN	...	PMF with Multi 2D Areas	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
10	08	1	Bald Eagle Cr.	Lock Haven	28519		Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
11	08	2	Bald Eagle Cr.	Lock Haven	1		Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	NaN	...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
12	08	3	Bald Eagle Cr.	Lock Haven	80720	67130	Uniform Lateral Inflow Hydrograph	Uniform Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
13	08	4	Bald Eagle Cr.	Lock Haven	76865		Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
14	08	5	Bald Eagle Cr.	Lock Haven	67130		Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
15	08	6	Bald Eagle Cr.	Lock Haven	66041	1	Uniform Lateral Inflow Hydrograph	Uniform Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
16	08	7	Bald Eagle Cr.	Lock Haven	-1867		Normal Depth	None	NaN	NaN	...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
17	08	8					Flow Hydrograph	Flow Hydrograph	1HOUR	NaN	...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
18	08	9	Bald Eagle Cr.	Lock Haven	81454		Gate Opening	None	NaN	NaN	...	PMF for Upstream 2D	4.20	NaN	NaN	NaN	NaN	NaN	NaN	NaN
19	09	1	Bald Eagle Cr.	Lock Haven	28519		Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	Bald_Eagle_Creek.dss	...	Upstream 2D	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
20	09	2	Bald Eagle Cr.	Lock Haven	-1867		Normal Depth	None	NaN	NaN	...	Upstream 2D	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
21	09	3					Flow Hydrograph	Flow Hydrograph	1HOUR	NaN	...	Upstream 2D	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
22	10	1					Normal Depth	None	NaN	NaN	...	1972 Flood Event - 2D to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
23	10	2					Normal Depth	None	NaN	NaN	...	1972 Flood Event - 2D to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
24	10	3					Gate Opening	None	NaN	NaN	...	1972 Flood Event - 2D to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
25	10	4					Flow Hydrograph	Flow Hydrograph	1HOUR	NaN	...	1972 Flood Event - 2D to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
26	11	1					Gate Opening	None	NaN	NaN	...	1972 Flood Event - SA to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
27	11	2					Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	NaN	...	1972 Flood Event - SA to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
28	11	3					Normal Depth	None	NaN	NaN	...	1972 Flood Event - SA to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
29	11	4					Normal Depth	None	NaN	NaN	...	1972 Flood Event - SA to 2D Run	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
30	12	1	Bald Eagle Cr.	Lock Haven	137520		Flow Hydrograph	Flow Hydrograph	15MIN	Bald_Eagle_Creek.dss	...	PMF for 1D - 2D	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
31	12	2	Bald Eagle Cr.	Lock Haven	81454		Gate Opening	None	NaN	NaN	...	PMF for 1D - 2D	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
32	12	3					Normal Depth	None	NaN	NaN	...	PMF for 1D - 2D	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
33	12	4					Normal Depth	None	NaN	NaN	...	PMF for 1D - 2D	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
34	13	1					Normal Depth	None	NaN	NaN	...	Single 2D Area	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
35	13	2					Normal Depth	None	NaN	NaN	...	Single 2D Area	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
36	13	3					Flow Hydrograph	Flow Hydrograph	1HOUR	NaN	...	Single 2D Area	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
37	13	4					Gate Opening	None	NaN	NaN	...	Single 2D Area	5.00	NaN	NaN	NaN	NaN	NaN	NaN	NaN
38	01	1					Gate Opening	None	NaN	NaN	...	1972 Flood Event - 2D Leve Structure	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
39	01	2					Lateral Inflow Hydrograph	Lateral Inflow Hydrograph	1HOUR	NaN	...	1972 Flood Event - 2D Leve Structure	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
40	01	3					Normal Depth	None	NaN	NaN	...	1972 Flood Event - 2D Leve Structure	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
41	01	4					Normal Depth	None	NaN	NaN	...	1972 Flood Event - 2D Leve Structure	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
42	02	1					Normal Depth	None	NaN	NaN	...	Single 2D Area with Bridges	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
43	02	2					Normal Depth	None	NaN	NaN	...	Single 2D Area with Bridges	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
44	02	3					Flow Hydrograph	Flow Hydrograph	1HOUR	NaN	...	Single 2D Area with Bridges	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
45	02	4					Gate Opening	None	NaN	NaN	...	Single 2D Area with Bridges	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
46	02	5					Normal Depth	None	NaN	NaN	...	Single 2D Area with Bridges	5.10	NaN	NaN	NaN	NaN	NaN	NaN	NaN
47	03	1					Normal Depth	None	NaN	NaN	...	Gridded Precipitation	6.00	Enable	No Wind Forces	Gridded	None	-1	mm/hr	DSS
48	03	2					Flow Hydrograph	Flow Hydrograph	1HOUR	NaN	...	Gridded Precipitation	6.00	Enable	No Wind Forces	Gridded	None	-1	mm/hr	DSS
49	03	3					Normal Depth	None	NaN	NaN	...	Gridded Precipitation	6.00	Enable	No Wind Forces	Gridded	None	-1	mm/hr	DSS
50	03	4					Gate Opening	None	NaN	NaN	...	Gridded Precipitation	6.00	Enable	No Wind Forces	Gridded	None	-1	mm/hr	DSS

51 rows × 29 columns

Find Paths for Results and Geometry HDF's¶

Python

# Use the plan_number defined earlier
print(f"Using plan number: {plan_number}")

# Get the plan HDF path for the plan_number defined above
plan_hdf_path = ras.plan_df.loc[ras.plan_df['plan_number'] == plan_number, 'HDF_Results_Path'].values[0]

Text Only

Using plan number: 06

Python

plan_hdf_path

Text Only

'C:\\Users\\billk_clb\\anaconda3\\envs\\rascmdr_piptest\\Lib\\site-packages\\examples\\example_projects\\BaldEagleCrkMulti2D_14\\BaldEagleDamBrk.p06.hdf'

Python

# Get the geometry HDF path
geom_hdf_path = ras.plan_df.loc[ras.plan_df['plan_number'] == plan_number, 'Geom Path'].values[0] + '.hdf'

Python

geom_hdf_path

Text Only

'C:\\Users\\billk_clb\\anaconda3\\envs\\rascmdr_piptest\\Lib\\site-packages\\examples\\example_projects\\BaldEagleCrkMulti2D_14\\BaldEagleDamBrk.g09.hdf'

Python

print(f"\nPlan HDF path for Plan {plan_number}: {plan_hdf_path}")
print(f"Geometry HDF path for Plan {plan_number}: {geom_hdf_path}")

Text Only

Plan HDF path for Plan 06: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
Geometry HDF path for Plan 06: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf

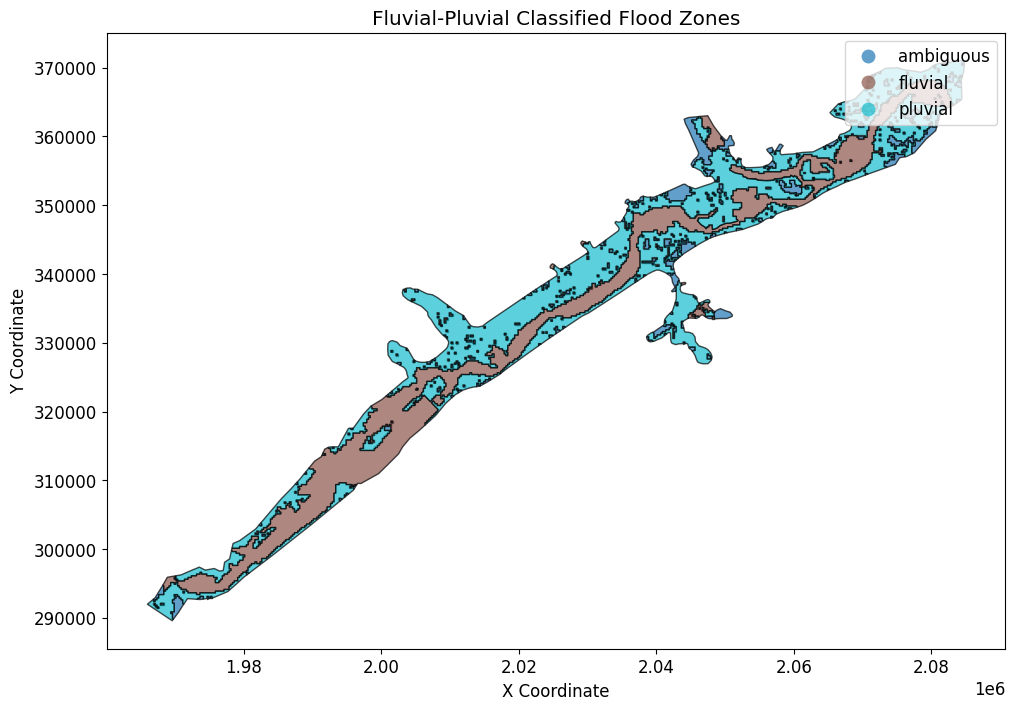

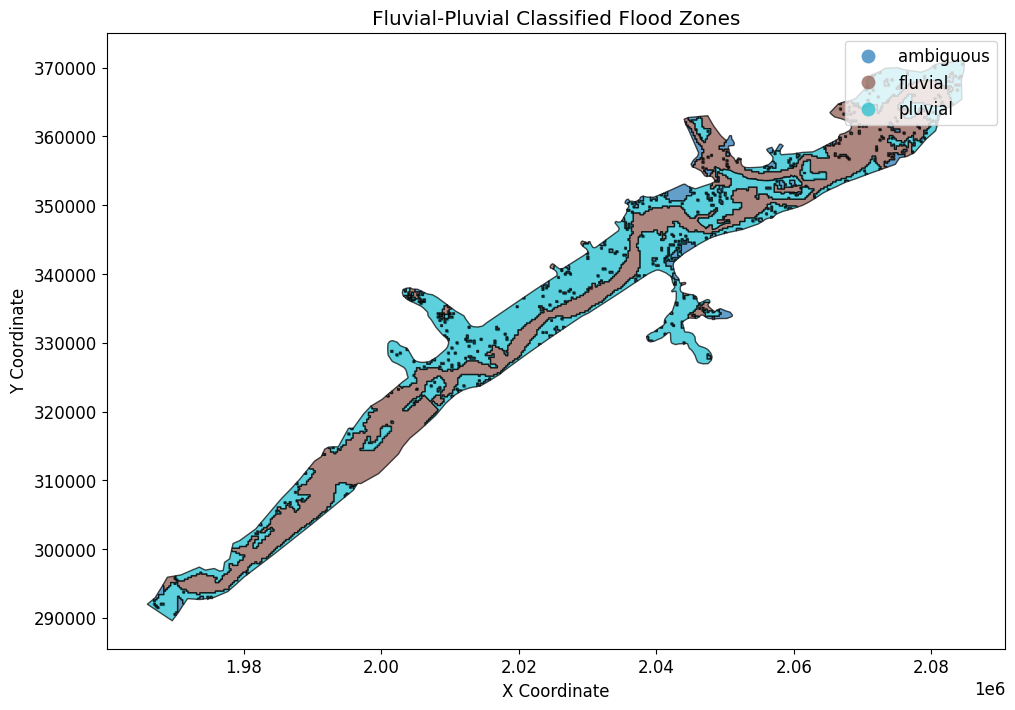

Fluvial Pluvial Delineation using RAS-Commander¶

Using the Maximum WSE Results layer, which contains the maximum water surface and time stamp of the maximum water surface, mesh cell faces are categorized. If the difference in time (delta_t) in hours is greater than the (user defined, default 12) duration specified, that mesh cell face is added to the fluvial-pluvial boundary dataset.

This is meant to provide a draft fluvial-pluvial boundary for floodplain analysis, to the extent it can be derived directly from the HEC-RAS results files.

The function attempts to combine adjacent line segments to simplify the resulting geometry, but GIS cleanup and manual interpolation will be required to create a closed polygon boundary that could be used for further processing steps. However, this approach does provide an efficient method for providing a draft boundary that is based on HEC-RAS's direct computations and mesh cell faces.

Python

# Using mesh_max_ws, get the cell coordinates and plot the max water surface as a map
import matplotlib.pyplot as plt
from ras_commander import HdfMesh
from ras_commander import HdfResultsMesh
from shapely.geometry import Point

# Get mesh max water surface
max_ws_df = HdfResultsMesh.get_mesh_max_ws(plan_hdf_path)

print("max_ws_df")
print(max_ws_df)

# If you get an error here, you may have a pre-6.0 HDF.  Re-run in 6.x to generate a new results file

Text Only

2026-01-13 00:44:05 - ras_commander.hdf.HdfResultsMesh - INFO - Using HDF file from direct string path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Water Surface
2026-01-13 00:44:05 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:05 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data


max_ws_df
         mesh_name  cell_id  maximum_water_surface maximum_water_surface_time  \
0      BaldEagleCr        0             704.054443        2018-09-10 18:00:00
1      BaldEagleCr        1             692.377991        2018-09-10 18:04:00
2      BaldEagleCr        2             671.183472        2018-09-10 18:13:20
3      BaldEagleCr        3             660.605469        2018-09-10 18:54:40
4      BaldEagleCr        4             660.586243        2018-09-10 18:55:20
...            ...      ...                    ...                        ...
19592  BaldEagleCr    19592               0.000000        2018-09-09 00:00:00
19593  BaldEagleCr    19593               0.000000        2018-09-09 00:00:00
19594  BaldEagleCr    19594               0.000000        2018-09-09 00:00:00
19595  BaldEagleCr    19595               0.000000        2018-09-09 00:00:00
19596  BaldEagleCr    19596               0.000000        2018-09-09 00:00:00

                             geometry
0              POINT (2083000 370750)
1              POINT (2083250 370750)
2              POINT (2083500 370750)
3              POINT (2083750 370750)
4              POINT (2084000 370750)
...                               ...
19592  POINT (1978423.032 300718.897)
19593  POINT (1973389.375 297311.928)
19594   POINT (1968834.79 295808.861)
19595  POINT (1966130.942 291879.395)
19596   POINT (1969660.046 289673.23)

[19597 rows x 5 columns]

Python

# Call the function to plot
HdfResultsPlot.plot_results_max_wsel(max_ws_df)

# Plot the time of maximum water surface elevation
HdfResultsPlot.plot_results_max_wsel_time(max_ws_df)

# Print the first few rows of the merged dataframe for verification
print("\nFirst few rows of the merged dataframe:")
max_ws_df

png

Text Only

Simulation Start Time: 2018-09-09 00:00:00
Time Range: 120.0 hours

Timing Statistics (hours since start):
count    19597.000000
mean        63.225561
std         40.179612
min          0.000000
25%         34.000000
50%         42.700000
75%        115.677778
max        120.000000
Name: max_wsel_time, dtype: float64

First few rows of the merged dataframe:

	mesh_name	cell_id	maximum_water_surface	maximum_water_surface_time	geometry	x	y	max_wsel_time
0	BaldEagleCr	0	704.054443	2018-09-10 18:00:00	POINT (2083000 370750)	2.083000e+06	370750.000000	2018-09-10 18:00:00
1	BaldEagleCr	1	692.377991	2018-09-10 18:04:00	POINT (2083250 370750)	2.083250e+06	370750.000000	2018-09-10 18:04:00
2	BaldEagleCr	2	671.183472	2018-09-10 18:13:20	POINT (2083500 370750)	2.083500e+06	370750.000000	2018-09-10 18:13:20
3	BaldEagleCr	3	660.605469	2018-09-10 18:54:40	POINT (2083750 370750)	2.083750e+06	370750.000000	2018-09-10 18:54:40
4	BaldEagleCr	4	660.586243	2018-09-10 18:55:20	POINT (2084000 370750)	2.084000e+06	370750.000000	2018-09-10 18:55:20
...	...	...	...	...	...	...	...	...
19592	BaldEagleCr	19592	0.000000	2018-09-09 00:00:00	POINT (1978423.032 300718.897)	1.978423e+06	300718.897016	2018-09-09 00:00:00
19593	BaldEagleCr	19593	0.000000	2018-09-09 00:00:00	POINT (1973389.375 297311.928)	1.973389e+06	297311.928472	2018-09-09 00:00:00
19594	BaldEagleCr	19594	0.000000	2018-09-09 00:00:00	POINT (1968834.79 295808.861)	1.968835e+06	295808.860743	2018-09-09 00:00:00
19595	BaldEagleCr	19595	0.000000	2018-09-09 00:00:00	POINT (1966130.942 291879.395)	1.966131e+06	291879.394946	2018-09-09 00:00:00
19596	BaldEagleCr	19596	0.000000	2018-09-09 00:00:00	POINT (1969660.046 289673.23)	1.969660e+06	289673.230118	2018-09-09 00:00:00

19597 rows × 8 columns

Python

# Use HdfUtils for extracting projection
print("\nExtracting Projection from HDF")
projection = HdfBase.get_projection(hdf_path=geom_hdf_path)
if projection:
    print(f"Projection: {projection}")
else:
    print("No projection information found.")

Text Only

2026-01-13 00:44:06 - ras_commander.hdf.HdfBase - INFO - Using HDF file from direct string path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf



Extracting Projection from HDF
Projection: EPSG:2271

Python

# Example: Extract Cell Polygons
print("\nExample 6: Extracting Cell Polygons")
cell_polygons_gdf = HdfMesh.get_mesh_cell_polygons(geom_hdf_path)


# Call the function to plot cell polygons
#cell_polygons_gdf = HdfFluvialPluvial.plot_cell_polygons(cell_polygons_gdf, projection)

Text Only

2026-01-13 00:44:06 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from direct string path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:06 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf



Example 6: Extracting Cell Polygons


2026-01-13 00:44:07 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:07 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:07 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:07 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.g09.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf

Python

import geopandas as gpd
import pandas as pd
from shapely.geometry import LineString, Polygon, MultiLineString
from collections import defaultdict
from tqdm import tqdm
from rtree import index


# Example usage:
boundary_gdf = HdfFluvialPluvial.calculate_fluvial_pluvial_boundary(plan_hdf_path, delta_t=72)

Text Only

2026-01-13 00:44:08 - ras_commander.hdf.HdfFluvialPluvial - INFO - Using HDF file from direct string path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfFluvialPluvial - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfFluvialPluvial - INFO - Getting cell polygons from HDF file...
2026-01-13 00:44:08 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:08 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:09 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:09 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:09 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:09 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfFluvialPluvial - INFO - Getting maximum water surface data from HDF file...
2026-01-13 00:44:10 - ras_commander.hdf.HdfResultsMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Water Surface
2026-01-13 00:44:10 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:10 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
2026-01-13 00:44:10 - ras_commander.hdf.HdfFluvialPluvial - INFO - Converting maximum water surface timestamps...
2026-01-13 00:44:10 - ras_commander.hdf.HdfFluvialPluvial - INFO - Processing cell adjacencies...
2026-01-13 00:44:13 - ras_commander.hdf.HdfFluvialPluvial - INFO - Extracting cell times from maximum water surface data...
2026-01-13 00:44:13 - ras_commander.hdf.HdfFluvialPluvial - INFO - Identifying boundary edges...
2026-01-13 00:44:13 - ras_commander.hdf.HdfFluvialPluvial - INFO - Identified 3201 boundary edges using delta_t of 72 hours.
2026-01-13 00:44:13 - ras_commander.hdf.HdfFluvialPluvial - INFO - Creating final GeoDataFrame for boundaries...
2026-01-13 00:44:13 - ras_commander.hdf.HdfFluvialPluvial - INFO - Boundary line calculation completed successfully.

Python

# Calculate statistics about the boundary line lengths
boundary_lengths = boundary_gdf.geometry.length

print("Boundary line length statistics:")
print(f"Max length: {boundary_lengths.max():.2f}")
print(f"Min length: {boundary_lengths.min():.2f}")
print(f"Average length: {boundary_lengths.mean():.2f}")
print(f"Median length: {boundary_lengths.median():.2f}")

# Print general information about the boundary GeoDataFrame
print("\nBoundary GeoDataFrame info:")
print(boundary_gdf.info())

Text Only

Boundary line length statistics:
Max length: 441.63
Min length: 1.57
Average length: 242.54
Median length: 250.00

Boundary GeoDataFrame info:
<class 'geopandas.geodataframe.GeoDataFrame'>
RangeIndex: 3201 entries, 0 to 3200
Data columns (total 1 columns):
 #   Column    Non-Null Count  Dtype
---  ------    --------------  -----
 0   geometry  3201 non-null   geometry
dtypes: geometry(1)
memory usage: 25.1 KB
None

Python

# Visualize the results
fig, ax = plt.subplots(figsize=(12, 8))
cell_polygons_gdf.plot(ax=ax, edgecolor='gray', facecolor='none', alpha=0.5)
boundary_gdf.plot(ax=ax, color='red', linewidth=2)
plt.title('Fluvial-Pluvial Boundary')
plt.xlabel('X Coordinate')
plt.ylabel('Y Coordinate')
plt.show()

png

Python

length_threshold = 3000 #in same units as X and Y coordinates

# Filter out boundary lines below the length threshold
filtered_boundary_gdf = boundary_gdf[boundary_lengths >= length_threshold]
highlighted_boundary_gdf = boundary_gdf[boundary_lengths < length_threshold]

# Visualize the results with highlighted boundaries below the threshold
fig, ax = plt.subplots(figsize=(12, 8))
cell_polygons_gdf.plot(ax=ax, edgecolor='gray', facecolor='none', alpha=0.5)
filtered_boundary_gdf.plot(ax=ax, color='red', linewidth=2, label='Valid Boundaries')
highlighted_boundary_gdf.plot(ax=ax, color='blue', linewidth=2, linestyle='--', label='Highlighted Boundaries Below Threshold')
plt.title('Fluvial-Pluvial Boundary with Length Threshold')
plt.xlabel('X Coordinate')
plt.ylabel('Y Coordinate')
plt.legend()
plt.show()

Text Only

C:\Users\billk_clb\AppData\Local\Temp\ipykernel_182040\1399630256.py:10: UserWarning: The GeoDataFrame you are attempting to plot is empty. Nothing has been displayed.
  filtered_boundary_gdf.plot(ax=ax, color='red', linewidth=2, label='Valid Boundaries')

png

Python

# Example usage using Optional min_line_length argument:
boundary_gdf = HdfFluvialPluvial.calculate_fluvial_pluvial_boundary(plan_hdf_path, delta_t=72, min_line_length=3000)

Text Only

2026-01-13 00:44:19 - ras_commander.hdf.HdfFluvialPluvial - INFO - Using HDF file from direct string path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:19 - ras_commander.hdf.HdfFluvialPluvial - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:19 - ras_commander.hdf.HdfFluvialPluvial - INFO - Getting cell polygons from HDF file...
2026-01-13 00:44:19 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:19 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:19 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:19 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:19 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:19 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:19 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:19 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:20 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:20 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:20 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:20 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfFluvialPluvial - INFO - Getting maximum water surface data from HDF file...
2026-01-13 00:44:21 - ras_commander.hdf.HdfResultsMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Water Surface
2026-01-13 00:44:21 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:21 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
2026-01-13 00:44:21 - ras_commander.hdf.HdfFluvialPluvial - INFO - Converting maximum water surface timestamps...
2026-01-13 00:44:21 - ras_commander.hdf.HdfFluvialPluvial - INFO - Processing cell adjacencies...
2026-01-13 00:44:24 - ras_commander.hdf.HdfFluvialPluvial - INFO - Extracting cell times from maximum water surface data...
2026-01-13 00:44:24 - ras_commander.hdf.HdfFluvialPluvial - INFO - Identifying boundary edges...
2026-01-13 00:44:24 - ras_commander.hdf.HdfFluvialPluvial - INFO - Identified 3201 boundary edges using delta_t of 72 hours.
2026-01-13 00:44:24 - ras_commander.hdf.HdfFluvialPluvial - INFO - 3201 boundary line(s) shorter than 3000 units were dropped after filtering.
2026-01-13 00:44:24 - ras_commander.hdf.HdfFluvialPluvial - INFO - Creating final GeoDataFrame for boundaries...
2026-01-13 00:44:24 - ras_commander.hdf.HdfFluvialPluvial - INFO - Boundary line calculation completed successfully.

Python

# To get the classified flood zones as polygons:
flood_polygons_gdf = HdfFluvialPluvial.generate_fluvial_pluvial_polygons(
    plan_hdf_path,
    delta_t=10,
    temporal_tolerance_hours=1.0,
    min_polygon_area_acres=1000
)

flood_polygons_gdf

# Plot the classified flood zones as polygons, colored by classification
fig, ax = plt.subplots(figsize=(12, 8))
flood_polygons_gdf.plot(
    ax=ax,
    column="classification",
    categorical=True,
    legend=True,
    edgecolor="black",
    alpha=0.7
)
plt.title("Fluvial-Pluvial Classified Flood Zones")
plt.xlabel("X Coordinate")
plt.ylabel("Y Coordinate")
plt.show()

Text Only

2026-01-13 00:44:24 - ras_commander.hdf.HdfFluvialPluvial - INFO - Using HDF file from direct string path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:24 - ras_commander.hdf.HdfFluvialPluvial - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:24 - ras_commander.hdf.HdfFluvialPluvial - INFO - Loading mesh and results data...
2026-01-13 00:44:24 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:24 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:24 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:24 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:24 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:24 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:24 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:24 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:25 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:25 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:25 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:25 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfResultsMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Water Surface
2026-01-13 00:44:26 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:26 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:27 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:27 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
2026-01-13 00:44:27 - ras_commander.hdf.HdfFluvialPluvial - INFO - Processing cell adjacencies...
2026-01-13 00:44:29 - ras_commander.hdf.HdfFluvialPluvial - INFO - Identifying initial boundary seeds with delta_t = 10 hours...
2026-01-13 00:44:30 - ras_commander.hdf.HdfFluvialPluvial - INFO - Starting iterative region growth with tolerance = 1.0 hours...
Region Growing: 33iter [00:00, 60.23iter/s, Fluvial=0, Pluvial=0, Ambiguous=0]
2026-01-13 00:44:30 - ras_commander.hdf.HdfFluvialPluvial - INFO - Region growing completed in 33 iterations.
2026-01-13 00:44:30 - ras_commander.hdf.HdfFluvialPluvial - INFO - Merging classifications with cell polygons...
2026-01-13 00:44:30 - ras_commander.hdf.HdfFluvialPluvial - INFO - Dissolving polygons by classification...
2026-01-13 00:44:31 - ras_commander.hdf.HdfFluvialPluvial - INFO - Applying minimum polygon area filter: 1000 acres
2026-01-13 00:44:31 - ras_commander.hdf.HdfFluvialPluvial - INFO - Found 235 small fluvial and 140 small pluvial polygons to reclassify.
2026-01-13 00:44:31 - ras_commander.hdf.HdfFluvialPluvial - INFO - Redissolved polygons after reclassification of small areas.
2026-01-13 00:44:31 - ras_commander.hdf.HdfFluvialPluvial - INFO - Polygon generation completed successfully.

png

Python

# To get the classified flood zones as polygons:
flood_polygons_gdf = HdfFluvialPluvial.generate_fluvial_pluvial_polygons(
    plan_hdf_path,
    delta_t=12,
    temporal_tolerance_hours=1.0,
    min_polygon_area_acres=200
)

flood_polygons_gdf

# Plot the classified flood zones as polygons, colored by classification
fig, ax = plt.subplots(figsize=(12, 8))
flood_polygons_gdf.plot(
    ax=ax,
    column="classification",
    categorical=True,
    legend=True,
    edgecolor="black",
    alpha=0.7
)
plt.title("Fluvial-Pluvial Classified Flood Zones")
plt.xlabel("X Coordinate")
plt.ylabel("Y Coordinate")
plt.show()

Text Only

2026-01-13 00:44:32 - ras_commander.hdf.HdfFluvialPluvial - INFO - Using HDF file from direct string path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfFluvialPluvial - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfFluvialPluvial - INFO - Loading mesh and results data...
2026-01-13 00:44:32 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:32 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfResultsMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Water Surface
2026-01-13 00:44:33 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:33 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:34 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:34 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:34 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:34 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:34 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:34 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:34 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:34 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:34 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
2026-01-13 00:44:34 - ras_commander.hdf.HdfFluvialPluvial - INFO - Processing cell adjacencies...
2026-01-13 00:44:37 - ras_commander.hdf.HdfFluvialPluvial - INFO - Identifying initial boundary seeds with delta_t = 12 hours...
2026-01-13 00:44:37 - ras_commander.hdf.HdfFluvialPluvial - INFO - Starting iterative region growth with tolerance = 1.0 hours...
Region Growing: 37iter [00:00, 59.83iter/s, Fluvial=0, Pluvial=0, Ambiguous=0]
2026-01-13 00:44:38 - ras_commander.hdf.HdfFluvialPluvial - INFO - Region growing completed in 37 iterations.
2026-01-13 00:44:38 - ras_commander.hdf.HdfFluvialPluvial - INFO - Merging classifications with cell polygons...
2026-01-13 00:44:38 - ras_commander.hdf.HdfFluvialPluvial - INFO - Dissolving polygons by classification...
2026-01-13 00:44:39 - ras_commander.hdf.HdfFluvialPluvial - INFO - Applying minimum polygon area filter: 200 acres
2026-01-13 00:44:39 - ras_commander.hdf.HdfFluvialPluvial - INFO - Found 214 small fluvial and 96 small pluvial polygons to reclassify.
2026-01-13 00:44:39 - ras_commander.hdf.HdfFluvialPluvial - INFO - Redissolved polygons after reclassification of small areas.
2026-01-13 00:44:39 - ras_commander.hdf.HdfFluvialPluvial - INFO - Polygon generation completed successfully.

png

Python

# To get the classified flood zones as polygons:
flood_polygons_gdf = HdfFluvialPluvial.generate_fluvial_pluvial_polygons(
    plan_hdf_path,
    delta_t=14,
    temporal_tolerance_hours=1.0,
    min_polygon_area_acres=1000
)

flood_polygons_gdf

# Plot the classified flood zones as polygons, colored by classification
fig, ax = plt.subplots(figsize=(12, 8))
flood_polygons_gdf.plot(
    ax=ax,
    column="classification",
    categorical=True,
    legend=True,
    edgecolor="black",
    alpha=0.7
)
plt.title("Fluvial-Pluvial Classified Flood Zones")
plt.xlabel("X Coordinate")
plt.ylabel("Y Coordinate")
plt.show()

Text Only

2026-01-13 00:44:39 - ras_commander.hdf.HdfFluvialPluvial - INFO - Using HDF file from direct string path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:39 - ras_commander.hdf.HdfFluvialPluvial - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:39 - ras_commander.hdf.HdfFluvialPluvial - INFO - Loading mesh and results data...
2026-01-13 00:44:39 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:39 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:39 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:39 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:39 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:39 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:39 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:39 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:40 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:40 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:40 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:40 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfResultsMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfResultsMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfResultsMesh - INFO - Processing summary output for variable: Maximum Water Surface
2026-01-13 00:44:41 - ras_commander.hdf.HdfMesh - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.p06.hdf
2026-01-13 00:44:41 - ras_commander.hdf.HdfResultsMesh - INFO - Processed 19597 rows of summary output data
2026-01-13 00:44:41 - ras_commander.hdf.HdfFluvialPluvial - INFO - Processing cell adjacencies...
2026-01-13 00:44:44 - ras_commander.hdf.HdfFluvialPluvial - INFO - Identifying initial boundary seeds with delta_t = 14 hours...
2026-01-13 00:44:44 - ras_commander.hdf.HdfFluvialPluvial - INFO - Starting iterative region growth with tolerance = 1.0 hours...
Region Growing: 42iter [00:00, 75.88iter/s, Fluvial=0, Pluvial=0, Ambiguous=0]
2026-01-13 00:44:45 - ras_commander.hdf.HdfFluvialPluvial - INFO - Region growing completed in 42 iterations.
2026-01-13 00:44:45 - ras_commander.hdf.HdfFluvialPluvial - INFO - Merging classifications with cell polygons...
2026-01-13 00:44:45 - ras_commander.hdf.HdfFluvialPluvial - INFO - Dissolving polygons by classification...
2026-01-13 00:44:46 - ras_commander.hdf.HdfFluvialPluvial - INFO - Applying minimum polygon area filter: 1000 acres
2026-01-13 00:44:46 - ras_commander.hdf.HdfFluvialPluvial - INFO - Found 182 small fluvial and 69 small pluvial polygons to reclassify.
2026-01-13 00:44:46 - ras_commander.hdf.HdfFluvialPluvial - INFO - Redissolved polygons after reclassification of small areas.
2026-01-13 00:44:46 - ras_commander.hdf.HdfFluvialPluvial - INFO - Polygon generation completed successfully.

png

Python

flood_polygons_gdf.to_file(driver='GeoJSON', filename='flood_polygons.geojson')

Text Only

2026-01-13 00:44:46 - pyogrio._io - INFO - Created 3 records

Python

# Create fluvial_pluvial_boundary subfolder in project directory
output_dir = ras.project_folder / "fluvial_pluvial_boundary"
output_dir.mkdir(exist_ok=True)
print(f"Output directory created/verified at: {output_dir}")

# Save to GeoJSON in output directory
boundary_gdf.to_file(output_dir / 'fluvial_pluvial_boundary.geojson', driver='GeoJSON')

Text Only

2026-01-13 00:44:46 - pyogrio._io - INFO - Created 0 records


Output directory created/verified at: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_14\fluvial_pluvial_boundary
