Quality Assurance with RasCheck

This notebook demonstrates how to use the RasCheck module for validating HEC-RAS steady flow models using multiple example projects to show different validation scenarios.

Python
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False  # <-- TOGGLE THIS

if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path
    local_path = str(Path.cwd().parent)
    if local_path not in sys.path:
        sys.path.insert(0, local_path)
    print(f"LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
    print("PIP PACKAGE MODE: Loading installed ras-commander")

# Import ras-commander
from ras_commander import HdfResultsPlan, RasCmdr, RasExamples, RasPlan, RasPrj, init_ras_project, ras

# Verify which version loaded
import ras_commander
print(f"Loaded: {ras_commander.__file__}")
Text Only
PIP PACKAGE MODE: Loading installed ras-commander
Loaded: c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\__init__.py

Parameters

Configure these values to customize the notebook for your projects. This notebook uses multiple projects to demonstrate different RasCheck validation scenarios.

Python
# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================
from pathlib import Path

# HEC-RAS Version
RAS_VERSION = "7.0"
SUFFIX = "800"  # Suffix for project extraction

# =============================================================================
# PROJECT SELECTION FOR RASCHECK DEMONSTRATION
# =============================================================================
# RasCheck validates STEADY FLOW models (requires multiple steady profiles).
#
# VERIFIED PROJECTS (tested and confirmed steady):
# - Balde Eagle Creek, Plan 02: 8 steady profiles, structures, good spacing variation
#
# TO ADD MORE PROJECTS:
# 1. Extract project: RasExamples.extract_project("ProjectName")
# 2. Initialize: init_ras_project(path, "6.6", ras_object=test_ras)
# 3. Check plans: test_ras.plan_df[['plan_number', 'Plan Title', 'flow_type']]
# 4. Verify steady: HdfResultsPlan.is_steady_plan(plan_num, ras_object=test_ras)
# 5. Count profiles: len(HdfResultsPlan.get_steady_profile_names(plan_num, ras_object=test_ras))
# 6. Add to PROJECTS list below if steady with 2+ profiles

PROJECTS = [
    {
        "name": "Balde Eagle Creek",
        "plan": "02",  # VERIFIED: Steady Flow Run with 8 profiles (0.5yr - 100yr)
        "description": "1D river model with bridges/dam, 8 steady profiles for profile consistency checks",
        "check_focus": ["NT (Manning's n)", "XS (spacing)", "Structures (bridge/dam)", "Profiles (consistency)"],
        "expected_messages": "Moderate - expect spacing warnings, structure coefficient checks"
    },
    # TODO: Add more steady-flow projects here following verification steps above
    # Example template:
    # {
    #     "name": "YourProjectName",
    #     "plan": "##",  # Plan number verified as steady
    #     "description": "Description with number of profiles",
    #     "check_focus": ["NT", "XS", "Structures", "Profiles"],
    #     "expected_messages": "Brief description of expected validation results"
    # },
]

# Execution Settings
NUM_CORES = 2  # Cores per project (conservative for multi-project execution)

# Display configuration
print(f"Configured {len(PROJECTS)} project(s) for RasCheck validation:")
for p in PROJECTS:
    print(f"\n  {p['name']} (Plan {p['plan']}):")
    print(f"    - {p['description']}")
    print(f"    - Focus Areas: {', '.join(p['check_focus'])}")
    print(f"    - Expected: {p['expected_messages']}")

print(f"\nTo add more projects, see verification instructions in PARAMETERS cell comments.")
Text Only
Configured 1 project(s) for RasCheck validation:

  Balde Eagle Creek (Plan 02):
    - 1D river model with bridges/dam, 8 steady profiles for profile consistency checks
    - Focus Areas: NT (Manning's n), XS (spacing), Structures (bridge/dam), Profiles (consistency)
    - Expected: Moderate - expect spacing warnings, structure coefficient checks

To add more projects, see verification instructions in PARAMETERS cell comments.

Attribution

Based on FEMA cHECk-RAS

This module implements the validation checks described in FEMA's cHECk-RAS quality assurance tool for HEC-RAS 6.x models, using ras-commander's HDF function library.

From FEMA's cHECk-RAS page:

"cHECk-RAS utilizes information generated by HEC-RAS (all versions through the latest version, 5.0.7). Note, cHECk-RAS is not compatible with the two-dimensional component of HEC-RAS 5.0.7."

This Python implementation extends these validation checks to work with modern HEC-RAS 6.x HDF-based outputs, providing equivalent functionality through the ras-commander library.

For Informational Purposes Only

Outputs from this library are still in Beta and are provided for informational purposes only. These guidelines provide a flexible framework based on commonly accepted industry standards for users to build their own validation checks and QAQC workflows. > judgment.

NOTE: This is an UNOFFICIAL Python implementation and is NOT affiliated with or endorsed by FEMA.

Overview

The RasCheck module provides comprehensive quality assurance validation for HEC-RAS steady flow models. It implements the validation checks described in FEMA's cHECk-RAS using modern HDF-based data access for HEC-RAS 6.x models.

Check Categories

Check Description Key Validations
NT Check Manning's n and Transition Roughness coefficients, contraction/expansion losses
XS Check Cross Section Validation Spacing, ineffective flow, reach lengths, levees
Structure Check Bridges, Culverts, Weirs Flow classification, coefficients, geometry
Floodway Check Floodway Analysis Surcharge limits, encroachment methods
Profiles Check Multiple Profile Consistency WSE ordering, discharge consistency

LLM Forward Verification Approach

This notebook follows LLM Forward principles for quality assurance:

  1. Visual Verification: Every validation check produces reviewable outputs via notbook outputs
  2. Multiple Review Pathways:
  3. Traditional engineering review (HTML reports with message IDs)
  4. Visual inspection (DataFrame filtering and grouping)
  5. Code audit trail (@log_call decorators track all validation operations)
  6. Agentic Scaffolding - Intended to serve as a framework for building your own agentic QAQC workflows using ras-commander
  7. Professional Responsibility: These checks support, but do not replace, professional engineering judgment

Import Required Modules

Note: The RasCheck module is currently in development. Ensure USE_LOCAL_SOURCE = True in the toggle cell above to load the local development version.

For detailed demonstrations of the new validation features, see: - 801_advanced_structure_validation.ipynb - Culvert and starting WSE validation - 802_custom_workflows_and_standards.ipynb - State-specific standards and custom workflows

Python
from ras_commander import (
    RasExamples, RasPlan, RasPrj, init_ras_project, ras,
    RasCmdr, HdfResultsPlan
)
from ras_commander.check import (
    RasCheck, CheckResults, Severity,
    RasCheckReport, ReportMetadata,
    get_default_thresholds, create_custom_thresholds,
    get_state_surcharge_limit
)

import pandas as pd
from pathlib import Path
import matplotlib.pyplot as plt

# Set pandas display options
pd.set_option('display.max_rows', 20)
pd.set_option('display.max_columns', None)
pd.set_option('display.width', None)

Extract and Initialize Multiple Projects

We'll extract multiple example projects to demonstrate different RasCheck validation scenarios. Each project has different characteristics:

  1. Bald Eagle Creek: 1D river model with bridges/dam and 8 steady flow profiles (0.5yr - 100yr)
  2. Single Culvert: Applications Guide example with culvert structure
  3. Floodway Determination: Floodway analysis with encroachment

This multi-project approach demonstrates how RasCheck handles different model types and validation scenarios.

Python
# Extract all configured projects
project_paths = {}
project_ras_objects = {}

for proj_config in PROJECTS:
    name = proj_config["name"]
    print(f"\nExtracting: {name}...")

    path = RasExamples.extract_project(name, suffix=SUFFIX)
    project_paths[name] = path

    # Initialize with separate RasPrj object (multi-project pattern)
    ras_obj = RasPrj()
    init_ras_project(path, RAS_VERSION, ras_object=ras_obj)
    project_ras_objects[name] = ras_obj

    print(f"  Initialized: {ras_obj.project_name}")
    print(f"  Plans: {len(ras_obj.plan_df)}")

print(f"\nSuccessfully initialized {len([p for p in project_paths.values() if p])} of {len(PROJECTS)} projects")
Text Only
2026-01-14 19:35:29 - ras_commander.RasExamples - INFO - ----- RasExamples Extracting Project -----
2026-01-14 19:35:29 - ras_commander.RasExamples - INFO - Extracting project 'Balde Eagle Creek' as 'Balde Eagle Creek_800'
2026-01-14 19:35:29 - ras_commander.RasExamples - INFO - Folder 'Balde Eagle Creek_800' already exists. Deleting existing folder...
2026-01-14 19:35:29 - ras_commander.RasExamples - INFO - Existing folder 'Balde Eagle Creek_800' has been deleted.
2026-01-14 19:35:29 - ras_commander.RasExamples - INFO - Successfully extracted project 'Balde Eagle Creek' to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800
2026-01-14 19:35:29 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.rasmap
2026-01-14 19:35:29 - ras_commander.RasPrj - INFO - Updated results_df with 2 plan(s)



Extracting: Balde Eagle Creek...
  Initialized: BaldEagle
  Plans: 2

Successfully initialized 1 of 1 projects
Python
# Display available plans for each project
for name, ras_obj in project_ras_objects.items():
    if ras_obj is None:
        continue
    print(f"\n{name} - Available Plans:")
    print("-" * 60)
    display(ras_obj.plan_df[['plan_number', 'Plan Title', 'flow_type']].head(5))
Text Only
Balde Eagle Creek - Available Plans:
------------------------------------------------------------
plan_number Plan Title flow_type
0 01 Unsteady with Bridges and Dam Unsteady
1 02 Steady Flow Run Steady

Run Steady Flow Plans

RasCheck requires computed results in the HDF file. We'll run the steady flow plans for each project.

Python
# Execute steady flow plans for each project
execution_results = {}

for proj_config in PROJECTS:  # Using verified projects only
    name = proj_config["name"]
    plan = proj_config["plan"]
    ras_obj = project_ras_objects.get(name)

    if ras_obj is None:
        print(f"Skipping {name}: not initialized")
        continue

    print(f"\nRunning {name} Plan {plan}...")

    # Check if already computed
    hdf_path = RasPlan.get_results_path(plan, ras_object=ras_obj)

    if hdf_path and Path(hdf_path).exists():
        print(f"  Results already exist: {Path(hdf_path).name}")
        execution_results[name] = True

        # Verify it's still steady and get profile count
        is_steady = HdfResultsPlan.is_steady_plan(plan, ras_object=ras_obj)
        if is_steady:
            profiles = HdfResultsPlan.get_steady_profile_names(plan, ras_object=ras_obj)
            print(f"  Steady plan with {len(profiles)} profiles (already computed)")
    else:
        # Need to compute
        success = RasCmdr.compute_plan(
            plan_number=plan,
            ras_object=ras_obj,
            num_cores=NUM_CORES
        )
        execution_results[name] = success

        if success:
            # Verify it's a steady plan and get profile names
            is_steady = HdfResultsPlan.is_steady_plan(plan, ras_object=ras_obj)
            if is_steady:
                profiles = HdfResultsPlan.get_steady_profile_names(plan, ras_object=ras_obj)
                print(f"  Steady plan with {len(profiles)} profiles")
            else:
                print(f"  Plan executed but is UNSTEADY - this should not happen!")
        else:
            print(f"  Execution failed")

print(f"\n{'='*60}")
print(f"Execution Summary:")
print(f"{'='*60}")
for name, success in execution_results.items():
    status = "[OK] Success" if success else "[ERROR] Failed"
    print(f"  {name}: {status}")
Text Only
2026-01-14 19:35:29 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800
2026-01-14 19:35:29 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02
2026-01-14 19:35:29 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02
2026-01-14 19:35:29 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 02
2026-01-14 19:35:29 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2026-01-14 19:35:29 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02"



Running Balde Eagle Creek Plan 02...


2026-01-14 19:35:36 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02
2026-01-14 19:35:36 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 6.39 seconds
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Reading computation messages from HDF: BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Successfully extracted 718 characters from HDF
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Extracting Plan Information from: BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - ERROR - Error parsing simulation times: time data 'Unknown' does not match format '%d%b%Y %H:%M:%S'
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\RasPrj.py:1514: FutureWarning: The behavior of DataFrame concatenation with empty or all-NA entries is deprecated. In a future version, this will no longer exclude empty or all-NA columns when determining the result dtypes. To retain the old behavior, exclude the relevant entries before the concat operation.
  self.results_df = pd.concat([self.results_df, new_results], ignore_index=True)
2026-01-14 19:35:36 - ras_commander.RasPrj - INFO - Updated results_df with 1 plan(s)
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Found 8 steady state profiles: ['.5 year', '1 year', '2 year', '5 year', '10 year', '25 year', '50 year', '100 year']


  Steady plan with 8 profiles

============================================================
Execution Summary:
============================================================
  Balde Eagle Creek: [OK] Success
Python
# Display results summary from results_df
ras_obj.results_df[['plan_number', 'plan_title', 'completed', 'has_errors', 'has_warnings', 'runtime_complete_process_hours']]
plan_number plan_title completed has_errors has_warnings runtime_complete_process_hours
0 01 Unsteady with Bridges and Dam False False False None
1 02 Steady Flow Run True False False None

Running RasCheck Validation on Multiple Projects

Now we'll run RasCheck validation on each project and compare the results. This demonstrates how different model types produce different validation messages.

Python
# Run RasCheck on all projects
all_results = {}

for proj_config in PROJECTS:
    name = proj_config["name"]
    plan = proj_config["plan"]
    ras_obj = project_ras_objects.get(name)

    if ras_obj is None or not execution_results.get(name, False):
        print(f"Skipping {name}: not ready for validation")
        continue

    print(f"\nValidating {name} Plan {plan}...")

    results = RasCheck.run_all(plan, ras_object=ras_obj)
    all_results[name] = results

    print(f"  Total Messages: {len(results.messages)}")
    print(f"  Errors: {results.get_error_count()}")
    print(f"  Warnings: {results.get_warning_count()}")
    print(f"  Info: {len(results.messages) - results.get_error_count() - results.get_warning_count()}")
Text Only
2026-01-14 19:35:36 - ras_commander.check.RasCheck - INFO - Detected flow type: steady
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:36 - ras_commander.hdf.HdfResultsPlan - INFO - Extracted steady results: 1424 rows (8 profiles x 178 cross sections)



Validating Balde Eagle Creek Plan 02...


2026-01-14 19:35:37 - ras_commander.hdf.HdfStruc - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
2026-01-14 19:35:37 - ras_commander.hdf.HdfStruc - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
2026-01-14 19:35:37 - ras_commander.hdf.HdfBase - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
2026-01-14 19:35:37 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
2026-01-14 19:35:37 - ras_commander.hdf.HdfBase - CRITICAL - No valid projection found. Checked:
1. HDF file projection attribute: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
 was checked and no projection attribute found2. No RASMapper projection file found
To fix this:
1. Open RASMapper
2. Click Map > Set Projection
3. Select an appropriate projection file or coordinate system
4. Save the RASMapper project
2026-01-14 19:35:37 - ras_commander.hdf.HdfStruc - INFO - Successfully extracted structures GeoDataFrame.
2026-01-14 19:35:37 - ras_commander.hdf.HdfStruc - INFO - Successfully extracted structures GeoDataFrame with attributes.
2026-01-14 19:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:37 - ras_commander.hdf.HdfResultsPlan - INFO - Extracted steady results: 1424 rows (8 profiles x 178 cross sections)


  Total Messages: 5782
  Errors: 0
  Warnings: 4714
  Info: 1068

Compare Validation Results Across Projects

Let's create a summary comparison of validation results across all projects.

Python
# Create comparison summary
comparison_data = []

for name, results in all_results.items():
    if results is None:
        continue

    df = results.to_dataframe()

    # Get check type breakdown
    check_types = df['check_type'].value_counts().to_dict() if not df.empty else {}

    comparison_data.append({
        'Project': name,
        'Total Messages': len(results.messages),
        'Errors': results.get_error_count(),
        'Warnings': results.get_warning_count(),
        'Info': len(results.messages) - results.get_error_count() - results.get_warning_count(),
        'Check Types': ', '.join(check_types.keys())
    })

if comparison_data:
    comparison_df = pd.DataFrame(comparison_data)
    print("Validation Results Comparison:")
    print("=" * 80)
    display(comparison_df)
else:
    print("No validation results to compare")
Text Only
Validation Results Comparison:
================================================================================
Project Total Messages Errors Warnings Info Check Types
0 Balde Eagle Creek 5782 0 4714 1068 PROFILES, XS, NT, STRUCT
Python

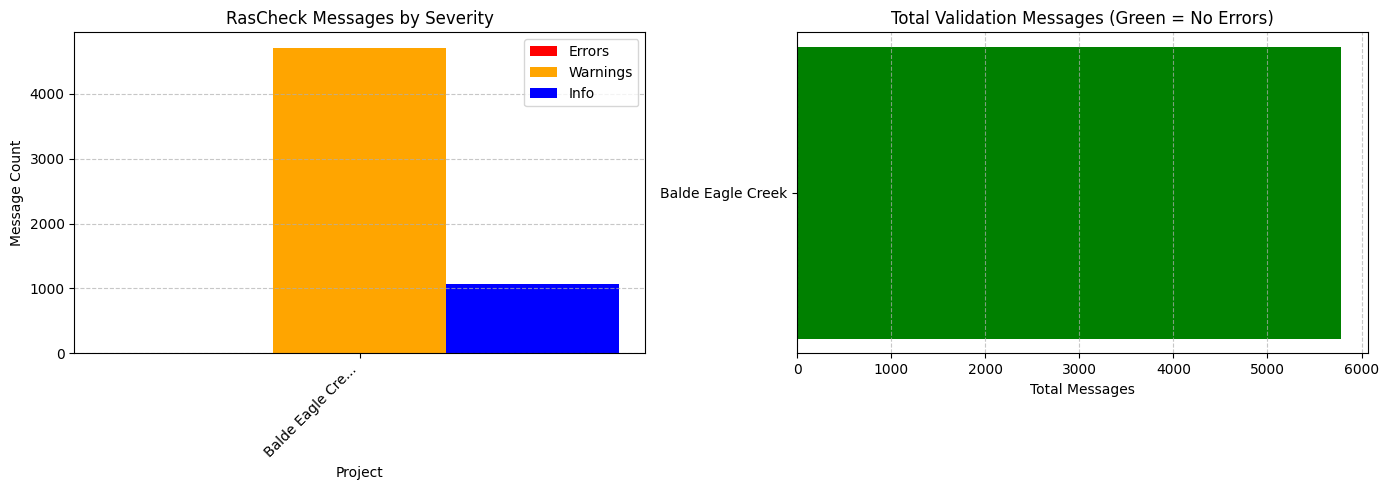

# Visualize comparison
if comparison_data:
    fig, axes = plt.subplots(1, 2, figsize=(14, 5))

    # Bar chart of message counts by project
    ax1 = axes[0]
    x = range(len(comparison_df))
    width = 0.25

    ax1.bar([i - width for i in x], comparison_df['Errors'], width, label='Errors', color='red')
    ax1.bar([i for i in x], comparison_df['Warnings'], width, label='Warnings', color='orange')
    ax1.bar([i + width for i in x], comparison_df['Info'], width, label='Info', color='blue')

    ax1.set_xlabel('Project')
    ax1.set_ylabel('Message Count')
    ax1.set_title('RasCheck Messages by Severity')
    ax1.set_xticks(x)
    ax1.set_xticklabels([p[:15] + '...' if len(p) > 15 else p for p in comparison_df['Project']], rotation=45, ha='right')
    ax1.legend()
    ax1.grid(axis='y', linestyle='--', alpha=0.7)

    # Total messages comparison
    ax2 = axes[1]
    colors = ['green' if e == 0 else 'red' for e in comparison_df['Errors']]
    ax2.barh(comparison_df['Project'], comparison_df['Total Messages'], color=colors)
    ax2.set_xlabel('Total Messages')
    ax2.set_title('Total Validation Messages (Green = No Errors)')
    ax2.grid(axis='x', linestyle='--', alpha=0.7)

    plt.tight_layout()
    plt.show()

png

Detailed Analysis: First Project

Let's perform a detailed analysis on the first project to demonstrate the full RasCheck workflow.

Python
# Select the first project for detailed analysis
first_project_name = list(all_results.keys())[0] if all_results else None
first_results = all_results.get(first_project_name) if first_project_name else None

if first_results:
    print(f"Detailed Analysis: {first_project_name}")
    print("=" * 60)

    # Convert to DataFrame
    df = first_results.to_dataframe()
    # Ensure full message column is visible
    import pandas as pd
    pd.set_option('display.max_colwidth', None)
    print(f"\nDataFrame shape: {df.shape}")
    print(f"Columns: {list(df.columns)}")
    display(df.head(10))
else:
    print("No results available for detailed analysis")
Text Only
Detailed Analysis: Balde Eagle Creek
============================================================

DataFrame shape: (5782, 12)
Columns: ['message_id', 'severity', 'check_type', 'river', 'reach', 'station', 'structure', 'message', 'flagged', 'comment', 'value', 'threshold']
message_id severity check_type river reach station structure message flagged comment value threshold
0 NT_RC_01L WARNING NT Bald Eagle Loc Hav 49715.77 Left overbank Manning's n value (0.012) is less than 0.030 False 0.012000 0.03
1 NT_RC_05 INFO NT Bald Eagle Loc Hav 49715.77 Overbank n values (LOB=0.012, ROB=0.130) are not greater than channel n (0.040) False NaN None
2 NT_RC_03C WARNING NT Bald Eagle Loc Hav 24843.25 Channel Manning's n value (0.005) is less than 0.025 False 0.005000 0.025
3 NT_VR_01R WARNING NT Bald Eagle Loc Hav 70651.52 Large ROB n-value change (118%) between RS 71400.81 (0.055) and RS 70651.52 (0.120) False 118.181814 None
4 NT_VR_01L WARNING NT Bald Eagle Loc Hav 68604.09 Large LOB n-value change (100%) between RS 6940.066 (0.050) and RS 68604.09 (0.100) False 100.000000 None
5 NT_VR_01L WARNING NT Bald Eagle Loc Hav 64908.02 Large LOB n-value change (60%) between RS 659.942 (0.075) and RS 64908.02 (0.120) False 59.999990 None
6 NT_VR_01L WARNING NT Bald Eagle Loc Hav 6267.489 Large LOB n-value change (58%) between RS 62746.41 (0.120) and RS 6267.489 (0.050) False 58.333332 None
7 NT_VR_01L WARNING NT Bald Eagle Loc Hav 61896.89 Large LOB n-value change (140%) between RS 6267.489 (0.050) and RS 61896.89 (0.120) False 139.999991 None
8 NT_VR_01L WARNING NT Bald Eagle Loc Hav 5523.234 Large LOB n-value change (64%) between RS 55700.55 (0.140) and RS 5523.234 (0.050) False 64.285714 None
9 NT_VR_01L WARNING NT Bald Eagle Loc Hav 54696.51 Large LOB n-value change (180%) between RS 5523.234 (0.050) and RS 54696.51 (0.140) False 179.999997 None
Python
# Group messages by check type and severity
if first_results and not df.empty:
    check_summary = df.groupby(['check_type', 'severity']).size().unstack(fill_value=0)
    print("Messages by Check Type and Severity:")
    display(check_summary)
Text Only
Messages by Check Type and Severity:
severity INFO WARNING
check_type
NT 1 44
PROFILES 473 3671
STRUCT 1 33
XS 593 966
Python
# Show ERROR messages (if any)
if first_results:
    errors = first_results.filter_by_severity(Severity.ERROR)
    print(f"\nERROR Messages ({len(errors)} total):")
    print("-" * 60)

    for msg in errors[:10]:  # Show first 10
        print(f"  [{msg.message_id}] {msg.check_type}")
        print(f"    {msg.message}")
        print()
Text Only
ERROR Messages (0 total):
------------------------------------------------------------
Python
# Show WARNING messages (sample)
if first_results:
    warnings = first_results.filter_by_severity(Severity.WARNING)
    print(f"\nWARNING Messages ({len(warnings)} total, showing first 5):")
    print("-" * 60)

    for msg in warnings[:5]:
        print(f"  [{msg.message_id}] RS {msg.station}: {msg.message[:80]}...")
Text Only
WARNING Messages (4714 total, showing first 5):
------------------------------------------------------------
  [NT_RC_01L] RS 49715.77: Left overbank Manning's n value (0.012) is less than 0.030...
  [NT_RC_03C] RS 24843.25: Channel Manning's n value (0.005) is less than 0.025...
  [NT_VR_01R] RS 70651.52: Large ROB n-value change (118%) between RS 71400.81 (0.055) and RS 70651.52 (0.1...
  [NT_VR_01L] RS 68604.09: Large LOB n-value change (100%) between RS 6940.066 (0.050) and RS 68604.09 (0.1...
  [NT_VR_01L] RS 64908.02: Large LOB n-value change (60%) between RS 659.942 (0.075) and RS 64908.02 (0.120...

Message ID Distribution

RasCheck uses standardized message IDs to categorize issues:

Text Only
{CHECK_TYPE}_{CATEGORY}_{NUMBER}{SUFFIX}

Examples: - NT_RC_01L - NT Check, Roughness Coefficient, Message 01, Left side - XS_DT_02R - XS Check, Distance/Travel, Message 02, Right side - BR_TF_04 - Bridge, Type Flow, Message 04 - MP_WS_01 - Multiple Profile, Water Surface, Message 01

Python
# Analyze message ID distribution
if first_results and not df.empty:
    print("Message ID Distribution:")
    print("=" * 50)
    msg_counts = df['message_id'].value_counts()
    display(msg_counts.head(15))
Text Only
Message ID Distribution:
==================================================



message_id
MP_Q_01        1246
MP_WS_01       1246
PF_VEL_01       895
MP_TW_01        473
XS_AR_01        360
PF_TW_01        284
XS_EC_01L       181
XS_SL_01        181
XS_GD_01        178
XS_EC_01R       155
XS_TW_02        148
XS_FS_01        135
XS_SL_02        132
XS_EC_01BUL      14
XS_EC_01BDL      14
Name: count, dtype: int64

Generating Reports for All Projects

Generate HTML and CSV reports for each validated project.

Python
# Generate reports for all projects
report_paths = {}

for name, results in all_results.items():
    if results is None:
        continue

    project_path = project_paths[name]
    ras_obj = project_ras_objects[name]

    # Create report folder
    report_folder = project_path / "ras_checker"
    report_folder.mkdir(parents=True, exist_ok=True)

    # Create metadata
    metadata = ReportMetadata(
        project_name=ras_obj.project_name,
        project_path=project_path,
        plan_name=f"Plan {[p['plan'] for p in PROJECTS if p['name'] == name][0]}"
    )

    # Generate HTML report
    html_path = report_folder / "validation_report.html"
    results.to_html(html_path, metadata=metadata)

    # Export CSV
    csv_path = report_folder / "validation_messages.csv"
    df = results.to_dataframe()
    if not df.empty:
        df.to_csv(csv_path, index=False)

    report_paths[name] = {
        'html': html_path,
        'csv': csv_path
    }

    print(f"Reports generated for {name}:")
    print(f"  HTML: {html_path}")
    print(f"  CSV: {csv_path}")
Text Only
2026-01-14 19:35:38 - ras_commander.check.report - INFO - Generated HTML report: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\ras_checker\validation_report.html


Reports generated for Balde Eagle Creek:
  HTML: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\ras_checker\validation_report.html
  CSV: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\ras_checker\validation_messages.csv

Customizing Validation Thresholds

RasCheck uses configurable thresholds for all checks. You can customize these for project-specific requirements.

Python
# View default thresholds
defaults = get_default_thresholds()

print("Default Manning's n Thresholds:")
print(f"  Overbank: {defaults.mannings_n.overbank_min} - {defaults.mannings_n.overbank_max}")
print(f"  Channel:  {defaults.mannings_n.channel_min} - {defaults.mannings_n.channel_max}")

print("\nDefault Transition Coefficients:")
print(f"  Structures: Contraction={defaults.transitions.structure_contraction_max}, Expansion={defaults.transitions.structure_expansion_max}")
print(f"  Regular XS: Contraction={defaults.transitions.regular_contraction_max}, Expansion={defaults.transitions.regular_expansion_max}")
Text Only
Default Manning's n Thresholds:
  Overbank: 0.03 - 0.2
  Channel:  0.025 - 0.1

Default Transition Coefficients:
  Structures: Contraction=0.3, Expansion=0.5
  Regular XS: Contraction=0.1, Expansion=0.3
Python
# Create custom thresholds for stricter validation
custom_thresholds = create_custom_thresholds({
    # Stricter Manning's n limits
    'mannings_n.overbank_min': 0.035,
    'mannings_n.overbank_max': 0.150,
    'mannings_n.channel_min': 0.028,
    'mannings_n.channel_max': 0.080,

    # Custom reach length limits
    'reach_length.max_length_ft': 2000.0,
    'reach_length.length_ratio_max': 1.5,
})

print("Custom thresholds created")
print(f"  Custom overbank min: {custom_thresholds.mannings_n.overbank_min}")
print(f"  Custom overbank max: {custom_thresholds.mannings_n.overbank_max}")
Text Only
Custom thresholds created
  Custom overbank min: 0.035
  Custom overbank max: 0.15
Python
# Compare default vs custom thresholds on first project
if first_project_name and project_ras_objects.get(first_project_name):
    ras_obj = project_ras_objects[first_project_name]
    plan = [p['plan'] for p in PROJECTS if p['name'] == first_project_name][0]

    # Run with custom thresholds
    custom_results = RasCheck.run_all(plan, ras_object=ras_obj, thresholds=custom_thresholds)

    print(f"Threshold Comparison for {first_project_name}:")
    print(f"  Default thresholds: {len(first_results.messages)} messages")
    print(f"  Custom thresholds:  {len(custom_results.messages)} messages")
    print(f"  Difference: {len(custom_results.messages) - len(first_results.messages):+d} messages")
Text Only
2026-01-14 19:35:38 - ras_commander.check.RasCheck - INFO - Detected flow type: steady
2026-01-14 19:35:38 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:38 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:38 - ras_commander.hdf.HdfResultsPlan - INFO - Extracted steady results: 1424 rows (8 profiles x 178 cross sections)
2026-01-14 19:35:39 - ras_commander.hdf.HdfStruc - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
2026-01-14 19:35:39 - ras_commander.hdf.HdfStruc - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
2026-01-14 19:35:39 - ras_commander.hdf.HdfBase - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
2026-01-14 19:35:39 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
2026-01-14 19:35:39 - ras_commander.hdf.HdfBase - CRITICAL - No valid projection found. Checked:
1. HDF file projection attribute: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.g01.hdf
 was checked and no projection attribute found2. No RASMapper projection file found
To fix this:
1. Open RASMapper
2. Click Map > Set Projection
3. Select an appropriate projection file or coordinate system
4. Save the RASMapper project
2026-01-14 19:35:39 - ras_commander.hdf.HdfStruc - INFO - Successfully extracted structures GeoDataFrame.
2026-01-14 19:35:39 - ras_commander.hdf.HdfStruc - INFO - Successfully extracted structures GeoDataFrame with attributes.
2026-01-14 19:35:39 - ras_commander.hdf.HdfResultsPlan - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:39 - ras_commander.hdf.HdfResultsPlan - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\Balde Eagle Creek_800\BaldEagle.p02.hdf
2026-01-14 19:35:39 - ras_commander.hdf.HdfResultsPlan - INFO - Extracted steady results: 1424 rows (8 profiles x 178 cross sections)


Threshold Comparison for Balde Eagle Creek:
  Default thresholds: 5782 messages
  Custom thresholds:  5792 messages
  Difference: +10 messages

State-Specific Floodway Surcharge Limits

Different states have different maximum surcharge limits for floodway analysis. This is important when validating floodway models for regulatory submittals.

Python
# View state-specific surcharge limits
print("State-Specific Surcharge Limits:")
print("=" * 40)

states = ['TX', 'IL', 'WI', 'MN', 'NJ', 'MI', 'IN', 'OH', 'PA', 'NY']
surcharge_data = []

for state in states:
    limit = get_state_surcharge_limit(state)
    surcharge_data.append({'State': state, 'Surcharge Limit (ft)': limit})
    print(f"  {state}: {limit:.2f} ft")

# Create DataFrame for reference
surcharge_df = pd.DataFrame(surcharge_data)
print("\nNote: Default limit is 1.0 ft. States with stricter limits require special attention.")
Text Only
State-Specific Surcharge Limits:
========================================
  TX: 1.00 ft
  IL: 0.10 ft
  WI: 0.01 ft
  MN: 0.50 ft
  NJ: 0.20 ft
  MI: 1.00 ft
  IN: 1.00 ft
  OH: 1.00 ft
  PA: 1.00 ft
  NY: 1.00 ft

Note: Default FEMA limit is 1.0 ft. States with stricter limits require special attention.

Summary

This notebook demonstrated multi-project RasCheck validation following LLM Forward principles:

What You Learned

  1. Multi-Project Validation:
  2. Extract and initialize multiple HEC-RAS projects
  3. Run RasCheck validation across different model types

  4. Compare validation results between projects

  5. Running Validation Checks:

  6. RasCheck.run_all() for comprehensive validation
  7. Individual check methods for targeted QA

  8. Custom thresholds for project-specific requirements

  9. Analyzing Results:

  10. Filter by severity (ERROR, WARNING, INFO)
  11. Group by check type (NT, XS, Structure, etc.)
  12. Filter by station for site-specific issues

  13. Compare results across multiple projects

  14. Generating Audit Trail:

  15. HTML reports for submittal packages
  16. CSV exports for issue tracking
  17. Metadata documentation for project context

Key Classes and Methods

Class/Method Description When to Use
RasCheck.run_all() Run all validation checks Final QA before submittal
RasCheck.check_nt() Manning's n and transition checks After roughness calibration
RasCheck.check_xs() Cross section validation After geometry development
RasCheck.check_structures() Bridge/culvert/weir checks After structure modeling
RasCheck.check_floodways() Floodway surcharge validation Floodway certification
RasCheck.check_profiles() Multiple profile consistency After running multiple profiles
CheckResults.to_html() Generate HTML report Submittal documentation
CheckResults.to_dataframe() Convert to pandas DataFrame Custom analysis/filtering
create_custom_thresholds() Create custom validation criteria Project-specific requirements
get_state_surcharge_limit() Get state-specific floodway limits Multi-state projects

Professional Responsibility

IMPORTANT: RasCheck outputs are for informational purposes only. These checks: - Support, but do not replace, professional engineering judgment - Should be reviewed by a licensed Professional Engineer - Must be validated against project-specific requirements - Do not constitute official FEMA review or approval

References

FEMA Resources: - FEMA Guidelines and Standards for Flood Risk Analysis - FEMA cHECk-RAS (original validation tool)

USACE Resources: - EM 1110-2-1416: River Hydraulics

Technical References: - Chow, V.T. (1959) Open Channel Hydraulics (Manning's n selection) - Arcement & Schneider (1989) Guide for Selecting Manning's Roughness Coefficients (USGS WSP 2339)

CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms seeking to modernize H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
