AORC Precipitation for HEC-RAS Rain-on-Grid Models

This notebook demonstrates a complete workflow for using NOAA's Analysis of Record for Calibration (AORC) gridded precipitation data with HEC-RAS 2D rain-on-grid models, including data-driven simulation buffer selection based on observed watershed response characteristics.

Example Project: BaldEagleCrkMulti2D

Workflow

1. Extract example project and create a labeled working copy
2. Get project bounds from geometry HDF (with buffer)
3. NEW: USGS gauge discovery and watershed response analysis
4. Generate a storm catalog with data-driven simulation buffer
5. Download precipitation, export hyetographs, and create HEC-RAS plans
6. Execute all plans in parallel (2 cores, 3 workers)

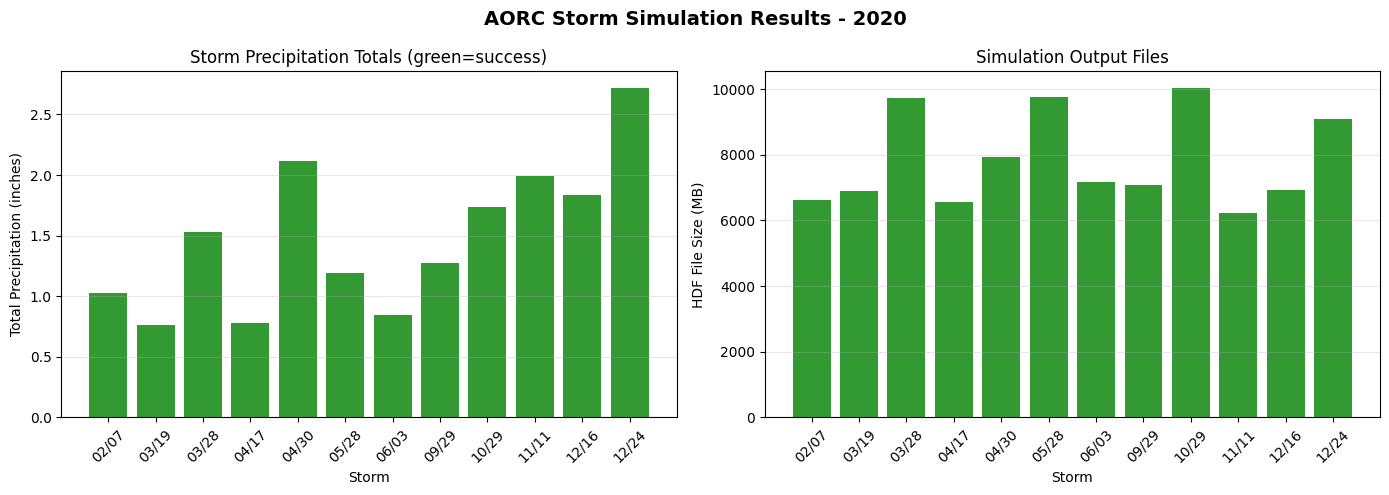

7. Extract and compare results

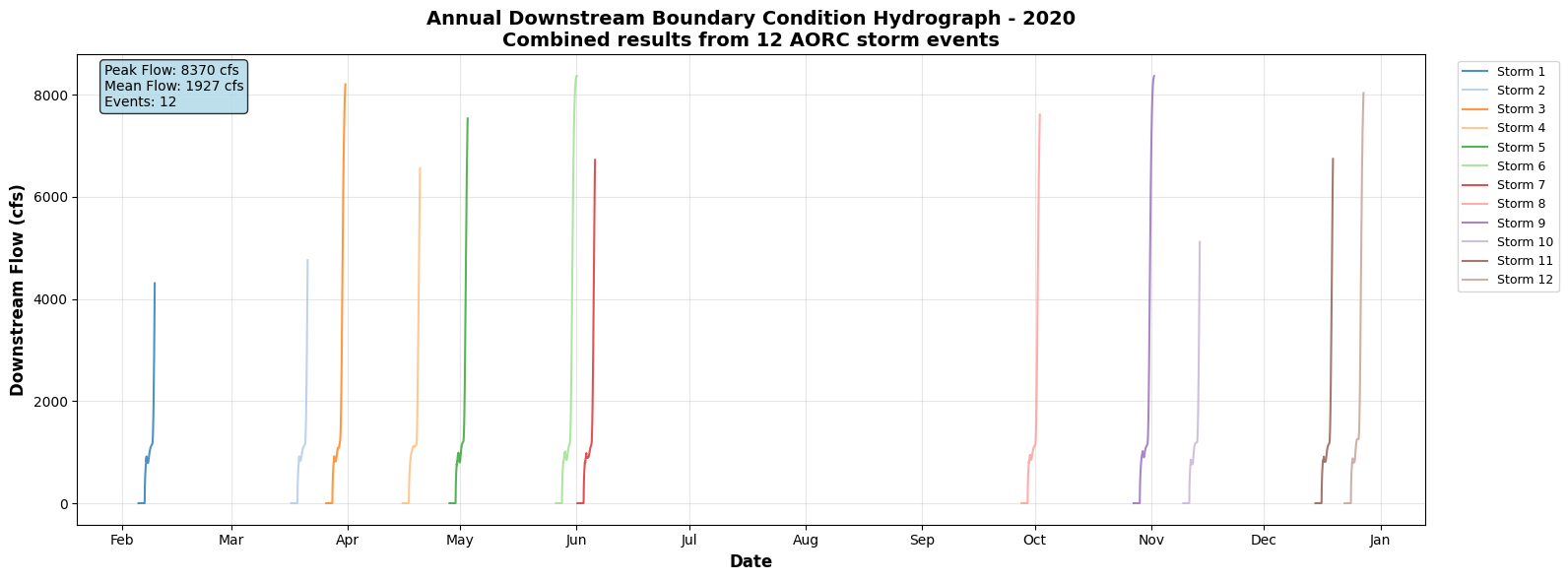

8. Generate annual downstream boundary condition hydrograph

Key Feature: Data-Driven Simulation Windows

Instead of using an arbitrary 48-hour buffer, this workflow: - Discovers USGS stream gauges in the project area - Retrieves historical flow data for the analysis year - Analyzes watershed response characteristics (time to peak, recession duration) - Calculates recommended buffer based on 90th percentile response time - Ensures simulations capture complete hydrographs (including recession to baseflow)

Data Export

All precipitation data is exported to the Precipitation/ subfolder: - storm_catalog.csv - Complete storm catalog with metadata - storm_YYYYMMDD.nc - NetCDF precipitation files - hyetographs/ - PNG plots of each storm's precipitation - storm_catalog_summary.png - Overview plot of all storms - annual_downstream_bc.png - Annual hydrograph from all storm events - watershed_response_analysis.png - Watershed response time analysis

AORC Dataset Overview

• Coverage: CONUS (1979-present), Alaska (1981-present)
• Resolution: ~800 meters, hourly timesteps
• Format: Cloud-optimized Zarr on AWS S3
• Access: Anonymous (no authentication required)

LLM Forward Approach for Precipitation Data

This notebook demonstrates LLM Forward principles for external precipitation data integration:

1. Data Provenance: All AORC data includes:
2. NASA/NOAA source metadata (grid resolution, version)
3. Retrieval timestamp and data coverage period

4. Storm identification criteria (inter-event hours, minimum depth)

5. Visual Verification: Every step produces reviewable outputs:

6. NetCDF files (inspect in Panoply or ncview)
7. Storm hyetographs (plot in Excel/Python)

8. Spatial precipitation grids (visualize distribution)

9. Multiple Review Pathways:

10. Engineering review (verify storm depths vs regional IDF curves)
11. Visual inspection (plot storm catalog, spatial patterns)

12. Data quality checks (grid coverage, missing values)

13. Self-Documenting: Standard folder structure preserves analysis

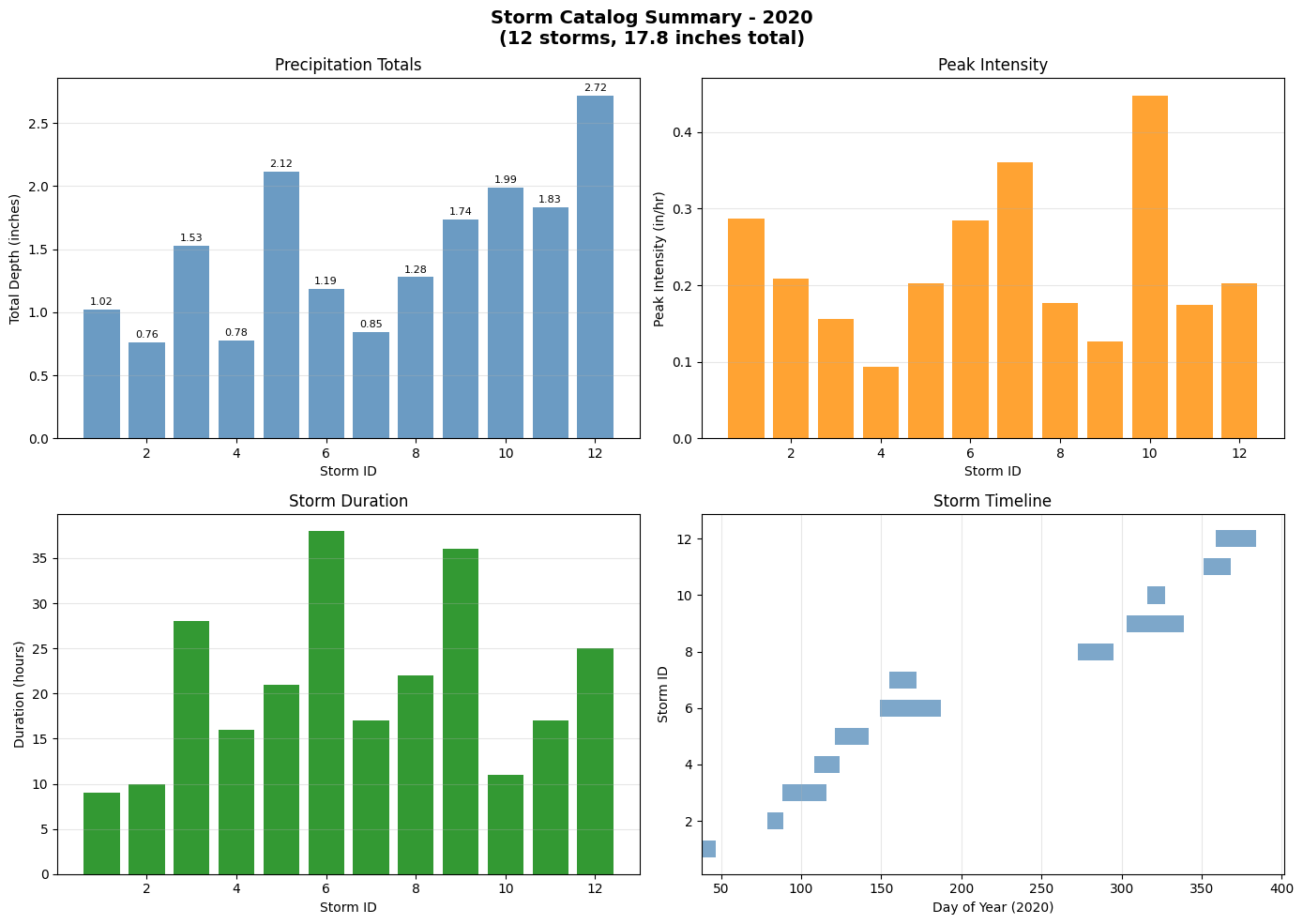

14. Precipitation/storm_catalog.csv lists all identified events
15. Individual NetCDF files preserve raw AORC data
16. Hyetograph CSVs enable HEC-HMS/HEC-RAS integration

NOAA AORC Data Standards

Analysis of Record for Calibration (AORC) (NOAA documentation):

• Spatial Resolution: 4 km grid (CONUS coverage)
• Temporal Resolution: Hourly (1979-present)
• Data Source: Stage IV radar + gauge analysis (multi-sensor product)
• Quality Control: NOAA/NWS operational QC procedures

Data Quality Considerations: - AORC represents best-available gridded precipitation - Grid cell size (4 km) may not capture small-scale convective events - Hourly resolution appropriate for watershed response times >2 hours - Consider comparing to local rain gauges for calibration events

When to Use AORC Precipitation

Model Calibration (historical events): - Identify significant storm events from AORC catalog - Extract spatial/temporal precipitation distribution - Use as model input for calibration runs - Compare simulated vs observed hydrographs (see notebook 914)

Continuous Simulation (long-term hydrology): - Download multi-year AORC data (1979-present) - Generate hyetographs for each storm event - Run HEC-RAS in continuous mode - Analyze flood frequency statistics

Regional IDF Curve Validation: - Compare AORC storm depths to Atlas 14 (NOAA point estimates) - Verify spatial averaging effects (4 km grid vs point) - Document differences in engineering analysis

NOT Recommended For: - Small watersheds <1 sq mi (use point rain gauges) - Sub-hourly rainfall analysis (use 5-min gauges) - Real-time flood forecasting (use radar nowcasts)

Python

# Install dependencies (uncomment if needed)
# !pip install ras-commander[precip]  # Includes xarray, zarr, s3fs, netCDF4, rioxarray

Python

# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False  # <-- TOGGLE THIS

if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path
    local_path = str(Path.cwd().parent)
    if local_path not in sys.path:
        sys.path.insert(0, local_path)
    print(f"📁 LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
    print("📦 PIP PACKAGE MODE: Loading installed ras-commander")

# Import ras-commander
from ras_commander import init_ras_project, RasExamples, RasPlan, RasUnsteady, RasCmdr
from ras_commander.precip import PrecipAorc
from ras_commander.hdf.HdfProject import HdfProject

# Additional imports
import os
import shutil
import glob
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import xarray as xr

# Verify which version loaded
import ras_commander
print(f"✓ Loaded: {ras_commander.__file__}")

Text Only

📦 PIP PACKAGE MODE: Loading installed ras-commander
✓ Loaded: c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\__init__.py

Parameters

Configure these values to customize the notebook for your project.

Python

# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================
from pathlib import Path

# Project Configuration
PROJECT_NAME = "BaldEagleCrkMulti2D"           # Example project to extract
RAS_VERSION = "7.0"               # HEC-RAS version (6.3, 6.5, 6.6, etc.)
SUFFIX = "900"                    # Notebook identifier for project folder

# AORC Settings
ONLINE = True                     # Enable network requests

print(f"Project: {PROJECT_NAME}, Version: {RAS_VERSION}")

Text Only

Project: BaldEagleCrkMulti2D, Version: 6.6

Step 1: Extract Example Project and Create Working Copy

We extract the BaldEagleCrkMulti2D example and create a labeled copy for our AORC analysis. Note: Existing AORC folders are deleted to ensure repeatability.

Python

# Configuration
YEAR = 2020  # Year to analyze
TEMPLATE_PLAN = "06"  # Template plan with precipitation enabled (DSS-based, version 6.00)
NUM_CORES = 2  # Cores per HEC-RAS instance
MAX_WORKERS = 3  # Parallel worker processes

# Extract base example project
base_project = RasExamples.extract_project(PROJECT_NAME, suffix=SUFFIX)
print(f"Base project extracted to: {base_project}")

# Clean up any existing AORC folders (for repeatability)
print("\nCleaning up existing AORC folders...")
aorc_pattern = base_project.parent / "BaldEagleCrkMulti2D_AORC_*"
existing_folders = list(base_project.parent.glob("BaldEagleCrkMulti2D_AORC_*"))
for folder in existing_folders:
    if folder.is_dir():
        print(f"  Removing: {folder.name}")
        shutil.rmtree(folder)
print(f"  Removed {len(existing_folders)} existing folders")

# Create labeled working copy (include SUFFIX for concurrent testing)
working_folder = base_project.parent / f"BaldEagleCrkMulti2D_AORC_{YEAR}_{SUFFIX}"
print(f"\nCreating working copy: {working_folder}")
shutil.copytree(base_project, working_folder)

# Initialize project
ras = init_ras_project(working_folder, RAS_VERSION)
print(f"\nProject: {ras.project_name}")
print(f"Location: {ras.project_folder}")
print(f"Plans: {len(ras.plan_df)}")

Text Only

2025-12-30 10:12:17 - ras_commander.RasExamples - INFO - Found zip file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\Example_Projects_6_6.zip
2025-12-30 10:12:17 - ras_commander.RasExamples - INFO - Loading project data from CSV...
2025-12-30 10:12:17 - ras_commander.RasExamples - INFO - Loaded 68 projects from CSV.
2025-12-30 10:12:17 - ras_commander.RasExamples - INFO - ----- RasExamples Extracting Project -----
2025-12-30 10:12:17 - ras_commander.RasExamples - INFO - Extracting project 'BaldEagleCrkMulti2D' as 'BaldEagleCrkMulti2D_900'
2025-12-30 10:12:17 - ras_commander.RasExamples - INFO - Folder 'BaldEagleCrkMulti2D_900' already exists. Deleting existing folder...
2025-12-30 10:12:17 - ras_commander.RasExamples - INFO - Existing folder 'BaldEagleCrkMulti2D_900' has been deleted.
2025-12-30 10:12:19 - ras_commander.RasExamples - INFO - Successfully extracted project 'BaldEagleCrkMulti2D' to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_900


Base project extracted to: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_900

Cleaning up existing AORC folders...
  Removing: BaldEagleCrkMulti2D_AORC_2020_900
  Removing: BaldEagleCrkMulti2D_AORC_2020_900 [Computed]
  Removed 2 existing folders

Creating working copy: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900


2025-12-30 10:12:19 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap



Project: BaldEagleDamBrk
Location: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900
Plans: 11

Step 2: Get Project Bounds from Geometry HDF

Use HdfProject.get_project_bounds_latlon() to extract proper bounds with buffering. This handles CRS transformation and ensures precipitation coverage.

Python

# Get geometry HDF path from template plan
# The 'Geom File' column contains just the number (e.g., "09"),
# so we need to add the "g" prefix for the geometry file extension
template_row = ras.plan_df[ras.plan_df['plan_number'] == TEMPLATE_PLAN].iloc[0]
geom_number = template_row['Geom File']
geom_hdf = ras.project_folder / f"{ras.project_name}.g{geom_number}.hdf"

print(f"Template plan {TEMPLATE_PLAN} uses geometry: g{geom_number}")
print(f"Geometry HDF: {geom_hdf}")
print(f"Exists: {geom_hdf.exists()}")

# Get bounds with 50% buffer (default)
# This properly handles CRS transformation and includes 2D mesh, 1D elements, and storage areas
bounds = HdfProject.get_project_bounds_latlon(
    geom_hdf,
    buffer_percent=50.0,  # 50% buffer ensures full coverage after reprojection
    include_1d=True,
    include_2d=True,
    include_storage=True
)

west, south, east, north = bounds
print(f"\nProject Bounds (WGS84 with 50% buffer):")
print(f"  West:  {west:.4f}")
print(f"  South: {south:.4f}")
print(f"  East:  {east:.4f}")
print(f"  North: {north:.4f}")
print(f"  Size:  {east-west:.4f} x {north-south:.4f} degrees")

Text Only

2025-12-30 10:12:19 - ras_commander.hdf.HdfProject - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfProject - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfProject - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfProject - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfBase - INFO - Found projection in HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from HDF file BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfProject - INFO - Found 1 2D flow areas
2025-12-30 10:12:19 - ras_commander.hdf.HdfXsec - ERROR - Error processing cross-section data: "Unable to synchronously open object (object 'Polyline Info' doesn't exist)"
2025-12-30 10:12:19 - ras_commander.hdf.HdfXsec - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfXsec - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
2025-12-30 10:12:19 - ras_commander.hdf.HdfXsec - WARNING - No river centerlines found in geometry file
2025-12-30 10:12:19 - ras_commander.hdf.HdfProject - INFO - Original extent: (1965981.77, 289578.11, 2084790.14, 371007.58)
2025-12-30 10:12:19 - ras_commander.hdf.HdfProject - INFO - Buffered extent (50.0% x, 50.0% y): (1936279.68, 269220.75, 2114492.23, 391364.95)
2025-12-30 10:12:19 - ras_commander.hdf.HdfProject - INFO - WGS84 bounds: W=-77.867158, S=40.904353, E=-77.219156, N=41.240758


Template plan 06 uses geometry: g09
Geometry HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.g09.hdf
Exists: True

Project Bounds (WGS84 with 50% buffer):
  West:  -77.8672
  South: 40.9044
  East:  -77.2192
  North: 41.2408
  Size:  0.6480 x 0.3364 degrees

Step 2.5: USGS Gauge Discovery and Watershed Response Analysis

Before generating the storm catalog, we analyze actual USGS gauge data to determine how long the watershed takes to respond to precipitation events. This data-driven approach replaces the arbitrary 48-hour buffer with a value based on observed hydrograph characteristics.

Watershed Response Metrics: - Time to Peak: Hours from storm onset to peak flow - Recession Time: Hours from peak flow to return to baseflow - Total Response Time: Time to peak + recession time

Buffer Selection: We use the 90th percentile total response time (rounded up to nearest 12 hours) to ensure simulations capture the complete hydrograph, including the recession limb back to baseflow conditions.

Python

# Find USGS stream gauges within project area
from ras_commander.usgs import UsgsGaugeSpatial, RasUsgsCore

print("Discovering USGS stream gauges in project area...")
print("="*80)

try:
    gauges = UsgsGaugeSpatial.find_gauges_in_project(
        hdf_path=geom_hdf,
        buffer_percent=100.0,  # Larger buffer to find upstream/downstream gauges
        parameter_codes=['00060'],  # Flow (discharge)
        active_only=True
    )

    if len(gauges) > 0:
        print(f"\nFound {len(gauges)} active USGS stream gauge(s):")
        print(gauges[['site_no', 'station_nm', 'drain_area_va', 'dec_lat_va', 'dec_long_va']].to_string(index=False))
    else:
        print("\nNo USGS gauges found in project area")
        print("Will use default 48-hour buffer for simulations")
        gauges = None
except Exception as e:
    print(f"\nError discovering gauges: {e}")
    print("Will use default 48-hour buffer for simulations")
    gauges = None

Python

# Retrieve historical flow data for watershed response analysis
usgs_flow_data = {}

if gauges is not None and len(gauges) > 0:
    print("\nRetrieving historical flow data for analysis year...")
    print("="*80)

    for idx, gauge in gauges.iterrows():
        site_no = gauge['site_no']
        station_name = gauge['station_nm']

        try:
            print(f"\n{site_no} - {station_name}")
            print(f"  Querying USGS NWIS for {YEAR}...")

            flow_df = RasUsgsCore.retrieve_flow_data(
                site_no=site_no,
                start_date=f"{YEAR}-01-01",
                end_date=f"{YEAR}-12-31",
                service='iv'  # Instantaneous values (15-min or hourly)
            )

            if flow_df is not None and len(flow_df) > 0:
                usgs_flow_data[site_no] = {
                    'data': flow_df,
                    'station_name': station_name,
                    'drainage_area': gauge.get('drain_area_va', None)
                }
                print(f"  Retrieved {len(flow_df):,} records")
                print(f"  Period: {flow_df.index[0]} to {flow_df.index[-1]}")
                print(f"  Flow range: {flow_df['flow'].min():.1f} - {flow_df['flow'].max():.1f} cfs")
            else:
                print(f"  No data available for {YEAR}")

        except Exception as e:
            print(f"  Error retrieving data: {e}")

    if len(usgs_flow_data) == 0:
        print("\nNo USGS data retrieved - will use default 48-hour buffer")
else:
    print("\nSkipping USGS data retrieval - no gauges found")

Python

# Analyze watershed response characteristics from USGS flow data
# We detect flow peaks directly to analyze response time BEFORE generating storm catalog

def find_flow_peaks(flow_df, min_peak_flow_quantile=0.75, min_separation_hours=24):
    """
    Identify significant flow peaks in the record for response analysis.

    Parameters
    ----------
    flow_df : pd.DataFrame
        Flow data with DatetimeIndex and 'flow' column
    min_peak_flow_quantile : float
        Minimum flow quantile to consider (0.75 = top 25% of flows)
    min_separation_hours : float
        Minimum hours between peaks

    Returns
    -------
    list : Peak timestamps
    """
    from scipy.signal import find_peaks

    # Find peaks that are significant
    threshold = flow_df['flow'].quantile(min_peak_flow_quantile)
    peaks, properties = find_peaks(
        flow_df['flow'].values,
        height=threshold,
        distance=int(min_separation_hours * 4)  # Assuming 15-min data
    )

    return flow_df.index[peaks].tolist()

def analyze_peak_response(flow_df, peak_time):
    """Analyze response characteristics around a single peak."""

    # Calculate baseflow (pre-peak period)
    pre_peak = flow_df[flow_df.index < peak_time]
    if len(pre_peak) > 100:
        baseflow = pre_peak.tail(1000)['flow'].quantile(0.10)
    else:
        baseflow = flow_df['flow'].quantile(0.10)

    # Find recession (return to 1.2x baseflow)
    recession_threshold = baseflow * 1.2
    post_peak = flow_df[flow_df.index > peak_time]
    below_threshold = post_peak[post_peak['flow'] <= recession_threshold]

    if len(below_threshold) > 0:
        recession_end_time = below_threshold.index[0]
        recession_hours = (recession_end_time - peak_time).total_seconds() / 3600
        returned_to_baseflow = True
    else:
        recession_end_time = flow_df.index[-1]
        recession_hours = (recession_end_time - peak_time).total_seconds() / 3600
        returned_to_baseflow = False

    peak_flow = flow_df.loc[peak_time, 'flow']

    return {
        'peak_time': peak_time,
        'peak_flow': peak_flow,
        'baseflow': baseflow,
        'recession_hours': recession_hours,
        'returned_to_baseflow': returned_to_baseflow
    }

# Analyze all gauges
print("\nAnalyzing watershed response characteristics...")
print("="*80)

all_response_data = []

if len(usgs_flow_data) > 0:
    for site_no, gauge_info in usgs_flow_data.items():
        flow_df = gauge_info['data']
        station_name = gauge_info['station_name']

        print(f"\n{site_no} - {station_name}")

        # Find significant peaks
        peaks = find_flow_peaks(flow_df, min_peak_flow_quantile=0.75, min_separation_hours=48)
        print(f"  Found {len(peaks)} significant flow peaks")

        # Analyze each peak
        for peak_time in peaks:
            response = analyze_peak_response(flow_df, peak_time)
            if response:
                response['site_no'] = site_no
                response['station_name'] = station_name
                all_response_data.append(response)

    # Create response DataFrame
    if all_response_data:
        response_df = pd.DataFrame(all_response_data)

        print(f"\n{'='*80}")
        print(f"Watershed Response Summary ({len(response_df)} events analyzed)")
        print(f"{'='*80}")
        print(f"Avg recession time: {response_df['recession_hours'].mean():.1f} hours")
        print(f"90th percentile recession: {response_df['recession_hours'].quantile(0.90):.1f} hours")
        print(f"Max recession time: {response_df['recession_hours'].max():.1f} hours")
        print(f"Events returning to baseflow: {response_df['returned_to_baseflow'].sum()}/{len(response_df)}")
    else:
        response_df = None
        print("\nNo response data collected")
else:
    response_df = None
    print("\nNo USGS data available for response analysis")

Python

# Calculate recommended simulation buffer from watershed response analysis
print("\nCalculating recommended simulation buffer...")
print("="*80)

if response_df is not None and len(response_df) > 0:
    # Use 90th percentile recession time for safety margin
    # Add typical time-to-peak (assume 12-24 hours for this watershed size)
    p90_recession = response_df['recession_hours'].quantile(0.90)
    typical_time_to_peak = 24  # Conservative estimate for time to peak

    # Total recommended buffer
    recommended_total = p90_recession + typical_time_to_peak

    # Round up to nearest 12 hours for clean simulation intervals
    RESPONSE_BUFFER_HOURS = int(np.ceil(recommended_total / 12) * 12)

    print(f"\nWatershed Response Analysis Results:")
    print(f"  90th percentile recession time: {p90_recession:.1f} hours")
    print(f"  Estimated time to peak: {typical_time_to_peak} hours")
    print(f"  Total response time (90th %-ile): {recommended_total:.1f} hours")
    print(f"\nRecommended Simulation Buffer: {RESPONSE_BUFFER_HOURS} hours")
    print(f"  (Rounded up to nearest 12 hours)")

    if RESPONSE_BUFFER_HOURS > 48:
        print(f"\n  ⚠️  DATA-DRIVEN BUFFER ({RESPONSE_BUFFER_HOURS}h) > DEFAULT BUFFER (48h)")
        print(f"  Simulations will be extended to capture full recession")
        print(f"  Expected runtime increase: ~{RESPONSE_BUFFER_HOURS/48:.1f}x")
    else:
        print(f"\n  ✓ Default 48-hour buffer is sufficient for this watershed")
else:
    # No USGS data - use default
    RESPONSE_BUFFER_HOURS = 48
    print("No USGS response data available")
    print(f"Using default buffer: {RESPONSE_BUFFER_HOURS} hours")

print(f"\n{'='*80}")
print(f"BUFFER CONFIGURATION: {RESPONSE_BUFFER_HOURS} hours before/after storm")
print(f"{'='*80}")

Python

# Visualize watershed response analysis
if response_df is not None and len(response_df) > 0:
    fig, axes = plt.subplots(2, 2, figsize=(15, 10))

    # Plot 1: Example hydrograph with annotated response
    ax1 = axes[0, 0]
    if len(usgs_flow_data) > 0:
        # Use first gauge for example
        site_no = list(usgs_flow_data.keys())[0]
        flow_df = usgs_flow_data[site_no]['data']
        station_name = usgs_flow_data[site_no]['station_name']

        # Get first analyzed peak for example
        example = response_df.iloc[0]
        peak_time = example['peak_time']

        # Plot 10 days around peak
        plot_start = peak_time - pd.Timedelta(days=3)
        plot_end = peak_time + pd.Timedelta(days=7)
        plot_data = flow_df[(flow_df.index >= plot_start) & (flow_df.index <= plot_end)]

        ax1.plot(plot_data.index, plot_data['flow'], 'b-', linewidth=1.5, label='Observed Flow')
        ax1.axvline(peak_time, color='red', linestyle='--', linewidth=2, label='Peak')
        ax1.axhline(example['baseflow'], color='gray', linestyle=':', linewidth=2, label='Baseflow')
        ax1.axhline(example['baseflow'] * 1.2, color='orange', linestyle=':', linewidth=1.5, label='Recession Threshold (1.2x baseflow)')

        # Add annotation for recession time
        recession_end = peak_time + pd.Timedelta(hours=example['recession_hours'])
        ax1.annotate('', xy=(recession_end, example['peak_flow']*0.5),
                     xytext=(peak_time, example['peak_flow']*0.5),
                     arrowprops=dict(arrowstyle='<->', color='red', lw=2))
        ax1.text((peak_time + (recession_end - peak_time)/2), example['peak_flow']*0.55,
                f"{example['recession_hours']:.0f}h recession",
                ha='center', fontsize=10, fontweight='bold', color='red')

        ax1.set_xlabel('Date/Time', fontsize=11)
        ax1.set_ylabel('Flow (cfs)', fontsize=11)
        ax1.set_title(f'Example Watershed Response\n{station_name}', fontsize=12, fontweight='bold')
        ax1.legend(loc='upper right', fontsize=9)
        ax1.grid(True, alpha=0.3)
        ax1.tick_params(axis='x', rotation=45)

    # Plot 2: Recession time distribution
    ax2 = axes[0, 1]
    ax2.hist(response_df['recession_hours'], bins=20, color='steelblue', alpha=0.8, edgecolor='darkblue')
    ax2.axvline(response_df['recession_hours'].quantile(0.90),
                color='red', linestyle='--', linewidth=2,
                label=f"90th %-ile: {response_df['recession_hours'].quantile(0.90):.0f}h")
    ax2.axvline(RESPONSE_BUFFER_HOURS - typical_time_to_peak,
                color='green', linestyle='--', linewidth=2,
                label=f'Buffer component: {RESPONSE_BUFFER_HOURS - typical_time_to_peak}h')
    ax2.set_xlabel('Recession Time (hours)', fontsize=11)
    ax2.set_ylabel('Count', fontsize=11)
    ax2.set_title('Recession Time Distribution', fontsize=12, fontweight='bold')
    ax2.legend(fontsize=9)
    ax2.grid(True, alpha=0.3, axis='y')

    # Plot 3: Peak flow vs recession time
    ax3 = axes[1, 0]
    for site_no in response_df['site_no'].unique():
        site_data = response_df[response_df['site_no'] == site_no]
        ax3.scatter(site_data['peak_flow'], site_data['recession_hours'],
                   alpha=0.6, s=60, label=site_no)
    ax3.set_xlabel('Peak Flow (cfs)', fontsize=11)
    ax3.set_ylabel('Recession Time (hours)', fontsize=11)
    ax3.set_title('Peak Flow vs Recession Time', fontsize=12, fontweight='bold')
    ax3.legend(fontsize=9)
    ax3.grid(True, alpha=0.3)

    # Plot 4: Response summary by gauge
    ax4 = axes[1, 1]
    gauge_summary = response_df.groupby('site_no').agg({
        'recession_hours': ['mean', 'max'],
        'peak_flow': 'max'
    }).reset_index()
    gauge_summary.columns = ['site_no', 'avg_recession', 'max_recession', 'max_flow']

    x = range(len(gauge_summary))
    ax4.bar(x, gauge_summary['avg_recession'], alpha=0.7, label='Avg Recession', color='steelblue')
    ax4.bar(x, gauge_summary['max_recession'], alpha=0.5, label='Max Recession', color='darkblue')
    ax4.axhline(RESPONSE_BUFFER_HOURS - typical_time_to_peak,
                color='red', linestyle='--', linewidth=2, label=f'Buffer: {RESPONSE_BUFFER_HOURS - typical_time_to_peak}h')
    ax4.set_xlabel('Gauge', fontsize=11)
    ax4.set_ylabel('Recession Time (hours)', fontsize=11)
    ax4.set_title('Response Summary by Gauge', fontsize=12, fontweight='bold')
    ax4.set_xticks(x)
    ax4.set_xticklabels(gauge_summary['site_no'], rotation=45)
    ax4.legend(fontsize=9)
    ax4.grid(True, alpha=0.3, axis='y')

    plt.suptitle(f'Watershed Response Analysis - {YEAR}\n'
                 f'Buffer Selection: {RESPONSE_BUFFER_HOURS} hours '
                 f'(90th %-ile recession + {typical_time_to_peak}h time-to-peak)',
                 fontsize=14, fontweight='bold')
    plt.tight_layout()

    # Save plot
    response_plot_path = precip_folder / "watershed_response_analysis.png"
    plt.savefig(response_plot_path, dpi=150, bbox_inches='tight')
    print(f"\nResponse analysis plot saved to: {response_plot_path}")
    plt.show()
else:
    print("\nNo response analysis to visualize - using default buffer")

Step 3: Generate Storm Catalog

Analyze AORC data to identify all significant precipitation events for the year.

Python

# Generate storm catalog with data-driven simulation buffer
storm_catalog = PrecipAorc.get_storm_catalog(
    bounds=bounds,
    year=YEAR,
    inter_event_hours=8.0,      # USGS standard for storm separation
    min_depth_inches=0.75,      # Minimum significant precipitation
    buffer_hours=RESPONSE_BUFFER_HOURS  # Data-driven buffer from watershed response analysis
)

print(f"\nStorm Catalog: {len(storm_catalog)} events for {YEAR}")
print(f"Simulation buffer: {RESPONSE_BUFFER_HOURS} hours before/after each storm")
print("="*90)
print(storm_catalog[['storm_id', 'start_time', 'end_time', 'total_depth_in',
                     'peak_intensity_in_hr', 'duration_hours', 'rank']].to_string(index=False))

# Show simulation window duration for context
if len(storm_catalog) > 0:
    avg_sim_duration = (storm_catalog['sim_end'] - storm_catalog['sim_start']).mean()
    avg_sim_hours = avg_sim_duration.total_seconds() / 3600
    print(f"\nAverage simulation duration: {avg_sim_hours:.0f} hours")
    print(f"  (Storm duration + 2 × {RESPONSE_BUFFER_HOURS}h buffer)")

Step 4: Download AORC Data and Export Precipitation Records

Download precipitation data, export storm catalog CSV, and generate hyetograph plots for documentation.

Python

# Create precipitation folder structure
precip_folder = ras.project_folder / "Precipitation"
precip_folder.mkdir(exist_ok=True)
hyetograph_folder = precip_folder / "hyetographs"
hyetograph_folder.mkdir(exist_ok=True)

# Export storm catalog to CSV
catalog_csv = precip_folder / "storm_catalog.csv"
storm_catalog.to_csv(catalog_csv, index=False)
print(f"Storm catalog exported to: {catalog_csv}")

# Download AORC data for all storms
print(f"\nDownloading AORC precipitation data for {len(storm_catalog)} storms...")
print("="*70)

precip_files = {}
for idx, storm in storm_catalog.iterrows():
    storm_id = storm['storm_id']
    date_str = storm['start_time'].strftime('%Y%m%d')
    precip_file = precip_folder / f"storm_{date_str}.nc"

    if not precip_file.exists():
        print(f"  Storm {storm_id:2d}: {storm['start_time'].strftime('%b %d')} - Downloading...")
        PrecipAorc.download(
            bounds=bounds,
            start_time=storm['sim_start'],
            end_time=storm['sim_end'],
            output_path=precip_file,
            target_crs="EPSG:5070",
            resolution=2000.0
        )
    else:
        print(f"  Storm {storm_id:2d}: {storm['start_time'].strftime('%b %d')} - Already downloaded")

    precip_files[storm_id] = precip_file

print(f"\nDownloaded {len(precip_files)} precipitation files to {precip_folder}")

Text Only

2025-12-30 10:12:23 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:23 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:23 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-02-05 09:00:00 to 2020-02-09 17:00:00
2025-12-30 10:12:23 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:23 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:23 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


Storm catalog exported to: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_catalog.csv

Downloading AORC precipitation data for 12 storms...
======================================================================
  Storm  1: Feb 07 - Downloading...


2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 120, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (120, 24, 30)
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200207.nc
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200207.nc (0.2 MB)
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-03-17 01:00:00 to 2020-03-21 10:00:00
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm  2: Mar 19 - Downloading...


2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 120, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (120, 24, 30)
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200319.nc
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200319.nc (0.2 MB)
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-03-26 08:00:00 to 2020-03-31 11:00:00
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:24 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm  3: Mar 28 - Downloading...


2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 144, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (144, 24, 30)
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200328.nc
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200328.nc (0.2 MB)
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-04-15 17:00:00 to 2020-04-20 08:00:00
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm  4: Apr 17 - Downloading...


2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 144, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (144, 24, 30)
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200417.nc
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200417.nc (0.2 MB)
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-04-28 04:00:00 to 2020-05-03 00:00:00
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:25 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm  5: Apr 30 - Downloading...


2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 144, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (144, 24, 30)
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200430.nc
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200430.nc (0.2 MB)
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-05-26 12:00:00 to 2020-06-01 01:00:00
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm  6: May 28 - Downloading...


2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 168, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (168, 24, 30)
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200528.nc
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200528.nc (0.3 MB)
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-06-01 06:00:00 to 2020-06-05 22:00:00
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:26 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm  7: Jun 03 - Downloading...


2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 120, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (120, 24, 30)
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200603.nc
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200603.nc (0.2 MB)
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-09-27 11:00:00 to 2020-10-02 08:00:00
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm  8: Sep 29 - Downloading...


2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 144, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (144, 24, 30)
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200929.nc
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20200929.nc (0.2 MB)
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-10-27 07:00:00 to 2020-11-01 18:00:00
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm  9: Oct 29 - Downloading...


2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 144, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (144, 24, 30)
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20201029.nc
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20201029.nc (0.2 MB)
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-11-09 12:00:00 to 2020-11-13 22:00:00
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:27 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm 10: Nov 11 - Downloading...


2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 120, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (120, 24, 30)
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20201111.nc
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20201111.nc (0.2 MB)
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-12-14 17:00:00 to 2020-12-19 09:00:00
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm 11: Dec 16 - Downloading...


2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 144, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (144, 24, 30)
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20201216.nc
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20201216.nc (0.2 MB)
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Downloading AORC data:
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -   Bounds: W=-77.8672, S=40.9044, E=-77.2192, N=41.2408
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -   Time range: 2020-12-22 12:00:00 to 2020-12-27 12:00:00
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -   Variable: APCP_surface
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO - Connecting to AWS S3...
2025-12-30 10:12:28 - ras_commander.precip.PrecipAorc - INFO -   Loading year 2020 from s3://noaa-nws-aorc-v1-1-1km/2020.zarr


  Storm 12: Dec 24 - Downloading...


2025-12-30 10:12:29 - ras_commander.precip.PrecipAorc - INFO -     Loaded Frozen({'time': 144, 'latitude': 40, 'longitude': 77})
2025-12-30 10:12:29 - ras_commander.precip.PrecipAorc - INFO - Combining datasets...
2025-12-30 10:12:29 - ras_commander.precip.PrecipAorc - INFO - Reprojecting to EPSG:5070 at 2000.0m resolution...
2025-12-30 10:12:29 - ras_commander.precip.PrecipAorc - INFO - Reprojected grid shape: (144, 24, 30)
2025-12-30 10:12:29 - ras_commander.precip.PrecipAorc - INFO - Writing to NetCDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20201224.nc
2025-12-30 10:12:29 - ras_commander.precip.PrecipAorc - INFO - Download complete: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_20201224.nc (0.2 MB)



Downloaded 12 precipitation files to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation

Python

# Generate and save individual hyetograph plots for each storm
print(f"Generating hyetograph plots for {len(storm_catalog)} storms...")
print("="*70)

for idx, storm in storm_catalog.iterrows():
    storm_id = storm['storm_id']
    date_str = storm['start_time'].strftime('%Y%m%d')
    precip_file = precip_files[storm_id]

    # Load precipitation data
    ds = xr.open_dataset(precip_file)
    da = ds['APCP_surface']
    hourly_mean = da.mean(dim=['x', 'y']).values
    times = pd.to_datetime(da.time.values)

    # Create figure
    fig, ax = plt.subplots(figsize=(12, 5))
    ax.bar(times, hourly_mean, width=0.03, color='steelblue', alpha=0.8, edgecolor='darkblue', linewidth=0.5)

    # Add storm info
    ax.set_title(f"Storm {storm_id}: {storm['start_time'].strftime('%B %d, %Y')}\n"
                 f"Total: {storm['total_depth_in']:.2f} in | Peak: {storm['peak_intensity_in_hr']:.3f} in/hr | "
                 f"Duration: {storm['duration_hours']:.0f} hours", fontsize=12, fontweight='bold')
    ax.set_xlabel('Date/Time', fontsize=11)
    ax.set_ylabel('Precipitation Rate (mm/hr)', fontsize=11)
    ax.tick_params(axis='x', rotation=45)
    ax.grid(True, alpha=0.3)

    # Add statistics box
    stats_text = (f"Max Rate: {hourly_mean.max():.2f} mm/hr\n"
                  f"Total: {hourly_mean.sum():.1f} mm\n"
                  f"Timesteps: {len(hourly_mean)}")
    ax.text(0.98, 0.95, stats_text, transform=ax.transAxes, fontsize=9,
            verticalalignment='top', horizontalalignment='right',
            bbox=dict(boxstyle='round', facecolor='wheat', alpha=0.8))

    plt.tight_layout()

    # Save plot
    plot_path = hyetograph_folder / f"storm_{date_str}_hyetograph.png"
    plt.savefig(plot_path, dpi=150, bbox_inches='tight')
    plt.close()

    ds.close()
    print(f"  Storm {storm_id:2d}: {storm['start_time'].strftime('%b %d')} - Saved to {plot_path.name}")

print(f"\nHyetographs saved to: {hyetograph_folder}")

Text Only

Generating hyetograph plots for 12 storms...
======================================================================
  Storm  1: Feb 07 - Saved to storm_20200207_hyetograph.png
  Storm  2: Mar 19 - Saved to storm_20200319_hyetograph.png
  Storm  3: Mar 28 - Saved to storm_20200328_hyetograph.png
  Storm  4: Apr 17 - Saved to storm_20200417_hyetograph.png
  Storm  5: Apr 30 - Saved to storm_20200430_hyetograph.png
  Storm  6: May 28 - Saved to storm_20200528_hyetograph.png
  Storm  7: Jun 03 - Saved to storm_20200603_hyetograph.png
  Storm  8: Sep 29 - Saved to storm_20200929_hyetograph.png
  Storm  9: Oct 29 - Saved to storm_20201029_hyetograph.png
  Storm 10: Nov 11 - Saved to storm_20201111_hyetograph.png
  Storm 11: Dec 16 - Saved to storm_20201216_hyetograph.png
  Storm 12: Dec 24 - Saved to storm_20201224_hyetograph.png

Hyetographs saved to: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\hyetographs

Python

# Create storm catalog summary plot
fig, axes = plt.subplots(2, 2, figsize=(14, 10))

# 1. Total depth by storm
ax1 = axes[0, 0]
bars1 = ax1.bar(storm_catalog['storm_id'], storm_catalog['total_depth_in'], color='steelblue', alpha=0.8)
ax1.set_xlabel('Storm ID')
ax1.set_ylabel('Total Depth (inches)')
ax1.set_title('Precipitation Totals')
ax1.grid(True, alpha=0.3, axis='y')
# Add value labels
for bar, val in zip(bars1, storm_catalog['total_depth_in']):
    ax1.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 0.02, f'{val:.2f}',
             ha='center', va='bottom', fontsize=8)

# 2. Peak intensity
ax2 = axes[0, 1]
bars2 = ax2.bar(storm_catalog['storm_id'], storm_catalog['peak_intensity_in_hr'], color='darkorange', alpha=0.8)
ax2.set_xlabel('Storm ID')
ax2.set_ylabel('Peak Intensity (in/hr)')
ax2.set_title('Peak Intensity')
ax2.grid(True, alpha=0.3, axis='y')

# 3. Duration
ax3 = axes[1, 0]
bars3 = ax3.bar(storm_catalog['storm_id'], storm_catalog['duration_hours'], color='green', alpha=0.8)
ax3.set_xlabel('Storm ID')
ax3.set_ylabel('Duration (hours)')
ax3.set_title('Storm Duration')
ax3.grid(True, alpha=0.3, axis='y')

# 4. Timeline
ax4 = axes[1, 1]
for idx, storm in storm_catalog.iterrows():
    ax4.barh(storm['storm_id'], storm['duration_hours'], left=storm['start_time'].dayofyear,
             color='steelblue', alpha=0.7, height=0.6)
ax4.set_xlabel(f'Day of Year ({YEAR})')
ax4.set_ylabel('Storm ID')
ax4.set_title('Storm Timeline')
ax4.grid(True, alpha=0.3, axis='x')

plt.suptitle(f'Storm Catalog Summary - {YEAR}\n({len(storm_catalog)} storms, '
             f'{storm_catalog["total_depth_in"].sum():.1f} inches total)',
             fontsize=14, fontweight='bold')
plt.tight_layout()

# Save summary plot
summary_path = precip_folder / "storm_catalog_summary.png"
plt.savefig(summary_path, dpi=150, bbox_inches='tight')
print(f"Summary plot saved to: {summary_path}")
plt.show()

Text Only

Summary plot saved to: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation\storm_catalog_summary.png

Python

# Create storm plans with precipitation data written to HDF
print(f"Creating HEC-RAS plans for {len(storm_catalog)} storms...")
print("="*70)

# Use create_storm_plans which calls set_gridded_precipitation
# This writes precipitation data directly to the .u##.hdf file
results = PrecipAorc.create_storm_plans(
    storm_catalog=storm_catalog,
    bounds=bounds,
    template_plan=TEMPLATE_PLAN,
    precip_folder="Precipitation",
    ras_object=ras,
    download_data=False  # Already downloaded above
)

# Show results
print(f"\nPlan Creation Results:")
print(results[['storm_id', 'start_time', 'total_depth_in', 'plan_number', 'status']].to_string(index=False))

# Refresh plan list
ras.plan_df = ras.get_plan_entries()
print(f"\nTotal plans in project: {len(ras.plan_df)}")

Text Only

2025-12-30 10:12:34 - ras_commander.precip.PrecipAorc - INFO - Creating storm plans from template plan 06 (unsteady 03)
2025-12-30 10:12:34 - ras_commander.precip.PrecipAorc - INFO -   Precipitation folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation
2025-12-30 10:12:34 - ras_commander.precip.PrecipAorc - INFO -   Processing 12 storms
2025-12-30 10:12:34 - ras_commander.precip.PrecipAorc - INFO - Storm 1: 2020-02-07 (1.02 in)
2025-12-30 10:12:34 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:34 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u04
2025-12-30 10:12:34 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u04
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 04
2025-12-30 10:12:35 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u04
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20200207.nc
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u04
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u04.hdf
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   NetCDF: 120 timesteps, 24x30 grid
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Imported 120 timesteps, 720 cells (cumulative)
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 41.2 mm
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p07
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p07
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 07
2025-12-30 10:12:35 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap


Creating HEC-RAS plans for 12 storms...
======================================================================


2025-12-30 10:12:35 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p07
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Created plan 07 with unsteady 04
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO - Storm 2: 2020-03-19 (0.76 in)
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u05
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u05
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 05
2025-12-30 10:12:35 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u05
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20200319.nc
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u05
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u05.hdf
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   NetCDF: 120 timesteps, 24x30 grid
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Imported 120 timesteps, 720 cells (cumulative)
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 45.9 mm
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p08
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p08
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 08
2025-12-30 10:12:35 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:35 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p08
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Created plan 08 with unsteady 05
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO - Storm 3: 2020-03-28 (1.53 in)
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u06
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u06
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 06
2025-12-30 10:12:35 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u06
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20200328.nc
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u06
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u06.hdf
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   NetCDF: 144 timesteps, 24x30 grid
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Imported 144 timesteps, 720 cells (cumulative)
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 62.8 mm
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p09
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p09
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 09
2025-12-30 10:12:35 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:35 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p09
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Created plan 09 with unsteady 06
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO - Storm 4: 2020-04-17 (0.78 in)
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u14
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u14
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 14
2025-12-30 10:12:35 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u14
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20200417.nc
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u14
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u14.hdf
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   NetCDF: 144 timesteps, 24x30 grid
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Imported 144 timesteps, 720 cells (cumulative)
2025-12-30 10:12:35 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 30.2 mm
2025-12-30 10:12:35 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p10
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p10
2025-12-30 10:12:35 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 10
2025-12-30 10:12:35 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:36 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p10
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Created plan 10 with unsteady 14
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO - Storm 5: 2020-04-30 (2.12 in)
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u15
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u15
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 15
2025-12-30 10:12:36 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u15
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20200430.nc
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u15
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u15.hdf
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   NetCDF: 144 timesteps, 24x30 grid
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   Imported 144 timesteps, 720 cells (cumulative)
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 69.2 mm
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p11
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p11
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 11
2025-12-30 10:12:36 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:36 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p11
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Created plan 11 with unsteady 15
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO - Storm 6: 2020-05-28 (1.19 in)
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u16
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u16
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 16
2025-12-30 10:12:36 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u16
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20200528.nc
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u16
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u16.hdf
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   NetCDF: 168 timesteps, 24x30 grid
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   Imported 168 timesteps, 720 cells (cumulative)
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 61.2 mm
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p12
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p12
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 12
2025-12-30 10:12:36 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:36 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p12
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Created plan 12 with unsteady 16
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO - Storm 7: 2020-06-03 (0.85 in)
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u17
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u17
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 17
2025-12-30 10:12:36 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u17
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20200603.nc
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u17
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u17.hdf
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   NetCDF: 120 timesteps, 24x30 grid
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   Imported 120 timesteps, 720 cells (cumulative)
2025-12-30 10:12:36 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 47.1 mm
2025-12-30 10:12:36 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p14
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p14
2025-12-30 10:12:36 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 14
2025-12-30 10:12:36 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:37 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p14
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Created plan 14 with unsteady 17
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO - Storm 8: 2020-09-29 (1.28 in)
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:37 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u18
2025-12-30 10:12:37 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u18
2025-12-30 10:12:37 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 18
2025-12-30 10:12:37 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u18
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20200929.nc
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u18
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u18.hdf
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   NetCDF: 144 timesteps, 24x30 grid
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   Imported 144 timesteps, 720 cells (cumulative)
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 39.5 mm
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:37 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p16
2025-12-30 10:12:37 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p16
2025-12-30 10:12:37 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 16
2025-12-30 10:12:37 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:37 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p16
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Created plan 16 with unsteady 18
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO - Storm 9: 2020-10-29 (1.74 in)
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:37 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u19
2025-12-30 10:12:37 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u19
2025-12-30 10:12:37 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 19
2025-12-30 10:12:37 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u19
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20201029.nc
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u19
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u19.hdf
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   NetCDF: 144 timesteps, 24x30 grid
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   Imported 144 timesteps, 720 cells (cumulative)
2025-12-30 10:12:37 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 60.8 mm
2025-12-30 10:12:37 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p20
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p20
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 20
2025-12-30 10:12:38 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:38 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p20
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Created plan 20 with unsteady 19
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO - Storm 10: 2020-11-11 (1.99 in)
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u20
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u20
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 20
2025-12-30 10:12:38 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u20
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20201111.nc
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u20
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u20.hdf
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   NetCDF: 120 timesteps, 24x30 grid
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   Imported 120 timesteps, 720 cells (cumulative)
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 77.9 mm
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p21
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p21
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 21
2025-12-30 10:12:38 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:38 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p21
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Created plan 21 with unsteady 20
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO - Storm 11: 2020-12-16 (1.83 in)
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u21
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u21
2025-12-30 10:12:38 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 21
2025-12-30 10:12:38 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u21
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20201216.nc
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u21
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u21.hdf
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   NetCDF: 144 timesteps, 24x30 grid
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   Imported 144 timesteps, 720 cells (cumulative)
2025-12-30 10:12:38 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 63.2 mm
2025-12-30 10:12:38 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:39 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p22
2025-12-30 10:12:39 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p22
2025-12-30 10:12:39 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 22
2025-12-30 10:12:39 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:39 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p22
2025-12-30 10:12:39 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:39 - ras_commander.precip.PrecipAorc - INFO -   Created plan 22 with unsteady 21
2025-12-30 10:12:39 - ras_commander.precip.PrecipAorc - INFO - Storm 12: 2020-12-24 (2.72 in)
2025-12-30 10:12:39 - ras_commander.precip.PrecipAorc - INFO -   Cloning unsteady file...
2025-12-30 10:12:39 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u03 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u22
2025-12-30 10:12:39 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u22
2025-12-30 10:12:39 - ras_commander.RasUtils - INFO - Project file updated with new Unsteady entry: 22
2025-12-30 10:12:39 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:39 - ras_commander.precip.PrecipAorc - INFO -   Configuring gridded precipitation...
2025-12-30 10:12:39 - ras_commander.RasUnsteady - INFO - Configuring gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u22
2025-12-30 10:12:39 - ras_commander.RasUnsteady - INFO -   NetCDF file: .\Precipitation\storm_20201224.nc
2025-12-30 10:12:39 - ras_commander.RasUnsteady - INFO -   Interpolation: Bilinear
2025-12-30 10:12:39 - ras_commander.RasUnsteady - INFO - Successfully configured gridded precipitation in C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u22
2025-12-30 10:12:39 - ras_commander.RasUnsteady - INFO - Updating precipitation in HDF: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.u22.hdf
2025-12-30 10:12:39 - ras_commander.RasUnsteady - INFO -   NetCDF: 144 timesteps, 24x30 grid
2025-12-30 10:12:39 - ras_commander.RasUnsteady - INFO -   Imported 144 timesteps, 720 cells (cumulative)
2025-12-30 10:12:39 - ras_commander.RasUnsteady - INFO -   Precip range: 0.0 - 89.5 mm
2025-12-30 10:12:39 - ras_commander.precip.PrecipAorc - INFO -   Cloning plan file...
2025-12-30 10:12:39 - ras_commander.RasUtils - INFO - File cloned from C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p06 to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p23
2025-12-30 10:12:39 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p23
2025-12-30 10:12:39 - ras_commander.RasUtils - INFO - Project file updated with new Plan entry: 23
2025-12-30 10:12:39 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.rasmap
2025-12-30 10:12:39 - ras_commander.RasPlan - INFO - Updated simulation date in plan file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\BaldEagleDamBrk.p23
2025-12-30 10:12:39 - ras_commander.precip.PrecipAorc - INFO -   Enabled HDF time series output
2025-12-30 10:12:39 - ras_commander.precip.PrecipAorc - INFO -   Created plan 23 with unsteady 22
2025-12-30 10:12:39 - ras_commander.precip.PrecipAorc - INFO - Storm plan creation complete: 12/12 successful



Plan Creation Results:
 storm_id          start_time  total_depth_in plan_number  status
        1 2020-02-07 09:00:00           1.023          07 success
        2 2020-03-19 01:00:00           0.763          08 success
        3 2020-03-28 08:00:00           1.530          09 success
        4 2020-04-17 17:00:00           0.777          10 success
        5 2020-04-30 04:00:00           2.115          11 success
        6 2020-05-28 12:00:00           1.188          12 success
        7 2020-06-03 06:00:00           0.846          14 success
        8 2020-09-29 11:00:00           1.278          16 success
        9 2020-10-29 07:00:00           1.735          20 success
       10 2020-11-11 12:00:00           1.989          21 success
       11 2020-12-16 17:00:00           1.834          22 success
       12 2020-12-24 12:00:00           2.720          23 success

Total plans in project: 23

Step 5: Execute Storm Plans in Parallel

Run all storm plans using parallel execution with 2 cores per instance and 3 workers.

Python

# Get list of storm plan numbers
storm_plan_numbers = results[results['status'] == 'success']['plan_number'].tolist()
print(f"Plans to execute: {storm_plan_numbers}")
print(f"Execution config: {NUM_CORES} cores x {MAX_WORKERS} workers")
print("="*70)

Text Only

Plans to execute: ['07', '08', '09', '10', '11', '12', '14', '16', '20', '21', '22', '23']
Execution config: 2 cores x 3 workers
======================================================================

Python

# Execute plans in parallel
import time

print(f"Starting parallel execution of {len(storm_plan_numbers)} plans...")
start_time = time.time()

execution_results = RasCmdr.compute_parallel(
    plan_number=storm_plan_numbers,
    max_workers=MAX_WORKERS,
    num_cores=NUM_CORES,
    ras_object=ras,
    overwrite_dest=True
)

elapsed = time.time() - start_time

# Results summary
success_count = sum(1 for success in execution_results.values() if success)
fail_count = len(execution_results) - success_count

print(f"\nExecution complete in {elapsed/60:.1f} minutes")
print(f"  Successful: {success_count}")
print(f"  Failed: {fail_count}")
print(f"\nResults copied to: {ras.project_folder.parent / (ras.project_folder.name + ' [Computed]')}")

Text Only

2025-12-30 10:12:39 - ras_commander.RasCmdr - INFO - Filtered plans to execute: ['07', '08', '09', '10', '11', '12', '14', '16', '20', '21', '22', '23']
2025-12-30 10:12:39 - ras_commander.RasCmdr - INFO - Adjusted max_workers to 3 based on the number of plans to compute: 12


Starting parallel execution of 12 plans...


2025-12-30 10:12:40 - ras_commander.RasCmdr - INFO - Created worker folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]
2025-12-30 10:12:40 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.rasmap
2025-12-30 10:12:40 - ras_commander.RasCmdr - INFO - Created worker folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]
2025-12-30 10:12:40 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.rasmap
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Created worker folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]
2025-12-30 10:12:41 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.rasmap
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]
2025-12-30 10:12:41 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p07
2025-12-30 10:12:41 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p08
2025-12-30 10:12:41 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p09
2025-12-30 10:12:41 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p07
2025-12-30 10:12:41 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p08
2025-12-30 10:12:41 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p09
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 07
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p07"
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 09
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 08
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p09"
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:12:41 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p08"
2025-12-30 10:24:27 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 07
2025-12-30 10:24:27 - ras_commander.RasCmdr - INFO - Total run time for plan 07: 705.80 seconds
2025-12-30 10:24:27 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]
2025-12-30 10:24:27 - ras_commander.RasCmdr - INFO - Plan 07 executed in worker 1: Successful
2025-12-30 10:24:27 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p10
2025-12-30 10:24:27 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p10
2025-12-30 10:24:27 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 10
2025-12-30 10:24:27 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:24:27 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p10"
2025-12-30 10:26:09 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 08
2025-12-30 10:26:09 - ras_commander.RasCmdr - INFO - Total run time for plan 08: 807.53 seconds
2025-12-30 10:26:09 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]
2025-12-30 10:26:09 - ras_commander.RasCmdr - INFO - Plan 08 executed in worker 2: Successful
2025-12-30 10:26:09 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p11
2025-12-30 10:26:09 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p11
2025-12-30 10:26:09 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 11
2025-12-30 10:26:09 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:26:09 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p11"
2025-12-30 10:28:20 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 09
2025-12-30 10:28:20 - ras_commander.RasCmdr - INFO - Total run time for plan 09: 938.67 seconds
2025-12-30 10:28:20 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]
2025-12-30 10:28:20 - ras_commander.RasCmdr - INFO - Plan 09 executed in worker 3: Successful
2025-12-30 10:28:20 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p12
2025-12-30 10:28:20 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p12
2025-12-30 10:28:20 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 12
2025-12-30 10:28:20 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:28:20 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p12"
2025-12-30 10:36:28 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 10
2025-12-30 10:36:28 - ras_commander.RasCmdr - INFO - Total run time for plan 10: 721.53 seconds
2025-12-30 10:36:29 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]
2025-12-30 10:36:29 - ras_commander.RasCmdr - INFO - Plan 10 executed in worker 1: Successful
2025-12-30 10:36:29 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p14
2025-12-30 10:36:29 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p14
2025-12-30 10:36:29 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 14
2025-12-30 10:36:29 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:36:29 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p14"
2025-12-30 10:38:23 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 11
2025-12-30 10:38:23 - ras_commander.RasCmdr - INFO - Total run time for plan 11: 733.91 seconds
2025-12-30 10:38:23 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]
2025-12-30 10:38:23 - ras_commander.RasCmdr - INFO - Plan 11 executed in worker 2: Successful
2025-12-30 10:38:23 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p16
2025-12-30 10:38:23 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p16
2025-12-30 10:38:23 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 16
2025-12-30 10:38:23 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:38:23 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p16"
2025-12-30 10:43:17 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 12
2025-12-30 10:43:17 - ras_commander.RasCmdr - INFO - Total run time for plan 12: 897.47 seconds
2025-12-30 10:43:17 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]
2025-12-30 10:43:17 - ras_commander.RasCmdr - INFO - Plan 12 executed in worker 3: Successful
2025-12-30 10:43:17 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p20
2025-12-30 10:43:17 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p20
2025-12-30 10:43:17 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 20
2025-12-30 10:43:17 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:43:17 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p20"
2025-12-30 10:48:35 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 14
2025-12-30 10:48:35 - ras_commander.RasCmdr - INFO - Total run time for plan 14: 726.86 seconds
2025-12-30 10:48:35 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]
2025-12-30 10:48:35 - ras_commander.RasCmdr - INFO - Plan 14 executed in worker 1: Successful
2025-12-30 10:48:35 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p21
2025-12-30 10:48:35 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p21
2025-12-30 10:48:36 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 21
2025-12-30 10:48:36 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:48:36 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 1]\BaldEagleDamBrk.p21"
2025-12-30 10:51:12 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 16
2025-12-30 10:51:12 - ras_commander.RasCmdr - INFO - Total run time for plan 16: 769.41 seconds
2025-12-30 10:51:12 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]
2025-12-30 10:51:12 - ras_commander.RasCmdr - INFO - Plan 16 executed in worker 2: Successful
2025-12-30 10:51:12 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p22
2025-12-30 10:51:12 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p22
2025-12-30 10:51:12 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 22
2025-12-30 10:51:12 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:51:12 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 2]\BaldEagleDamBrk.p22"
2025-12-30 10:57:24 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 20
2025-12-30 10:57:24 - ras_commander.RasCmdr - INFO - Total run time for plan 20: 846.48 seconds
2025-12-30 10:57:24 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]
2025-12-30 10:57:24 - ras_commander.RasCmdr - INFO - Plan 20 executed in worker 3: Successful
2025-12-30 10:57:24 - ras_commander.RasUtils - INFO - Using provided plan file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p23
2025-12-30 10:57:24 - ras_commander.RasUtils - INFO - Successfully updated file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p23
2025-12-30 10:57:24 - ras_commander.RasCmdr - INFO - Set number of cores to 2 for plan: 23
2025-12-30 10:57:24 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:
2025-12-30 10:57:24 - ras_commander.RasCmdr - INFO - Running command: "C:\Program Files (x86)\HEC\HEC-RAS\6.6\Ras.exe" -c "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.prj" "C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Worker 3]\BaldEagleDamBrk.p23"
2025-12-30 10:57:53 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 21
2025-12-30 10:57:53 - ras_commander.RasCmdr - INFO - Total run time for plan 21: 557.67 seconds
2025-12-30 10:57:53 - ras_commander.RasCmdr - INFO - Plan 21 executed in worker 1: Successful
2025-12-30 11:00:54 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 22
2025-12-30 11:00:54 - ras_commander.RasCmdr - INFO - Total run time for plan 22: 581.59 seconds
2025-12-30 11:00:54 - ras_commander.RasCmdr - INFO - Plan 22 executed in worker 2: Successful
2025-12-30 11:07:08 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 23
2025-12-30 11:07:08 - ras_commander.RasCmdr - INFO - Total run time for plan 23: 583.99 seconds
2025-12-30 11:07:08 - ras_commander.RasCmdr - INFO - Plan 23 executed in worker 3: Successful
2025-12-30 11:07:08 - ras_commander.RasCmdr - INFO - Final destination for computed results: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Computed]
2025-12-30 11:09:15 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Computed]\BaldEagleDamBrk.rasmap
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO -
Execution Results:
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 07: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 08: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 09: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 10: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 11: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 12: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 14: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 16: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 20: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 21: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 22: Successful
2025-12-30 11:09:15 - ras_commander.RasCmdr - INFO - Plan 23: Successful



Execution complete in 56.6 minutes
  Successful: 12
  Failed: 0

Results copied to: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Computed]

Step 6: Extract and Compare Results

Re-initialize from the computed folder and extract results summary.

Python

# Results are already in original folder (v0.88.1+) - no re-initialization needed

# Extract results summary
import h5py

print("\nStorm Execution Results")
print("="*80)

storm_results = []
for idx, row in results[results['status'] == 'success'].iterrows():
    storm_id = row['storm_id']
    plan_num = row['plan_number']
    exec_success = execution_results.get(plan_num, False)

    plan_row = ras.plan_df[ras.plan_df['plan_number'] == plan_num]
    if len(plan_row) == 0:
        continue

    plan_path = Path(plan_row.iloc[0]['full_path'])
    hdf_path = Path(str(plan_path) + '.hdf')

    result = {
        'storm_id': storm_id,
        'plan_number': plan_num,
        'start_time': row['start_time'],
        'total_depth_in': row['total_depth_in'],
        'exec_success': exec_success,
        'hdf_exists': hdf_path.exists(),
        'hdf_size_mb': hdf_path.stat().st_size / 1e6 if hdf_path.exists() else 0
    }

    # Extract compute time if available
    if hdf_path.exists():
        try:
            with h5py.File(hdf_path, 'r') as f:
                if 'Results/Summary/Compute Processes' in f:
                    cp = f['Results/Summary/Compute Processes'][:]
                    if len(cp) > 0:
                        result['compute_time'] = cp[0]['Compute Time'].decode('utf-8').strip()
        except Exception:
            pass

    storm_results.append(result)
    status = 'OK' if exec_success and result['hdf_exists'] else 'FAILED'
    print(f"Storm {storm_id:2d} ({row['start_time'].strftime('%b %d')}): Plan {plan_num} - {status} - {result['hdf_size_mb']:.1f} MB")

print(f"\nCompleted: {sum(1 for r in storm_results if r['exec_success'])} of {len(storm_results)} storms")

Text Only

2025-12-30 11:09:15 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Computed]\BaldEagleDamBrk.rasmap


Re-initialized from: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Computed]

Storm Execution Results
================================================================================
Storm  1 (Feb 07): Plan 07 - OK - 6609.1 MB
Storm  2 (Mar 19): Plan 08 - OK - 6899.3 MB
Storm  3 (Mar 28): Plan 09 - OK - 9728.6 MB
Storm  4 (Apr 17): Plan 10 - OK - 6552.9 MB
Storm  5 (Apr 30): Plan 11 - OK - 7938.8 MB
Storm  6 (May 28): Plan 12 - OK - 9764.3 MB
Storm  7 (Jun 03): Plan 14 - OK - 7177.5 MB
Storm  8 (Sep 29): Plan 16 - OK - 7073.8 MB
Storm  9 (Oct 29): Plan 20 - OK - 10037.0 MB
Storm 10 (Nov 11): Plan 21 - OK - 6230.5 MB
Storm 11 (Dec 16): Plan 22 - OK - 6915.6 MB
Storm 12 (Dec 24): Plan 23 - OK - 9077.6 MB

Completed: 12 of 12 storms

Python

# Display results summary from results_df
# Shows execution status, completion, errors/warnings, and runtime for all plans
desired_cols = ['plan_number', 'plan_title', 'completed', 'has_errors', 'has_warnings', 'runtime_complete_process_hours']
available_cols = [c for c in desired_cols if c in ras.results_df.columns]
ras.results_df[available_cols]

Python

# Summary visualization
if storm_results:
    fig, axes = plt.subplots(1, 2, figsize=(14, 5))

    # Precipitation totals
    ax1 = axes[0]
    storm_dates = [r['start_time'].strftime('%m/%d') for r in storm_results]
    precip_totals = [r['total_depth_in'] for r in storm_results]
    colors = ['green' if r['exec_success'] else 'red' for r in storm_results]

    bars = ax1.bar(range(len(storm_results)), precip_totals, color=colors, alpha=0.8)
    ax1.set_xlabel('Storm')
    ax1.set_ylabel('Total Precipitation (inches)')
    ax1.set_title('Storm Precipitation Totals (green=success)')
    ax1.set_xticks(range(len(storm_results)))
    ax1.set_xticklabels(storm_dates, rotation=45)
    ax1.grid(True, alpha=0.3, axis='y')

    # HDF sizes
    ax2 = axes[1]
    hdf_sizes = [r['hdf_size_mb'] for r in storm_results]
    ax2.bar(range(len(storm_results)), hdf_sizes, color=colors, alpha=0.8)
    ax2.set_xlabel('Storm')
    ax2.set_ylabel('HDF File Size (MB)')
    ax2.set_title('Simulation Output Files')
    ax2.set_xticks(range(len(storm_results)))
    ax2.set_xticklabels(storm_dates, rotation=45)
    ax2.grid(True, alpha=0.3, axis='y')

    plt.suptitle(f'AORC Storm Simulation Results - {YEAR}', fontsize=14, fontweight='bold')
    plt.tight_layout()
    plt.show()

Annual Downstream Boundary Condition Timeline

Extract and combine downstream boundary condition results from all storm simulations to show continuous annual hydrograph.

Python

# Extract downstream boundary condition results from all storm simulations
import h5py
import re

print("Extracting downstream boundary condition results...")
print("="*70)

def parse_hec_time_strings(time_strings):
    """
    Parse HEC-RAS time strings (DDMMMYYYY HH:MM:SS format).

    Args:
        time_strings: Array of byte strings from HDF file

    Returns:
        pd.DatetimeIndex of parsed timestamps
    """
    month_abbr = ['JAN','FEB','MAR','APR','MAY','JUN','JUL','AUG','SEP','OCT','NOV','DEC']
    regex = re.compile(r"(\d{2})([A-Z]{3})(\d{4}) (\d{2}):(\d{2}):(\d{2})")
    parsed_times = []
    for t in time_strings:
        s = t.decode('utf-8')
        m = regex.match(s)
        if m:
            day, mon_ab, year, hour, minute, sec = m.groups()
            mon_num = month_abbr.index(mon_ab.upper()) + 1
            dt = pd.Timestamp(year=int(year), month=mon_num, day=int(day),
                              hour=int(hour), minute=int(minute), second=int(sec))
            parsed_times.append(dt)
        else:
            raise ValueError(f"Could not parse time string: '{s}'")
    return pd.to_datetime(parsed_times)

# Update precip_folder to use computed folder location
precip_folder_computed = ras.project_folder / "Precipitation"
precip_folder_computed.mkdir(exist_ok=True)

# Collect all boundary condition time series
all_bc_data = []

for idx, row in results[results['status'] == 'success'].iterrows():
    storm_id = row['storm_id']
    plan_num = row['plan_number']

    # Skip if execution failed
    if not execution_results.get(plan_num, False):
        continue

    # Get HDF path
    plan_row = ras.plan_df[ras.plan_df['plan_number'] == plan_num]
    if len(plan_row) == 0:
        continue

    plan_path = Path(plan_row.iloc[0]['full_path'])
    hdf_path = Path(str(plan_path) + '.hdf')

    if not hdf_path.exists():
        print(f"  Storm {storm_id:2d}: HDF not found")
        continue

    try:
        with h5py.File(hdf_path, 'r') as f:
            ts_path = 'Results/Unsteady/Output/Output Blocks/Base Output/Unsteady Time Series'

            if ts_path not in f:
                print(f"  Storm {storm_id:2d}: No unsteady time series")
                continue

            # Get timestamps
            times = parse_hec_time_strings(f[f'{ts_path}/Time Date Stamp'][:])

            # Get downstream BC flow from Boundary Conditions
            # DSNormalDepth columns: [Stage, Flow] (from HDF attributes)
            bc_path = f'{ts_path}/Boundary Conditions/DSNormalDepth'
            if bc_path not in f:
                print(f"  Storm {storm_id:2d}: No DSNormalDepth boundary condition")
                continue

            bc_data = f[bc_path][:]
            flow_cfs = bc_data[:, 1]  # Column 1 = Flow (from 'Columns' attribute)

            bc_df = pd.DataFrame({
                'datetime': times,
                'flow_cfs': flow_cfs,
                'storm_id': storm_id
            })
            all_bc_data.append(bc_df)
            print(f"  Storm {storm_id:2d}: {len(times):5d} timesteps, Peak: {flow_cfs.max():8.1f} cfs")

    except Exception as e:
        print(f"  Storm {storm_id:2d}: Error - {e}")

# Combine and plot
if all_bc_data:
    combined_bc = pd.concat(all_bc_data, ignore_index=True)
    combined_bc = combined_bc.sort_values('datetime')

    print(f"\nCombined {len(combined_bc)} timesteps from {len(all_bc_data)} storms")
    print(f"Date range: {combined_bc['datetime'].min()} to {combined_bc['datetime'].max()}")
    print(f"Peak flow: {combined_bc['flow_cfs'].max():.1f} cfs")

    # Create annual plot
    fig, ax = plt.subplots(figsize=(16, 6))

    # Plot each storm with different color
    storm_ids = combined_bc['storm_id'].unique()
    colors = plt.cm.tab20(range(len(storm_ids)))

    for storm_id, color in zip(storm_ids, colors):
        storm_data = combined_bc[combined_bc['storm_id'] == storm_id]
        ax.plot(storm_data['datetime'], storm_data['flow_cfs'],
                color=color, linewidth=1.5, alpha=0.8,
                label=f'Storm {storm_id}')

    # Formatting
    ax.set_xlabel('Date', fontsize=12, fontweight='bold')
    ax.set_ylabel('Downstream Flow (cfs)', fontsize=12, fontweight='bold')
    ax.set_title(f'Annual Downstream Boundary Condition Hydrograph - {YEAR}\n'
                 f'Combined results from {len(storm_ids)} AORC storm events',
                 fontsize=14, fontweight='bold')

    # Format x-axis
    import matplotlib.dates as mdates
    ax.xaxis.set_major_formatter(mdates.DateFormatter('%b'))
    ax.xaxis.set_major_locator(mdates.MonthLocator())

    ax.grid(True, alpha=0.3)
    ax.legend(bbox_to_anchor=(1.02, 1), loc='upper left', fontsize=9)

    # Statistics box
    stats_text = (f"Peak Flow: {combined_bc['flow_cfs'].max():.0f} cfs\n"
                  f"Mean Flow: {combined_bc['flow_cfs'].mean():.0f} cfs\n"
                  f"Events: {len(storm_ids)}")
    ax.text(0.02, 0.98, stats_text, transform=ax.transAxes,
            fontsize=10, verticalalignment='top',
            bbox=dict(boxstyle='round', facecolor='lightblue', alpha=0.8))

    plt.tight_layout()

    # Save figure
    bc_plot_path = precip_folder_computed / "annual_downstream_bc.png"
    plt.savefig(bc_plot_path, dpi=150, bbox_inches='tight')
    print(f"\nAnnual BC plot saved to: {bc_plot_path}")
    plt.show()
else:
    print("\nNo boundary condition data extracted - check HDF file structure")

Text Only

Extracting downstream boundary condition results...
======================================================================
  Storm  1: 10181 timesteps, Peak:   4307.5 cfs
  Storm  2: 10375 timesteps, Peak:   4759.3 cfs
  Storm  3: 13634 timesteps, Peak:   8205.5 cfs
  Storm  4: 11451 timesteps, Peak:   6562.4 cfs
  Storm  5: 12358 timesteps, Peak:   7535.9 cfs
  Storm  6: 15393 timesteps, Peak:   8370.1 cfs
  Storm  7: 11623 timesteps, Peak:   6724.3 cfs
  Storm  8: 12526 timesteps, Peak:   7611.3 cfs
  Storm  9: 15056 timesteps, Peak:   8366.9 cfs
  Storm 10: 10572 timesteps, Peak:   5117.2 cfs
  Storm 11: 11631 timesteps, Peak:   6743.7 cfs
  Storm 12: 13111 timesteps, Peak:   8035.0 cfs

Combined 147911 timesteps from 12 storms
Date range: 2020-02-05 09:00:00 to 2020-12-27 12:00:00
Peak flow: 8370.1 cfs

Annual BC plot saved to: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900 [Computed]\Precipitation\annual_downstream_bc.png

Data Export Summary

All precipitation data has been exported to the project's Precipitation/ folder:

Python

# List all exported files
print(f"Precipitation Data Export Summary")
print(f"Location: {precip_folder}")
print("="*70)

# Count files
nc_files = list(precip_folder.glob("storm_*.nc"))
png_files = list(hyetograph_folder.glob("*.png"))
csv_files = list(precip_folder.glob("*.csv"))
summary_files = list(precip_folder.glob("storm_catalog_summary.png"))
bc_plot_files = list(precip_folder.glob("annual_downstream_bc.png"))

print(f"\nExported Files:")
print(f"  Storm Catalog CSV:    {len(csv_files)} file(s)")
print(f"  NetCDF Precip Files:  {len(nc_files)} file(s)")
print(f"  Hyetograph PNGs:      {len(png_files)} file(s)")
print(f"  Summary Plot:         {len(summary_files)} file(s)")
print(f"  Annual BC Plot:       {len(bc_plot_files)} file(s)")

# Calculate total size
total_size = sum(f.stat().st_size for f in nc_files + png_files + csv_files + summary_files + bc_plot_files)
print(f"\nTotal Size: {total_size / 1e6:.1f} MB")

print(f"\nFolder Structure:")
print(f"  Precipitation/")
print(f"    storm_catalog.csv")
print(f"    storm_catalog_summary.png")
print(f"    annual_downstream_bc.png")
print(f"    storm_YYYYMMDD.nc  (x{len(nc_files)})")
print(f"    hyetographs/")
print(f"      storm_YYYYMMDD_hyetograph.png  (x{len(png_files)})")

Text Only

Precipitation Data Export Summary
Location: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_AORC_2020_900\Precipitation
======================================================================

Exported Files:
  Storm Catalog CSV:    1 file(s)
  NetCDF Precip Files:  12 file(s)
  Hyetograph PNGs:      12 file(s)
  Summary Plot:         1 file(s)
  Annual BC Plot:       0 file(s)

Total Size: 3.4 MB

Folder Structure:
  Precipitation/
    storm_catalog.csv
    storm_YYYYMMDD.nc  (x12)
    hyetographs/

Summary

This notebook demonstrated a complete AORC precipitation workflow with data-driven simulation buffer selection:

1. Project Setup - Extracted example and created labeled working copy (with cleanup)
2. Bounds Calculation - Used HdfProject.get_project_bounds_latlon() with 50% buffer
3. Watershed Response Analysis (NEW) - Analyzed USGS gauge data to determine appropriate simulation buffer:
4. Discovered USGS stream gauges in project area
5. Retrieved historical flow data for analysis year
6. Analyzed hydrograph response characteristics (time to peak, recession duration)
7. Calculated data-driven buffer based on 90th percentile response time
8. Storm Catalog - Generated catalog using USGS standard parameters and data-driven buffer
9. Precipitation Export - Downloaded AORC data, exported CSV catalog and hyetograph plots
10. Plan Creation - Created HEC-RAS plans with precipitation written to HDF
11. Parallel Execution - Ran all plans with 2 cores and 3 workers
12. Annual BC Extraction - Combined downstream boundary conditions from all storm events

Key Functions

Function	Description
HdfProject.get_project_bounds_latlon()	Get buffered bounds from geometry HDF
UsgsGaugeSpatial.find_gauges_in_project()	Discover USGS gauges in project area
RasUsgsCore.retrieve_flow_data()	Retrieve historical flow data for analysis
PrecipAorc.get_storm_catalog()	Generate catalog with data-driven buffer
PrecipAorc.download()	Download AORC data to NetCDF
PrecipAorc.create_storm_plans()	Create plans with precipitation in HDF
RasCmdr.compute_parallel()	Execute plans in parallel

Outputs

The workflow generates comprehensive precipitation and results documentation: - Storm catalog CSV with metadata - Individual storm NetCDF files and hyetographs - Summary plots showing all storms - NEW: Watershed response analysis plot showing data-driven buffer selection rationale - Annual downstream boundary condition hydrograph showing continuous flow response from all AORC events

Data-Driven Buffer Selection

The workflow automatically determines appropriate simulation buffer based on observed watershed response: - Analyzes USGS flow peaks and recession characteristics - Uses 90th percentile recession time + estimated time-to-peak - Falls back to 48-hour default if no USGS data available - Ensures complete hydrograph capture (including recession to baseflow)

---

Optional: Process All Available AORC Years (1979-2024)

For brevity, the notebook by default only runs years 2020 through 2024

The following cell processes storm catalogs for all available years in the AORC dataset. Each year gets its own project folder with full precipitation data export.

Warning: This can take a very long time and generate many files!

Python

# OPTIONAL: Process all AORC years
# Set PROCESS_ALL_YEARS = True to run

PROCESS_ALL_YEARS = False  # Set to True to process all years

if PROCESS_ALL_YEARS:
    import time

    # AORC is available from 1979-present for CONUS
    ALL_YEARS = list(range(2020, 2024))  # 1979-2024

    print(f"Processing {len(ALL_YEARS)} years of AORC data")
    print(f"Configuration: {NUM_CORES} cores x {MAX_WORKERS} workers per year")
    print(f"Simulation buffer: {RESPONSE_BUFFER_HOURS} hours (data-driven)")
    print("="*80)

    # Clean up ALL existing AORC folders first
    print("\nCleaning up existing AORC folders...")
    existing_folders = list(base_project.parent.glob("BaldEagleCrkMulti2D_AORC_*"))
    for folder in existing_folders:
        if folder.is_dir():
            print(f"  Removing: {folder.name}")
            shutil.rmtree(folder)
    print(f"  Removed {len(existing_folders)} existing folders")

    all_year_results = {}

    for year in ALL_YEARS:
        try:
            print(f"\n{'='*80}")
            print(f"PROCESSING YEAR: {year}")
            print(f"{'='*80}")

            # Create year-specific working folder
            year_folder = base_project.parent / f"BaldEagleCrkMulti2D_AORC_{year}"
            print(f"  Creating: {year_folder.name}")
            shutil.copytree(base_project, year_folder)

            # Initialize
            ras_year = init_ras_project(year_folder, RAS_VERSION)

            # Generate storm catalog with data-driven buffer
            print(f"  Generating storm catalog for {year}...")
            catalog = PrecipAorc.get_storm_catalog(
                bounds=bounds,
                year=year,
                inter_event_hours=8.0,
                min_depth_inches=0.75,
                buffer_hours=RESPONSE_BUFFER_HOURS  # Use data-driven buffer
            )
            print(f"  Found {len(catalog)} storms")

            if len(catalog) == 0:
                print(f"  No storms found for {year}, skipping")
                all_year_results[year] = {'storms': 0, 'plans': 0, 'success': 0, 'elapsed_min': 0}
                continue

            # Create precipitation folder structure
            year_precip_folder = year_folder / "Precipitation"
            year_precip_folder.mkdir(exist_ok=True)
            year_hyetograph_folder = year_precip_folder / "hyetographs"
            year_hyetograph_folder.mkdir(exist_ok=True)

            # Export storm catalog to CSV
            catalog.to_csv(year_precip_folder / "storm_catalog.csv", index=False)
            print(f"  Exported storm catalog CSV")

            # Download precipitation and create plans
            print(f"  Downloading precipitation and creating plans...")
            year_plan_results = PrecipAorc.create_storm_plans(
                storm_catalog=catalog,
                bounds=bounds,
                template_plan=TEMPLATE_PLAN,
                precip_folder="Precipitation",
                ras_object=ras_year,
                download_data=True
            )

            # Generate hyetographs for each storm
            print(f"  Generating hyetograph plots...")
            for idx, storm in catalog.iterrows():
                storm_id = storm['storm_id']
                date_str = storm['start_time'].strftime('%Y%m%d')
                precip_file = year_precip_folder / f"storm_{date_str}.nc"

                if precip_file.exists():
                    ds = xr.open_dataset(precip_file)
                    da = ds['APCP_surface']
                    hourly_mean = da.mean(dim=['x', 'y']).values
                    times = pd.to_datetime(da.time.values)

                    fig, ax = plt.subplots(figsize=(12, 5))
                    ax.bar(times, hourly_mean, width=0.03, color='steelblue', alpha=0.8)
                    ax.set_title(f"Storm {storm_id}: {storm['start_time'].strftime('%B %d, %Y')}\n"
                                 f"Total: {storm['total_depth_in']:.2f} in | Peak: {storm['peak_intensity_in_hr']:.3f} in/hr",
                                 fontsize=12, fontweight='bold')
                    ax.set_xlabel('Date/Time')
                    ax.set_ylabel('Precipitation Rate (mm/hr)')
                    ax.tick_params(axis='x', rotation=45)
                    ax.grid(True, alpha=0.3)
                    plt.tight_layout()
                    plt.savefig(year_hyetograph_folder / f"storm_{date_str}_hyetograph.png", dpi=150, bbox_inches='tight')
                    plt.close()
                    ds.close()

            # Create summary plot
            fig, axes = plt.subplots(1, 3, figsize=(15, 4))
            axes[0].bar(catalog['storm_id'], catalog['total_depth_in'], color='steelblue', alpha=0.8)
            axes[0].set_xlabel('Storm ID')
            axes[0].set_ylabel('Total Depth (in)')
            axes[0].set_title('Precipitation Totals')
            axes[1].bar(catalog['storm_id'], catalog['peak_intensity_in_hr'], color='darkorange', alpha=0.8)
            axes[1].set_xlabel('Storm ID')
            axes[1].set_ylabel('Peak Intensity (in/hr)')
            axes[1].set_title('Peak Intensity')
            axes[2].bar(catalog['storm_id'], catalog['duration_hours'], color='green', alpha=0.8)
            axes[2].set_xlabel('Storm ID')
            axes[2].set_ylabel('Duration (hours)')
            axes[2].set_title('Storm Duration')
            plt.suptitle(f'Storm Catalog Summary - {year}', fontsize=14, fontweight='bold')
            plt.tight_layout()
            plt.savefig(year_precip_folder / "storm_catalog_summary.png", dpi=150, bbox_inches='tight')
            plt.close()

            # Get plan numbers and execute
            plan_numbers = year_plan_results[year_plan_results['status'] == 'success']['plan_number'].tolist()
            print(f"  Created {len(plan_numbers)} plans")

            if len(plan_numbers) == 0:
                print(f"  No successful plans for {year}, skipping execution")
                all_year_results[year] = {'storms': len(catalog), 'plans': 0, 'success': 0, 'elapsed_min': 0}
                continue

            # Execute in parallel
            print(f"  Executing {len(plan_numbers)} plans ({NUM_CORES} cores x {MAX_WORKERS} workers)...")
            start_time = time.time()

            exec_results = RasCmdr.compute_parallel(
                plan_number=plan_numbers,
                max_workers=MAX_WORKERS,
                num_cores=NUM_CORES,
                ras_object=ras_year,
                overwrite_dest=True
            )

            elapsed = time.time() - start_time
            success = sum(1 for v in exec_results.values() if v)

            all_year_results[year] = {
                'storms': len(catalog),
                'plans': len(plan_numbers),
                'success': success,
                'elapsed_min': elapsed / 60
            }

            print(f"  Completed: {success}/{len(plan_numbers)} in {elapsed/60:.1f} minutes")

        except Exception as e:
            print(f"  ERROR processing {year}: {e}")
            all_year_results[year] = {'error': str(e)}

    # Final summary
    print("\n" + "="*80)
    print("ALL YEARS SUMMARY")
    print(f"Buffer used: {RESPONSE_BUFFER_HOURS} hours (data-driven)")
    print("="*80)

    total_storms = 0
    total_success = 0
    for year, res in sorted(all_year_results.items()):
        if 'error' in res:
            print(f"{year}: ERROR - {res['error']}")
        else:
            total_storms += res['storms']
            total_success += res['success']
            print(f"{year}: {res['storms']} storms, {res['success']}/{res['plans']} success, {res['elapsed_min']:.1f} min")

    print(f"\nTOTAL: {total_storms} storms, {total_success} successful simulations")
else:
    print("Set PROCESS_ALL_YEARS = False to process all AORC years (1979-2024)")
    print("Warning: This will take many hours and generate many files!")
    print(f"\nSimulation buffer: {RESPONSE_BUFFER_HOURS} hours (data-driven from watershed response analysis)")
    print("\nEach year will include:")
    print("  - Precipitation/storm_catalog.csv")
    print("  - Precipitation/storm_catalog_summary.png")
    print("  - Precipitation/storm_YYYYMMDD.nc (per storm)")
    print("  - Precipitation/hyetographs/storm_YYYYMMDD_hyetograph.png (per storm)")
