USGS Gauge Data Integration for HEC-RAS¶
This notebook demonstrates how to integrate USGS gauge data with HEC-RAS models using the ras_commander.usgs submodule.
Workflow covered: 1. Discover USGS gauges within/near a HEC-RAS project extent 2. Retrieve flow and stage time series from USGS 3. Set initial conditions using observed data 4. Create boundary conditions from historic flow data (next phase) 5. Validate model results against observations (next phase)
Example Projects: - Balde Eagle Creek (1D model) - BaldEagleCrkMulti2D (1D/2D integrated model)

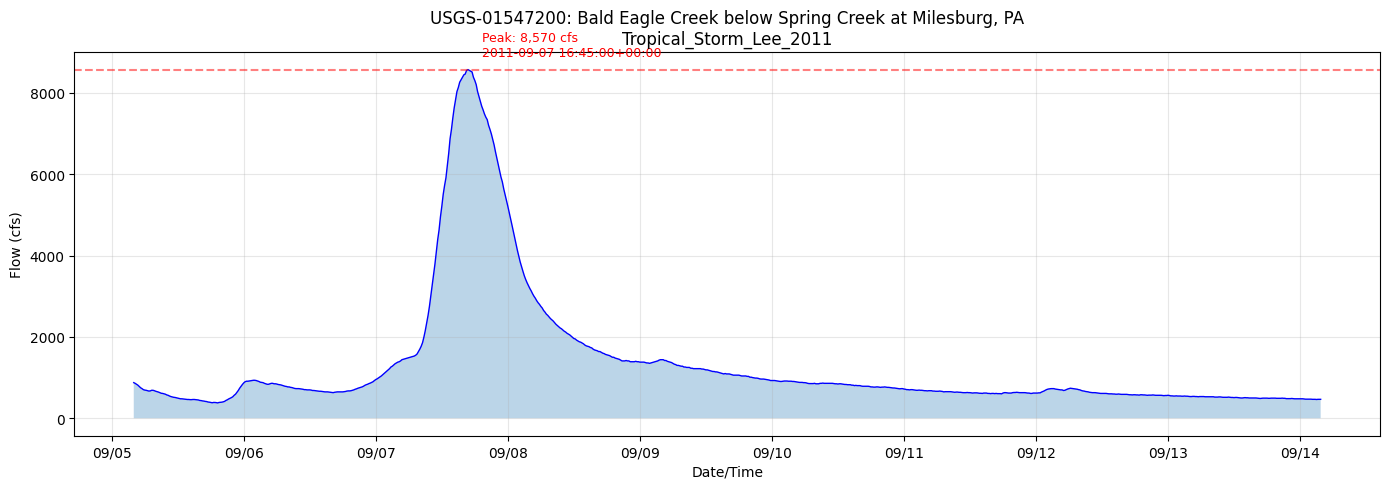

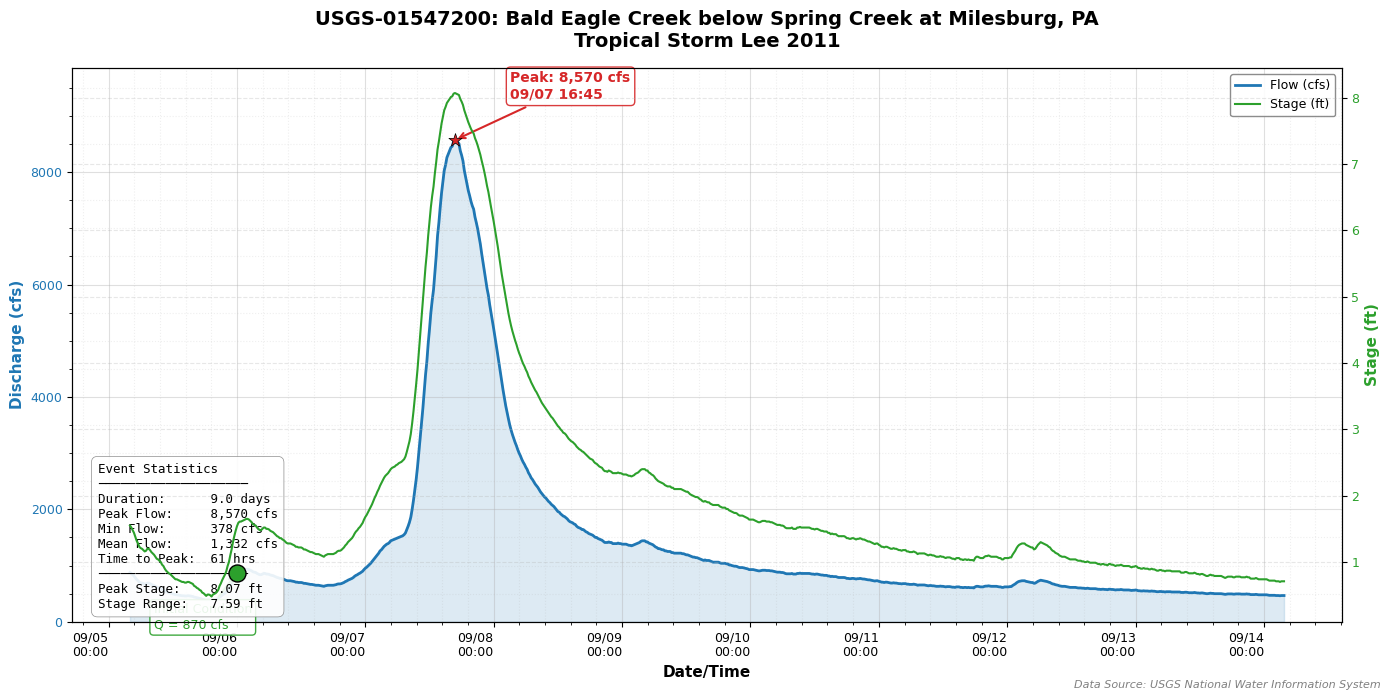

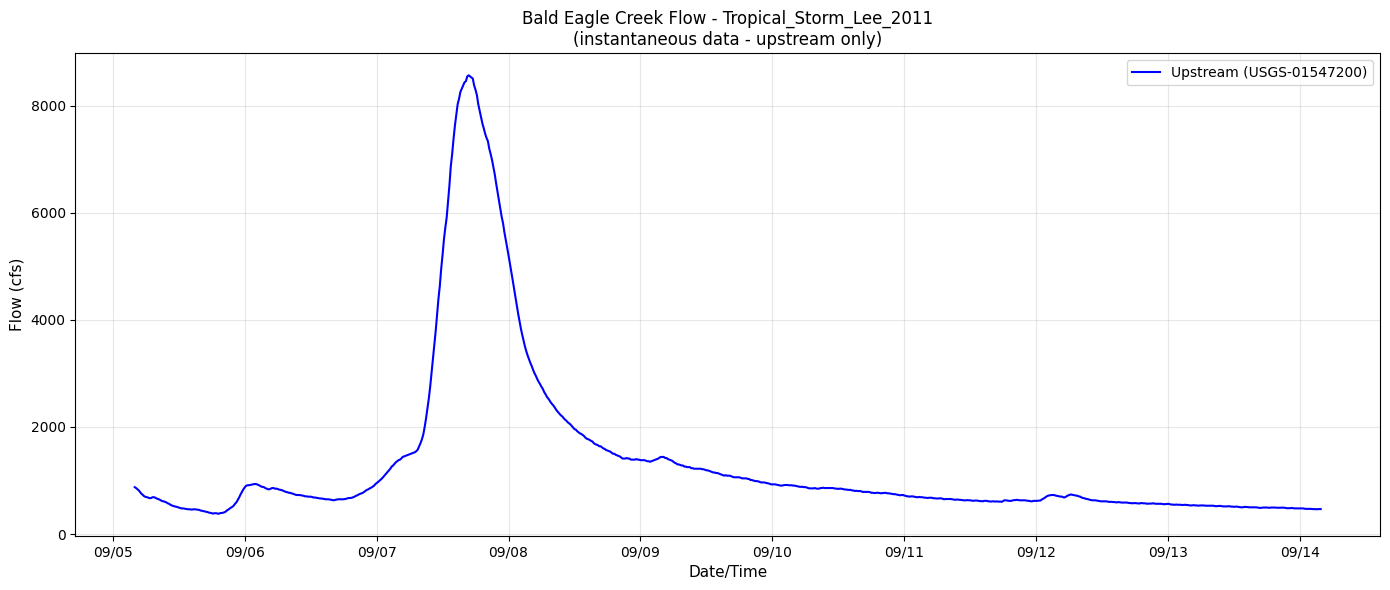

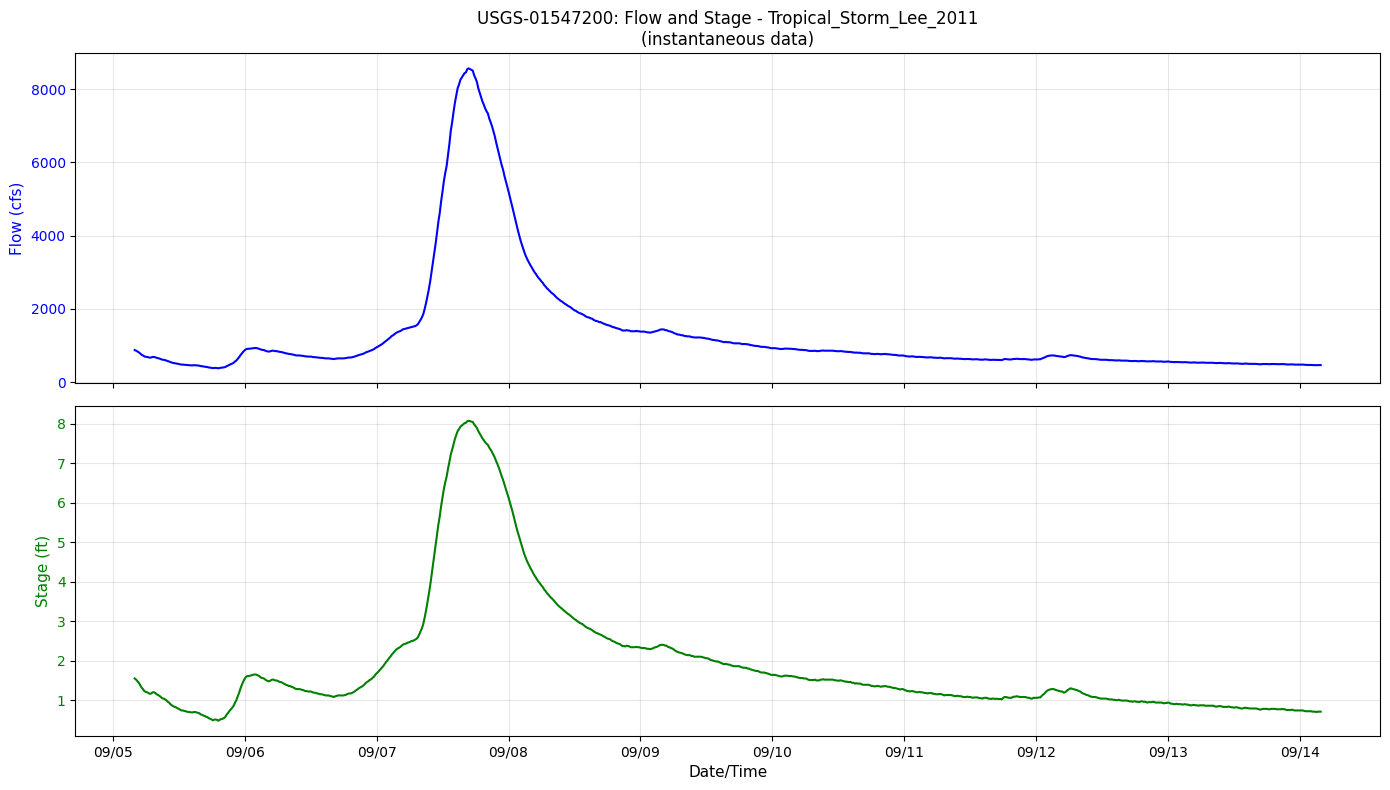

Target Event: - Tropical Storm Lee (September 6-12, 2011) - Major flooding event
1. Setup and Imports¶
Python
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False # <-- TOGGLE THIS
if USE_LOCAL_SOURCE:
import sys
from pathlib import Path
local_path = str(Path.cwd().parent)
if local_path not in sys.path:
sys.path.insert(0, local_path)
print(f"📁 LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
print("📦 PIP PACKAGE MODE: Loading installed ras-commander")
# Standard library imports
from datetime import datetime, timedelta
# Data handling
import pandas as pd
import numpy as np
# Visualization
import matplotlib.pyplot as plt
import matplotlib.dates as mdates
# ras-commander core imports
from ras_commander import (
init_ras_project, ras, RasCmdr, RasPlan, RasExamples, RasPrj
)
from ras_commander.hdf import HdfProject
# Verify which version loaded
import ras_commander
print(f"✓ Loaded: {ras_commander.__file__}")
Text Only
📦 PIP PACKAGE MODE: Loading installed ras-commander
✓ Loaded: c:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\ras_commander\__init__.py

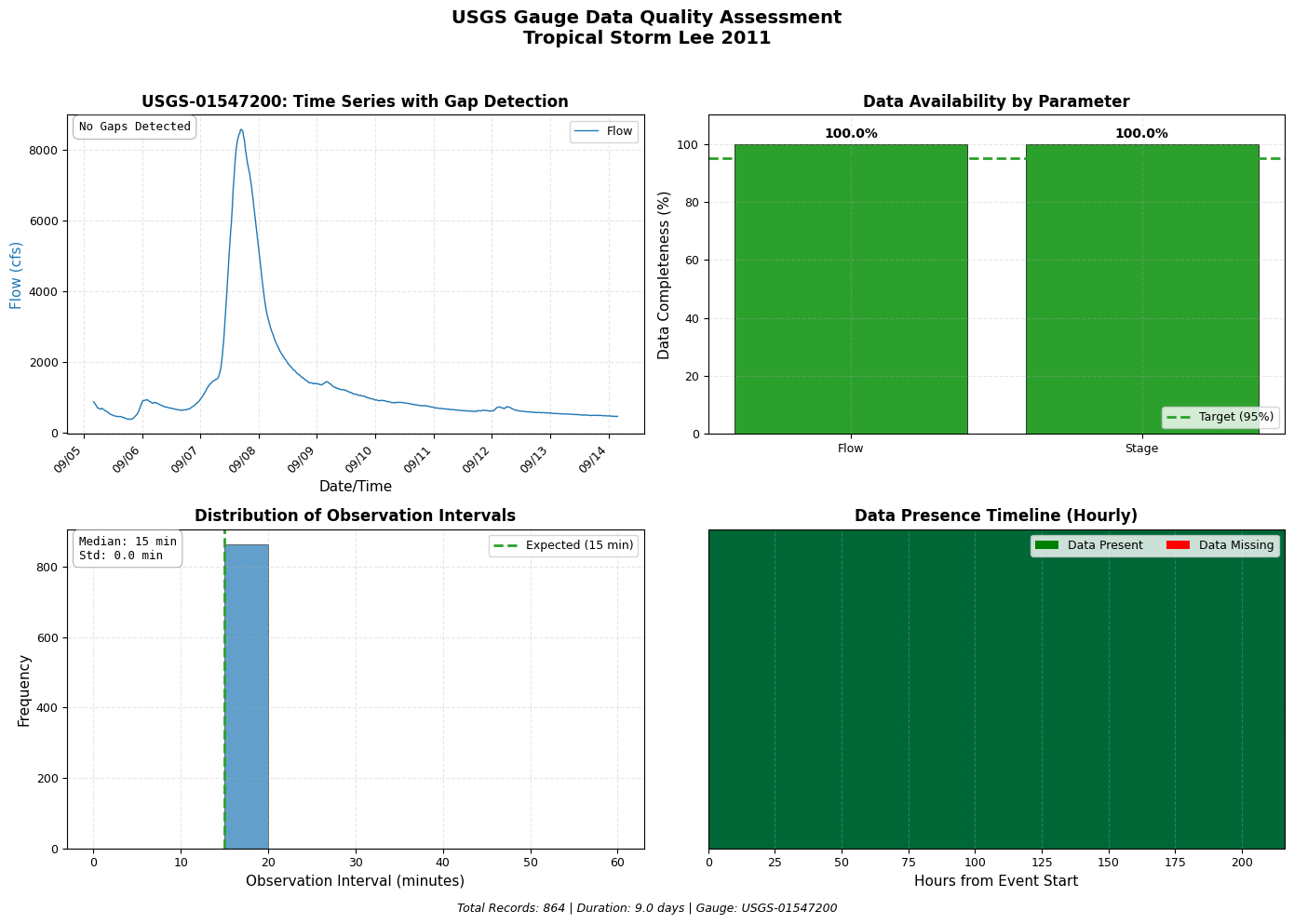

USGS Data Integration Verification¶
After retrieving USGS data:
- [ ] Data quality codes reviewed (prefer 'A' approved over 'P' provisional)
- [ ] Time series gaps identified and documented (<10% missing typical)
- [ ] Gauge drainage area comparable to model watershed (ratio <10:1)
- [ ] Period of record includes calibration/validation events
Data Quality Flags (USGS NWIS): - A: Approved (quality-assured, use directly) - P: Provisional (verify before submittal) - e: Estimated (note in documentation) - Ice: Ice-affected (consider excluding from calibration)
References: - USGS NWIS Web Services - USGS Water Data for the Nation - USGS Data Quality Codes
Parameters¶
Configure these values to customize the notebook for your project.
Python
# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================
from pathlib import Path
# Project Configuration
PROJECT_NAME = "BaldEagleCrkMulti2D" # Example project to extract
RAS_VERSION = "7.0" # HEC-RAS version (6.3, 6.5, 6.6, etc.)
# USGS Configuration
USGS_SITE = "03335500" # USGS gauge site number
START_DATE = "2020-01-01" # Data start date
END_DATE = "2020-12-31" # Data end date
ONLINE = True # Enable network requests
print(f"Outputs will be saved to project folder after extraction.")
Text Only
Outputs will be saved to project folder after extraction.
2. Extract Example Projects¶
Python
SUFFIX = "911" # Notebook identifier
# Extract the Bald Eagle Creek example projects
bald_eagle_2d_path = RasExamples.extract_project(["BaldEagleCrkMulti2D"], suffix=SUFFIX)
print(f"2D Model path: {bald_eagle_2d_path}")
Text Only
2025-12-29 06:54:44 - ras_commander.RasExamples - INFO - Found zip file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\Example_Projects_6_6.zip
2025-12-29 06:54:44 - ras_commander.RasExamples - INFO - Loading project data from CSV...
2025-12-29 06:54:45 - ras_commander.RasExamples - INFO - Loaded 68 projects from CSV.
2025-12-29 06:54:45 - ras_commander.RasExamples - INFO - ----- RasExamples Extracting Project -----
2025-12-29 06:54:45 - ras_commander.RasExamples - INFO - Extracting project 'BaldEagleCrkMulti2D' as 'BaldEagleCrkMulti2D_911'
2025-12-29 06:54:45 - ras_commander.RasExamples - INFO - Folder 'BaldEagleCrkMulti2D_911' already exists. Deleting existing folder...
2025-12-29 06:54:45 - ras_commander.RasExamples - INFO - Existing folder 'BaldEagleCrkMulti2D_911' has been deleted.
2025-12-29 06:54:46 - ras_commander.RasExamples - INFO - Successfully extracted project 'BaldEagleCrkMulti2D' to C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911
2D Model path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911
Python
# Initialize the 1D project
init_ras_project(bald_eagle_2d_path, RAS_VERSION)
print(f"Project: {ras.project_name}")
print(f"Plans: {len(ras.plan_df)}")
print(f"Geometries: {len(ras.geom_df)}")
print(f"Unsteady files: {len(ras.unsteady_df)}")
Text Only
2025-12-29 06:54:46 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.rasmap
Project: BaldEagleDamBrk
Plans: 11
Geometries: 10
Unsteady files: 10
Python
# View plan information
ras.plan_df[['plan_number', 'Plan Title', 'Simulation Date', 'Computation Interval']]
| plan_number | Plan Title | Simulation Date | Computation Interval | |
|---|---|---|---|---|
| 0 | 13 | PMF with Multi 2D Areas | 01JAN1999,1200,04JAN1999,1200 | 30SEC |
| 1 | 15 | 1d-2D Dambreak Refined Grid | 01JAN1999,1200,04JAN1999,1200 | 20SEC |
| 2 | 17 | 2D to 1D No Dam | 01JAN1999,1200,06JAN1999,1200 | 1MIN |
| 3 | 18 | 2D to 2D Run | 01JAN1999,1200,04JAN1999,1200 | 20SEC |
| 4 | 19 | SA to 2D Dam Break Run | 01JAN1999,1200,04JAN1999,1200 | 20SEC |
| 5 | 03 | Single 2D Area - Internal Dam Structure | 01JAN1999,1200,04JAN1999,1200 | 30SEC |
| 6 | 04 | SA to 2D Area Conn - 2D Levee Structure | 01JAN1999,1200,04JAN1999,1200 | 20SEC |
| 7 | 02 | SA to Detailed 2D Breach | 01JAN1999,1200,04JAN1999,1200 | 10SEC |
| 8 | 01 | SA to Detailed 2D Breach FEQ | 01JAN1999,1200,04JAN1999,1200 | 5SEC |
| 9 | 05 | Single 2D area with Bridges FEQ | 01JAN1999,1200,04JAN1999,1200 | 5SEC |
| 10 | 06 | Gridded Precip - Infiltration | 09SEP2018,0000,14SEP2018,0000 | 20SEC |
Python
# View boundary conditions
ras.boundaries_df[['river_reach_name', 'river_station', 'bc_type', 'Interval']]
| river_reach_name | river_station | bc_type | Interval | |
|---|---|---|---|---|
| 0 | Bald Eagle Cr. | Lock Haven | Flow Hydrograph | 1HOUR |
| 1 | Bald Eagle Cr. | Lock Haven | Gate Opening | NaN |
| 2 | Bald Eagle Cr. | Lock Haven | Lateral Inflow Hydrograph | 1HOUR |
| 3 | Bald Eagle Cr. | Lock Haven | Lateral Inflow Hydrograph | 1HOUR |
| 4 | Bald Eagle Cr. | Lock Haven | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 5 | Bald Eagle Cr. | Lock Haven | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 6 | Bald Eagle Cr. | Lock Haven | Lateral Inflow Hydrograph | 1HOUR |
| 7 | Bald Eagle Cr. | Lock Haven | Lateral Inflow Hydrograph | 1HOUR |
| 8 | Bald Eagle Cr. | Lock Haven | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 9 | Bald Eagle Cr. | Lock Haven | Normal Depth | NaN |
| 10 | Bald Eagle Cr. | Lock Haven | Lateral Inflow Hydrograph | 1HOUR |
| 11 | Bald Eagle Cr. | Lock Haven | Lateral Inflow Hydrograph | 1HOUR |
| 12 | Bald Eagle Cr. | Lock Haven | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 13 | Bald Eagle Cr. | Lock Haven | Lateral Inflow Hydrograph | 1HOUR |
| 14 | Bald Eagle Cr. | Lock Haven | Lateral Inflow Hydrograph | 1HOUR |
| 15 | Bald Eagle Cr. | Lock Haven | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 16 | Bald Eagle Cr. | Lock Haven | Normal Depth | NaN |
| 17 | Flow Hydrograph | 1HOUR | ||
| 18 | Bald Eagle Cr. | Lock Haven | Gate Opening | NaN |
| 19 | Bald Eagle Cr. | Lock Haven | Lateral Inflow Hydrograph | 1HOUR |
| 20 | Bald Eagle Cr. | Lock Haven | Normal Depth | NaN |
| 21 | Flow Hydrograph | 1HOUR | ||
| 22 | Normal Depth | NaN | ||
| 23 | Normal Depth | NaN | ||
| 24 | Gate Opening | NaN | ||
| 25 | Flow Hydrograph | 1HOUR | ||
| 26 | Gate Opening | NaN | ||
| 27 | Lateral Inflow Hydrograph | 1HOUR | ||
| 28 | Normal Depth | NaN | ||
| 29 | Normal Depth | NaN | ||
| 30 | Bald Eagle Cr. | Lock Haven | Flow Hydrograph | 15MIN |
| 31 | Bald Eagle Cr. | Lock Haven | Gate Opening | NaN |
| 32 | Normal Depth | NaN | ||
| 33 | Normal Depth | NaN | ||
| 34 | Normal Depth | NaN | ||
| 35 | Normal Depth | NaN | ||
| 36 | Flow Hydrograph | 1HOUR | ||
| 37 | Gate Opening | NaN | ||
| 38 | Gate Opening | NaN | ||
| 39 | Lateral Inflow Hydrograph | 1HOUR | ||
| 40 | Normal Depth | NaN | ||
| 41 | Normal Depth | NaN | ||
| 42 | Normal Depth | NaN | ||
| 43 | Normal Depth | NaN | ||
| 44 | Flow Hydrograph | 1HOUR | ||
| 45 | Gate Opening | NaN | ||
| 46 | Normal Depth | NaN | ||
| 47 | Normal Depth | NaN | ||
| 48 | Flow Hydrograph | 1HOUR | ||
| 49 | Normal Depth | NaN | ||
| 50 | Gate Opening | NaN |
3. Discover USGS Gauges in Project Area¶
We'll use the project's geographic bounds to find nearby USGS stream gauges.
Python
# Find the geometry HDF file to get project bounds
geom_hdf_files = list(bald_eagle_2d_path.glob("*.g*.hdf"))
print(f"Found geometry HDF files: {geom_hdf_files}")
if geom_hdf_files:
geom_hdf = geom_hdf_files[0]
print(f"Using: {geom_hdf.name}")
Text Only
Found geometry HDF files: [WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g01.hdf'), WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g02.hdf'), WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g03.hdf'), WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g06.hdf'), WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g08.hdf'), WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g09.hdf'), WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g10.hdf'), WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g11.hdf'), WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g12.hdf'), WindowsPath('C:/Users/billk_clb/anaconda3/envs/rascmdr_piptest/Lib/site-packages/examples/example_projects/BaldEagleCrkMulti2D_911/BaldEagleDamBrk.g13.hdf')]
Using: BaldEagleDamBrk.g01.hdf
Python
# Get project bounds in lat/lon (WGS84)
# Note: The Bald Eagle Creek example project doesn't have a CRS defined in the geometry HDF,
# so we use known approximate bounds for the Lock Haven, PA area.
try:
bounds = HdfProject.get_project_bounds_latlon(geom_hdf, buffer_percent=50)
west, south, east, north = bounds
# Check if bounds look like projected coordinates (large numbers) vs lat/lon
if abs(west) > 180 or abs(east) > 180:
raise ValueError("Bounds appear to be in projected coordinates, not lat/lon")
print(f"Project Bounds (WGS84):")
print(f" West: {west:.6f}")
print(f" South: {south:.6f}")
print(f" East: {east:.6f}")
print(f" North: {north:.6f}")
except Exception as e:
print(f"Note: {e}")
# Use known approximate bounds for Bald Eagle Creek area (Lock Haven, PA)
west, south, east, north = -77.60, 40.90, -77.30, 41.15
print(f"\nUsing known bounds for Lock Haven, PA / Bald Eagle Creek area:")
print(f" West: {west:.6f}")
print(f" South: {south:.6f}")
print(f" East: {east:.6f}")
print(f" North: {north:.6f}")
Text Only
2025-12-29 06:54:46 - ras_commander.hdf.HdfProject - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfProject - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfProject - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfProject - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfMesh - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfMesh - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfBase - INFO - Using HDF file from h5py.File object: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfBase - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfBase - INFO - Found projection in RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\Terrain\Projection.prj
2025-12-29 06:54:46 - ras_commander.hdf.HdfBase - INFO - Converted WKT to EPSG:2271 from RASMapper file Projection.prj
2025-12-29 06:54:46 - ras_commander.hdf.HdfProject - INFO - Found 1 2D flow areas
2025-12-29 06:54:46 - ras_commander.hdf.HdfXsec - ERROR - Error processing cross-section data: 'Unable to synchronously open object (component not found)'
2025-12-29 06:54:46 - ras_commander.hdf.HdfXsec - INFO - Using existing Path object HDF file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfXsec - INFO - Final validated file path: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.g01.hdf
2025-12-29 06:54:46 - ras_commander.hdf.HdfXsec - WARNING - No river centerlines found in geometry file
2025-12-29 06:54:46 - ras_commander.hdf.HdfProject - INFO - Original extent: (2000930.70, 320392.94, 2084790.14, 371007.58)
2025-12-29 06:54:46 - ras_commander.hdf.HdfProject - INFO - Buffered extent (50% x, 50% y): (1979965.84, 307739.28, 2105755.00, 383661.24)
2025-12-29 06:54:46 - ras_commander.hdf.HdfProject - INFO - WGS84 bounds: W=-77.708454, S=41.010214, E=-77.251087, N=41.219666
Project Bounds (WGS84):
West: -77.708454
South: 41.010214
East: -77.251087
North: 41.219666
Python
# Query USGS for stream gauges in the project area
from dataretrieval import waterdata
# Query monitoring locations in the bounding box
gauges_df, metadata = waterdata.get_monitoring_locations(
bbox=[west, south, east, north],
site_type_code='ST' # Stream sites only
)
print(f"Found {len(gauges_df)} USGS stream gauges in the project area")
Text Only
2025-12-29 06:54:46 - dataretrieval.waterdata.utils - INFO - Requesting: https://api.waterdata.usgs.gov/ogcapi/v0/collections/monitoring-locations/items?site_type_code=ST&skipGeometry=False&limit=10000&bbox=-77.70845429969587%2C41.010213686900734%2C-77.25108651903035%2C41.219666334258264
Found 25 USGS stream gauges in the project area
Python
# Display gauge information
if not gauges_df.empty:
# Select relevant columns
display_cols = ['monitoring_location_id', 'monitoring_location_name']
if 'drain_area_va' in gauges_df.columns:
display_cols.append('drain_area_va')
print("Available USGS Stream Gauges:")
display(gauges_df[display_cols])
else:
print("No gauges found in the project bounds.")
print("Let's use the known gauges for Bald Eagle Creek:")
print(" USGS-01547200: Bald Eagle Creek below Spring Creek at Milesburg, PA")
print(" USGS-01548005: Bald Eagle Creek near Beech Creek Station, PA")
print(" USGS-01548010: Bald Eagle Creek near Mill Hall, PA")
Text Only
Available USGS Stream Gauges:
| monitoring_location_id | monitoring_location_name | |
|---|---|---|
| 0 | USGS-01545680 | Tangascootack Creek near Lock Haven, PA |
| 1 | USGS-01545700 | Queens Run near Lock Haven, PA |
| 2 | USGS-01545800 | WB Susquehanna River at Lock Haven, PA |
| 3 | USGS-01547450 | Bald Eagle Creek at Howard, PA |
| 4 | USGS-01547500 | Bald Eagle Creek at Blanchard, PA |
| 5 | USGS-01547600 | Romola Branch near Howard, PA |
| 6 | USGS-01547700 | Marsh Creek at Blanchard, PA |
| 7 | USGS-01547950 | Beech Creek at Monument, PA |
| 8 | USGS-01547980 | Beech Creek at Beech Creek, PA |
| 9 | USGS-01547990 | Beech Creek near Beech Creek, PA |
| 10 | USGS-01548000 | Bald Eagle Creek at Beech Creek Station, PA |
| 11 | USGS-01548005 | Bald Eagle Creek near Beech Creek Station, PA |
| 12 | USGS-01548010 | Bald Eagle Creek near Mill Hall, PA |
| 13 | USGS-015480177 | Mill Creek at Loganton, PA |
| 14 | USGS-01548018 | Fishing CReek at Loganton, PA |
| 15 | USGS-015480202 | Bull Run at Winter Road near Loganton, PA |
| 16 | USGS-01548075 | Fishing Creek near Cedar Springs, PA |
| 17 | USGS-01548077 | Cedar Run at Cedar Springs near Mill Hall, PA |
| 18 | USGS-01548079 | Fishing Creek at Main St. at Mill Hall, PA |
| 19 | USGS-01548080 | Fishing Creek at Mill Hall, PA |
| 20 | USGS-01548085 | Bald Eagle Creek at Castanea, PA |
| 21 | USGS-01548090 | McElhattan Creek near Lock Haven, PA |
| 22 | USGS-01548095 | Chatham Run near 220 Bridge at Charlton, PA |
| 23 | USGS-01548097 | West Branch Susquehanna River near Avis, PA |
| 24 | USGS-01549740 | Pine Creek near Jersey Shore, PA |
3.1 Known Gauges for Bald Eagle Creek¶
Based on watershed research, these are the key USGS gauges for Bald Eagle Creek:
| Site ID | Name | Location | Best Use |
|---|---|---|---|
| 01547200 | Bald Eagle Creek below Spring Creek at Milesburg, PA | Upstream | Upstream BC |
| 01548005 | Bald Eagle Creek near Beech Creek Station, PA | Mid-reach | IC Point |
| 01548010 | Bald Eagle Creek near Mill Hall, PA | Near Lock Haven | Downstream validation |
Python
# Define the key gauges for our analysis
target_gauges = {
'upstream': {
'site_id': '01547200',
'name': 'Bald Eagle Creek below Spring Creek at Milesburg, PA',
'use': 'Upstream boundary condition'
},
'midreach': {
'site_id': '01548005',
'name': 'Bald Eagle Creek near Beech Creek Station, PA',
'use': 'Initial condition / validation'
},
'downstream': {
'site_id': '01548010',
'name': 'Bald Eagle Creek near Mill Hall, PA',
'use': 'Downstream validation'
}
}
for location, info in target_gauges.items():
print(f"{location.upper()}:")
print(f" Site: USGS-{info['site_id']}")
print(f" Name: {info['name']}")
print(f" Use: {info['use']}")
print()
Text Only
UPSTREAM:
Site: USGS-01547200
Name: Bald Eagle Creek below Spring Creek at Milesburg, PA
Use: Upstream boundary condition
MIDREACH:
Site: USGS-01548005
Name: Bald Eagle Creek near Beech Creek Station, PA
Use: Initial condition / validation
DOWNSTREAM:
Site: USGS-01548010
Name: Bald Eagle Creek near Mill Hall, PA
Use: Downstream validation
4. Retrieve USGS Flow Data¶
We'll retrieve flow data for Tropical Storm Lee (September 2011), which caused major flooding in the region.
Note on data availability: USGS instantaneous (15-min) data may not be available for historic events. In such cases, we'll use daily values for historic analysis, or recent instantaneous data to demonstrate the workflow for operational use.
Python
# Define the historic event
event_name = "Tropical_Storm_Lee_2011"
event_start = datetime(2011, 9, 5, 0, 0, 0)
event_end = datetime(2011, 9, 13, 0, 0, 0)
print(f"Event: {event_name}")
print(f"Period: {event_start} to {event_end}")
print(f"Duration: {(event_end - event_start).days} days")
Text Only
Event: Tropical_Storm_Lee_2011
Period: 2011-09-05 00:00:00 to 2011-09-13 00:00:00
Duration: 8 days
Python
# Check data availability for the upstream gauge
upstream_site = target_gauges['upstream']['site_id']
# Format time range for dataretrieval
time_range = f"{event_start.strftime('%Y-%m-%d')}/{event_end.strftime('%Y-%m-%d')}"
print(f"Checking data availability for USGS-{upstream_site}")
print(f"Time range: {time_range}")
Text Only
Checking data availability for USGS-01547200
Time range: 2011-09-05/2011-09-13
Python
# Retrieve instantaneous flow data from upstream gauge
from dataretrieval import nwis
upstream_flow_df, upstream_metadata = nwis.get_iv(
sites=upstream_site,
parameterCd='00060', # Discharge
start=event_start.strftime('%Y-%m-%d'),
end=event_end.strftime('%Y-%m-%d')
)
# Check if instantaneous data is available
if len(upstream_flow_df) == 0:
print("No instantaneous (15-min) data available for this period.")
print("Retrieving daily values instead...")
# Fall back to daily values
upstream_flow_df, upstream_metadata = nwis.get_dv(
sites=upstream_site,
parameterCd='00060',
start=event_start.strftime('%Y-%m-%d'),
end=event_end.strftime('%Y-%m-%d')
)
data_type = "daily"
flow_col = [c for c in upstream_flow_df.columns if '00060' in c][0]
else:
data_type = "instantaneous"
flow_col = [c for c in upstream_flow_df.columns if '00060' in c][0]
print(f"Retrieved {len(upstream_flow_df)} {data_type} observations from upstream gauge")
if not upstream_flow_df.empty:
print(f"Time range: {upstream_flow_df.index.min()} to {upstream_flow_df.index.max()}")
print(f"Peak flow: {upstream_flow_df[flow_col].max():.0f} cfs")
print(f"Min flow: {upstream_flow_df[flow_col].min():.0f} cfs")
Text Only
Retrieved 864 instantaneous observations from upstream gauge
Time range: 2011-09-05 04:00:00+00:00 to 2011-09-14 03:45:00+00:00
Peak flow: 8570 cfs
Min flow: 378 cfs
| site_no | 00060 | 00060_cd | |
|---|---|---|---|
| datetime | |||
| 2011-09-05 04:00:00+00:00 | 01547200 | 876.0 | A |
| 2011-09-05 04:15:00+00:00 | 01547200 | 859.0 | A |
| 2011-09-05 04:30:00+00:00 | 01547200 | 836.0 | A |
| 2011-09-05 04:45:00+00:00 | 01547200 | 814.0 | A |
| 2011-09-05 05:00:00+00:00 | 01547200 | 782.0 | A |
| 2011-09-05 05:15:00+00:00 | 01547200 | 750.0 | A |
| 2011-09-05 05:30:00+00:00 | 01547200 | 729.0 | A |
| 2011-09-05 05:45:00+00:00 | 01547200 | 704.0 | A |
| 2011-09-05 06:00:00+00:00 | 01547200 | 693.0 | A |
| 2011-09-05 06:15:00+00:00 | 01547200 | 688.0 | A |
Python
# Extract the flow values into a clean DataFrame
flow_col = [c for c in upstream_flow_df.columns if '00060' in c][0]
# Create standardized DataFrame
upstream_flow = pd.DataFrame({
'datetime': upstream_flow_df.index,
'value': upstream_flow_df[flow_col].values
}).reset_index(drop=True)
# Remove NaN values
upstream_flow = upstream_flow.dropna(subset=['value'])
print(f"Clean flow data: {len(upstream_flow)} records")
upstream_flow.head()
Text Only
Clean flow data: 864 records
| datetime | value | |
|---|---|---|
| 0 | 2011-09-05 04:00:00+00:00 | 876.0 |
| 1 | 2011-09-05 04:15:00+00:00 | 859.0 |
| 2 | 2011-09-05 04:30:00+00:00 | 836.0 |
| 3 | 2011-09-05 04:45:00+00:00 | 814.0 |
| 4 | 2011-09-05 05:00:00+00:00 | 782.0 |
Python
# Plot the upstream flow hydrograph
fig, ax = plt.subplots(figsize=(14, 5))
ax.plot(upstream_flow['datetime'], upstream_flow['value'], 'b-', linewidth=1)
ax.fill_between(upstream_flow['datetime'], upstream_flow['value'], alpha=0.3)
# Find and mark peak
peak_idx = upstream_flow['value'].idxmax()
peak_flow = upstream_flow.loc[peak_idx, 'value']
peak_time = upstream_flow.loc[peak_idx, 'datetime']
ax.axhline(y=peak_flow, color='r', linestyle='--', alpha=0.5)
ax.annotate(f'Peak: {peak_flow:,.0f} cfs\n{peak_time}',
xy=(peak_time, peak_flow),
xytext=(10, 10), textcoords='offset points',
fontsize=9, color='red')
ax.set_xlabel('Date/Time')
ax.set_ylabel('Flow (cfs)')
ax.set_title(f'USGS-{upstream_site}: {target_gauges["upstream"]["name"]}\n{event_name}')
ax.grid(True, alpha=0.3)
# Format x-axis dates
ax.xaxis.set_major_formatter(mdates.DateFormatter('%m/%d'))
ax.xaxis.set_major_locator(mdates.DayLocator())
plt.tight_layout()
plt.show()
Python
# Now retrieve data from the downstream gauge for validation
downstream_site = target_gauges['downstream']['site_id']
# Try instantaneous first, fall back to daily
downstream_flow_df, downstream_metadata = nwis.get_iv(
sites=downstream_site,
parameterCd='00060',
start=event_start.strftime('%Y-%m-%d'),
end=event_end.strftime('%Y-%m-%d')
)
if len(downstream_flow_df) == 0:
print("No instantaneous data for downstream gauge. Trying daily values...")
downstream_flow_df, downstream_metadata = nwis.get_dv(
sites=downstream_site,
parameterCd='00060',
start=event_start.strftime('%Y-%m-%d'),
end=event_end.strftime('%Y-%m-%d')
)
ds_data_type = "daily"
else:
ds_data_type = "instantaneous"
print(f"Retrieved {len(downstream_flow_df)} {ds_data_type} observations from downstream gauge")
if not downstream_flow_df.empty:
flow_col_ds = [c for c in downstream_flow_df.columns if '00060' in c][0]
downstream_flow = pd.DataFrame({
'datetime': downstream_flow_df.index,
'value': downstream_flow_df[flow_col_ds].values
}).reset_index(drop=True)
downstream_flow = downstream_flow.dropna(subset=['value'])
print(f"Clean flow data: {len(downstream_flow)} records")
print(f"Peak flow: {downstream_flow['value'].max():.0f} cfs")
else:
print("No downstream flow data available for this period")
downstream_flow = pd.DataFrame(columns=['datetime', 'value'])
Text Only
No instantaneous data for downstream gauge. Trying daily values...
Retrieved 0 daily observations from downstream gauge
No downstream flow data available for this period
Python
# Plot both gauges for comparison (if data available)
if not upstream_flow.empty and not downstream_flow.empty:
fig, ax = plt.subplots(figsize=(14, 6))
ax.plot(upstream_flow['datetime'], upstream_flow['value'], 'b-o' if data_type == 'daily' else 'b-',
linewidth=1.5, markersize=6, label=f'Upstream (USGS-{upstream_site})')
ax.plot(downstream_flow['datetime'], downstream_flow['value'], 'r-o' if ds_data_type == 'daily' else 'r-',
linewidth=1.5, markersize=6, label=f'Downstream (USGS-{downstream_site})')
ax.set_xlabel('Date/Time', fontsize=11)
ax.set_ylabel('Flow (cfs)', fontsize=11)
ax.set_title(f'Bald Eagle Creek Flow - {event_name}\n({data_type} data)', fontsize=12)
ax.legend(loc='upper right')
ax.grid(True, alpha=0.3)
ax.xaxis.set_major_formatter(mdates.DateFormatter('%m/%d'))
ax.xaxis.set_major_locator(mdates.DayLocator())
plt.xticks(rotation=45)
plt.tight_layout()
plt.show()
elif not upstream_flow.empty:
fig, ax = plt.subplots(figsize=(14, 6))
ax.plot(upstream_flow['datetime'], upstream_flow['value'], 'b-o' if data_type == 'daily' else 'b-',
linewidth=1.5, markersize=6, label=f'Upstream (USGS-{upstream_site})')
ax.set_xlabel('Date/Time', fontsize=11)
ax.set_ylabel('Flow (cfs)', fontsize=11)
ax.set_title(f'Bald Eagle Creek Flow - {event_name}\n({data_type} data - upstream only)', fontsize=12)
ax.legend(loc='upper right')
ax.grid(True, alpha=0.3)
ax.xaxis.set_major_formatter(mdates.DateFormatter('%m/%d'))
plt.tight_layout()
plt.show()
else:
print("No flow data available for plotting")
5. Retrieve Stage Data¶
Stage (gage height) data is useful for setting initial water surface elevations.
Python
# Retrieve stage data from upstream gauge
# Try instantaneous first, fall back to daily
upstream_stage_df, stage_metadata = nwis.get_iv(
sites=upstream_site,
parameterCd='00065', # Gage height
start=event_start.strftime('%Y-%m-%d'),
end=event_end.strftime('%Y-%m-%d')
)
if len(upstream_stage_df) == 0:
print("No instantaneous stage data. Trying daily values...")
upstream_stage_df, stage_metadata = nwis.get_dv(
sites=upstream_site,
parameterCd='00065',
start=event_start.strftime('%Y-%m-%d'),
end=event_end.strftime('%Y-%m-%d')
)
stage_data_type = "daily"
else:
stage_data_type = "instantaneous"
print(f"Retrieved {len(upstream_stage_df)} {stage_data_type} stage observations")
if not upstream_stage_df.empty:
stage_col = [c for c in upstream_stage_df.columns if '00065' in c][0]
upstream_stage = pd.DataFrame({
'datetime': upstream_stage_df.index,
'value': upstream_stage_df[stage_col].values
}).reset_index(drop=True)
upstream_stage = upstream_stage.dropna(subset=['value'])
print(f"Clean stage data: {len(upstream_stage)} records")
print(f"Stage range: {upstream_stage['value'].min():.2f} to {upstream_stage['value'].max():.2f} ft")
else:
print("No stage data available")
upstream_stage = pd.DataFrame(columns=['datetime', 'value'])
Text Only
Retrieved 864 instantaneous stage observations
Clean stage data: 864 records
Stage range: 0.48 to 8.07 ft
Python
# Plot flow and stage together (if both available)
if not upstream_flow.empty and not upstream_stage.empty:
fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(14, 8), sharex=True)
# Flow plot
marker = 'o' if data_type == 'daily' else ''
ax1.plot(upstream_flow['datetime'], upstream_flow['value'], f'b-{marker}', linewidth=1.5, markersize=6)
ax1.set_ylabel('Flow (cfs)', fontsize=11, color='blue')
ax1.tick_params(axis='y', labelcolor='blue')
ax1.grid(True, alpha=0.3)
ax1.set_title(f'USGS-{upstream_site}: Flow and Stage - {event_name}\n({data_type} data)', fontsize=12)
# Stage plot
stage_marker = 'o' if stage_data_type == 'daily' else ''
ax2.plot(upstream_stage['datetime'], upstream_stage['value'], f'g-{stage_marker}', linewidth=1.5, markersize=6)
ax2.set_ylabel('Stage (ft)', fontsize=11, color='green')
ax2.tick_params(axis='y', labelcolor='green')
ax2.set_xlabel('Date/Time', fontsize=11)
ax2.grid(True, alpha=0.3)
ax2.xaxis.set_major_formatter(mdates.DateFormatter('%m/%d'))
ax2.xaxis.set_major_locator(mdates.DayLocator())
plt.tight_layout()
plt.show()
elif not upstream_flow.empty:
fig, ax = plt.subplots(figsize=(14, 5))
ax.plot(upstream_flow['datetime'], upstream_flow['value'], 'b-o' if data_type == 'daily' else 'b-', linewidth=1.5)
ax.set_ylabel('Flow (cfs)', fontsize=11)
ax.set_xlabel('Date/Time', fontsize=11)
ax.set_title(f'USGS-{upstream_site}: Flow - {event_name} (stage not available)', fontsize=12)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
else:
print("No data available for plotting")
6. Initial Conditions from USGS Data¶
Now we'll use the USGS gauge data to set initial conditions for a HEC-RAS simulation.
Python
# Define simulation start time (when we want initial conditions)
simulation_start = datetime(2011, 9, 6, 0, 0, 0) # Start at midnight on Sept 6
print(f"Simulation start time: {simulation_start}")
Text Only
Simulation start time: 2011-09-06 00:00:00
Python
# Find the flow value closest to simulation start
if not upstream_flow.empty:
# Convert simulation_start to timezone-aware if needed
upstream_flow['datetime'] = pd.to_datetime(upstream_flow['datetime'])
# Make simulation_start timezone-aware (UTC) to match USGS data
sim_start_utc = pd.Timestamp(simulation_start, tz='UTC')
# Calculate time differences
time_diffs = abs(upstream_flow['datetime'] - sim_start_utc)
nearest_idx = time_diffs.idxmin()
initial_flow = upstream_flow.loc[nearest_idx, 'value']
initial_time = upstream_flow.loc[nearest_idx, 'datetime']
print(f"Initial condition for upstream gauge:")
print(f" Target time: {simulation_start}")
print(f" Nearest observation: {initial_time}")
print(f" Time offset: {time_diffs[nearest_idx]}")
print(f" Initial flow: {initial_flow:.0f} cfs")
else:
print("No flow data available to determine initial conditions")
initial_flow = None
Text Only
Initial condition for upstream gauge:
Target time: 2011-09-06 00:00:00
Nearest observation: 2011-09-06 00:00:00+00:00
Time offset: 0 days 00:00:00
Initial flow: 870 cfs
Python
# Also get initial stage
if not upstream_stage.empty:
upstream_stage['datetime'] = pd.to_datetime(upstream_stage['datetime'])
stage_diffs = abs(upstream_stage['datetime'] - sim_start_utc)
nearest_stage_idx = stage_diffs.idxmin()
initial_stage = upstream_stage.loc[nearest_stage_idx, 'value']
initial_stage_time = upstream_stage.loc[nearest_stage_idx, 'datetime']
print(f"Initial stage: {initial_stage:.2f} ft at {initial_stage_time}")
else:
print("No stage data available for initial conditions")
initial_stage = None
Text Only
Initial stage: 1.54 ft at 2011-09-06 00:00:00+00:00
6.1 Parse Existing Initial Conditions¶
Let's look at the existing initial conditions in the model's unsteady flow file.
Python
# Switch to the Multi2D project which has more IC examples
multi_2d_project = RasPrj()
init_ras_project(bald_eagle_2d_path, RAS_VERSION, ras_object=multi_2d_project)
print(f"Project: {multi_2d_project.project_name}")
print(f"Unsteady files: {len(multi_2d_project.unsteady_df)}")
Text Only
2025-12-29 06:54:49 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.rasmap
Project: BaldEagleDamBrk
Unsteady files: 10
Python
# List available unsteady files
multi_2d_project.unsteady_df[['unsteady_number', 'Flow Title']]
| unsteady_number | Flow Title | |
|---|---|---|
| 0 | 07 | PMF with Multi 2D Areas |
| 1 | 08 | PMF for Upstream 2D |
| 2 | 09 | Upstream 2D |
| 3 | 10 | 1972 Flood Event - 2D to 2D Run |
| 4 | 11 | 1972 Flood Event - SA to 2D Run |
| 5 | 12 | PMF for 1D - 2D |
| 6 | 13 | Single 2D Area |
| 7 | 01 | 1972 Flood Event - 2D Leve Structure |
| 8 | 02 | Single 2D Area with Bridges |
| 9 | 03 | Gridded Precipitation |
Python
# Parse initial conditions from an unsteady file
from ras_commander.usgs import InitialConditions
# Find an unsteady file to parse (u07 has IC examples based on the plan doc)
unsteady_file = bald_eagle_2d_path / "BaldEagleDamBrk.u07"
if unsteady_file.exists():
ic_df = InitialConditions.parse_initial_conditions(unsteady_file)
print(f"Found {len(ic_df)} initial conditions in {unsteady_file.name}")
display(ic_df)
else:
print(f"Unsteady file not found: {unsteady_file}")
# List available files
print("Available unsteady files:")
for uf in bald_eagle_2d_path.glob("*.u*"):
if uf.suffix.startswith('.u') and not uf.suffix.endswith('.hdf'):
print(f" {uf.name}")
Text Only
2025-12-29 06:54:49 - ras_commander.usgs.initial_conditions - INFO - Parsed 7 initial condition entries from BaldEagleDamBrk.u07
Found 7 initial conditions in BaldEagleDamBrk.u07
| type | river | reach | station | value | area_name | |
|---|---|---|---|---|---|---|
| 0 | flow | Bald Eagle Cr. | Lock Haven | 137520.0 | 730.0 | None |
| 1 | flow | Bald Eagle Cr. | Lock Haven | 81914.0 | 1000.0 | None |
| 2 | flow | Bald Eagle Cr. | Lock Haven | -897.0 | 6000.0 | None |
| 3 | storage | None | None | NaN | 559.7 | 193 |
| 4 | storage | None | None | NaN | 615.6 | 195 |
| 5 | storage | None | None | NaN | 631.0 | 255 |
| 6 | rrr | Bald Eagle Cr. | Lock Haven | 81914.0 | 657.0 | None |
Python
# Try parsing from u01 which is more common
unsteady_file_u01 = bald_eagle_2d_path / "BaldEagleDamBrk.u01"
if unsteady_file_u01.exists():
ic_df = InitialConditions.parse_initial_conditions(unsteady_file_u01)
print(f"Found {len(ic_df)} initial conditions in {unsteady_file_u01.name}")
if not ic_df.empty:
display(ic_df)
else:
print("No initial conditions defined in this file.")
Text Only
2025-12-29 06:54:49 - ras_commander.usgs.initial_conditions - INFO - Parsed 1 initial condition entries from BaldEagleDamBrk.u01
Found 1 initial conditions in BaldEagleDamBrk.u01
| type | river | reach | station | value | area_name | |
|---|---|---|---|---|---|---|
| 0 | storage | None | None | None | 650.0 | Reservoir Pool |
6.2 Create Initial Condition Lines from USGS Data¶
Now we'll create IC lines using the USGS data we retrieved.
Python
# Define the gauge-to-model mapping for this project
# Based on example_notebook_plan.md
if initial_flow is not None:
gauge_model_mapping = [
{
'gauge_id': 'USGS-01547200',
'gauge_name': 'Milesburg',
'river': 'Bald Eagle Cr.',
'reach': 'Lock Haven',
'station': 137520,
'usgs_flow': initial_flow,
'ic_type': 'flow'
}
]
print("Gauge-to-Model Mapping:")
for mapping in gauge_model_mapping:
print(f" {mapping['gauge_id']} ({mapping['gauge_name']})")
print(f" -> {mapping['river']}/{mapping['reach']}/Station {mapping['station']}")
print(f" Flow: {mapping['usgs_flow']:.0f} cfs")
else:
gauge_model_mapping = []
print("Cannot create gauge mapping - no initial flow data available")
Text Only
Gauge-to-Model Mapping:
USGS-01547200 (Milesburg)
-> Bald Eagle Cr./Lock Haven/Station 137520
Flow: 870 cfs
Python
# Create IC line using the InitialConditions class
if gauge_model_mapping:
for mapping in gauge_model_mapping:
ic_line = InitialConditions.create_ic_line(
ic_type=mapping['ic_type'],
river=mapping['river'],
reach=mapping['reach'],
station=mapping['station'],
value=mapping['usgs_flow']
)
print(f"Generated IC line:")
print(f" {ic_line}")
else:
print("No gauge mapping available to create IC lines")
Text Only
Generated IC line:
Initial Flow Loc=Bald Eagle Cr. ,Lock Haven ,137520 ,870.0
7. Summary and Data Cache¶
Let's summarize what we've retrieved and cache the data for future use.
Python
# Create gauge_data directory
gauge_data_dir = bald_eagle_2d_path / 'gauge_data'
gauge_data_dir.mkdir(exist_ok=True)
raw_dir = gauge_data_dir / 'raw'
raw_dir.mkdir(exist_ok=True)
print(f"Gauge data directory: {gauge_data_dir}")
Text Only
Gauge data directory: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\gauge_data
Python
# Save the retrieved data (if available)
start_str = event_start.strftime('%Y%m%d')
end_str = event_end.strftime('%Y%m%d')
saved_files = []
# Save upstream flow
if not upstream_flow.empty:
upstream_flow_file = raw_dir / f"USGS-{upstream_site}_{start_str}_{end_str}_flow.csv"
upstream_flow.to_csv(upstream_flow_file, index=False)
print(f"Saved: {upstream_flow_file.name}")
saved_files.append(upstream_flow_file)
# Save upstream stage
if not upstream_stage.empty:
upstream_stage_file = raw_dir / f"USGS-{upstream_site}_{start_str}_{end_str}_stage.csv"
upstream_stage.to_csv(upstream_stage_file, index=False)
print(f"Saved: {upstream_stage_file.name}")
saved_files.append(upstream_stage_file)
# Save downstream flow
if not downstream_flow.empty:
downstream_flow_file = raw_dir / f"USGS-{downstream_site}_{start_str}_{end_str}_flow.csv"
downstream_flow.to_csv(downstream_flow_file, index=False)
print(f"Saved: {downstream_flow_file.name}")
saved_files.append(downstream_flow_file)
if not saved_files:
print("No data files were saved")
Text Only
Saved: USGS-01547200_20110905_20110913_flow.csv
Saved: USGS-01547200_20110905_20110913_stage.csv
Python

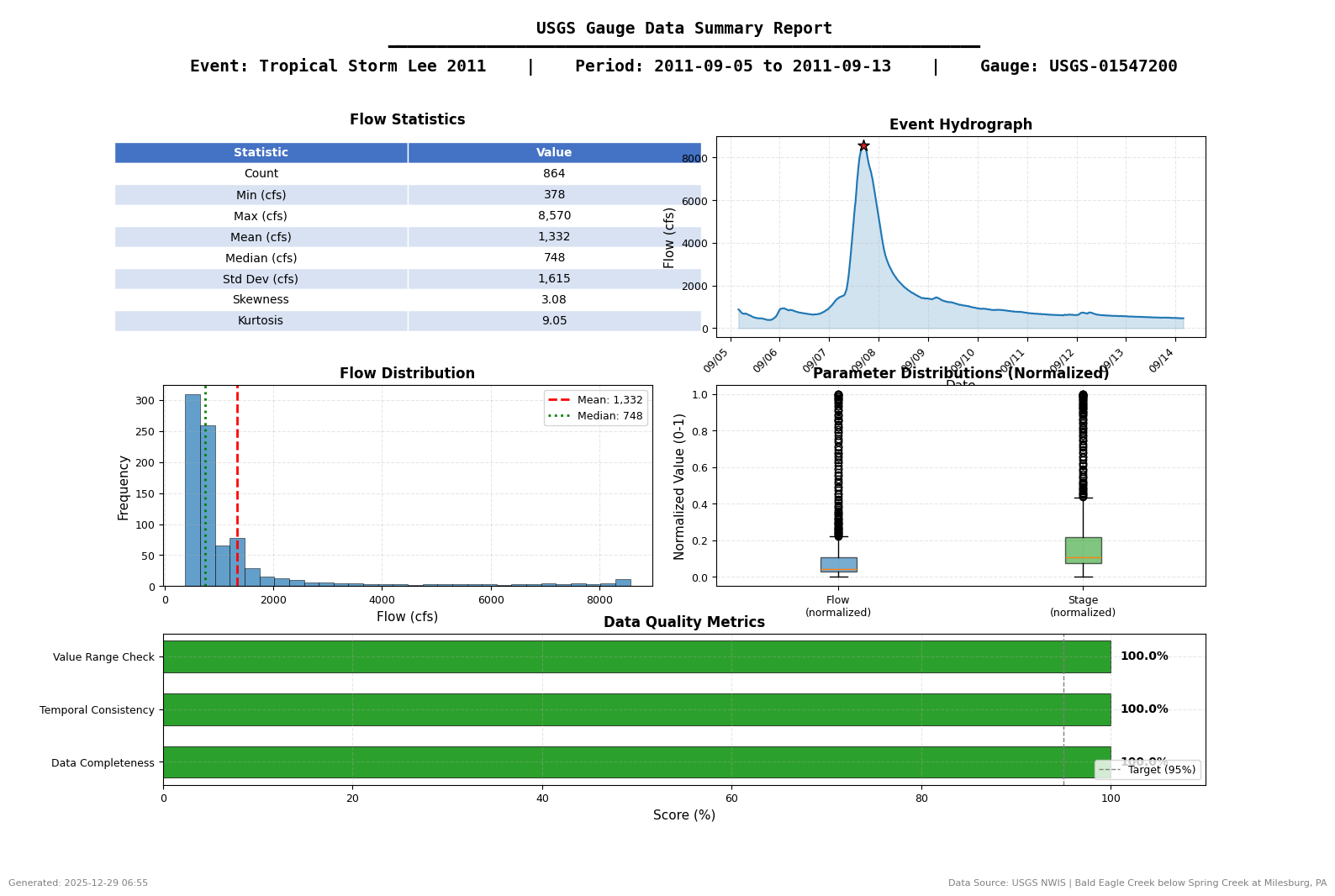

# Summary
print("=" * 70)
print("USGS GAUGE DATA INTEGRATION - SUMMARY")
print("=" * 70)
print(f"\nEvent: {event_name}")
print(f"Period: {event_start} to {event_end}")
print(f"\nProject: {ras.project_name}")
print(f"Location: {bald_eagle_2d_path}")
print(f"\nUSGS Gauges Used:")
if not upstream_flow.empty:
stage_count = len(upstream_stage) if not upstream_stage.empty else 0
print(f" Upstream: USGS-{upstream_site} ({len(upstream_flow)} flow obs, {stage_count} stage obs) [{data_type}]")
print(f" Peak Flow: {upstream_flow['value'].max():,.0f} cfs")
else:
print(f" Upstream: USGS-{upstream_site} - No data available")
if not downstream_flow.empty:
print(f" Downstream: USGS-{downstream_site} ({len(downstream_flow)} flow obs) [{ds_data_type}]")
print(f" Peak Flow: {downstream_flow['value'].max():,.0f} cfs")
else:
print(f" Downstream: USGS-{downstream_site} - No data available")
if initial_flow is not None:
print(f"\nInitial Condition at {simulation_start}:")
print(f" Flow: {initial_flow:.0f} cfs")
if initial_stage is not None:
print(f" Stage: {initial_stage:.2f} ft")
print(f"\nData saved to: {gauge_data_dir}")
print("=" * 70)
Text Only
======================================================================
USGS GAUGE DATA INTEGRATION - SUMMARY
======================================================================
Event: Tropical_Storm_Lee_2011
Period: 2011-09-05 00:00:00 to 2011-09-13 00:00:00
Project: BaldEagleDamBrk
Location: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911
USGS Gauges Used:
Upstream: USGS-01547200 (864 flow obs, 864 stage obs) [instantaneous]
Peak Flow: 8,570 cfs
Downstream: USGS-01548010 - No data available
Initial Condition at 2011-09-06 00:00:00:
Flow: 870 cfs
Stage: 1.54 ft
Data saved to: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\gauge_data
======================================================================
8. View Plan Simulation Dates¶
Let's check the existing plan simulation dates to understand how to align USGS data with the simulation window.
Python
# Switch back to 1D project
init_ras_project(bald_eagle_2d_path, RAS_VERSION)
# View plan simulation dates
print("Plan Simulation Dates:")
ras.plan_df[['plan_number', 'Plan Title', 'Simulation Date', 'Computation Interval']]
Text Only
2025-12-29 06:55:18 - ras_commander.rasmap - INFO - Successfully parsed RASMapper file: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\BaldEagleDamBrk.rasmap
Plan Simulation Dates:
| plan_number | Plan Title | Simulation Date | Computation Interval | |
|---|---|---|---|---|
| 0 | 13 | PMF with Multi 2D Areas | 01JAN1999,1200,04JAN1999,1200 | 30SEC |
| 1 | 15 | 1d-2D Dambreak Refined Grid | 01JAN1999,1200,04JAN1999,1200 | 20SEC |
| 2 | 17 | 2D to 1D No Dam | 01JAN1999,1200,06JAN1999,1200 | 1MIN |
| 3 | 18 | 2D to 2D Run | 01JAN1999,1200,04JAN1999,1200 | 20SEC |
| 4 | 19 | SA to 2D Dam Break Run | 01JAN1999,1200,04JAN1999,1200 | 20SEC |
| 5 | 03 | Single 2D Area - Internal Dam Structure | 01JAN1999,1200,04JAN1999,1200 | 30SEC |
| 6 | 04 | SA to 2D Area Conn - 2D Levee Structure | 01JAN1999,1200,04JAN1999,1200 | 20SEC |
| 7 | 02 | SA to Detailed 2D Breach | 01JAN1999,1200,04JAN1999,1200 | 10SEC |
| 8 | 01 | SA to Detailed 2D Breach FEQ | 01JAN1999,1200,04JAN1999,1200 | 5SEC |
| 9 | 05 | Single 2D area with Bridges FEQ | 01JAN1999,1200,04JAN1999,1200 | 5SEC |
| 10 | 06 | Gridded Precip - Infiltration | 09SEP2018,0000,14SEP2018,0000 | 20SEC |
Python
# Parse the simulation date from the existing plan
sim_date_str = ras.plan_df.iloc[0]['Simulation Date']
print(f"Current simulation date string: {sim_date_str}")
# HEC-RAS format: DDMONYYYY,HHMM,DDMONYYYY,HHMM
# Example: 18FEB1999,0000,24FEB1999,0500
Text Only
Current simulation date string: 01JAN1999,1200,04JAN1999,1200
Python
# Check boundary condition intervals
print("\nBoundary Condition Intervals:")
ras.boundaries_df[['river_reach_name', 'bc_type', 'Interval']]
Text Only
Boundary Condition Intervals:
| river_reach_name | bc_type | Interval | |
|---|---|---|---|
| 0 | Bald Eagle Cr. | Flow Hydrograph | 1HOUR |
| 1 | Bald Eagle Cr. | Gate Opening | NaN |
| 2 | Bald Eagle Cr. | Lateral Inflow Hydrograph | 1HOUR |
| 3 | Bald Eagle Cr. | Lateral Inflow Hydrograph | 1HOUR |
| 4 | Bald Eagle Cr. | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 5 | Bald Eagle Cr. | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 6 | Bald Eagle Cr. | Lateral Inflow Hydrograph | 1HOUR |
| 7 | Bald Eagle Cr. | Lateral Inflow Hydrograph | 1HOUR |
| 8 | Bald Eagle Cr. | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 9 | Bald Eagle Cr. | Normal Depth | NaN |
| 10 | Bald Eagle Cr. | Lateral Inflow Hydrograph | 1HOUR |
| 11 | Bald Eagle Cr. | Lateral Inflow Hydrograph | 1HOUR |
| 12 | Bald Eagle Cr. | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 13 | Bald Eagle Cr. | Lateral Inflow Hydrograph | 1HOUR |
| 14 | Bald Eagle Cr. | Lateral Inflow Hydrograph | 1HOUR |
| 15 | Bald Eagle Cr. | Uniform Lateral Inflow Hydrograph | 1HOUR |
| 16 | Bald Eagle Cr. | Normal Depth | NaN |
| 17 | Flow Hydrograph | 1HOUR | |
| 18 | Bald Eagle Cr. | Gate Opening | NaN |
| 19 | Bald Eagle Cr. | Lateral Inflow Hydrograph | 1HOUR |
| 20 | Bald Eagle Cr. | Normal Depth | NaN |
| 21 | Flow Hydrograph | 1HOUR | |
| 22 | Normal Depth | NaN | |
| 23 | Normal Depth | NaN | |
| 24 | Gate Opening | NaN | |
| 25 | Flow Hydrograph | 1HOUR | |
| 26 | Gate Opening | NaN | |
| 27 | Lateral Inflow Hydrograph | 1HOUR | |
| 28 | Normal Depth | NaN | |
| 29 | Normal Depth | NaN | |
| 30 | Bald Eagle Cr. | Flow Hydrograph | 15MIN |
| 31 | Bald Eagle Cr. | Gate Opening | NaN |
| 32 | Normal Depth | NaN | |
| 33 | Normal Depth | NaN | |
| 34 | Normal Depth | NaN | |
| 35 | Normal Depth | NaN | |
| 36 | Flow Hydrograph | 1HOUR | |
| 37 | Gate Opening | NaN | |
| 38 | Gate Opening | NaN | |
| 39 | Lateral Inflow Hydrograph | 1HOUR | |
| 40 | Normal Depth | NaN | |
| 41 | Normal Depth | NaN | |
| 42 | Normal Depth | NaN | |
| 43 | Normal Depth | NaN | |
| 44 | Flow Hydrograph | 1HOUR | |
| 45 | Gate Opening | NaN | |
| 46 | Normal Depth | NaN | |
| 47 | Normal Depth | NaN | |
| 48 | Flow Hydrograph | 1HOUR | |
| 49 | Normal Depth | NaN | |
| 50 | Gate Opening | NaN |
Python
# Calculate how many values we need for our event period at different intervals
event_duration = event_end - event_start
duration_hours = event_duration.total_seconds() / 3600
intervals = {
'15MIN': 15/60,
'30MIN': 30/60,
'1HOUR': 1,
'2HOUR': 2,
'6HOUR': 6
}
print(f"Event duration: {duration_hours:.0f} hours ({event_duration.days} days)")
print(f"\nValues needed for each interval:")
for interval, hours in intervals.items():
num_values = int(duration_hours / hours) + 1
print(f" {interval}: {num_values} values")
Text Only
Event duration: 192 hours (8 days)
Values needed for each interval:
15MIN: 769 values
30MIN: 385 values
1HOUR: 193 values
2HOUR: 97 values
6HOUR: 33 values
Python
# Check USGS data interval
time_diffs = upstream_flow['datetime'].diff().dropna()
median_interval = time_diffs.median()
print(f"USGS data median interval: {median_interval}")
print(f"\nWe have {len(upstream_flow)} observations over {duration_hours:.0f} hours")
print(f"This is approximately {len(upstream_flow) / duration_hours:.1f} observations per hour")
Text Only
USGS data median interval: 0 days 00:15:00
We have 864 observations over 192 hours
This is approximately 4.5 observations per hour
Next Steps¶
In the next phase, we will:
- Resample USGS data to match HEC-RAS boundary condition interval (1HOUR)
- Generate fixed-width flow hydrograph table for the unsteady file
- Update the boundary condition in the .u## file
- Update plan simulation dates to match the historic event
- Run the simulation using RasCmdr.compute_plan()
- Validate results against downstream USGS gauge
9. Professional QAQC Visualizations¶
The following figures are designed for engineering QAQC review and inclusion in engineering reports. They include:
- Data Quality Dashboard: Comprehensive assessment of data completeness, gaps, and temporal consistency
- Event Hydrograph: Publication-quality hydrograph with dual axes and professional annotations

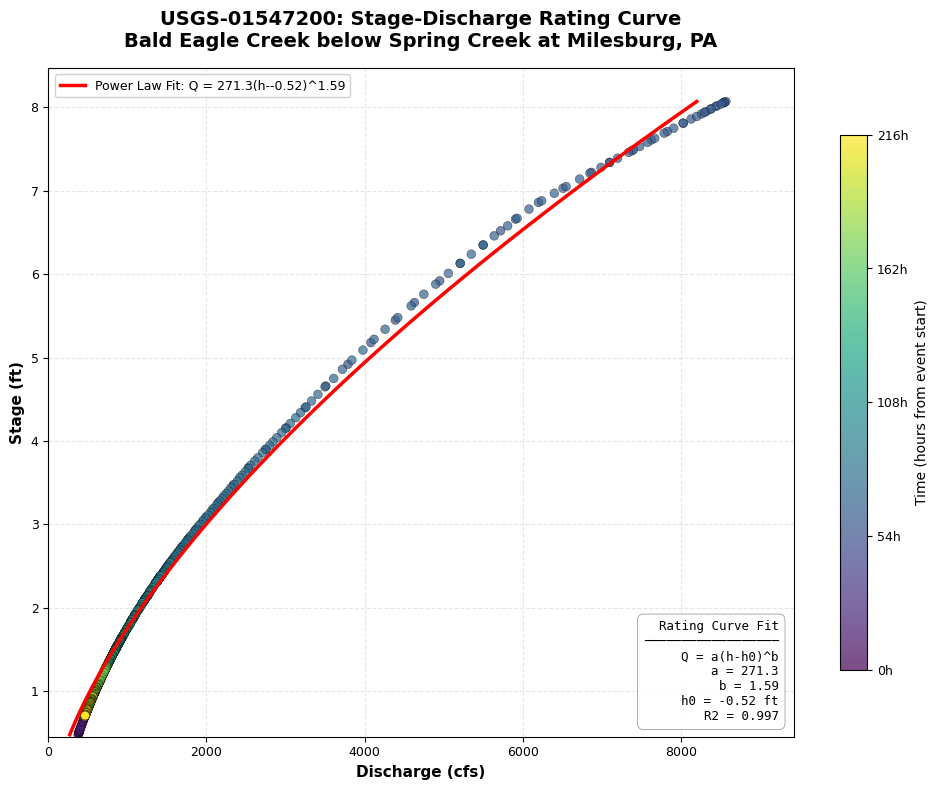

- Stage-Discharge Rating Curve: Rating curve analysis with power law fit
- Summary Statistics Dashboard: Single-page comprehensive data summary for reports
Python
# =============================================================================
# PROFESSIONAL QAQC VISUALIZATION SETUP
# =============================================================================
import matplotlib.gridspec as gridspec
from matplotlib.patches import Patch
from scipy import stats
from scipy.optimize import curve_fit
# Configure matplotlib for publication-quality figures
plt.rcParams.update({
'figure.dpi': 100,
'savefig.dpi': 150,
'font.family': 'sans-serif',
'font.size': 10,
'axes.titlesize': 12,
'axes.titleweight': 'bold',
'axes.labelsize': 11,
'xtick.labelsize': 9,
'ytick.labelsize': 9,
'legend.fontsize': 9,
'figure.titlesize': 14,
'axes.grid': True,
'grid.alpha': 0.3,
'grid.linestyle': '--',
})
# Define consistent color palette for QAQC figures
COLORS = {
'flow': '#1f77b4', # Blue
'stage': '#2ca02c', # Green
'upstream': '#1f77b4', # Blue
'downstream': '#d62728', # Red
'peak': '#d62728', # Red
'warning': '#ff7f0e', # Orange
'good': '#2ca02c', # Green
'bad': '#d62728', # Red
'neutral': '#7f7f7f', # Gray
'gap': '#ffcccc', # Light red for gaps
}
def create_stats_box(ax, text, loc='upper left', fontsize=9):
"""Create a standardized statistics annotation box."""
props = dict(boxstyle='round,pad=0.5', facecolor='white',
alpha=0.9, edgecolor='gray', linewidth=0.5)
positions = {
'upper left': (0.02, 0.98, 'top', 'left'),
'upper right': (0.98, 0.98, 'top', 'right'),
'lower left': (0.02, 0.02, 'bottom', 'left'),
'lower right': (0.98, 0.02, 'bottom', 'right'),
}
x, y, va, ha = positions.get(loc, positions['upper left'])
ax.text(x, y, text, transform=ax.transAxes, fontsize=fontsize,
fontfamily='monospace', verticalalignment=va,
horizontalalignment=ha, bbox=props)
def format_datetime_axis(ax, date_format='%m/%d', rotation=45):
"""Apply consistent datetime formatting to x-axis."""
ax.xaxis.set_major_formatter(mdates.DateFormatter(date_format))
ax.xaxis.set_major_locator(mdates.AutoDateLocator())
plt.setp(ax.xaxis.get_majorticklabels(), rotation=rotation, ha='right')
# Create plots directory
plots_dir = gauge_data_dir / 'plots'
plots_dir.mkdir(exist_ok=True)
print("QAQC Visualization configuration loaded")
print(f" - Figure DPI: {plt.rcParams['savefig.dpi']}")
print(f" - Color palette: {len(COLORS)} colors defined")
print(f" - Output directory: {plots_dir}")
Text Only
QAQC Visualization configuration loaded
- Figure DPI: 150.0
- Color palette: 10 colors defined
- Output directory: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\gauge_data\plots
9.1 Data Quality Dashboard¶
A 4-panel dashboard for comprehensive data quality assessment: - Time series with gap highlighting - Data completeness by parameter - Distribution of observation intervals - Data presence timeline
Python
# =============================================================================
# FIGURE A1: DATA QUALITY DASHBOARD (4-PANEL)
# =============================================================================
fig, axes = plt.subplots(2, 2, figsize=(14, 10))
fig.suptitle(f'USGS Gauge Data Quality Assessment\n{event_name.replace("_", " ")}',
fontsize=14, fontweight='bold', y=0.98)
# ==========================================================================
# Panel 1: Time Series with Gap Highlighting (Top Left)
# ==========================================================================
ax1 = axes[0, 0]
ax1.plot(upstream_flow['datetime'], upstream_flow['value'],
color=COLORS['flow'], linewidth=1, label='Flow')
# Detect and highlight gaps (> 30 minutes for 15-min data)
time_diffs = upstream_flow['datetime'].diff()
gap_threshold = pd.Timedelta(minutes=45)
gaps = upstream_flow[time_diffs > gap_threshold].copy()
gap_count = len(gaps)
for idx in gaps.index:
gap_start = upstream_flow.loc[idx - 1, 'datetime'] if idx > 0 else upstream_flow['datetime'].iloc[0]
gap_end = upstream_flow.loc[idx, 'datetime']
ax1.axvspan(gap_start, gap_end, alpha=0.3, color=COLORS['gap'],
label='Data Gap' if idx == gaps.index[0] else '')
ax1.set_xlabel('Date/Time')
ax1.set_ylabel('Flow (cfs)', color=COLORS['flow'])
ax1.set_title(f'USGS-{upstream_site}: Time Series with Gap Detection', fontweight='bold')
ax1.legend(loc='upper right')
ax1.grid(True, alpha=0.3)
format_datetime_axis(ax1)
# Add gap statistics
if gap_count > 0:
max_gap = time_diffs.max()
gap_text = f"Gaps: {gap_count}\nMax Gap: {max_gap}"
else:
gap_text = "No Gaps Detected"
create_stats_box(ax1, gap_text, loc='upper left')
# ==========================================================================
# Panel 2: Data Completeness Bar Chart (Top Right)
# ==========================================================================
ax2 = axes[0, 1]
event_duration = (upstream_flow['datetime'].max() - upstream_flow['datetime'].min())
expected_records = int(event_duration.total_seconds() / (15 * 60)) + 1
completeness = {
'Flow': len(upstream_flow) / expected_records * 100 if expected_records > 0 else 0,
'Stage': len(upstream_stage) / expected_records * 100 if expected_records > 0 else 0
}
bars = ax2.bar(completeness.keys(), completeness.values(),
color=[COLORS['flow'], COLORS['stage']], edgecolor='black', linewidth=0.5)
ax2.axhline(y=95, color=COLORS['good'], linestyle='--', linewidth=2, label='Target (95%)')
for bar, (param, pct) in zip(bars, completeness.items()):
if pct >= 95:
bar.set_facecolor(COLORS['good'])
elif pct >= 80:
bar.set_facecolor(COLORS['warning'])
else:
bar.set_facecolor(COLORS['bad'])
ax2.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 1,
f'{pct:.1f}%', ha='center', va='bottom', fontweight='bold')
ax2.set_ylabel('Data Completeness (%)')
ax2.set_title('Data Availability by Parameter', fontweight='bold')
ax2.set_ylim(0, 110)
ax2.legend(loc='lower right')
ax2.grid(True, alpha=0.3, axis='y')
# ==========================================================================
# Panel 3: Observation Interval Histogram (Bottom Left)
# ==========================================================================
ax3 = axes[1, 0]
intervals_min = time_diffs.dt.total_seconds().dropna() / 60
bins = np.arange(0, max(61, intervals_min.max() + 5), 5)
counts, bins_out, patches = ax3.hist(intervals_min, bins=bins,
color=COLORS['flow'], edgecolor='black',
alpha=0.7, linewidth=0.5)
ax3.axvline(x=15, color=COLORS['good'], linestyle='--', linewidth=2, label='Expected (15 min)')
for patch, left_edge in zip(patches, bins_out[:-1]):
if left_edge > 20 or (left_edge > 0 and left_edge < 10):
patch.set_facecolor(COLORS['warning'])
ax3.set_xlabel('Observation Interval (minutes)')
ax3.set_ylabel('Frequency')
ax3.set_title('Distribution of Observation Intervals', fontweight='bold')
ax3.legend(loc='upper right')
ax3.grid(True, alpha=0.3, axis='y')
interval_stats = f"Median: {intervals_min.median():.0f} min\nStd: {intervals_min.std():.1f} min"
create_stats_box(ax3, interval_stats, loc='upper left')
# ==========================================================================
# Panel 4: Data Timeline Visualization (Bottom Right)
# ==========================================================================
ax4 = axes[1, 1]
date_range = pd.date_range(upstream_flow['datetime'].min(),
upstream_flow['datetime'].max(), freq='1h')
presence = []
for dt in date_range:
has_data = any((upstream_flow['datetime'] >= dt) &
(upstream_flow['datetime'] < dt + pd.Timedelta(hours=1)))
presence.append(1 if has_data else 0)
presence_arr = np.array(presence).reshape(1, -1)
ax4.imshow(presence_arr, aspect='auto', cmap='RdYlGn',
extent=[0, len(presence), 0, 1], vmin=0, vmax=1)
ax4.set_yticks([])
ax4.set_xlabel('Hours from Event Start')
ax4.set_title('Data Presence Timeline (Hourly)', fontweight='bold')
legend_elements = [Patch(facecolor='green', label='Data Present'),
Patch(facecolor='red', label='Data Missing')]
ax4.legend(handles=legend_elements, loc='upper right', ncol=2)
plt.tight_layout(rect=[0, 0.02, 1, 0.96])
# Footer
total_records = len(upstream_flow)
duration_days = event_duration.days + event_duration.seconds / 86400
footer_text = (f"Total Records: {total_records:,} | "
f"Duration: {duration_days:.1f} days | "
f"Gauge: USGS-{upstream_site}")
fig.text(0.5, 0.01, footer_text, ha='center', fontsize=9, style='italic')
fig.savefig(plots_dir / f'{event_name}_data_quality_dashboard.png',
dpi=150, bbox_inches='tight', facecolor='white')
print(f"Saved: {plots_dir / f'{event_name}_data_quality_dashboard.png'}")
plt.show()
Text Only
C:\Users\billk_clb\AppData\Local\Temp\ipykernel_298804\2916896244.py:109: FutureWarning: 'H' is deprecated and will be removed in a future version, please use 'h' instead.
date_range = pd.date_range(upstream_flow['datetime'].min(),
Saved: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\gauge_data\plots\Tropical_Storm_Lee_2011_data_quality_dashboard.png
9.2 Publication-Quality Event Hydrograph¶
Professional hydrograph with dual axes (flow and stage), peak annotations, initial condition marker, and comprehensive event statistics.
Python
# =============================================================================
# FIGURE B1: PUBLICATION-QUALITY EVENT HYDROGRAPH
# =============================================================================
fig, ax1 = plt.subplots(figsize=(14, 7))
# Primary Y-Axis: Flow
line_flow, = ax1.plot(upstream_flow['datetime'], upstream_flow['value'],
color=COLORS['flow'], linewidth=2, label='Flow (cfs)')
ax1.fill_between(upstream_flow['datetime'], upstream_flow['value'],
alpha=0.15, color=COLORS['flow'])
ax1.set_xlabel('Date/Time', fontsize=11, fontweight='bold')
ax1.set_ylabel('Discharge (cfs)', color=COLORS['flow'], fontsize=11, fontweight='bold')
ax1.tick_params(axis='y', labelcolor=COLORS['flow'])
# Secondary Y-Axis: Stage
ax2 = ax1.twinx()
if not upstream_stage.empty:
line_stage, = ax2.plot(upstream_stage['datetime'], upstream_stage['value'],
color=COLORS['stage'], linewidth=1.5, label='Stage (ft)')
ax2.set_ylabel('Stage (ft)', color=COLORS['stage'], fontsize=11, fontweight='bold')
ax2.tick_params(axis='y', labelcolor=COLORS['stage'])
# Peak Flow Annotation
peak_idx = upstream_flow['value'].idxmax()
peak_flow = upstream_flow.loc[peak_idx, 'value']
peak_time = upstream_flow.loc[peak_idx, 'datetime']
ax1.scatter([peak_time], [peak_flow], color=COLORS['peak'], s=100,
zorder=5, marker='*', edgecolors='black', linewidth=0.5)
ax1.annotate(
f'Peak: {peak_flow:,.0f} cfs\n{peak_time.strftime("%m/%d %H:%M")}',
xy=(peak_time, peak_flow),
xytext=(40, 30),
textcoords='offset points',
fontsize=10, fontweight='bold', color=COLORS['peak'],
arrowprops=dict(arrowstyle='->', color=COLORS['peak'], lw=1.5),
bbox=dict(boxstyle='round,pad=0.3', facecolor='white',
edgecolor=COLORS['peak'], alpha=0.9)
)
# Initial Condition Point
if initial_flow is not None:
sim_start_utc = pd.Timestamp(simulation_start, tz='UTC')
time_diffs_ic = abs(upstream_flow['datetime'] - sim_start_utc)
nearest_idx = time_diffs_ic.idxmin()
ic_flow = upstream_flow.loc[nearest_idx, 'value']
ic_time = upstream_flow.loc[nearest_idx, 'datetime']
ax1.scatter([ic_time], [ic_flow], color=COLORS['good'], s=150,
zorder=5, marker='o', edgecolors='black', linewidth=1)
ax1.annotate(
f'Initial Condition\nQ = {ic_flow:,.0f} cfs',
xy=(ic_time, ic_flow),
xytext=(-60, -40),
textcoords='offset points',
fontsize=9, color=COLORS['good'],
arrowprops=dict(arrowstyle='->', color=COLORS['good'], lw=1.5),
bbox=dict(boxstyle='round,pad=0.3', facecolor='white',
edgecolor=COLORS['good'], alpha=0.9)
)
# Calculate Event Statistics
event_start_time = upstream_flow['datetime'].min()
time_to_peak = peak_time - event_start_time
time_to_peak_hours = time_to_peak.total_seconds() / 3600
event_duration = upstream_flow['datetime'].max() - upstream_flow['datetime'].min()
duration_days = event_duration.days + event_duration.seconds / 86400
min_flow = upstream_flow['value'].min()
mean_flow = upstream_flow['value'].mean()
# Statistics Box
stats_text = (
f"Event Statistics\n"
f"{'─' * 20}\n"
f"Duration: {duration_days:.1f} days\n"
f"Peak Flow: {peak_flow:,.0f} cfs\n"
f"Min Flow: {min_flow:,.0f} cfs\n"
f"Mean Flow: {mean_flow:,.0f} cfs\n"
f"Time to Peak: {time_to_peak_hours:.0f} hrs\n"
)
if not upstream_stage.empty:
peak_stage = upstream_stage['value'].max()
min_stage = upstream_stage['value'].min()
stats_text += (
f"{'─' * 20}\n"
f"Peak Stage: {peak_stage:.2f} ft\n"
f"Stage Range: {peak_stage - min_stage:.2f} ft"
)
create_stats_box(ax1, stats_text, loc='lower left', fontsize=9)
# Formatting
ax1.set_title(
f'USGS-{upstream_site}: {target_gauges["upstream"]["name"]}\n{event_name.replace("_", " ")}',
fontsize=14, fontweight='bold', pad=15
)
ax1.grid(True, which='major', alpha=0.4, linestyle='-')
ax1.grid(True, which='minor', alpha=0.2, linestyle=':')
ax1.minorticks_on()
format_datetime_axis(ax1, date_format='%m/%d\n%H:%M', rotation=0)
# Legend
lines = [line_flow]
labels = ['Flow (cfs)']
if not upstream_stage.empty:
lines.append(line_stage)
labels.append('Stage (ft)')
ax1.legend(lines, labels, loc='upper right', framealpha=0.9, edgecolor='gray')
ax1.set_ylim(0, peak_flow * 1.15)
plt.tight_layout()
fig.text(0.99, 0.01, f'Data Source: USGS National Water Information System',
ha='right', fontsize=8, style='italic', color='gray')
fig.savefig(plots_dir / f'{event_name}_hydrograph.png',
dpi=150, bbox_inches='tight', facecolor='white')
print(f"Saved: {plots_dir / f'{event_name}_hydrograph.png'}")
plt.show()
Text Only
Saved: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\gauge_data\plots\Tropical_Storm_Lee_2011_hydrograph.png
9.3 Stage-Discharge Rating Curve¶
Rating curve analysis showing the stage-discharge relationship with power law fit and time-colored scatter points to identify hysteresis effects.
Python
# =============================================================================
# FIGURE D1: STAGE-DISCHARGE RATING CURVE
# =============================================================================
if not upstream_stage.empty:
fig, ax = plt.subplots(figsize=(10, 8))
# Merge flow and stage by nearest timestamp
merged = pd.merge_asof(
upstream_flow.sort_values('datetime'),
upstream_stage.sort_values('datetime'),
on='datetime',
direction='nearest',
tolerance=pd.Timedelta(minutes=30),
suffixes=('_flow', '_stage')
).dropna()
if len(merged) >= 10:
Q = merged['value_flow'].values
h = merged['value_stage'].values
# Create time-based colors
times_numeric = (merged['datetime'] - merged['datetime'].min()).dt.total_seconds()
# Scatter Plot with Time Colormap
scatter = ax.scatter(Q, h, c=times_numeric, cmap='viridis',
s=40, alpha=0.7, edgecolors='black', linewidth=0.3)
# Colorbar
cbar = plt.colorbar(scatter, ax=ax, shrink=0.8)
cbar.set_label('Time (hours from event start)', fontsize=10)
max_hours = times_numeric.max() / 3600
cbar.set_ticks(np.linspace(0, times_numeric.max(), 5))
cbar.set_ticklabels([f'{t:.0f}h' for t in np.linspace(0, max_hours, 5)])
# Power Law Fit: Q = a * (h - h0)^b
def power_law(h, a, b, h0):
return a * np.maximum(h - h0, 0.001) ** b
try:
h0_init = h.min() - 0.1
popt, pcov = curve_fit(power_law, h, Q,
p0=[100, 2.0, h0_init],
bounds=([0, 0.5, h.min()-1], [10000, 4.0, h.min()]),
maxfev=5000)
a, b, h0 = popt
h_fit = np.linspace(h.min(), h.max(), 100)
Q_fit = power_law(h_fit, a, b, h0)
ax.plot(Q_fit, h_fit, 'r-', linewidth=2.5,
label=f'Power Law Fit: Q = {a:.1f}(h-{h0:.2f})^{b:.2f}')
# Calculate R-squared
Q_pred = power_law(h, a, b, h0)
ss_res = np.sum((Q - Q_pred) ** 2)
ss_tot = np.sum((Q - np.mean(Q)) ** 2)
r_squared = 1 - (ss_res / ss_tot)
fit_text = (
f"Rating Curve Fit\n"
f"{'─' * 18}\n"
f"Q = a(h-h0)^b\n"
f"a = {a:.1f}\n"
f"b = {b:.2f}\n"
f"h0 = {h0:.2f} ft\n"
f"R2 = {r_squared:.3f}"
)
except Exception as e:
print(f"Power law fit failed: {e}")
fit_text = "Power law fit\nnot available"
create_stats_box(ax, fit_text, loc='lower right', fontsize=9)
ax.set_xlabel('Discharge (cfs)', fontsize=11, fontweight='bold')
ax.set_ylabel('Stage (ft)', fontsize=11, fontweight='bold')
ax.set_title(f'USGS-{upstream_site}: Stage-Discharge Rating Curve\n{target_gauges["upstream"]["name"]}',
fontsize=14, fontweight='bold', pad=15)
ax.legend(loc='upper left', framealpha=0.9)
ax.grid(True, alpha=0.3)
ax.set_xlim(0, Q.max() * 1.1)
ax.set_ylim(h.min() * 0.95, h.max() * 1.05)
plt.tight_layout()
fig.savefig(plots_dir / f'{event_name}_rating_curve.png',
dpi=150, bbox_inches='tight', facecolor='white')
print(f"Saved: {plots_dir / f'{event_name}_rating_curve.png'}")
plt.show()
else:
print(f"Insufficient paired data points ({len(merged)}) for rating curve")
else:
print("Stage data not available for rating curve analysis")
Text Only
Saved: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\gauge_data\plots\Tropical_Storm_Lee_2011_rating_curve.png
9.4 Summary Statistics Dashboard¶
Comprehensive single-page summary suitable for engineering reports, including statistics tables, mini hydrograph, distribution plots, and data quality metrics.
Python
# =============================================================================
# FIGURE E1: COMPREHENSIVE SUMMARY STATISTICS DASHBOARD
# =============================================================================
fig = plt.figure(figsize=(16, 12))
gs = gridspec.GridSpec(4, 4, figure=fig, height_ratios=[0.8, 2, 2, 1.5],
hspace=0.3, wspace=0.3)
# ==========================================================================
# Header Row
# ==========================================================================
ax_header = fig.add_subplot(gs[0, :])
ax_header.axis('off')
header_text = (
f"USGS Gauge Data Summary Report\n"
f"{'━' * 60}\n"
f"Event: {event_name.replace('_', ' ')} | "
f"Period: {event_start.strftime('%Y-%m-%d')} to {event_end.strftime('%Y-%m-%d')} | "
f"Gauge: USGS-{upstream_site}"
)
ax_header.text(0.5, 0.5, header_text, ha='center', va='center',
fontsize=14, fontfamily='monospace', fontweight='bold')
# ==========================================================================
# Flow Statistics Table (Row 1, Left)
# ==========================================================================
ax_flow_stats = fig.add_subplot(gs[1, 0:2])
ax_flow_stats.axis('off')
flow_stats = {
'Count': f"{len(upstream_flow):,}",
'Min (cfs)': f"{upstream_flow['value'].min():,.0f}",
'Max (cfs)': f"{upstream_flow['value'].max():,.0f}",
'Mean (cfs)': f"{upstream_flow['value'].mean():,.0f}",
'Median (cfs)': f"{upstream_flow['value'].median():,.0f}",
'Std Dev (cfs)': f"{upstream_flow['value'].std():,.0f}",
'Skewness': f"{stats.skew(upstream_flow['value']):.2f}",
'Kurtosis': f"{stats.kurtosis(upstream_flow['value']):.2f}",
}
table_data = [[k, v] for k, v in flow_stats.items()]
table = ax_flow_stats.table(cellText=table_data,
colLabels=['Statistic', 'Value'],
cellLoc='center', loc='center', colWidths=[0.5, 0.5])
table.auto_set_font_size(False)
table.set_fontsize(10)
table.scale(1.2, 1.5)
for (i, j), cell in table.get_celld().items():
if i == 0:
cell.set_facecolor('#4472C4')
cell.set_text_props(color='white', fontweight='bold')
elif i % 2 == 0:
cell.set_facecolor('#D9E2F3')
cell.set_edgecolor('white')
ax_flow_stats.set_title('Flow Statistics', fontweight='bold', fontsize=12, pad=10)
# ==========================================================================
# Mini Hydrograph (Row 1, Right)
# ==========================================================================
ax_mini_hydro = fig.add_subplot(gs[1, 2:4])
ax_mini_hydro.plot(upstream_flow['datetime'], upstream_flow['value'],
color=COLORS['flow'], linewidth=1.5)
ax_mini_hydro.fill_between(upstream_flow['datetime'], upstream_flow['value'],
alpha=0.2, color=COLORS['flow'])
peak_idx = upstream_flow['value'].idxmax()
peak_flow_val = upstream_flow.loc[peak_idx, 'value']
peak_time_val = upstream_flow.loc[peak_idx, 'datetime']
ax_mini_hydro.scatter([peak_time_val], [peak_flow_val], color=COLORS['peak'],
s=100, marker='*', zorder=5, edgecolors='black')
ax_mini_hydro.set_title('Event Hydrograph', fontweight='bold', fontsize=12)
ax_mini_hydro.set_xlabel('Date')
ax_mini_hydro.set_ylabel('Flow (cfs)')
ax_mini_hydro.grid(True, alpha=0.3)
format_datetime_axis(ax_mini_hydro, date_format='%m/%d')
# ==========================================================================
# Flow Histogram (Row 2, Left)
# ==========================================================================
ax_hist = fig.add_subplot(gs[2, 0:2])
n, bins_hist, patches_hist = ax_hist.hist(upstream_flow['value'], bins=30,
color=COLORS['flow'], edgecolor='black',
alpha=0.7, linewidth=0.5)
ax_hist.axvline(upstream_flow['value'].mean(), color='red', linestyle='--',
linewidth=2, label=f'Mean: {upstream_flow["value"].mean():,.0f}')
ax_hist.axvline(upstream_flow['value'].median(), color='green', linestyle=':',
linewidth=2, label=f'Median: {upstream_flow["value"].median():,.0f}')
ax_hist.set_title('Flow Distribution', fontweight='bold', fontsize=12)
ax_hist.set_xlabel('Flow (cfs)')
ax_hist.set_ylabel('Frequency')
ax_hist.legend(loc='upper right', fontsize=9)
ax_hist.grid(True, alpha=0.3, axis='y')
# ==========================================================================
# Box Plot (Row 2, Right)
# ==========================================================================
ax_box = fig.add_subplot(gs[2, 2:4])
flow_norm = (upstream_flow['value'] - upstream_flow['value'].min()) / \
(upstream_flow['value'].max() - upstream_flow['value'].min())
box_data = [flow_norm.dropna()]
labels = ['Flow\n(normalized)']
if not upstream_stage.empty:
stage_norm = (upstream_stage['value'] - upstream_stage['value'].min()) / \
(upstream_stage['value'].max() - upstream_stage['value'].min())
box_data.append(stage_norm.dropna())
labels.append('Stage\n(normalized)')
bp = ax_box.boxplot(box_data, labels=labels, patch_artist=True)
colors_box = [COLORS['flow'], COLORS['stage']]
for patch, color in zip(bp['boxes'], colors_box[:len(box_data)]):
patch.set_facecolor(color)
patch.set_alpha(0.6)
ax_box.set_title('Parameter Distributions (Normalized)', fontweight='bold', fontsize=12)
ax_box.set_ylabel('Normalized Value (0-1)')
ax_box.grid(True, alpha=0.3, axis='y')
# ==========================================================================
# Data Quality Bar (Bottom Row)
# ==========================================================================
ax_quality = fig.add_subplot(gs[3, :])
event_duration_q = (upstream_flow['datetime'].max() - upstream_flow['datetime'].min())
expected_records_q = int(event_duration_q.total_seconds() / (15 * 60)) + 1
completeness_q = len(upstream_flow) / expected_records_q * 100 if expected_records_q > 0 else 0
time_diffs_q = upstream_flow['datetime'].diff()
gap_threshold_q = pd.Timedelta(minutes=45)
gap_count_q = len(time_diffs_q[time_diffs_q > gap_threshold_q])
metrics = {
'Data Completeness': completeness_q,
'Temporal Consistency': 100 - (gap_count_q / len(upstream_flow) * 100) if len(upstream_flow) > 0 else 0,
'Value Range Check': 100 if upstream_flow['value'].min() >= 0 else 50,
}
y_pos = range(len(metrics))
bars_q = ax_quality.barh(y_pos, metrics.values(), color=COLORS['flow'],
edgecolor='black', linewidth=0.5, height=0.6)
for bar, val in zip(bars_q, metrics.values()):
if val >= 95:
bar.set_facecolor(COLORS['good'])
elif val >= 80:
bar.set_facecolor(COLORS['warning'])
else:
bar.set_facecolor(COLORS['bad'])
ax_quality.text(val + 1, bar.get_y() + bar.get_height()/2,
f'{val:.1f}%', va='center', fontweight='bold')
ax_quality.set_yticks(y_pos)
ax_quality.set_yticklabels(metrics.keys())
ax_quality.set_xlim(0, 110)
ax_quality.set_xlabel('Score (%)')
ax_quality.set_title('Data Quality Metrics', fontweight='bold', fontsize=12)
ax_quality.axvline(95, color='gray', linestyle='--', linewidth=1, label='Target (95%)')
ax_quality.grid(True, alpha=0.3, axis='x')
ax_quality.legend(loc='lower right')
# Footer
fig.text(0.01, 0.01, f'Generated: {pd.Timestamp.now().strftime("%Y-%m-%d %H:%M")}',
fontsize=8, color='gray')
fig.text(0.99, 0.01, f'Data Source: USGS NWIS | {target_gauges["upstream"]["name"]}',
ha='right', fontsize=8, color='gray')
fig.savefig(plots_dir / f'{event_name}_summary_dashboard.png',
dpi=150, bbox_inches='tight', facecolor='white')
print(f"Saved: {plots_dir / f'{event_name}_summary_dashboard.png'}")
plt.show()
Text Only
C:\Users\billk_clb\AppData\Local\Temp\ipykernel_298804\1197353514.py:120: MatplotlibDeprecationWarning: The 'labels' parameter of boxplot() has been renamed 'tick_labels' since Matplotlib 3.9; support for the old name will be dropped in 3.11.
bp = ax_box.boxplot(box_data, labels=labels, patch_artist=True)
Saved: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\gauge_data\plots\Tropical_Storm_Lee_2011_summary_dashboard.png
9.5 QAQC Visualization Summary¶
Python
# =============================================================================
# QAQC VISUALIZATION SUMMARY
# =============================================================================
print("=" * 70)
print("USGS GAUGE DATA QAQC VISUALIZATION - SUMMARY")
print("=" * 70)
print(f"\nEvent: {event_name.replace('_', ' ')}")
print(f"Gauge: USGS-{upstream_site}")
print(f"Period: {event_start} to {event_end}")
print(f"\nGenerated Figures:")
print(f" [A1] Data Quality Dashboard - Gap detection, completeness, intervals")
print(f" [B1] Event Hydrograph - Dual-axis with peak/IC annotations")
print(f" [D1] Rating Curve - Stage-discharge with power law fit")
print(f" [E1] Summary Dashboard - Comprehensive statistics for reports")
print(f"\nOutput Directory: {plots_dir}")
print(f"\nFigure Files:")
for f in sorted(plots_dir.glob(f'{event_name}*.png')):
print(f" - {f.name}")
print("\n" + "=" * 70)
print("QAQC Visualization Complete - Figures ready for engineering reports")
print("=" * 70)
Text Only
======================================================================
USGS GAUGE DATA QAQC VISUALIZATION - SUMMARY
======================================================================
Event: Tropical Storm Lee 2011
Gauge: USGS-01547200
Period: 2011-09-05 00:00:00 to 2011-09-13 00:00:00
Generated Figures:
[A1] Data Quality Dashboard - Gap detection, completeness, intervals
[B1] Event Hydrograph - Dual-axis with peak/IC annotations
[D1] Rating Curve - Stage-discharge with power law fit
[E1] Summary Dashboard - Comprehensive statistics for reports
Output Directory: C:\Users\billk_clb\anaconda3\envs\rascmdr_piptest\Lib\site-packages\examples\example_projects\BaldEagleCrkMulti2D_911\gauge_data\plots
Figure Files:
- Tropical_Storm_Lee_2011_data_quality_dashboard.png
- Tropical_Storm_Lee_2011_hydrograph.png
- Tropical_Storm_Lee_2011_rating_curve.png
- Tropical_Storm_Lee_2011_summary_dashboard.png
======================================================================
QAQC Visualization Complete - Figures ready for engineering reports
======================================================================
