Version Benchmarking and Core Scaling (HEC-RAS 6.0, 6.3.1, 6.6, 7.0)¶

Overview¶

This notebook benchmarks the same 2D plan across four HEC-RAS versions and an explicit set of processor core counts. The goal is to separate:

Version effects: improvements from 6.0 -> 6.3.1 -> 6.6 -> 7.0 at the same core count
Scaling effects: how each version responds as cores increase

Why benchmark 7.0 this way?¶

HEC-RAS 7.0 was released on April 17, 2026. The official 7.0 release notes highlight:

a new Intel IFX compiler for the compute engines
CPU affinity / p-core awareness carried forward from the 6.7 beta line
additional solver and stability work

Those changes should be most visible on Intel systems, but only if we hold the model, plan, and core count constant.

Benchmark Strategy¶

This notebook runs one sweep:

for each version in VERSIONS_TO_TEST
for each explicit core count in CORE_COUNTS
execute the same plan in a version-isolated workspace
read timing from results_df with a ResultsSummary fallback

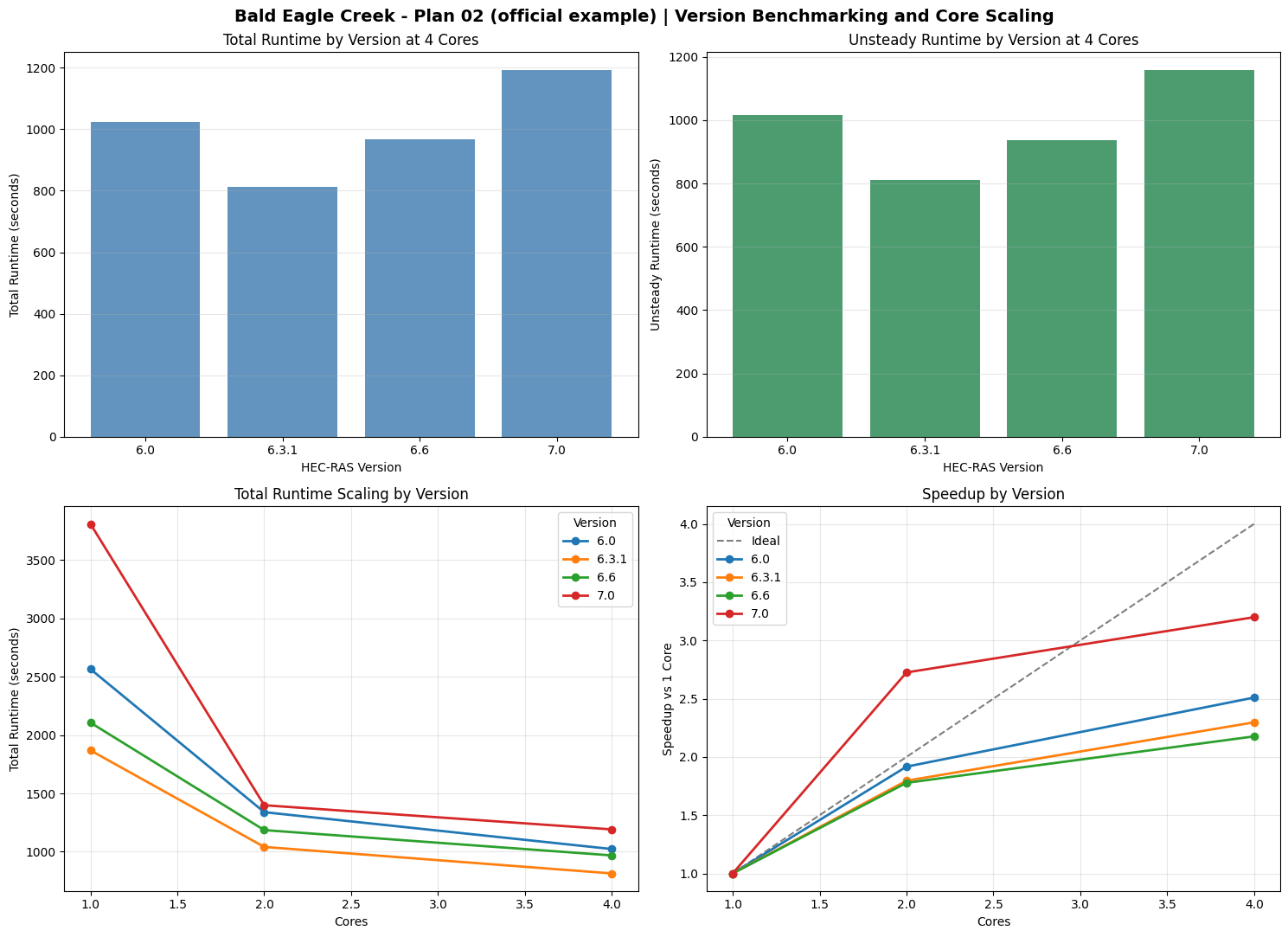

From that single results table we derive:

fixed-core version comparison
per-version core-scaling curves

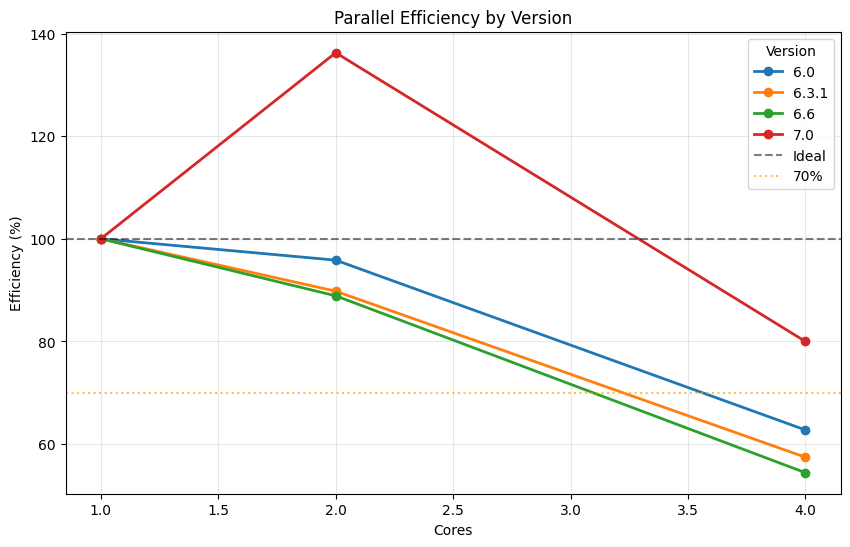

speedup and efficiency
volume-error consistency checks

Default and Optional Models¶

Default: BaldEagleCrkMulti2D Plan 02
official example
geometry g01
about 89,879 2D cells
best portable cross-version choice found locally
Optional local heavy case: North Galveston Bay eBFE Plan 01
about 567,987 2D cells
useful stretch case
current packaged artifacts are 6.6-era, so treat it as exploratory rather than canonical

References¶

Python

from pathlib import Path
import os
import platform
import shutil
import time

import h5py
import matplotlib.pyplot as plt
import pandas as pd
import psutil

try:
    import cpuinfo
except ImportError:
    cpuinfo = None

from ras_commander import (
    RasCmdr,
    RasExamples,
    RasGeo,
    RasPlan,
    RasUtils,
    init_ras_project,
)
from ras_commander.results import ResultsSummary

import ras_commander

print(f"ras-commander: {ras_commander.__version__}")

Text Only

ras-commander: 0.98.0

Parameters¶

Configure the benchmark scope here. The defaults are tuned for a clean cross-version comparison using the official Bald Eagle 2D example.

Python

# =============================================================================
# BENCHMARK PARAMETERS
# =============================================================================
RUN_BENCHMARK_SWEEP = os.environ.get("RAS_COMMANDER_RUN_BENCHMARK_SWEEP", "").lower() in {"1", "true", "yes"}
SKIP_BENCHMARK_SWEEP = not RUN_BENCHMARK_SWEEP  # Set env var to run the full sweep (takes 2+ hours)

RUN_LABEL = time.strftime("%Y%m%d_%H%M%S")

VERSIONS_TO_TEST = ["6.0", "6.3.1", "6.6", "7.0"]

# Shared eBFE workspace used by optional local eBFE benchmark cases.
# Override RAS_COMMANDER_EBFE_ROOT to use a different local cache.
EBFE_WORKSPACE = Path(os.environ.get("RAS_COMMANDER_EBFE_ROOT", r"H:\Testing\eBFE Model Organization"))
ORGANIZED_ROOT = EBFE_WORKSPACE / "Organized"

MODEL_LIBRARY = {
    "bald_eagle_plan02": {
        "label": "Bald Eagle Creek - Plan 02 (official example)",
        "source_type": "local_or_extract",
        "project_path": Path("examples/example_projects/BaldEagleCrkMulti2D"),
        "fallback_project_name": "BaldEagleCrkMulti2D",
        "fallback_suffix": "701_benchmark_source",
        "plan_number": "02",
        "expected_mesh_cells": 89879,
        "expected_runtime_note": "~19 minutes in archived repo results",
        "notes": (
            "Best portable cross-version case found locally. "
            "Plan 02 uses geometry g01 and stays within the classic 2D example set."
        ),
    },
    "north_galveston_ebfe_p01": {
        "label": "North Galveston Bay eBFE - Plan 01 (local heavy case)",
        "source_type": "local_path",
        "project_path": ORGANIZED_ROOT / "NorthGalvestonBay_12040203" / "RAS Model",
        "plan_number": "01",
        "expected_mesh_cells": 567987,
        "expected_runtime_note": "~14.5 minutes from stored 6.6 HDF in repo",
        "notes": (
            "Large local stretch case. The packaged artifacts currently report "
            "6.6-era results, so use it for exploratory scaling rather than "
            "the canonical cross-version example."
        ),
    },
}

MODEL_KEY = "bald_eagle_plan02"
model_config = MODEL_LIBRARY[MODEL_KEY]

physical_cores = psutil.cpu_count(logical=False) or 1
CORE_COUNTS = [c for c in [1, 2, 4, 8] if c <= physical_cores]
if not CORE_COUNTS:
    CORE_COUNTS = [1]

FIXED_CORE_COMPARISON = 4 if 4 in CORE_COUNTS else CORE_COUNTS[-1]
REPEATS = 1

# Rebuild the per-version working folders if you want a completely fresh rerun.
REBUILD_VERSION_WORKSPACES = False

# Recompute even if prior results exist in the per-version workspace.
FORCE_RERUN = True

# Include geometry preprocessing in the total-runtime benchmark.
CLEAR_GEOMPRE_EACH_RUN = True

BENCHMARK_ROOT = Path("working/benchmark_notebooks/701_version_benchmarking")

# Optional explicit overrides. Leave empty to use RasUtils.discover_ras_versions().
RAS_EXE_BY_VERSION = {
    # "7.0": Path(r"C:\Program Files (x86)\HEC\HEC-RAS\7.0\Ras.exe"),
}

if FIXED_CORE_COMPARISON not in CORE_COUNTS:
    raise ValueError("FIXED_CORE_COMPARISON must be included in CORE_COUNTS")

Candidate Models and System Context¶

This cell documents the model-selection tradeoffs and confirms the installed HEC-RAS executables before any compute runs start.

Python

installed_versions = RasUtils.discover_ras_versions()
resolved_versions = {version: Path(path) for version, path in installed_versions.items()}

for version, exe_path in RAS_EXE_BY_VERSION.items():
    resolved_versions[version] = Path(exe_path)

missing_versions = [version for version in VERSIONS_TO_TEST if version not in resolved_versions]
if missing_versions:
    raise ValueError(
        "Missing requested HEC-RAS versions: "
        + ", ".join(missing_versions)
        + ". Install them or populate RAS_EXE_BY_VERSION."
    )

cpu_brand = (
    cpuinfo.get_cpu_info().get("brand_raw")
    if cpuinfo is not None
    else (platform.processor() or "Unknown CPU")
)

hardware_df = pd.DataFrame(
    [
        {"item": "CPU", "value": cpu_brand},
        {"item": "OS", "value": f"{platform.system()} {platform.release()}"},
        {"item": "Physical cores", "value": physical_cores},
        {"item": "Logical cores", "value": psutil.cpu_count(logical=True)},
        {"item": "Selected model", "value": model_config["label"]},
        {"item": "Selected plan", "value": model_config["plan_number"]},
        {"item": "Core counts", "value": CORE_COUNTS},
        {"item": "Fixed-core comparison", "value": FIXED_CORE_COMPARISON},
    ]
)
display(hardware_df)

candidate_df = pd.DataFrame(
    [
        {
            "model_key": "bald_eagle_plan02",
            "kind": "official example",
            "mesh_cells": 89879,
            "runtime_note": "~19 minutes in archived repo results",
            "status": "recommended default",
            "why": "Cleanest cross-version benchmark in the repo",
        },
        {
            "model_key": "north_galveston_ebfe_p01",
            "kind": "local eBFE",
            "mesh_cells": 567987,
            "runtime_note": "~14.5 minutes from stored 6.6 HDF",
            "status": "optional heavy case",
            "why": "Best local large-model scaling case, but not a clean 6.2-era eBFE baseline",
        },
        {
            "model_key": "spring_creek_p01",
            "kind": "local eBFE",
            "mesh_cells": "large 2D",
            "runtime_note": "30-60 minutes per notebook guidance",
            "status": "not recommended here",
            "why": "Version 5.0.7 and too slow for a compact version notebook",
        },
        {
            "model_key": "upper_guadalupe_cascade",
            "kind": "local eBFE",
            "mesh_cells": "multi-model cascade",
            "runtime_note": "2-6 hours per model",
            "status": "not recommended here",
            "why": "Too large for an example-notebook benchmark sweep",
        },
    ]
)
display(candidate_df)

installed_df = pd.DataFrame(
    {
        "version": VERSIONS_TO_TEST,
        "ras_exe": [str(resolved_versions[version]) for version in VERSIONS_TO_TEST],
    }
)
display(installed_df)

Text Only

2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 7.0 at <hec-ras-install>\7.0\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 5 at <hec-ras-install>\6.7 Beta 5\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.6 at <hec-ras-install>\6.6\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.5 at <hec-ras-install>\6.5\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.4.1 at <hec-ras-install>\6.4.1\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3.1 at <hec-ras-install>\6.3.1\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3 at <hec-ras-install>\6.3\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.2 at <hec-ras-install>\6.2\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.1 at <hec-ras-install>\6.1\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.0 at <hec-ras-install>\6.0\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.7 at <hec-ras-install>\5.0.7\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.6 at <hec-ras-install>\5.0.6\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.3 at <hec-ras-install>\5.0.3\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.1.0 at <hec-ras-install>\4.1.0\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.0 at <hec-ras-install>\4.0\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 4a at <hec-ras-install>\6.7 Beta 4a\Ras.exe via filesystem (x86)


2026-06-11 18:13:50 - ras_commander.RasUtils - INFO - Discovered 16 installed HEC-RAS version(s)

	item	value
0	CPU	Intel64 Family 6 Model 167 Stepping 1, Genuine...
1	OS	Windows 11
2	Physical cores	6
3	Logical cores	6
4	Selected model	Bald Eagle Creek - Plan 02 (official example)
5	Selected plan	02
6	Core counts	[1, 2, 4]
7	Fixed-core comparison	4

	model_key	kind	mesh_cells	runtime_note	status	why
0	bald_eagle_plan02	official example	89879	~19 minutes in archived repo results	recommended default	Cleanest cross-version benchmark in the repo
1	north_galveston_ebfe_p01	local eBFE	567987	~14.5 minutes from stored 6.6 HDF	optional heavy case	Best local large-model scaling case, but not a...
2	spring_creek_p01	local eBFE	large 2D	30-60 minutes per notebook guidance	not recommended here	Version 5.0.7 and too slow for a compact versi...
3	upper_guadalupe_cascade	local eBFE	multi-model cascade	2-6 hours per model	not recommended here	Too large for an example-notebook benchmark sweep

	version	ras_exe
0	6.0	\6.0\Ras.exe
1	6.3.1	\6.3.1\Ras.exe
2	6.6	\6.6\Ras.exe
3	7.0	\7.0\Ras.exe

Benchmark Helpers¶

The helpers below keep each HEC-RAS version in its own working folder so a newer release does not rewrite the project files used by an older release.

Python

def resolve_ras_exe(version: str) -> Path:
    return resolved_versions[version]


def resolve_source_project(config: dict) -> Path:
    source_type = config["source_type"]

    if source_type == "local_path":
        project_path = Path(config["project_path"])
        if not project_path.exists():
            raise FileNotFoundError(f"Local benchmark project not found: {project_path}")
        return project_path

    if source_type == "local_or_extract":
        project_path = Path(config["project_path"])
        if project_path.exists():
            return project_path

        extracted = RasExamples.extract_project(
            config["fallback_project_name"],
            suffix=config["fallback_suffix"],
        )
        return Path(extracted)

    raise ValueError(f"Unsupported source_type: {source_type}")


def version_workspace(version: str) -> Path:
    safe_version = version.replace(".", "_")
    return BENCHMARK_ROOT / MODEL_KEY / f"version_{safe_version}"


def prepare_version_workspace(source_project: Path, version: str) -> Path:
    workspace = version_workspace(version)
    if REBUILD_VERSION_WORKSPACES and workspace.exists():
        shutil.rmtree(workspace)

    if not workspace.exists():
        workspace.parent.mkdir(parents=True, exist_ok=True)
        shutil.copytree(source_project, workspace)

    return workspace


def plan_row_for(ras_obj, plan_number: str) -> pd.Series:
    plan_number = str(plan_number).zfill(2)
    matches = ras_obj.plan_df.loc[
        ras_obj.plan_df["plan_number"].astype(str).str.zfill(2) == plan_number
    ]
    if matches.empty:
        raise KeyError(f"Plan {plan_number} not found in {ras_obj.project_name}")
    return matches.iloc[0]


def geometry_hdf_path_from_plan_row(plan_row: pd.Series) -> Path | None:
    geom_path = plan_row.get("Geom Path")
    if pd.isna(geom_path) or not geom_path:
        return None

    geom_path = Path(geom_path)
    if geom_path.suffix.lower() == ".hdf":
        return geom_path

    return geom_path.with_name(geom_path.name + ".hdf")


def count_mesh_cells(project_folder: Path, plan_number: str, inspector_version: str) -> int | None:
    ras_obj = init_ras_project(project_folder, resolve_ras_exe(inspector_version))
    plan_row = plan_row_for(ras_obj, plan_number)
    geom_hdf_path = geometry_hdf_path_from_plan_row(plan_row)

    if geom_hdf_path is None or not geom_hdf_path.exists():
        return None

    total_cells = 0
    with h5py.File(geom_hdf_path, "r") as hdf:
        if "Geometry/2D Flow Areas" not in hdf:
            return None

        for _, obj in hdf["Geometry/2D Flow Areas"].items():
            if isinstance(obj, h5py.Group) and "Cells Center Coordinate" in obj:
                total_cells += obj["Cells Center Coordinate"].shape[0]

    return total_cells or None


def extract_runtime_metrics(ras_obj, plan_number: str) -> dict:
    plan_number = str(plan_number).zfill(2)
    ras_obj.update_results_df([plan_number])

    matches = ras_obj.results_df.loc[
        ras_obj.results_df["plan_number"].astype(str).str.zfill(2) == plan_number
    ]
    if matches.empty:
        raise KeyError(f"Plan {plan_number} missing from results_df")

    row = matches.iloc[0]
    runtime_complete = row.get("runtime_complete_process_hours")
    runtime_unsteady = row.get("runtime_unsteady_compute_hours")
    runtime_source = row.get("runtime_source")
    volume_error = row.get("vol_error_percent")
    completed = bool(row.get("completed", False))
    has_errors = bool(row.get("has_errors", False))
    has_warnings = bool(row.get("has_warnings", False))

    plan_hdf_path = row.get("plan_hdf_path")
    if pd.isna(plan_hdf_path) or not plan_hdf_path:
        try:
            plan_hdf_path = RasPlan.get_results_path(plan_number, ras_object=ras_obj)
        except Exception:
            plan_hdf_path = None

    if (
        (pd.isna(runtime_complete) or pd.isna(runtime_unsteady) or runtime_source in [None, "", float("nan")])
        and plan_hdf_path is not None
    ):
        plan_meta = {
            "plan_number": plan_number,
            "plan_title": row.get("plan_title", row.get("Plan Title", plan_number)),
            "flow_type": row.get("flow_type", "Unsteady"),
            "Program Version": row.get("program_version", "unknown"),
        }
        summary = ResultsSummary.summarize_plan(Path(plan_hdf_path), plan_meta)
        runtime_complete = summary.get("runtime_complete_process_hours", runtime_complete)
        runtime_unsteady = summary.get("runtime_unsteady_compute_hours", runtime_unsteady)
        runtime_source = summary.get("runtime_source", runtime_source)
        volume_error = summary.get("vol_error_percent", volume_error)
        completed = summary.get("completed", completed)
        has_errors = summary.get("has_errors", has_errors)
        has_warnings = summary.get("has_warnings", has_warnings)

    return {
        "runtime_complete_process_hours": runtime_complete,
        "runtime_unsteady_compute_hours": runtime_unsteady,
        "runtime_source": runtime_source,
        "vol_error_percent": volume_error,
        "completed": completed,
        "has_errors": has_errors,
        "has_warnings": has_warnings,
        "plan_hdf_path": str(plan_hdf_path) if plan_hdf_path else None,
    }


def run_benchmark_case(version: str, cores: int, source_project: Path, repeat_index: int = 1) -> dict:
    workspace = prepare_version_workspace(source_project, version)
    ras_obj = init_ras_project(workspace, resolve_ras_exe(version))
    plan_number = str(model_config["plan_number"]).zfill(2)
    plan_row = plan_row_for(ras_obj, plan_number)

    plan_path = RasPlan.get_plan_path(plan_number, ras_object=ras_obj)
    if CLEAR_GEOMPRE_EACH_RUN:
        RasGeo.clear_geompre_files(plan_path, ras_object=ras_obj)

    RasPlan.set_num_cores(plan_number, int(cores), ras_object=ras_obj)
    RasPlan.update_run_flags(plan_number, {"Run HTab": 1}, ras_object=ras_obj)

    start = time.perf_counter()
    success = RasCmdr.compute_plan(
        plan_number,
        ras_object=ras_obj,
        force_rerun=FORCE_RERUN,
    )
    wall_clock_hours = (time.perf_counter() - start) / 3600.0

    metrics = extract_runtime_metrics(ras_obj, plan_number)
    metrics.update(
        {
            "model_key": MODEL_KEY,
            "model_label": model_config["label"],
            "source_project": str(source_project),
            "workspace": str(workspace),
            "version": version,
            "cores": int(cores),
            "repeat": int(repeat_index),
            "success_return": bool(success),
            "plan_number": plan_number,
            "plan_title": plan_row.get("Plan Title"),
            "short_identifier": plan_row.get("Short Identifier"),
            "geometry_number": str(plan_row.get("geometry_number")).zfill(2),
            "geom_file": str(plan_row.get("Geom File")).zfill(2),
            "flow_file": str(plan_row.get("Flow File")).zfill(2),
            "wall_clock_hours": wall_clock_hours,
            "wall_clock_seconds": wall_clock_hours * 3600.0,
        }
    )
    return metrics

Run the Benchmark Sweep¶

The same sweep supplies both outputs we care about:

fixed-core version comparison at FIXED_CORE_COMPARISON
per-version scaling curves across CORE_COUNTS

Python

if not SKIP_BENCHMARK_SWEEP:
    source_project = resolve_source_project(model_config)
    mesh_cells = count_mesh_cells(source_project, model_config["plan_number"], VERSIONS_TO_TEST[-1])

    output_dir = BENCHMARK_ROOT / "outputs" / f"{MODEL_KEY}_{RUN_LABEL}"
    output_dir.mkdir(parents=True, exist_ok=True)

    print(f"Selected model: {model_config['label']}")
    print(f"Source project: {source_project}")
    print(f"Plan: {model_config['plan_number']}")
    print(f"Mesh cells: {mesh_cells:,}" if mesh_cells is not None else "Mesh cells: unavailable")
    print(f"Versions: {VERSIONS_TO_TEST}")
    print(f"Core counts: {CORE_COUNTS}")
    print(f"Output folder: {output_dir}")

    benchmark_rows = []

    for version in VERSIONS_TO_TEST:
        print("")
        print("=" * 80)
        print(f"Version {version} -> {resolve_ras_exe(version)}")
        print("=" * 80)

        for cores in CORE_COUNTS:
            for repeat in range(1, REPEATS + 1):
                print(f"Running version={version}, cores={cores}, repeat={repeat}")
                try:
                    result = run_benchmark_case(version, cores, source_project, repeat)
                    result["mesh_cells"] = mesh_cells
                    result["error_message"] = None
                except Exception as exc:
                    result = {
                        "model_key": MODEL_KEY,
                        "model_label": model_config["label"],
                        "source_project": str(source_project),
                        "workspace": str(version_workspace(version)),
                        "version": version,
                        "cores": int(cores),
                        "repeat": int(repeat),
                        "success_return": False,
                        "plan_number": str(model_config["plan_number"]).zfill(2),
                        "plan_title": None,
                        "short_identifier": None,
                        "geometry_number": None,
                        "geom_file": None,
                        "flow_file": None,
                        "runtime_complete_process_hours": None,
                        "runtime_unsteady_compute_hours": None,
                        "runtime_source": None,
                        "vol_error_percent": None,
                        "completed": False,
                        "has_errors": True,
                        "has_warnings": False,
                        "plan_hdf_path": None,
                        "wall_clock_hours": None,
                        "wall_clock_seconds": None,
                        "mesh_cells": mesh_cells,
                        "error_message": str(exc),
                    }
                    print(f"  FAILED: {exc}")

                benchmark_rows.append(result)

    benchmark_df = (
        pd.DataFrame(benchmark_rows)
        .sort_values(["version", "cores", "repeat"], kind="stable")
        .reset_index(drop=True)
    )

    benchmark_df["execution_time_s"] = benchmark_df["runtime_complete_process_hours"] * 3600.0
    benchmark_df["unsteady_time_s"] = benchmark_df["runtime_unsteady_compute_hours"] * 3600.0
    benchmark_df["overhead_s"] = benchmark_df["execution_time_s"] - benchmark_df["unsteady_time_s"]

    benchmark_csv = output_dir / "benchmark_results.csv"
    benchmark_df.to_csv(benchmark_csv, index=False)
    print(f"Saved raw benchmark results to: {benchmark_csv}")

    display(
        benchmark_df[
            [
                "version",
                "cores",
                "repeat",
                "completed",
                "has_errors",
                "has_warnings",
                "execution_time_s",
                "unsteady_time_s",
                "vol_error_percent",
                "error_message",
            ]
        ]
    )

else:
    print("Skipping benchmark sweep (SKIP_BENCHMARK_SWEEP=True). Set to False for full benchmark.")
    benchmark_df = pd.DataFrame()
    output_dir = BENCHMARK_ROOT / "outputs" / f"{MODEL_KEY}_{RUN_LABEL}"
    output_dir.mkdir(parents=True, exist_ok=True)
    mesh_cells = None

Text Only

2026-06-11 18:13:51 - ras_commander.RasExamples - INFO - Successfully extracted project 'BaldEagleCrkMulti2D' to <workspace-root>\examples\example_projects\BaldEagleCrkMulti2D_701_benchmark_source


2026-06-11 18:13:52 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\example_projects\BaldEagleCrkMulti2D_701_benchmark_source\BaldEagleDamBrk.rasmap


2026-06-11 18:13:52 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 18:13:52 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\example_projects\BaldEagleCrkMulti2D_701_benchmark_source


2026-06-11 18:13:52 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\7.0\Ras.exe


2026-06-11 18:13:52 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


Selected model: Bald Eagle Creek - Plan 02 (official example)
Source project: <workspace-root>\examples\example_projects\BaldEagleCrkMulti2D_701_benchmark_source
Plan: 02
Mesh cells: 89,879
Versions: ['6.0', '6.3.1', '6.6', '7.0']
Core counts: [1, 2, 4]
Output folder: working\benchmark_notebooks\701_version_benchmarking\outputs\bald_eagle_plan02_20260611_181350

================================================================================
Version 6.0 -> <hec-ras-install>\6.0\Ras.exe
================================================================================
Running version=6.0, cores=1, repeat=1


2026-06-11 18:13:52 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.rasmap


2026-06-11 18:13:52 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 18:13:52 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0


2026-06-11 18:13:52 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.0\Ras.exe


2026-06-11 18:13:52 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 18:13:52 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02


2026-06-11 18:13:53 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02


2026-06-11 18:13:53 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 18:13:53 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0


2026-06-11 18:13:53 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 18:13:53 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.0\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02"


2026-06-11 18:13:53 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 18:56:44 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 18:56:44 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 2571.38 seconds


2026-06-11 18:56:44 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Running version=6.0, cores=2, repeat=1


2026-06-11 18:56:45 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.rasmap


2026-06-11 18:56:45 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 18:56:45 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0


2026-06-11 18:56:45 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.0\Ras.exe


2026-06-11 18:56:45 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 18:56:45 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02


2026-06-11 18:56:45 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02


2026-06-11 18:56:45 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 18:56:45 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0


2026-06-11 18:56:45 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 18:56:45 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.0\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02"


2026-06-11 18:56:45 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 19:19:07 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 19:19:07 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 1341.16 seconds


2026-06-11 19:19:07 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Running version=6.0, cores=4, repeat=1


2026-06-11 19:19:07 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.rasmap


2026-06-11 19:19:07 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 19:19:07 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0


2026-06-11 19:19:07 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.0\Ras.exe


2026-06-11 19:19:07 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 19:19:07 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02


2026-06-11 19:19:07 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02


2026-06-11 19:19:08 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 19:19:08 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0


2026-06-11 19:19:08 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 19:19:08 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.0\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_0\BaldEagleDamBrk.p02"


2026-06-11 19:19:08 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 19:36:12 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 19:36:12 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 1024.73 seconds


2026-06-11 19:36:12 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered



================================================================================
Version 6.3.1 -> <hec-ras-install>\6.3.1\Ras.exe
================================================================================
Running version=6.3.1, cores=1, repeat=1


2026-06-11 19:36:13 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.rasmap


2026-06-11 19:36:13 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 19:36:13 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1


2026-06-11 19:36:13 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.3.1\Ras.exe


2026-06-11 19:36:13 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 19:36:13 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02


2026-06-11 19:36:14 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02


2026-06-11 19:36:14 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 19:36:14 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1


2026-06-11 19:36:14 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 19:36:14 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.3.1\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02"


2026-06-11 19:36:14 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 20:07:30 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 20:07:30 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 1876.28 seconds


2026-06-11 20:07:30 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Running version=6.3.1, cores=2, repeat=1


2026-06-11 20:07:31 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.rasmap


2026-06-11 20:07:31 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 20:07:31 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1


2026-06-11 20:07:31 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.3.1\Ras.exe


2026-06-11 20:07:31 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 20:07:31 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02


2026-06-11 20:07:31 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02


2026-06-11 20:07:31 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 20:07:31 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1


2026-06-11 20:07:31 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 20:07:31 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.3.1\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02"


2026-06-11 20:07:31 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 20:24:57 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 20:24:57 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 1045.40 seconds


2026-06-11 20:24:57 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Running version=6.3.1, cores=4, repeat=1


2026-06-11 20:24:57 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.rasmap


2026-06-11 20:24:57 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 20:24:57 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1


2026-06-11 20:24:57 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.3.1\Ras.exe


2026-06-11 20:24:57 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 20:24:57 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02


2026-06-11 20:24:57 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02


2026-06-11 20:24:58 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 20:24:58 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1


2026-06-11 20:24:58 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 20:24:58 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.3.1\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_3_1\BaldEagleDamBrk.p02"


2026-06-11 20:24:58 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 20:38:34 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 20:38:34 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 816.19 seconds


2026-06-11 20:38:34 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered



================================================================================
Version 6.6 -> <hec-ras-install>\6.6\Ras.exe
================================================================================
Running version=6.6, cores=1, repeat=1


2026-06-11 20:38:35 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.rasmap


2026-06-11 20:38:35 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 20:38:35 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6


2026-06-11 20:38:35 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.6\Ras.exe


2026-06-11 20:38:35 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 20:38:35 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02


2026-06-11 20:38:35 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02


2026-06-11 20:38:35 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 20:38:35 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6


2026-06-11 20:38:35 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 20:38:35 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.6\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02"


2026-06-11 20:38:35 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 21:13:48 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 21:13:48 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 2112.18 seconds


2026-06-11 21:13:48 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Running version=6.6, cores=2, repeat=1


2026-06-11 21:13:48 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.rasmap


2026-06-11 21:13:48 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 21:13:48 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6


2026-06-11 21:13:48 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.6\Ras.exe


2026-06-11 21:13:48 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 21:13:48 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02


2026-06-11 21:13:48 - ras_commander.geom.GeomPreprocessor - WARNING - No geometry preprocessor file found for: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02


2026-06-11 21:13:48 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02


2026-06-11 21:13:49 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 21:13:49 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6


2026-06-11 21:13:49 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 21:13:49 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.6\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02"


2026-06-11 21:13:49 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 21:33:39 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 21:33:39 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 1189.77 seconds


2026-06-11 21:33:39 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Running version=6.6, cores=4, repeat=1


2026-06-11 21:33:39 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.rasmap


2026-06-11 21:33:39 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 21:33:39 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6


2026-06-11 21:33:39 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.6\Ras.exe


2026-06-11 21:33:39 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 21:33:39 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02


2026-06-11 21:33:39 - ras_commander.geom.GeomPreprocessor - WARNING - No geometry preprocessor file found for: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02


2026-06-11 21:33:39 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02


2026-06-11 21:33:40 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 21:33:40 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6


2026-06-11 21:33:40 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 21:33:40 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.6\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_6_6\BaldEagleDamBrk.p02"


2026-06-11 21:33:40 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 21:49:50 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 21:49:50 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 970.38 seconds


2026-06-11 21:49:50 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered



================================================================================
Version 7.0 -> <hec-ras-install>\7.0\Ras.exe
================================================================================
Running version=7.0, cores=1, repeat=1


2026-06-11 21:49:51 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.rasmap


2026-06-11 21:49:51 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 21:49:51 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0


2026-06-11 21:49:51 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\7.0\Ras.exe


2026-06-11 21:49:51 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 21:49:51 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02


2026-06-11 21:49:51 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02


2026-06-11 21:49:51 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 21:49:51 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0


2026-06-11 21:49:51 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 21:49:51 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\7.0\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02"


2026-06-11 21:49:51 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 22:53:28 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 22:53:28 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 3816.91 seconds


2026-06-11 22:53:28 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Running version=7.0, cores=2, repeat=1


2026-06-11 22:53:29 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.rasmap


2026-06-11 22:53:29 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 22:53:29 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0


2026-06-11 22:53:29 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\7.0\Ras.exe


2026-06-11 22:53:29 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 22:53:29 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02


2026-06-11 22:53:29 - ras_commander.geom.GeomPreprocessor - WARNING - No geometry preprocessor file found for: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02


2026-06-11 22:53:29 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02


2026-06-11 22:53:29 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 22:53:29 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0


2026-06-11 22:53:29 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 22:53:29 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\7.0\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02"


2026-06-11 22:53:29 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 23:16:53 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 23:16:53 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 1403.76 seconds


2026-06-11 23:16:53 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Running version=7.0, cores=4, repeat=1


2026-06-11 23:16:54 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.rasmap


2026-06-11 23:16:54 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 23:16:54 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0


2026-06-11 23:16:54 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\7.0\Ras.exe


2026-06-11 23:16:54 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


2026-06-11 23:16:54 - ras_commander.geom.GeomPreprocessor - INFO - Clearing geometry preprocessor file for single plan: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02


2026-06-11 23:16:54 - ras_commander.geom.GeomPreprocessor - WARNING - No geometry preprocessor file found for: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02


2026-06-11 23:16:54 - ras_commander.RasUtils - INFO - Successfully updated file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02


2026-06-11 23:16:54 - ras_commander.RasPlan - INFO - Successfully updated run flags in plan file: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02 (flags modified: 1)


2026-06-11 23:16:54 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0


2026-06-11 23:16:54 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 23:16:54 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\7.0\Ras.exe" -c "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.prj" "<workspace-root>\examples\working\benchmark_notebooks\701_version_benchmarking\bald_eagle_plan02\version_7_0\BaldEagleDamBrk.p02"


2026-06-11 23:16:54 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


2026-06-11 23:36:48 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 02


2026-06-11 23:36:48 - ras_commander.RasCmdr - INFO - Total run time for plan 02: 1193.35 seconds


2026-06-11 23:36:48 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Saved raw benchmark results to: working\benchmark_notebooks\701_version_benchmarking\outputs\bald_eagle_plan02_20260611_181350\benchmark_results.csv

	version	cores	repeat	completed	has_errors	has_warnings	execution_time_s	unsteady_time_s	vol_error_percent	error_message
0	6.0	1	1	True	False	False	2566.359	2536.016	0.006358	None
1	6.0	2	1	True	False	False	1339.015	1332.391	0.006348	None
2	6.0	4	1	True	False	False	1022.655	1015.219	0.006356	None
3	6.3.1	1	1	True	False	False	1868.938	1840.719	0.006372	None
4	6.3.1	2	1	True	False	False	1040.798	1013.641	0.006368	None
5	6.3.1	4	1	True	False	False	813.642	811.985	0.006370	None
6	6.6	1	1	True	False	False	2107.047	2076.969	0.007435	None
7	6.6	2	1	True	False	False	1185.313	1154.938	0.007435	None
8	6.6	4	1	True	False	False	968.173	937.985	0.007435	None
9	7.0	1	1	True	False	False	3811.296	3776.453	0.007436	None
10	7.0	2	1	True	False	False	1398.594	1364.031	0.007436	None
11	7.0	4	1	True	False	False	1191.249	1156.750	0.007436	None

Verification and QA/QC¶

Before comparing runtimes, confirm that each case completed cleanly and that the numerical results remain acceptably consistent as versions and core counts change.

Python

if not benchmark_df.empty:
    print("=== Completion Checks ===")
    failed_runs = benchmark_df.loc[~benchmark_df["completed"].fillna(False)]
    if failed_runs.empty:
        print("All benchmark cases completed successfully.")
    else:
        print("Some benchmark cases failed or did not report completion:")
        display(
            failed_runs[
                [
                    "version",
                    "cores",
                    "repeat",
                    "completed",
                    "has_errors",
                    "error_message",
                ]
            ]
        )

    print("\n=== Warning Checks ===")
    warning_runs = benchmark_df.loc[benchmark_df["has_warnings"].fillna(False)]
    if warning_runs.empty:
        print("No warning-bearing cases were reported in results_df.")
    else:
        display(
            warning_runs[
                [
                    "version",
                    "cores",
                    "repeat",
                    "has_warnings",
                    "execution_time_s",
                    "vol_error_percent",
                ]
            ]
        )

    print("\n=== Volume Error Consistency ===")
    volume_df = (
        benchmark_df.dropna(subset=["vol_error_percent"])
        .groupby("version", as_index=False)
        .agg(
            min_vol_error=("vol_error_percent", "min"),
            max_vol_error=("vol_error_percent", "max"),
            mean_vol_error=("vol_error_percent", "mean"),
        )
    )
    if volume_df.empty:
        print("No volume accounting values were available.")
    else:
        volume_df["range_vol_error"] = volume_df["max_vol_error"] - volume_df["min_vol_error"]
        display(volume_df)

else:
    print("No benchmark data available (sweep was skipped).")

Text Only

=== Completion Checks ===
All benchmark cases completed successfully.

=== Warning Checks ===
No warning-bearing cases were reported in results_df.

=== Volume Error Consistency ===

	version	min_vol_error	max_vol_error	mean_vol_error	range_vol_error
0	6.0	0.006348	0.006358	0.006354	1.001032e-05
1	6.3.1	0.006368	0.006372	0.006370	4.901085e-06
2	6.6	0.007435	0.007435	0.007435	6.146729e-08
3	7.0	0.007436	0.007436	0.007436	8.242205e-08

Analysis and Visualization¶

This section aggregates repeats, then produces:

a fixed-core version comparison
total-time scaling curves by version
speedup curves by version
an efficiency plot by version

Python

if not benchmark_df.empty:
    summary_df = (
        benchmark_df.groupby(["version", "cores"], as_index=False)
        .agg(
            execution_time_s=("execution_time_s", "mean"),
            unsteady_time_s=("unsteady_time_s", "mean"),
            overhead_s=("overhead_s", "mean"),
            wall_clock_seconds=("wall_clock_seconds", "mean"),
            vol_error_percent=("vol_error_percent", "mean"),
            completed=("completed", "all"),
            has_errors=("has_errors", "any"),
            has_warnings=("has_warnings", "any"),
            mesh_cells=("mesh_cells", "max"),
        )
        .sort_values(["version", "cores"], kind="stable")
        .reset_index(drop=True)
    )

    baseline_df = summary_df.loc[summary_df["cores"] == min(CORE_COUNTS), ["version", "execution_time_s"]]
    baseline_map = baseline_df.set_index("version")["execution_time_s"].to_dict()

    summary_df["speedup"] = summary_df.apply(
        lambda row: (
            baseline_map[row["version"]] / row["execution_time_s"]
            if pd.notna(row["execution_time_s"]) and row["version"] in baseline_map
            else None
        ),
        axis=1,
    )
    summary_df["efficiency_pct"] = (summary_df["speedup"] / summary_df["cores"]) * 100.0

    fixed_core_df = summary_df.loc[summary_df["cores"] == FIXED_CORE_COMPARISON].copy()
    if fixed_core_df.empty:
        raise ValueError(
            f"No rows found for FIXED_CORE_COMPARISON={FIXED_CORE_COMPARISON}. "
            "Adjust CORE_COUNTS or FIXED_CORE_COMPARISON."
        )

    reference_version = VERSIONS_TO_TEST[0]
    if reference_version in fixed_core_df["version"].tolist():
        reference_runtime = fixed_core_df.loc[
            fixed_core_df["version"] == reference_version, "execution_time_s"
        ].iloc[0]
    else:
        reference_runtime = fixed_core_df["execution_time_s"].iloc[0]

    fixed_core_df["relative_to_reference_pct"] = (
        fixed_core_df["execution_time_s"] / reference_runtime
    ) * 100.0

    summary_csv = output_dir / "benchmark_summary.csv"
    summary_df.to_csv(summary_csv, index=False)

    fig, axes = plt.subplots(2, 2, figsize=(15, 11))

    # Fixed-core version comparison
    ax = axes[0, 0]
    ax.bar(fixed_core_df["version"], fixed_core_df["execution_time_s"], color="steelblue", alpha=0.85)
    ax.set_title(f"Total Runtime by Version at {FIXED_CORE_COMPARISON} Cores")
    ax.set_xlabel("HEC-RAS Version")
    ax.set_ylabel("Total Runtime (seconds)")
    ax.grid(True, alpha=0.3, axis="y")

    # Fixed-core unsteady comparison
    ax = axes[0, 1]
    ax.bar(fixed_core_df["version"], fixed_core_df["unsteady_time_s"], color="seagreen", alpha=0.85)
    ax.set_title(f"Unsteady Runtime by Version at {FIXED_CORE_COMPARISON} Cores")
    ax.set_xlabel("HEC-RAS Version")
    ax.set_ylabel("Unsteady Runtime (seconds)")
    ax.grid(True, alpha=0.3, axis="y")

    # Total runtime scaling
    ax = axes[1, 0]
    for version, group in summary_df.groupby("version"):
        ax.plot(group["cores"], group["execution_time_s"], marker="o", linewidth=2, label=version)
    ax.set_title("Total Runtime Scaling by Version")
    ax.set_xlabel("Cores")
    ax.set_ylabel("Total Runtime (seconds)")
    ax.grid(True, alpha=0.3)
    ax.legend(title="Version")

    # Speedup scaling
    ax = axes[1, 1]
    ideal = sorted(CORE_COUNTS)
    ax.plot(ideal, ideal, linestyle="--", color="black", alpha=0.5, label="Ideal")
    for version, group in summary_df.groupby("version"):
        ax.plot(group["cores"], group["speedup"], marker="o", linewidth=2, label=version)
    ax.set_title("Speedup by Version")
    ax.set_xlabel("Cores")
    ax.set_ylabel(f"Speedup vs {min(CORE_COUNTS)} Core")
    ax.grid(True, alpha=0.3)
    ax.legend(title="Version")

    plt.suptitle(
        f"{model_config['label']} | Version Benchmarking and Core Scaling",
        fontsize=14,
        fontweight="bold",
    )
    plt.tight_layout()
    comparison_plot = output_dir / "version_benchmark_and_scaling.png"
    plt.savefig(comparison_plot, dpi=150, bbox_inches="tight")
    plt.show()

    plt.figure(figsize=(10, 6))
    for version, group in summary_df.groupby("version"):
        plt.plot(group["cores"], group["efficiency_pct"], marker="o", linewidth=2, label=version)
    plt.axhline(100.0, linestyle="--", color="black", alpha=0.5, label="Ideal")
    plt.axhline(70.0, linestyle=":", color="orange", alpha=0.7, label="70%")
    plt.title("Parallel Efficiency by Version")
    plt.xlabel("Cores")
    plt.ylabel("Efficiency (%)")
    plt.grid(True, alpha=0.3)
    plt.legend(title="Version")
    efficiency_plot = output_dir / "version_efficiency.png"
    plt.savefig(efficiency_plot, dpi=150, bbox_inches="tight")
    plt.show()

    print(f"Saved summary table to: {summary_csv}")
    print(f"Saved main figure to:   {comparison_plot}")
    print(f"Saved efficiency plot to: {efficiency_plot}")

    display(summary_df)
    display(fixed_core_df)

else:
    print("Skipping analysis and visualization (no benchmark data).")
    print("Set SKIP_BENCHMARK_SWEEP = False in the Parameters cell to run the full benchmark.")
    summary_df = pd.DataFrame()
    fixed_core_df = pd.DataFrame()

Text Only

2026-06-11 23:36:48 - matplotlib.category - INFO - Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.


2026-06-11 23:36:48 - matplotlib.category - INFO - Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.


2026-06-11 23:36:48 - matplotlib.category - INFO - Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.


2026-06-11 23:36:48 - matplotlib.category - INFO - Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.

png

Text Only

Saved summary table to: working\benchmark_notebooks\701_version_benchmarking\outputs\bald_eagle_plan02_20260611_181350\benchmark_summary.csv
Saved main figure to:   working\benchmark_notebooks\701_version_benchmarking\outputs\bald_eagle_plan02_20260611_181350\version_benchmark_and_scaling.png
Saved efficiency plot to: working\benchmark_notebooks\701_version_benchmarking\outputs\bald_eagle_plan02_20260611_181350\version_efficiency.png

	version	cores	execution_time_s	unsteady_time_s	overhead_s	wall_clock_seconds	vol_error_percent	completed	has_errors	has_warnings	mesh_cells	speedup	efficiency_pct
0	6.0	1	2566.359	2536.016	30.343	2571.676009	0.006358	True	False	False	89879	1.000000	100.000000
1	6.0	2	1339.015	1332.391	6.624	1341.448514	0.006348	True	False	False	89879	1.916602	95.830106
2	6.0	4	1022.655	1015.219	7.436	1025.017588	0.006356	True	False	False	89879	2.509506	62.737653
3	6.3.1	1	1868.938	1840.719	28.219	1876.564873	0.006372	True	False	False	89879	1.000000	100.000000
4	6.3.1	2	1040.798	1013.641	27.157	1045.682615	0.006368	True	False	False	89879	1.795678	89.783897
5	6.3.1	4	813.642	811.985	1.657	816.494583	0.006370	True	False	False	89879	2.297003	57.425071
6	6.6	1	2107.047	2076.969	30.078	2112.474456	0.007435	True	False	False	89879	1.000000	100.000000
7	6.6	2	1185.313	1154.938	30.375	1190.052259	0.007435	True	False	False	89879	1.777629	88.881460
8	6.6	4	968.173	937.985	30.188	970.664391	0.007435	True	False	False	89879	2.176312	54.407812
9	7.0	1	3811.296	3776.453	34.843	3817.193408	0.007436	True	False	False	89879	1.000000	100.000000
10	7.0	2	1398.594	1364.031	34.563	1404.039309	0.007436	True	False	False	89879	2.725091	136.254553
11	7.0	4	1191.249	1156.750	34.499	1193.643541	0.007436	True	False	False	89879	3.199412	79.985293

	version	cores	execution_time_s	unsteady_time_s	overhead_s	wall_clock_seconds	vol_error_percent	completed	has_errors	has_warnings	mesh_cells	speedup	efficiency_pct	relative_to_reference_pct
2	6.0	4	1022.655	1015.219	7.436	1025.017588	0.006356	True	False	False	89879	2.509506	62.737653	100.000000
5	6.3.1	4	813.642	811.985	1.657	816.494583	0.006370	True	False	False	89879	2.297003	57.425071	79.561729
8	6.6	4	968.173	937.985	30.188	970.664391	0.007435	True	False	False	89879	2.176312	54.407812	94.672495
11	7.0	4	1191.249	1156.750	34.499	1193.643541	0.007436	True	False	False	89879	3.199412	79.985293	116.485912

Python

if not fixed_core_df.empty:
    fastest_row = fixed_core_df.sort_values("execution_time_s", kind="stable").iloc[0]

    print("=" * 90)
    print("RECOMMENDED BENCHMARK SETUP")
    print("=" * 90)
    print(f"Selected model key:   {MODEL_KEY}")
    print(f"Selected model:       {model_config['label']}")
    print(f"Plan number:          {str(model_config['plan_number']).zfill(2)}")
    print(f"Approximate cells:    {mesh_cells:,}" if mesh_cells is not None else "Approximate cells:    unavailable")
    print(f"Versions tested:      {', '.join(VERSIONS_TO_TEST)}")
    print(f"Core counts tested:   {CORE_COUNTS}")
    print(f"Fixed-core compare:   {FIXED_CORE_COMPARISON}")
    print("")
    print(f"Fastest version at {FIXED_CORE_COMPARISON} cores: {fastest_row['version']}")
    print(f"Mean total runtime:   {fastest_row['execution_time_s']:.1f} s")
    print(f"Mean unsteady time:   {fastest_row['unsteady_time_s']:.1f} s")
    print("")
    print("Practical recommendation:")
    print("- Use Bald Eagle Plan 02 as the canonical example-notebook benchmark.")
    print("- Use North Galveston only as an optional heavy local stretch case.")
    print("- On Intel hybrid CPUs, keep CORE_COUNTS to p-core counts for fair cross-version comparisons.")
    print("- Avoid 'All Available' as the comparison metric because 7.0 has newer p-core affinity behavior.")
    print("")
    print("Model note:")
    print(model_config["notes"])
    print("")
    print("Outputs written to:")
    print(f"  {output_dir}")

else:
    print("No benchmark results to summarize (sweep was skipped).")

Text Only

==========================================================================================
RECOMMENDED BENCHMARK SETUP
==========================================================================================
Selected model key:   bald_eagle_plan02
Selected model:       Bald Eagle Creek - Plan 02 (official example)
Plan number:          02
Approximate cells:    89,879
Versions tested:      6.0, 6.3.1, 6.6, 7.0
Core counts tested:   [1, 2, 4]
Fixed-core compare:   4

Fastest version at 4 cores: 6.3.1
Mean total runtime:   813.6 s
Mean unsteady time:   812.0 s

Practical recommendation:
- Use Bald Eagle Plan 02 as the canonical example-notebook benchmark.
- Use North Galveston only as an optional heavy local stretch case.
- On Intel hybrid CPUs, keep CORE_COUNTS to p-core counts for fair cross-version comparisons.
- Avoid 'All Available' as the comparison metric because 7.0 has newer p-core affinity behavior.

Model note:
Best portable cross-version case found locally. Plan 02 uses geometry g01 and stays within the classic 2D example set.

Outputs written to:
  working\benchmark_notebooks\701_version_benchmarking\outputs\bald_eagle_plan02_20260611_181350
