Extract Cross Section XYZ Coordinates from Plain Text Geometry¶
This notebook demonstrates how to extract 3D (XYZ) coordinates for cross sections from plain text HEC-RAS geometry files without requiring geometry HDF files or running the model.
Use Cases¶
- Extract cross section data from legacy models (HEC-RAS 4.x, 5.x)
- Get XYZ coordinates without running simulations
- Export cross sections to GIS formats (shapefile, GeoJSON)
- Batch process multiple models for cross section inventory
What You'll Learn¶
- Extract XYZ coordinates using
GeomCrossSection.get_xs_coords() - Filter cross sections by river/reach/station
- Export to GIS formats for visualization
- Extract river centerlines directly from
Reach XY=blocks - Compare plain text vs HDF extraction (when both available)
Setup¶
Python
# Development mode toggle
USE_LOCAL_SOURCE = True
if USE_LOCAL_SOURCE:
import sys
from pathlib import Path
local_path = str(Path.cwd().parent)
if local_path not in sys.path:
sys.path.insert(0, local_path)
print(f"Loading from local source: {local_path}/ras_commander")
from ras_commander import RasExamples, init_ras_project
from ras_commander.geom import GeomCrossSection, GeomParser
import geopandas as gpd
from shapely.geometry import LineString
import matplotlib.pyplot as plt
import pandas as pd
from pathlib import Path
import re
Text Only
Loading from local source: <workspace>/ras_commander
Example 1: Extract All Cross Sections from Muncie Project¶
We'll extract XYZ coordinates for all cross sections in the Muncie example project.
Python
# Extract example project
project_path = RasExamples.extract_project("Muncie", suffix="xs_coords_demo")
print(f"Project extracted to: {project_path}")
# Find geometry file
geom_file = list(project_path.glob("*.g0*"))[0]
print(f"Geometry file: {geom_file.name}")
Text Only
Project extracted to: <workspace>\examples\example_projects\Muncie_xs_coords_demo
Geometry file: Muncie.g01
Python
# Extract XYZ coordinates for all cross sections
xyz = GeomCrossSection.get_xs_coords(geom_file)
print(f"\nExtracted {len(xyz):,} total XYZ points")
print(f"Number of cross sections: {xyz['RS'].nunique()}")
print(f"\nCoordinate ranges:")
print(f" X: {xyz['x'].min():.2f} to {xyz['x'].max():.2f}")
print(f" Y: {xyz['y'].min():.2f} to {xyz['y'].max():.2f}")
print(f" Z: {xyz['z'].min():.2f} to {xyz['z'].max():.2f} ft")
# Show first few points
print(f"\nFirst 5 points:")
xyz.head()
Text Only
Extracted 5,158 total XYZ points
Number of cross sections: 61
Coordinate ranges:
X: 404207.26 to 413662.24
Y: 1799937.56 to 1805711.85
Z: 913.62 to 963.12 ft
First 5 points:
| river | reach | RS | station | x | y | z | |
|---|---|---|---|---|---|---|---|
| 0 | White | Muncie | 15696.24 | 0.00 | 413443.238442 | 1.799938e+06 | 963.04 |
| 1 | White | Muncie | 15696.24 | 27.20 | 413453.953002 | 1.799963e+06 | 963.04 |
| 2 | White | Muncie | 15696.24 | 32.64 | 413456.095914 | 1.799968e+06 | 963.02 |
| 3 | White | Muncie | 15696.24 | 38.08 | 413458.238826 | 1.799973e+06 | 962.85 |
| 4 | White | Muncie | 15696.24 | 43.52 | 413460.381738 | 1.799978e+06 | 962.71 |
Example 2: Filter by River and Reach¶
Extract coordinates for specific river/reach combinations.
Python
# Get unique rivers and reaches
rivers = xyz['river'].unique()
reaches = xyz['reach'].unique()
print(f"Rivers in model: {', '.join(rivers)}")
print(f"Reaches in model: {', '.join(reaches)}")
Text Only
Rivers in model: White
Reaches in model: Muncie
Python
# Extract XYZ for specific river and reach
xyz_filtered = GeomCrossSection.get_xs_coords(
geom_file,
river=rivers[0],
reach=reaches[0]
)
print(f"Filtered to {rivers[0]}/{reaches[0]}:")
print(f" Total points: {len(xyz_filtered):,}")
print(f" Cross sections: {xyz_filtered['RS'].nunique()}")
Text Only
Filtered to White/Muncie:
Total points: 5,158
Cross sections: 61

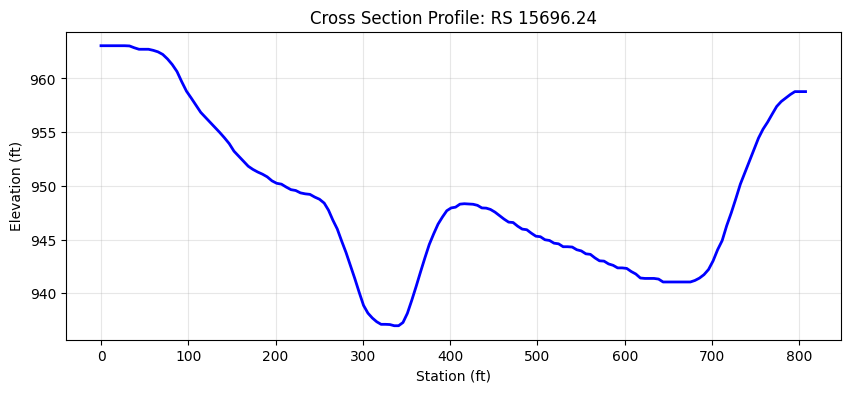

Example 3: Single Cross Section¶
Extract XYZ for a single cross section.
Python
# Get first cross section
first_rs = xyz['RS'].unique()[0]
xyz_single = GeomCrossSection.get_xs_coords(
geom_file,
river=rivers[0],
reach=reaches[0],
rs=first_rs
)
print(f"Cross section RS {first_rs}:")
print(f" Points: {len(xyz_single)}")
print(f" Station range: {xyz_single['station'].min():.2f} to {xyz_single['station'].max():.2f}")
print(f" Elevation range: {xyz_single['z'].min():.2f} to {xyz_single['z'].max():.2f} ft")
# Show profile
plt.figure(figsize=(10, 4))
plt.plot(xyz_single['station'], xyz_single['z'], 'b-', linewidth=2)
plt.xlabel('Station (ft)')
plt.ylabel('Elevation (ft)')
plt.title(f'Cross Section Profile: RS {first_rs}')
plt.grid(True, alpha=0.3)
plt.show()
Text Only
Cross section RS 15696.24:
Points: 134
Station range: 0.00 to 807.07
Elevation range: 936.99 to 963.04 ft
Example 4: Export to Shapefile¶
Convert XYZ coordinates to GIS LineStrings and export to shapefile.
Python
# Convert to LineStrings (one per cross section)
xs_lines = []
for (river, reach, rs), group in xyz.groupby(['river', 'reach', 'RS']):
# Create 3D LineString from XYZ coordinates
coords = list(zip(group['x'], group['y'], group['z']))
xs_lines.append({
'river': river,
'reach': reach,
'RS': rs,
'num_points': len(coords),
'min_elev': group['z'].min(),
'max_elev': group['z'].max(),
'geometry': LineString(coords)
})
gdf = gpd.GeoDataFrame(xs_lines, geometry='geometry')
print(f"Created GeoDataFrame with {len(gdf)} cross sections")
print(f"\nFirst 3 cross sections:")
gdf[['river', 'reach', 'RS', 'num_points', 'min_elev', 'max_elev']].head(3)
Text Only
Created GeoDataFrame with 61 cross sections
First 3 cross sections:
| river | reach | RS | num_points | min_elev | max_elev | |
|---|---|---|---|---|---|---|
| 0 | White | Muncie | 10216.27 | 40 | 932.24 | 946.35 |
| 1 | White | Muncie | 10672.75 | 50 | 931.58 | 946.32 |
| 2 | White | Muncie | 11188.16 | 45 | 932.90 | 946.12 |
Python
# Set coordinate reference system (UTM Zone 16N for Indiana)
gdf_utm = gdf.set_crs(epsg=26916)
# Export to shapefile
output_path = project_path / "cross_sections_xyz.shp"
gdf_utm.to_file(output_path)
print(f"Exported to: {output_path}")
print(f"\nShapefile includes:")
print(f" - 3D LineString geometries (XYZ)")
print(f" - River/Reach/RS attributes")
print(f" - Number of points per XS")
print(f" - Min/max elevation per XS")
Text Only
Exported to: <workspace>\examples\example_projects\Muncie_xs_coords_demo\cross_sections_xyz.shp
Shapefile includes:
- 3D LineString geometries (XYZ)
- River/Reach/RS attributes
- Number of points per XS
- Min/max elevation per XS

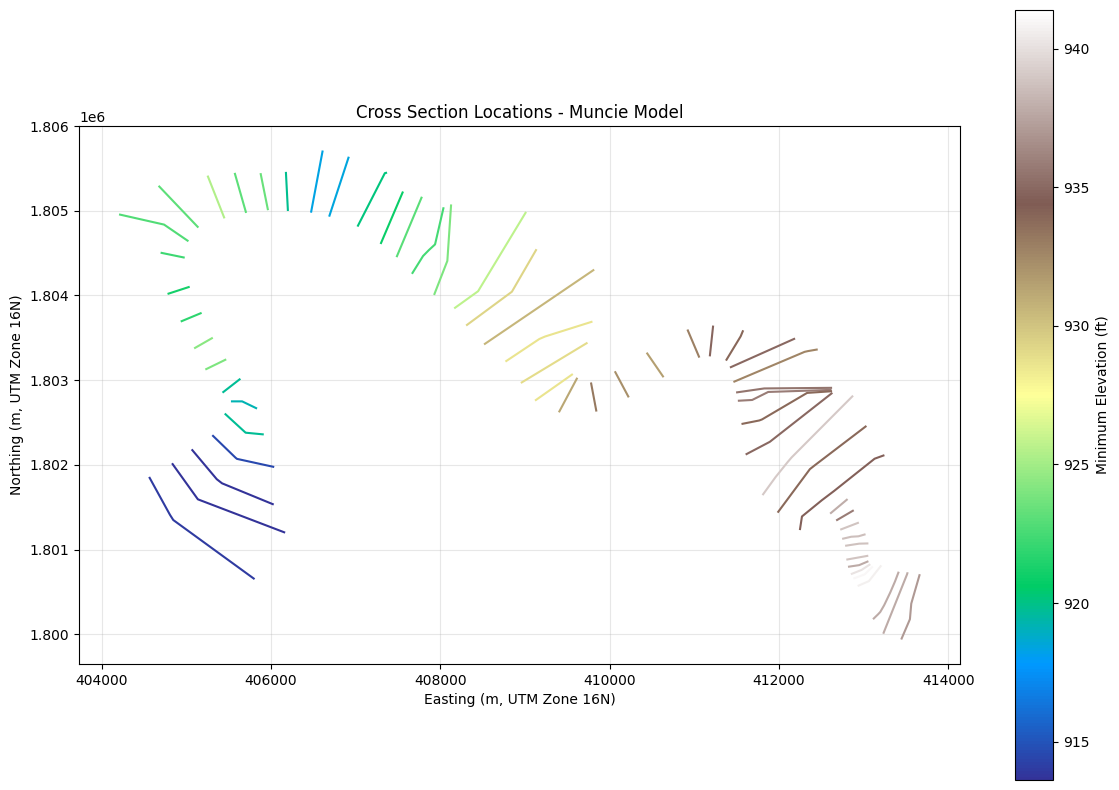

Example 5: Visualize Cross Sections in Plan View¶
Plot cross section locations colored by minimum elevation.
Python
fig, ax = plt.subplots(figsize=(12, 8))
# Plot each cross section colored by min elevation
gdf_utm.plot(ax=ax, column='min_elev', cmap='terrain', legend=True,
legend_kwds={'label': 'Minimum Elevation (ft)'})
plt.xlabel('Easting (m, UTM Zone 16N)')
plt.ylabel('Northing (m, UTM Zone 16N)')
plt.title('Cross Section Locations - Muncie Model')
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

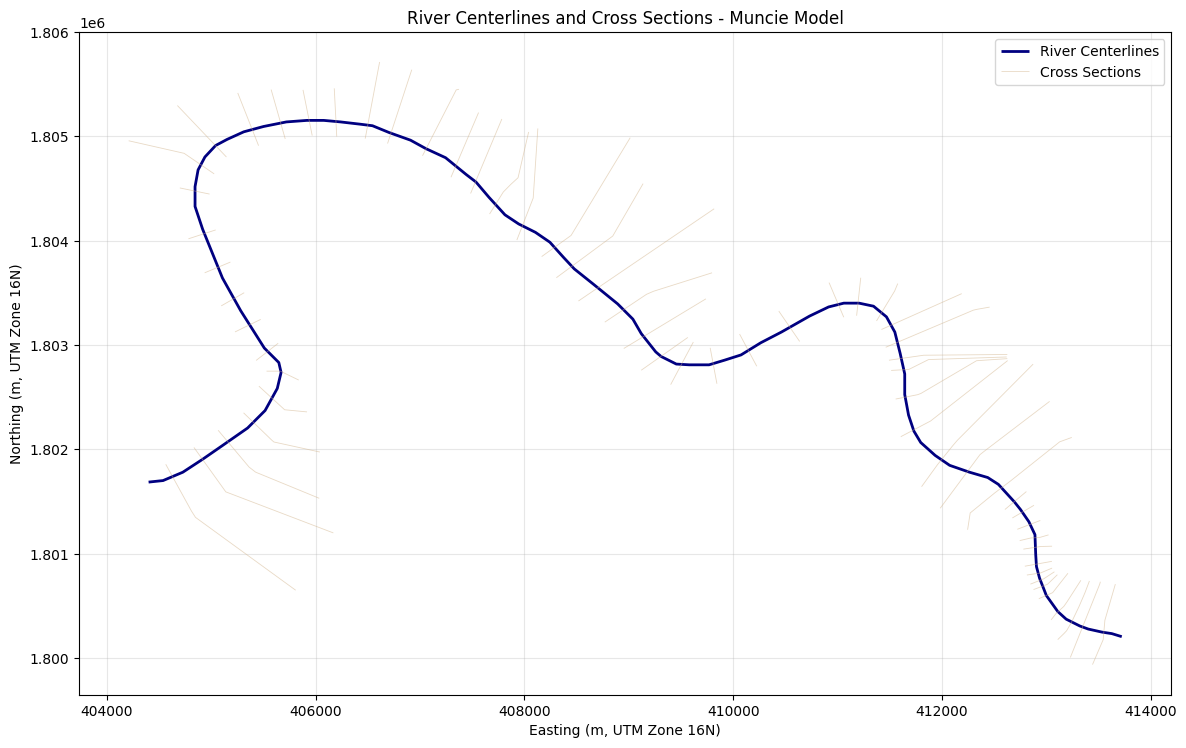

Example 6: Extract River Centerlines from Plain Text Geometry¶
GeomParser.get_river_centerlines() reads Reach XY= blocks directly from the
plain-text geometry file, which is useful for legacy models that do not have
geometry HDF files available.
Python
# Extract river centerlines from the same plain-text geometry
rivers_gdf = GeomParser.get_river_centerlines(geom_file)
rivers_utm = rivers_gdf.set_crs(epsg=26916)
print(f"River centerlines extracted: {len(rivers_utm)}")
if not rivers_utm.empty:
rivers_utm['num_points'] = rivers_utm.geometry.apply(lambda geom: len(geom.coords))
rivers_utm['length_ft'] = rivers_utm.length
display(rivers_utm[['river', 'reach', 'num_points', 'length_ft']].head())
fig, ax = plt.subplots(figsize=(12, 8))
rivers_utm.plot(ax=ax, color='navy', linewidth=2, label='River Centerlines')
gdf_utm.plot(ax=ax, color='tan', linewidth=0.6, alpha=0.5, label='Cross Sections')
plt.xlabel('Easting (m, UTM Zone 16N)')
plt.ylabel('Northing (m, UTM Zone 16N)')
plt.title('River Centerlines and Cross Sections - Muncie Model')
plt.grid(True, alpha=0.3)
plt.legend()
plt.tight_layout()
plt.show()
Text Only
River centerlines extracted: 1
| river | reach | num_points | length_ft | |
|---|---|---|---|---|
| 0 | White | Muncie | 87 | 15873.299297 |
Regression Validation: Plain-Text Geometry Parsing Edge Cases¶
These cells validate recent fixes in the plain-text geometry parser for both
XS GIS Cut Line= and Reach XY= sections. HEC-RAS geometry files use
16-character fixed-width FORTRAN formatting, and large coordinate values can
fill the full field width so adjacent values concatenate without whitespace.
What we test:
1. Multi-project completeness for cross-section cut lines
2. Synthetic cut-line stress test with concatenated 16-char fields
3. Synthetic legacy Reach XY centerline parsing with Rch Text X Y= markers
4. Dynamic section-search regression for station-elevation lookup
5. Summary across all tested scenarios
Python
# Validation 1: Multi-project cut line completeness
# Verify ALL XS with GIS Cut Lines produce correct coordinates across multiple projects
test_projects = {
'Muncie': geom_file, # Already extracted above
}
# Extract Bald Eagle Creek (1D version, 178 XS)
bec_path = RasExamples.extract_project("Balde Eagle Creek", suffix="205_validation")
bec_geoms = list(bec_path.glob("*.g0*"))
if bec_geoms:
test_projects['Balde Eagle Creek'] = bec_geoms[0]
print(f"Bald Eagle Creek geometry: {bec_geoms[0].name}")
total_tested = 0
total_passed = 0
for proj_name, gf in test_projects.items():
geom_text = gf.read_text()
geom_lines_list = geom_text.splitlines()
# Count declared cut lines from geometry file
expected = {}
current_station = None
for line in geom_lines_list:
s = line.strip()
if s.startswith('Type RM Length L Ch R'):
parts = s.split('=')[1].strip().split(',')
if len(parts) >= 2:
current_station = parts[1].strip()
elif s.startswith('XS GIS Cut Line=') and current_station:
expected[current_station] = int(s.split('=')[1])
# Parse with GeomParser
cut_lines_gdf = GeomParser.get_xs_cut_lines(gf)
# Check completeness
parsed_stations = set(cut_lines_gdf['station'].astype(str))
expected_stations = set(expected.keys())
missing = expected_stations - parsed_stations
# Check point counts
mismatches = []
for _, row in cut_lines_gdf.iterrows():
station = str(row['station'])
actual_pts = len(row['geometry'].coords)
expected_pts = expected.get(station)
if expected_pts and actual_pts != expected_pts:
mismatches.append(f" RS {station}: expected {expected_pts}, got {actual_pts}")
max_pts = max(expected.values()) if expected else 0
status = "PASS" if (not missing and not mismatches) else "FAIL"
total_tested += len(expected)
total_passed += len(expected) - len(missing) - len(mismatches)
print(f"\n{proj_name}: {status}")
print(f" XS with cut lines: {len(expected)}")
print(f" Max cut line points: {max_pts}")
print(f" Missing from parse: {len(missing)}")
print(f" Point count mismatches: {len(mismatches)}")
if missing:
for station in sorted(missing):
print(f" MISSING: RS {station} ({expected[station]} points)")
if mismatches:
for m in mismatches[:5]:
print(m)
assert len(missing) == 0, f"{proj_name}: {len(missing)} XS dropped during parsing"
assert len(mismatches) == 0, f"{proj_name}: {len(mismatches)} point count mismatches"
print(f"\nMulti-project validation: {total_passed}/{total_tested} cut lines PASSED")
Text Only
Bald Eagle Creek geometry: BaldEagle.g01
Muncie: PASS
XS with cut lines: 61
Max cut line points: 6
Missing from parse: 0
Point count mismatches: 0
Balde Eagle Creek: PASS
XS with cut lines: 178
Max cut line points: 5
Missing from parse: 0
Point count mismatches: 0
Multi-project validation: 239/239 cut lines PASSED
Python
# Validation 2: Synthetic stress test with 150 cut line points
# This exercises the ACTUAL BUG: 16-char fixed-width field overflow causes
# adjacent coordinate values to concatenate without whitespace separators.
#
# Example of the bug trigger (16-char columns, no whitespace between values):
# "3101220.584826113779229.7976261" = two values concatenated
# vs normal: " 3101220.5848 13779229.7976" = same values with whitespace
#
# The hybrid parser must detect and correctly split these concatenated values.
import tempfile
import numpy as np
NUM_POINTS = 150 # Well above the 84-point threshold that triggered the original bug
# Generate coordinates that FILL all 16 characters (causes concatenation)
# Use realistic UTM-scale coordinates (7-digit easting, 8-digit northing)
np.random.seed(42)
base_x = 3101220.0 # Large easting (fills 16 chars with decimals)
base_y = 13779229.0 # Large northing (fills 16 chars with decimals)
xs = base_x + np.cumsum(np.random.uniform(0.5, 2.0, NUM_POINTS))
ys = base_y + np.cumsum(np.random.uniform(-1.0, 1.0, NUM_POINTS))
# Format as 16-char fixed-width (FORTRAN style) - values will concatenate
total_values = NUM_POINTS * 2
data_lines = []
vals = []
for i in range(NUM_POINTS):
vals.append(f"{xs[i]:16.7f}") # Fills all 16 chars
vals.append(f"{ys[i]:16.7f}") # Fills all 16 chars
# Pack 10 values per line (standard HEC-RAS format)
for i in range(0, len(vals), 10):
chunk = vals[i:i+10]
data_lines.append("".join(chunk)) # No whitespace between values!
# Build minimal geometry file with this cut line
synthetic_geom = f"""Geom Title=Synthetic Test
Program Version=6.50
River Reach=TestRiver ,TestReach
Reach XY= 2
0.00 0.00
10000.00 0.00
Type RM Length L Ch R = 1 ,5000.000, 0.0, 0.0, 0.0
Node Last Edited Time=Jan/01/2025 00:00:00
#Sta/Elev= 3
0.0 100.0 500.0 100.0 1000.0 100.0
#Mann= 2 , 0 , 0
0 .04 0 0 500 .04 0 0
Bank Sta=0,1000
XS GIS Cut Line={NUM_POINTS}
"""
synthetic_geom += "\n".join(data_lines) + "\n"
# Write to temp file
with tempfile.NamedTemporaryFile(mode='w', suffix='.g01', delete=False, dir=str(project_path)) as f:
f.write(synthetic_geom)
synthetic_file = Path(f.name)
print(f"Created synthetic geometry: {synthetic_file.name}")
print(f" Cut line points: {NUM_POINTS}")
print(f" Total coordinate values: {total_values}")
print(f" Data lines: {len(data_lines)}")
# Show first data line to demonstrate concatenation
print(f"\n First data line (note: NO whitespace between 16-char values):")
print(f" '{data_lines[0][:80]}...'")
# Parse with GeomParser
try:
result_gdf = GeomParser.get_xs_cut_lines(synthetic_file)
if len(result_gdf) == 0:
print("\nFAIL: No cut lines parsed from synthetic file")
assert False, "Synthetic cut line not parsed"
parsed_points = len(result_gdf.iloc[0]['geometry'].coords)
print(f"\n Parsed points: {parsed_points}")
print(f" Expected points: {NUM_POINTS}")
if parsed_points == NUM_POINTS:
# Verify coordinate accuracy
parsed_coords = list(result_gdf.iloc[0]['geometry'].coords)
max_x_error = max(abs(parsed_coords[i][0] - xs[i]) for i in range(NUM_POINTS))
max_y_error = max(abs(parsed_coords[i][1] - ys[i]) for i in range(NUM_POINTS))
print(f" Max X error: {max_x_error:.10f}")
print(f" Max Y error: {max_y_error:.10f}")
print(f"\nPASS: All {NUM_POINTS} cut line points parsed correctly from concatenated 16-char format")
else:
print(f"\nFAIL: Expected {NUM_POINTS} points, got {parsed_points}")
assert False, f"Point count mismatch: {parsed_points} != {NUM_POINTS}"
assert parsed_points == NUM_POINTS, f"Parsed {parsed_points} points, expected {NUM_POINTS}"
assert max_x_error < 1e-4, f"X coordinate error too large: {max_x_error}"
assert max_y_error < 1e-4, f"Y coordinate error too large: {max_y_error}"
finally:
# Clean up synthetic file
synthetic_file.unlink(missing_ok=True)
Text Only
Created synthetic geometry: tmpn77bu4xo.g01
Cut line points: 150
Total coordinate values: 300
Data lines: 30
First data line (note: NO whitespace between 16-char values):
' 3101221.061810213779229.8165318 3101222.987881613779229.2956556 3101224.5858726...'
Parsed points: 150
Expected points: 150
Max X error: 0.0000000498
Max Y error: 0.0000000484
PASS: All 150 cut line points parsed correctly from concatenated 16-char format
Regression Validation 3: Legacy Reach XY Centerline Parsing¶
This test reproduces the fixed-width legacy Reach XY= format where adjacent
16-character coordinate fields can concatenate without whitespace. It also
verifies that parsing stops before Rch Text X Y= and Reverse River Text=
metadata lines.
Python
# Validation 3: Synthetic legacy Reach XY regression test
import tempfile
NUM_CENTERLINE_POINTS = 79
np.random.seed(123)
centerline_x = 3082670.0 + np.cumsum(np.random.uniform(5.0, 40.0, NUM_CENTERLINE_POINTS))
centerline_y = 13909710.0 + np.cumsum(np.random.uniform(-12.0, 12.0, NUM_CENTERLINE_POINTS))
centerline_vals = []
for i in range(NUM_CENTERLINE_POINTS):
centerline_vals.append(f"{centerline_x[i]:16.7f}")
centerline_vals.append(f"{centerline_y[i]:16.7f}")
centerline_data_lines = []
for i in range(0, len(centerline_vals), 4):
chunk = centerline_vals[i:i+4]
centerline_data_lines.append(''.join(chunk))
legacy_centerline_geom = f"""Geom Title=Centerline Regression Test
Program Version=6.50
River Reach=LegacyRiver ,LegacyReach
Reach XY= {NUM_CENTERLINE_POINTS}
"""
legacy_centerline_geom += '\n'.join(centerline_data_lines) + '\n'
legacy_centerline_geom += f"""Rch Text X Y={centerline_x[0]:.7f},{centerline_y[0]:.7f}
Reverse River Text= 0
Type RM Length L Ch R = 1 ,5000.000, 0.0, 0.0, 0.0
#Sta/Elev= 3
0.0 100.0 500.0 100.0 1000.0 100.0
"""
with tempfile.NamedTemporaryFile(mode='w', suffix='.g01', delete=False, dir=str(project_path)) as f:
f.write(legacy_centerline_geom)
legacy_centerline_file = Path(f.name)
try:
legacy_rivers = GeomParser.get_river_centerlines(legacy_centerline_file)
assert len(legacy_rivers) == 1, f"Expected 1 centerline, got {len(legacy_rivers)}"
legacy_coords = list(legacy_rivers.iloc[0].geometry.coords)
assert len(legacy_coords) == NUM_CENTERLINE_POINTS, (
f"Expected {NUM_CENTERLINE_POINTS} points, got {len(legacy_coords)}"
)
assert abs(legacy_coords[0][0] - centerline_x[0]) < 1e-4
assert abs(legacy_coords[0][1] - centerline_y[0]) < 1e-4
assert abs(legacy_coords[-1][0] - centerline_x[-1]) < 1e-4
assert abs(legacy_coords[-1][1] - centerline_y[-1]) < 1e-4
print(f"[OK] Legacy Reach XY parsed: {len(legacy_coords)} points")
print(f" First point: ({legacy_coords[0][0]:.4f}, {legacy_coords[0][1]:.4f})")
print(f" Last point: ({legacy_coords[-1][0]:.4f}, {legacy_coords[-1][1]:.4f})")
finally:
legacy_centerline_file.unlink(missing_ok=True)
Text Only
[OK] Legacy Reach XY parsed: 79 points
First point: (3082699.3764, 13909714.6927)
Last point: (3084443.4599, 13909737.4426)
Regression Validation 4: Dynamic Section Search for Station-Elevation Lookup¶
When a cross section has many GIS cut line points, the data between the XS header
(Type RM Length L Ch R =) and #Sta/Elev= can span hundreds of lines.
Bug history:
- DEFAULT_SEARCH_RANGE was 50 lines, then increased to 500
- Now replaced with dynamic _find_xs_section_end() that searches to the end of
the current XS section regardless of length
This test uses 600 cut line points (producing ~300 data lines) to prove there is no fixed limit on the search range.
Python
# Validation 4: Dynamic section search regression test
# Verify get_station_elevation() can find #Sta/Elev= past large cut line data blocks
#
# Previously DEFAULT_SEARCH_RANGE was 50 (then 500), now replaced with dynamic
# _find_xs_section_end() that has no fixed limit. This test uses 600 cut line
# points to prove the parser handles arbitrarily large cut line sections.
import tempfile
NUM_SEARCH_TEST_POINTS = 600 # Well beyond any fixed limit (proves dynamic search)
# Generate cut line coordinate values
np.random.seed(99)
search_xs = 3101220.0 + np.cumsum(np.random.uniform(0.5, 2.0, NUM_SEARCH_TEST_POINTS))
search_ys = 13779229.0 + np.cumsum(np.random.uniform(-1.0, 1.0, NUM_SEARCH_TEST_POINTS))
# Format as 16-char fixed-width, 10 values per line
search_vals = []
for i in range(NUM_SEARCH_TEST_POINTS):
search_vals.append(f"{search_xs[i]:16.7f}")
search_vals.append(f"{search_ys[i]:16.7f}")
search_data_lines = []
for i in range(0, len(search_vals), 10):
chunk = search_vals[i:i+10]
search_data_lines.append("".join(chunk))
num_cut_data_lines = len(search_data_lines)
print(f"Cut line: {NUM_SEARCH_TEST_POINTS} points -> {num_cut_data_lines} data lines")
print(f"Old DEFAULT_SEARCH_RANGE was 50 (then 500) -> both would MISS #Sta/Elev=")
print(f"Dynamic _find_xs_section_end() searches to end of XS section -> no limit")
# Build geometry with cut line data BEFORE #Sta/Elev= (realistic structure)
search_geom = f"""Geom Title=Search Range Regression Test
Program Version=6.50
River Reach=TestRiver ,TestReach
Reach XY= 2
0.00 0.00
10000.00 0.00
Type RM Length L Ch R = 1 ,5000.000, 0.0, 0.0, 0.0
Node Last Edited Time=Jan/01/2025 00:00:00
Bank Sta=0,1000
XS GIS Cut Line={NUM_SEARCH_TEST_POINTS}
"""
search_geom += "\n".join(search_data_lines) + "\n"
search_geom += """Node Name=
Dist XS Type=
#Sta/Elev= 5
0.00 100.00 250.00 95.00 500.00 90.00 750.00 95.00 1000.00 100.00
#Mann= 2 , 0 , 0
0 .04 0 0 500 .04 0 0
"""
with tempfile.NamedTemporaryFile(mode='w', suffix='.g01', delete=False, dir=str(project_path)) as f:
f.write(search_geom)
search_test_file = Path(f.name)
try:
# This is the critical test: can get_station_elevation() find #Sta/Elev=
# past all the cut line data?
sta_elev_df = GeomCrossSection.get_station_elevation(
search_test_file, "TestRiver", "TestReach", "5000.000"
)
assert sta_elev_df is not None, \
"get_station_elevation() returned None -- dynamic section search failed!"
assert len(sta_elev_df) == 5, \
f"Expected 5 station-elevation pairs, got {len(sta_elev_df)}"
# Verify values are correct
assert abs(sta_elev_df.iloc[0]['Station'] - 0.0) < 0.01
assert abs(sta_elev_df.iloc[0]['Elevation'] - 100.0) < 0.01
assert abs(sta_elev_df.iloc[2]['Station'] - 500.0) < 0.01
assert abs(sta_elev_df.iloc[2]['Elevation'] - 90.0) < 0.01
print(f"[OK] Dynamic search found #Sta/Elev= past {NUM_SEARCH_TEST_POINTS} cut line points")
print(f" Station-elevation pairs: {len(sta_elev_df)}")
search_range_passed = True
finally:
search_test_file.unlink(missing_ok=True)
Text Only
Cut line: 600 points -> 120 data lines
Old DEFAULT_SEARCH_RANGE was 50 (then 500) -> both would MISS #Sta/Elev=
Dynamic _find_xs_section_end() searches to end of XS section -> no limit
[OK] Dynamic search found #Sta/Elev= past 600 cut line points
Station-elevation pairs: 5
Python
# Validation Summary
print("=" * 60)
print("REGRESSION VALIDATION SUMMARY")
print("=" * 60)
print()
print("Validation 1: Multi-project cut line completeness")
print(f" Projects tested: {', '.join(test_projects.keys())}")
print(f" Total cut lines: {total_tested}")
print(f" All passed: {total_passed}/{total_tested}")
print()
print("Validation 2: Synthetic 150-point stress test (cut line parsing)")
print(f" Cut line points: {NUM_POINTS}")
print(f" 16-char field overflow: verified (concatenated values)")
print(f" Coordinate accuracy: < 1e-4")
print()
print("Validation 3: Legacy Reach XY centerline parsing")
print(f" Centerline points: {NUM_CENTERLINE_POINTS}")
print(f" Fixed-width Reach XY parsing: PASS")
print()
print("Validation 4: Dynamic section search (station-elevation lookup)")
print(f" Cut line points before #Sta/Elev=: {NUM_SEARCH_TEST_POINTS}")
print(f" Cut line data lines: {num_cut_data_lines} (old fixed limits: 50, then 500)")
print(f" Dynamic _find_xs_section_end(): {'PASS' if search_range_passed else 'FAIL'}")
print()
print("All regression validations PASSED")
Text Only
============================================================
REGRESSION VALIDATION SUMMARY
============================================================
Validation 1: Multi-project cut line completeness
Projects tested: Muncie, Balde Eagle Creek
Total cut lines: 239
All passed: 239/239
Validation 2: Synthetic 150-point stress test (cut line parsing)
Cut line points: 150
16-char field overflow: verified (concatenated values)
Coordinate accuracy: < 1e-4
Validation 3: Legacy Reach XY centerline parsing
Centerline points: 79
Fixed-width Reach XY parsing: PASS
Validation 4: Dynamic section search (station-elevation lookup)
Cut line points before #Sta/Elev=: 600
Cut line data lines: 120 (old fixed limits: 50, then 500)
Dynamic _find_xs_section_end(): PASS
All regression validations PASSED
Example 7: Batch Processing Multiple Models¶
Extract XYZ from multiple geometry files.
Python
# Example: Process multiple geometry files
# (In this demo we'll just use different extractions of the same project)
models = [
{'name': 'Muncie_Model1', 'project': 'Muncie'},
{'name': 'Muncie_Model2', 'project': 'Muncie'},
]
all_xyz = []
for model in models:
# Extract project
path = RasExamples.extract_project(model['project'], suffix=model['name'])
geom = list(path.glob("*.g0*"))[0]
# Extract XYZ
xyz_model = GeomCrossSection.get_xs_coords(geom)
xyz_model['model_name'] = model['name']
all_xyz.append(xyz_model)
print(f"{model['name']:20s}: {len(xyz_model):5,} points, {xyz_model['RS'].nunique():3d} XS")
# Combine all models
combined = pd.concat(all_xyz, ignore_index=True)
print(f"\nTotal: {len(combined):,} points from {combined['model_name'].nunique()} models")
Text Only
Muncie_Model1 : 5,158 points, 61 XS
Muncie_Model2 : 5,158 points, 61 XS
Total: 10,316 points from 2 models
