Benefit-area mapping for storm-system alternatives¶
This example computes a baseline and three proposed conditions with HEC-RAS 7.0:
- a four-conduit capacity upgrade selected from baseline flow, velocity, connectivity, and node-depth diagnostics; and

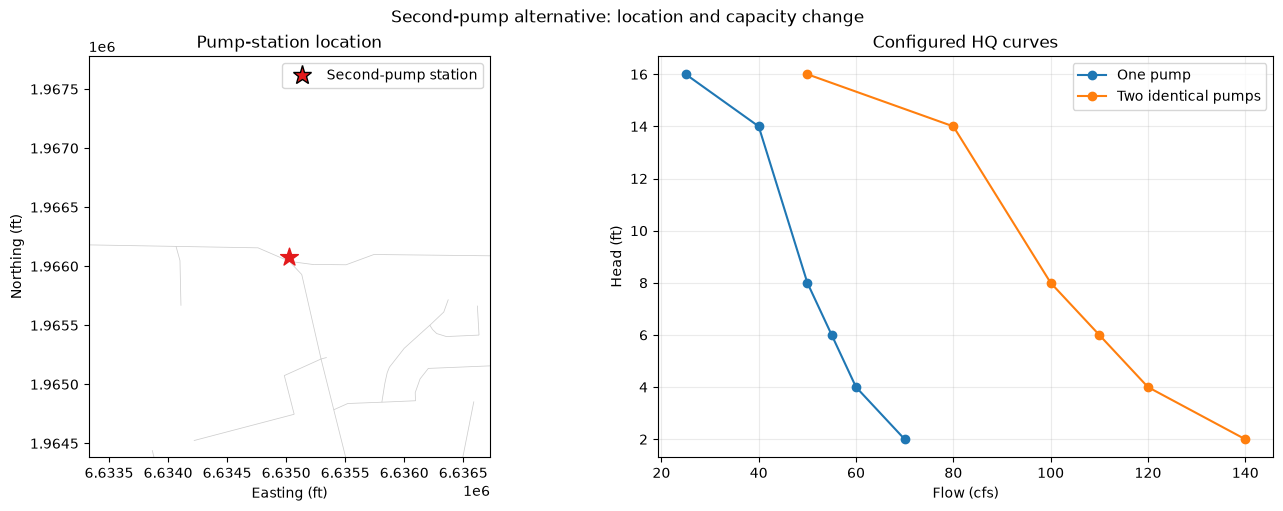

- a second identical pump represented by doubling the pump-group HQ-curve flow ordinates; and

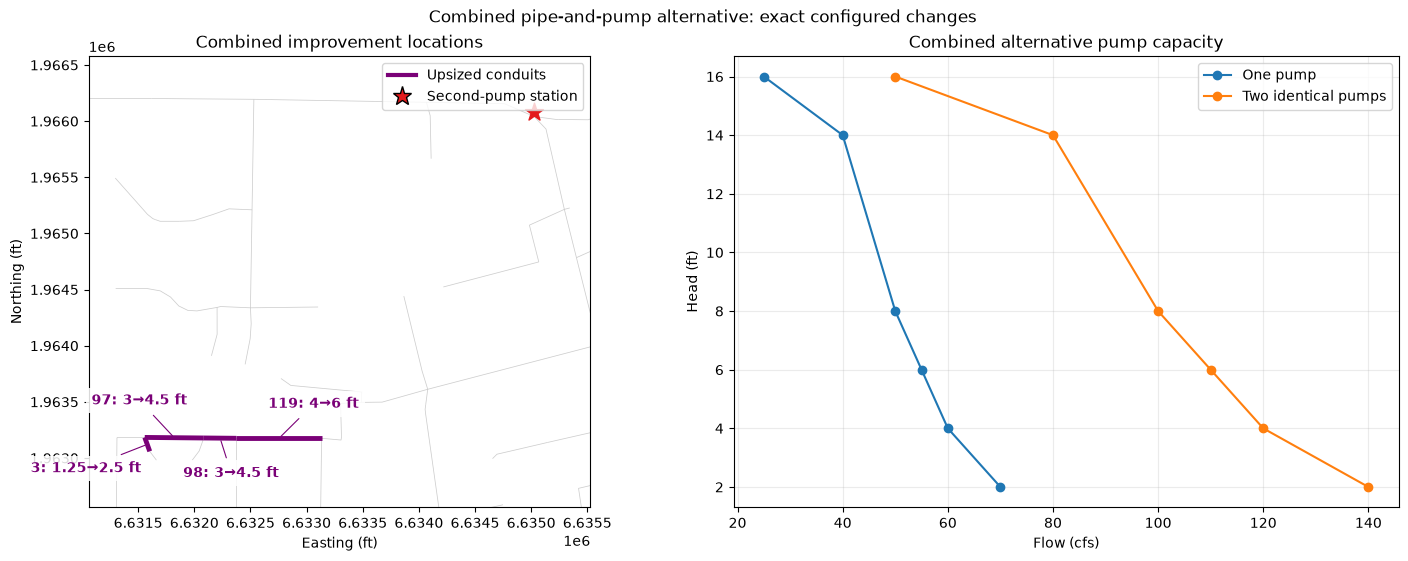

- the conduit and pump upgrades applied together.

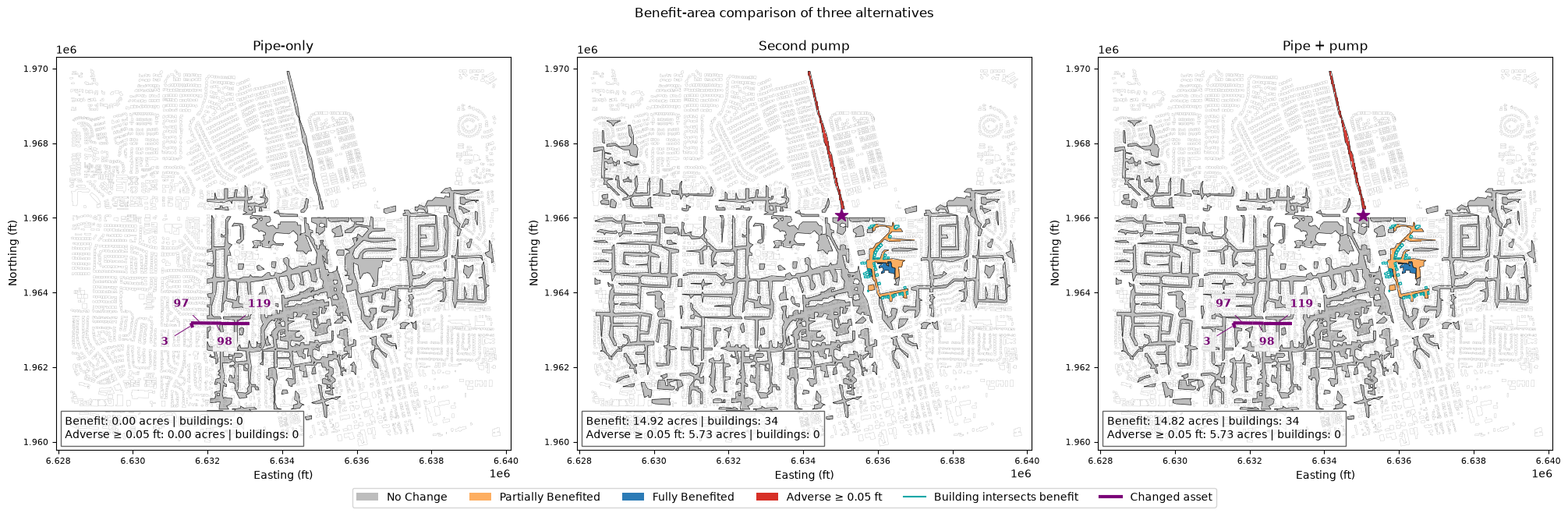

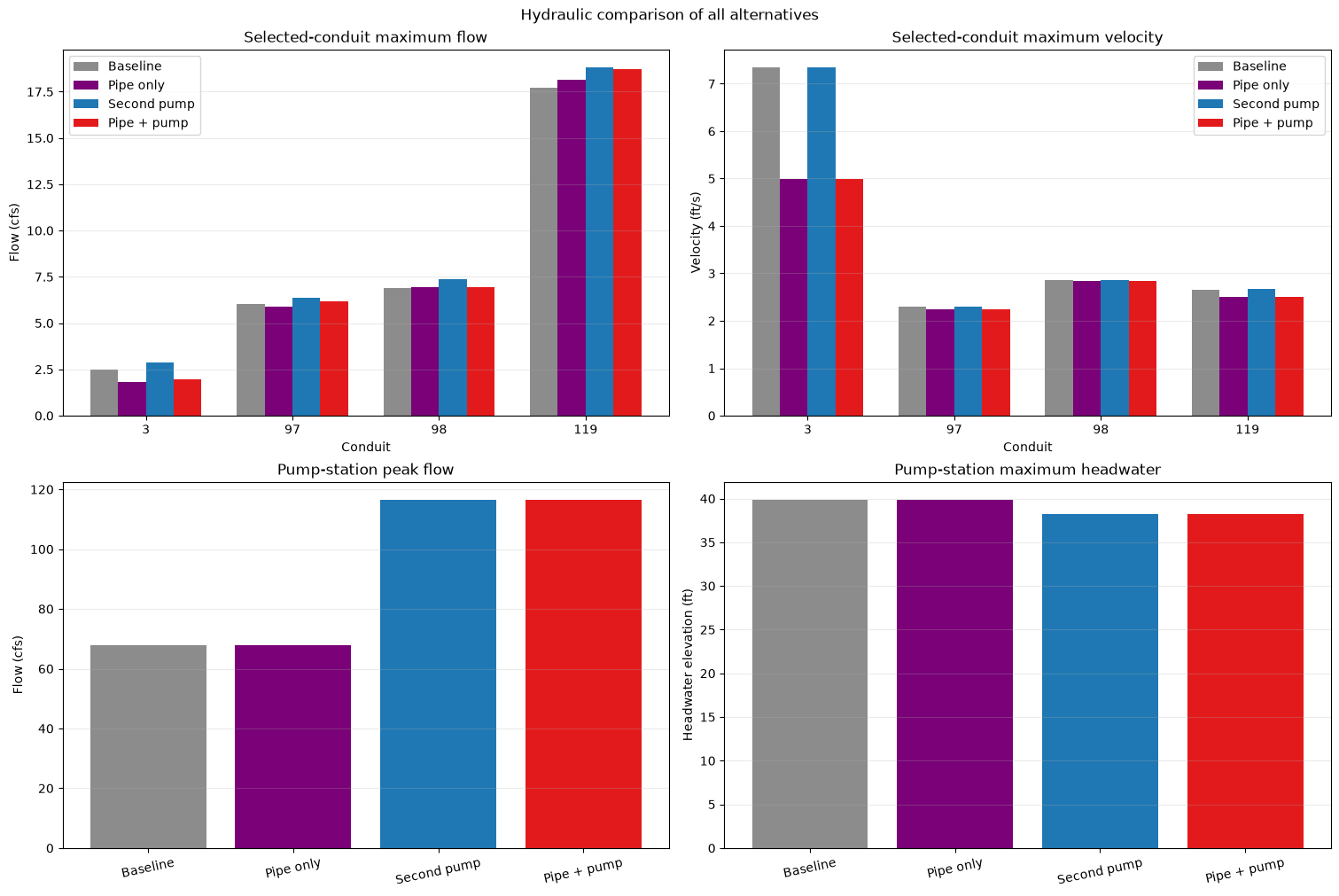

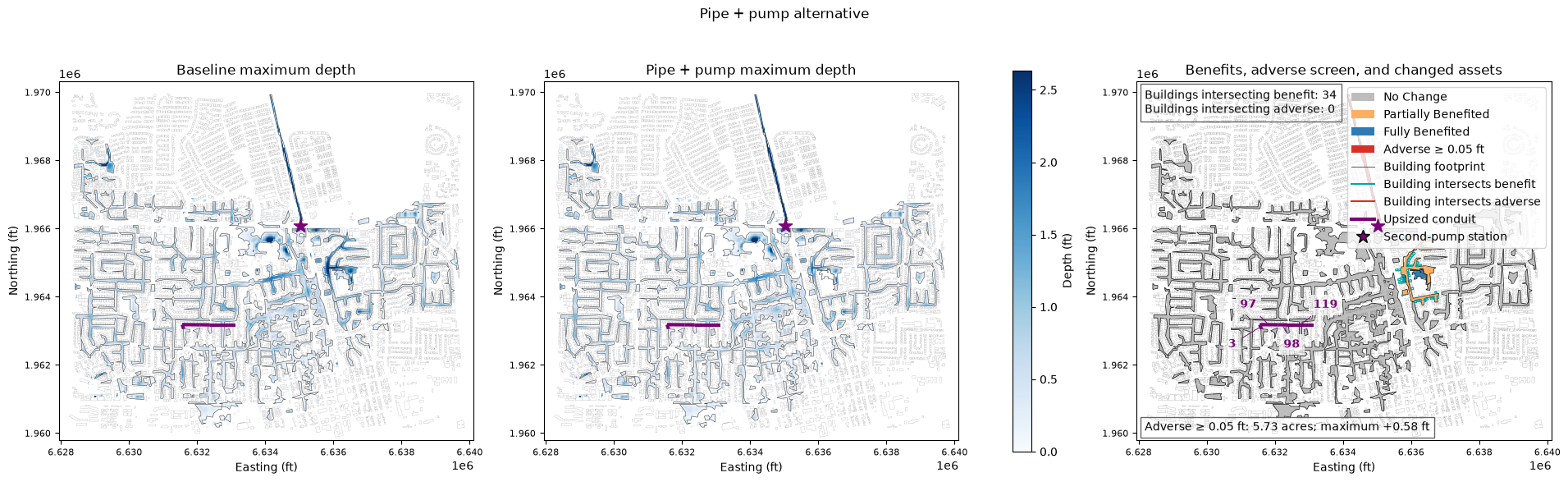

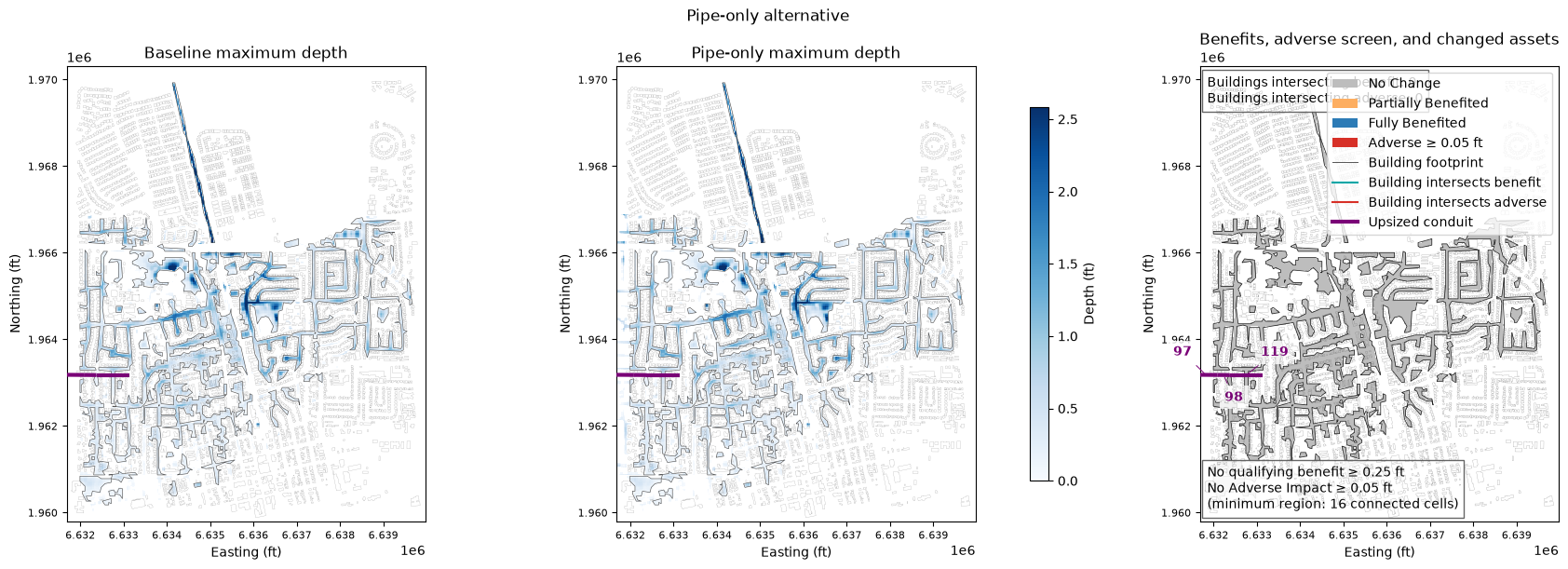

Each alternative receives its own hydraulic comparison, BenefitArea raster and optional simplified polygon, adverse-depth screen, and building-footprint overlay. A final common-scale figure compares all three alternatives directly. Depth is the default mapping input; WSE generation is optional because it adds processing time.
Workflow and configuration¶
The workflow requires a registered, georeferenced, one-band terrain GeoTIFF shared by all plans. If a consolidated terrain must be created or registered, use RasTerrain.vrt_to_tiff(), RasTerrain.create_terrain_from_rasters() or RasTerrain.create_terrain_hdf(), followed by RasMap.add_terrain_layer() and RasMap.associate_geometry_layers().
Delete working/612_benefit_area_analysis to force a clean end-to-end extraction and hydraulic rerun. Otherwise, extraction and completed HEC-RAS results are reused while the analysis and figures are regenerated.
Python
from pathlib import Path
import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import rasterio
from matplotlib.colors import BoundaryNorm, ListedColormap
from matplotlib.lines import Line2D
from matplotlib.patches import Patch
from IPython.display import display
from rasterio.features import shapes
from shapely.geometry import shape
from ras_commander import (
BenefitAreaConfig,
GeomPipeNetwork,
HdfPipe,
HdfPump,
HdfResultsPlan,
RasBenefits,
RasCmdr,
RasExamples,
RasGeo,
RasPlan,
RasProcess,
init_ras_project,
ras,
)
REPO_ROOT = Path.cwd().resolve()
if REPO_ROOT.name == "examples":
REPO_ROOT = REPO_ROOT.parent
WORK_ROOT = REPO_ROOT / "working" / "612_benefit_area_analysis"
PROJECT_SUFFIX = "612_benefit_area"
PROJECT_DIR = WORK_ROOT / f"Davis_{PROJECT_SUFFIX}"
PROJECT_FILE = PROJECT_DIR / "DavisStormSystem.prj"
BUILDING_PMTILES = REPO_ROOT / "examples" / "data" / "davis_building_footprints.pmtiles"
BUILDING_PARQUET = REPO_ROOT / "examples" / "data" / "davis_building_footprints.parquet"
RAS_VERSION = "7.0"
NUM_CORES = 4
BASELINE_PLAN = "02"
BASELINE_GEOMETRY = "02"
PIPE_PLAN = "01"
PIPE_GEOMETRY = "01"
PUMP_PLAN = "03"
PUMP_GEOMETRY = "03"
COMBINED_PLAN = "04"
COMBINED_GEOMETRY = "04"
PIPE_OUTPUT_DIR = Path("BenefitArea") / "p02-to-p01-pipe-upgrade"
PUMP_OUTPUT_DIR = Path("BenefitArea") / "p02-to-p03-second-pump"
COMBINED_OUTPUT_DIR = Path("BenefitArea") / "p02-to-p04-pipe-and-pump-upgrade"
INCLUDE_WSE = False
MINIMUM_REGION_PIXELS = 16
SIMPLIFY_POLYGON_EDGES = True
FLOOD_MIN_DEPTH_FT = 0.05
BENEFIT_MIN_DEPTH_FT = 0.25
ADVERSE_IMPACT_THRESHOLD_FT = 0.05
SELECTED_CONDUITS = ["3", "97", "98", "119"]
CONDUIT_TARGETS = {
"3": (2.5, 2.5),
"97": (4.5, 4.5),
"98": (4.5, 4.5),
"119": (6.0, 6.0),
}
PUMP_GROUP_NAME = "Pump Station #1"
WORK_ROOT.mkdir(parents=True, exist_ok=True)
print(f"Working folder: {WORK_ROOT}")
Text Only
Working folder: C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\working\612_benefit_area_analysis
1. Extract and initialize the project¶
Python
project_extracted = False
if PROJECT_FILE.exists():
project_path = PROJECT_DIR
print("Extraction skipped: project already exists.")
else:
project_path = RasExamples.extract_project(
"Davis",
output_path=WORK_ROOT,
suffix=PROJECT_SUFFIX,
)
if project_path.resolve() != PROJECT_DIR.resolve():
raise RuntimeError(f"Unexpected extraction path: {project_path}")
project_extracted = True
print(f"Project extracted: {project_path}")
init_ras_project(project_path, RAS_VERSION)
summary_columns = [
name for name in ("plan_number", "Plan Title", "geometry_number")
if name in ras.plan_df.columns
]
display(ras.plan_df[summary_columns])
Text Only
Extraction skipped: project already exists.
2026-07-18 09:16:29 - ras_commander.RasPrj - INFO - ras-commander v0.99.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander
2026-07-18 09:16:29 - ras_commander.RasPrj - INFO - Project initialized: DavisStormSystem
2026-07-18 09:16:29 - ras_commander.RasPrj - INFO - Using HEC-RAS version 7.0
2026-07-18 09:16:29 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
LLM agents: https://rascommander.info/llms.txt
═══════════════════════════════════════════════════════════════════════
PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
ras.plan_df Plans, HDF paths, geometry/flow associations
ras.geom_df Geometry files and HDF preprocessor paths
ras.flow_df Steady flow files
ras.unsteady_df Unsteady flow files and configurations
ras.boundaries_df Boundary conditions (type, name, location)
ras.results_df Lightweight HDF results summaries
ras.rasmap_df RASMapper layers, terrain, land cover paths
KEY APIS (static classes — call directly, never instantiate):
Execution: RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
Plan Files: RasPlan.clone_plan() / clone_geom() / set_geom()
Unsteady: RasUnsteady — IC/BC management, gate openings, precipitation
Geometry: GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
HDF Results: HdfResultsPlan.get_wse() / get_compute_messages()
HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
HdfMesh.get_mesh_cell_points()
QA/QC: RasCheck.run_check() / RasFixit (geometry repair)
DSS: RasDss.get_timeseries() / check_pathname()
USGS: UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
Terrain: RasTerrain.create_terrain_hdf() / RasTerrainMod
MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.
EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
Review relevant notebooks before assembling new workflows.
PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
headless execution, data access, geometry modification, and preprocessing
is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════
| plan_number | Plan Title | geometry_number | |
|---|---|---|---|
| 0 | 02 | Full System ROM with Pump | 02 |
| 1 | 01 | Conduit Capacity Upgrade | 01 |
| 2 | 03 | Second Pump | 03 |
| 3 | 04 | Conduit Capacity and Second Pump | 04 |
2. Reusable compute and analysis helpers¶
Python
def review_compute_messages(plan_number: str, label: str) -> dict:
messages = HdfResultsPlan.get_compute_messages(plan_number)
lines = [line.strip() for line in messages.splitlines() if line.strip()]
if not any("Complete Process" in line for line in lines):
raise RuntimeError(f"{label} does not contain a completed-process marker")
fatal = [line for line in lines if line.upper().startswith(("ERROR:", "FATAL:"))]
if fatal:
raise RuntimeError(f"{label} compute errors:\n" + "\n".join(fatal))
warnings = [line for line in lines if "WARNING" in line.upper()]
runtime = HdfResultsPlan.get_runtime_data(plan_number)
process_hours = (
float(runtime.iloc[0]["Complete Process (hr)"])
if runtime is not None and not runtime.empty else np.nan
)
print(f"{label}: complete; runtime={process_hours:.3f} hr; warnings={len(warnings)}")
return {"runtime_hours": process_hours, "warning_count": len(warnings)}
def compute_plan_stage(plan_number: str, label: str, *, inputs_changed=False) -> dict:
result_hdf = PROJECT_DIR / f"DavisStormSystem.p{plan_number}.hdf"
before = result_hdf.stat().st_mtime_ns if result_hdf.exists() else None
result = RasCmdr.compute_plan(
plan_number,
num_cores=NUM_CORES,
clear_geompre=inputs_changed,
force_rerun=inputs_changed,
skip_existing=not inputs_changed,
verify=True,
)
if not result.success and inputs_changed:
messages = HdfResultsPlan.get_compute_messages(plan_number)
if "HDF_ERROR trying to use HDF output file" in messages and result_hdf.exists():
print(f"{label}: geometry tables rebuilt; retrying with a fresh result HDF.")
result_hdf.unlink()
result = RasCmdr.compute_plan(
plan_number,
num_cores=NUM_CORES,
clear_geompre=False,
force_rerun=True,
skip_existing=False,
verify=True,
)
if not result.success:
raise RuntimeError(f"{label} compute failed")
after = result_hdf.stat().st_mtime_ns if result_hdf.exists() else None
executed = before is None or before != after
print(f"{label} compute stage: {'executed' if executed else 'skipped (completed result exists)'}")
return {"executed": executed, **review_compute_messages(plan_number, label)}
def finite_abs_max(values) -> float:
array = np.asarray(values, dtype=float)
finite = np.isfinite(array)
return float(np.max(np.abs(array[finite]))) if finite.any() else np.nan
def pipe_qv_summary(plan_number: str) -> pd.DataFrame:
conduits = HdfPipe.get_pipe_conduits(plan_number, crs=None).reset_index(drop=True)
variables = {
name: HdfPipe.get_pipe_network_timeseries(plan_number, name)
for name in ("Pipes/Pipe Flow US", "Pipes/Pipe Flow DS", "Pipes/Vel US", "Pipes/Vel DS")
}
rows = []
for location, conduit in conduits.iterrows():
rows.append({
"conduit": str(conduit["Name"]).strip(),
"us_node": str(conduit["US Node"]).strip(),
"ds_node": str(conduit["DS Node"]).strip(),
"rise_ft": float(conduit["Rise"]),
"span_ft": float(conduit["Span"]),
"max_abs_flow_cfs": max(
finite_abs_max(variables["Pipes/Pipe Flow US"][:, location]),
finite_abs_max(variables["Pipes/Pipe Flow DS"][:, location]),
),
"max_abs_velocity_ft_s": max(
finite_abs_max(variables["Pipes/Vel US"][:, location]),
finite_abs_max(variables["Pipes/Vel DS"][:, location]),
),
})
return pd.DataFrame(rows)
def node_depth_summary(plan_number: str) -> pd.DataFrame:
nodes = HdfPipe.get_pipe_nodes(plan_number, crs=None).reset_index(drop=True)
depth = HdfPipe.get_pipe_network_timeseries(plan_number, "Nodes/Depth")
return pd.DataFrame({
"node": nodes["Name"].astype(str).str.strip(),
"max_depth_ft": [finite_abs_max(depth[:, index]) for index in range(len(nodes))],
})
def read_map_raster(path: Path, *, mask_zero=False):
with rasterio.open(path) as src:
data = src.read(1, masked=True)
if mask_zero:
data = np.ma.masked_where(np.asarray(data) == 0, data)
extent = (src.bounds.left, src.bounds.right, src.bounds.bottom, src.bounds.top)
return data, extent, src.crs, src.transform, src.profile.copy()
3. Compute the baseline and select a connected conduit path¶
Python
baseline_compute = compute_plan_stage(
BASELINE_PLAN, "Baseline", inputs_changed=project_extracted
)
baseline_qv = pipe_qv_summary(BASELINE_PLAN)
baseline_nodes = node_depth_summary(BASELINE_PLAN)
selection = baseline_qv[baseline_qv["conduit"].isin(SELECTED_CONDUITS)].copy()
selection["chain_order"] = selection["conduit"].map(
{name: order for order, name in enumerate(SELECTED_CONDUITS)}
)
selection = selection.sort_values("chain_order")
selection = selection.merge(
baseline_nodes.rename(columns={"node": "us_node", "max_depth_ft": "us_node_max_depth_ft"}),
on="us_node",
how="left",
)
selection.to_csv(WORK_ROOT / "baseline_selected_conduit_diagnostics.csv", index=False)
display(selection[[
"conduit", "us_node", "ds_node", "rise_ft",
"max_abs_flow_cfs", "max_abs_velocity_ft_s", "us_node_max_depth_ft",
]])
Text Only
2026-07-18 09:16:29 - ras_commander.RasCmdr - INFO - Skipping plan 02: HDF results already exist with 'Complete Process'
Baseline compute stage: skipped (completed result exists)
Baseline: complete; runtime=0.085 hr; warnings=0
| conduit | us_node | ds_node | rise_ft | max_abs_flow_cfs | max_abs_velocity_ft_s | us_node_max_depth_ft | |
|---|---|---|---|---|---|---|---|
| 0 | 3 | P12-DI011 | P12-DMH005 | 1.25 | 2.498052 | 7.350999 | 0.239808 |
| 1 | 97 | P12-DMH005 | P12-DMH008 | 3.00 | 6.012918 | 2.294528 | 9.111440 |
| 2 | 98 | P12-DMH008 | P12-DMH010 | 3.00 | 6.912639 | 2.863071 | 5.686985 |
| 3 | 119 | P12-DMH010 | P12-DMH013 | 4.00 | 17.689779 | 2.660488 | 3.282387 |
4. Build and show the pipe-only alternative¶

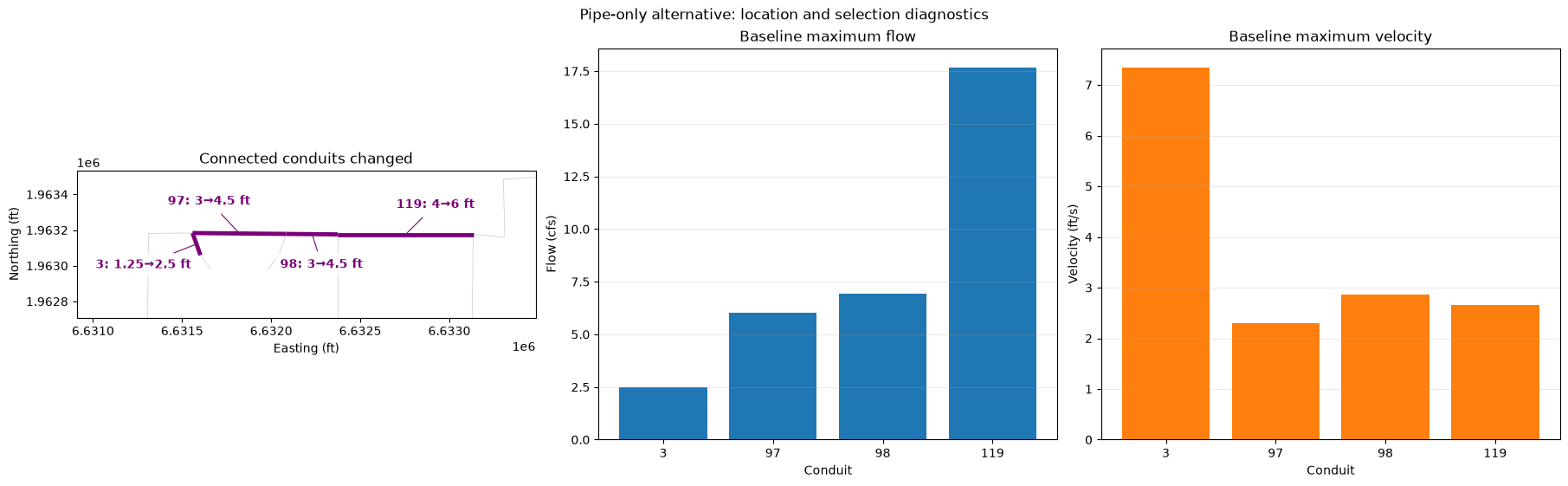

The selected path starts with the baseline network's highest-velocity inlet connection and continues through three downstream conduits. The proposed diameters are absolute, rerun-safe targets.
Python
project_stem = ras.project_name
pipe_geom_file = PROJECT_DIR / f"{project_stem}.g{PIPE_GEOMETRY}"
pipe_plan_file = PROJECT_DIR / f"{project_stem}.p{PIPE_PLAN}"
pipe_created = False
if not pipe_geom_file.exists():
new_geom = RasGeo.clone_geom(BASELINE_GEOMETRY, new_title="Conduit Capacity Upgrade")
if new_geom != PIPE_GEOMETRY:
raise RuntimeError(f"Expected geometry {PIPE_GEOMETRY}; created {new_geom}")
pipe_created = True
conduit_changes = GeomPipeNetwork.set_conduit_dimensions(pipe_geom_file, CONDUIT_TARGETS)
if not pipe_plan_file.exists():
new_plan = RasPlan.clone_plan(
BASELINE_PLAN,
new_shortid="PipeUpgrade",
new_title="Conduit Capacity Upgrade",
geometry=PIPE_GEOMETRY,
num_cores=NUM_CORES,
)
if new_plan != PIPE_PLAN:
raise RuntimeError(f"Expected plan {PIPE_PLAN}; created {new_plan}")
pipe_created = True
init_ras_project(PROJECT_DIR, RAS_VERSION)
pipe_inputs_changed = bool(pipe_created or conduit_changes["changed"].any())
print(
"Pipe-only alternative: "
+ ("created or updated." if pipe_inputs_changed else "configuration already current.")
)
display(conduit_changes)
terrain_hdf = PROJECT_DIR / "Terrain" / "Terrain (1).hdf"
terrain_tif = RasBenefits.get_registered_terrain_source(terrain_hdf)
with rasterio.open(terrain_tif) as terrain_src:
if terrain_src.count != 1:
raise ValueError("Benefit analysis requires a one-band terrain GeoTIFF")
scenario_crs = terrain_src.crs
terrain_resolution = max(abs(value) for value in terrain_src.res)
if not BUILDING_PMTILES.exists() or not BUILDING_PARQUET.exists():
raise FileNotFoundError("The Davis building-footprint example assets are missing")
building_footprints = gpd.read_parquet(BUILDING_PARQUET).to_crs(scenario_crs)
print(
f"Building overlay: {len(building_footprints):,} footprints; "
f"PMTiles layer 'buildings' at {BUILDING_PMTILES}"
)
pipe_network = HdfPipe.get_pipe_conduits(BASELINE_PLAN, crs=scenario_crs).copy()
pipe_network["conduit"] = pipe_network["Name"].astype(str).str.strip()
changed_pipe_assets = pipe_network[pipe_network["conduit"].isin(SELECTED_CONDUITS)].copy()
changed_pipe_assets["chain_order"] = changed_pipe_assets["conduit"].map(
{name: order for order, name in enumerate(SELECTED_CONDUITS)}
)
changed_pipe_assets = changed_pipe_assets.sort_values("chain_order")
changed_pipe_assets["baseline_diameter_ft"] = changed_pipe_assets["Rise"].astype(float)
changed_pipe_assets["proposed_diameter_ft"] = changed_pipe_assets["conduit"].map(
{name: dimensions[0] for name, dimensions in CONDUIT_TARGETS.items()}
)
fig, axes = plt.subplots(1, 3, figsize=(18, 5.5), constrained_layout=True)
pipe_network.plot(ax=axes[0], color="#bdbdbd", linewidth=0.55, alpha=0.75)
changed_pipe_assets.plot(ax=axes[0], color="#7a0177", linewidth=3.5, zorder=4)
definition_label_offsets = {
"3": (-44, -20), "97": (-25, 24), "98": (8, -28), "119": (25, 22)
}
for row in changed_pipe_assets.itertuples():
midpoint = row.Polyline.interpolate(0.5, normalized=True)
axes[0].annotate(
f"{row.conduit}: {row.baseline_diameter_ft:g}→{row.proposed_diameter_ft:g} ft",
xy=(midpoint.x, midpoint.y),
xytext=definition_label_offsets[row.conduit], textcoords="offset points",
ha="center", color="#7a0177", weight="bold",
bbox={"facecolor": "white", "edgecolor": "none", "alpha": 0.85},
arrowprops={"arrowstyle": "-", "color": "#7a0177", "linewidth": 0.8},
)
min_x, min_y, max_x, max_y = changed_pipe_assets.total_bounds
axes[0].set_xlim(min_x - 650, max_x + 350)
axes[0].set_ylim(min_y - 350, max_y + 350)
axes[0].set_aspect("equal")
axes[0].set_title("Connected conduits changed")
axes[0].set_xlabel("Easting (ft)")
axes[0].set_ylabel("Northing (ft)")
plot_selection = selection.set_index("conduit").loc[SELECTED_CONDUITS].reset_index()
positions = np.arange(len(plot_selection))
axes[1].bar(positions, plot_selection["max_abs_flow_cfs"], color="tab:blue")
axes[1].set_xticks(positions, plot_selection["conduit"])
axes[1].set_title("Baseline maximum flow")
axes[1].set_xlabel("Conduit")
axes[1].set_ylabel("Flow (cfs)")
axes[1].grid(axis="y", alpha=0.25)
axes[2].bar(positions, plot_selection["max_abs_velocity_ft_s"], color="tab:orange")
axes[2].set_xticks(positions, plot_selection["conduit"])
axes[2].set_title("Baseline maximum velocity")
axes[2].set_xlabel("Conduit")
axes[2].set_ylabel("Velocity (ft/s)")
axes[2].grid(axis="y", alpha=0.25)
fig.suptitle("Pipe-only alternative: location and selection diagnostics")
fig.savefig(WORK_ROOT / "pipe_alternative_definition.png", dpi=150, bbox_inches="tight")
plt.show()
Text Only
2026-07-18 09:16:29 - ras_commander.RasPrj - INFO - ras-commander v0.99.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander
2026-07-18 09:16:29 - ras_commander.RasPrj - INFO - Project initialized: DavisStormSystem
2026-07-18 09:16:29 - ras_commander.RasPrj - INFO - Using HEC-RAS version 7.0
2026-07-18 09:16:29 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
LLM agents: https://rascommander.info/llms.txt
═══════════════════════════════════════════════════════════════════════
PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
ras.plan_df Plans, HDF paths, geometry/flow associations
ras.geom_df Geometry files and HDF preprocessor paths
ras.flow_df Steady flow files
ras.unsteady_df Unsteady flow files and configurations
ras.boundaries_df Boundary conditions (type, name, location)
ras.results_df Lightweight HDF results summaries
ras.rasmap_df RASMapper layers, terrain, land cover paths
KEY APIS (static classes — call directly, never instantiate):
Execution: RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
Plan Files: RasPlan.clone_plan() / clone_geom() / set_geom()
Unsteady: RasUnsteady — IC/BC management, gate openings, precipitation
Geometry: GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
HDF Results: HdfResultsPlan.get_wse() / get_compute_messages()
HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
HdfMesh.get_mesh_cell_points()
QA/QC: RasCheck.run_check() / RasFixit (geometry repair)
DSS: RasDss.get_timeseries() / check_pathname()
USGS: UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
Terrain: RasTerrain.create_terrain_hdf() / RasTerrainMod
MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.
EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
Review relevant notebooks before assembling new workflows.
PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
headless execution, data access, geometry modification, and preprocessing
is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════
Pipe-only alternative: configuration already current.
| Name | old_rise | old_span | new_rise | new_span | changed | |
|---|---|---|---|---|---|---|
| 0 | 3 | 2.5 | 2.5 | 2.5 | 2.5 | False |
| 1 | 97 | 4.5 | 4.5 | 4.5 | 4.5 | False |
| 2 | 98 | 4.5 | 4.5 | 4.5 | 4.5 | False |
| 3 | 119 | 6.0 | 6.0 | 6.0 | 6.0 | False |
Text Only
Building overlay: 7,363 footprints; PMTiles layer 'buildings' at C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\examples\data\davis_building_footprints.pmtiles
5. Build and show the second-pump alternative¶
A second identical pump in parallel is represented by retaining each head ordinate and doubling each HQ-curve flow ordinate. This is independent of the conduit alternative.
Python
pump_geom_file = PROJECT_DIR / f"{project_stem}.g{PUMP_GEOMETRY}"
pump_plan_file = PROJECT_DIR / f"{project_stem}.p{PUMP_PLAN}"
pump_created = False
if not pump_geom_file.exists():
new_geom = RasGeo.clone_geom(BASELINE_GEOMETRY, new_title="Second Pump")
if new_geom != PUMP_GEOMETRY:
raise RuntimeError(f"Expected geometry {PUMP_GEOMETRY}; created {new_geom}")
pump_created = True
baseline_pump_groups = HdfPump.get_pump_groups(BASELINE_PLAN)
baseline_curve = np.asarray(
baseline_pump_groups.loc[
baseline_pump_groups["Name"] == PUMP_GROUP_NAME, "efficiency_curve"
].iloc[0],
dtype=float,
)
second_pump_curve = baseline_curve.copy()
second_pump_curve[:, 1] *= 2.0
pump_changes = GeomPipeNetwork.set_pump_group_hq_curve(
pump_geom_file, PUMP_GROUP_NAME, second_pump_curve
)
if not pump_plan_file.exists():
new_plan = RasPlan.clone_plan(
BASELINE_PLAN,
new_shortid="SecondPump",
new_title="Second Pump",
geometry=PUMP_GEOMETRY,
num_cores=NUM_CORES,
)
if new_plan != PUMP_PLAN:
raise RuntimeError(f"Expected plan {PUMP_PLAN}; created {new_plan}")
pump_created = True
init_ras_project(PROJECT_DIR, RAS_VERSION)
pump_inputs_changed = bool(pump_created or pump_changes["changed"].any())
print(
"Second-pump alternative: "
+ ("created or updated." if pump_inputs_changed else "configuration already current.")
)
display(pump_changes)
pump_assets = HdfPump.get_pump_stations(BASELINE_PLAN).to_crs(scenario_crs)
fig, axes = plt.subplots(1, 2, figsize=(13, 5), constrained_layout=True)
pipe_network.plot(ax=axes[0], color="#bdbdbd", linewidth=0.55, alpha=0.75)
pump_assets.plot(ax=axes[0], color="#e31a1c", marker="*", markersize=180, zorder=5)
px, py = pump_assets.geometry.iloc[0].x, pump_assets.geometry.iloc[0].y
axes[0].set_xlim(px - 1700, px + 1700)
axes[0].set_ylim(py - 1700, py + 1700)
axes[0].set_aspect("equal")
axes[0].set_title("Pump-station location")
axes[0].set_xlabel("Easting (ft)")
axes[0].set_ylabel("Northing (ft)")
axes[0].legend(handles=[Line2D([0], [0], marker="*", color="none", markerfacecolor="#e31a1c", markersize=14, label="Second-pump station")])
axes[1].plot(baseline_curve[:, 1], baseline_curve[:, 0], marker="o", label="One pump")
axes[1].plot(second_pump_curve[:, 1], second_pump_curve[:, 0], marker="o", label="Two identical pumps")
axes[1].set_xlabel("Flow (cfs)")
axes[1].set_ylabel("Head (ft)")
axes[1].set_title("Configured HQ curves")
axes[1].grid(alpha=0.25)
axes[1].legend()
fig.suptitle("Second-pump alternative: location and capacity change")
fig.savefig(WORK_ROOT / "second_pump_alternative_definition.png", dpi=150, bbox_inches="tight")
plt.show()
Text Only
2026-07-18 09:16:32 - ras_commander.RasPrj - INFO - ras-commander v0.99.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander
2026-07-18 09:16:32 - ras_commander.RasPrj - INFO - Project initialized: DavisStormSystem
2026-07-18 09:16:32 - ras_commander.RasPrj - INFO - Using HEC-RAS version 7.0
2026-07-18 09:16:32 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
LLM agents: https://rascommander.info/llms.txt
═══════════════════════════════════════════════════════════════════════
PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
ras.plan_df Plans, HDF paths, geometry/flow associations
ras.geom_df Geometry files and HDF preprocessor paths
ras.flow_df Steady flow files
ras.unsteady_df Unsteady flow files and configurations
ras.boundaries_df Boundary conditions (type, name, location)
ras.results_df Lightweight HDF results summaries
ras.rasmap_df RASMapper layers, terrain, land cover paths
KEY APIS (static classes — call directly, never instantiate):
Execution: RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
Plan Files: RasPlan.clone_plan() / clone_geom() / set_geom()
Unsteady: RasUnsteady — IC/BC management, gate openings, precipitation
Geometry: GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
HDF Results: HdfResultsPlan.get_wse() / get_compute_messages()
HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
HdfMesh.get_mesh_cell_points()
QA/QC: RasCheck.run_check() / RasFixit (geometry repair)
DSS: RasDss.get_timeseries() / check_pathname()
USGS: UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
Terrain: RasTerrain.create_terrain_hdf() / RasTerrainMod
MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.
EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
Review relevant notebooks before assembling new workflows.
PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
headless execution, data access, geometry modification, and preprocessing
is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════
Second-pump alternative: configuration already current.
| group_name | head | old_flow | new_flow | changed | |
|---|---|---|---|---|---|
| 0 | Pump Station #1 | 2.0 | 140.0 | 140.0 | False |
| 1 | Pump Station #1 | 4.0 | 120.0 | 120.0 | False |
| 2 | Pump Station #1 | 6.0 | 110.0 | 110.0 | False |
| 3 | Pump Station #1 | 8.0 | 100.0 | 100.0 | False |
| 4 | Pump Station #1 | 14.0 | 80.0 | 80.0 | False |
| 5 | Pump Station #1 | 16.0 | 50.0 | 50.0 | False |
6. Build and show the combined pipe-and-pump alternative¶
The third alternative applies the same four conduit targets and the same doubled pump HQ curve to a fresh clone of the baseline geometry. It therefore represents both improvements together without inheriting results from either independent alternative.
Python
combined_geom_file = PROJECT_DIR / f"{project_stem}.g{COMBINED_GEOMETRY}"
combined_plan_file = PROJECT_DIR / f"{project_stem}.p{COMBINED_PLAN}"
combined_created = False
if not combined_geom_file.exists():
new_geom = RasGeo.clone_geom(
BASELINE_GEOMETRY, new_title="Conduit Capacity and Second Pump"
)
if new_geom != COMBINED_GEOMETRY:
raise RuntimeError(
f"Expected geometry {COMBINED_GEOMETRY}; created {new_geom}"
)
combined_created = True
combined_conduit_changes = GeomPipeNetwork.set_conduit_dimensions(
combined_geom_file, CONDUIT_TARGETS
)
combined_pump_changes = GeomPipeNetwork.set_pump_group_hq_curve(
combined_geom_file, PUMP_GROUP_NAME, second_pump_curve
)
if not combined_plan_file.exists():
new_plan = RasPlan.clone_plan(
BASELINE_PLAN,
new_shortid="PipePump",
new_title="Conduit Capacity and Second Pump",
geometry=COMBINED_GEOMETRY,
num_cores=NUM_CORES,
)
if new_plan != COMBINED_PLAN:
raise RuntimeError(f"Expected plan {COMBINED_PLAN}; created {new_plan}")
combined_created = True
init_ras_project(PROJECT_DIR, RAS_VERSION)
combined_inputs_changed = bool(
combined_created
or combined_conduit_changes["changed"].any()
or combined_pump_changes["changed"].any()
)
print(
"Combined pipe-and-pump alternative: "
+ ("created or updated." if combined_inputs_changed else "configuration already current.")
)
display(combined_conduit_changes)
display(combined_pump_changes)
fig, axes = plt.subplots(1, 2, figsize=(14, 5.5), constrained_layout=True)
pipe_network.plot(ax=axes[0], color="#bdbdbd", linewidth=0.55, alpha=0.75)
changed_pipe_assets.plot(ax=axes[0], color="#7a0177", linewidth=3.5, zorder=4)
pump_assets.plot(ax=axes[0], color="#e31a1c", marker="*", markersize=180, zorder=5)
for row in changed_pipe_assets.itertuples():
midpoint = row.Polyline.interpolate(0.5, normalized=True)
axes[0].annotate(
f"{row.conduit}: {row.baseline_diameter_ft:g}→{row.proposed_diameter_ft:g} ft",
xy=(midpoint.x, midpoint.y),
xytext=definition_label_offsets[row.conduit], textcoords="offset points",
ha="center", color="#7a0177", weight="bold",
bbox={"facecolor": "white", "edgecolor": "none", "alpha": 0.85},
arrowprops={"arrowstyle": "-", "color": "#7a0177", "linewidth": 0.8},
)
combined_min_x = min(changed_pipe_assets.total_bounds[0], px) - 500
combined_max_x = max(changed_pipe_assets.total_bounds[2], px) + 500
combined_min_y = min(changed_pipe_assets.total_bounds[1], py) - 500
combined_max_y = max(changed_pipe_assets.total_bounds[3], py) + 500
axes[0].set_xlim(combined_min_x, combined_max_x)
axes[0].set_ylim(combined_min_y, combined_max_y)
axes[0].set_aspect("equal")
axes[0].set_title("Combined improvement locations")
axes[0].set_xlabel("Easting (ft)")
axes[0].set_ylabel("Northing (ft)")
axes[0].legend(handles=[
Line2D([0], [0], color="#7a0177", linewidth=3, label="Upsized conduits"),
Line2D([0], [0], marker="*", color="none", markerfacecolor="#e31a1c",
markersize=14, label="Second-pump station"),
])
axes[1].plot(baseline_curve[:, 1], baseline_curve[:, 0], marker="o", label="One pump")
axes[1].plot(second_pump_curve[:, 1], second_pump_curve[:, 0], marker="o", label="Two identical pumps")
axes[1].set_xlabel("Flow (cfs)")
axes[1].set_ylabel("Head (ft)")
axes[1].set_title("Combined alternative pump capacity")
axes[1].grid(alpha=0.25)
axes[1].legend()
fig.suptitle("Combined pipe-and-pump alternative: exact configured changes")
fig.savefig(WORK_ROOT / "combined_alternative_definition.png", dpi=150, bbox_inches="tight")
plt.show()
Text Only
2026-07-18 09:16:33 - ras_commander.RasPrj - INFO - ras-commander v0.99.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander
2026-07-18 09:16:33 - ras_commander.RasPrj - INFO - Project initialized: DavisStormSystem
2026-07-18 09:16:33 - ras_commander.RasPrj - INFO - Using HEC-RAS version 7.0
2026-07-18 09:16:33 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
LLM agents: https://rascommander.info/llms.txt
═══════════════════════════════════════════════════════════════════════
PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
ras.plan_df Plans, HDF paths, geometry/flow associations
ras.geom_df Geometry files and HDF preprocessor paths
ras.flow_df Steady flow files
ras.unsteady_df Unsteady flow files and configurations
ras.boundaries_df Boundary conditions (type, name, location)
ras.results_df Lightweight HDF results summaries
ras.rasmap_df RASMapper layers, terrain, land cover paths
KEY APIS (static classes — call directly, never instantiate):
Execution: RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
Plan Files: RasPlan.clone_plan() / clone_geom() / set_geom()
Unsteady: RasUnsteady — IC/BC management, gate openings, precipitation
Geometry: GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
HDF Results: HdfResultsPlan.get_wse() / get_compute_messages()
HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
HdfMesh.get_mesh_cell_points()
QA/QC: RasCheck.run_check() / RasFixit (geometry repair)
DSS: RasDss.get_timeseries() / check_pathname()
USGS: UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
Terrain: RasTerrain.create_terrain_hdf() / RasTerrainMod
MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.
EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
Review relevant notebooks before assembling new workflows.
PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
headless execution, data access, geometry modification, and preprocessing
is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════
Combined pipe-and-pump alternative: configuration already current.
| Name | old_rise | old_span | new_rise | new_span | changed | |
|---|---|---|---|---|---|---|
| 0 | 3 | 2.5 | 2.5 | 2.5 | 2.5 | False |
| 1 | 97 | 4.5 | 4.5 | 4.5 | 4.5 | False |
| 2 | 98 | 4.5 | 4.5 | 4.5 | 4.5 | False |
| 3 | 119 | 6.0 | 6.0 | 6.0 | 6.0 | False |
| group_name | head | old_flow | new_flow | changed | |
|---|---|---|---|---|---|
| 0 | Pump Station #1 | 2.0 | 140.0 | 140.0 | False |
| 1 | Pump Station #1 | 4.0 | 120.0 | 120.0 | False |
| 2 | Pump Station #1 | 6.0 | 110.0 | 110.0 | False |
| 3 | Pump Station #1 | 8.0 | 100.0 | 100.0 | False |
| 4 | Pump Station #1 | 14.0 | 80.0 | 80.0 | False |
| 5 | Pump Station #1 | 16.0 | 50.0 | 50.0 | False |
7. Compute all three alternatives and compare hydraulic performance¶
Python
pipe_compute = compute_plan_stage(
PIPE_PLAN, "Pipe-only alternative", inputs_changed=pipe_inputs_changed
)
pump_compute = compute_plan_stage(
PUMP_PLAN, "Second-pump alternative", inputs_changed=pump_inputs_changed
)
combined_compute = compute_plan_stage(
COMBINED_PLAN,
"Combined pipe-and-pump alternative",
inputs_changed=combined_inputs_changed,
)
hydraulic_scenarios = (
(BASELINE_PLAN, "Baseline"),
(PIPE_PLAN, "Pipe only"),
(PUMP_PLAN, "Second pump"),
(COMBINED_PLAN, "Pipe + pump"),
)
qv_frames = []
for plan, condition in hydraulic_scenarios:
plan_qv = baseline_qv.copy() if plan == BASELINE_PLAN else pipe_qv_summary(plan)
plan_qv = plan_qv[plan_qv["conduit"].isin(SELECTED_CONDUITS)].copy()
plan_qv["condition"] = condition
plan_qv["chain_order"] = plan_qv["conduit"].map(
{name: order for order, name in enumerate(SELECTED_CONDUITS)}
)
qv_frames.append(plan_qv)
qv_comparison = pd.concat(qv_frames, ignore_index=True).sort_values(
["chain_order", "condition"]
)
qv_comparison.to_csv(WORK_ROOT / "conduit_hydraulic_comparison.csv", index=False)
display(qv_comparison)
pump_rows = []
for plan, condition in hydraulic_scenarios:
pump_ts = HdfPump.get_pump_station_timeseries(plan, PUMP_GROUP_NAME)
pump_rows.append({
"condition": condition,
"peak_flow_cfs": float(pump_ts.sel(variable="Flow").max()),
"max_headwater_ft": float(pump_ts.sel(variable="Stage HW").max()),
})
pump_comparison = pd.DataFrame(pump_rows)
pump_comparison.to_csv(WORK_ROOT / "pump_performance_comparison.csv", index=False)
display(pump_comparison)
positions = np.arange(len(SELECTED_CONDUITS))
width = 0.19
scenario_colors = {
"Baseline": "#8c8c8c", "Pipe only": "#7a0177",
"Second pump": "#1f78b4", "Pipe + pump": "#e31a1c",
}
fig, axes = plt.subplots(2, 2, figsize=(15, 10), constrained_layout=True)
for index, (_, condition) in enumerate(hydraulic_scenarios):
values = qv_comparison[qv_comparison["condition"] == condition].set_index(
"conduit"
).loc[SELECTED_CONDUITS]
offset = (index - 1.5) * width
axes[0, 0].bar(
positions + offset, values["max_abs_flow_cfs"], width,
color=scenario_colors[condition], label=condition,
)
axes[0, 1].bar(
positions + offset, values["max_abs_velocity_ft_s"], width,
color=scenario_colors[condition], label=condition,
)
for axis, title, ylabel in (
(axes[0, 0], "Selected-conduit maximum flow", "Flow (cfs)"),
(axes[0, 1], "Selected-conduit maximum velocity", "Velocity (ft/s)"),
):
axis.set_xticks(positions, SELECTED_CONDUITS)
axis.set_xlabel("Conduit")
axis.set_ylabel(ylabel)
axis.set_title(title)
axis.grid(axis="y", alpha=0.25)
axis.legend()
pump_positions = np.arange(len(pump_comparison))
pump_colors = [scenario_colors[value] for value in pump_comparison["condition"]]
axes[1, 0].bar(pump_positions, pump_comparison["peak_flow_cfs"], color=pump_colors)
axes[1, 0].set_ylabel("Flow (cfs)")
axes[1, 0].set_title("Pump-station peak flow")
axes[1, 1].bar(pump_positions, pump_comparison["max_headwater_ft"], color=pump_colors)
axes[1, 1].set_ylabel("Headwater elevation (ft)")
axes[1, 1].set_title("Pump-station maximum headwater")
for axis in axes[1, :]:
axis.set_xticks(pump_positions, pump_comparison["condition"], rotation=12)
axis.grid(axis="y", alpha=0.25)
fig.suptitle("Hydraulic comparison of all alternatives")
fig.savefig(WORK_ROOT / "hydraulic_alternative_comparison.png", dpi=150, bbox_inches="tight")
plt.show()
Text Only
2026-07-18 09:16:35 - ras_commander.RasCmdr - INFO - Skipping plan 01: HDF results already exist with 'Complete Process'
2026-07-18 09:16:35 - ras_commander.RasCmdr - INFO - Skipping plan 03: HDF results already exist with 'Complete Process'
2026-07-18 09:16:35 - ras_commander.RasCmdr - INFO - Skipping plan 04: HDF results already exist with 'Complete Process'
Pipe-only alternative compute stage: skipped (completed result exists)
Pipe-only alternative: complete; runtime=0.092 hr; warnings=0
Second-pump alternative compute stage: skipped (completed result exists)
Second-pump alternative: complete; runtime=0.130 hr; warnings=0
Combined pipe-and-pump alternative compute stage: skipped (completed result exists)
Combined pipe-and-pump alternative: complete; runtime=0.088 hr; warnings=0
| conduit | us_node | ds_node | rise_ft | span_ft | max_abs_flow_cfs | max_abs_velocity_ft_s | condition | chain_order | |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 3 | P12-DI011 | P12-DMH005 | 1.25 | 1.25 | 2.498052 | 7.350999 | Baseline | 0 |
| 15 | 3 | P12-DI011 | P12-DMH005 | 2.50 | 2.50 | 1.955437 | 4.993278 | Pipe + pump | 0 |
| 7 | 3 | P12-DI011 | P12-DMH005 | 2.50 | 2.50 | 1.833667 | 4.993276 | Pipe only | 0 |
| 11 | 3 | P12-DI011 | P12-DMH005 | 1.25 | 1.25 | 2.888032 | 7.351010 | Second pump | 0 |
| 2 | 97 | P12-DMH005 | P12-DMH008 | 3.00 | 3.00 | 6.012918 | 2.294528 | Baseline | 1 |
| 14 | 97 | P12-DMH005 | P12-DMH008 | 4.50 | 4.50 | 6.188016 | 2.251207 | Pipe + pump | 1 |
| 6 | 97 | P12-DMH005 | P12-DMH008 | 4.50 | 4.50 | 5.880278 | 2.251064 | Pipe only | 1 |
| 10 | 97 | P12-DMH005 | P12-DMH008 | 3.00 | 3.00 | 6.351912 | 2.294528 | Second pump | 1 |
| 1 | 98 | P12-DMH008 | P12-DMH010 | 3.00 | 3.00 | 6.912639 | 2.863071 | Baseline | 2 |
| 13 | 98 | P12-DMH008 | P12-DMH010 | 4.50 | 4.50 | 6.926834 | 2.832395 | Pipe + pump | 2 |
| 5 | 98 | P12-DMH008 | P12-DMH010 | 4.50 | 4.50 | 6.921959 | 2.832381 | Pipe only | 2 |
| 9 | 98 | P12-DMH008 | P12-DMH010 | 3.00 | 3.00 | 7.352853 | 2.863071 | Second pump | 2 |
| 0 | 119 | P12-DMH010 | P12-DMH013 | 4.00 | 4.00 | 17.689779 | 2.660488 | Baseline | 3 |
| 12 | 119 | P12-DMH010 | P12-DMH013 | 6.00 | 6.00 | 18.722013 | 2.504854 | Pipe + pump | 3 |
| 4 | 119 | P12-DMH010 | P12-DMH013 | 6.00 | 6.00 | 18.138012 | 2.503428 | Pipe only | 3 |
| 8 | 119 | P12-DMH010 | P12-DMH013 | 4.00 | 4.00 | 18.828178 | 2.677253 | Second pump | 3 |
| condition | peak_flow_cfs | max_headwater_ft | |
|---|---|---|---|
| 0 | Baseline | 67.767029 | 39.902061 |
| 1 | Pipe only | 67.760330 | 39.900429 |
| 2 | Second pump | 116.624374 | 38.253101 |
| 3 | Pipe + pump | 116.573654 | 38.242558 |
8. Generate separate BenefitArea rasters and polygons¶
Python
polygon_tolerance = terrain_resolution if SIMPLIFY_POLYGON_EDGES else None
benefit_config = BenefitAreaConfig(
pre_plan_number=BASELINE_PLAN,
terrain_tif=terrain_tif,
terrain_name="Terrain (1)",
include_wse=INCLUDE_WSE,
flood_min_depth=FLOOD_MIN_DEPTH_FT,
benefit_min_depth=BENEFIT_MIN_DEPTH_FT,
minimum_region_pixels=MINIMUM_REGION_PIXELS,
polygon_output=True,
polygon_simplify_tolerance=polygon_tolerance,
)
scenario_outputs = {}
for scenario, plan, output_dir in (
("Pipe-only", PIPE_PLAN, PIPE_OUTPUT_DIR),
("Second pump", PUMP_PLAN, PUMP_OUTPUT_DIR),
("Pipe + pump", COMBINED_PLAN, COMBINED_OUTPUT_DIR),
):
scenario_outputs[scenario] = RasProcess.store_maps(
plan_number=plan,
output_path=output_dir,
profile="Max",
benefit_area=benefit_config,
ras_version=RAS_VERSION,
timeout=1800,
)
print(f"{scenario}: {scenario_outputs[scenario]['benefit_area'][0]}")
Text Only
2026-07-18 09:16:41 - rasterio._env - WARNING - CPLE_AppDefined in Depth (Max).Terrain (1).Davis_terrain2.tif: TIFFFetchNormalTag:ASCII value for tag "GDALNoDataValue" contains null byte in value; value incorrectly truncated during reading due to implementation limitations
C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\.venv\Lib\site-packages\rasterio\__init__.py:379: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
dataset = DatasetReader(path, driver=driver, sharing=sharing, thread_safe=thread_safe, **kwargs)
2026-07-18 09:16:41 - rasterio._env - WARNING - CPLE_AppDefined in TIFFFetchNormalTag:ASCII value for tag "GDALNoDataValue" contains null byte in value; value incorrectly truncated during reading due to implementation limitations
2026-07-18 09:16:44 - rasterio._env - WARNING - CPLE_AppDefined in DeprecationWarning: 'Memory' driver is deprecated since GDAL 3.11. Use 'MEM' onwards. Further messages of this type will be suppressed.
2026-07-18 09:16:44 - pyogrio._io - INFO - Created 1 records
2026-07-18 09:16:44 - ras_commander.RasBenefits - INFO - BenefitArea complete: classes=1; cells=13056; polygon=True
2026-07-18 09:16:44 - ras_commander.RasProcess - INFO - BenefitArea stored-map workflow complete: pre=p02; post=p01; wse=False; filter=16; polygon=True
Pipe-only: C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\working\612_benefit_area_analysis\Davis_612_benefit_area\BenefitArea\p02-to-p01-pipe-upgrade\Benefit Area (Max).p02-to-p01.tif
2026-07-18 09:16:49 - rasterio._env - WARNING - CPLE_AppDefined in Depth (Max).Terrain (1).Davis_terrain2.tif: TIFFFetchNormalTag:ASCII value for tag "GDALNoDataValue" contains null byte in value; value incorrectly truncated during reading due to implementation limitations
C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\.venv\Lib\site-packages\rasterio\__init__.py:379: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
dataset = DatasetReader(path, driver=driver, sharing=sharing, thread_safe=thread_safe, **kwargs)
2026-07-18 09:16:49 - rasterio._env - WARNING - CPLE_AppDefined in TIFFFetchNormalTag:ASCII value for tag "GDALNoDataValue" contains null byte in value; value incorrectly truncated during reading due to implementation limitations
2026-07-18 09:16:49 - ras_commander.RasProcess - WARNING - Retrying BenefitArea source maps for plan p03 (attempt 2 of 3): Depth TIFF is all NoData while the plan HDF contains wet cells
2026-07-18 09:16:52 - pyogrio._io - INFO - Created 3 records
2026-07-18 09:16:52 - ras_commander.RasBenefits - INFO - BenefitArea complete: classes=3; cells=17874; polygon=True
2026-07-18 09:16:52 - ras_commander.RasProcess - INFO - BenefitArea stored-map workflow complete: pre=p02; post=p03; wse=False; filter=16; polygon=True
Second pump: C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\working\612_benefit_area_analysis\Davis_612_benefit_area\BenefitArea\p02-to-p03-second-pump\Benefit Area (Max).p02-to-p03.tif
2026-07-18 09:16:59 - pyogrio._io - INFO - Created 3 records
2026-07-18 09:16:59 - ras_commander.RasBenefits - INFO - BenefitArea complete: classes=3; cells=17866; polygon=True
2026-07-18 09:16:59 - ras_commander.RasProcess - INFO - BenefitArea stored-map workflow complete: pre=p02; post=p04; wse=False; filter=16; polygon=True
Pipe + pump: C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\working\612_benefit_area_analysis\Davis_612_benefit_area\BenefitArea\p02-to-p04-pipe-and-pump-upgrade\Benefit Area (Max).p02-to-p04.tif
9. Screen for adverse depth increases¶
Adverse impact is evaluated independently from benefit classification. A cell qualifies when proposed minus baseline maximum depth is at least 0.05 ft. The same optional four-connected 16-cell region filter is applied. Maps explicitly show adverse regions or state that no adverse impact meets this threshold.
Python
CATEGORY_NAMES = {1: "No Change", 2: "Partially Benefited", 3: "Fully Benefited"}
def polygonize_mask(mask: np.ndarray, transform, crs) -> gpd.GeoDataFrame:
geometries = [
shape(geometry)
for geometry, value in shapes(
mask.astype(np.uint8), mask=mask, transform=transform
)
if value == 1
]
return gpd.GeoDataFrame(geometry=geometries, crs=crs)
def analyze_scenario(scenario: str, outputs: dict) -> dict:
pre_path = outputs["benefit_source_pre_depth"][0]
post_path = outputs["benefit_source_post_depth"][0]
benefit_path = outputs["benefit_area"][0]
polygon_path = outputs["benefit_area_polygon"][0]
pre, pre_extent, pre_crs, transform, profile = read_map_raster(pre_path)
post, post_extent, post_crs, post_transform, _ = read_map_raster(post_path)
benefit, benefit_extent, benefit_crs, _, _ = read_map_raster(benefit_path, mask_zero=True)
if not (pre_crs == post_crs == benefit_crs) or transform != post_transform:
raise ValueError(f"{scenario}: depth and BenefitArea rasters are not aligned")
valid = ~np.ma.getmaskarray(pre) & ~np.ma.getmaskarray(post)
delta = np.asarray(post) - np.asarray(pre)
adverse = RasBenefits.classify_adverse_depth_arrays(
pre,
post,
adverse_min_depth=ADVERSE_IMPACT_THRESHOLD_FT,
minimum_region_pixels=MINIMUM_REGION_PIXELS,
) == 1
adverse_path = Path(benefit_path).with_name(
Path(benefit_path).stem.replace("Benefit Area", "Adverse Depth") + ".tif"
)
adverse_profile = profile.copy()
adverse_profile.update(dtype="uint8", count=1, nodata=0, compress="deflate")
with rasterio.open(adverse_path, "w", **adverse_profile) as dst:
dst.write(adverse.astype(np.uint8), 1)
dst.update_tags(
adverse_depth_threshold_ft=ADVERSE_IMPACT_THRESHOLD_FT,
minimum_region_pixels=(
"none" if MINIMUM_REGION_PIXELS is None else MINIMUM_REGION_PIXELS
),
)
with rasterio.open(benefit_path) as src:
benefit_values = src.read(1)
pixel_area = abs(src.transform.a * src.transform.e)
benefit_regions = polygonize_mask(
np.isin(benefit_values, [2, 3]), transform, benefit_crs
)
adverse_regions = polygonize_mask(adverse, transform, benefit_crs)
buildings = building_footprints.to_crs(benefit_crs)
benefited_buildings = buildings.iloc[0:0].copy()
adverse_buildings = buildings.iloc[0:0].copy()
if not benefit_regions.empty:
benefited_buildings = buildings[
buildings.intersects(benefit_regions.geometry.union_all())
].copy()
if not adverse_regions.empty:
adverse_buildings = buildings[
buildings.intersects(adverse_regions.geometry.union_all())
].copy()
statistics = {
CATEGORY_NAMES[code]: int(np.count_nonzero(benefit_values == code))
for code in CATEGORY_NAMES
}
adverse_cells = int(adverse.sum())
result = {
"scenario": scenario,
"pre": pre,
"post": post,
"delta": delta,
"benefit": benefit,
"adverse": adverse,
"extent": benefit_extent,
"crs": benefit_crs,
"polygons": gpd.read_file(polygon_path).to_crs(benefit_crs),
"buildings": buildings,
"benefited_buildings": benefited_buildings,
"adverse_buildings": adverse_buildings,
"adverse_path": adverse_path,
"partial_acres": statistics["Partially Benefited"] * pixel_area / 43560.0,
"full_acres": statistics["Fully Benefited"] * pixel_area / 43560.0,
"adverse_cells": adverse_cells,
"adverse_acres": adverse_cells * pixel_area / 43560.0,
"max_adverse_increase_ft": (
float(np.max(delta[adverse])) if adverse_cells else 0.0
),
"benefited_building_count": len(benefited_buildings),
"adverse_building_count": len(adverse_buildings),
}
return result
analyses = {
scenario: analyze_scenario(scenario, outputs)
for scenario, outputs in scenario_outputs.items()
}
impact_summary = pd.DataFrame([
{
"scenario": result["scenario"],
"partial_benefit_acres": result["partial_acres"],
"full_benefit_acres": result["full_acres"],
"adverse_acres": result["adverse_acres"],
"maximum_adverse_increase_ft": result["max_adverse_increase_ft"],
"buildings_intersecting_benefit": result["benefited_building_count"],
"buildings_intersecting_adverse": result["adverse_building_count"],
"adverse_threshold_ft": ADVERSE_IMPACT_THRESHOLD_FT,
"minimum_region_pixels": MINIMUM_REGION_PIXELS,
}
for result in analyses.values()
])
impact_summary.to_csv(WORK_ROOT / "benefit_and_adverse_summary.csv", index=False)
display(impact_summary)
Text Only
C:\Users\bill\AppData\Local\Temp\ipykernel_10232\3547882400.py:49: DeprecationWarning: Setting the shape on a NumPy array has been deprecated in NumPy 2.5.
As an alternative, you can create a new view using np.reshape (with copy=False if needed).
benefit_values = src.read(1)
C:\Users\bill\AppData\Local\Temp\ipykernel_10232\3547882400.py:49: DeprecationWarning: Setting the shape on a NumPy array has been deprecated in NumPy 2.5.
As an alternative, you can create a new view using np.reshape (with copy=False if needed).
benefit_values = src.read(1)
C:\Users\bill\AppData\Local\Temp\ipykernel_10232\3547882400.py:49: DeprecationWarning: Setting the shape on a NumPy array has been deprecated in NumPy 2.5.
As an alternative, you can create a new view using np.reshape (with copy=False if needed).
benefit_values = src.read(1)
| scenario | partial_benefit_acres | full_benefit_acres | adverse_acres | maximum_adverse_increase_ft | buildings_intersecting_benefit | buildings_intersecting_adverse | adverse_threshold_ft | minimum_region_pixels | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | Pipe-only | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0 | 0 | 0.05 | 16 |
| 1 | Second pump | 12.568588 | 2.349447 | 5.730359 | 0.583683 | 34 | 0 | 0.05 | 16 |
| 2 | Pipe + pump | 12.396677 | 2.425852 | 5.730359 | 0.583088 | 34 | 0 | 0.05 | 16 |
At the selected thresholds, the adverse-classified area for both pump alternatives is located downstream of the pump station, a spatial pattern consistent with the modeled conveyance change. The pipe-only alternative does not produce qualifying BenefitArea cells; within this example, the limited response may reflect the selected segments, existing pipe capacity, or the relative influence of pump capacity. The comparison is intended to demonstrate programmatic generation of BenefitArea rasters and polygons for alternatives with and without measurable mapped benefit, rather than to establish a preferred design.
10. Map benefits, adverse impacts, and changed assets¶
Python
benefit_colors = ["#bdbdbd", "#fdae61", "#2c7bb6"]
benefit_cmap = ListedColormap(benefit_colors)
benefit_norm = BoundaryNorm([0.5, 1.5, 2.5, 3.5], benefit_cmap.N)
def draw_changed_assets(
axis,
result_crs,
*,
pipe_assets: gpd.GeoDataFrame | None = None,
pump_point_assets: gpd.GeoDataFrame | None = None,
annotate_pipes: bool = False,
):
if pipe_assets is not None:
pipes = pipe_assets.to_crs(result_crs)
pipes.plot(ax=axis, color="#7a0177", linewidth=3.0, zorder=7)
if annotate_pipes:
map_label_offsets = {
"3": (-25, -18), "97": (-18, 15),
"98": (8, -20), "119": (22, 15),
}
for row in pipes.itertuples():
midpoint = row.Polyline.interpolate(0.5, normalized=True)
axis.annotate(
row.conduit, xy=(midpoint.x, midpoint.y),
xytext=map_label_offsets[row.conduit],
textcoords="offset points", ha="center", color="#7a0177",
weight="bold",
bbox={"facecolor": "white", "edgecolor": "none", "alpha": 0.82},
arrowprops={"arrowstyle": "-", "color": "#7a0177", "linewidth": 0.7},
)
if pump_point_assets is not None:
pump_point_assets.to_crs(result_crs).plot(
ax=axis, color="#7a0177", marker="*", markersize=150, zorder=8
)
def plot_scenario_maps(
result: dict,
output_name: str,
*,
pipe_assets: gpd.GeoDataFrame | None = None,
pump_point_assets: gpd.GeoDataFrame | None = None,
):
min_x, min_y, max_x, max_y = result["polygons"].total_bounds
map_buildings = result["buildings"].cx[min_x:max_x, min_y:max_y]
positive_depths = np.concatenate([
result["pre"].compressed(), result["post"].compressed()
])
positive_depths = positive_depths[positive_depths > 0]
depth_vmax = float(np.percentile(positive_depths, 99.5)) if positive_depths.size else 1.0
fig, axes = plt.subplots(1, 3, figsize=(19, 6), constrained_layout=True)
depth_image = None
for axis, values, title in (
(axes[0], result["pre"], "Baseline maximum depth"),
(axes[1], result["post"], f"{result['scenario']} maximum depth"),
):
depth_image = axis.imshow(
values, extent=result["extent"], origin="upper", cmap="Blues",
vmin=0, vmax=depth_vmax, interpolation="nearest"
)
map_buildings.boundary.plot(
ax=axis, color="#555555", linewidth=0.18, alpha=0.55, zorder=3
)
result["polygons"].boundary.plot(ax=axis, color="#555555", linewidth=0.45)
draw_changed_assets(
axis, result["crs"], pipe_assets=pipe_assets,
pump_point_assets=pump_point_assets,
)
axis.set_title(title)
axes[2].imshow(
result["benefit"], extent=result["extent"], origin="upper",
cmap=benefit_cmap, norm=benefit_norm, interpolation="nearest"
)
adverse_display = np.ma.masked_where(~result["adverse"], result["adverse"])
axes[2].imshow(
adverse_display, extent=result["extent"], origin="upper",
cmap=ListedColormap(["#d73027"]), interpolation="nearest", alpha=0.9
)
result["polygons"].boundary.plot(ax=axes[2], color="#202020", linewidth=0.55)
map_buildings.boundary.plot(
ax=axes[2], color="#555555", linewidth=0.2, alpha=0.6, zorder=4
)
if not result["benefited_buildings"].empty:
result["benefited_buildings"].plot(
ax=axes[2], facecolor="none", edgecolor="#00a6a6",
linewidth=0.9, zorder=5
)
if not result["adverse_buildings"].empty:
result["adverse_buildings"].plot(
ax=axes[2], facecolor="none", edgecolor="#d73027",
linewidth=1.1, zorder=6
)
draw_changed_assets(
axes[2], result["crs"], pipe_assets=pipe_assets,
pump_point_assets=pump_point_assets, annotate_pipes=True,
)
axes[2].set_title("Benefits, adverse screen, and changed assets")
if result["adverse_cells"]:
adverse_note = (
f"Adverse ≥ {ADVERSE_IMPACT_THRESHOLD_FT:.2f} ft: "
f"{result['adverse_acres']:.2f} acres; "
f"maximum +{result['max_adverse_increase_ft']:.2f} ft"
)
else:
filter_note = (
"no pixel filter" if MINIMUM_REGION_PIXELS is None
else f"minimum region: {MINIMUM_REGION_PIXELS} connected cells"
)
adverse_note = (
f"No Adverse Impact ≥ {ADVERSE_IMPACT_THRESHOLD_FT:.2f} ft\n({filter_note})"
)
benefit_acres = result["partial_acres"] + result["full_acres"]
benefit_note = (
"" if benefit_acres
else f"No qualifying benefit ≥ {BENEFIT_MIN_DEPTH_FT:.2f} ft\n"
)
axes[2].text(
0.02, 0.02, benefit_note + adverse_note, transform=axes[2].transAxes,
ha="left", va="bottom", bbox={"facecolor": "white", "edgecolor": "#555555", "alpha": 0.9}
)
building_note = (
f"Buildings intersecting benefit: {result['benefited_building_count']:,}\n"
f"Buildings intersecting adverse: {result['adverse_building_count']:,}"
)
axes[2].text(
0.02, 0.98, building_note, transform=axes[2].transAxes,
ha="left", va="top",
bbox={"facecolor": "white", "edgecolor": "#555555", "alpha": 0.9},
)
padding_x = max((max_x - min_x) * 0.04, terrain_resolution)
padding_y = max((max_y - min_y) * 0.04, terrain_resolution)
for axis in axes:
axis.set_xlim(min_x - padding_x, max_x + padding_x)
axis.set_ylim(min_y - padding_y, max_y + padding_y)
axis.set_aspect("equal")
axis.set_xlabel("Easting (ft)")
axis.set_ylabel("Northing (ft)")
axis.tick_params(labelsize=8)
fig.colorbar(depth_image, ax=axes[:2], label="Depth (ft)", shrink=0.82)
legend = [
Patch(facecolor=color, edgecolor="none", label=CATEGORY_NAMES[code])
for code, color in zip((1, 2, 3), benefit_colors)
]
legend.append(Patch(facecolor="#d73027", edgecolor="none", label=f"Adverse ≥ {ADVERSE_IMPACT_THRESHOLD_FT:.2f} ft"))
legend.append(Line2D([0], [0], color="#555555", linewidth=0.7, label="Building footprint"))
legend.append(Line2D([0], [0], color="#00a6a6", linewidth=1.5, label="Building intersects benefit"))
legend.append(Line2D([0], [0], color="#d73027", linewidth=1.5, label="Building intersects adverse"))
if pipe_assets is not None:
legend.append(Line2D([0], [0], color="#7a0177", linewidth=3, label="Upsized conduit"))
if pump_point_assets is not None:
legend.append(Line2D(
[0], [0], marker="*", color="none", markerfacecolor="#7a0177",
markersize=12, label="Second-pump station",
))
axes[2].legend(handles=legend, loc="upper right")
fig.suptitle(f"{result['scenario']} alternative")
path = WORK_ROOT / output_name
fig.savefig(path, dpi=150, bbox_inches="tight")
plt.show()
print(f"Saved {path}")
plot_scenario_maps(
analyses["Pipe-only"],
"pipe_benefit_and_adverse_maps.png",
pipe_assets=changed_pipe_assets,
)
plot_scenario_maps(
analyses["Second pump"],
"second_pump_benefit_and_adverse_maps.png",
pump_point_assets=pump_assets,
)
plot_scenario_maps(
analyses["Pipe + pump"],
"combined_benefit_and_adverse_maps.png",
pipe_assets=changed_pipe_assets,
pump_point_assets=pump_assets,
)
scenario_asset_map = {
"Pipe-only": {"pipe_assets": changed_pipe_assets},
"Second pump": {"pump_point_assets": pump_assets},
"Pipe + pump": {
"pipe_assets": changed_pipe_assets,
"pump_point_assets": pump_assets,
},
}
comparison_results = [analyses[name] for name in scenario_asset_map]
all_bounds = np.asarray([result["polygons"].total_bounds for result in comparison_results])
comparison_bounds = (
float(all_bounds[:, 0].min()), float(all_bounds[:, 1].min()),
float(all_bounds[:, 2].max()), float(all_bounds[:, 3].max()),
)
comp_min_x, comp_min_y, comp_max_x, comp_max_y = comparison_bounds
comp_pad_x = max((comp_max_x - comp_min_x) * 0.04, terrain_resolution)
comp_pad_y = max((comp_max_y - comp_min_y) * 0.04, terrain_resolution)
fig, axes = plt.subplots(1, 3, figsize=(20, 6.5), constrained_layout=True)
for axis, result in zip(axes, comparison_results):
axis.imshow(
result["benefit"], extent=result["extent"], origin="upper",
cmap=benefit_cmap, norm=benefit_norm, interpolation="nearest",
)
axis.imshow(
np.ma.masked_where(~result["adverse"], result["adverse"]),
extent=result["extent"], origin="upper",
cmap=ListedColormap(["#d73027"]), interpolation="nearest", alpha=0.9,
)
result["polygons"].boundary.plot(ax=axis, color="#202020", linewidth=0.5)
result["buildings"].cx[
comp_min_x:comp_max_x, comp_min_y:comp_max_y
].boundary.plot(ax=axis, color="#555555", linewidth=0.18, alpha=0.55, zorder=4)
if not result["benefited_buildings"].empty:
result["benefited_buildings"].plot(
ax=axis, facecolor="none", edgecolor="#00a6a6", linewidth=0.9, zorder=5
)
if not result["adverse_buildings"].empty:
result["adverse_buildings"].plot(
ax=axis, facecolor="none", edgecolor="#d73027", linewidth=1.1, zorder=6
)
draw_changed_assets(
axis, result["crs"], annotate_pipes=True,
**scenario_asset_map[result["scenario"]],
)
total_benefit = result["partial_acres"] + result["full_acres"]
axis.text(
0.02, 0.02,
f"Benefit: {total_benefit:.2f} acres | buildings: {result['benefited_building_count']:,}\n"
f"Adverse ≥ {ADVERSE_IMPACT_THRESHOLD_FT:.2f} ft: {result['adverse_acres']:.2f} acres | "
f"buildings: {result['adverse_building_count']:,}",
transform=axis.transAxes, ha="left", va="bottom",
bbox={"facecolor": "white", "edgecolor": "#555555", "alpha": 0.9},
)
axis.set_xlim(comp_min_x - comp_pad_x, comp_max_x + comp_pad_x)
axis.set_ylim(comp_min_y - comp_pad_y, comp_max_y + comp_pad_y)
axis.set_aspect("equal")
axis.set_title(result["scenario"])
axis.set_xlabel("Easting (ft)")
axis.set_ylabel("Northing (ft)")
axis.tick_params(labelsize=8)
comparison_legend = [
Patch(facecolor=color, edgecolor="none", label=CATEGORY_NAMES[code])
for code, color in zip((1, 2, 3), benefit_colors)
]
comparison_legend.extend([
Patch(facecolor="#d73027", edgecolor="none", label=f"Adverse ≥ {ADVERSE_IMPACT_THRESHOLD_FT:.2f} ft"),
Line2D([0], [0], color="#00a6a6", linewidth=1.5, label="Building intersects benefit"),
Line2D([0], [0], color="#7a0177", linewidth=3, label="Changed asset"),
])
fig.legend(handles=comparison_legend, loc="outside lower center", ncol=6)
fig.suptitle("Benefit-area comparison of three alternatives")
comparison_path = WORK_ROOT / "scenario_benefit_comparison.png"
fig.savefig(comparison_path, dpi=150, bbox_inches="tight")
plt.show()
print(f"Saved {comparison_path}")
Text Only
Saved C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\working\612_benefit_area_analysis\pipe_benefit_and_adverse_maps.png
Text Only
Saved C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\working\612_benefit_area_analysis\second_pump_benefit_and_adverse_maps.png
Text Only
Saved C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\working\612_benefit_area_analysis\combined_benefit_and_adverse_maps.png
Text Only
Saved C:\Users\bill\.config\superpowers\worktrees\ras-commander\codex-benefit-area\working\612_benefit_area_analysis\scenario_benefit_comparison.png
Re-run behavior¶
- Project extraction is skipped when the working project exists.
- Each HEC-RAS plan compute is mandatory, but a completed result is reused when its scenario inputs are unchanged.
- Changing a conduit target or pump curve invalidates the affected independent and combined scenarios.
- BenefitArea, adverse-impact screening, tables, figures, rasters, and polygons are regenerated on every notebook run.
- Delete
working/612_benefit_area_analysisto force a complete extraction and hydraulic rerun.
