Dam Breach Results

Overview

This notebook demonstrates extracting dam breach analysis results from HEC-RAS HDF5 files. Breach modeling simulates catastrophic failure of dams or levees.

Breach Analysis Components: - Breach Formation: Time-dependent widening and deepening of breach - Breach Outflow: Flow through developing breach opening - Downstream Propagation: Flood wave routing downstream - Reservoir Drawdown: Water surface in reservoir during breach

HDF5 Structure Used by ras-commander

Text Only
/Results/Unsteady/Output/Output Blocks/Base Output/Unsteady Time Series/
└── SA 2D Area Conn/
    └── {structure}/
        ├── Structure Variables   # Flow and water-surface time series
        └── Breaching Variables   # Time-varying breach geometry

Breach Parameters (time-varying): - Width: Breach widens over time (linear, sine, or user-defined) - Invert: Breach deepens (erodes downward) - Flow: Combination of weir and orifice flow - Formation Time: Time from initiation to full formation

Breach Modeling Theory

Failure Modes: - Overtopping: Erosion starts at crest, progresses downstream - Piping: Internal erosion, sudden collapse - Earthquake: Instantaneous breach - Programmed: User-defined breach progression

Flow Equations:

Text Only
Qweir = Cw * Ltop * H^1.5           (Weir flow - unsubmerged)
Qorifice = Co * Abottom * sqrt(H)   (Orifice flow - submerged)
Qtotal = Qweir + Qorifice            (Combined)

Where: - Cw = weir coefficient - Ltop = top width of breach - H = head difference - Co = orifice coefficient - Abottom = bottom area of breach

Reference Documentation

Regulatory Context

Dam breach analysis typically required for: - Hazard Classification: Determine dam hazard potential (High, Significant, Low) - Emergency Action Plans (EAP): Inundation mapping for evacuation planning - Dam Safety Inspections: Assess consequences of failure - FEMA Flood Maps: Breach scenarios for floodplain mapping

Python
# Import ras-commander from the active Python environment.
from ras_commander import HdfResultsBreach, HdfResultsPlan, HdfStruc, RasBreach, RasCmdr, RasExamples, RasPlan, init_ras_project, ras

# Standard imports
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
import shutil

# Verify which version loaded
import ras_commander
print(f"✓ Loaded: {ras_commander.__file__}")

Parameters

Configure these values to customize the notebook for your project.

Python
# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================
from pathlib import Path

# Project Configuration
PROJECT_NAME = "BaldEagleCrkMulti2D"           # Example project to extract
RAS_VERSION = None                # Optional override, for example "7.0"

# HDF Analysis Settings
PLAN = "19"                       # Plan number (for HDF file path)
print(f"Configuration: {PROJECT_NAME} project, Plan {PLAN}, RAS override={RAS_VERSION}")

Dam Breach Results Extraction and Sensitivity Analysis

This notebook demonstrates: 1. Extracting baseline breach results from HDF files 2. Reading breach parameters from plan files 3. Modifying parameters iteratively (one parameter at a time) 4. Comparing results across different scenarios 5. Visualizing sensitivity to parameter changes

The project, template plan, and HEC-RAS version are configured in the Parameters cell above.

Workflow: - Extract baseline results - Clone plan and modify one parameter - Re-extract results and compare - Repeat for multiple parameters - Plot all scenarios together

Setup and Imports

1. Extract and Initialize Project

Python
# Extract the BaldEagleCrkMulti2D example project using static method
example_project_folder = RasExamples.extract_project(PROJECT_NAME, suffix="16")
print(f"Extracted project to: {example_project_folder}")

# Verify the path exists
print(f"BaldEagleCrkMulti2D project exists: {example_project_folder.exists()}")

# Set project_path variable for compatibility with rest of notebook
project_path = example_project_folder
Python
# Initialize the project
init_ras_project(project_path, RAS_VERSION)
effective_ras_version = ras.ras_version
print(f"\nInitialized project: {ras.project_name}")
print(f"Effective HEC-RAS execution version: {effective_ras_version}")
print(f"\nAvailable plans:")
ras.plan_df

# This is the SA to 2D Dam Break Run
template_plan = PLAN
Python
ras.plan_df

2. BASELINE: Extract Existing Results from the Template Plan

First, compute and analyze the baseline breach behavior from the configured template plan (PLAN).

Important Note: HDF Results Files

This example project may not include pre-computed HDF results. These files are generated when HEC-RAS runs a simulation.

The next section computes the configured template plan through RasCmdr.compute_plan(), then reads its generated HDF. All execution occurs in the notebook's extracted disposable project copy.

Python
# Initialize variables to None (prevents NameError in later cells)
target_structure = None
hdf_target_structure = None
baseline_ts = pd.DataFrame()
baseline_summary = pd.DataFrame()
baseline_params = None
baseline_geom = []
scenarios = {}
summaries = {}
scenario_1_plan = None
scenario_2_plan = None

2.1 Identify Breach Structures

Python
# List breach structures from PLAN FILE (for parameter operations)
# This ensures structure names match between listing and read_breach_block()
breach_structures_list = RasBreach.list_breach_structures_plan(template_plan)

print("Breach Structures in Plan File:")
for struct in breach_structures_list:
    if struct['structure']:  # Filter empty names
        status = f"stored Breach Loc is_active={struct['is_active']}"
        location = f"{struct['river']}/{struct['reach']}/RS {struct['station']}" if struct['river'] else "No location"
        print(f"  - {struct['structure']}: {status} ({location})")

# Get active structure names for parameter operations
breach_structures = [s['structure'] for s in breach_structures_list
                    if s['structure'] and s['is_active']]

if breach_structures:
    target_structure = breach_structures[0]
    print(f"\nTarget structure for analysis: {target_structure}")
    print(f"  This name will work with RasBreach.read_breach_block()")
else:
    print("\nWARNING: No structure has stored Breach Loc is_active=True.")
    target_structure = None
Python
template_plan
Python
if target_structure:
    # Read breach parameters from plan file
    baseline_params = RasBreach.read_breach_block(template_plan, target_structure)

    print(f"Baseline Parameters for {target_structure}:")
    print("=" * 80)
    print(f"\nStored Breach Loc is_active: {baseline_params['is_active']}")
    print(f"\nKey Parameter Values:")
    for key in ['Breach Method', 'Breach Geom', 'Breach Start', 'Breach Progression']:
        if key in baseline_params['values']:
            print(f"  {key}: {baseline_params['values'][key]}")

    # Parse geometry values for modification
    geom_str = baseline_params['values'].get('Breach Geom', '')
    baseline_geom = [x.strip() for x in geom_str.split(',')]
    print(f"\nBaseline Geometry (parsed): {baseline_geom}")

    # Explain Breach Geom field structure
    if len(baseline_geom) >= 9:
        print("\nBreach Geom Stored Record (CSV, 9 required fields; field 9 is optional in legacy nine-field records):")
        print(f"  [0] Centerline/Station: {baseline_geom[0]} ft")
        print(f"  [1] Final Bottom Width: {baseline_geom[1]} ft")
        print(f"  [2] Final Bottom Elevation: {baseline_geom[2]} ft  <-- KEY PARAMETER")
        print(f"  [3] Left Side Slope: {baseline_geom[3]} (H:V)")
        print(f"  [4] Right Side Slope: {baseline_geom[4]} (H:V)")
        print(f"  [5] Stored Failure-Mode Flag: {baseline_geom[5]}")
        print(f"  [6] Piping Coefficient: {baseline_geom[6]}")
        print(f"  [7] Initial Piping Elevation: {baseline_geom[7]} ft")
        print(f"  [8] Breach Formation Time: {baseline_geom[8]} hrs")
        if len(baseline_geom) >= 10:
            print(f"  [9] Breach Weir Coefficient: {baseline_geom[9]}")
        else:
            print("  [9] Breach Weir Coefficient: not stored in this record")

        print("\n--- Example: Update Final Bottom Elevation ---")
        print(f"Current value: {baseline_geom[2]} ft")
        print("To change to 605 ft:")
        print("  example_plan = RasPlan.clone_plan(template_plan, 'Raised breach bottom')")
        print("  new_geom = baseline_geom.copy()")
        print("  new_geom[2] = 605")
        print("  RasBreach.update_breach_block(example_plan, target_structure, geom_values=new_geom)")

else:
    print("Skipping parameter reading - no breach structure available")
    baseline_params = None
    baseline_geom = []
Python
# First, compute the template plan to generate HDF results
print(f"Computing plan {template_plan} to generate HDF results...")
print("(This may take 1-2 minutes)")
RasCmdr.compute_plan(template_plan, skip_existing=True, num_cores=2)
print(f"Plan {template_plan} complete")

# Resolve the HDF structure name separately from the plan-file structure name.
hdf_breach_info = HdfStruc.get_sa2d_breach_info(template_plan)
hdf_breach_structures = hdf_breach_info.loc[
    hdf_breach_info['has_breach'], 'structure'
].tolist()
if target_structure in hdf_breach_structures:
    hdf_target_structure = target_structure
elif len(hdf_breach_structures) == 1:
    hdf_target_structure = hdf_breach_structures[0]
else:
    hdf_target_structure = None
    if len(hdf_breach_structures) > 1:
        print("Ambiguous HDF breach structures; no automatic fallback selected.")

# Now extract breach results from the HDF.
if hdf_target_structure:
    # Extract complete breach time series from HDF results
    baseline_ts = HdfResultsBreach.get_breach_timeseries(template_plan, hdf_target_structure)

    print(f"Baseline Time Series Extracted: {baseline_ts.shape}")
    print(f"\nColumns: {list(baseline_ts.columns)}")
    print(f"\nFirst few timesteps:")
    print(baseline_ts.head())

    # Get summary statistics from HDF results
    baseline_summary = HdfResultsBreach.get_breach_summary(template_plan, hdf_target_structure)
    print(f"\nBaseline Summary Statistics:")
    print(baseline_summary.to_string(index=False))

    # Store only nonempty baseline results for later comparison.
    scenarios = (
        {f'Baseline (Plan {template_plan})': baseline_ts.copy()}
        if not baseline_ts.empty
        else {}
    )
    summaries = (
        {f'Baseline (Plan {template_plan})': baseline_summary.copy()}
        if not baseline_summary.empty
        else {}
    )
else:
    print("Skipping baseline extraction - no HDF breach structure available")
    baseline_ts = pd.DataFrame()
    baseline_summary = pd.DataFrame()
    scenarios = {}
    summaries = {}

Easy Parameter Modification with set_breach_geom()

NEW FUNCTION: RasBreach.set_breach_geom() provides a clean interface for modifying individual breach parameters without manually parsing/reconstructing the CSV.

Python
# Example: Update just Final Bottom Elevation (most common modification)
if target_structure:
    print("Example: Update Final Bottom Elevation to 605 ft")
    print("=" * 60)
    print("\nClone the baseline first, then use set_breach_geom():")
    print("  example_plan = RasPlan.clone_plan(template_plan, 'Raised breach bottom')")
    print("  RasBreach.set_breach_geom(example_plan, target_structure,")
    print("                            final_bottom_elev=605)")
    print("\nThis automatically:")
    print("  1. Reads current Breach Geom values")
    print("  2. Updates ONLY the final_bottom_elev field (index 2)")
    print("  3. Preserves all other parameters")
    print("  4. Writes back to plan file with backup")

    print("\n\nOther common modifications:")
    print("\n# Increase breach width by 50%")
    print("  current_width = 200  # Read the final bottom width from baseline_params")
    print("  RasBreach.set_breach_geom(example_plan, target_structure,")
    print("                            final_bottom_width=current_width * 1.5)")

    print("\n# Change formation time")
    print("  RasBreach.set_breach_geom(example_plan, target_structure,")
    print("                            formation_time=3.5)")

    print("\n# Update multiple parameters at once")
    print("  RasBreach.set_breach_geom(example_plan, target_structure,")
    print("                            final_bottom_elev=605,")
    print("                            final_bottom_width=250,")
    print("                            formation_time=3.0)")
else:
    print("No target structure available for examples")

3. SCENARIO ANALYSIS: Modify Parameters and Compare Results

Now we'll create multiple scenarios by modifying breach parameters one at a time.

Workflow for each scenario: 1. Clone the configured template plan 2. Modify one parameter in the clone 3. Compute the cloned plans in parallel through RasCmdr.compute_parallel() 4. Extract the generated HDF results 5. Compare each scenario with the baseline

Scenario 1: Increase Breach Width by 50%

Python
if target_structure and baseline_geom and len(baseline_geom) >= 2:
    # Clone plan
    scenario_1_plan = RasPlan.clone_plan(template_plan, "Scenario 1: +50% Width")

    # Modify the final breach bottom width (field 1).
    original_width = float(baseline_geom[1])
    new_width = original_width * 1.5

    print(f"\nModifying breach width:")
    print(f"  Original: {original_width} ft")
    print(f"  New: {new_width} ft (+50%)")

    # Update the plan
    RasBreach.set_breach_geom(
        scenario_1_plan,
        target_structure,
        final_bottom_width=new_width,
    )

    print(f"\n✓ Scenario 1 plan created: {scenario_1_plan}")
    print(f"  Ready for parallel HEC-RAS execution: plan {scenario_1_plan}")
else:
    print("Skipping Scenario 1 - insufficient baseline data")

Scenario 2: Decrease Breach Formation Time by 50%

Python
if target_structure and baseline_geom and len(baseline_geom) >= 9:
    # Clone plan
    scenario_2_plan = RasPlan.clone_plan(template_plan, "Scenario 2: -50% Formation Time")

    # Formation time is field 8; use the named setter to avoid index errors
    original_time = float(baseline_geom[8])
    new_time = original_time * 0.5

    print(f"\nModifying breach formation time:")
    print(f"  Original: {original_time} hrs")
    print(f"  New: {new_time} hrs (-50%)")

    # Update the plan
    RasBreach.set_breach_geom(
        scenario_2_plan,
        target_structure,
        formation_time=new_time
    )

    print(f"\n✓ Scenario 2 plan created: {scenario_2_plan}")
    print(f"  Ready for parallel HEC-RAS execution: plan {scenario_2_plan}")
else:
    print("Skipping Scenario 2 - insufficient baseline data")
Python
scenario_plans_to_compute = [
    plan for plan in (scenario_1_plan, scenario_2_plan) if plan is not None
]
parallel_computed_folder = example_project_folder.parent / f"{example_project_folder.name}_parallelcomputed"

if scenario_plans_to_compute:
    RasCmdr.compute_parallel(
        scenario_plans_to_compute,
        max_workers=4,
        num_cores=2,
        dest_folder=Path(parallel_computed_folder),
        overwrite_dest=True,
    )
    # Re-initialize explicitly with the configured HEC-RAS version.
    init_ras_project(parallel_computed_folder, effective_ras_version)
    print(f"Reinitialized results with HEC-RAS version: {ras.ras_version}")
    results_project_path = Path(parallel_computed_folder)
else:
    results_project_path = project_path
    print("Skipping parallel execution: no scenario plans were created.")
Python
# Display results summary from results_df after parallel execution
# This shows execution status, timing, and any errors/warnings for each plan
ras.results_df[['plan_number', 'plan_title', 'completed', 'has_errors', 'has_warnings', 'runtime_complete_process_hours']]
Python
# Scenario definitions
scenario_plans = {
    name: plan
    for name, plan in {
        'Scenario 1: +50% Width': scenario_1_plan,
        'Scenario 2: -50% Formation Time': scenario_2_plan,
    }.items()
    if plan is not None
}
Python
# Extract results for each computed scenario from HDF files.
if hdf_target_structure:
    for scenario_name, plan_num in scenario_plans.items():
        ts = HdfResultsBreach.get_breach_timeseries(plan_num, hdf_target_structure)
        summary = HdfResultsBreach.get_breach_summary(plan_num, hdf_target_structure)

        if not ts.empty:
            scenarios[scenario_name] = ts
            print(f"✓ Extracted time series: {scenario_name}")
        else:
            print(f"⚠ No breach time series found for: {scenario_name}")

        if not summary.empty:
            summaries[scenario_name] = summary
            print(f"✓ Extracted summary: {scenario_name}")
        else:
            print(f"⚠ No breach summary found for: {scenario_name}")
else:
    print("Skipping scenario extraction - no HDF breach structure available.")

print(f"\nTotal scenarios with results: {len(scenarios)}")

4. Extract Results from All Scenarios

The preceding parallel execution generated HDF files for the cloned scenario plans. This section inspects their computation messages and structured breach results.

Python
import textwrap

# Get the raw computation messages string from the results HDF for scenario 1.
comp_msgs = (
    HdfResultsPlan.get_compute_messages(scenario_1_plan)
    if scenario_1_plan is not None
    else ""
)

def pretty_print_compute_messages(msg: str) -> None:
    """
    Nicely format and print RAS compute messages. Strips unnecessary escapes,
    ensures readable blocks, and optionally highlights warnings.
    """
    if not msg:
        print("No computation messages found.")
        return

    # Replace carriage returns, unify newlines
    msg = msg.replace('\r\n', '\n').replace('\r', '\n')
    # Collapse excessive blank lines to at most 2
    lines = msg.split('\n')
    pretty_lines = []
    blank_count = 0
    for line in lines:
        if line.strip() == '':
            blank_count += 1
            if blank_count <= 2:
                pretty_lines.append('')
        else:
            blank_count = 0
            # Optionally add highlighting for warnings/errors
            l_strip = line.lstrip()
            if l_strip.lower().startswith("warning") or "error" in l_strip.lower():
                pretty_lines.append("⚠️ " + line)
            else:
                pretty_lines.append(line)
    # Optionally wrap long lines for readability
    final_lines = []
    for l in pretty_lines:
        if len(l) > 120:
            final_lines.extend(textwrap.wrap(l, width=120))
        else:
            final_lines.append(l)
    # Print result
    print('\n'.join(final_lines))

pretty_print_compute_messages(comp_msgs)
Python
# List SA/2D connection structures in HDF results
hdf_structures = HdfStruc.list_sa2d_connections(template_plan)
print("SA/2D Connection Structures in HDF:")
for struct in hdf_structures:
    print(f"  - {struct}")

# Get breach capability information
breach_info = HdfStruc.get_sa2d_breach_info(template_plan)
print("\nBreach Capability Information:")
print(breach_info.to_string(index=False))

# Get list of structures with breach capability
breach_structures = breach_info[breach_info['has_breach']]['structure'].tolist()
print(f"\nStructures with breach capability: {breach_structures}")

# Keep the HDF name separate from the plan-file target used by RasBreach.
if target_structure in breach_structures:
    hdf_target_structure = target_structure
elif len(breach_structures) == 1:
    hdf_target_structure = breach_structures[0]
else:
    hdf_target_structure = None
    if len(breach_structures) > 1:
        print("Ambiguous HDF breach structures; no automatic fallback selected.")

print(f"\nPlan-file target structure: {target_structure}")
print(f"HDF target structure: {hdf_target_structure}")
Python
# Get breach-specific variables (width, depth, slopes over time)
breach_vars = (
    HdfResultsBreach.get_breaching_variables(template_plan, hdf_target_structure)
    if hdf_target_structure
    else pd.DataFrame()
)
breach_vars

5. Compare Results Across All Scenarios

Visualize all scenarios together to understand parameter sensitivity.

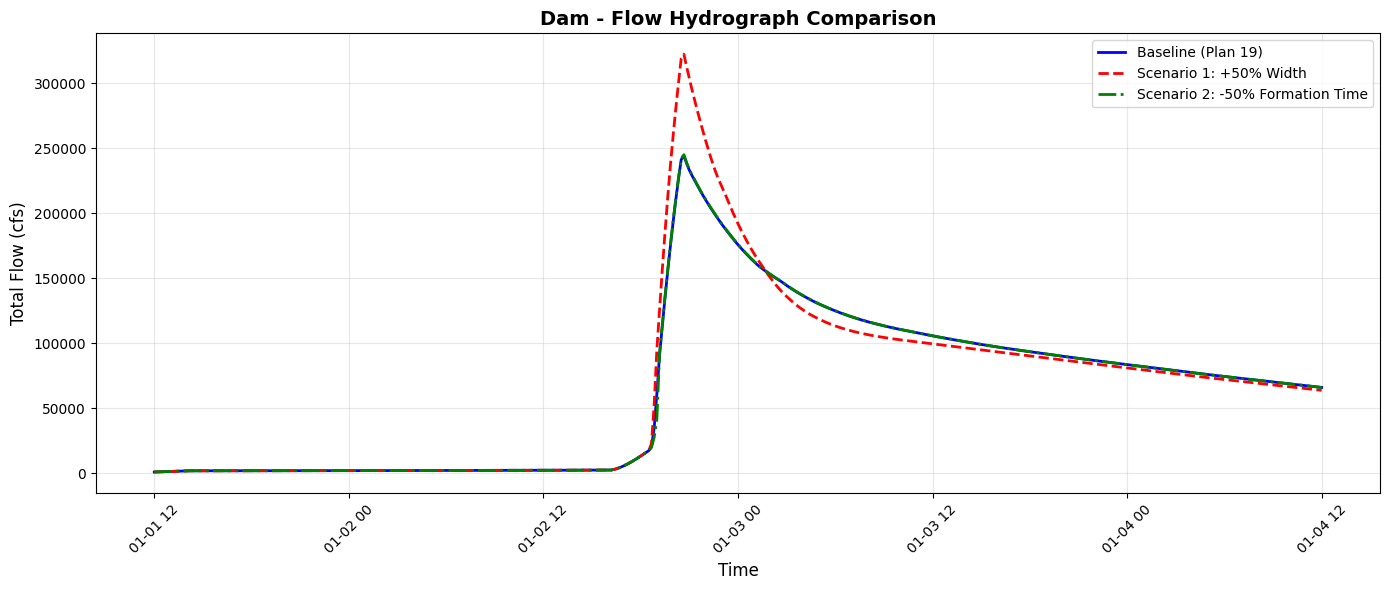

5.1 Flow Hydrograph Comparison

Python
flow_scenarios = {
    name: frame for name, frame in scenarios.items()
    if not frame.empty and {'datetime', 'total_flow'}.issubset(frame.columns)
}
colors = ['blue', 'red', 'green', 'orange', 'purple']
linestyles = ['-', '--', '-.', ':', '-']

if flow_scenarios:
    fig, ax = plt.subplots(figsize=(14, 6))

    for idx, (scenario_name, ts_data) in enumerate(flow_scenarios.items()):
        color = colors[idx % len(colors)]
        linestyle = linestyles[idx % len(linestyles)]

        ax.plot(ts_data['datetime'], ts_data['total_flow'],
               label=scenario_name, color=color, linestyle=linestyle, linewidth=2)

    ax.set_xlabel('Time', fontsize=12)
    ax.set_ylabel('Total Flow (cfs)', fontsize=12)
    ax.set_title(f'{hdf_target_structure} - Flow Hydrograph Comparison',
                fontsize=14, fontweight='bold')
    ax.legend(loc='best', fontsize=10)
    ax.grid(True, alpha=0.3)
    plt.xticks(rotation=45)
    plt.tight_layout()
    plt.show()
else:
    print("No nonempty scenario time series contain datetime and total_flow.")

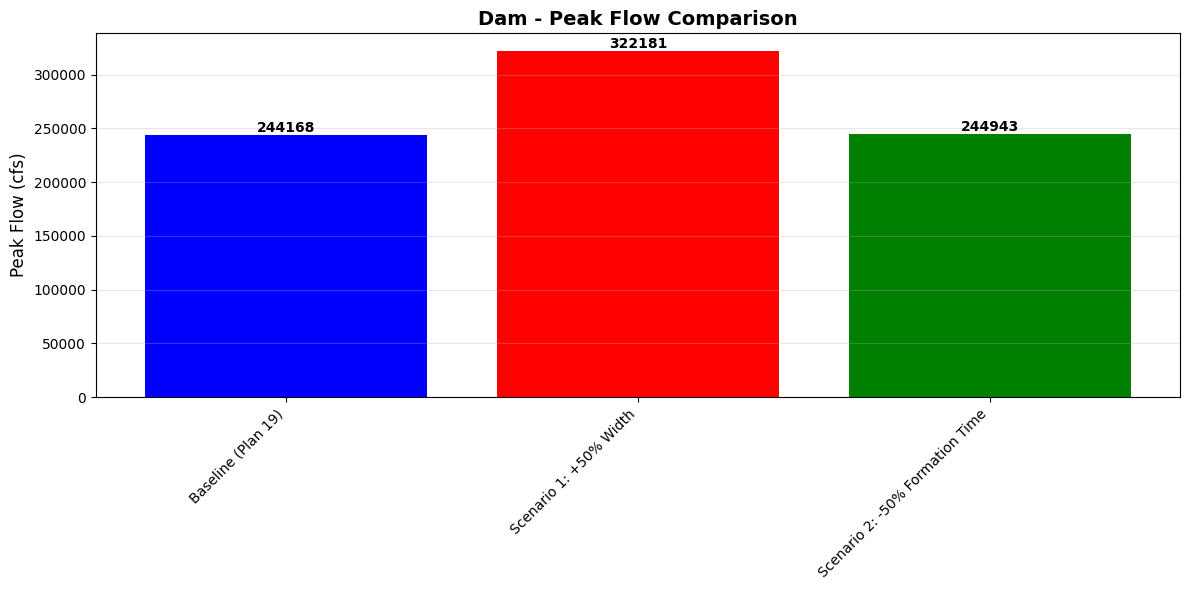

5.2 Peak Flow Comparison (Bar Chart)

Python
peak_summaries = {
    name: frame for name, frame in summaries.items()
    if not frame.empty and 'max_total_flow' in frame.columns
}

if peak_summaries:
    # Extract peak flows
    scenario_names = list(peak_summaries.keys())
    peak_flows = [peak_summaries[name].iloc[0]['max_total_flow']
                 for name in scenario_names]

    # Create bar chart
    fig, ax = plt.subplots(figsize=(12, 6))
    bars = ax.bar(range(len(scenario_names)), peak_flows,
                  color=['blue', 'red', 'green', 'orange', 'purple'][:len(scenario_names)])

    ax.set_xticks(range(len(scenario_names)))
    ax.set_xticklabels(scenario_names, rotation=45, ha='right')
    ax.set_ylabel('Peak Flow (cfs)', fontsize=12)
    ax.set_title(f'{hdf_target_structure} - Peak Flow Comparison',
                fontsize=14, fontweight='bold')
    ax.grid(True, axis='y', alpha=0.3)

    # Add value labels on bars
    for bar, value in zip(bars, peak_flows):
        height = bar.get_height()
        ax.text(bar.get_x() + bar.get_width()/2., height,
               f'{value:.0f}',
               ha='center', va='bottom', fontsize=10, fontweight='bold')

    plt.tight_layout()
    plt.show()

    # Print percent differences from baseline
    if len(peak_flows) > 1:
        baseline_flow = peak_flows[0]
        print("\nPeak Flow Differences from Baseline:")
        print("=" * 60)
        for i, (name, flow) in enumerate(zip(scenario_names, peak_flows)):
            if i == 0:
                print(f"{name}: {flow:.0f} cfs (baseline)")
            else:
                diff_pct = ((flow - baseline_flow) / baseline_flow) * 100
                print(f"{name}: {flow:.0f} cfs ({diff_pct:+.1f}%)")
else:
    print("No nonempty summaries contain max_total_flow.")

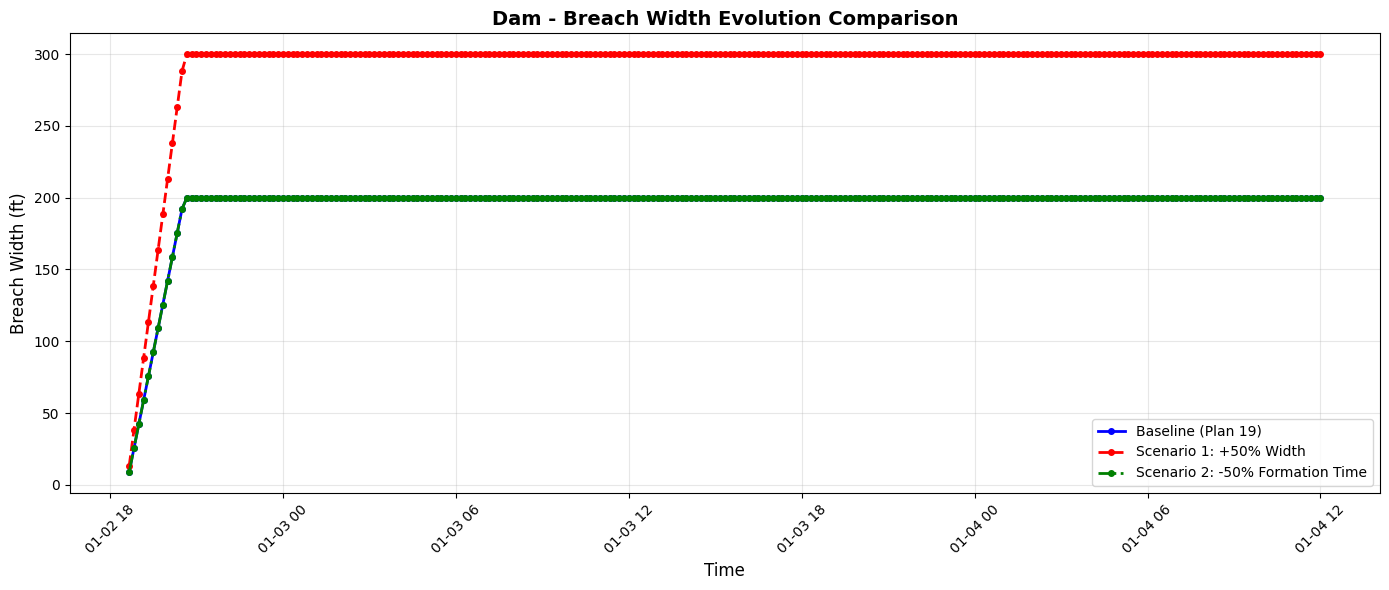

5.3 Breach Width Evolution Comparison

Python
width_scenarios = {
    name: frame for name, frame in scenarios.items()
    if (not frame.empty
        and {'datetime', 'bottom_width'}.issubset(frame.columns)
        and frame['bottom_width'].notna().any())
}

if width_scenarios:

    if width_scenarios:
        fig, ax = plt.subplots(figsize=(14, 6))

        for idx, (scenario_name, ts_data) in enumerate(width_scenarios.items()):
            if ts_data['bottom_width'].notna().any():
                color = colors[idx % len(colors)]
                linestyle = linestyles[idx % len(linestyles)]

                ax.plot(ts_data['datetime'], ts_data['bottom_width'],
                       label=scenario_name, color=color, linestyle=linestyle,
                       linewidth=2, marker='o', markersize=4)

        ax.set_xlabel('Time', fontsize=12)
        ax.set_ylabel('Breach Width (ft)', fontsize=12)
        ax.set_title(f'{hdf_target_structure} - Breach Width Evolution Comparison',
                    fontsize=14, fontweight='bold')
        ax.legend(loc='best', fontsize=10)
        ax.grid(True, alpha=0.3)
        plt.xticks(rotation=45)
        plt.tight_layout()
        plt.show()
    else:
        print("No breach width data available (breach may not have formed)")
else:
    print("No nonempty scenario time series contain breach width data.")

5.4 Summary Table Comparison

Python
valid_summaries = {
    name: frame for name, frame in summaries.items() if not frame.empty
}

if valid_summaries:
    # Combine all summaries into a comparison table
    comparison_data = []
    for scenario_name, summary_df in valid_summaries.items():
        row = summary_df.iloc[0].to_dict()
        row['Scenario'] = scenario_name
        comparison_data.append(row)

    comparison_df = pd.DataFrame(comparison_data)

    # Select key columns for display
    display_cols = ['Scenario', 'max_total_flow', 'max_breach_flow',
                   'final_breach_width', 'final_breach_depth',
                   'max_hw', 'max_tw']

    # Filter to available columns
    display_cols = [col for col in display_cols if col in comparison_df.columns]

    print("\nScenario Comparison Summary:")
    print("=" * 100)
    print(comparison_df[display_cols].to_string(index=False))

    # Export to CSV
    output_file = results_project_path / "breach_scenario_comparison.csv"
    comparison_df.to_csv(output_file, index=False)
    print(f"\nComparison table exported to: {output_file}")
else:
    print("No nonempty summary data available for comparison table.")

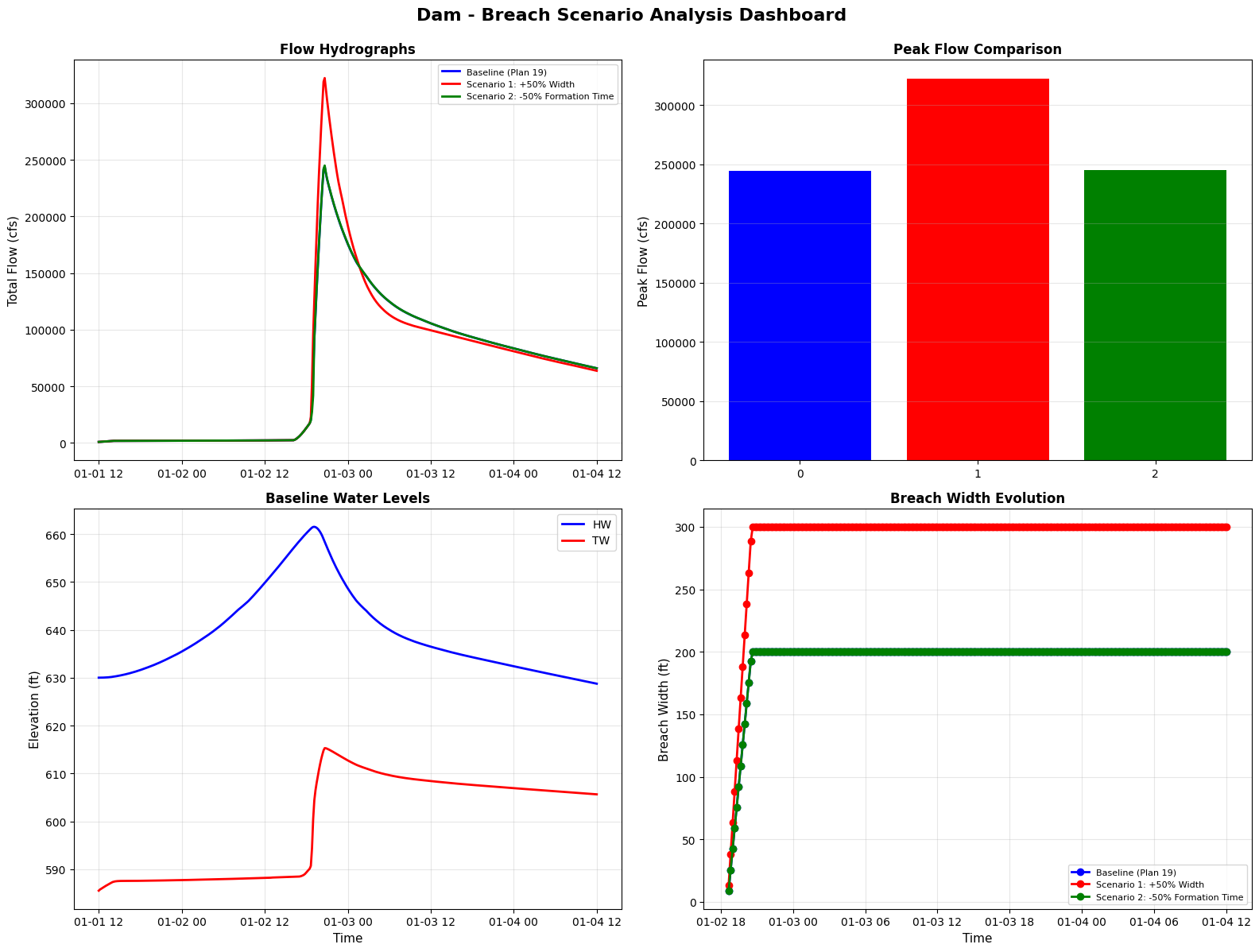

5.5 Comprehensive Multi-Panel Comparison

Python
dashboard_keys = [
    name for name, frame in scenarios.items()
    if (name in summaries
        and not frame.empty
        and not summaries[name].empty
        and {'datetime', 'total_flow', 'hw', 'tw'}.issubset(frame.columns)
        and 'max_total_flow' in summaries[name].columns)
]

if len(dashboard_keys) > 1:
    # Create 2x2 subplot grid
    fig, axes = plt.subplots(2, 2, figsize=(16, 12))

    # Plot 1: Flow comparison
    for idx, scenario_name in enumerate(dashboard_keys):
        ts_data = scenarios[scenario_name]
        color = colors[idx % len(colors)]
        axes[0, 0].plot(ts_data['datetime'], ts_data['total_flow'],
                       label=scenario_name, color=color, linewidth=2)
    axes[0, 0].set_ylabel('Total Flow (cfs)', fontsize=11)
    axes[0, 0].set_title('Flow Hydrographs', fontsize=12, fontweight='bold')
    axes[0, 0].legend(fontsize=8)
    axes[0, 0].grid(True, alpha=0.3)

    # Plot 2: Peak flows bar chart
    scenario_names = dashboard_keys
    peak_flows = [summaries[name].iloc[0]['max_total_flow'] for name in scenario_names]
    bars = axes[0, 1].bar(range(len(scenario_names)), peak_flows,
                          color=colors[:len(scenario_names)])
    axes[0, 1].set_xticks(range(len(scenario_names)))
    axes[0, 1].set_xticklabels(scenario_names, rotation=30, ha='right')
    axes[0, 1].set_ylabel('Peak Flow (cfs)', fontsize=11)
    axes[0, 1].set_title('Peak Flow Comparison', fontsize=12, fontweight='bold')
    axes[0, 1].grid(True, axis='y', alpha=0.3)

    # Plot 3: HW/TW for baseline
    baseline_ts = scenarios[dashboard_keys[0]]
    axes[1, 0].plot(baseline_ts['datetime'], baseline_ts['hw'],
                   label='HW', color='blue', linewidth=2)
    axes[1, 0].plot(baseline_ts['datetime'], baseline_ts['tw'],
                   label='TW', color='red', linewidth=2)
    axes[1, 0].set_xlabel('Time', fontsize=11)
    axes[1, 0].set_ylabel('Elevation (ft)', fontsize=11)
    axes[1, 0].set_title('Baseline Water Levels', fontsize=12, fontweight='bold')
    axes[1, 0].legend()
    axes[1, 0].grid(True, alpha=0.3)

    # Plot 4: Breach width comparison (if available)
    has_width = False
    for idx, scenario_name in enumerate(dashboard_keys):
        ts_data = scenarios[scenario_name]
        if 'bottom_width' in ts_data.columns and ts_data['bottom_width'].notna().any():
            color = colors[idx % len(colors)]
            axes[1, 1].plot(ts_data['datetime'], ts_data['bottom_width'],
                           label=scenario_name, color=color, linewidth=2, marker='o')
            has_width = True

    if has_width:
        axes[1, 1].set_xlabel('Time', fontsize=11)
        axes[1, 1].set_ylabel('Breach Width (ft)', fontsize=11)
        axes[1, 1].set_title('Breach Width Evolution', fontsize=12, fontweight='bold')
        axes[1, 1].legend(fontsize=8)
        axes[1, 1].grid(True, alpha=0.3)
    else:
        axes[1, 1].text(0.5, 0.5, 'No Breach Width Data',
                       ha='center', va='center', fontsize=14,
                       transform=axes[1, 1].transAxes)

    fig.suptitle(f'{hdf_target_structure} - Breach Scenario Analysis Dashboard',
                fontsize=16, fontweight='bold', y=0.995)
    plt.tight_layout()
    plt.show()
else:
    print("Need at least two scenarios with compatible time series and summaries.")

6. Export All Results

Python
if scenarios:
    # Export each scenario's time series
    for scenario_name, ts_data in scenarios.items():
        # Create safe filename
        safe_name = scenario_name.replace(' ', '_').replace(':', '').replace('+', 'plus')
        filename = results_project_path / f"breach_{safe_name}.csv"
        ts_data.to_csv(filename, index=False)
        print(f"Exported: {filename.name}")

    print(f"\nAll scenario data exported to: {results_project_path}")
else:
    print("No scenario data to export")

Summary

This notebook demonstrated:

✅ Baseline Analysis: - Extracted existing breach results from HDF - Read baseline breach parameters from plan file - Visualized baseline behavior

✅ Scenario Creation: - Cloned plans to create new scenarios - Modified breach parameters one at a time: - Scenario 1: Increased breach width by 50% - Scenario 2: Decreased formation time by 50%

✅ Results Comparison: - Extracted results from all scenarios - Compared flow hydrographs - Compared peak flows - Compared breach geometry evolution - Created comprehensive comparison dashboard

✅ Data Export: - Exported time series for all scenarios - Exported comparison summary table

Key Functions Used:

Python
# HDF Results Extraction (use HdfResultsBreach and HdfStruc)
HdfStruc.list_sa2d_connections(plan)              # List structures in HDF
HdfStruc.get_sa2d_breach_info(plan)               # Get breach capability info
HdfResultsBreach.get_breach_timeseries(plan, structure)   # Extract time series
HdfResultsBreach.get_breach_summary(plan, structure)      # Extract summary stats
HdfResultsBreach.get_breaching_variables(plan, structure) # Breach geometry evolution
HdfResultsBreach.get_structure_variables(plan, structure) # Structure flow variables

# Plan File Parameter Management (use RasBreach)
RasBreach.list_breach_structures_plan(plan)      # List structures in plan file
RasBreach.read_breach_block(plan, structure)     # Read parameters
RasBreach.update_breach_block(plan, structure, geom_values=[...])  # Modify parameters

Architectural Pattern:

ras-commander separates HDF and plain text operations: - RasBreach → Breach PARAMETERS in plan files (.p##) - HdfResultsBreach → Breach RESULTS from HDF files (.p##.hdf) - HdfStruc → Structure listings and metadata from HDF

Important: Use plan file methods for parameter operations to ensure structure names match!

Breach Geom Field Structure:

Python
# Breach Geom CSV format: fields 0-8 are required; field 9 is version-dependent.
[0] Centerline/Station     # ft
[1] Final Bottom Width     # ft
[2] Final Bottom Elevation # ft  <-- Example: change this to 605
[3] Left Side Slope        # H:V ratio
[4] Right Side Slope       # H:V ratio
[5] Stored Failure-Mode Flag # raw True/False value
[6] Piping Coefficient     # dimensionless
[7] Initial Piping Elevation # ft
[8] Breach Formation Time # hrs
[9] Breach Weir Coefficient # optional/version-dependent

# Example: clone the baseline, then update Final Bottom Elevation
example_plan = RasPlan.clone_plan(template_plan, "Raised breach bottom")
new_geom = baseline_geom.copy()
new_geom[2] = 605  # Set to 605 ft
RasBreach.update_breach_block(example_plan, target_structure, geom_values=new_geom)

7. Advanced Breach Features (NEW)

This section demonstrates new RasBreach features:

  1. create_breach_block() - Create new breach blocks from scratch
  2. DLBreach (Method 9) - Physics-based erosion modeling with soil properties
  3. Advanced Parameters - User growth ratio, mass wasting options
  4. BreachBlock Values - Inspect DLBreach parameters returned by the public reader

DLBreach Overview

DLBreach (Dam-breach Lake Breach) is Method 9 in HEC-RAS, providing physics-based erosion modeling that uses soil properties to simulate breach progression more realistically than parametric methods.

Key DLBreach Parameters: - dlb_methods: 7-value list of method flags (first value is primary method 0-9) - dlb_soil_type: Soil type index (0-7: Sand, Loamy Sand, Sandy Loam, Loam, Silt Loam, Sandy Clay Loam, Clay Loam, Clay) - dlb_soil_properties: 7 erosion parameters (critical shear stress, erodibility, etc.) - dlb_breach_direction: Breach direction (0=downstream, 1=upstream, 2=both)

7.1 Creating New Breach Blocks

Use RasBreach.create_breach_block() to add breach capability to structures that don't already have it.

Python
# Demonstrate create_breach_block() - creates new breach for a structure
# NOTE: This is demonstration code only - requires a structure without existing breach

print("create_breach_block() - Add breach capability to a structure")
print("=" * 70)
print("""
# Syntax:
result = RasBreach.create_breach_block(
    plan_input="01",              # Plan number or path
    structure_name="NewDam",       # Structure name (must not already have breach)
    river="Main River",            # Optional: River name for 1D location
    reach="Upper Reach",           # Optional: Reach name
    station="12345.0",             # Optional: River station
    is_active=True,                # Set the stored Breach Loc flag
    create_backup=True             # Create backup before modifying
)

# Returns dict with created block details:
# {
#     'structure_name': 'NewDam',
#     'is_active': True,
#     'values': {'Breach Method': ' 0', 'Breach Geom': '...', ...}
# }

# After creation, customize parameters:
RasBreach.update_breach_block(
    "01", "NewDam",
    geom_values=[5700, 200, 605, 0.5, 0.5, True, 0.5, 630, 2, 2.6],
    method=0  # User-entered breach geometry
)
""")

print("\nCreated blocks start with Method 0 (user-entered data) defaults.")
print("Use update_breach_block() to configure specific breach parameters.")

7.2 DLBreach (Method 9) Configuration

DLBreach is HEC-RAS's physics-based erosion model. It uses soil properties to simulate breach progression more realistically than parametric methods.

Soil Types (dlb_soil_type): | Index | Soil Type | |-------|-----------| | 0 | Sand | | 1 | Loamy Sand | | 2 | Sandy Loam | | 3 | Loam | | 4 | Silt Loam | | 5 | Sandy Clay Loam | | 6 | Clay Loam | | 7 | Clay |

Soil Properties (dlb_soil_properties): 7-value list 1. Critical shear stress (Pa) 2. Erodibility coefficient (m³/N·s) 3. Angle of repose (degrees) 4. Porosity 5. Unit weight (N/m³) 6. Cohesion (Pa) 7. Friction angle (degrees)

Python
# Configure DLBreach (Method 9) for physics-based erosion
print("DLBreach Configuration Example")
print("=" * 70)
print("""
# Configure existing breach block for DLBreach (Method 9)
RasBreach.update_breach_block(
    plan_input="01",
    structure_name="Dam",

    # Method 9 = DLBreach
    method=9,

    # DLBreach-specific parameters
    dlb_methods=[9, 0, 0, 0, 0, 0, 0],      # Primary method in first position
    dlb_soil_type=2,                         # Sandy Loam
    dlb_soil_properties=[                    # Custom soil properties
        1.5,    # Critical shear stress (Pa)
        0.001,  # Erodibility coefficient (m³/N·s)
        35.0,   # Angle of repose (degrees)
        0.35,   # Porosity
        18000,  # Unit weight (N/m³)
        5000,   # Cohesion (Pa)
        30.0    # Friction angle (degrees)
    ],
    dlb_breach_direction=0,                  # 0=downstream, 1=upstream, 2=both

    # Standard geometry parameters still apply
    geom_values=[5700, 200, 605, 0.5, 0.5, True, 0.5, 630, 2, 2.6]
)
""")

print("DLBreach models breach erosion using soil mechanics principles.")
print("More realistic than parametric methods for detailed dam safety studies.")

7.3 BreachBlock Values

read_breach_block() returns a public dictionary containing raw values and parsed table_rows. Read DLBreach and advanced fields from block["values"], as shown below. The nested BreachBlock parser type has convenience getters, but the public reader intentionally returns the stable dictionary shape rather than that internal object.

Python
# Demonstrate reading breach parameters including DLBreach settings
if target_structure:
    # Read the breach block
    block = RasBreach.read_breach_block(template_plan, target_structure)

    print(f"Breach Block for '{target_structure}':")
    print("=" * 70)
    print(f"\nMethod: {block['values'].get('Breach Method', 'Not set')}")
    print(f"Stored Breach Loc is_active: {block['is_active']}")

    # Show key parameters
    print("\nKey Parameters:")
    for key in ['Breach Geom', 'Breach Start', 'Breach Progression']:
        if key in block['values']:
            value = block['values'][key]
            if len(str(value)) > 60:
                value = str(value)[:60] + "..."
            print(f"  {key}: {value}")

    # Show advanced parameters if present
    print("\nAdvanced Parameters (if configured):")
    advanced_keys = [
        'Mass Wasting Options',
        'Breach Use User Defined Growth Ratio',
        'Breach User Defined Growth Ratio',
        'DLBreach Methods',
        'DLBreach SoilType',
        'DLBreach Soil Properties',
        'DLBreach Breach Direction'
    ]
    for key in advanced_keys:
        if key in block['values']:
            print(f"  {key}: {block['values'][key]}")
else:
    print("No breach structure available for demonstration")

7.4 Advanced Features Summary

New RasBreach Methods:

Python
# Create new breach block
RasBreach.create_breach_block(plan, structure_name, river="", reach="", station="")

# Update with DLBreach (Method 9)
RasBreach.update_breach_block(plan, structure,
    method=9,
    dlb_methods=[9,0,0,0,0,0,0],
    dlb_soil_type=2,
    dlb_soil_properties=[1.5, 0.001, 35.0, 0.35, 18000, 5000, 30.0],
    dlb_breach_direction=0
)

# Advanced parameters
RasBreach.update_breach_block(plan, structure,
    mass_wasting_option=1,
    user_growth_flag=1,
    user_growth_ratio=1.5
)

Use Cases: - TnTech Dam Breach Dashboard: Full breach parameter control via API - Automated Sensitivity Analysis: Programmatic DLBreach configuration - Batch Processing: Create/configure breach blocks across multiple plans

CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander Documentation is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms modernizing H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
