Structures and Metadata from Geometry Files

This notebook demonstrates parsing bridge, culvert, inline weir, and geometry metadata from HEC-RAS plain text geometry files, including: - GeomMetadata: Efficient geometry element counts (HDF-first with text fallback) - GeomBridge: Bridge deck, piers, coefficients, and HTAB parameters - GeomCulvert: Culvert inventory across entire geometry files - GeomInlineWeir: Inline weir profiles and gate configurations

Overview

HEC-RAS geometry files contain inline structures (bridges, culverts, inline weirs) that control hydraulic behavior at specific cross-section locations. This notebook demonstrates the geom subpackage modules for extracting structure data.

What You'll Learn

  • Get a quick summary of geometry contents with GeomMetadata
  • Extract bridge deck geometry, pier data, and hydraulic coefficients with GeomBridge
  • List all culverts and their dimensions with GeomCulvert
  • Read inline weir profiles and gate configurations with GeomInlineWeir

LLM Forward Approach

  • Verification: Compare extracted DataFrames against HEC-RAS GUI
  • Visual Outputs: Plot bridge deck profiles and weir crest lines
  • Audit Trail: Log all geometry file paths and structure counts

Reference Documentation

Python
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
from pathlib import Path
import sys

USE_LOCAL_SOURCE = True  # <-- TOGGLE THIS

if USE_LOCAL_SOURCE:
    local_path = str(Path.cwd().parent)
    if local_path not in sys.path:
        sys.path.insert(0, local_path)
    print(f"LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
    print("PIP PACKAGE MODE: Loading installed ras-commander")

# Import RAS Commander modules
from ras_commander import (
    RasExamples, init_ras_project, RasPrj,
    GeomBridge, GeomCulvert, GeomInlineWeir, GeomLandCover,
)
from ras_commander.geom import GeomMetadata

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from IPython import display

# Verify which version loaded
import ras_commander
print(f"Loaded: {ras_commander.__file__}")
print(f"Working directory: {Path.cwd()}")
Text Only
LOCAL SOURCE MODE: Loading from <workspace>/ras_commander


Loaded: <workspace>\ras_commander\__init__.py
Working directory: <workspace>\examples

Parameters

Python
# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================

# Projects containing structures
PROJECT_BRIDGE = "Bridge Hydraulics"             # Has bridge structures
PROJECT_CULVERT = "ConSpan Culvert"              # Has culvert structures
PROJECT_WEIR = "Example 12 - Inline Structure"   # Has inline weir with gates
PROJECT_2D = "BaldEagleCrkMulti2D"               # For metadata comparison

PROJECT_SUFFIX = "206"     # Folder suffix for extracted projects
RAS_VERSION = "7.0"        # HEC-RAS version

Setup: Extract Example Projects

Python
# Extract all projects needed for this notebook
project_paths = RasExamples.extract_project(
    [PROJECT_BRIDGE, PROJECT_CULVERT, PROJECT_WEIR, PROJECT_2D],
    suffix=PROJECT_SUFFIX
)

bridge_path = project_paths[0]
culvert_path = project_paths[1]
weir_path = project_paths[2]
bald_eagle_path = project_paths[3]

# Initialize each project
bridge_ras = RasPrj()
init_ras_project(bridge_path, RAS_VERSION, ras_object=bridge_ras)
print(f"Bridge project: {bridge_ras.project_name} ({len(bridge_ras.geom_df)} geom files)")

culvert_ras = RasPrj()
init_ras_project(culvert_path, RAS_VERSION, ras_object=culvert_ras)
print(f"Culvert project: {culvert_ras.project_name} ({len(culvert_ras.geom_df)} geom files)")

weir_ras = RasPrj()
init_ras_project(weir_path, RAS_VERSION, ras_object=weir_ras)
print(f"Weir project: {weir_ras.project_name} ({len(weir_ras.geom_df)} geom files)")

bald_eagle_ras = RasPrj()
init_ras_project(bald_eagle_path, RAS_VERSION, ras_object=bald_eagle_ras)
print(f"2D project: {bald_eagle_ras.project_name} ({len(bald_eagle_ras.geom_df)} geom files)")
Text Only
Bridge project: beaver (1 geom files)
Culvert project: ConSpan (2 geom files)
Weir project: NIT (1 geom files)


2D project: BaldEagleDamBrk (10 geom files)

Section 1: GeomMetadata - Geometry Element Counts

GeomMetadata.get_geometry_counts() provides a quick summary of geometry file contents. It prefers HDF-based extraction (~10-50ms) and falls back to plain text parsing (~100-500ms) when HDF is unavailable.

Python
# Get geometry counts for the bridge project
bridge_geom_row = bridge_ras.geom_df.iloc[0]
bridge_geom_path = Path(bridge_geom_row['full_path'])
bridge_hdf_path = Path(bridge_geom_row['hdf_path']) if pd.notna(bridge_geom_row.get('hdf_path')) else None

print(f"Geometry file: {bridge_geom_path.name}")
print(f"HDF available: {bridge_hdf_path is not None and bridge_hdf_path.exists()}")
print()

counts = GeomMetadata.get_geometry_counts(bridge_geom_path, bridge_hdf_path)

print("Geometry Element Counts:")
print(f"  Cross sections:      {counts['num_cross_sections']}")
print(f"  Bridges:             {counts['num_bridges']}")
print(f"  Culverts:            {counts['num_culverts']}")
print(f"  Inline weirs:        {counts['num_weirs']}")
print(f"  Gates:               {counts['num_gates']}")
print(f"  Inline structures:   {counts['num_inline_structures']} (bridges + culverts + weirs)")
print(f"  Lateral structures:  {counts['num_lateral_structures']}")
print(f"  SA/2D connections:   {counts['num_sa_2d_connections']}")
print(f"  Has 1D XS:           {counts['has_1d_xs']}")
print(f"  Has 2D mesh:         {counts['has_2d_mesh']}")
print(f"  Mesh areas:          {counts['mesh_area_names']}")
print(f"  Mesh cells:          {counts['mesh_cell_count']}")
Text Only
Geometry file: beaver.g01
HDF available: True

Geometry Element Counts:
  Cross sections:      57
  Bridges:             0
  Culverts:            0
  Inline weirs:        0
  Gates:               0
  Inline structures:   0 (bridges + culverts + weirs)
  Lateral structures:  0
  SA/2D connections:   0
  Has 1D XS:           True
  Has 2D mesh:         False
  Mesh areas:          []
  Mesh cells:          0

Compare Counts Across Projects

Run get_geometry_counts() on multiple projects to see the range of geometry types.

Python
# Compare counts across all four projects
projects = {
    'Bridge Hydraulics': bridge_ras,
    'ConSpan Culvert': culvert_ras,
    'Inline Structure': weir_ras,
    'BaldEagleCrk 2D': bald_eagle_ras,
}

summary_rows = []
for name, ras_obj in projects.items():
    geom_row = ras_obj.geom_df.iloc[0]
    geom_path = Path(geom_row['full_path'])
    hdf_path = Path(geom_row['hdf_path']) if pd.notna(geom_row.get('hdf_path')) else None

    c = GeomMetadata.get_geometry_counts(geom_path, hdf_path)
    summary_rows.append({
        'Project': name,
        'XS': c['num_cross_sections'],
        'Bridges': c['num_bridges'],
        'Culverts': c['num_culverts'],
        'Weirs': c['num_weirs'],
        'Gates': c['num_gates'],
        'Laterals': c['num_lateral_structures'],
        '2D Areas': len(c['mesh_area_names']),
        'Mesh Cells': c['mesh_cell_count'],
    })

summary_df = pd.DataFrame(summary_rows)
print("Geometry Element Summary Across Projects:")
display.display(summary_df)
Text Only
Geometry Element Summary Across Projects:
Project XS Bridges Culverts Weirs Gates Laterals 2D Areas Mesh Cells
0 Bridge Hydraulics 57 0 0 0 0 0 0 0
1 ConSpan Culvert 10 0 0 0 0 0 0 0
2 Inline Structure 36 0 0 1 1 0 0 0
3 BaldEagleCrk 2D 192 0 0 0 1 0 3 4120

Section 2: GeomBridge - Bridge Extraction

The Bridge Hydraulics example project contains a bridge structure with deck geometry, piers, and hydraulic coefficients.

2.1 List All Bridges

Python
# List all bridges in the geometry file
bridges_df = GeomBridge.get_bridges(bridge_geom_path)

print(f"Bridges found: {len(bridges_df)}")
print()
display.display(bridges_df)
Text Only
Bridges found: 1
River Reach RS NodeName NumDecks NumUpstreamDeckPoints NumDownstreamDeckPoints DeckDistance DeckWidth WeirCoefficient Skew MaxSubmergence NumPiers HasAbutment HTabHWMax NodeLastEdited
0 Beaver Creek Kentwood 5.4 None 6 6 6 30.0 40.0 2.6 0.0 0.95 9 False 225.0 Dec/17/2002 15:45:09

2.2 Bridge Deck Geometry

The deck profile defines the station-elevation points of the bridge deck (high chord) and low chord.

Python
# Extract deck geometry for the first bridge
br = bridges_df.iloc[0]
river = br['River']
reach = br['Reach']
rs = br['RS']

print(f"Bridge at {river}, {reach}, RS {rs}")
print()

deck_df = GeomBridge.get_deck(bridge_geom_path, river, reach, rs)
print(f"Deck points: {len(deck_df)}")
display.display(deck_df)
Text Only
Bridge at Beaver Creek, Kentwood, RS 5.4

Deck points: 12
Location Station Elevation LowChord
0 upstream 0.0 216.93 200.0
1 upstream 450.0 216.93 200.0
2 upstream 450.0 216.93 215.7
3 upstream 647.0 216.93 215.7
4 upstream 647.0 216.93 200.0
5 upstream 2000.0 216.93 200.0
6 downstream 0.0 216.93 200.0
7 downstream 450.0 216.93 200.0
8 downstream 450.0 216.93 215.7
9 downstream 647.0 216.93 215.7
10 downstream 647.0 216.93 200.0
11 downstream 2000.0 216.93 200.0
Python

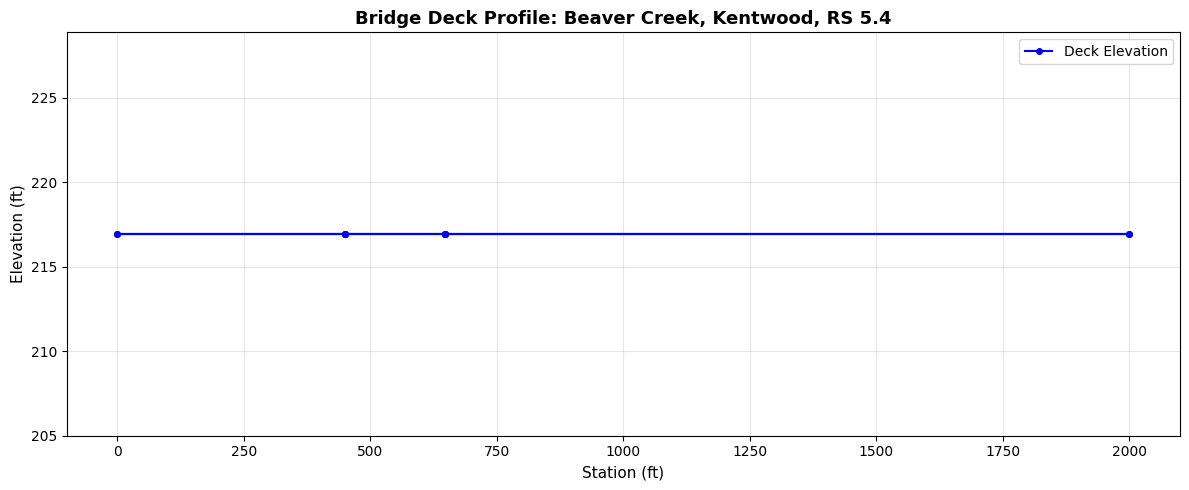

# Visualize bridge deck profile
if len(deck_df) > 0:
    fig, ax = plt.subplots(figsize=(12, 5))

    if 'HighChord' in deck_df.columns and 'LowChord' in deck_df.columns:
        ax.plot(deck_df['Station'], deck_df['HighChord'], 'b-o', label='High Chord (Top of Deck)', markersize=4)
        ax.plot(deck_df['Station'], deck_df['LowChord'], 'r-o', label='Low Chord (Bottom of Deck)', markersize=4)
        ax.fill_between(deck_df['Station'], deck_df['LowChord'], deck_df['HighChord'],
                        alpha=0.3, color='gray', label='Deck Cross-Section')
    elif 'Elevation' in deck_df.columns:
        ax.plot(deck_df['Station'], deck_df['Elevation'], 'b-o', label='Deck Elevation', markersize=4)

    ax.set_xlabel('Station (ft)', fontsize=11)
    ax.set_ylabel('Elevation (ft)', fontsize=11)
    ax.set_title(f'Bridge Deck Profile: {river}, {reach}, RS {rs}', fontsize=13, fontweight='bold')
    ax.legend(fontsize=10)
    ax.grid(True, alpha=0.3)
    plt.tight_layout()
    plt.show()

png

2.3 Pier Data

Python
# Extract pier definitions
piers_df = GeomBridge.get_piers(bridge_geom_path, river, reach, rs)

print(f"Piers found: {len(piers_df)}")
if len(piers_df) > 0:
    print()
    display.display(piers_df)
Text Only
Piers found: 9
PierIndex Skew UpstreamStation NumUpstreamPoints DownstreamStation NumDownstreamPoints UpstreamWidths UpstreamElevations DownstreamWidths DownstreamElevations
0 1 None 470.0 2 470.0 2 [1.25, 1.25] [202.7, 215.7] [1.25, 1.25] [202.7, 215.7]
1 2 None 490.0 2 490.0 2 [1.25, 1.25] [202.7, 215.7] [1.25, 1.25] [202.7, 215.7]
2 3 None 510.0 2 510.0 2 [1.25, 1.25] [202.7, 215.7] [1.25, 1.25] [202.7, 215.7]
3 4 None 530.0 2 530.0 2 [1.25, 1.25] [202.7, 215.7] [1.25, 1.25] [202.7, 215.7]
4 5 None 550.0 2 550.0 2 [1.25, 1.25] [202.7, 215.7] [1.25, 1.25] [202.7, 215.7]
5 6 None 570.0 2 570.0 2 [1.25, 1.25] [202.7, 215.7] [1.25, 1.25] [202.7, 215.7]
6 7 None 590.0 2 590.0 2 [1.25, 1.25] [202.7, 215.7] [1.25, 1.25] [202.7, 215.7]
7 8 None 610.0 2 610.0 2 [1.25, 1.25] [202.7, 215.7] [1.25, 1.25] [202.7, 215.7]
8 9 None 630.0 2 630.0 2 [1.25, 1.25] [202.7, 215.7] [1.25, 1.25] [202.7, 215.7]

2.4 Hydraulic Coefficients

Python
# Extract hydraulic coefficients
coeffs_df = GeomBridge.get_coefficients(bridge_geom_path, river, reach, rs)

print(f"Coefficient rows: {len(coeffs_df)}")
if len(coeffs_df) > 0:
    print()
    display.display(coeffs_df)
Text Only
Coefficient rows: 26
ParameterType Index Value
0 br_coef 0 -1.0
1 br_coef 1 0.0
2 br_coef 2 0.0
3 br_coef 4 0.0
4 br_coef 6 0.34
5 br_coef 7 0.7
6 br_coef 8 0.0
7 br_coef 10 1.0
8 wspro 4 1.0
9 wspro 8 0.0
10 wspro 12 0.0
11 wspro 16 -1.0
12 wspro 17 -1.0
13 wspro 18 -1.0
14 wspro 19 0.0
15 wspro 20 0.0
16 wspro 21 0.0
17 wspro 22 0.0
18 wspro 23 0.0
19 bc_design 2 0
20 bc_design 4 0
21 bc_design 6 9
22 bc_design 7 470
23 bc_design 8 470
24 bc_design 9 20
25 bc_design 10 1.25

2.5 HTAB Parameters

Python
# Extract hydraulic table parameters
htab_df = GeomBridge.get_htab(bridge_geom_path, river, reach, rs)

print("HTAB Parameters (DataFrame):")
display.display(htab_df)

# Also available as dict (includes invert elevation)
htab_dict = GeomBridge.get_htab_dict(bridge_geom_path, river, reach, rs)
print()
print("HTAB Parameters (dict):")
for key, value in htab_dict.items():
    print(f"  {key}: {value}")
Text Only
HTAB Parameters (DataFrame):
Parameter Value
0 HWMax 225.0
1 TWMax 220.0
2 MaxFlow 50000.0
3 UseCurves 0.0
4 FreeFlowCurves 0.0
Text Only
HTAB Parameters (dict):
  hw_max: 225.0
  tw_max: 220.0
  max_flow: 50000.0
  use_user_curves: 0
  free_flow_points: 0
  submerged_curves: None
  points_per_curve: None
  invert: 200.0
  has_htab_lines: True

2.6 Approach Sections and Abutment

Python
# Extract approach sections (BR U and BR D cross sections)
approach_df = GeomBridge.get_approach_sections(bridge_geom_path, river, reach, rs)
print(f"Approach section points: {len(approach_df)}")
if len(approach_df) > 0:
    display.display(approach_df.head(10))

# Extract abutment geometry (not all bridges have abutments)
if br.get('HasAbutment', False):
    abutment_df = GeomBridge.get_abutment(bridge_geom_path, river, reach, rs)
    print(f"\nAbutment points: {len(abutment_df)}")
    if len(abutment_df) > 0:
        display.display(abutment_df)
else:
    print("\nNo abutment data for this bridge (HasAbutment=False)")
Text Only
Approach section points: 0

No abutment data for this bridge (HasAbutment=False)

Section 3: GeomCulvert - Culvert Extraction

The ConSpan Culvert example project contains culvert structures. GeomCulvert.get_all() scans the entire geometry file for all culverts.

Python
# Get the culvert geometry file
culvert_geom_row = culvert_ras.geom_df.iloc[0]
culvert_geom_path = Path(culvert_geom_row['full_path'])

print(f"Geometry file: {culvert_geom_path.name}")
print()

# List all culverts in the entire geometry file
all_culverts = GeomCulvert.get_all(culvert_geom_path)

print(f"Total culverts found: {len(all_culverts)}")
if len(all_culverts) > 0:
    print(f"Columns: {list(all_culverts.columns)}")
    print()
    display.display(all_culverts)
Text Only
Geometry file: ConSpan.g01

Total culverts found: 1
Columns: ['RecordType', 'CulvertName', 'Shape', 'ShapeName', 'Span', 'Rise', 'Length', 'ManningsN', 'EntranceLoss', 'ExitLoss', 'InletType', 'OutletType', 'UpstreamInvert', 'UpstreamStation', 'DownstreamInvert', 'DownstreamStation', 'UpstreamStations', 'DownstreamStations', 'BarrelStations', 'ChartNumber', 'CulvertCode', 'BottomN', 'BottomDepth', 'NumBarrels', 'River', 'Reach', 'RS']
RecordType CulvertName Shape ShapeName Span Rise Length ManningsN EntranceLoss ExitLoss ... DownstreamStations BarrelStations ChartNumber CulvertCode BottomN BottomDepth NumBarrels River Reach RS
0 Culvert Culvert # 1 9 Con Span 6.0 28.0 50.0 0.013 0.5 1.0 ... [1000.0] [(1000.0, 1000.0)] 5 0 0.03 0.5 1 Spring Creek Culvrt Reach 20.237

1 rows × 27 columns

Python
# Summarize culvert properties
if len(all_culverts) > 0:
    print("Culvert Summary:")

    # Group by shape type
    if 'ShapeName' in all_culverts.columns:
        print("\nCulverts by shape type:")
        print(all_culverts.groupby('ShapeName').size().to_string())

    # Show dimensions
    for _, culvert in all_culverts.iterrows():
        name = culvert.get('CulvertName', 'Unknown')
        shape = culvert.get('ShapeName', 'Unknown')
        span = culvert.get('Span', 0)
        rise = culvert.get('Rise', 0)
        length = culvert.get('Length', 0)
        mannings = culvert.get('ManningsN', 0)
        print(f"\n  {name} ({shape}):")
        print(f"    Span: {span:.1f} ft, Rise: {rise:.1f} ft")
        print(f"    Length: {length:.1f} ft")
        print(f"    Manning's n: {mannings}")
        if 'UpstreamInvert' in all_culverts.columns:
            print(f"    US Invert: {culvert['UpstreamInvert']:.2f} ft, DS Invert: {culvert['DownstreamInvert']:.2f} ft")
Text Only
Culvert Summary:

Culverts by shape type:
ShapeName
Con Span    1

  Culvert # 1 (Con Span):
    Span: 6.0 ft, Rise: 28.0 ft
    Length: 50.0 ft
    Manning's n: 0.013
    US Invert: 25.10 ft, DS Invert: 25.00 ft

Section 4: GeomInlineWeir - Inline Weir and Gate Extraction

The Example 12 project contains an inline weir structure with gate groups. GeomInlineWeir extracts the weir profile and gate configurations.

4.1 List Inline Weirs

Python
# Get the weir geometry file
weir_geom_row = weir_ras.geom_df.iloc[0]
weir_geom_path = Path(weir_geom_row['full_path'])

print(f"Geometry file: {weir_geom_path.name}")
print()

# List all inline weirs
weirs_df = GeomInlineWeir.get_weirs(weir_geom_path)

print(f"Inline weirs found: {len(weirs_df)}")
if len(weirs_df) > 0:
    display.display(weirs_df)
Text Only
Geometry file: NIT.g01

Inline weirs found: 1
River Reach RS NodeName PilotFlow Distance Width Coefficient Skew MaxSubmergence MinElevation IsOgee SpillwayHeight DesignHead HasGate NumOpenings
0 Nittany River Weir Reach 41.75 None 0 20.0 50.0 3.95 0.0 0.95 None -1 24.0 3.0 True 5

4.2 Weir Crest Profile

The weir profile defines the station-elevation points along the weir crest.

Python
if len(weirs_df) > 0:
    # Get the first weir's location
    weir = weirs_df.iloc[0]
    w_river = weir['River']
    w_reach = weir['Reach']
    w_rs = weir['RS']

    print(f"Weir at {w_river}, {w_reach}, RS {w_rs}")
    print()

    # Extract weir profile
    profile_df = GeomInlineWeir.get_profile(weir_geom_path, w_river, w_reach, w_rs)

    print(f"Profile points: {len(profile_df)}")
    display.display(profile_df)
else:
    print("No inline weirs found")
Text Only
Weir at Nittany River, Weir Reach, RS 41.75

Profile points: 6
Station Elevation
0 0.0 13.5
1 57.0 13.5
2 61.0 9.5
3 190.0 9.5
4 194.0 13.5
5 1000.0 13.5
Python

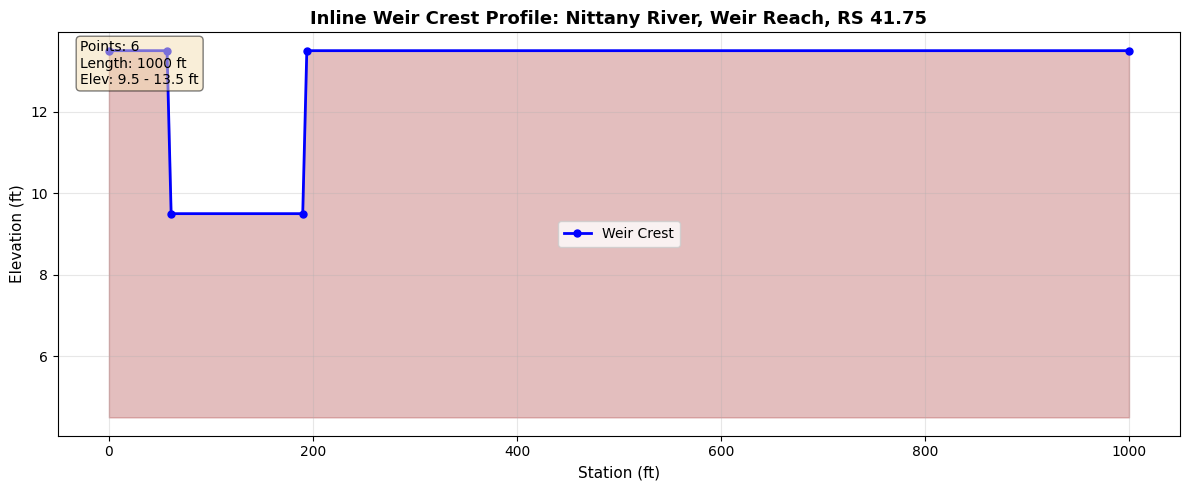

# Visualize weir crest profile
if len(weirs_df) > 0 and len(profile_df) > 0:
    fig, ax = plt.subplots(figsize=(12, 5))

    ax.plot(profile_df['Station'], profile_df['Elevation'], 'b-o',
            linewidth=2, markersize=5, label='Weir Crest')
    ax.fill_between(profile_df['Station'], profile_df['Elevation'],
                    profile_df['Elevation'].min() - 5,
                    alpha=0.3, color='brown')

    ax.set_xlabel('Station (ft)', fontsize=11)
    ax.set_ylabel('Elevation (ft)', fontsize=11)
    ax.set_title(f'Inline Weir Crest Profile: {w_river}, {w_reach}, RS {w_rs}',
                 fontsize=13, fontweight='bold')
    ax.legend(fontsize=10)
    ax.grid(True, alpha=0.3)

    # Add statistics
    crest_len = profile_df['Station'].max() - profile_df['Station'].min()
    stats_text = '\n'.join([
        f'Points: {len(profile_df)}',
        f'Length: {crest_len:.0f} ft',
        f'Elev: {profile_df["Elevation"].min():.1f} - {profile_df["Elevation"].max():.1f} ft',
    ])
    ax.text(0.02, 0.98, stats_text, transform=ax.transAxes,
            verticalalignment='top',
            bbox=dict(boxstyle='round', facecolor='wheat', alpha=0.5), fontsize=10)

    plt.tight_layout()
    plt.show()

png

4.3 Gate Configurations

Inline weirs may include gate groups that control flow. Each gate group has opening stations defining where along the weir the gate is located.

Python
if len(weirs_df) > 0:
    # Extract gate configurations
    gates_df = GeomInlineWeir.get_gates(weir_geom_path, w_river, w_reach, w_rs)

    print(f"Gate groups found: {len(gates_df)}")
    if len(gates_df) > 0:
        print()
        # Show gate parameters (excluding OpeningStations list for cleaner display)
        display_cols = [c for c in gates_df.columns if c != 'OpeningStations']
        display.display(gates_df[display_cols])

        # Show opening stations for each gate group
        print("\nGate opening stations:")
        for _, gate in gates_df.iterrows():
            name = gate.get('GateName', gate.get('Name', f'Gate {_}'))
            stations = gate.get('OpeningStations', [])
            n_openings = gate.get('NumOpenings', len(stations) if isinstance(stations, list) else 0)
            print(f"  {name}: {n_openings} openings")
            if isinstance(stations, list) and len(stations) > 0:
                for i, sta in enumerate(stations):
                    print(f"    Opening {i+1}: station {sta}")
    else:
        print("No gates defined for this weir")
else:
    print("No inline weirs found")
Text Only
Gate groups found: 3
GateName Width Height InvertElevation GateCoefficient ExpansionTop ExpansionOrifice ExpansionHydraulic GateType WeirCoefficient IsOgee SpillwayHeight DesignHead NumOpenings
0 Left Group 30.0 10.0 0.0 0.8 0.16 0.72 0.62 1.0 3.91 -1 14.0 10.0 5
1 Center Group 30.0 10.0 0.0 0.8 0.16 0.72 0.62 1.0 3.76 -1 4.0 10.0 5
2 Right Group 30.0 10.0 0.0 0.8 0.16 0.72 0.62 1.0 3.76 -1 4.0 10.0 5
Text Only
Gate opening stations:
  Left Group: 5 openings
    Opening 1: station 220.0
    Opening 2: station 255.0
    Opening 3: station 290.0
    Opening 4: station 325.0
    Opening 5: station 360.0
  Center Group: 5 openings
    Opening 1: station 395.0
    Opening 2: station 430.0
    Opening 3: station 465.0
    Opening 4: station 500.0
    Opening 5: station 535.0
  Right Group: 5 openings
    Opening 1: station 570.0
    Opening 2: station 605.0
    Opening 3: station 640.0
    Opening 4: station 675.0
    Opening 5: station 710.0

Summary

Methods Demonstrated

GeomMetadata (geometry element counting): - get_geometry_counts(geom_path, hdf_path) - Quick inventory of all geometry elements

GeomBridge (bridge structures): - get_bridges() - List all bridges with river/reach/RS - get_deck() - Deck high chord and low chord geometry - get_piers() - Pier widths and elevations - get_coefficients() - Hydraulic loss coefficients - get_htab() / get_htab_dict() - Hydraulic table parameters - get_approach_sections() - BR U/BR D cross sections - get_abutment() - Abutment geometry

GeomCulvert (culvert structures): - get_all() - List all culverts across entire geometry file - get_culverts() - List culverts at a specific bridge/culvert structure

GeomInlineWeir (inline weirs and gates): - get_weirs() - List all inline weirs - get_profile() - Station-elevation weir crest profile - get_gates() - Gate group configurations with opening stations

Key Patterns

  • All classes use static methods (no instantiation needed)
  • Methods accept geometry file path as first argument
  • Bridge/culvert/weir methods require river, reach, RS to identify the structure
  • All methods return DataFrames for consistent data handling
CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander Documentation is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms modernizing H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
