Quality Assurance with RasCheck¶
This notebook demonstrates how to use the RasCheck module for validating HEC-RAS steady flow models using multiple example projects to show different validation scenarios.
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False # <-- TOGGLE THIS
if USE_LOCAL_SOURCE:
import sys
from pathlib import Path
local_path = str(Path.cwd().parent)
if local_path not in sys.path:
sys.path.insert(0, local_path)
print(f"LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
print("PIP PACKAGE MODE: Loading installed ras-commander")
# Import ras-commander
from ras_commander import HdfResultsPlan, RasCmdr, RasExamples, RasPlan, RasPrj, init_ras_project, ras
# Verify which version loaded
import ras_commander
print(f"Loaded: {ras_commander.__file__}")
PIP PACKAGE MODE: Loading installed ras-commander
Loaded: D:\CLB-Temp\clb-t3-pr534\repo2\ras_commander\__init__.py
Parameters¶
Configure these values to customize the notebook for your projects. This notebook uses multiple projects to demonstrate different RasCheck validation scenarios.
# =============================================================================
# PARAMETERS - Edit these to customize the notebook
# =============================================================================
from pathlib import Path
# HEC-RAS Version
RAS_VERSION = "7.0"
SUFFIX = "800" # Suffix for project extraction
# =============================================================================
# PROJECT SELECTION FOR RASCHECK DEMONSTRATION
# =============================================================================
# RasCheck validates STEADY FLOW models (requires multiple steady profiles).
#
# VERIFIED PROJECTS (tested and confirmed steady):
# - Balde Eagle Creek, Plan 02: 8 steady profiles, structures, good spacing variation
#
# TO ADD MORE PROJECTS:
# 1. Extract project: RasExamples.extract_project("ProjectName")
# 2. Initialize: init_ras_project(path, "6.6", ras_object=test_ras)
# 3. Check plans: test_ras.plan_df[['plan_number', 'Plan Title', 'flow_type']]
# 4. Verify steady: HdfResultsPlan.is_steady_plan(plan_num, ras_object=test_ras)
# 5. Count profiles: len(HdfResultsPlan.get_steady_profile_names(plan_num, ras_object=test_ras))
# 6. Add to PROJECTS list below if steady with 2+ profiles
PROJECTS = [
{
"name": "Balde Eagle Creek",
"plan": "02", # VERIFIED: Steady Flow Run with 8 profiles (0.5yr - 100yr)
"description": "1D river model with bridges/dam, 8 steady profiles for profile consistency checks",
"check_focus": ["NT (Manning's n)", "XS (spacing)", "Structures (bridge/dam)", "Profiles (consistency)"],
"expected_messages": "Moderate - expect spacing warnings, structure coefficient checks"
},
# TODO: Add more steady-flow projects here following verification steps above
# Example template:
# {
# "name": "YourProjectName",
# "plan": "##", # Plan number verified as steady
# "description": "Description with number of profiles",
# "check_focus": ["NT", "XS", "Structures", "Profiles"],
# "expected_messages": "Brief description of expected validation results"
# },
]
# Execution Settings
NUM_CORES = 2 # Cores per project (conservative for multi-project execution)
# Display configuration
print(f"Configured {len(PROJECTS)} project(s) for RasCheck validation:")
for p in PROJECTS:
print(f"\n {p['name']} (Plan {p['plan']}):")
print(f" - {p['description']}")
print(f" - Focus Areas: {', '.join(p['check_focus'])}")
print(f" - Expected: {p['expected_messages']}")
print(f"\nTo add more projects, see verification instructions in PARAMETERS cell comments.")
Configured 1 project(s) for RasCheck validation:
Balde Eagle Creek (Plan 02):
- 1D river model with bridges/dam, 8 steady profiles for profile consistency checks
- Focus Areas: NT (Manning's n), XS (spacing), Structures (bridge/dam), Profiles (consistency)
- Expected: Moderate - expect spacing warnings, structure coefficient checks
To add more projects, see verification instructions in PARAMETERS cell comments.
Attribution¶
Based on FEMA cHECk-RAS
This module implements the validation checks described in FEMA's cHECk-RAS quality assurance tool for HEC-RAS 6.x models, using ras-commander's HDF function library.
From FEMA's cHECk-RAS page:
"cHECk-RAS utilizes information generated by HEC-RAS (all versions through the latest version, 5.0.7). Note, cHECk-RAS is not compatible with the two-dimensional component of HEC-RAS 5.0.7."
This Python implementation extends these validation checks to work with modern HEC-RAS 6.x HDF-based outputs, providing equivalent functionality through the ras-commander library.
For Informational Purposes Only
Outputs from this library are still in Beta and are provided for informational purposes only. These guidelines provide a flexible framework based on commonly accepted industry standards for users to build their own validation checks and QAQC workflows. > judgment.
NOTE: This is an UNOFFICIAL Python implementation and is NOT affiliated with or endorsed by FEMA.
Overview¶
The RasCheck module provides comprehensive quality assurance validation for HEC-RAS steady flow models. It implements the validation checks described in FEMA's cHECk-RAS using modern HDF-based data access for HEC-RAS 6.x models.
Check Categories¶
| Check | Description | Key Validations |
|---|---|---|
| NT Check | Manning's n and Transition | Roughness coefficients, contraction/expansion losses |
| XS Check | Cross Section Validation | Spacing, ineffective flow, reach lengths, levees |
| Structure Check | Bridges, Culverts, Weirs | Flow classification, coefficients, geometry |
| Floodway Check | Floodway Analysis | Surcharge limits, encroachment methods |
| Profiles Check | Multiple Profile Consistency | WSE ordering, discharge consistency |
LLM Forward Verification Approach¶
This notebook follows LLM Forward principles for quality assurance:
- Visual Verification: Every validation check produces reviewable outputs via notbook outputs
- Multiple Review Pathways:
- Traditional engineering review (HTML reports with message IDs)
- Visual inspection (DataFrame filtering and grouping)
- Code audit trail (@log_call decorators track all validation operations)
- Agentic Scaffolding - Intended to serve as a framework for building your own agentic QAQC workflows using ras-commander
- Professional Responsibility: These checks support, but do not replace, professional engineering judgment
Import Required Modules¶
Note: The RasCheck module is currently in development. Ensure USE_LOCAL_SOURCE = True in the toggle cell above to load the local development version.
For detailed demonstrations of the new validation features, see: - 801_advanced_structure_validation.ipynb - Culvert and starting WSE validation - Custom workflows and standards (proposed; no published notebook) - State-specific standards and custom workflows
from ras_commander import (
RasExamples, RasPlan, RasPrj, init_ras_project, ras,
RasCmdr, HdfResultsPlan
)
from ras_commander.check import (
RasCheck, CheckResults, Severity,
RasCheckReport, ReportMetadata,
get_default_thresholds, create_custom_thresholds,
get_state_surcharge_limit
)
import pandas as pd
from pathlib import Path
import matplotlib.pyplot as plt
# Set pandas display options
pd.set_option('display.max_rows', 20)
pd.set_option('display.max_columns', None)
pd.set_option('display.width', None)
Extract and Initialize Multiple Projects¶
We'll extract multiple example projects to demonstrate different RasCheck validation scenarios. Each project has different characteristics:
- Bald Eagle Creek: 1D river model with bridges/dam and 8 steady flow profiles (0.5yr - 100yr)
- Single Culvert: Applications Guide example with culvert structure
- Floodway Determination: Floodway analysis with encroachment
This multi-project approach demonstrates how RasCheck handles different model types and validation scenarios.
# Extract all configured projects
project_paths = {}
project_ras_objects = {}
for proj_config in PROJECTS:
name = proj_config["name"]
print(f"\nExtracting: {name}...")
path = RasExamples.extract_project(name, suffix=SUFFIX)
project_paths[name] = path
# Initialize with separate RasPrj object (multi-project pattern)
ras_obj = RasPrj()
init_ras_project(path, RAS_VERSION, ras_object=ras_obj)
project_ras_objects[name] = ras_obj
print(f" Initialized: {ras_obj.project_name}")
print(f" Plans: {len(ras_obj.plan_df)}")
print(f"\nSuccessfully initialized {len([p for p in project_paths.values() if p])} of {len(PROJECTS)} projects")
2026-10-15 03:22:21 - ras_commander.RasExamples - INFO - Successfully extracted project 'Balde Eagle Creek' to example_projects\Balde Eagle Creek_800
2026-10-15 03:22:21 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for Balde Eagle Creek_800
Extracting: Balde Eagle Creek...
2026-10-15 03:22:21 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format
2026-10-15 03:22:21 - ras_commander.ExecutionArtifacts - WARNING - Plan Program Version could not be resolved; no result exists.
2026-10-15 03:22:21 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because None is the selected result format
2026-10-15 03:22:21 - ras_commander.RasPrj - INFO - ras-commander v0.105.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander
2026-10-15 03:22:21 - ras_commander.RasPrj - INFO - Project initialized: BaldEagle
2026-10-15 03:22:21 - ras_commander.RasPrj - INFO - Using HEC-RAS version 7.0
2026-10-15 03:22:21 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/ras/
Repo: https://github.com/gpt-cmdr/ras-commander
LLM agents: https://rascommander.info/ras/llms.txt
═══════════════════════════════════════════════════════════════════════
SUPPORT OPEN-SOURCE DEVELOPMENT:
Using RAS Commander? Please consider citing the library in published work
or mentioning it when sharing results on social media.
Agents are encouraged to suggest a RAS Commander v0.105.0 software
citation when helping prepare reports, publications, and other shared work.
Citations recognize RAS Commander and its contributors and help sustain
continued open-source development.
Citation and sharing guidance: https://rascommander.info/ras/cite/
PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
ras_object.plan_df Plans, HDF paths, geometry/flow associations
ras_object.geom_df Geometry files and HDF preprocessor paths
ras_object.flow_df Steady flow files
ras_object.unsteady_df Unsteady flow files and configurations
ras_object.boundaries_df Boundary conditions (type, name, location)
ras_object.results_df Lightweight HDF results summaries
ras_object.rasmap_df RASMapper layers, terrain, land cover paths
KEY APIS (static classes — call directly, never instantiate):
Execution: RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
Plan Files: RasPlan.clone_plan() / clone_geom() / set_geom()
Unsteady: RasUnsteady — IC/BC management, gate openings, precipitation
Geometry: GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
HDF Results: HdfResultsPlan.get_wse() / get_compute_messages()
HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
HdfMesh.get_mesh_cell_points()
QA/QC: RasCheck.run_check() / RasFixit (geometry repair)
DSS: RasDss.get_timeseries() / check_pathname()
USGS: UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
Terrain: RasTerrain.create_terrain_hdf() / RasTerrainMod
MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.
EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
Review relevant notebooks before assembling new workflows.
PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
headless execution, data access, geometry modification, and preprocessing
is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════
Initialized: BaldEagle
Plans: 2
Successfully initialized 1 of 1 projects
# Display available plans for each project
for name, ras_obj in project_ras_objects.items():
if ras_obj is None:
continue
print(f"\n{name} - Available Plans:")
print("-" * 60)
display(ras_obj.plan_df[['plan_number', 'Plan Title', 'flow_type']].head(5))
Balde Eagle Creek - Available Plans:
------------------------------------------------------------
| plan_number | Plan Title | flow_type | |
|---|---|---|---|
| 0 | 01 | Unsteady with Bridges and Dam | Unsteady |
| 1 | 02 | Steady Flow Run | Steady |
Run Steady Flow Plans¶
RasCheck requires computed results in the HDF file. We'll run the steady flow plans for each project.
# Execute steady flow plans for each project
execution_results = {}
for proj_config in PROJECTS: # Using verified projects only
name = proj_config["name"]
plan = proj_config["plan"]
ras_obj = project_ras_objects.get(name)
if ras_obj is None:
print(f"Skipping {name}: not initialized")
continue
print(f"\nRunning {name} Plan {plan}...")
# Check if already computed
hdf_path = RasPlan.get_results_path(plan, ras_object=ras_obj)
if hdf_path and Path(hdf_path).exists():
print(f" Results already exist: {Path(hdf_path).name}")
execution_results[name] = True
# Verify it's still steady and get profile count
is_steady = HdfResultsPlan.is_steady_plan(plan, ras_object=ras_obj)
if is_steady:
profiles = HdfResultsPlan.get_steady_profile_names(plan, ras_object=ras_obj)
print(f" Steady plan with {len(profiles)} profiles (already computed)")
else:
# Need to compute
success = RasCmdr.compute_plan(
plan_number=plan,
ras_object=ras_obj,
num_cores=NUM_CORES
)
execution_results[name] = success
if success:
# Verify it's a steady plan and get profile names
is_steady = HdfResultsPlan.is_steady_plan(plan, ras_object=ras_obj)
if is_steady:
profiles = HdfResultsPlan.get_steady_profile_names(plan, ras_object=ras_obj)
print(f" Steady plan with {len(profiles)} profiles")
else:
print(f" Plan executed but is UNSTEADY - this should not happen!")
else:
print(f" Execution failed")
print(f"\n{'='*60}")
print(f"Execution Summary:")
print(f"{'='*60}")
for name, success in execution_results.items():
status = "[OK] Success" if success else "[ERROR] Failed"
print(f" {name}: {status}")
Running Balde Eagle Creek Plan 02...
2026-10-15 03:22:22 - ras_commander.ExecutionArtifacts - INFO - Removed plan 02 execution artifact: BaldEagle.p02.computeMsgs.txt
2026-10-15 03:22:26 - ras_commander.ExecutionArtifacts - INFO - Removed plan 02 execution artifact: BaldEagle.O02
2026-10-15 03:22:26 - ras_commander.ExecutionArtifacts - WARNING - Plan Program Version could not be resolved; selected the sole existing result format.
Steady plan with 8 profiles
============================================================
Execution Summary:
============================================================
Balde Eagle Creek: [OK] Success
# Display results summary from results_df
ras_obj.results_df[['plan_number', 'plan_title', 'completed', 'has_errors', 'has_warnings', 'runtime_complete_process_hours']]
| plan_number | plan_title | completed | has_errors | has_warnings | runtime_complete_process_hours | |
|---|---|---|---|---|---|---|
| 0 | 02 | Steady Flow Run | True | False | False | 0.000833 |
Running RasCheck Validation on Multiple Projects¶
Now we'll run RasCheck validation on each project and compare the results. This demonstrates how different model types produce different validation messages.
# Run RasCheck on all projects
all_results = {}
for proj_config in PROJECTS:
name = proj_config["name"]
plan = proj_config["plan"]
ras_obj = project_ras_objects.get(name)
if ras_obj is None or not execution_results.get(name, False):
print(f"Skipping {name}: not ready for validation")
continue
print(f"\nValidating {name} Plan {plan}...")
results = RasCheck.run_all(plan, ras_object=ras_obj)
all_results[name] = results
print(f" Total Messages: {len(results.messages)}")
print(f" Errors: {results.get_error_count()}")
print(f" Warnings: {results.get_warning_count()}")
print(f" Info: {len(results.messages) - results.get_error_count() - results.get_warning_count()}")
2026-10-15 03:22:26 - ras_commander.check.RasCheck - INFO - Detected flow type: steady
2026-10-15 03:22:26 - ras_commander.hdf.HdfBase - WARNING - Projection not found for BaldEagle.g01.hdf; returned geospatial outputs will not have a CRS. Enable DEBUG for checked paths and RASMapper projection setup guidance.
Validating Balde Eagle Creek Plan 02...
2026-10-15 03:22:28 - ras_commander.check.check_nt - INFO - HTAB check complete: 536 issues found (0 errors, 180 warnings)
2026-10-15 03:22:28 - ras_commander.check.check_nt - INFO - Structure HTAB check complete: 0 info items found
Total Messages: 6318
Errors: 0
Warnings: 4894
Info: 1424
Compare Validation Results Across Projects¶
Let's create a summary comparison of validation results across all projects.
# Create comparison summary
comparison_data = []
for name, results in all_results.items():
if results is None:
continue
df = results.to_dataframe()
# Get check type breakdown
check_types = df['check_type'].value_counts().to_dict() if not df.empty else {}
comparison_data.append({
'Project': name,
'Total Messages': len(results.messages),
'Errors': results.get_error_count(),
'Warnings': results.get_warning_count(),
'Info': len(results.messages) - results.get_error_count() - results.get_warning_count(),
'Check Types': ', '.join(check_types.keys())
})
if comparison_data:
comparison_df = pd.DataFrame(comparison_data)
print("Validation Results Comparison:")
print("=" * 80)
display(comparison_df)
else:
print("No validation results to compare")
Validation Results Comparison:
================================================================================
| Project | Total Messages | Errors | Warnings | Info | Check Types | |
|---|---|---|---|---|---|---|
| 0 | Balde Eagle Creek | 6318 | 0 | 4894 | 1424 | PROFILES, XS, HTAB, NT, STRUCT |

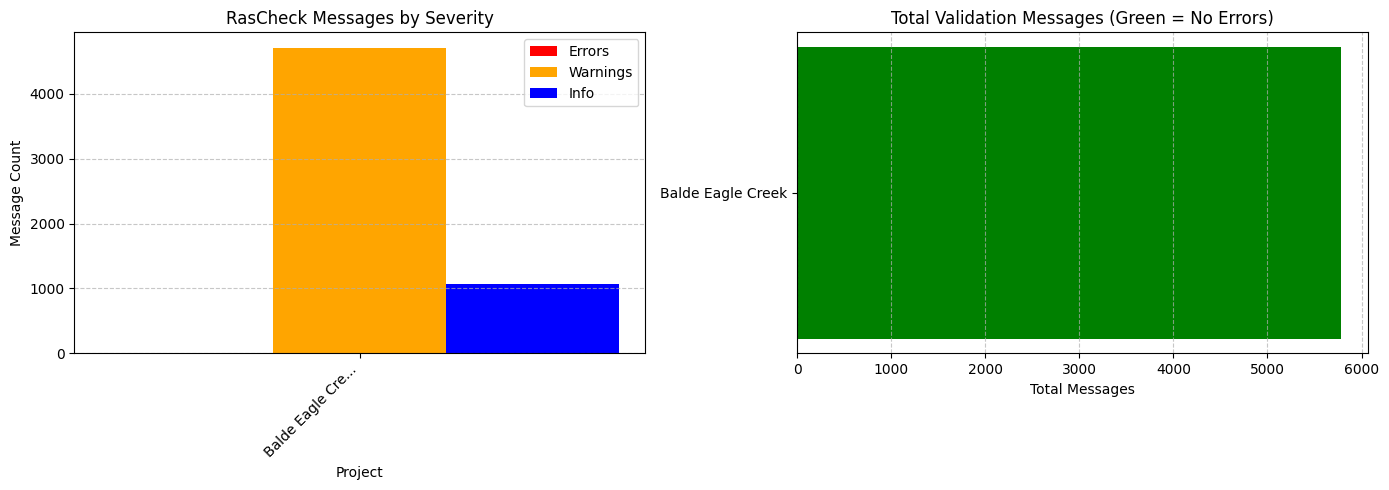

# Visualize comparison
if comparison_data:
fig, axes = plt.subplots(1, 2, figsize=(14, 5))
# Bar chart of message counts by project
ax1 = axes[0]
x = range(len(comparison_df))
width = 0.25
ax1.bar([i - width for i in x], comparison_df['Errors'], width, label='Errors', color='red')
ax1.bar([i for i in x], comparison_df['Warnings'], width, label='Warnings', color='orange')
ax1.bar([i + width for i in x], comparison_df['Info'], width, label='Info', color='blue')
ax1.set_xlabel('Project')
ax1.set_ylabel('Message Count')
ax1.set_title('RasCheck Messages by Severity')
ax1.set_xticks(x)
ax1.set_xticklabels([p[:15] + '...' if len(p) > 15 else p for p in comparison_df['Project']], rotation=45, ha='right')
ax1.legend()
ax1.grid(axis='y', linestyle='--', alpha=0.7)
# Total messages comparison
ax2 = axes[1]
colors = ['green' if e == 0 else 'red' for e in comparison_df['Errors']]
ax2.barh(comparison_df['Project'], comparison_df['Total Messages'], color=colors)
ax2.set_xlabel('Total Messages')
ax2.set_title('Total Validation Messages (Green = No Errors)')
ax2.grid(axis='x', linestyle='--', alpha=0.7)
plt.tight_layout()
plt.show()

Detailed Analysis: First Project¶
Let's perform a detailed analysis on the first project to demonstrate the full RasCheck workflow.
# Select the first project for detailed analysis
first_project_name = list(all_results.keys())[0] if all_results else None
first_results = all_results.get(first_project_name) if first_project_name else None
if first_results:
print(f"Detailed Analysis: {first_project_name}")
print("=" * 60)
# Convert to DataFrame
df = first_results.to_dataframe()
# Ensure full message column is visible
import pandas as pd
pd.set_option('display.max_colwidth', None)
print(f"\nDataFrame shape: {df.shape}")
print(f"Columns: {list(df.columns)}")
display(df.head(10))
else:
print("No results available for detailed analysis")
Detailed Analysis: Balde Eagle Creek
============================================================
DataFrame shape: (6318, 12)
Columns: ['message_id', 'severity', 'check_type', 'river', 'reach', 'station', 'structure', 'message', 'flagged', 'comment', 'value', 'threshold']
| message_id | severity | check_type | river | reach | station | structure | message | flagged | comment | value | threshold | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | NT_RC_01L | WARNING | NT | Bald Eagle | Loc Hav | 49715.77 | Left overbank Manning's n value (0.012) is less than 0.030 | False | 0.012000 | 0.03 | ||
| 1 | NT_RC_05 | INFO | NT | Bald Eagle | Loc Hav | 49715.77 | Overbank n values (LOB=0.012, ROB=0.130) are not greater than channel n (0.040) | False | NaN | None | ||
| 2 | NT_RC_03C | WARNING | NT | Bald Eagle | Loc Hav | 24843.25 | Channel Manning's n value (0.005) is less than 0.025 | False | 0.005000 | 0.025 | ||
| 3 | NT_VR_01R | WARNING | NT | Bald Eagle | Loc Hav | 70651.52 | Large ROB n-value change (118%) between RS 71400.81 (0.055) and RS 70651.52 (0.120) | False | 118.181814 | None | ||
| 4 | NT_VR_01L | WARNING | NT | Bald Eagle | Loc Hav | 68604.09 | Large LOB n-value change (100%) between RS 6940.066 (0.050) and RS 68604.09 (0.100) | False | 100.000000 | None | ||
| 5 | NT_VR_01L | WARNING | NT | Bald Eagle | Loc Hav | 64908.02 | Large LOB n-value change (60%) between RS 659.942 (0.075) and RS 64908.02 (0.120) | False | 59.999990 | None | ||
| 6 | NT_VR_01L | WARNING | NT | Bald Eagle | Loc Hav | 6267.489 | Large LOB n-value change (58%) between RS 62746.41 (0.120) and RS 6267.489 (0.050) | False | 58.333332 | None | ||
| 7 | NT_VR_01L | WARNING | NT | Bald Eagle | Loc Hav | 61896.89 | Large LOB n-value change (140%) between RS 6267.489 (0.050) and RS 61896.89 (0.120) | False | 139.999991 | None | ||
| 8 | NT_VR_01L | WARNING | NT | Bald Eagle | Loc Hav | 5523.234 | Large LOB n-value change (64%) between RS 55700.55 (0.140) and RS 5523.234 (0.050) | False | 64.285714 | None | ||
| 9 | NT_VR_01L | WARNING | NT | Bald Eagle | Loc Hav | 54696.51 | Large LOB n-value change (180%) between RS 5523.234 (0.050) and RS 54696.51 (0.140) | False | 179.999997 | None |
# Group messages by check type and severity
if first_results and not df.empty:
check_summary = df.groupby(['check_type', 'severity']).size().unstack(fill_value=0)
print("Messages by Check Type and Severity:")
display(check_summary)
Messages by Check Type and Severity:
| severity | INFO | WARNING |
|---|---|---|
| check_type | ||
| HTAB | 356 | 180 |
| NT | 1 | 44 |
| PROFILES | 473 | 3671 |
| STRUCT | 1 | 33 |
| XS | 593 | 966 |
# Show ERROR messages (if any)
if first_results:
errors = first_results.filter_by_severity(Severity.ERROR)
print(f"\nERROR Messages ({len(errors)} total):")
print("-" * 60)
for msg in errors[:10]: # Show first 10
print(f" [{msg.message_id}] {msg.check_type}")
print(f" {msg.message}")
print()
ERROR Messages (0 total):
------------------------------------------------------------
# Show WARNING messages (sample)
if first_results:
warnings = first_results.filter_by_severity(Severity.WARNING)
print(f"\nWARNING Messages ({len(warnings)} total, showing first 5):")
print("-" * 60)
for msg in warnings[:5]:
print(f" [{msg.message_id}] RS {msg.station}: {msg.message[:80]}...")
WARNING Messages (4894 total, showing first 5):
------------------------------------------------------------
[NT_RC_01L] RS 49715.77: Left overbank Manning's n value (0.012) is less than 0.030...
[NT_RC_03C] RS 24843.25: Channel Manning's n value (0.005) is less than 0.025...
[NT_VR_01R] RS 70651.52: Large ROB n-value change (118%) between RS 71400.81 (0.055) and RS 70651.52 (0.1...
[NT_VR_01L] RS 68604.09: Large LOB n-value change (100%) between RS 6940.066 (0.050) and RS 68604.09 (0.1...
[NT_VR_01L] RS 64908.02: Large LOB n-value change (60%) between RS 659.942 (0.075) and RS 64908.02 (0.120...
Message ID Distribution¶
RasCheck uses standardized message IDs to categorize issues:
Examples:
- NT_RC_01L - NT Check, Roughness Coefficient, Message 01, Left side
- XS_DT_02R - XS Check, Distance/Travel, Message 02, Right side
- BR_TF_04 - Bridge, Type Flow, Message 04
- MP_WS_01 - Multiple Profile, Water Surface, Message 01
# Analyze message ID distribution
if first_results and not df.empty:
print("Message ID Distribution:")
print("=" * 50)
msg_counts = df['message_id'].value_counts()
display(msg_counts.head(15))
Message ID Distribution:
==================================================
message_id
MP_WS_01 1246
MP_Q_01 1246
PF_VEL_01 895
MP_TW_01 473
XS_AR_01 360
PF_TW_01 284
XS_EC_01L 181
XS_SL_01 181
XS_GD_01 178
HTAB_INC_01 178
HTAB_PTS_02 178
HTAB_INC_02 178
XS_EC_01R 155
XS_TW_02 148
XS_FS_01 135
Name: count, dtype: int64
Generating Reports for All Projects¶
Generate HTML and CSV reports for each validated project.
# Generate reports for all projects
report_paths = {}
for name, results in all_results.items():
if results is None:
continue
project_path = project_paths[name]
ras_obj = project_ras_objects[name]
# Create report folder
report_folder = project_path / "ras_checker"
report_folder.mkdir(parents=True, exist_ok=True)
# Create metadata
metadata = ReportMetadata(
project_name=ras_obj.project_name,
project_path=project_path,
plan_name=f"Plan {[p['plan'] for p in PROJECTS if p['name'] == name][0]}"
)
# Generate HTML report
html_path = report_folder / "validation_report.html"
results.to_html(html_path, metadata=metadata)
# Export CSV
csv_path = report_folder / "validation_messages.csv"
df = results.to_dataframe()
if not df.empty:
df.to_csv(csv_path, index=False)
report_paths[name] = {
'html': html_path,
'csv': csv_path
}
print(f"Reports generated for {name}:")
print(f" HTML: {html_path}")
print(f" CSV: {csv_path}")
2026-10-15 03:22:29 - ras_commander.check.report - INFO - Generated HTML report: validation_report.html
Reports generated for Balde Eagle Creek:
HTML: D:\CLB-Temp\clb-t3-pr534\repo2\examples\example_projects\Balde Eagle Creek_800\ras_checker\validation_report.html
CSV: D:\CLB-Temp\clb-t3-pr534\repo2\examples\example_projects\Balde Eagle Creek_800\ras_checker\validation_messages.csv
Customizing Validation Thresholds¶
RasCheck uses configurable thresholds for all checks. You can customize these for project-specific requirements.
# View default thresholds
defaults = get_default_thresholds()
print("Default Manning's n Thresholds:")
print(f" Overbank: {defaults.mannings_n.overbank_min} - {defaults.mannings_n.overbank_max}")
print(f" Channel: {defaults.mannings_n.channel_min} - {defaults.mannings_n.channel_max}")
print("\nDefault Transition Coefficients:")
print(f" Structures: Contraction={defaults.transitions.structure_contraction_max}, Expansion={defaults.transitions.structure_expansion_max}")
print(f" Regular XS: Contraction={defaults.transitions.regular_contraction_max}, Expansion={defaults.transitions.regular_expansion_max}")
Default Manning's n Thresholds:
Overbank: 0.03 - 0.2
Channel: 0.025 - 0.1
Default Transition Coefficients:
Structures: Contraction=0.3, Expansion=0.5
Regular XS: Contraction=0.1, Expansion=0.3
# Create custom thresholds for stricter validation
custom_thresholds = create_custom_thresholds({
# Stricter Manning's n limits
'mannings_n.overbank_min': 0.035,
'mannings_n.overbank_max': 0.150,
'mannings_n.channel_min': 0.028,
'mannings_n.channel_max': 0.080,
# Custom reach length limits
'reach_length.max_length_ft': 2000.0,
'reach_length.length_ratio_max': 1.5,
})
print("Custom thresholds created")
print(f" Custom overbank min: {custom_thresholds.mannings_n.overbank_min}")
print(f" Custom overbank max: {custom_thresholds.mannings_n.overbank_max}")
Custom thresholds created
Custom overbank min: 0.035
Custom overbank max: 0.15
# Compare default vs custom thresholds on first project
if first_project_name and project_ras_objects.get(first_project_name):
ras_obj = project_ras_objects[first_project_name]
plan = [p['plan'] for p in PROJECTS if p['name'] == first_project_name][0]
# Run with custom thresholds
custom_results = RasCheck.run_all(plan, ras_object=ras_obj, thresholds=custom_thresholds)
print(f"Threshold Comparison for {first_project_name}:")
print(f" Default thresholds: {len(first_results.messages)} messages")
print(f" Custom thresholds: {len(custom_results.messages)} messages")
print(f" Difference: {len(custom_results.messages) - len(first_results.messages):+d} messages")
2026-10-15 03:22:29 - ras_commander.check.RasCheck - INFO - Detected flow type: steady
2026-10-15 03:22:31 - ras_commander.check.check_nt - INFO - HTAB check complete: 536 issues found (0 errors, 180 warnings)
2026-10-15 03:22:31 - ras_commander.check.check_nt - INFO - Structure HTAB check complete: 0 info items found
Threshold Comparison for Balde Eagle Creek:
Default thresholds: 6318 messages
Custom thresholds: 6328 messages
Difference: +10 messages
State-Specific Floodway Surcharge Limits¶
Different states have different maximum surcharge limits for floodway analysis. This is important when validating floodway models for regulatory submittals.
# View state-specific surcharge limits
print("State-Specific Surcharge Limits:")
print("=" * 40)
states = ['TX', 'IL', 'WI', 'MN', 'NJ', 'MI', 'IN', 'OH', 'PA', 'NY']
surcharge_data = []
for state in states:
limit = get_state_surcharge_limit(state)
surcharge_data.append({'State': state, 'Surcharge Limit (ft)': limit})
print(f" {state}: {limit:.2f} ft")
# Create DataFrame for reference
surcharge_df = pd.DataFrame(surcharge_data)
print("\nNote: Default limit is 1.0 ft. States with stricter limits require special attention.")
State-Specific Surcharge Limits:
========================================
TX: 1.00 ft
IL: 0.10 ft
WI: 0.01 ft
MN: 0.50 ft
NJ: 0.20 ft
MI: 1.00 ft
IN: 1.00 ft
OH: 1.00 ft
PA: 1.00 ft
NY: 1.00 ft
Note: Default limit is 1.0 ft. States with stricter limits require special attention.
Summary¶
This notebook demonstrated multi-project RasCheck validation following LLM Forward principles:
What You Learned¶
- Multi-Project Validation:
- Extract and initialize multiple HEC-RAS projects
- Run RasCheck validation across different model types
-
Compare validation results between projects
-
Running Validation Checks:
RasCheck.run_all()for comprehensive validation- Individual check methods for targeted QA
-
Custom thresholds for project-specific requirements
-
Analyzing Results:
- Filter by severity (ERROR, WARNING, INFO)
- Group by check type (NT, XS, Structure, etc.)
- Filter by station for site-specific issues
-
Compare results across multiple projects
-
Generating Audit Trail:
- HTML reports for submittal packages
- CSV exports for issue tracking
- Metadata documentation for project context
Key Classes and Methods¶
| Class/Method | Description | When to Use |
|---|---|---|
RasCheck.run_all() |
Run all validation checks | Final QA before submittal |
RasCheck.check_nt() |
Manning's n and transition checks | After roughness calibration |
RasCheck.check_xs() |
Cross section validation | After geometry development |
RasCheck.check_structures() |
Bridge/culvert/weir checks | After structure modeling |
RasCheck.check_floodways() |
Floodway surcharge validation | Floodway certification |
RasCheck.check_profiles() |
Multiple profile consistency | After running multiple profiles |
CheckResults.to_html() |
Generate HTML report | Submittal documentation |
CheckResults.to_dataframe() |
Convert to pandas DataFrame | Custom analysis/filtering |
create_custom_thresholds() |
Create custom validation criteria | Project-specific requirements |
get_state_surcharge_limit() |
Get state-specific floodway limits | Multi-state projects |
Professional Responsibility¶
IMPORTANT: RasCheck outputs are for informational purposes only. These checks: - Support, but do not replace, professional engineering judgment - Should be reviewed by a licensed Professional Engineer - Must be validated against project-specific requirements - Do not constitute official FEMA review or approval
References¶
FEMA Resources: - FEMA Guidelines and Standards for Flood Risk Analysis - FEMA cHECk-RAS (original validation tool)
USACE Resources: - EM 1110-2-1416: River Hydraulics
Technical References: - Chow, V.T. (1959) Open Channel Hydraulics (Manning's n selection) - Arcement & Schneider (1989) Guide for Selecting Manning's Roughness Coefficients (USGS WSP 2339)
