Python
from pathlib import Path
import io
import logging
import os
import shutil
import sys

for candidate in (Path.cwd(), Path.cwd().parent):
    if (candidate / "ras_commander" / "__init__.py").exists():
        sys.path.insert(0, str(candidate))
        break

import h5py
import numpy as np
import pandas as pd
import geopandas as gpd
import matplotlib.pyplot as plt
from IPython.display import display, Markdown

try:
    import folium
except ImportError as exc:
    raise ImportError("Install folium to render the zoomable maps in this notebook.") from exc

try:
    from ras_commander import (
        CalibrationPoint,
        HdfMesh,
        HdfProject,
        HdfResultsPlan,
        RasCalibrate,
        RasMap,
        init_ras_project,
        ras,
    )
    from ras_commander.sources.federal.usgs_sciencebase import UsgsScienceBase
    from ras_commander.usgs import UsgsGaugeSpatial
    from ras_commander.remote import load_workers_from_json
except ImportError:
    sys.path.insert(0, str(Path.cwd().parent))
    from ras_commander import (
        CalibrationPoint,
        HdfMesh,
        HdfProject,
        HdfResultsPlan,
        RasCalibrate,
        RasMap,
        init_ras_project,
        ras,
    )
    from ras_commander.sources.federal.usgs_sciencebase import UsgsScienceBase
    from ras_commander.usgs import UsgsGaugeSpatial
    from ras_commander.remote import load_workers_from_json

pd.set_option("display.max_columns", 80)
pd.set_option("display.width", 160)
logging.getLogger("ras_commander").setLevel(logging.WARNING)

Development Mode

When running this notebook from a source checkout, start Jupyter from the repository root or set PYTHONPATH so the local ras_commander package imports. Generated model downloads, temporary calibration batches, and remote-worker configuration stay under working/.

The cells that execute new HEC-RAS plans are intentionally disabled by default. Set RAS_COMMANDER_220_RUN_HECRAS=1 to run them. Set RAS_COMMANDER_220_USE_REMOTE=1 and provide working/remote_workers_clb.json to distribute grid-search plans through RasRemote.

Kalamazoo River Calibration Workflow

This notebook replaces the synthetic calibration example with a real USGS ScienceBase model and real observation data:

  • HEC-RAS 6.6 2D model of the Kalamazoo River between Trowbridge Dam and Allegan City Dam.

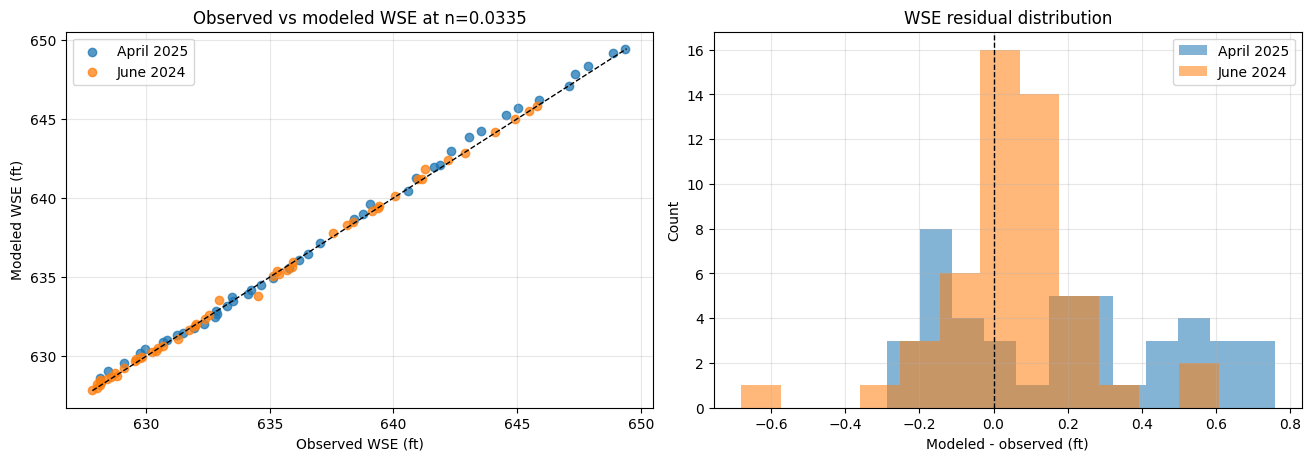

  • Water-surface elevation and ADCP velocity observations from June 2024 and April 2025.
  • Delivered plan HDF outputs for multiple channel Manning's n values.
  • RasCalibrate examples for objective scoring, CalibrationPoint construction, delivered-run calibration, grid search, optional RasRemote execution, and multi-event validation.

The notebook uses the delivered result HDFs for visible sensitivity analysis and maps. The rerun workflow is included, but it only executes when explicitly enabled.

Workflow Outline

  1. Download or reuse the USGS ScienceBase Kalamazoo release.
  2. Initialize the project with ras-commander and inspect plans, geometry, land-cover roughness, and stored runtimes.
  3. Build zoomable maps showing the model domain, sampled 2D mesh, WSE observations, ADCP cross sections, and nearby USGS gauges.

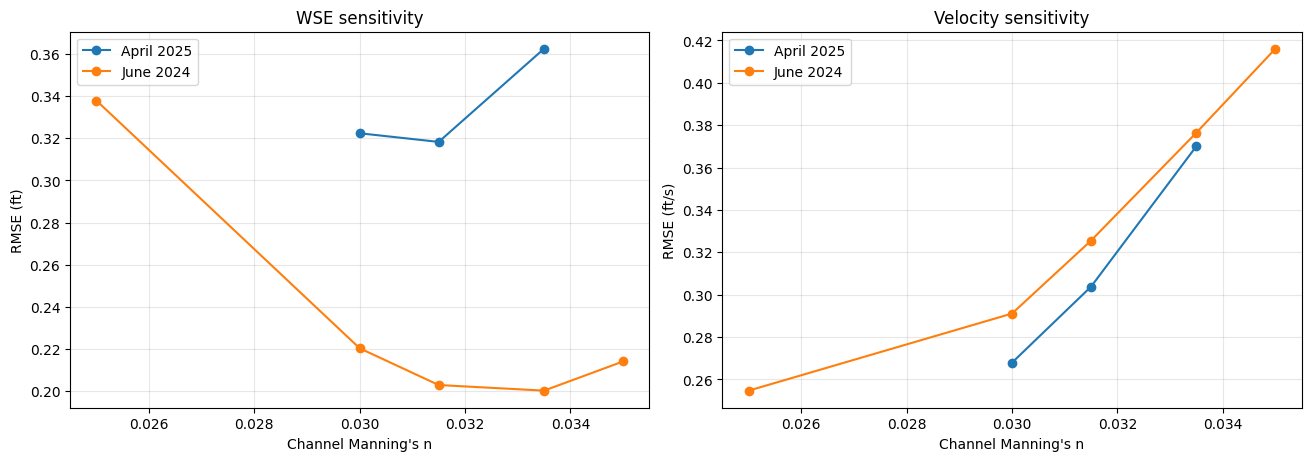

  4. Use delivered model-at-observation columns for WSE and velocity sensitivity analysis plus an executed calibration/validation pass.
  5. Explain the RasCalibrate API in detail and build real CalibrationPoint objects from the WSE survey points.
  6. Show a guarded rerun workflow for local or RasRemote-backed grid search.
  7. Show how to extend the same pattern into optimization and multi-event validation.
Python
def find_repo_root(start: Path) -> Path:
    for candidate in [start, *start.parents]:
        if (candidate / "pyproject.toml").exists() and (candidate / "ras_commander").exists():
            return candidate
    return start


REPO_ROOT = find_repo_root(Path.cwd())


def public_path(value) -> str:
    path = Path(value)
    normalized = path.as_posix()
    marker = "working/sciencebase/"
    if marker in normalized:
        return normalized[normalized.index(marker):]
    try:
        return path.relative_to(REPO_ROOT).as_posix()
    except ValueError:
        return normalized


def public_df(df: pd.DataFrame) -> pd.DataFrame:
    result = df.copy()
    path_tokens = ("path", "file", "hdf")
    for column in result.columns:
        if any(token in str(column).lower() for token in path_tokens):
            result[column] = result[column].map(
                lambda value: [public_path(item) for item in value]
                if isinstance(value, list)
                else public_path(value)
                if isinstance(value, (str, Path))
                else value
            )
    return result


WORK_ROOT = REPO_ROOT / "working" / "sciencebase"
MODEL_KEY = "kalamazoo"
RAS_VERSION = os.getenv("RAS_COMMANDER_220_RAS_VERSION", "6.6")

RUN_HECRAS = os.getenv("RAS_COMMANDER_220_RUN_HECRAS", "0") == "1"
USE_REMOTE = os.getenv("RAS_COMMANDER_220_USE_REMOTE", "0") == "1"
REMOTE_WORKERS_JSON = Path(
    os.getenv(
        "RAS_COMMANDER_220_REMOTE_WORKERS",
        str(REPO_ROOT / "working" / "remote_workers_clb.json"),
    )
)

WORK_ROOT.mkdir(parents=True, exist_ok=True)

model_info = UsgsScienceBase.get_model_info(MODEL_KEY)
model_dir = WORK_ROOT / MODEL_KEY
project_path = UsgsScienceBase.get_project_path(MODEL_KEY, WORK_ROOT)

if not project_path.exists():
    model_dir = UsgsScienceBase.download_model(
        MODEL_KEY,
        output_dir=WORK_ROOT,
        required_only=True,
        extract=True,
    )
    project_path = UsgsScienceBase.get_project_path(MODEL_KEY, WORK_ROOT)

calibration_dir = model_dir / "calibration_data"
project_dir = project_path.parent

print(f"ScienceBase DOI: {model_info['doi']}")
print(f"Model directory: {public_path(model_dir)}")
print(f"Project path:    {public_path(project_path)}")
print(f"Calibration dir: {public_path(calibration_dir)}")
print(f"RUN_HECRAS:      {RUN_HECRAS}")
print(f"USE_REMOTE:      {USE_REMOTE}")
Text Only
ScienceBase DOI: 10.5066/P13CPA5B
Model directory: working/sciencebase/kalamazoo
Project path:    working/sciencebase/kalamazoo/hec_ras_model/kalamazoo_trowbridg.prj
Calibration dir: working/sciencebase/kalamazoo/calibration_data
RUN_HECRAS:      False
USE_REMOTE:      False

Initialize the Project

init_ras_project() builds ras-commander's project DataFrames. Those DataFrames are the source of truth for plan paths, geometry paths, HDF outputs, unsteady files, and RASMapper layer paths. The workflow avoids ad hoc globbing once the project is initialized.

Python
init_ras_project(project_path, ras_version=RAS_VERSION, load_results_summary=False)

plan_cols = [
    "plan_number",
    "Plan Title",
    "Short Identifier",
    "geometry_number",
    "unsteady_number",
    "HDF_Results_Path",
]
display(public_df(ras.plan_df[plan_cols]))
plan_number Plan Title Short Identifier geometry_number unsteady_number HDF_Results_Path
0 01 20240611_20240612_swe_035_6278 20240611_swe_035_6278 02 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
1 02 20240611_20240612_swe_0315_6278 20240611_swe_0315_6278 03 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
2 33 20240611_20240612_swe_025_6278 20240611_swe_025_6278 05 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
3 34 20240611_20240612_swe_0335_6278 20240611_swe_0335_6278 01 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
4 35 20230323_20230414_swe_0335_6278 20230323_swe_0335_6278 01 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
5 41 20230323_20230414_swe_0315_6278 20230323_swe_0315_6278 03 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
6 45 20240126_20240214_swe_0335_6278 20240126_swe_0335_6278 01 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
7 46 20240126_20240214_swe_0315_6278 20240126_swe_0315_6278 03 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
8 47 20240126_20240214_swe_0300_6278 20240126_swe_0300_6278 04 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
9 51 20230323_20230414_swe_0300_6278 20230323_swe_0300_6278 04 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
10 44 dummy_qus_1000cfs_swe_0315_6278 dum_qus_1000cfs_swe_0315_6278 03 06 working/sciencebase/kalamazoo/hec_ras_model/ka...
11 52 dummy_qus_2000cfs_swe_0315_6278 dum_qus_2000cfs_swe_0315_6278 03 08 working/sciencebase/kalamazoo/hec_ras_model/ka...
12 53 dummy_qus_3000cfs_swe_0315_6278 dum_qus_3000cfs_swe_0315_6278 03 09 working/sciencebase/kalamazoo/hec_ras_model/ka...
13 54 dummy_qus_4000cfs_swe_0300_6278 dum_qus_4000cfs_swe_0300_6278 04 10 working/sciencebase/kalamazoo/hec_ras_model/ka...
14 55 dummy_qus_5000cfs_swe_0300_6278 dum_qus_5000cfs_swe_0300_6278 04 11 working/sciencebase/kalamazoo/hec_ras_model/ka...
15 56 dummy_qus_6000cfs_swe_0300_6278 dum_qus_6000cfs_swe_0300_6278 04 12 working/sciencebase/kalamazoo/hec_ras_model/ka...
16 57 dummy_qus_7000cfs_swe_0300_6278 dum_qus_7000cfs_swe_0300_6278 04 13 working/sciencebase/kalamazoo/hec_ras_model/ka...
17 59 20240611_20240612_swe_030_6278 20240611_swe_030_6278 04 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
18 60 20250404_20250406_swe_0300_6281 20250404_swe_0300_6281 04 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
19 61 20250404_20250406_swe_0315_6281 20250404_swe_0315_6281 03 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
20 62 20250404_20250406_swe_0335_6281 20250404_swe_0335_6281 01 NaN working/sciencebase/kalamazoo/hec_ras_model/ka...
Python
geom_cols = [
    "geom_number",
    "geom_title",
    "has_2d_mesh",
    "mesh_cell_count",
    "mesh_area_names",
    "hdf_path",
]
display(public_df(ras.geom_df[geom_cols]))

terrain_layers = RasMap.list_terrain_layers(project_path)
landcover_layers = RasMap.list_landcover_layers(project_path)

display(Markdown("### RASMapper Terrain Layers"))
display(public_df(terrain_layers))
display(Markdown("### RASMapper Land-Cover Layers"))
display(public_df(landcover_layers))
geom_number geom_title has_2d_mesh mesh_cell_count mesh_area_names hdf_path
0 01 v011_chan_0335 True 48124 [perimeter_1] working/sciencebase/kalamazoo/hec_ras_model/ka...
1 03 v012_chan_0315 True 48124 [perimeter_1] working/sciencebase/kalamazoo/hec_ras_model/ka...
2 02 v010_chan_035 True 48124 [perimeter_1] working/sciencebase/kalamazoo/hec_ras_model/ka...
3 04 v013_chan_0300 True 48124 [perimeter_1] working/sciencebase/kalamazoo/hec_ras_model/ka...
4 05 v014_chan_025 True 48124 [perimeter_1] working/sciencebase/kalamazoo/hec_ras_model/ka...

RASMapper Terrain Layers

name filename resolved_path checked type resample_method surface_on
0 be_Area_5 Terrain/be_Area_5.hdf working/sciencebase/kalamazoo/hec_ras_model/Te... True TerrainLayer near True

RASMapper Land-Cover Layers

name type checked filename resolved_path selected_parameter classification_kind classification_layer_count classification_layer_filenames classification_layer_paths
0 LandCover LandCoverLayer True Land Classification/LandCover.hdf working/sciencebase/kalamazoo/hec_ras_model/La... ManningsN landcover 1 [Land Classification/LandCover.hdf] [working/sciencebase/kalamazoo/hec_ras_model/L...

Existing Plan Runtimes

HdfResultsPlan.get_runtime_data() reads the runtime summary stored in each delivered plan HDF. This is useful before designing a calibration experiment because every grid-search point is a full HEC-RAS run.

Python
def runtime_table(plan_df: pd.DataFrame) -> pd.DataFrame:
    rows = []
    for _, plan in plan_df.iterrows():
        hdf_path = Path(plan["HDF_Results_Path"])
        if not hdf_path.exists():
            continue
        runtime = HdfResultsPlan.get_runtime_data(hdf_path).iloc[0].to_dict()
        runtime["plan_number"] = plan["plan_number"]
        runtime["geometry_number"] = plan["geometry_number"]
        rows.append(runtime)

    result = pd.DataFrame(rows)
    result["event"] = result["Plan Name"].str.extract(r"^(\d{8}_\d{8}|dummy_qus_\d+cfs)")
    result["roughness_n"] = result["Plan Name"].str.extract(r"_swe_(\d+)_").iloc[:, 0].map(
        lambda text: np.nan if pd.isna(text) else float(f"0.{str(text).zfill(4)}")
    )
    result["total_runtime_min"] = result["Complete Process (hr)"] * 60.0
    return result.sort_values(["Simulation Start Time", "roughness_n", "plan_number"]).reset_index(drop=True)


runtimes = runtime_table(ras.plan_df)
display(
    runtimes[
        [
            "plan_number",
            "Plan Name",
            "geometry_number",
            "roughness_n",
            "Simulation Time (hr)",
            "Complete Process (hr)",
            "Unsteady Flow Computations (hr)",
            "Complete Process Speed (hr/hr)",
        ]
    ]
)
plan_number Plan Name geometry_number roughness_n Simulation Time (hr) Complete Process (hr) Unsteady Flow Computations (hr) Complete Process Speed (hr/hr)
0 54 dummy_qus_4000cfs_swe_0300_6278 04 0.0300 6.0 0.250798 0.249748 23.923604
1 55 dummy_qus_5000cfs_swe_0300_6278 04 0.0300 6.0 0.572118 0.570434 10.487341
2 56 dummy_qus_6000cfs_swe_0300_6278 04 0.0300 6.0 0.279753 0.278090 21.447508
3 57 dummy_qus_7000cfs_swe_0300_6278 04 0.0300 6.0 0.229379 0.227621 26.157563
4 44 dummy_qus_1000cfs_swe_0315_6278 03 0.0315 6.0 0.079432 0.078464 75.536625
5 52 dummy_qus_2000cfs_swe_0315_6278 03 0.0315 6.0 0.368247 0.366515 16.293427
6 53 dummy_qus_3000cfs_swe_0315_6278 03 0.0315 6.0 0.287839 0.285820 20.845014
7 51 20230323_20230414_swe_0300_6278 04 0.0300 551.0 12.310139 12.309002 44.759852
8 41 20230323_20230414_swe_0315_6278 03 0.0315 551.0 8.820738 8.818654 62.466430
9 35 20230323_20230414_swe_0335_6278 01 0.0335 551.0 8.201502 8.200391 67.182819
10 47 20240126_20240214_swe_0300_6278 04 0.0300 460.0 5.917253 5.916128 77.738782
11 46 20240126_20240214_swe_0315_6278 03 0.0315 460.0 5.651974 5.650976 81.387488
12 45 20240126_20240214_swe_0335_6278 01 0.0335 460.0 5.507465 5.506319 83.522996
13 33 20240611_20240612_swe_025_6278 05 0.0025 33.0 0.730638 0.729731 45.166019
14 59 20240611_20240612_swe_030_6278 04 0.0030 33.0 0.448707 0.446940 73.544706
15 01 20240611_20240612_swe_035_6278 02 0.0035 33.0 0.333628 0.331701 98.912462
16 02 20240611_20240612_swe_0315_6278 03 0.0315 33.0 0.345781 0.344787 95.436175
17 34 20240611_20240612_swe_0335_6278 01 0.0335 33.0 0.382752 0.381319 86.217720
18 60 20250404_20250406_swe_0300_6281 04 0.0300 67.0 1.236454 1.235304 54.187221
19 61 20250404_20250406_swe_0315_6281 03 0.0315 67.0 1.301176 1.299922 51.491866
20 62 20250404_20250406_swe_0335_6281 01 0.0335 67.0 1.243225 1.242222 53.892095
Python
runtime_summary = (
    runtimes.groupby("event", dropna=False)
    .agg(
        plans=("Plan Name", "count"),
        sim_hours=("Simulation Time (hr)", "first"),
        min_runtime_hr=("Complete Process (hr)", "min"),
        max_runtime_hr=("Complete Process (hr)", "max"),
    )
    .reset_index()
)
runtime_summary["min_runtime"] = runtime_summary["min_runtime_hr"].map(lambda v: f"{v * 60:.1f} min" if v < 1 else f"{v:.2f} hr")
runtime_summary["max_runtime"] = runtime_summary["max_runtime_hr"].map(lambda v: f"{v * 60:.1f} min" if v < 1 else f"{v:.2f} hr")
display(runtime_summary[["event", "plans", "sim_hours", "min_runtime", "max_runtime"]])
event plans sim_hours min_runtime max_runtime
0 20230323_20230414 3 551.0 8.20 hr 12.31 hr
1 20240126_20240214 3 460.0 5.51 hr 5.92 hr
2 20240611_20240612 5 33.0 20.0 min 43.8 min
3 20250404_20250406 3 67.0 1.24 hr 1.30 hr
4 dummy_qus_1000cfs 1 6.0 4.8 min 4.8 min
5 dummy_qus_2000cfs 1 6.0 22.1 min 22.1 min
6 dummy_qus_3000cfs 1 6.0 17.3 min 17.3 min
7 dummy_qus_4000cfs 1 6.0 15.0 min 15.0 min
8 dummy_qus_5000cfs 1 6.0 34.3 min 34.3 min
9 dummy_qus_6000cfs 1 6.0 16.8 min 16.8 min
10 dummy_qus_7000cfs 1 6.0 13.8 min 13.8 min

Geometry and Roughness Context

The Kalamazoo model is a 2D-only mesh. The five geometry files mostly differ by channel Manning's n. The channel roughness values are stored in the plain-text geometry LCMann Table, which means RasCalibrate.make_mannings_apply_fn(path="plaintext") can edit them repeatably.

Python
from ras_commander.geom.GeomLandCover import GeomLandCover


roughness_rows = []
for _, geom in ras.geom_df.sort_values("geom_number").iterrows():
    geom_path = Path(geom["full_path"])
    table = GeomLandCover.get_base_mannings_n(geom_path)
    if table.empty:
        roughness_rows.append(
            {
                "geometry_number": geom["geom_number"],
                "geom_title": geom["geom_title"],
                "land_cover_class": "(no LCMann table)",
                "base_mannings_n": np.nan,
            }
        )
        continue
    for _, lc in table.iterrows():
        roughness_rows.append(
            {
                "geometry_number": geom["geom_number"],
                "geom_title": geom["geom_title"],
                "land_cover_class": lc["Land Cover Name"],
                "base_mannings_n": lc["Base Mannings n Value"],
            }
        )

roughness_df = pd.DataFrame(roughness_rows)
display(roughness_df)
geometry_number geom_title land_cover_class base_mannings_n
0 01 v011_chan_0335 Open Water 0.0335
1 01 v011_chan_0335 lower channel 0.0335
2 01 v011_chan_0335 upper channel 0.0335
3 02 v010_chan_035 (no LCMann table) NaN
4 03 v012_chan_0315 Open Water 0.0315
5 03 v012_chan_0315 lower channel 0.0315
6 03 v012_chan_0315 upper channel 0.0315
7 04 v013_chan_0300 Open Water 0.0300
8 04 v013_chan_0300 lower channel 0.0300
9 04 v013_chan_0300 upper channel 0.0300
10 05 v014_chan_025 Open Water 0.0250
11 05 v014_chan_025 lower channel 0.0250
12 05 v014_chan_025 upper channel 0.0250

Model Domain and Observation Maps

The first map shows the model perimeter, a sampled 2D mesh, WSE survey points, ADCP velocity cross sections, and USGS gauges found through UsgsGaugeSpatial.find_gauges_in_project().

For performance, the map samples every 50th mesh cell rather than drawing all 48,124 cells. The full mesh remains available from HdfMesh.get_mesh_cell_polygons().

Python
GEOM_HDF = Path(ras.geom_df.sort_values("geom_number").iloc[0]["hdf_path"])
PROJECT_CRS = HdfProject.get_project_crs(GEOM_HDF) or "EPSG:6499"

mesh_area = HdfMesh.get_mesh_areas(GEOM_HDF)
mesh_cells_sample = HdfMesh.get_mesh_cell_polygons(GEOM_HDF).iloc[::50].copy()

wse_2024 = gpd.read_file(calibration_dir / "wse" / "kzoo_wse_points_20240612_attributed.gpkg")
wse_2025 = gpd.read_file(calibration_dir / "wse" / "kzoo_wse_points_20250406_attributed.gpkg")
vel_xs_2024 = gpd.read_file(calibration_dir / "velocity" / "20240611" / "kzoo_velocity_xsections_20240611_attributed.gpkg")
vel_xs_2025 = gpd.read_file(calibration_dir / "velocity" / "20250405" / "kzoo_velocity_xsections_20250405_attributed.gpkg")

gauges = UsgsGaugeSpatial.find_gauges_in_project(
    GEOM_HDF,
    buffer_percent=20,
    parameter_codes=["flow", "stage"],
    active_only=False,
    project_crs=PROJECT_CRS,
    include_1d=False,
    include_2d=True,
)

print(f"Model CRS: {PROJECT_CRS}")
print(f"Mesh area count: {len(mesh_area)}")
print(f"Sampled mesh cells: {len(mesh_cells_sample)} of {ras.geom_df['mesh_cell_count'].max():,.0f}")
print(f"WSE points: {len(wse_2024)} in June 2024, {len(wse_2025)} in April 2025")
print(f"ADCP cross sections: {len(vel_xs_2024)} in June 2024, {len(vel_xs_2025)} in April 2025")
print(f"USGS gauges found: {len(gauges)}")
display(gauges[[c for c in ["site_no", "station_nm", "site_type_code", "dec_lat_va", "dec_long_va", "alt_va"] if c in gauges.columns]])
Text Only
Model CRS: EPSG:6499
Mesh area count: 1
Sampled mesh cells: 963 of 48,124
WSE points: 50 in June 2024, 43 in April 2025
ADCP cross sections: 21 in June 2024, 30 in April 2025
USGS gauges found: 1
site_no station_nm site_type_code dec_lat_va dec_long_va alt_va
0 04107850 KALAMAZOO RIVER NEAR ALLEGAN, MI ST 42.48225575 -85.798355 638.05
Python
def to_wgs84(gdf: gpd.GeoDataFrame) -> gpd.GeoDataFrame:
    if gdf.empty:
        return gdf
    if gdf.crs is None:
        gdf = gdf.set_crs(PROJECT_CRS)
    return gdf.to_crs("EPSG:4326")


def add_geojson_layer(map_obj, gdf, name, color, weight=2, fill=False, fill_opacity=0.1, tooltip_fields=None):
    if gdf.empty:
        return
    gdf_wgs = to_wgs84(gdf)
    tooltip = None
    if tooltip_fields:
        fields = [field for field in tooltip_fields if field in gdf_wgs.columns]
        if fields:
            tooltip = folium.GeoJsonTooltip(fields=fields)
    folium.GeoJson(
        gdf_wgs,
        name=name,
        tooltip=tooltip,
        style_function=lambda feature, color=color, weight=weight, fill=fill, fill_opacity=fill_opacity: {
            "color": color,
            "weight": weight,
            "fill": fill,
            "fillColor": color,
            "fillOpacity": fill_opacity,
        },
        marker=folium.CircleMarker(radius=4, color=color, fill=True, fill_opacity=0.9),
    ).add_to(map_obj)


mesh_wgs = to_wgs84(mesh_area)
west, south, east, north = mesh_wgs.total_bounds
center = [(south + north) / 2, (west + east) / 2]

m = folium.Map(location=center, zoom_start=12, tiles="OpenStreetMap")
folium.TileLayer("CartoDB positron", name="CartoDB Positron").add_to(m)
folium.TileLayer("Esri.WorldImagery", name="Esri World Imagery").add_to(m)

add_geojson_layer(m, mesh_area, "Model perimeter", "#1f78b4", weight=3, fill=True, fill_opacity=0.08, tooltip_fields=["mesh_name"])
add_geojson_layer(m, mesh_cells_sample, "Sampled mesh cells", "#a6cee3", weight=0.4, fill=True, fill_opacity=0.04, tooltip_fields=["cell_id"])
add_geojson_layer(m, wse_2024, "WSE survey points - June 2024", "#e31a1c", weight=1, tooltip_fields=["Name", "Elevation_ftNGVD29", "Time"])
add_geojson_layer(m, wse_2025, "WSE survey points - April 2025", "#ff7f00", weight=1, tooltip_fields=["reference_name", "Elevation_ftNGVD29", "Time"])
add_geojson_layer(m, vel_xs_2024, "ADCP cross sections - June 2024", "#33a02c", weight=3, tooltip_fields=["Name", "avg_flow_velocity_av_fps"])
add_geojson_layer(m, vel_xs_2025, "ADCP cross sections - April 2025", "#6a3d9a", weight=3, tooltip_fields=["Name", "avg_flow_velocity_av_fps"])

if not gauges.empty:
    gauges_wgs = to_wgs84(gauges)
    for _, gauge in gauges_wgs.iterrows():
        label = f"{gauge.get('site_no', '')} - {gauge.get('station_nm', '')}"
        folium.Marker(
            location=[gauge.geometry.y, gauge.geometry.x],
            popup=label,
            tooltip=label,
            icon=folium.Icon(color="blue", icon="tint", prefix="fa"),
        ).add_to(m)

m.fit_bounds([[south, west], [north, east]])
folium.LayerControl(collapsed=False).add_to(m)
m
Make this Notebook Trusted to load map: File -> Trust Notebook

Sensitivity Analysis from Delivered Results

The ScienceBase release already includes model-at-observation values in the attributed observation layers. Those columns let us evaluate the roughness sensitivity without rerunning HEC-RAS:

  • WSE point layers include observed Elevation_ftNGVD29, model columns named wse_ft_<plan_name>, and residual columns named wse_diff_ft_<plan_name>.
  • Velocity cross-section layers include observed avg_flow_velocity_av_fps and model columns named avg_velocity_magnitude_fps_<plan_name>.

The residual sign is modeled minus observed. RMSE and MAE are always positive. Bias preserves sign.

Python
JUNE_TAGS = {
    0.0250: "20240611_20240612_swe_025_6278",
    0.0300: "20240611_20240612_swe_030_6278",
    0.0315: "20240611_20240612_swe_0315_6278",
    0.0335: "20240611_20240612_swe_0335_6278",
    0.0350: "20240611_20240612_swe_035_6278",
}

APRIL_TAGS = {
    0.0300: "20250404_20250406_swe_0300_6281",
    0.0315: "20250404_20250406_swe_0315_6281",
    0.0335: "20250404_20250406_swe_0335_6281",
}


def metrics_from_error(error: pd.Series) -> dict:
    error = pd.to_numeric(error, errors="coerce").dropna()
    return {
        "n_points": len(error),
        "rmse": float(np.sqrt(np.mean(error ** 2))) if len(error) else np.nan,
        "mae": float(error.abs().mean()) if len(error) else np.nan,
        "bias": float(error.mean()) if len(error) else np.nan,
    }


def wse_metrics(gdf: gpd.GeoDataFrame, tags: dict[float, str], event: str) -> pd.DataFrame:
    rows = []
    for n_value, tag in tags.items():
        diff_col = f"wse_diff_ft_{tag}"
        if diff_col not in gdf.columns:
            continue
        row = {"event": event, "n_channel": n_value, "target": "WSE points"}
        row.update(metrics_from_error(gdf[diff_col]))
        rows.append(row)
    return pd.DataFrame(rows)


def velocity_xsection_metrics(gdf: gpd.GeoDataFrame, tags: dict[float, str], event: str) -> pd.DataFrame:
    rows = []
    observed = pd.to_numeric(gdf["avg_flow_velocity_av_fps"], errors="coerce")
    for n_value, tag in tags.items():
        model_col = f"avg_velocity_magnitude_fps_{tag}"
        if model_col not in gdf.columns:
            continue
        error = pd.to_numeric(gdf[model_col], errors="coerce") - observed
        row = {"event": event, "n_channel": n_value, "target": "ADCP cross-section velocity"}
        row.update(metrics_from_error(error))
        rows.append(row)
    return pd.DataFrame(rows)


june_wse_metrics = wse_metrics(wse_2024, JUNE_TAGS, "June 2024")
april_wse_metrics = wse_metrics(wse_2025, APRIL_TAGS, "April 2025")
june_vel_metrics = velocity_xsection_metrics(vel_xs_2024, JUNE_TAGS, "June 2024")
april_vel_metrics = velocity_xsection_metrics(vel_xs_2025, APRIL_TAGS, "April 2025")

sensitivity_metrics = pd.concat(
    [june_wse_metrics, april_wse_metrics, june_vel_metrics, april_vel_metrics],
    ignore_index=True,
)
display(sensitivity_metrics)
event n_channel target n_points rmse mae bias
0 June 2024 0.0250 WSE points 49 0.337959 0.277734 -0.229177
1 June 2024 0.0300 WSE points 49 0.220246 0.154214 -0.063102
2 June 2024 0.0315 WSE points 49 0.202796 0.133875 -0.013170
3 June 2024 0.0335 WSE points 49 0.200133 0.136668 0.053504
4 June 2024 0.0350 WSE points 49 0.213979 0.159804 0.103347
5 April 2025 0.0300 WSE points 43 0.322402 0.277116 -0.045907
6 April 2025 0.0315 WSE points 43 0.318296 0.276093 0.056698
7 April 2025 0.0335 WSE points 43 0.362545 0.297581 0.189163
8 June 2024 0.0250 ADCP cross-section velocity 21 0.254708 0.204373 -0.013501
9 June 2024 0.0300 ADCP cross-section velocity 21 0.291084 0.232893 -0.196176
10 June 2024 0.0315 ADCP cross-section velocity 21 0.325499 0.265437 -0.245900
11 June 2024 0.0335 ADCP cross-section velocity 21 0.376432 0.319032 -0.308485
12 June 2024 0.0350 ADCP cross-section velocity 21 0.416067 0.361458 -0.352959
13 April 2025 0.0300 ADCP cross-section velocity 30 0.267904 0.201867 -0.099800
14 April 2025 0.0315 ADCP cross-section velocity 30 0.303761 0.240867 -0.176800
15 April 2025 0.0335 ADCP cross-section velocity 30 0.370050 0.309167 -0.273833
Python
best_by_target = (
    sensitivity_metrics.sort_values("rmse")
    .groupby(["event", "target"], as_index=False)
    .first()
)
display(best_by_target[["event", "target", "n_channel", "rmse", "mae", "bias", "n_points"]])
event target n_channel rmse mae bias n_points
0 April 2025 ADCP cross-section velocity 0.0300 0.267904 0.201867 -0.099800 30
1 April 2025 WSE points 0.0315 0.318296 0.276093 0.056698 43
2 June 2024 ADCP cross-section velocity 0.0250 0.254708 0.204373 -0.013501 21
3 June 2024 WSE points 0.0335 0.200133 0.136668 0.053504 49
Python
fig, axes = plt.subplots(1, 2, figsize=(13, 4.5), constrained_layout=True)

for event, data in sensitivity_metrics[sensitivity_metrics["target"] == "WSE points"].groupby("event"):
    axes[0].plot(data["n_channel"], data["rmse"], marker="o", label=event)
axes[0].set_title("WSE sensitivity")
axes[0].set_xlabel("Channel Manning's n")
axes[0].set_ylabel("RMSE (ft)")
axes[0].grid(True, alpha=0.3)
axes[0].legend()

for event, data in sensitivity_metrics[sensitivity_metrics["target"] == "ADCP cross-section velocity"].groupby("event"):
    axes[1].plot(data["n_channel"], data["rmse"], marker="o", label=event)
axes[1].set_title("Velocity sensitivity")
axes[1].set_xlabel("Channel Manning's n")
axes[1].set_ylabel("RMSE (ft/s)")
axes[1].grid(True, alpha=0.3)
axes[1].legend()

plt.show()

png

RasCalibrate API Concepts

RasCalibrate is a thin orchestration layer over existing ras-commander capabilities. It does not invent a separate model runner. It composes:

  • CalibrationPoint: what to compare, where to extract it, the observed value or series, and the point weight.
  • compute_objective(): scalar objective calculation for RMSE, MAE, percent bias, NSE, or KGE.
  • extract_modeled(): HDF extraction for 1D cross sections, 2D cells, reference lines, reference points, and steady profiles.
  • evaluate_single(): apply one parameter set, run one plan, extract modeled values, and score the objective.

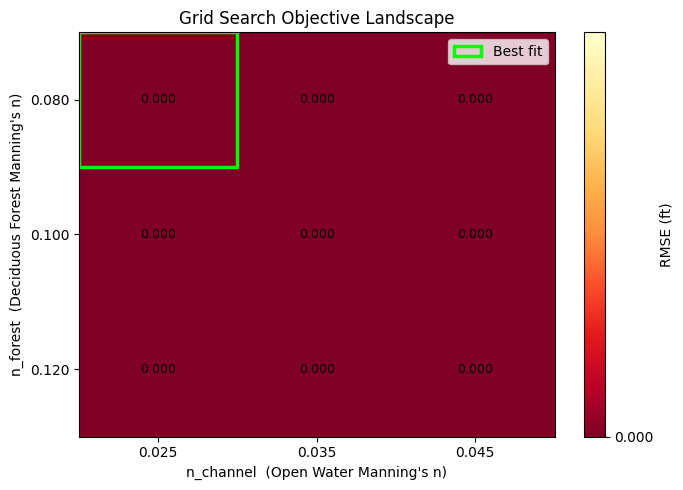

  • grid_search(): generate a plan matrix with RasPermutation, execute it locally or through RasRemote, then score each result HDF.

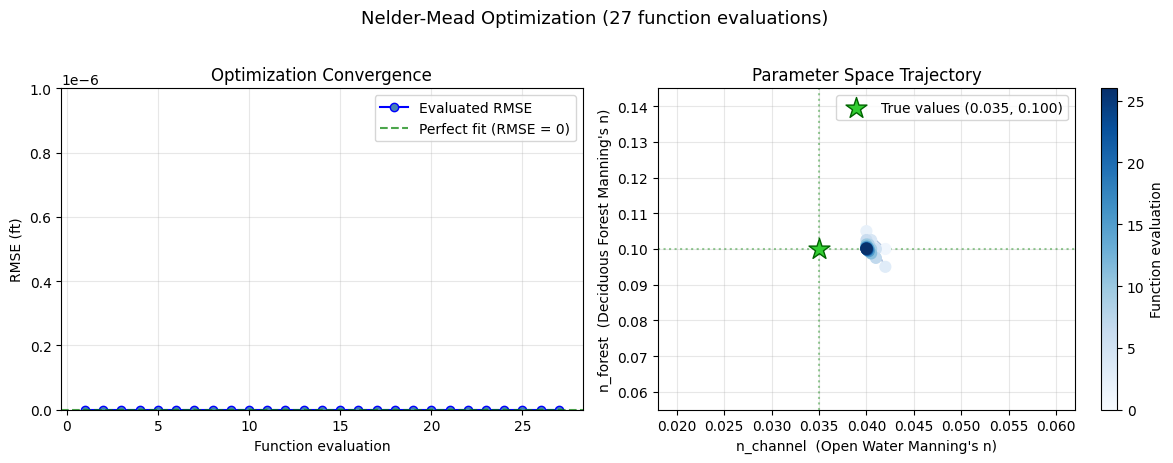

  • optimize(): serial SciPy minimization, useful after a coarse grid search has narrowed the range.
  • evaluate_multi_event(): repeat evaluate_single() across events and average the event objectives.

The core extension point is an apply_fn(plan_path, param_row, ras_object=None). The apply function mutates the cloned plan or geometry before execution. For Manning's n calibration, make_mannings_apply_fn() edits land-cover base overrides in the plain-text geometry or sidecar land-cover HDF.

Python
def hdf_output_times(plan_hdf: Path) -> pd.DatetimeIndex:
    path = "Results/Unsteady/Output/Output Blocks/Base Output/Unsteady Time Series/Time Date Stamp"
    with h5py.File(plan_hdf, "r") as hdf:
        values = [value.decode("utf-8").strip() for value in hdf[path][:]]
    return pd.to_datetime(values, format="%d%b%Y %H:%M:%S")


def nearest_time_index(output_times: pd.DatetimeIndex, target_time) -> int:
    target = pd.Timestamp(target_time)
    deltas = np.abs(output_times - target)
    return int(np.argmin(deltas))


def observed_wse_from_attributed_row(row: pd.Series, plan_tag: str) -> float:
    return float(row[f"wse_ft_{plan_tag}"] - row[f"wse_diff_ft_{plan_tag}"])


def wse_points_to_calibration_points(
    points_gdf: gpd.GeoDataFrame,
    plan_hdf: Path,
    plan_tag: str,
    limit: int = 15,
) -> list[CalibrationPoint]:
    output_times = hdf_output_times(plan_hdf)
    projected = points_gdf.to_crs(PROJECT_CRS).copy()
    if limit and len(projected) > limit:
        projected = projected.iloc[np.linspace(0, len(projected) - 1, limit, dtype=int)].copy()

    points = []
    for _, row in projected.iterrows():
        timestamp = pd.Timestamp(f"{row['Date']} {row['Time']}")
        name = row.get("Name", row.get("reference_name", f"wse_{len(points)}"))
        points.append(
            CalibrationPoint(
                name=str(name),
                variable="wse",
                extraction_method="2d_cell",
                observed=observed_wse_from_attributed_row(row, plan_tag),
                x=float(row.geometry.x),
                y=float(row.geometry.y),
                time_index=nearest_time_index(output_times, timestamp),
                metric="rmse",
                weight=1.0,
            )
        )
    return points


JUNE_TEMPLATE_PLAN = "02"
JUNE_TEMPLATE_TAG = JUNE_TAGS[0.0315]
JUNE_TEMPLATE_HDF = Path(ras.plan_df.loc[ras.plan_df["plan_number"] == JUNE_TEMPLATE_PLAN, "HDF_Results_Path"].iloc[0])

june_calibration_points = wse_points_to_calibration_points(
    wse_2024,
    JUNE_TEMPLATE_HDF,
    JUNE_TEMPLATE_TAG,
    limit=15,
)

display(pd.DataFrame([point.__dict__ for point in june_calibration_points]).head())
name variable extraction_method observed x y river reach station profile_name profile_index station_tolerance ref_feature_name time_index metric weight depth_datum
0 wl1 wse 2d_cell 645.802494 1.273731e+07 361540.360502 None None None None None None None 27 rmse 1.0 None
1 wl4 wse 2d_cell 644.126210 1.273610e+07 361129.823079 None None None None None None None 28 rmse 1.0 None
2 wl8 wse 2d_cell 641.141046 1.273281e+07 362098.089721 None None None None None None None 28 rmse 1.0 None
3 wl11 wse 2d_cell 639.412275 1.273180e+07 361931.005485 None None None None None None None 28 rmse 1.0 None
4 wl15 wse 2d_cell 638.123078 1.273205e+07 363707.951689 None None None None None None None 29 rmse 1.0 None
Python
sample_point = june_calibration_points[0]
modeled_value = RasCalibrate.extract_modeled(sample_point, JUNE_TEMPLATE_HDF)
objective = RasCalibrate.compute_objective(sample_point.observed, modeled_value, metric="rmse")

display(
    pd.DataFrame(
        [
            {
                "point": sample_point.name,
                "observed_wse_ft": sample_point.observed,
                "modeled_wse_ft": modeled_value,
                "absolute_error_ft": objective,
                "time_index": sample_point.time_index,
            }
        ]
    )
)
point observed_wse_ft modeled_wse_ft absolute_error_ft time_index
0 wl1 645.802494 645.834412 0.031918 27

The single-point extraction above uses the nearest saved HDF output timestep. The attributed ScienceBase columns were produced by the release workflow at observation locations and times. For scoring the delivered sensitivity matrix, the attributed columns are the authoritative values. For reruns, CalibrationPoint plus RasCalibrate.extract_modeled() is the reusable ras-commander path.

Python
def objective_from_attributed_columns(points_gdf: gpd.GeoDataFrame, tags: dict[float, str]) -> pd.DataFrame:
    rows = []
    for n_value, tag in tags.items():
        observed = points_gdf[f"wse_ft_{tag}"] - points_gdf[f"wse_diff_ft_{tag}"]
        modeled = points_gdf[f"wse_ft_{tag}"]
        rows.append(
            {
                "n_channel": n_value,
                "rmse_from_RasCalibrate": RasCalibrate.compute_objective(observed, modeled, metric="rmse"),
                "mae_from_RasCalibrate": RasCalibrate.compute_objective(observed, modeled, metric="mae"),
                "pbias_from_RasCalibrate": RasCalibrate.compute_objective(observed, modeled, metric="pbias"),
            }
        )
    return pd.DataFrame(rows)


display(objective_from_attributed_columns(wse_2024, JUNE_TAGS))
n_channel rmse_from_RasCalibrate mae_from_RasCalibrate pbias_from_RasCalibrate
0 0.0250 0.337959 0.277734 -0.036125
1 0.0300 0.220246 0.154214 -0.009947
2 0.0315 0.202796 0.133875 -0.002076
3 0.0335 0.200133 0.136668 0.008434
4 0.0350 0.213979 0.159804 0.016290

Full Calibration and Validation

The previous sensitivity table is useful, but calibration needs an explicit decision: pick a target event, rank candidate parameter sets by a stated objective, select the best parameter, and validate that selection against independent observations.

Here the ScienceBase release is a precomputed calibration grid: each row below represents an actual delivered HEC-RAS plan result, not a synthetic formula. The rerun section later shows how to regenerate the same kind of table with RasCalibrate.grid_search() and RasRemote.

For the visible calibration pass, use June 2024 WSE points as the calibration objective. Velocity and April 2025 WSE are then holdout diagnostics.

Python
def score_delivered_wse_grid(
    points_gdf: gpd.GeoDataFrame,
    tags: dict[float, str],
    event_name: str,
) -> pd.DataFrame:
    """Score delivered model-at-observation columns as a completed grid search."""
    rows = []
    for n_value, tag in tags.items():
        modeled = pd.to_numeric(points_gdf[f"wse_ft_{tag}"], errors="coerce")
        observed = modeled - pd.to_numeric(points_gdf[f"wse_diff_ft_{tag}"], errors="coerce")
        valid = modeled.notna() & observed.notna()
        rows.append(
            {
                "event": event_name,
                "status": "completed_delivered_hdf",
                "n_channel": n_value,
                "plan_tag": tag,
                "n_points": int(valid.sum()),
                "overall_objective": RasCalibrate.compute_objective(
                    observed[valid], modeled[valid], metric="rmse"
                ),
                "mae_ft": RasCalibrate.compute_objective(
                    observed[valid], modeled[valid], metric="mae"
                ),
                "bias_ft": float((modeled[valid] - observed[valid]).mean()),
            }
        )
    return pd.DataFrame(rows).sort_values("overall_objective").reset_index(drop=True)


june_calibration_grid = score_delivered_wse_grid(wse_2024, JUNE_TAGS, "June 2024")
june_calibration_grid.insert(0, "rank", np.arange(1, len(june_calibration_grid) + 1))

calibrated_june_row = june_calibration_grid.iloc[0].copy()
calibrated_n_single_event = float(calibrated_june_row["n_channel"])

calibration_columns = [
    "rank",
    "status",
    "n_channel",
    "overall_objective",
    "mae_ft",
    "bias_ft",
    "n_points",
    "plan_tag",
]
display(june_calibration_grid[calibration_columns])
display(
    Markdown(
        f"Single-event calibration selects **n_channel = {calibrated_n_single_event:.4f}** "
        f"with June WSE RMSE = **{calibrated_june_row['overall_objective']:.3f} ft** "
        f"across {int(calibrated_june_row['n_points'])} WSE points."
    )
)
rank status n_channel overall_objective mae_ft bias_ft n_points plan_tag
0 1 completed_delivered_hdf 0.0335 0.200133 0.136668 0.053504 49 20240611_20240612_swe_0335_6278
1 2 completed_delivered_hdf 0.0315 0.202796 0.133875 -0.013170 49 20240611_20240612_swe_0315_6278
2 3 completed_delivered_hdf 0.0350 0.213979 0.159804 0.103347 49 20240611_20240612_swe_035_6278
3 4 completed_delivered_hdf 0.0300 0.220246 0.154214 -0.063102 49 20240611_20240612_swe_030_6278
4 5 completed_delivered_hdf 0.0250 0.337959 0.277734 -0.229177 49 20240611_20240612_swe_025_6278

Single-event calibration selects n_channel = 0.0335 with June WSE RMSE = 0.200 ft across 49 WSE points.

Python
def metric_row_for_selection(
    metrics_df: pd.DataFrame,
    event: str,
    target: str,
    n_value: float,
    phase: str,
) -> dict:
    match = metrics_df[
        (metrics_df["event"] == event)
        & (metrics_df["target"] == target)
        & np.isclose(metrics_df["n_channel"], n_value)
    ]
    if match.empty:
        return {
            "phase": phase,
            "event": event,
            "target": target,
            "n_channel": n_value,
            "rmse": np.nan,
            "mae": np.nan,
            "bias": np.nan,
            "n_points": 0,
            "note": "selected n not available in delivered event grid",
        }
    row = match.iloc[0]
    return {
        "phase": phase,
        "event": event,
        "target": target,
        "n_channel": n_value,
        "rmse": row["rmse"],
        "mae": row["mae"],
        "bias": row["bias"],
        "n_points": int(row["n_points"]),
        "note": "calibration target" if phase == "calibration" else "holdout diagnostic",
    }


single_event_validation = pd.DataFrame(
    [
        metric_row_for_selection(
            sensitivity_metrics, "June 2024", "WSE points", calibrated_n_single_event, "calibration"
        ),
        metric_row_for_selection(
            sensitivity_metrics, "June 2024", "ADCP cross-section velocity", calibrated_n_single_event, "diagnostic"
        ),
        metric_row_for_selection(
            sensitivity_metrics, "April 2025", "WSE points", calibrated_n_single_event, "validation"
        ),
        metric_row_for_selection(
            sensitivity_metrics, "April 2025", "ADCP cross-section velocity", calibrated_n_single_event, "validation"
        ),
    ]
)

display(single_event_validation)

april_wse_validation = single_event_validation.query(
    "event == 'April 2025' and target == 'WSE points'"
).iloc[0]
display(
    Markdown(
        f"The June-calibrated value transfers to April WSE with RMSE = "
        f"**{april_wse_validation['rmse']:.3f} ft**. The validation degradation is useful: "
        "it shows why a production calibration should evaluate multiple events, not just the event used for tuning."
    )
)
phase event target n_channel rmse mae bias n_points note
0 calibration June 2024 WSE points 0.0335 0.200133 0.136668 0.053504 49 calibration target
1 diagnostic June 2024 ADCP cross-section velocity 0.0335 0.376432 0.319032 -0.308485 21 holdout diagnostic
2 validation April 2025 WSE points 0.0335 0.362545 0.297581 0.189163 43 holdout diagnostic
3 validation April 2025 ADCP cross-section velocity 0.0335 0.370050 0.309167 -0.273833 30 holdout diagnostic

The June-calibrated value transfers to April WSE with RMSE = 0.363 ft. The validation degradation is useful: it shows why a production calibration should evaluate multiple events, not just the event used for tuning.

Python
def pooled_wse_grid(events: list[pd.DataFrame]) -> pd.DataFrame:
    combined = pd.concat(events, ignore_index=True)
    rows = []
    for n_value, group in combined.groupby("n_channel"):
        if group["event"].nunique() < len(events):
            continue
        n_points = group["n_points"].sum()
        pooled_rmse = float(np.sqrt(((group["rmse"] ** 2) * group["n_points"]).sum() / n_points))
        rows.append(
            {
                "n_channel": float(n_value),
                "events": ", ".join(group["event"].tolist()),
                "pooled_wse_rmse_ft": pooled_rmse,
                "weighted_mae_ft": float((group["mae"] * group["n_points"]).sum() / n_points),
                "weighted_bias_ft": float((group["bias"] * group["n_points"]).sum() / n_points),
                "n_points": int(n_points),
            }
        )
    result = pd.DataFrame(rows).sort_values("pooled_wse_rmse_ft").reset_index(drop=True)
    result.insert(0, "rank", np.arange(1, len(result) + 1))
    return result


multi_event_wse_grid = pooled_wse_grid([june_wse_metrics, april_wse_metrics])
recommended_multi_event_n = float(multi_event_wse_grid.iloc[0]["n_channel"])

display(multi_event_wse_grid)
display(
    Markdown(
        f"Multi-event WSE calibration selects **n_channel = {recommended_multi_event_n:.4f}** "
        f"with pooled RMSE = **{multi_event_wse_grid.iloc[0]['pooled_wse_rmse_ft']:.3f} ft**. "
        "This is the better production recommendation because it balances calibration fit and validation transfer."
    )
)
rank n_channel events pooled_wse_rmse_ft weighted_mae_ft weighted_bias_ft n_points
0 1 0.0315 June 2024, April 2025 0.263167 0.200346 0.019486 92
1 2 0.0300 June 2024, April 2025 0.272796 0.211658 -0.055065 92
2 3 0.0335 June 2024, April 2025 0.287691 0.211877 0.116910 92

Multi-event WSE calibration selects n_channel = 0.0315 with pooled RMSE = 0.263 ft. This is the better production recommendation because it balances calibration fit and validation transfer.

Python
def tag_for_n(tags: dict[float, str], n_value: float) -> str:
    if n_value in tags:
        return tags[n_value]
    nearest = min(tags, key=lambda candidate: abs(candidate - n_value))
    return tags[nearest]


def wse_residual_frame(points_gdf: gpd.GeoDataFrame, tags: dict[float, str], event: str, n_value: float) -> pd.DataFrame:
    tag = tag_for_n(tags, n_value)
    modeled = pd.to_numeric(points_gdf[f"wse_ft_{tag}"], errors="coerce")
    observed = modeled - pd.to_numeric(points_gdf[f"wse_diff_ft_{tag}"], errors="coerce")
    residual = modeled - observed
    label = points_gdf.get("Name", points_gdf.get("reference_name", pd.Series(range(len(points_gdf)))))
    return pd.DataFrame(
        {
            "event": event,
            "n_channel": n_value,
            "point": label.astype(str),
            "observed_wse_ft": observed,
            "modeled_wse_ft": modeled,
            "residual_ft": residual,
        }
    ).dropna(subset=["observed_wse_ft", "modeled_wse_ft", "residual_ft"])


june_calibration_residuals = wse_residual_frame(wse_2024, JUNE_TAGS, "June 2024", calibrated_n_single_event)
april_validation_residuals = wse_residual_frame(wse_2025, APRIL_TAGS, "April 2025", calibrated_n_single_event)
residual_diagnostics = pd.concat([june_calibration_residuals, april_validation_residuals], ignore_index=True)

fig, axes = plt.subplots(1, 2, figsize=(13, 4.5), constrained_layout=True)
for event, data in residual_diagnostics.groupby("event"):
    axes[0].scatter(data["observed_wse_ft"], data["modeled_wse_ft"], alpha=0.75, label=event)
min_wse = residual_diagnostics[["observed_wse_ft", "modeled_wse_ft"]].min().min()
max_wse = residual_diagnostics[["observed_wse_ft", "modeled_wse_ft"]].max().max()
axes[0].plot([min_wse, max_wse], [min_wse, max_wse], color="black", linewidth=1, linestyle="--")
axes[0].set_title(f"Observed vs modeled WSE at n={calibrated_n_single_event:.4f}")
axes[0].set_xlabel("Observed WSE (ft)")
axes[0].set_ylabel("Modeled WSE (ft)")
axes[0].legend()
axes[0].grid(True, alpha=0.3)

for event, data in residual_diagnostics.groupby("event"):
    axes[1].hist(data["residual_ft"], bins=12, alpha=0.55, label=event)
axes[1].axvline(0, color="black", linewidth=1, linestyle="--")
axes[1].set_title("WSE residual distribution")
axes[1].set_xlabel("Modeled - observed (ft)")
axes[1].set_ylabel("Count")
axes[1].legend()
axes[1].grid(True, alpha=0.3)

plt.show()

png

Apply Function for Channel Manning's n

The Kalamazoo sensitivity plans vary channel roughness as one scalar applied to three land-cover override rows: Open Water, lower channel, and upper channel.

make_mannings_apply_fn() expects one parameter column per target class. The wrapper below accepts a single n_channel column and expands it into the three class-specific columns before calling the shipped factory.

Python
base_mannings_apply_fn = RasCalibrate.make_mannings_apply_fn(
    {
        "n_open_water": "Open Water",
        "n_lower_channel": "lower channel",
        "n_upper_channel": "upper channel",
    },
    path="plaintext",
)


def channel_roughness_apply_fn(plan_path: Path, param_row: pd.Series, ras_object=None) -> None:
    expanded = param_row.copy()
    if "n_channel" in expanded:
        expanded["n_open_water"] = float(expanded["n_channel"])
        expanded["n_lower_channel"] = float(expanded["n_channel"])
        expanded["n_upper_channel"] = float(expanded["n_channel"])
    base_mannings_apply_fn(plan_path, expanded, ras_object=ras_object)


example_param_row = pd.Series({"n_channel": 0.0315})
print("apply_fn contract:")
print("  channel_roughness_apply_fn(plan_path, param_row, ras_object=None)")
print("  expected columns:", list(example_param_row.index))
Text Only
apply_fn contract:
  channel_roughness_apply_fn(plan_path, param_row, ras_object=None)
  expected columns: ['n_channel']

Grid Search with Optional RasRemote

RasCalibrate.grid_search() now exposes the execution controls needed for this workflow:

  • clone_geom=True: every candidate gets its own geometry, so geometry edits do not collide.
  • clear_geompre=True: HEC-RAS rebuilds preprocessor files after the LCMann table changes.
  • workers=[...]: when provided, the generated plans run through compute_parallel_remote() instead of local RasCmdr.compute_parallel().
  • max_workers: local parallelism when workers is not provided.
  • num_cores: HEC-RAS cores per plan.
  • max_plans_per_batch: batch partitioning control before hitting HEC-RAS plan-count limits.

The June event is a practical calibration template because delivered runtimes are roughly 20 to 44 minutes per run. The April event is a practical validation event at roughly 1.25 hours per run. The January and March historical events are better used as precomputed validation comparisons unless a remote fleet is available.

Python
def prepare_calibration_workspace() -> Path:
    source = project_dir
    destination = REPO_ROOT / "working" / "220_kalamazoo_calibration" / "kalamazoo_trowbridg_cal_workspace"
    if destination.exists():
        shutil.rmtree(destination)
    destination.parent.mkdir(parents=True, exist_ok=True)
    shutil.copytree(source, destination)
    return destination / project_path.name


def load_remote_workers_if_requested(ras_object):
    if not USE_REMOTE:
        return None
    if not REMOTE_WORKERS_JSON.exists():
        raise FileNotFoundError(
            f"RAS_COMMANDER_220_USE_REMOTE=1 but worker config was not found: {REMOTE_WORKERS_JSON}"
        )
    workers = load_workers_from_json(REMOTE_WORKERS_JSON, ras_object=ras_object)
    if not workers:
        raise ValueError(f"No enabled workers loaded from {REMOTE_WORKERS_JSON}")
    return workers


grid_parameters = {
    "n_channel": [0.0300, 0.0315, 0.0335, 0.0350],
}

if RUN_HECRAS:
    from ras_commander.RasPrj import RasPrj

    cal_project_path = prepare_calibration_workspace()
    cal_ras = RasPrj()
    init_ras_project(cal_project_path, ras_version=RAS_VERSION, ras_object=cal_ras, load_results_summary=False)
    workers = load_remote_workers_if_requested(cal_ras)

    grid_results = RasCalibrate.grid_search(
        template_plan=JUNE_TEMPLATE_PLAN,
        parameters=grid_parameters,
        apply_fn=channel_roughness_apply_fn,
        calibration_points=june_calibration_points,
        metric="rmse",
        suffix="cal_june_wse",
        max_workers=2,
        num_cores=2,
        ras_object=cal_ras,
        max_plans_per_batch=20,
        clone_geom=True,
        clear_geompre=True,
        workers=workers,
    )
    display(grid_results)
else:
    expected_runs = np.prod([len(values) for values in grid_parameters.values()])
    local_runtime = runtimes.loc[runtimes["plan_number"] == JUNE_TEMPLATE_PLAN, "Complete Process (hr)"].iloc[0]
    display(
        pd.DataFrame(
            [
                {
                    "status": "dry run",
                    "reason": "Set RAS_COMMANDER_220_RUN_HECRAS=1 to execute HEC-RAS plans.",
                    "candidate_runs": int(expected_runs),
                    "single_run_runtime_hr_from_delivered_hdf": local_runtime,
                    "serial_runtime_estimate_hr": expected_runs * local_runtime,
                    "remote_note": "Set RAS_COMMANDER_220_USE_REMOTE=1 and provide working/remote_workers_clb.json to use RasRemote.",
                }
            ]
        )
    )
status reason candidate_runs single_run_runtime_hr_from_delivered_hdf serial_runtime_estimate_hr remote_note
0 dry run Set RAS_COMMANDER_220_RUN_HECRAS=1 to execute ... 4 0.345781 1.383123 Set RAS_COMMANDER_220_USE_REMOTE=1 and provide...

Optimization and Multi-Event Calibration

Use grid_search() first for remote-friendly batch exploration. Use optimize() after the range is narrow; it is serial because each optimizer iteration depends on the prior objective value.

Use evaluate_multi_event() when a candidate parameter set should be scored against multiple events. Run it in a disposable workspace because evaluate_single() applies the parameter values to the target plan before executing.

Python
best_june_n = float(best_by_target.query("event == 'June 2024' and target == 'WSE points'")["n_channel"].iloc[0])
best_april_n = float(best_by_target.query("event == 'April 2025' and target == 'WSE points'")["n_channel"].iloc[0])

display(
    pd.DataFrame(
        [
            {"event": "June 2024 WSE", "best_delivered_n": best_june_n},
            {"event": "April 2025 WSE", "best_delivered_n": best_april_n},
        ]
    )
)
event best_delivered_n
0 June 2024 WSE 0.0335
1 April 2025 WSE 0.0315
Python
optimizer_example = """
opt_result = RasCalibrate.optimize(
    plan_number="02",
    parameter_bounds={"n_channel": (0.0300, 0.0350)},
    apply_fn=channel_roughness_apply_fn,
    calibration_points=june_calibration_points,
    metric="rmse",
    method="nelder-mead",
    max_iterations=8,
    num_cores=2,
    clear_geompre=True,
    ras_object=cal_ras,
)
"""

multi_event_example = """
multi_event = RasCalibrate.evaluate_multi_event(
    plan_numbers=["02", "61"],
    parameter_values={"n_channel": best_june_n},
    apply_fn=channel_roughness_apply_fn,
    calibration_points_per_plan={
        "02": june_calibration_points,
        "61": april_calibration_points,
    },
    metric="rmse",
    num_cores=2,
    clear_geompre=True,
    ras_object=cal_ras,
)
"""

print("Serial optimizer pattern:")
print(optimizer_example)
print("Multi-event validation pattern:")
print(multi_event_example)
Text Only
Serial optimizer pattern:

opt_result = RasCalibrate.optimize(
    plan_number="02",
    parameter_bounds={"n_channel": (0.0300, 0.0350)},
    apply_fn=channel_roughness_apply_fn,
    calibration_points=june_calibration_points,
    metric="rmse",
    method="nelder-mead",
    max_iterations=8,
    num_cores=2,
    clear_geompre=True,
    ras_object=cal_ras,
)

Multi-event validation pattern:

multi_event = RasCalibrate.evaluate_multi_event(
    plan_numbers=["02", "61"],
    parameter_values={"n_channel": best_june_n},
    apply_fn=channel_roughness_apply_fn,
    calibration_points_per_plan={
        "02": june_calibration_points,
        "61": april_calibration_points,
    },
    metric="rmse",
    num_cores=2,
    clear_geompre=True,
    ras_object=cal_ras,
)

Engineering Notes

  • Use the delivered ScienceBase result HDFs to understand sensitivity before spending compute budget.
  • Keep calibration runs in a copied workspace. The original ScienceBase model is treated as immutable source data.
  • For geometry-changing calibration, use clone_geom=True so every candidate plan has an isolated geometry.
  • For land-cover Manning's n edits, use clear_geompre=True. Avoid full geometry-HDF deletion unless you intentionally need a complete rebuild.
  • Prefer grid_search(..., workers=workers) for RasRemote because all candidates are independent.
  • Use optimize() only after a coarse grid has narrowed the plausible roughness range.
  • Keep long March/January historical events as validation candidates or precomputed comparisons unless a remote fleet is available.
CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander Documentation is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms modernizing H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
