Manning's n from NLCD Validation

Validate ManningsFromLandCover on the real BaldEagleCrkMulti2D RasExamples project. The workflow compares the existing 1D geometry Manning's n blocks against automated NLCD-derived horizontal variation, checks the project RAS Mapper land-cover sidecar values, and quantifies where the 20-block HEC-RAS limit forces block merging.

Validation Design

This notebook uses BaldEagleCrkMulti2D geometry g06 because it has real 1D cross-section cut lines and a registered RAS Mapper land-cover layer (Land Classification/LandCover.hdf with matching GeoTIFF). The original extracted project geometry is left unchanged; ManningsFromLandCover.assign() writes to a copied geometry in the notebook output folder.

The comparison has three references:

Reference Purpose
Existing geometry #Mann blocks Baseline 1D roughness currently in the model
RAS Mapper sidecar Variables/ManningsN table Project land-cover class-to-n reference
Raw unmerged NLCD preview Hydraulic-character reference before the 20-block limit is enforced
Python
from pathlib import Path
import logging
import os
import shutil

os.environ.setdefault("NUMEXPR_MAX_THREADS", "8")

import geopandas as gpd
from IPython.display import Markdown, display
import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
from matplotlib.patches import Patch
from matplotlib.ticker import StrMethodFormatter
import numpy as np
import pandas as pd
import rasterio
from rasterio.windows import from_bounds

from ras_commander import RasExamples, RasMap, init_ras_project, ras
from ras_commander.geom import GeomCrossSection, GeomParser, ManningsFromLandCover
from ras_commander.hdf import HdfLandCover

for logger_name in [
    "",
    "rasterio",
    "fiona",
    "pyogrio",
    "ras_commander",
    "ras_commander.RasExamples",
    "ras_commander.RasMap",
    "ras_commander.RasPrj",
    "ras_commander.RasUtils",
    "ras_commander.geom.GeomParser",
    "ras_commander.geom.ManningsFromLandCover",
    "ras_commander.hdf.HdfLandCover",
]:
    logging.getLogger(logger_name).setLevel(logging.ERROR)

plt.rcParams.update({
    "figure.dpi": 140,
    "savefig.dpi": 180,
    "axes.titlesize": 13,
    "axes.labelsize": 10,
    "legend.fontsize": 8,
    "axes.grid": True,
    "grid.alpha": 0.25,
})

pd.set_option("display.max_columns", 24)
pd.set_option("display.width", 160)

REPO_ROOT = Path.cwd().resolve()
OUTPUT_DIR = REPO_ROOT / "working" / "CLB-665" / "notebook_outputs"
PROJECT_OUTPUT_DIR = OUTPUT_DIR / "projects"
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)
PROJECT_OUTPUT_DIR.mkdir(parents=True, exist_ok=True)

RAS_VERSION = "7.0"
GEOMETRY_NUMBER = "06"
MAX_MANNING_BLOCKS = ManningsFromLandCover.DEFAULT_MAX_BLOCKS


def rel(path: Path | str) -> str:
    path = Path(path).resolve()
    try:
        return str(path.relative_to(REPO_ROOT))
    except ValueError:
        return path.name


def xs_sort_key(series: pd.Series) -> pd.Series:
    return pd.to_numeric(series, errors="coerce").fillna(-np.inf)

Extract the Real Example Project

The project extraction is reproducible and writes to the ignored working folder. Geometry g06 is the largest 1D/2D Bald Eagle geometry with 192 cross sections that have GIS cut lines and a registered land-cover raster covering the model.

Python
project_path = Path(
    RasExamples.extract_project(
        "BaldEagleCrkMulti2D",
        output_path=PROJECT_OUTPUT_DIR,
        suffix="clb665_nlcd_validation",
    )
).resolve()
init_ras_project(project_path, RAS_VERSION)

geom_row = ras.geom_df.loc[
    ras.geom_df["geom_number"].astype(str).str.zfill(2) == GEOMETRY_NUMBER
].iloc[0]
geometry_path = Path(geom_row["full_path"]).resolve()

landcover_layers = RasMap.list_landcover_layers(project_path)
mapper_layer = landcover_layers.loc[
    landcover_layers["selected_parameter"].astype(str).str.casefold() == "manningsn"
].iloc[0]
landcover_hdf = Path(mapper_layer["resolved_path"]).resolve()
landcover_tif = landcover_hdf.with_suffix(".tif")

# Copy the raster to an analysis filename without a matching .hdf sidecar so
# preview/assign use the explicit RAS Mapper class table below without trying
# to load optional classification polygons.
analysis_raster = OUTPUT_DIR / "LandCover_CLB665_analysis.tif"
shutil.copy2(landcover_tif, analysis_raster)

raster_map = HdfLandCover.get_landcover_raster_map(landcover_hdf)
mapper_mannings_table = raster_map.rename(
    columns={
        "pixel_value": "pixel_value",
        "class_name": "class_name",
        "mannings_n": "mannings_n",
    }
)[["pixel_value", "class_name", "mannings_n"]].copy()
mapper_lookup = {
    int(row["pixel_value"]): {
        "class_name": str(row["class_name"]),
        "mannings_n": float(row["mannings_n"]),
    }
    for _, row in mapper_mannings_table.iterrows()
}

cut_lines = GeomParser.get_xs_cut_lines(geometry_path)
cross_sections = GeomCrossSection.get_cross_sections(geometry_path)
xs_rows = cross_sections.merge(
    cut_lines.rename(columns={"river": "River", "reach": "Reach", "station": "RS"}),
    on=["River", "Reach", "RS"],
    how="inner",
)
xs_rows = xs_rows.sort_values("RS", key=xs_sort_key, ascending=False).reset_index(drop=True)

project_summary = pd.DataFrame(
    [
        {"item": "RasExamples project", "value": project_path.name},
        {"item": "geometry", "value": geometry_path.name},
        {"item": "geometry title", "value": geom_row.get("geom_title", "")},
        {"item": "XS with GIS cut lines", "value": len(xs_rows)},
        {"item": "RAS Mapper land-cover layer", "value": mapper_layer["name"]},
        {"item": "analysis raster", "value": rel(analysis_raster)},
        {"item": "Manning block limit", "value": MAX_MANNING_BLOCKS},
    ]
)
display(project_summary)
display(mapper_mannings_table.head(12))

assert len(xs_rows) == 192
assert analysis_raster.exists()
item value
0 RasExamples project BaldEagleCrkMulti2D_clb665_nlcd_validation
1 geometry BaldEagleDamBrk.g06
2 geometry title Bald Eagle Multi 2D Areas
3 XS with GIS cut lines 192
4 RAS Mapper land-cover layer LandCover
5 analysis raster working\CLB-665\notebook_outputs\LandCover_CLB...
6 Manning block limit 20
pixel_value class_name mannings_n
0 0 NoData 0.035
1 43 Mixed Forest 0.120
2 41 Deciduous Forest 0.100
3 21 Developed, Open Space 0.035
4 42 Evergreen Forest 0.150
5 11 Open Water 0.035
6 52 Shrub-Scrub 0.050
7 81 Pasture-Hay 0.045
8 71 Grassland-Herbaceous 0.040
9 82 Cultivated Crops 0.050
10 22 Developed, Low Intensity 0.080
11 95 Emergent Herbaceous Wetlands 0.045

Existing Geometry Baseline

The existing geometry uses the standard three-block LOB/channel/ROB Manning's n pattern. This baseline is the reference for station-by-station discrepancy plots after the NLCD assignment is generated.

Python
def collect_mannings(geom_path: Path, xs_index: pd.DataFrame) -> pd.DataFrame:
    rows = []
    for _, xs in xs_index.iterrows():
        mann = GeomCrossSection.get_mannings_n(
            geom_path,
            str(xs["River"]),
            str(xs["Reach"]),
            str(xs["RS"]),
        )
        if mann.empty:
            continue
        mann = mann.copy()
        mann["River"] = str(xs["River"])
        mann["Reach"] = str(xs["Reach"])
        mann["RS"] = str(xs["RS"])
        rows.append(mann)
    return pd.concat(rows, ignore_index=True) if rows else pd.DataFrame()


baseline_mannings = collect_mannings(geometry_path, xs_rows)
baseline_counts = (
    baseline_mannings.groupby(["River", "Reach", "RS"], as_index=False)
    .size()
    .rename(columns={"size": "baseline_block_count"})
)

baseline_summary = baseline_counts["baseline_block_count"].describe().to_frame("baseline blocks")
baseline_values = (
    baseline_mannings.groupby(["Subsection", "n_value"], as_index=False)
    .size()
    .sort_values(["Subsection", "n_value"])
)
display(baseline_summary)
display(baseline_values)
display(baseline_mannings.head(9))

assert baseline_counts["baseline_block_count"].eq(3).all()
baseline blocks
count 192.0
mean 3.0
std 0.0
min 3.0
25% 3.0
50% 3.0
75% 3.0
max 3.0
Subsection n_value size
0 Channel 0.040 171
1 Channel 0.045 3
2 Channel 0.050 3
3 Channel 0.055 3
4 Channel 0.060 3
5 Channel 0.065 3
6 Channel 0.075 3
7 Channel 0.080 4
8 LOB 0.050 6
9 LOB 0.060 138
10 LOB 0.080 31
11 LOB 0.100 4
12 LOB 0.200 12
13 ROB 0.060 38
14 ROB 0.080 138
15 ROB 0.100 4
16 ROB 0.200 12
Station n_value Subsection River Reach RS
0 0.00 0.06 LOB Bald Eagle Cr. Lock Haven 137520
1 3149.24 0.04 Channel Bald Eagle Cr. Lock Haven 137520
2 3627.56 0.08 ROB Bald Eagle Cr. Lock Haven 137520
3 0.00 0.06 LOB Bald Eagle Cr. Lock Haven 136948
4 3130.11 0.04 Channel Bald Eagle Cr. Lock Haven 136948
5 3496.33 0.08 ROB Bald Eagle Cr. Lock Haven 136948
6 0.00 0.06 LOB Bald Eagle Cr. Lock Haven 136076
7 2600.34 0.04 Channel Bald Eagle Cr. Lock Haven 136076
8 3031.99 0.08 ROB Bald Eagle Cr. Lock Haven 136076

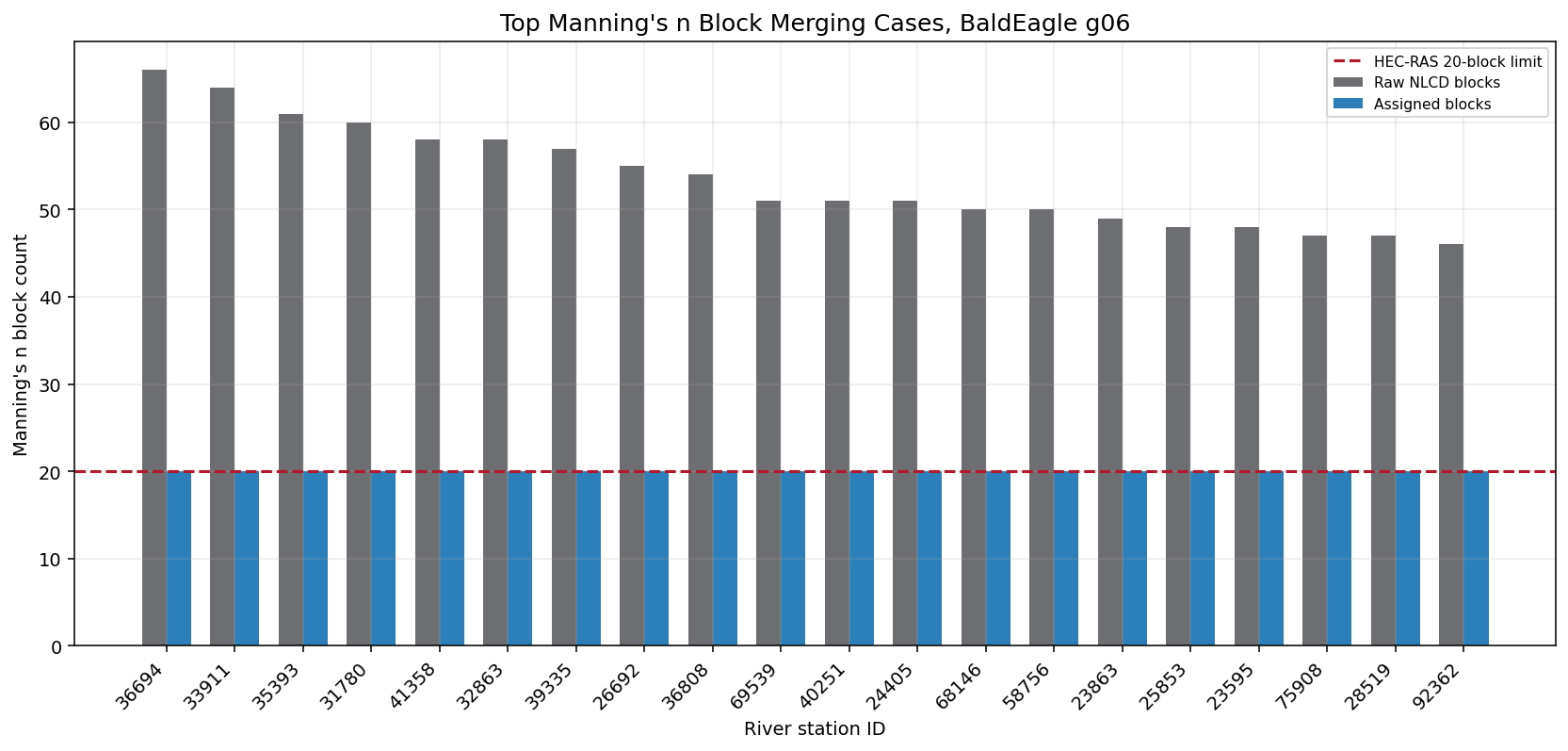

Raw NLCD Preview and Assigned Geometry

First, preview(..., max_blocks=999) captures the raw land-cover segmentation without enforcing the HEC-RAS block limit. Then assign(..., max_blocks=20) writes a copied geometry using the same source geometry and analysis raster.

Python
raw_preview = ManningsFromLandCover.preview(
    geometry_path,
    analysis_raster,
    mannings_table=mapper_mannings_table,
    max_blocks=999,
)

assigned_geometry_path = OUTPUT_DIR / f"{geometry_path.stem}_nlcd_assigned{geometry_path.suffix}"
shutil.copy2(geometry_path, assigned_geometry_path)
assignment_result = ManningsFromLandCover.assign(
    assigned_geometry_path,
    analysis_raster,
    mannings_table=mapper_mannings_table,
    max_blocks=MAX_MANNING_BLOCKS,
)
automated_preview = assignment_result["details"].copy()
assigned_mannings = collect_mannings(assigned_geometry_path, xs_rows)

raw_counts = (
    raw_preview.groupby(["River", "Reach", "RS"], as_index=False)
    .agg(raw_block_count=("n_value", "size"))
)
automated_counts = (
    automated_preview.groupby(["River", "Reach", "RS"], as_index=False)
    .agg(
        automated_block_count=("n_value", "size"),
        reported_raw_block_count=("raw_block_count", "max"),
        merged_rows=("merged_count", lambda values: int((values.astype(int) > 1).sum())),
        n_min=("n_value", "min"),
        n_max=("n_value", "max"),
    )
)
assigned_counts = (
    assigned_mannings.groupby(["River", "Reach", "RS"], as_index=False)
    .size()
    .rename(columns={"size": "assigned_block_count"})
)

block_counts = (
    baseline_counts.merge(raw_counts, on=["River", "Reach", "RS"], how="inner")
    .merge(automated_counts, on=["River", "Reach", "RS"], how="inner")
    .merge(assigned_counts, on=["River", "Reach", "RS"], how="inner")
)
block_counts["merge_triggered"] = block_counts["raw_block_count"] > block_counts["automated_block_count"]
block_counts["block_reduction"] = block_counts["raw_block_count"] - block_counts["automated_block_count"]
block_counts = block_counts.sort_values(
    ["merge_triggered", "raw_block_count", "RS"],
    ascending=[False, False, False],
).reset_index(drop=True)

block_counts_path = OUTPUT_DIR / "clb665_block_counts.csv"
block_counts.to_csv(block_counts_path, index=False)

assignment_summary = pd.DataFrame(
    [
        {"metric": "total XS in geometry", "value": assignment_result["cross_sections_total"]},
        {"metric": "XS processed from land cover", "value": assignment_result["cross_sections_processed"]},
        {"metric": "XS skipped without cut-line coverage", "value": assignment_result["cross_sections_skipped"]},
        {"metric": "Manning blocks written", "value": assignment_result["blocks_written"]},
        {"metric": "XS where merging triggered", "value": int(block_counts["merge_triggered"].sum())},
        {"metric": "maximum raw block count", "value": int(block_counts["raw_block_count"].max())},
        {"metric": "maximum assigned block count", "value": int(block_counts["assigned_block_count"].max())},
        {"metric": "block count CSV", "value": rel(block_counts_path)},
    ]
)
display(assignment_summary)
display(block_counts.head(15))

assert assignment_result["cross_sections_processed"] == len(xs_rows)
assert block_counts["assigned_block_count"].max() <= MAX_MANNING_BLOCKS
assert block_counts["merge_triggered"].any()
metric value
0 total XS in geometry 212
1 XS processed from land cover 192
2 XS skipped without cut-line coverage 20
3 Manning blocks written 3414
4 XS where merging triggered 115
5 maximum raw block count 66
6 maximum assigned block count 20
7 block count CSV working\CLB-665\notebook_outputs\clb665_block_...
River Reach RS baseline_block_count raw_block_count automated_block_count reported_raw_block_count merged_rows n_min n_max assigned_block_count merge_triggered block_reduction
0 Bald Eagle Cr. Lock Haven 36694 3 66 20 66 2 0.035 0.12 20 True 46
1 Bald Eagle Cr. Lock Haven 33911 3 64 20 64 2 0.035 0.12 20 True 44
2 Bald Eagle Cr. Lock Haven 35393 3 61 20 61 2 0.035 0.15 20 True 41
3 Bald Eagle Cr. Lock Haven 31780 3 60 20 60 2 0.035 0.15 20 True 40
4 Bald Eagle Cr. Lock Haven 41358 3 58 20 58 2 0.035 0.12 20 True 38
5 Bald Eagle Cr. Lock Haven 32863 3 58 20 58 2 0.035 0.12 20 True 38
6 Bald Eagle Cr. Lock Haven 39335 3 57 20 57 2 0.035 0.12 20 True 37
7 Bald Eagle Cr. Lock Haven 26692 3 55 20 55 2 0.035 0.12 20 True 35
8 Bald Eagle Cr. Lock Haven 36808 3 54 20 54 2 0.035 0.12 20 True 34
9 Bald Eagle Cr. Lock Haven 69539 3 51 20 51 1 0.035 0.12 20 True 31
10 Bald Eagle Cr. Lock Haven 40251 3 51 20 51 2 0.035 0.12 20 True 31
11 Bald Eagle Cr. Lock Haven 24405 3 51 20 51 2 0.035 0.12 20 True 31
12 Bald Eagle Cr. Lock Haven 68146 3 50 20 50 1 0.035 0.12 20 True 30
13 Bald Eagle Cr. Lock Haven 58756 3 50 20 50 2 0.035 0.12 20 True 30
14 Bald Eagle Cr. Lock Haven 23863 3 49 20 49 2 0.035 0.15 20 True 29

Agreement Metrics and Largest Station Differences

The station comparison evaluates each assigned Manning breakpoint against the pre-existing geometry value active at that same station. The RAS Mapper sidecar check verifies that raw sampled NLCD blocks use the project sidecar's ManningsN values.

Python
def reference_n_at_stations(reference_df: pd.DataFrame, station_values: pd.Series) -> np.ndarray:
    reference_df = reference_df.sort_values("Station")
    starts = reference_df["Station"].to_numpy(dtype=float)
    n_values = reference_df["n_value"].to_numpy(dtype=float)
    stations = station_values.to_numpy(dtype=float)
    indexes = np.searchsorted(starts, stations, side="right") - 1
    indexes = np.clip(indexes, 0, len(n_values) - 1)
    return n_values[indexes]


comparison_rows = []
for xs_key, auto_group in automated_preview.groupby(["River", "Reach", "RS"], sort=False):
    river, reach, rs = xs_key
    reference = baseline_mannings[
        (baseline_mannings["River"] == river)
        & (baseline_mannings["Reach"] == reach)
        & (baseline_mannings["RS"] == rs)
    ]
    if reference.empty:
        continue
    group = auto_group.sort_values("Station").copy()
    group["reference_n"] = reference_n_at_stations(reference, group["Station"])
    group["automated_n"] = group["n_value"].astype(float)
    group["delta_n"] = group["automated_n"] - group["reference_n"]
    group["abs_delta_n"] = group["delta_n"].abs()
    comparison_rows.append(group)

station_comparison = pd.concat(comparison_rows, ignore_index=True)
station_comparison = station_comparison.merge(
    block_counts[["River", "Reach", "RS", "merge_triggered", "raw_block_count", "automated_block_count"]],
    on=["River", "Reach", "RS"],
    how="left",
)

raw_mapper_checks = []
for _, row in raw_preview.iterrows():
    codes = [int(code) for code in str(row["nlcd_codes"]).split(",") if str(code).strip()]
    for code in codes:
        mapper_n = mapper_lookup.get(code, {}).get("mannings_n", np.nan)
        raw_mapper_checks.append(
            {
                "River": row["River"],
                "Reach": row["Reach"],
                "RS": row["RS"],
                "Station": row["Station"],
                "nlcd_code": code,
                "raw_preview_n": float(row["n_value"]),
                "mapper_n": float(mapper_n),
                "matches_mapper": np.isclose(float(row["n_value"]), float(mapper_n), atol=1e-9),
            }
        )
raw_mapper_checks = pd.DataFrame(raw_mapper_checks)

agreement_metrics = pd.DataFrame(
    [
        {
            "metric": "Station blocks exactly matching existing geometry n",
            "value": f"{station_comparison['abs_delta_n'].le(0.001).mean() * 100:.1f}%",
        },
        {
            "metric": "Station blocks within 0.005 n of existing geometry",
            "value": f"{station_comparison['abs_delta_n'].le(0.005).mean() * 100:.1f}%",
        },
        {
            "metric": "Station blocks within 0.020 n of existing geometry",
            "value": f"{station_comparison['abs_delta_n'].le(0.020).mean() * 100:.1f}%",
        },
        {
            "metric": "Raw NLCD blocks matching RAS Mapper sidecar n",
            "value": f"{raw_mapper_checks['matches_mapper'].mean() * 100:.1f}%",
        },
        {
            "metric": "Maximum absolute station n difference vs existing",
            "value": f"{station_comparison['abs_delta_n'].max():.3f}",
        },
    ]
)

largest_discrepancies = (
    station_comparison.sort_values("abs_delta_n", ascending=False)
    [[
        "River",
        "Reach",
        "RS",
        "Station",
        "EndStation",
        "Subsection",
        "reference_n",
        "automated_n",
        "delta_n",
        "nlcd_codes",
        "merge_triggered",
    ]]
    .head(12)
    .copy()
)
largest_discrepancies[["Station", "EndStation", "reference_n", "automated_n", "delta_n"]] = (
    largest_discrepancies[["Station", "EndStation", "reference_n", "automated_n", "delta_n"]].round(3)
)

station_comparison_path = OUTPUT_DIR / "clb665_station_comparison.csv"
station_comparison.to_csv(station_comparison_path, index=False)

display(agreement_metrics)
display(largest_discrepancies)
print(f"Full station comparison: {rel(station_comparison_path)}")

assert raw_mapper_checks["matches_mapper"].all()
metric value
0 Station blocks exactly matching existing geome... 3.2%
1 Station blocks within 0.005 n of existing geom... 9.3%
2 Station blocks within 0.020 n of existing geom... 30.1%
3 Raw NLCD blocks matching RAS Mapper sidecar n 100.0%
4 Maximum absolute station n difference vs existing 0.170
River Reach RS Station EndStation Subsection reference_n automated_n delta_n nlcd_codes merge_triggered
957 Bald Eagle Cr. Lock Haven 103189 5072.328 5162.192 ROB 0.2 0.030 -0.170 31 True
975 Bald Eagle Cr. Lock Haven 102904 2106.877 2146.817 LOB 0.2 0.030 -0.170 31 True
2577 Bald Eagle Cr. Lock Haven 36694 2927.928 3087.815 LOB 0.2 0.035 -0.165 21 True
3337 Bald Eagle Cr. Lock Haven 3145 1187.088 1286.843 ROB 0.2 0.035 -0.165 21 False
3330 Bald Eagle Cr. Lock Haven 3145 189.535 354.070 LOB 0.2 0.035 -0.165 11 False
2573 Bald Eagle Cr. Lock Haven 36694 2598.161 2698.090 LOB 0.2 0.035 -0.165 21 True
2575 Bald Eagle Cr. Lock Haven 36694 2808.013 2827.998 LOB 0.2 0.035 -0.165 21 True
2106 Bald Eagle Cr. Lock Haven 58756 6198.986 6298.970 ROB 0.2 0.035 -0.165 21 True
2104 Bald Eagle Cr. Lock Haven 58756 5699.068 5999.019 ROB 0.2 0.035 -0.165 21 True
2123 Bald Eagle Cr. Lock Haven 58592 5205.220 5255.830 LOB 0.2 0.035 -0.165 11,21 True
2125 Bald Eagle Cr. Lock Haven 58592 5518.700 5604.853 ROB 0.2 0.035 -0.165 11,21 True
2130 Bald Eagle Cr. Lock Haven 58592 6254.256 6374.146 ROB 0.2 0.035 -0.165 21 True
Text Only
Full station comparison: working\CLB-665\notebook_outputs\clb665_station_comparison.csv

Block Merging and Hydraulic Character

HEC-RAS 6.6 rejects 21 or more Manning's n blocks at a cross section. The merge check compares area-weighted roughness by LOB/channel/ROB before and after enforcing the 20-block limit. Small deltas indicate the algorithm is reducing noisy land-cover segmentation without materially changing subsection roughness.

Python
def area_weighted_summary(df: pd.DataFrame, label: str) -> pd.DataFrame:
    work = df.copy()
    work["weighted_n"] = work["n_value"].astype(float) * work["area_weight"].astype(float)
    summary = (
        work.groupby(["River", "Reach", "RS", "Subsection"], as_index=False)
        .agg(area=("area_weight", "sum"), weighted_n=("weighted_n", "sum"), block_count=("n_value", "size"))
    )
    summary[f"{label}_area_weighted_n"] = np.where(
        summary["area"] > 0,
        summary["weighted_n"] / summary["area"],
        np.nan,
    )
    return summary.drop(columns=["weighted_n"]).rename(
        columns={"area": f"{label}_area", "block_count": f"{label}_subsection_block_count"}
    )


raw_aw = area_weighted_summary(raw_preview, "raw")
final_aw = area_weighted_summary(automated_preview, "final")
merge_preservation = raw_aw.merge(
    final_aw,
    on=["River", "Reach", "RS", "Subsection"],
    how="inner",
)
merge_preservation["abs_delta_area_weighted_n"] = (
    merge_preservation["final_area_weighted_n"] - merge_preservation["raw_area_weighted_n"]
).abs()
merge_preservation = merge_preservation.merge(
    block_counts[["River", "Reach", "RS", "merge_triggered", "raw_block_count", "automated_block_count"]],
    on=["River", "Reach", "RS"],
    how="left",
)

merge_metrics = pd.DataFrame(
    [
        {"metric": "XS requiring block merging", "value": int(block_counts["merge_triggered"].sum())},
        {"metric": "Raw blocks removed by merging", "value": int(block_counts["block_reduction"].sum())},
        {
            "metric": "Median abs area-weighted n change where merged",
            "value": f"{merge_preservation.loc[merge_preservation['merge_triggered'], 'abs_delta_area_weighted_n'].median():.4f}",
        },
        {
            "metric": "Maximum abs area-weighted n change where merged",
            "value": f"{merge_preservation.loc[merge_preservation['merge_triggered'], 'abs_delta_area_weighted_n'].max():.4f}",
        },
    ]
)
display(merge_metrics)
display(
    merge_preservation.loc[merge_preservation["merge_triggered"]]
    .sort_values("abs_delta_area_weighted_n", ascending=False)
    [[
        "River",
        "Reach",
        "RS",
        "Subsection",
        "raw_block_count",
        "automated_block_count",
        "raw_area_weighted_n",
        "final_area_weighted_n",
        "abs_delta_area_weighted_n",
    ]]
    .head(12)
    .round(4)
)

top_merge = block_counts.head(20).copy()
top_merge["XS"] = top_merge["RS"].astype(str)

fig, ax = plt.subplots(figsize=(12, 5.8))
x = np.arange(len(top_merge))
ax.bar(x - 0.18, top_merge["raw_block_count"], width=0.36, color="#6d6e71", label="Raw NLCD blocks")
ax.bar(x + 0.18, top_merge["automated_block_count"], width=0.36, color="#2c7fb8", label="Assigned blocks")
ax.axhline(MAX_MANNING_BLOCKS, color="#b2182b", linewidth=1.6, linestyle="--", label="HEC-RAS 20-block limit")
ax.set_title("Top Manning's n Block Merging Cases, BaldEagle g06")
ax.set_xlabel("River station ID")
ax.set_ylabel("Manning's n block count")
ax.set_xticks(x)
ax.set_xticklabels(top_merge["XS"], rotation=45, ha="right")
ax.legend(loc="upper right")
ax.grid(axis="y", alpha=0.25)
fig.tight_layout()
plt.show()

assert merge_preservation.loc[merge_preservation["merge_triggered"], "abs_delta_area_weighted_n"].max() < 0.025
metric value
0 XS requiring block merging 115
1 Raw blocks removed by merging 1471
2 Median abs area-weighted n change where merged 0.0000
3 Maximum abs area-weighted n change where merged 0.0000
River Reach RS Subsection raw_block_count automated_block_count raw_area_weighted_n final_area_weighted_n abs_delta_area_weighted_n
439 Bald Eagle Cr. Lock Haven 74120 ROB 37 20 0.0696 0.0696 0.0
489 Bald Eagle Cr. Lock Haven 83526 LOB 30 20 0.0823 0.0823 0.0
264 Bald Eagle Cr. Lock Haven 23595 LOB 48 20 0.0776 0.0776 0.0
312 Bald Eagle Cr. Lock Haven 39335 LOB 57 20 0.0765 0.0765 0.0
265 Bald Eagle Cr. Lock Haven 23595 ROB 48 20 0.0988 0.0988 0.0
304 Bald Eagle Cr. Lock Haven 36694 ROB 66 20 0.0717 0.0717 0.0
322 Bald Eagle Cr. Lock Haven 41358 ROB 58 20 0.1062 0.1062 0.0
313 Bald Eagle Cr. Lock Haven 39335 ROB 57 20 0.0691 0.0691 0.0
109 Bald Eagle Cr. Lock Haven 119346 LOB 33 20 0.0814 0.0814 0.0
315 Bald Eagle Cr. Lock Haven 40251 LOB 51 20 0.0797 0.0797 0.0
262 Bald Eagle Cr. Lock Haven 23191 ROB 26 20 0.0987 0.0987 0.0
298 Bald Eagle Cr. Lock Haven 33911 ROB 64 20 0.0669 0.0669 0.0

png

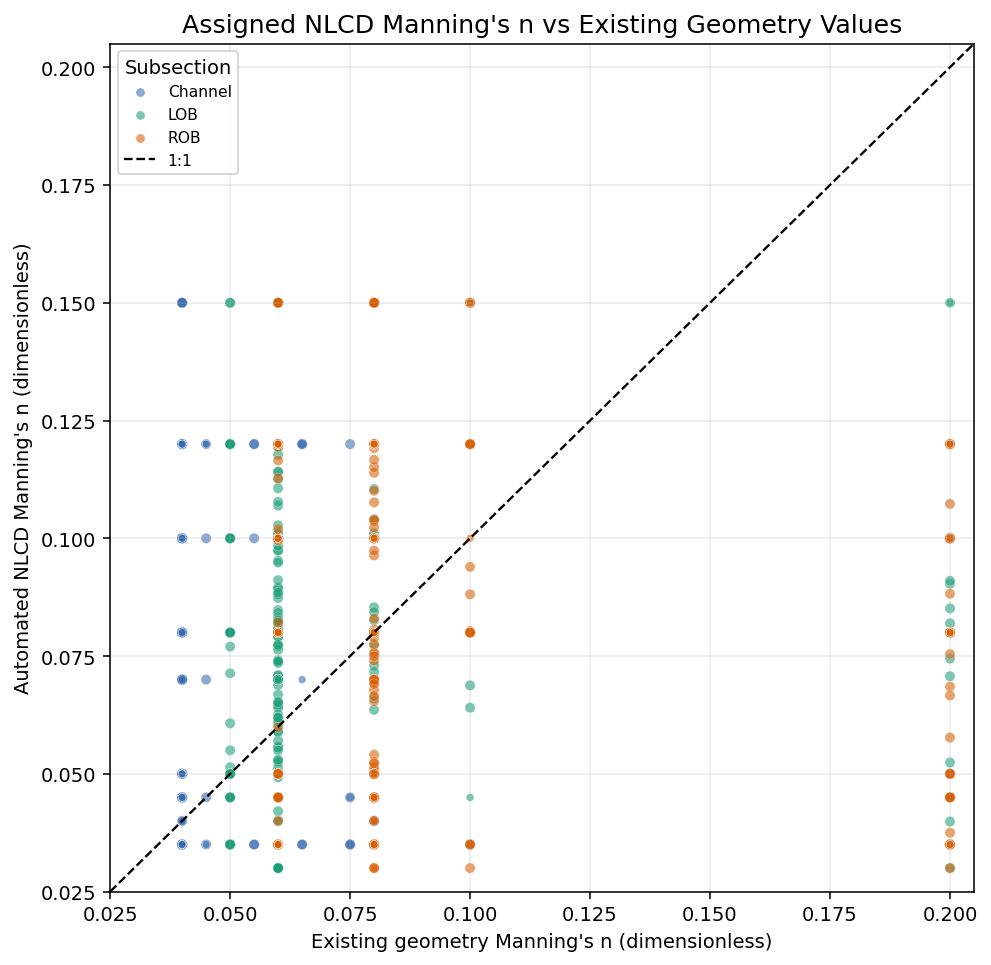

Station Scatter: Automated vs Existing Geometry

Each point is an assigned Manning breakpoint. Color identifies the HEC-RAS subsection at that station, and the 1:1 line shows where automated NLCD roughness equals the existing geometry roughness.

Python
subsection_colors = {"LOB": "#1b9e77", "Channel": "#386cb0", "ROB": "#d95f02", "Unknown": "#7570b3"}

fig, ax = plt.subplots(figsize=(7.2, 7.0))
for subsection, group in station_comparison.groupby("Subsection"):
    ax.scatter(
        group["reference_n"],
        group["automated_n"],
        s=np.where(group["merge_triggered"], 28, 16),
        alpha=0.58,
        color=subsection_colors.get(subsection, "#7570b3"),
        edgecolor="white",
        linewidth=0.25,
        label=subsection,
    )
lims = [
    min(station_comparison["reference_n"].min(), station_comparison["automated_n"].min()) - 0.005,
    max(station_comparison["reference_n"].max(), station_comparison["automated_n"].max()) + 0.005,
]
ax.plot(lims, lims, color="black", linewidth=1.2, linestyle="--", label="1:1")
ax.set_xlim(lims)
ax.set_ylim(lims)
ax.set_title("Assigned NLCD Manning's n vs Existing Geometry Values")
ax.set_xlabel("Existing geometry Manning's n (dimensionless)")
ax.set_ylabel("Automated NLCD Manning's n (dimensionless)")
ax.legend(title="Subsection", loc="upper left")
ax.grid(True, alpha=0.25)
fig.tight_layout()
plt.show()

png

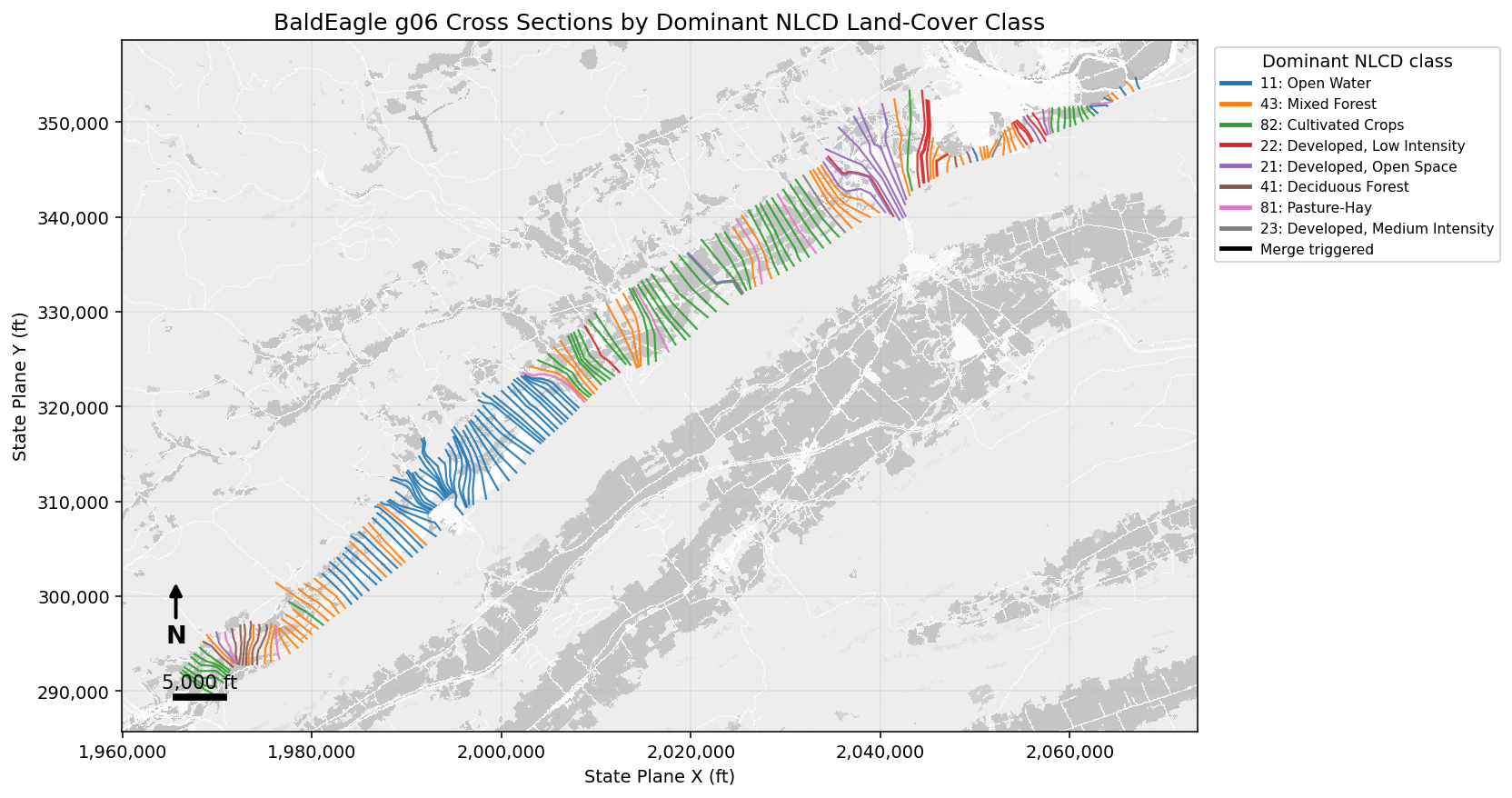

Spatial Review Map

The map colors cross-section cut lines by the dominant NLCD class sampled along each section. Cross sections where the block limit was enforced are drawn with heavier black-edged linework.

Python
dominant_rows = []
for _, row in raw_preview.iterrows():
    codes = [int(code) for code in str(row["nlcd_codes"]).split(",") if str(code).strip()]
    if not codes:
        continue
    share = float(row["area_weight"]) / len(codes)
    for code in codes:
        dominant_rows.append(
            {
                "River": row["River"],
                "Reach": row["Reach"],
                "RS": row["RS"],
                "nlcd_code": code,
                "area_weight": share,
            }
        )
dominant = (
    pd.DataFrame(dominant_rows)
    .groupby(["River", "Reach", "RS", "nlcd_code"], as_index=False)
    .agg(area_weight=("area_weight", "sum"))
    .sort_values(["River", "Reach", "RS", "area_weight"], ascending=[True, True, True, False])
    .drop_duplicates(["River", "Reach", "RS"])
)
dominant["class_name"] = dominant["nlcd_code"].map(lambda code: mapper_lookup.get(int(code), {}).get("class_name", str(code)))

xs_map = xs_rows[["River", "Reach", "RS", "geometry"]].merge(
    dominant[["River", "Reach", "RS", "nlcd_code", "class_name"]],
    on=["River", "Reach", "RS"],
    how="left",
).merge(
    block_counts[["River", "Reach", "RS", "merge_triggered"]],
    on=["River", "Reach", "RS"],
    how="left",
)
with rasterio.open(analysis_raster) as src:
    xs_gdf = gpd.GeoDataFrame(xs_map, geometry="geometry", crs=src.crs)
    minx, miny, maxx, maxy = xs_gdf.total_bounds
    pad_x = (maxx - minx) * 0.06
    pad_y = (maxy - miny) * 0.06
    bounds = (minx - pad_x, miny - pad_y, maxx + pad_x, maxy + pad_y)
    window = from_bounds(*bounds, transform=src.transform).round_offsets().round_lengths()
    landcover_subset = src.read(1, window=window, boundless=True, fill_value=src.nodata or 0)
    subset_transform = src.window_transform(window)
    extent = (
        subset_transform.c,
        subset_transform.c + subset_transform.a * landcover_subset.shape[1],
        subset_transform.f + subset_transform.e * landcover_subset.shape[0],
        subset_transform.f,
    )

top_map_codes = (
    xs_gdf["nlcd_code"].dropna().astype(int).value_counts().head(8).index.tolist()
)
line_palette = list(plt.cm.tab10.colors) + list(plt.cm.Set2.colors)
code_color = {code: line_palette[i % len(line_palette)] for i, code in enumerate(top_map_codes)}

fig, ax = plt.subplots(figsize=(12.0, 8.0))
masked = np.ma.masked_where(landcover_subset == (0 if src.nodata is None else src.nodata), landcover_subset)
ax.imshow(masked, extent=extent, origin="upper", cmap="Greys", alpha=0.28, interpolation="nearest")

for code in top_map_codes:
    subset = xs_gdf[xs_gdf["nlcd_code"].astype("Int64") == code]
    subset.plot(ax=ax, color=code_color[code], linewidth=1.15, alpha=0.9)

merged_subset = xs_gdf[xs_gdf["merge_triggered"].fillna(False)]
merged_subset.plot(ax=ax, color="none", edgecolor="black", linewidth=1.8, alpha=0.8)

ax.set_title("BaldEagle g06 Cross Sections by Dominant NLCD Land-Cover Class")
ax.set_xlabel("State Plane X (ft)")
ax.set_ylabel("State Plane Y (ft)")
ax.xaxis.set_major_formatter(StrMethodFormatter("{x:,.0f}"))
ax.yaxis.set_major_formatter(StrMethodFormatter("{x:,.0f}"))
ax.set_xlim(bounds[0], bounds[2])
ax.set_ylim(bounds[1], bounds[3])
ax.set_aspect("equal")

legend_handles = [
    Line2D([0], [0], color=code_color[code], lw=2.5, label=f"{code}: {mapper_lookup[code]['class_name']}")
    for code in top_map_codes
]
legend_handles.append(Line2D([0], [0], color="black", lw=2.5, label="Merge triggered"))
ax.legend(handles=legend_handles, title="Dominant NLCD class", loc="upper left", bbox_to_anchor=(1.01, 1.0))

# North arrow and 5,000 ft scale bar in project coordinates.
arrow_x = bounds[0] + 0.05 * (bounds[2] - bounds[0])
arrow_y = bounds[1] + 0.12 * (bounds[3] - bounds[1])
north_len = 0.10 * (bounds[3] - bounds[1])
ax.annotate(
    "N",
    xy=(arrow_x, arrow_y + north_len),
    xytext=(arrow_x, arrow_y),
    ha="center",
    va="bottom",
    fontsize=14,
    fontweight="bold",
    arrowprops={"arrowstyle": "-|>", "lw": 2.0, "color": "black"},
)
scale_x0 = bounds[0] + 0.05 * (bounds[2] - bounds[0])
scale_y = bounds[1] + 0.05 * (bounds[3] - bounds[1])
scale_len = 5000.0
ax.plot([scale_x0, scale_x0 + scale_len], [scale_y, scale_y], color="black", lw=4)
ax.text(scale_x0 + scale_len / 2, scale_y + 550, "5,000 ft", ha="center", va="bottom", fontsize=11)

fig.tight_layout()
plt.show()

display(
    xs_gdf["class_name"]
    .value_counts()
    .rename_axis("dominant_class")
    .reset_index(name="cross_section_count")
    .head(10)
)

png

dominant_class cross_section_count
0 Open Water 57
1 Mixed Forest 47
2 Cultivated Crops 46
3 Developed, Low Intensity 12
4 Developed, Open Space 11
5 Deciduous Forest 9
6 Pasture-Hay 8
7 Developed, Medium Intensity 2

Findings

The automated assignment is intentionally more spatially detailed than the existing three-block geometry. Agreement with the RAS Mapper land-cover sidecar is exact at the raw NLCD block level, while differences from the existing geometry identify locations where NLCD classes recommend rougher or smoother overbank/channel values.

Python
merged_preservation = merge_preservation.loc[merge_preservation["merge_triggered"]]
exact_existing = station_comparison["abs_delta_n"].le(0.001).mean() * 100.0
within_002 = station_comparison["abs_delta_n"].le(0.020).mean() * 100.0
mapper_agreement = raw_mapper_checks["matches_mapper"].mean() * 100.0
max_delta = station_comparison["abs_delta_n"].max()
max_preserve_delta = merged_preservation["abs_delta_area_weighted_n"].max()
median_preserve_delta = merged_preservation["abs_delta_area_weighted_n"].median()
most_common_dominant = xs_gdf["class_name"].value_counts().idxmax()

findings = f'''
### Validation Findings

- `ManningsFromLandCover.assign()` processed {assignment_result['cross_sections_processed']} real g06 cross sections and wrote {assignment_result['blocks_written']} Manning's n blocks to the copied geometry.
- The original geometry baseline has exactly 3 blocks per processed cross section; the automated assignment has {block_counts['automated_block_count'].mean():.1f} blocks per cross section on average and never exceeds the {MAX_MANNING_BLOCKS}-block limit.
- Block merging was triggered on {int(block_counts['merge_triggered'].sum())} of {len(block_counts)} processed cross sections. The largest raw count was {int(block_counts['raw_block_count'].max())} blocks.
- Raw NLCD block n-values matched the RAS Mapper sidecar `ManningsN` table for {mapper_agreement:.1f}% of checked class/block pairs.
- Compared with the existing 3-block geometry, {exact_existing:.1f}% of assigned station blocks match within 0.001 n and {within_002:.1f}% are within 0.020 n. The largest station-level absolute difference is {max_delta:.3f}.
- For merged cross sections, the median LOB/channel/ROB area-weighted n change is {median_preserve_delta:.4f}; the maximum is {max_preserve_delta:.4f}. This supports that merging is preserving subsection-scale hydraulic character while reducing noisy land-cover segmentation.
- The most common dominant sampled land-cover class is `{most_common_dominant}`.
'''
display(Markdown(findings))

assert mapper_agreement == 100.0
assert block_counts["automated_block_count"].max() == MAX_MANNING_BLOCKS
assert max_preserve_delta < 0.025

Validation Findings

  • ManningsFromLandCover.assign() processed 192 real g06 cross sections and wrote 3414 Manning's n blocks to the copied geometry.
  • The original geometry baseline has exactly 3 blocks per processed cross section; the automated assignment has 17.8 blocks per cross section on average and never exceeds the 20-block limit.
  • Block merging was triggered on 115 of 192 processed cross sections. The largest raw count was 66 blocks.
  • Raw NLCD block n-values matched the RAS Mapper sidecar ManningsN table for 100.0% of checked class/block pairs.
  • Compared with the existing 3-block geometry, 3.2% of assigned station blocks match within 0.001 n and 30.1% are within 0.020 n. The largest station-level absolute difference is 0.170.
  • For merged cross sections, the median LOB/channel/ROB area-weighted n change is 0.0000; the maximum is 0.0000. This supports that merging is preserving subsection-scale hydraulic character while reducing noisy land-cover segmentation.
  • The most common dominant sampled land-cover class is Open Water.
CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander Documentation is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms modernizing H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
