Culvert Authoring

Python

#!pip install --upgrade ras-commander

Development Mode

Set USE_LOCAL_SOURCE = True when running from a local ras-commander checkout. The committed default uses the installed package; repository test execution can still use local source through PYTHONPATH.

Culvert Geometry Authoring

Author culvert records in a real HEC-RAS geometry file, coordinate adjacent ineffective-flow areas, visualize the authored layout, and compute the plan to validate the edited geometry.

Python

# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False

if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path

    cwd = Path.cwd()
    local_path = cwd if (cwd / "ras_commander").exists() else cwd.parent
    if str(local_path) not in sys.path:
        sys.path.insert(0, str(local_path))
    print(f"LOCAL SOURCE MODE: loading from {local_path / 'ras_commander'}")
else:
    print("PIP PACKAGE MODE: loading installed ras-commander")

from pathlib import Path
import logging
import os
import time
import warnings

import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from IPython.display import display
from shapely.geometry import LineString

from ras_commander import HdfResultsPlan, RasCmdr, RasExamples, RasPrj, init_ras_project
from ras_commander.geom import GeomCrossSection, GeomCulvert

warnings.filterwarnings("ignore", category=FutureWarning)
logging.getLogger("ras_commander").setLevel(logging.CRITICAL)

pd.set_option("display.max_columns", None)
pd.set_option("display.max_colwidth", 120)

import ras_commander

print(f"Loaded: {ras_commander.__file__}")

Text Only

PIP PACKAGE MODE: loading installed ras-commander


c:\Users\bill\anaconda3\envs\rascommander\Lib\site-packages\tqdm\auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm


Loaded: G:\GH\ras-commander-wt-177\ras_commander\__init__.py

Parameters

The workflow starts from the official HEC-RAS Example 4 - Multiple Culverts project because it already contains a runnable steady-flow culvert structure with plan-view cut lines.

Python

PROJECT_NAME = "Example 4 - Multiple Culverts"
PROJECT_SUFFIX = "209_culvert_authoring"
PLAN_NUMBER = "01"
NUM_CORES = 1

RAS_EXE = Path(os.environ.get(
    "HECRAS_EXE",
    r"C:/Program Files (x86)/HEC/HEC-RAS/7.0/Ras.exe",
))

cwd = Path.cwd()
REPO_ROOT = cwd if (cwd / "ras_commander").exists() else cwd.parent
WORK_ROOT = Path(os.environ.get(
    "RAS_COMMANDER_WORKDIR",
    REPO_ROOT / "working" / "culvert_authoring",
))

if not RAS_EXE.exists():
    raise FileNotFoundError(f"HEC-RAS executable not found: {RAS_EXE}")

WORK_ROOT.mkdir(parents=True, exist_ok=True)

print(f"HEC-RAS executable: {RAS_EXE}")
print(f"Working folder: {WORK_ROOT}")

Text Only

HEC-RAS executable: C:\Program Files (x86)\HEC\HEC-RAS\7.0\Ras.exe
Working folder: G:\GH\ras-commander-wt-177\working\culvert_authoring

Extract And Inspect The Project

Python

project_path = RasExamples.extract_project(
    PROJECT_NAME,
    output_path=WORK_ROOT,
    suffix=PROJECT_SUFFIX,
)

ras_obj = RasPrj()
init_ras_project(
    project_path,
    str(RAS_EXE),
    ras_object=ras_obj,
    load_results_summary=False,
)

plan_rows = ras_obj.plan_df[
    ras_obj.plan_df["plan_number"].astype(str).str.zfill(2).eq(PLAN_NUMBER)
]
if plan_rows.empty:
    raise ValueError(f"Plan {PLAN_NUMBER} not found")

plan_row = plan_rows.iloc[0]
geom_file = Path(plan_row["Geom Path"])
plan_path = Path(plan_row["full_path"])

print(f"Project path: {project_path}")
print(f"Geometry file: {geom_file.name}")
display(ras_obj.plan_df[["plan_number", "Plan Title", "Geom File", "Flow File", "flow_type"]])

baseline_culverts = GeomCulvert.get_all(geom_file)
if baseline_culverts.empty:
    raise ValueError("No culvert structure found in the selected geometry")

display_cols = [
    "River", "Reach", "RS", "CulvertName", "RecordType", "ShapeName",
    "Span", "Rise", "Length", "NumBarrels", "BarrelStations",
]
display(baseline_culverts[display_cols])

structure = baseline_culverts.iloc[0]
river = structure["River"]
reach = structure["Reach"]
rs = str(structure["RS"])

print(f"Authoring target: {river} / {reach} / RS {rs}")

Text Only

Project path: G:\GH\ras-commander-wt-177\working\culvert_authoring\Example 4 - Multiple Culverts_209_culvert_authoring
Geometry file: MULTCULV.g01

	plan_number	Plan Title	Geom File	Flow File	flow_type
0	01	Spring Creek Multiple Culverts	01	01	Steady

	River	Reach	RS	CulvertName	RecordType	ShapeName	Span	Rise	Length	NumBarrels	BarrelStations
0	Spring Creek	Culvrt Reach	20.237	Box	Multiple Barrel Culv	Box	3.0	5.0	50.0	2	[(988.5, 988.5), (1011.5, 1011.5)]
1	Spring Creek	Culvrt Reach	20.237	Circular	Multiple Barrel Culv	Circular	6.0	NaN	50.0	2	[(996.0, 996.0), (1004.0, 1004.0)]

Text Only

Authoring target: Spring Creek / Culvrt Reach / RS 20.237

Author Culvert Records

set_culverts() replaces the culvert records at the existing bridge/culvert structure. The authored set covers a circular single-barrel record, a box single-barrel record, and a box multi-barrel record.

Python

authored_culverts = [
    {
        "ShapeName": "Circular",
        "Span": 4.0,
        "Length": 50.0,
        "ManningsN": 0.013,
        "EntranceLoss": 0.5,
        "ExitLoss": 1.0,
        "InletType": 1,
        "OutletType": 1,
        "UpstreamInvert": 25.1,
        "UpstreamStation": 996.0,
        "DownstreamInvert": 25.0,
        "DownstreamStation": 996.0,
        "CulvertName": "API Circular",
        "BottomN": 0.013,
        "ChartNumber": 5,
    },
    {
        "ShapeName": "Box",
        "Span": 3.0,
        "Rise": 5.0,
        "Length": 50.0,
        "ManningsN": 0.013,
        "EntranceLoss": 0.2,
        "ExitLoss": 1.0,
        "InletType": 10,
        "OutletType": 2,
        "UpstreamInvert": 28.1,
        "UpstreamStation": 988.5,
        "DownstreamInvert": 28.0,
        "DownstreamStation": 988.5,
        "CulvertName": "API Box",
        "BottomN": 0.013,
        "ChartNumber": 5,
    },
    {
        "ShapeName": "Box",
        "Span": 3.0,
        "Rise": 5.0,
        "Length": 50.0,
        "ManningsN": 0.014,
        "EntranceLoss": 0.2,
        "ExitLoss": 1.0,
        "InletType": 10,
        "OutletType": 2,
        "UpstreamInvert": 28.1,
        "DownstreamInvert": 28.0,
        "NumBarrels": 2,
        "BarrelStations": [(1004.0, 1004.0), (1011.5, 1011.5)],
        "CulvertName": "API Twin Box",
        "BottomN": 0.014,
        "ChartNumber": 5,
    },
]

write_result = GeomCulvert.set_culverts(
    geom_file,
    river,
    reach,
    rs,
    authored_culverts,
)
print(write_result)

round_trip_culverts = GeomCulvert.get_culverts(geom_file, river, reach, rs)
round_trip_cols = [
    "CulvertName", "RecordType", "ShapeName", "Span", "Rise", "Length",
    "ManningsN", "EntranceLoss", "ExitLoss", "InletType", "OutletType",
    "UpstreamInvert", "DownstreamInvert", "NumBarrels", "BarrelStations",
    "BottomN", "ChartNumber",
]
display(round_trip_culverts[round_trip_cols])

assert round_trip_culverts["CulvertName"].tolist() == [
    "API Circular", "API Box", "API Twin Box"
]
assert round_trip_culverts["ShapeName"].tolist() == ["Circular", "Box", "Box"]
assert round_trip_culverts["RecordType"].tolist() == [
    "Culvert", "Culvert", "Multiple Barrel Culv"
]
assert round_trip_culverts.loc[2, "NumBarrels"] == 2
assert round_trip_culverts.loc[2, "BarrelStations"] == [
    (1004.0, 1004.0), (1011.5, 1011.5)
]

print("Round-trip validation passed.")

Text Only

{'culverts_written': 3, 'lines_replaced': 6, 'lines_inserted': 7, 'backup_path': 'G:\\GH\\ras-commander-wt-177\\working\\culvert_authoring\\Example 4 - Multiple Culverts_209_culvert_authoring\\MULTCULV.g01.bak'}

	CulvertName	RecordType	ShapeName	Span	Rise	Length	ManningsN	EntranceLoss	ExitLoss	InletType	OutletType	UpstreamInvert	DownstreamInvert	NumBarrels	BarrelStations	BottomN	ChartNumber
0	API Circular	Culvert	Circular	4.0	NaN	50.0	0.013	0.5	1.0	1	1	25.1	25.0	1	[(996.0, 996.0)]	0.013	5
1	API Box	Culvert	Box	3.0	5.0	50.0	0.013	0.2	1.0	10	2	28.1	28.0	1	[(988.5, 988.5)]	0.013	5
2	API Twin Box	Multiple Barrel Culv	Box	3.0	5.0	50.0	0.014	0.2	1.0	10	2	28.1	28.0	2	[(1004.0, 1004.0), (1011.5, 1011.5)]	0.014	5

Text Only

Round-trip validation passed.

Taxonomy-Backed Validation (All Nine Shapes)

set_culverts() validates every authored record against the packaged culvert_taxonomy.json reference. The taxonomy defines, for each of the nine HEC-RAS culvert shapes, the required dimension fields, the allowed Chart # / Scale# combinations, and the global limits (10 culvert groups per crossing, 25 identical barrels per group). The API keeps the legacy InletType / OutletType field names for Chart # / Scale# and also accepts ChartID / ScaleID aliases.

The cells below inspect the taxonomy, author one record for every shape on a throwaway copy of the geometry (so the primary workflow above stays intact), then show validation rejecting common mistakes with HEC-RAS-labeled errors.

Python

# Inspect the packaged taxonomy: each shape with its required dimensions and
# allowed Chart # / Scale# values.
taxonomy_rows = []
for code in sorted(GeomCulvert.CULVERT_TAXONOMY_SHAPES):
    shape = GeomCulvert.CULVERT_TAXONOMY_SHAPES[code]
    charts = shape.get("allowed_charts", [])
    chart_ids = sorted(int(c["chart_id"]) for c in charts)
    scale_ids = sorted({int(s["scale_id"]) for c in charts for s in c.get("allowed_scales", [])})
    taxonomy_rows.append({
        "Shape": code,
        "ShapeName": shape["ras_commander_shape_name"],
        "Required Dimensions": ", ".join(shape["dimension_model"]["required_geometry_fields"]),
        "Allowed Chart #": ", ".join(map(str, chart_ids)),
        "Allowed Scale#": ", ".join(map(str, scale_ids)),
    })

taxonomy_table = pd.DataFrame(taxonomy_rows)
display(taxonomy_table)
print(
    f"Limits: <= {GeomCulvert.MAX_CULVERT_GROUPS_PER_CROSSING} culvert groups per crossing, "
    f"<= {GeomCulvert.MAX_IDENTICAL_BARRELS_PER_GROUP} identical barrels per group."
)

	Shape	ShapeName	Required Dimensions	Allowed Chart #	Allowed Scale#
0	1	Circular	Span	1, 2, 3, 55, 56	1, 2, 3
1	2	Box	Span, Rise	8, 9, 10, 11, 12, 13, 16, 17, 18, 19, 57, 58, 59	1, 2, 3, 4
2	3	Pipe Arch	Span, Rise	34, 35, 36	1, 2, 3
3	4	Ellipse	Span, Rise	29, 30	1, 2, 3
4	5	Arch	Span, Rise	41, 42, 43	1, 2, 3
5	6	Semi-Circle	Span	41, 42, 43	1, 2, 3
6	7	Low Profile Arch	Span, Rise	52	1, 2, 3, 4
7	8	High Profile Arch	Span, Rise	52	1, 2, 3, 4
8	9	Con Span	Span, Rise	60, 61	1, 2, 3

Text Only

Limits: <= 10 culvert groups per crossing, <= 25 identical barrels per group.

Python

import shutil

# Author one single-barrel record for every taxonomy shape on a throwaway copy,
# leaving the primary geometry (geom_file) untouched. Nine groups is within the
# 10-group-per-crossing limit.
taxonomy_geom = geom_file.with_name(geom_file.stem + "_taxonomy" + geom_file.suffix)
shutil.copy2(geom_file, taxonomy_geom)


def first_chart_scale(shape_code):
    shape = GeomCulvert.CULVERT_TAXONOMY_SHAPES[shape_code]
    chart = shape["allowed_charts"][0]
    return int(chart["chart_id"]), int(chart["allowed_scales"][0]["scale_id"])


all_shape_records = []
for offset, shape_code in enumerate(sorted(GeomCulvert.CULVERT_TAXONOMY_SHAPES)):
    shape = GeomCulvert.CULVERT_TAXONOMY_SHAPES[shape_code]
    chart_id, scale_id = first_chart_scale(shape_code)
    required = set(shape["dimension_model"]["required_geometry_fields"])
    record = {
        "ShapeName": shape["ras_commander_shape_name"],
        "Span": 5.0,
        "Length": 50.0,
        "ManningsN": 0.013,
        "EntranceLoss": 0.3,
        "ExitLoss": 1.0,
        "ChartID": chart_id,   # alias for InletType (HEC-RAS Chart #)
        "ScaleID": scale_id,   # alias for OutletType (HEC-RAS Scale#)
        "UpstreamInvert": 25.0,
        "UpstreamStation": 980.0 + offset,
        "DownstreamInvert": 24.5,
        "DownstreamStation": 980.0 + offset,
        "CulvertName": shape["ras_commander_shape_name"],
    }
    if "Rise" in required:
        record["Rise"] = 4.0
    all_shape_records.append(record)

GeomCulvert.set_culverts(taxonomy_geom, river, reach, rs, all_shape_records)

all_shapes = GeomCulvert.get_culverts(taxonomy_geom, river, reach, rs)
display(all_shapes[["CulvertName", "ShapeName", "Span", "Rise", "InletType", "OutletType"]])

expected_names = [
    GeomCulvert.CULVERT_TAXONOMY_SHAPES[c]["ras_commander_shape_name"]
    for c in sorted(GeomCulvert.CULVERT_TAXONOMY_SHAPES)
]
assert all_shapes["ShapeName"].tolist() == expected_names
print(
    f"Authored and round-tripped all {len(all_shapes)} taxonomy shapes; "
    "ChartID/ScaleID aliases were preserved as InletType/OutletType."
)

	CulvertName	ShapeName	Span	Rise	InletType	OutletType
0	Circular	Circular	5.0	NaN	1	1
1	Box	Box	5.0	4.0	8	1
2	Pipe Arch	Pipe Arch	5.0	4.0	34	1
3	Ellipse	Ellipse	5.0	4.0	29	1
4	Arch	Arch	5.0	4.0	41	1
5	Semi-Circle	Semi-Circle	5.0	NaN	41	1
6	Low Profile Arch	Low Profile Arch	5.0	4.0	52	1
7	High Profile Arch	High Profile Arch	5.0	4.0	52	1
8	Con Span	Con Span	5.0	4.0	60	1

Text Only

Authored and round-tripped all 9 taxonomy shapes; ChartID/ScaleID aliases were preserved as InletType/OutletType.

Python

# The taxonomy turns silent mistakes into explicit, HEC-RAS-labeled errors.
def expect_rejected(label, record):
    try:
        GeomCulvert.set_culverts(taxonomy_geom, river, reach, rs, [record])
    except ValueError as exc:
        print(f"[{label}] rejected -> {exc}")
        return
    raise AssertionError(f"{label!r} should have raised ValueError")


# 1) Chart # that does not belong to the selected shape (Box chart on a Pipe Arch).
pipe_arch = dict(all_shape_records[2])          # code 3 = Pipe Arch
box_chart_id, _ = first_chart_scale(2)          # a Box (code 2) chart
expect_rejected("Invalid Chart # for shape", {**pipe_arch, "ChartID": box_chart_id})

# 2) Scale# not allowed for the selected Chart # (Circular, Chart # 3, Scale# 3).
circular = dict(all_shape_records[0])           # code 1 = Circular
expect_rejected("Invalid Scale# for Chart #", {**circular, "ChartID": 3, "ScaleID": 3})

# 3) Missing a dimension the shape requires (Ellipse needs Rise).
ellipse = dict(all_shape_records[3])            # code 4 = Ellipse
ellipse.pop("Rise", None)
expect_rejected("Missing required Rise", ellipse)

print("Taxonomy validation rejected all three invalid records as expected.")

Text Only

[Invalid Chart # for shape] rejected -> Culvert record 0 has invalid Chart # 8 for Shape Pipe Arch. Allowed Chart # values: 34, 35, 36.
[Invalid Scale# for Chart #] rejected -> Culvert record 0 has invalid Scale# 3 for Chart # 3 (Concrete pipe; Beveled ring entrance). Allowed Scale# values for this Chart #: 1, 2.
[Missing required Rise] rejected -> Culvert record 0 is missing required HEC-RAS field: Rise
Taxonomy validation rejected all three invalid records as expected.

The primary geometry (geom_file) still holds the three records authored earlier, so the ineffective-flow, plan-view, profile, and compute steps below run against that intact structure.

Coordinate Adjacent Ineffective-Flow Areas

The culvert helper locates the bounding cross sections, then delegates the cross-section edits to GeomCrossSection.set_ineffective_flow().

Python

adjacent = GeomCulvert.get_adjacent_cross_sections(geom_file, river, reach, rs)
print(adjacent)

upstream_ineffective = [
    {"left_station": 856.0, "right_station": 984.0, "elevation": 31.0},
    {"left_station": 1018.0, "right_station": 1150.0, "elevation": 31.0},
]
downstream_ineffective = [
    {"left_station": 856.0, "right_station": 984.0, "elevation": 31.0},
    {"left_station": 1018.0, "right_station": 1150.0, "elevation": 31.0},
]

ineffective_result = GeomCulvert.set_adjacent_ineffective_flow(
    geom_file,
    river,
    reach,
    rs,
    upstream_ineffective=upstream_ineffective,
    downstream_ineffective=downstream_ineffective,
)
print(ineffective_result)

ineffective_rows = []
for side in ["upstream", "downstream"]:
    xs_rs = ineffective_result[f"{side}_rs"]
    ineff_df, _, flags = GeomCrossSection.get_ineffective_flow(
        geom_file,
        river,
        reach,
        xs_rs,
    )
    side_df = ineff_df.copy()
    side_df.insert(0, "Side", side)
    side_df.insert(1, "XS RS", xs_rs)
    side_df["Permanent"] = flags
    ineffective_rows.append(side_df)

ineffective_summary = pd.concat(ineffective_rows, ignore_index=True)
display(ineffective_summary)

Text Only

{'upstream': {'River': 'Spring Creek', 'Reach': 'Culvrt Reach', 'RS': '20.238', 'Type': 1, 'LineIndex': 89}, 'downstream': {'River': 'Spring Creek', 'Reach': 'Culvrt Reach', 'RS': '20.227', 'Type': 1, 'LineIndex': 137}}
{'upstream_rs': '20.238', 'downstream_rs': '20.227', 'updated': ['upstream', 'downstream']}

	Side	XS RS	left_station	right_station	elevation	Permanent
0	upstream	20.238	856.0	984.0	31.0	False
1	upstream	20.238	1018.0	1150.0	31.0	False
2	downstream	20.227	856.0	984.0	31.0	False
3	downstream	20.227	1018.0	1150.0	31.0	False

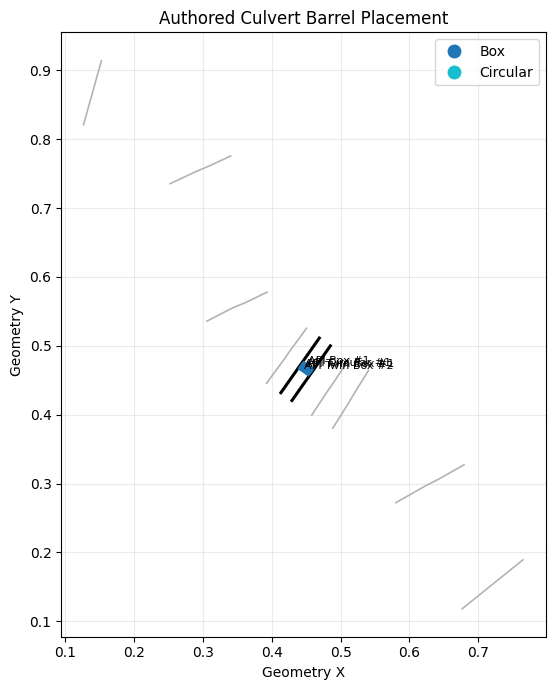

Plan View Placement

Python

def interpolate_xs_point(xyz_df, xs_rs, station):
    group = xyz_df[xyz_df["RS"].astype(str).eq(str(xs_rs))].sort_values("station")
    if group.empty:
        raise ValueError(f"No coordinates found for cross section {xs_rs}")

    x = np.interp(station, group["station"], group["x"])
    y = np.interp(station, group["station"], group["y"])
    z = np.interp(station, group["station"], group["z"])
    return x, y, z


xs_xyz = GeomCrossSection.get_xs_coords(geom_file, river=river, reach=reach)

xs_line_rows = []
for (group_river, group_reach, xs_rs), group in xs_xyz.groupby(["river", "reach", "RS"]):
    ordered = group.sort_values("station")
    xs_line_rows.append({
        "River": group_river,
        "Reach": group_reach,
        "RS": xs_rs,
        "RSNum": float(str(xs_rs).replace("*", "")),
        "geometry": LineString(zip(ordered["x"], ordered["y"])),
    })

xs_gdf = gpd.GeoDataFrame(xs_line_rows, geometry="geometry")

upstream_rs = adjacent["upstream"]["RS"]
downstream_rs = adjacent["downstream"]["RS"]

barrel_rows = []
for _, culvert in round_trip_culverts.iterrows():
    for barrel_index, (up_station, down_station) in enumerate(culvert["BarrelStations"], start=1):
        up_x, up_y, up_z = interpolate_xs_point(xs_xyz, upstream_rs, up_station)
        down_x, down_y, down_z = interpolate_xs_point(xs_xyz, downstream_rs, down_station)
        barrel_rows.append({
            "CulvertName": culvert["CulvertName"],
            "ShapeName": culvert["ShapeName"],
            "Barrel": barrel_index,
            "UpstreamStation": up_station,
            "DownstreamStation": down_station,
            "UpstreamInvert": culvert["UpstreamInvert"],
            "DownstreamInvert": culvert["DownstreamInvert"],
            "UpstreamGround": up_z,
            "DownstreamGround": down_z,
            "geometry": LineString([(up_x, up_y), (down_x, down_y)]),
        })

barrel_gdf = gpd.GeoDataFrame(barrel_rows, geometry="geometry")

fig, ax = plt.subplots(figsize=(8, 7))
xs_gdf.plot(ax=ax, color="0.70", linewidth=1.2)
xs_gdf[xs_gdf["RS"].astype(str).isin([upstream_rs, downstream_rs])].plot(
    ax=ax,
    color="black",
    linewidth=2.2,
)
barrel_gdf.plot(ax=ax, column="ShapeName", linewidth=3.5, legend=True)

for _, row in barrel_gdf.iterrows():
    midpoint = row.geometry.interpolate(0.5, normalized=True)
    label = f"{row['CulvertName']} #{row['Barrel']}"
    ax.text(midpoint.x, midpoint.y, label, fontsize=8, ha="left", va="bottom")

ax.set_title("Authored Culvert Barrel Placement")
ax.set_xlabel("Geometry X")
ax.set_ylabel("Geometry Y")
ax.set_aspect("equal", adjustable="box")
ax.grid(True, alpha=0.25)
fig.tight_layout()
plt.show()

display(barrel_gdf.drop(columns="geometry"))

	CulvertName	ShapeName	Barrel	UpstreamStation	DownstreamStation	UpstreamInvert	DownstreamInvert	UpstreamGround	DownstreamGround
0	API Circular	Circular	1	996.0	996.0	25.1	25.0	25.1	25.0
1	API Box	Box	1	988.5	988.5	28.1	28.0	25.1	25.0
2	API Twin Box	Box	1	1004.0	1004.0	28.1	28.0	25.1	25.0
3	API Twin Box	Box	2	1011.5	1011.5	28.1	28.0	25.1	25.0

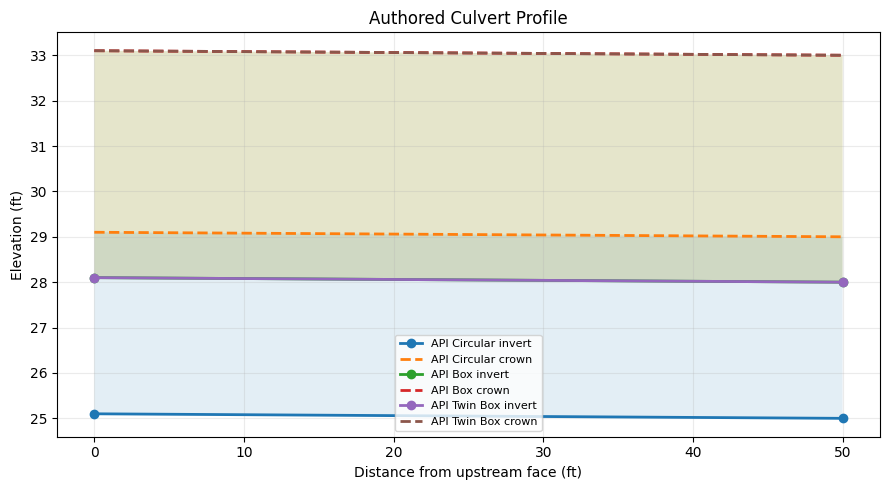

Longitudinal Culvert Profile

Python

profile_rows = []
for _, culvert in round_trip_culverts.iterrows():
    height = culvert["Rise"] if pd.notna(culvert["Rise"]) else culvert["Span"]
    for end, distance, invert in [
        ("upstream", 0.0, culvert["UpstreamInvert"]),
        ("downstream", culvert["Length"], culvert["DownstreamInvert"]),
    ]:
        profile_rows.append({
            "CulvertName": culvert["CulvertName"],
            "ShapeName": culvert["ShapeName"],
            "End": end,
            "Distance": distance,
            "Invert": invert,
            "Crown": invert + height,
            "OpeningHeight": height,
        })

culvert_profile = pd.DataFrame(profile_rows)
display(culvert_profile)

fig, ax = plt.subplots(figsize=(9, 5))
for name, group in culvert_profile.groupby("CulvertName", sort=False):
    ordered = group.sort_values("Distance")
    ax.plot(ordered["Distance"], ordered["Invert"], marker="o", linewidth=2, label=f"{name} invert")
    ax.plot(ordered["Distance"], ordered["Crown"], linestyle="--", linewidth=2, label=f"{name} crown")
    ax.fill_between(
        ordered["Distance"],
        ordered["Invert"],
        ordered["Crown"],
        alpha=0.12,
    )

ax.set_title("Authored Culvert Profile")
ax.set_xlabel("Distance from upstream face (ft)")
ax.set_ylabel("Elevation (ft)")
ax.grid(True, alpha=0.25)
ax.legend(loc="best", fontsize=8)
fig.tight_layout()
plt.show()

	CulvertName	ShapeName	End	Distance	Invert	Crown	OpeningHeight
0	API Circular	Circular	upstream	0.0	25.1	29.1	4.0
1	API Circular	Circular	downstream	50.0	25.0	29.0	4.0
2	API Box	Box	upstream	0.0	28.1	33.1	5.0
3	API Box	Box	downstream	50.0	28.0	33.0	5.0
4	API Twin Box	Box	upstream	0.0	28.1	33.1	5.0
5	API Twin Box	Box	downstream	50.0	28.0	33.0	5.0

Compute The Edited Plan

Python

start = time.perf_counter()
compute_result = RasCmdr.compute_plan(
    PLAN_NUMBER,
    ras_object=ras_obj,
    force_geompre=True,
    force_rerun=True,
    num_cores=NUM_CORES,
    verify=True,
)
runtime_sec = time.perf_counter() - start

data_errors_path = plan_path.parent / f"{plan_path.name}.data_errors.txt"
if data_errors_path.exists():
    raise RuntimeError(data_errors_path.read_text(encoding="utf-8", errors="replace"))

if not compute_result:
    raise RuntimeError(f"HEC-RAS compute failed for plan {PLAN_NUMBER}: {compute_result!r}")

hdf_path = Path(ras_obj.plan_df.loc[
    ras_obj.plan_df["plan_number"].astype(str).str.zfill(2).eq(PLAN_NUMBER),
    "HDF_Results_Path",
].iloc[0])

messages = HdfResultsPlan.get_compute_messages(PLAN_NUMBER, ras_object=ras_obj)
profiles = HdfResultsPlan.get_steady_profile_names(PLAN_NUMBER, ras_object=ras_obj)

validation = pd.DataFrame([{
    "Compute Result": repr(compute_result),
    "Runtime (s)": round(runtime_sec, 2),
    "Results HDF Exists": hdf_path.exists(),
    "Profiles": ", ".join(profiles),
    "Data Errors File Exists": data_errors_path.exists(),
    "Compute Message Characters": len(messages),
}])
display(validation)

print(messages[:700])

	Compute Result	Runtime (s)	Results HDF Exists	Profiles	Data Errors File Exists	Compute Message Characters
0	ComputeResult(SUCCESS, results_df_row=available)	6.07	True	5 yr, 10 yr, 25 yr	False	732

Text Only

Plan: 'Spring Creek Multiple Culverts' (MULTCULV.p01)
Simulation started at: 11Jun2026 09:45:30 AM

Writing Plan GIS Data...
Completed Writing Plan GIS Data
Writing Geometry...
  Computing Bank Lines
  Bank lines generated in 23 ms
  Computing Edge Lines
  Edge Lines generated in 11 ms
  Computing XS Interpolation Surface
  XS Interpolation Surface generated in 49 ms
Completed Writing Geometry
Writing Event Conditions ...
Completed Writing Event Condition Data


Steady Flow Simulation HEC-RAS 7.0 April 2026


Finished Steady Flow Simulation


Computations Summary

Computation Task    Time(hh:mm:ss)
Completing Geometry, Flow and Plan         1
Steady Flow Computations

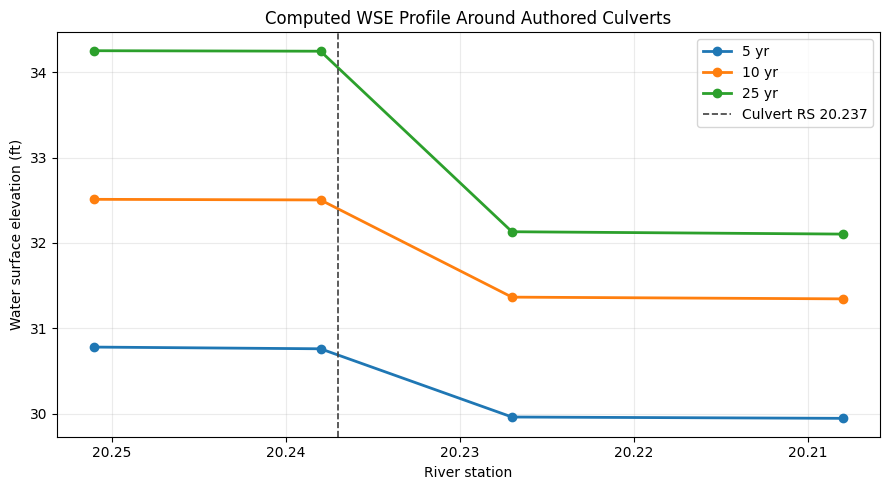

Results Profile Around The Culvert

Python

wse_df = HdfResultsPlan.get_steady_wse(PLAN_NUMBER, ras_object=ras_obj)
wse_df["StationNum"] = wse_df["Station"].astype(str).str.replace("*", "", regex=False).astype(float)

window = wse_df[wse_df["StationNum"].between(20.20, 20.26)].copy()
display(
    window.pivot_table(
        index=["Station", "StationNum"],
        columns="Profile",
        values="WSE",
    ).reset_index().round(3)
)

fig, ax = plt.subplots(figsize=(9, 5))
for profile, group in window.groupby("Profile", sort=False):
    ordered = group.sort_values("StationNum", ascending=False)
    ax.plot(ordered["StationNum"], ordered["WSE"], marker="o", linewidth=2, label=profile)

ax.axvline(float(rs), color="0.25", linestyle="--", linewidth=1.2, label=f"Culvert RS {rs}")
ax.invert_xaxis()
ax.set_title("Computed WSE Profile Around Authored Culverts")
ax.set_xlabel("River station")
ax.set_ylabel("Water surface elevation (ft)")
ax.grid(True, alpha=0.25)
ax.legend(loc="best")
fig.tight_layout()
plt.show()

Profile	Station	StationNum	10 yr	25 yr	5 yr
0	20.208*	20.208	31.345	32.104	29.945
1	20.227	20.227	31.365	32.132	29.961
2	20.238	20.238	32.504	34.247	30.760
3	20.251	20.251	32.511	34.252	30.780

Summary

Python

summary = pd.DataFrame([{
    "Authored Culvert Records": len(round_trip_culverts),
    "Circular Records": int((round_trip_culverts["ShapeName"] == "Circular").sum()),
    "Box Records": int((round_trip_culverts["ShapeName"] == "Box").sum()),
    "Multi-Barrel Records": int((round_trip_culverts["NumBarrels"] > 1).sum()),
    "Ineffective Flow Updates": ", ".join(ineffective_result["updated"]),
    "HEC-RAS Compute Success": bool(compute_result),
    "Result Profiles": ", ".join(profiles),
}])
display(summary)
print("Culvert authoring workflow complete.")

	Authored Culvert Records	Circular Records	Box Records	Multi-Barrel Records	Ineffective Flow Updates	HEC-RAS Compute Success	Result Profiles
0	3	1	2	1	upstream, downstream	True	5 yr, 10 yr, 25 yr

Text Only

Culvert authoring workflow complete.
