Native Infiltration Base and Region Override Authoring¶

This notebook uses HEC-RAS's native RasMapperLib to create the geometry infiltration schema, edit the geometry-wide Base Overrides, assign a distinct parameter table to one named region, recompute final 2D arrays, and run a complete gridded-precipitation simulation.

No HDF schema is hand-authored. Acceptance requires fresh native readback, durable backups, spatial attribution in recomputed and final plan-HDF arrays, cumulative infiltration output, and a measurable hydraulic response.

Native-first workflow contract¶

HEC-RAS has two separate geometry-override surfaces:

Surface	HDF location	Canonical API	Meaning
Base Overrides	`/Geometry/Infiltration/Base Overrides`	`set_infiltration_base_overrides()`	Geometry-wide class-to-parameter fallback
Named region table	`/Geometry/Infiltration/Variables/*`	`set_infiltration_region_overrides()`	Parameters applied only while rasterizing that polygon

A copied region polygon does not constrain Base Overrides. This notebook deliberately assigns different values to the two surfaces and proves their spatial effect in final solver-owned arrays.

Existing compatibility names remain working and time-bounded:

Compatibility name	Replacement	Behavior/window
`create_infiltration_group()`	`create_infiltration_override_regions()`	Native wrapper through v1.1.x; removal no earlier than v1.2.0
`set_infiltration_baseoverrides()`	`set_infiltration_base_overrides()`	Geometry-wide native wrapper through v1.1.x; removal no earlier than v1.2.0
`scale_infiltration_baseoverrides()`	`scale_infiltration_base_overrides()`	Geometry-wide native wrapper through v1.1.x; removal no earlier than v1.2.0
`set_infiltration_layer_data()`	`set_infiltration_sidecar_parameters()`	Native sidecar wrapper through v1.1.x; removal no earlier than v1.2.0
`scale_infiltration_data()`	`scale_infiltration_base_overrides()`, `scale_infiltration_region_overrides()`, or `scale_infiltration_sidecar_parameters()`	Ambiguous name fails closed through v1.1.x; removal no earlier than v1.2.0

Regional get/set/scale methods are additive canonical APIs. They do not deprecate the geometry-wide Base Override family. Stable read-only APIs—including get_infiltration_baseoverrides() and the bulk get_infiltration_calibration_regions() view—are retained.

Python

from pathlib import Path
import sys
import logging

for candidate in [Path.cwd(), *Path.cwd().parents]:
    if (
        (candidate / "ras_commander" / "__init__.py").exists()
        and (candidate / "examples").exists()
    ):
        REPO_ROOT = candidate.resolve()
        break
else:
    raise RuntimeError("Could not locate the ras-commander checkout")
repo_root_string = str(REPO_ROOT)
if repo_root_string in sys.path:
    sys.path.remove(repo_root_string)
sys.path.insert(0, repo_root_string)

import matplotlib.pyplot as plt
from matplotlib.colors import TwoSlopeNorm
import numpy as np
import pandas as pd
from IPython.display import display

from ras_commander import RasCmdr, RasExamples, RasMap, init_ras_project
from ras_commander.hdf import (
    HdfInfiltration,
    HdfMesh,
    HdfResultsMesh,
)

logging.getLogger("ras_commander").setLevel(logging.WARNING)
for logger_name in list(logging.root.manager.loggerDict):
    if logger_name.startswith("ras_commander"):
        logging.getLogger(logger_name).setLevel(logging.WARNING)

plt.rcParams.update(
    {
        "figure.dpi": 140,
        "savefig.dpi": 180,
        "axes.titlesize": 12,
        "axes.labelsize": 10,
        "legend.fontsize": 8,
    }
)

RAS_VERSION = "7.0"
PLAN_NUMBER = "06"
GEOMETRY_NUMBER = "09"
MESH_NAME = "BaldEagleCr"
REGION_NAME = "Main Channel"
BASE_SIGNAL_VALUES = {
    "Curve Number": 65.0,
    "Abstraction Ratio": 0.20,
    "Minimum Infiltration Rate": 0.10,
}
REGION_SIGNAL_VALUES = {
    "Curve Number": 55.0,
    "Abstraction Ratio": 0.15,
    "Minimum Infiltration Rate": 0.05,
}
assert all(
    BASE_SIGNAL_VALUES[name] != REGION_SIGNAL_VALUES[name]
    for name in BASE_SIGNAL_VALUES
)

WORK_ROOT = REPO_ROOT / "working" / "notebook_runs" / "CLB-903" / "218"
WORK_ROOT.mkdir(parents=True, exist_ok=True)

Project and meteorologic context¶

Plan 06 uses geometry 09 and a five-day gridded-precipitation event over the Bald Eagle Creek 2D mesh. Independent baseline and modified project copies make the final-array and hydraulic comparisons reproducible.

Python

RasExamples.get_example_projects(RAS_VERSION)
baseline_path = Path(
    RasExamples.extract_project(
        "BaldEagleCrkMulti2D",
        output_path=WORK_ROOT,
        suffix="218_baseline",
    )
)
modified_path = Path(
    RasExamples.extract_project(
        "BaldEagleCrkMulti2D",
        output_path=WORK_ROOT,
        suffix="218_modified",
    )
)
baseline_ras = init_ras_project(
    baseline_path,
    RAS_VERSION,
    ras_object="new",
    accept_tcu=True,
)
modified_ras = init_ras_project(
    modified_path,
    RAS_VERSION,
    ras_object="new",
    accept_tcu=True,
)

baseline_plan = baseline_ras.plan_df.loc[
    baseline_ras.plan_df["plan_number"] == PLAN_NUMBER
].iloc[0]
modified_geom = modified_ras.geom_df.loc[
    modified_ras.geom_df["geom_number"] == GEOMETRY_NUMBER
].iloc[0]
baseline_plan_hdf = (
    baseline_path / f"{baseline_ras.project_name}.p{PLAN_NUMBER}.hdf"
)
modified_plan_hdf = (
    modified_path / f"{modified_ras.project_name}.p{PLAN_NUMBER}.hdf"
)
modified_geometry_hdf = Path(modified_geom["hdf_path"])

flow_number = str(baseline_plan["unsteady_number"]).zfill(2)
flow_row = baseline_ras.unsteady_df.loc[
    baseline_ras.unsteady_df["unsteady_number"] == flow_number
].iloc[0]
context = pd.DataFrame(
    [
        {"item": "HEC-RAS runtime", "value": RAS_VERSION},
        {"item": "plan", "value": f"p{PLAN_NUMBER}: {baseline_plan['Plan Title']}"},
        {"item": "geometry", "value": f"g{GEOMETRY_NUMBER}"},
        {"item": "2D flow area", "value": MESH_NAME},
        {"item": "simulation period", "value": baseline_plan["Simulation Date"]},
        {"item": "computation interval", "value": baseline_plan["Computation Interval"]},
        {"item": "mapping interval", "value": baseline_plan["Mapping Interval"]},
        {"item": "precipitation mode", "value": flow_row["Precipitation Mode"]},
        {"item": "gridded precipitation source", "value": flow_row["Met BC=Precipitation|Gridded Source"]},
    ]
)
display(context)

	item	value
0	HEC-RAS runtime	7.0
1	plan	p06: Gridded Precip - Infiltration
2	geometry	g09
3	2D flow area	BaldEagleCr
4	simulation period	09SEP2018,0000,14SEP2018,0000
5	computation interval	20SEC
6	mapping interval	10MIN
7	precipitation mode	Enable
8	gridded precipitation source	DSS

Baseline gridded-precipitation solve¶

The required-dataset contract includes all three final infiltration arrays and cell cumulative infiltration depth. A completed process that omits any requested output fails this gate.

Python

infiltration_root = f"Geometry/2D Flow Areas/{MESH_NAME}/Infiltration"
timeseries_root = (
    "Results/Unsteady/Output/Output Blocks/Base Output/"
    f"Unsteady Time Series/2D Flow Areas/{MESH_NAME}"
)
infiltration_array_paths = {
    "Curve Number": f"{infiltration_root}/Curve Number",
    "Abstraction Ratio": f"{infiltration_root}/Abstraction Ratio",
    "Minimum Infiltration Rate": (
        f"{infiltration_root}/Minimum Infiltration Rate"
    ),
}
baseline_result = RasCmdr.compute_plan(
    PLAN_NUMBER,
    ras_object=baseline_ras,
    force_rerun=True,
    num_cores=2,
    verify=True,
)
assert baseline_result.success, "Baseline HEC-RAS computation failed."
assert baseline_result.completion_verified is True

def read_infiltration_tables(path):
    tables = {}
    for name in infiltration_array_paths:
        table = HdfInfiltration.get_preprocessed_infiltration(
            path,
            mesh_name=MESH_NAME,
            variable=name,
        ).sort_values("cell_id")
        assert not table.empty, f"Missing final {name} values"
        assert table["cell_id"].is_unique
        tables[name] = table[["cell_id", "value"]].reset_index(drop=True)
    return tables

baseline_arrays = read_infiltration_tables(baseline_plan_hdf)
baseline_cumulative = HdfResultsMesh.get_mesh_timeseries(
    baseline_plan_hdf,
    MESH_NAME,
    "Cell Cumulative Infiltration Depth",
    truncate=False,
)
baseline_wse = HdfResultsMesh.get_mesh_max_ws(baseline_plan_hdf)
display(
    pd.DataFrame(
        [
            {
                "array": name,
                "active rows": len(table),
                "minimum": float(table["value"].min()),
                "maximum": float(table["value"].max()),
            }
            for name, table in baseline_arrays.items()
        ]
    )
)

	array	active rows	minimum	maximum
0	Curve Number	18066	36.0	100.00
1	Abstraction Ratio	18066	0.0	0.20
2	Minimum Infiltration Rate	18066	0.0	0.12

Create the native geometry infiltration schema¶

HEC-RAS copies the geometry's existing native Land Cover (Manning's n) region polygon and authors the complete infiltration schema. Creation materializes both the geometry-wide Base Overrides table and a separate parameter table for Main Channel; the polygon is a native region, not a mask for the Base Overrides.

Python

assert HdfInfiltration.get_infiltration_region_names(
    modified_geometry_hdf
) in (None, [])

created = HdfInfiltration.create_infiltration_override_regions(
    modified_geometry_hdf,
    region_names=[REGION_NAME],
    hecras_version=RAS_VERSION,
    ras_object=modified_ras,
)
create_backup = Path(created.attrs["backup_path"])
assert create_backup.exists()
assert created.attrs["recompute_required"] is True
assert len(created) == 136

region_names = HdfInfiltration.get_infiltration_region_names(
    modified_geometry_hdf
)
region_polygons = HdfInfiltration.get_infiltration_region_polygons(
    modified_geometry_hdf
)
initial_region_table = HdfInfiltration.get_infiltration_region_overrides(
    modified_geometry_hdf,
    region_name=REGION_NAME,
    hecras_version=RAS_VERSION,
    ras_object=modified_ras,
)
assert region_names == [REGION_NAME]
assert len(region_polygons) == 1
assert not region_polygons.geometry.iloc[0].interiors
assert len(initial_region_table) == 136
original_region_polygon = region_polygons.geometry.iloc[0]
display(region_polygons)
display(created.head(8))

	region_id	Name	geometry
0	0	Main Channel	POLYGON ((2007492.809 321808.759, 2007554.909 ...

	Land Cover Name	Curve Number	Abstraction Ratio	Minimum Infiltration Rate
0	NoData	-9999.0	-9999.0	-9999.0
1	NoData : B	-9999.0	-9999.0	-9999.0
2	NoData : A	-9999.0	-9999.0	-9999.0
3	NoData : B-D	-9999.0	-9999.0	-9999.0
4	NoData : D	-9999.0	-9999.0	-9999.0
5	NoData : C	-9999.0	-9999.0	-9999.0
6	NoData : C-D	-9999.0	-9999.0	-9999.0
7	NoData : A-D	-9999.0	-9999.0	-9999.0

Set geometry-wide Base Overrides¶

Every native class row receives a recognizable, valid base signal. These are qualification values for a disposable model—not calibration recommendations. The signal must later appear on all active cells that are disjoint from the named region.

Python

base_requested = created.copy()
for parameter, value in BASE_SIGNAL_VALUES.items():
    base_requested[parameter] = value

base_written = HdfInfiltration.set_infiltration_base_overrides(
    modified_geometry_hdf,
    base_requested,
    hecras_version=RAS_VERSION,
    ras_object=modified_ras,
)
base_backup = Path(base_written.attrs["backup_path"])
assert base_backup.exists()
assert base_backup != create_backup
assert base_written.attrs["recompute_required"] is True
for parameter, value in BASE_SIGNAL_VALUES.items():
    np.testing.assert_allclose(base_written[parameter], value)

base_before_region = HdfInfiltration.get_infiltration_baseoverrides(
    modified_geometry_hdf
)
for parameter, value in BASE_SIGNAL_VALUES.items():
    np.testing.assert_allclose(base_before_region[parameter], value)
display(base_written.head(8))

	Land Cover Name	Curve Number	Abstraction Ratio	Minimum Infiltration Rate
0	NoData	65.0	0.2	0.1
1	NoData : B	65.0	0.2	0.1
2	NoData : A	65.0	0.2	0.1
3	NoData : B-D	65.0	0.2	0.1
4	NoData : D	65.0	0.2	0.1
5	NoData : C	65.0	0.2	0.1
6	NoData : C-D	65.0	0.2	0.1
7	NoData : A-D	65.0	0.2	0.1

Set one named region's parameter table¶

A second, distinct signal is assigned to Main Channel through HEC's public GetParameterTable / SetParameterTable API. Fresh reload must preserve the geometry-wide Base Overrides, region name, polygon, and all native class rows.

Python

region_requested = initial_region_table.copy()
for parameter, value in REGION_SIGNAL_VALUES.items():
    region_requested[parameter] = value

region_written = HdfInfiltration.set_infiltration_region_overrides(
    modified_geometry_hdf,
    region_requested,
    region_name=REGION_NAME,
    hecras_version=RAS_VERSION,
    ras_object=modified_ras,
)
region_backup = Path(region_written.attrs["backup_path"])
assert region_backup.exists()
assert region_backup not in {create_backup, base_backup}
assert region_written.attrs["region_name"] == REGION_NAME
assert region_written.attrs["region_id"] == 0
assert region_written.attrs["recompute_required"] is True
for parameter, value in REGION_SIGNAL_VALUES.items():
    np.testing.assert_allclose(region_written[parameter], value)

base_after_region = HdfInfiltration.get_infiltration_baseoverrides(
    modified_geometry_hdf
)
pd.testing.assert_frame_equal(
    base_after_region.reset_index(drop=True),
    base_before_region.reset_index(drop=True),
    check_dtype=False,
    atol=1.0e-5,
    rtol=1.0e-6,
)
region_readback = HdfInfiltration.get_infiltration_region_overrides(
    modified_geometry_hdf,
    region_id=0,
    hecras_version=RAS_VERSION,
    ras_object=modified_ras,
)
for parameter, value in REGION_SIGNAL_VALUES.items():
    np.testing.assert_allclose(region_readback[parameter], value)

bulk_region_readback = (
    HdfInfiltration.get_infiltration_calibration_regions(
        modified_geometry_hdf
    )
)
assert bulk_region_readback is not None
for parameter, value in REGION_SIGNAL_VALUES.items():
    assert parameter in bulk_region_readback
    variable_table = bulk_region_readback[parameter]
    assert REGION_NAME in variable_table.index
    np.testing.assert_allclose(
        variable_table.loc[REGION_NAME].to_numpy(dtype=float),
        value,
    )

region_names_after = HdfInfiltration.get_infiltration_region_names(
    modified_geometry_hdf
)
region_polygons_after = HdfInfiltration.get_infiltration_region_polygons(
    modified_geometry_hdf
)
assert region_names_after == [REGION_NAME]
assert region_polygons_after.geometry.iloc[0].equals(
    original_region_polygon
)
display(region_written.head(8))

	Land Cover Name	Curve Number	Abstraction Ratio	Minimum Infiltration Rate
0	NoData	55.0	0.15	0.05
1	NoData : B	55.0	0.15	0.05
2	NoData : A	55.0	0.15	0.05
3	NoData : B-D	55.0	0.15	0.05
4	NoData : D	55.0	0.15	0.05
5	NoData : C	55.0	0.15	0.05
6	NoData : C-D	55.0	0.15	0.05
7	NoData : A-D	55.0	0.15	0.05

Native recomputation and spatial attribution¶

HEC-RAS resamples both surfaces into final 2D infiltration arrays. Fully covered active cells must contain the regional signal; active cells whose polygons are fully disjoint must contain the geometry-wide base signal. Boundary-overlap cells are reported but not forced into either discrete class.

Python

recomputed_hdf = RasMap.recompute_property_tables(
    modified_path,
    modified_geometry_hdf,
    hecras_version=RAS_VERSION,
    ras_object=modified_ras,
)
assert recomputed_hdf == modified_geometry_hdf
recomputed_arrays = read_infiltration_tables(modified_geometry_hdf)

cell_points = HdfMesh.get_mesh_cell_points(modified_geometry_hdf)
cell_points = cell_points.loc[
    cell_points["mesh_name"] == MESH_NAME
][["cell_id", "geometry"]]
cell_polygons = HdfMesh.get_mesh_cell_polygons(modified_geometry_hdf)
cell_polygons = cell_polygons.loc[
    cell_polygons["mesh_name"] == MESH_NAME
][["cell_id", "geometry"]].rename(
    columns={"geometry": "cell_polygon"}
)
array_comparison = cell_points.merge(cell_polygons, on="cell_id")
column_names = {}
for parameter in infiltration_array_paths:
    slug = (
        parameter.lower()
        .replace(" ", "_")
        .replace("minimum_infiltration_rate", "minimum_rate")
    )
    baseline_column = f"baseline_{slug}"
    modified_column = f"modified_{slug}"
    column_names[parameter] = (baseline_column, modified_column)
    array_comparison = array_comparison.merge(
        baseline_arrays[parameter].rename(
            columns={"value": baseline_column}
        ),
        on="cell_id",
    ).merge(
        recomputed_arrays[parameter].rename(
            columns={"value": modified_column}
        ),
        on="cell_id",
    )

region_geometry = region_polygons_after.geometry.iloc[0]
fully_covered = array_comparison["cell_polygon"].map(
    region_geometry.covers
)
fully_disjoint = array_comparison["cell_polygon"].map(
    region_geometry.disjoint
)
boundary_overlap = ~(fully_covered | fully_disjoint)
array_comparison["zone"] = "boundary overlap"
array_comparison.loc[fully_covered, "zone"] = "region interior"
array_comparison.loc[fully_disjoint, "zone"] = "base-only area"

assert fully_covered.any()
assert fully_disjoint.any()
assert boundary_overlap.any()
spatial_rows = []
for parameter, (baseline_column, modified_column) in column_names.items():
    base_value = BASE_SIGNAL_VALUES[parameter]
    region_value = REGION_SIGNAL_VALUES[parameter]
    assert np.isfinite(array_comparison[modified_column]).all()
    assert np.isclose(
        array_comparison.loc[fully_covered, modified_column],
        region_value,
        atol=1.0e-5,
    ).all()
    assert np.isclose(
        array_comparison.loc[fully_disjoint, modified_column],
        base_value,
        atol=1.0e-5,
    ).all()
    changed = (
        array_comparison[modified_column]
        - array_comparison[baseline_column]
    ).abs() > 1.0e-5
    assert int((changed & fully_covered).sum()) > 0
    assert int((changed & fully_disjoint).sum()) > 0
    spatial_rows.append(
        {
            "parameter": parameter,
            "regional signal": region_value,
            "fully covered rows": int(fully_covered.sum()),
            "covered rows matching region": int(
                np.isclose(
                    array_comparison.loc[
                        fully_covered, modified_column
                    ],
                    region_value,
                    atol=1.0e-5,
                ).sum()
            ),
            "base signal": base_value,
            "fully disjoint rows": int(fully_disjoint.sum()),
            "disjoint rows matching base": int(
                np.isclose(
                    array_comparison.loc[
                        fully_disjoint, modified_column
                    ],
                    base_value,
                    atol=1.0e-5,
                ).sum()
            ),
            "boundary-overlap rows": int(boundary_overlap.sum()),
        }
    )
display(pd.DataFrame(spatial_rows))

	parameter	regional signal	fully covered rows	covered rows matching region	base signal	fully disjoint rows	disjoint rows matching base	boundary-overlap rows
0	Curve Number	55.00	215	215	65.0	16817	16817	1034
1	Abstraction Ratio	0.15	215	215	0.2	16817	16817	1034
2	Minimum Infiltration Rate	0.05	215	215	0.1	16817	16817	1034

Modified solve and final plan-HDF verification¶

The full five-day plan is recomputed. Final plan-HDF infiltration arrays must reproduce the recomputed geometry arrays by cell ID, and the cumulative infiltration time series must be finite and nonzero.

Python

modified_result = RasCmdr.compute_plan(
    PLAN_NUMBER,
    ras_object=modified_ras,
    force_rerun=True,
    num_cores=2,
    verify=True,
)
assert modified_result.success, "Modified HEC-RAS computation failed."
assert modified_result.completion_verified is True

modified_arrays = read_infiltration_tables(modified_plan_hdf)
for parameter in infiltration_array_paths:
    expected = recomputed_arrays[parameter].sort_values("cell_id")
    observed = modified_arrays[parameter].sort_values("cell_id")
    np.testing.assert_array_equal(
        observed["cell_id"].to_numpy(),
        expected["cell_id"].to_numpy(),
    )
    np.testing.assert_array_equal(
        observed["value"].to_numpy(),
        expected["value"].to_numpy(),
    )

modified_cumulative = HdfResultsMesh.get_mesh_timeseries(
    modified_plan_hdf,
    MESH_NAME,
    "Cell Cumulative Infiltration Depth",
    truncate=False,
)
modified_wse = HdfResultsMesh.get_mesh_max_ws(modified_plan_hdf)
modified_cumulative_values = np.asarray(modified_cumulative.values)
assert np.isfinite(modified_cumulative_values).any()
assert float(np.nanmax(modified_cumulative_values)) > 0

Hydraulic response by attribution zone¶

Cumulative infiltration and maximum WSE are compared with the baseline. A changed region parameter can be hydraulically inactive during a particular event, so the spatial parameter-array gate above is authoritative. Hydraulic changes are required somewhere in the model and reported separately inside and outside the named region.

Python

all_cell_points = HdfMesh.get_mesh_cell_points(modified_plan_hdf)
all_cell_points = all_cell_points.loc[
    all_cell_points["mesh_name"] == MESH_NAME
][["cell_id", "geometry"]].copy()
all_cell_polygons = HdfMesh.get_mesh_cell_polygons(modified_plan_hdf)
all_cell_polygons = all_cell_polygons.loc[
    all_cell_polygons["mesh_name"] == MESH_NAME
][["cell_id", "geometry"]].rename(
    columns={"geometry": "cell_polygon"}
)
cell_count = len(all_cell_points)

def final_cell_values(data_array):
    values = np.asarray(data_array.values)
    if values.ndim != 2:
        raise RuntimeError(f"Expected 2D cell time series, got {values.shape}")
    if values.shape[-1] == cell_count:
        return values[-1, :]
    if values.shape[0] == cell_count:
        return values[:, -1]
    raise RuntimeError(
        f"Cannot align time series {values.shape} to {cell_count} cells"
    )

all_cell_points["baseline_cumulative_infiltration"] = final_cell_values(
    baseline_cumulative
)
all_cell_points["modified_cumulative_infiltration"] = final_cell_values(
    modified_cumulative
)
all_cell_points["delta_cumulative_infiltration"] = (
    all_cell_points["modified_cumulative_infiltration"]
    - all_cell_points["baseline_cumulative_infiltration"]
)

baseline_wse_mesh = baseline_wse.loc[
    baseline_wse["mesh_name"] == MESH_NAME,
    ["cell_id", "maximum_water_surface"],
].rename(columns={"maximum_water_surface": "baseline_wse"})
modified_wse_mesh = modified_wse.loc[
    modified_wse["mesh_name"] == MESH_NAME,
    ["cell_id", "maximum_water_surface"],
].rename(columns={"maximum_water_surface": "modified_wse"})
hydraulic_comparison = (
    all_cell_points
    .merge(all_cell_polygons, on="cell_id")
    .merge(baseline_wse_mesh, on="cell_id")
    .merge(modified_wse_mesh, on="cell_id")
)
hydraulic_comparison["delta_wse"] = (
    hydraulic_comparison["modified_wse"]
    - hydraulic_comparison["baseline_wse"]
)
hydraulic_inside = hydraulic_comparison["cell_polygon"].map(
    region_geometry.covers
)
hydraulic_outside = hydraulic_comparison["cell_polygon"].map(
    region_geometry.disjoint
)
hydraulic_comparison["zone"] = "boundary overlap"
hydraulic_comparison.loc[hydraulic_inside, "zone"] = "region interior"
hydraulic_comparison.loc[hydraulic_outside, "zone"] = "base-only area"
valid_wse = (
    np.isfinite(hydraulic_comparison["delta_wse"])
    & (hydraulic_comparison["baseline_wse"] > -100)
    & (hydraulic_comparison["modified_wse"] > -100)
)

changed_infiltration = (
    hydraulic_comparison["delta_cumulative_infiltration"].abs()
    > 1.0e-5
)
changed_wse = valid_wse & (
    hydraulic_comparison["delta_wse"].abs() > 1.0e-4
)
assert int(changed_infiltration.sum()) > 0
assert int(changed_wse.sum()) > 0

hydraulic_summary = (
    hydraulic_comparison.assign(
        changed_cumulative_infiltration=changed_infiltration,
        changed_wse=changed_wse,
    )
    .groupby("zone", observed=True)
    .agg(
        cells=("cell_id", "size"),
        changed_infiltration_cells=(
            "changed_cumulative_infiltration", "sum"
        ),
        changed_wse_cells=("changed_wse", "sum"),
        max_abs_infiltration_delta=(
            "delta_cumulative_infiltration",
            lambda values: float(values.abs().max()),
        ),
        max_abs_wse_delta=(
            "delta_wse",
            lambda values: float(values.abs().max()),
        ),
    )
    .reset_index()
)
display(hydraulic_summary)

	zone	cells	changed_infiltration_cells	changed_wse_cells	max_abs_infiltration_delta	max_abs_wse_delta
0	base-only area	16817	133	16806	0.010022	6.379028
1	boundary overlap	1034	12	1032	0.010145	0.791870
2	region interior	215	0	215	0.000000	0.016174

Python

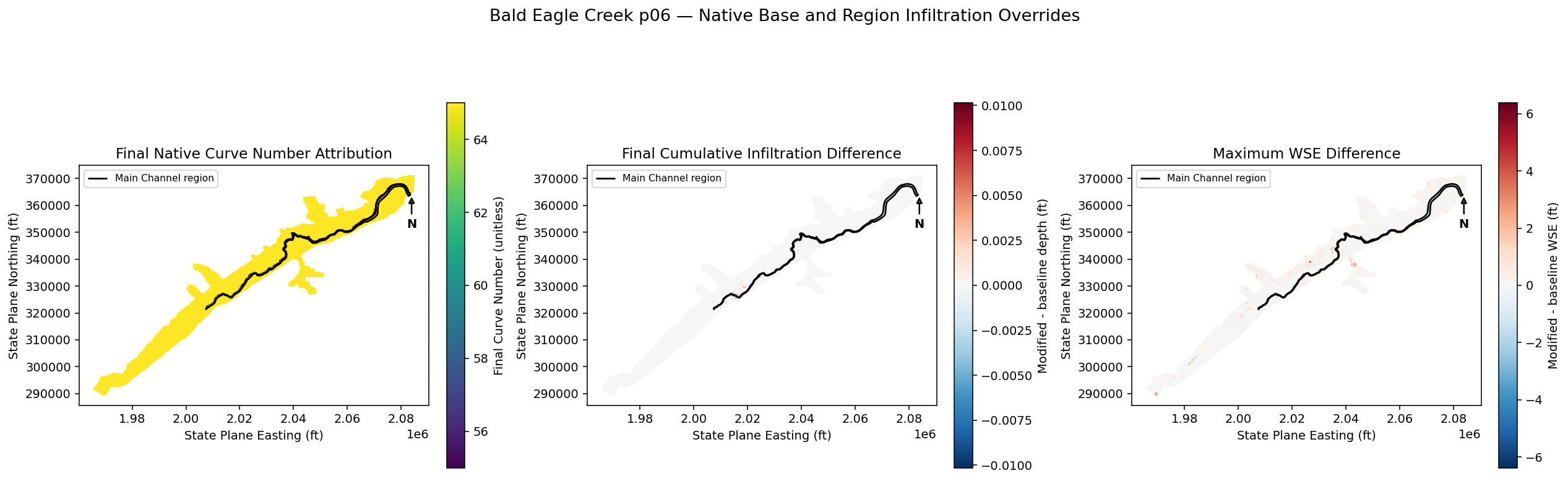

plot_hydraulics = hydraulic_comparison.loc[valid_wse].copy()
curve_number_column = column_names["Curve Number"][1]
infiltration_limit = max(
    float(plot_hydraulics["delta_cumulative_infiltration"].abs().max()),
    0.001,
)
wse_limit = max(
    float(plot_hydraulics["delta_wse"].abs().max()),
    0.001,
)

fig, axes = plt.subplots(
    1, 3, figsize=(18, 6.2), constrained_layout=True
)
array_comparison.plot(
    column=curve_number_column,
    ax=axes[0],
    cmap="viridis",
    marker="s",
    markersize=2.3,
    legend=True,
    vmin=min(BASE_SIGNAL_VALUES["Curve Number"], REGION_SIGNAL_VALUES["Curve Number"]),
    vmax=max(BASE_SIGNAL_VALUES["Curve Number"], REGION_SIGNAL_VALUES["Curve Number"]),
    legend_kwds={"label": "Final Curve Number (unitless)", "shrink": 0.72},
)
axes[0].set_title("Final Native Curve Number Attribution")

for ax, column, title, label, limit in [
    (
        axes[1],
        "delta_cumulative_infiltration",
        "Final Cumulative Infiltration Difference",
        "Modified - baseline depth (ft)",
        infiltration_limit,
    ),
    (
        axes[2],
        "delta_wse",
        "Maximum WSE Difference",
        "Modified - baseline WSE (ft)",
        wse_limit,
    ),
]:
    plot_hydraulics.plot(
        column=column,
        ax=ax,
        cmap="RdBu_r",
        marker="s",
        markersize=2.3,
        legend=True,
        norm=TwoSlopeNorm(vcenter=0, vmin=-limit, vmax=limit),
        legend_kwds={"label": label, "shrink": 0.72},
    )
    ax.set_title(title)

for ax in axes:
    region_polygons_after.boundary.plot(
        ax=ax,
        color="black",
        linewidth=1.4,
        label=f"{REGION_NAME} region",
    )
    ax.set_xlabel("State Plane Easting (ft)")
    ax.set_ylabel("State Plane Northing (ft)")
    ax.set_aspect("equal")
    ax.legend(loc="best")
    ax.annotate(
        "N",
        xy=(0.95, 0.88),
        xytext=(0.95, 0.74),
        xycoords="axes fraction",
        ha="center",
        fontweight="bold",
        arrowprops={"arrowstyle": "-|>", "linewidth": 1.3},
    )
fig.suptitle(
    "Bald Eagle Creek p06 — Native Base and Region Infiltration Overrides",
    fontsize=14,
)
plt.show()

png

Conclusions¶

Native HEC-RAS created one named geometry infiltration region and the complete 136-class schema.
Geometry-wide Base Overrides and the named region table were edited as distinct attribution surfaces; neither API was replaced or orphaned.
Each mutation retained a distinct durable pre-edit backup and passed fresh native readback while preserving unrelated state.
Fully covered cells resolved to the regional signal and fully disjoint cells resolved to the geometry-wide base signal.
The final plan HDF reproduced all recomputed infiltration arrays and the full solve produced cumulative infiltration and WSE response.
No custom HDF authoring, selective dataset deletion, or deprecated authoring API was used.
