Precipitation Hyetograph Comparison

Generate 30 temporal precipitation patterns, write native area precipitation tables through RasUnsteady, and inspect a bounded two-plan forcing diagnostic on copied Davis examples. These are precipitation depths per interval, not upstream discharge hydrographs.

Stage Scope of the saved run
Pattern generation Five Atlas14Storm quartiles, four SCS types and one ABM pattern for each of three supplied depths: 30 cases
Authoring/readback 30 plans in three isolated copies of the real Davis project
Fresh HEC-RAS computation Only 10yr Atlas14_AllCases and StormGen_AB50; sequential, two cores
Forcing check Compare native cumulative rainfall with the serialized interval-end curve at every output time; remaining 28 plans uncomputed

The earlier June 2026 notebook recorded 27 computed cases because its ABM call failed. This revision replaces that historical comparison with fresh bounded evidence; it does not claim all 30 cases were computed. Full execution remains available by deliberately setting COMPUTE_CASES=None and allocating the required time.

The supplied 6.94/11.60/17.0-inch depths retain the original comparison inputs. They are illustrative location/frequency labels, not a newly verified precipitation-frequency study. DDF data shape the ABM pattern; all methods are scaled to each supplied total. The Houston patterns applied to Davis demonstrate API mechanics, not site-specific design recommendations.

For spatially varying precipitation, see 722, 727 and 729. Scope: the current saved run checks the repaired writer on two HEC-RAS 7.0 Davis cases. It does not qualify other versions, start-time configurations or hydraulic results. The original run exposed a lost first interval and accumulated rounding error; the API now adds one zero-time anchor and serializes differences of the rounded cumulative curve.

Saved-run source provenance: this repair was executed from modified working source based on 8aff8269, not a tagged-release qualification. The environment distribution metadata was still 0.102.1 while the checkout had advanced; the setup cell records the actual writer source path and SHA-256. A later canonical-cumulative noise guard produced byte-identical inputs for both computed cases, verified on separate copies without rerunning the solver.

Execution provenance: the setup/provenance cell was rerun after the two solves. The final two inspection cells were rerun in a separate kernel whose context was rebuilt from the retained project, authored CSVs and HDF results. Displayed execution counts follow the notebook's reading order; the retained per-cell timestamps show actual execution order. These postprocessing reruns did not execute HEC-RAS again.

Python
# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = True  # Set to True for local development, False for pip package

if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path
    local_path = str(Path.cwd().parent)
    if local_path not in sys.path:
        sys.path.insert(0, local_path)
    print(f"LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
    print("PIP PACKAGE MODE: Loading installed ras-commander")

# Import ras-commander core
from ras_commander import (
    RasExamples,
    init_ras_project,
    ras,
    RasCmdr,
    RasPlan,
    RasPrj, RasUnsteady
)
from ras_commander.hdf import HdfResultsPlan, HdfMesh

# Import precipitation modules
from ras_commander.precip import (
    StormGenerator,                # Alternating Block Method (for comparison)
    Atlas14Storm,                  # HMS-equivalent Atlas 14 temporal distributions
    ScsTypeStorm,                  # HMS-equivalent SCS Type I/IA/II/III
    ATLAS14_AVAILABLE,             # Availability flag for Atlas14Storm
    SCS_TYPE_AVAILABLE             # Availability flag for ScsTypeStorm
)

import ras_commander
print(f"Loaded ras_commander: {ras_commander.__file__}")

# Check method availability
print(f"\nMethod Availability:")
print(f"  Atlas14Storm (HMS-equiv): {'[OK]' if ATLAS14_AVAILABLE else '[--]'}")
print(f"  ScsTypeStorm (HMS-equiv): {'[OK]' if SCS_TYPE_AVAILABLE else '[--]'}")
print(f"  StormGenerator (Alternating Block): [OK]")

if not (ATLAS14_AVAILABLE and SCS_TYPE_AVAILABLE):
    print("\n  Install hms-commander for HMS-equivalent methods:")
    raise ImportError("Install hms-commander in the active environment before running the full suite")
# Record the source actually inspected rather than infer it from distribution metadata.
import hashlib
import importlib.metadata
import inspect
writer_source = Path(inspect.getfile(RasUnsteady)).resolve()
print(f"Installed distribution metadata: {importlib.metadata.version('ras-commander')}")
print(f"Writer source: {writer_source}")
print(f"Writer SHA-256: {hashlib.sha256(writer_source.read_bytes()).hexdigest()}")
Text Only
LOCAL SOURCE MODE: Loading from C:\Users\billk_clb\.codex\workspaces\ras-docs-priority-20260926/ras_commander


Loaded ras_commander: C:\Users\billk_clb\.codex\workspaces\ras-docs-priority-20260926\ras_commander\__init__.py

Method Availability:
  Atlas14Storm (HMS-equiv): [OK]
  ScsTypeStorm (HMS-equiv): [OK]
  StormGenerator (Alternating Block): [OK]
Installed distribution metadata: 0.102.1
Writer source: C:\Users\billk_clb\.codex\workspaces\ras-docs-priority-20260926\ras_commander\RasUnsteady.py
Writer SHA-256: e1cbbaa810fc7f90945ab858ba1b80baeca107b63c3d910f84596a8104e4d847
Python
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from pathlib import Path
from datetime import datetime
import shutil
import time

# Configure output
pd.set_option('display.max_rows', 50)
pd.set_option('display.float_format', '{:.4f}'.format)

print("Standard libraries imported successfully")
Text Only
Standard libraries imported successfully

Configuration and retained workspace

Python
# Three supplied demonstration depths; verify location/frequency values for a study.
PROJECT_NAME = "Davis"
RAS_VERSION = "7.0"
TEMPLATE_PLAN = "02"
LATITUDE, LONGITUDE = 29.76, -95.37
STATE, REGION = "tx", 3  # Used by Atlas14Storm temporal-distribution lookup.
STORM_DURATION_HOURS = 24
TIME_INTERVAL_MIN = 60
AEP_SUITE = {
    "10yr": {"aep_percent": 10.0, "depth_inches": 6.94},
    "50yr": {"aep_percent": 2.0, "depth_inches": 11.60},
    "100yr": {"aep_percent": 1.0, "depth_inches": 17.0},
}
# The committed run computes only this pair. Set None deliberately for all 30.
COMPUTE_CASES = {("10yr", "Atlas14_AllCases"), ("10yr", "StormGen_AB50")}
NUM_CORES = 2  # Sequential compute; at most two cores total.
repo_root = Path.cwd().parent if Path.cwd().name == "examples" else Path.cwd()
WORKING_DIR = repo_root / "working" / "721" / datetime.now().strftime("%Y%m%dT%H%M%S")
WORKING_DIR.mkdir(parents=True, exist_ok=False)
print(f"Preserved working directory: {WORKING_DIR}")
print(f"Configured cases: {COMPUTE_CASES}")
Text Only
Preserved working directory: C:\Users\billk_clb\.codex\workspaces\ras-docs-priority-20260926\working\721\20260926T191243
Configured cases: {('10yr', 'Atlas14_AllCases'), ('10yr', 'StormGen_AB50')}

Generate all 30 temporal patterns

STATE and REGION select the Atlas14Storm temporal distribution; coordinates select NOAA DDF inputs for ABM. The methods use different temporal algorithms. No method is endorsed here for regulatory work, and equal total depth alone does not make every other model assumption equal.

Python
ddf = StormGenerator.download_from_coordinates(
    lat=LATITUDE, lon=LONGITUDE, data="depth", units="english", series="ams"
)
storms_suite = {}
for aep_name, spec in AEP_SUITE.items():
    depth = spec["depth_inches"]
    storms = {}
    for quartile in ["First Quartile", "Second Quartile", "Third Quartile", "Fourth Quartile", "All Cases"]:
        key = "Atlas14_" + quartile.replace(" ", "").replace("Quartile", "Q")
        storms[key] = Atlas14Storm.generate_hyetograph(
            total_depth_inches=depth, state=STATE, region=REGION,
            duration_hours=STORM_DURATION_HOURS, aep_percent=spec["aep_percent"],
            quartile=quartile, interval_minutes=TIME_INTERVAL_MIN,
        )
    for scs_type in ["I", "IA", "II", "III"]:
        storms[f"ScsType_{scs_type}"] = ScsTypeStorm.generate_hyetograph(
            total_depth_inches=depth, scs_type=scs_type, time_interval_min=TIME_INTERVAL_MIN
        )
    storms["StormGen_AB50"] = StormGenerator.generate_hyetograph(
        ddf_data=ddf, total_depth_inches=depth,
        duration_hours=STORM_DURATION_HOURS, position_percent=50,
    )
    # Normalize a t=0 zero row to the writer's end-of-interval convention.
    for name, frame in storms.items():
        frame = frame.copy()
        if frame.hour.iloc[0] == 0:
            assert frame.incremental_depth.iloc[0] == 0
            frame = frame.iloc[1:].reset_index(drop=True)
        assert len(frame) > 1 and frame.hour.iloc[0] > 0
        intervals = np.diff(np.r_[0.0, frame.hour.to_numpy()])
        np.testing.assert_allclose(intervals, intervals[0])
        assert np.isclose(frame.hour.iloc[-1], STORM_DURATION_HOURS)
        np.testing.assert_allclose(frame.incremental_depth.sum(), depth, atol=1e-8)
        np.testing.assert_allclose(frame.cumulative_depth.iloc[-1], depth, atol=1e-8)
        storms[name] = frame
    assert len(storms) == 10
    storms_suite[aep_name] = storms
print(f"Generated {sum(map(len, storms_suite.values()))} complete hyetographs.")
print({aep: len(storms) for aep, storms in storms_suite.items()})
Text Only
2026-09-26 19:12:43 - ras_commander.precip.StormGenerator - INFO - Downloading Atlas 14 data for (29.76, -95.37)...


2026-09-26 19:12:46 - ras_commander.precip.StormGenerator - INFO - Downloaded Atlas 14 data for region: Texas


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: C:\Users\billk_clb\.hms-commander\atlas14\tx_3_24h_temporal.csv


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Parsed 5 quartile tables with 49 time steps each


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 6.940 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 6.940 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 6.940 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 6.940 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 6.940 inches total


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type I hyetograph: 25 intervals, 6.940000 inches total, peak 1.811 inches


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type IA hyetograph: 25 intervals, 6.940000 inches total, peak 1.090 inches


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type II hyetograph: 25 intervals, 6.940000 inches total, peak 2.970 inches


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type III hyetograph: 25 intervals, 6.940000 inches total, peak 1.735 inches


2026-09-26 19:12:46 - ras_commander.precip.StormGenerator - INFO - Generated 24-hour hyetograph (peak at 50%, total depth: 6.940000 inches)


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 11.600 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 11.600 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 11.600 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 11.600 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 11.600 inches total


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type I hyetograph: 25 intervals, 11.600000 inches total, peak 3.028 inches


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type IA hyetograph: 25 intervals, 11.600000 inches total, peak 1.821 inches


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type II hyetograph: 25 intervals, 11.600000 inches total, peak 4.965 inches


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type III hyetograph: 25 intervals, 11.600000 inches total, peak 2.900 inches


2026-09-26 19:12:46 - ras_commander.precip.StormGenerator - INFO - Generated 24-hour hyetograph (peak at 50%, total depth: 11.600000 inches)


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 17.000 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 17.000 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 17.000 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 17.000 inches total


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Using cached temporal distribution: tx_3_24h


2026-09-26 19:12:46 - hms_commander.Atlas14Storm - INFO - Generated hyetograph: 25 intervals, 17.000 inches total


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type I hyetograph: 25 intervals, 17.000000 inches total, peak 4.437 inches


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type IA hyetograph: 25 intervals, 17.000000 inches total, peak 2.669 inches


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type II hyetograph: 25 intervals, 17.000000 inches total, peak 7.276 inches


2026-09-26 19:12:46 - hms_commander.ScsTypeStorm - INFO - Generated SCS Type III hyetograph: 25 intervals, 17.000000 inches total, peak 4.250 inches


2026-09-26 19:12:46 - ras_commander.precip.StormGenerator - INFO - Generated 24-hour hyetograph (peak at 50%, total depth: 17.000000 inches)


Generated 30 complete hyetographs.
{'10yr': 10, '50yr': 10, '100yr': 10}
Python
# =============================================================================

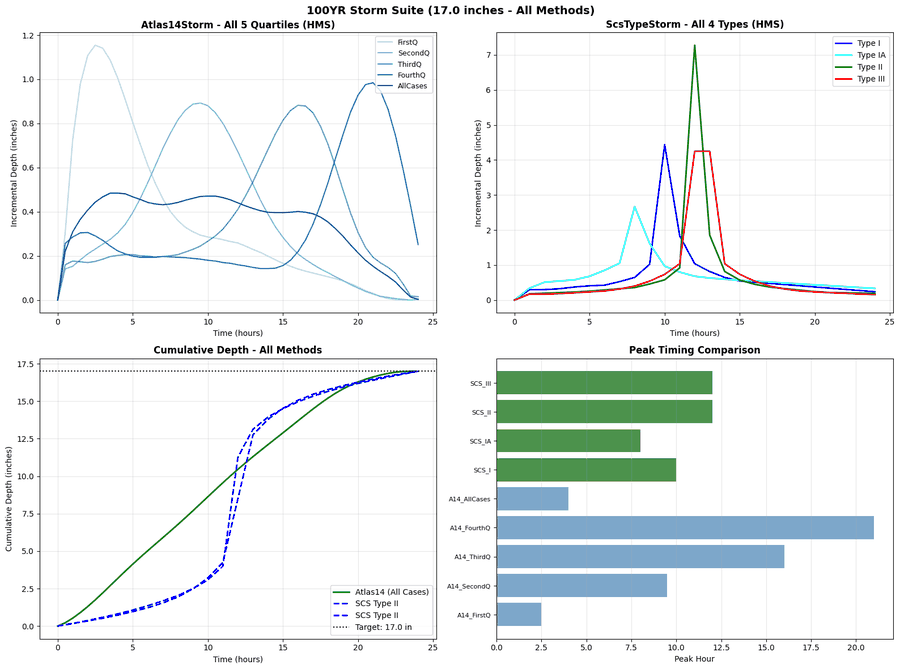

# 2.2 Visualize Storm Suite for One AEP
# =============================================================================

# Select AEP to visualize
viz_aep = '100yr'

if viz_aep in storms_suite and len(storms_suite[viz_aep]) > 0:
    storms = storms_suite[viz_aep]

    fig, axes = plt.subplots(2, 2, figsize=(16, 12))
    axes = axes.flatten()

    # Group by method type
    groups = {
        'Atlas14Storm': {k: v for k, v in storms.items() if k.startswith('Atlas14')},
        'ScsTypeStorm': {k: v for k, v in storms.items() if k.startswith('ScsType')},
        'StormGenerator': {k: v for k, v in storms.items() if k.startswith('StormGen')},
    }

    # Plot 1: Atlas14Storm quartiles
    ax1 = axes[0]
    if groups['Atlas14Storm']:
        colors = plt.cm.Blues(np.linspace(0.3, 0.9, len(groups['Atlas14Storm'])))
        for (name, hyeto), color in zip(groups['Atlas14Storm'].items(), colors):
            # All methods now return DataFrame - access columns directly
            ax1.plot(hyeto['hour'], hyeto['incremental_depth'],
                    label=name.replace('Atlas14_', ''), color=color, linewidth=1.5)
        ax1.set_title('Atlas14Storm - All 5 Quartiles (HMS)', fontweight='bold')
        ax1.legend(loc='upper right', fontsize=9)
    ax1.set_xlabel('Time (hours)')
    ax1.set_ylabel('Incremental Depth (inches)')
    ax1.grid(True, alpha=0.3)

    # Plot 2: ScsTypeStorm - All Types
    ax2 = axes[1]
    if groups['ScsTypeStorm']:
        colors = ['blue', 'cyan', 'green', 'red']
        for (name, hyeto), color in zip(groups['ScsTypeStorm'].items(), colors):
            ax2.plot(hyeto['hour'], hyeto['incremental_depth'],
                    label=name.replace('ScsType_', 'Type '), color=color, linewidth=2)
        ax2.set_title('ScsTypeStorm - All 4 Types (HMS)', fontweight='bold')
        ax2.legend(loc='upper right')
    ax2.set_xlabel('Time (hours)')
    ax2.set_ylabel('Incremental Depth (inches)')
    ax2.grid(True, alpha=0.3)

    # Plot 3: Cumulative comparison (all methods)
    ax3 = axes[2]
    for name, hyeto in storms.items():
        if 'AllCases' in name:
            ax3.plot(hyeto['hour'], hyeto['cumulative_depth'],
                    'g-', linewidth=2, label='Atlas14 (All Cases)')
        elif 'ScsType_II' in name:
            ax3.plot(hyeto['hour'], hyeto['cumulative_depth'],
                    'b--', linewidth=2, label='SCS Type II')
        elif 'StormGen' in name:
            ax3.plot(hyeto['hour'], hyeto['cumulative_depth'],
                    'r:', linewidth=2, label='StormGen (AB)')

    ax3.axhline(AEP_SUITE[viz_aep]['depth_inches'], color='black', linestyle=':',
                linewidth=1.5, label=f"Target: {AEP_SUITE[viz_aep]['depth_inches']} in")
    ax3.set_title('Cumulative Depth - All Methods', fontweight='bold')
    ax3.set_xlabel('Time (hours)')
    ax3.set_ylabel('Cumulative Depth (inches)')
    ax3.legend(loc='lower right')
    ax3.grid(True, alpha=0.3)

    # Plot 4: Peak timing comparison
    ax4 = axes[3]
    storm_names = []
    peak_hours = []
    peak_values = []

    for name, hyeto in storms.items():
        storm_names.append(name.replace('Atlas14_', 'A14_').replace('ScsType_', 'SCS_').replace('StormGen_', 'AB_'))
        # Find peak - all DataFrames now
        peak_idx = hyeto['incremental_depth'].idxmax()
        peak_hours.append(hyeto.loc[peak_idx, 'hour'])
        peak_values.append(hyeto.loc[peak_idx, 'incremental_depth'])

    colors_bar = ['steelblue' if 'A14' in n else ('darkgreen' if 'SCS' in n else 'coral') for n in storm_names]
    ax4.barh(range(len(storm_names)), peak_hours, color=colors_bar, alpha=0.7)
    ax4.set_yticks(range(len(storm_names)))
    ax4.set_yticklabels(storm_names, fontsize=8)
    ax4.set_xlabel('Peak Hour')
    ax4.set_title('Peak Timing Comparison', fontweight='bold')
    ax4.grid(True, alpha=0.3, axis='x')

    plt.suptitle(f'{viz_aep.upper()} Storm Suite ({AEP_SUITE[viz_aep]["depth_inches"]} inches - All Methods)',
                 fontsize=14, fontweight='bold')
    plt.tight_layout()
    plt.show()
else:
    print(f"No storms available for {viz_aep}")

png

Python
# =============================================================================
# 2.3 Storm Matrix Summary Table
# =============================================================================

print("\n" + "="*80)
print("STORM MATRIX SUMMARY")
print("="*80)

# Build summary dataframe
rows = []
for aep_name, storms in storms_suite.items():
    for storm_name, hyeto in storms.items():
        # All methods now return DataFrame with standard columns
        total_depth = float(hyeto['cumulative_depth'].iloc[-1])
        peak_intensity = float(hyeto['incremental_depth'].max())
        peak_idx = hyeto['incremental_depth'].idxmax()
        peak_hour = float(hyeto.loc[peak_idx, 'hour'])
        steps = len(hyeto)

        # Calculate time interval from hour column spacing
        if len(hyeto) > 1:
            time_step_hr = float(hyeto['hour'].iloc[1] - hyeto['hour'].iloc[0])
        else:
            time_step_hr = 1.0  # Default for single-value case

        rows.append({
            'AEP': aep_name,
            'Storm Type': storm_name,
            'Total Depth (in)': total_depth,
            'Peak Interval Depth (in)': peak_intensity,
            'Peak Hour': peak_hour,
            'Steps': steps,
            'Interval (hr)': time_step_hr
        })

storm_summary_df = pd.DataFrame(rows)

# Display summary
print("\nStorm Suite Summary:")
display(storm_summary_df.pivot_table(
    values=['Total Depth (in)', 'Peak Interval Depth (in)', 'Peak Hour'],
    index='Storm Type',
    columns='AEP',
    aggfunc='first'
))

print(f"\nTotal unique storm configurations: {len(storm_summary_df)}")
Text Only
================================================================================
STORM MATRIX SUMMARY
================================================================================

Storm Suite Summary:
Peak Hour Peak Interval Depth (in) Total Depth (in)
AEP 100yr 10yr 50yr 100yr 10yr 50yr 100yr 10yr 50yr
Storm Type
Atlas14_AllCases 4.0000 4.0000 4.0000 0.9690 0.3956 0.6612 17.0000 6.9400 11.6000
Atlas14_FirstQ 3.0000 3.0000 3.0000 2.2950 0.9369 1.5660 17.0000 6.9400 11.6000
Atlas14_FourthQ 21.0000 21.0000 21.0000 1.9601 0.8002 1.3375 17.0000 6.9400 11.6000
Atlas14_SecondQ 10.0000 10.0000 10.0000 1.7731 0.7238 1.2099 17.0000 6.9400 11.6000
Atlas14_ThirdQ 16.0000 16.0000 16.0000 1.7408 0.7107 1.1878 17.0000 6.9400 11.6000
ScsType_I 10.0000 10.0000 10.0000 4.4370 1.8113 3.0276 17.0000 6.9400 11.6000
ScsType_IA 8.0000 8.0000 8.0000 2.6690 1.0896 1.8212 17.0000 6.9400 11.6000
ScsType_II 12.0000 12.0000 12.0000 7.2760 2.9703 4.9648 17.0000 6.9400 11.6000
ScsType_III 12.0000 12.0000 12.0000 4.2500 1.7350 2.9000 17.0000 6.9400 11.6000
StormGen_AB50 13.0000 13.0000 13.0000 7.8520 3.2055 5.3578 17.0000 6.9400 11.6000
Text Only
Total unique storm configurations: 30

Write and read back area precipitation tables

The Davis template contains an area2 precipitation hydrograph. Use the public set_precipitation_hyetograph() writer; do not create unsupported meteorology modes such as Hydrograph or Hyetograph. Native Precipitation Mode=Disable controls global meteorology and is retained while editing the separate legacy area precipitation table. The HEC boundary-condition manual distinguishes area precipitation and global meteorological forcing.

Readback verifies values to the native two-decimal precision. It does not alone prove the solver consumed rainfall; the selected-pair calculation and output inspection follow.

Python
template_path = RasExamples.extract_project(PROJECT_NAME, output_path=WORKING_DIR, suffix="template")
template_ras = init_ras_project(template_path, RAS_VERSION, ras_object="new", hide_intro=True)
print(template_ras.plan_df[["plan_number", "Plan Title", "unsteady_number"]].to_string(index=False))
storm_projects = {}
authoring_rows = []
for aep_name, storms in storms_suite.items():
    project_path = WORKING_DIR / f"Davis_{aep_name}"
    shutil.copytree(template_path, project_path)
    project = init_ras_project(project_path, RAS_VERSION, ras_object="new", hide_intro=True)
    template_unsteady = project.plan_df.loc[project.plan_df.plan_number == TEMPLATE_PLAN, "unsteady_number"].iloc[0]
    storm_projects[aep_name] = {"path": project_path, "ras": project, "plans": {}}
    for storm_name, hyeto in storms.items():
        # The unchanged Davis plan lasts 36 hours: append an explicit dry tail.
        step_hr = float(hyeto.hour.iloc[1] - hyeto.hour.iloc[0])
        tail_hours = np.arange(float(hyeto.hour.iloc[-1]) + step_hr, 36.0 + step_hr / 2, step_hr)
        tail = pd.DataFrame({"hour": tail_hours, "incremental_depth": 0.0,
                             "cumulative_depth": float(hyeto.cumulative_depth.iloc[-1])})
        hyeto = pd.concat([hyeto, tail], ignore_index=True)
        plan_num = RasPlan.clone_plan(TEMPLATE_PLAN, new_title=storm_name[:32], ras_object=project)
        unsteady_num = RasPlan.clone_unsteady(template_unsteady, new_title=f"{aep_name} {storm_name}"[:32], ras_object=project)
        RasPlan.set_unsteady(plan_num, unsteady_num, ras_object=project)
        unsteady = Path(project.unsteady_df.loc[project.unsteady_df.unsteady_number == unsteady_num, "full_path"].iloc[0])
        native_met = RasUnsteady.get_met_precipitation_config(unsteady, ras_object=project)
        RasUnsteady.set_precipitation_hyetograph(unsteady, hyeto, boundary_name="area2", ras_object=project)
        # Legacy area precipitation is separate from global meteorology. Preserve native state.
        assert RasUnsteady.get_met_precipitation_config(unsteady, ras_object=project) == native_met
        parsed = RasUnsteady.extract_tables(unsteady, ras_object=project)["Precipitation Hydrograph="]["Value"]
        assert len(parsed) == len(hyeto) + 1 and parsed.iloc[0] == 0
        np.testing.assert_allclose(np.cumsum(parsed.to_numpy())[1:], hyeto.cumulative_depth.to_numpy(), rtol=0, atol=0.00501)
        csv_path = project_path / f"hyetograph_{storm_name}.csv"
        hyeto.to_csv(csv_path, index=False)
        storm_projects[aep_name]["plans"][storm_name] = {
            "plan_number": plan_num, "unsteady_file": unsteady,
            "hyetograph": hyeto, "written_depth_inches": float(parsed.sum()),
        }
        authoring_rows.append({"AEP": aep_name, "method": storm_name, "plan": plan_num,
            "input_depth_in": float(hyeto.incremental_depth.sum()), "written_depth_in": float(parsed.sum()),
            "interval_minutes": float(hyeto.hour.iloc[1] - hyeto.hour.iloc[0]) * 60,
            "global_meteorology_enabled": native_met["enabled"]})
authoring_df = pd.DataFrame(authoring_rows)
assert len(authoring_df) == 30
print("All 30 stage-independent precipitation tables passed public-API readback.")
display(authoring_df)
print("Cumulative rounding bounds total-depth error to 0.005 inch; table includes a zero-time anchor.")
Text Only
2026-09-26 19:12:47 - ras_commander.RasExamples - INFO - Successfully extracted project 'Davis' to Davis_template


2026-09-26 19:12:47 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


plan_number                Plan Title unsteady_number
         02 Full System ROM with Pump              01


2026-09-26 19:12:48 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:48 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:48 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:48 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:48 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u02: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u03: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:49 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:50 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:50 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:50 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:50 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:50 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u04: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:50 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:50 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:50 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:50 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:50 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u05: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:51 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u06: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:52 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u07: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:12:53 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u08: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u09: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:12:54 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u10: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 11 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:12:55 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 11 because hdf is the selected result format


2026-09-26 19:12:56 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u11: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=6.940000, serialized depth=6.94


2026-09-26 19:12:56 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:56 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:56 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:56 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:56 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u02: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u03: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:57 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u04: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u05: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:58 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u06: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:12:59 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u07: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u08: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:00 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u09: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:01 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u10: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 11 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 11 because hdf is the selected result format


2026-09-26 19:13:02 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u11: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=11.600000, serialized depth=11.60


2026-09-26 19:13:03 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:03 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:03 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:03 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:03 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:03 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u02: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


2026-09-26 19:13:03 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:03 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:03 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u03: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:04 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u04: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u05: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:05 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u06: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:06 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u07: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u08: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:07 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u09: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:08 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u10: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:13:09 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 11 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 02 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 01 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 03 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 04 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 05 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 06 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 07 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 08 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 09 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 10 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasPrj - WARNING - Skipping HDF results summary for plan 11 because hdf is the selected result format


2026-09-26 19:13:10 - ras_commander.RasUnsteady - INFO - Updated Precipitation Hydrograph in DavisStormSystem.u11: 37 ordinates including time-zero anchor, interval=1HOUR, input depth=17.000000, serialized depth=17.00


All 30 stage-independent precipitation tables passed public-API readback.
AEP method plan input_depth_in written_depth_in interval_minutes global_meteorology_enabled
0 10yr Atlas14_FirstQ 01 6.9400 6.9400 60.0000 False
1 10yr Atlas14_SecondQ 03 6.9400 6.9400 60.0000 False
2 10yr Atlas14_ThirdQ 04 6.9400 6.9400 60.0000 False
3 10yr Atlas14_FourthQ 05 6.9400 6.9400 60.0000 False
4 10yr Atlas14_AllCases 06 6.9400 6.9400 60.0000 False
5 10yr ScsType_I 07 6.9400 6.9400 60.0000 False
6 10yr ScsType_IA 08 6.9400 6.9400 60.0000 False
7 10yr ScsType_II 09 6.9400 6.9400 60.0000 False
8 10yr ScsType_III 10 6.9400 6.9400 60.0000 False
9 10yr StormGen_AB50 11 6.9400 6.9400 60.0000 False
10 50yr Atlas14_FirstQ 01 11.6000 11.6000 60.0000 False
11 50yr Atlas14_SecondQ 03 11.6000 11.6000 60.0000 False
12 50yr Atlas14_ThirdQ 04 11.6000 11.6000 60.0000 False
13 50yr Atlas14_FourthQ 05 11.6000 11.6000 60.0000 False
14 50yr Atlas14_AllCases 06 11.6000 11.6000 60.0000 False
15 50yr ScsType_I 07 11.6000 11.6000 60.0000 False
16 50yr ScsType_IA 08 11.6000 11.6000 60.0000 False
17 50yr ScsType_II 09 11.6000 11.6000 60.0000 False
18 50yr ScsType_III 10 11.6000 11.6000 60.0000 False
19 50yr StormGen_AB50 11 11.6000 11.6000 60.0000 False
20 100yr Atlas14_FirstQ 01 17.0000 17.0000 60.0000 False
21 100yr Atlas14_SecondQ 03 17.0000 17.0000 60.0000 False
22 100yr Atlas14_ThirdQ 04 17.0000 17.0000 60.0000 False
23 100yr Atlas14_FourthQ 05 17.0000 17.0000 60.0000 False
24 100yr Atlas14_AllCases 06 17.0000 17.0000 60.0000 False
25 100yr ScsType_I 07 17.0000 17.0000 60.0000 False
26 100yr ScsType_IA 08 17.0000 17.0000 60.0000 False
27 100yr ScsType_II 09 17.0000 17.0000 60.0000 False
28 100yr ScsType_III 10 17.0000 17.0000 60.0000 False
29 100yr StormGen_AB50 11 17.0000 17.0000 60.0000 False
Text Only
Cumulative rounding bounds total-depth error to 0.005 inch; table includes a zero-time anchor.

Compute the selected pair

Every compute goes through RasCmdr.compute_plan() with fresh-result inspection. A successful launcher is not treated as a hydraulic acceptance decision. Existing model geometry, losses, boundary conditions and the 36-hour simulation window are retained for this bounded comparison.

Python
from datetime import timezone
from ras_commander.hdf import HdfResultsMesh
execution_records = []
computed = {}
for aep_name, project_info in storm_projects.items():
    project = project_info["ras"]
    for storm_name, plan_info in project_info["plans"].items():
        if COMPUTE_CASES is not None and (aep_name, storm_name) not in COMPUTE_CASES:
            continue
        longest = max(len(str(path.resolve())) for path in project_info["path"].rglob("*") if path.is_file())
        assert longest <= 240, f"HEC-RAS path exceeds workspace budget: {longest}"
        started = datetime.now(timezone.utc)
        result = RasCmdr.compute_plan(
            plan_info["plan_number"], ras_object=project,
            num_cores=NUM_CORES, force_rerun=True, verify=True, max_runtime=900,
            hdf_output_variables=["Cell Precipitation Rate", "Cell Cumulative Precipitation"],
        )
        evidence = RasCmdr.inspect_execution_evidence(
            plan_info["plan_number"], ras_object=project, result_modified_after=started, hash_files=True
        )
        errors = evidence.observations["message_error_count"]
        print(f"{aep_name}/{storm_name}: success={result.success}; completion={evidence.mechanical_completion.value}; errors={errors.value}")
        print(result.execution_details)
        assert result.success and evidence.mechanical_completion.value is True
        assert errors.state == "available" and errors.value == 0
        row = project.plan_df.loc[project.plan_df.plan_number == plan_info["plan_number"]].iloc[0]
        hdf = Path(row["HDF_Results_Path"])
        computed[(aep_name, storm_name)] = {"hdf": hdf, "project": project, "info": plan_info}
        execution_records.append({"AEP": aep_name, "method": storm_name, "plan": plan_info["plan_number"],
            "mechanical_completion": evidence.mechanical_completion.value, "message_errors": errors.value,
            "source": str(hdf), "started_utc": started.isoformat()})
execution_df = pd.DataFrame(execution_records)
display(execution_df)
assert len(computed) == (30 if COMPUTE_CASES is None else len(COMPUTE_CASES))
Text Only
2026-09-26 19:13:10 - ras_commander.RasPlan - INFO - Added HDF output variable 'Cell Precipitation Rate' to plan file: DavisStormSystem.p06


2026-09-26 19:13:10 - ras_commander.RasPlan - INFO - Added HDF output variable 'Cell Cumulative Precipitation' to plan file: DavisStormSystem.p06


2026-09-26 19:18:25 - ras_commander.ExecutionEvidence - INFO - Inspected execution evidence for plan 06 read-only: completion=True, conflicts=0


2026-09-26 19:18:25 - ras_commander.RasPlan - INFO - Added HDF output variable 'Cell Precipitation Rate' to plan file: DavisStormSystem.p11


2026-09-26 19:18:25 - ras_commander.RasPlan - INFO - Added HDF output variable 'Cell Cumulative Precipitation' to plan file: DavisStormSystem.p11


10yr/Atlas14_AllCases: success=True; completion=True; errors=0
{'execution_api': 'ras_cmdr', 'engine_kind': 'executable', 'selected_result_format': 'hdf', 'calculation_attempted': True, 'solver_quiescence_confirmed': True, 'result_artifacts_finalized': True, 'actual_engine_provenance_confirmed': True, 'selected_executable_path': 'C:\\Program Files (x86)\\HEC\\HEC-RAS\\7.0\\Ras.exe', 'selected_executable_sha256': '9990c10531221469bf51a9a62ae91f36ec01e651bed83aadf632e678130ae797', 'launcher_pid': 1184, 'launcher_create_time': 1790464392.8134613, 'launcher_returncode': 0, 'max_runtime_seconds': 900.0, 'launch_details': {'plan_number': '06', 'command': '"C:\\Program Files (x86)\\HEC\\HEC-RAS\\7.0\\Ras.exe" -c "C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.prj" "C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.p06"', 'executable_path': 'C:\\Program Files (x86)\\HEC\\HEC-RAS\\7.0\\Ras.exe', 'executable_sha256': '9990c10531221469bf51a9a62ae91f36ec01e651bed83aadf632e678130ae797', 'project_path': 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.prj', 'plan_path': 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.p06', 'working_directory': 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr', 'launcher_pid': 1184, 'launcher_create_time': 1790464392.8134613, 'max_runtime_seconds': 900.0}, 'runtime_timed_out': False, 'failure_stage': None, 'failure_type': None, 'failure_detail': None, 'cancellation_details': None, 'artifact_preparation_cleanup': {'plan_number': '06', 'result_format': 'legacy', 'include_message_sidecars': True, 'removed_paths': [], 'missing_paths': ['C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.O06', 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.p06.comp_msgs.txt', 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.p06.computeMsgs.txt', 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.bco06']}, 'artifact_finalization_cleanup': {'plan_number': '06', 'result_format': 'legacy', 'include_message_sidecars': False, 'removed_paths': [], 'missing_paths': ['C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.O06']}, 'artifact_finalization_failure': None}


2026-09-26 19:25:50 - ras_commander.ExecutionEvidence - INFO - Inspected execution evidence for plan 11 read-only: completion=True, conflicts=0


10yr/StormGen_AB50: success=True; completion=True; errors=0
{'execution_api': 'ras_cmdr', 'engine_kind': 'executable', 'selected_result_format': 'hdf', 'calculation_attempted': True, 'solver_quiescence_confirmed': True, 'result_artifacts_finalized': True, 'actual_engine_provenance_confirmed': True, 'selected_executable_path': 'C:\\Program Files (x86)\\HEC\\HEC-RAS\\7.0\\Ras.exe', 'selected_executable_sha256': '9990c10531221469bf51a9a62ae91f36ec01e651bed83aadf632e678130ae797', 'launcher_pid': 26572, 'launcher_create_time': 1790464705.8859887, 'launcher_returncode': 0, 'max_runtime_seconds': 900.0, 'launch_details': {'plan_number': '11', 'command': '"C:\\Program Files (x86)\\HEC\\HEC-RAS\\7.0\\Ras.exe" -c "C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.prj" "C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.p11"', 'executable_path': 'C:\\Program Files (x86)\\HEC\\HEC-RAS\\7.0\\Ras.exe', 'executable_sha256': '9990c10531221469bf51a9a62ae91f36ec01e651bed83aadf632e678130ae797', 'project_path': 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.prj', 'plan_path': 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.p11', 'working_directory': 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr', 'launcher_pid': 26572, 'launcher_create_time': 1790464705.8859887, 'max_runtime_seconds': 900.0}, 'runtime_timed_out': False, 'failure_stage': None, 'failure_type': None, 'failure_detail': None, 'cancellation_details': None, 'artifact_preparation_cleanup': {'plan_number': '11', 'result_format': 'legacy', 'include_message_sidecars': True, 'removed_paths': [], 'missing_paths': ['C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.O11', 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.p11.comp_msgs.txt', 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.p11.computeMsgs.txt', 'C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.bco11']}, 'artifact_finalization_cleanup': {'plan_number': '11', 'result_format': 'legacy', 'include_message_sidecars': False, 'removed_paths': [], 'missing_paths': ['C:\\Users\\billk_clb\\.codex\\workspaces\\ras-docs-priority-20260926\\working\\721\\20260926T191243\\Davis_10yr\\DavisStormSystem.O11']}, 'artifact_finalization_failure': None}
AEP method plan mechanical_completion message_errors source started_utc
0 10yr Atlas14_AllCases 06 True 0 C:\Users\billk_clb\.codex\workspaces\ras-docs-... 2026-09-26T23:13:10.675187+00:00
1 10yr StormGen_AB50 11 True 0 C:\Users\billk_clb\.codex\workspaces\ras-docs-... 2026-09-26T23:18:25.569571+00:00

Inspect effective forcing and volume accounting

The API accepts interval-end depths with or without an explicit zero-depth row at hour zero. It writes exactly one zero-time ordinate. The native value at each subsequent time is depth for the preceding interval, as specified in the HEC-RAS User's Manual. The test below compares all positive-rain cells and all 217 saved timestamps against the serialized mass curve, not merely the final total or a nonzero peak.

Postprocessing was rerun against the retained HDF/CSV files to finalize the diagnostic plot and source provenance. No additional solver runs were made.

Python
# Inspect solver-written rainfall and enforce a separate forcing qualification gate.
forcing_rows = []
maxima = {}
effective_curves = {}
for (aep, method), item in computed.items():
    rates = HdfResultsMesh.get_mesh_timeseries(item["hdf"], mesh_name="area2", var="Cell Precipitation Rate", truncate=False)
    cumulative = HdfResultsMesh.get_mesh_timeseries(item["hdf"], mesh_name="area2", var="Cell Cumulative Precipitation Depth", truncate=False)
    assert rates.attrs["units"] == "in/hr" and cumulative.attrs["units"] == "in"
    assert np.isfinite(rates.values).all() and float(rates.max()) > 0
    # Report the positive native-cell totals separately from cells receiving zero rain.
    final = cumulative.isel(time=-1).values
    positive = final[final > 0]
    assert positive.size
    intended = float(item["info"]["hyetograph"].incremental_depth.sum())
    written = item["info"]["written_depth_inches"]
    # Check the complete positive-cell cumulative curve at native output times.
    hyeto = item["info"]["hyetograph"]
    native_hours = (cumulative.time.values - cumulative.time.values[0]) / np.timedelta64(1, "h")
    serialized_cumulative = np.r_[0.0, np.rint(hyeto.cumulative_depth.to_numpy() * 100) / 100]
    expected_curve = np.interp(native_hours, np.r_[0.0, hyeto.hour.to_numpy()], serialized_cumulative)
    active_curves = cumulative.values[:, final > 0]
    curve_error = float(np.max(np.abs(active_curves - expected_curve[:, None])))
    qualified = bool(np.allclose(positive, written, rtol=0, atol=1e-5)
                     and abs(written - intended) <= 0.00501 and curve_error <= 1e-5)
    effective_curves[(aep, method)] = cumulative.max(dim="cell_id")
    maxima[(aep, method)] = HdfResultsMesh.get_mesh_max_ws(item["hdf"])
    print(f"{aep}/{method}: {rates.shape}; units={rates.attrs['units']}; native window={rates.time.values[0]} to {rates.time.values[-1]}")
    print(f"Native positive-rain cells={positive.size}; zero-rain cells={(final == 0).sum()}")
    print("Volume accounting (recorded, without applying a universal acceptance threshold):")
    display(HdfResultsPlan.get_volume_accounting(item["hdf"]))
    forcing_rows.append({"AEP": aep, "method": method, "plan": item["info"]["plan_number"],
        "input_depth_in": intended, "written_depth_in": written,
        "native_positive_cell_min_in": float(positive.min()), "native_positive_cell_max_in": float(positive.max()),
        "native_minus_written_in": float(positive.max()) - written,
        "max_cumulative_curve_error_in": curve_error, "forcing_qualified": qualified, "peak_rate_in_hr": float(rates.max()),
        "peak_WSE_ft_unqualified": float(maxima[(aep, method)].maximum_water_surface.max())})
assert set(effective_curves) == set(computed)
assert set(maxima) == set(computed)
forcing_df = pd.DataFrame(forcing_rows)
assert not forcing_df.duplicated(["AEP", "method"]).any()
display(forcing_df)
forcing_qualified = bool(forcing_df.forcing_qualified.all())
print("Forcing qualification:", "PASS" if forcing_qualified else "FAIL: depth or interval timing disagreement; hydraulic ranking withheld.")
Text Only
10yr/Atlas14_AllCases: (217, 2941); units=in/hr; native window=2000-01-10T12:00:00.000000000 to 2000-01-12T00:00:00.000000000
Native positive-rain cells=2705; zero-rain cells=236
Volume accounting (recorded, without applying a universal acceptance threshold):
Error Error Percent Precipitation Excess (acre feet) Precipitation Excess (inches) Total Boundary Flux of Water In Total Boundary Flux of Water Out Vol Accounting in Volume Ending Volume Starting
0 -0.115462 0.014024 823.297668 6.864957 823.297668 203.170807 Acre Feet 620.011414 0.0
Text Only
10yr/StormGen_AB50: (217, 2941); units=in/hr; native window=2000-01-10T12:00:00.000000000 to 2000-01-12T00:00:00.000000000
Native positive-rain cells=2705; zero-rain cells=236
Volume accounting (recorded, without applying a universal acceptance threshold):
Error Error Percent Precipitation Excess (acre feet) Precipitation Excess (inches) Total Boundary Flux of Water In Total Boundary Flux of Water Out Vol Accounting in Volume Ending Volume Starting
0 0.115458 0.014024 823.297668 6.864957 823.297668 183.548462 Acre Feet 639.864685 0.0
AEP method plan input_depth_in written_depth_in native_positive_cell_min_in native_positive_cell_max_in native_minus_written_in max_cumulative_curve_error_in forcing_qualified peak_rate_in_hr peak_WSE_ft_unqualified
0 10yr Atlas14_AllCases 06 6.94 6.94 6.94 6.94 -4.196167e-07 5.976359e-07 True 0.4 53.372066
1 10yr StormGen_AB50 11 6.94 6.94 6.94 6.94 -4.196167e-07 6.866455e-07 True 3.2 53.588860
Text Only
Forcing qualification: PASS

Compare input and effective cumulative rainfall

Python
fig, ax = plt.subplots(figsize=(10, 5), layout="constrained")
for (aep, method), item in computed.items():
    hyeto = item["info"]["hyetograph"]
    ax.plot(np.r_[0.0, hyeto.hour], np.r_[0.0, hyeto.cumulative_depth], linestyle="--", marker="o", markersize=3, label=f"{aep}/{method}: input interval ends")
    native = effective_curves[(aep, method)]
    hours = (native.time.values - native.time.values[0]) / np.timedelta64(1, "h")
    ax.plot(hours, native.values, label=f"{aep}/{method}: native max across cells")
ax.set(xlabel="Hours from simulation start", ylabel="Cumulative precipitation (in)",
       title="Forcing diagnostic: intended versus solver-written rainfall")
ax.legend(); ax.grid(alpha=0.3); plt.show()
if not forcing_qualified:
    print("Hydraulic comparison withheld: reconcile the depth/timing mismatch before comparing equal-depth storms.")
else:
    print("Depth agreement alone does not qualify the model hydraulically; review local results and numerical diagnostics.")

png

Text Only
Depth agreement alone does not qualify the model hydraulically; review local results and numerical diagnostics.

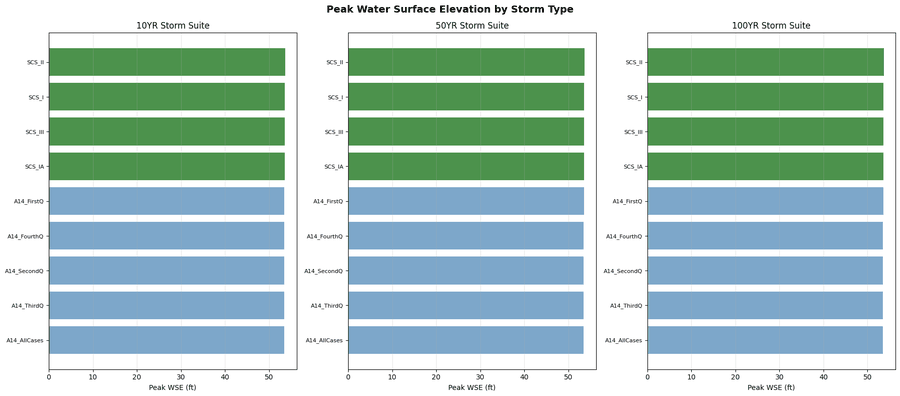

Interpretation and qualification limits

The prior September 26 run serialized 6.96/6.95 inches and produced 6.74/6.89 inches for Atlas14_AllCases/StormGen_AB50. Retained hourly native cumulative values matched the sum of serialized ordinates after the first one, within 0.000001 inch. The first table value was at the boundary start, rather than the end of the first precipitation interval. The shared writer now supplies that zero-depth start ordinate, accepts an existing zero anchor without adding another, and rounds cumulative depths before differencing.

This run retains the 36-hour January 10, 2000 12:00 to January 12, 2000 00:00 window, 24-hour hourly storm and explicit dry tail. The fresh table reports generated, serialized and native positive-cell totals in inches, plus maximum curve error over native ten-minute outputs. Zero-rain cells are reported separately. Passing this bounded forcing check does not establish calibration, numerical convergence or design suitability.

The correction bounds cumulative serialization error to 0.005 inch; individual increments can change by up to 0.01 inch. Check other HEC-RAS versions, SI units, fixed-start boundaries, subhourly storms and models with infiltration separately. No regional design recommendation or hydraulic ranking is claimed. The other 28 cases were authored and read back but uncomputed.

All generated CSV, model and result files remain under the printed working directory. Related examples: 720, 723, and 725.
