Cloud Optimized GeoTIFF Results Export with ras2cng¶

Generate result rasters (WSE, Depth, Velocity, Froude, Shear Stress, DxV) from HEC-RAS simulations, convert to Cloud Optimized GeoTIFF (COG), and optionally build raster PMTiles — all using ras2cng and its generate_result_maps() function backed by RasStoreMapHelper.exe.

Python

#!pip install --upgrade ras-commander ras2cng rasterio matplotlib

Python

USE_LOCAL_SOURCE = False

if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path
    local_path = str(Path.cwd().parent)
    if local_path not in sys.path:
        sys.path.insert(0, local_path)
    print(f"LOCAL SOURCE MODE: Loading from {local_path}/ras_commander")
else:
    print("PIP PACKAGE MODE: Loading installed ras-commander")

from ras_commander import RasExamples, init_ras_project, RasCmdr, ras
from pathlib import Path
import numpy as np

import ras_commander
print(f"ras-commander: {ras_commander.__file__}")

import ras2cng
print(f"ras2cng: {ras2cng.__file__}")

Text Only

PIP PACKAGE MODE: Loading installed ras-commander


2026-06-11 14:52:30 - numexpr.utils - INFO - NumExpr defaulting to 8 threads.


ras-commander: <repo>\ras_commander\__init__.py


ras2cng: <symphony-dev>\Lib\site-packages\ras2cng\__init__.py

Prerequisites¶

ras-commander installed: pip install ras-commander
ras2cng installed: pip install ras2cng
HEC-RAS installed (Windows): RasStoreMapHelper.exe generates the rasters
rasterio installed: pip install rasterio (for raster inspection and display)
matplotlib installed: pip install matplotlib (for raster visualization)
Optional: GDAL CLI for COG conversion (gdal_translate)

What You'll Learn¶

Generate result rasters from completed HEC-RAS simulations
Produce WSE, Depth, Velocity, Froude, Shear Stress, and DxV raster layers
Convert rasters to Cloud Optimized GeoTIFF (COG) format
Inspect and display raster results in the notebook
Understand the 11 available map types and when to use each

How It Works¶

ras2cng's generate_result_maps() function wraps RasProcess.store_maps(), which deploys HEC-RAS's native RasStoreMapHelper.exe to render simulation results to GeoTIFF rasters. This is the same engine HEC-RAS uses internally — output matches native HEC-RAS exactly.

960_cloud_native_geometry_export.ipynb — Export geometry to GeoParquet (no HEC-RAS required)
961_cloud_native_results_export.ipynb — Export vector results to GeoParquet with DuckDB
601_floodplain_mapping_rasprocess.ipynb — RasProcess.store_maps() directly (lower-level API)

Parameters¶

Python

PROJECT_NAME = "BaldEagleCrkMulti2D"
RAS_VERSION = "6.6"
OUTPUT_DIR = Path("out/962_cloud_native_cog").resolve()
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)

Available Map Types¶

ras2cng supports 11 result raster types via the generate_result_maps() function:

Map Type	Parameter	Default	Description
Water Surface Elevation	`wse`	On	Absolute water surface elevation
Depth	`depth`	On	Water depth above ground
Velocity	`velocity`	On	Flow velocity magnitude
Froude Number	`froude`	Off	Subcritical/supercritical classification
Shear Stress	`shear_stress`	Off	Bed shear stress
Depth x Velocity	`depth_x_velocity`	Off	Hazard index (DxV)
Depth x Velocity²	`depth_x_velocity_sq`	Off	Force proxy (DxV²)
Inundation Boundary	`inundation_boundary`	Off	Flood extent polygon (shapefile)
Arrival Time	`arrival_time`	Off	Time water first arrives
Duration	`duration`	Off	Time area stays wet
Recession	`recession`	Off	Time water recedes

WSE, Depth, and Velocity are enabled by default. Toggle others on/off as needed.

Example 1: Core Result Rasters (WSE, Depth, Velocity)¶

Extract a project, run a simulation, then generate the three default result rasters as Cloud Optimized GeoTIFFs.

Extract and Initialize Project¶

Python

project_path = RasExamples.extract_project(PROJECT_NAME)
ras_obj = init_ras_project(project_path, RAS_VERSION)

print(f"Project: {project_path}")
print(f"Plans: {len(ras.plan_df)}")
print(f"Geometries: {len(ras.geom_df)}")
ras.plan_df[['plan_number', 'Plan Title', 'Geom File']].head()

Text Only

2026-06-11 14:52:34 - ras_commander.RasExamples - INFO - Successfully extracted project 'BaldEagleCrkMulti2D' to <repo>\examples\example_projects\BaldEagleCrkMulti2D


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 7.0 at <hec-ras-install>\7.0\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 5 at <hec-ras-install>\6.7 Beta 5\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 4 at <hec-ras-install>\6.7 Beta 4\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.6 at <hec-ras-install>\6.6\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.5 at <hec-ras-install>\6.5\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.4.1 at <hec-ras-install>\6.4.1\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3.1 at <hec-ras-install>\6.3.1\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3 at <hec-ras-install>\6.3\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.2 at <hec-ras-install>\6.2\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.1 at <hec-ras-install>\6.1\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.0 at <hec-ras-install>\6.0\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.7 at <hec-ras-install>\5.0.7\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.6 at <hec-ras-install>\5.0.6\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.5 at <hec-ras-install>\5.0.5\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.4 at <hec-ras-install>\5.0.4\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.3 at <hec-ras-install>\5.0.3\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.1 at <hec-ras-install>\5.0.1\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0 at <hec-ras-install>\5.0\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.1.0 at <hec-ras-install>\4.1.0\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.0 at <hec-ras-install>\4.0\Ras.exe via filesystem (x86)


2026-06-11 14:52:34 - ras_commander.RasUtils - INFO - Discovered 20 installed HEC-RAS version(s)


2026-06-11 14:52:34 - ras_commander.RasPrj - INFO - HEC-RAS 6.6 found via version discovery: <hec-ras-install>\6.6\Ras.exe


2026-06-11 14:52:34 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <repo>\examples\example_projects\BaldEagleCrkMulti2D\BaldEagleDamBrk.rasmap


2026-06-11 14:52:34 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 14:52:34 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <repo>\examples\example_projects\BaldEagleCrkMulti2D


2026-06-11 14:52:34 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.6\Ras.exe


2026-06-11 14:52:34 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


Project: <repo>\examples\example_projects\BaldEagleCrkMulti2D
Plans: 11
Geometries: 10

	plan_number	Plan Title	Geom File
0	13	PMF with Multi 2D Areas	06
1	15	1d-2D Dambreak Refined Grid	08
2	17	2D to 1D No Dam	10
3	18	2D to 2D Run	11
4	19	SA to 2D Dam Break Run	12

Run Simulation¶

Execute the first plan to generate results HDF files. Smart skip avoids re-running if results are current.

Python

plan_number = ras.plan_df['plan_number'].iloc[0]
print(f"Running plan {plan_number}...")

try:
    RasCmdr.compute_plan(plan_number)
    print(f"Plan {plan_number} completed.")
except Exception as e:
    print(f"Execution failed: {e}")
    print("Continuing with any existing HDF files...")

Text Only

2026-06-11 14:52:34 - ras_commander.RasCmdr - INFO - Using ras_object with project folder: <repo>\examples\example_projects\BaldEagleCrkMulti2D


2026-06-11 14:52:34 - ras_commander.RasCmdr - INFO - Running HEC-RAS from the Command Line:


2026-06-11 14:52:34 - ras_commander.RasCmdr - INFO - Running command: "<hec-ras-install>\6.6\Ras.exe" -c "<repo>\examples\example_projects\BaldEagleCrkMulti2D\BaldEagleDamBrk.prj" "<repo>\examples\example_projects\BaldEagleCrkMulti2D\BaldEagleDamBrk.p13"


2026-06-11 14:52:34 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog started — polling every 1.5s for RAS dialog windows


Running plan 13...


2026-06-11 14:55:37 - ras_commander.RasCmdr - INFO - HEC-RAS execution completed for plan: 13


2026-06-11 14:55:37 - ras_commander.RasCmdr - INFO - Total run time for plan 13: 182.40 seconds


2026-06-11 14:55:37 - ras_commander.RasDialogWatchdog - INFO - DialogWatchdog stopped — no dialogs encountered


Plan 13 completed.

Python

plan_hdfs = sorted(project_path.glob("*.p??.hdf"))
print(f"Plan HDF files: {[f.name for f in plan_hdfs]}")

if not plan_hdfs:
    print("\nNo plan HDF files found. HEC-RAS must run successfully to generate result rasters.")
else:
    for hdf in plan_hdfs:
        print(f"  {hdf.name}: {hdf.stat().st_size / 1e6:.1f} MB")

Text Only

Plan HDF files: ['BaldEagleDamBrk.p13.hdf']
  BaldEagleDamBrk.p13.hdf: 17.8 MB

Generate Result Rasters¶

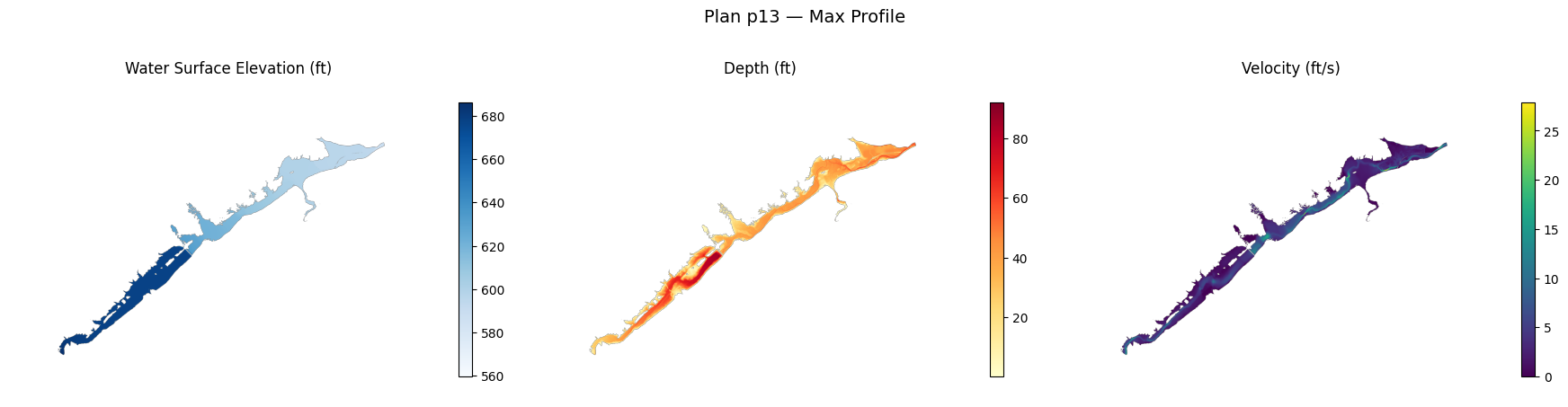

Use generate_result_maps() to produce WSE, Depth, and Velocity rasters with COG conversion enabled. Under the hood this calls RasProcess.store_maps() with RasStoreMapHelper.exe.

Python

from ras2cng import generate_result_maps, MapResult

core_output = OUTPUT_DIR / "core_maps"

if plan_hdfs:
    results = generate_result_maps(
        project_path,
        core_output,
        plans=[f"p{plan_number}"],
        profile="Max",
        wse=True,
        depth=True,
        velocity=True,
        ras_version=RAS_VERSION,
        convert_cog=True,
    )

    print(f"\nGenerated {len(results)} plan result(s):")
    for r in results:
        print(f"  Plan {r.plan_id}:")
        for map_type, paths in r.map_types.items():
            for p in paths:
                print(f"    {map_type}: {p.name} ({p.stat().st_size / 1e6:.1f} MB)")
        if r.errors:
            print(f"    Errors: {r.errors}")
else:
    print("No HDF files available — skipping raster generation.")
    results = []

Text Only

ras2cng map -> <repo>\examples\out\962_cloud_native_cog\core_maps

  Project : BaldEagleDamBrk.prj

  Profile : Max

Text Only

2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 7.0 at <hec-ras-install>\7.0\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 5 at <hec-ras-install>\6.7 Beta 5\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 4 at <hec-ras-install>\6.7 Beta 4\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.6 at <hec-ras-install>\6.6\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.5 at <hec-ras-install>\6.5\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.4.1 at <hec-ras-install>\6.4.1\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3.1 at <hec-ras-install>\6.3.1\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3 at <hec-ras-install>\6.3\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.2 at <hec-ras-install>\6.2\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.1 at <hec-ras-install>\6.1\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.0 at <hec-ras-install>\6.0\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.7 at <hec-ras-install>\5.0.7\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.6 at <hec-ras-install>\5.0.6\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.5 at <hec-ras-install>\5.0.5\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.4 at <hec-ras-install>\5.0.4\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.3 at <hec-ras-install>\5.0.3\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.1 at <hec-ras-install>\5.0.1\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0 at <hec-ras-install>\5.0\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.1.0 at <hec-ras-install>\4.1.0\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.0 at <hec-ras-install>\4.0\Ras.exe via filesystem (x86)


2026-06-11 14:55:37 - ras_commander.RasUtils - INFO - Discovered 20 installed HEC-RAS version(s)


2026-06-11 14:55:37 - ras_commander.RasPrj - INFO - HEC-RAS 6.6 found via version discovery: <hec-ras-install>\6.6\Ras.exe


2026-06-11 14:55:37 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <repo>\examples\example_projects\BaldEagleCrkMulti2D\BaldEagleDamBrk.rasmap


2026-06-11 14:55:37 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 14:55:37 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <repo>\examples\example_projects\BaldEagleCrkMulti2D


2026-06-11 14:55:37 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.6\Ras.exe


2026-06-11 14:55:37 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras_object.plan_df        Plans, HDF paths, geometry/flow associations
  ras_object.geom_df        Geometry files and HDF preprocessor paths
  ras_object.flow_df        Steady flow files
  ras_object.unsteady_df    Unsteady flow files and configurations
  ras_object.boundaries_df  Boundary conditions (type, name, location)
  ras_object.results_df     Lightweight HDF results summaries
  ras_object.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════

  Map types: wse, depth, velocity

   Generating maps...

Text Only

2026-06-11 14:55:37 - ras_commander.RasProcess - INFO - Created plan layer 'PMF Multi 2D' in rasmap for BaldEagleDamBrk.p13.hdf


2026-06-11 14:55:37 - ras_commander.RasProcess - INFO - Running StoreAllMaps for plan 13 (mode=sloping)...


2026-06-11 14:55:37 - ras_commander._native_helper - INFO - Staged RasStoreMapHelper.exe to <user-home>\AppData\Local\ras-commander\bin\RasStoreMapHelper-0.98.0-d1a79dadb9b4-e002354b4799\RasStoreMapHelper.exe


2026-06-11 14:55:37 - ras_commander._native_helper - INFO - Using staged RasStoreMapHelper runtime at <user-home>\AppData\Local\ras-commander\bin\RasStoreMapHelper-0.98.0-d1a79dadb9b4-e002354b4799\RasStoreMapHelper.exe because the packaged helper has no sibling GDAL directory.


2026-06-11 14:55:45 - ras_commander.RasProcess - INFO - Moving generated files from <repo>\examples\example_projects\BaldEagleCrkMulti2D\PMF Multi 2D to <repo>\examples\out\962_cloud_native_cog\core_maps\p13


2026-06-11 14:55:45 - ras_commander.RasProcess - INFO - Moved 6 generated file(s) to <repo>\examples\out\962_cloud_native_cog\core_maps\p13


2026-06-11 14:55:45 - ras_commander.RasProcess - INFO - Generated 1 wse TIF(s)


2026-06-11 14:55:45 - ras_commander.RasProcess - INFO - Generated 1 depth TIF(s)


2026-06-11 14:55:45 - ras_commander.RasProcess - INFO - Generated 1 velocity TIF(s)


2026-06-11 14:55:46 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\core_maps\p13\WSE (Max).Terrain50.dtm_20ft.tif


2026-06-11 14:55:47 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\core_maps\p13\Depth (Max).Terrain50.dtm_20ft.tif


2026-06-11 14:55:48 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\core_maps\p13\Velocity (Max).Terrain50.dtm_20ft.tif

    wse: 1 raster(s)

    depth: 1 raster(s)

    velocity: 1 raster(s)

OK Generated 3 raster(s) from 1 plan(s)

Text Only

Generated 1 plan result(s):
  Plan p13:
    wse: WSE (Max).Terrain50.dtm_20ft.tif (2.1 MB)
    depth: Depth (Max).Terrain50.dtm_20ft.tif (4.0 MB)
    velocity: Velocity (Max).Terrain50.dtm_20ft.tif (4.6 MB)

Inspect Raster Metadata¶

Use rasterio to inspect the generated rasters — CRS, dimensions, bounds, and data type.

Python

try:
    import rasterio
    has_rasterio = True
except ImportError:
    has_rasterio = False
    print("rasterio not installed. Install with: pip install rasterio")

if has_rasterio and results:
    for r in results:
        for map_type, paths in r.map_types.items():
            for tif_path in paths:
                with rasterio.open(tif_path) as src:
                    print(f"\n{map_type}: {tif_path.name}")
                    print(f"  CRS:        {src.crs}")
                    print(f"  Dimensions: {src.width} x {src.height}")
                    print(f"  Bounds:     {src.bounds}")
                    print(f"  Resolution: {src.res[0]:.2f} x {src.res[1]:.2f}")
                    print(f"  Data type:  {src.dtypes[0]}")
                    print(f"  NoData:     {src.nodata}")

                    data = src.read(1, masked=True)
                    valid = data.compressed()
                    if len(valid) > 0:
                        print(f"  Value range: {valid.min():.2f} — {valid.max():.2f}")
                        print(f"  Valid cells: {len(valid):,} / {data.size:,} ({100*len(valid)/data.size:.1f}%)")

Text Only

wse: WSE (Max).Terrain50.dtm_20ft.tif
  CRS:        EPSG:2271
  Dimensions: 6705 x 4852
  Bounds:     BoundingBox(left=1834327.1955903, bottom=237753.0548772926, right=2079089.948885101, top=414872.9473435675)
  Resolution: 36.50 x 36.50
  Data type:  float32
  NoData:     -9999.0


  Value range: 559.70 — 686.16
  Valid cells: 1,311,839 / 32,532,660 (4.0%)

depth: Depth (Max).Terrain50.dtm_20ft.tif
  CRS:        EPSG:2271
  Dimensions: 6705 x 4852
  Bounds:     BoundingBox(left=1834327.1955903, bottom=237753.0548772926, right=2079089.948885101, top=414872.9473435675)
  Resolution: 36.50 x 36.50
  Data type:  float32
  NoData:     -9999.0


  Value range: 0.00 — 92.15
  Valid cells: 1,311,839 / 32,532,660 (4.0%)

velocity: Velocity (Max).Terrain50.dtm_20ft.tif
  CRS:        EPSG:2271
  Dimensions: 6705 x 4852
  Bounds:     BoundingBox(left=1834327.1955903, bottom=237753.0548772926, right=2079089.948885101, top=414872.9473435675)
  Resolution: 36.50 x 36.50
  Data type:  float32
  NoData:     -9999.0


  Value range: 0.00 — 27.89
  Valid cells: 1,311,839 / 32,532,660 (4.0%)

Display Raster Results¶

Plot each result raster with matplotlib. Depth uses a warm color ramp; WSE and Velocity use sequential blue and viridis palettes.

Python

import matplotlib.pyplot as plt
from matplotlib.colors import Normalize

CMAP_CONFIG = {
    "wse": {"cmap": "Blues", "label": "Water Surface Elevation (ft)"},
    "depth": {"cmap": "YlOrRd", "label": "Depth (ft)"},
    "velocity": {"cmap": "viridis", "label": "Velocity (ft/s)"},
}

if has_rasterio and results:
    for r in results:
        n_maps = len(r.map_types)
        if n_maps == 0:
            continue

        fig, axes = plt.subplots(1, n_maps, figsize=(6 * n_maps, 5))
        if n_maps == 1:
            axes = [axes]

        for ax, (map_type, paths) in zip(axes, r.map_types.items()):
            tif_path = paths[0]
            with rasterio.open(tif_path) as src:
                data = src.read(1, masked=True)

            cfg = CMAP_CONFIG.get(map_type, {"cmap": "viridis", "label": map_type})
            im = ax.imshow(data, cmap=cfg["cmap"])
            ax.set_title(cfg["label"])
            ax.set_axis_off()
            plt.colorbar(im, ax=ax, shrink=0.7, pad=0.02)

        fig.suptitle(f"Plan {r.plan_id} — Max Profile", fontsize=14)
        plt.tight_layout()
        plt.show()
elif not results:
    print("No results to display.")
else:
    print("Install rasterio + matplotlib for raster visualization.")

png

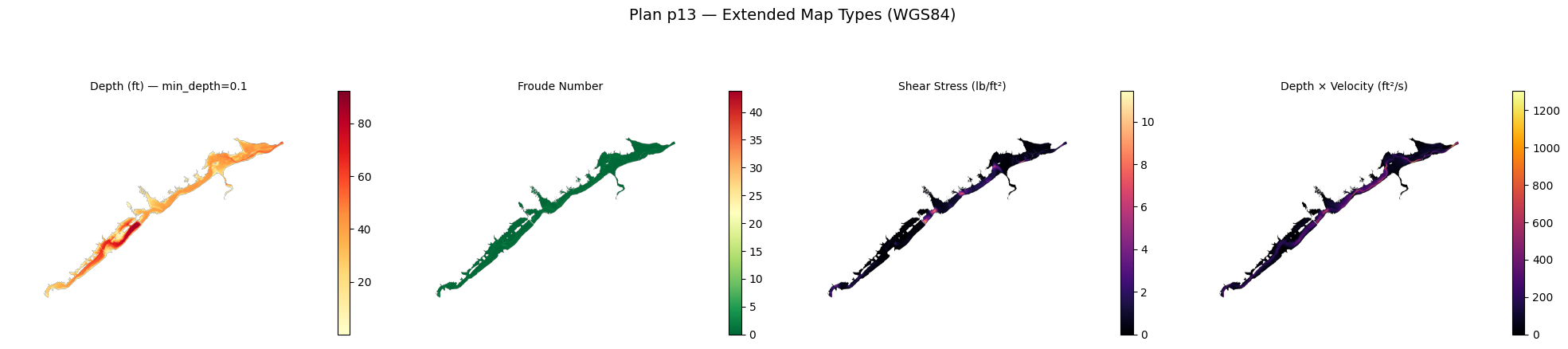

Example 2: Extended Map Types with WGS84 Reprojection¶

Generate additional map types (Froude, Shear Stress, Depth x Velocity) and reproject to WGS84 for web-compatible rasters.

Python

extended_output = OUTPUT_DIR / "extended_maps"

if plan_hdfs:
    extended_results = generate_result_maps(
        project_path,
        extended_output,
        plans=[f"p{plan_number}"],
        profile="Max",
        wse=False,
        depth=True,
        velocity=False,
        froude=True,
        shear_stress=True,
        depth_x_velocity=True,
        min_depth=0.1,
        ras_version=RAS_VERSION,
        reproject_wgs84=True,
        convert_cog=True,
    )

    print(f"\nGenerated {len(extended_results)} plan result(s):")
    for r in extended_results:
        print(f"  Plan {r.plan_id}:")
        for map_type, paths in r.map_types.items():
            for p in paths:
                size_mb = p.stat().st_size / 1e6 if p.exists() else 0
                print(f"    {map_type}: {p.name} ({size_mb:.1f} MB)")
        if r.errors:
            print(f"    Errors: {r.errors}")
else:
    print("No HDF files available — skipping extended raster generation.")
    extended_results = []

Text Only

ras2cng map -> <repo>\examples\out\962_cloud_native_cog\extended_maps

  Project : BaldEagleDamBrk.prj

  Profile : Max

Text Only

2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 7.0 at <hec-ras-install>\7.0\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 5 at <hec-ras-install>\6.7 Beta 5\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 4 at <hec-ras-install>\6.7 Beta 4\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.6 at <hec-ras-install>\6.6\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.5 at <hec-ras-install>\6.5\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.4.1 at <hec-ras-install>\6.4.1\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3.1 at <hec-ras-install>\6.3.1\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3 at <hec-ras-install>\6.3\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.2 at <hec-ras-install>\6.2\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.1 at <hec-ras-install>\6.1\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.0 at <hec-ras-install>\6.0\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.7 at <hec-ras-install>\5.0.7\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.6 at <hec-ras-install>\5.0.6\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.5 at <hec-ras-install>\5.0.5\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.4 at <hec-ras-install>\5.0.4\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.3 at <hec-ras-install>\5.0.3\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.1 at <hec-ras-install>\5.0.1\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0 at <hec-ras-install>\5.0\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.1.0 at <hec-ras-install>\4.1.0\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.0 at <hec-ras-install>\4.0\Ras.exe via filesystem (x86)


2026-06-11 14:56:05 - ras_commander.RasUtils - INFO - Discovered 20 installed HEC-RAS version(s)


2026-06-11 14:56:05 - ras_commander.RasPrj - INFO - HEC-RAS 6.6 found via version discovery: <hec-ras-install>\6.6\Ras.exe


2026-06-11 14:56:05 - ras_commander.RasMap - INFO - Successfully parsed RASMapper file: <repo>\examples\example_projects\BaldEagleCrkMulti2D\BaldEagleDamBrk.rasmap


2026-06-11 14:56:05 - ras_commander.RasPrj - INFO - ras-commander v0.98.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-06-11 14:56:05 - ras_commander.RasPrj - INFO - Project initialized: BaldEagleDamBrk | Folder: <repo>\examples\example_projects\BaldEagleCrkMulti2D


2026-06-11 14:56:05 - ras_commander.RasPrj - INFO - Using HEC-RAS executable: <hec-ras-install>\6.6\Ras.exe


2026-06-11 14:56:05 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/
Repo: https://github.com/gpt-cmdr/ras-commander
═══════════════════════════════════════════════════════════════════════

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras_object.plan_df        Plans, HDF paths, geometry/flow associations
  ras_object.geom_df        Geometry files and HDF preprocessor paths
  ras_object.flow_df        Steady flow files
  ras_object.unsteady_df    Unsteady flow files and configurations
  ras_object.boundaries_df  Boundary conditions (type, name, location)
  ras_object.results_df     Lightweight HDF results summaries
  ras_object.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════

  Map types: depth, froude, shear_stress, depth_x_velocity

   Generating maps...

Text Only

2026-06-11 14:56:05 - ras_commander.RasProcess - INFO - Created plan layer 'PMF Multi 2D' in rasmap for BaldEagleDamBrk.p13.hdf


2026-06-11 14:56:05 - ras_commander.RasProcess - INFO - Running StoreAllMaps for plan 13 (mode=sloping)...


2026-06-11 14:56:05 - ras_commander._native_helper - INFO - Using staged RasStoreMapHelper runtime at <user-home>\AppData\Local\ras-commander\bin\RasStoreMapHelper-0.98.0-d1a79dadb9b4-e002354b4799\RasStoreMapHelper.exe because the packaged helper has no sibling GDAL directory.


2026-06-11 14:56:52 - ras_commander.RasProcess - INFO - Moving generated files from <repo>\examples\example_projects\BaldEagleCrkMulti2D\PMF Multi 2D to <repo>\examples\out\962_cloud_native_cog\extended_maps\p13


2026-06-11 14:56:52 - ras_commander.RasProcess - INFO - Moved 9 generated file(s) to <repo>\examples\out\962_cloud_native_cog\extended_maps\p13


2026-06-11 14:56:52 - ras_commander.RasProcess - INFO - Generated 4 depth TIF(s)


2026-06-11 14:56:52 - ras_commander.RasProcess - INFO - Generated 1 froude TIF(s)


2026-06-11 14:56:52 - ras_commander.RasProcess - INFO - Generated 1 shear_stress TIF(s)


2026-06-11 14:56:52 - ras_commander.RasProcess - INFO - Generated 1 depth_x_velocity TIF(s)


2026-06-11 14:56:53 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\extended_maps\p13\Depth (Max).Terrain50.dtm_20ft.tif


2026-06-11 14:56:54 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\extended_maps\p13\Depth (Max).Terrain50.dtm_20ft_filtered.tif


2026-06-11 14:56:55 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\extended_maps\p13\Depth (Max).Terrain50.dtm_20ft_filtered_filtered.tif


2026-06-11 14:56:56 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\extended_maps\p13\Depth (Max).Terrain50.dtm_20ft_filtered_filtered_filtered.tif


2026-06-11 14:56:57 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\extended_maps\p13\Froude (Max).Terrain50.dtm_20ft.tif


2026-06-11 14:56:58 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\extended_maps\p13\Shear Stress (Max).Terrain50.dtm_20ft.tif


2026-06-11 14:56:59 - ras_commander.RasProcess - INFO - Fixed georeferencing: <repo>\examples\out\962_cloud_native_cog\extended_maps\p13\D _ V (Max).Terrain50.dtm_20ft.tif



Warning: rasterio not available for reprojection

    depth: 4 raster(s)

Text Only

Warning: rasterio not available for reprojection

    froude: 1 raster(s)

Text Only

Warning: rasterio not available for reprojection

    shear_stress: 1 raster(s)

Text Only

Warning: rasterio not available for reprojection

    depth_x_velocity: 1 raster(s)

OK Generated 7 raster(s) from 1 plan(s)

Text Only

Generated 1 plan result(s):
  Plan p13:
    depth: Depth (Max).Terrain50.dtm_20ft_filtered.tif (4.0 MB)
    depth: Depth (Max).Terrain50.dtm_20ft_filtered_filtered.tif (4.0 MB)
    depth: Depth (Max).Terrain50.dtm_20ft_filtered_filtered_filtered.tif (4.0 MB)
    depth: Depth (Max).Terrain50.dtm_20ft_filtered_filtered_filtered_filtered.tif (4.0 MB)
    froude: Froude (Max).Terrain50.dtm_20ft.tif (4.7 MB)
    shear_stress: Shear Stress (Max).Terrain50.dtm_20ft.tif (4.6 MB)
    depth_x_velocity: D _ V (Max).Terrain50.dtm_20ft.tif (4.7 MB)

Inspect Extended Rasters¶

Verify the extended rasters have WGS84 CRS and the depth threshold was applied.

Python

if has_rasterio and extended_results:
    for r in extended_results:
        for map_type, paths in r.map_types.items():
            for tif_path in paths:
                if not tif_path.exists():
                    continue
                with rasterio.open(tif_path) as src:
                    print(f"\n{map_type}: {tif_path.name}")
                    print(f"  CRS: {src.crs}")
                    print(f"  Dimensions: {src.width} x {src.height}")

                    data = src.read(1, masked=True)
                    valid = data.compressed()
                    if len(valid) > 0:
                        print(f"  Value range: {valid.min():.3f} — {valid.max():.3f}")
                        print(f"  Valid cells: {len(valid):,}")

                        if map_type == "depth":
                            below_threshold = (valid < 0.1).sum()
                            print(f"  Cells below min_depth (0.1): {below_threshold}")

Text Only

depth: Depth (Max).Terrain50.dtm_20ft_filtered.tif
  CRS: EPSG:2271
  Dimensions: 6705 x 4852


  Value range: 0.100 — 92.154
  Valid cells: 1,310,186
  Cells below min_depth (0.1): 0

depth: Depth (Max).Terrain50.dtm_20ft_filtered_filtered.tif
  CRS: EPSG:2271
  Dimensions: 6705 x 4852


  Value range: 0.100 — 92.154
  Valid cells: 1,310,186
  Cells below min_depth (0.1): 0

depth: Depth (Max).Terrain50.dtm_20ft_filtered_filtered_filtered.tif
  CRS: EPSG:2271
  Dimensions: 6705 x 4852


  Value range: 0.100 — 92.154
  Valid cells: 1,310,186
  Cells below min_depth (0.1): 0

depth: Depth (Max).Terrain50.dtm_20ft_filtered_filtered_filtered_filtered.tif
  CRS: EPSG:2271
  Dimensions: 6705 x 4852


  Value range: 0.100 — 92.154
  Valid cells: 1,310,186
  Cells below min_depth (0.1): 0

froude: Froude (Max).Terrain50.dtm_20ft.tif
  CRS: EPSG:2271
  Dimensions: 6705 x 4852


  Value range: 0.000 — 43.773
  Valid cells: 1,310,437

shear_stress: Shear Stress (Max).Terrain50.dtm_20ft.tif
  CRS: EPSG:2271
  Dimensions: 6705 x 4852


  Value range: 0.000 — 11.444
  Valid cells: 1,275,899

depth_x_velocity: D _ V (Max).Terrain50.dtm_20ft.tif
  CRS: EPSG:2271
  Dimensions: 6705 x 4852


  Value range: 0.000 — 1303.324
  Valid cells: 1,310,437

Display Extended Results¶

Python

EXTENDED_CMAP = {
    "depth": {"cmap": "YlOrRd", "label": "Depth (ft) — min_depth=0.1"},
    "froude": {"cmap": "RdYlGn_r", "label": "Froude Number"},
    "shear_stress": {"cmap": "magma", "label": "Shear Stress (lb/ft²)"},
    "depth_x_velocity": {"cmap": "inferno", "label": "Depth × Velocity (ft²/s)"},
}

if has_rasterio and extended_results:
    for r in extended_results:
        n_maps = len(r.map_types)
        if n_maps == 0:
            continue

        fig, axes = plt.subplots(1, n_maps, figsize=(5 * n_maps, 5))
        if n_maps == 1:
            axes = [axes]

        for ax, (map_type, paths) in zip(axes, r.map_types.items()):
            tif_path = paths[0]
            if not tif_path.exists():
                ax.text(0.5, 0.5, f"{map_type}\nnot generated", ha="center", va="center")
                continue
            with rasterio.open(tif_path) as src:
                data = src.read(1, masked=True)

            cfg = EXTENDED_CMAP.get(map_type, {"cmap": "viridis", "label": map_type})
            im = ax.imshow(data, cmap=cfg["cmap"])
            ax.set_title(cfg["label"], fontsize=10)
            ax.set_axis_off()
            plt.colorbar(im, ax=ax, shrink=0.7, pad=0.02)

        fig.suptitle(f"Plan {r.plan_id} — Extended Map Types (WGS84)", fontsize=14)
        plt.tight_layout()
        plt.show()
elif not extended_results:
    print("No extended results to display.")

png

Understanding Cloud Optimized GeoTIFF (COG)¶

Cloud Optimized GeoTIFF is a regular GeoTIFF with internal tiling and overview pyramids that enable efficient HTTP range requests. This means a web client can fetch just the tiles it needs without downloading the entire file.

When convert_cog=True: 1. generate_result_maps() first creates standard GeoTIFFs via RasStoreMapHelper.exe 2. Then converts each to COG using gdal_translate -of COG 3. Output files get a _cog suffix (e.g., Depth_Max_cog.tif)

Requirements: GDAL must be installed and gdal_translate on PATH.

Benefits of COG: - Stream rasters from S3/Azure/GCS without full download - Built-in overviews for fast zoom-out rendering - Compatible with QGIS, ArcGIS, leafmap, TiTiler, and other tools - No special server needed — works from any HTTP host

Output Summary¶

Python

total_size = 0
file_count = 0

print("Output files:")
for f in sorted(OUTPUT_DIR.rglob("*")):
    if f.is_file():
        size_kb = f.stat().st_size / 1e3
        total_size += size_kb
        file_count += 1
        rel = f.relative_to(OUTPUT_DIR)
        print(f"  {str(rel):50s} {size_kb:>8.1f} KB")

print(f"\nTotal: {file_count} files, {total_size / 1e3:.1f} MB")

Text Only

Output files:
  core_maps\p13\Depth (Max).Terrain50.dtm_20ft.tif     4029.5 KB
  core_maps\p13\Depth (Max).vrt                           3.4 KB
  core_maps\p13\Velocity (Max).Terrain50.dtm_20ft.tif   4576.9 KB
  core_maps\p13\Velocity (Max).vrt                        3.2 KB
  core_maps\p13\WSE (Max).Terrain50.dtm_20ft.tif       2079.4 KB
  core_maps\p13\WSE (Max).vrt                             3.1 KB
  extended_maps\p13\D _ V (Max).Terrain50.dtm_20ft.tif   4654.5 KB
  extended_maps\p13\D _ V (Max).vrt                       3.1 KB
  extended_maps\p13\Depth (Max).Terrain50.dtm_20ft.tif   4029.5 KB
  extended_maps\p13\Depth (Max).Terrain50.dtm_20ft_filtered.tif   4017.4 KB
  extended_maps\p13\Depth (Max).Terrain50.dtm_20ft_filtered_filtered.tif   4017.4 KB
  extended_maps\p13\Depth (Max).Terrain50.dtm_20ft_filtered_filtered_filtered.tif   4017.4 KB
  extended_maps\p13\Depth (Max).Terrain50.dtm_20ft_filtered_filtered_filtered_filtered.tif   4017.4 KB
  extended_maps\p13\Depth (Max).vrt                       3.4 KB
  extended_maps\p13\Froude (Max).Terrain50.dtm_20ft.tif   4660.2 KB
  extended_maps\p13\Froude (Max).vrt                      2.8 KB
  extended_maps\p13\PostProcessing.hdf                 5753.6 KB
  extended_maps\p13\Shear Stress (Max).Terrain50.dtm_20ft.tif   4621.5 KB
  extended_maps\p13\Shear Stress (Max).vrt                3.1 KB

Total: 19 files, 50.5 MB

Key Takeaways¶

generate_result_maps() wraps RasStoreMapHelper.exe — output matches native HEC-RAS raster generation exactly
11 map types available — WSE, Depth, Velocity enabled by default; toggle Froude, Shear, DxV, and timing variables as needed
COG conversion via convert_cog=True — produces web-streamable rasters with tiling and overviews
WGS84 reprojection via reproject_wgs84=True — makes rasters compatible with web mapping tools
Depth threshold via min_depth=0.1 — filters shallow cells to NoData for cleaner flood maps
MapResult dataclass provides structured output with plan_id, map_types dict, and errors list

Python API Quick Reference¶

Python

from ras2cng import generate_result_maps

# Core rasters with COG conversion
results = generate_result_maps(
    project_path, output_dir,
    wse=True, depth=True, velocity=True,
    convert_cog=True,
)

# Extended types with WGS84 + depth filter
results = generate_result_maps(
    project_path, output_dir,
    froude=True, shear_stress=True, depth_x_velocity=True,
    min_depth=0.1, reproject_wgs84=True, convert_cog=True,
)

# Access results
for r in results:
    print(r.plan_id, r.map_types.keys(), r.errors)

CLI Quick Reference¶

Bash

# Default: WSE + Depth + Velocity
ras2cng map path/to/project/ ./maps/

# All core types with COG conversion
ras2cng map path/to/project/ ./maps/ --cog

# Extended types with depth filter and WGS84
ras2cng map path/to/project/ ./maps/ \
  --froude --shear-stress --dv \
  --min-depth 0.1 --wgs84 --cog

# Specific plan only
ras2cng map path/to/project/ ./maps/ --plans p01 --cog

Next Steps¶

960_cloud_native_geometry_export.ipynb — Export geometry to GeoParquet (no HEC-RAS required)
961_cloud_native_results_export.ipynb — Vector results export with DuckDB analytics
601_floodplain_mapping_rasprocess.ipynb — Lower-level RasProcess.store_maps() API
ras2cng documentation — Complete API and CLI reference

Cloud Optimized GeoTIFF Results Export with ras2cng¶

Prerequisites¶

What You'll Learn¶

How It Works¶

Related Notebooks¶

Parameters¶

Available Map Types¶

Example 1: Core Result Rasters (WSE, Depth, Velocity)¶

Extract and Initialize Project¶

Run Simulation¶

Generate Result Rasters¶

Inspect Raster Metadata¶

Display Raster Results¶

Example 2: Extended Map Types with WGS84 Reprojection¶

Inspect Extended Rasters¶

Display Extended Results¶

Understanding Cloud Optimized GeoTIFF (COG)¶

Output Summary¶

Key Takeaways¶

Python API Quick Reference¶

CLI Quick Reference¶

Next Steps¶
