SA/2D Bridge Connection Authoring¶
Read, modify, and round-trip bridge connection sub-records (routing type 32,
Conn BR: blocks) in a HEC-RAS geometry file. This notebook demonstrates
the bridge-specific API on BaldEagleDamBrk.g03, which contains 7 bridge
connections and 4 standard connections.
Scope: This notebook covers SA/2D and 2D-to-2D bridge connections parsed
by GeomLateral. For 1D river/reach bridge structures (Bridge Culvert-
blocks), see GeomBridge.
In 2D bridges, the offset cross-sections are mesh-generated and share the same station range, so they align directly at STA 0. This is simpler than 1D bridges where hand-drawn cross-sections may have different station ranges and require channel-center alignment.
Bridge sub-records include: - Deck geometry — upstream/downstream station, high-chord, low-chord - Bridge cross-sections — station/elevation inside the bridge opening - Piers — width, elevation, skew per pier - Approach cross-sections — station/elevation outside the bridge - Hydraulic coefficients — drag, contraction, expansion
Development Mode¶
Python
USE_LOCAL_SOURCE = False
if USE_LOCAL_SOURCE:
import sys
from pathlib import Path
cwd = Path.cwd()
local_path = cwd if (cwd / "ras_commander").exists() else cwd.parent
if str(local_path) not in sys.path:
sys.path.insert(0, str(local_path))
print(f"LOCAL SOURCE MODE: loading from {local_path / 'ras_commander'}")
else:
print("PIP PACKAGE MODE: loading installed ras-commander")
from pathlib import Path
import logging
import warnings
import matplotlib.pyplot as plt
import pandas as pd
from IPython.display import display
from ras_commander import RasExamples
from ras_commander.geom import GeomLateral
warnings.filterwarnings("ignore", category=FutureWarning)
logging.getLogger("ras_commander").setLevel(logging.CRITICAL)
pd.set_option("display.max_columns", None)
pd.set_option("display.max_colwidth", 120)
import ras_commander
print(f"Loaded: {ras_commander.__file__}")
Text Only
PIP PACKAGE MODE: loading installed ras-commander
Loaded: <workspace>\ras_commander\__init__.py
Parameters¶
Python
PROJECT_NAME = "BaldEagleCrkMulti2D"
PROJECT_SUFFIX = "215_bridge_authoring"
GEOM_FILE_NAME = "BaldEagleDamBrk.g03"
TARGET_CONNECTION = "Highway 120"
cwd = Path.cwd()
REPO_ROOT = cwd if (cwd / "ras_commander").exists() else cwd.parent
WORK_ROOT = REPO_ROOT / "working" / "bridge_authoring"
WORK_ROOT.mkdir(parents=True, exist_ok=True)
print(f"Working folder: {WORK_ROOT}")
Text Only
Working folder: <workspace>\working\bridge_authoring
Extract And Inspect Connections¶
Python
project_path = RasExamples.extract_project(
PROJECT_NAME,
output_path=WORK_ROOT,
suffix=PROJECT_SUFFIX,
)
geom_file = project_path / GEOM_FILE_NAME
print(f"Geometry file: {geom_file.name}")
connections = GeomLateral.get_connections(geom_file)
display(connections[["Name", "Type", "From", "To", "Conn Routing Type", "LinePoints"]])
bridge_conns = connections[connections["Conn Routing Type"] == 32]
print(f"\nBridge connections (routing type 32): {len(bridge_conns)}")
print(f"Standard connections (routing type 1): {len(connections) - len(bridge_conns)}")
Text Only
Geometry file: BaldEagleDamBrk.g03
| Name | Type | From | To | Conn Routing Type | LinePoints | |
|---|---|---|---|---|---|---|
| 0 | Highway 120 | 2D to 2D | BaldEagleCr | BaldEagleCr | 32 | 2 |
| 1 | Highway 150 | 2D to 2D | BaldEagleCr | BaldEagleCr | 32 | 2 |
| 2 | Highway 150 Lowe | 2D to 2D | BaldEagleCr | BaldEagleCr | 32 | 2 |
| 3 | Highway 220 | 2D to 2D | BaldEagleCr | BaldEagleCr | 32 | 2 |
| 4 | Hwy 220 Upper | 2D to 2D | BaldEagleCr | BaldEagleCr | 32 | 2 |
| 5 | Lower Levee | 2D to 2D | BaldEagleCr | BaldEagleCr | 1 | 90 |
| 6 | Middle Levee | 2D to 2D | BaldEagleCr | BaldEagleCr | 1 | 122 |
| 7 | Mountain Rd | 2D to 2D | BaldEagleCr | BaldEagleCr | 32 | 2 |
| 8 | Railroad Bridge | 2D to 2D | BaldEagleCr | BaldEagleCr | 32 | 2 |
| 9 | Sayers Dam | 2D to 2D | BaldEagleCr | BaldEagleCr | 1 | 41 |
| 10 | Upper Levee | 2D to 2D | BaldEagleCr | BaldEagleCr | 1 | 99 |
Text Only
Bridge connections (routing type 32): 7
Standard connections (routing type 1): 4
Inspect Bridge Sub-Records¶
Read all bridge-specific data for Highway 120: deck, cross-sections, piers, and approach cross-sections.
Python
bridge_data = GeomLateral.get_bridge_data(geom_file, TARGET_CONNECTION)
print(f"Bridge params: {bridge_data['bridge_params']}")
print(f"Deck points: {len(bridge_data['deck']['Points'])} "
f"(NumUp={bridge_data['deck']['NumUp']}, NumDn={bridge_data['deck']['NumDn']})")
print(f"Bridge XS: US={bridge_data['bridge_xs'][0]['NumPoints']}, "
f"DS={bridge_data['bridge_xs'][1]['NumPoints']} points")
print(f"Piers: {len(bridge_data['piers'])}")
print(f"Approach XS: US={bridge_data['approach_xs'][0]['NumPoints']}, "
f"DS={bridge_data['approach_xs'][1]['NumPoints']} points")
print(f"Coefficients: {bridge_data['coefficients']}")
Text Only
Bridge params: ['-1', '0', '-1', '-1', '0']
Deck points: 4 (NumUp=2, NumDn=2)
Bridge XS: US=66, DS=59 points
Piers: 3
Approach XS: US=66, DS=64 points
Coefficients: ['1', '0', '0', '', '', '0.8', '0', '', '0', '']
Python
deck = GeomLateral.get_bridge_deck(geom_file, TARGET_CONNECTION)
print("Deck geometry:")
display(deck)
piers = GeomLateral.get_bridge_piers(geom_file, TARGET_CONNECTION)
print(f"\nPier definitions ({len(piers)} piers):")
display(piers[["PierIndex", "UpstreamStation", "NumUpstreamPoints",
"UpstreamWidths", "UpstreamElevations"]])
Text Only
Deck geometry:
| Location | Station | Elevation | LowChord | |
|---|---|---|---|---|
| 0 | upstream | 0.0 | 580.0 | 567.0 |
| 1 | upstream | 588.4 | 595.0 | 582.0 |
| 2 | downstream | 0.0 | 580.0 | 567.0 |
| 3 | downstream | 588.4 | 595.0 | 582.0 |
Text Only
Pier definitions (3 piers):
| PierIndex | UpstreamStation | NumUpstreamPoints | UpstreamWidths | UpstreamElevations | |
|---|---|---|---|---|---|
| 0 | 1 | 110.0 | 2 | [4.0, 4.0] | [530.0, 575.0] |
| 1 | 2 | 220.0 | 2 | [4.0, 4.0] | [530.0, 575.0] |
| 2 | 3 | 330.0 | 2 | [4.0, 4.0] | [530.0, 577.0] |

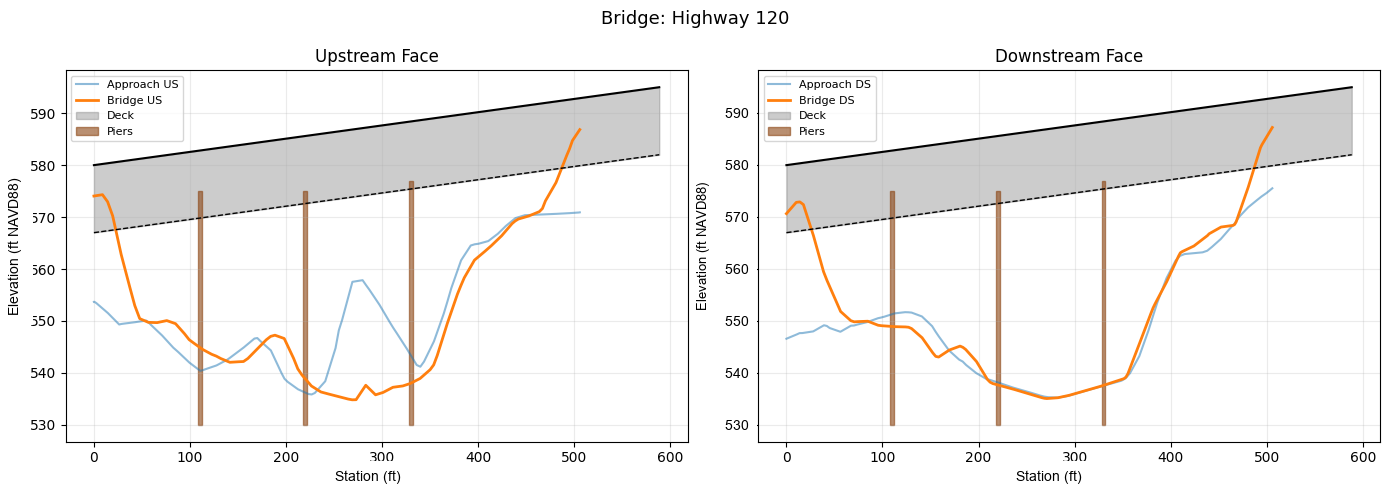

Plot Bridge Cross-Sections With Deck And Piers¶
HEC-RAS-style bridge plots show each face (upstream / downstream) with the ground profile, deck structure (filled region between high chord and low chord), and pier outlines. The upstream panel pairs the approach XS with the bridge opening XS and the upstream deck face; likewise for downstream.
Python
br_us = GeomLateral.get_bridge_xs(geom_file, TARGET_CONNECTION, side=1)
br_ds = GeomLateral.get_bridge_xs(geom_file, TARGET_CONNECTION, side=2)
ap_us = GeomLateral.get_bridge_approach_xs(geom_file, TARGET_CONNECTION, side=1)
ap_ds = GeomLateral.get_bridge_approach_xs(geom_file, TARGET_CONNECTION, side=2)
us_deck = deck[deck["Location"] == "upstream"]
ds_deck = deck[deck["Location"] == "downstream"]
def plot_bridge_face(ax, bridge_xs, approach_xs, face_deck, face_piers, side_label):
"""Plot one face of a bridge: ground profiles, deck polygon, pier outlines."""
ax.plot(approach_xs["Station"], approach_xs["Elevation"],
linewidth=1.5, alpha=0.5, label=f"Approach {side_label}")
ax.plot(bridge_xs["Station"], bridge_xs["Elevation"],
linewidth=2, label=f"Bridge {side_label}")
deck_sta = face_deck["Station"].values
deck_hi = face_deck["Elevation"].values
deck_lo = face_deck["LowChord"].values
ax.fill_between(deck_sta, deck_lo, deck_hi,
color="gray", alpha=0.4, label="Deck")
ax.plot(deck_sta, deck_hi, color="black", linewidth=1.5)
ax.plot(deck_sta, deck_lo, color="black", linewidth=1.0, linestyle="--")
pier_col = "UpstreamStation" if "US" in side_label else "DownstreamStation"
w_col = "UpstreamWidths" if "US" in side_label else "DownstreamWidths"
e_col = "UpstreamElevations" if "US" in side_label else "DownstreamElevations"
for i, (_, p) in enumerate(face_piers.iterrows()):
sta = p[pier_col]
widths = p[w_col]
elevs = p[e_col]
left = [sta - w / 2 for w in widths]
right = [sta + w / 2 for w in widths]
poly_x = left + right[::-1]
poly_y = list(elevs) + list(elevs)[::-1]
ax.fill(poly_x, poly_y, color="saddlebrown", alpha=0.6,
label="Piers" if i == 0 else None)
ax.set_xlabel("Station")
ax.set_ylabel("Elevation")
ax.grid(True, alpha=0.25)
ax.legend(fontsize=8)
fig, axes = plt.subplots(1, 2, figsize=(14, 5))
plot_bridge_face(axes[0], br_us, ap_us, us_deck, piers, "US")
axes[0].set_title("Upstream Face")
plot_bridge_face(axes[1], br_ds, ap_ds, ds_deck, piers, "DS")
axes[1].set_title("Downstream Face")
fig.suptitle(f"Bridge: {TARGET_CONNECTION}", fontsize=13)
fig.tight_layout()
plt.show()
Modify Bridge Cross-Section — Channel Region Only¶
An engineer reviewing the bridge opening plot would identify a station range to modify (e.g., sediment deposition in the main channel) rather than shifting the entire cross-section. Here we raise only the channel bed between piers 1 and 3 (stations 100–350) by 1.5 ft.
Python
CHANNEL_STA_MIN = 100.0
CHANNEL_STA_MAX = 350.0
SCOUR_FILL_FT = 1.5
original_br_us = br_us.copy()
modified_br_us = br_us.copy()
in_channel = (
(modified_br_us["Station"] >= CHANNEL_STA_MIN)
& (modified_br_us["Station"] <= CHANNEL_STA_MAX)
)
modified_br_us.loc[in_channel, "Elevation"] = (
modified_br_us.loc[in_channel, "Elevation"] + SCOUR_FILL_FT
)
GeomLateral.set_bridge_xs(
geom_file, TARGET_CONNECTION,
modified_br_us, side=1,
create_backup=False,
)
updated_br_us = GeomLateral.get_bridge_xs(geom_file, TARGET_CONNECTION, side=1)
delta = (updated_br_us["Elevation"] - original_br_us["Elevation"]).round(2)
comparison = pd.DataFrame({
"Station": original_br_us["Station"],
"Original": original_br_us["Elevation"],
"Modified": updated_br_us["Elevation"],
"Delta": delta,
})
display(comparison[comparison["Delta"] != 0].head(10))
assert all(delta[in_channel] == SCOUR_FILL_FT)
assert all(delta[~in_channel] == 0.0)
print(f"Channel bed raised +{SCOUR_FILL_FT} ft between STA {CHANNEL_STA_MIN}–{CHANNEL_STA_MAX}."
f" {in_channel.sum()} of {len(delta)} points modified.")
| Station | Original | Modified | Delta | |
|---|---|---|---|---|
| 14 | 103.97 | 545.73 | 547.23 | 1.5 |
| 15 | 113.24 | 544.51 | 546.01 | 1.5 |
| 16 | 122.60 | 543.58 | 545.08 | 1.5 |
| 17 | 127.38 | 543.23 | 544.73 | 1.5 |
| 18 | 132.12 | 542.76 | 544.26 | 1.5 |
| 19 | 141.52 | 542.04 | 543.54 | 1.5 |
| 20 | 151.02 | 542.15 | 543.65 | 1.5 |
| 21 | 155.67 | 542.19 | 543.69 | 1.5 |
| 22 | 160.27 | 542.78 | 544.28 | 1.5 |
| 23 | 179.44 | 546.38 | 547.88 | 1.5 |
Text Only
Channel bed raised +1.5 ft between STA 100.0–350.0. 30 of 66 points modified.
Add A Fourth Pier¶
The original bridge has 3 piers at stations 110, 220, 330. Add a 4th pier at station 440.
Python
original_piers = piers.to_dict("records")
new_pier = {
"PierIndex": 4,
"Skew": None,
"UpstreamStation": 440.0,
"NumUpstreamPoints": 2,
"DownstreamStation": 440.0,
"NumDownstreamPoints": 2,
"UpstreamWidths": [3.0, 3.0],
"UpstreamElevations": [540.0, 580.0],
"DownstreamWidths": [3.0, 3.0],
"DownstreamElevations": [540.0, 580.0],
}
updated_piers = original_piers + [new_pier]
GeomLateral.set_bridge_piers(
geom_file, TARGET_CONNECTION,
updated_piers,
create_backup=False,
)
result_piers = GeomLateral.get_bridge_piers(geom_file, TARGET_CONNECTION)
display(result_piers[["PierIndex", "UpstreamStation", "NumUpstreamPoints",
"UpstreamWidths", "UpstreamElevations"]])
assert len(result_piers) == 4
assert result_piers.iloc[3]["UpstreamStation"] == 440.0
print(f"Bridge now has {len(result_piers)} piers.")
| PierIndex | UpstreamStation | NumUpstreamPoints | UpstreamWidths | UpstreamElevations | |
|---|---|---|---|---|---|
| 0 | 1 | 110.0 | 2 | [4.0, 4.0] | [530.0, 575.0] |
| 1 | 2 | 220.0 | 2 | [4.0, 4.0] | [530.0, 575.0] |
| 2 | 3 | 330.0 | 2 | [4.0, 4.0] | [530.0, 577.0] |
| 3 | 4 | 440.0 | 2 | [3.0, 3.0] | [540.0, 580.0] |
Text Only
Bridge now has 4 piers.
Raise The Deck¶
Raise all deck elevations by 2.0 ft.
Python
original_deck = deck.copy()
modified_deck = deck.copy()
modified_deck["Elevation"] = modified_deck["Elevation"] + 2.0
modified_deck["LowChord"] = modified_deck["LowChord"] + 2.0
GeomLateral.set_bridge_deck(
geom_file, TARGET_CONNECTION,
modified_deck,
create_backup=False,
)
updated_deck = GeomLateral.get_bridge_deck(geom_file, TARGET_CONNECTION)
display(updated_deck)
delta_elev = (updated_deck["Elevation"] - original_deck["Elevation"]).round(2)
assert all(delta_elev == 2.0)
print("Deck raised by 2.0 ft.")
| Location | Station | Elevation | LowChord | |
|---|---|---|---|---|
| 0 | upstream | 0.0 | 582.0 | 569.0 |
| 1 | upstream | 588.4 | 597.0 | 584.0 |
| 2 | downstream | 0.0 | 582.0 | 569.0 |
| 3 | downstream | 588.4 | 597.0 | 584.0 |
Text Only
Deck raised by 2.0 ft.

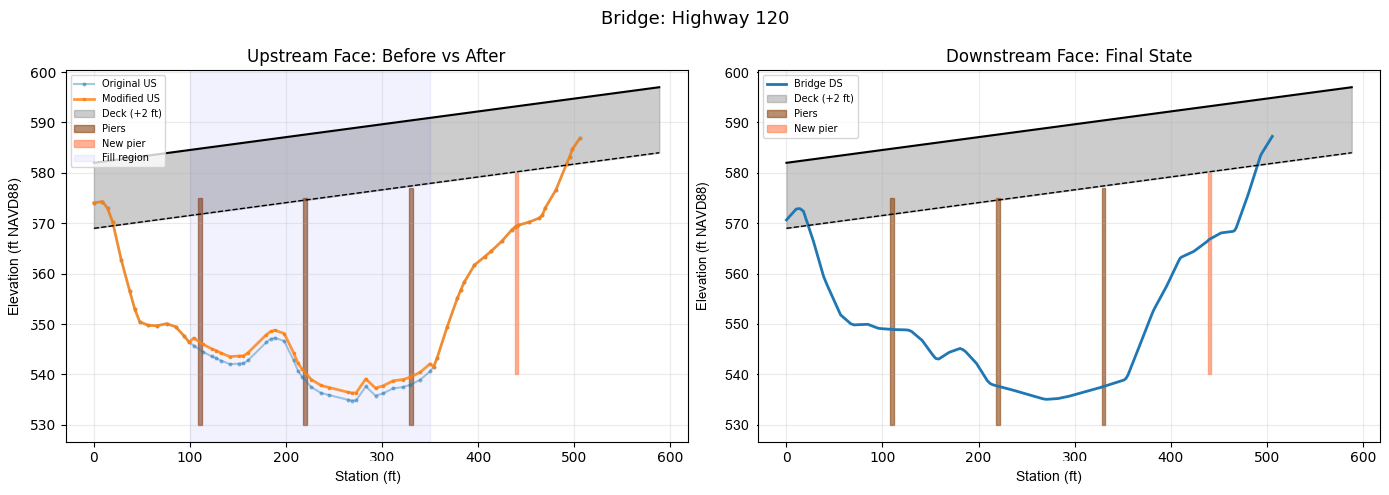

Compare Before And After With Deck And Piers¶
Overlay the original and modified bridge XS against the (now raised) deck and the updated pier set. The upstream panel highlights the channel-only fill; the downstream panel shows the new 4th pier.
Python
final_br_us = GeomLateral.get_bridge_xs(geom_file, TARGET_CONNECTION, side=1)
final_br_ds = GeomLateral.get_bridge_xs(geom_file, TARGET_CONNECTION, side=2)
final_piers = GeomLateral.get_bridge_piers(geom_file, TARGET_CONNECTION)
final_deck = GeomLateral.get_bridge_deck(geom_file, TARGET_CONNECTION)
final_us_deck = final_deck[final_deck["Location"] == "upstream"]
final_ds_deck = final_deck[final_deck["Location"] == "downstream"]
fig, axes = plt.subplots(1, 2, figsize=(14, 5))
# --- Upstream face: original vs modified XS + raised deck + piers ---
ax = axes[0]
ax.plot(original_br_us["Station"], original_br_us["Elevation"],
"o-", linewidth=1.5, alpha=0.4, label="Original US", markersize=2)
ax.plot(final_br_us["Station"], final_br_us["Elevation"],
"s-", linewidth=2, alpha=0.8, label="Modified US", markersize=2)
deck_sta = final_us_deck["Station"].values
ax.fill_between(deck_sta, final_us_deck["LowChord"].values,
final_us_deck["Elevation"].values,
color="gray", alpha=0.4, label="Deck (+2 ft)")
ax.plot(deck_sta, final_us_deck["Elevation"].values, color="black", linewidth=1.5)
ax.plot(deck_sta, final_us_deck["LowChord"].values, color="black", linewidth=1.0, linestyle="--")
for i, (_, p) in enumerate(final_piers.iterrows()):
sta = p["UpstreamStation"]
widths = p["UpstreamWidths"]
elevs = p["UpstreamElevations"]
left = [sta - w / 2 for w in widths]
right = [sta + w / 2 for w in widths]
poly_x = left + right[::-1]
poly_y = list(elevs) + list(elevs)[::-1]
is_new = p["PierIndex"] == 4
ax.fill(poly_x, poly_y,
color="coral" if is_new else "saddlebrown", alpha=0.6,
label="New pier" if is_new else ("Piers" if i == 0 else None))
ax.axvspan(CHANNEL_STA_MIN, CHANNEL_STA_MAX, color="blue", alpha=0.05, label="Fill region")
ax.set_title("Upstream Face: Before vs After")
ax.set_xlabel("Station")
ax.set_ylabel("Elevation")
ax.grid(True, alpha=0.25)
ax.legend(fontsize=7, loc="upper left")
# --- Downstream face: XS + raised deck + piers including new pier ---
ax = axes[1]
ax.plot(final_br_ds["Station"], final_br_ds["Elevation"],
linewidth=2, label="Bridge DS")
deck_sta = final_ds_deck["Station"].values
ax.fill_between(deck_sta, final_ds_deck["LowChord"].values,
final_ds_deck["Elevation"].values,
color="gray", alpha=0.4, label="Deck (+2 ft)")
ax.plot(deck_sta, final_ds_deck["Elevation"].values, color="black", linewidth=1.5)
ax.plot(deck_sta, final_ds_deck["LowChord"].values, color="black", linewidth=1.0, linestyle="--")
for i, (_, p) in enumerate(final_piers.iterrows()):
sta = p["DownstreamStation"]
widths = p["DownstreamWidths"]
elevs = p["DownstreamElevations"]
left = [sta - w / 2 for w in widths]
right = [sta + w / 2 for w in widths]
poly_x = left + right[::-1]
poly_y = list(elevs) + list(elevs)[::-1]
is_new = p["PierIndex"] == 4
ax.fill(poly_x, poly_y,
color="coral" if is_new else "saddlebrown", alpha=0.6,
label="New pier" if is_new else ("Piers" if i == 0 else None))
ax.set_title("Downstream Face: Final State")
ax.set_xlabel("Station")
ax.set_ylabel("Elevation")
ax.grid(True, alpha=0.25)
ax.legend(fontsize=7, loc="upper left")
fig.suptitle(f"Bridge: {TARGET_CONNECTION}", fontsize=13)
fig.tight_layout()
plt.show()
Verify All Connections Preserved¶
Python
final_conns = GeomLateral.get_connections(geom_file)
display(final_conns[["Name", "Type", "Conn Routing Type"]])
assert len(final_conns) == 11
print(f"All {len(final_conns)} connections preserved after modifications.")
| Name | Type | Conn Routing Type | |
|---|---|---|---|
| 0 | Highway 120 | 2D to 2D | 32 |
| 1 | Highway 150 | 2D to 2D | 32 |
| 2 | Highway 150 Lowe | 2D to 2D | 32 |
| 3 | Highway 220 | 2D to 2D | 32 |
| 4 | Hwy 220 Upper | 2D to 2D | 32 |
| 5 | Lower Levee | 2D to 2D | 1 |
| 6 | Middle Levee | 2D to 2D | 1 |
| 7 | Mountain Rd | 2D to 2D | 32 |
| 8 | Railroad Bridge | 2D to 2D | 32 |
| 9 | Sayers Dam | 2D to 2D | 1 |
| 10 | Upper Levee | 2D to 2D | 1 |
Text Only
All 11 connections preserved after modifications.
Summary¶
Python
summary = pd.DataFrame([{
"Connection": TARGET_CONNECTION,
"Conn Routing Type": 32,
"Channel Fill": f"+{SCOUR_FILL_FT} ft (STA {CHANNEL_STA_MIN}--{CHANNEL_STA_MAX})",
"Deck Shift": "+2.0 ft",
"Original Piers": 3,
"Final Piers": len(final_piers),
"New Pier Station": 440.0,
"Connections Preserved": len(final_conns) == 11,
}])
display(summary)
print("SA/2D bridge connection authoring round-trip assertions verified.")
| Connection | Conn Routing Type | Channel Fill | Deck Shift | Original Piers | Final Piers | New Pier Station | Connections Preserved | |
|---|---|---|---|---|---|---|---|---|
| 0 | Highway 120 | 32 | +1.5 ft (STA 100.0--350.0) | +2.0 ft | 3 | 4 | 440.0 | True |
Text Only
SA/2D bridge connection authoring round-trip assertions verified.
Validate Write Format With HEC-RAS Geometry Preprocessor¶
The round-trip assertions above confirm Python can read back what it wrote, but the ultimate validation is running HEC-RAS on the modified geometry. This catches format issues that round-trip checks cannot: malformed fixed-width encoding, invalid coordinate precision, or structural corruption in the bridge connection block.
We extract a fresh project copy, apply the same bridge modifications
(channel bed fill, 4th pier, deck raise), then run the HEC-RAS geometry
preprocessor on the plan that uses geometry .g03. The preprocessor builds
the 2D mesh, face tables, and bridge connection hydraulic tables — a thorough
format validation without the cost of the full 2D unsteady simulation.
Python
import shutil
import re
import time as _time
from ras_commander import init_ras_project
from ras_commander.geom import GeomPreprocessor
logging.getLogger("ras_commander").setLevel(logging.INFO)
validate_tag = f"validate_{int(_time.time())}"
validate_path = WORK_ROOT / validate_tag
validate_path.mkdir(parents=True, exist_ok=True)
fresh_project = RasExamples.extract_project(PROJECT_NAME, validate_path, suffix="validate")
fresh_geom = fresh_project / GEOM_FILE_NAME
# --------------------------------------------------------------------------
# Apply the SAME bridge modifications to the fresh geometry.
# --------------------------------------------------------------------------
# 1. Raise upstream bridge XS channel bed
br_us_fresh = GeomLateral.get_bridge_xs(fresh_geom, TARGET_CONNECTION, side=1)
in_channel_fresh = (
(br_us_fresh["Station"] >= CHANNEL_STA_MIN)
& (br_us_fresh["Station"] <= CHANNEL_STA_MAX)
)
br_us_fresh.loc[in_channel_fresh, "Elevation"] += SCOUR_FILL_FT
GeomLateral.set_bridge_xs(fresh_geom, TARGET_CONNECTION, br_us_fresh, side=1, create_backup=False)
# 2. Add 4th pier
fresh_piers = GeomLateral.get_bridge_piers(fresh_geom, TARGET_CONNECTION)
fresh_piers_list = fresh_piers.to_dict("records") + [new_pier]
GeomLateral.set_bridge_piers(fresh_geom, TARGET_CONNECTION, fresh_piers_list, create_backup=False)
# 3. Raise deck by 2.0 ft
fresh_deck = GeomLateral.get_bridge_deck(fresh_geom, TARGET_CONNECTION)
fresh_deck["Elevation"] = fresh_deck["Elevation"] + 2.0
fresh_deck["LowChord"] = fresh_deck["LowChord"] + 2.0
GeomLateral.set_bridge_deck(fresh_geom, TARGET_CONNECTION, fresh_deck, create_backup=False)
# Verify round-trip on fresh geometry
verify_br = GeomLateral.get_bridge_xs(fresh_geom, TARGET_CONNECTION, side=1)
verify_piers = GeomLateral.get_bridge_piers(fresh_geom, TARGET_CONNECTION)
verify_deck = GeomLateral.get_bridge_deck(fresh_geom, TARGET_CONNECTION)
assert all((verify_br["Elevation"] - br_us_fresh["Elevation"]).abs() < 0.01)
assert len(verify_piers) == 4
assert verify_piers.iloc[3]["UpstreamStation"] == 440.0
print(f"All modifications applied and verified on fresh geometry")
# --------------------------------------------------------------------------
# Run geometry preprocessor on the MODIFIED geometry.
# --------------------------------------------------------------------------
ras_val = init_ras_project(fresh_project, "7.0")
plans_using_g03 = ras_val.plan_df[ras_val.plan_df["Geom File"] == "03"]
assert not plans_using_g03.empty, "No plan found using geometry file .g03"
plan_number = plans_using_g03.iloc[0]["plan_number"]
plan_file = fresh_project / f"BaldEagleDamBrk.p{plan_number.zfill(2)}"
plan_text = plan_file.read_text()
plan_text = re.sub(r"Program Version=.*", f"Program Version={ras_val.ras_version}", plan_text)
plan_file.write_text(plan_text)
fresh_geom_text = fresh_geom.read_text()
fresh_geom_text = re.sub(r"Program Version=.*", f"Program Version={ras_val.ras_version}", fresh_geom_text)
fresh_geom.write_text(fresh_geom_text)
print(f"\nUpdated plan {plan_number} and geometry Program Version to {ras_val.ras_version}")
print(f"Running geometry preprocessor for Plan {plan_number} on MODIFIED geometry "
f"(channel +{SCOUR_FILL_FT} ft, deck +2 ft, 4th pier)...")
preprocess_result = GeomPreprocessor.run_geometry_preprocessor(
plan_number,
ras_object=ras_val,
max_wait=500,
force=True,
geometry_only=True,
)
assert preprocess_result.success, (
f"Geometry preprocessor failed: {preprocess_result.error}\n"
f"Errors: {preprocess_result.error_count}, First: {preprocess_result.first_error_line}"
)
print(f"\n{'='*70}")
print(f"VALIDATION RESULT")
print(f"{'='*70}")
print(f" Geometry file: {fresh_geom.name} (MODIFIED)")
print(f" Bridge XS: Channel bed +{SCOUR_FILL_FT} ft (STA {CHANNEL_STA_MIN}--{CHANNEL_STA_MAX})")
print(f" Deck: +2.0 ft (high chord and low chord)")
print(f" Piers: 4 (added pier at STA 440)")
print(f" HEC-RAS version: {ras_val.ras_version}")
print(f" Preprocessor: PASSED ({preprocess_result.elapsed_seconds:.0f}s)")
print(f" Errors: {preprocess_result.error_count}")
print(f" Warnings: {preprocess_result.warning_count}")
print(f"{'='*70}")
print(f" set_bridge_xs write format: VALIDATED")
print(f" set_bridge_piers write format: VALIDATED")
print(f" set_bridge_deck write format: VALIDATED")
print(f"{'='*70}")
Text Only
All modifications applied and verified on fresh geometry
Updated plan 05 and geometry Program Version to 7.0
Running geometry preprocessor for Plan 05 on MODIFIED geometry (channel +1.5 ft, deck +2 ft, 4th pier)...
======================================================================
VALIDATION RESULT
======================================================================
Geometry file: BaldEagleDamBrk.g03 (MODIFIED)
Bridge XS: Channel bed +1.5 ft (STA 100.0--350.0)
Deck: +2.0 ft (high chord and low chord)
Piers: 4 (added pier at STA 440)
HEC-RAS version: 7.0
Preprocessor: PASSED (15s)
Errors: 0
Warnings: 0
======================================================================
set_bridge_xs write format: VALIDATED
set_bridge_piers write format: VALIDATED
set_bridge_deck write format: VALIDATED
======================================================================
Verify Bridge Connection In Preprocessed Geometry¶
The geometry preprocessor validates the geometry format by building the 2D mesh, face tables, and bridge connection hydraulic tables. Confirm the preprocessor created its artifact files and that the target bridge connection is still intact in the modified geometry text file.
Python
final_connections = GeomLateral.get_connections(fresh_geom)
bridge_conns_final = final_connections[final_connections["Conn Routing Type"] == 32]
assert TARGET_CONNECTION in final_connections["Name"].values, (
f"'{TARGET_CONNECTION}' not found in modified geometry connections"
)
print(f"Connections in modified geometry: {len(final_connections)}")
print(f"Bridge connections (routing type 32): {len(bridge_conns_final)}")
display(final_connections[["Name", "Type", "Conn Routing Type"]])
artifact_count = len(preprocess_result.artifact_paths)
artifact_names = [p.name for p in preprocess_result.artifact_paths] if artifact_count > 0 else []
conn_verification = pd.DataFrame([{
"Target Connection": TARGET_CONNECTION,
"Present In Geometry": TARGET_CONNECTION in final_connections["Name"].values,
"Total Connections": len(final_connections),
"Bridge Connections": len(bridge_conns_final),
"Preprocessor Success": bool(preprocess_result.success),
"Preprocessor Artifacts": artifact_count,
"Elapsed (s)": round(preprocess_result.elapsed_seconds, 1),
"Errors": preprocess_result.error_count,
"Warnings": preprocess_result.warning_count,
}])
display(conn_verification)
print(f"\n{'='*70}")
print(f"STRUCTURE VALIDATION: '{TARGET_CONNECTION}' bridge connection geometry preprocessed")
print(f" Geometry preprocessor: PASSED ({preprocess_result.elapsed_seconds:.0f}s)")
print(f" Artifacts created: {artifact_count}")
print(f" Connection preserved: {TARGET_CONNECTION} (routing type 32)")
print(f" Modified geometry accepted by HEC-RAS {ras_val.ras_version}")
print(f"{'='*70}")
Text Only
Connections in modified geometry: 11
Bridge connections (routing type 32): 7
| Name | Type | Conn Routing Type | |
|---|---|---|---|
| 0 | Highway 120 | 2D to 2D | 32 |
| 1 | Highway 150 | 2D to 2D | 32 |
| 2 | Highway 150 Lowe | 2D to 2D | 32 |
| 3 | Highway 220 | 2D to 2D | 32 |
| 4 | Hwy 220 Upper | 2D to 2D | 32 |
| 5 | Lower Levee | 2D to 2D | 1 |
| 6 | Middle Levee | 2D to 2D | 1 |
| 7 | Mountain Rd | 2D to 2D | 32 |
| 8 | Railroad Bridge | 2D to 2D | 32 |
| 9 | Sayers Dam | 2D to 2D | 1 |
| 10 | Upper Levee | 2D to 2D | 1 |
| Target Connection | Present In Geometry | Total Connections | Bridge Connections | Preprocessor Success | Preprocessor Artifacts | Elapsed (s) | Errors | Warnings | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | Highway 120 | True | 11 | 7 | True | 3 | 15.3 | 0 | 0 |
Text Only
======================================================================
STRUCTURE VALIDATION: 'Highway 120' bridge connection geometry preprocessed
Geometry preprocessor: PASSED (15s)
Artifacts created: 3
Connection preserved: Highway 120 (routing type 32)
Modified geometry accepted by HEC-RAS 7.0
======================================================================
