1D Bridge Authoring

Python

#!pip install --upgrade ras-commander

Development Mode

Set USE_LOCAL_SOURCE = True when running from a local ras-commander checkout. The committed default uses the installed package; repository test execution can still use local source through PYTHONPATH.

1D Bridge Geometry Authoring

Author bridge deck, pier, abutment, approach-section, coefficient, and HTAB records in a real HEC-RAS geometry file, then compute the plan, inspect compute messages for bridge-related problems, and extract bridge results from the HDF output.

Scope: This notebook covers 1D river/reach bridge structures (Bridge Culvert- blocks) parsed by GeomBridge. For SA/2D and 2D-to-2D bridge connections (Conn BR: blocks), see notebook 215.

Python

# =============================================================================
# DEVELOPMENT MODE TOGGLE
# =============================================================================
USE_LOCAL_SOURCE = False

if USE_LOCAL_SOURCE:
    import sys
    from pathlib import Path

    cwd = Path.cwd()
    local_path = cwd if (cwd / "ras_commander").exists() else cwd.parent
    if str(local_path) not in sys.path:
        sys.path.insert(0, str(local_path))
    print(f"LOCAL SOURCE MODE: loading from {local_path / 'ras_commander'}")
else:
    print("PIP PACKAGE MODE: loading installed ras-commander")

from pathlib import Path
import logging
import os
import re
import time
import warnings

import matplotlib.pyplot as plt
import pandas as pd
from IPython.display import display

from ras_commander import HdfResultsPlan, RasCmdr, RasExamples, RasPrj, init_ras_project
from ras_commander.geom import GeomBridge, GeomCrossSection, GeomCulvert
from ras_commander.results import ResultsParser

warnings.filterwarnings("ignore", category=FutureWarning)
logging.getLogger("ras_commander").setLevel(logging.CRITICAL)

pd.set_option("display.max_columns", None)
pd.set_option("display.max_colwidth", 120)

import ras_commander

print(f"Loaded: {ras_commander.__file__}")

Text Only

PIP PACKAGE MODE: loading installed ras-commander


Loaded: <workspace>\ras_commander\__init__.py

Parameters

Python

PROJECT_NAME = "Example 13 - Singler Bridge (WSPRO)"
PROJECT_SUFFIX = "216_bridge_authoring"
PLAN_NUMBER = "01"
NUM_CORES = 1

RAS_EXE = Path(os.environ.get(
    "HECRAS_EXE",
    r"C:/Program Files (x86)/HEC/HEC-RAS/7.0/Ras.exe",
))

cwd = Path.cwd()
REPO_ROOT = cwd if (cwd / "ras_commander").exists() else cwd.parent
WORK_ROOT = Path(os.environ.get(
    "RAS_COMMANDER_WORKDIR",
    REPO_ROOT / "working" / "bridge_authoring",
))

if not RAS_EXE.exists():
    raise FileNotFoundError(f"HEC-RAS executable not found: {RAS_EXE}")

WORK_ROOT.mkdir(parents=True, exist_ok=True)

print(f"HEC-RAS executable: {RAS_EXE}")
print(f"Working folder: {WORK_ROOT}")

Text Only

HEC-RAS executable: <hec_ras_install>
Working folder: <workspace>\working\bridge_authoring

Helpers

Python

def build_internal_approach_sections(geom_file, river, reach, rs):
    adjacent = GeomCulvert.get_adjacent_cross_sections(geom_file, river, reach, rs)
    if not adjacent["upstream"] or not adjacent["downstream"]:
        raise ValueError("Bridge must have adjacent upstream and downstream cross sections")

    frames = []
    banks = {}
    for location in ["upstream", "downstream"]:
        xs_rs = adjacent[location]["RS"]

        sta_elev = GeomCrossSection.get_station_elevation(geom_file, river, reach, xs_rs).copy()
        sta_elev.insert(0, "Location", location)
        sta_elev.insert(1, "DataType", "station_elevation")
        frames.append(sta_elev)

        mannings = GeomCrossSection.get_mannings_n(geom_file, river, reach, xs_rs).copy()
        mannings = mannings.rename(columns={"n_value": "N_Value"})[["Station", "N_Value"]]
        mannings.insert(0, "Location", location)
        mannings.insert(1, "DataType", "mannings_n")
        frames.append(mannings)

        banks[location] = list(GeomCrossSection.get_bank_stations(geom_file, river, reach, xs_rs))

    return pd.concat(frames, ignore_index=True), banks, adjacent


def bridge_related_problem_lines(messages):
    target_terms = re.compile(
        r"(bridge|deck|pier|abut|approach|htab|geometry|geom|hydraulic table)",
        re.IGNORECASE,
    )
    problem_terms = re.compile(
        r"(error|warning|failed|unable|cannot|invalid)",
        re.IGNORECASE,
    )
    return [
        line.strip()
        for line in messages.splitlines()
        if target_terms.search(line) and problem_terms.search(line)
    ]


def require_backup(path_like):
    backup_path = Path(path_like)
    if not backup_path.exists():
        raise FileNotFoundError(f"Expected backup was not created: {backup_path}")
    return backup_path


print("Helper functions ready")

Text Only

Helper functions ready

Extract And Inspect The Bridge Project

Python

project_path = RasExamples.extract_project(
    PROJECT_NAME,
    output_path=WORK_ROOT,
    suffix=PROJECT_SUFFIX,
)

ras_obj = RasPrj()
init_ras_project(
    project_path,
    str(RAS_EXE),
    ras_object=ras_obj,
    load_results_summary=False,
)

plan_rows = ras_obj.plan_df[
    ras_obj.plan_df["plan_number"].astype(str).str.zfill(2).eq(PLAN_NUMBER)
]
if plan_rows.empty:
    raise ValueError(f"Plan {PLAN_NUMBER} not found")

plan_row = plan_rows.iloc[0]
geom_file = Path(plan_row["Geom Path"])
plan_path = Path(plan_row["full_path"])

bridges = GeomBridge.get_bridges(geom_file)
if bridges.empty:
    raise ValueError("No bridge structures found in the selected geometry")

bridge = bridges[bridges["NumPiers"].gt(0)].iloc[0]
river = bridge["River"]
reach = bridge["Reach"]
rs = str(bridge["RS"])

print(f"Project path: {project_path}")
print(f"Geometry file: {geom_file.name}")
print(f"Authoring target: {river} / {reach} / RS {rs}")

display(ras_obj.plan_df[["plan_number", "Plan Title", "Geom File", "Flow File", "flow_type"]])
display(bridges[["River", "Reach", "RS", "NumDecks", "NumPiers", "HasAbutment", "HTabHWMax"]])

Text Only

Project path: <workspace>\working\bridge_authoring\Example 13 - Singler Bridge (WSPRO)_216_bridge_authoring
Geometry file: BOGCHIT.g01
Authoring target: Bogue Chitto / Johnston Sta / RS 52.37

	plan_number	Plan Title	Geom File	Flow File	flow_type
0	01	WSPRO Bridge Analysis	01	01	Steady

	River	Reach	RS	NumDecks	NumPiers	HasAbutment	HTabHWMax
0	Bogue Chitto	Johnston Sta	52.37	6	17	True	339.0

Author Bridge Geometry Blocks

Python

backups = {}

deck = GeomBridge.get_deck(geom_file, river, reach, rs)
deck_update = deck.copy()
deck_update.loc[deck_update["Location"].eq("upstream"), "Elevation"] += 0.10
low_chord_mask = deck_update["LowChord"].astype(float).gt(0)
deck_update.loc[low_chord_mask, "LowChord"] += 0.05
backups["deck"] = require_backup(GeomBridge.set_deck(
    geom_file,
    river,
    reach,
    rs,
    deck_update,
    distance=bridge["DeckDistance"],
    width=bridge["DeckWidth"],
    weir_coefficient=2.7,
))

piers = GeomBridge.get_piers(geom_file, river, reach, rs)
piers_update = piers.copy(deep=True)
for col in ["UpstreamWidths", "DownstreamWidths"]:
    widths = list(piers_update.at[0, col])
    piers_update.at[0, col] = [width + 0.05 for width in widths]
backups["piers"] = require_backup(GeomBridge.set_piers(geom_file, river, reach, rs, piers_update))

abutments = GeomBridge.get_abutment(geom_file, river, reach, rs)
abutments_update = abutments.copy()
abutment_mask = abutments_update["AbutmentIndex"].eq(1) & abutments_update["Location"].eq("upstream")
abutments_update.loc[abutment_mask, "Parameter"] += 0.05
backups["abutments"] = require_backup(GeomBridge.set_abutments(
    geom_file,
    river,
    reach,
    rs,
    abutments_update,
))

approach_df, approach_banks, adjacent_xs = build_internal_approach_sections(geom_file, river, reach, rs)
backups["approach"] = require_backup(GeomBridge.set_approach_sections(
    geom_file,
    river,
    reach,
    rs,
    approach_df,
    upstream_banks=approach_banks["upstream"],
    downstream_banks=approach_banks["downstream"],
))

backups["coefficients"] = require_backup(GeomBridge.set_coefficients(
    geom_file,
    river,
    reach,
    rs,
    br_coef={3: 1.30},
    wspro={4: 2},
))

htab_result = GeomBridge.set_htab(
    geom_file,
    river,
    reach,
    rs,
    hw_max=345.0,
    max_flow=60000.0,
    free_flow_points=100,
    submerged_curves=60,
    points_per_curve=50,
    validate=False,
)
backups["htab"] = require_backup(htab_result["backup_path"])

print("Created backups:")
for name, backup_path in backups.items():
    print(f"  {name}: {backup_path.name}")

Text Only

Created backups:
  deck: BOGCHIT.g01.bak
  piers: BOGCHIT.g01.bak1
  abutments: BOGCHIT.g01.bak2
  approach: BOGCHIT.g01.bak3
  coefficients: BOGCHIT.g01.bak4
  htab: BOGCHIT.g01.bak5

Round-Trip Review

Python

updated_bridge = GeomBridge.get_bridges(geom_file)
updated_bridge = updated_bridge[updated_bridge["RS"].astype(str).eq(rs)].iloc[0]
updated_deck = GeomBridge.get_deck(geom_file, river, reach, rs)
updated_piers = GeomBridge.get_piers(geom_file, river, reach, rs)
updated_abutments = GeomBridge.get_abutment(geom_file, river, reach, rs)
updated_approach = GeomBridge.get_approach_sections(geom_file, river, reach, rs)
updated_coefficients = GeomBridge.get_coefficients(geom_file, river, reach, rs)
updated_htab = GeomBridge.get_htab_dict(geom_file, river, reach, rs, include_invert=False)

approach_counts = updated_approach["DataType"].value_counts().to_dict()
assert len(updated_deck) == len(deck_update)
assert len(updated_piers) == len(piers)
assert len(updated_abutments) == len(abutments)
assert approach_counts.get("station_elevation", 0) > 0
assert approach_counts.get("mannings_n", 0) > 0
assert approach_counts.get("banks", 0) == 2
assert updated_bridge["WeirCoefficient"] == 2.7
assert updated_htab["free_flow_points"] == 100

coef_row = updated_coefficients[
    updated_coefficients["ParameterType"].eq("br_coef") & updated_coefficients["Index"].eq(3)
]
assert float(coef_row["Value"].iloc[0]) == 1.30

review = pd.DataFrame([{
    "Deck Rows": len(updated_deck),
    "Pier Rows": len(updated_piers),
    "Abutment Rows": len(updated_abutments),
    "Approach Sta/Elev Rows": approach_counts.get("station_elevation", 0),
    "Approach Manning Rows": approach_counts.get("mannings_n", 0),
    "Approach Bank Rows": approach_counts.get("banks", 0),
    "BR Coef[3]": float(coef_row["Value"].iloc[0]),
    "HTAB HW Max": updated_htab["hw_max"],
    "HTAB Max Flow": updated_htab["max_flow"],
}])
display(review)

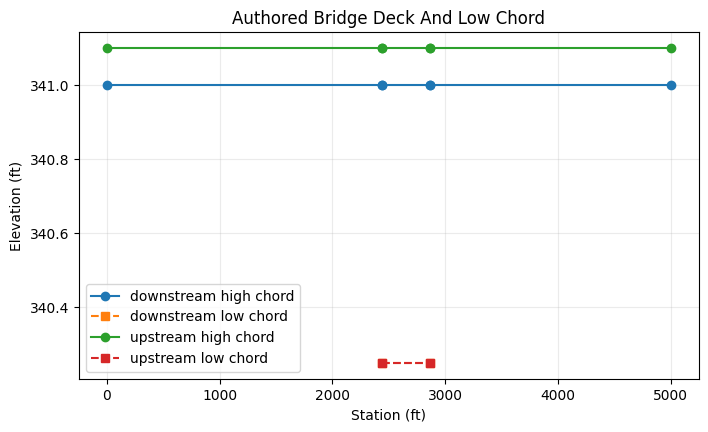

fig, ax = plt.subplots(figsize=(8, 4.5))
for location, group in updated_deck.groupby("Location"):
    low_chord = group[group["LowChord"].astype(float).gt(0)]
    ax.plot(group["Station"], group["Elevation"], marker="o", label=f"{location} high chord")
    if not low_chord.empty:
        ax.plot(low_chord["Station"], low_chord["LowChord"], marker="s", linestyle="--", label=f"{location} low chord")
ax.set_xlabel("Station (ft)")
ax.set_ylabel("Elevation (ft)")
ax.set_title("Authored Bridge Deck And Low Chord")
ax.legend(loc="best")
ax.grid(True, alpha=0.25)
plt.show()

	Deck Rows	Pier Rows	Abutment Rows	Approach Sta/Elev Rows	Approach Manning Rows	Approach Bank Rows	BR Coef[3]	HTAB HW Max	HTAB Max Flow
0	12	17	8	238	6	2	1.3	345.0	60000.0

Compute And Validate Messages

Python

start = time.perf_counter()
compute_result = RasCmdr.compute_plan(
    PLAN_NUMBER,
    ras_object=ras_obj,
    force_geompre=True,
    force_rerun=True,
    num_cores=NUM_CORES,
    verify=True,
)
runtime_sec = time.perf_counter() - start

data_errors_path = plan_path.parent / f"{plan_path.name}.data_errors.txt"
if data_errors_path.exists():
    raise RuntimeError(data_errors_path.read_text(encoding="utf-8", errors="replace"))

if not compute_result:
    raise RuntimeError(f"HEC-RAS compute failed for plan {PLAN_NUMBER}: {compute_result!r}")

hdf_path = Path(ras_obj.plan_df.loc[
    ras_obj.plan_df["plan_number"].astype(str).str.zfill(2).eq(PLAN_NUMBER),
    "HDF_Results_Path",
].iloc[0])

messages = HdfResultsPlan.get_compute_messages(PLAN_NUMBER, ras_object=ras_obj)
parsed = ResultsParser.parse_compute_messages(messages)
bridge_problems = bridge_related_problem_lines(messages)

assert hdf_path.exists(), f"Expected result HDF was not created: {hdf_path}"
assert parsed["completed"], "Compute messages did not report Complete Process"
assert not parsed["has_errors"], parsed["first_error_line"]
assert not bridge_problems, "Bridge-related compute problems:\n" + "\n".join(bridge_problems)

validation = pd.DataFrame([{
    "Compute Result": repr(compute_result),
    "Runtime (s)": round(runtime_sec, 2),
    "Results HDF Exists": hdf_path.exists(),
    "Compute Completed": parsed["completed"],
    "Compute Error Count": parsed["error_count"],
    "Compute Warning Count": parsed["warning_count"],
    "Bridge Problem Lines": len(bridge_problems),
    "Compute Message Characters": len(messages),
}])
display(validation)

print(messages[:700])

	Compute Result	Runtime (s)	Results HDF Exists	Compute Completed	Compute Error Count	Compute Warning Count	Bridge Problem Lines	Compute Message Characters
0	ComputeResult(SUCCESS, results_df_row=available)	2.35	True	True	0	0	0	722

Text Only

Plan: 'WSPRO Bridge Analysis' (BOGCHIT.p01)
Simulation started at: 11Jun2026 01:14:13 PM

Writing Plan GIS Data...
Completed Writing Plan GIS Data
Writing Geometry...
  Computing Bank Lines
  Bank lines generated in 34 ms
  Computing Edge Lines
  Edge Lines generated in 21 ms
  Computing XS Interpolation Surface
  XS Interpolation Surface generated in 49 ms
Completed Writing Geometry
Writing Event Conditions ...
Completed Writing Event Condition Data


Steady Flow Simulation HEC-RAS 7.0 April 2026


Finished Steady Flow Simulation


Computations Summary

Computation Task    Time(hh:mm:ss)
Completing Geometry, Flow and Plan         1
Steady Flow Computations    <1
Compl

Extract Bridge Results From HDF

The compute validation above proves HEC-RAS accepted the modified bridge geometry. As final proof that the bridge actively participated in the simulation, extract the bridge structure's hydraulic results from the HDF output using HdfStruc1D (max HW/TW/flow) and HdfResultsPlan.get_steady_results() (per-profile water surface and flow at flanking cross sections).

Python

from ras_commander.hdf import HdfStruc1D

bridge_max = HdfStruc1D.get_structure_max_values(hdf_path, river, reach, rs)
print(f"HdfStruc1D.get_structure_max_values at RS {rs}:")
for key, value in bridge_max.items():
    print(f"  {key}: {value}")

assert bridge_max["found"], f"Bridge at RS {rs} not found in HDF results"

max_flow = bridge_max["max_flow"]
max_us_ws = bridge_max["max_hw"]
max_ds_ws = bridge_max["max_tw"]

steady_df = HdfResultsPlan.get_steady_results(hdf_path)
us_rs = bridge_max["hw_source"].split("/")[-1].split(" ")[0]
ds_rs = bridge_max["tw_source"].split("/")[-1].split(" ")[0]

us_results = steady_df[steady_df["node_id"] == us_rs][["profile", "node_id", "wsel", "flow", "energy"]]
ds_results = steady_df[steady_df["node_id"] == ds_rs][["profile", "node_id", "wsel", "flow", "energy"]]

bridge_results = pd.merge(
    us_results.rename(columns={"wsel": "US WS (ft)", "flow": "US Flow (cfs)", "energy": "US EG (ft)", "node_id": "US XS"}),
    ds_results.rename(columns={"wsel": "DS WS (ft)", "flow": "DS Flow (cfs)", "energy": "DS EG (ft)", "node_id": "DS XS"}),
    on="profile",
)
display(bridge_results)

print(f"\n{'='*70}")
print(f"STRUCTURE VALIDATION: Bridge at RS {rs} carried flow in simulation")
print(f"  Max flow:        {max_flow:,.1f} cfs ({bridge_max['flow_source']})")
print(f"  Max US WS:       {max_us_ws:.2f} ft ({bridge_max['hw_source']})")
print(f"  Max DS WS:       {max_ds_ws:.2f} ft ({bridge_max['tw_source']})")
print(f"  WS differential: {max_us_ws - max_ds_ws:.2f} ft")
print(f"{'='*70}")

Text Only

HdfStruc1D.get_structure_max_values at RS 52.37:
  max_hw: 573.1385498046875
  max_tw: 334.4490966796875
  max_flow: 31500.0
  hw_source: Bogue Chitto/Johnston Sta/52.38 (US of 52.37)
  tw_source: Bogue Chitto/Johnston Sta/52.00 (DS of 52.37)
  flow_source: Bogue Chitto/Johnston Sta/52.38 (US of 52.37)
  found: True

	profile	US XS	US WS (ft)	US Flow (cfs)	US EG (ft)	DS XS	DS WS (ft)	DS Flow (cfs)	DS EG (ft)
0	50 yr	52.38	548.656494	25000.0	NaN	52.00	333.679321	25000.0	NaN
1	100 yr	52.38	573.138550	31500.0	NaN	52.00	334.449097	31500.0	NaN

Text Only

======================================================================
STRUCTURE VALIDATION: Bridge at RS 52.37 carried flow in simulation
  Max flow:        31,500.0 cfs (Bogue Chitto/Johnston Sta/52.38 (US of 52.37))
  Max US WS:       573.14 ft (Bogue Chitto/Johnston Sta/52.38 (US of 52.37))
  Max DS WS:       334.45 ft (Bogue Chitto/Johnston Sta/52.00 (DS of 52.37))
  WS differential: 238.69 ft
======================================================================

Summary

Python

summary = pd.DataFrame([{
    "Project": PROJECT_NAME,
    "Plan": PLAN_NUMBER,
    "Bridge RS": rs,
    "Backups Created": len(backups),
    "Approach Source XS": f"US {adjacent_xs['upstream']['RS']} / DS {adjacent_xs['downstream']['RS']}",
    "HEC-RAS Compute Success": bool(compute_result),
    "Bridge Compute Problems": len(bridge_problems),
    "Max Flow (cfs)": f"{max_flow:,.1f}",
    "US WS (ft)": f"{max_us_ws:.2f}",
    "DS WS (ft)": f"{max_ds_ws:.2f}",
}])
display(summary)
print("1D bridge authoring workflow complete: geometry authored, compute validated, results extracted.")

	Project	Plan	Bridge RS	Backups Created	Approach Source XS	HEC-RAS Compute Success	Bridge Compute Problems	Max Flow (cfs)	US WS (ft)	DS WS (ft)
0	Example 13 - Singler Bridge (WSPRO)	01	52.37	6	US 52.38 / DS 52.36	True	0	31,500.0	573.14	334.45

Text Only

1D bridge authoring workflow complete: geometry authored, compute validated, results extracted.
