Build a Texas FEMA eBFE Breakout from Adjacent Main-Stem Models

This notebook uses two real Lower Colorado–Cummins FEMA Base Level Engineering (eBFE) projects and one real NOAA National Water Model v3 flowline. NWM feature 5790954 crosses the boundary between consecutive Walnut Creek main-stem models WALNUT 0230 and WALNUT 0229.

The objective is to plan, write, and visually verify one independent 1D breakout without hiding the cross-model join:

1. Catalog independent steady 1D projects in GeoParquet-ready tables.
2. Use model polygons to find extent candidates.
3. Confirm the corresponding RAS reach with cross-section intersections, station sequence, and a transparent centerline-offset limit.
4. Find the minimum-switch source chain along the directed network edge.
5. Reject source pairs when multiple cross sections intersect both centerlines.
6. Write the joined river line and complete retained geometry blocks.
7. Restation every retained node, recompute main-channel lengths, and rewrite steady-flow locations and boundary references.
8. Show the larger computational domain, strict inundation domain, resolved join, and source-to-destination station map.

The committed figures are visual evidence from the real Texas/FEMA geometries. Notebook 235 demonstrates the complementary single-source operation: it writes, runs, and compares a buffered breakout while preserving a stricter one-section- overlap inundation export domain.

Python

from datetime import datetime
from pathlib import Path
import io
import os
import sys

import geopandas as gpd
import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
from matplotlib.patches import Patch, Rectangle
import pandas as pd
import requests
from IPython.display import display
from shapely.ops import nearest_points, substring


def find_repo_root(start: Path) -> Path:
    for candidate in [start, *start.parents]:
        if (candidate / "pyproject.toml").exists() and (candidate / "ras_commander").exists():
            return candidate
    return start


REPO_ROOT = find_repo_root(Path.cwd())
if str(REPO_ROOT) not in sys.path:
    sys.path.insert(0, str(REPO_ROOT))

import ras_commander
from ras_commander import (
    GeomCrossSection,
    GeomParser,
    HdfResultsPlan,
    RasBreakout1D,
    RasCmdr,
    RasGeometryCompute,
    RasPrj,
    init_ras_project,
)

WORK_ROOT = REPO_ROOT / "working" / "236_multi_model_1d_breakout_planning"
RUN_ROOT = WORK_ROOT / "runs" / datetime.now().strftime("%Y%m%d_%H%M%S")
ASSET_ROOT = REPO_ROOT / "examples" / "assets" / "236_multi_model_1d_breakout_planning"
WORK_ROOT.mkdir(parents=True, exist_ok=True)
RUN_ROOT.mkdir(parents=True, exist_ok=False)
ASSET_ROOT.mkdir(parents=True, exist_ok=True)

EBFE_MODEL_ROOT = Path(
    os.environ.get(
        "RAS_COMMANDER_EBFE_RAW_MODEL_ROOT",
        "H:/Testing/eBFE Model Organization/Downloads/12090301_Models_extracted/Model",
    )
)
SOURCE_GROUP = EBFE_MODEL_ROOT / "Walnut Creek-Colorado River"
SOURCE_IDS = ("WALNUT 0230", "WALNUT 0229")
TARGET_EDGE_ID = "5790954"
PROJECT_CRS = "EPSG:2277"  # NAD83 / Texas Central (ftUS)
RAS_VERSION = "7.0.1"
MAX_CENTERLINE_OFFSET_FT = 500.0
MAX_CROSS_CENTERLINE_XS = 1

print(f"ras-commander: {ras_commander.__version__}")
print(f"Loaded from: {ras_commander.__file__}")
print(f"eBFE source group: {SOURCE_GROUP}")
print(f"Isolated run root: {RUN_ROOT}")

Text Only

ras-commander: 0.99.2
Loaded from: H:\Symphony\ras-commander\multi-model-breakout\ras_commander\__init__.py
eBFE source group: H:\Testing\eBFE Model Organization\Downloads\12090301_Models_extracted\Model\Walnut Creek-Colorado River
Isolated run root: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616

1. Build a source catalog—not a database

Each caller-defined source ID is attached to an independent RasPrj. The catalog records the active plan, geometry and flow files, profile schema, geometry hash, footprint, river centerline, and cross-section cut lines.

These 4.1-era projects have no RASMapper file or CRS in their geometry HDF, so the documented Texas Central feet CRS is supplied explicitly. The fallback footprint is the convex hull of the text geometry's centerline and cut lines. The persisted catalog uses Parquet/GeoParquet rather than GeoPackage or SQLite.

Python

source_models = {}
for source_id in SOURCE_IDS:
    model_folder = SOURCE_GROUP / source_id
    project_file = model_folder / f"{source_id}.prj"
    if not project_file.is_file():
        raise FileNotFoundError(
            f"Missing {project_file}. Set RAS_COMMANDER_EBFE_RAW_MODEL_ROOT "
            "to the extracted Lower Colorado-Cummins Model root."
        )
    ras = RasPrj()
    init_ras_project(
        project_file,
        RAS_VERSION,
        ras_object=ras,
        hide_intro=True,
    )
    source_models[source_id] = ras

catalog = RasBreakout1D.catalog_sources(
    source_models,
    analysis_crs=PROJECT_CRS,
)
catalog_path = catalog.write(WORK_ROOT / "source_catalog", overwrite=True)

assert catalog.summary == {
    "source_models": 2,
    "included_models": 2,
    "duplicate_models": 0,
    "reaches": 2,
    "cross_sections": 86,
}
display(pd.DataFrame([catalog.summary]))
display(
    catalog.models_df[[
        "geometry_id", "plan_number", "profile_count", "profile_names",
        "geometry_sha256", "included",
    ]]
)
print(f"GeoParquet catalog: {catalog_path}")

Text Only

2026-09-09 09:26:16 - ras_commander.RasMap - WARNING - RASMapper file not found: H:\Testing\eBFE Model Organization\Downloads\12090301_Models_extracted\Model\Walnut Creek-Colorado River\WALNUT 0230\WALNUT 0230.rasmap


2026-09-09 09:26:16 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for WALNUT 0230


2026-09-09 09:26:16 - ras_commander.RasMap - WARNING - RASMapper file not found: H:\Testing\eBFE Model Organization\Downloads\12090301_Models_extracted\Model\Walnut Creek-Colorado River\WALNUT 0229\WALNUT 0229.rasmap


2026-09-09 09:26:16 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for WALNUT 0229

	source_models	included_models	duplicate_models	reaches	cross_sections
0	2	2	0	2	86

	geometry_id	plan_number	profile_count	profile_names	geometry_sha256	included
0	WALNUT 0229	01	7	(10-year, 25-year, 50-year, 1pct_min, 100-year...	d03853517dca50a904df7f7db018ebae36bc7a7b3be5c2...	True
1	WALNUT 0230	01	7	(10-year, 25-year, 50-year, 1pct_min, 100-year...	a2a065658c2ea25e0611487da0e1f00b0bd056f7cf3b19...	True

Text Only

GeoParquet catalog: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\source_catalog

2. Plan directed coverage for the real NWM edge

The NOAA service returns the target flowline directly. Its coordinate order is treated as upstream to downstream. Model polygons are only the candidate filter; a source is accepted only when one reach has at least two intersecting cross sections, decreasing RAS stations advance with edge measure, and its sampled mean centerline offset is no more than 500 feet.

The handoff then fails closed if more than one source cross section intersects both selected centerlines. This explicit check rejects the former tributary/ main-stem example. The adjacent Walnut segments have zero such cross sections.

Python

NWM_SERVICE = (
    "https://maps.water.noaa.gov/server/rest/services/"
    "reference/static_nwm_flowlines/FeatureServer/0/query"
)
nwm_cache = WORK_ROOT / f"nwm_{TARGET_EDGE_ID}.parquet"
if nwm_cache.is_file():
    target_edge = gpd.read_parquet(nwm_cache)
else:
    query = {
        "where": f"feature_id={TARGET_EDGE_ID}",
        "outFields": "feature_id,name,strm_order,huc6,nwm_vers",
        "returnGeometry": "true",
        "outSR": 4326,
        "f": "geojson",
    }
    response = requests.get(NWM_SERVICE, params=query, timeout=60)
    response.raise_for_status()
    target_edge = gpd.read_file(io.BytesIO(response.content))
    target_edge["feature_id"] = target_edge["feature_id"].astype(str)
    target_edge.to_parquet(nwm_cache, index=False)
target_edge = target_edge.to_crs(PROJECT_CRS)
assert target_edge["feature_id"].astype(str).eq(TARGET_EDGE_ID).all()

plan = RasBreakout1D.plan_network_edge(
    catalog,
    target_edge,
    edge_id=TARGET_EDGE_ID,
    adapter="nwm",
    max_centerline_offset=MAX_CENTERLINE_OFFSET_FT,
    max_cross_centerline_xs=MAX_CROSS_CENTERLINE_XS,
)

plan_row = plan.coverage_plan.plans_df.iloc[0]
assert plan.status == "multi_source_ready"
assert plan_row["source_geometry_ids"] == SOURCE_IDS
assert plan_row["coverage_fraction"] == 1.0
assert plan.seams_df.iloc[0]["relationship"] == "overlap"
assert plan.join_ready
assert plan.handoff_diagnostics_df.iloc[0]["cross_centerline_xs_count"] == 0
assert plan.handoff_diagnostics_df.iloc[0]["handoff_eligible"]

display(
    plan.reach_assignments_df.drop(columns="geometry").style.format({
        "xs_measure_start": "{:.0f}",
        "xs_measure_end": "{:.0f}",
        "centerline_offset_mean": "{:.1f}",
    })
)
display(plan.coverage_plan.plans_df.drop(columns="geometry"))
display(plan.source_slices_df.drop(columns="geometry"))
display(plan.seams_df.drop(columns="geometry"))
display(plan.handoff_diagnostics_df.drop(columns="geometry"))

	geometry_id	edge_id	reach_id	river	reach	xs_intersection_count	xs_measure_start	xs_measure_end	xs_sequence	centerline_offset_mean	status	reason_codes
0	WALNUT 0229	5790954	WALNUT 0229::WALNUT 0229::Reach-1	WALNUT 0229	Reach-1	62	5305	35416	with_edge	185.6	confirmed	()
1	WALNUT 0230	5790954	WALNUT 0230::WALNUT 0230::Reach-1	WALNUT 0230	Reach-1	10	1203	4884	with_edge	35.0	confirmed	()

	edge_id	status	edge_length	selected_model_count	selected_slice_count	source_geometry_ids	source_slice_geometry_ids	covered_length	coverage_fraction	total_gap_length	maximum_gap_length	fully_covered	orientation_source
0	5790954	multi_source_ready	35819.279831	2	2	(WALNUT 0230, WALNUT 0229)	(WALNUT 0230, WALNUT 0229)	35819.279831	1.0	0.0	0.0	True	edge_coordinate_order

	edge_id	source_order	geometry_id	coverage_start	coverage_end	retained_start	retained_end	retained_length
0	5790954	0	WALNUT 0230	0.000000	5137.026129	0.000000	4634.187189	4634.187189
1	5790954	1	WALNUT 0229	4131.348249	35819.279831	4634.187189	35819.279831	31185.092642

	edge_id	seam_index	upstream_geometry_id	downstream_geometry_id	relationship	overlap_start	overlap_end	overlap_length	gap_length	seam_measure	seam_fraction
0	5790954	0	WALNUT 0230	WALNUT 0229	overlap	4131.348249	5137.026129	1005.67788	0.0	4634.187189	0.129377

	edge_id	seam_index	upstream_geometry_id	downstream_geometry_id	upstream_reach_id	downstream_reach_id	centerline_distance	centerline_intersects	upstream_xs_intersect_both_count	downstream_xs_intersect_both_count	upstream_xs_intersect_both_ids	downstream_xs_intersect_both_ids	cross_centerline_xs_count	cross_centerline_xs_ids	max_cross_centerline_xs	handoff_eligible	reason_codes
0	5790954	0	WALNUT 0230	WALNUT 0229	WALNUT 0230::WALNUT 0230::Reach-1	WALNUT 0229::WALNUT 0229::Reach-1	0.0	True	0	0	()	()	0	()	1	True	()

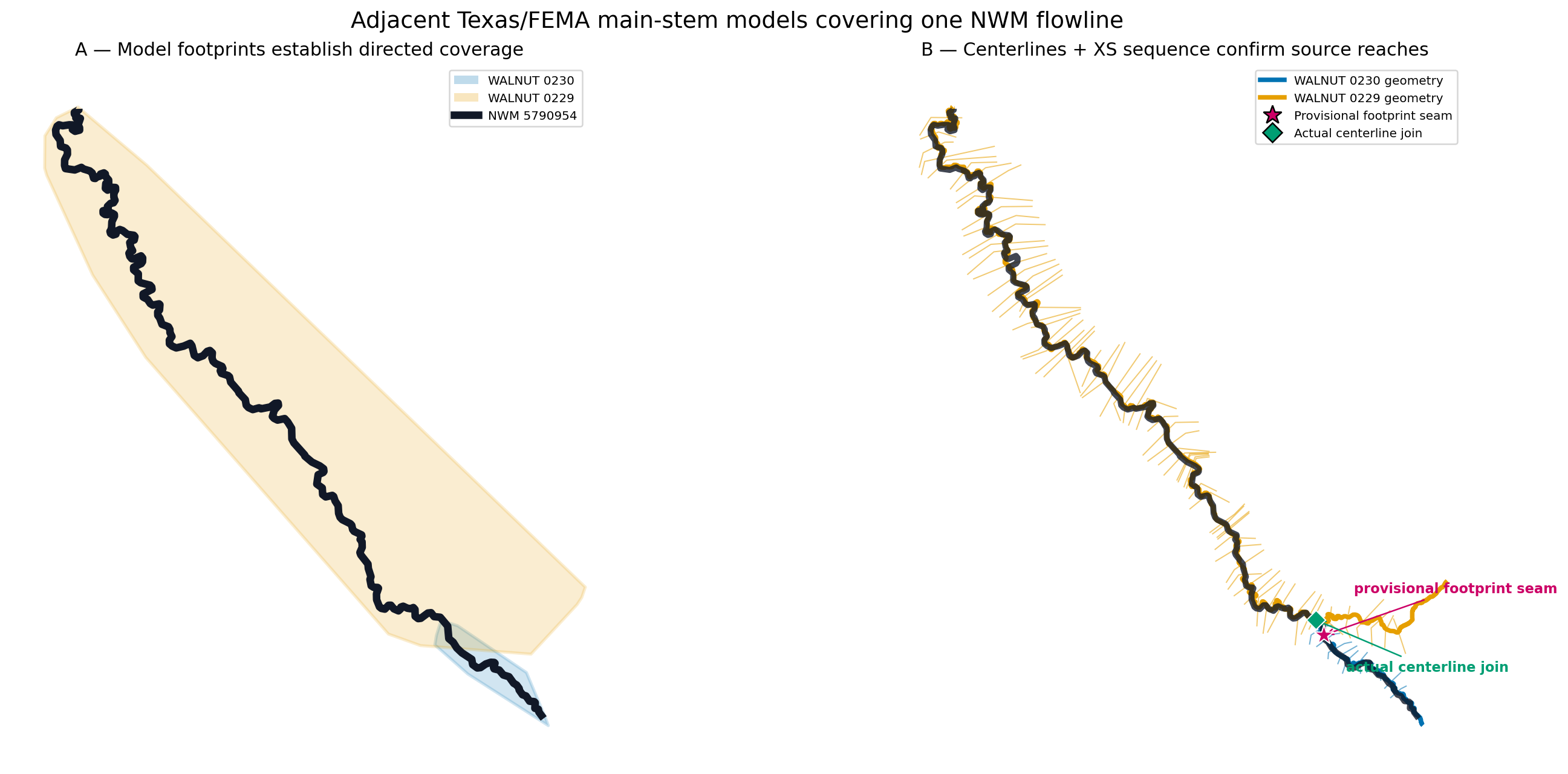

3. Visual proof: extents find candidates; geometry confirms them

The first panel shows why the two model polygons are sufficient for coverage measurement. The second panel supplies the hydraulic evidence: independently parsed RAS centerlines and cross-section cut lines continue along the same main stem. The magenta star is the midpoint of the shared footprint interval; the green diamond is the actual source-centerline intersection.

Python

colors = {
    "WALNUT 0230": "#0072B2",
    "WALNUT 0229": "#E69F00",
}
edge_geometry = target_edge.geometry.iloc[0]
seam = plan.seams_df.iloc[0]
focus = edge_geometry.buffer(1400.0)

confirmed = plan.reach_assignments_df.loc[
    plan.reach_assignments_df["status"] == "confirmed"
]
confirmed_reach_ids = set(confirmed["reach_id"])
confirmed_centerlines = catalog.centerlines_gdf.loc[
    catalog.centerlines_gdf["reach_id"].isin(confirmed_reach_ids)
]
confirmed_xs = catalog.cross_sections_gdf.loc[
    catalog.cross_sections_gdf["reach_id"].isin(confirmed_reach_ids)
    & catalog.cross_sections_gdf.intersects(focus)
]
centerline_by_source = confirmed.set_index("geometry_id").geometry
centerline_join = centerline_by_source.loc[SOURCE_IDS[0]].intersection(
    centerline_by_source.loc[SOURCE_IDS[1]]
)
assert centerline_join.geom_type == "Point"
edge_join_point, _ = nearest_points(edge_geometry, centerline_join)
join_measure = float(edge_geometry.project(edge_join_point))

fig, axes = plt.subplots(1, 2, figsize=(16, 7), constrained_layout=True)
for source_id in SOURCE_IDS:
    footprint = catalog.footprints_gdf.loc[
        catalog.footprints_gdf["geometry_id"] == source_id
    ]
    footprint.plot(
        ax=axes[0], color=colors[source_id], edgecolor=colors[source_id],
        alpha=0.18, linewidth=2,
    )
target_edge.plot(ax=axes[0], color="#111827", linewidth=5)

for source_id in SOURCE_IDS:
    confirmed_centerlines.loc[
        confirmed_centerlines["geometry_id"] == source_id
    ].plot(ax=axes[1], color=colors[source_id], linewidth=3)
    confirmed_xs.loc[
        confirmed_xs["geometry_id"] == source_id
    ].plot(ax=axes[1], color=colors[source_id], linewidth=0.8, alpha=0.55)
target_edge.plot(ax=axes[1], color="#111827", linewidth=4, alpha=0.8)
plan.seams_df.plot(
    ax=axes[1], color="#CC0066", marker="*", markersize=180,
    edgecolor="white", linewidth=0.8, zorder=10,
)
gpd.GeoSeries([centerline_join], crs=PROJECT_CRS).plot(
    ax=axes[1], color="#009E73", marker="D", markersize=80,
    edgecolor="white", linewidth=0.8, zorder=11,
)

for ax in axes:
    xmin, ymin, xmax, ymax = focus.bounds
    ax.set_xlim(xmin, xmax)
    ax.set_ylim(ymin, ymax)
    ax.set_aspect("equal")
    ax.set_axis_off()
axes[0].set_title("A — Model footprints establish directed coverage")
axes[1].set_title("B — Centerlines + XS sequence confirm source reaches")
axes[1].annotate(
    "provisional footprint seam",
    (seam.geometry.x, seam.geometry.y),
    xytext=(20, 28), textcoords="offset points",
    arrowprops={"arrowstyle": "->", "color": "#CC0066"},
    color="#CC0066", fontsize=9, fontweight="bold",
)
axes[1].annotate(
    "actual centerline join",
    (centerline_join.x, centerline_join.y),
    xytext=(20, -34), textcoords="offset points",
    arrowprops={"arrowstyle": "->", "color": "#009E73"},
    color="#009E73", fontsize=9, fontweight="bold",
)
axes[0].legend(
    handles=[
        Patch(facecolor=colors[source_id], alpha=0.25, label=source_id)
        for source_id in SOURCE_IDS
    ] + [Line2D([0], [0], color="#111827", linewidth=5, label=f"NWM {TARGET_EDGE_ID}")],
    loc="best", fontsize=8,
)
axes[1].legend(
    handles=[
        Line2D([0], [0], color=colors[source_id], linewidth=3, label=f"{source_id} geometry")
        for source_id in SOURCE_IDS
    ] + [
        Line2D([0], [0], marker="*", color="none", markerfacecolor="#CC0066", markersize=13, label="Provisional footprint seam"),
        Line2D([0], [0], marker="D", color="none", markerfacecolor="#009E73", markersize=9, label="Actual centerline join"),
    ],
    loc="best", fontsize=8,
)
fig.suptitle("Adjacent Texas/FEMA main-stem models covering one NWM flowline", fontsize=15)
figure_1 = ASSET_ROOT / "01_extent_and_geometry_confirmation.png"
fig.savefig(figure_1, dpi=180, bbox_inches="tight")
plt.show()
print(figure_1)

Text Only

H:\Symphony\ras-commander\multi-model-breakout\examples\assets\236_multi_model_1d_breakout_planning\01_extent_and_geometry_confirmation.png

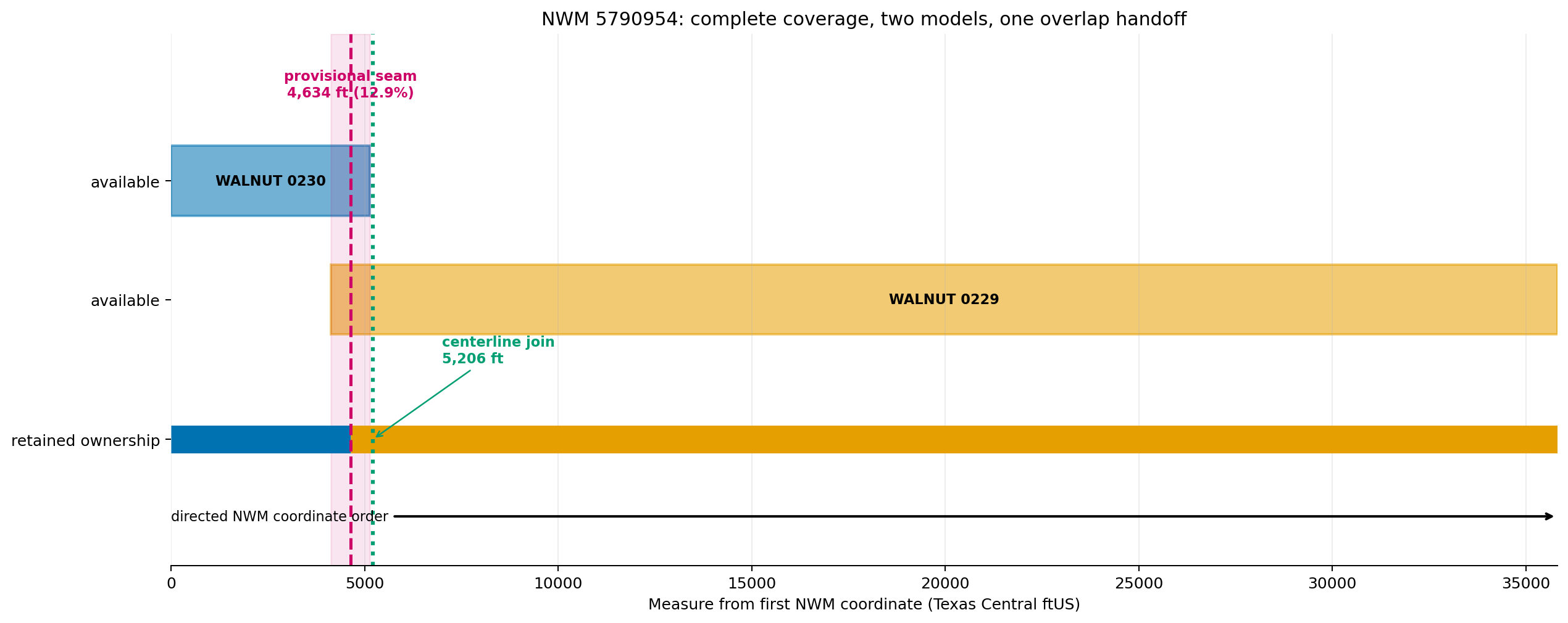

4. Visual proof: the minimum-switch coverage chain

The upper ribbons show where each footprint covers the NWM edge. Their 1,006-ft shared interval is a handoff search zone—not a reason to score seven unrelated signals. The lower ribbon is the deterministic ownership plan: upstream source until the midpoint, downstream source afterward. No coverage gap is hidden.

Python

parts = plan.edge_coverage.coverage_parts_df.sort_values("coverage_start")
slices = plan.source_slices_df.sort_values("source_order")
edge_length = float(plan_row["edge_length"])
seam_measure = float(seam["seam_measure"])

fig, ax = plt.subplots(figsize=(14, 5.5), constrained_layout=True)
source_y = {SOURCE_IDS[0]: 2.2, SOURCE_IDS[1]: 1.35}
for row in parts.itertuples(index=False):
    ax.add_patch(Rectangle(
        (row.coverage_start, source_y[row.geometry_id] - 0.25),
        row.coverage_end - row.coverage_start, 0.5,
        facecolor=colors[row.geometry_id], alpha=0.55,
        edgecolor=colors[row.geometry_id], linewidth=1.5,
    ))
    ax.text(
        (row.coverage_start + row.coverage_end) / 2,
        source_y[row.geometry_id], row.geometry_id,
        ha="center", va="center", fontsize=9, fontweight="bold",
    )

overlap_start = float(seam["overlap_start"])
overlap_end = float(seam["overlap_end"])
ax.axvspan(overlap_start, overlap_end, color="#CC0066", alpha=0.10)
for row in slices.itertuples(index=False):
    ax.plot(
        [row.retained_start, row.retained_end], [0.35, 0.35],
        color=colors[row.geometry_id], linewidth=18, solid_capstyle="butt",
    )
ax.axvline(seam_measure, color="#CC0066", linestyle="--", linewidth=2)
ax.axvline(join_measure, color="#009E73", linestyle=":", linewidth=2.5)
ax.text(
    seam_measure, 2.78,
    f"provisional seam\n{seam_measure:,.0f} ft ({seam.seam_fraction:.1%})",
    ha="center", va="bottom", color="#CC0066", fontsize=9, fontweight="bold",
)
ax.annotate(
    f"centerline join\n{join_measure:,.0f} ft",
    xy=(join_measure, 0.35), xytext=(join_measure + 1800, 0.9),
    arrowprops={"arrowstyle": "->", "color": "#009E73"},
    color="#009E73", fontsize=9, fontweight="bold",
)
ax.annotate(
    "directed NWM coordinate order",
    xy=(edge_length, -0.2), xytext=(0, -0.2),
    arrowprops={"arrowstyle": "->", "linewidth": 1.6},
    va="center", fontsize=9,
)
ax.set_xlim(0, edge_length)
ax.set_ylim(-0.55, 3.25)
ax.set_yticks([2.2, 1.35, 0.35])
ax.set_yticklabels(["available", "available", "retained ownership"])
ax.set_xlabel("Measure from first NWM coordinate (Texas Central ftUS)")
ax.set_title(
    f"NWM {TARGET_EDGE_ID}: complete coverage, two models, one overlap handoff"
)
ax.grid(axis="x", alpha=0.22)
for side in ("left", "right", "top"):
    ax.spines[side].set_visible(False)
figure_2 = ASSET_ROOT / "02_directed_coverage_chain.png"
fig.savefig(figure_2, dpi=180, bbox_inches="tight")
plt.show()
print(figure_2)

Text Only

H:\Symphony\ras-commander\multi-model-breakout\examples\assets\236_multi_model_1d_breakout_planning\02_directed_coverage_chain.png

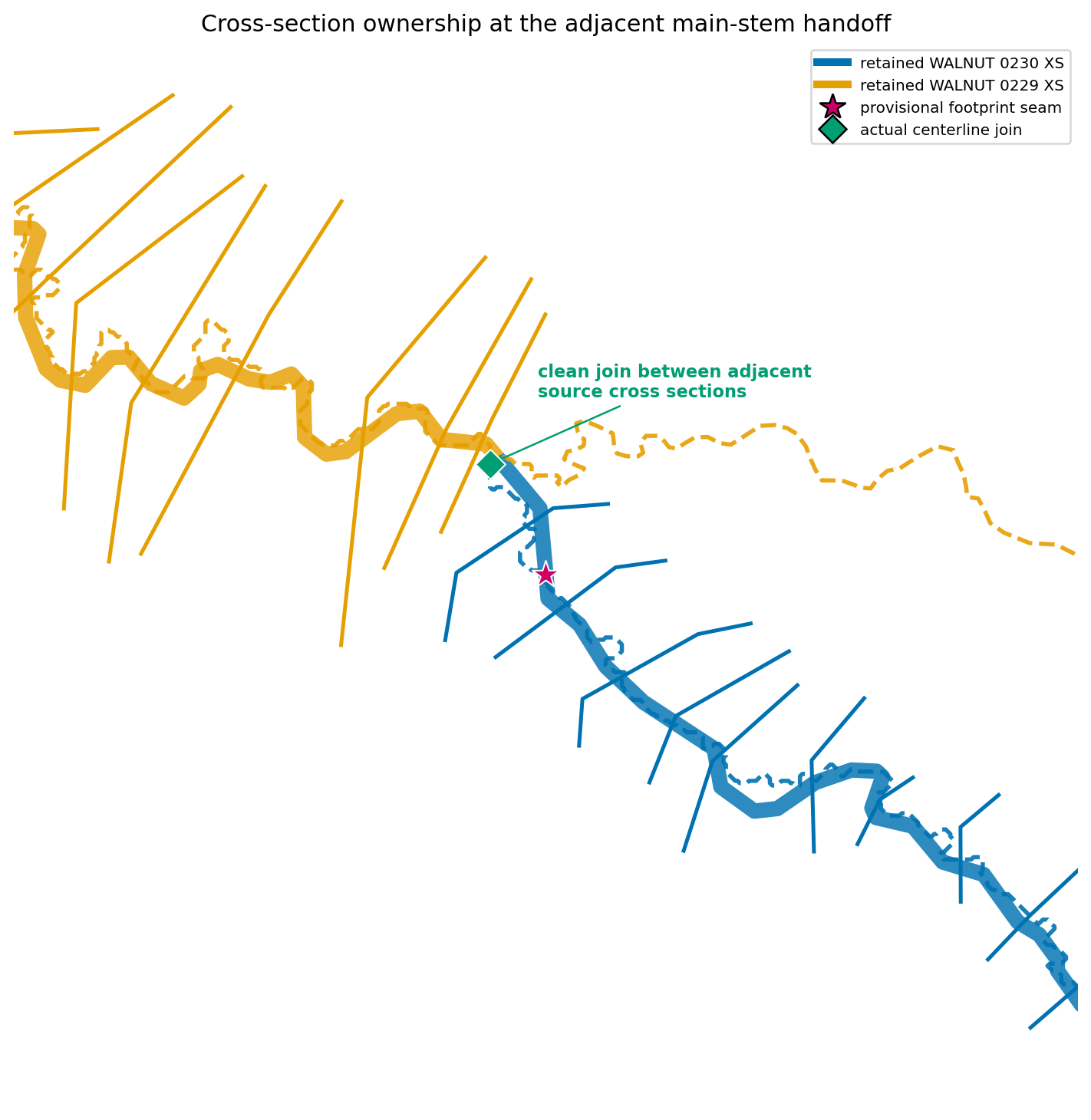

5. Visual proof: a clean main-stem handoff

This final map projects directly intersecting cross sections onto the NWM edge. The actual centerline intersection lies between the last upstream-model cross section and the first downstream-model cross section. No source cross section intersects both centerlines, and the two source cross-section sets do not cross one another. That is the adjacent-main-stem condition needed for the writer.

Python

assignment_by_source = confirmed.set_index("geometry_id")
xs_measure_rows = []
source_xs_by_id = {}
for source_id in SOURCE_IDS:
    reach_id = assignment_by_source.loc[source_id, "reach_id"]
    all_source_xs = catalog.cross_sections_gdf.loc[
        catalog.cross_sections_gdf["reach_id"] == reach_id
    ].copy()
    source_xs_by_id[source_id] = all_source_xs
    source_xs = all_source_xs.loc[
        all_source_xs.intersects(edge_geometry)
    ].copy()
    for row in source_xs.itertuples(index=False):
        edge_point, _ = nearest_points(edge_geometry, row.geometry)
        measure = float(edge_geometry.project(edge_point))
        retained = (
            measure <= join_measure
            if source_id == SOURCE_IDS[0]
            else measure >= join_measure
        )
        xs_measure_rows.append({
            "geometry_id": source_id,
            "station": row.station,
            "edge_measure": measure,
            "retained_side": retained,
            "geometry": row.geometry,
        })
xs_ownership = gpd.GeoDataFrame(
    xs_measure_rows, geometry="geometry", crs=PROJECT_CRS
).sort_values(["edge_measure", "geometry_id"])
pairwise_xs_intersections = sum(
    int(source_xs_by_id[SOURCE_IDS[1]].intersects(xs_geometry).sum())
    for xs_geometry in source_xs_by_id[SOURCE_IDS[0]].geometry
)
assert pairwise_xs_intersections == 0

fig, ax = plt.subplots(figsize=(12.5, 8), constrained_layout=True)
actual_ownership = (
    (SOURCE_IDS[0], substring(edge_geometry, 0.0, join_measure)),
    (SOURCE_IDS[1], substring(edge_geometry, join_measure, edge_geometry.length)),
)
for source_id, geometry in actual_ownership:
    gpd.GeoSeries([geometry], crs=PROJECT_CRS).plot(
        ax=ax, color=colors[source_id], linewidth=8, alpha=0.82,
    )
for source_id in SOURCE_IDS:
    centerline = confirmed_centerlines.loc[
        confirmed_centerlines["geometry_id"] == source_id
    ]
    centerline.plot(
        ax=ax, color=colors[source_id], linewidth=2.2, linestyle="--", alpha=0.9,
    )
    xs_ownership.loc[
        (xs_ownership["geometry_id"] == source_id)
        & xs_ownership["retained_side"]
    ].plot(ax=ax, color=colors[source_id], linewidth=2.0)
excluded_xs = xs_ownership.loc[~xs_ownership["retained_side"]]
if not excluded_xs.empty:
    excluded_xs.plot(
        ax=ax, color="#6B7280", linewidth=1.4, linestyle=":", alpha=0.9,
    )
plan.seams_df.plot(
    ax=ax, color="#CC0066", marker="*", markersize=220,
    edgecolor="white", linewidth=0.8, zorder=10,
)
gpd.GeoSeries([centerline_join], crs=PROJECT_CRS).plot(
    ax=ax, color="#009E73", marker="D", markersize=120,
    edgecolor="white", linewidth=0.8, zorder=11,
)
seam_focus = seam.geometry.buffer(2300.0)
xmin, ymin, xmax, ymax = seam_focus.bounds
ax.set_xlim(xmin, xmax)
ax.set_ylim(ymin, ymax)
ax.set_aspect("equal")
ax.set_axis_off()
ax.set_title("Cross-section ownership at the adjacent main-stem handoff")
ax.legend(
    handles=[
        Line2D([0], [0], color=colors[SOURCE_IDS[0]], linewidth=4, label=f"retained {SOURCE_IDS[0]} XS"),
        Line2D([0], [0], color=colors[SOURCE_IDS[1]], linewidth=4, label=f"retained {SOURCE_IDS[1]} XS"),
        Line2D([0], [0], marker="*", color="none", markerfacecolor="#CC0066", markersize=14, label="provisional footprint seam"),
        Line2D([0], [0], marker="D", color="none", markerfacecolor="#009E73", markersize=10, label="actual centerline join"),
    ],
    loc="best", fontsize=8,
)
ax.annotate(
    "clean join between adjacent\nsource cross sections",
    (centerline_join.x, centerline_join.y),
    xytext=(25, 35), textcoords="offset points",
    arrowprops={"arrowstyle": "->", "color": "#009E73"},
    color="#009E73", fontsize=9, fontweight="bold",
)
figure_3 = ASSET_ROOT / "03_cross_section_ownership.png"
fig.savefig(figure_3, dpi=180, bbox_inches="tight")
plt.show()

display(
    xs_ownership.drop(columns="geometry").style.format({"edge_measure": "{:.0f}"})
)
print(f"Centerline join measure: {join_measure:,.0f} ft")
print(f"Cross sections intersecting both centerlines: {int(plan.handoff_diagnostics_df.iloc[0]['cross_centerline_xs_count'])}")
print(f"Pairwise source cross-section intersections: {pairwise_xs_intersections}")
print(figure_3)

	geometry_id	station	edge_measure	retained_side
8	WALNUT 0230	5159	1203	True
7	WALNUT 0230	4510	1583	True
5	WALNUT 0230	4041	1959	True
4	WALNUT 0230	3396	2431	True
3	WALNUT 0230	2815	2919	True
2	WALNUT 0230	2199	3506	True
1	WALNUT 0230	1880	3758	True
0	WALNUT 0230	1522	4062	True
9	WALNUT 0230	918	4460	True
6	WALNUT 0230	405	4884	True
62	WALNUT 0229	36772	5305	True
61	WALNUT 0229	36546	5476	True
60	WALNUT 0229	36005	5913	True
59	WALNUT 0229	35038	6749	True
58	WALNUT 0229	34130	7255	True
56	WALNUT 0229	33511	7675	True
55	WALNUT 0229	32853	8116	True
54	WALNUT 0229	32128	8636	True
53	WALNUT 0229	31649	9028	True
52	WALNUT 0229	31307	9368	True
51	WALNUT 0229	30615	9950	True
50	WALNUT 0229	30148	10315	True
49	WALNUT 0229	29722	10711	True
48	WALNUT 0229	29668	10764	True
46	WALNUT 0229	29512	10924	True
45	WALNUT 0229	29398	11021	True
44	WALNUT 0229	28258	12111	True
43	WALNUT 0229	27657	12611	True
42	WALNUT 0229	26377	13600	True
41	WALNUT 0229	26323	13656	True
40	WALNUT 0229	26147	13837	True
39	WALNUT 0229	26110	13877	True
38	WALNUT 0229	25916	14090	True
37	WALNUT 0229	25664	14351	True
36	WALNUT 0229	25407	14606	True
35	WALNUT 0229	24857	15056	True
34	WALNUT 0229	24386	15471	True
33	WALNUT 0229	22852	16744	True
32	WALNUT 0229	22496	17029	True
31	WALNUT 0229	21990	17381	True
30	WALNUT 0229	21573	17792	True
29	WALNUT 0229	21328	18031	True
28	WALNUT 0229	20889	18475	True
27	WALNUT 0229	20450	18799	True
26	WALNUT 0229	19840	19323	True
25	WALNUT 0229	18510	20404	True
24	WALNUT 0229	18369	20537	True
23	WALNUT 0229	18133	20735	True
22	WALNUT 0229	17332	21332	True
21	WALNUT 0229	17051	21544	True
20	WALNUT 0229	16351	22203	True
19	WALNUT 0229	16001	22455	True
18	WALNUT 0229	15406	22943	True
17	WALNUT 0229	14606	23429	True
16	WALNUT 0229	14504	23543	True
15	WALNUT 0229	13638	24295	True
14	WALNUT 0229	13184	24728	True
13	WALNUT 0229	12665	25440	True
12	WALNUT 0229	11893	26333	True
11	WALNUT 0229	11629	26566	True
10	WALNUT 0229	10739	27205	True
71	WALNUT 0229	9813	28026	True
70	WALNUT 0229	9355	28462	True
69	WALNUT 0229	7875	29605	True
67	WALNUT 0229	7023	30294	True
66	WALNUT 0229	6343	30891	True
65	WALNUT 0229	5523	31566	True
64	WALNUT 0229	4480	32436	True
63	WALNUT 0229	4173	32715	True
57	WALNUT 0229	3392	33215	True
47	WALNUT 0229	2964	33629	True
68	WALNUT 0229	734	35416	True

Text Only

Centerline join measure: 5,206 ft
Cross sections intersecting both centerlines: 0
Pairwise source cross-section intersections: 0
H:\Symphony\ras-commander\multi-model-breakout\examples\assets\236_multi_model_1d_breakout_planning\03_cross_section_ownership.png

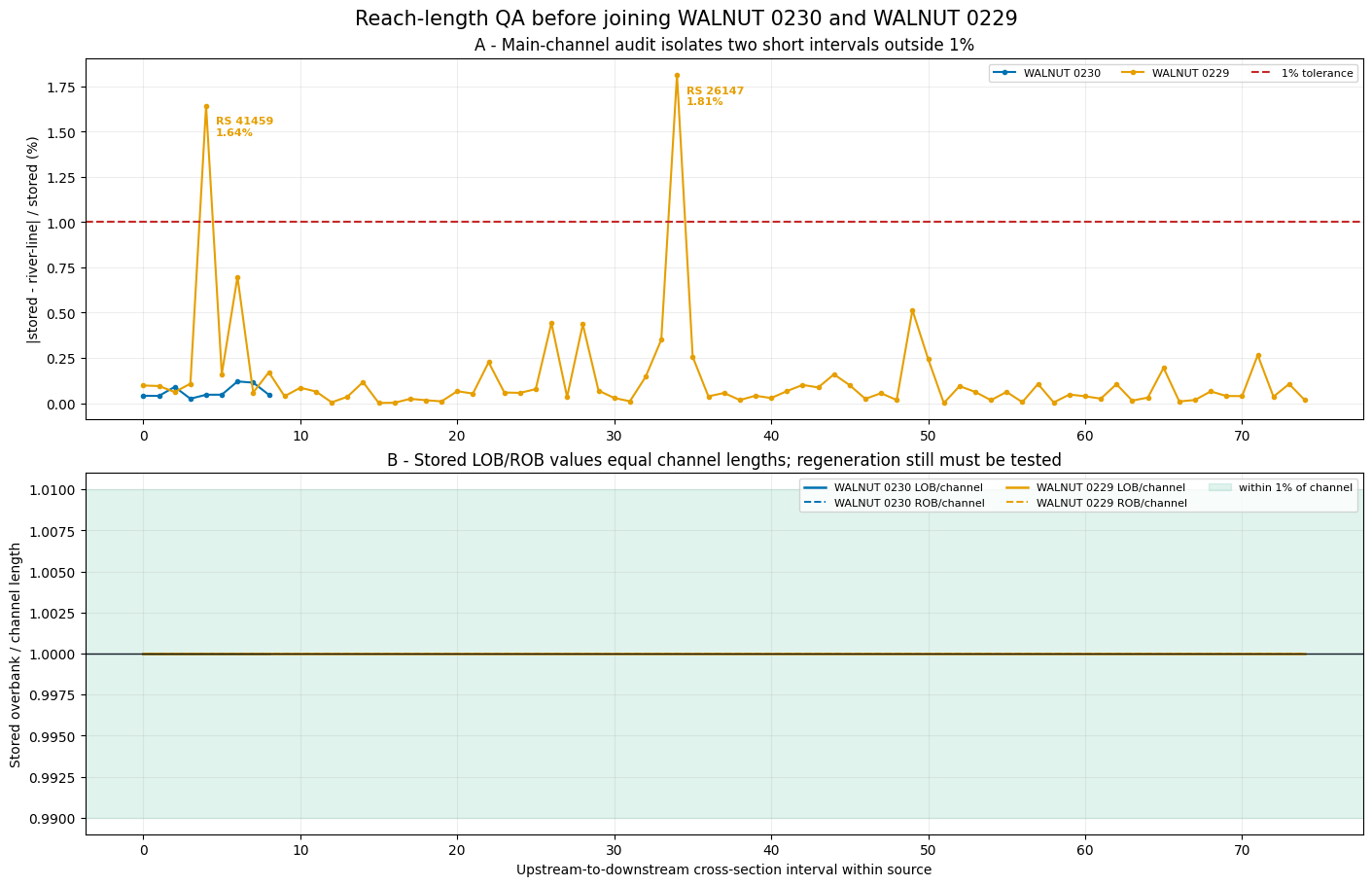

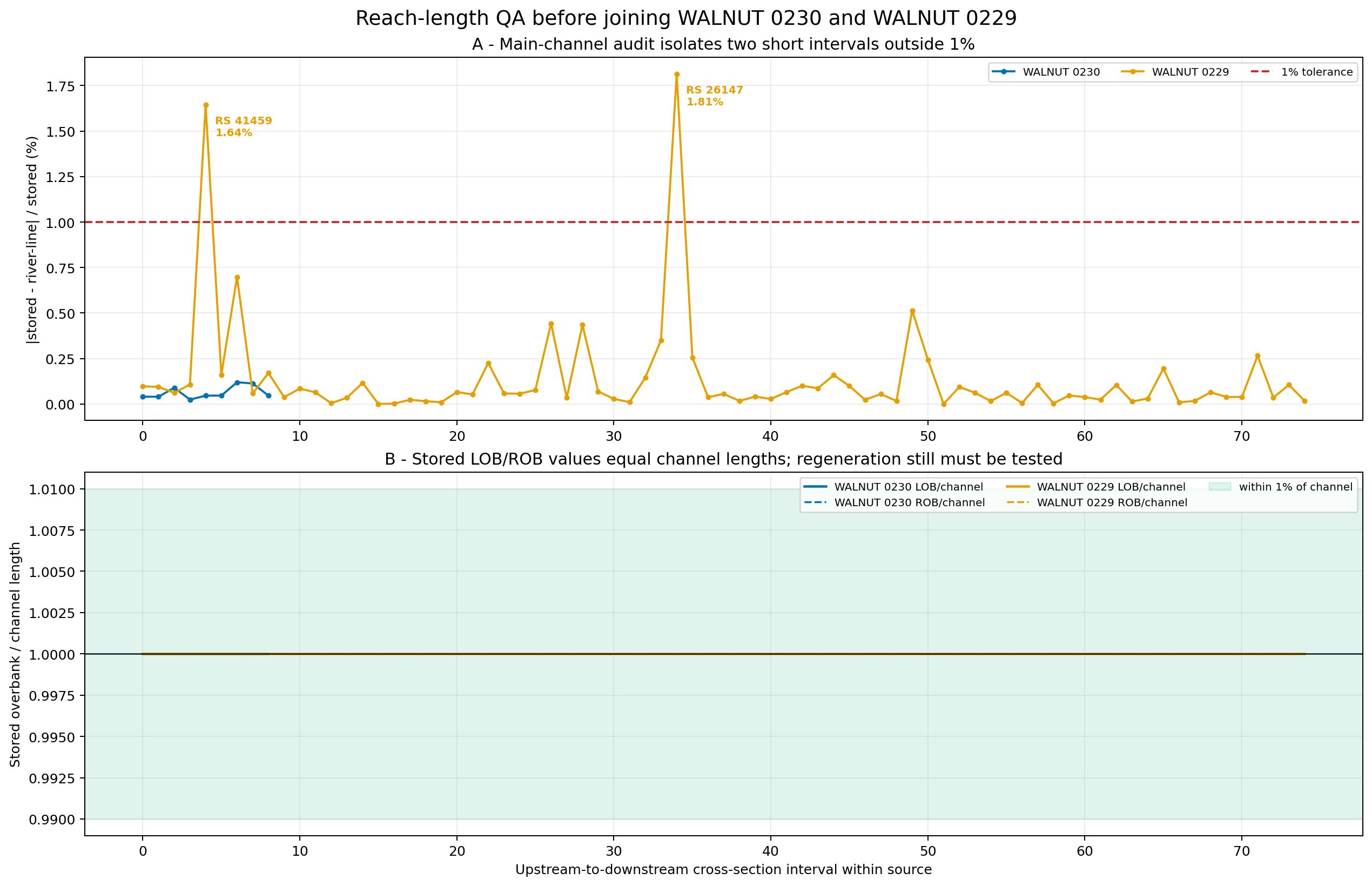

6. Visual proof: reach-length evidence before geometry assembly

Channel and overbank distances answer different questions. The channel audit compares each stored channel length with the distance between adjacent cut-line intersections measured along the RAS river polyline. The overbank panel shows whether stored LOB/ROB values already carry routing evidence distinct from the channel. Neither check changes the FEMA sources.

These legacy text geometries contain no compiled geometry HDF, so they cannot yet prove that regenerated RAS Mapper flow paths reproduce the stored values. That test belongs on the provisional joined geometry and is shown after the figure.

Python

channel_frames = []
overbank_frames = []
policy_rows = []
model_paths = catalog.models_df.set_index("geometry_id")["geometry_path"]

for source_id in SOURCE_IDS:
    geometry_path = Path(model_paths.loc[source_id])
    channel = RasGeometryCompute.audit_main_channel_lengths(
        geometry_path, tolerance_fraction=0.01
    ).copy()
    channel["geometry_id"] = source_id
    channel["interval_order"] = range(len(channel))
    channel_frames.append(channel)

    stored = GeomCrossSection.get_cross_sections(geometry_path)
    stored = stored.loc[stored["Type"] == 1].copy()
    usable = stored["Length_Channel"].abs() > 1.0e-9
    stored = stored.loc[usable].copy()
    stored["geometry_id"] = source_id
    stored["interval_order"] = range(len(stored))
    stored["left_channel_ratio"] = (
        stored["Length_Left"] / stored["Length_Channel"]
    )
    stored["right_channel_ratio"] = (
        stored["Length_Right"] / stored["Length_Channel"]
    )
    overbank_frames.append(stored)

    overbanks_distinct = bool(
        ((stored["left_channel_ratio"] - 1.0).abs() > 0.01).any()
        or ((stored["right_channel_ratio"] - 1.0).abs() > 0.01).any()
    )
    compiled_hdf = Path(f"{geometry_path}.hdf")
    preflight = (
        "preserve_and_recompute_only_at_join_boundary"
        if not compiled_hdf.is_file() and overbanks_distinct
        else "clone_and_regenerate_required"
    )
    usable_channel = channel.loc[~channel["reach_end"]]
    policy_rows.append({
        "geometry_id": source_id,
        "channel_intervals": len(usable_channel),
        "max_channel_error_percent": 100.0 * usable_channel["relative_error_channel"].max(),
        "channel_all_within_1pct": not usable_channel["main_channel_flagged"].any(),
        "stored_overbanks_distinct": overbanks_distinct,
        "compiled_geometry_hdf_exists": compiled_hdf.is_file(),
        "flow_path_preflight": preflight,
    })

channel_evidence = pd.concat(channel_frames, ignore_index=True)
overbank_evidence = pd.concat(overbank_frames, ignore_index=True)
policy_preflight = pd.DataFrame(policy_rows)
display(policy_preflight.style.format({"max_channel_error_percent": "{:.3f}%"}))

fig, axes = plt.subplots(2, 1, figsize=(14, 9), constrained_layout=True)
for source_id in SOURCE_IDS:
    channel = channel_evidence.loc[
        (channel_evidence["geometry_id"] == source_id)
        & ~channel_evidence["reach_end"]
    ]
    axes[0].plot(
        channel["interval_order"],
        100.0 * channel["relative_error_channel"],
        marker="o", markersize=3, linewidth=1.5,
        color=colors[source_id], label=source_id,
    )
    for flagged in channel.loc[channel["main_channel_flagged"]].itertuples(index=False):
        error_percent = 100.0 * flagged.relative_error_channel
        axes[0].annotate(
            f"RS {flagged.RS}\n{error_percent:.2f}%",
            (flagged.interval_order, error_percent),
            xytext=(7, -8), textcoords="offset points", va="top",
            color=colors[source_id], fontsize=8, fontweight="bold",
        )
    overbank = overbank_evidence.loc[
        overbank_evidence["geometry_id"] == source_id
    ]
    axes[1].plot(
        overbank["interval_order"], overbank["left_channel_ratio"],
        color=colors[source_id], linewidth=1.8, label=f"{source_id} LOB/channel",
    )
    axes[1].plot(
        overbank["interval_order"], overbank["right_channel_ratio"],
        color=colors[source_id], linewidth=1.4, linestyle="--",
        label=f"{source_id} ROB/channel",
    )

axes[0].axhline(1.0, color="#C62828", linestyle="--", linewidth=1.5, label="1% tolerance")
axes[0].set_ylabel("|stored - river-line| / stored (%)")
axes[0].set_title("A - Main-channel audit isolates two short intervals outside 1%")
axes[0].legend(fontsize=8, ncol=3)
axes[0].grid(alpha=0.22)

axes[1].axhspan(0.99, 1.01, color="#009E73", alpha=0.12, label="within 1% of channel")
axes[1].axhline(1.0, color="#111827", linewidth=1.0)
axes[1].set_xlabel("Upstream-to-downstream cross-section interval within source")
axes[1].set_ylabel("Stored overbank / channel length")
axes[1].set_title("B - Stored LOB/ROB values equal channel lengths; regeneration still must be tested")
axes[1].legend(fontsize=8, ncol=3)
axes[1].grid(alpha=0.22)
fig.suptitle("Reach-length QA before joining WALNUT 0230 and WALNUT 0229", fontsize=15)
figure_4 = ASSET_ROOT / "04_reach_length_policy_evidence.png"
fig.savefig(figure_4, dpi=180, bbox_inches="tight")
plt.show()
print(figure_4)

	geometry_id	channel_intervals	max_channel_error_percent	channel_all_within_1pct	stored_overbanks_distinct	compiled_geometry_hdf_exists	flow_path_preflight
0	WALNUT 0230	9	0.120%	True	False	False	clone_and_regenerate_required
1	WALNUT 0229	75	1.815%	False	False	False	clone_and_regenerate_required

Text Only

H:\Symphony\ras-commander\multi-model-breakout\examples\assets\236_multi_model_1d_breakout_planning\04_reach_length_policy_evidence.png

The river-polyline audit validates 82 of 84 usable channel intervals within 1%. Two short WALNUT 0229 intervals are flagged at 1.64% and 1.81%; those are explicit centerline QA findings for review, not an overbank-policy trigger. Both models store LOB and ROB lengths equal to channel length and have no compiled geometry HDF, so this preflight does not guess a final flow-path policy. After the assembler writes and compiles its provisional geometry, the complete check is:

Python

policy = RasGeometryCompute.assess_flow_path_policy(
    provisional_geom_hdf,
    tolerance_fraction=0.01,
    join_upstream_xs=(joined_river, joined_reach, upstream_join_rs),
    join_downstream_xs=(joined_river, joined_reach, downstream_join_rs),
    review_segments_path=WORK_ROOT / "join_flow_path_segments.parquet",
)

The method clones the whole project internally, regenerates RAS Mapper flow paths, recomputes LOB/ROB lengths, and recommends regenerate_and_recompute only if every usable interval reproduces its stored value within 1%. Otherwise it recommends preserve_and_recompute_only_at_join_boundary; only the new join interval is measured from regenerated paths, and the two clipped LOB/ROB segments are retained as reviewable GeoParquet evidence. Channel flags remain informative QA and never change the overbank policy.

7. Write the provisional multi-source geometry

The same public plan now feeds assemble_network_edge(). The writer uses the actual centerline intersection, retains only each source's continuous owned slice, rejects cross-source cut-line intersections, and creates a new .prj, .p01, .g01, and .f01. It never modifies either FEMA source.

Because the NWM feature reaches both available outer source termini, the requested automatic 10% upstream and 25% downstream hydraulic buffers are constrained by available geometry in this case. The result attributes record both requested and actually applied distances. The strict inundation flag also records whether its requested one-section downstream overlap was available.

Python

ASSEMBLY_ROOT = RUN_ROOT / "assembled_provisional"

assembled = RasBreakout1D.assemble_network_edge(
    source_models,
    catalog,
    plan,
    ASSEMBLY_ROOT,
    destination_name=f"NWM_{TARGET_EDGE_ID}_breakout",
    destination_river=f"NWM {TARGET_EDGE_ID}",
    destination_reach="Main",
    inundation_overlap_xs=1,
)

station_map_path = RUN_ROOT / "assembly_station_map.parquet"
seams_path = RUN_ROOT / "assembly_seams.parquet"
assembled.station_map_gdf.to_parquet(station_map_path, index=False)
assembled.seams_gdf.to_parquet(seams_path, index=False)

assert assembled.validation.is_valid
assert len(assembled.station_map_gdf.query("source_node_type == 1")) == 72
assert assembled.seams_gdf.iloc[0]["join_method"] == "centerline_intersection"
assert not assembled.reach_lengths_finalized
assembled_channel_audit = RasGeometryCompute.audit_main_channel_lengths(
    assembled.geometry_file, tolerance_fraction=0.01
)
assert not assembled_channel_audit.loc[~assembled_channel_audit["reach_end"], "main_channel_flagged"].any()

display(assembled.validation.checks_df)
display(assembled.seams_gdf.drop(columns="geometry"))
display(pd.DataFrame([assembled.station_map_gdf.attrs]))
display(assembled_channel_audit[["RS", "len_channel_stored", "len_channel_recomputed", "relative_error_channel", "main_channel_flagged"]].tail())
print(f"Independent project: {assembled.project_file}")
print(f"Station provenance: {station_map_path}")
print(f"Resolved seam evidence: {seams_path}")

Text Only

2026-09-09 09:26:19 - ras_commander.RasMap - WARNING - RASMapper file not found: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\assembled_provisional\NWM_5790954_breakout.rasmap


2026-09-09 09:26:19 - ras_commander.RasBreakout1D - INFO - Assembled H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\assembled_provisional\NWM_5790954_breakout.prj from 2 source models with 72 retained cross sections

	check	severity	passed	detail
0	retained_cross_sections	ERROR	True	expected=72 actual=72
1	restationed_cross_sections	ERROR	True	expected=('41332.705', '40683.968', '40215.156...
2	restationed_nodes	ERROR	True	all cross sections and structures retain order...
3	node_payload_content	ERROR	True	every retained node payload matches its source...
4	station_order	ERROR	True	destination river stations strictly decrease d...
5	single_reach	ERROR	True	destination reaches=[{'River': 'NWM 5790954', ...
6	reach_lengths	ERROR	True	destination LOB/channel/ROB lengths match the ...
7	steady_flow_reach	ERROR	True	flow-change reaches=[('NWM 5790954', 'Main')]
8	steady_profiles	ERROR	True	expected=('10-year', '25-year', '50-year', '1p...
9	steady_boundaries	ERROR	True	boundary reaches=[('NWM 5790954', 'Main')]
10	source_geometry_immutable	ERROR	True	all source geometry hashes are unchanged
11	resolved_seams	ERROR	True	resolved seam count=1
12	flow_path_lengths_finalized	WARNING	False	provisional join LOB/ROB lengths require a flo...

	edge_id	seam_index	upstream_geometry_id	downstream_geometry_id	join_method	connector_length	edge_measure	upstream_source_measure	downstream_source_measure	upstream_source_station	downstream_source_station	upstream_destination_station	downstream_destination_station	join_left_length	join_channel_length	join_right_length	length_policy
0	5790954	0	WALNUT 0230	WALNUT 0229	centerline_intersection	0.0	5205.799664	6853.731957	6300.56737	405	36772	36579.172	36038.507	540.664972	540.664972	540.664972	provisional_join_channel_fallback

	edge_id	edge_length	main_channel_length	joined_centerline_length	upstream_buffer_distance	downstream_buffer_distance	upstream_buffer_applied	downstream_buffer_applied	inundation_overlap_xs	inundation_overlap_xs_applied	flow_path_policy	reach_lengths_finalized
0	5790954	35819.279831	41332.704538	41334.704538	4133.270454	10333.176135	0.0	0.0	1	0	preserve_and_recompute_only_at_join_boundary	False

	RS	len_channel_stored	len_channel_recomputed	relative_error_channel	main_channel_flagged
67	3746.45	307.815	307.815106	3.440478e-07	False
68	3438.635	780.720	780.719934	8.482563e-08	False
69	2657.915	427.547	427.547183	4.286929e-07	False
70	2230.368	2230.368	2230.368265	1.189591e-07	False
71	0	0.000	NaN	NaN	False

Text Only

Independent project: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\assembled_provisional\NWM_5790954_breakout.prj
Station provenance: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\assembly_station_map.parquet
Resolved seam evidence: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\assembly_seams.parquet

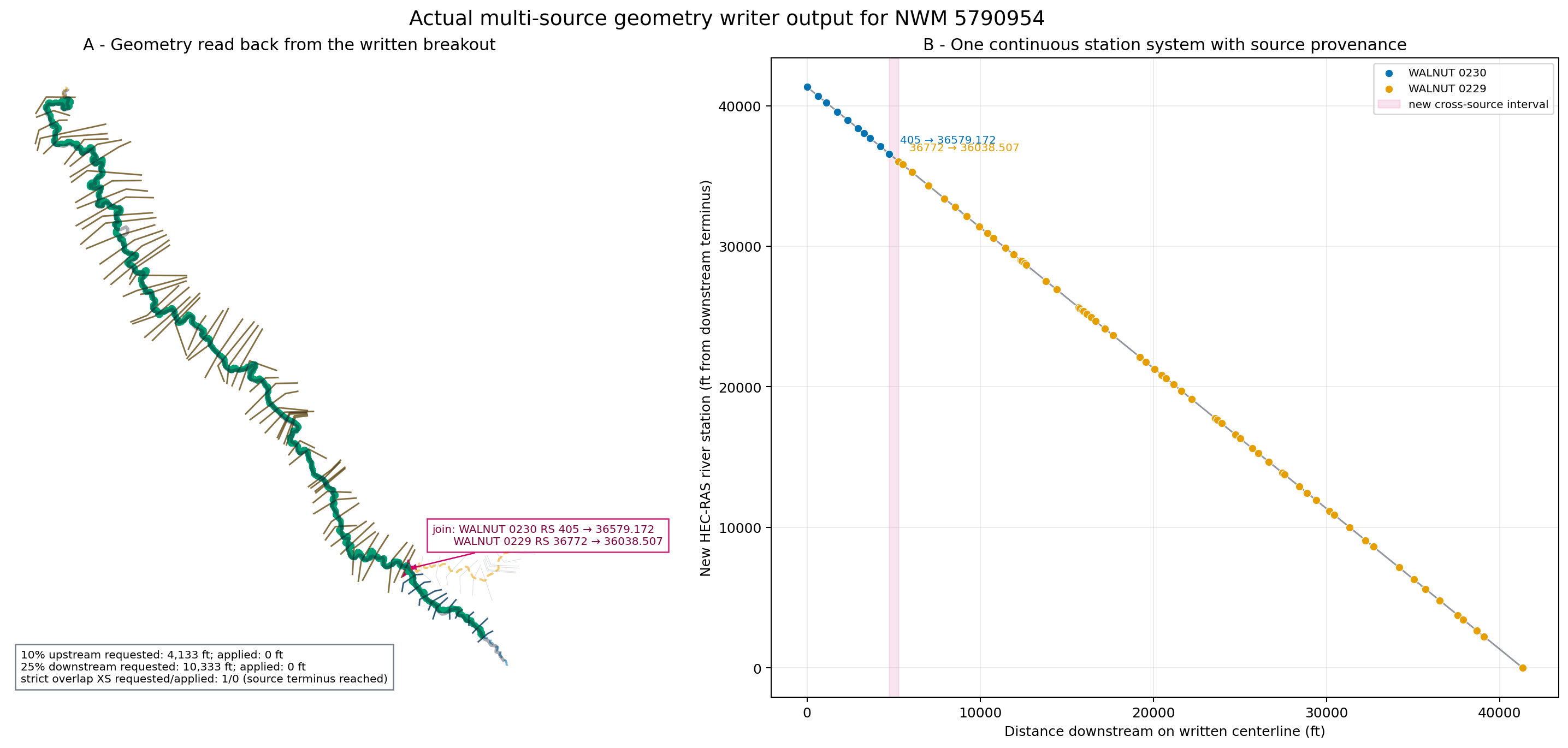

8. Visual proof: written geometry, retained blocks, and restationing

Panel A reads the river line back from the written HEC-RAS geometry. Gray cut lines are available source sections; colored cut lines are the 72 sections actually written. The black overlay is the strict raster-export selection. Panel B proves that source-local station systems were replaced by one continuous distance-from-downstream-terminus system while source provenance remains visible.

Python

written_centerline = GeomParser.get_river_centerlines(assembled.geometry_file).geometry.iloc[0]
node_map = assembled.station_map_gdf.copy()
written_xs = node_map.loc[node_map["source_node_type"] == 1].copy()
strict_xs = written_xs.loc[written_xs["in_inundation_domain"]]
all_selected_source_xs = catalog.cross_sections_gdf.loc[
    catalog.cross_sections_gdf["reach_id"].isin(confirmed_reach_ids)
]
join_evidence = assembled.seams_gdf.iloc[0]
join_upstream = written_xs.loc[written_xs["is_join_upstream"]].iloc[0]
join_downstream = written_xs.loc[written_xs["is_join_downstream"]].iloc[0]

fig, axes = plt.subplots(1, 2, figsize=(17, 7.5), constrained_layout=True)
all_selected_source_xs.plot(ax=axes[0], color="#9CA3AF", linewidth=0.45, alpha=0.35)
for source_id in SOURCE_IDS:
    confirmed_centerlines.loc[
        confirmed_centerlines["geometry_id"] == source_id
    ].plot(ax=axes[0], color=colors[source_id], linewidth=1.5, linestyle="--", alpha=0.55)
    written_xs.loc[
        written_xs["source_geometry_id"] == source_id
    ].plot(ax=axes[0], color=colors[source_id], linewidth=0.85, alpha=0.75)
gpd.GeoSeries([written_centerline], crs=PROJECT_CRS).plot(
    ax=axes[0], color="#009E73", linewidth=4, label="written joined centerline"
)
strict_xs.plot(ax=axes[0], color="#111827", linewidth=1.25, alpha=0.45)
target_edge.plot(ax=axes[0], color="#111827", linewidth=2.5, alpha=0.35)
assembled.seams_gdf.plot(ax=axes[0], color="#CC0066", marker="*", markersize=180)
axes[0].annotate(
    f"join: {join_upstream.source_geometry_id} RS {join_upstream.source_station} → {join_upstream.destination_station}\n"
    f"      {join_downstream.source_geometry_id} RS {join_downstream.source_station} → {join_downstream.destination_station}",
    xy=(join_evidence.geometry.x, join_evidence.geometry.y), xytext=(18, 18),
    textcoords="offset points", arrowprops={"arrowstyle": "->", "color": "#CC0066"},
    fontsize=8, color="#7A003C", bbox={"facecolor": "white", "alpha": 0.88, "edgecolor": "#CC0066"},
)
axes[0].set_title("A - Geometry read back from the written breakout")
domain_attrs = assembled.station_map_gdf.attrs
axes[0].text(
    0.02, 0.02,
    f"10% upstream requested: {domain_attrs['upstream_buffer_distance']:,.0f} ft; applied: {domain_attrs['upstream_buffer_applied']:,.0f} ft\n"
    f"25% downstream requested: {domain_attrs['downstream_buffer_distance']:,.0f} ft; applied: {domain_attrs['downstream_buffer_applied']:,.0f} ft\n"
    f"strict overlap XS requested/applied: {domain_attrs['inundation_overlap_xs']}/{domain_attrs['inundation_overlap_xs_applied']} (source terminus reached)",
    transform=axes[0].transAxes, fontsize=8, va="bottom",
    bbox={"facecolor": "white", "alpha": 0.9, "edgecolor": "#6B7280"},
)
axes[0].set_axis_off()

for source_id in SOURCE_IDS:
    frame = written_xs.loc[written_xs["source_geometry_id"] == source_id]
    axes[1].scatter(
        frame["centerline_measure"], frame["destination_station"].astype(float),
        s=34, color=colors[source_id], edgecolor="white", linewidth=0.5, label=source_id, zorder=3,
    )
axes[1].plot(
    written_xs["centerline_measure"], written_xs["destination_station"].astype(float),
    color="#374151", linewidth=1.2, alpha=0.55,
)
for row in (join_upstream, join_downstream):
    axes[1].annotate(
        f"{row.source_station} → {row.destination_station}",
        (row.centerline_measure, float(row.destination_station)),
        xytext=(8, 8), textcoords="offset points", fontsize=8, color=colors[row.source_geometry_id],
    )
axes[1].axvspan(
    join_upstream.centerline_measure, join_downstream.centerline_measure,
    color="#CC0066", alpha=0.10, label="new cross-source interval",
)
axes[1].set_xlabel("Distance downstream on written centerline (ft)")
axes[1].set_ylabel("New HEC-RAS river station (ft from downstream terminus)")
axes[1].set_title("B - One continuous station system with source provenance")
axes[1].grid(alpha=0.22)
axes[1].legend(fontsize=8)
fig.suptitle("Actual multi-source geometry writer output for NWM 5790954", fontsize=15)
figure_5 = ASSET_ROOT / "05_written_geometry_and_restationing.png"
fig.savefig(figure_5, dpi=180, bbox_inches="tight")
plt.show()
print(figure_5)

Text Only

H:\Symphony\ras-commander\multi-model-breakout\examples\assets\236_multi_model_1d_breakout_planning\05_written_geometry_and_restationing.png

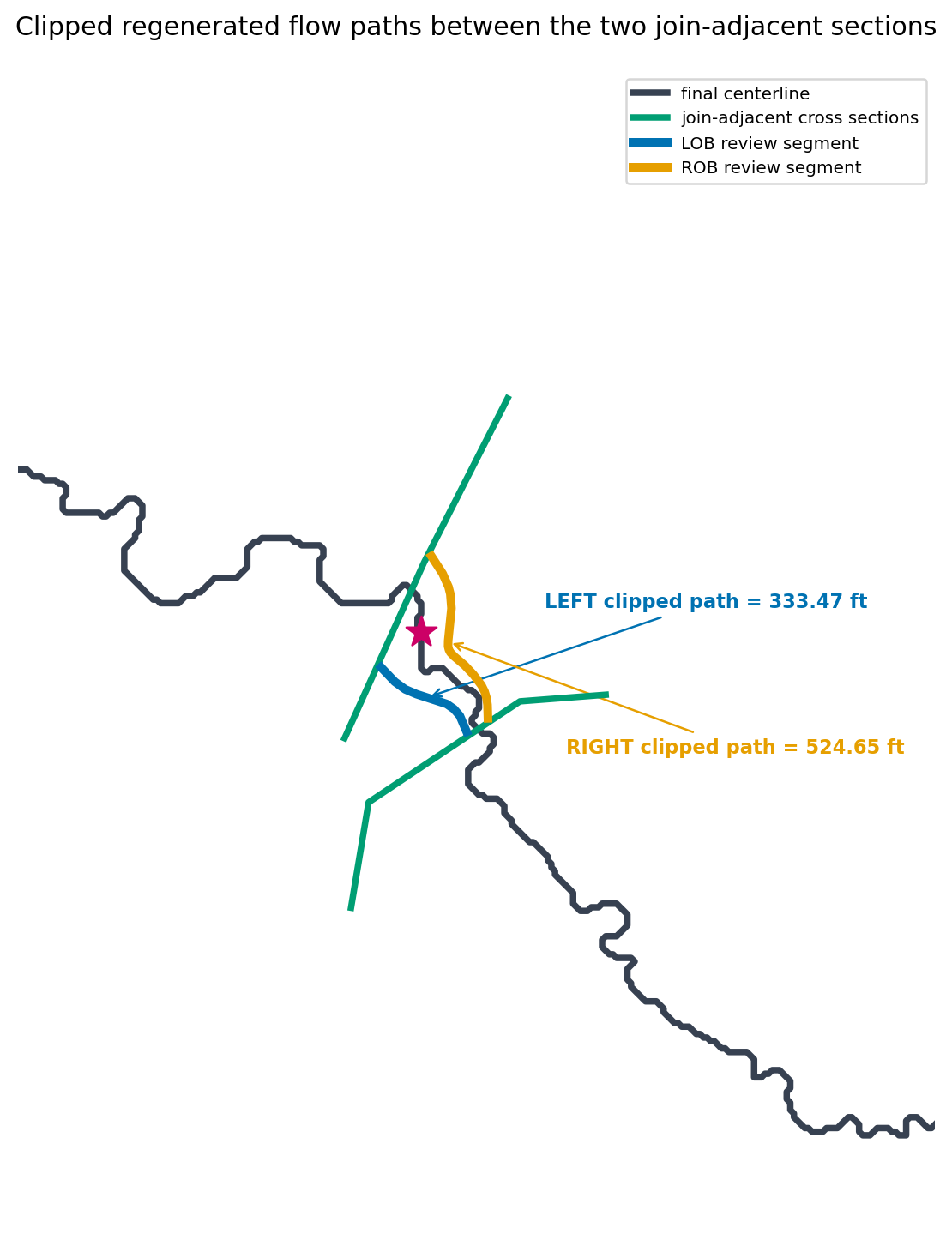

9. Compile the provisional geometry and finalize flow-path policy

The provisional project is first computed through RasCmdr, which creates the geometry HDF needed for a real RAS Mapper flow-path audit. Shorter station text in compiled HDF tables is matched uniquely back to the writer's full-precision station map. The audit clones the project, regenerates flow paths, and compares all usable LOB/ROB intervals with their stored values.

The Texas source overbank lengths are not reproduced within 1%, so the final writer uses preserve_and_recompute_only_at_join_boundary: source LOB/ROB lengths remain unchanged, while only the new cross-model interval receives the two clipped regenerated path lengths. The final model is then computed again.

Python

provisional_compute = RasBreakout1D.run(
    assembled,
    verify=False,
    force_rerun=True,
)
provisional_geom_hdf = Path(f"{assembled.geometry_file}.hdf")
provisional_plan_hdf = Path(f"{assembled.plan_file}.hdf")
provisional_messages = HdfResultsPlan.get_compute_messages(provisional_plan_hdf)
assert "Complete Process" in provisional_messages

join_upstream = assembled.station_map_gdf.loc[
    assembled.station_map_gdf["is_join_upstream"]
].iloc[0]
join_downstream = assembled.station_map_gdf.loc[
    assembled.station_map_gdf["is_join_downstream"]
].iloc[0]
review_segments_path = RUN_ROOT / "join-0-flow-paths.parquet"
policy = RasGeometryCompute.assess_flow_path_policy(
    provisional_geom_hdf,
    tolerance_fraction=0.01,
    join_upstream_xs=(
        join_upstream.destination_river,
        join_upstream.destination_reach,
        join_upstream.destination_station,
    ),
    join_downstream_xs=(
        join_downstream.destination_river,
        join_downstream.destination_reach,
        join_downstream.destination_station,
    ),
    review_segments_path=review_segments_path,
    hecras_version=RAS_VERSION,
)
assert policy.recommended_policy == "preserve_and_recompute_only_at_join_boundary"
assert set(policy.join_segments_gdf["side"]) == {"left", "right"}

FINAL_ROOT = RUN_ROOT / "assembled_final"
final = RasBreakout1D.assemble_network_edge(
    source_models,
    catalog,
    plan,
    FINAL_ROOT,
    destination_name=f"NWM_{TARGET_EDGE_ID}_breakout",
    destination_river=f"NWM {TARGET_EDGE_ID}",
    destination_reach="Main",
    inundation_overlap_xs=1,
    flow_path_policy_results={0: policy},
)
assert final.reach_lengths_finalized
assert final.flow_path_policy == policy.recommended_policy

final_compute = RasBreakout1D.run(final, verify=False, force_rerun=True)
final_geom_hdf = Path(f"{final.geometry_file}.hdf")
final_plan_hdf = Path(f"{final.plan_file}.hdf")
final_messages = HdfResultsPlan.get_compute_messages(final_plan_hdf)
assert "Complete Process" in final_messages

final_channel_audit = RasGeometryCompute.audit_main_channel_lengths(
    final.geometry_file, tolerance_fraction=0.01
)
usable_final_channel = final_channel_audit.loc[~final_channel_audit["reach_end"]]
assert not usable_final_channel["main_channel_flagged"].any()

display(policy.reach_metrics_df)
display(policy.join_segments_gdf.drop(columns="geometry"))
display(final.seams_gdf.drop(columns="geometry"))
display(pd.DataFrame([{
    "provisional_compute": provisional_compute.success,
    "final_compute": final_compute.success,
    "recommended_policy": policy.recommended_policy,
    "main_channel_flagged_intervals": int(usable_final_channel["main_channel_flagged"].sum()),
    "max_main_channel_relative_error": usable_final_channel["relative_error_channel"].max(),
}]))
print(f"Final independent project: {final.project_file}")
print(f"Join review segments: {review_segments_path}")

Text Only

2026-09-09 09:26:24 - ras_commander.hdf.HdfXsec - WARNING - No river flow paths found in geometry file


2026-09-09 09:26:27 - ras_commander.hdf.HdfBase - WARNING - Projection not found for NWM_5790954_breakout.g01.hdf; returned geospatial outputs will not have a CRS. Enable DEBUG for checked paths and RASMapper projection setup guidance.


2026-09-09 09:26:27 - ras_commander.RasMap - WARNING - RASMapper file not found: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\assembled_final\NWM_5790954_breakout.rasmap


2026-09-09 09:26:27 - ras_commander.RasBreakout1D - INFO - Assembled H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\assembled_final\NWM_5790954_breakout.prj from 2 source models with 72 retained cross sections

	River	Reach	source_flow_paths_present	source_flow_path_count	interval_count	overbank_match_count	overbank_match_fraction	max_relative_error_left	max_relative_error_right	stored_overbanks_differ_from_channel	main_channel_flagged_count	max_relative_error_channel	recommended_policy	reason_codes	tolerance_fraction
0	NWM 5790954	Main	False	0	71	9	0.126761	2.11844	0.765005	True	0	0.00077	preserve_and_recompute_only_at_join_boundary	(REGENERATED_OVERBANK_LENGTH_MISMATCH, MISSING...	0.01

	River	Reach	upstream_rs	downstream_rs	side	flow_path_id	length
0	NWM 5790954	Main	36579.172	36038.507	left	0	333.471017
1	NWM 5790954	Main	36579.172	36038.507	right	1	524.647310

	edge_id	seam_index	upstream_geometry_id	downstream_geometry_id	join_method	connector_length	edge_measure	upstream_source_measure	downstream_source_measure	upstream_source_station	downstream_source_station	upstream_destination_station	downstream_destination_station	join_left_length	join_channel_length	join_right_length	length_policy
0	5790954	0	WALNUT 0230	WALNUT 0229	centerline_intersection	0.0	5205.799664	6853.731957	6300.56737	405	36772	36579.172	36038.507	333.471017	540.664972	524.64731	preserve_and_recompute_only_at_join_boundary

	provisional_compute	final_compute	recommended_policy	main_channel_flagged_intervals	max_main_channel_relative_error
0	True	True	preserve_and_recompute_only_at_join_boundary	0	0.000011

Text Only

Final independent project: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\assembled_final\NWM_5790954_breakout.prj
Join review segments: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\join-0-flow-paths.parquet

10. Compute the original plans and isolate geometry diagnostics

A successful hydraulic computation does not by itself prove that geometry diagnostics were introduced by the join. Both complete original plans are therefore computed in isolated destination folders, leaving the FEMA source folders untouched. Each exact retained source slice is also written and computed independently, without a cross-model join.

Cross-section diagnostics are traced through station_map_gdf from final destination station to source model and source station. A non-station edge-line diagnostic is accepted as pre-existing only when the same diagnostic reproduces in an independently computed retained source slice. Any unmatched or join-adjacent diagnostic fails the assertions below and requires remediation.

Python

source_diagnostics = {}
retained_diagnostics = {}
source_run_results = {}
retained_run_results = {}
model_paths = catalog.models_df.set_index("geometry_id")

for source_id in SOURCE_IDS:
    source_run = RUN_ROOT / f"original-{source_id.replace(' ', '-').lower()}"
    source_run_results[source_id] = RasCmdr.compute_plan(
        "01",
        ras_object=source_models[source_id],
        dest_folder=source_run,
        clear_geompre=True,
        force_rerun=True,
        verify=False,
    )
    source_geom_hdf = source_run / f"{source_id}.g01.hdf"
    source_plan_hdf = source_run / f"{source_id}.p01.hdf"
    assert "Complete Process" in HdfResultsPlan.get_compute_messages(source_plan_hdf)
    source_diagnostics[source_id] = RasGeometryCompute.validate_geometry(source_geom_hdf)

    retained_nodes = final.station_map_gdf.loc[
        (final.station_map_gdf["source_geometry_id"] == source_id)
        & (final.station_map_gdf["source_node_type"] == 1)
    ].copy()
    source_station_values = retained_nodes["source_station"].astype(float)
    first = retained_nodes.iloc[0]
    selection = RasBreakout1D.select_by_stations(
        Path(model_paths.loc[source_id, "geometry_path"]),
        river=first.source_river,
        reach=first.source_reach,
        upstream_station=source_station_values.max(),
        downstream_station=source_station_values.min(),
    )
    retained_root = RUN_ROOT / f"retained-{source_id.replace(' ', '-').lower()}"
    retained = RasBreakout1D.extract_selection(
        source_models[source_id],
        retained_root,
        selection,
        plan_number="01",
        destination_name=f"{source_id}_retained",
        boundary_mode="preserve",
    )
    retained_run_results[source_id] = RasBreakout1D.run(
        retained,
        verify=False,
        force_rerun=True,
    )
    retained_geom_hdf = Path(f"{retained.geometry_file}.hdf")
    retained_plan_hdf = Path(f"{retained.plan_file}.hdf")
    assert "Complete Process" in HdfResultsPlan.get_compute_messages(retained_plan_hdf)
    retained_diagnostics[source_id] = RasGeometryCompute.validate_geometry(retained_geom_hdf)

final_diagnostics = RasGeometryCompute.validate_geometry(final_geom_hdf)
xs_map = final.station_map_gdf.loc[
    final.station_map_gdf["source_node_type"] == 1
].copy()
xs_map["destination_station_value"] = xs_map["destination_station"].astype(float)


def diagnostic_key(row):
    return str(row.layer), str(row.message)


provenance_rows = []
for diagnostic in final_diagnostics.itertuples(index=False):
    source_id = None
    source_station = None
    destination_station = diagnostic.RS
    join_adjacent = False
    retained_match = False
    original_match = False

    if diagnostic.layer == "Cross Sections" and pd.notna(diagnostic.RS):
        candidates = xs_map.loc[
            (xs_map["destination_station_value"] - float(diagnostic.RS)).abs() < 0.011
        ]
        if len(candidates) == 1:
            mapped = candidates.iloc[0]
            source_id = mapped.source_geometry_id
            source_station = mapped.source_station
            join_adjacent = bool(mapped.is_join_upstream or mapped.is_join_downstream)
            original = source_diagnostics[source_id]
            retained_source = retained_diagnostics[source_id]
            original_match = bool((
                (original["layer"] == diagnostic.layer)
                & (original["message"] == diagnostic.message)
                & ((original["RS"].astype(float) - float(source_station)).abs() < 0.011)
            ).any())
            retained_match = bool((
                (retained_source["layer"] == diagnostic.layer)
                & (retained_source["message"] == diagnostic.message)
                & ((retained_source["RS"].astype(float) - float(source_station)).abs() < 0.011)
            ).any())
    else:
        for candidate_source in SOURCE_IDS:
            original = source_diagnostics[candidate_source]
            retained_source = retained_diagnostics[candidate_source]
            candidate_original_match = any(
                diagnostic_key(row) == diagnostic_key(diagnostic)
                for row in original.itertuples(index=False)
            )
            candidate_retained_match = any(
                diagnostic_key(row) == diagnostic_key(diagnostic)
                for row in retained_source.itertuples(index=False)
            )
            if candidate_retained_match:
                source_id = candidate_source
                original_match = candidate_original_match
                retained_match = True
                break

    origin = (
        "pre_existing_retained"
        if original_match and retained_match and not join_adjacent
        else "join_or_assembly_introduced"
    )
    provenance_rows.append({
        "severity": diagnostic.severity,
        "layer": diagnostic.layer,
        "destination_station": destination_station,
        "source_geometry_id": source_id,
        "source_station": source_station,
        "original_plan_match": original_match,
        "retained_slice_match": retained_match,
        "join_adjacent": join_adjacent,
        "origin": origin,
        "message": diagnostic.message,
    })

diagnostic_provenance = pd.DataFrame(provenance_rows)
assert not diagnostic_provenance.empty
assert diagnostic_provenance["origin"].eq("pre_existing_retained").all()
assert not diagnostic_provenance["join_adjacent"].any()
assert set(
    diagnostic_provenance.loc[
        diagnostic_provenance["layer"] == "Cross Sections", "source_station"
    ].astype(str)
) == {"4041", "28258", "27657", "26377", "22852", "734"}

display(diagnostic_provenance)
display(pd.DataFrame([{
    "original_plans_complete": all(result.success for result in source_run_results.values()),
    "retained_slices_complete": all(result.success for result in retained_run_results.values()),
    "final_plan_complete": final_compute.success,
    "final_diagnostic_count": len(final_diagnostics),
    "pre_existing_retained": int(diagnostic_provenance["origin"].eq("pre_existing_retained").sum()),
    "join_or_assembly_introduced": int(diagnostic_provenance["origin"].eq("join_or_assembly_introduced").sum()),
}]))

Text Only

2026-09-09 09:26:33 - ras_commander.RasCmdr - INFO - Copied project folder to destination: original-walnut-0230


2026-09-09 09:26:33 - ras_commander.RasMap - WARNING - RASMapper file not found: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\original-walnut-0230\WALNUT 0230.rasmap


2026-09-09 09:26:33 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for original-walnut-0230


2026-09-09 09:26:38 - ras_commander.RasMap - WARNING - RASMapper file not found: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\retained-walnut-0230\WALNUT 0230_retained.rasmap


2026-09-09 09:26:38 - ras_commander.RasBreakout1D - INFO - Created one-reach breakout H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\retained-walnut-0230\WALNUT 0230_retained.prj with 10 retained cross sections


2026-09-09 09:26:44 - ras_commander.RasCmdr - INFO - Copied project folder to destination: original-walnut-0229


2026-09-09 09:26:44 - ras_commander.RasMap - WARNING - RASMapper file not found: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\original-walnut-0229\WALNUT 0229.rasmap


2026-09-09 09:26:44 - ras_commander.RasPrj - WARNING - Could not resolve project CRS for original-walnut-0229


2026-09-09 09:26:49 - ras_commander.RasMap - WARNING - RASMapper file not found: H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\retained-walnut-0229\WALNUT 0229_retained.rasmap


2026-09-09 09:26:49 - ras_commander.RasBreakout1D - INFO - Created one-reach breakout H:\Symphony\ras-commander\multi-model-breakout\working\236_multi_model_1d_breakout_planning\runs\20260909_092616\retained-walnut-0229\WALNUT 0229_retained.prj with 62 retained cross sections

	severity	layer	destination_station	source_geometry_id	source_station	original_plan_match	retained_slice_match	join_adjacent	origin	message
0	ERROR	Cross Sections	40215.15	WALNUT 0230	4041	True	True	False	pre_existing_retained	XS intersects > 2 banklines
1	ERROR	Cross Sections	27523.74	WALNUT 0229	28258	True	True	False	pre_existing_retained	XS intersects > 2 banklines
2	ERROR	Cross Sections	26922.91	WALNUT 0229	27657	True	True	False	pre_existing_retained	XS intersects > 2 banklines
3	ERROR	Cross Sections	25642.77	WALNUT 0229	26377	True	True	False	pre_existing_retained	XS intersects > 2 banklines
4	ERROR	Cross Sections	22117.85	WALNUT 0229	22852	True	True	False	pre_existing_retained	XS intersects > 2 banklines
5	ERROR	Cross Sections	0	WALNUT 0229	734	True	True	False	pre_existing_retained	XS intersects > 2 banklines
6	ERROR	Edge Lines	NaN	WALNUT 0229	NaN	True	True	False	pre_existing_retained	Polyline has self intersections
7	WARNING	Edge line self intersections	NaN	WALNUT 0229	NaN	True	True	False	pre_existing_retained	This is a edge line self intersection point

	original_plans_complete	retained_slices_complete	final_plan_complete	final_diagnostic_count	pre_existing_retained	join_or_assembly_introduced
0	True	True	True	8	8	0

All eight final diagnostics are pre-existing retained-source findings. The six cross-section messages map exactly to source stations 4041, 28258, 27657, 26377, 22852, and 734. None is one of the two sections adjacent to the join. The edge-line self-intersection and its warning reproduce in the retained WALNUT 0229 slice without any join, which isolates them from assembly logic.

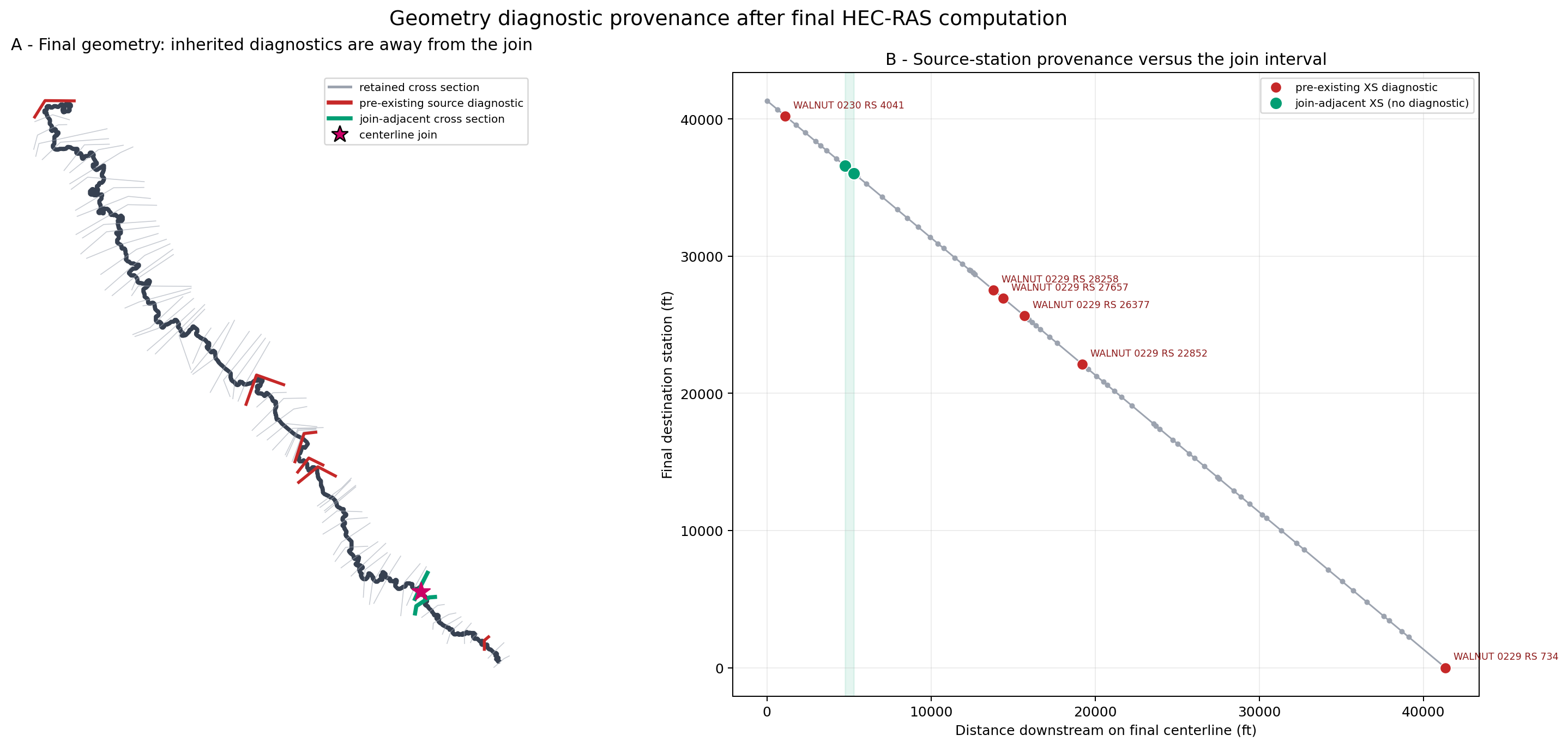

11. Visual proof: diagnostics are separated from the join

Python

final_xs = final.station_map_gdf.loc[
    final.station_map_gdf["source_node_type"] == 1
].copy()
error_destinations = diagnostic_provenance.loc[
    diagnostic_provenance["layer"] == "Cross Sections", "destination_station"
].astype(float)
error_mask = final_xs["destination_station"].astype(float).apply(
    lambda value: bool(((error_destinations - value).abs() < 0.011).any())
)
error_xs = final_xs.loc[error_mask]
join_xs = final_xs.loc[final_xs["is_join_upstream"] | final_xs["is_join_downstream"]]
final_centerline = GeomParser.get_river_centerlines(final.geometry_file).geometry.iloc[0]

fig, axes = plt.subplots(1, 2, figsize=(17, 7.5), constrained_layout=True)
gpd.GeoSeries([final_centerline], crs=PROJECT_CRS).plot(
    ax=axes[0], color="#374151", linewidth=3
)
final_xs.plot(ax=axes[0], color="#9CA3AF", linewidth=0.65, alpha=0.55)
error_xs.plot(ax=axes[0], color="#C62828", linewidth=2.2, zorder=5)
join_xs.plot(ax=axes[0], color="#009E73", linewidth=3.0, zorder=6)
final.seams_gdf.plot(
    ax=axes[0], color="#CC0066", marker="*", markersize=190, zorder=7
)
axes[0].set_axis_off()
axes[0].set_title("A - Final geometry: inherited diagnostics are away from the join")
axes[0].legend(handles=[
    Line2D([0], [0], color="#9CA3AF", linewidth=2, label="retained cross section"),
    Line2D([0], [0], color="#C62828", linewidth=3, label="pre-existing source diagnostic"),
    Line2D([0], [0], color="#009E73", linewidth=3, label="join-adjacent cross section"),
    Line2D([0], [0], marker="*", color="none", markerfacecolor="#CC0066", markersize=13, label="centerline join"),
], loc="best", fontsize=8)

axes[1].plot(
    final_xs["centerline_measure"],
    final_xs["destination_station"].astype(float),
    color="#9CA3AF", linewidth=1.2, marker="o", markersize=3,
)
axes[1].scatter(
    error_xs["centerline_measure"],
    error_xs["destination_station"].astype(float),
    color="#C62828", edgecolor="white", linewidth=0.6, s=65, zorder=5,
    label="pre-existing XS diagnostic",
)
axes[1].scatter(
    join_xs["centerline_measure"],
    join_xs["destination_station"].astype(float),
    color="#009E73", edgecolor="white", linewidth=0.8, s=85, zorder=6,
    label="join-adjacent XS (no diagnostic)",
)
for row in error_xs.itertuples(index=False):
    axes[1].annotate(
        f"{row.source_geometry_id} RS {row.source_station}",
        (row.centerline_measure, float(row.destination_station)),
        xytext=(6, 6), textcoords="offset points", fontsize=7, color="#8E1B1B",
    )
join_min = join_xs["centerline_measure"].min()
join_max = join_xs["centerline_measure"].max()
axes[1].axvspan(join_min, join_max, color="#009E73", alpha=0.10)
axes[1].set_xlabel("Distance downstream on final centerline (ft)")
axes[1].set_ylabel("Final destination station (ft)")
axes[1].set_title("B - Source-station provenance versus the join interval")
axes[1].grid(alpha=0.22)
axes[1].legend(fontsize=8)
fig.suptitle("Geometry diagnostic provenance after final HEC-RAS computation", fontsize=15)
figure_6 = ASSET_ROOT / "06_geometry_diagnostic_provenance.png"
fig.savefig(figure_6, dpi=180, bbox_inches="tight")
plt.show()
print(figure_6)

Text Only

H:\Symphony\ras-commander\multi-model-breakout\examples\assets\236_multi_model_1d_breakout_planning\06_geometry_diagnostic_provenance.png

12. Visual proof: only the join overbank lengths are recomputed

Python

fig, ax = plt.subplots(figsize=(11, 8), constrained_layout=True)
join_focus = join_xs.geometry.unary_union.convex_hull.buffer(900.0)
gpd.GeoSeries([final_centerline], crs=PROJECT_CRS).plot(
    ax=ax, color="#374151", linewidth=3, label="final river centerline"
)
join_xs.plot(ax=ax, color="#009E73", linewidth=3.0, zorder=5)
for side, color in (("left", "#0072B2"), ("right", "#E69F00")):
    segment = policy.join_segments_gdf.loc[policy.join_segments_gdf["side"] == side]
    segment.plot(ax=ax, color=color, linewidth=4.0, zorder=6)
    row = segment.iloc[0]
    midpoint = row.geometry.interpolate(0.5, normalized=True)
    ax.annotate(
        f"{side.upper()} clipped path = {row.length:,.2f} ft",
        (midpoint.x, midpoint.y), xytext=(55, 42 if side == "left" else -52),
        textcoords="offset points", arrowprops={"arrowstyle": "->", "color": color},
        color=color, fontsize=9, fontweight="bold",
    )
final.seams_gdf.plot(
    ax=ax, color="#CC0066", marker="*", markersize=220, zorder=7
)
xmin, ymin, xmax, ymax = join_focus.bounds
ax.set_xlim(xmin, xmax)
ax.set_ylim(ymin, ymax)
ax.set_aspect("equal")
ax.set_axis_off()
ax.set_title("Clipped regenerated flow paths between the two join-adjacent sections")
ax.legend(handles=[
    Line2D([0], [0], color="#374151", linewidth=3, label="final centerline"),
    Line2D([0], [0], color="#009E73", linewidth=3, label="join-adjacent cross sections"),
    Line2D([0], [0], color="#0072B2", linewidth=4, label="LOB review segment"),
    Line2D([0], [0], color="#E69F00", linewidth=4, label="ROB review segment"),
], loc="best", fontsize=8)
figure_7 = ASSET_ROOT / "07_join_flow_path_evidence.png"
fig.savefig(figure_7, dpi=180, bbox_inches="tight")
plt.show()
print(figure_7)

Text Only

C:\Users\bill\AppData\Local\Temp\ipykernel_24876\1341996651.py:2: DeprecationWarning: The 'unary_union' attribute is deprecated, use the 'union_all()' method instead.
  join_focus = join_xs.geometry.unary_union.convex_hull.buffer(900.0)

Text Only

H:\Symphony\ras-commander\multi-model-breakout\examples\assets\236_multi_model_1d_breakout_planning\07_join_flow_path_evidence.png

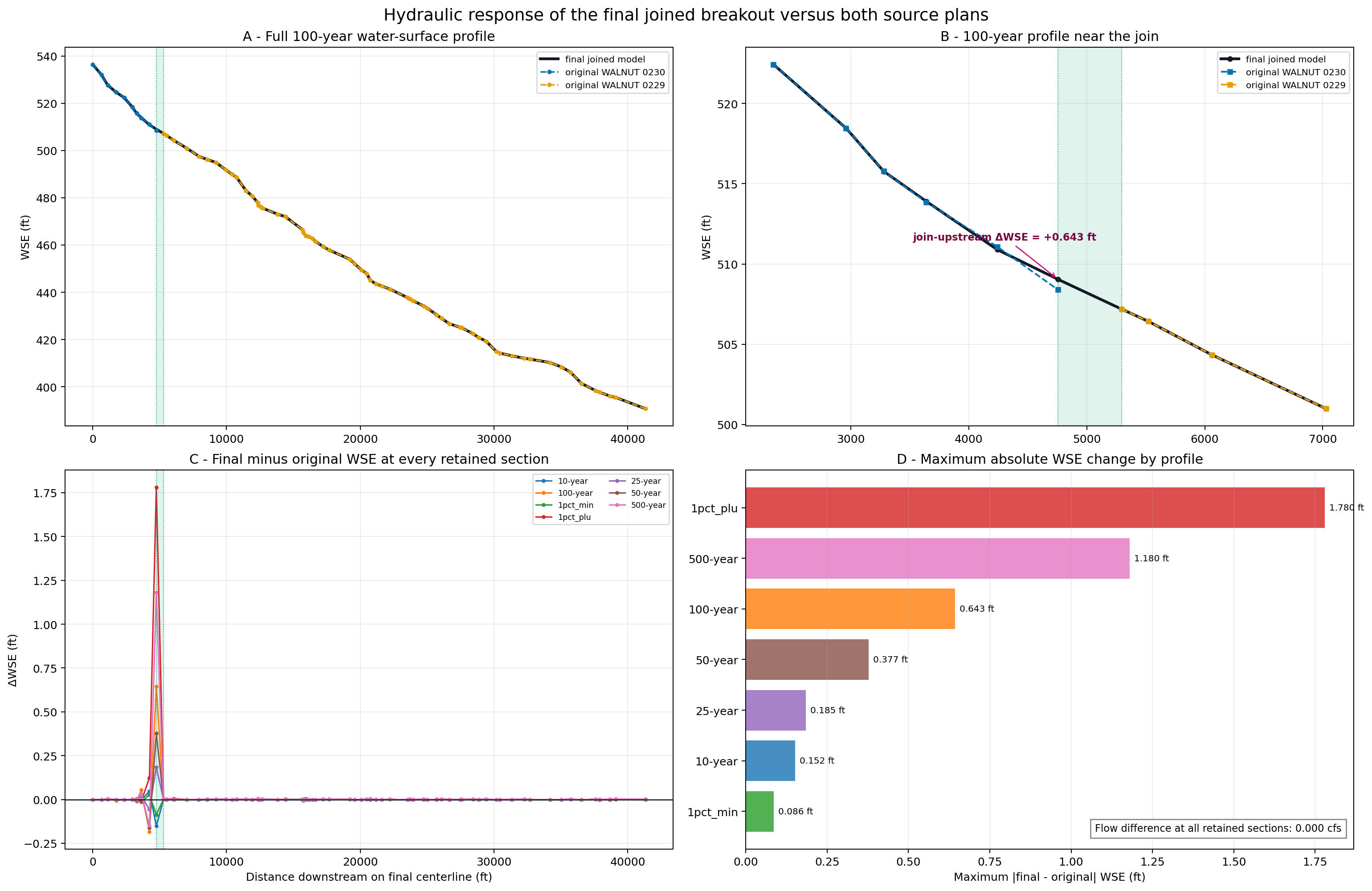

13. Visual hydraulic comparison with both original plans

Geometry provenance does not show whether the joined model creates a hydraulic discontinuity. The final plan's retained-section results are therefore mapped back to both original plans using the source/destination station crosswalk. The figure shows the full 100-year profile, a join-focused profile view, every profile's WSE residual along the combined reach, and the maximum absolute WSE change by profile. Flow changes are checked numerically as well.

Python

final_results = HdfResultsPlan.get_steady_results(final_plan_hdf).copy()
final_results["destination_station_value"] = final_results["node_id"].astype(float)
result_station_map = final_xs[[
    "source_geometry_id", "source_station", "destination_station",
    "centerline_measure", "is_join_upstream", "is_join_downstream",
]].copy()
result_station_map["destination_station_value"] = result_station_map[
    "destination_station"
].astype(float)
result_station_map["source_station_value"] = result_station_map[
    "source_station"
].astype(float)

mapped_final = pd.merge_asof(
    final_results.sort_values("destination_station_value"),
    result_station_map.sort_values("destination_station_value")[
        [
            "destination_station_value", "source_geometry_id",
            "source_station_value", "centerline_measure",
            "is_join_upstream", "is_join_downstream",
        ]
    ],
    on="destination_station_value",
    direction="nearest",
    tolerance=0.011,
)
assert mapped_final["source_geometry_id"].notna().all()

source_result_frames = []
for source_id in SOURCE_IDS:
    source_plan_hdf = (
        RUN_ROOT / f"original-{source_id.replace(' ', '-').lower()}"
        / f"{source_id}.p01.hdf"
    )
    source_results = HdfResultsPlan.get_steady_results(source_plan_hdf).copy()
    source_results["source_geometry_id"] = source_id
    source_results["source_station_value"] = source_results["node_id"].astype(float)
    source_result_frames.append(source_results)
source_results = pd.concat(source_result_frames, ignore_index=True)

hydraulic_comparison = mapped_final.merge(
    source_results[[
        "source_geometry_id", "source_station_value", "profile",
        "wsel", "velocity", "flow", "energy",
    ]],
    on=["source_geometry_id", "source_station_value", "profile"],
    suffixes=("_final", "_source"),
    validate="many_to_one",
)
hydraulic_comparison["wse_delta"] = (
    hydraulic_comparison["wsel_final"] - hydraulic_comparison["wsel_source"]
)
hydraulic_comparison["velocity_delta"] = (
    hydraulic_comparison["velocity_final"] - hydraulic_comparison["velocity_source"]
)
hydraulic_comparison["flow_delta"] = (
    hydraulic_comparison["flow_final"] - hydraulic_comparison["flow_source"]
)
hydraulic_comparison["abs_wse_delta"] = hydraulic_comparison["wse_delta"].abs()

hydraulic_summary = hydraulic_comparison.groupby("profile", as_index=False).agg(
    retained_xs=("source_station_value", "size"),
    mean_wse_delta=("wse_delta", "mean"),
    mean_absolute_wse_delta=("abs_wse_delta", "mean"),
    maximum_absolute_wse_delta=("abs_wse_delta", "max"),
    maximum_absolute_velocity_delta=("velocity_delta", lambda values: values.abs().max()),
    maximum_absolute_flow_delta=("flow_delta", lambda values: values.abs().max()),
)
maximum_rows = hydraulic_comparison.loc[
    hydraulic_comparison.groupby("profile")["abs_wse_delta"].idxmax(),
    ["profile", "source_geometry_id", "source_station_value", "destination_station_value"],
].rename(columns={
    "source_geometry_id": "max_at_source",
    "source_station_value": "max_at_source_station",
    "destination_station_value": "max_at_destination_station",
})
hydraulic_summary = hydraulic_summary.merge(maximum_rows, on="profile")

assert len(hydraulic_comparison) == 72 * 7
assert hydraulic_summary["retained_xs"].eq(72).all()
assert hydraulic_summary["maximum_absolute_flow_delta"].max() < 1.0e-6
display(hydraulic_summary.style.format({
    "mean_wse_delta": "{:.4f}",
    "mean_absolute_wse_delta": "{:.4f}",
    "maximum_absolute_wse_delta": "{:.4f}",
    "maximum_absolute_velocity_delta": "{:.4f}",
    "maximum_absolute_flow_delta": "{:.4f}",
    "max_at_source_station": "{:.0f}",
    "max_at_destination_station": "{:.2f}",
}))

comparison_profile = "100-year"
profile_comparison = hydraulic_comparison.loc[
    hydraulic_comparison["profile"] == comparison_profile
].sort_values("centerline_measure")
join_start = join_xs["centerline_measure"].min()
join_end = join_xs["centerline_measure"].max()
profile_colors = dict(zip(
    hydraulic_summary["profile"], plt.cm.tab10.colors[: len(hydraulic_summary)]
))

fig, axes = plt.subplots(2, 2, figsize=(17, 11), constrained_layout=True)
axes[0, 0].plot(
    profile_comparison["centerline_measure"], profile_comparison["wsel_final"],
    color="#111827", linewidth=2.5, label="final joined model",
)
for source_id in SOURCE_IDS:
    frame = profile_comparison.loc[
        profile_comparison["source_geometry_id"] == source_id
    ]
    axes[0, 0].plot(
        frame["centerline_measure"], frame["wsel_source"],
        color=colors[source_id], linestyle="--", marker="o", markersize=3,
        linewidth=1.4, label=f"original {source_id}",
    )
axes[0, 0].axvspan(join_start, join_end, color="#009E73", alpha=0.12)
axes[0, 0].set_title(f"A - Full {comparison_profile} water-surface profile")
axes[0, 0].set_ylabel("WSE (ft)")
axes[0, 0].legend(fontsize=8)
axes[0, 0].grid(alpha=0.22)

join_window = profile_comparison.loc[
    profile_comparison["centerline_measure"].between(join_start - 2500, join_end + 2500)
]
axes[0, 1].plot(
    join_window["centerline_measure"], join_window["wsel_final"],
    color="#111827", linewidth=2.5, marker="o", markersize=4,
    label="final joined model",
)
for source_id in SOURCE_IDS:
    frame = join_window.loc[join_window["source_geometry_id"] == source_id]
    axes[0, 1].plot(
        frame["centerline_measure"], frame["wsel_source"],
        color=colors[source_id], linestyle="--", marker="s", markersize=4,
        linewidth=1.5, label=f"original {source_id}",
    )
axes[0, 1].axvspan(join_start, join_end, color="#009E73", alpha=0.12)
join_upstream_result = join_window.loc[join_window["is_join_upstream"]].iloc[0]
axes[0, 1].annotate(
    f"join-upstream ΔWSE = {join_upstream_result.wse_delta:+.3f} ft",
    (join_upstream_result.centerline_measure, join_upstream_result.wsel_final),
    xytext=(-130, 35), textcoords="offset points",
    arrowprops={"arrowstyle": "->", "color": "#CC0066"},
    color="#7A003C", fontsize=9, fontweight="bold",
)
axes[0, 1].set_title(f"B - {comparison_profile} profile near the join")
axes[0, 1].set_ylabel("WSE (ft)")
axes[0, 1].legend(fontsize=8)
axes[0, 1].grid(alpha=0.22)

for profile, frame in hydraulic_comparison.groupby("profile"):
    frame = frame.sort_values("centerline_measure")
    axes[1, 0].plot(
        frame["centerline_measure"], frame["wse_delta"],
        linewidth=1.3, marker="o", markersize=2.5,
        color=profile_colors[profile], label=profile,
    )
axes[1, 0].axhline(0.0, color="#111827", linewidth=1.0)
axes[1, 0].axvspan(join_start, join_end, color="#009E73", alpha=0.12)
axes[1, 0].set_title("C - Final minus original WSE at every retained section")
axes[1, 0].set_xlabel("Distance downstream on final centerline (ft)")
axes[1, 0].set_ylabel("ΔWSE (ft)")
axes[1, 0].legend(fontsize=7, ncol=2)
axes[1, 0].grid(alpha=0.22)

summary_plot = hydraulic_summary.sort_values("maximum_absolute_wse_delta")
bars = axes[1, 1].barh(
    summary_plot["profile"], summary_plot["maximum_absolute_wse_delta"],
    color=[profile_colors[name] for name in summary_plot["profile"]], alpha=0.82,
)
axes[1, 1].bar_label(bars, fmt="%.3f ft", padding=4, fontsize=8)
axes[1, 1].set_title("D - Maximum absolute WSE change by profile")
axes[1, 1].set_xlabel("Maximum |final - original| WSE (ft)")
axes[1, 1].grid(axis="x", alpha=0.22)
axes[1, 1].text(
    0.98, 0.04, "Flow difference at all retained sections: 0.000 cfs",
    transform=axes[1, 1].transAxes, ha="right", va="bottom", fontsize=9,
    bbox={"facecolor": "white", "alpha": 0.9, "edgecolor": "#6B7280"},
)

for ax in (axes[0, 0], axes[0, 1], axes[1, 0]):
    ax.axvline(join_start, color="#009E73", linestyle=":", linewidth=0.8, alpha=0.7)
    ax.axvline(join_end, color="#009E73", linestyle=":", linewidth=0.8, alpha=0.7)
fig.suptitle("Hydraulic response of the final joined breakout versus both source plans", fontsize=15)
figure_8 = ASSET_ROOT / "08_source_vs_final_hydraulics.png"
fig.savefig(figure_8, dpi=180, bbox_inches="tight")
plt.show()
print(figure_8)

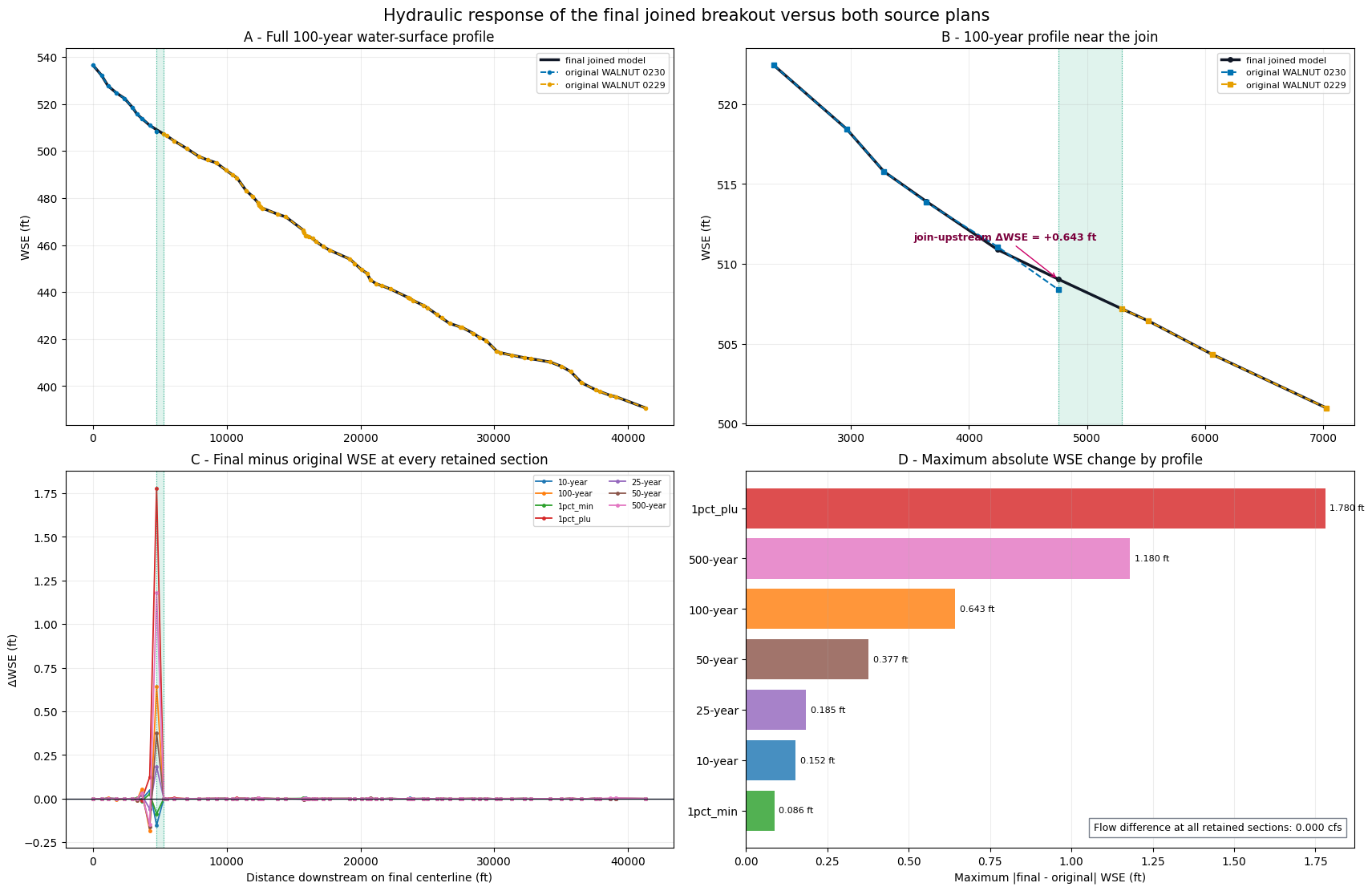

	profile	retained_xs	mean_wse_delta	mean_absolute_wse_delta	maximum_absolute_wse_delta	maximum_absolute_velocity_delta	maximum_absolute_flow_delta	max_at_source	max_at_source_station	max_at_destination_station
0	10-year	72	-0.0015	0.0035	0.1523	0.1274	0.0000	WALNUT 0230	405	36579.17
1	100-year	72	0.0070	0.0131	0.6433	0.6925	0.0000	WALNUT 0230	405	36579.17
2	1pct_min	72	-0.0009	0.0024	0.0865	0.0877	0.0000	WALNUT 0230	405	36579.17
3	1pct_plu	72	0.0265	0.0272	1.7802	1.3430	0.0000	WALNUT 0230	405	36579.17
4	25-year	72	0.0019	0.0045	0.1845	0.2048	0.0000	WALNUT 0230	405	36579.17
5	50-year	72	0.0033	0.0087	0.3769	0.4678	0.0000	WALNUT 0230	405	36579.17
6	500-year	72	0.0148	0.0196	1.1801	1.0543	0.0000	WALNUT 0230	405	36579.17

Text Only

H:\Symphony\ras-commander\multi-model-breakout\examples\assets\236_multi_model_1d_breakout_planning\08_source_vs_final_hydraulics.png

Result

The final independent project contains 72 cross sections: all 10 owned sections from WALNUT 0230 and 62 non-overlapping downstream sections from WALNUT 0229. Fourteen downstream-source sections upstream of the accepted join are excluded. Destination stations run continuously from 41,332.705 ft to 0, and the new join channel interval is 540.665 ft.

The final overbank policy preserves every source interval and writes only the new join as 333.471 ft LOB and 524.647 ft ROB. Both original plans, both retained single-source slices, the provisional joined plan, and the final joined plan reach Complete Process in HEC-RAS 7.0.1. The final main-channel audit has zero intervals outside 1%.

All seven flow profiles preserve source flow exactly at all 72 retained cross sections. Water-surface changes are concentrated at the source handoff: the 100-year maximum is 0.643 ft at the upstream join section, and the largest change across all profiles is 1.780 ft for 1pct_plu at that same section. Those values are exposed for H&H review rather than treated as an automatic pass/fail threshold; they demonstrate why the computational overlap and join-focused comparison are necessary.

Six bankline-crossing diagnostics and one edge-line self-intersection plus its warning remain. The source/destination crosswalk and independently computed retained slices prove all eight are pre-existing source findings, not join or restationing regressions; none is join-adjacent. They are therefore recorded for review rather than silently altered by the breakout writer.
