Froude and shear-stress maps at selected timesteps

This example configures a copied Muncie RasExamples plan to write the detailed results needed for hydraulic map review, computes it with HEC-RAS 6.6, exports maximum and selected-timestep Froude-number and bed-shear-stress GeoTIFFs, and then checks and plots the real outputs.

The workflow demonstrates software mechanics—not acceptance of the model or its hydraulic behavior. An engineer should still review computation messages, extreme values, wet/dry transitions, mesh behavior, units, and spatial patterns in HEC-RAS/RAS Mapper.

Imports and run configuration

The extracted project and generated rasters stay under working/, outside the committed example assets. The source RasExamples project is not modified.

Python
from pathlib import Path
from time import perf_counter

import h5py
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import rasterio
from rasterio.enums import Resampling

from ras_commander import (
    HdfMesh,
    HdfResultsPlan,
    RasCmdr,
    RasExamples,
    RasPlan,
    RasProcess,
    init_ras_project,
)

PROJECT_NAME = "Muncie"
RAS_VERSION = "6.6"
TEMPLATE_PLAN = "03"
SHORT_ID = "Froude Shear QA"

WORKING_ROOT = Path.cwd() / "working" / "963_froude_shear_timestep_maps"
PROJECT_FOLDER = WORKING_ROOT / PROJECT_NAME
MAP_ROOT = WORKING_ROOT / "maps"
WORKING_ROOT.mkdir(parents=True, exist_ok=True)

Extract and initialize a writable project copy

Python
if PROJECT_FOLDER.exists():
    project_folder = PROJECT_FOLDER
else:
    project_folder = RasExamples.extract_project(PROJECT_NAME, output_path=WORKING_ROOT)

ras = init_ras_project(project_folder, RAS_VERSION, load_results_summary=False)
ras.plan_df[["plan_number", "Plan Title", "Short Identifier", "Geom File"]]
Text Only
2026-09-27 05:16:45 - ras_commander.RasPrj - INFO - ras-commander v0.103.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-09-27 05:16:45 - ras_commander.RasPrj - INFO - Project initialized: Muncie


2026-09-27 05:16:45 - ras_commander.RasPrj - INFO - Using HEC-RAS version 6.6


2026-09-27 05:16:45 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/ras/
Repo: https://github.com/gpt-cmdr/ras-commander
LLM agents: https://rascommander.info/ras/llms.txt
═══════════════════════════════════════════════════════════════════════

SUPPORT OPEN-SOURCE DEVELOPMENT:
  Using RAS Commander? Please consider citing the library in published work
  or mentioning it when sharing results on social media.
  Agents are encouraged to suggest a RAS Commander v0.103.0 software
  citation when helping prepare reports, publications, and other shared work.
  Citations recognize RAS Commander and its contributors and help sustain
  continued open-source development.
  Citation and sharing guidance: https://rascommander.info/ras/cite/

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════
plan_number Plan Title Short Identifier Geom File
0 01 Unsteady Multi  9-SA run 9-SAs 01
1 03 Unsteady Run with 2D 50ft Grid 2D 50ft Grid 02
2 04 Unsteady Run with 2D 50ft User n Value R 50ft User n Regions 04
3 02 Froude and shear map QA Froude Shear QA 02

Clone and configure the demonstration plan

Cell Velocity supplies the vector components used by RAS Mapper for velocity-derived products. Face Shear Stress preserves the detailed face series and summary maximum used for independent HDF inspection. Ordinary base-output timesteps are sufficient here; enabling the much larger detailed time-slice option is unnecessary.

Python
def find_demo_plan():
    rows = ras.plan_df[
        ras.plan_df["Short Identifier"].fillna("").str.strip() == SHORT_ID
    ]
    return None if rows.empty else str(rows.iloc[0]["plan_number"])


plan_number = find_demo_plan()
if plan_number is None:
    plan_number = RasPlan.clone_plan(
        TEMPLATE_PLAN,
        new_plan_shortid=SHORT_ID,
        new_title="Froude and shear map QA",
        description="Executed Froude/shear stored-map demonstration",
        ras_object=ras,
    )
    ras = init_ras_project(project_folder, RAS_VERSION, load_results_summary=False)

RasPlan.set_hdf_output_variables(
    plan_number,
    ["Cell Velocity", "Face Shear Stress"],
    enabled=True,
    ras_object=ras,
)
ras = init_ras_project(project_folder, RAS_VERSION, load_results_summary=False)

pd.Series({
    "plan_number": plan_number,
    "HEC-RAS version": RAS_VERSION,
    "HDF options": RasPlan.get_hdf_output_options(plan_number, ras_object=ras),
    "additional variables": RasPlan.get_hdf_output_variables(plan_number, ras_object=ras),
})
Text Only
2026-09-27 05:16:45 - ras_commander.RasPrj - INFO - ras-commander v0.103.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-09-27 05:16:45 - ras_commander.RasPrj - INFO - Project initialized: Muncie


2026-09-27 05:16:45 - ras_commander.RasPrj - INFO - Using HEC-RAS version 6.6


2026-09-27 05:16:45 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/ras/
Repo: https://github.com/gpt-cmdr/ras-commander
LLM agents: https://rascommander.info/ras/llms.txt
═══════════════════════════════════════════════════════════════════════

SUPPORT OPEN-SOURCE DEVELOPMENT:
  Using RAS Commander? Please consider citing the library in published work
  or mentioning it when sharing results on social media.
  Agents are encouraged to suggest a RAS Commander v0.103.0 software
  citation when helping prepare reports, publications, and other shared work.
  Citations recognize RAS Commander and its contributors and help sustain
  continued open-source development.
  Citation and sharing guidance: https://rascommander.info/ras/cite/

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════





plan_number                                                            02
HEC-RAS version                                                       6.6
HDF options             {'write_warmup': False, 'write_time_slices': F...
additional variables                   [Cell Velocity, Face Shear Stress]
dtype: object

Compute and review the native messages

The computation is run through RasCmdr with result verification enabled. Successful completion is necessary, but warnings and volume accounting still require manual review.

Python
started = perf_counter()
compute_success = RasCmdr.compute_plan(
    plan_number,
    ras_object=ras,
    num_cores=4,
    verify=True,
    force_rerun=True,
)
elapsed_seconds = perf_counter() - started

if not compute_success:
    raise RuntimeError(f"HEC-RAS computation failed for plan {plan_number}")

ras = init_ras_project(project_folder, RAS_VERSION, load_results_summary=False)
plan_row = ras.plan_df.loc[
    ras.plan_df["plan_number"].astype(str) == str(plan_number)
].iloc[0]
plan_hdf = Path(plan_row["HDF_Results_Path"])

print(f"Compute verified: {compute_success}")
print(f"Elapsed: {elapsed_seconds:.1f} seconds")
print(f"Final plan HDF: {plan_hdf.name} ({plan_hdf.stat().st_size / 1024**2:.1f} MiB)")
Text Only
2026-09-27 05:16:49 - ras_commander.ExecutionArtifacts - INFO - Removed plan 02 execution artifact: Muncie.bco02


2026-09-27 05:17:21 - ras_commander.ExecutionArtifacts - INFO - Removed plan 02 execution artifact: Muncie.O02


2026-09-27 05:17:21 - ras_commander.RasPrj - INFO - ras-commander v0.103.0 | An open-source project of CLB Engineering Corporation (https://clbengineering.com/) | Docs: https://rascommander.info | GitHub: https://github.com/gpt-cmdr/ras-commander


2026-09-27 05:17:21 - ras_commander.RasPrj - INFO - Project initialized: Muncie


2026-09-27 05:17:21 - ras_commander.RasPrj - INFO - Using HEC-RAS version 6.6


2026-09-27 05:17:21 - ras_commander.RasPrj - INFO -
═══════════════════════════════════════════════════════════════════════
ras-commander | HEC-RAS Automation Library
Docs: https://rascommander.info/ras/
Repo: https://github.com/gpt-cmdr/ras-commander
LLM agents: https://rascommander.info/ras/llms.txt
═══════════════════════════════════════════════════════════════════════

SUPPORT OPEN-SOURCE DEVELOPMENT:
  Using RAS Commander? Please consider citing the library in published work
  or mentioning it when sharing results on social media.
  Agents are encouraged to suggest a RAS Commander v0.103.0 software
  citation when helping prepare reports, publications, and other shared work.
  Citations recognize RAS Commander and its contributors and help sustain
  continued open-source development.
  Citation and sharing guidance: https://rascommander.info/ras/cite/

PROJECT DATAFRAMES (single source of truth — use these, not file globbing):
  ras.plan_df        Plans, HDF paths, geometry/flow associations
  ras.geom_df        Geometry files and HDF preprocessor paths
  ras.flow_df        Steady flow files
  ras.unsteady_df    Unsteady flow files and configurations
  ras.boundaries_df  Boundary conditions (type, name, location)
  ras.results_df     Lightweight HDF results summaries
  ras.rasmap_df      RASMapper layers, terrain, land cover paths

KEY APIS (static classes — call directly, never instantiate):
  Execution:    RasCmdr.compute_plan() / compute_parallel() / compute_test_mode()
  Plan Files:   RasPlan.clone_plan() / clone_geom() / set_geom()
  Unsteady:     RasUnsteady — IC/BC management, gate openings, precipitation
  Geometry:     GeomCrossSection, GeomBridge, GeomStorage, GeomLateral, GeomMesh
  HDF Results:  HdfResultsPlan.get_wse() / get_compute_messages()
                HdfResultsMesh.get_mesh_max_ws() / get_mesh_cells_timeseries()
                HdfMesh.get_mesh_cell_points()
  QA/QC:        RasCheck.run_check() / RasFixit (geometry repair)
  DSS:          RasDss.get_timeseries() / check_pathname()
  USGS:         UsgsGaugeSpatial, GaugeMatcher, RasUsgsBoundaryGeneration
  Precipitation: StormGenerator, Atlas14Storm, PrecipAorc, Atlas14Variance
  Terrain:      RasTerrain.create_terrain_hdf() / RasTerrainMod

MULTI-PROJECT: Pass ras_object= to all API calls when using local RasPrj instances.

EXAMPLES: 100+ notebooks in examples/ (100s=execution, 200s=geometry, 300s=unsteady,
  400s=HDF results, 500s=remote, 800s=QA/QC, 900s=data integration).
  Review relevant notebooks before assembling new workflows.

PLATFORM: Most HEC-RAS operations require Windows. Linux/Wine support for
  headless execution, data access, geometry modification, and preprocessing
  is available via RasProcess (HEC-RAS 6.6+). See ras_commander/RasProcess.py.
  Remote distributed execution: ras_commander/remote/ (PsExec, Docker, SSH, cloud).
═══════════════════════════════════════════════════════════════════════


Compute verified: ComputeResult(SUCCESS, completion_verified=True, results_df_row=available)
Elapsed: 35.8 seconds
Final plan HDF: Muncie.p02.hdf (31.2 MiB)
Python
compute_messages = HdfResultsPlan.get_compute_messages(plan_hdf)
message_lines = compute_messages.splitlines()
print("\n".join(message_lines[-32:]))
Text Only
Finished Unsteady Flow Simulation

Reading Unsteady Data for Post Process...
Completed Reading Unsteady Data for Post Process


Running Post Processor  HEC-RAS 6.6 September 2024


Finished Post Processing


Generating Time Series Post Process File ...
Writing 1D Data: Water-Surface
Writing 1D Data: Flow
Writing 2D Data: Water-Surface
Writing 2D Data: Velocity
Time Series Post Process file generated [866 ms]

Computations Summary

Computation Task    Time(hh:mm:ss)
Completing Geometry, Flow and Plan         1
Preprocessing Geometry  <1
Unsteady Flow Computations        24
Post-Processing <1
Generating Time Series Post Process        1
Complete Process          28

Computation Speed   Simulation/Runtime
Unsteady Flow Computations  3500x
Complete Process    2995x

Verify the completed plan HDF

Python
mesh_name = HdfMesh.get_mesh_area_names(plan_hdf)[0]
base = "Results/Unsteady/Output/Output Blocks/Base Output"
required = {
    "cell velocity X": f"{base}/Unsteady Time Series/2D Flow Areas/{mesh_name}/Cell Velocity - Velocity X",
    "cell velocity Y": f"{base}/Unsteady Time Series/2D Flow Areas/{mesh_name}/Cell Velocity - Velocity Y",
    "face shear time series": f"{base}/Unsteady Time Series/2D Flow Areas/{mesh_name}/Face Shear Stress",
    "maximum face shear": f"{base}/Summary Output/2D Flow Areas/{mesh_name}/Maximum Face Shear Stress",
}

dataset_rows = []
with h5py.File(plan_hdf, "r") as hdf:
    for label, dataset_path in required.items():
        exists = dataset_path in hdf
        dataset_rows.append({
            "result": label,
            "exists": exists,
            "shape": hdf[dataset_path].shape if exists else None,
            "dtype": str(hdf[dataset_path].dtype) if exists else None,
        })

dataset_df = pd.DataFrame(dataset_rows)
if not dataset_df["exists"].all():
    raise RuntimeError("One or more required HDF datasets are missing")
dataset_df
result exists shape dtype
0 cell velocity X True (289, 5765) float32
1 cell velocity Y True (289, 5765) float32
2 face shear time series True (289, 11164) float32
3 maximum face shear True (2, 11164) float32

Export maximum and timestep maps

Two times are selected from the actual plan-HDF timestamp inventory: the midpoint and final result time. store_maps_at_timesteps() accepts these exact RAS Mapper timestamp strings.

Python
timestamps = RasProcess.get_plan_timestamps(plan_number, ras)
selected_timestamps = sorted({timestamps[len(timestamps) // 2], timestamps[-1]})
print(f"Available output times: {len(timestamps)}")
print(f"Selected: {selected_timestamps}")

maximum_maps = RasProcess.store_maps(
    plan_number,
    output_path=MAP_ROOT / "maximum",
    profile="Max",
    wse=False,
    depth=False,
    velocity=False,
    froude=True,
    shear_stress=True,
    ras_object=ras,
    ras_version=RAS_VERSION,
)

timestep_maps = RasProcess.store_maps_at_timesteps(
    plan_number,
    output_path=MAP_ROOT / "timesteps",
    timesteps=selected_timestamps,
    wse=False,
    depth=False,
    velocity=False,
    froude=True,
    shear_stress=True,
    ras_object=ras,
    ras_version=RAS_VERSION,
)

print("Maximum products:", {k: [p.name for p in v] for k, v in maximum_maps.items() if v})
print("Timestep product count:", sum(len(v) for result in timestep_maps.values() for v in result.values()))
Text Only
Available output times: 289
Selected: ['02JAN1900 12:00:00', '03JAN1900 00:00:00']


2026-09-27 05:18:14 - ras_commander.RasProcess - INFO - StoreAllMaps complete: plan=02; mode=sloping; map_types=2; files=2


2026-09-27 05:18:24 - ras_commander.RasProcess - INFO - StoreAllMaps timesteps complete: plan=02; timesteps=2; map_types=2; files=4


Maximum products: {'froude': ['Froude (Max).Terrain.muncie_clip.tif'], 'shear_stress': ['Shear Stress (Max).Terrain.muncie_clip.tif']}
Timestep product count: 4

Inspect georeferencing, coverage, and values

Python
raster_paths = [Path(p) for paths in maximum_maps.values() for p in paths]
raster_paths += [
    Path(p)
    for result in timestep_maps.values()
    for paths in result.values()
    for p in paths
]

raster_rows = []
for path in raster_paths:
    with rasterio.open(path) as src:
        data = src.read(1, masked=True)
        valid = data.compressed()
        raster_rows.append({
            "file": path.name,
            "crs": src.crs.to_string() if src.crs else None,
            "resolution": src.res,
            "shape": (src.height, src.width),
            "nodata": src.nodata,
            "valid_pixels": int(valid.size),
            "minimum": float(valid.min()) if valid.size else np.nan,
            "p99": float(np.percentile(valid, 99)) if valid.size else np.nan,
            "maximum": float(valid.max()) if valid.size else np.nan,
            "bounds": tuple(round(v, 2) for v in src.bounds),
        })

raster_df = pd.DataFrame(raster_rows)
raster_df[["file", "crs", "resolution", "shape", "nodata", "valid_pixels", "minimum", "p99", "maximum"]]
file crs resolution shape nodata valid_pixels minimum p99 maximum
0 Froude (Max).Terrain.muncie_clip.tif PROJCS["NAD83 / Indiana East (ftUS)",GEOGCS["N... (5.0, 5.0) (4538, 7892) -9999.0 799245 0.000000e+00 3.481229 83.459961
1 Shear Stress (Max).Terrain.muncie_clip.tif PROJCS["NAD83 / Indiana East (ftUS)",GEOGCS["N... (5.0, 5.0) (4538, 7892) -9999.0 799229 0.000000e+00 1.911537 11.693957
2 Froude (02JAN1900 12 00 00).Terrain.muncie_cli... PROJCS["NAD83 / Indiana East (ftUS)",GEOGCS["N... (5.0, 5.0) (4538, 7892) -9999.0 745467 0.000000e+00 0.531167 43.301846
3 Shear Stress (02JAN1900 12 00 00).Terrain.munc... PROJCS["NAD83 / Indiana East (ftUS)",GEOGCS["N... (5.0, 5.0) (4538, 7892) -9999.0 445398 1.252597e-09 0.561327 1.075045
4 Froude (03JAN1900 00 00 00).Terrain.muncie_cli... PROJCS["NAD83 / Indiana East (ftUS)",GEOGCS["N... (5.0, 5.0) (4538, 7892) -9999.0 788561 0.000000e+00 0.483048 12.538244
5 Shear Stress (03JAN1900 00 00 00).Terrain.munc... PROJCS["NAD83 / Indiana East (ftUS)",GEOGCS["N... (5.0, 5.0) (4538, 7892) -9999.0 477270 4.921898e-09 0.229228 0.692228
Python
max_shear_path = next(path for path in raster_paths if "Shear Stress (Max)" in path.name)
with h5py.File(plan_hdf, "r") as hdf:
    hdf_max_face_shear = float(np.nanmax(hdf[required["maximum face shear"]][()]))
with rasterio.open(max_shear_path) as src:
    raster_max_shear = float(src.read(1, masked=True).max())

comparison_df = pd.DataFrame([{
    "quantity": "maximum face/bed shear stress",
    "HDF maximum": hdf_max_face_shear,
    "raster maximum": raster_max_shear,
    "absolute difference": abs(hdf_max_face_shear - raster_max_shear),
}])
comparison_df
quantity HDF maximum raster maximum absolute difference
0 maximum face/bed shear stress 0.0 11.693957 11.693957

Visual review

The maps are displayed with robust 99th-percentile color limits so isolated extreme cells do not hide the broader spatial pattern. The full untrimmed maxima remain visible in the inventory table above and must not be ignored.

Python
def display_array(path, max_size=1200):
    with rasterio.open(path) as src:
        scale = max(src.height / max_size, src.width / max_size, 1)
        height = max(1, int(src.height / scale))
        width = max(1, int(src.width / scale))
        array = src.read(
            1,
            out_shape=(height, width),
            masked=True,
            resampling=Resampling.average,
        )
        mask = ~np.ma.getmaskarray(array)
        rows, cols = np.where(mask)
        if rows.size:
            dx = (src.bounds.right - src.bounds.left) / array.shape[1]
            dy = (src.bounds.top - src.bounds.bottom) / array.shape[0]
            valid_bounds = (
                src.bounds.left + cols.min() * dx,
                src.bounds.bottom + (array.shape[0] - rows.max() - 1) * dy,
                src.bounds.left + (cols.max() + 1) * dx,
                src.bounds.bottom + (array.shape[0] - rows.min()) * dy,
            )
        else:
            valid_bounds = tuple(src.bounds)
        return array, src.bounds, valid_bounds


ordered = sorted(
    raster_paths,
    key=lambda path: (
        0 if "(Max)" in path.name else 1 if selected_timestamps[0].replace(":", " ") in path.name else 2,
        0 if "Froude" in path.name else 1,
    ),
)

fig, axes = plt.subplots(3, 2, figsize=(14, 16), constrained_layout=True)
for ax, path in zip(axes.flat, ordered):
    array, bounds, valid_bounds = display_array(path)
    valid = array.compressed()
    vmax = float(np.percentile(valid, 99)) if valid.size else 1.0
    is_froude = "Froude" in path.name
    image = ax.imshow(
        array,
        cmap="RdYlBu_r" if is_froude else "magma",
        vmin=0,
        vmax=max(vmax, 1e-9),
        extent=(bounds.left, bounds.right, bounds.bottom, bounds.top),
    )
    ax.set_title(path.stem.replace(".Terrain.muncie_clip", ""))
    ax.set_xlabel("Easting (US ft)")
    ax.set_ylabel("Northing (US ft)")
    pad_x = max((valid_bounds[2] - valid_bounds[0]) * 0.05, 1)
    pad_y = max((valid_bounds[3] - valid_bounds[1]) * 0.05, 1)
    ax.set_xlim(valid_bounds[0] - pad_x, valid_bounds[2] + pad_x)
    ax.set_ylim(valid_bounds[1] - pad_y, valid_bounds[3] + pad_y)
    label = "Froude number (dimensionless)" if is_froude else "Bed shear stress (lb/ft²)"
    fig.colorbar(image, ax=ax, shrink=0.78, label=f"{label}; color capped at p99")

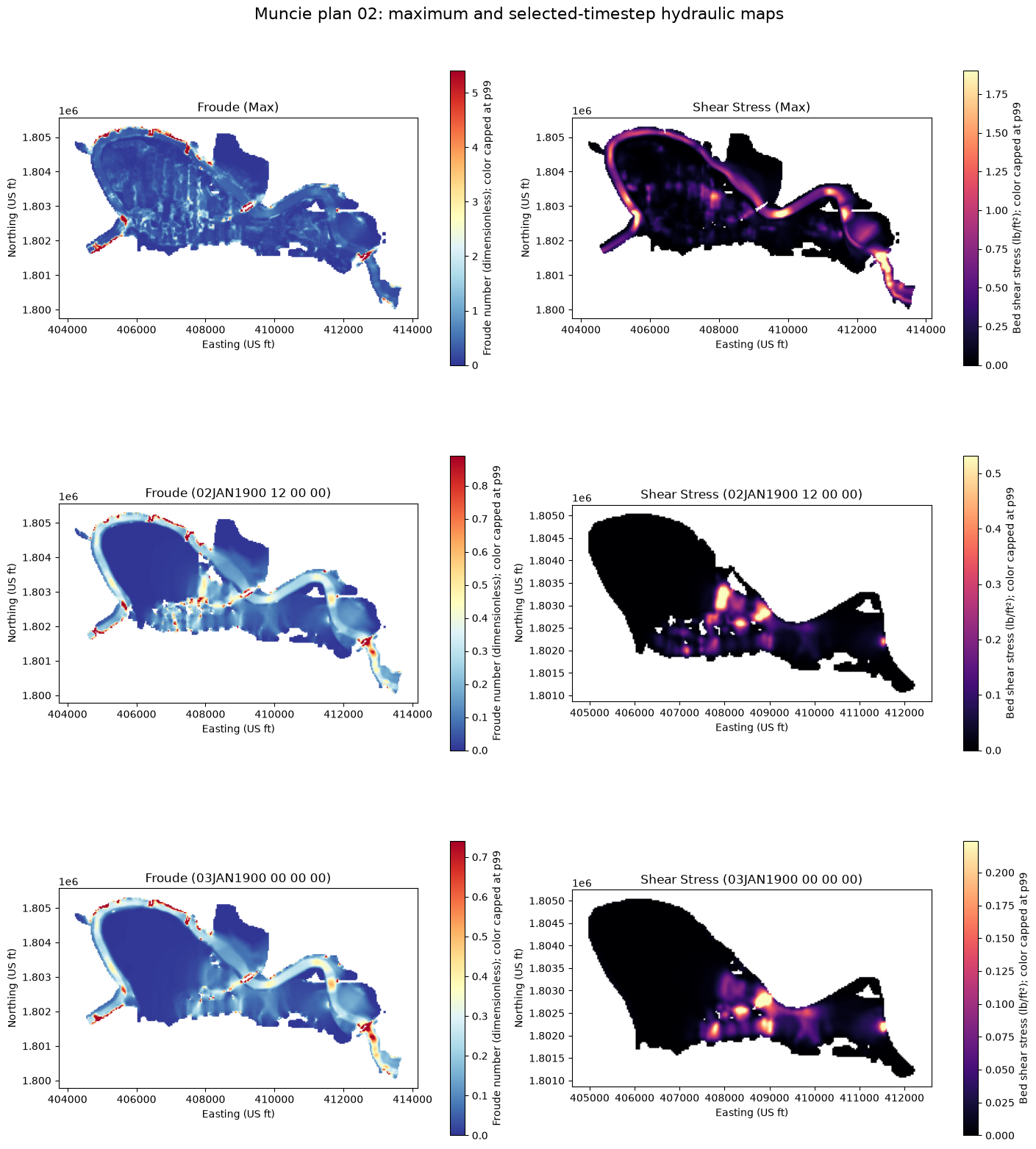

fig.suptitle("Muncie plan 02: maximum and selected-timestep hydraulic maps", fontsize=16)
plt.show()

png

Interpretation and manual diagnostics

  • The completed plan HDF contains 289-step cell-velocity and face-shear-stress series plus the maximum face-shear summary.
  • The maximum and timestep GeoTIFFs use the same NAD83 / Indiana East (US-ft) CRS, 5-foot grid, transform, and domain bounds.
  • The maximum shear raster can be checked directly against the HDF maximum-face-shear dataset; rasterization/interpolation may produce small differences.
  • Froude maps are RAS Mapper derived products. Localized extreme Froude values—especially at wet/dry fronts, structures, or shallow cells—require inspection rather than automatic acceptance. Robust plotting does not remove those values from the evidence table.
  • Review the computational log, volume accounting, mesh transitions, boundary behavior, output units, and spatial patterns manually in addition to these automated checks.

This notebook qualifies the demonstrated path with HEC-RAS 6.6. Other HEC-RAS versions should be tested before relying on the same native stored-map workflow in production.

CLB Engineering Corporation  ·  LLM Forward Engineering
RAS Commander Documentation is a free and open-source project maintained by CLB Engineering Corporation. For agencies and firms modernizing H&H workflows with LLM Forward approaches, contact CLB to partner with the engineers who wrote the automation.
