Model Sources: Unified Discovery, Download & Visualization

This notebook downloads a representative HEC-RAS model from each source, initializes it with ras-commander, and captures a RASMapper screenshot.

Source	Representative Model	HEC-RAS Version	Type
USGS ScienceBase	Kalamazoo River, MI	6.6	2D Unsteady
Minnesota DNR	Chester Creek	5.0.3	1D Steady
Indiana DNR	Fall Creek Trail Bridge	5.0.7	1D Steady
Colorado CHAMP	Henson Creek	4.1.0	1D Steady

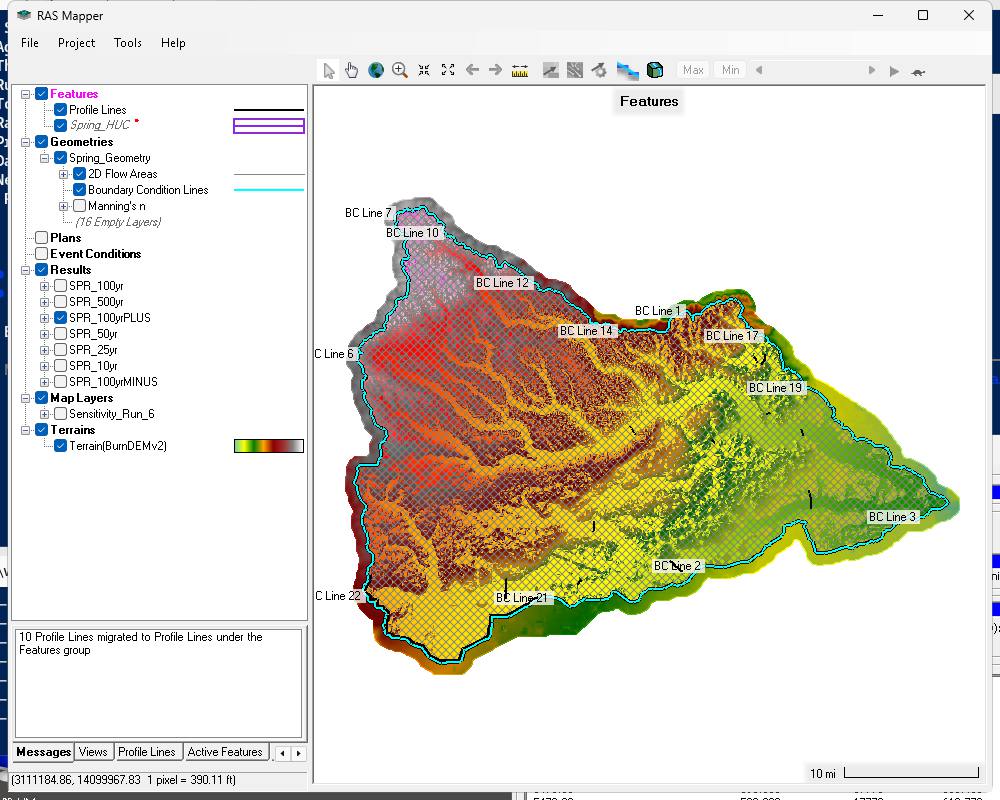

FEMA eBFE/BLE	Spring Creek	5.0.7	2D Unsteady
Harris County M3	Brays Bayou	3.0.1	1D Steady

Requirements: HEC-RAS installed (for RASMapper screenshots), internet connection (for API queries).

Python

from pathlib import Path
import os
import sys
import time

try:
    from ras_commander import init_ras_project, RasMap
except ImportError:
    sys.path.insert(0, str(Path.cwd().parent))
    from ras_commander import init_ras_project, RasMap

import pandas as pd
from IPython.display import Image, display

from ras_commander.sources.catalog import ModelCatalog, get_catalog
from ras_commander.sources.base import (
    ModelMetadata, ModelType, ModelFilter,
    SourceStatus, DownloadResult,
)
from ras_commander.sources.federal.usgs_sciencebase import UsgsScienceBase
from ras_commander.sources.state.mn_dnr import MinnesotaDnrModels
from ras_commander.sources.state.in_dnr import IndianaDnrModels
from ras_commander.sources.state.co_champ import ColoradoChampModels
from ras_commander.sources.federal.noaa_ras2fim import NoaaRas2fimModels
from ras_commander.sources.federal import RasEbfeModels
from ras_commander.sources.county import M3Model

# Shared workspace
DOWNLOAD_ROOT = Path(os.environ.get(
    "RAS_COMMANDER_MODEL_SOURCES_ROOT",
    r"H:\Testing\Model_Sources_Showcase"
))
SCREENSHOT_DIR = DOWNLOAD_ROOT / "screenshots"
DOWNLOAD_ROOT.mkdir(parents=True, exist_ok=True)
SCREENSHOT_DIR.mkdir(parents=True, exist_ok=True)

print(f"Download root: {DOWNLOAD_ROOT}")
print(f"Screenshots:   {SCREENSHOT_DIR}")

Text Only

2026-06-11 14:39:14 - numexpr.utils - INFO - NumExpr defaulting to 8 threads.


Download root: <model-sources-workspace>
Screenshots:   <model-sources-workspace>\screenshots

Python

def find_ras_prj(folder: Path) -> Path:
    """Find the primary HEC-RAS .prj file in a folder (not CRS projection files)."""
    for prj in sorted(folder.rglob("*.prj")):
        try:
            first_line = prj.read_text(encoding="utf-8", errors="ignore").split("\n")[0]
            if first_line.startswith("Proj Title="):
                return prj
        except Exception:
            continue
    return None


def screenshot_and_display(
    prj_path: Path,
    label: str,
    ras_version: str,
    delay: float = 8.0,
) -> Path:
    """Take a RASMapper screenshot and display it inline."""
    png_path = SCREENSHOT_DIR / f"{label}.png"
    print(f"Capturing RASMapper screenshot for {label}...")
    print(f"  .prj: {prj_path}")
    print(f"  RAS version: {ras_version}")

    try:
        result = RasMap.screenshot_model(
            ras_project_path=prj_path,
            output_path=png_path,
            delay_seconds=delay,
            ras_version=ras_version,
        )
    except FileNotFoundError as exc:
        print(f"  Skipped (no .rasmap file): {exc}")
        return None
    except Exception as exc:
        print(f"  Screenshot failed: {exc}")
        return None

    if result and result.exists() and result.stat().st_size > 0:
        print(f"  Saved: {result} ({result.stat().st_size / 1024:.1f} KB)")
        display(Image(filename=str(result), width=800))
        return result
    else:
        print(f"  Screenshot capture failed.")
        return None


print("Helper functions ready.")

Text Only

Helper functions ready.

Unified Catalog

The ModelCatalog auto-registers all available sources. Cross-source search with a single call.

Python

catalog = get_catalog()

print("Registered sources:")
for name in catalog.list_sources(include_unavailable=True):
    status = catalog._source_status.get(name, SourceStatus.UNAVAILABLE)
    print(f"  {name}: {status.value}")

print("\nCross-source search: 'Creek' (limit 3 per source)")
creek_models = catalog.search_models(location="Creek", limit_per_source=3)
print(f"Found {len(creek_models)} models:\n")
for m in creek_models:
    print(f"  [{m.source_name}] {m.name} -- {m.model_type.value}")

Text Only

2026-06-11 14:39:19 - ras_commander.sources.catalog - INFO - Found 2 models from USGS ScienceBase


2026-06-11 14:39:19 - ras_commander.sources.catalog - INFO - Found 0 models from Minnesota DNR


Registered sources:
  USGS ScienceBase: available
  Minnesota DNR: available
  Indiana DNR: available
  Colorado CHAMP: available
  NOAA ras2fim: requires_auth
  FEMA eBFE/BLE: available

Cross-source search: 'Creek' (limit 3 per source)


2026-06-11 14:39:20 - ras_commander.sources.catalog - INFO - Found 0 models from Indiana DNR


2026-06-11 14:39:22 - ras_commander.sources.state.co_champ - INFO - Found 0 models in CHAMP catalog


2026-06-11 14:39:22 - ras_commander.sources.catalog - INFO - Found 0 models from Colorado CHAMP


2026-06-11 14:39:22 - ras_commander.sources.catalog - INFO - Found 0 models from NOAA ras2fim


2026-06-11 14:39:22 - ras_commander.sources.catalog - INFO - Found 1 models from FEMA eBFE/BLE


Found 3 models:

  [USGS ScienceBase] Kalamazoo River, MI -- 2D unsteady
  [USGS ScienceBase] St. Joseph River, Elkhart, IN -- 1D steady
  [FEMA eBFE/BLE] SpringCreek_12040102 -- 2D unsteady

---

Source 1: USGS ScienceBase -- Kalamazoo River, MI

Peer-reviewed 2D unsteady model (HEC-RAS 6.6, ~3 GB). DOI: 10.5066/P13CPA5B.

21 plans with HDF outputs, ADCP velocity and WSE calibration data.

Python

# List ScienceBase catalog
sb_models = UsgsScienceBase.list_catalog_models()
for m in sb_models:
    print(f"{m.name} -- {m.model_type.value}, v{m.hecras_version}, DOI: {m.doi}")

Text Only

Kalamazoo River, MI -- 2D unsteady, v6.6, DOI: 10.5066/P13CPA5B
St. Joseph River, Elkhart, IN -- 1D steady, v4.10, DOI: 10.5066/F7QZ2836

Python

# Download Kalamazoo River (USGS ScienceBase) — ~3 GB, may take several minutes
sb_result = UsgsScienceBase.download_model(
    "kalamazoo",
    output_dir=DOWNLOAD_ROOT / "usgs",
)
sb_prj = find_ras_prj(sb_result) if sb_result else None
print(f"USGS prj: {sb_prj}")

Text Only

USGS prj: <model-sources-workspace>\usgs\kalamazoo\hec_ras_model\kalamazoo_trowbridg.prj

Python

if sb_prj:

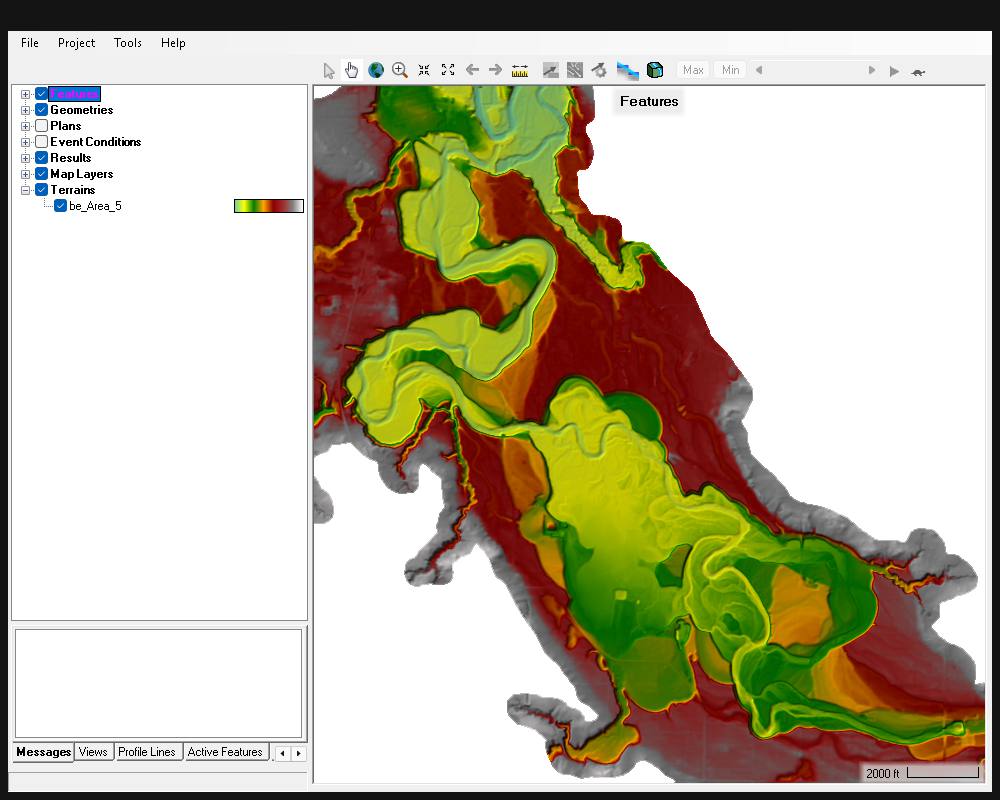

    screenshot_and_display(sb_prj, "01_USGS_ScienceBase_Kalamazoo", ras_version="7.0")

Text Only

Capturing RASMapper screenshot for 01_USGS_ScienceBase_Kalamazoo...
  .prj: <model-sources-workspace>\usgs\kalamazoo\hec_ras_model\kalamazoo_trowbridg.prj
  RAS version: 7.0


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 7.0 at <hec-ras-install>\7.0\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 5 at <hec-ras-install>\6.7 Beta 5\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 4 at <hec-ras-install>\6.7 Beta 4\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.6 at <hec-ras-install>\6.6\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.5 at <hec-ras-install>\6.5\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.4.1 at <hec-ras-install>\6.4.1\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3.1 at <hec-ras-install>\6.3.1\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3 at <hec-ras-install>\6.3\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.2 at <hec-ras-install>\6.2\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.1 at <hec-ras-install>\6.1\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.0 at <hec-ras-install>\6.0\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.7 at <hec-ras-install>\5.0.7\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.6 at <hec-ras-install>\5.0.6\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.5 at <hec-ras-install>\5.0.5\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.4 at <hec-ras-install>\5.0.4\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.3 at <hec-ras-install>\5.0.3\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.1 at <hec-ras-install>\5.0.1\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0 at <hec-ras-install>\5.0\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.1.0 at <hec-ras-install>\4.1.0\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.0 at <hec-ras-install>\4.0\Ras.exe via filesystem (x86)


2026-06-11 14:39:25 - ras_commander.RasUtils - INFO - Discovered 20 installed HEC-RAS version(s)


2026-06-11 14:39:25 - ras_commander.RasPrj - INFO - HEC-RAS 7.0 found via version discovery: <hec-ras-install>\7.0\Ras.exe


2026-06-11 14:39:40 - ras_commander.gui.screenshots - INFO - Screenshot saved: <model-sources-workspace>\screenshots\01_USGS_ScienceBase_Kalamazoo.png


2026-06-11 14:39:40 - ras_commander.RasMap - INFO - Screenshot saved to <model-sources-workspace>\screenshots\01_USGS_ScienceBase_Kalamazoo.png


  Saved: <model-sources-workspace>\screenshots\01_USGS_ScienceBase_Kalamazoo.png (424.5 KB)

---

Source 2: Minnesota DNR -- Chester Creek

~2,384 FEMA floodplain HEC-RAS models across 67 MN counties, all 1D steady-state.

Chester Creek (St. Louis County) is a multi-geometry model built with HEC-RAS 5.0.3.

Note: MN DNR models are 1D steady-state (HEC-RAS 4.x/5.x), which predate the RASMapper .rasmap convention. Screenshots are not available for this source.

Python

# Query MN DNR catalog
mn_counties = MinnesotaDnrModels.list_counties()
print(f"MN DNR: {len(mn_counties)} counties")

mn_models = MinnesotaDnrModels.list_models(location="St. Louis", limit=5)
print(f"St. Louis County models (up to 5): {len(mn_models)}")
for m in mn_models:
    print(f"  {m.name} -- {m.source_id}")

Text Only

MN DNR: 67 counties
St. Louis County models (up to 5): 0

Python

# Download Chester Creek (MN DNR)
# Search the full catalog by name — location-based filtering is unreliable
# when the API county name format changes.
mn_all = MinnesotaDnrModels.list_models(limit=100)
chester = [m for m in mn_all if "Chester" in m.name]
mn_prj = None
if chester:
    mn_model = chester[0]
elif mn_models:
    mn_model = mn_models[0]
else:
    mn_model = mn_all[0] if mn_all else None

if mn_model:
    mn_result = MinnesotaDnrModels.download_model(
        mn_model.source_id,
        output_folder=DOWNLOAD_ROOT / "mn_dnr",
    )
    mn_prj = find_ras_prj(mn_result.model_path) if mn_result and mn_result.success else None
    print(f"MN DNR model: {mn_model.name}")
else:
    print("MN DNR: no models available")
print(f"MN DNR prj: {mn_prj}")

Text Only

MN DNR model: trott_brook_trib1_ras
MN DNR prj: <model-sources-workspace>\mn_dnr\trott_brook_trib1_ras\trott_brook_trib1_ras.prj

Python

if mn_prj:
    screenshot_and_display(mn_prj, "02_MN_DNR_Chester_Creek", ras_version="7.0")

Text Only

Capturing RASMapper screenshot for 02_MN_DNR_Chester_Creek...
  .prj: <model-sources-workspace>\mn_dnr\trott_brook_trib1_ras\trott_brook_trib1_ras.prj
  RAS version: 7.0
  Skipped (no .rasmap file): RASMapper file not found: <model-sources-workspace>\mn_dnr\trott_brook_trib1_ras\trott_brook_trib1_ras.rasmap

---

Source 3: Indiana DNR -- Fall Creek Trail Bridge

~11,400 models across 92 IN counties (largest single state source).

Fall Creek Trail Bridge (Hamilton County) is a 1D steady model with 4 plans, built with HEC-RAS 5.0.7.

Note: IN DNR models are 1D steady-state (HEC-RAS 4.x/5.x), which predate the RASMapper .rasmap convention. Screenshots are not available for this source.

Python

# Query IN DNR catalog
in_counties = IndianaDnrModels.list_counties()
print(f"IN DNR: {len(in_counties)} counties")

in_models = IndianaDnrModels.list_models(location="Hamilton", limit=5)
print(f"Hamilton County models (up to 5): {len(in_models)}")
for m in in_models:
    print(f"  {m.name} -- ID: {m.source_id}, {m.model_type.value}")

Text Only

IN DNR: 92 counties


Hamilton County models (up to 5): 5
  Long Branch - Hamilton Co - (PERMIT) -- ID: 4770, 1D steady
  Little Cicero Creek - Hamilton Co - (FARA) -- ID: 5709, 1D steady
  Taylor Creek - Hamilton Co - (APPROX_ZoneA) -- ID: 5884, 1D steady
  Taylor Creek - Hamilton Co - (APPROX_ZoneA) -- ID: 5884, 1D steady
  Bennett Ditch - Hamilton Co - (APPROX_ZoneA) -- ID: 5892, 1D steady

Python

# Download Fall Creek Trail Bridge (IN DNR — Hamilton County)
fall_creek = [m for m in IndianaDnrModels.list_models(location="Hamilton") if "Fall Creek" in m.name]
in_model = fall_creek[0] if fall_creek else in_models[0]
in_result = IndianaDnrModels.download_model(
    in_model.source_id,
    output_folder=DOWNLOAD_ROOT / "in_dnr",
)
in_prj = find_ras_prj(in_result.model_path) if in_result and in_result.success else None
print(f"IN DNR prj: {in_prj}")

Text Only

IN DNR prj: <model-sources-workspace>\in_dnr\IN_DNR_6234\FallCreek.prj

Python

if in_prj:
    screenshot_and_display(in_prj, "03_IN_DNR_Fall_Creek", ras_version="7.0")

Text Only

Capturing RASMapper screenshot for 03_IN_DNR_Fall_Creek...
  .prj: <model-sources-workspace>\in_dnr\IN_DNR_6234\FallCreek.prj
  RAS version: 7.0
  Skipped (no .rasmap file): RASMapper file not found: <model-sources-workspace>\in_dnr\IN_DNR_6234\FallCreek.rasmap

---

Source 4: Colorado CHAMP

Small CWCB CHAMP catalog (~3 downloadable entries). Catalog contents change over time; some entries are non-HEC-RAS studies (HMS hydrology models, shapefiles only). The download cell iterates through available entries until one containing a valid HEC-RAS project is found.

Python

# Query CHAMP catalog
co_models = ColoradoChampModels.list_models()
print(f"Colorado CHAMP models: {len(co_models)}")
for m in co_models:
    size = f"{m.file_size_mb:.1f} MB" if m.file_size_mb else "unknown"
    print(f"  {m.name} -- {m.model_type.value} ({size})")

Text Only

2026-06-11 14:39:43 - ras_commander.sources.state.co_champ - INFO - Found 3 models in CHAMP catalog


Colorado CHAMP models: 3
  CHAMP Y1 Hydro TSDN - Big Thompson -- 1D steady (31.9 MB)
  St. Vrain Hydraulics TSDN -- 1D steady (717.2 MB)
  Lake City/Hinsdale County Hydraulic Models -- 1D steady (0.6 MB)

Python

# Download first CO CHAMP entry that contains a HEC-RAS project.
# Some catalog entries are non-HEC-RAS studies (HMS models, shapefiles only);
# iterate until find_ras_prj() succeeds.
co_prj = None
for co_model in co_models:
    co_result = ColoradoChampModels.download_model(
        co_model.source_id,
        output_folder=DOWNLOAD_ROOT / "co_champ",
    )
    if co_result and co_result.success:
        co_prj = find_ras_prj(co_result.model_path)
        if co_prj:
            print(f"CO CHAMP model: {co_model.name}")
            break
        print(f"  {co_model.name}: no HEC-RAS project found, trying next")
if not co_prj:
    print("CO CHAMP: no models with HEC-RAS content found in catalog")
print(f"CO CHAMP prj: {co_prj}")

Text Only

  CHAMP Y1 Hydro TSDN - Big Thompson: no HEC-RAS project found, trying next


CO CHAMP model: St. Vrain Hydraulics TSDN
CO CHAMP prj: <model-sources-workspace>\co_champ\St_Vrain_Hydraulics_TSDN\StVrain_RiskMAP_HydraulicsTSDN\Stream_Name\NSVC_RM2\Simulations\NSVC_RM.prj

Python

if co_prj:
    screenshot_and_display(co_prj, "04_CO_CHAMP_Henson_Creek", ras_version="7.0")

Text Only

2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 7.0 at <hec-ras-install>\7.0\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 5 at <hec-ras-install>\6.7 Beta 5\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 4 at <hec-ras-install>\6.7 Beta 4\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.6 at <hec-ras-install>\6.6\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.5 at <hec-ras-install>\6.5\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.4.1 at <hec-ras-install>\6.4.1\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3.1 at <hec-ras-install>\6.3.1\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3 at <hec-ras-install>\6.3\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.2 at <hec-ras-install>\6.2\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.1 at <hec-ras-install>\6.1\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.0 at <hec-ras-install>\6.0\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.7 at <hec-ras-install>\5.0.7\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.6 at <hec-ras-install>\5.0.6\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.5 at <hec-ras-install>\5.0.5\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.4 at <hec-ras-install>\5.0.4\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.3 at <hec-ras-install>\5.0.3\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.1 at <hec-ras-install>\5.0.1\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0 at <hec-ras-install>\5.0\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.1.0 at <hec-ras-install>\4.1.0\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.0 at <hec-ras-install>\4.0\Ras.exe via filesystem (x86)


2026-06-11 14:40:30 - ras_commander.RasUtils - INFO - Discovered 20 installed HEC-RAS version(s)


2026-06-11 14:40:30 - ras_commander.RasPrj - INFO - HEC-RAS 7.0 found via version discovery: <hec-ras-install>\7.0\Ras.exe


Capturing RASMapper screenshot for 04_CO_CHAMP_Henson_Creek...
  .prj: <model-sources-workspace>\co_champ\St_Vrain_Hydraulics_TSDN\StVrain_RiskMAP_HydraulicsTSDN\Stream_Name\NSVC_RM2\Simulations\NSVC_RM.prj
  RAS version: 7.0


2026-06-11 14:40:39 - ras_commander.gui.screenshots - INFO - Screenshot saved: <model-sources-workspace>\screenshots\04_CO_CHAMP_Henson_Creek.png


2026-06-11 14:40:39 - ras_commander.RasMap - INFO - Screenshot saved to <model-sources-workspace>\screenshots\04_CO_CHAMP_Henson_Creek.png


  Saved: <model-sources-workspace>\screenshots\04_CO_CHAMP_Henson_Creek.png (29.1 KB)

---

Source 5: FEMA eBFE/BLE -- Spring Creek

Large 2D unsteady models from FEMA's BLE program. Spring Creek (HUC 12040102) is organized via RasEbfeModels.organize_model() into the standard delivery format.

See notebooks 950-957 for detailed eBFE workflows.

Python

# List available eBFE models
seen = set()
for alias, canonical in sorted(RasEbfeModels._MODEL_ALIASES.items()):
    if canonical not in seen:
        seen.add(canonical)
        print(f"  {canonical}")
print(f"\nTotal eBFE models: {len(seen)}")

Text Only

  lower-ouachita-bayou-deloutre
  bayou-darbonne
  lower-ouachita
  boeuf
  amite
  tickfaw
  lake-maurepas
  spring-river
  eleven-point
  spring-creek
  north-galveston-bay
  lower-brazos
  lower-colorado-cummins
  upper-guadalupe
  rio-hondo

Total eBFE models: 15

Python

# Organize Spring Creek eBFE model (downloads + fixes broken paths automatically)
ebfe_result = RasEbfeModels.download_model(
    "spring-creek",
    output_folder=DOWNLOAD_ROOT / "ebfe",
)
if ebfe_result.success and ebfe_result.model_path:
    ebfe_ras_dir = ebfe_result.model_path / "RAS Model"
    ebfe_prj = find_ras_prj(ebfe_ras_dir) or find_ras_prj(ebfe_result.model_path)
else:
    ebfe_prj = None
print(f"eBFE prj: {ebfe_prj}")

Text Only

Organizing Spring Creek (12040102) - Pattern 3a
Source: ebfe_downloads\12040102_Models_extracted
Output: <model-sources-workspace>\ebfe\SpringCreek_12040102

Source data not found - downloading from eBFE S3...

Downloading Spring Creek Models (9.7 GB)...
  URL: https://ebfedata.s3.amazonaws.com/12040102_Spring/12040102_Models.zip
  Destination: ebfe_downloads\12040102_Models.zip
  Downloading Spring Creek Models (9.7 GB)...



    12040102_Models.zip:   0%|          | 0.00/10.4G [00:00<?, ?B/s]


  ✓ Downloaded 10.4 GB

Extracting Spring Creek Models (9.7 GB)...



  Extracting:   0%|          | 0.00/10.4G [00:00<?, ?B/s]


  ✓ Extracted to: ebfe_downloads\12040102_Models_extracted
[1/5] Extracting nested _Final.zip...
  Extracting 9.67 GB nested zip (may take 5-10 minutes)...


  ✓ Extracted

[2/5] Organizing RAS Model...


  ✓ Organized 79 files

[3/5] Organizing Spatial Data...


  ✓ Copied Terrain/
  ✓ Copied Features/


  ✓ Copied Shp/

[4/6] Organizing Documentation...
  ✓ Copied inventory

[5/6] Correcting all file paths to relative references...
    Found 2 DSS file(s)
      - Spring.dss
      - DSS Inputs\Spring.dss
    Corrected: Backup.u01
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\100YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Backup.u01
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\500YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u01
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\100YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u02
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\100YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u02
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\500YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u03
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\100YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u03
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\100YR_PLUS.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss


    Corrected: Spring.u04
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\100YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u04
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\25YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u05
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\100YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u05
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\50YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u06
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\100YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u06
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\01__MINUS.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u07
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\100YR.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss
    Corrected: Spring.u07
      Old: DSS File=..\..\..\..\HEC-HMS_v43\Spring\10_ACE.dss
      New: DSS File=.\DSS Inputs\Spring.dss
      Verified: File exists at <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\DSS Inputs\Spring.dss


2026-06-11 14:47:28 - ras_commander.RasUtils - INFO - Searching for HEC-RAS projects in: <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model


2026-06-11 14:47:28 - ras_commander.RasUtils - INFO - Found 1 valid HEC-RAS project folders


  ✓ Corrected 8 DSS path(s)
  ✓ Corrected 0 terrain path(s)
  ✓ Standardized 1 RAS project folder(s)

[6/6] Validating DSS files...
  Found 2 DSS file(s)

  Validating: Spring.dss
Configuring Java VM for DSS operations...


  Found Java: <hec-install>\HEC-Vortex\0.13.3\jre
[OK] Java VM configured


    Pathnames: 692
    ✓ Format OK (0 warnings)

  Validating: Spring.dss


    Pathnames: 692
    ✓ Format OK (0 warnings)

✓ Spring Creek organized to: <model-sources-workspace>\ebfe\SpringCreek_12040102

See <model-sources-workspace>\ebfe\SpringCreek_12040102\agent\model_log.md for details
eBFE prj: <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\Spring.prj

Python

if ebfe_prj:
    screenshot_and_display(ebfe_prj, "05_eBFE_Spring_Creek", ras_version="7.0")

Text Only

Capturing RASMapper screenshot for 05_eBFE_Spring_Creek...
  .prj: <model-sources-workspace>\ebfe\SpringCreek_12040102\RAS Model\Spring.prj
  RAS version: 7.0


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 7.0 at <hec-ras-install>\7.0\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 5 at <hec-ras-install>\6.7 Beta 5\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.7 Beta 4 at <hec-ras-install>\6.7 Beta 4\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.6 at <hec-ras-install>\6.6\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.5 at <hec-ras-install>\6.5\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.4.1 at <hec-ras-install>\6.4.1\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3.1 at <hec-ras-install>\6.3.1\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.3 at <hec-ras-install>\6.3\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.2 at <hec-ras-install>\6.2\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.1 at <hec-ras-install>\6.1\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 6.0 at <hec-ras-install>\6.0\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.7 at <hec-ras-install>\5.0.7\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.6 at <hec-ras-install>\5.0.6\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.5 at <hec-ras-install>\5.0.5\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.4 at <hec-ras-install>\5.0.4\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.3 at <hec-ras-install>\5.0.3\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0.1 at <hec-ras-install>\5.0.1\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 5.0 at <hec-ras-install>\5.0\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.1.0 at <hec-ras-install>\4.1.0\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered HEC-RAS 4.0 at <hec-ras-install>\4.0\Ras.exe via filesystem (x86)


2026-06-11 14:47:37 - ras_commander.RasUtils - INFO - Discovered 20 installed HEC-RAS version(s)


2026-06-11 14:47:37 - ras_commander.RasPrj - INFO - HEC-RAS 7.0 found via version discovery: <hec-ras-install>\7.0\Ras.exe


2026-06-11 14:47:48 - ras_commander.gui.screenshots - INFO - Screenshot saved: <model-sources-workspace>\screenshots\05_eBFE_Spring_Creek.png


2026-06-11 14:47:48 - ras_commander.RasMap - INFO - Screenshot saved to <model-sources-workspace>\screenshots\05_eBFE_Spring_Creek.png


  Saved: <model-sources-workspace>\screenshots\05_eBFE_Spring_Creek.png (357.9 KB)

---

Source 6: Harris County M3 -- Brays Bayou

20 FEMA-effective H&H models for Houston-area watersheds. All 1D steady (HEC-RAS 3.0.1).

Note: HEC-RAS 3.0.1 predates RASMapper -- no .rasmap file is included and screenshots are not available for this source.

Python

# List M3 models
m3_df = M3Model.list_models(as_dataframe=True)
print(f"Harris County M3 Models: {len(m3_df)}\n")
print(m3_df[['name', 'description', 'effective_date', 'size_gb']].to_string(index=True))

Text Only

Harris County M3 Models: 22

                            name                              description effective_date  size_gb
0                    Clear Creek                   Clear Creek H&H Models     2022-05-05     0.03
1                   Armand Bayou                  Armand Bayou H&H Models     2022-05-05     0.04
2                     Sims Bayou                    Sims Bayou H&H Models     2022-05-05     0.01
3                    Brays Bayou                   Brays Bayou H&H Models     2022-05-05     0.03
4                White Oak Bayou               White Oak Bayou H&H Models     2023-01-30     0.02
5      San Jacinto/Galveston Bay     San Jacinto/Galveston Bay H&H Models     2022-05-05     0.01
6              San Jacinto River             San Jacinto River H&H Models     2022-05-05     0.09
7                  Hunting Bayou                 Hunting Bayou H&H Models     2022-05-05     0.01
8                    Vince Bayou                   Vince Bayou H&H Models     2022-05-05     0.01
9                   Spring Creek                  Spring Creek H&H Models     2022-05-05     0.06
10                 Cypress Creek                 Cypress Creek H&H Models     2022-05-05     0.04
11          Little Cypress Creek          Little Cypress Creek H&H Models     2022-05-05     0.03
12                  Willow Creek                  Willow Creek H&H Models     2023-01-30     0.05
13              Carpenters Bayou              Carpenters Bayou H&H Models     2022-05-05     0.01
14  Spring Gully and Goose Creek  Spring Gully and Goose Creek H&H Models     2022-05-05     0.01
15                  Greens Bayou                  Greens Bayou H&H Models     2024-03-04     0.02
16                   Cedar Bayou                   Cedar Bayou H&H Models     2022-05-05     0.02
17                 Jackson Bayou                 Jackson Bayou H&H Models     2022-05-05     0.01
18                    Luce Bayou                    Luce Bayou H&H Models     2022-05-05     0.01
19                        Barker                        Barker H&H models     2022-05-05     0.01
20                       Addicks                       Addicks H&H Models     2022-05-05     0.08
21                 Buffalo Bayou                 Buffalo Bayou H&H Models     2022-05-05     0.03

Python

# Download Brays Bayou (Harris County M3 — model D)
# M3 delivers sub-reach models as nested zips; extract inner archives after outer.
import zipfile as _zipfile

m3_path = M3Model.extract_model("D", output_path=DOWNLOAD_ROOT / "m3")
m3_prj = None
if m3_path:
    for inner_zip in m3_path.rglob("*.zip"):
        dest = inner_zip.parent / inner_zip.stem
        if not dest.exists():
            try:
                with _zipfile.ZipFile(inner_zip, "r") as zf:
                    zf.extractall(dest)
                print(f"  Extracted: {inner_zip.name}")
            except _zipfile.BadZipFile:
                pass
    m3_prj = find_ras_prj(m3_path)
print(f"M3 prj: {m3_prj}")

Text Only

M3 prj: <model-sources-workspace>\m3\Brays Bayou\HEC-RAS\D100-00-00\D100-00-00.prj

Python

if m3_prj:
    screenshot_and_display(m3_prj, "06_M3_Brays_Bayou", ras_version="7.0")

Text Only

Capturing RASMapper screenshot for 06_M3_Brays_Bayou...
  .prj: <model-sources-workspace>\m3\Brays Bayou\HEC-RAS\D100-00-00\D100-00-00.prj
  RAS version: 7.0
  Skipped (no .rasmap file): RASMapper file not found: <model-sources-workspace>\m3\Brays Bayou\HEC-RAS\D100-00-00\D100-00-00.rasmap

---

Source 7: NOAA ras2fim (Catalog Only)

NWM-aligned 1D models on S3 (noaa-nws-owp-fim). Full access requires boto3 with AWS credentials; without it, a hardcoded registry is returned.

Python

noaa_status = NoaaRas2fimModels.get_source_status()
print(f"NOAA ras2fim status: {noaa_status.value}")

try:
    import boto3
    print("boto3: available")
except ImportError:
    print("boto3: not installed (using hardcoded registry)")

noaa_models = NoaaRas2fimModels.list_models(limit=5)
print(f"\nNOAA ras2fim models (up to 5): {len(noaa_models)}")
for m in noaa_models:
    print(f"  {m.name} -- HUC8: {m.location}, {m.model_type.value}")

Text Only

NOAA ras2fim status: requires_auth
boto3: not installed (using hardcoded registry)

NOAA ras2fim models (up to 5): 5
  NOAA ras2fim HUC 03100204 -- HUC8: 03100204, 1D steady
  NOAA ras2fim HUC 12090301 -- HUC8: 12090301, 1D steady
  NOAA ras2fim HUC 12040102 -- HUC8: 12040102, 1D steady
  NOAA ras2fim HUC 08070202 -- HUC8: 08070202, 1D steady
  NOAA ras2fim HUC 11010011 -- HUC8: 11010011, 1D steady

---

Screenshot Gallery

Collect all captured screenshots into a summary gallery.

Python

# Display all captured screenshots
screenshots = sorted(SCREENSHOT_DIR.glob("*.png"))
print(f"Screenshots captured: {len(screenshots)}\n")

for png in screenshots:
    label = png.stem.replace("_", " ")
    size_kb = png.stat().st_size / 1024
    print(f"--- {label} ({size_kb:.0f} KB) ---")
    display(Image(filename=str(png), width=700))
    print()

Text Only

Screenshots captured: 3

--- 01 USGS ScienceBase Kalamazoo (425 KB) ---



--- 04 CO CHAMP Henson Creek (29 KB) ---



--- 05 eBFE Spring Creek (358 KB) ---

---

Summary

Source	Model	Version	Type	Screenshot
USGS ScienceBase	Kalamazoo River, MI	6.6	2D Unsteady	Yes
Minnesota DNR	Chester Creek	5.0.3	1D Steady	No (pre-RASMapper)
Indiana DNR	Fall Creek Trail Bridge	5.0.7	1D Steady	No (pre-RASMapper)
Colorado CHAMP	First HEC-RAS entry	varies	1D Steady	Yes (when found)
FEMA eBFE/BLE	Spring Creek	5.0.7	2D Unsteady	Yes
Harris County M3	Brays Bayou	3.0.1	1D Steady	No (pre-RASMapper)
NOAA ras2fim	(catalog only)	--	1D Steady	No (S3 only)

Sources 1 and 5 (2D models with .rasmap files) produce terrain screenshots via RasMap.screenshot_model(). Sources 2, 3, and 6 are 1D steady-state models predating RASMapper; source 4 (CO CHAMP) screenshots when a HEC-RAS project is found in the catalog.
