Command Line is All You Need¶
Why We Stopped Controlling HEC-RAS and Started Commanding It.
Why is it called RAS "Commander"?¶
Well, first, thanks for asking! There is a good reason. We built the entire automation library from a small idea: that the HECRASController, the built-in automation API, was not suitable for 2D modeling due to its forceful override of the num_cores setting.

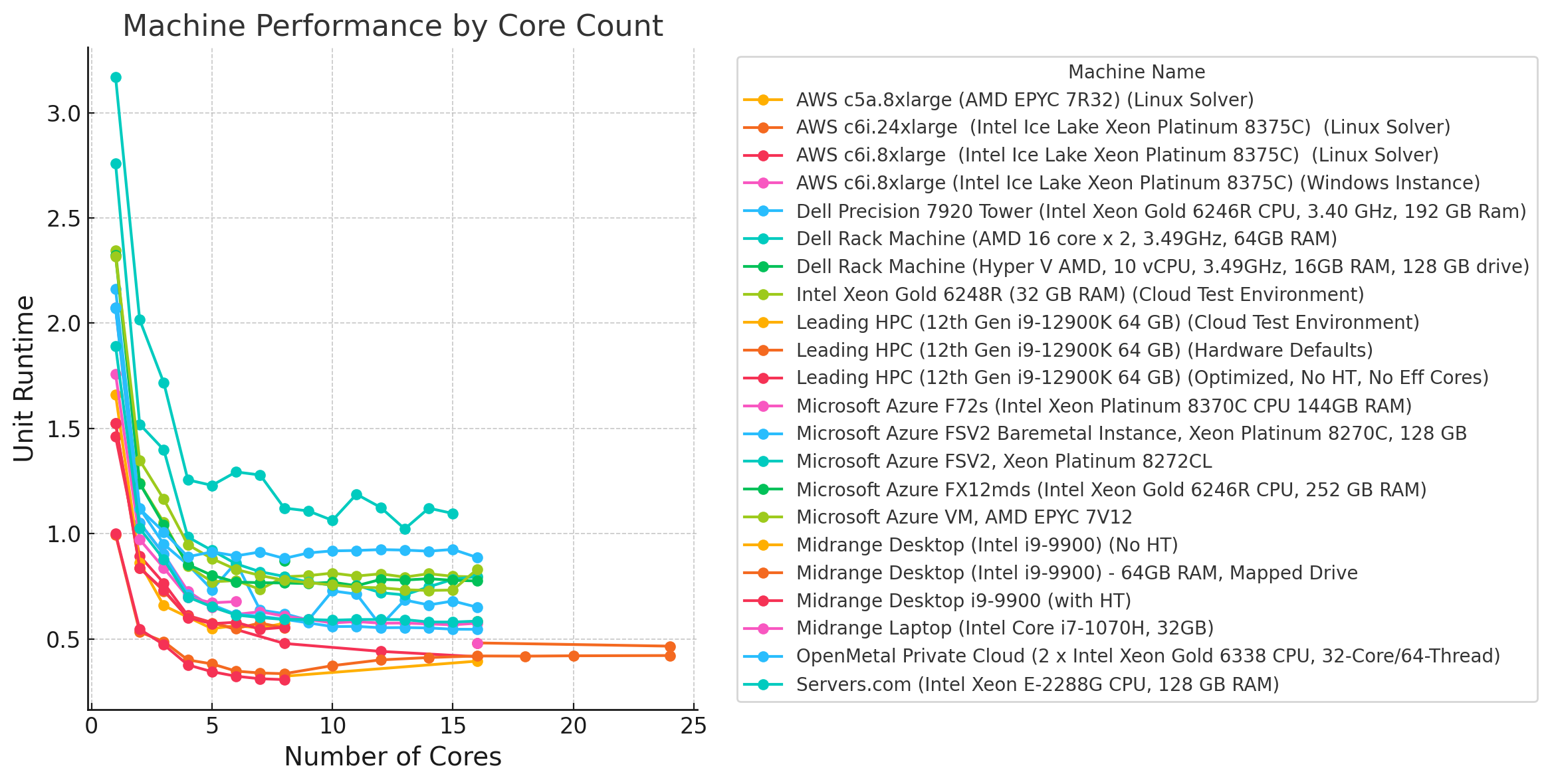

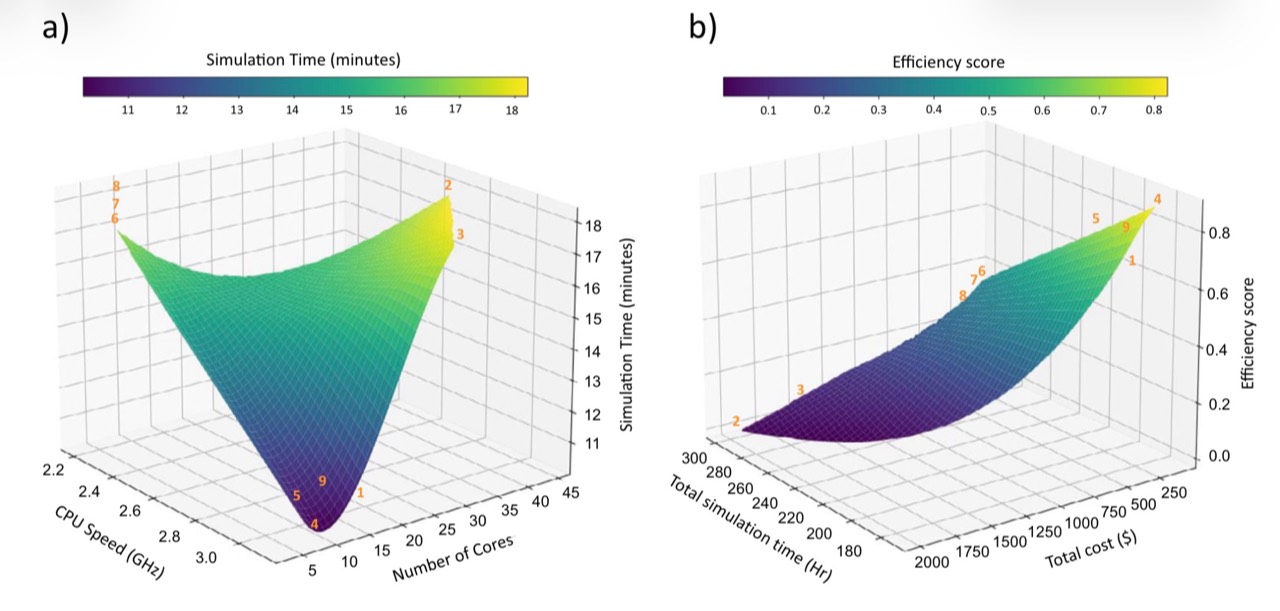

What is the significance of the num_cores setting? Well, that is still officially the subject of some debate and discovery, but in my world this has been beaten like a dead horse and is a closed matter -- so much so that I built an entire automation library around the concept rather than debate it. Benchmarking Is All You Need is a great snapshot of benchmarks, and Sabeti et al. (2024) later provided academic support for the same basic finding, showing the same single-run core-scaling behavior, with 8 cores outperforming both lower and higher core counts (p. 8). I have still yet to see any results that significantly diverge from it, other than minor differences in the shape of the long tail before seeing degradation. The current Version Benchmarking and Core Scaling notebook carries the reproducible approach forward by sweeping the same 2D plan across HEC-RAS 6.0, 6.3.1, 6.6, and 7.0 at explicit core counts. The basic chip interconnects, designs, and fundamental limitations of the solver approaches likely won't change in the 6--7.x series, and those findings should hold as a general rule against any actual published inventory of regulatory models. If the future of modeling is probabilistic, and standard desktop hardware is multicore (4+ cores), your software needs parallel execution.
RAS Now Lets You Test It Yourself¶
HEC-RAS 7.0 added an official Run Multiple Plans core-exploration workflow. It can take the same base plan, create trials at varying core counts, execute them sequentially, and plot the resulting runtime curve. That is a meaningful signal: HEC has now explicitly recognized that num_cores is significant, model-specific, and worth benchmarking instead of blindly accepting "All Available."
But that doesn’t mean RAS can parallelize yet. The new 7.0 feature runs the trials serially, and the published material for RAS 7.0 and RAS "2025" still does not put concurrent multi-simulation orchestration on the roadmap. The RAS "2025" quick-start material discusses the possibility of dynamically adding and removing cores within a simulation in the future, but not running independent plans concurrently.
For engineers who need to protect the public today -- not at some nebulous point in the future -- RAS Commander's command-line approach will continue to be the best tool for parallel analysis.
The default software behavior still hasn't changed where it matters for throughput. You still get "All Cores" and have no parallelization available by default other than manual folder copying and results-file copy-back. Try to do it through the HECRASController's COM interface and you will find it only supports one instance. Parallelization was impossible under the currently supported technical paradigm. Anything built on that tech stack has the same limitations. Only RAS Commander was built around a different method -- an obscure one that you would only find by attempting to run Ras.exe from the command line:
This is the single most useful thing for HEC-RAS’s automation: headless execution without opening the main RAS window, and without instantiating the COM interface that overrides num_cores. It has been sitting in plain sight since at least the 5.x series. And no one I talked to was using it.
Command Line is All You Need¶
Turns out, once you really dig in, you realize how outdated COM interfaces are, and you realize that there are zero 2D features in the HECRASController, and it actively prevents you from running large 2D models efficiently. It's fair to say that the standard practice of using this automation method for large 2D models was poorly suited for purpose, and the -c flag was preferable. So instead of "controlling" RAS -- AKA using the flawed interface/API we are given, which requires controlling a live instance and giving commands in sequence -- we "command" RAS: only calling it to run the computation, using its own headless compute mode available via command line. We never touch a COM interface, and we just read and write the plaintext files directly, or HDF results files directly. It is a simpler, more modern approach that uses RAS's own command-line flags.
RAS Commander is built on this approach. It comes with some radical concepts: that the HECRASController is not a good choice for large 2D models; that building a better way and making it easier and more robust than any other current offering would be a more fruitful path than publishing more data or trying to educate the experts. Any and all efforts are sourced from my own personal time, and I prefer to spend my time building rather than persuading.
To use a colloquialism: If you're out in the field braying and arguing with a bunch of mules, what does that make you?
Nothing worth doing ever waited for consensus -- consensus is a lagging indicator, not a leading one. The leading indicator is the one we were staring at: 70% throughput improvements on single machines, and running up to 40 parallel simulations at a time without clouds or containers (and beating their performance by 250% or more by keeping simulations local). The performance advantage was frankly absurd.
We applied this approach in Region 4 of the Louisiana Watershed Initiative with great success. This is exactly the type of statewide effort that can't scale effectively due to the massive costs and effort associated with doing even the current base-level engineering and regulatory work -- much less going above and beyond. The friction associated with modeling is a real constraint for development, and any efforts to improve stormwater management also can't double or triple the cost of modeling those developments.
Technology is a barrier to progress, and continues to be.
Our tools don’t fit the scope of the work that doesn’t just “need” to be done -- it MUST be done if we want to more effectively protect communities from flood hazard.
Then came LLMs¶
The great irony here is that the command-line approach was already there. Our 32/64-bit, updated-but-outdated lovely mess that is RAS 5 through 7 lacked a reliable published Python API, because they all relied on the unreliable COM API. Once LLMs arrived, the Attention Is All You Need paper became a meme, and I adopted it for my HEC-RAS work. Because in my world, Command Line is All You Need.
Of course, we still support the COM interface for older versions. It is perfectly serviceable for 1D finite-difference models without long runtimes. Anything that has significant runtimes and may require multiple results -- any library built on the HECRASController -- will be fundamentally limited by that interface. For those situations, even if you don't use RAS Commander, a "Command Line is All You Need" approach (AKA just run Ras.exe with the -c flag) makes a lot more sense.
And the best part about it is that Command Line really is all you need these days. Software development generally has been totally disrupted by command-line coding agents. It's not just HEC-RAS being disrupted by an LLM on a command line.
RAS Commander is our proof that HEC-RAS can be faster, simpler, and more scalable today—and that many of our technical limitations are not immutable. We can get a lot further by working openly together to protect the public.
